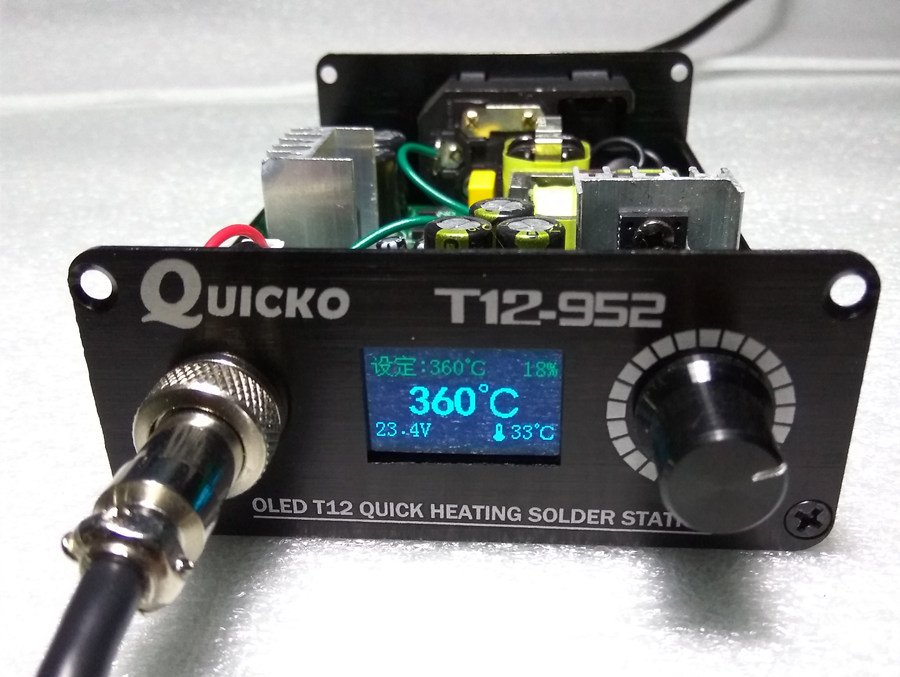

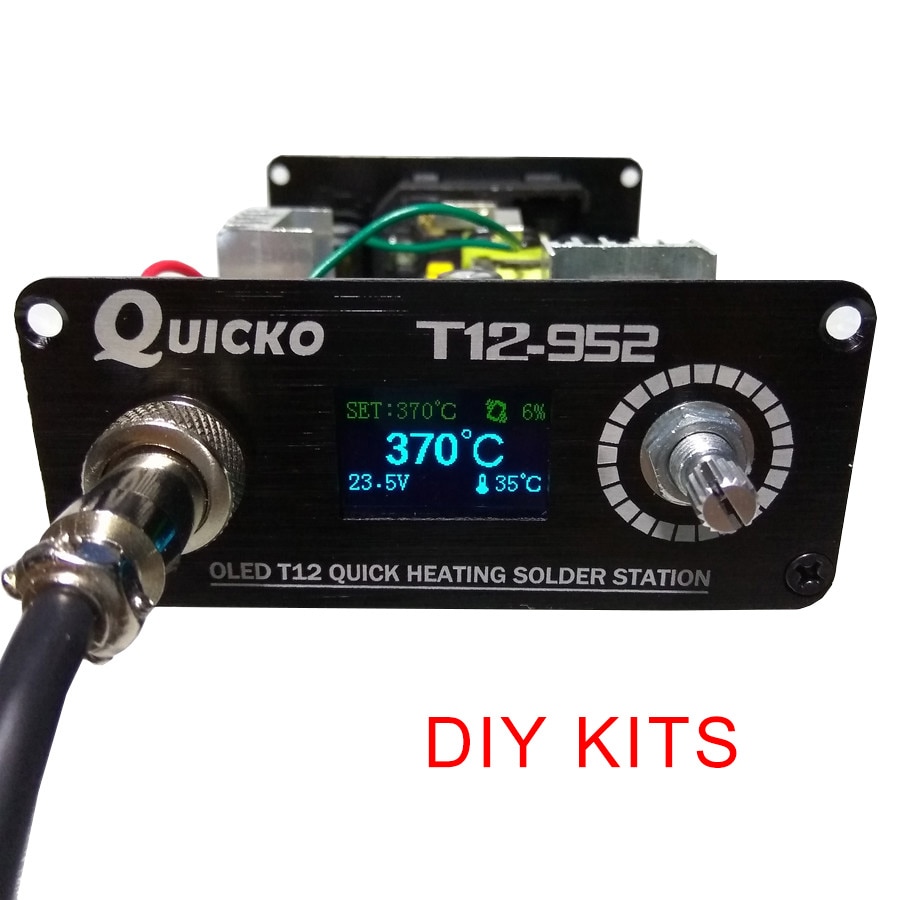

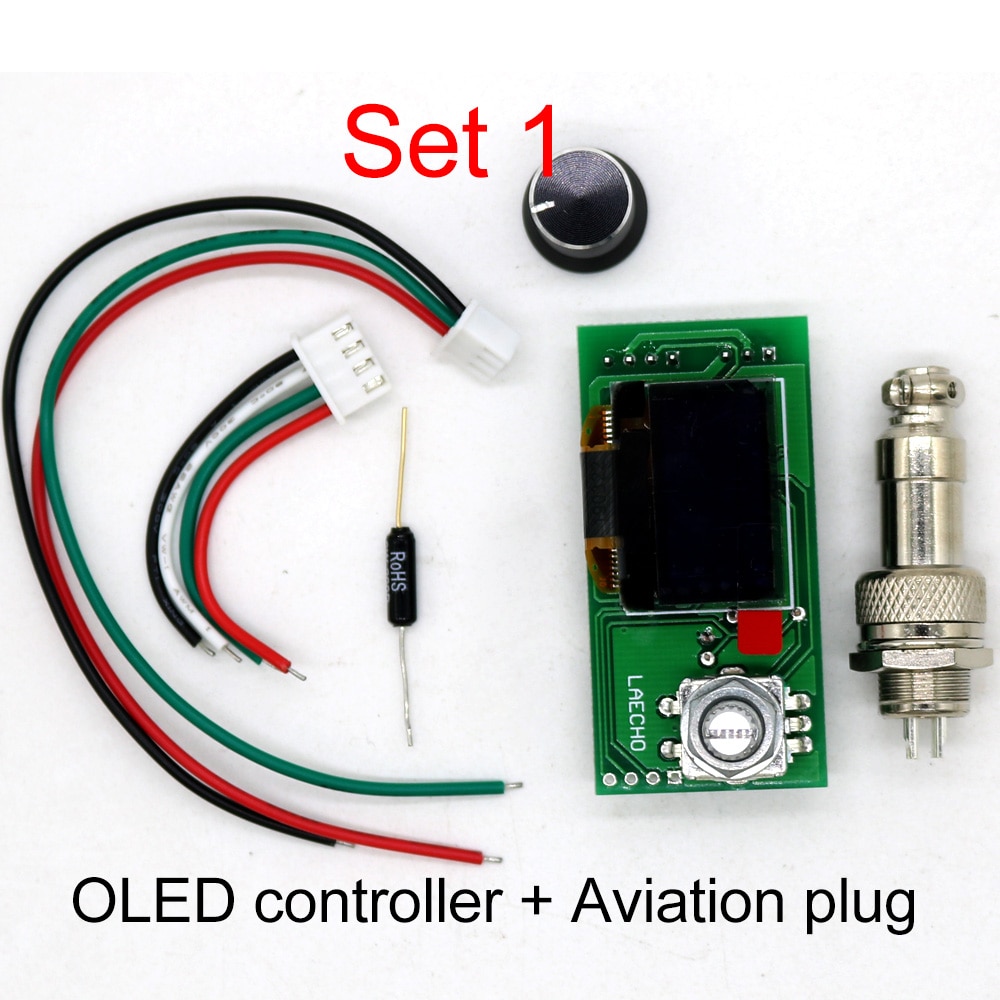

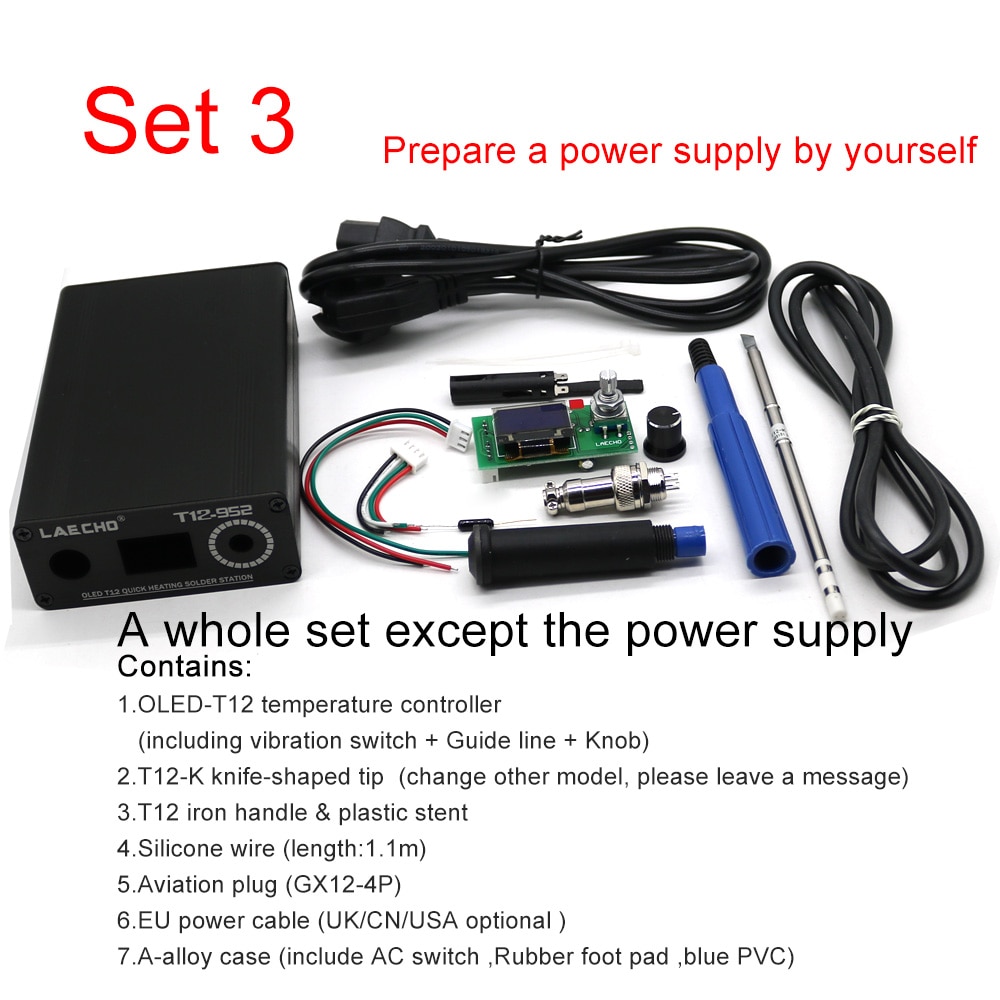

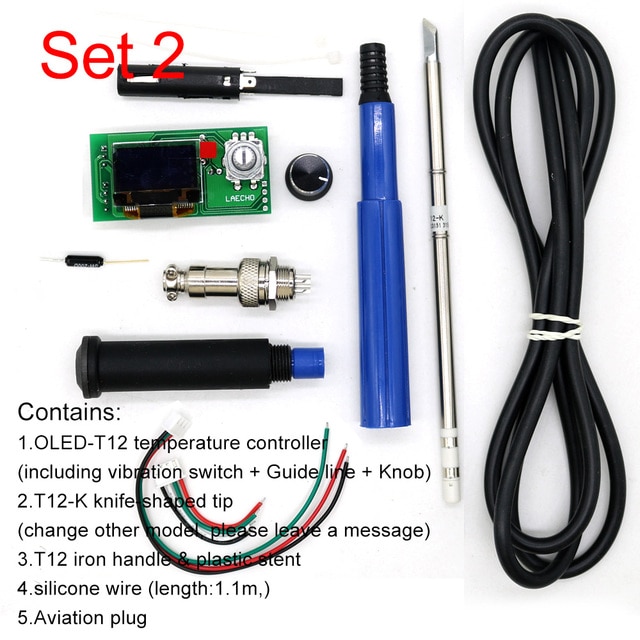

T12 STC-OLED soldering Station iron DIY parts kits T12-952 Digital Temperature Controller Soldering iron with Metal case
4.7 (119 votes) | 277 orders
Price:
US $28.84 - 74.12
/ piece
Discount Price:
US $
23.38 -
58.55
/ piece
-19%
- Color
-
-

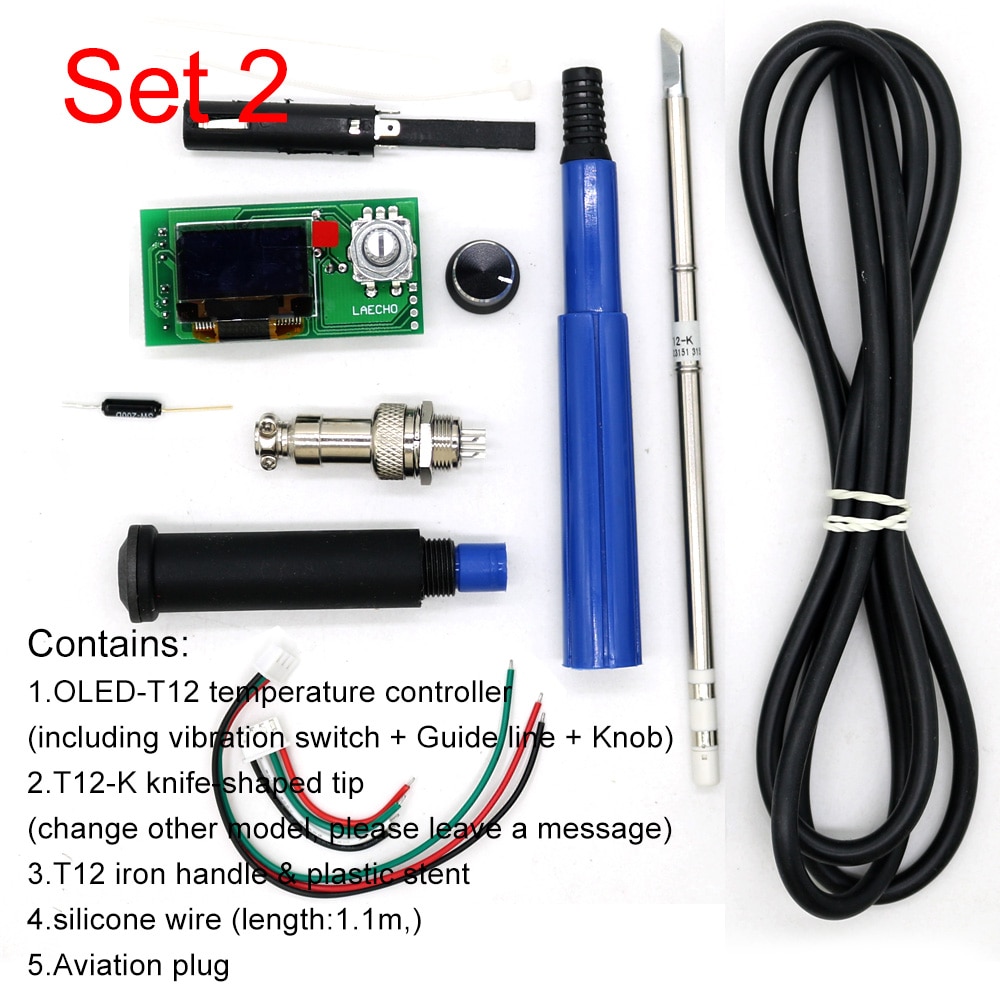

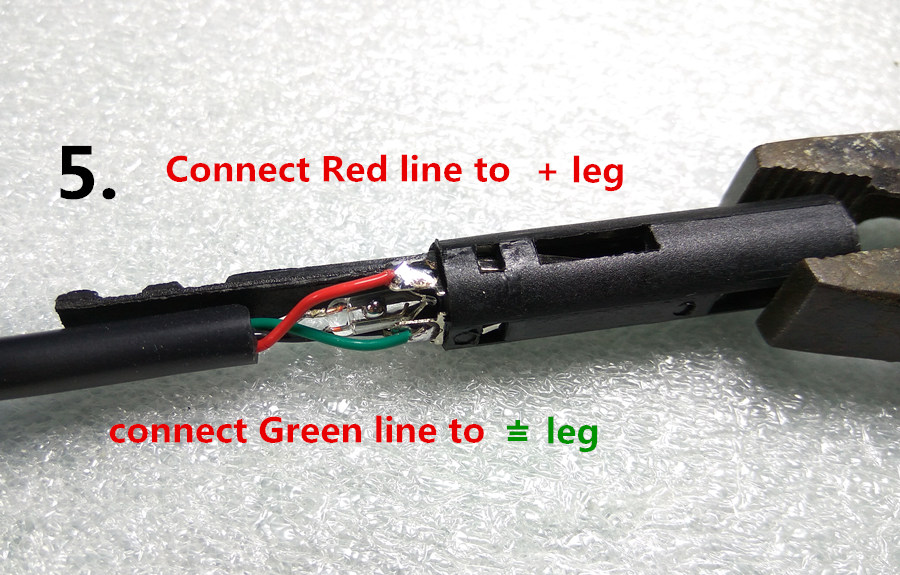

This product is QUICKO T12 iron DIY Kit, not HAKKO， you need to prepare a power supply and assemble the parts together by yourself. if you are not good at DIY, or if you know little about Electricity， please do not buy this kits. We do not assume any responsibility for man-made damages. Thank you for your understanding.please make sure the positive and negative anodes connection were all right before testing. Wriong connection was bound to a red-iron situation. if it's happened,please check PCB stent and aviation plug carefully,please conpared your connection with the datail steps in my store and try to interchange the positive and negative wire,the machine will be OK.

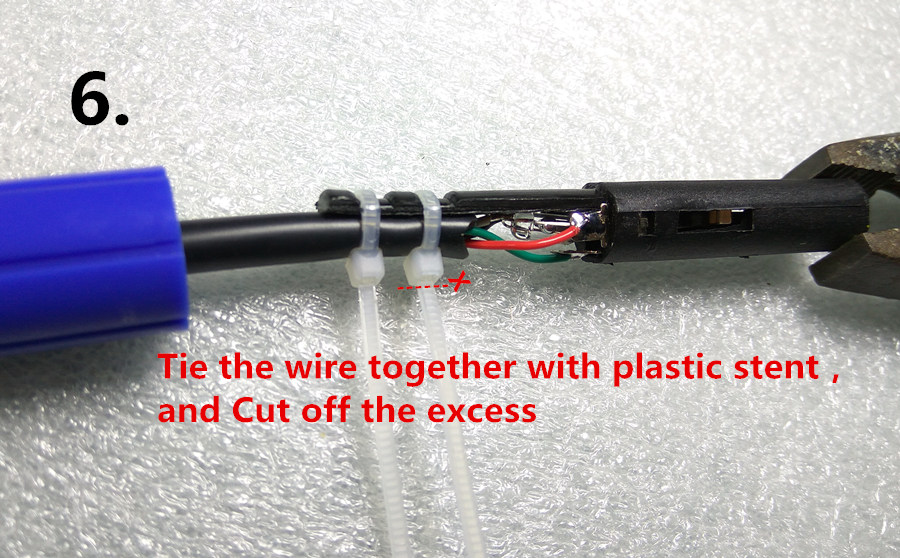

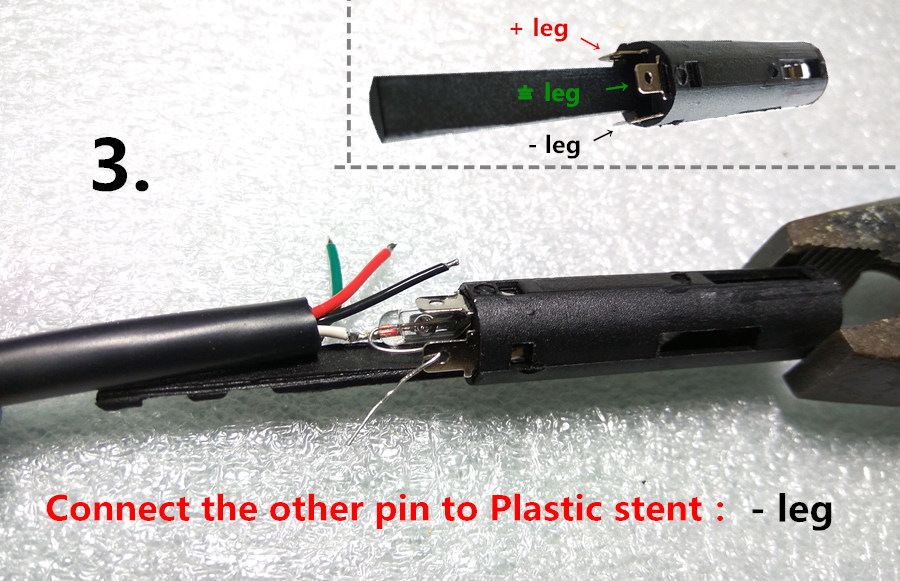

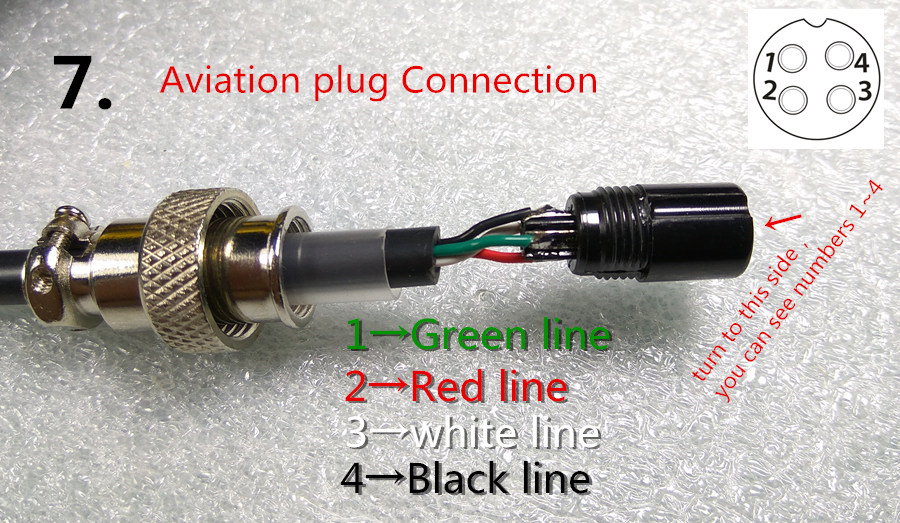

T12 connection diagram
Installed Note:

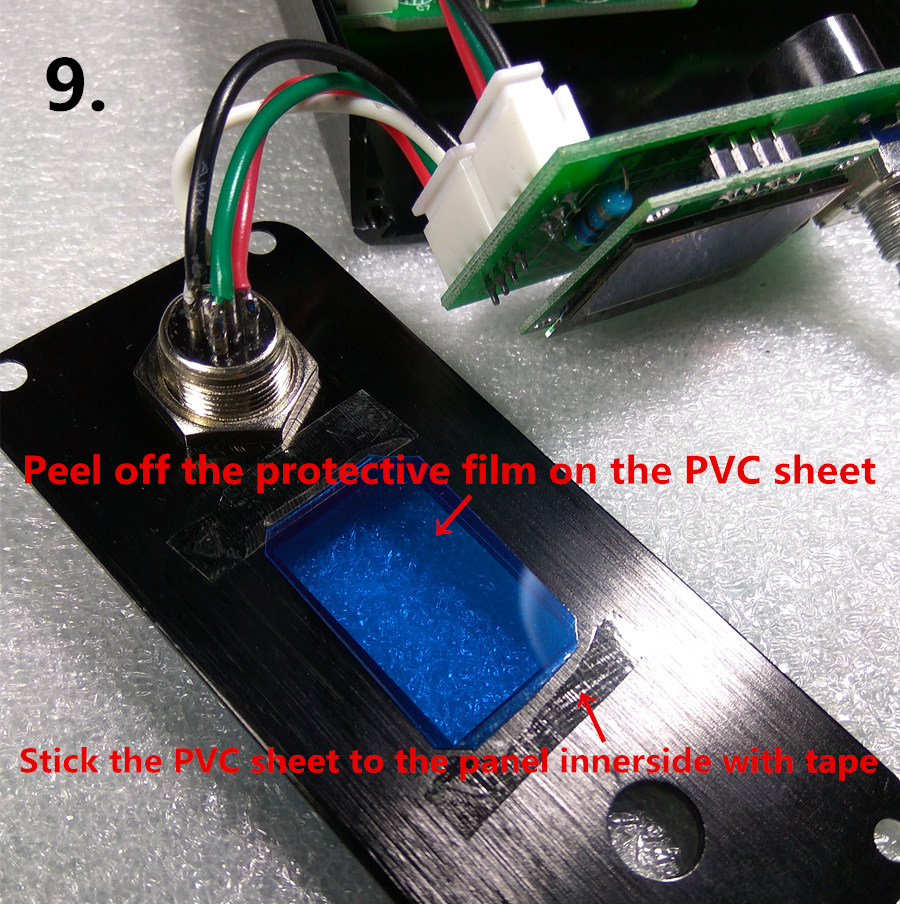

1. Strictly reference shop tutorials, well insulated and grounded against static electricity.
2. Before power test, carefully check the wiring is correct, whether Weld and short, full power test machine after confirmation.
3. connect 12-24V DC, if received more than 20V power supply,2017 new style product don't need to remove anything!

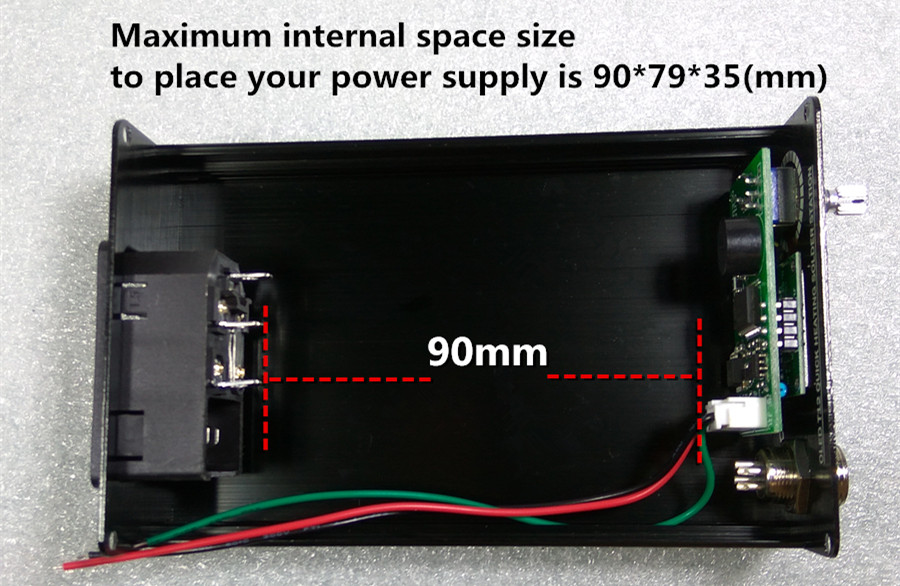

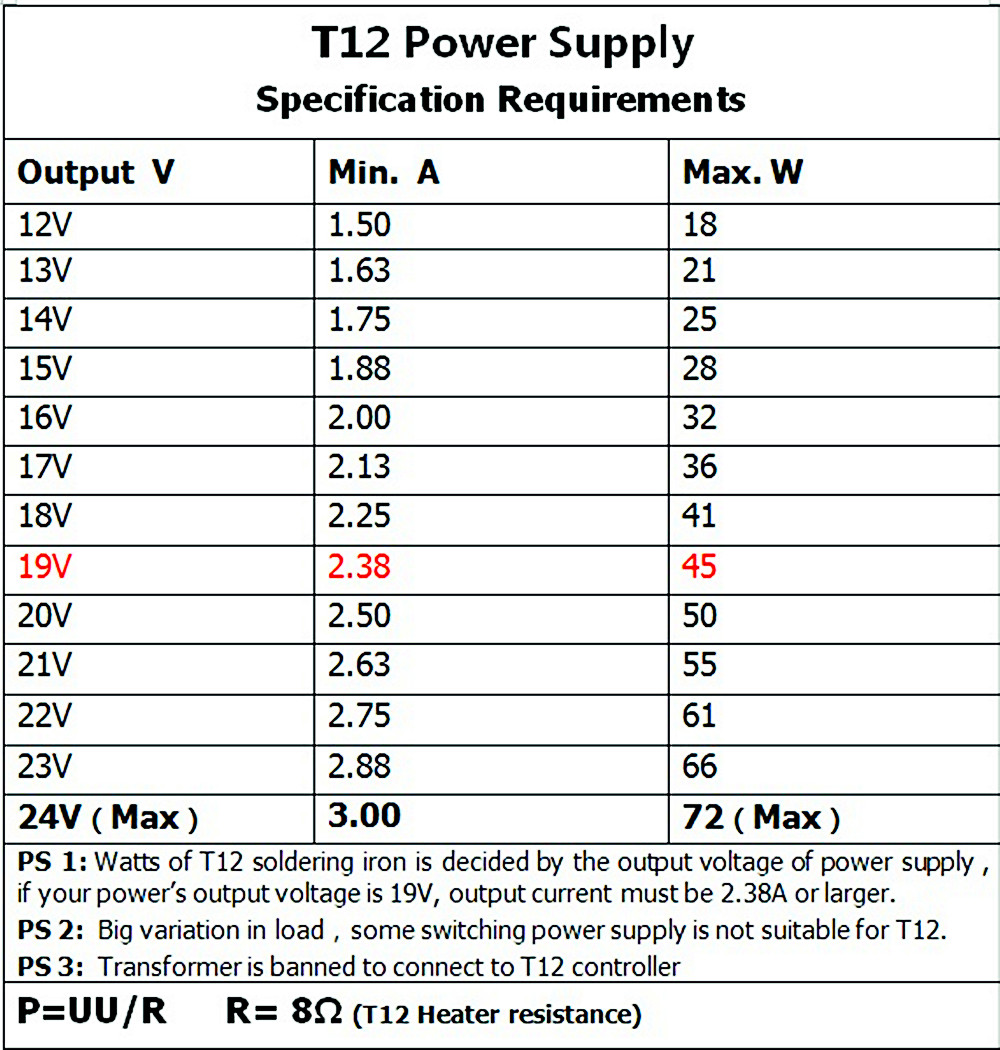

4. When you configure the power supply voltage and current requirements themselves refer to the following table:
Power (third column) is determined by the voltage (first column), as long as the current reaches the minimum current (second column).
Measuring Machine normal, lights and display status:
1. Unplugged T12 tip, turn the light flashed off, show SER, 1 seconds after the display 500.

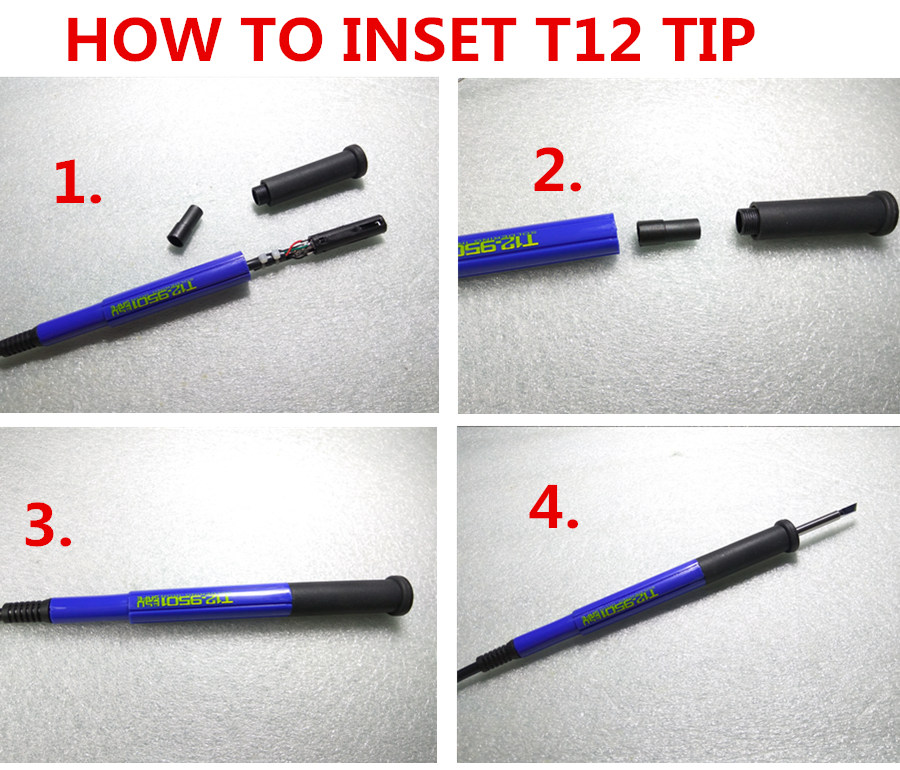

2. T12 plug tip, boot light uniform flashing, indicating rapid heating from room temperature generally show the set temperature to rise, approaching the set temperature, strobe lights. Indicator is not flashing or intermittent flashes, indicating that the tip temperature reaches the set temperature or alternating temperature compensation.
When measuring machines on display digital bounce questions:
Because with the new T12 tip, the tip inside the heater did not burnt, it will be just a little jump start with warm, generally do not need special treatment, the natural use of 1-2 days basically not bounce up. If you need effective immediately, the general recommendations of the temperature to 350C-380 Cwhile heating to the point of tin iron head, burning off after 4-5 minutes, until the tip to cool before you can reboot! (1 no action can be repeated 2-3 times)

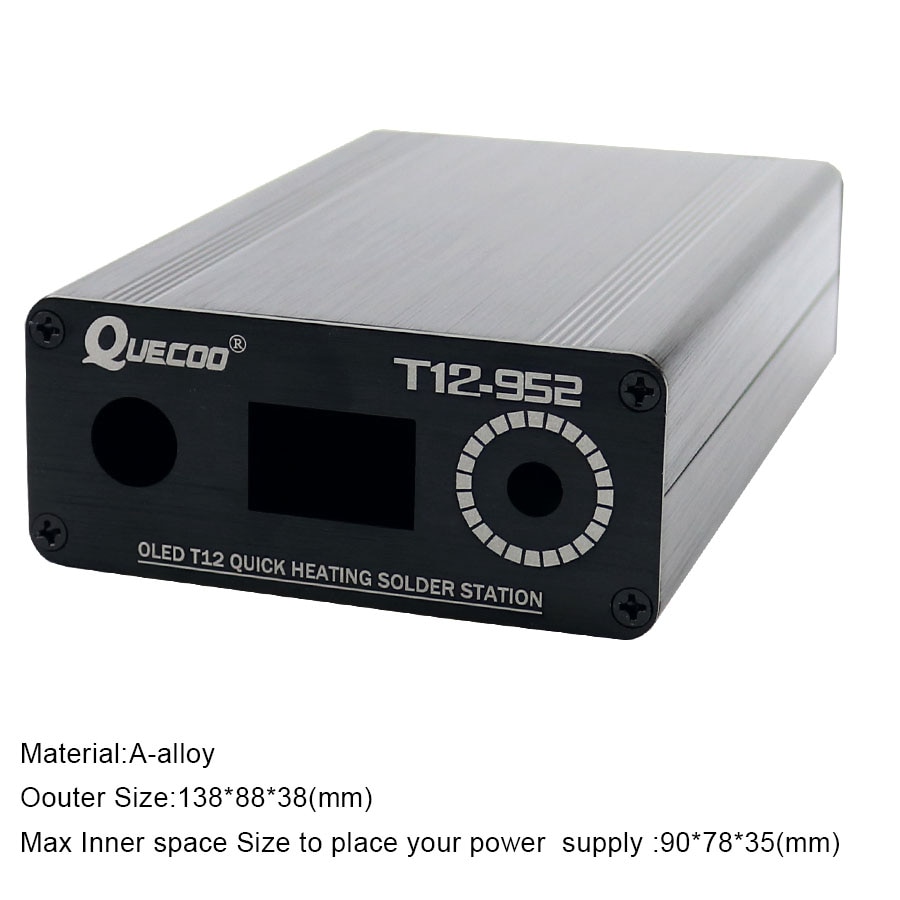

- Dimensions: null
- Output Power: MAX 75W
- Temperature Stability: plus or minus 10C
- Output Temperature: 200C-480C
- Input Voltagle: 24V
- Model Number: T12-952
- Brand Name: QUECOO
- Origin: Mainland China
- Certification: NONE

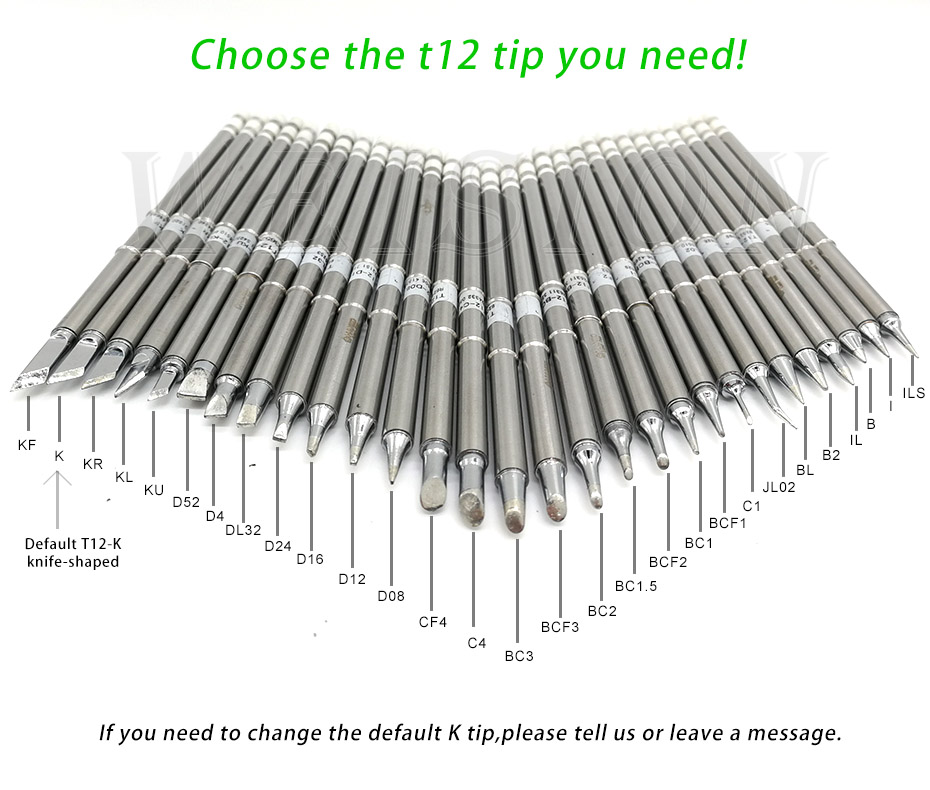

- Dea Soldering Tip: T12-k
- Package: carton
