T12 Soldering Station LED Digital Temp Adjust Repair Soldering Iron Equipment Portable Home Electronics Repair Tool Set

Auto standby

when it doesn't work for a long time. you can set idle time (0-30) minutes, then the soldering station will enter the standby mode. the handle keep work during the standby mode. pressing the encoder switch, it will enter the sleep mode.

Auto sleep

power off time-0-30minute.
entering the sleep mode, the soldering iron stops heating.

Aluminum alloy design

portable metal soldering station, compact design, light weight, has a long service life.

Adjustable temperature soldering tation

the adjust range is 200-450 ℃， the best working temperature is 330-380℃

Quick heat up function

quick heat up time < 8 seconds,
when the handle isn't move, the handle will automatically sleep.

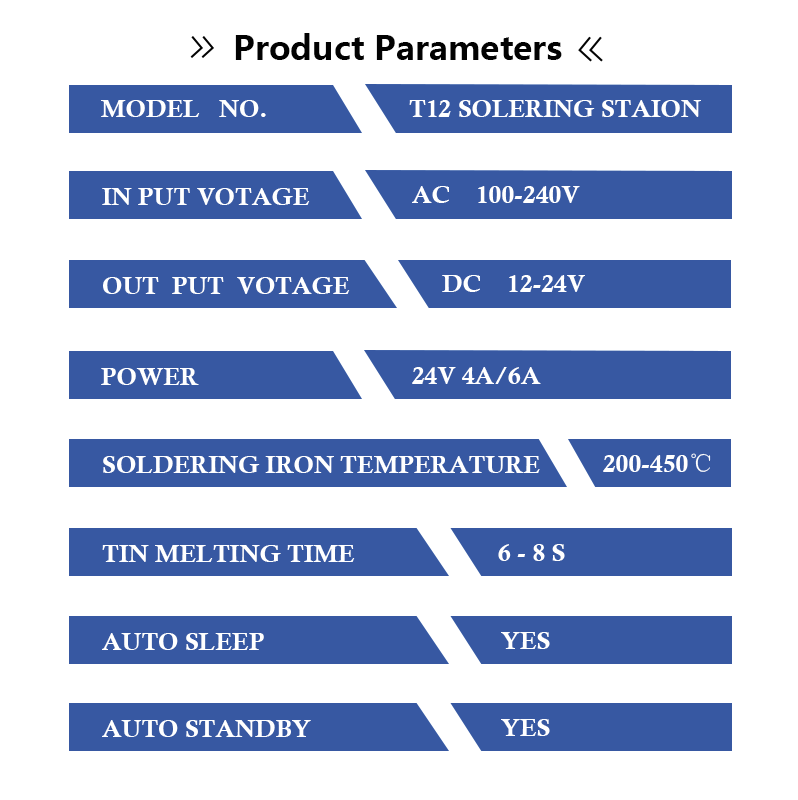

Product parameters

Model no: T12 digital soldering station
Input voltage: AC100-240V
Output votage: DC 12-24V
power:24v 4A/6A
Soldering iron temperature range:200-450℃
The melting time:6-8s
Auto sleep:yes
Auto standby:yes

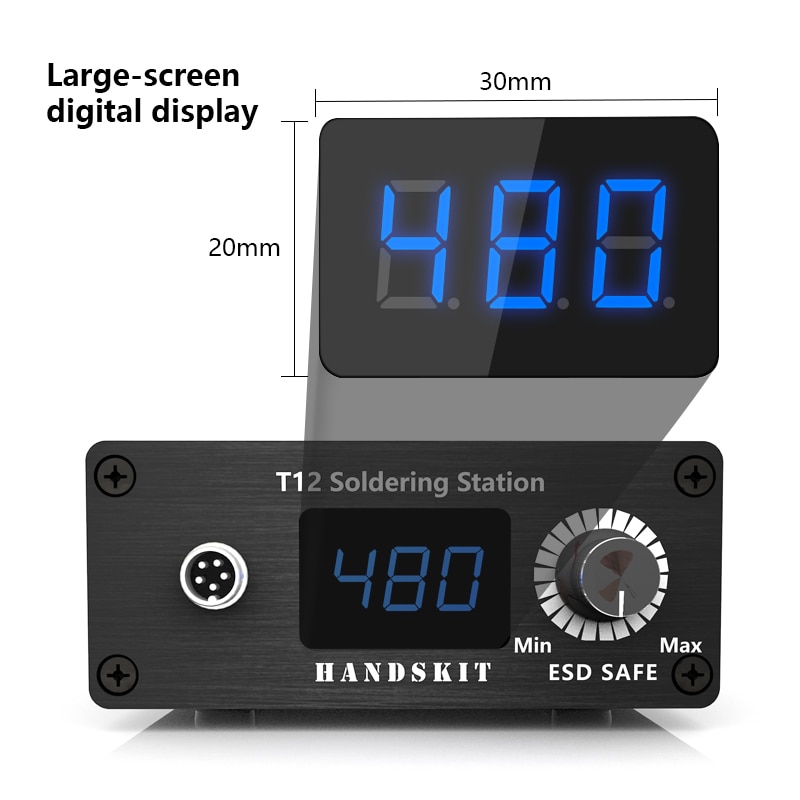

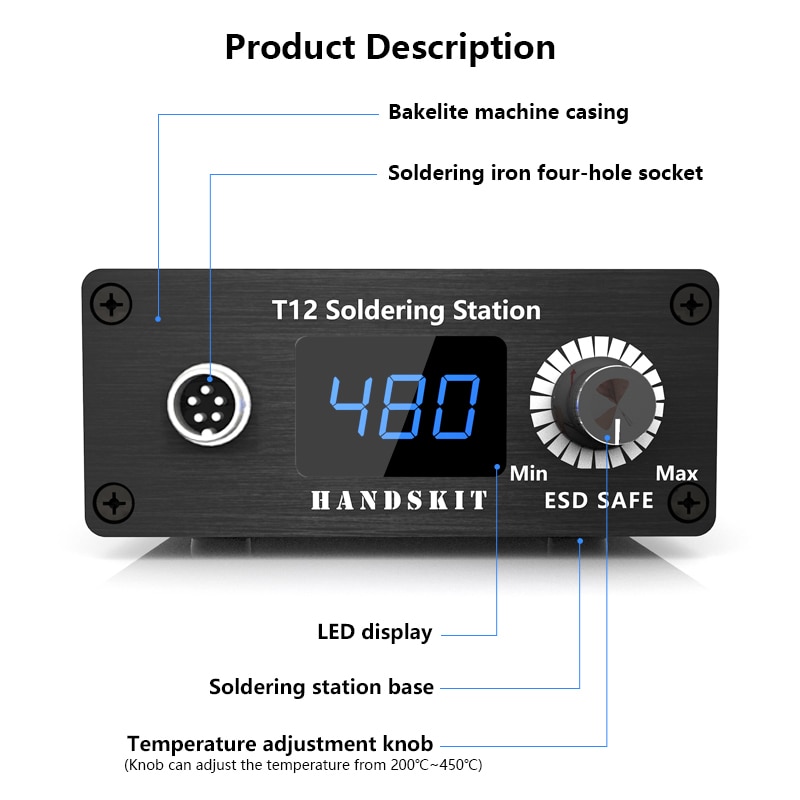

Large-screen digital display

Soldering iron handle with soldering iron tips

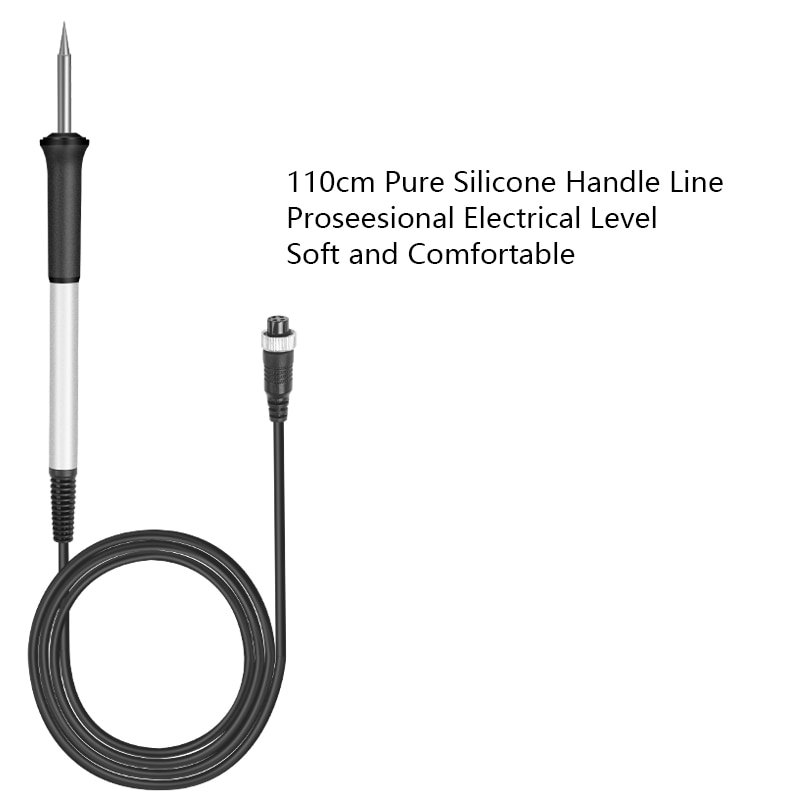

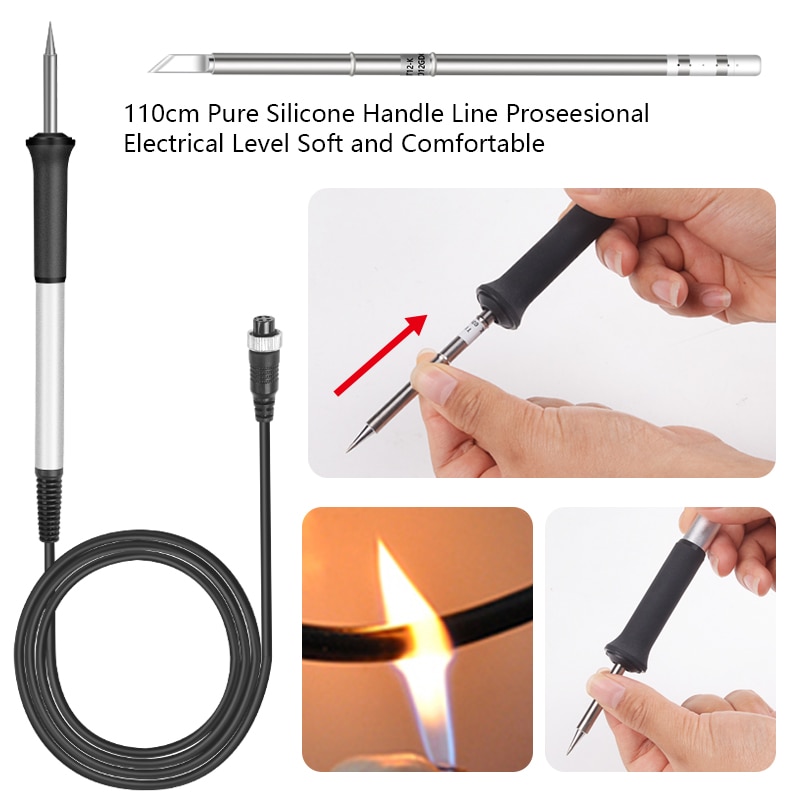

1:110cm pure silicone handle line professional electrical level soft and comfortable

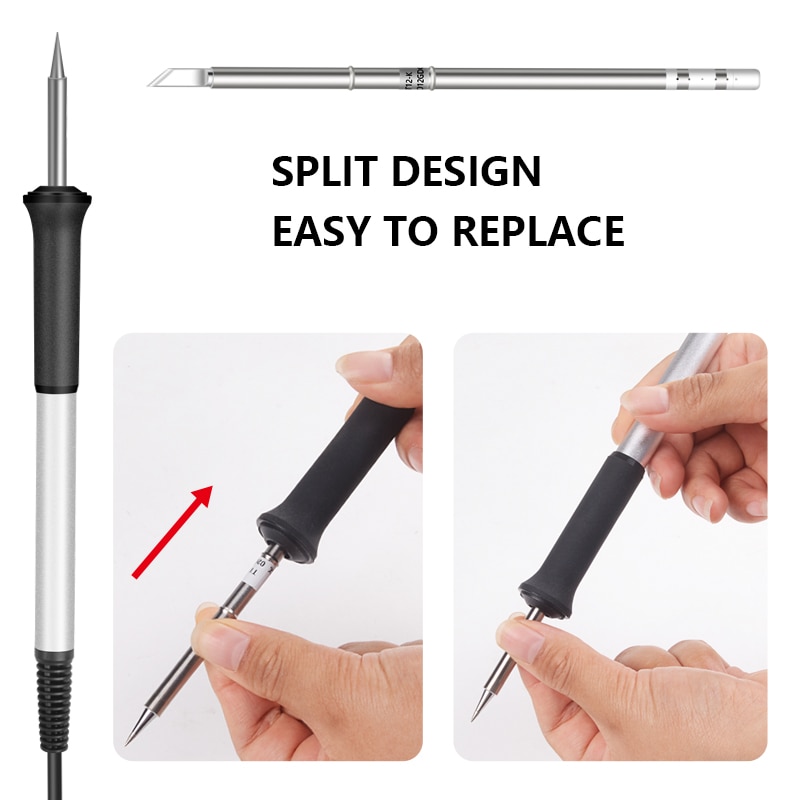

2:split design easy to replace

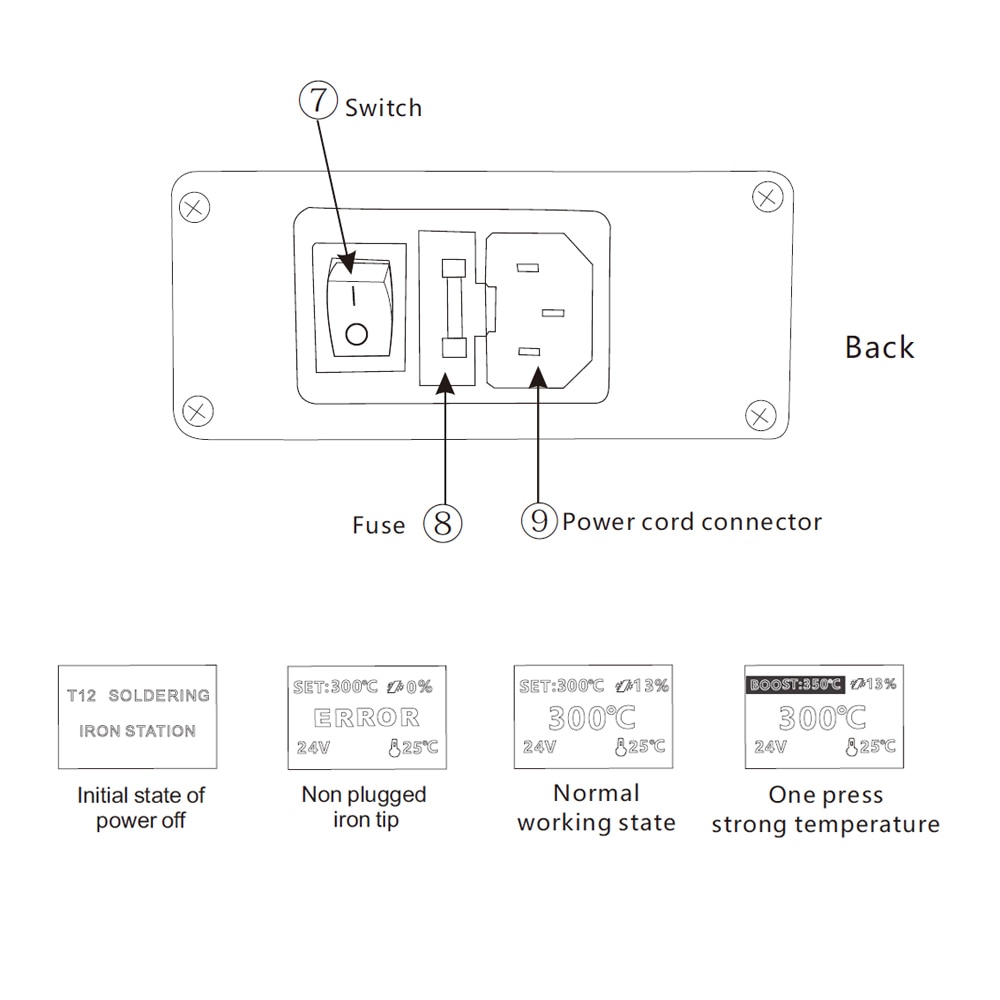

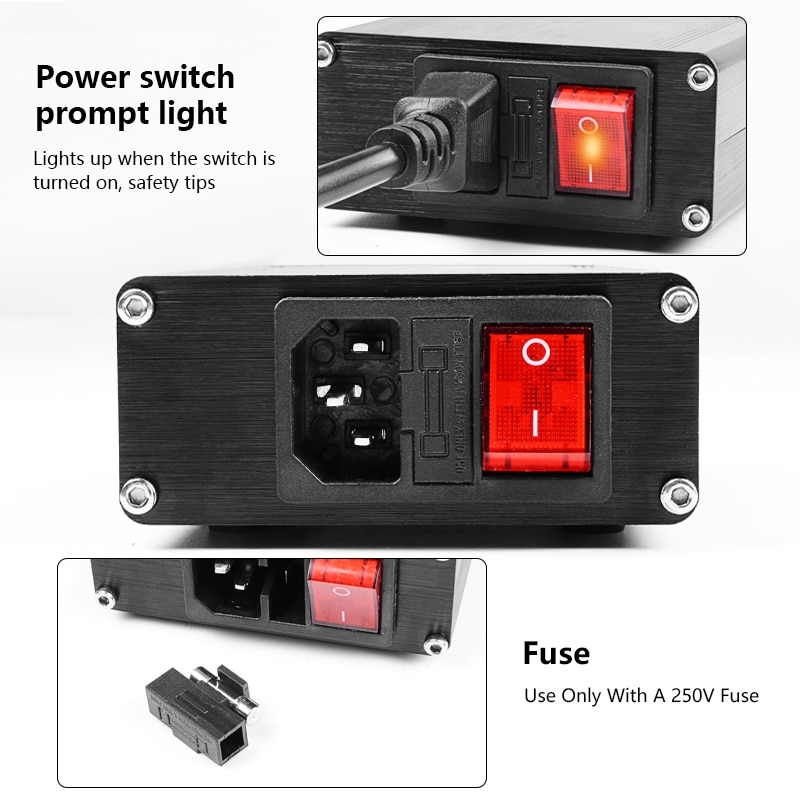

power switch prompt light

light will show when the switch is turn on, safe tips,

Fuse: use only A 250V fuse

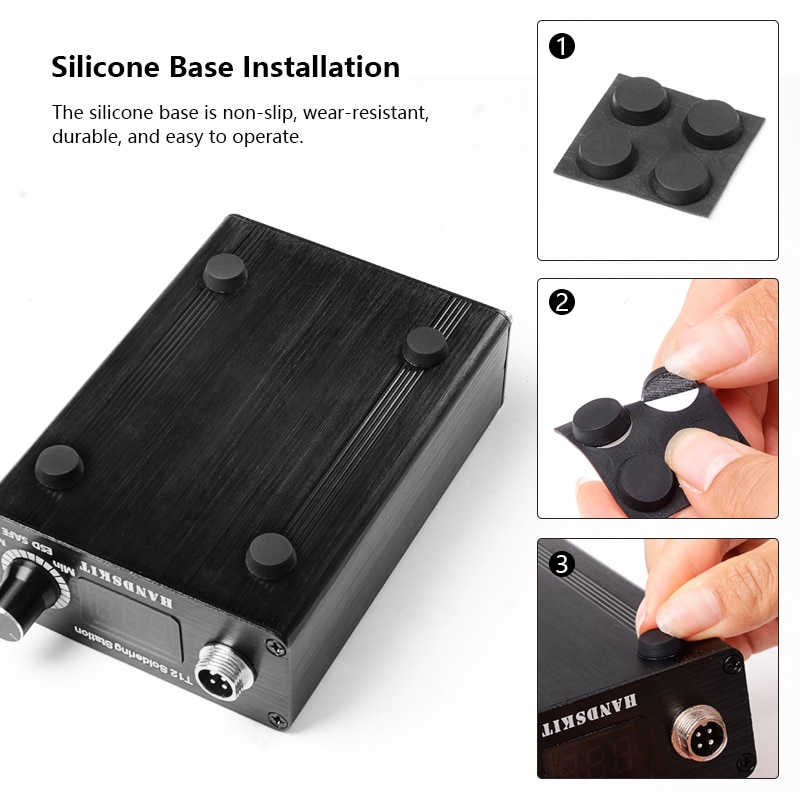

silicone base installation:
the silicone base is anti- slip, anti-resisant, durable, and easy to operate.

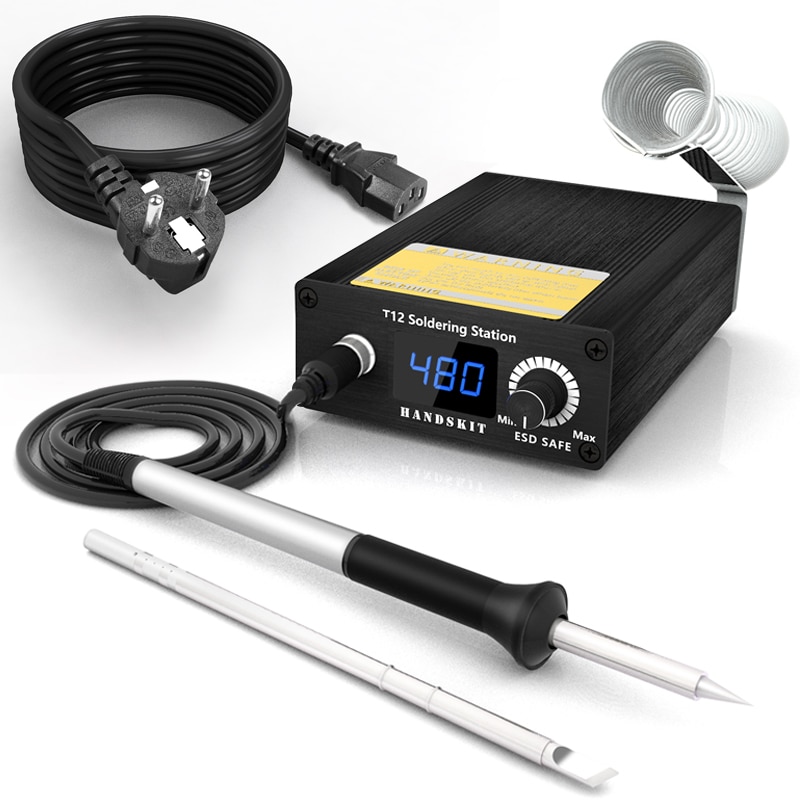

package

soldering station *1pc
soldering tips *2pc
soldering iron handle *1pc
adoptor cable *1pc
silicone base installation 1pc
soldering stand *1pc
soldering sponge *1pc

Basic operation

press and hold the encoder button and turn it on again to enter the paramter set mode. there are 9 menus for setting p00,p01,p02,p03,p04,p05,p06,p07,p08,p09,p10,p11,p12.

P00

P00-restore default prameters(0 or 1,default value 0,0 is not restored, 1 is recovery)

P01

p01-op amp gain(200-350 times, step 1,default value 270,)

P02

p02-op amp offset voltage(0-250mv, step 2, default value 100,which means that the soldering iron head maintains the output voltage inherent to the room temperature op amp, if you do not measure, please keep the default value p03-increase the ttemperature, adjust the temperature ,30-50 ℃ )

P03

if you do not measure, please keep the default value p03-increase the ttemperature, adjust the temperature ,30-50 ℃ )

P04

p04-temperature adjustment step(0,1,2,5,10 degrees optional, 0 can lock the soldering iron temperature)

P05

p05-sleep time(0-60 minutes,step 1 is 0, the sleep function is disabled)

P06

p06-shutdown time(0-180 minutes, step 1 at 0-30,step 10at 30-180, disable function when 0)

P07

p07-temperature correction(-30+ 30 degrees,step 1)(because the ntc resistor is in the chassis, the soldering station will cause the detacted ntc temperature to be higher than the room temperature, resulting in high compensation of the cold junction of the thermocouple, and the temperature of the soldering iron is not accureate. it can be corrected with this parameter. fro example ,if the detected soldering iron temperature is 20 degrees higher than the actual value,set this paramter to 20)

P08

po8-wake-up mode (0,1,0 means that the encoder can be rotated in the shutdown mdoe and the handle can be awakened by the vibration handle. fro 1, only the rotary encoder can wake up )

P09

p09-temperatue plus strength(llight click on the encoder to error to enter the temperature for the shdden need to weld the solder joint)

P-10

p-10 temperature enhancement time (enhanced time...)

P-11

p-11 buzzer switch(o means off 1 means on)

if the station can't heating when you turn on .Please check if the tip was installed properly. pls try to use a pliers to force tip into the Innermost handle , so that the tip is in good contact with the handle.

FAQ:
1. Why the temperature of the new T12 solder tip is jump?
Because the inside heating core of the new T12 solder tip did not go through the high temperature, so the first time to use will be a bit of temperature, generally without special treatment, the normal use of 1-2 days after the basic will not bounce. Such as the need to immediately effective, the general proposal to adjust the temperature to 380 degree -400 degree, side of the solder tip to the tip of tin, burning 5-10 minutes after the shutdown, until the solder tip of the cooling and then re-boot! ( if 1 times no effect, then can be repeated 2-3 times). T12 is pulsating temperature warming, even if the display temperature is flashing, the tip of the real temperature is completely stable.
T12 jump temperature also are connected with the temperature control board of procedures, power of electrostatic and if it connect the ground.
2. What the problem of attention when we use the T12 first time?
T12 tip heating speed is very fast, when the new solder tip connect the electricity, it must be tinput immediately to the solder tip, for protection, due to heating up fast, just need 6-10 seconds, no have more time to you for preparetion.
so the important is prepare the items which will be welded, and finally boot power, and each welding gap or the end, should be more on the tin to protect and then shutdown, so it can avoid to tin the new sold tip is difficult, especially the T12 tip type of iron, such as T12-I / T12-IL / T12-BL / T12-ILS and so on!

3.What are the precautions for using the T12 tip?
a. If can use low temperature, then do not high temperature: T12 is constant temperature control, the general recommended working temperature control between 300 degree- 380 degree, higher than 380 degree damage the coating of solder tip and cut down the PTC life!
b. Do not dry: the first time to use solder tip, should be wrapped while heating a layer of tin. If it's without work, at once shutdown!
c. Diligent to clean: before shutting down, use a wet sponge or detin the ball to remove the tip of the oxidation of debris, on the tin after the shutdown power off!
d. Standard operation: Do not violent collision the solder tip, do not stamp the top of the hard objects, but can not be used to hot plastic and other materials, specifically reminded that friends like tin should avoid the iron and other hard metal knock tin, the heating core of T12 is in the head of the solder tip, often percussion is a fatal damage to T12!
e. Less use of scaling powder: scaling powder can not be used, can be used as less as possible! When scaling powder help make beautiful and reliable welding at the same time, but also greatly speed up the consumption the coating of the solder tip, T12 heating core high temperature position is very near of the Nozzle tip of the solder tip,Scaling powder in the fear of threat to T12 head pressing parts.

Regarding the problem that the temperature displayed on the soldering station is not accurate with the actual temperature:

Please use the soldering iron tip temperature tester (please do not use a multimeter) to test the temperature. When the soldering station is working at low temperature (less than 280 degrees), the temperature displayed on the soldering station and the actual temperature of the soldering iron tip are only for reference , which is not accurate because They are affected by the surrounding environment. The surrounding environment will carry away heat, causing the soldering iron tip to lose some heat. If using a HB tip thermometer, pls make sure the soldering iron tip is suspended at the center of the temperature sensing line. If you are very strict with temperature, please do not buy this soldering station.

The problem that tin wire cannot be melted at 227 degrees.

The melting point is the melting point of the substance itself. When the temperature of the substance reaches the melting point of the substance, it is possible that the substance cannot be melted. For example, the melting point and freezing point of ice are both 0 degrees Celsius, and water does not necessarily freeze at 0 degrees Celsius. Since the temperature of the substance is affected by the surrounding environment, the actual melting point of the tin wire is higher than the melting point indicated by the tin wire. If the wire is placed in a thermostat tin furnace at 226 degrees Celsius, it is possible to melt in a sealed tin furnace. If it is wrapped around the soldering iron tip, it is impossible to melt. Because there is a gap between the tin wires, and the soldering station has a temperature difference, the soldering iron will lose some heat when it heats up, and the surrounding air will also absorb heat. The melting point of lead-free wire is 227 degrees Celsius, and the room temperature is low in winter. Under the premise of calibrating the temperature of the soldering station, at least 50 degrees Celsius should be increased to offset the heat absorbed by the air, so that the heat of the wire itself can be increased to 228 degrees Celsius.

About the soldering station showing of ERROR

About the soldering station showing of ERROR
If the ERROR is displayed, the handle or the tip is not installed properly. Please use a pair of pliers to push the tip into the innermost part of the handle. Then try rotating the tip to ensure that the tab of the tip is in good connect with the inner tab of the handle. If ERROR is still displayed and the light is always on when the tip or handle is installed, please contact us to get a solution. We encourage buyers to communicate with us to solve any problems. We will do our best for each buyer.

NOTE:

Iron tip do not work continuously high temperature, high temperature work is easy to damage the tip! Ordinary solder melting point is 183°C, lead-free solder melting point is 227°C, usually the welding temperature is 300-380°C, 380°C is the temperature of the dividing line, higher than 380°C, iron head oxidation and loss is extremely fast, seriously affect the heating core life The Higher than 380°C temperature display will be beating, the higher the temperature, the greater the beating!Recommended in the 300-380°C for welding work, most of the work can be carried out, the temperature beating is normal, does not affect the use! The soldering iron used in this soldering station is a brand new soldering iron tip. Due to the unstable resistance of the new soldering iron tip, the temperature will jump or ERROR, which is normal. After several times of use, the stability will gradually stabilize. If you mind, please do not buy.

Notice

1.After receiving the Goods, please record the unpacking video as proof of after-sales service.

2.If the soldering station cannot be used normally, please send me the unpacking video and we will give you the solution.

3.If the package is damaged and the product cannot be used normally, please contact us and we will try our best to help you get the full payment.

4.Please do not bring up disputes at will, because we have enough time to solve the problem.

5.Subscribe to the store to get additional coupons.
