SWT-V315/90H termofusion butt welding machine for Oratile

0.0 ( votes)
Price:
US $ 9320.00 / Set
Quantity



NOTE!!!



As our welding machine is weight and air freight is very expensive ,



so we just provide free shipping with you by sea .



If you  prefer to by air , Pls tell us before payment so that  we can charge the air freight for you .



Thank you in advance .



BUTT FUSION WELDING MACHINE are also called HDPE PIPE JOINTING MACHINE ,Polypropylene pipes thermofusion welding equipment,hydraulic termofusion joining for polyethylene pipes and pipe fittings,HDPE Butt Welding Equipment,Butt Welders,butt fusion welder,high density polyethylene Pipe Jointing Machine,Butt Fusion Welding equipment of PE Pipes,Butt-fusion jointing of polyethylene (PE) pipes,welding of polyethylene piping by thermofusion,

Product Overview

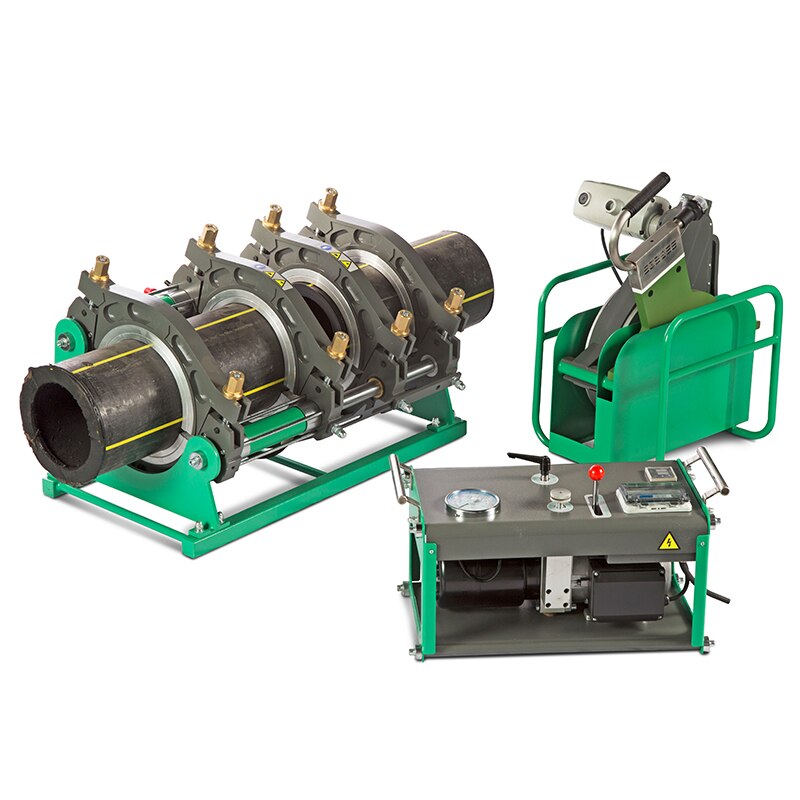

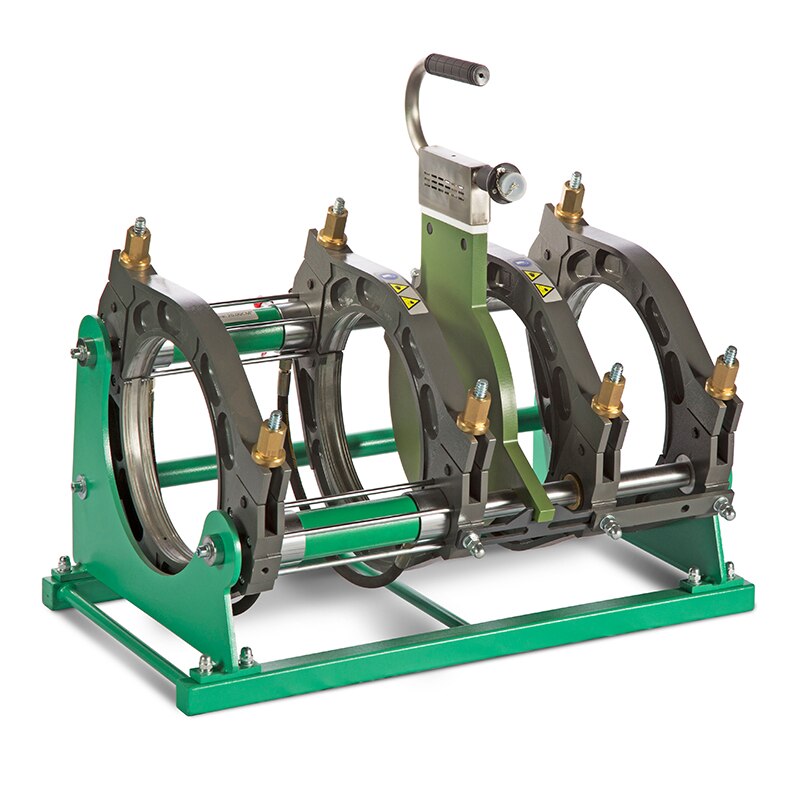

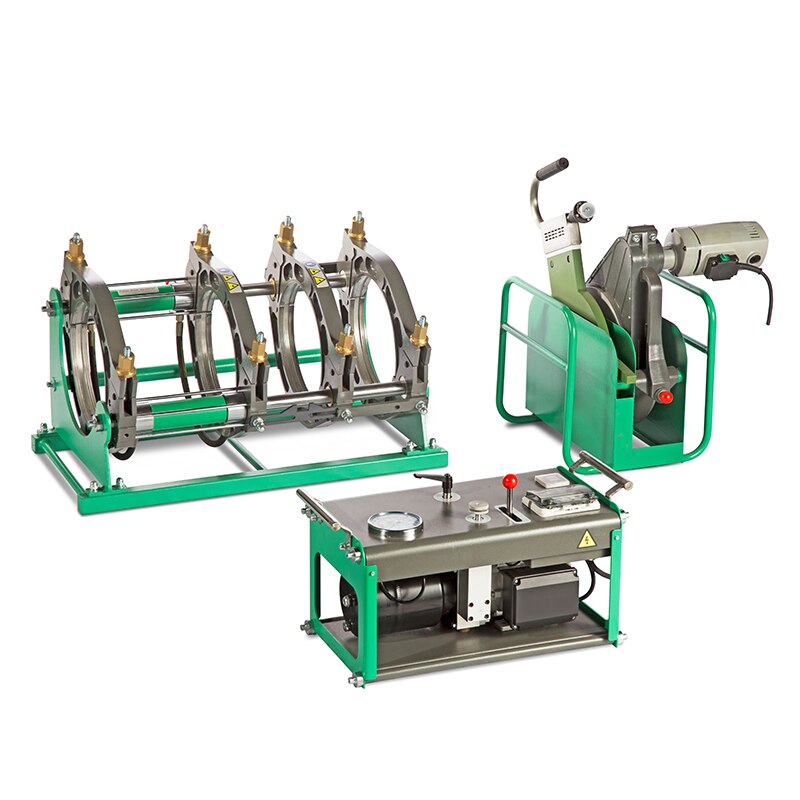

SWT-V315H (3"-12") Hydraulic Butt Fusion Machine

DESCRIPTION
SWT-V315H is hydraulic butt fusion welder. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without
any additional equipment by simply adjusting the clamps drag bar.
It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.

Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.

SWT-V315H includes:
*A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
*A Teflon coated heating plate with separate temperature control system;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.
Available options:
Data logger;
Support roller;
Stub end holder;
Different inserts (single insert, ISO inserts).
FEATURES

Welding ranges: plastic pipes 3inch-12inch
Reducing Inserts 3inch-4inch-5inch-6inch-8inch-10inch-12inch
Ranges of application PE,PP and PVDF
Working voltage ~220V±10%,50/60Hz
Total power  5.35 kW
Planning tool 1.1 kW
 Heating plate  3.5 kW
Hydraulic unit motor 0.75 KW
Environment temperature -10° ~ 45°


 Images of high density polyethylene Pipe Jointing Machine:

workshop pic (2)

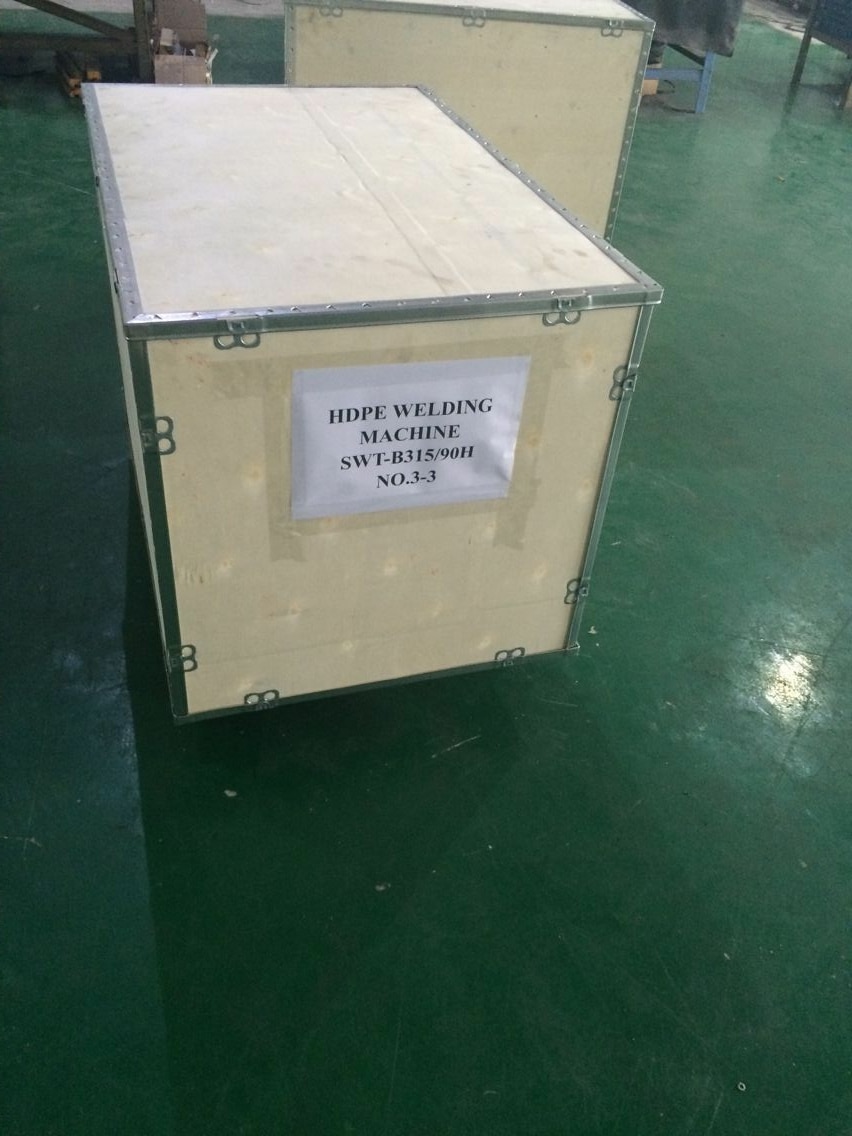

Packaging of Butt-fusion jointing of polyethylene (PE) pipes:

315mm (4)

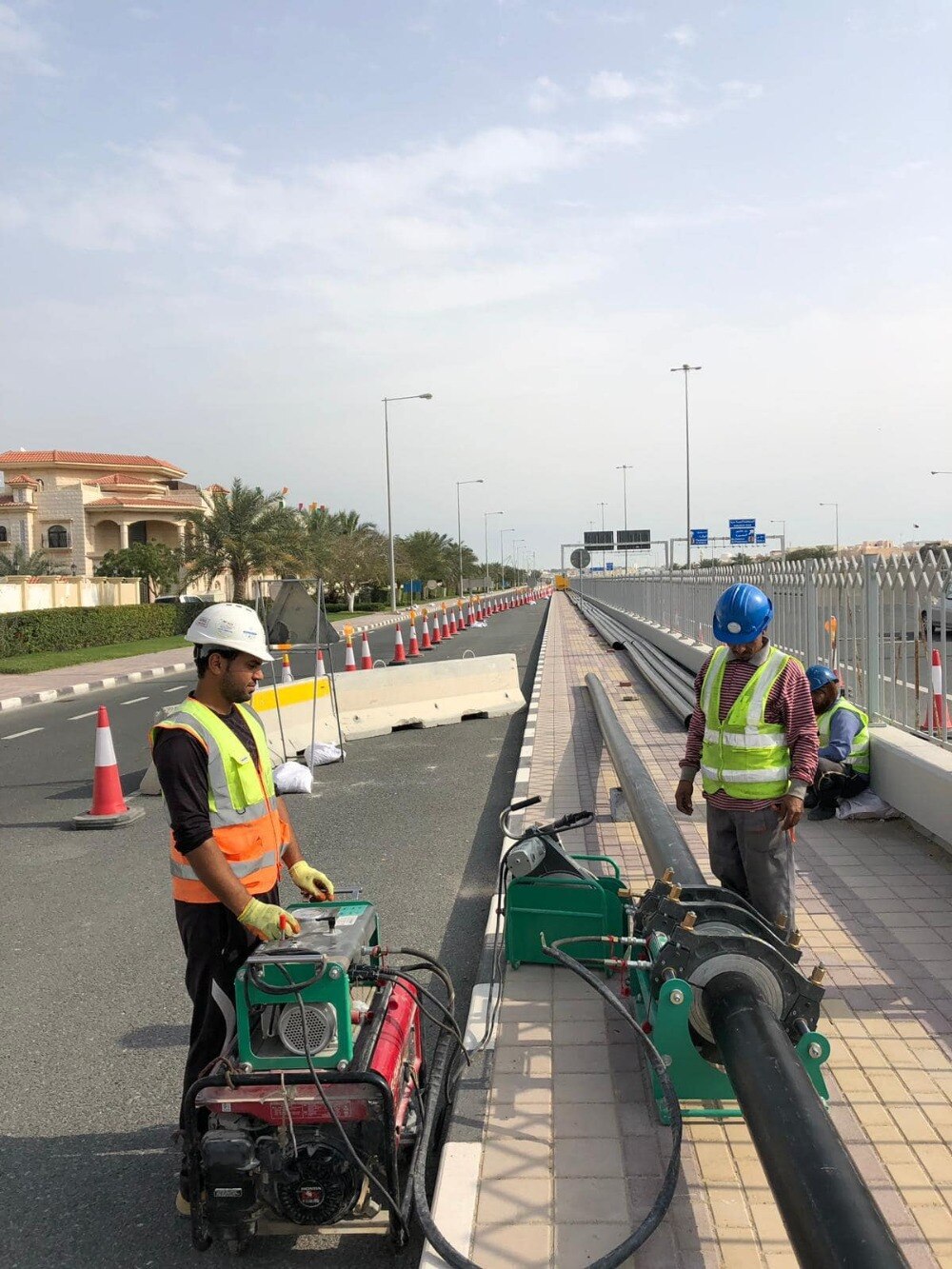

Application of welding of polyethylene piping by thermofusion :

hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE,PP, and PVDF.

automatic butt welding machine can be operated in any complex work condition.

thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.

4







  • Usage: welding of plastic pipes and fittings made of PE,PP, and PVDF
  • Dimensions: 100*100*100
  • Power: 5.35KW
  • Current: 13A
  • Input Voltage: 220V
  • Model Number: SWT-V315/90H
  • Brand Name: mingmai technology
  • Voltage: 220V
  • PIPE SIZE: 90-315mm
  • WEIGHT: 220KG
  • Frequency: 50/60Hz
  • PACKAGE: WOODEN CASES
  • VOLUME: 1.0CBM
  • PAYMENT: western union,PayPal, T/T
  • DELIVERY: OCEAN SHIPPING
  • ORIGINAL: China
