ID: 32802

SWT-PH4000 Sheet Butt Fusion Welding Machine for Alibek Salmenov

0.0 ( votes)
Price:
US $ 22000.00 / Set
Quantity

Dear Everyone customers , welcome to visit our store . we mainly produce premium quality thremoplastic pipe welding machine.
If you are interested in our products , Pls don't hesitate contact with me.we will do better for you .

REMIND!!!
As our welding machine is weight and air freight is very expensive , so we just provide free shipping with you by sea . If you prefer to by air , Pls tell us before payment so that we can charge the air freight  for you . Thank you in advance.

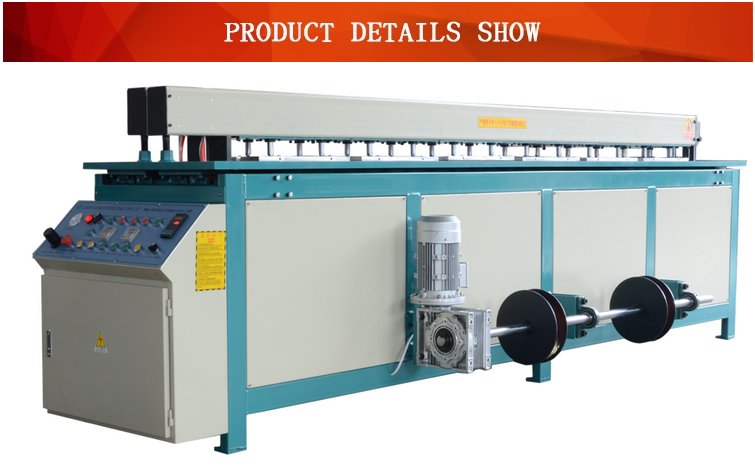

1. The electric system is placed in electric cabinet concentrately, so it is convenient for maintenance and check.

2. Press button control makes the operation easy and convenient.

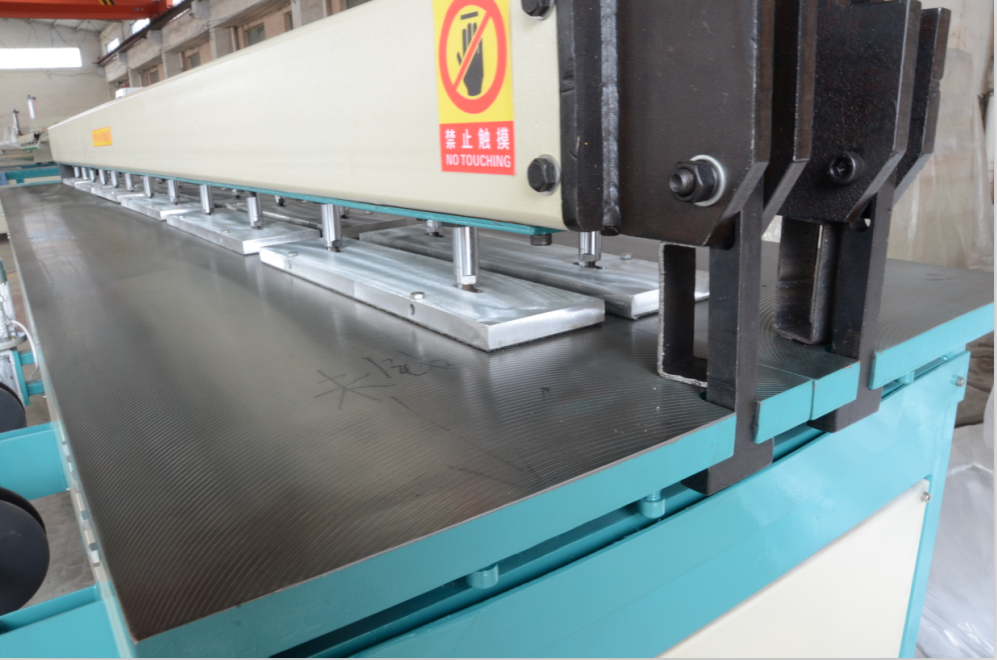

3.The working panel's material is Q345 manganese, which is featured as non-being heated distortion; The platen's material is aluminum and for each platen there are two air cylinders providing the power, ensuring the compressive stress is very strong.

4.The heating pipe is inserted through the heating knife, so it is easy and convenient to replace the heating elements. The material of heating knife is imported grade aluminum, with teflon coated. It has the advantage of non-being heated distortion and non-stick.

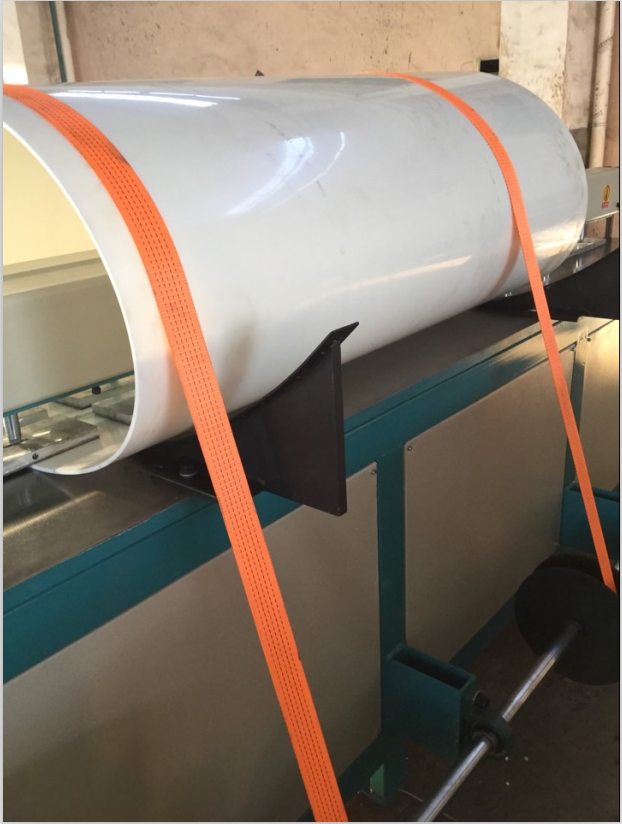

5.Specially designed rolling device makes the rolling work easy and labor saving.

6.Specially designed LED lights can make you observe the process of welding clearly.





Top Quality Pp Plastic Sheet Welding Machine

Specification/Size SWT-PH2000 SWT-PH3000 SWT-PH4000 SWT-PH5000 SWT-PH6000
Weldable sheet thickness(mm) 3.0-30.0 3.0-30.0 3.0-30.0 3.0-30.0 3.0-30.0

Max.working length

(mm)

2000 3000 4000 5000 6000

Roll circle diameter minimum

(mm)

380 400 450 550 550

Air pressure

(kg.f /cm2)

4.0-8.0 4.0-8.0 6.0-8.0 6.0-8.0 6.0-8.0

Energy source

(m3/min)

0.0032 0.0052 0.0062 0.0068 0.0075
The rated voltage(V) 380 380 380 380 380
Rated current(A) 9 13.6 13.6 13.6 13.6
Heating Power(KW) 4kw 6kw 8kw 10kw 12kw
Power of Rolling Motor(KW) 1.5kw 1.5kw 1.5kw 1.5kw 1.5kw
Heating mode Overall heating Overall heating Overall heating Overall heating Overall heating

Drum institutions

(parts)

Optional Optional Optional Optional Optional
External dimensions (L*W*H) mm 2800*1200*1200 3750*1200*1200 4850*1200*1200 5850*1200*1200 6900*1200*1200
Packing dimensions (L*W*H) mm 3000*1300*1450 3900*1300*1450 5000*1300*1450 6000*1300*1450 7050*1300*1450
N.W KGS 850kg 1350kg 1550kg 1800kg 1900kg
G.W KGS 1000kg 1500kg 1700kg 1950kg 2100kg







  • Usage: PP, PE, PVDF, PVC, PPN Sheet
  • Dimensions: 4850*1200*1200mm
  • Power: 9.5kW
  • Current: 13.6A
  • Input Voltage: 380V
  • Model Number: SWT-PH4000
  • Frequency:: 50/60Hz
  • Max working Length:: 4000mm
  • Heating Mode:: Overall Heating
  • Roll circl diameter:: 450mm
  • Operation Mode:: CNC & Manual
  • Weldable sheet thickness:: 3.0-30.0mm
  • N.W:/G.W:: 1550KGS/1700KGS
  • Skype:: shentongplastic
  • WhatsApp:: +86-13739745191
  • Web:: www.hdpeweldingmachine.com
