Surveillance CCTV Security 48V 0.5A 24W POE Wall Plug POE Injector Ethernet Adapter IP Camera Phone PoE Power Supply US EU Plug

0.0 (4 votes) | 15 orders
Price: US $14.47 / piece
Discount Price:
US $ 13.59 / piece
-6%
Quantity

Overview :

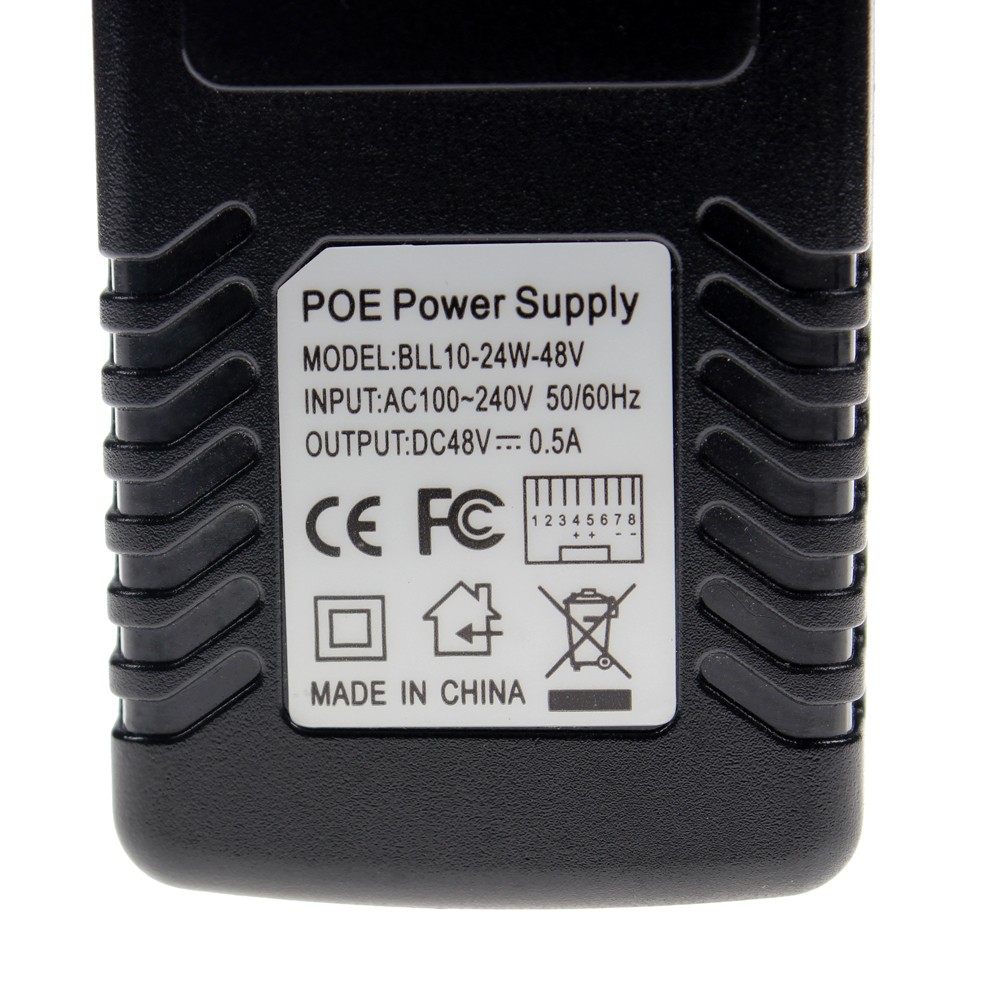

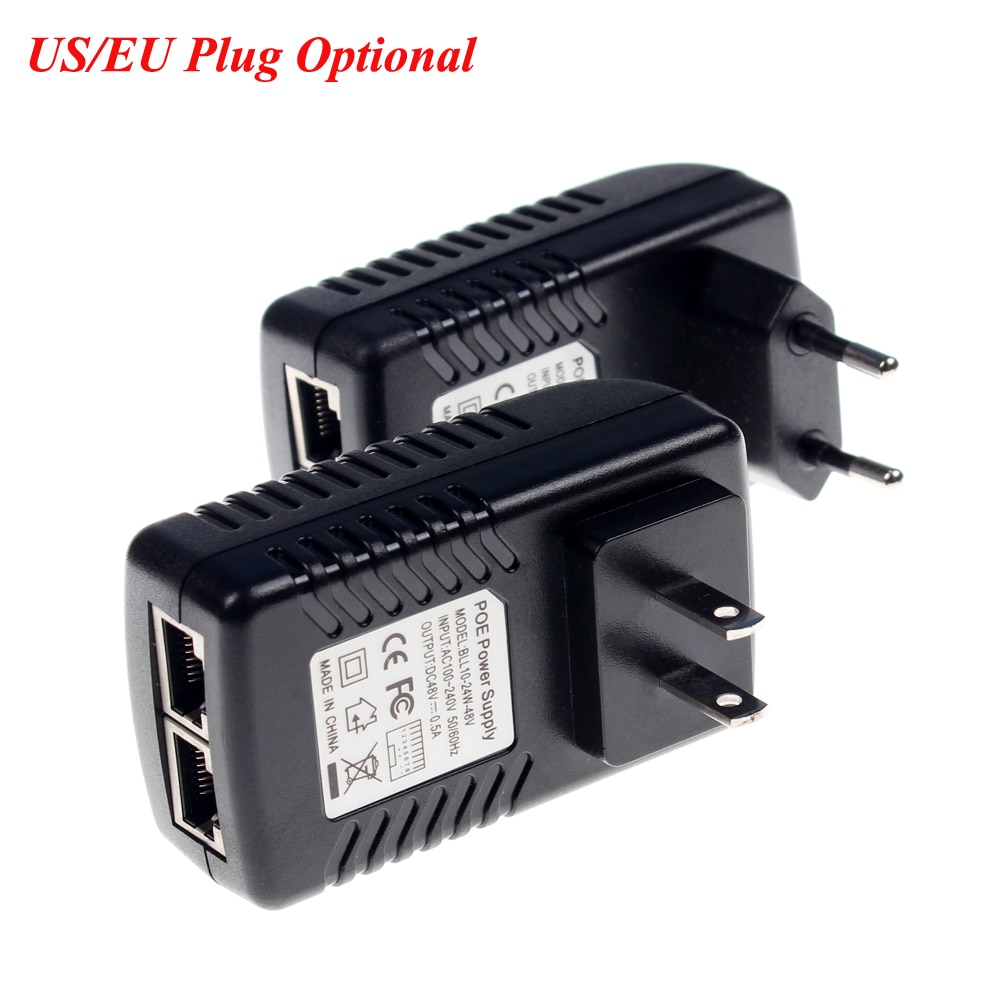

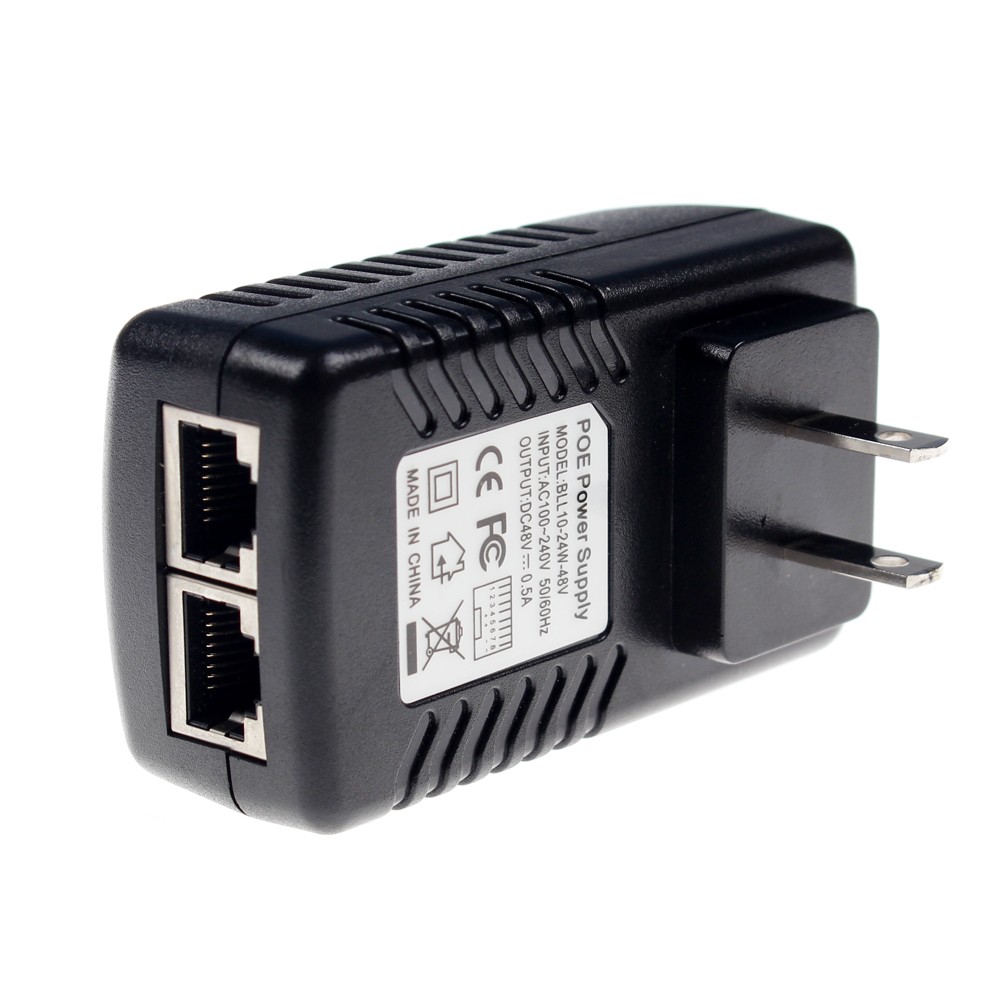

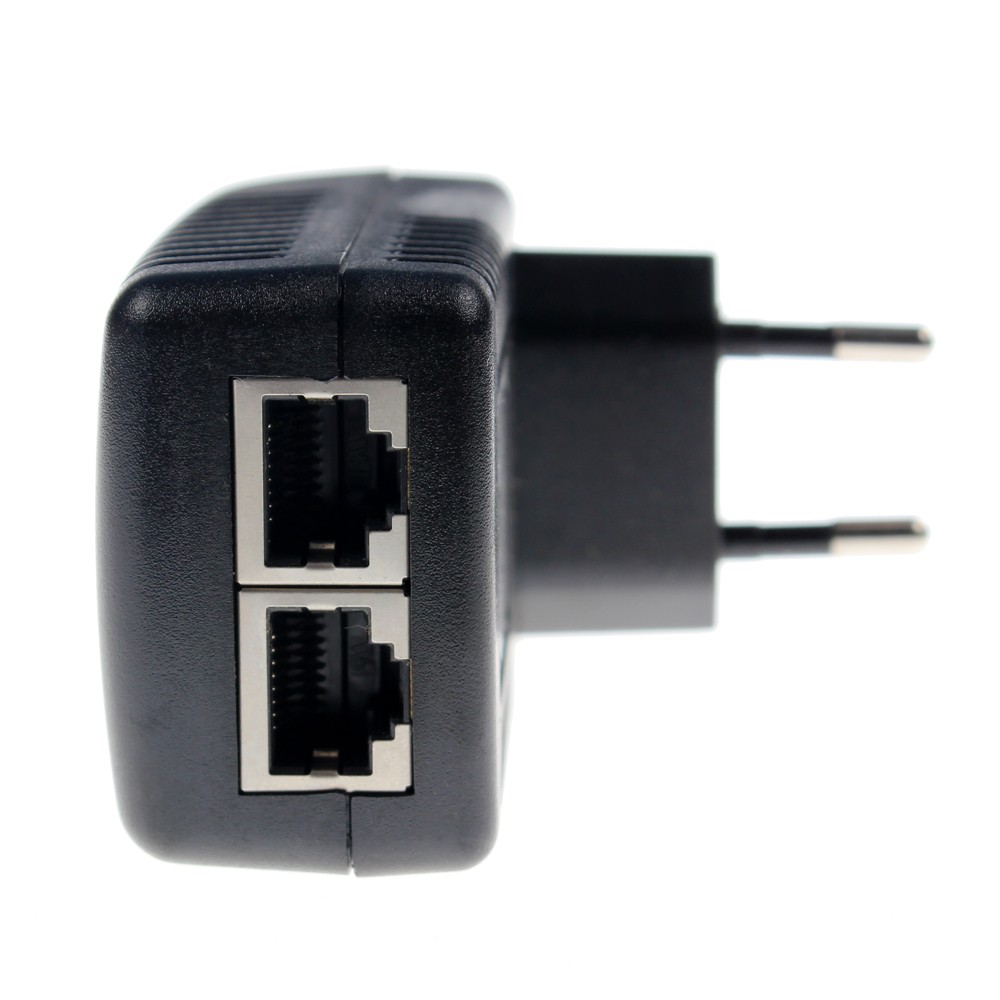

48V-0.5A Wall Plug POE Injector Ethernet Adapter IP Camera Power Supply US/EU Plug

A perfect solution for applications where an electrical outlet may not be available, the injector adapter can be used to power PoE-enabled devices such as IP cameras or Wireless Access Points (WAPs). The compact, wall-mountable design makes it easy to install the adapter into areas where space is limited, and can be installed in seconds with no configuration required.



Applications:

IP Camera/Phone

Wireless Access Point and Client Devices

Security Camera Systems



Specifications:

Output:  48V DC 500mA - Please do not order if your unit requires more than 500 MilliAmps

Input:  100-240V 50/60HZ

Output:  48V-0.5A

Input Current:  1A

Efficiency:  80% Min

Line / Load Regulation:  3% / 5%

Ripple / Noise:  200mV p-p

Turn-On Delay:  2 Seconds Max

Rise Time:  40 mS Max

Protections:  Auto Recover Over-Voltage, Short Circuit, Over-Current



Environmental Standards:  RoHs

Operating Temperature:  -10 to +40°C (14 to +104°F)

Operating Humidity (RH):  5% - 90%

Storage Temperature:  -20 to +85°C (-4 to +185°F)

Network Connector Type:  RJ45 Shielded

POE Type:  Passive POE ( Pins 4,5 V+, Pins 7,8 V-)



• Provides remote power to equipment through CAT 5 Ethernet cable up to 100M

• Autoranging switching power supply 100~240V AC

• Short circuit, over-current, and over-voltage protection

• Reliable 24W passive POE output

• Compact, portable size with convenient wall plug design



Package Include:

1 x POE Injector Power Plug

Note: We'll ship the right plug according to your location, or you can leave a message to tell which plug you would like .



Pictures :



IMG_5360IMG_5375IMG_5354IMG_5355IMG_5361IMG_5364IMG_5352


  • Brand Name: BESDER
  • Certification: CE
  • Origin: Mainland China
  • Power Pin: 4,5(+)/7,8(-)
