Super Soft 2 Pin Black Red Silicone Cable 28awg 26 24 22 20 18 16 14 12awg 10awg 8awg High Temperature Resistant Copper Wire
4.9 (400 votes) | 2000 orders
Price:
US $10.34 - 709.72
Discount Price:
US $
8.99 -
701.24
-13%
- Color
-
-

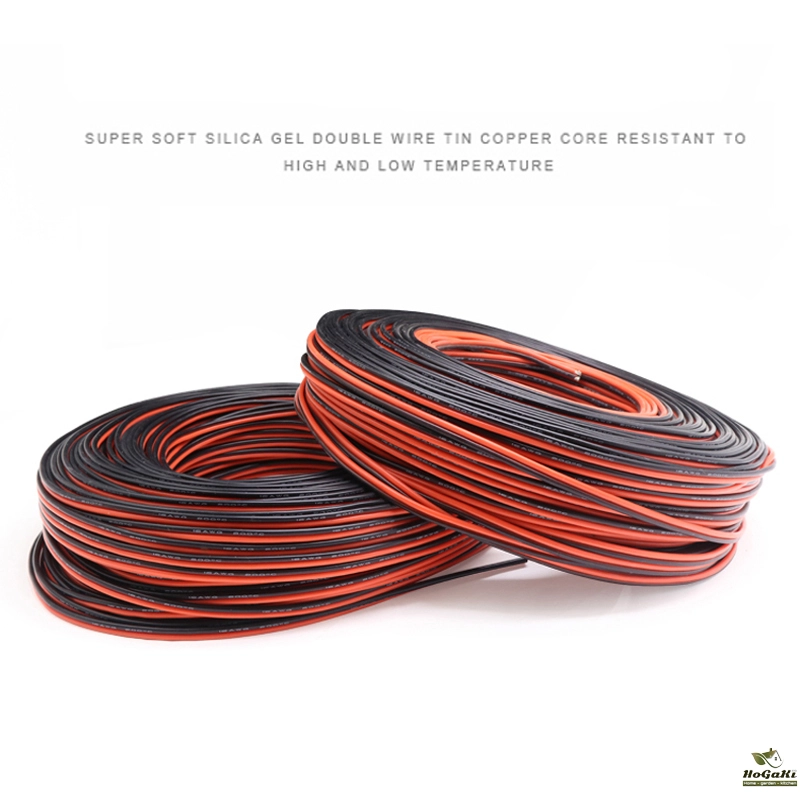

Super Soft 2 Pin Black Red Silicone Cable 28awg 26 24 22 20 18 16 14 12awg 10awg 8awg High Temperature Resistant Copper Wire
2Pin Soft silicone cable
INTRODUCTION
Insulation material:silicone
Conductor material:tinned copper
Rated voltage:600V

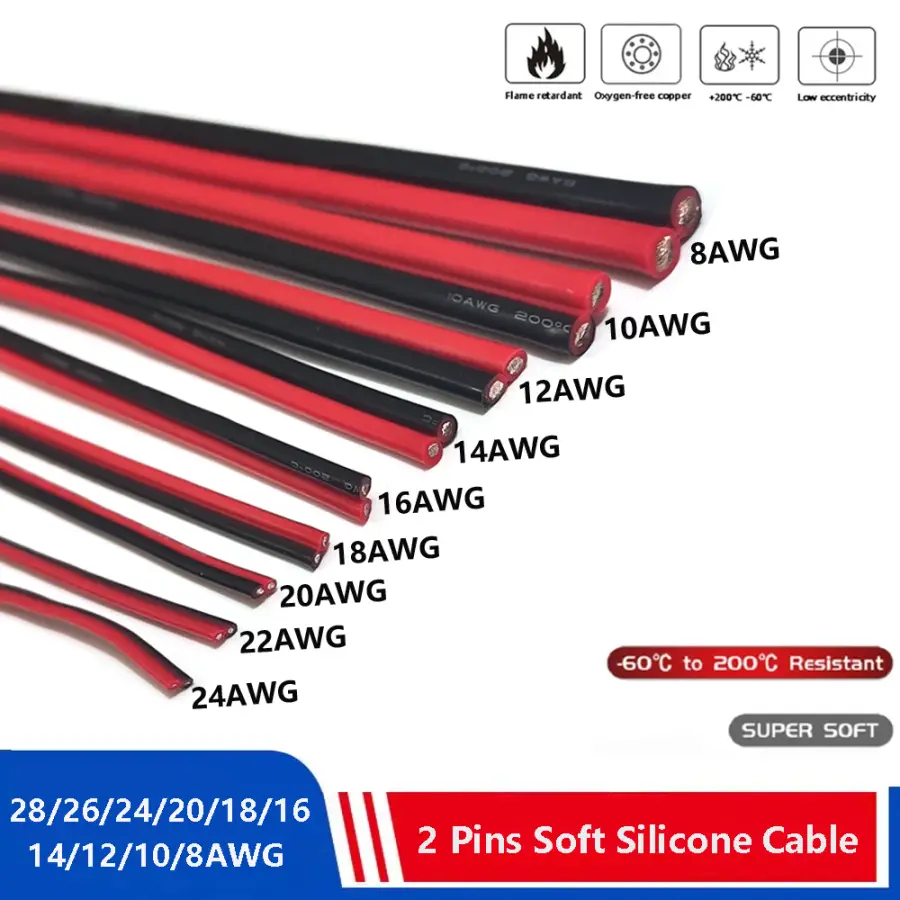

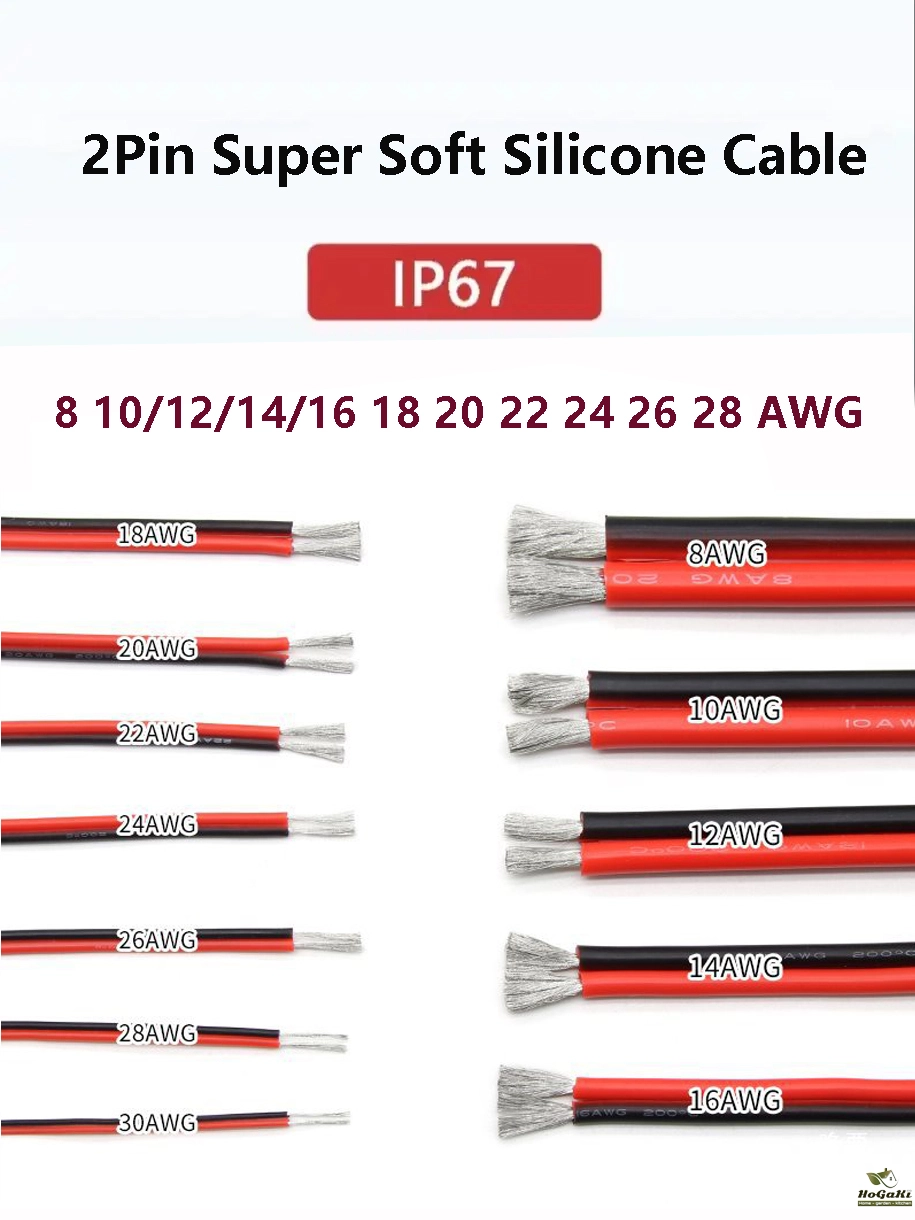

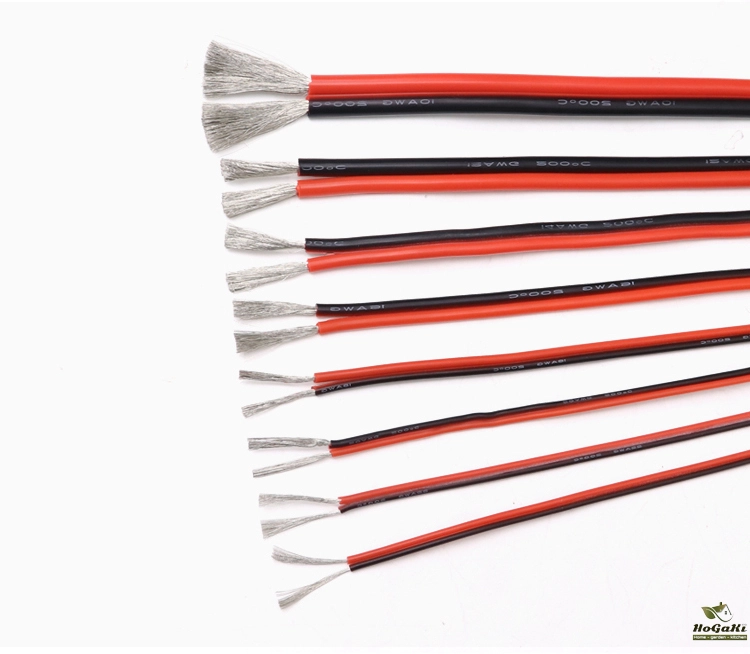

Wire gauge: 26/24/22/20/18/16/14/12/10/8 AWG
Inner-core diameter:0.08mm
Temperature range:-60°C~+200°C
Application:Products are widely used in car battery,Lithium battery, inverter, model airplane, audio, industrial robot arm, LED light, spotlight,high-speed motor,etc.
TECHNICAL PARAMETERS
Size No. | Specification | Cross-sectional area | Outer | Safe current | Maximum current | Rated |
NO./OD | (MM²) | (MM) | (A) | (A) | (V) | |
28 AWG | 16/0.08TS*2 | 0.08 | 1.2*2.4 | 0.6 | 1.2 | 600 |
26 AWG | 30/0.08TS*2 | 0.15 | 1.5*3 | 1.5 | 3 | 600 |
24 AWG | 40/0.08TS*2 | 0.2 | 1.6*3.2 | 2 | 5 | 600 |
22 AWG | 60/0.08TS*2 | 0.3 | 1.7*3.4 | 3 | 8 | 600 |
20 AWG | 100/0.08TS*2 | 0.5 | 1.8*3.6 | 5 | 13 | 600 |
18 AWG | 150/0.08TS*2 | 0.75 | 2.3*4.6 | 8 | 22 | 600 |
16 AWG | 252/0.08TS*2 | 1.26 | 3*6 | 13 | 30 | 600 |
14AWG | 400/0.08TS*2 | 2 | 3.5*7 | 20 | 50 | 600 |
12AWG | 680/0.08TS*2 | 3.4 | 4.5*9 | 34 | 70 | 600 |
10AWG | 1050/0.08TS*2 | 5.3 | 5.5*11 | 50 | 100 | 600 |
8AWG | 1650/0.08TS*2 | 8.3 | 6.5*13 | 70 | 160 | 600 |
Product Details

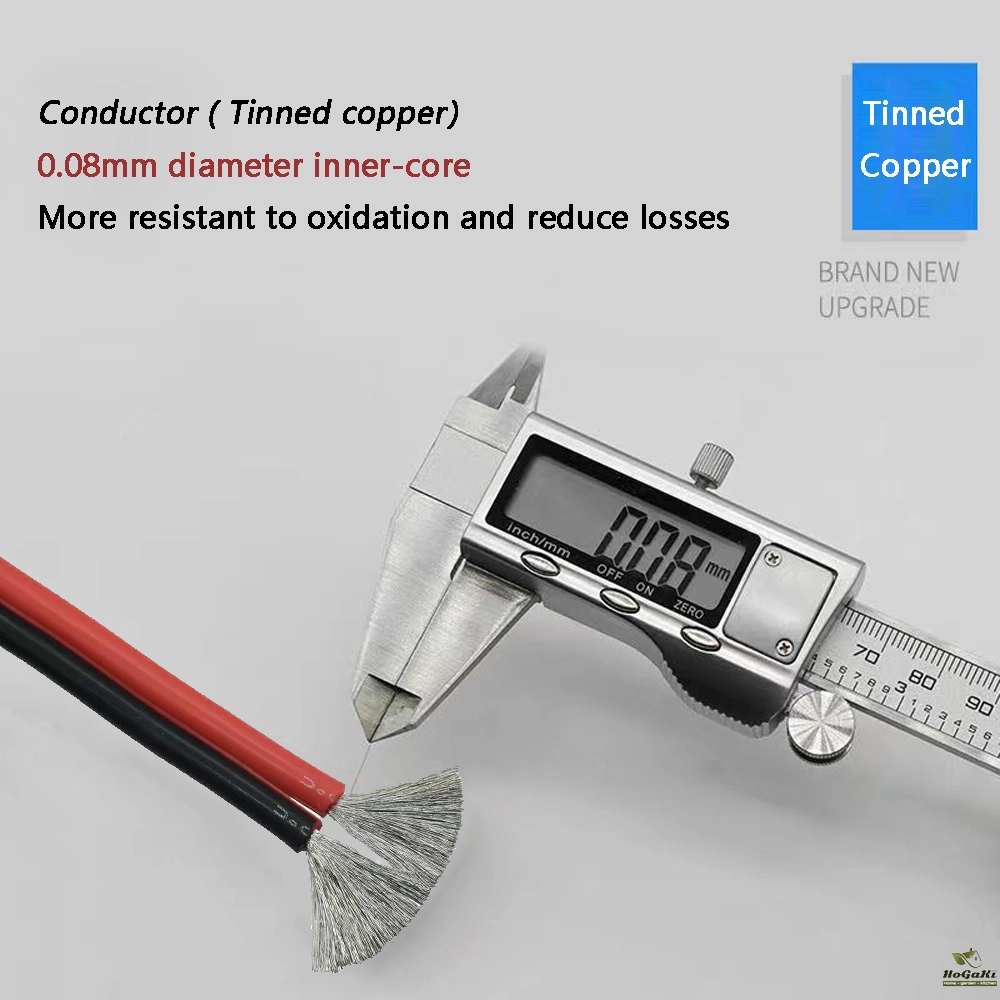

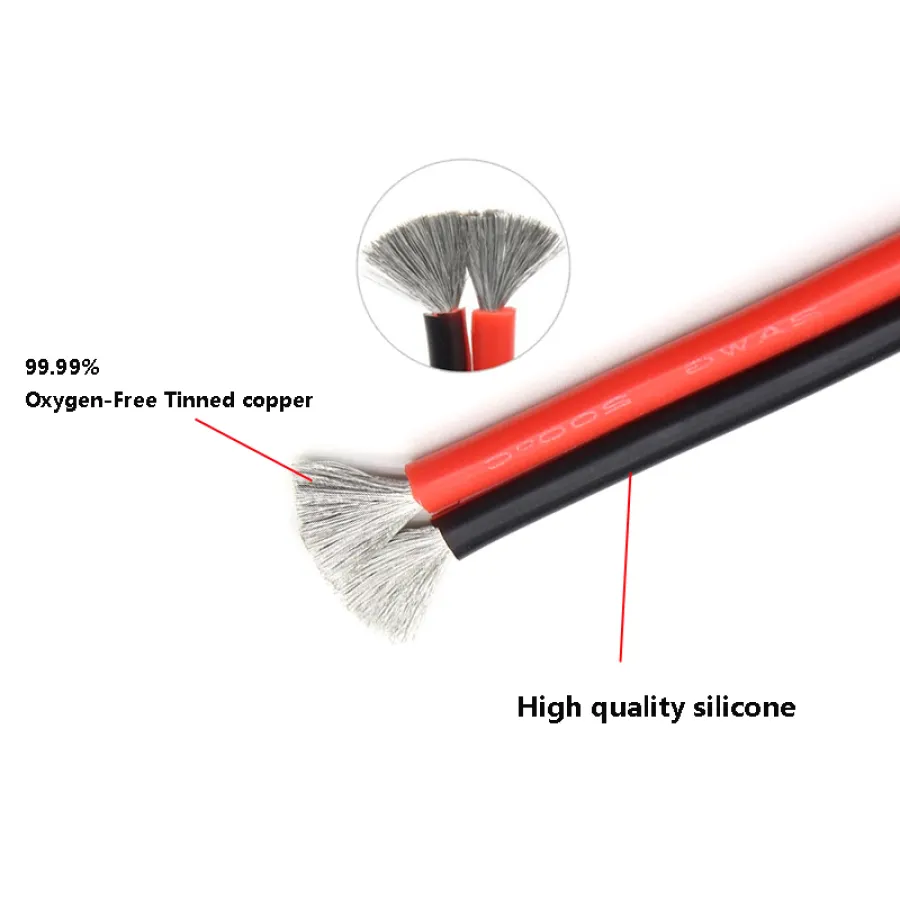

0.08mm Tinned Copper Core
The tin plated copper wire is made by coating the tinlayer concentrically on the copper core.it combines thecharacteristics of two metals with good electrical conductivity and bright and glossy surfaces,and the tinlayer has high corrosion resistance and making it easier to solder.

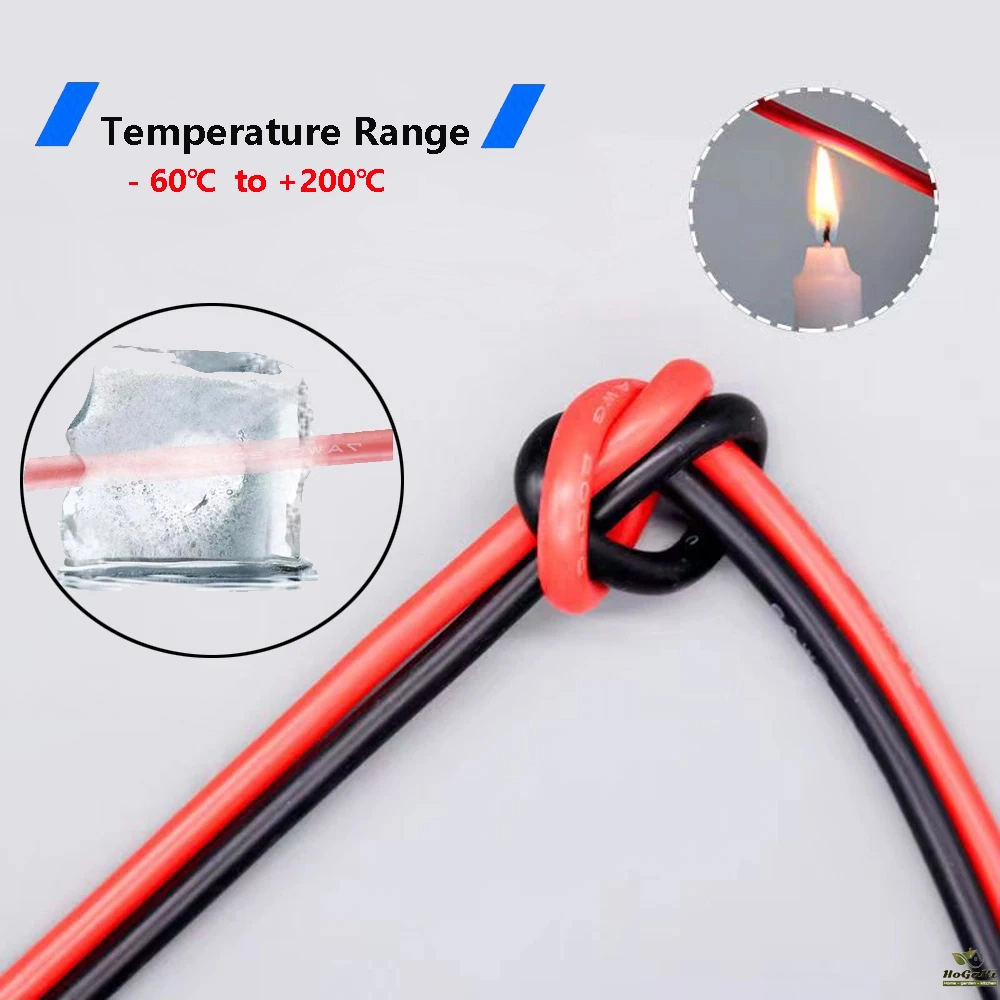

Resistant To High And Low Temperature
Silicone wire can withstand the temperature of -60℃ to 200℃.
Silicone Insulator
Silica gel has excellent high temperature and low temperature resistance, excellent high pressure resistance, aging resistance,acid and alkali resistance,long service life, soft and flexible, and easy to install.
Stranding Process
Using the inter-twisted winding process, the wires are tightly twisted together to reduce signal interference and improve electrical conductivity.

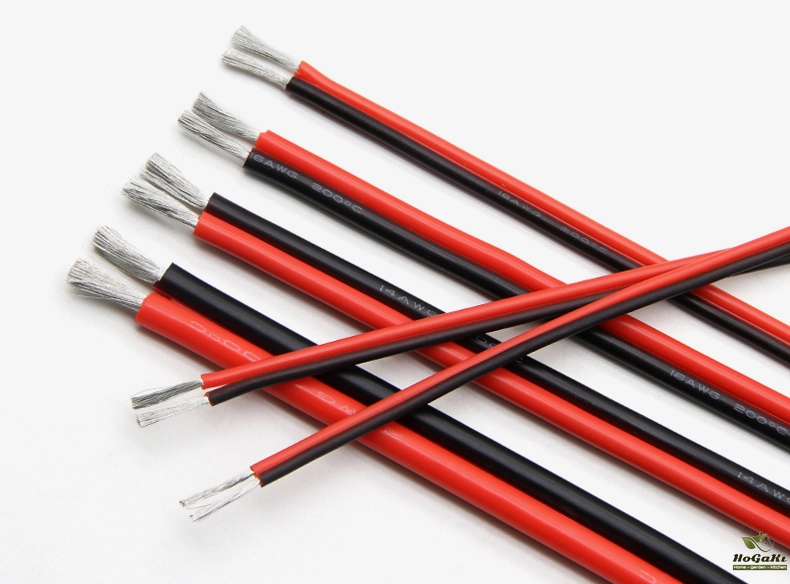

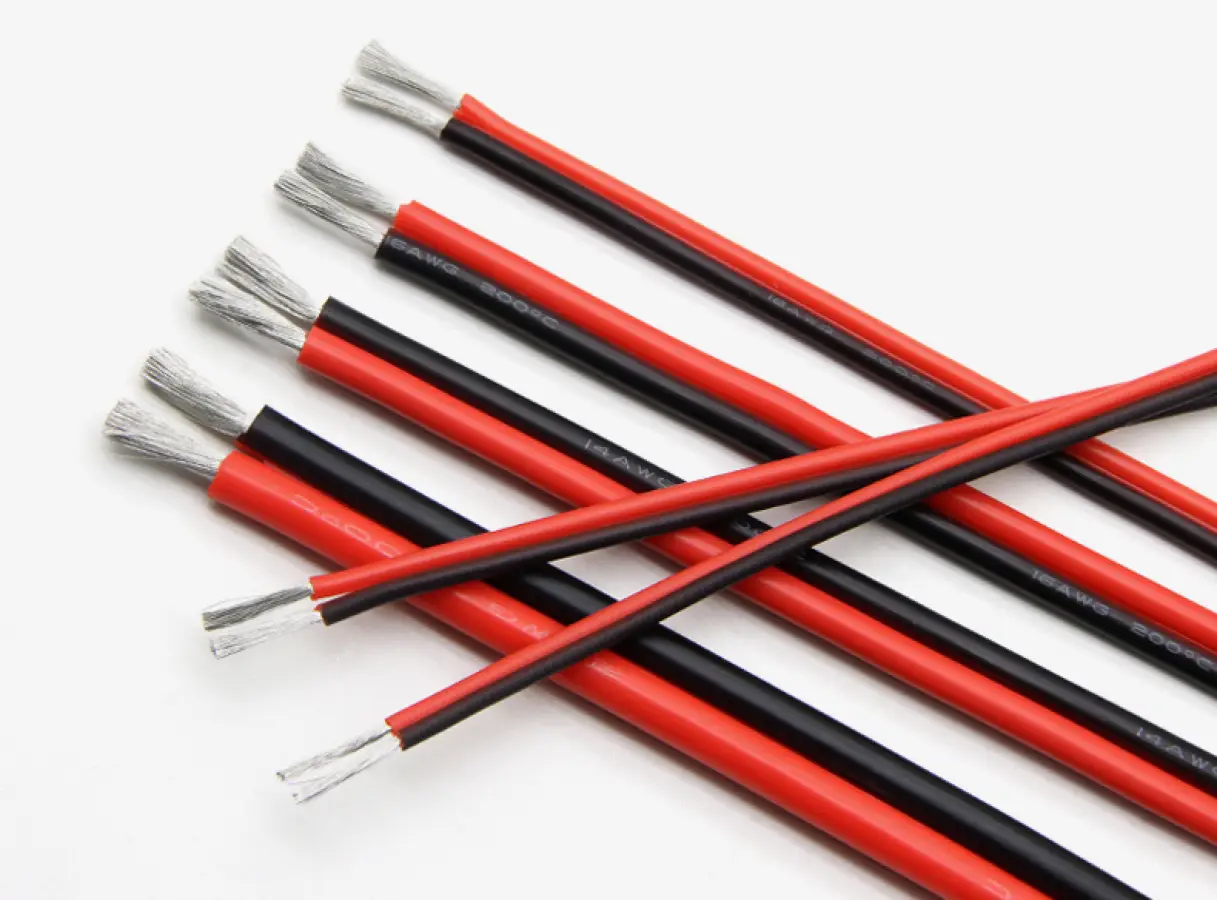

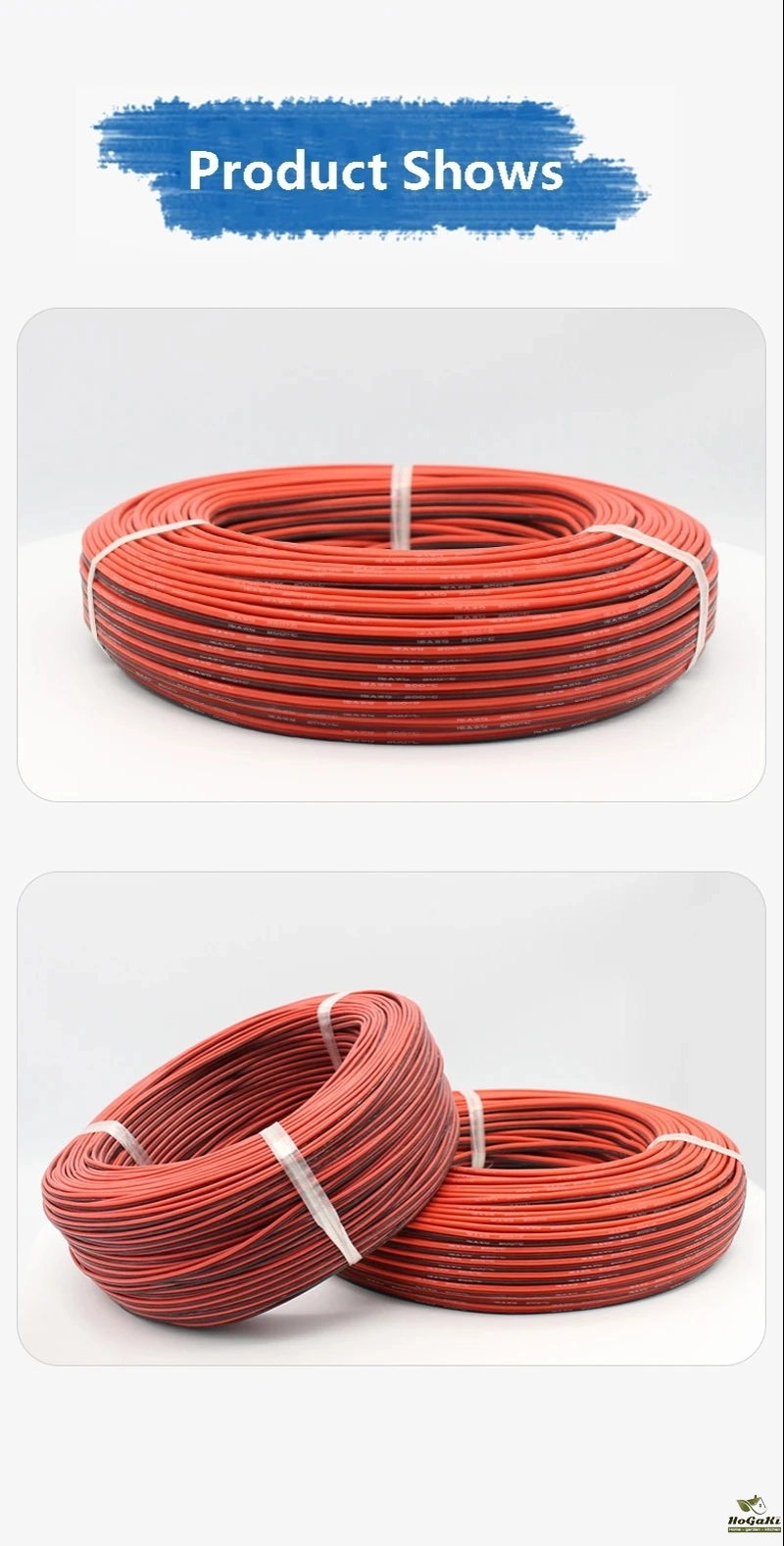

Product Shows
✔ Ordering notes
● For combined purchases, we will ship according to the order quantity. For example, if you buy 20 meters and 20 meters at the same time, you will receive a cable with a length of 20 meters and a cable with a length of 20 meters.（If you need a whole 40-meter cable, please contact customer service or leave a message.）
✔ About express delivery
● If the weight of the package is more than 2kg, we may change the transportation method, such as splitting the package and delivering it.
● We guarantee delivery within 24-72 hours after confirming the payment, except holidays.
● We are not responsible for delays caused by customs, import duties, taxes or other customs fees.
● Please be sure to fill in the correct delivery address and contact information carefully, otherwise your final package will not be delivered normally, and we will not bear the loss. (Russian customers must remember to fill in the full name.)
✔About after-sales
● If you didn't receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.
● Please feel free to contact us if there is any problems.We will try our best sloving it. If You Are Satisfied With Our Product, Kindly Leave Full-stars and Good Feedback For us. Your Feedback will Encourage us do it Better In The Further. Thanks!
Packaging Details
- Unit Type:
- Package Weight: 0.900
- Package Size: 15x5x22
- Brand Name: TAKORI
- Hign-concerned Chemical: None
- Voltage: 81-600V（include600V）
- Use: Not Telecommunication
- Origin: Mainland China
- Structure: Without modular telephone connectors
- Insulation Material: Rubber
- is_customized: Yes
- Conductor Material: Copper
- Conductor Type: Stranded
- Type: Insulated
- Certification: CE
- Certification: RoHS
- Model Number: 2 pin Silicone wire
- Specification: 28 26 24 22 20 18 16 14 12 10 8 AWG
- Other Specification: 0.08 0.16 0.2 0.3 0.5 0.75 1.27 2 3.4 5.3 8.3 mm²
- Copper core diameter: 0.08mm
- Characteristic: Very soft
- Temperature range: -60℃ ~ 200℃
- Application: Lithium battery, New energy vehicle battery, Power battery
- Color: Black Red
- Other Application: Inverter, Model aircraft battery, Drone battery
- Choice: yes
- semi_Choice: yes
