STC-1000 STC-3028 STC-3008 Digital Hygrometer Humidity Controller Thermometer Hygrometer Sensor Heater Cooler 12V/24V/220V
5.0 (4 votes) | 29 orders
Price:
US $22.07 - 45.22
/ piece
Discount Price:
US $
13.24 -
27.85
/ piece
-40%
- Ships From
- Color
-
-
STC-3028
Product Description
Switch the modes between cool and heat;Control temperature by setting the temperature setting value and the difference value;
Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds, temperature limit or when sensor error.
Feature
Be able to control temperature and humidity at the same time.
Be able to connect with humidifier and dehumidifier equipment at the same time.
Be able to connect with refrigeration/ heating and humidifier/dehumidifier equipment at the same time.
Heating/Cooling function could be set separately for refrigeration and heating to protect temperature controller from violent change. Same as humidity Control.
Supporting Temp and Humidity Calibration

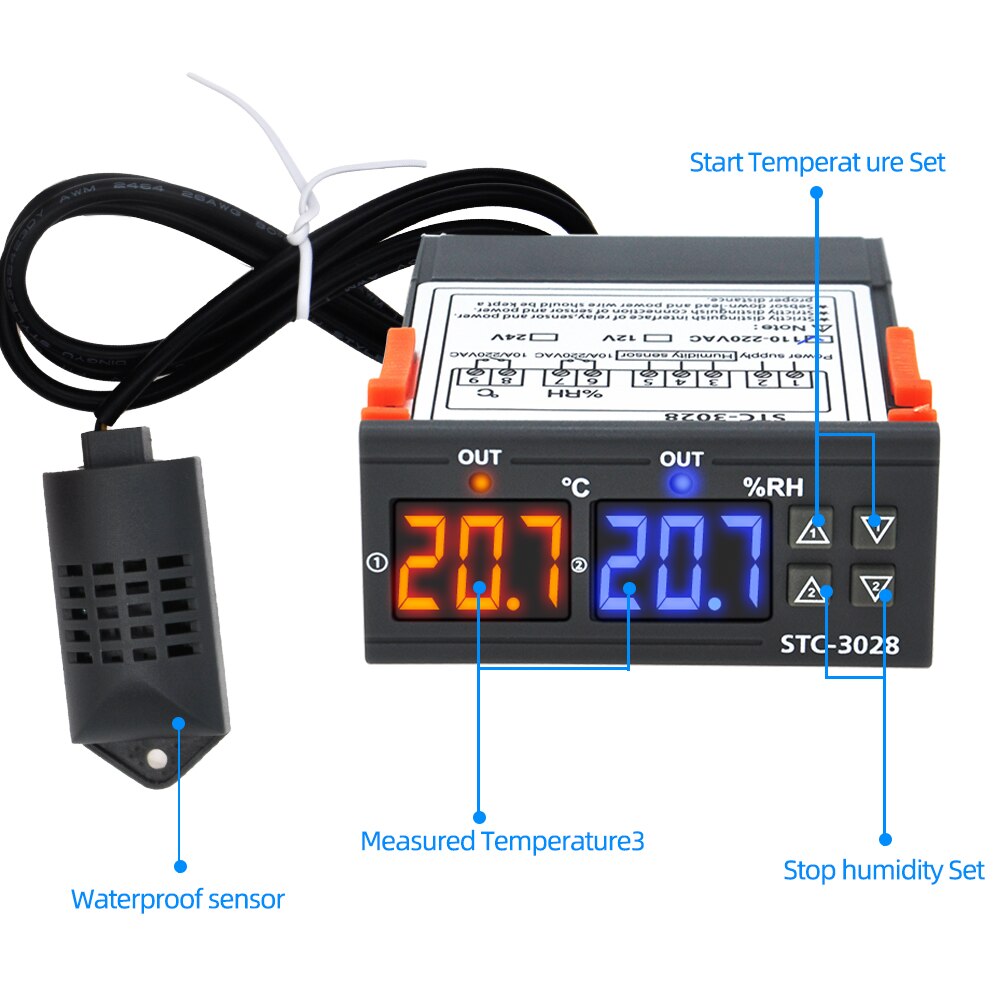

[Dual Display Window] Be able to display measured temperature/humidity and set temp/humidity at the same time

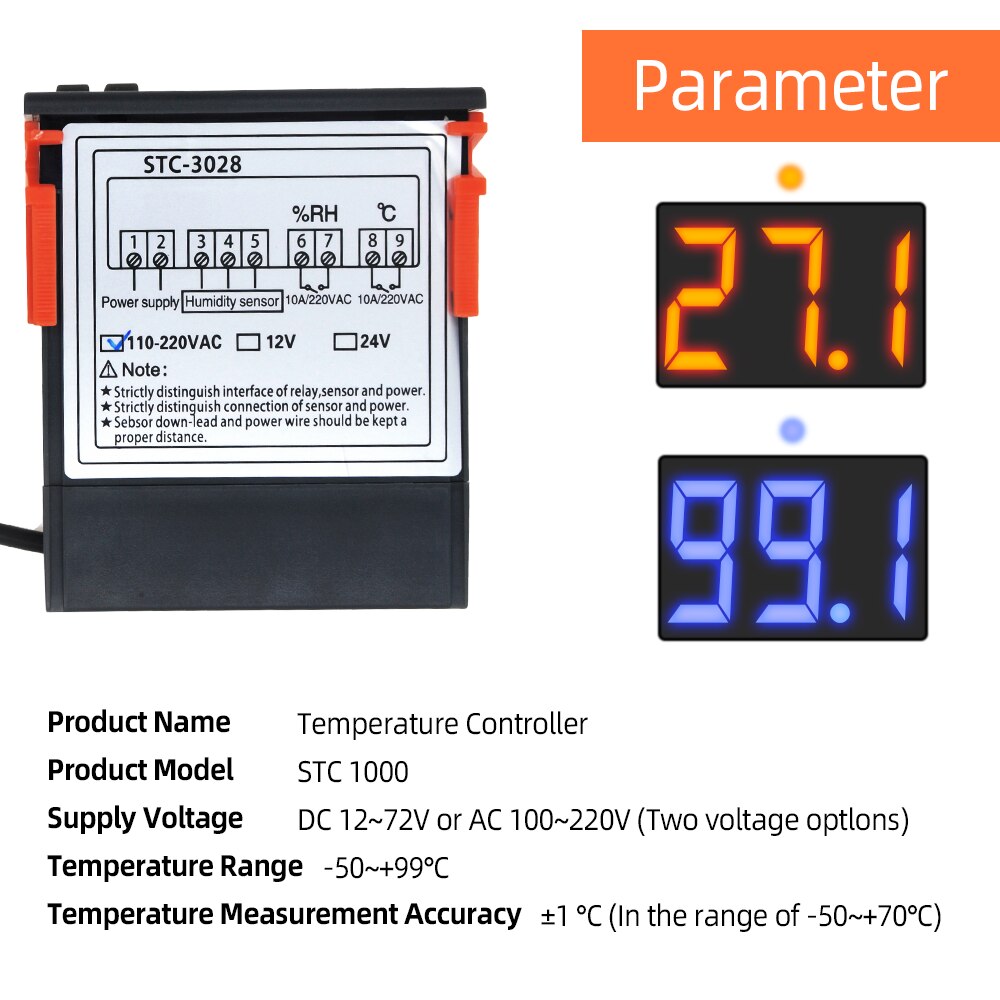

Specification

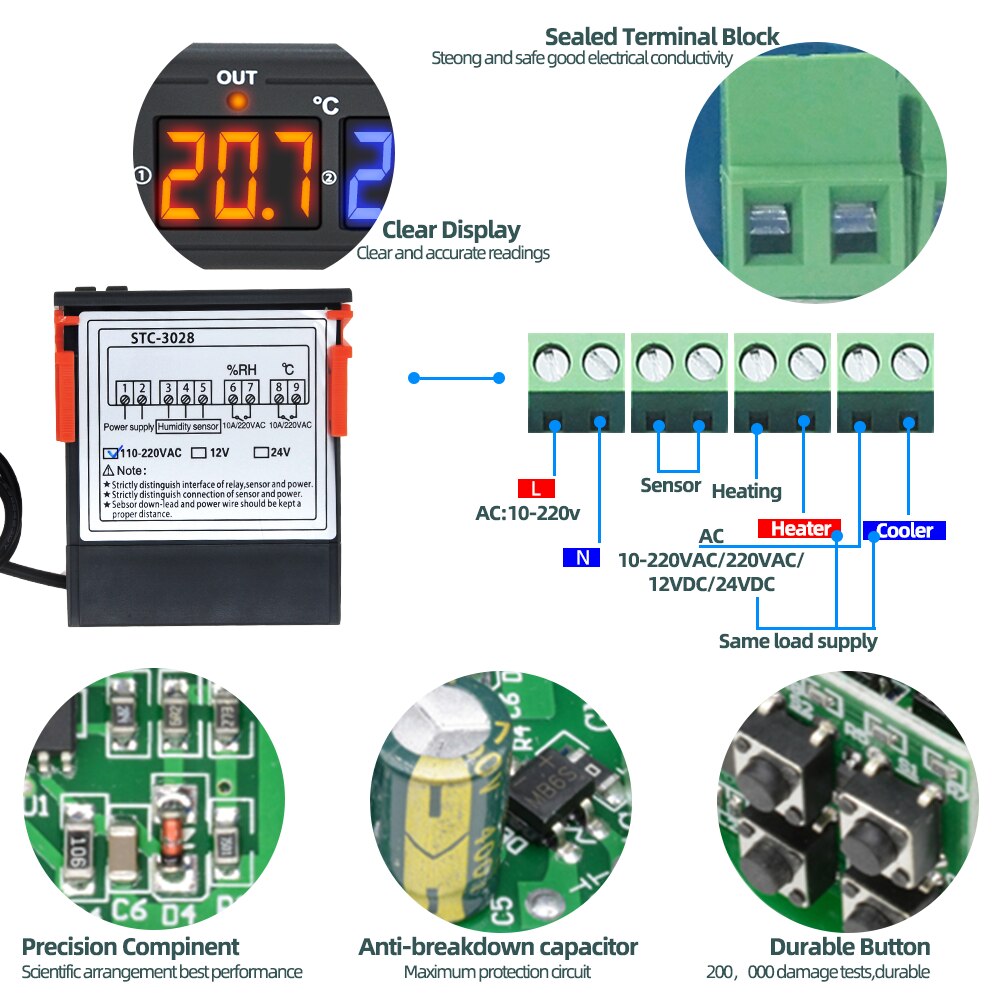

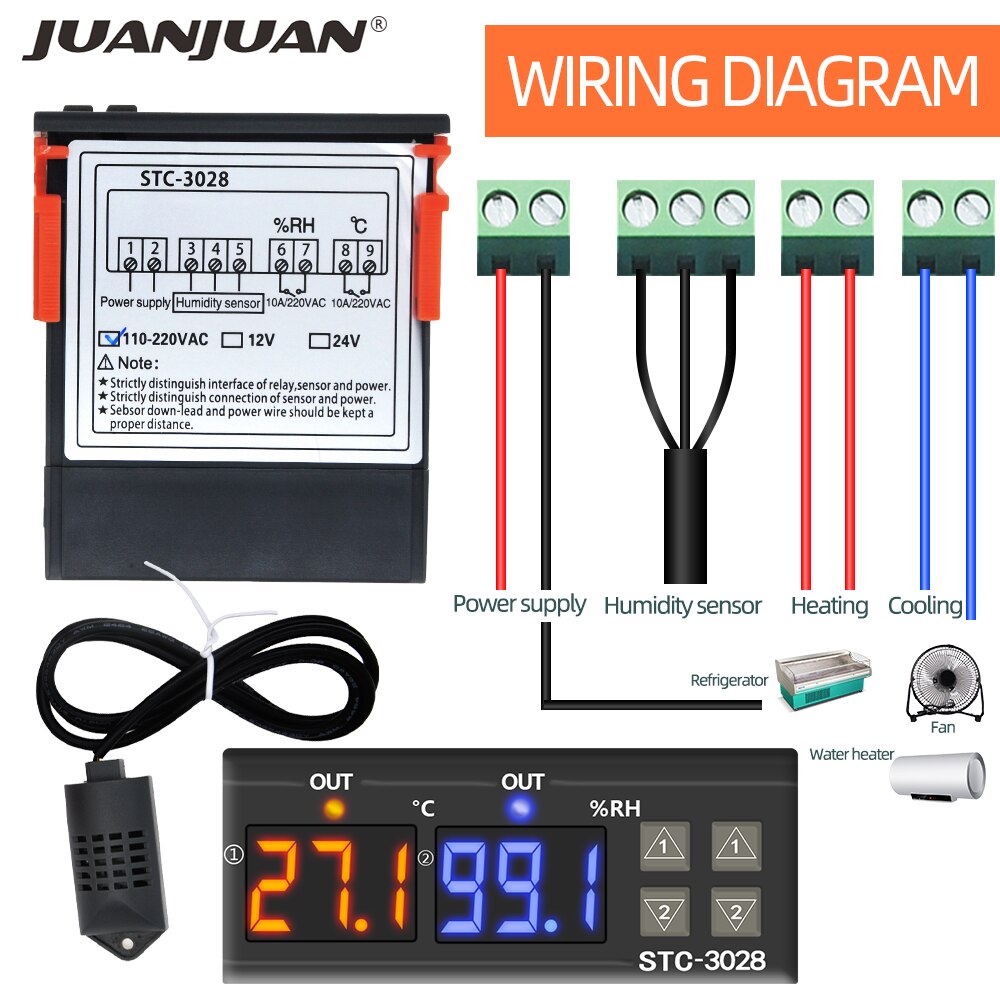

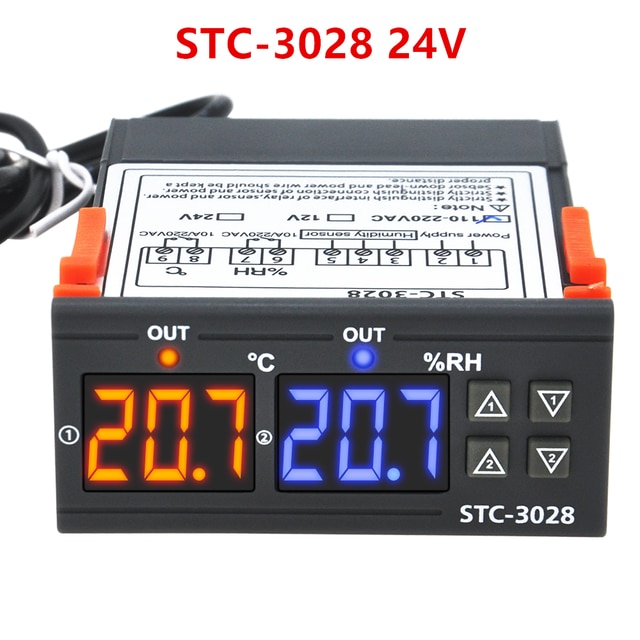

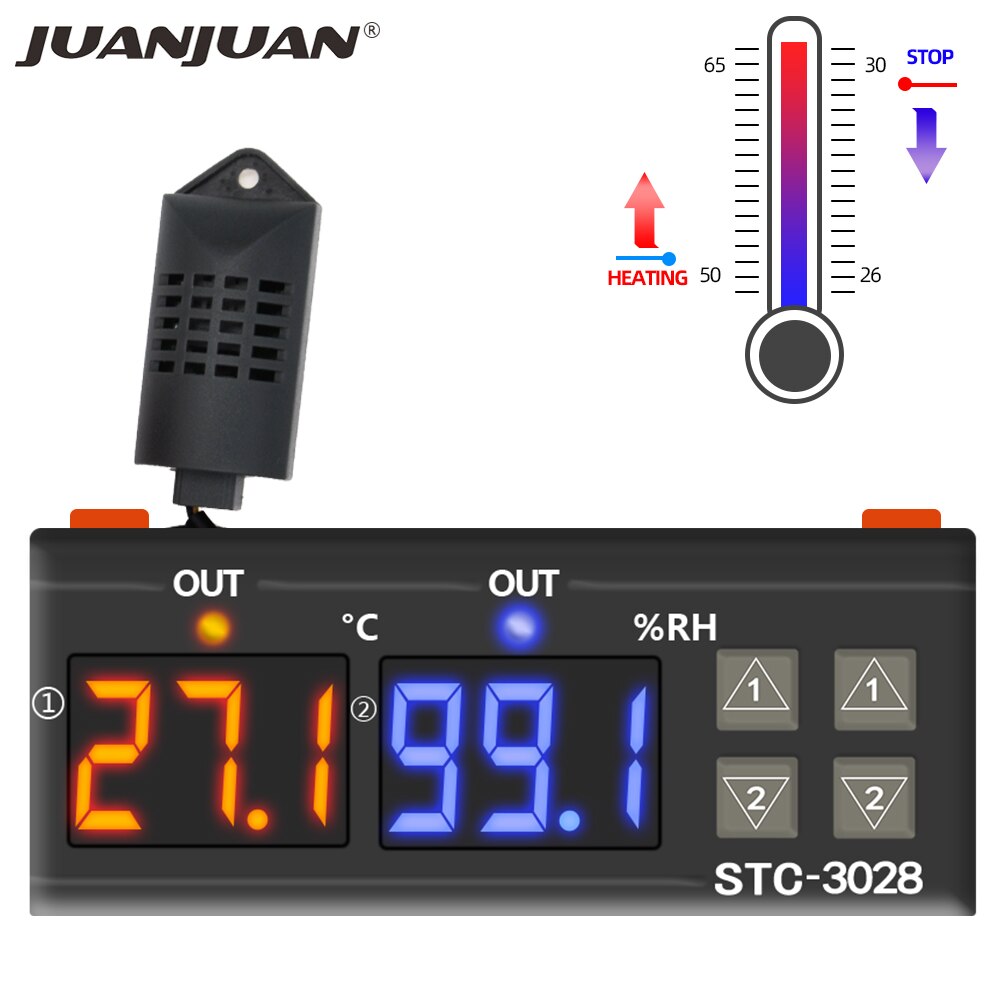

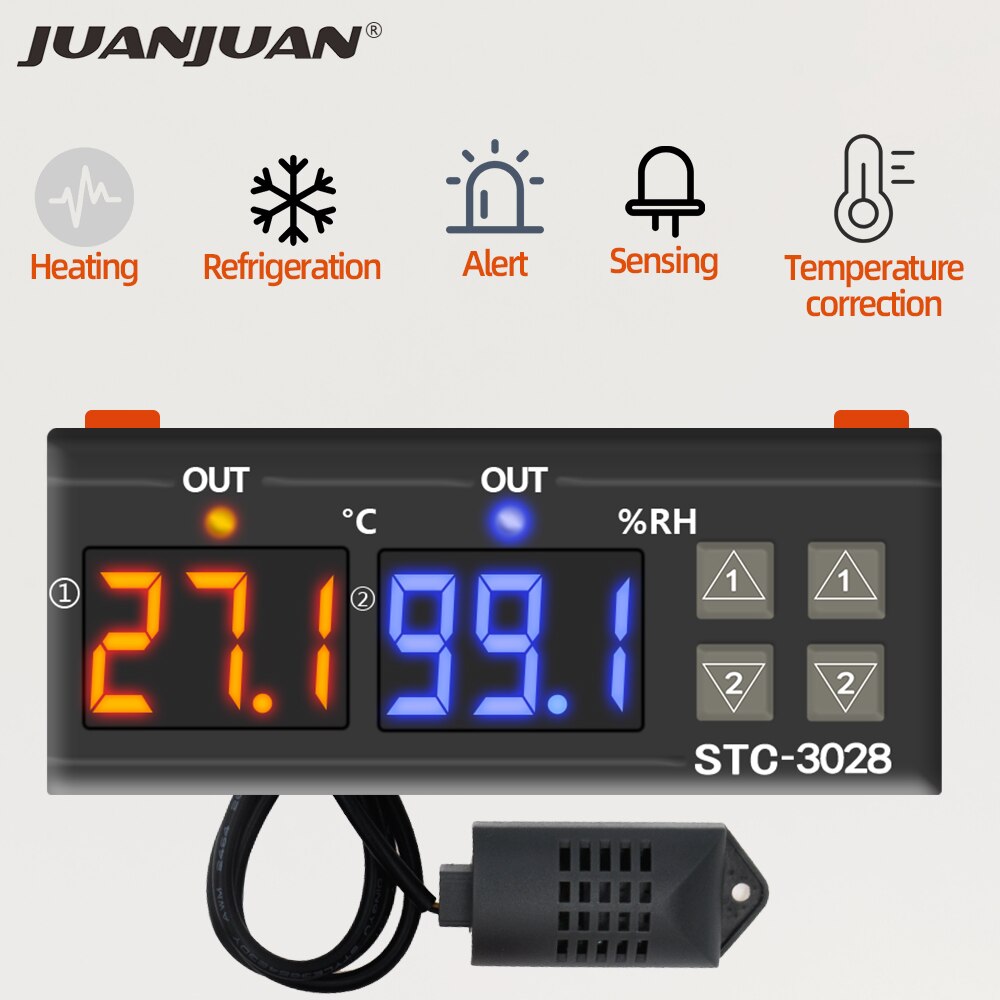

Model: STC-3028
Input voltage: AC110~220V± 10%, DC24V, DC12V
Measuring temperature range: -20°～+80°
Measuring humidity range: 00%RH～+100%RH
Accuracy: ±1°, 0.1%RH
Relay output contact capacity: 10A/240VAC
Sensor length: 1m

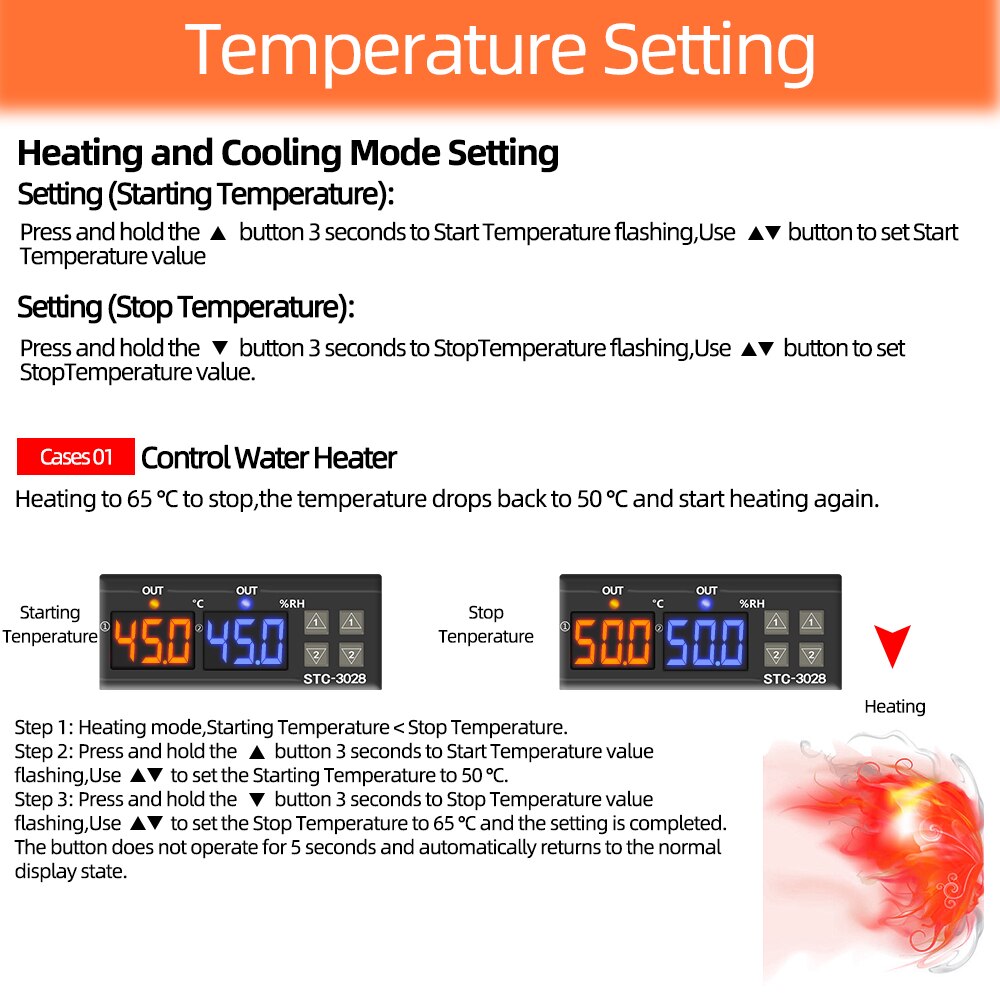

Set startup temperature(humidity):
Press the "up" button once to display the starting temperature(humidity). Long press the "up" button for about 3 seconds,The required temperature(humidity) can be set by the up and down keys
Set stop temperature(humidity):
Press the "down"button once to display the stop temperature(humidity). Long press the button for about 3 seconds and the stop temperature(humidity) number flashes. The required temperature(humidity) can be set by the up and down keys
Temperature/humidity correction:
Press "up" and "down" button at the same time.

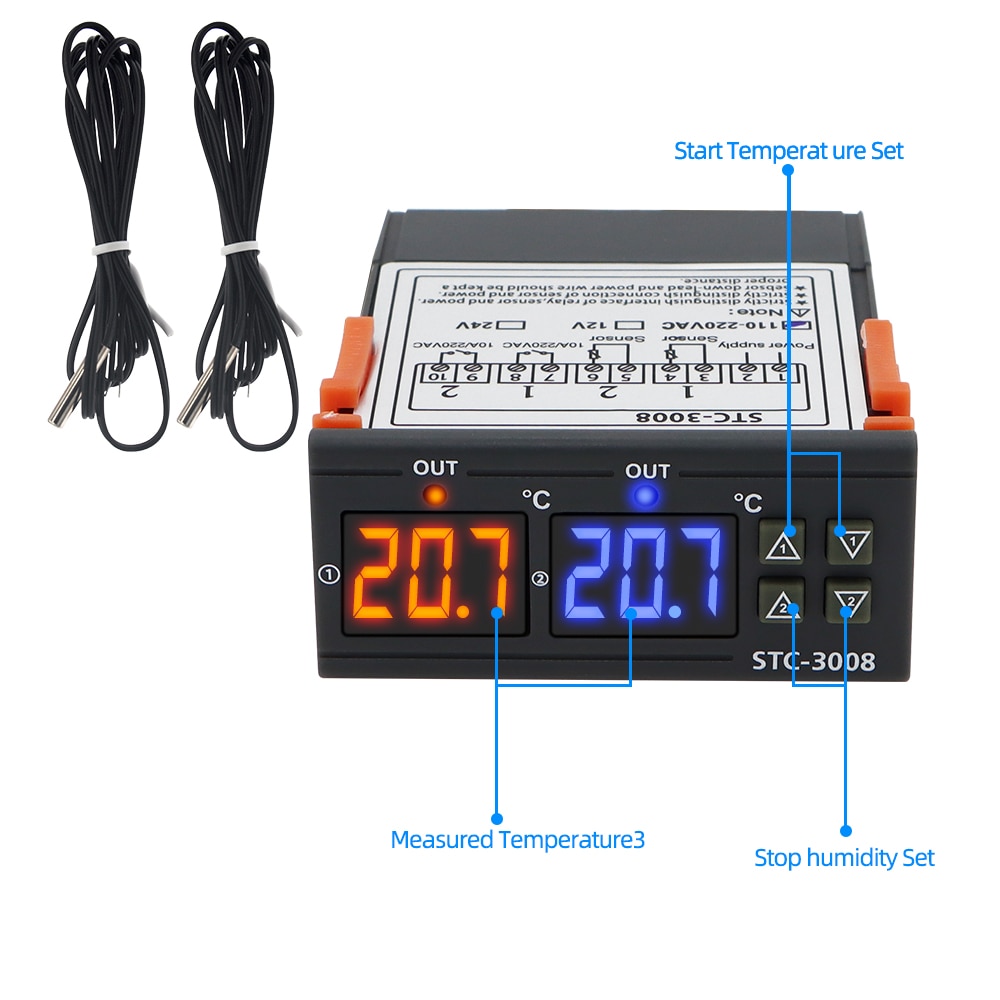

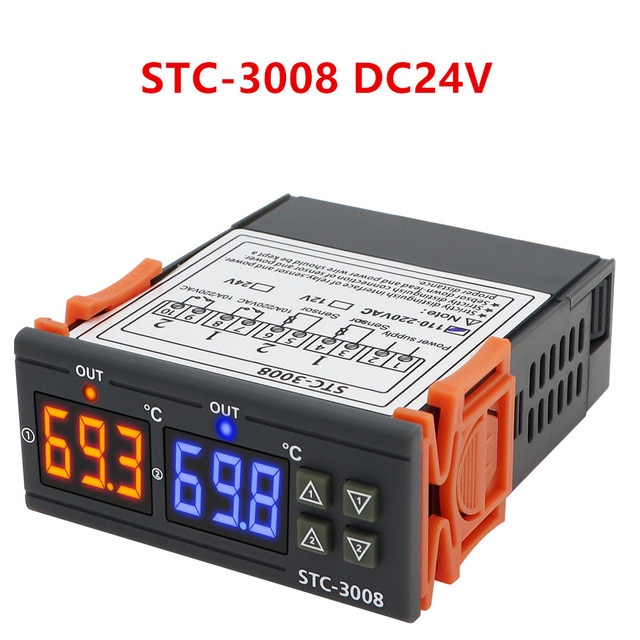

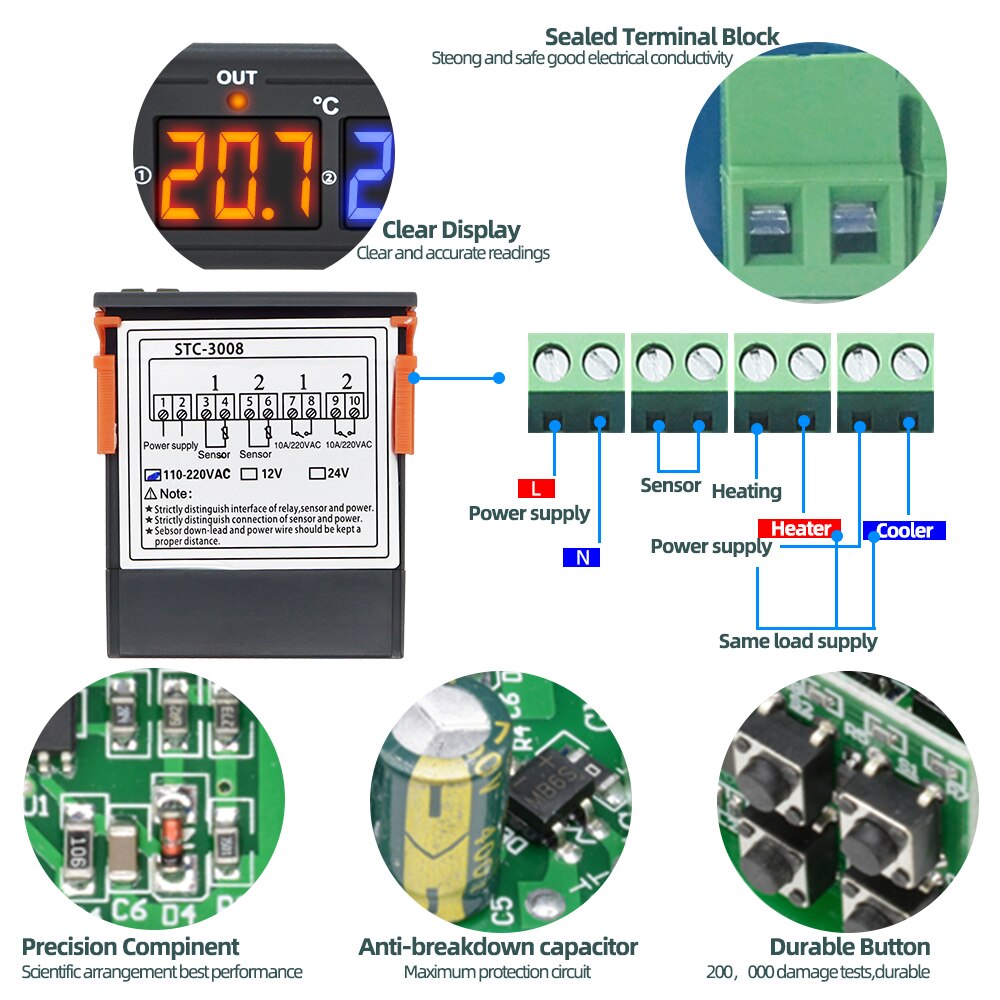

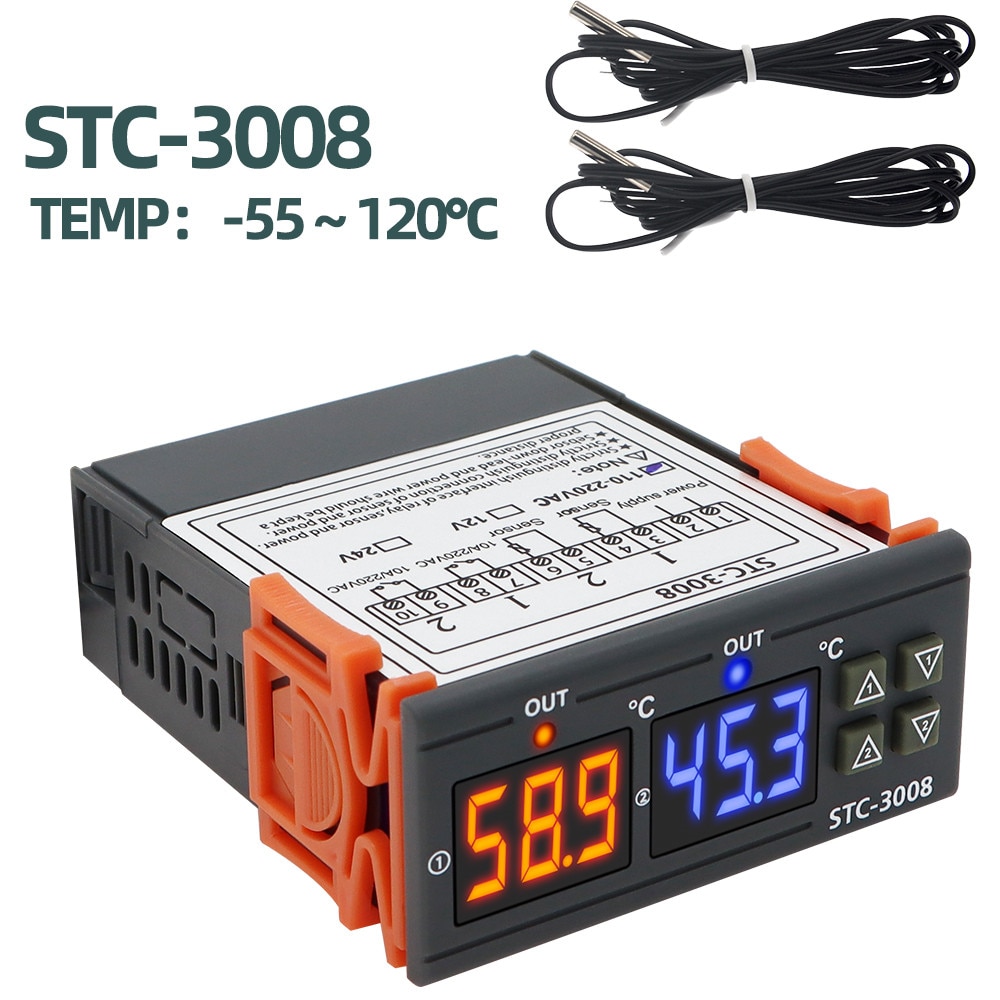

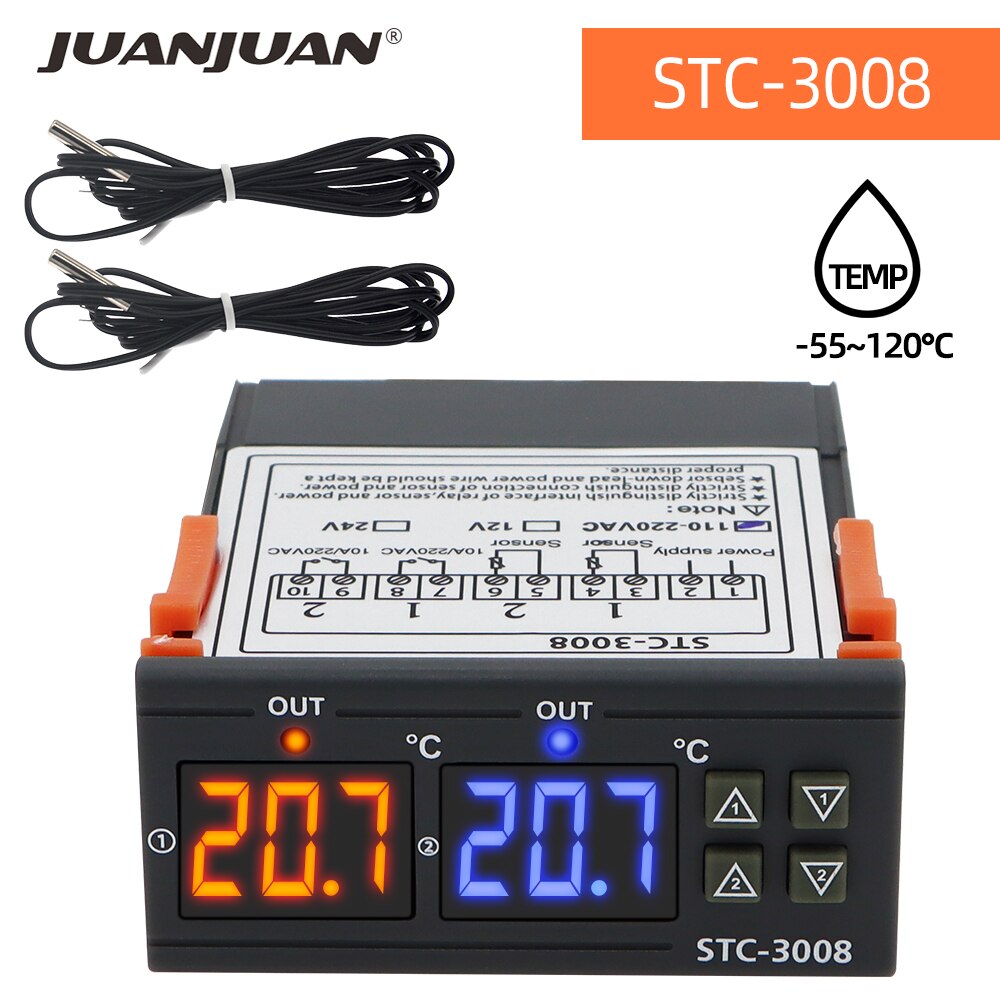

STC-3008
Feature:
1.Automatic conversion of refrigeration and heating mode
2.Control mode of return difference;Temperature display resolution 0.1
3.The temperature controller has the characteristic of high accuracy, high sensitivity, high stability.
4.Support temperature correction and support for power loss (the parameters of the sudden power failure are still valid
5.Application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc

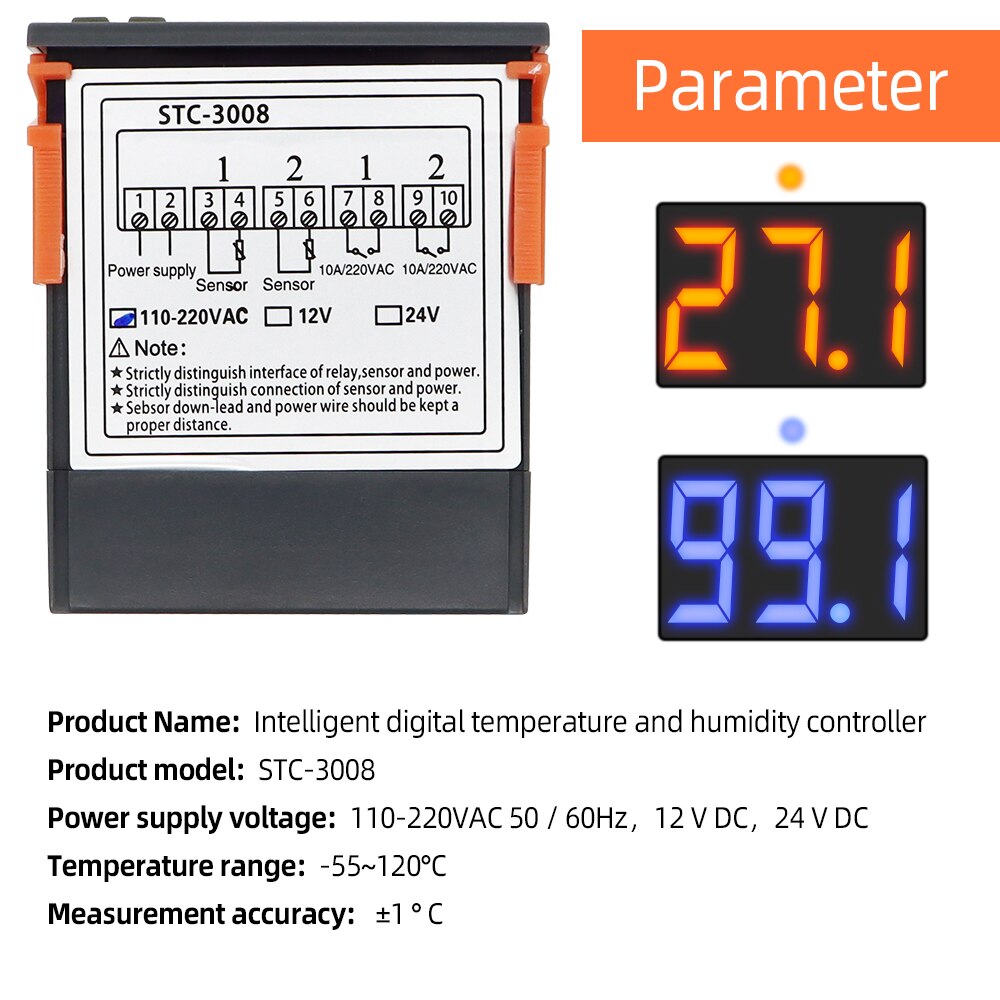

Specification:
Display Type:Digital
Style:Standing Station
Temperature sensor: NTC 10K
Senor length:1.0m
Temperature measuring range: -55 ° C ~ 120 ° C
Resolution: 0.1 ° C
Accuracy:±1° C
Power supply: 110-220VAC 50/60Hz, 12V DC , 24V DC(Please choose power supply when ordering)
Power consumption: <3W
Storage temperature: -30 ° C ~ 75 ° C
Relative humidity: 20% ~ 85% (No condensate)
Relay contact capacity: Two Relay Cool 10A/240VAC; Heat 10A/240VAC

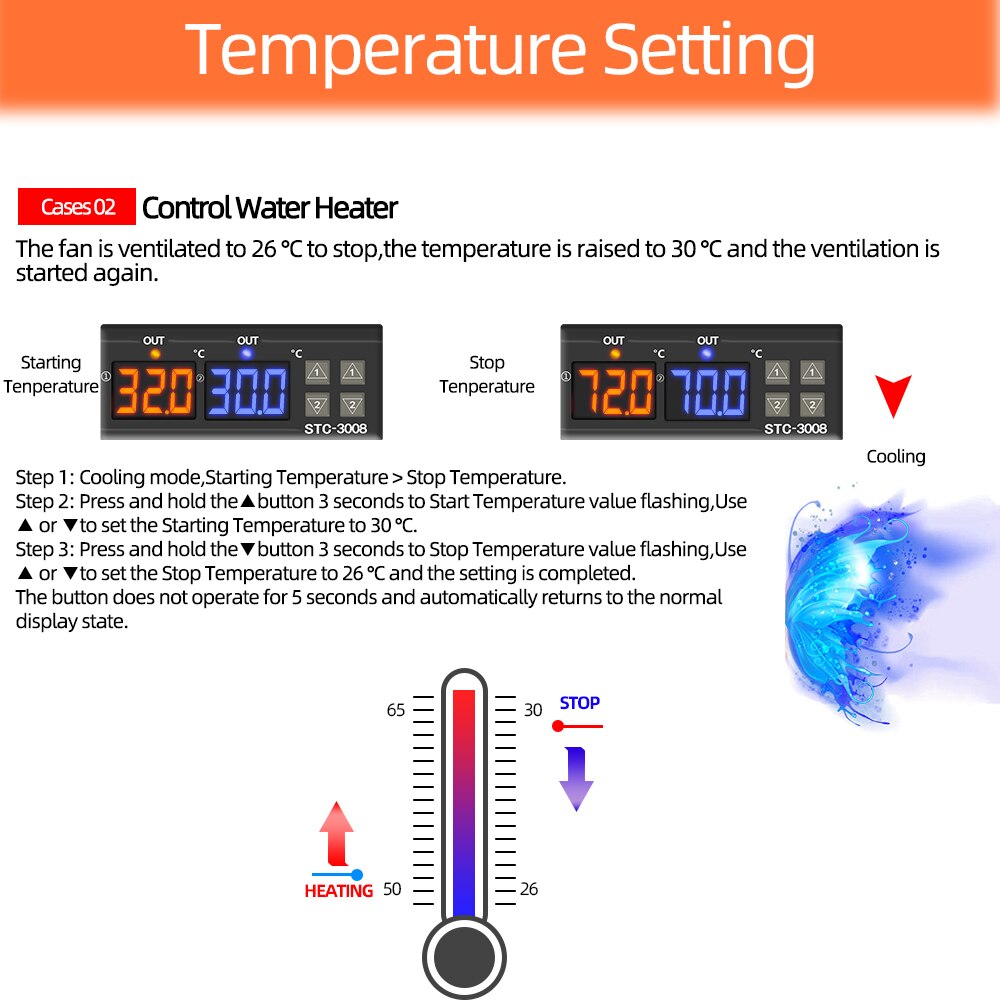

Set start up temperature:
Press the "up" button once to display the starting temperature. Long press the "up" button for about 3 seconds,The required temperature can be set by the up and down keys
Set the stop temperature:
Press the button once to display the stop temperature. Long press the button for about 3 seconds and the stop temperature number flashes. The required temperature can be set by the up and down keys
Set the stop temperature:
Press the button once to display the stop temperature. Long press the button for about 3 seconds and the stop temperature number flashes. The required temperature can be set by the up and down keys
Press "Up 1" Button & "Up 2"Button at the same time to setting mode
Default | |||
P0 | ①: Delay start | 0-60 minutes | 0 |
P1 | ②: Delay start | 0-60 minutes | 0 |
P2 | High temperature alarm | P3~120°C | 120°C |
P3 | Low temperature alarm | P2~-55°C | -55°C |
How to restore factory Settings
press the "Down 1" and "Down 2" button at the same time, the factory setting is restored
Temperature correction
Press “Up 1 ”and “Down 1 ”at the same times for 3 second. positive value = measured value + corrected value(group 2 temperature correction is the same method )

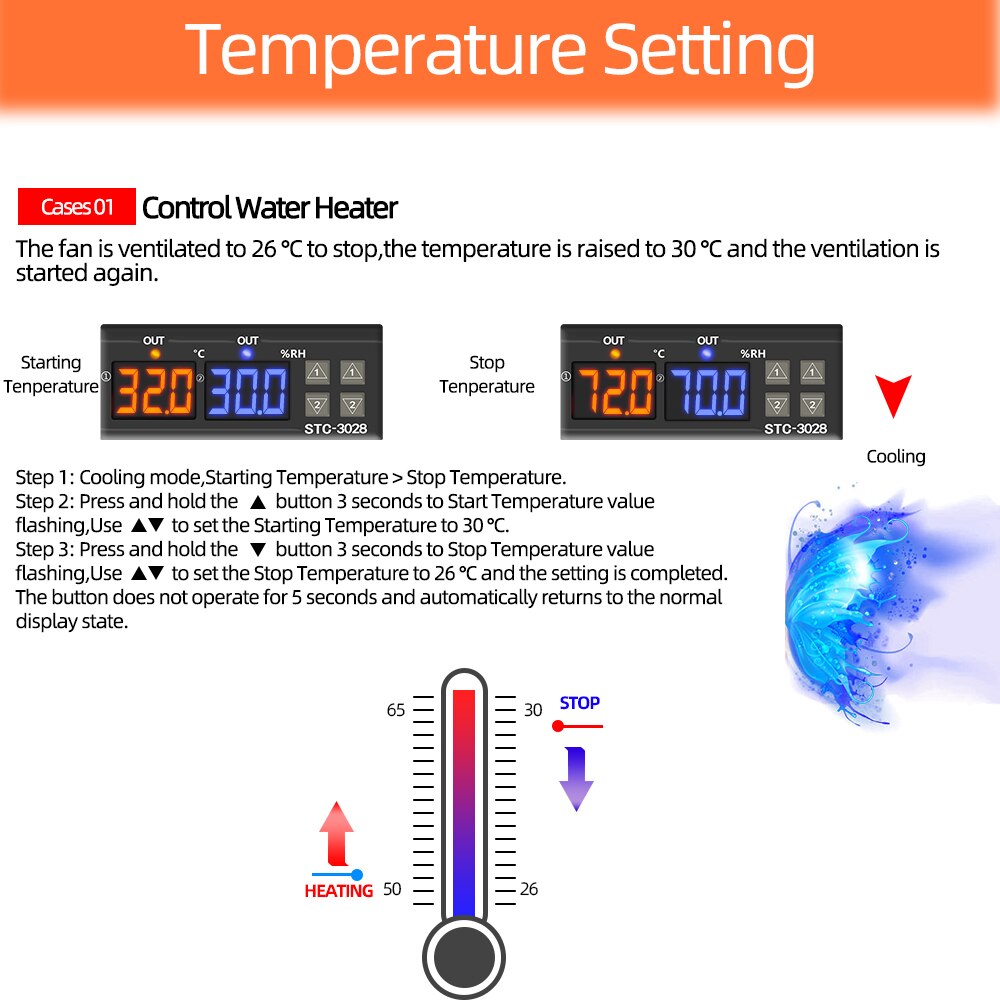

Heating Mode--Start temperature
Cooling Mode--Start temperature>Stop temperature

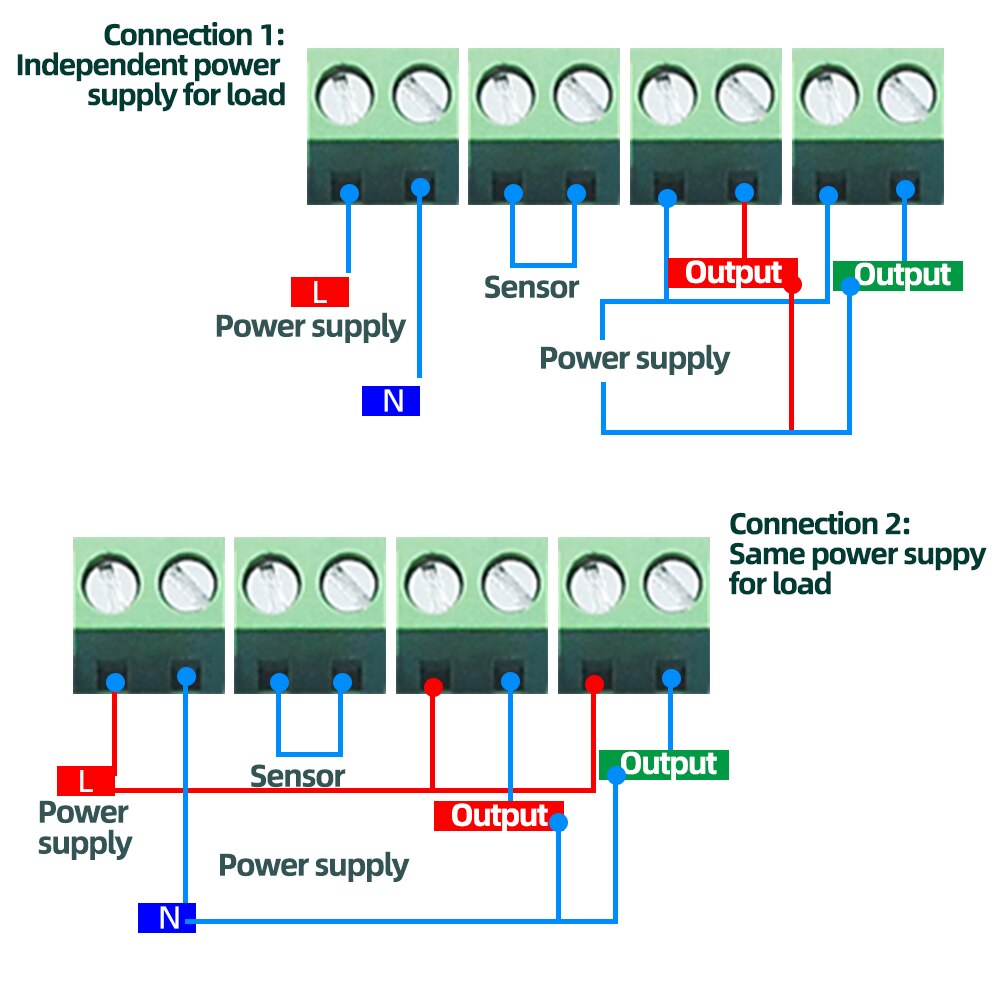

You can set 1 heating 1 cooling or 2 cooliong or 2 heating.

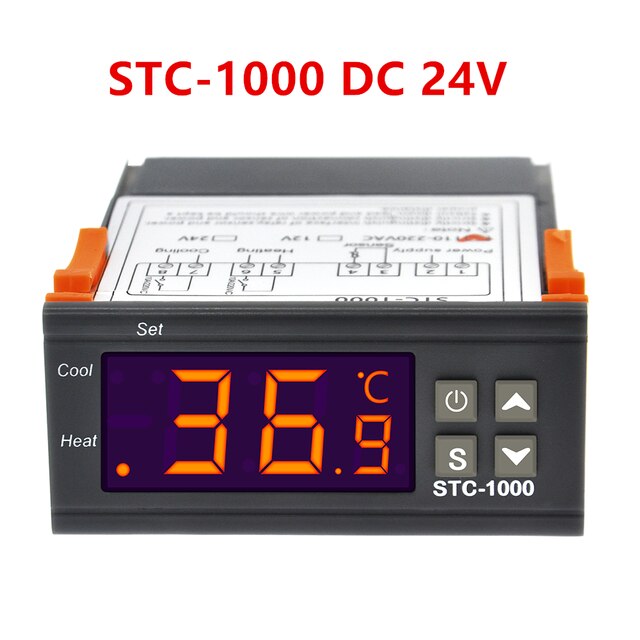

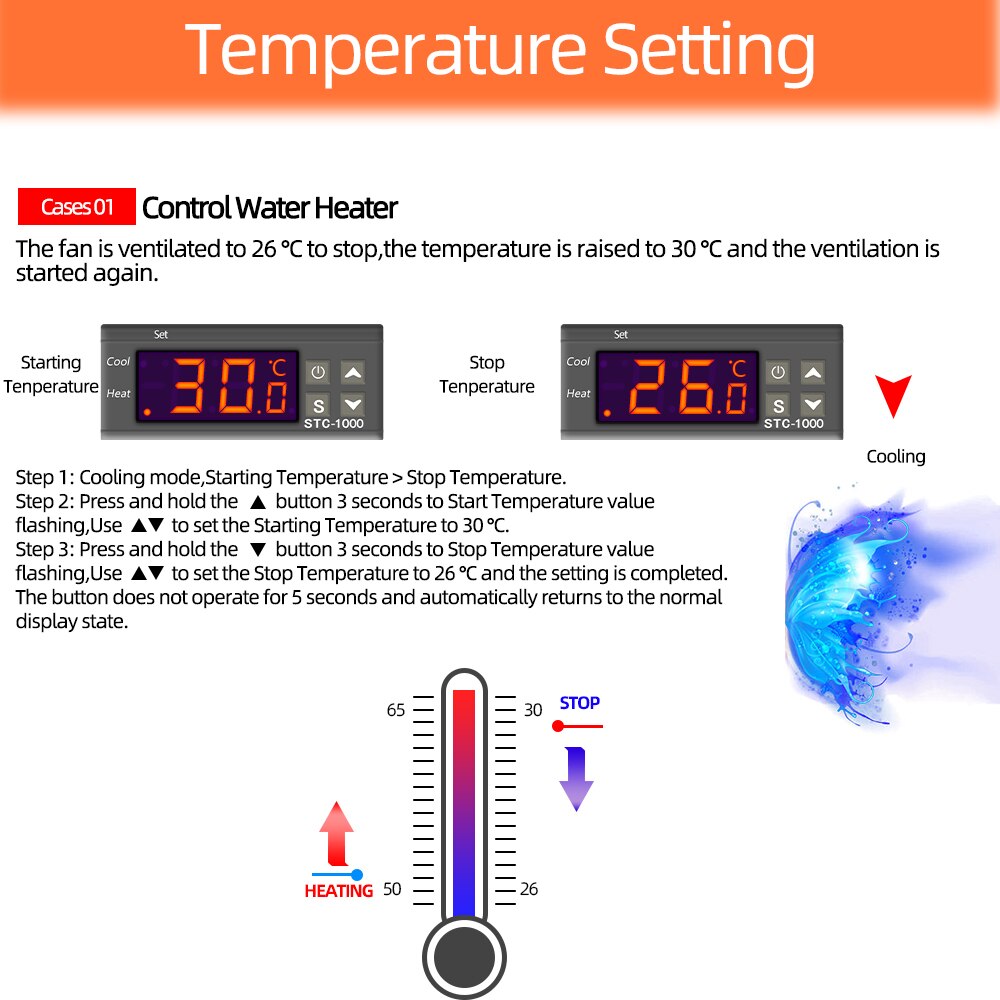

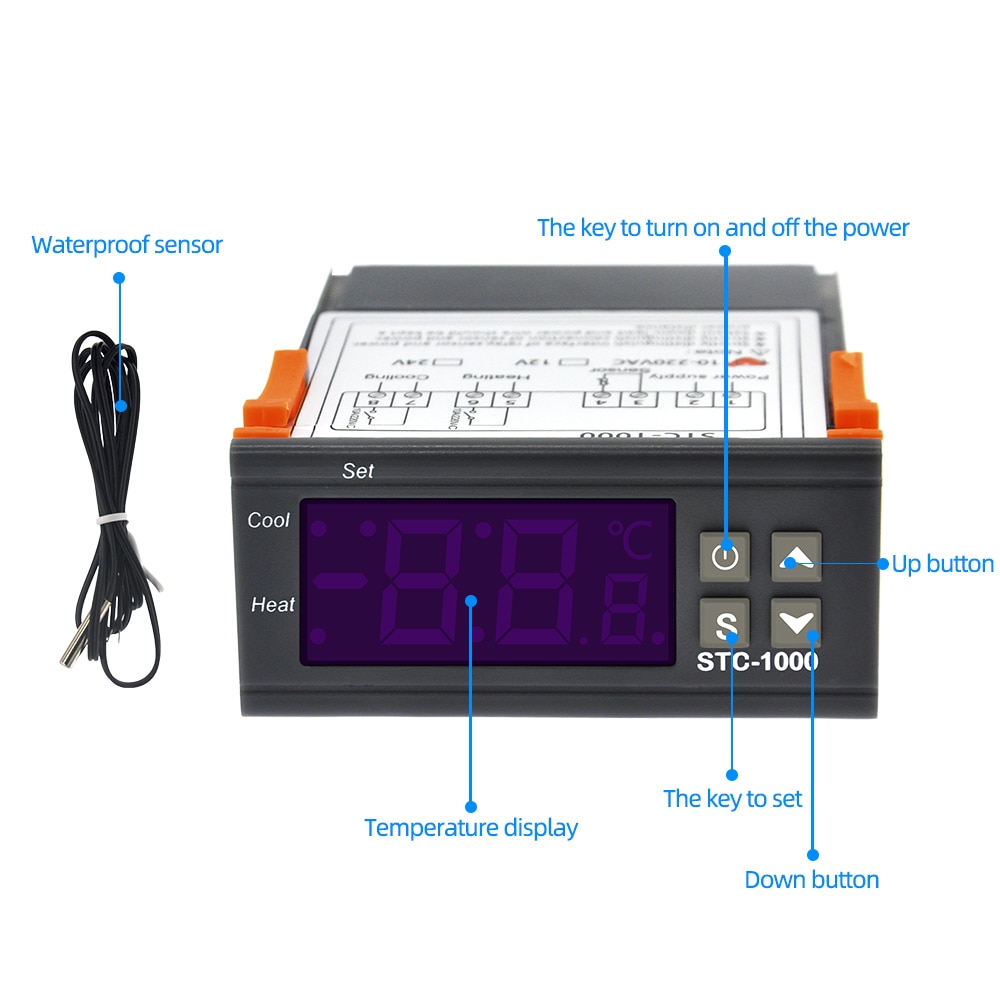

STC-1000
Product Description:
Switch the modes between cool and heat;Control temperature by
setting the temperature setting value and the difference value;
Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds, temperature limit or when sensor error.

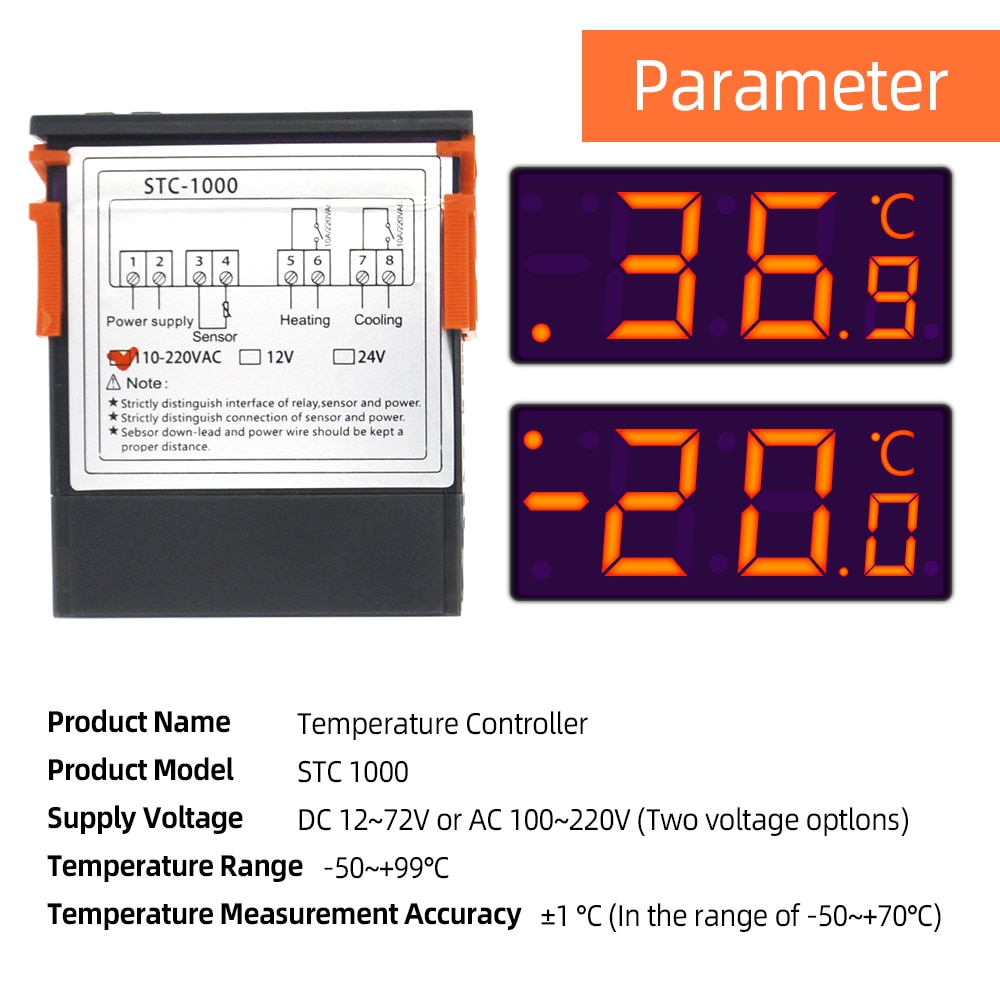

Specification:

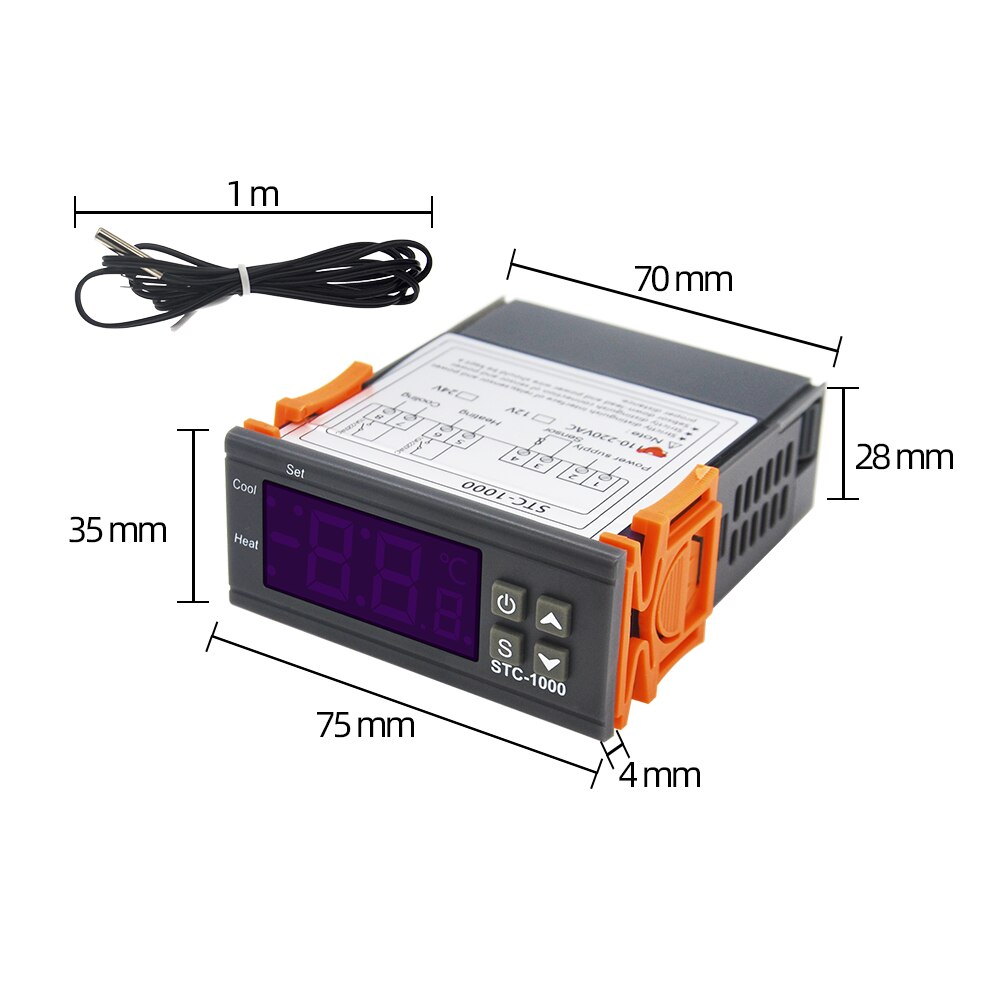

Front panel size:75(L)×34.5(W)(mm)
Mounting size:71(L)×29(W)(mm)
Product size:75(L)×34.5(W)×85(D)(mm)
Sensor length:1m(include the probe)
Feature:
Temperature measuring range:-50℃~99℃
Resolution:0.1℃
Accuracy:± 0.1℃(-50℃~70℃)
sensor error delay:1 minute
Power supply:220VAC±10%,50/60Hz
Power consumption:<3W
Sensor:NTC sensor(1PC)
Relay contact capacity:Cool(10A/250VAC);Heat(10A/250VAC)
Ambient temperature:O℃~60℃
Storage temperature:-30℃-75℃
Relative humidity:20~85%(No condensate)
- Is Smart Device: No
- Cable Length: 1M
- Theory: Temperature Controller
- Usage: Industrial
- Model Number: STC-3028/STC-3008/WH8040
- Max Measuring Temperature: 70°C- 99°C
- Display Type: DIGITAL
- Power Type: Charger
- Display Size: 1.9 Inches & Under
- Style: Standing Station
- Brand Name: JUANJUAN
- Origin: Mainland China
- Certification: NONE
