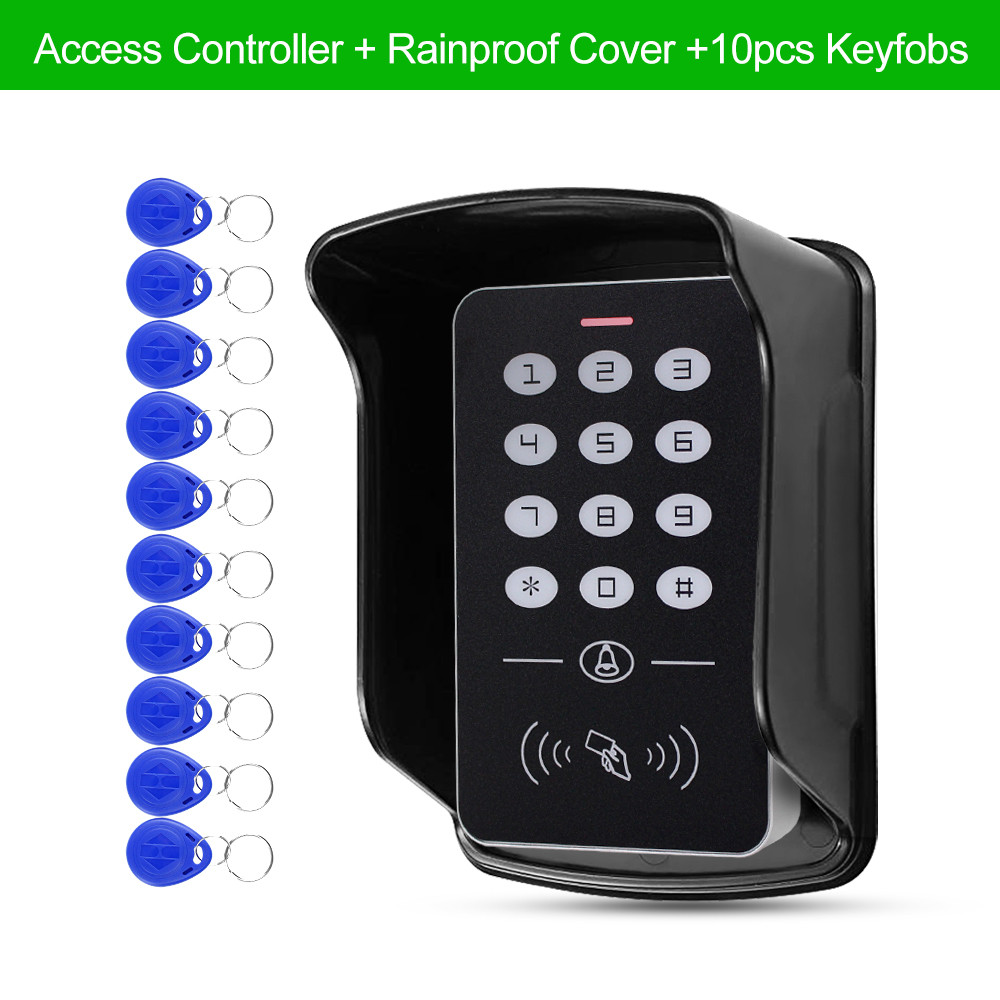

Standalone 125KHz RFID Keyboard Access Control Keypad Waterproof Cover Controller 10pcs Keyfobs for Door Access Control System

4.8 (6 votes) | 29 orders
Price: US $14.43 - 34.62 / piece
Discount Price:
US $ 12.27 - 29.43 / piece
-15%
Color
Quantity

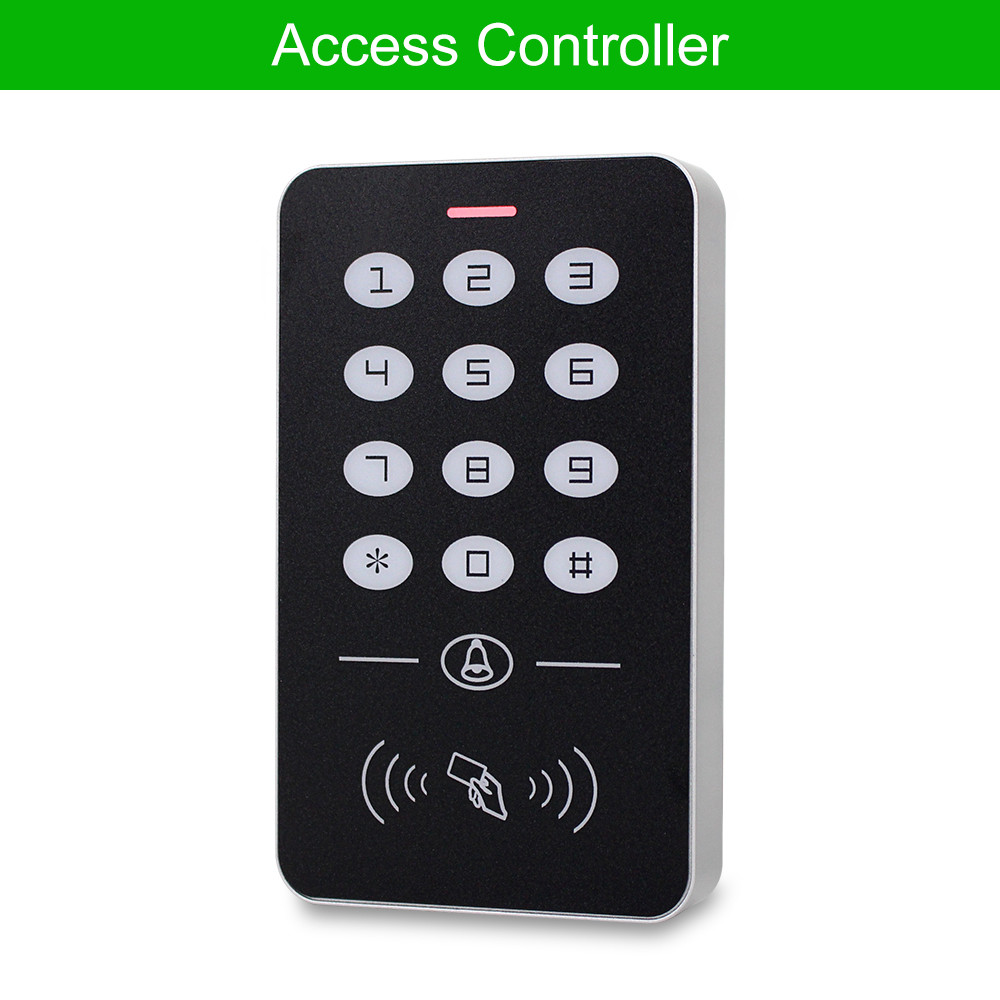

125KHz RFID Standalone Access Control Keypad

High quality / 1000 users capacity / 3 unlock methods



Product Description

High quality and high security.
Sensitively and response quickly.
1000 standard users .
Support card, password, password plus card to open the door.
With door bell button.
Classical Appearance with useful function.
Doesn't need to connect to the computer, can works alone.
Application: Home/ hotel/ office/ department / apartment etc.

Product Specification

User capacity: 1000
Card reading type: EM card
Card reading distance: 0-5CM
Identification method: RFID card, password, RFID card + password
Programming password: 123456
Unlocking time: 5 seconds
Open the door input: all the way to open the button input
Doorbell output: one way wired doorbell output
Can be connected to automatic door or gate
Working voltage: DC 12V ±10%
Working power supply: 100mA

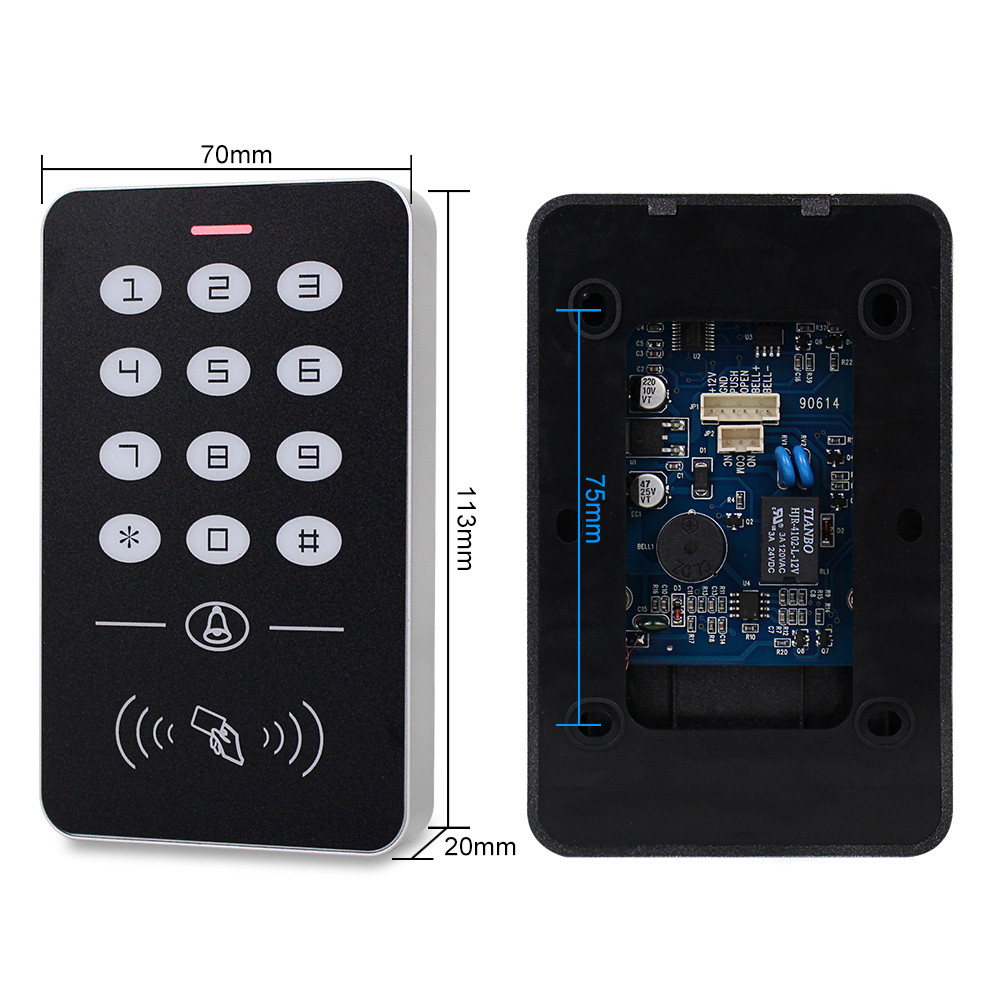

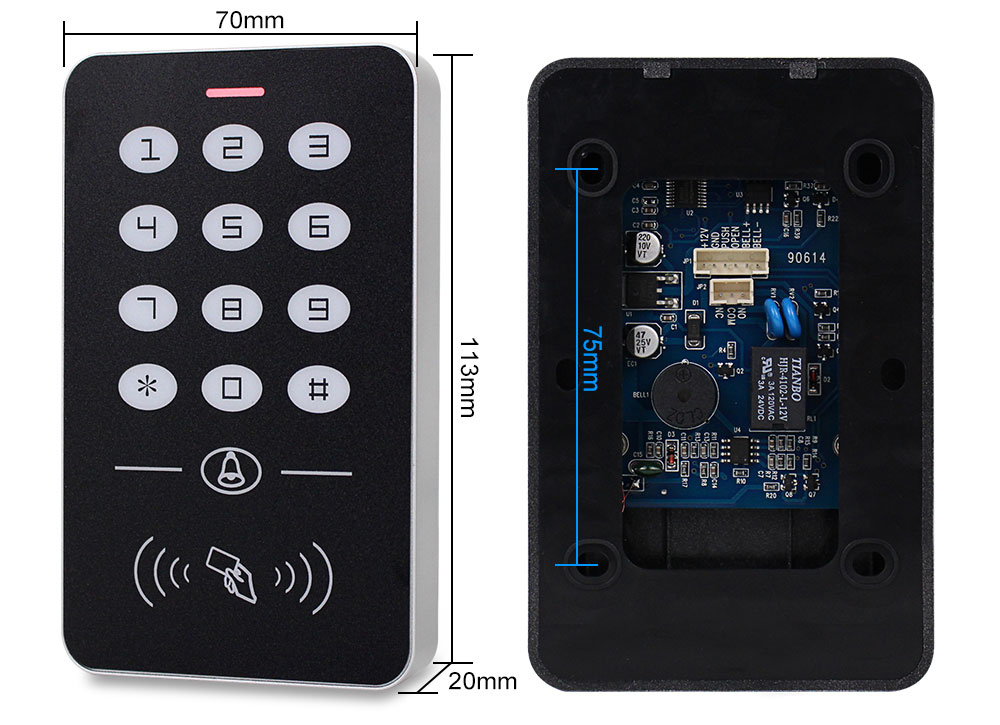

Size : 113*70*20mm
This Keypad is Not IP65 waterproof, can not be used under the rain directly



A1+防雨盖_02

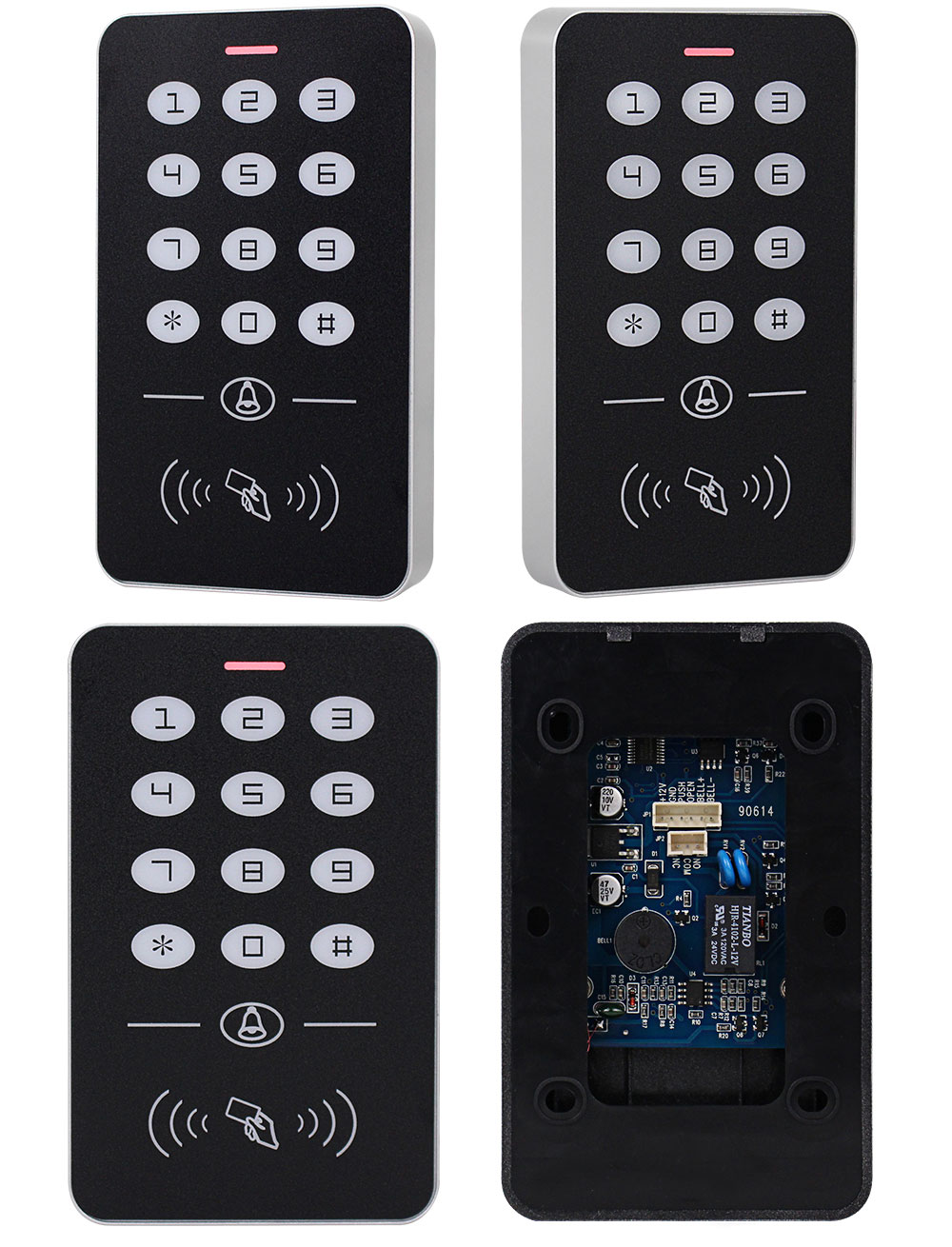

Product Details

Made of High quality material, safe and durable

ABS fireproof material, make the product more secure and durable, anti-vandal, anti-tamper, suitable for  different environmental installation. (This keypad is not IP65 waterproof, can't be used under the rain directly)



A1+防雨盖_04

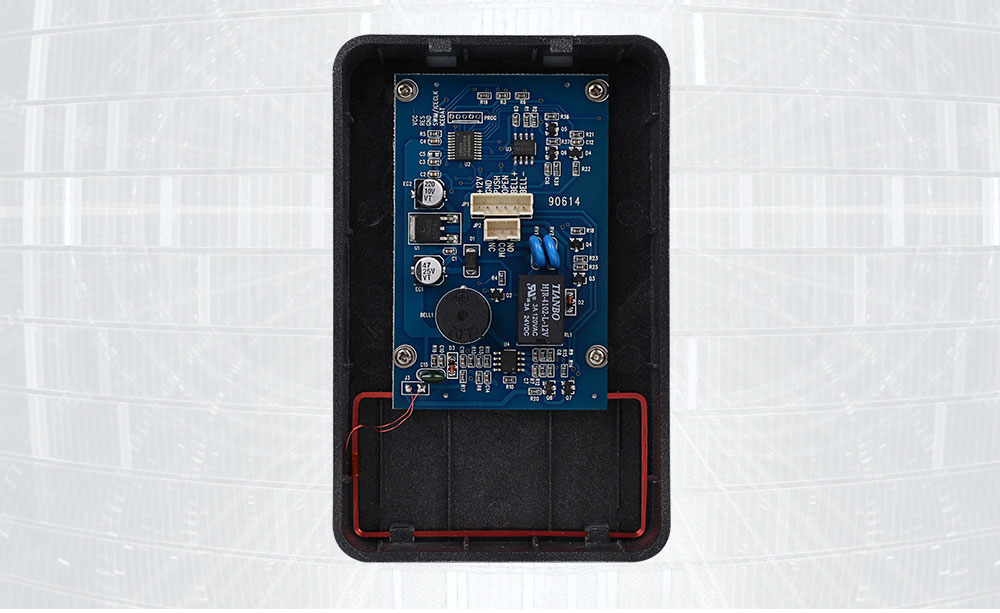

Support 1000 user cards. and 3-6 digits password. Has 3 different unlock methods.

( unlock with rfid card, password, rfid card + password)



A1+防雨盖_06

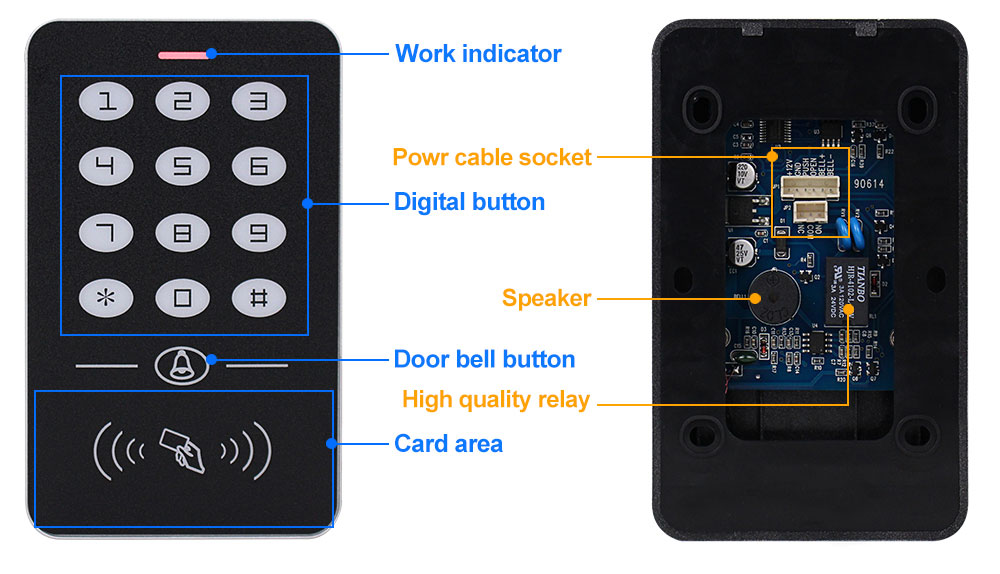

Easy installation and operation

Based on advanced technology, fast recognition speed, high sensitivity. Suitable for most major access

control solution.



A1+防雨盖_08

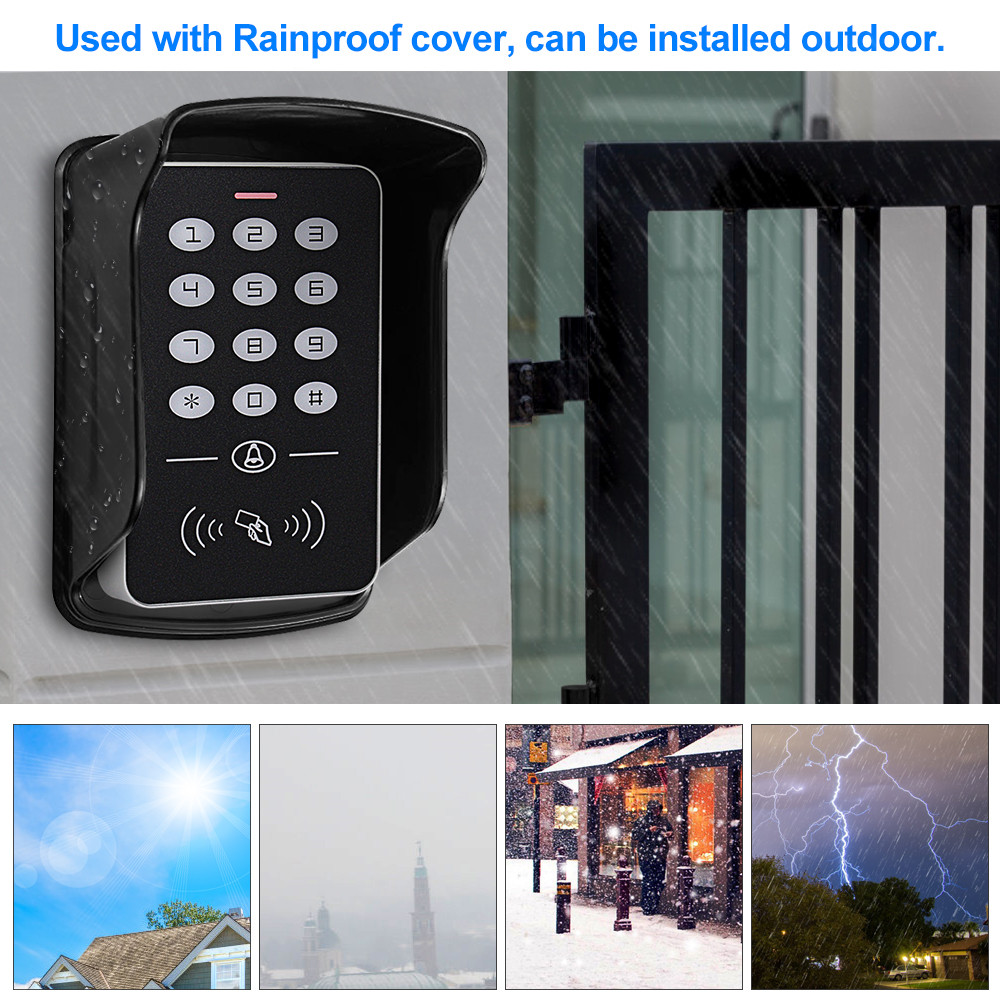

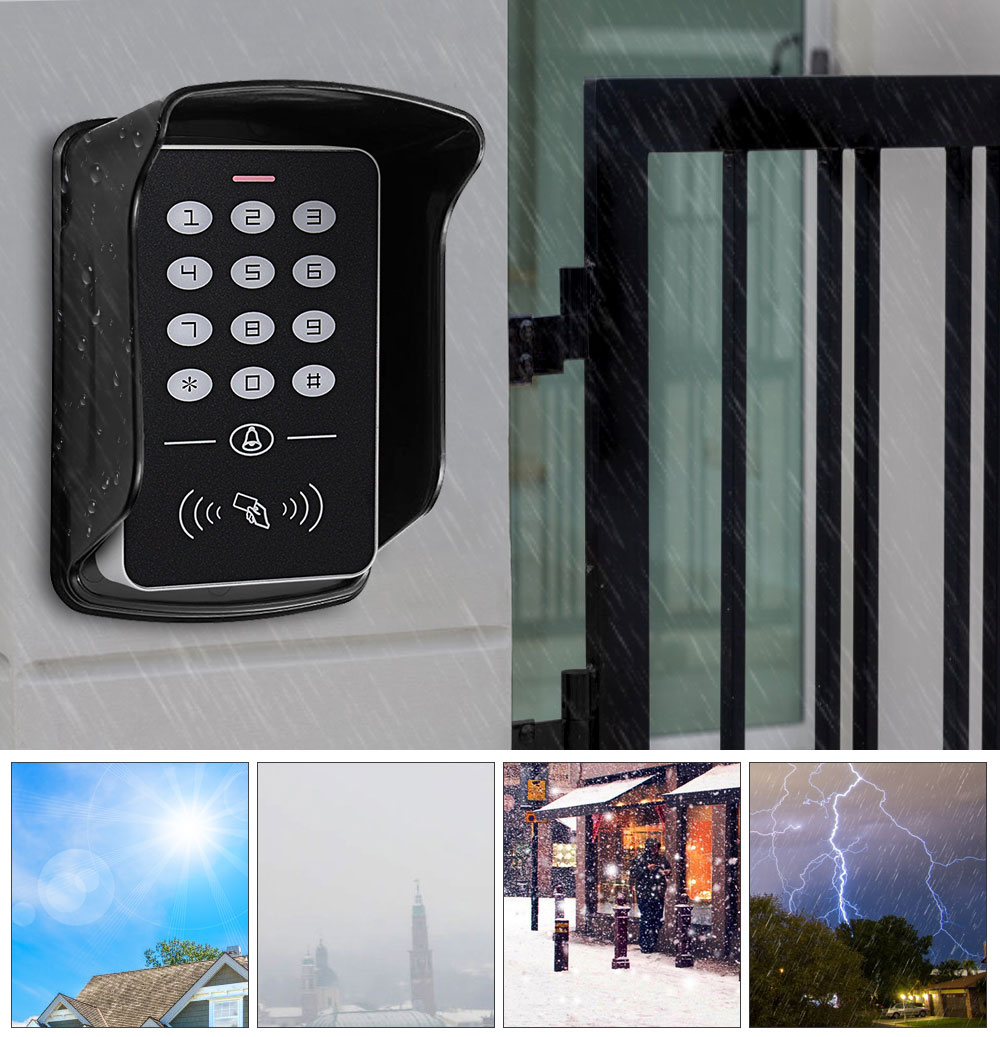

Used with Rainproof cover, can be installed outdoor.



A1+防雨盖_10



A1+防雨盖_11



A1+防雨盖_12

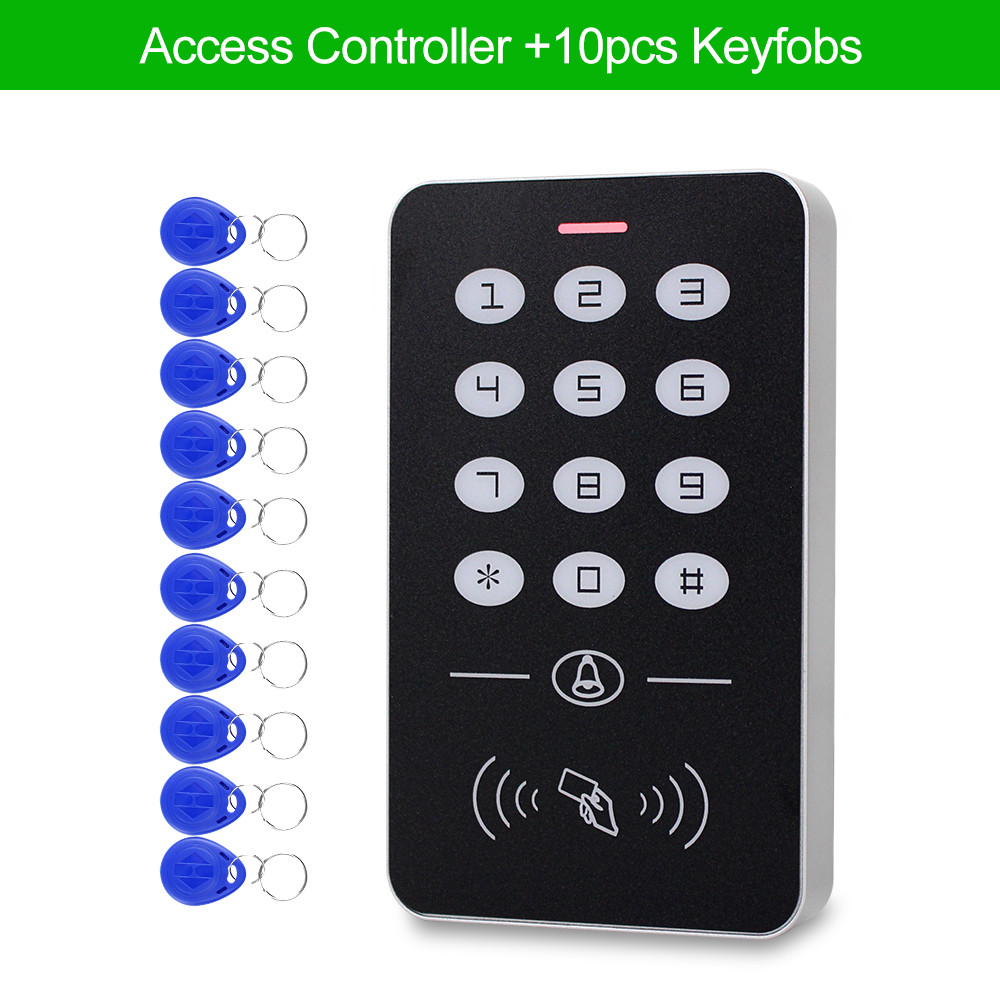

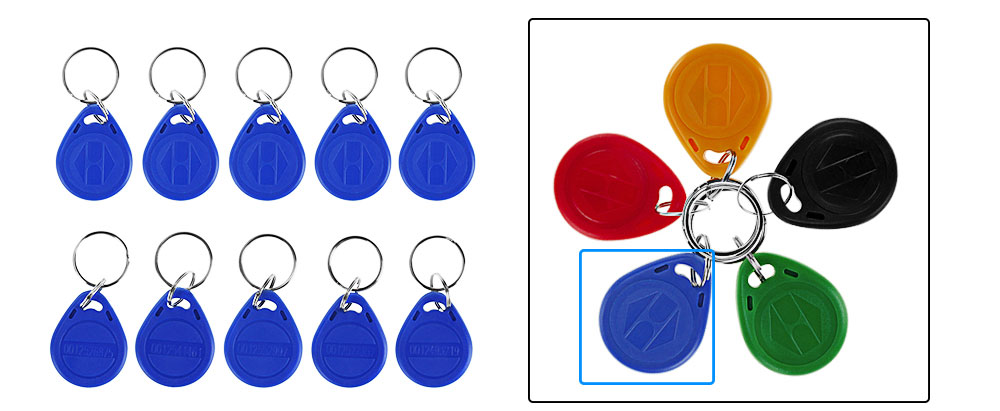

RFID Keyfobs (blue)

You can read these keys on the access controller keypad to open the door conveniently.
Only the key finished programed with our instruction then can be open the door.
Working Frequency: 125KHz
With ABS high quality.
Each one has unique ID number on it.
Reading Range: 0-10cm
Color: Red, Blue, Yellow, Green, Black (We will send 10pcs BLUE color by default, if you want other color, please leave us a message.)
Quantity: 10pcs ( If you want more, please contact us. )





A1+防雨盖_14

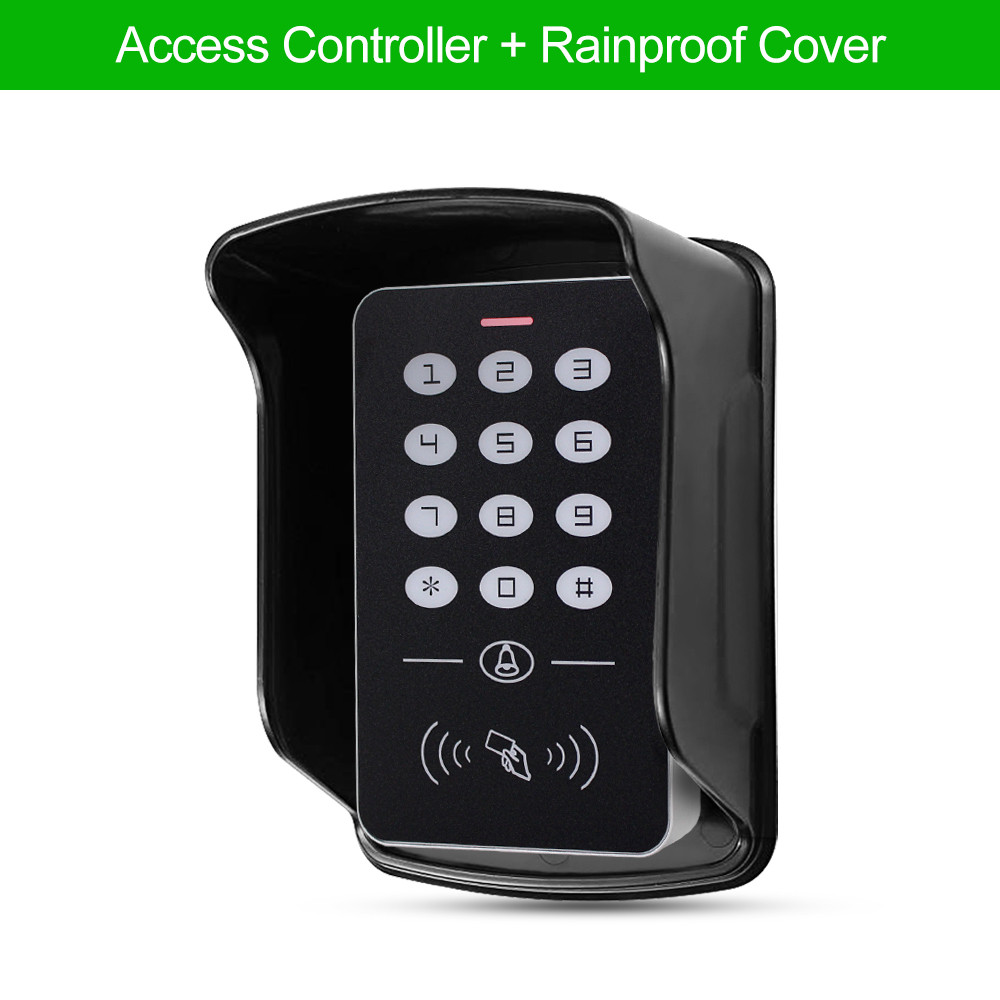

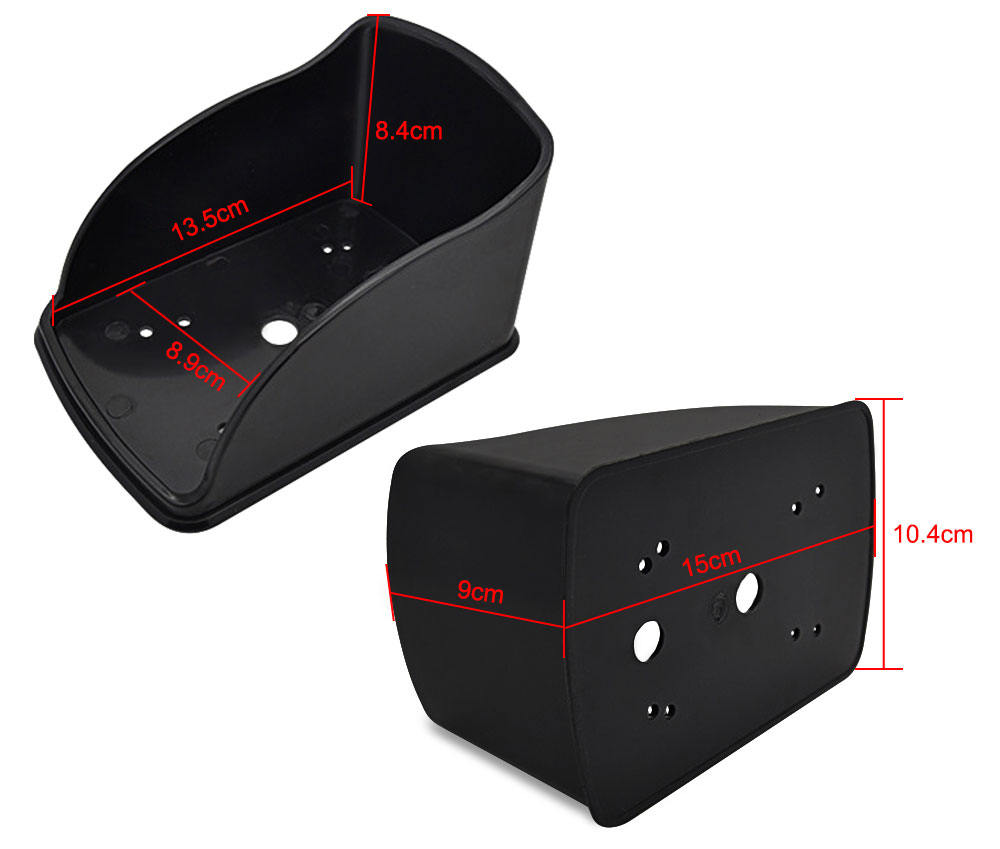

Rainproof Cover

This waterproof shell is suitable for fingerprint device, access controller, standalone rfid door access controller, which length is less than 13cm, width is less than 8cm.

Dimension:
Outside: 15cm*10.4cm*9cm (L*W*H)
Inside: 13.5cm*8.9cm*8.4cm (L*W*H)
( The 7612 model access control is still working when there are some water on the surface,but can't be used in rain directly.If you want to install the item outside, please buy this rainproof cover to protect it. )


A1+防雨盖_16

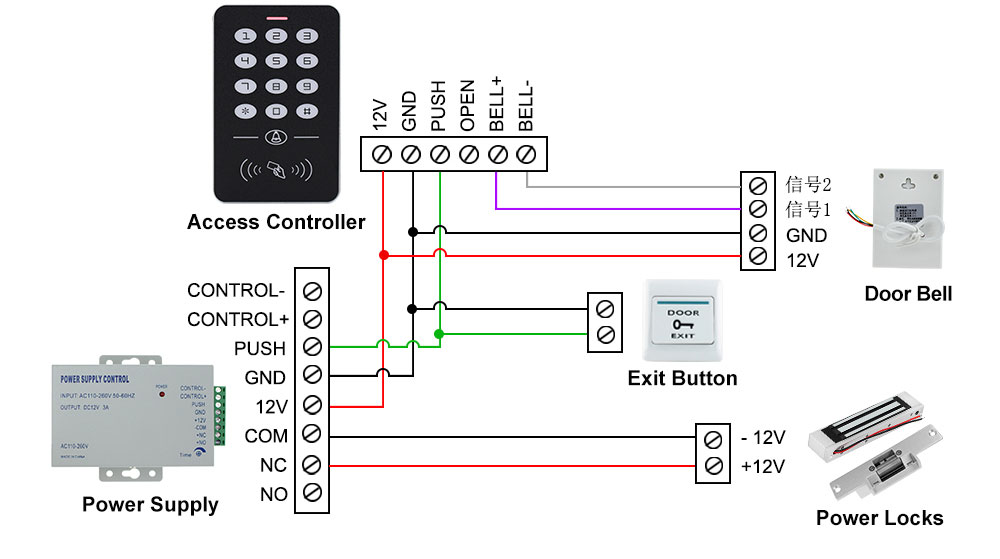

Wiring Diagram

This Access Control Keypad is no need to connect to the computer. You just connect it to the DC12V power supply, electric lock, exit button, Then finished.
The power supply, electric lock, exit button, and door bell are not included in the package, if you need these, please contact us. Thank you!


A1+防雨盖_18







  • Model Number: A1+10+FYG
  • Brand Name: OBO HANDS
  • Type: RFID access control
  • Suitable for: Door access control system
  • Working voltage: 12VDC+10%
  • Working frequency: 125KHZ
  • Unlock method: RFID card, password, RFID card+password
  • User capacity: 1000 Uer card
  • Card Read Range: 0-5cm
  • Door bell function: Support
  • Access control keypad model: A1
  • RFID keyfobs chip: EM4100
  • Rainproof cover: Waterproof
