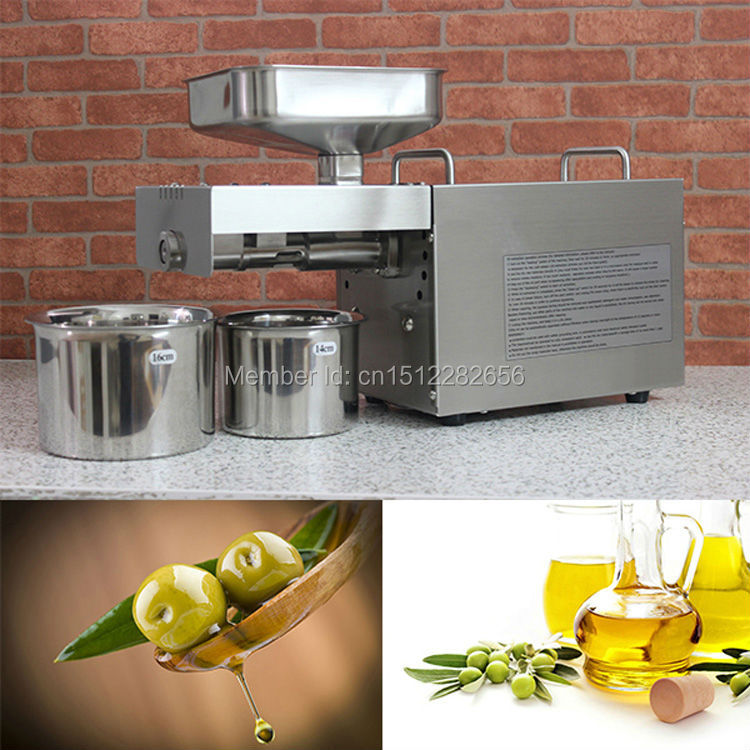

1pc Manual Oil Press Peanut Nuts Seeds Oil Press/Expeller Oil Extractor Machine,For Use With Peanuts, Sun Flour, Rape Seed, Soya
180.27 163.35 $

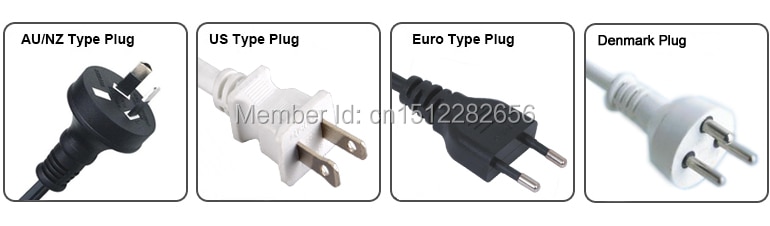

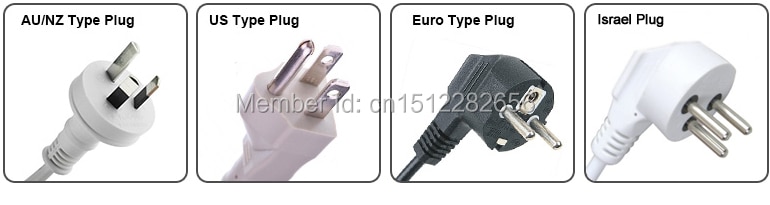

AC110V/60Hz, 220V/50Hz or 220V/60Hz is available with Plug as following photoes FYI
For Brazil customers:
In order to make the customs clearance smoothly and receive the product asap, please leave your CPF or CNPJ number when placing the order. Thanks a lot for your cooperation!
For Russia customers:
In order to receive the product asap, please make sure the recipients name is your full name when placing the order. Thanks a lot for your cooperation!
About the Tariff:
The tafiff is paid by customers, please contact the customs to make the customs clearance in time. If you don't want to make customs clearance, we can do this for you when you pay the corresponding tariff to us before the shipment. Thanks a lot for your cooperation!
For Saudi Arabia customers:
In order to pay 0 for the tariff, please choice the ARAMEX to be the shipping way, we will send the Certificate of Original with the machine. Thanks a lot for your cooperation!
Let's list the items of a good mini oil press machine(oil press, cold press oil machine) as following:
Let's check the details of this mini oil press machine(oil press):

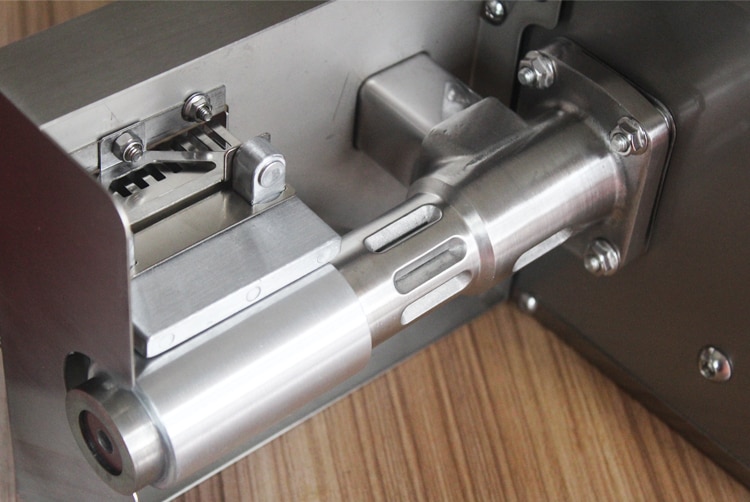

The screw antrum is the core technology of one oil press.
The screw antrum get several technical improvements with the material and manufacturing methods, till now the perfect quality.
It can works for almost all kinds of seeds, whether it is soft or hard, can get the highest oil extraction rate.

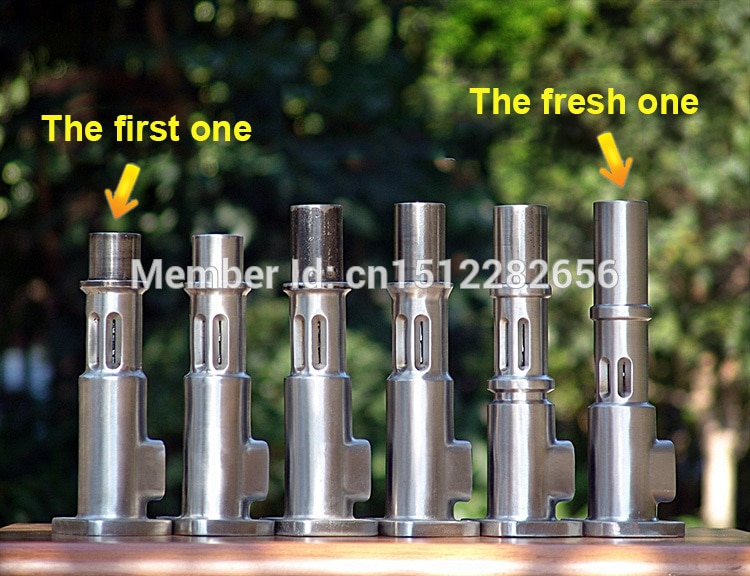

Every screw antrum records the improvements

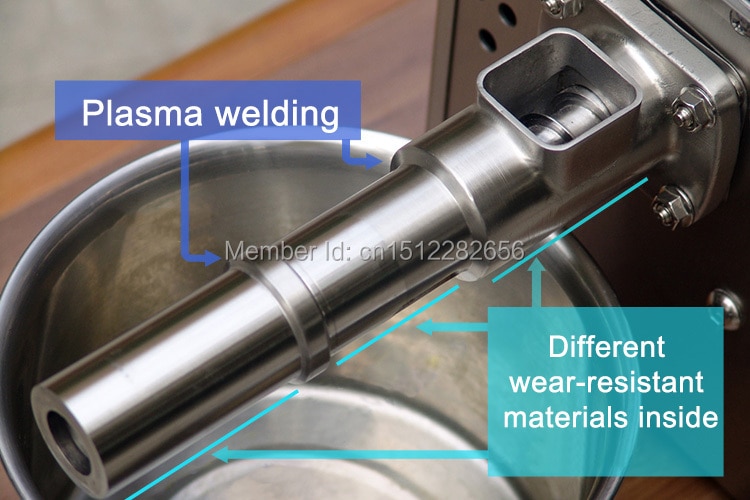

The screw antrum have 3 parts
Different part has the different wear-resistant materials inside, it can works for very hard materials.
Differant part has the different shape inside for high oil extraction rate.
The different parts are welded together by plasma welding, it can works more than 10 years.
With this patented screw antrum, we can get 400g oil from 1000g peanut.

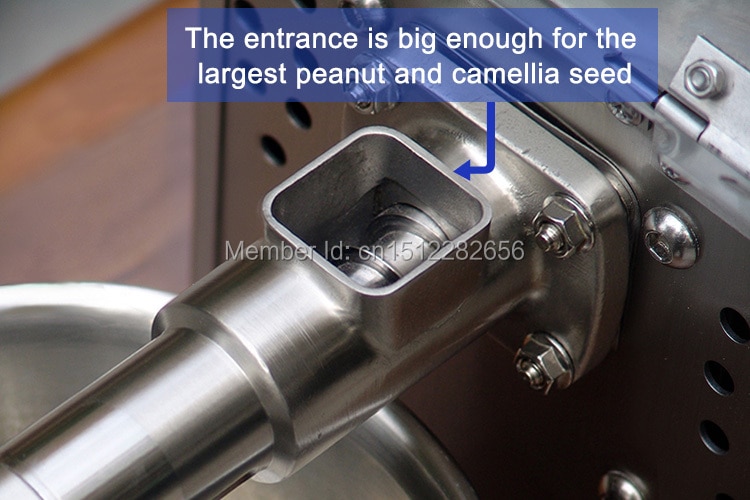

The entrance of the screw antrum is big enough to press many materials

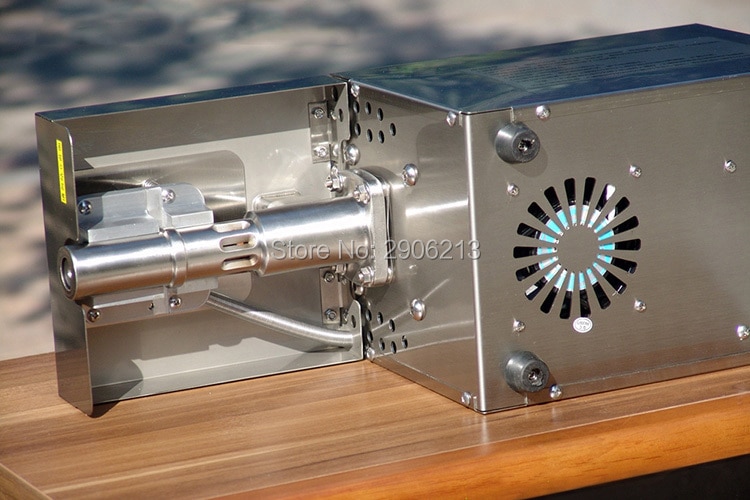

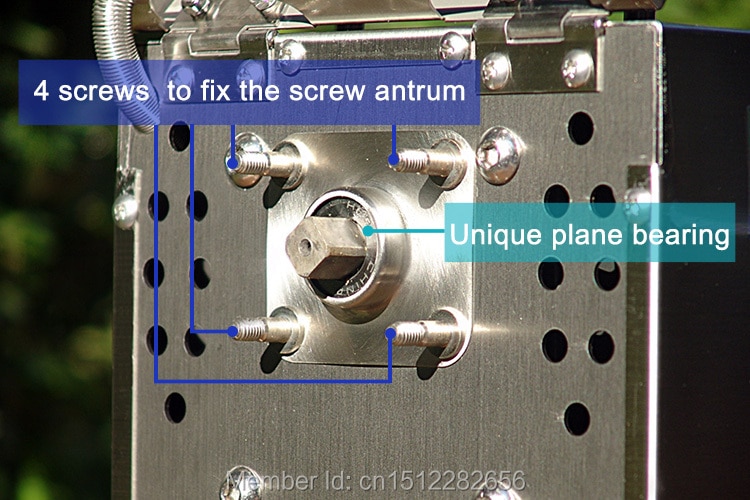

There are 4 screws to fix the screw antrum, no loose, no shift, then can get 10 years lifespan.
You can clean the screw antrum after removing this 4 screws, very easy, even no need to clean, there is no difficult place to clean. We give up the design of fixing the screw antrum by bolt. As you know, the bolt need large enough space. If the space is small and the oil go inside, the bolt will be tightly sticked and can not be pulled out. If the space is large enough, it will get loose, loose is not good for high precision. And it is very difficult to clean the screw antrum with bolt.
The Unique plane bearing is used to eliminate the recoil of the screw. As you know, when the screw press the materials, it will get great recoil. If the recoil pass to the motor's rotating shaft directly, the lifespan of the motor will be shorten greatly. The unique plane bearing can keep the 10 years lifespan for the (oil press, small seeds oil extractor) machine.

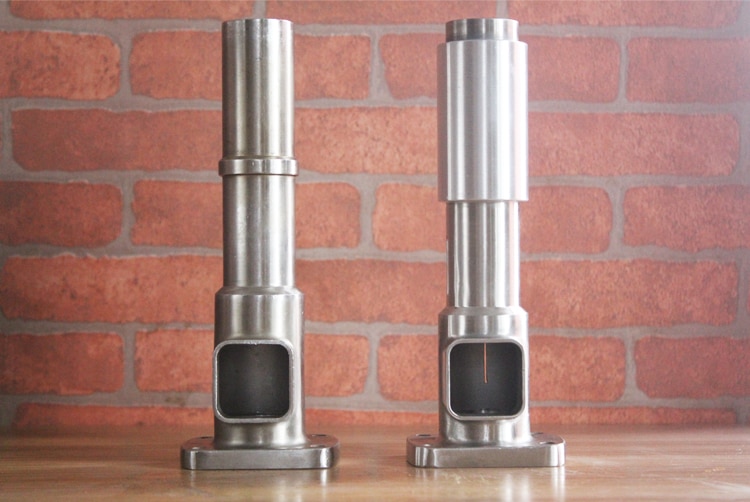

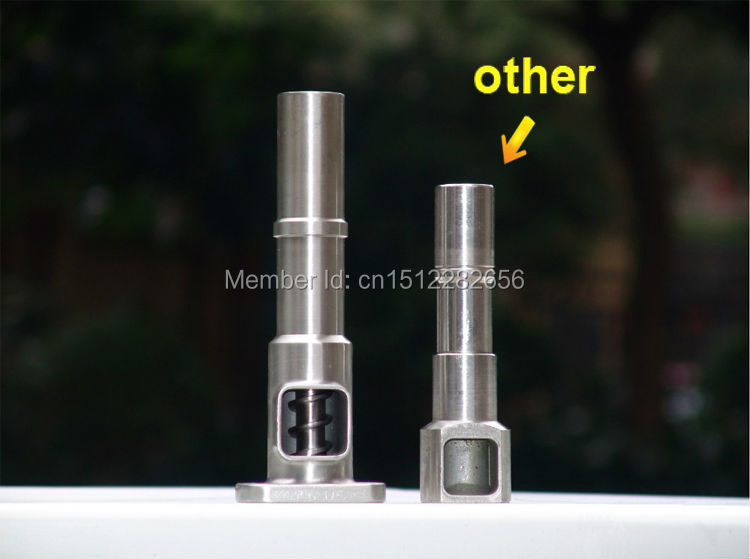

Let's take one picture for the screw antrum with other which is fixed by bolt:
The excellent large motor is the second ensure for expressing the material with very hard shell, such as hemp seed, safflower seed, castor, kiwi fruit seed. It is more easy for pressing the soybean.

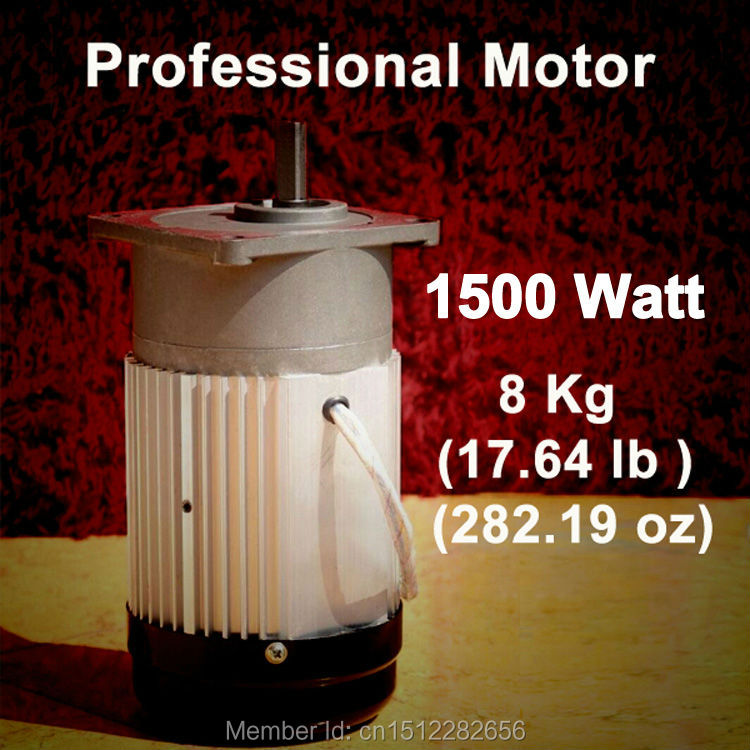

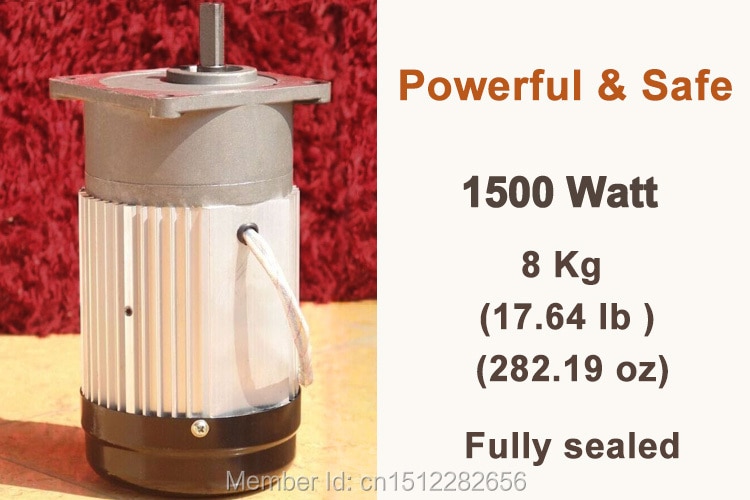

This is one real 1500W industrial AC motor. It is sealed by aluminium alloy completely. The net weight of the motor is 8kg. This is one reason for the higher price of this mini oil press machine(oil press, small seeds oil extraction machine).
The 1500 watt is the motor's maximum power, the consumed power will be changed according to the different hardness of different material.
For the peanut or sesame, the consumed power is about 200 watt,
For the safflower seed or hemp seed, about 400 watt,
For the kiwi seed, 600 watt,
With the 1500 watt motor, it is not easy to get stuckness, and can keep the 10 years lifespan.
Let's open it and check:

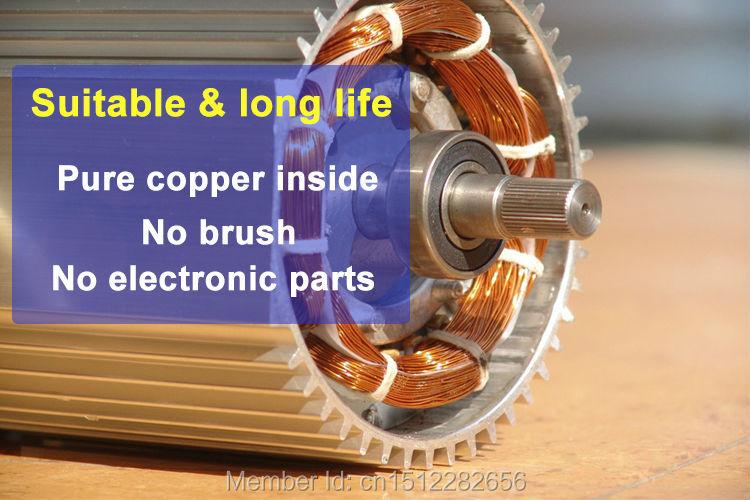

There are pure coppor inside, 4-level metal gear, no brush, no electronic parts. No need to do the maintain for long life.

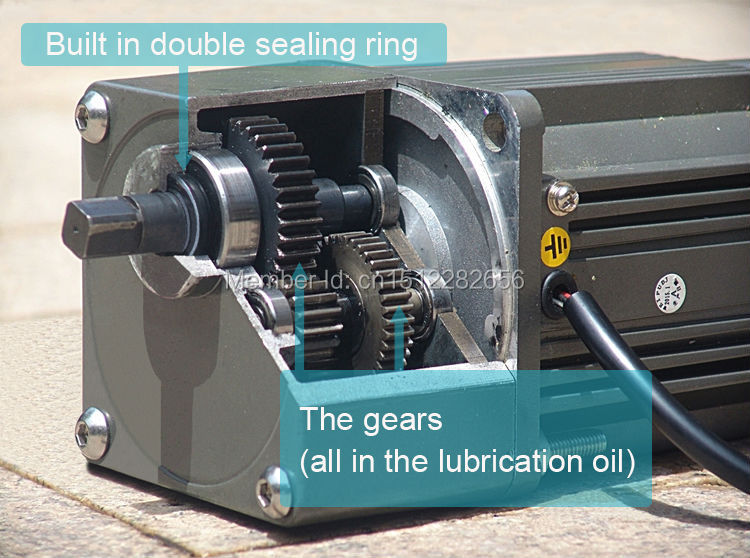

Let's open another end and check:

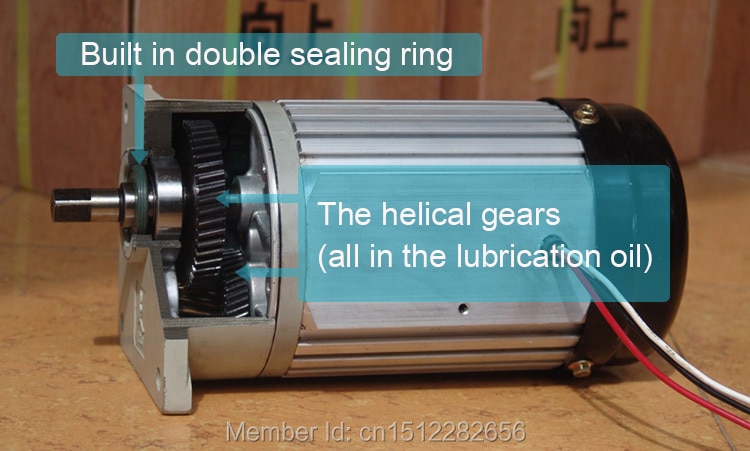

The built in double sealing ring lock the lubrication oil in the motor firmly.
The helical gear is always be used to reduce the noise, and they will be in the lubrication oil completely, the noise is less than 50bd and can get 10 years lifespan for this mini oil press machine(oil press, small seeds oil extracter).

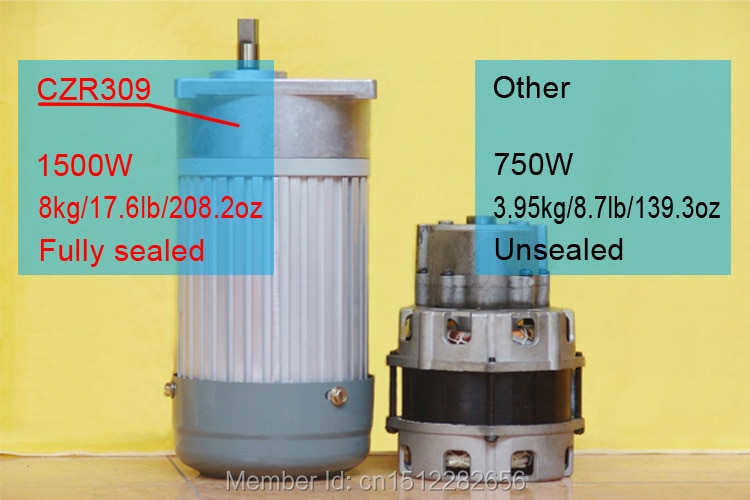

Let's take one picture for the motor of CZR309 with other motor:
Checking the watt and weight, understand the difference of costs between them!

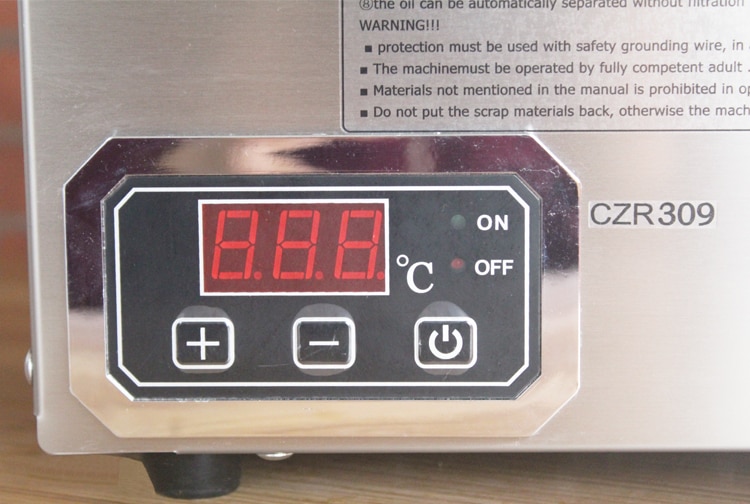

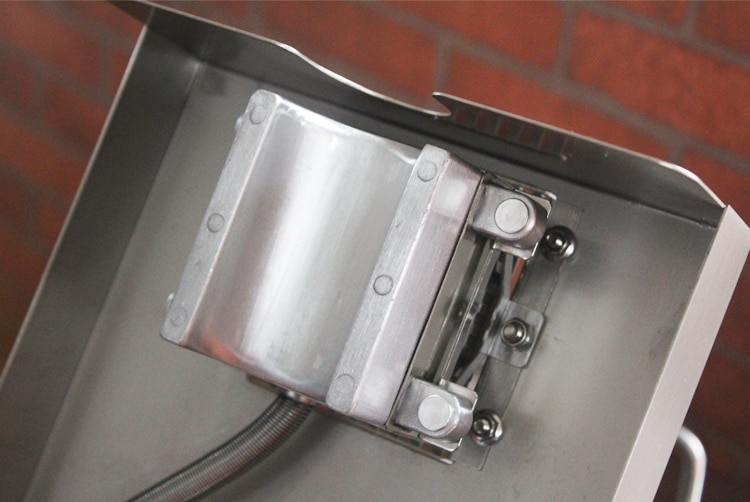

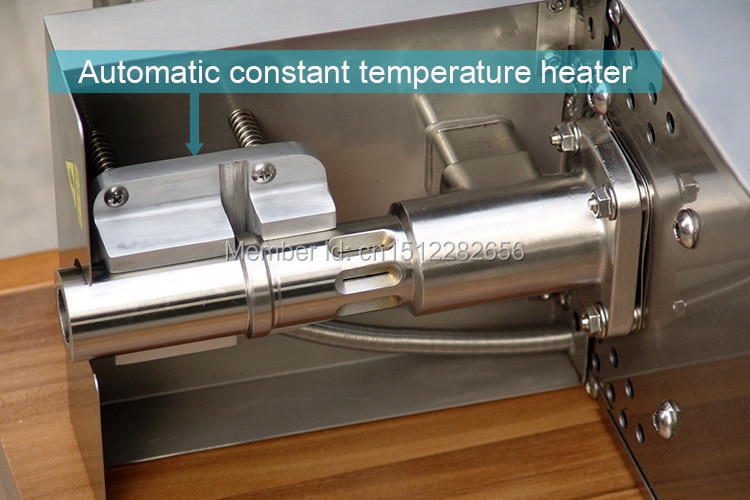

The automatic constant temperature heater
With this heater, 3 ways press:

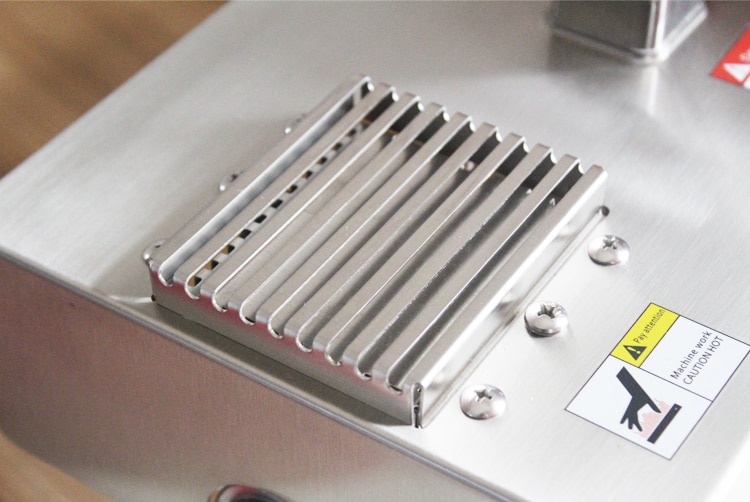

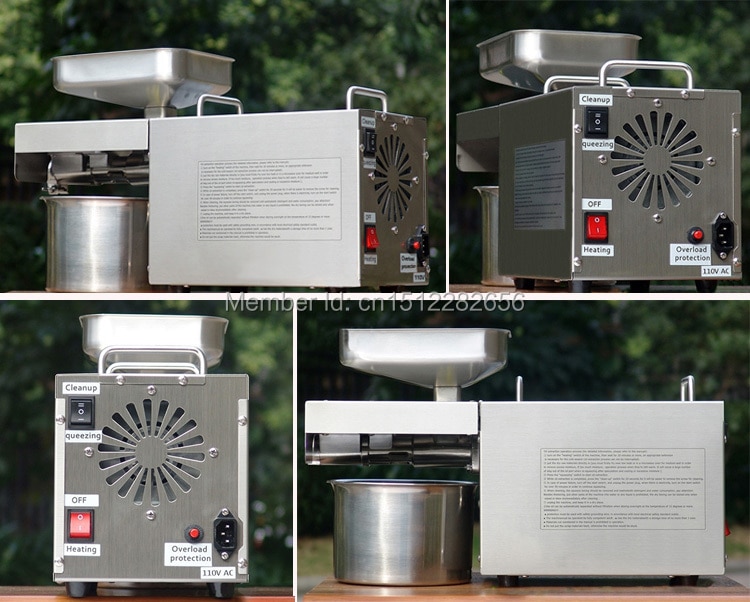

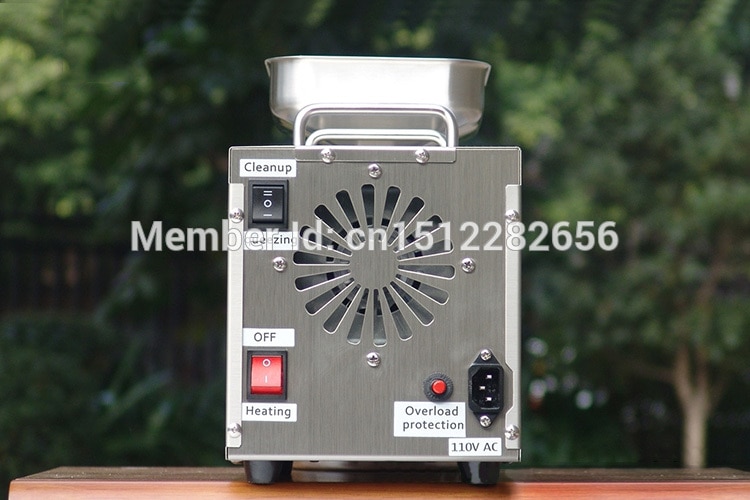

The cooling system, one fan is at the back:
Another fan is at the bottom. The machine (oil press, oil expeller, oil extraction) can work in the midsummer without broke.

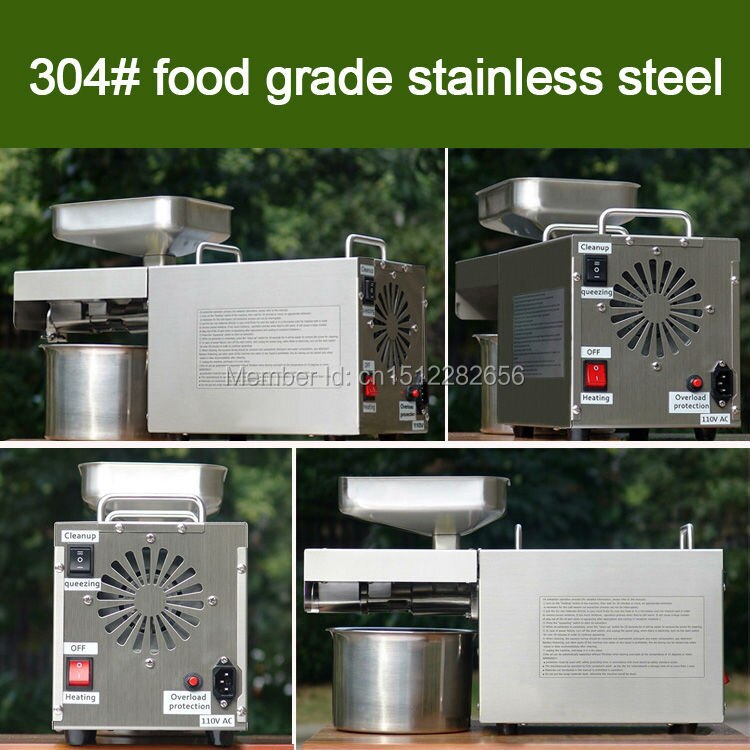

The material of whole body is 304# food grade stainless steel.
The material of the oil cup is 304# food grade stainless steel also. The oil will never touch any plastic.

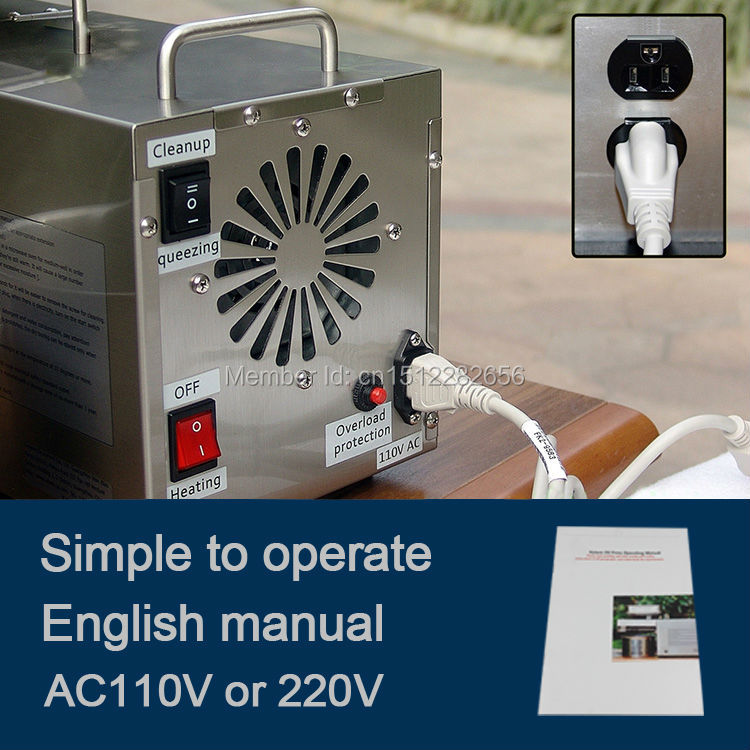

How to operate

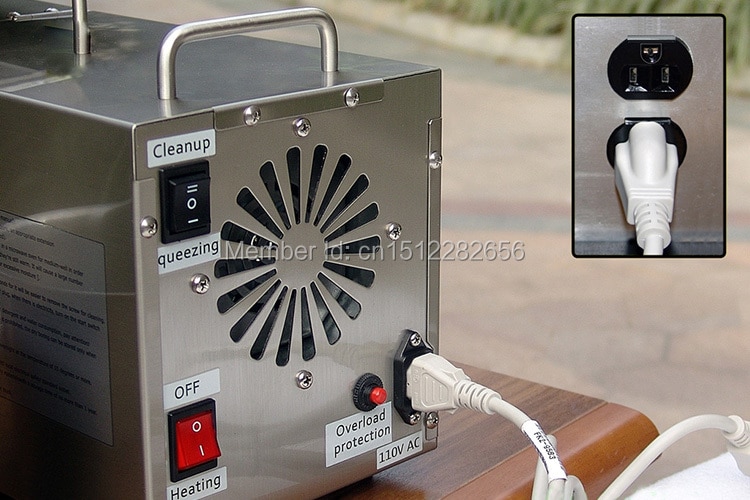

Connect the power line, pay attention, please use the same voltage of the identifier:

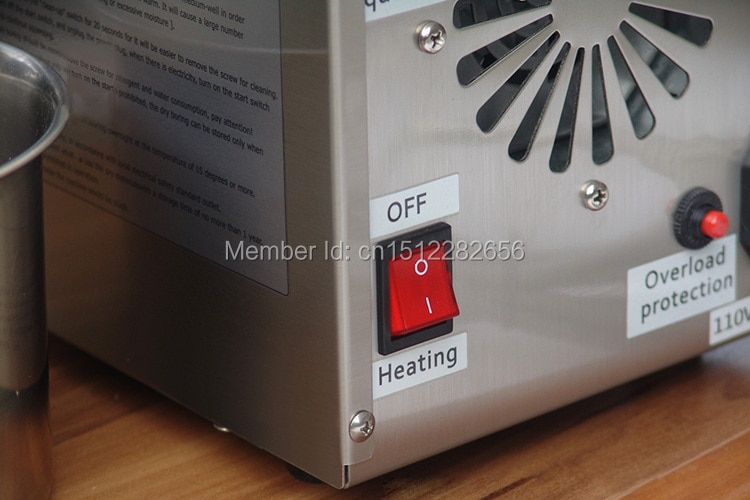

Turn on the switch "Heating", wait for 20 minutes or more, the machine will have automatic constant temperature, please never turn it off in process.

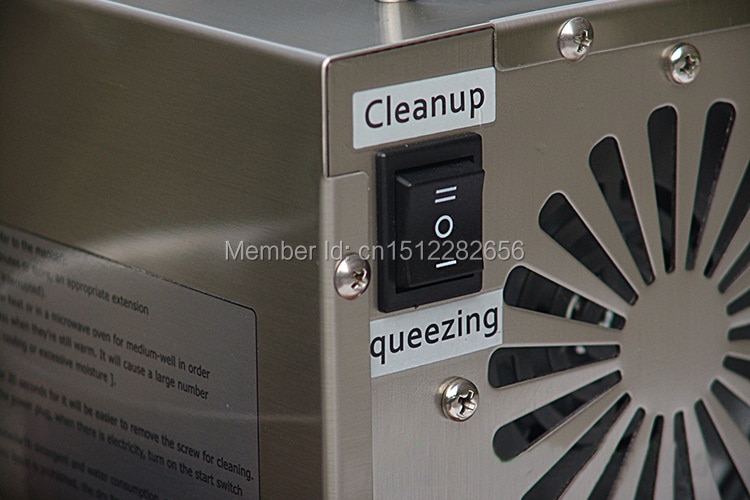

Directly put dry ingredients, turn on the switch "queezing" and start pressing oil. When overload, the red core of "Overload protection" will pop up to cut the power souce automaticlly, after troubleshooting, then manually reset. Please never reset it before troubleshooting.
After pressing ends, hold (don't loosen) "Clean up" for more than 20 seconds, it will be easier to remove the screw and then clean.

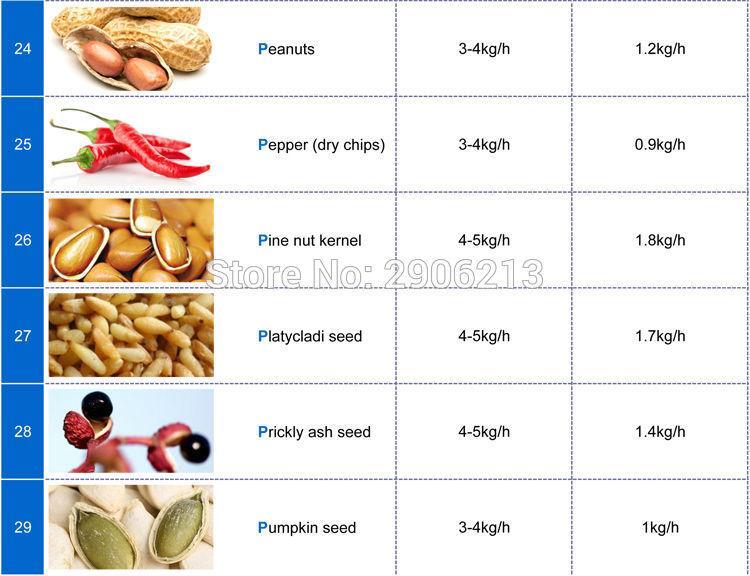

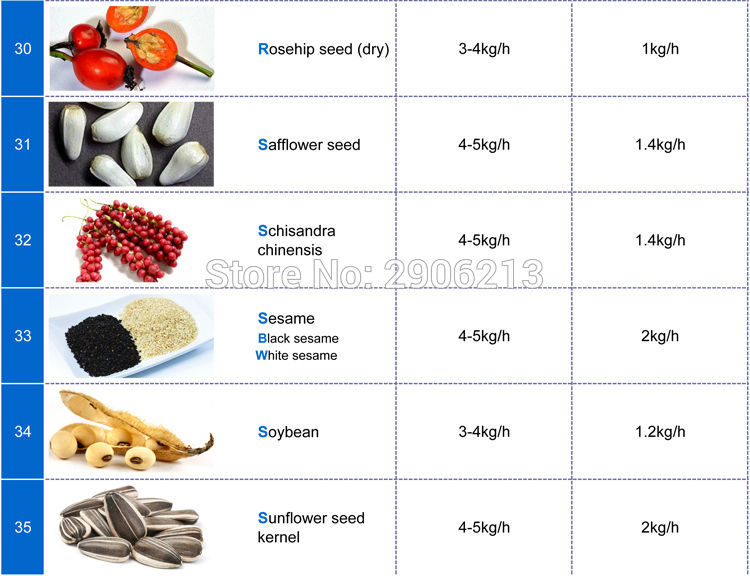

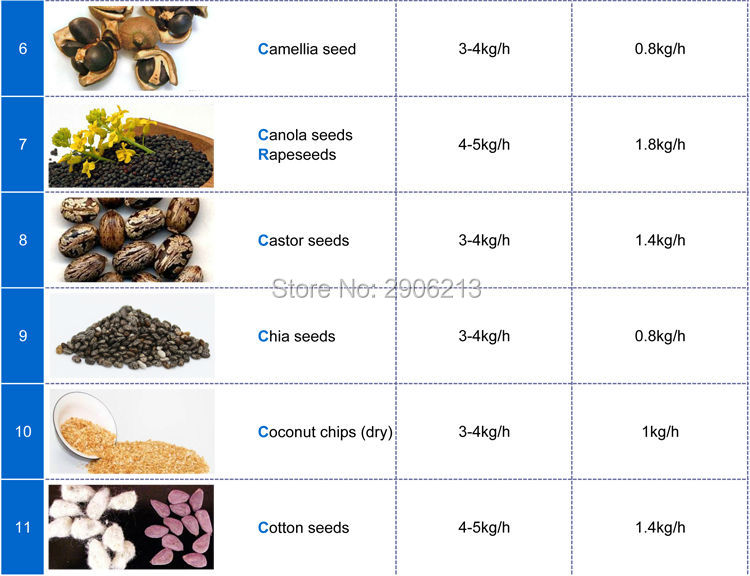

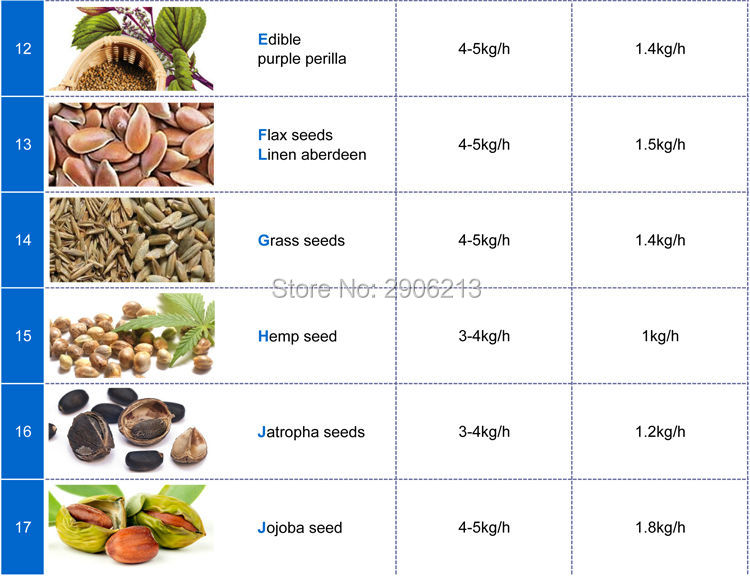

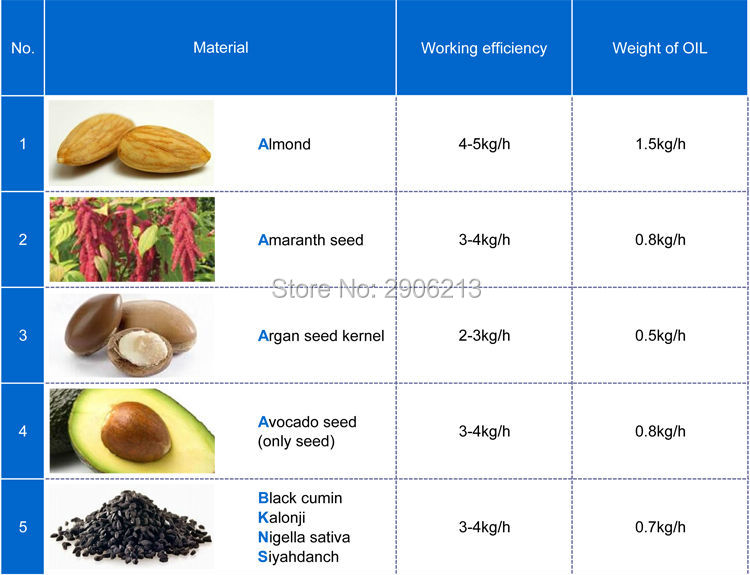

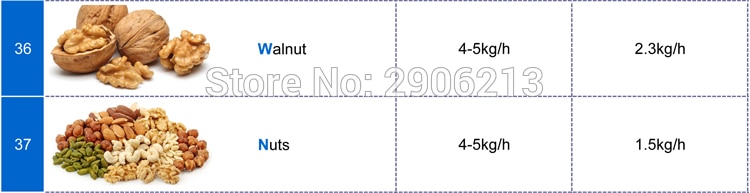

The quality of the seeds effect the efficiency partly, this is for reference.

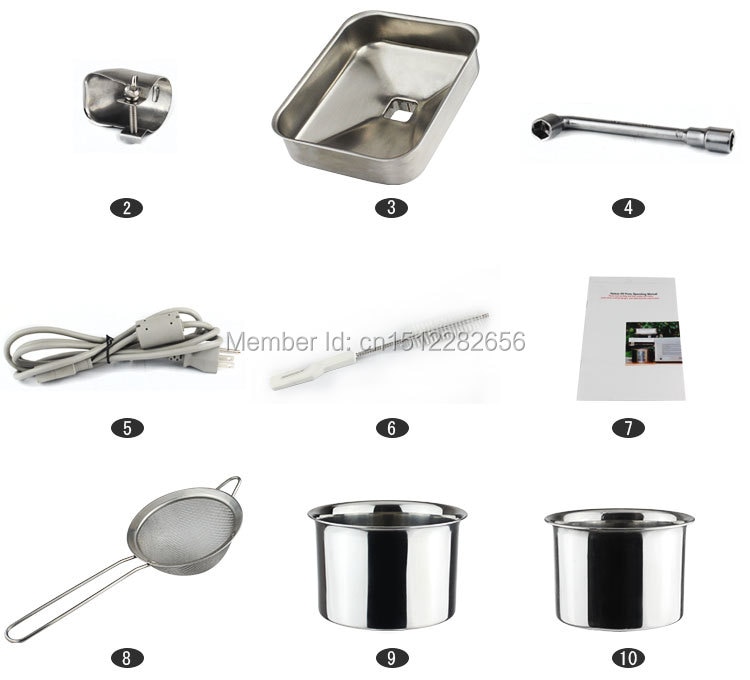

Double layer stainless steel slag filter*1

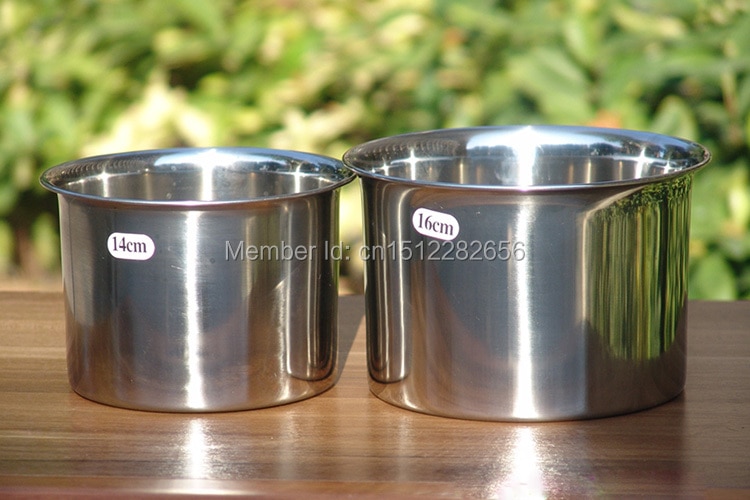

Stainless steel oil cup (diameter 16cm, height 10cm)*1
Stainless steel oil cup (diameter 14cm, height 9cm)*1

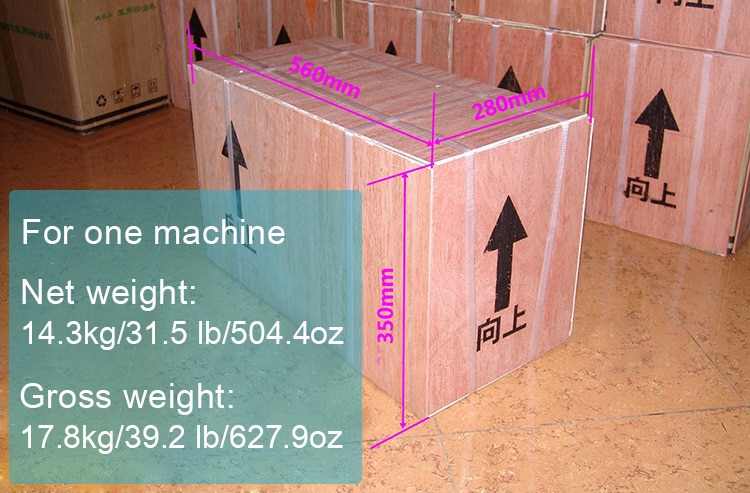

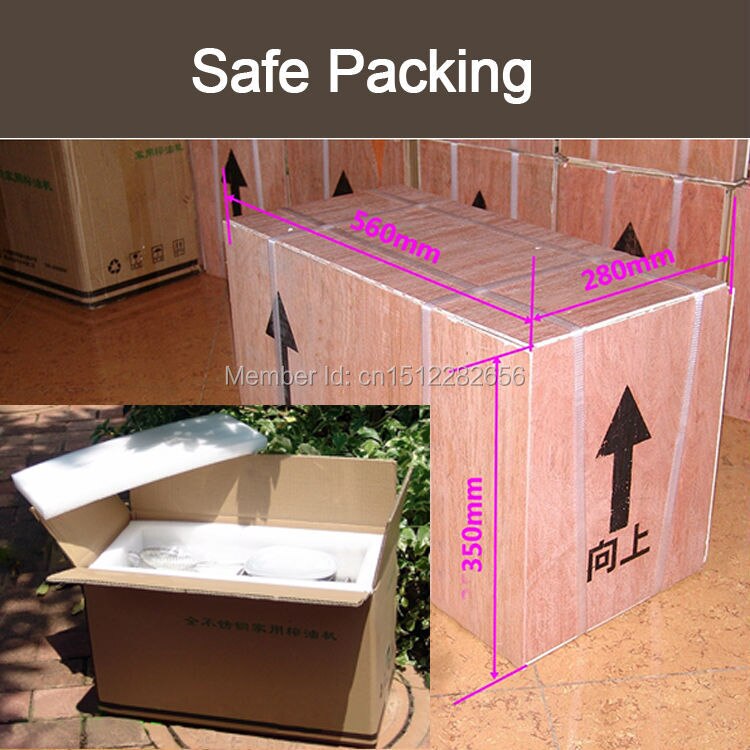

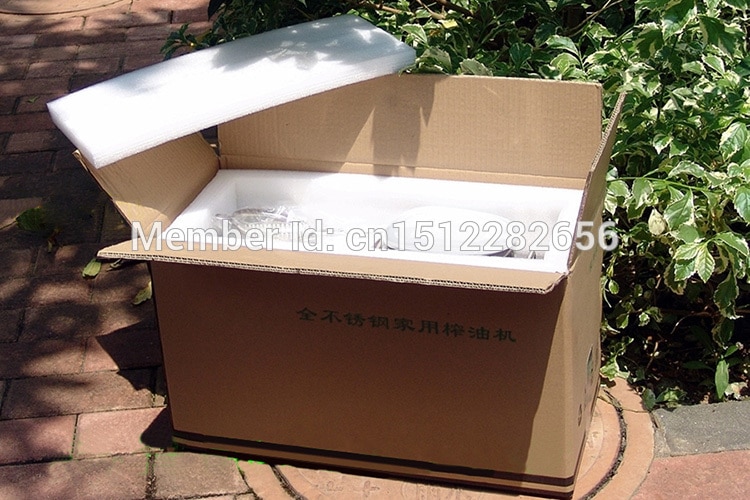

All in 40mm foam, with double corrugated carton:
The carton is protected by the plank tightly to ensure the mini oil press will arrive in good condition.
Please kindly note, several countries and several express companies don't accept the plank. For these countries and companies, we cancel the plank and use the paper corner to protect the foam before put them into the carton to ensure the mini oil press will arrive in good condition. The weight is the same of plank's.
There are 4 models, the difference between them is the motor, and only the motor.
CZR081, maximum power of the motor is 2200watt.
CZR309, maximum power of the motor is 1500watt.
CZR109, maximum power of the motor is 1200watt.
CZR108, maximum power of the motor is 750watt.
Let's open the 750watt motor of CZR108 and check:
The built in double sealing ring lock the lubrication oil in the motor firmly.

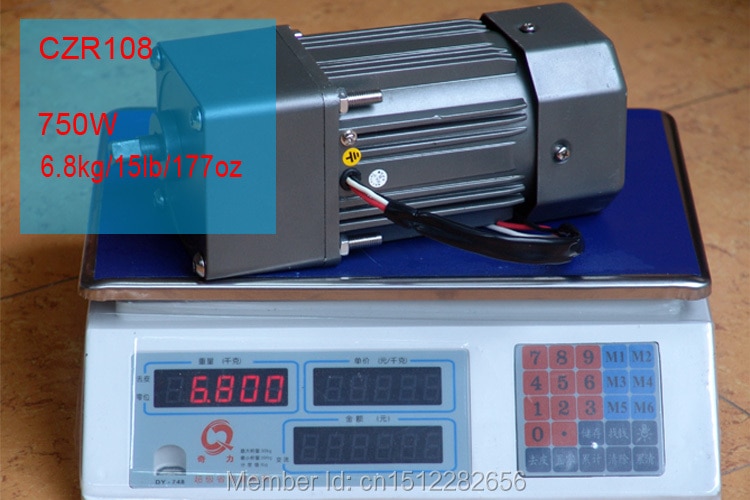

Let's weighing it:

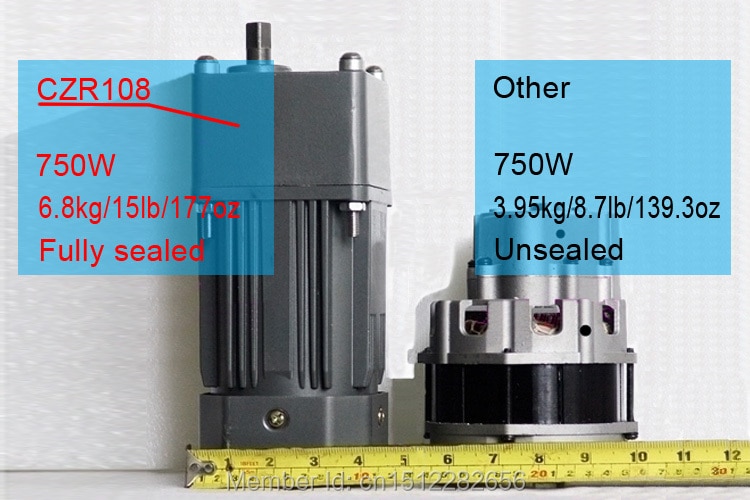

Let's take one picture for the 750watt motor of CZR108 with other motor:

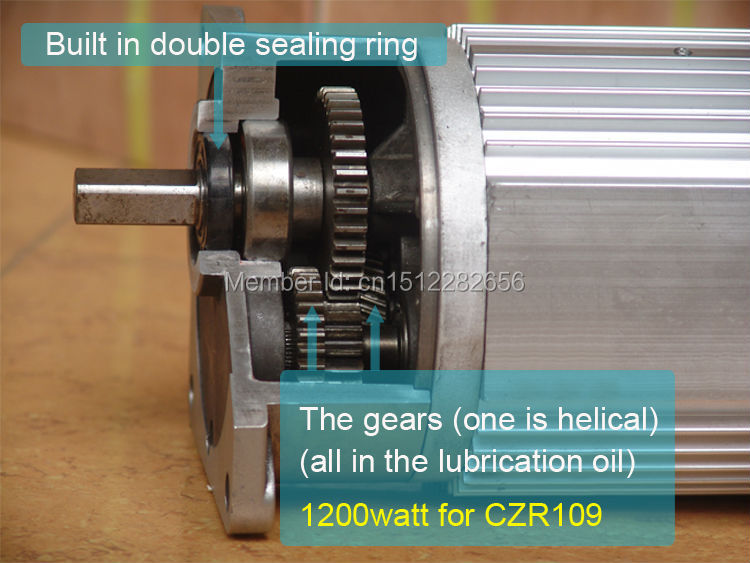

Let's open the 1200watt motor of CZR109 and check:
The weight of 1200watt is the same of 1500watt, one difference between them is:1200watt have one helical gear, 1500watt's all are helical.
Let's check the details of CZR081 with 2200watt motor:
The net weight of CZR081 is the 53kg, the power of the heater is 600watt, the working efficiency is 3 times of CZR309.
How to choice them?
If need to press extra hard material, such as castor bean or camphor, please choice 2200watt.
If need to press very hard material, such as kiwi seed, please choice 1500watt.
If need to press middle hard material, such as safflower seed or hemp seed, please choice 1200watt.
If only need to press peanut or seasame, please choice 750watt.
What is cold pressed oil?
1, the material is not roasted;
2, the temperature is less than 60°C/140°F;
3, without any chemical reaction, only the physical effects.
Could this machine works for the coconut oil?
1, yes, complete cold press, no roaster, no heater, the temperature is 22°C/71.6°F when the room temperature is 20°C/68°F, can get 55g oil from 110g coconut flakes (the test result, it's for reference);
2, and the coconut must be the dry chips or flakes, the dimension much better be less than 1*1cm.
Could this machine works for the olive oil?
Dear friend, for the olive oil, it is really not suitable. It is very trouble, just like following two ways:
1, press the dry olive-means no water inside, and must take out the stone first, then can get olive oil from this machine;
2, press the fresh fruit of olive without the stone, we can get the olive paste, and use another machine to get the olive oil.
Except the olive, this machine is perfect for getting the plant seeds oil.
