DIY PCB Circuit Board Welding Equipment Portable 12V Battery Storage Spot Welding Machine Spot Welders Pen For 18650/26650/32650
30.38 14.98 $
SALE
ID: 77885
Quantity
Spot welding machine accessories welding pen full set of accessories DIY portable 12V battery energy storage spot welding machin
0.0 ( votes)
Price:
US $32.02
/ piece
Discount Price:
US $
30.42
/ piece
-5%
- Voltage
Thank you for your attention. This product is a semi-finished product of circuit board. You need to have some electrical knowledge and practical ability. You also need to prepare some necessary tools such as pliers, screwdriver, electric soldering iron, etc

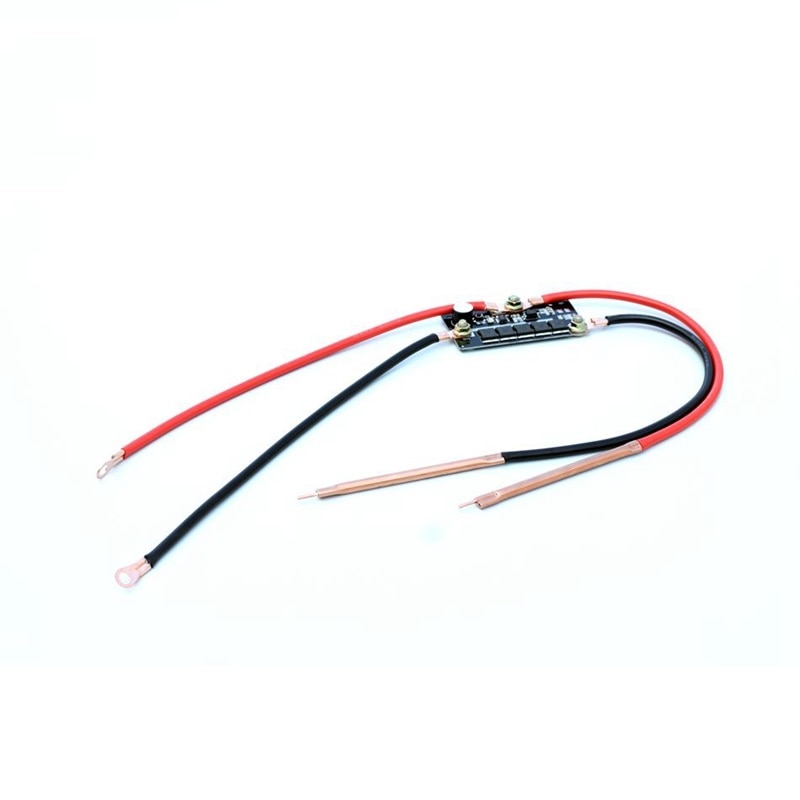

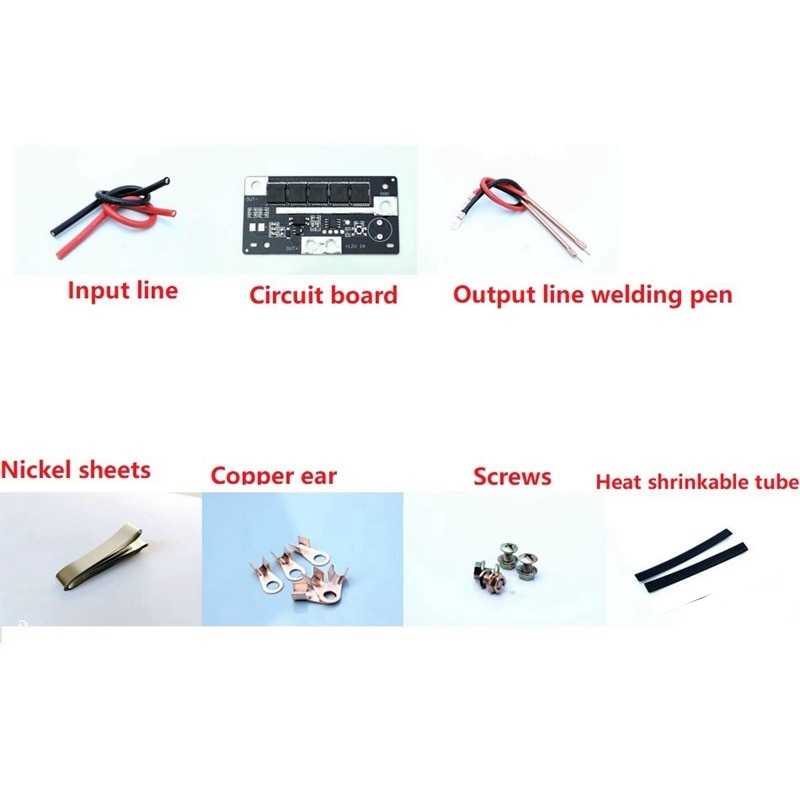

The whole set includes: 1 main circuit board, 1 buzzer, 2 10awg input wires, 2 12awg output wires, including 2 welding pens, which are used to weld 18650 / 26650 / 32650 lithium batteries. Advantages: portable, stable, reliable and durable.

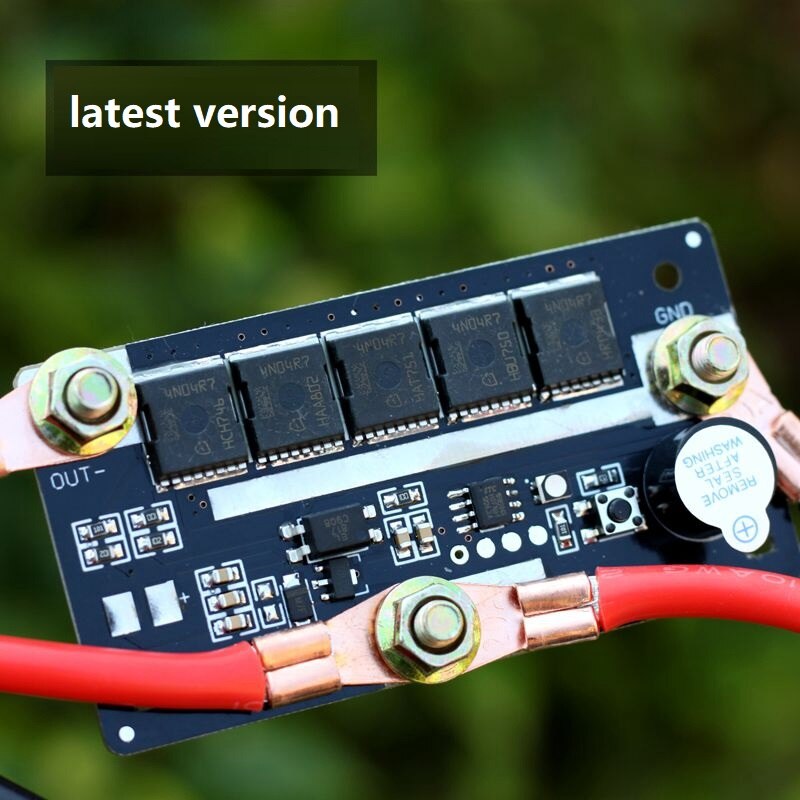

The user needs to provide 12V battery for power supply, and the welding current is about 90a ~ 130a. It is easy to weld the common 0.1mm ~ 0.12mm nickel plate. After several generations of product updates, it is now upgraded to automatically trigger the welding and release the finger of the button.

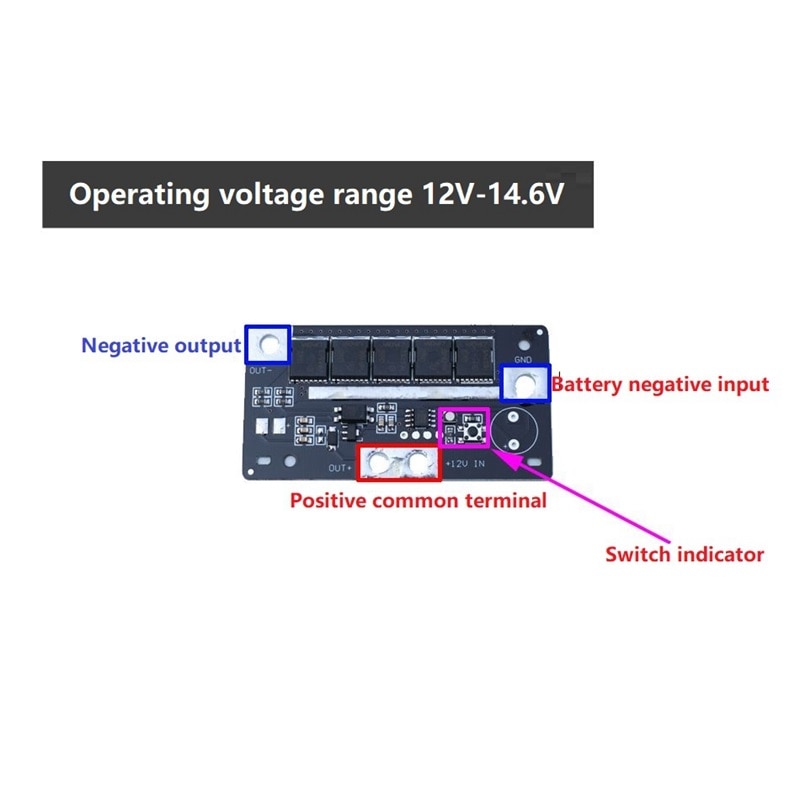

System voltage: 12v-14.6v
Working current: 90-150a
Battery recommendations:
20-45ah lead-acid battery with good performance and small internal resistance
3S aircraft model lithium battery pack at 3.5-5.5ah 45C
18650 battery pack with 30-35ah capacity
The battery pack that can start the car can basically meet the power supply requirements of this circuit
Function introduction: This circuit with 12V battery will become an energy storage spot welder for welding nickel plates such as lithium batteries and nickel-chromium batteries. According to different configurations, the welding thickness can be about 0.1MM-0.15mm. By replacing the thicker wire (10 square), it can barely weld 0.2MM thickness. After all, this device is geared towards electronics enthusiasts, and the frequency of use will not be very high, so it can also use 0.1-0.15 solder 2 to replace thicker nickel pieces.
Switch function: press the switch for 1.5 seconds to turn on (green light flashes, low-power spot welding pulses are output every 3 seconds), press the switch for 1.5 seconds (blue light flashes, medium-power spot welding pulses are output every 3 seconds), press switch 1.5 Second (red light flashes, high power spot welding pulse is output every 3 seconds) Press the switch for 1.5 seconds to shut down.

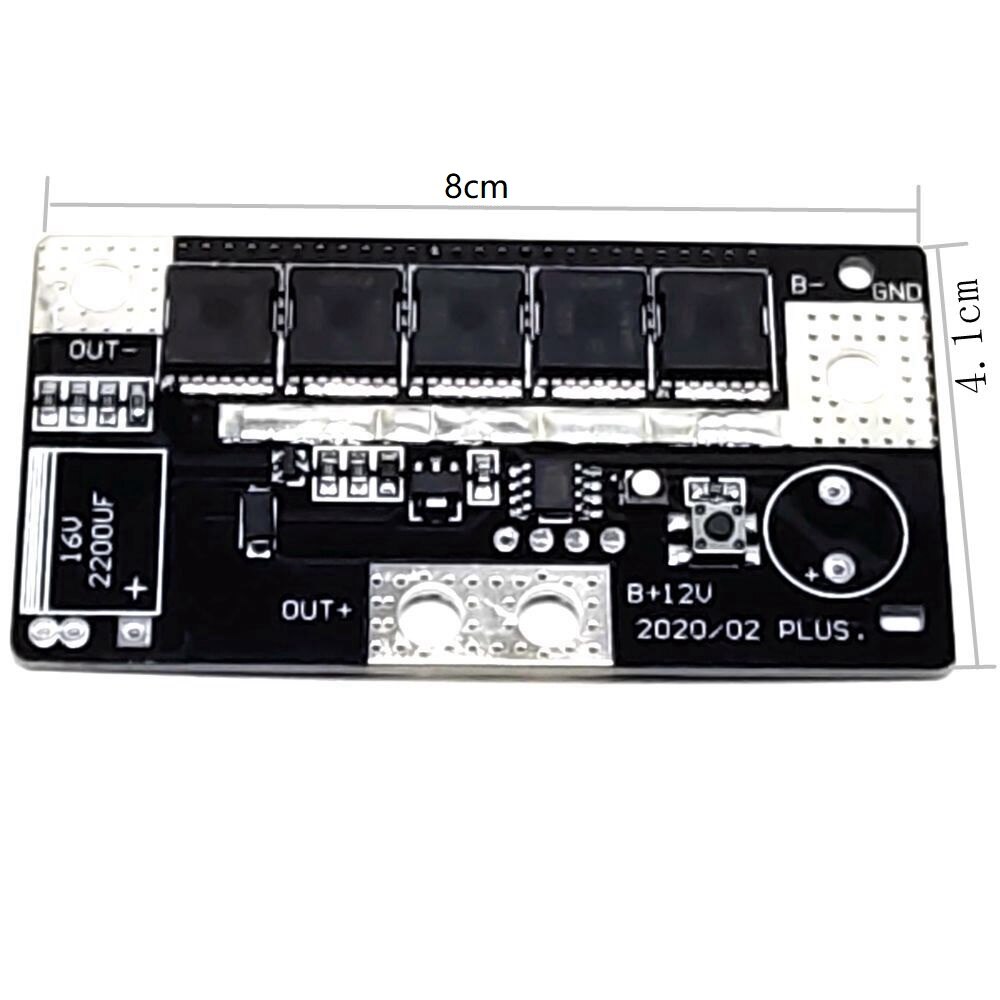

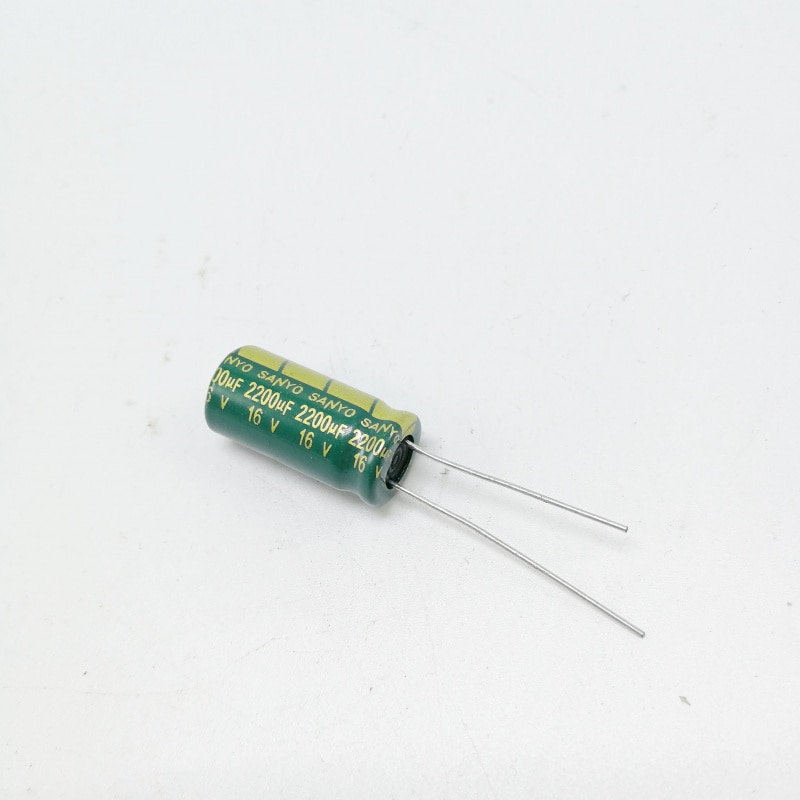

Including 16V 2200uf capacitor, as shown in the figure:
More people buy this board,There are also many problems,
There are many reasons for improper operation,Because this is an electronic part,Need to have a certain understanding and practical ability of electrical knowledge.Working current and voltage batteries must be paired,If the battery is too large, it is easy to burn out, please be cautious and hope to understand each other.
- Usage: 18650/26650/32650
- Weight: 0.2KG
- Dimensions: C
- Max. Welding Thickness: 0.1mm~0.12mm
- Rated Duty Cycle: W
- Rated Capacity: 30-35ah
- Model Number: Accessories
- Origin: Mainland China
- Certification: NONE
