SMATRUL Mini 16A Smart Home Touch Switch Light Wireless 433Mhz Module Electrical For 2 Way Remote Control Led Lamp On Off
SALE
ID: 27206

SMATRUL Mini 16A Smart Home Touch Switch Light Wireless 433Mhz Module Electrical For 2 Way Remote Control Led Lamp On Off

5.0 (20 votes) | 57 orders
Price: US $2439.28 - 5908.82 / piece
Discount Price:
US $ 1121.86 - 2717.52 / piece
-54%
Quantity

Buy Now
Add to Cart








Main features:

1. Timing function: do not need WIFI or APP, can achieve 4-level timing function
2. 16A high power: suitable for most equipment, safer to use
3. Mini body: can be directly installed in the switch bottom box, maintenance and installation are more convenient
4. The open distance of 100 meters is more convenient to use, and the actual distance is indirect obstacles. The more obstacles, the shorter the distance, the more serious the signal loss.
5. After turning off the power, turn on the power again, the device status is off
6. Support 2-way control: can be used in conjunction with 2-way control switch, and then connected to the home
7. Wireless switch high-definition tempered glass, anti-scratch, can be touched with wet hands
8. Wireless switch fluorescent indicator, will not disturb rest at night
9. Wireless switch drawer compartment structure, very convenient to replace the battery
10. Wireless switch with rounded corners protection, anti-drop design

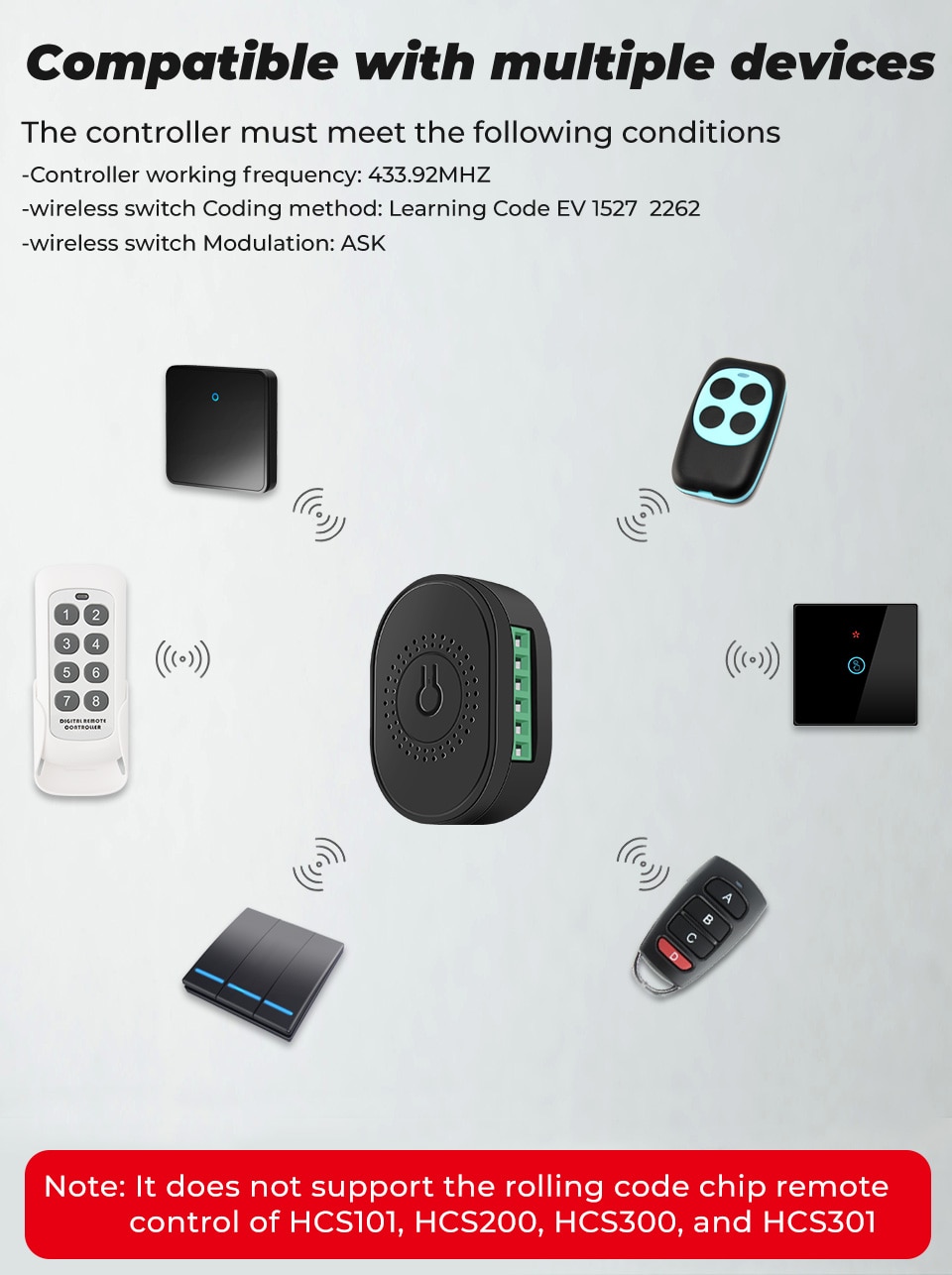

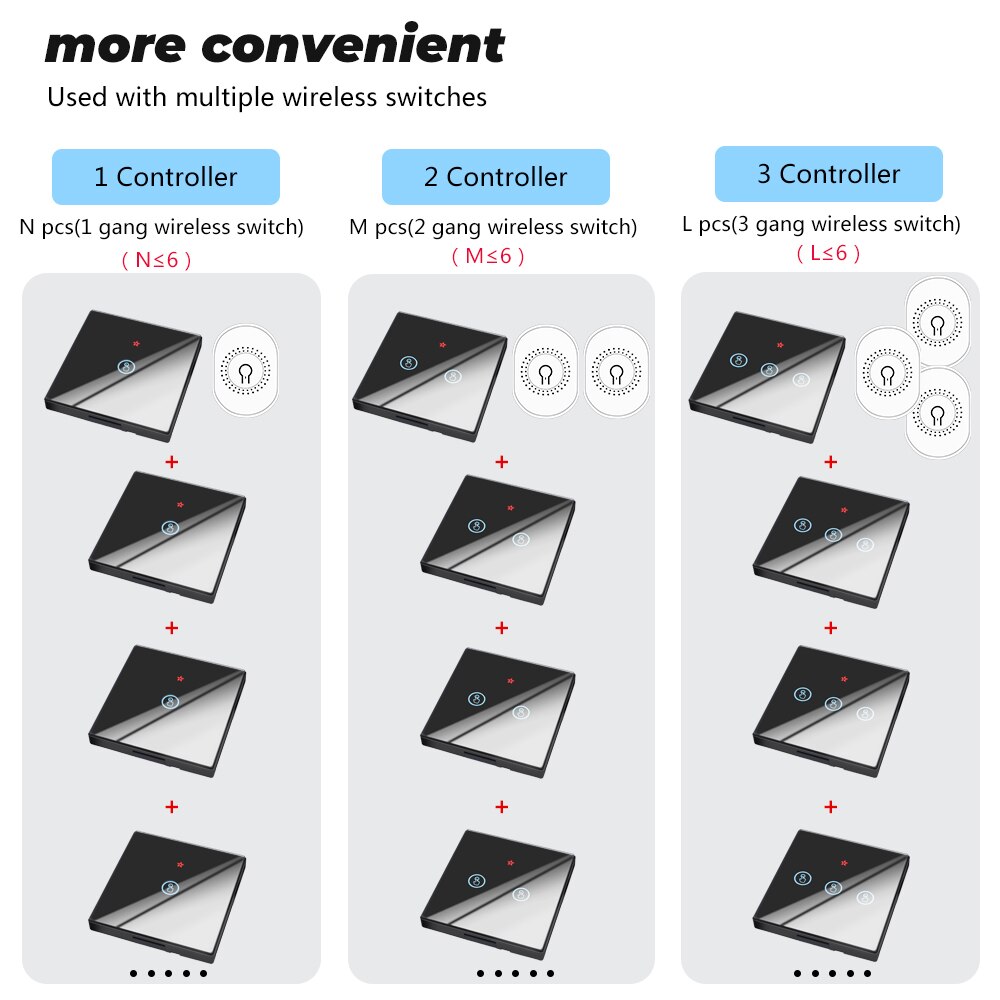

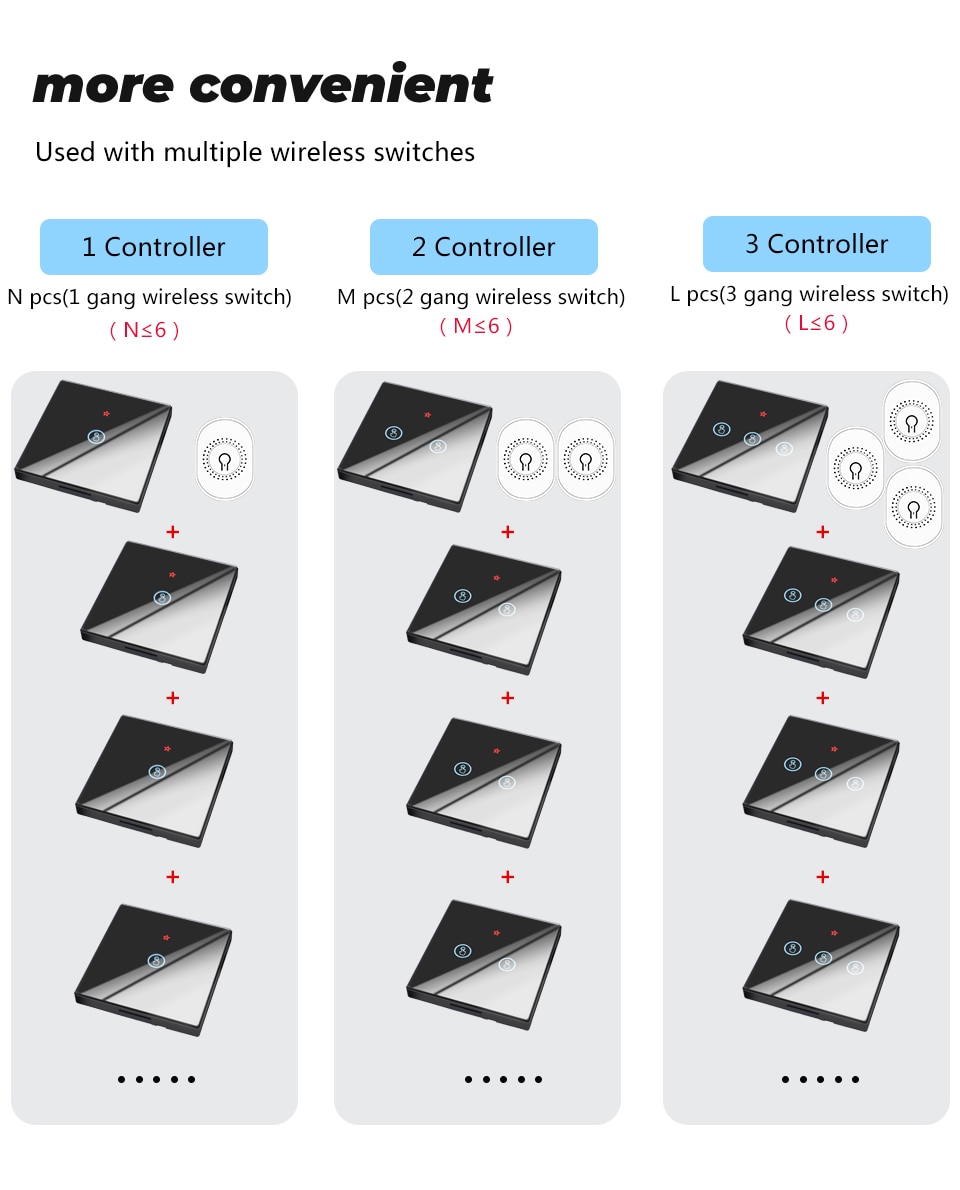

Compatible with multiple devices

The controller must meet the following conditions
-Controller working frequency: 433.92MHZ
-wireless switch Coding method: Learning Code EV 1527 2262
-wireless switch Modulation: ASK

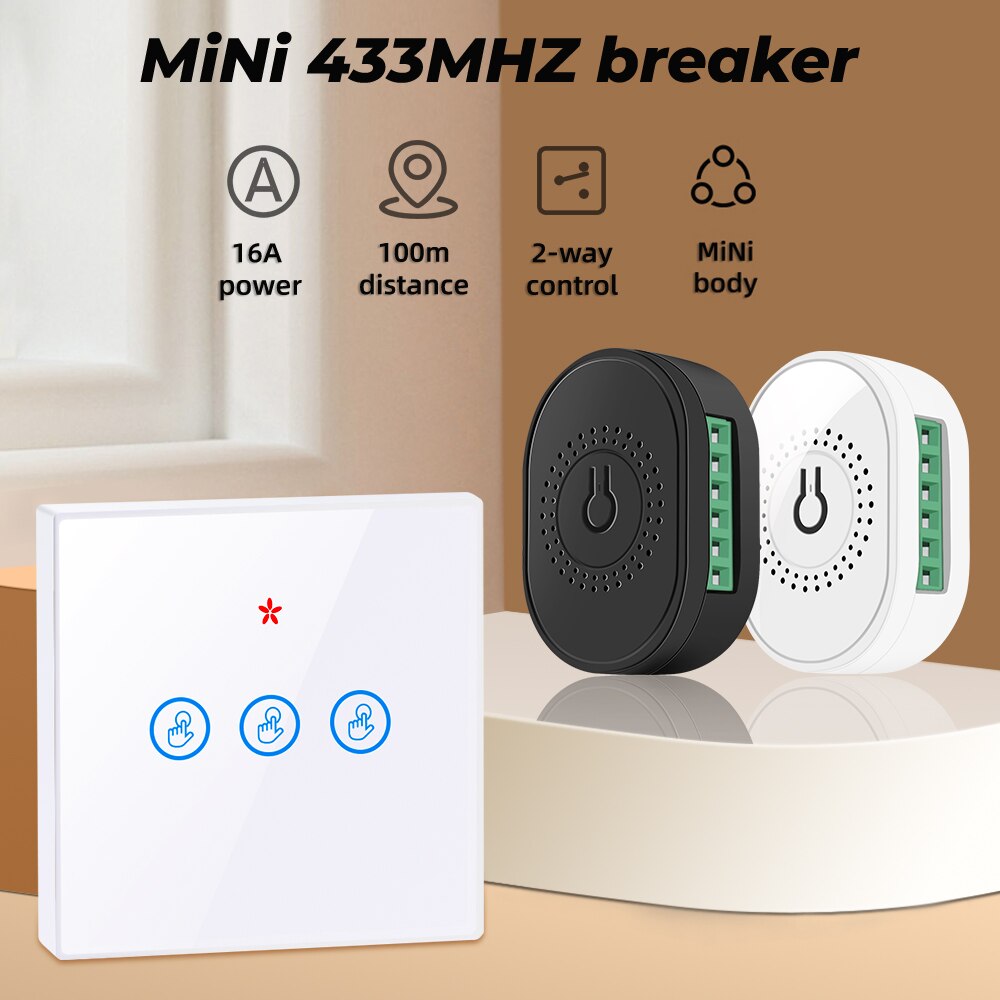

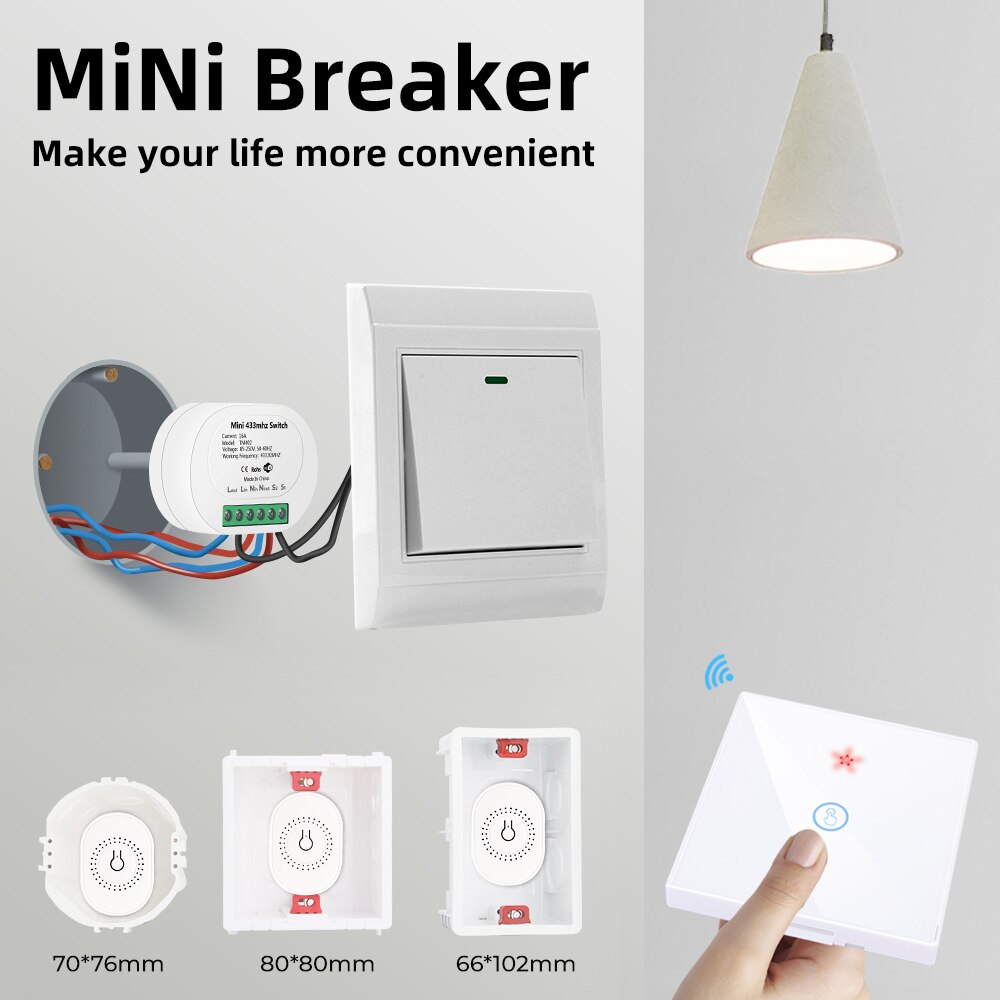

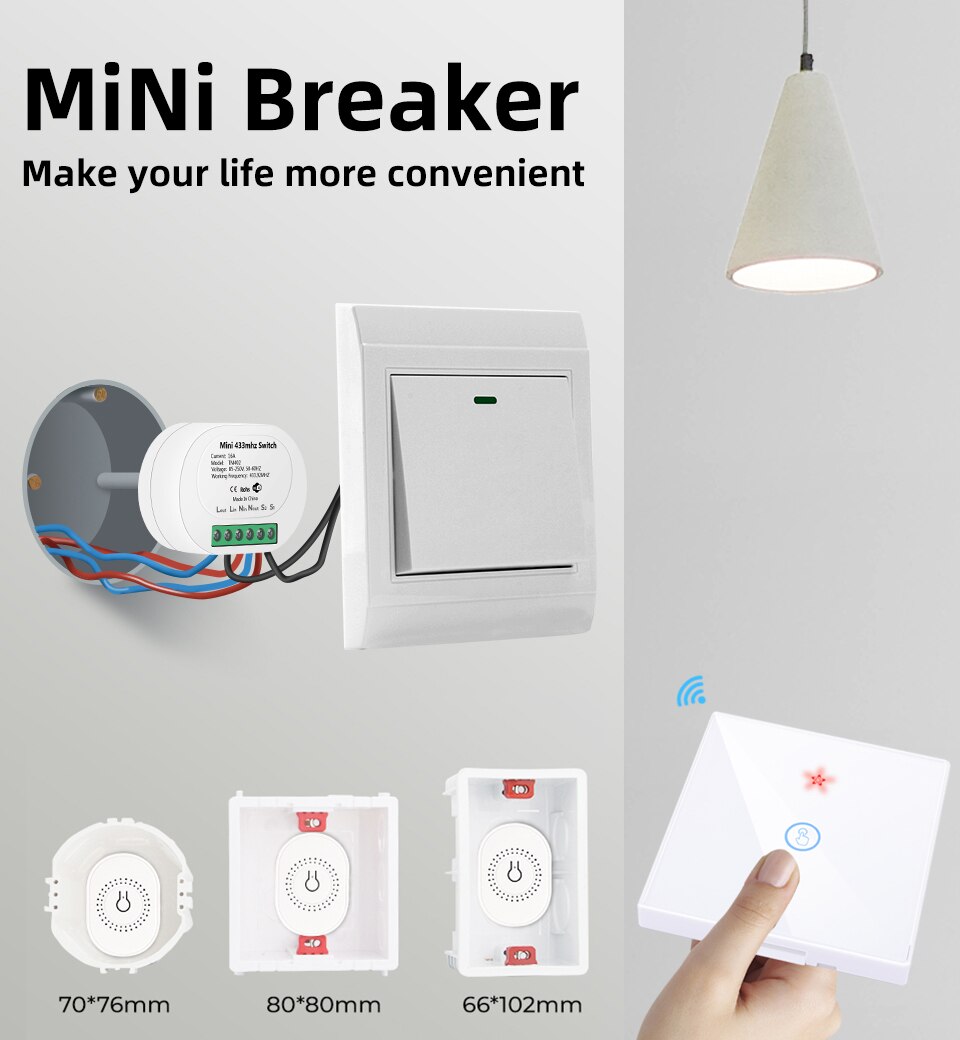

MiNi 433MHZ breaker

support timing and two-way control

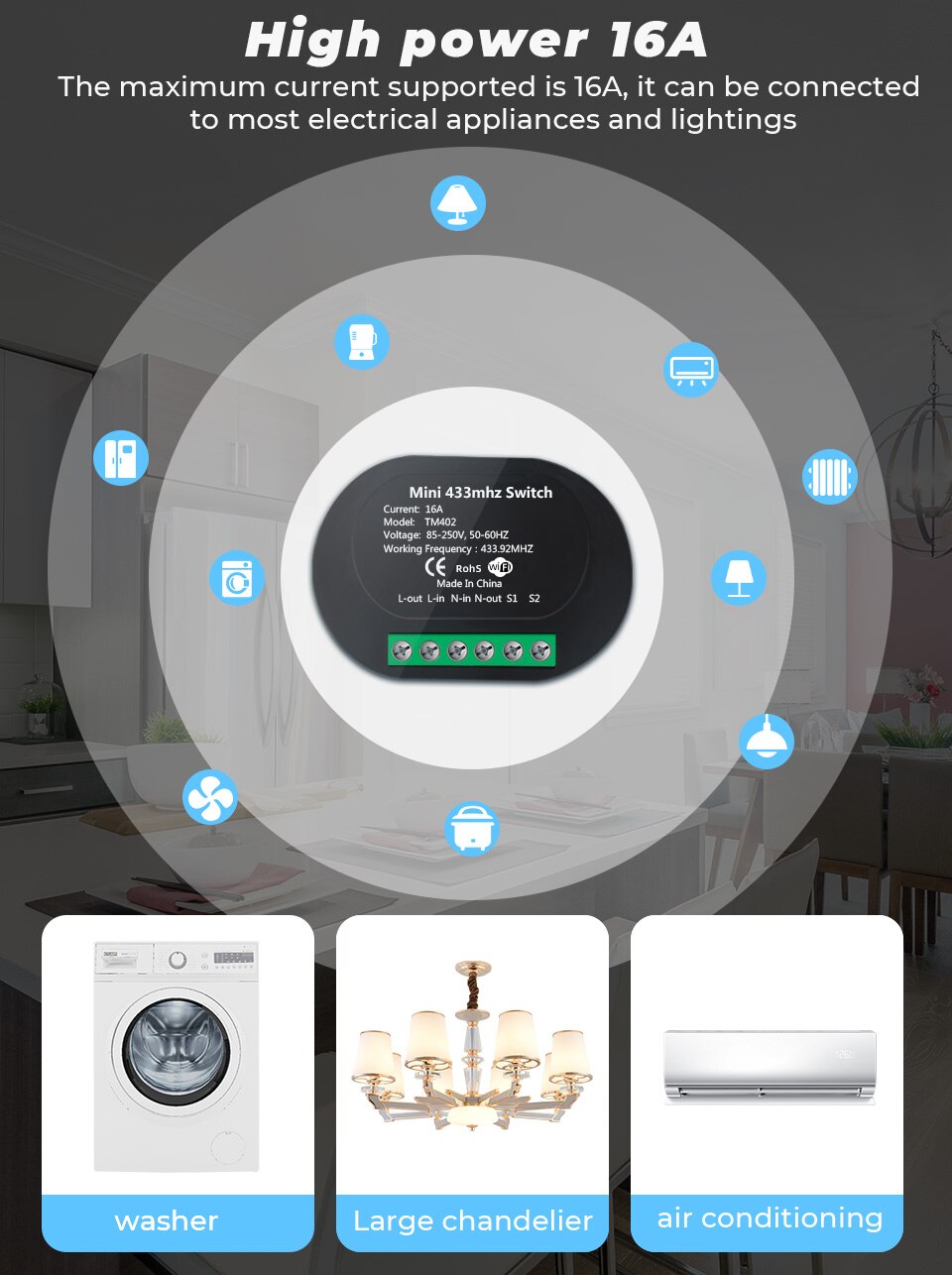

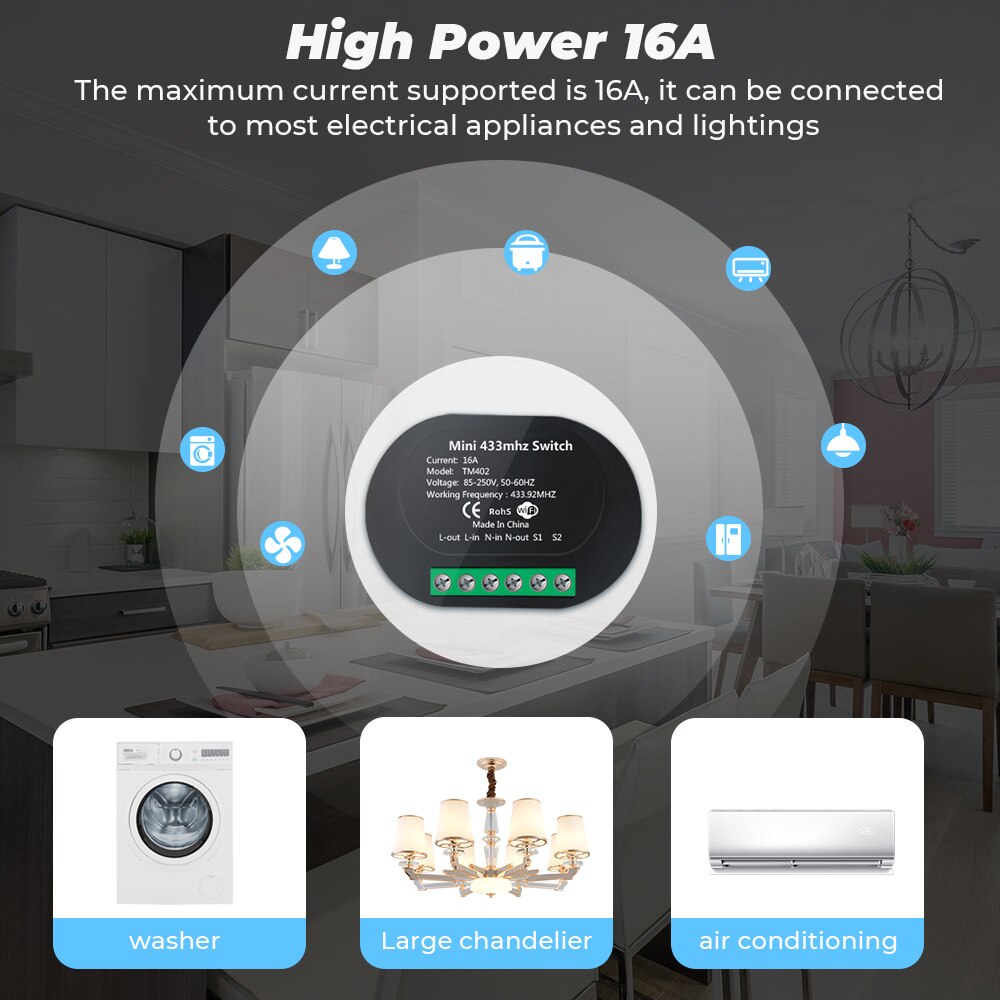

High power 16A

The maximum current supported is 16A, it can be connected to most electrical appliances and lightings

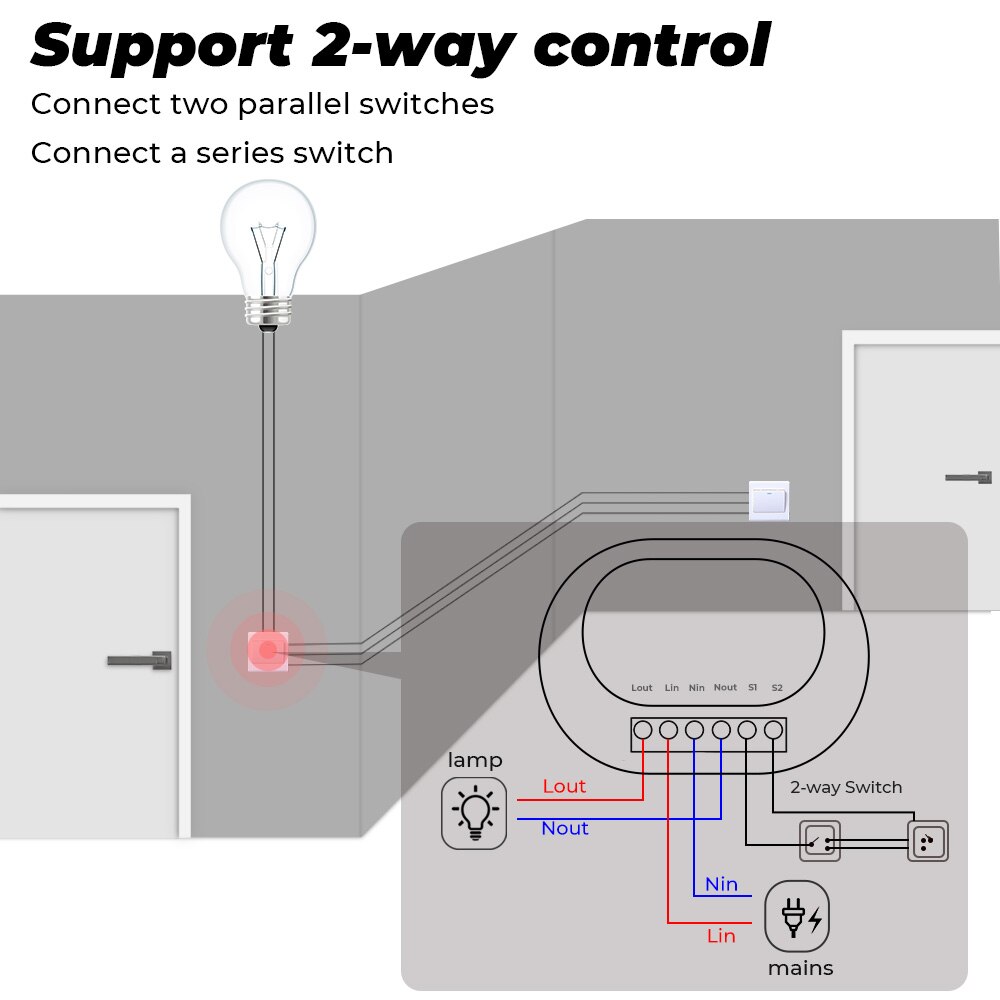

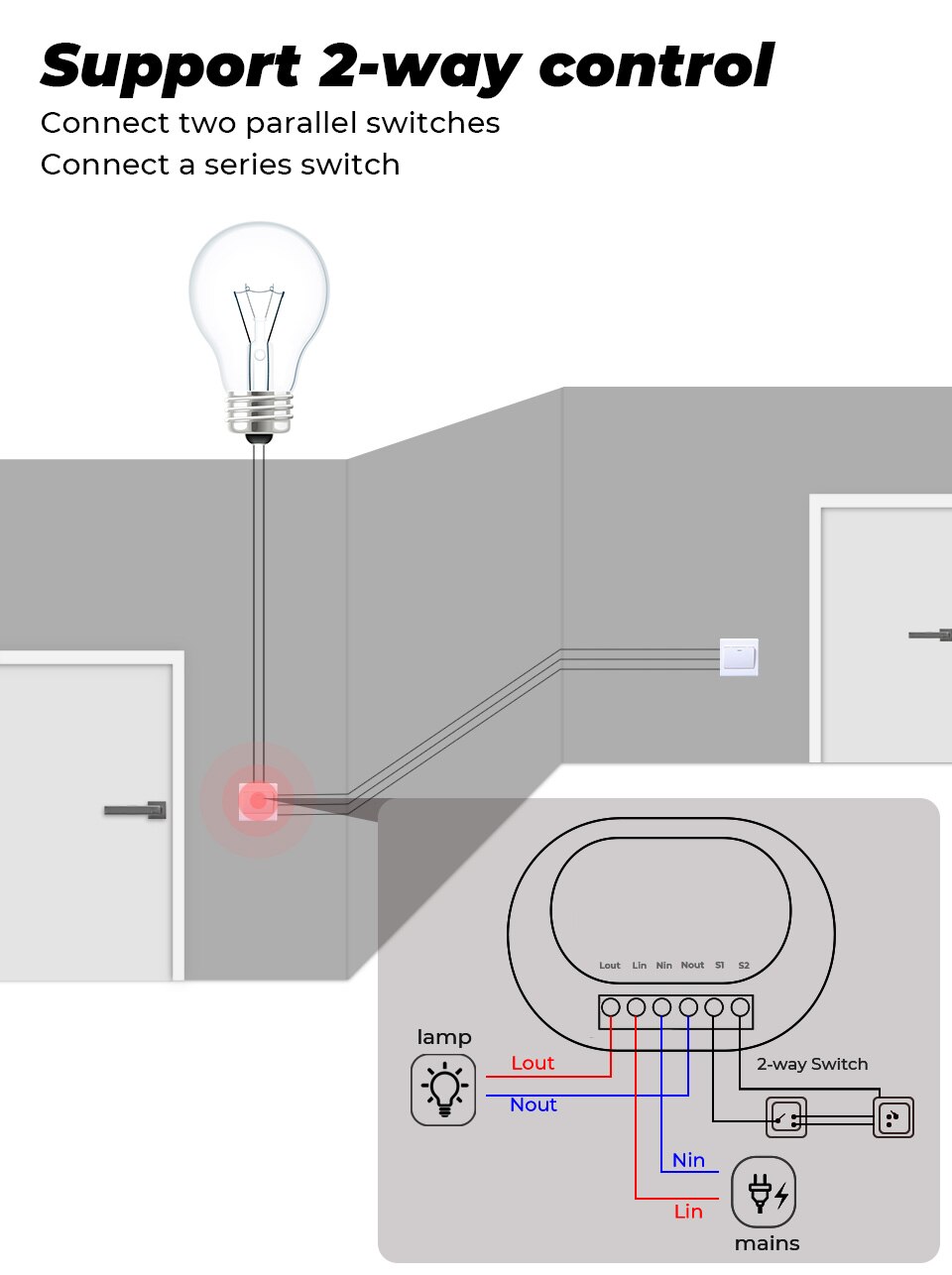

Support 2 way control

1. The controller is only connected to line N and L, not connected to the switch

2.This smart DIY switch could be used for your old 2 way control switch. Especially, you still available to control the old switch manually after isntalled it.

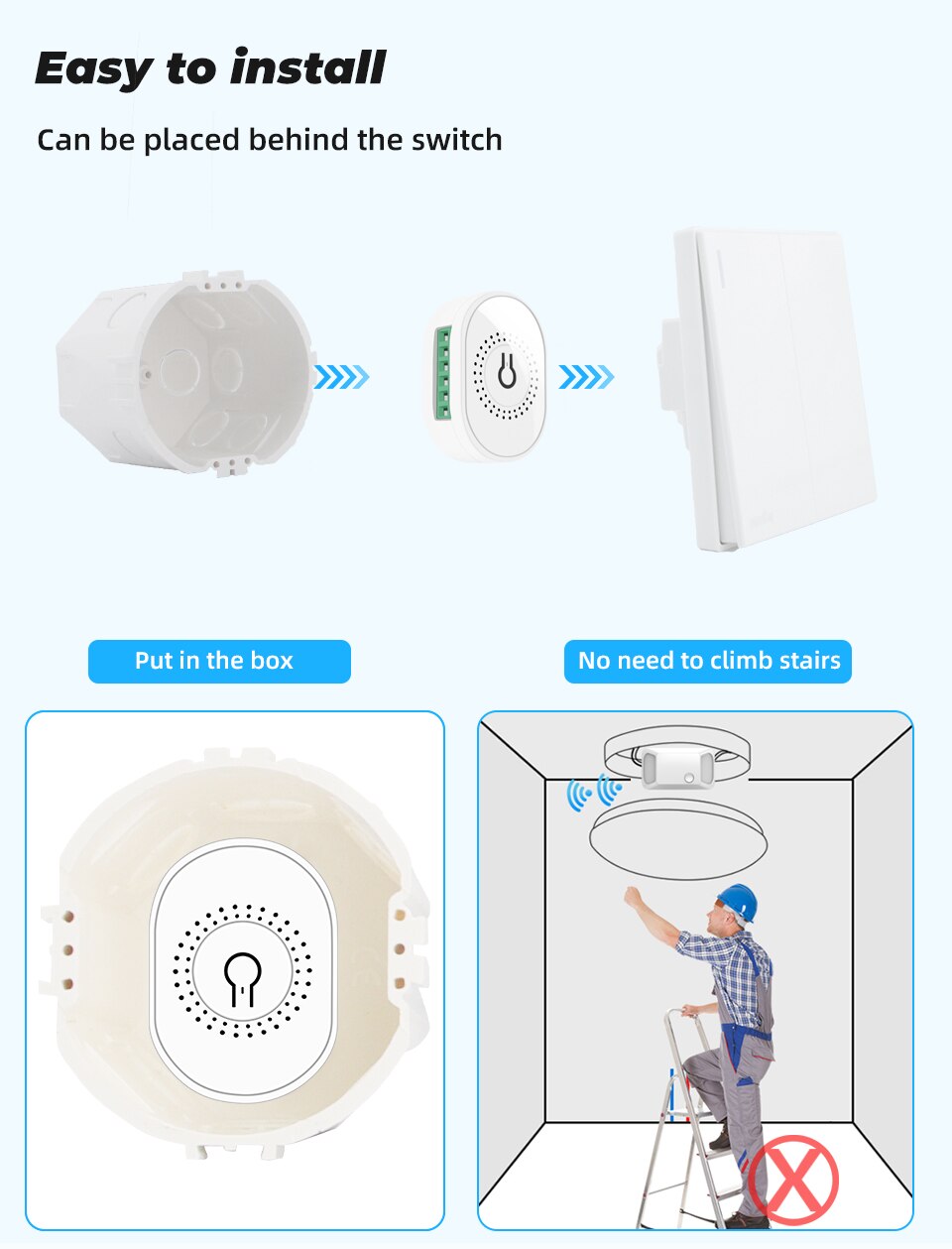

Easy to install

We can put it directly in the switch bottom box. So you don’t have to climb stairs to install the controller

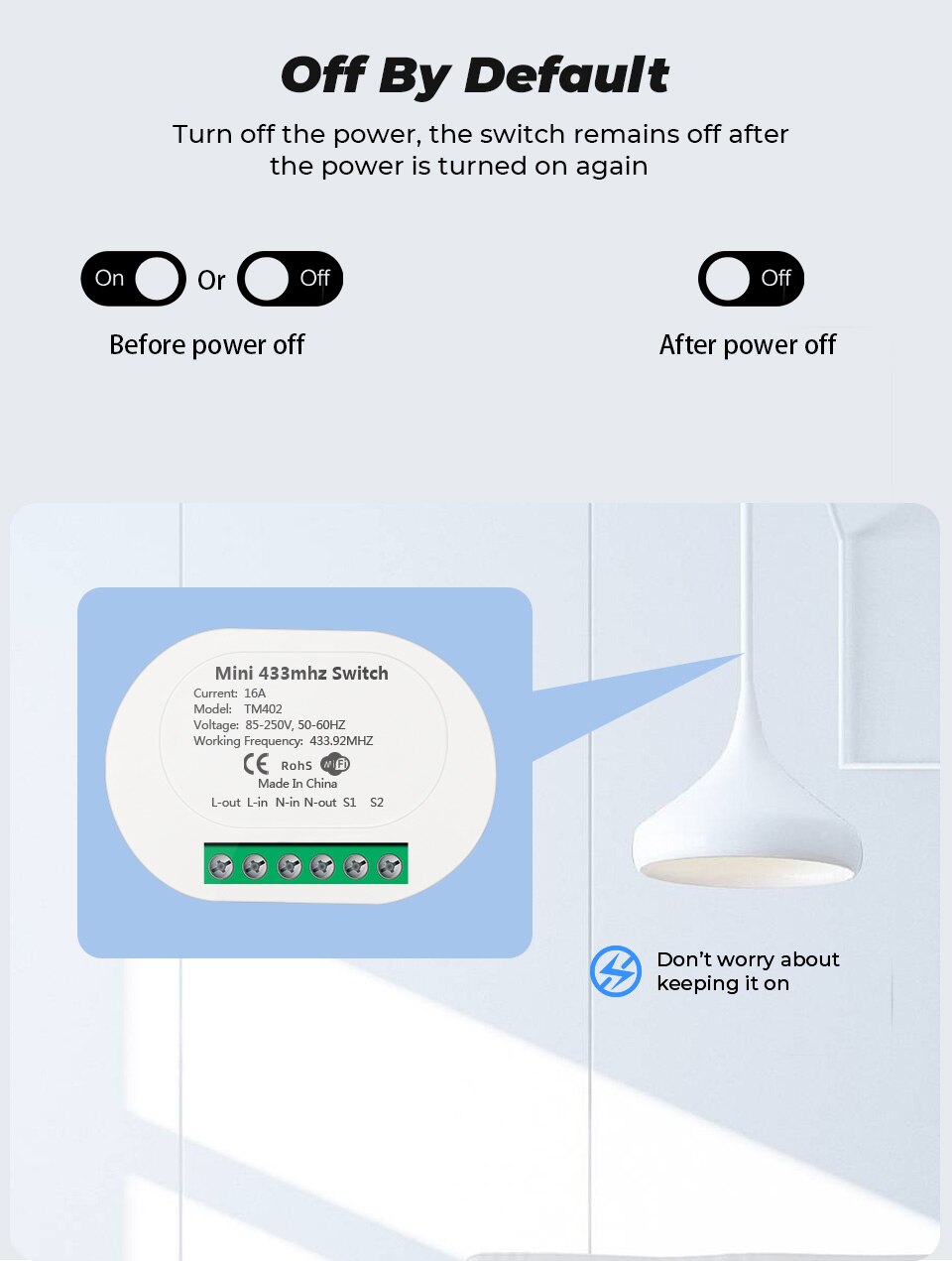

Off By Default

Turn off the power, the switch remains off after the power is turned on again

More convenient and smarter

We recommend multiple products to buy, more convenient at home

ontroller parameters:

Voltage: 85~250V, 50-60HZ
Current: 16A
Working frequency: 433.92MHZ

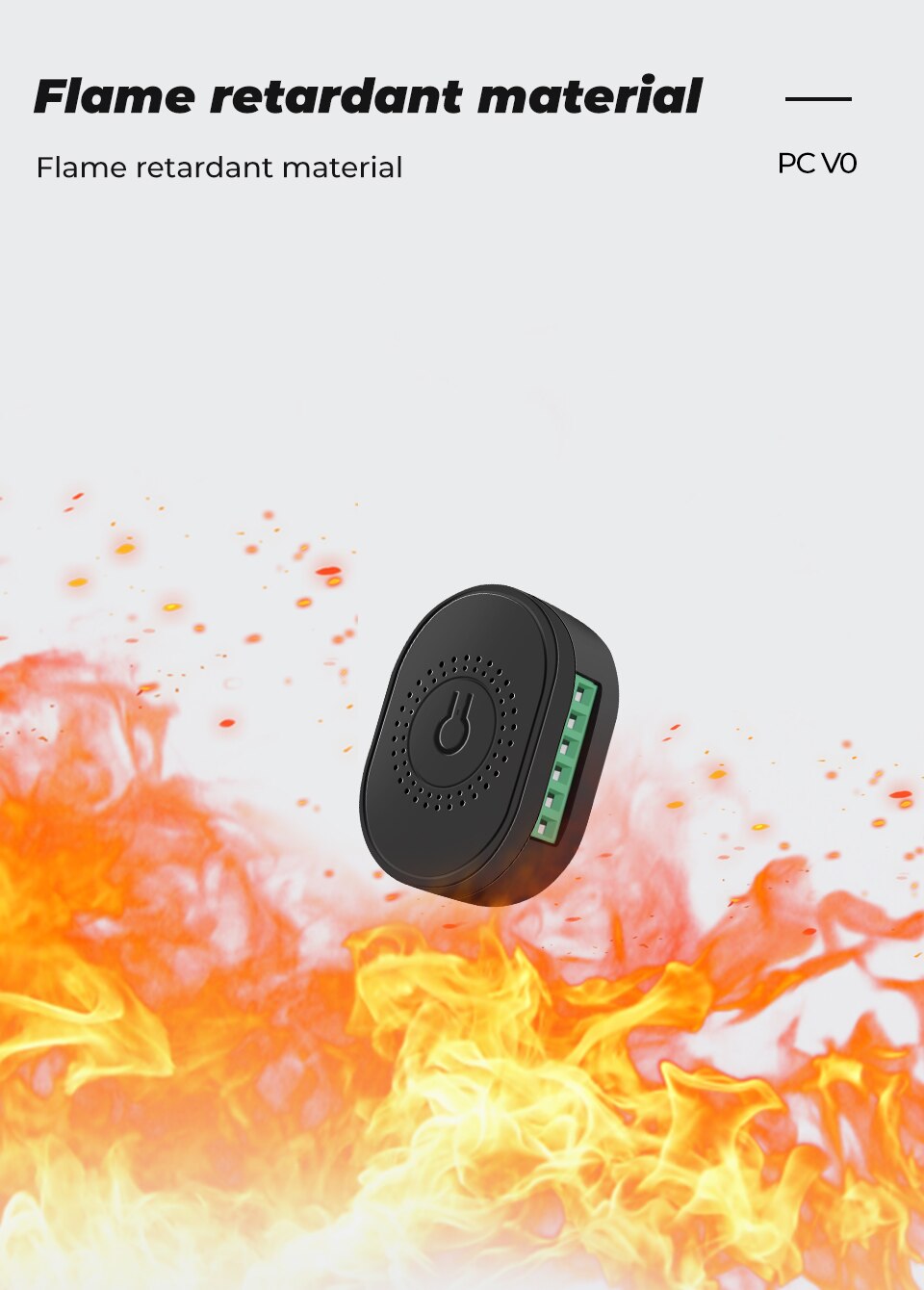

Material: PC flame retardant V0
Size: 59x42x20mm
Study code: EV 1527
Mode: ASK
Receiving distance: 100M open distance
The remote controller is compatible with EV1527 2262 chip.
Does not support HCS101, HCS200, HCS300, HCS301 rolling code chip remote control

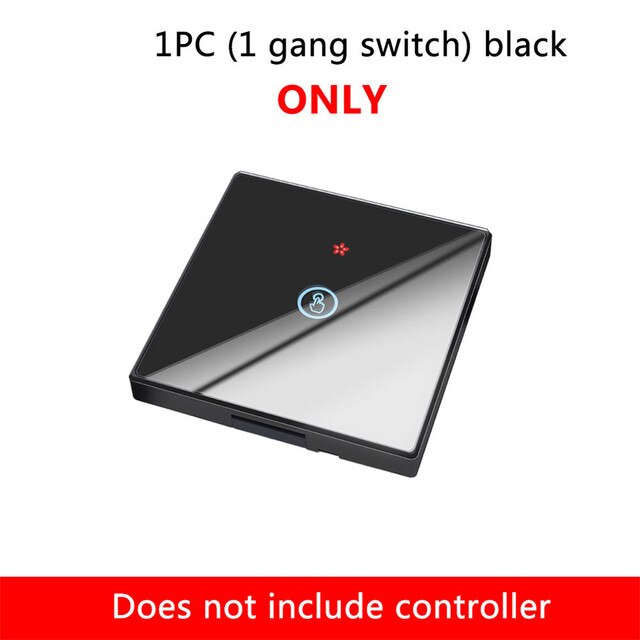

Wireless switch parameters:

1.HD tempered glass
2, working voltage: DC 3V
3, working frequency: 433.92MHZ
4. Transmitting power: <10mW
5. Remote control distance: <100 meters (indoor distance)
6, working method: wireless remote control
7, coding method: learning code
8, modulation method: ASK
9, working temperature: -10 deg C ~ +70 deg C
10, size: 86 * 86 * (mm)
11.standard battery,Cr2032 battery, ((Does not contain battery))

two wiring methods

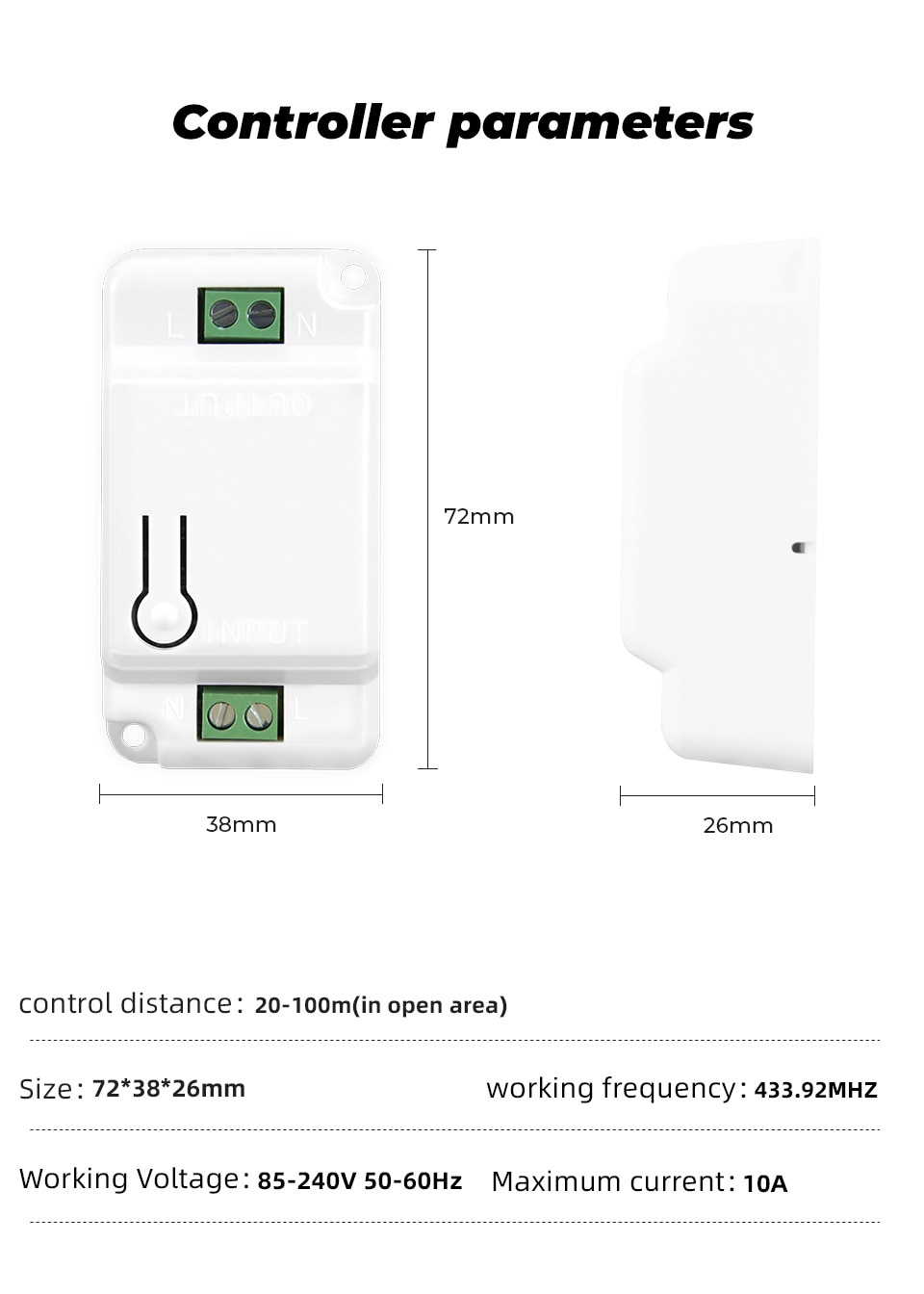

the controller product parameters

1, working voltage: AC85-240V 60HZ/50HZ
2, working frequency: 433.92MHZ
3, the total load power: <1000W
4, receiving sensitivity: -108dBM
5, working method: wireless remote control
6, coding method: learning code
7, modulation method: ASK
8, working temperature: -10 deg C ~ +70 deg C
9, size: 72 * 38 * 26 (mm)
10.The controller has a memory function， remembers the state before the power was turned off

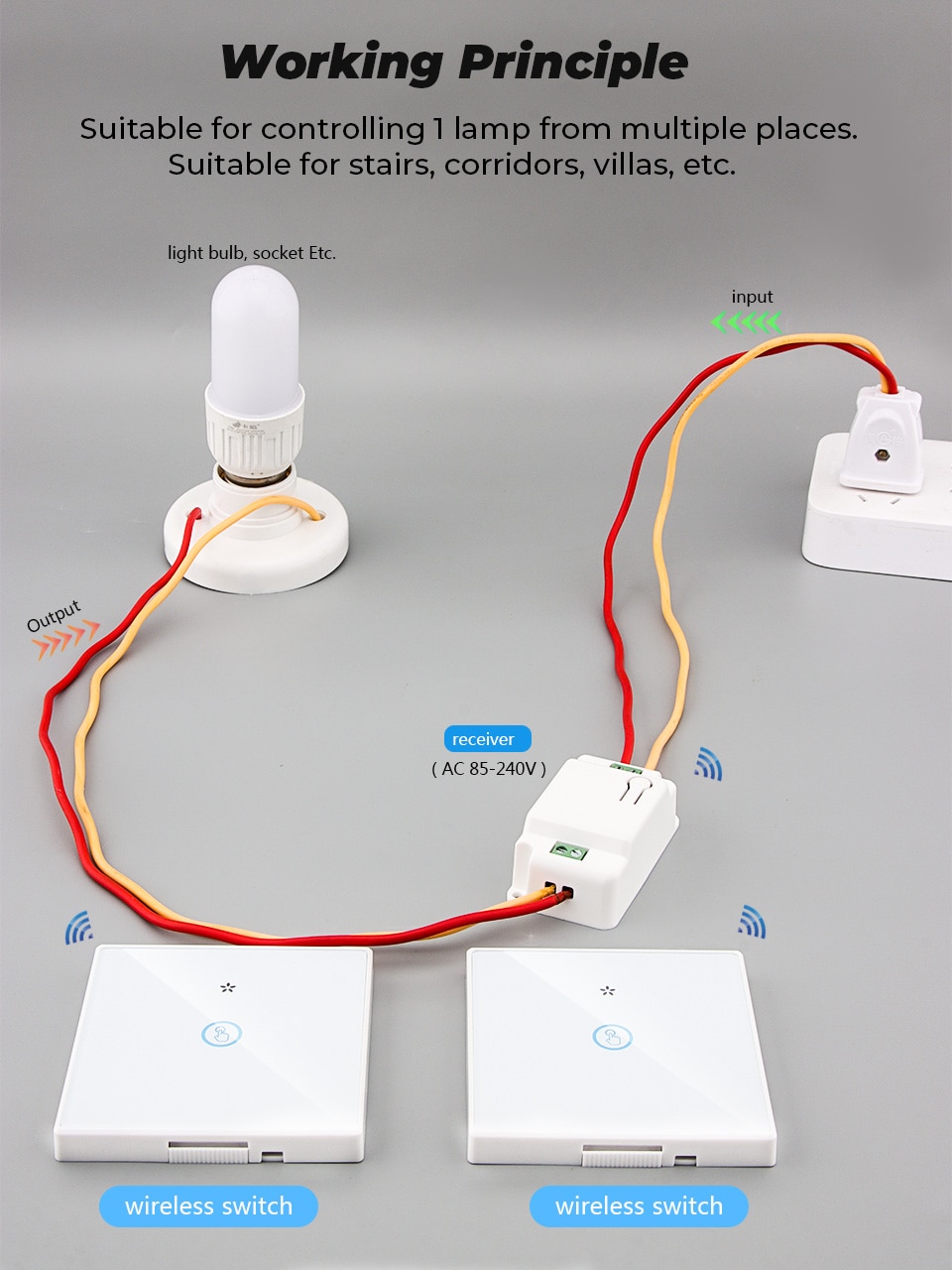

Working principle

Input and output intermediate access controller. Wireless switch control current is turned off and on at 433 MHz

Old version installation method

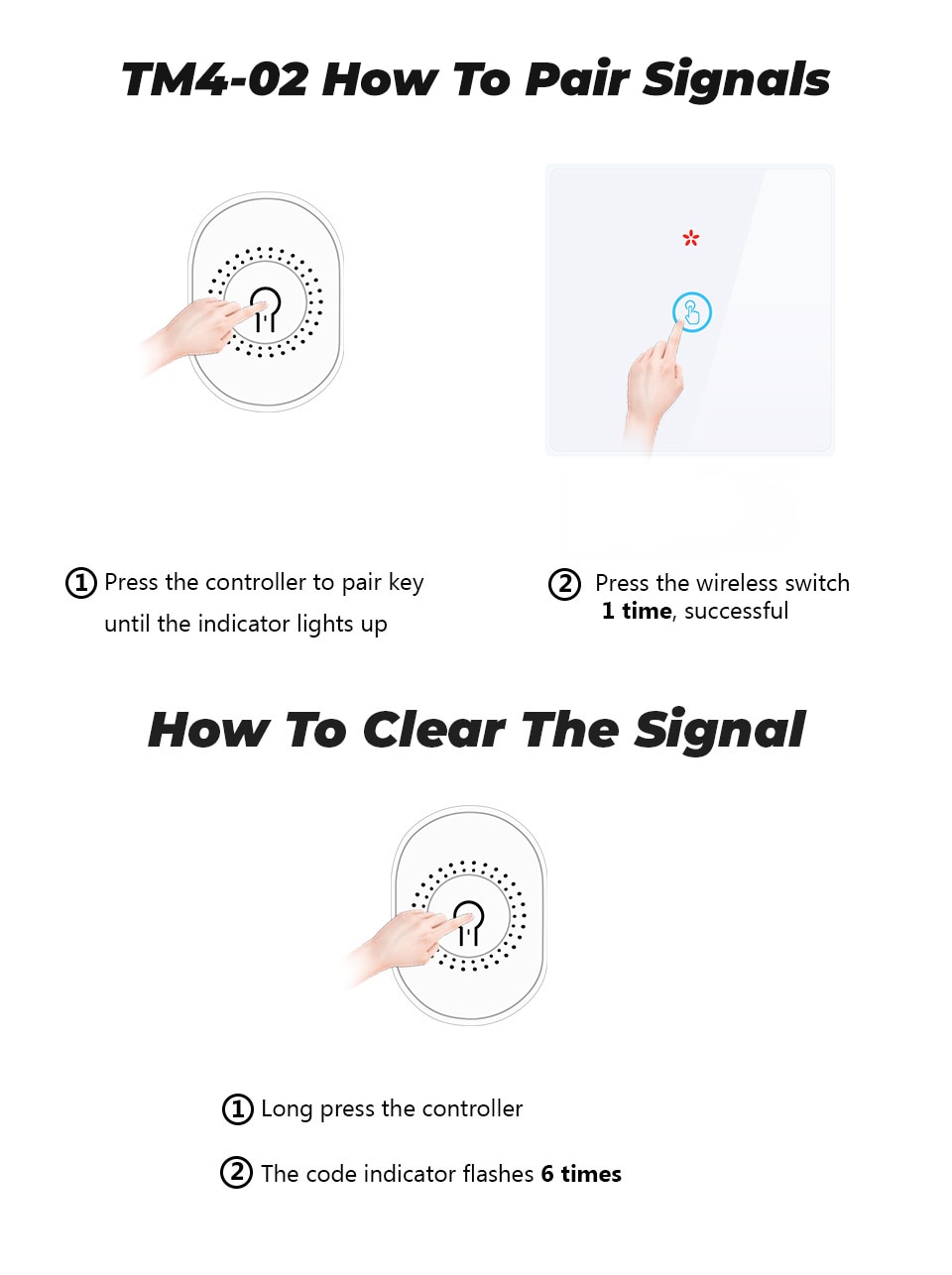

How to solve the problem (if the product has a problem)

1. First check if the battery model is correct (Cr2032 battery)? Is the battery charged?

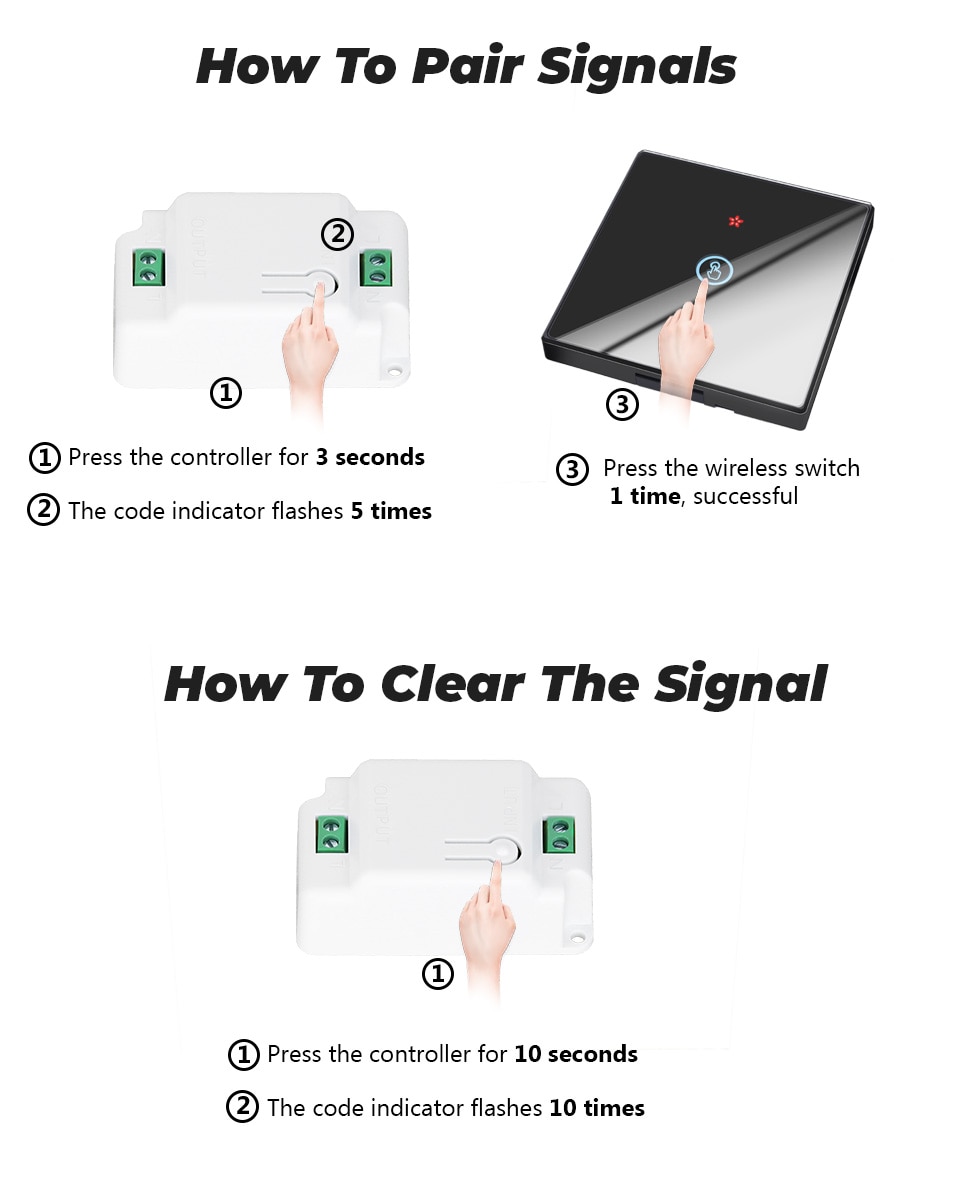

2.please provide an email and we will send you 6 video. You can try the following steps. First you can clear the signal (there are 2 ways, please see videos 1, 2, 3). Then re-pair the signal ( See video 4, 5, 6)

3. If these questions still don't solve the problem, please send the video to our email address (xue19870608@163.com). We check if your method is correct. If the product is really defective, we will re-deliver the wireless switch or controller to you.

How to get the wholesale price

1.Please provide your email address and we will send you the wholesale price list.

2.More than 50 or more, we use DHL, FEDEX IP, and other special logistics,and receive the package in about 7 days.





  • Is Smart Device: YES
  • Current: 16a
  • Material: Plastic
  • Remote Distance: Up to 100m (theoretical distance)
  • Features: WIRELESS SWITCH
  • Model Number: WHC-TM402
  • Switch Type: Remote Control
  • Warranty: 1 year
  • Certification: ROHS,FCC,ce
  • Brand Name: SMATRUL
  • Origin: Mainland China
  • Item Type: Switches
  • Certification: CE
  • Controller Operating Voltage: AC 85V-240V 110V 220V 60HZ/50HZ
  • Controller working frequency: 433.92MHZ
  • Controller Maximum power: <1000W
  • Controller Receiving sensitivity: -108dBM
  • Controller Operating temperature: -10 elsius~+70 Celsius
  • wireless switch working frequency: 433.92MHZ
  • wireless switch Transmit power: <10mW
  • wireless switch Remote control distance: Up to 100m (theoretical distance)
  • wireless switch Coding method: Learning Code EV 1527
  • wireless switch battery: CR2032 Alkaline Battery ( Not Included Battery)
  • Feature 1: Led Light Lamp Switch, Home Security Alarm System
  • Feature 2: 16A mini on-off device supports timing
  • Feature 3: For 433Mhz RF Receiver 1527 EV1527 Learning Code Button
  • Feature 4: Car Sunroofs Control, Mando Garaje
  • Feature 5: Electronic Gates Access Control System, Electrical Appliances Control
  • Feature 6: DIY Switch Light 220v
  • Feature 7: Fluorescent strip design, luminous
  • Feature 8: touch wireless switch
  • Feature 9: Drop resistance design,four-corner arc transition
  • Feature 10: Wet hands can also touch
  • Feature 11: HD Crystal Glass
