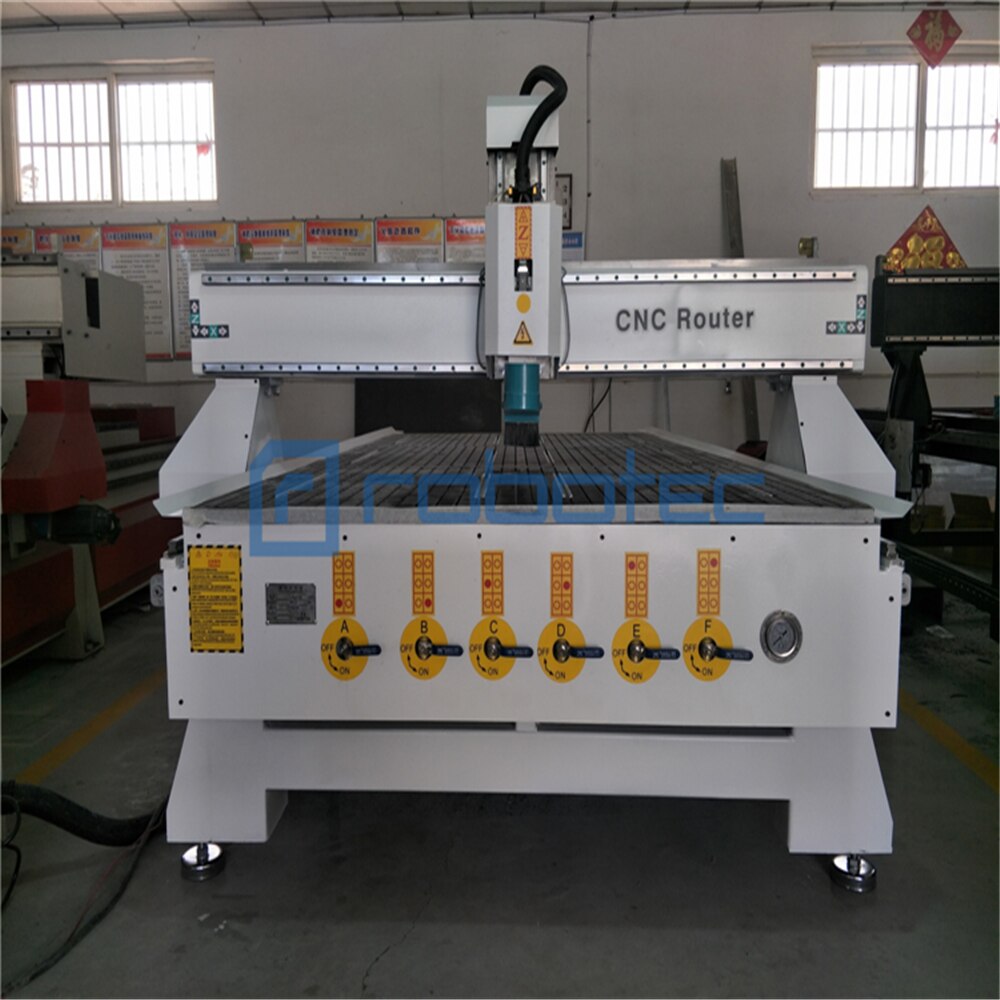

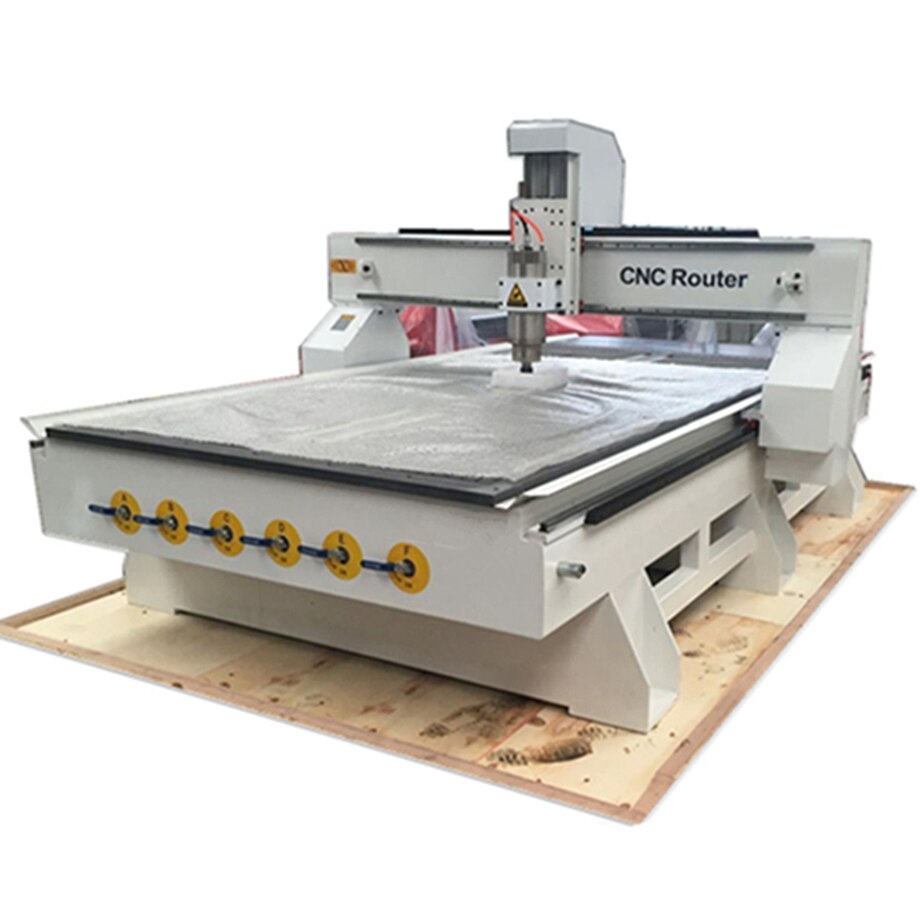

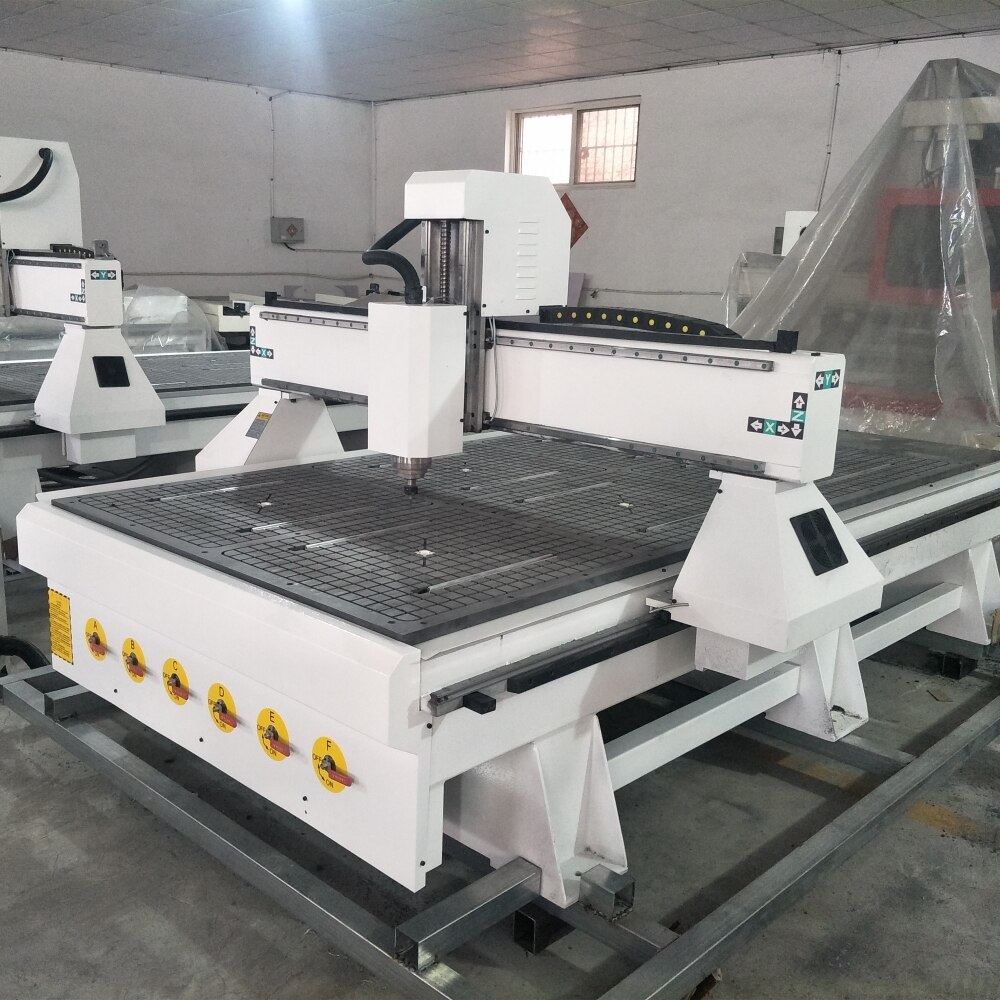

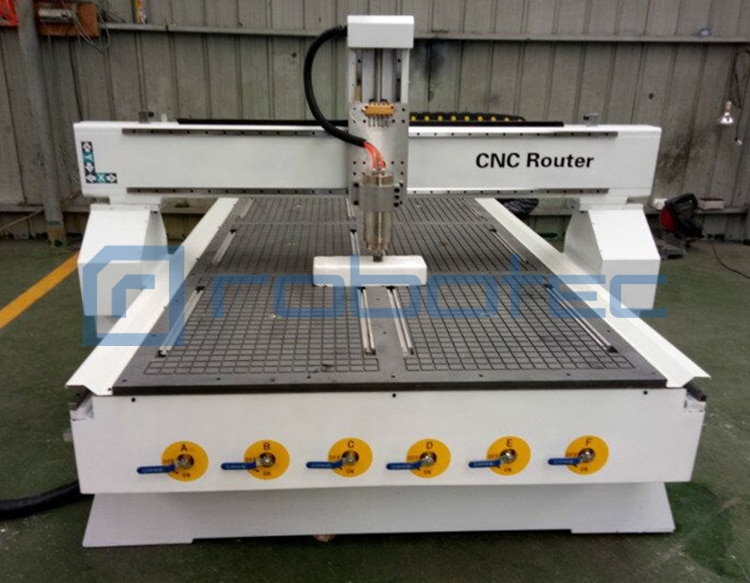

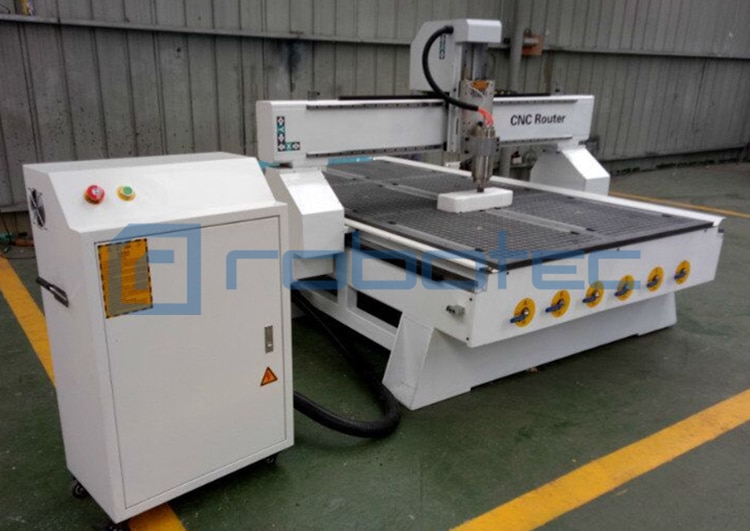

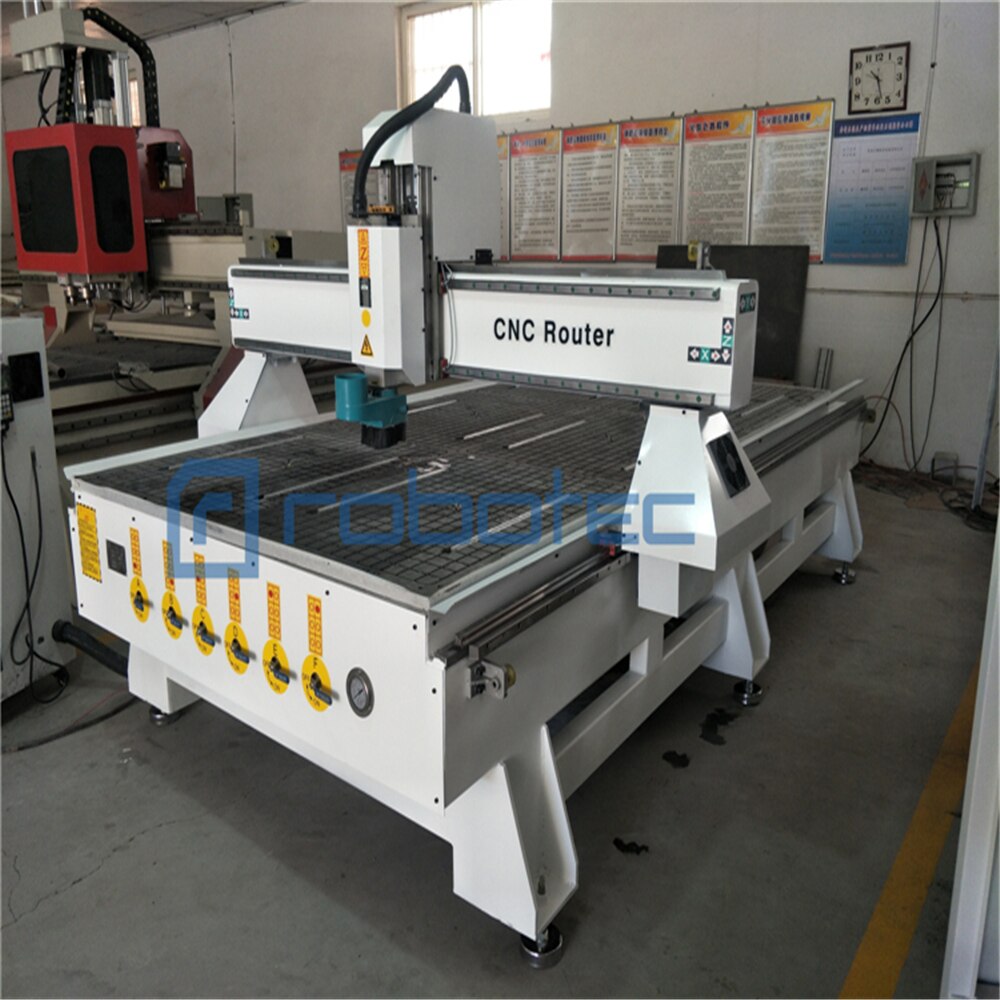

Small Bussiness 3d Woodworking CNC Router Mach3 CNC Wood Cutting Machine For Cabinet doors/ 1325 Panel Milling Wood CNC Machine

0.0 ( votes)
Price:
US $ 8900.00 / piece
Quantity

Small Bussiness 3d Woodworking CNC Router Mach3 CNC Wood Cutting Machine For Cabinet doors/ 1325 Panel Milling Wood CNC Machine

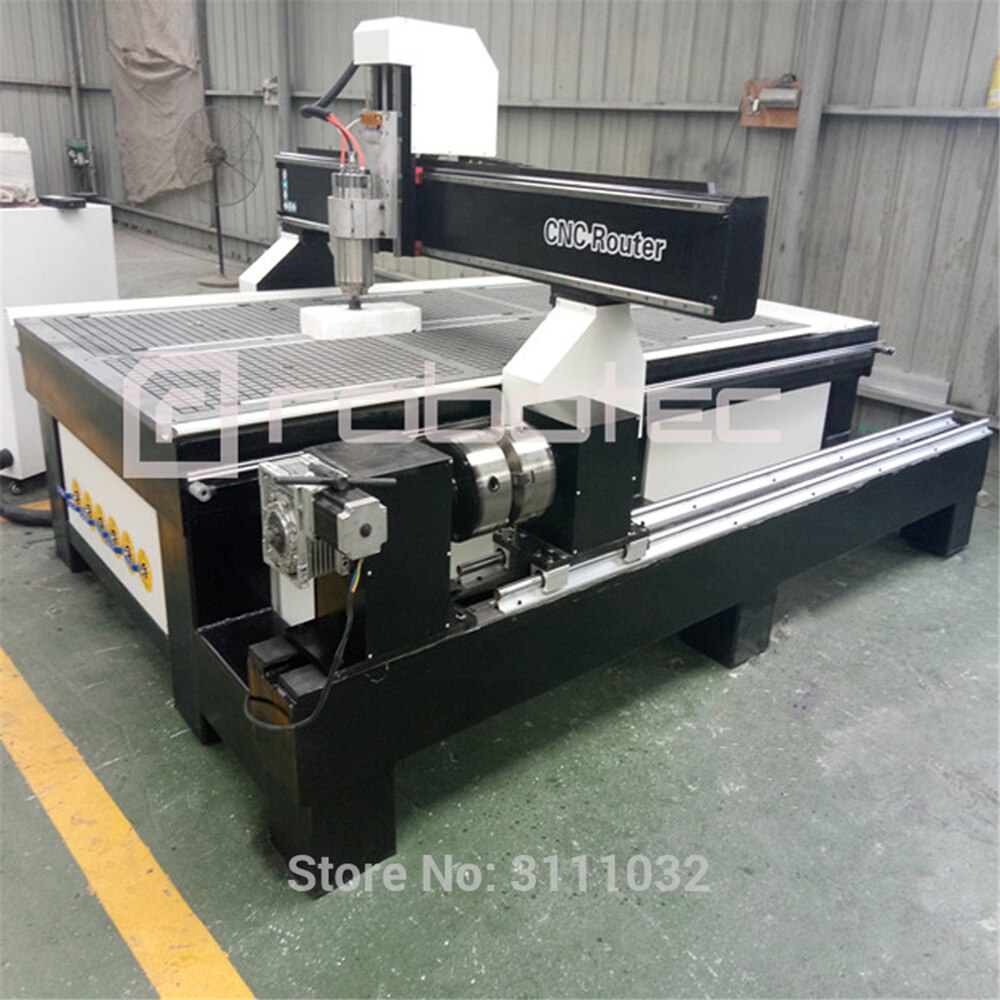

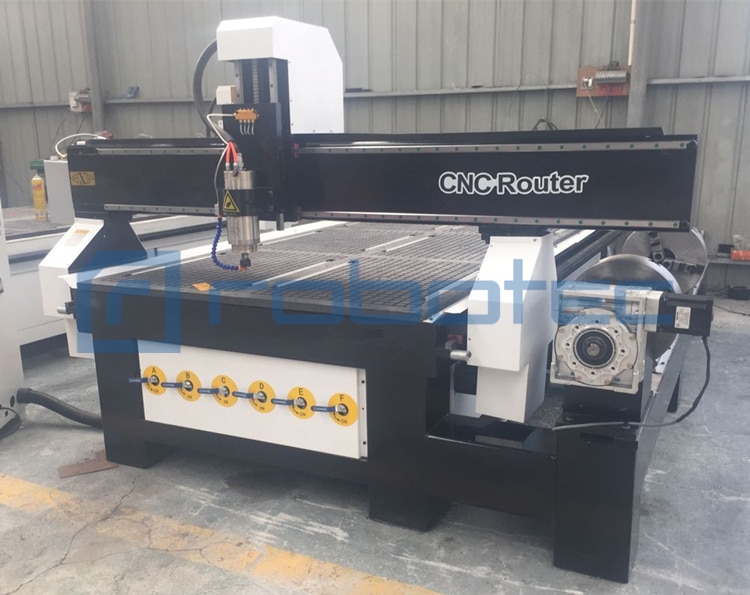

CNC router with 4th rotary axis

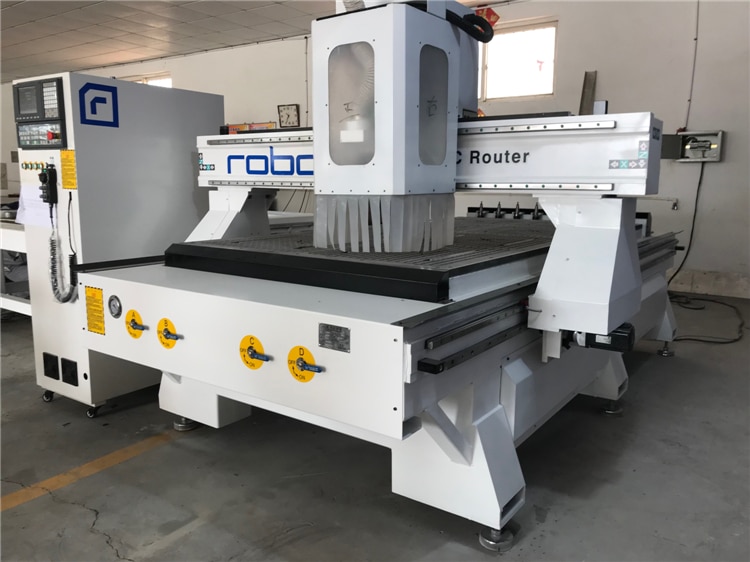

Wood cnc router with auto tool changer

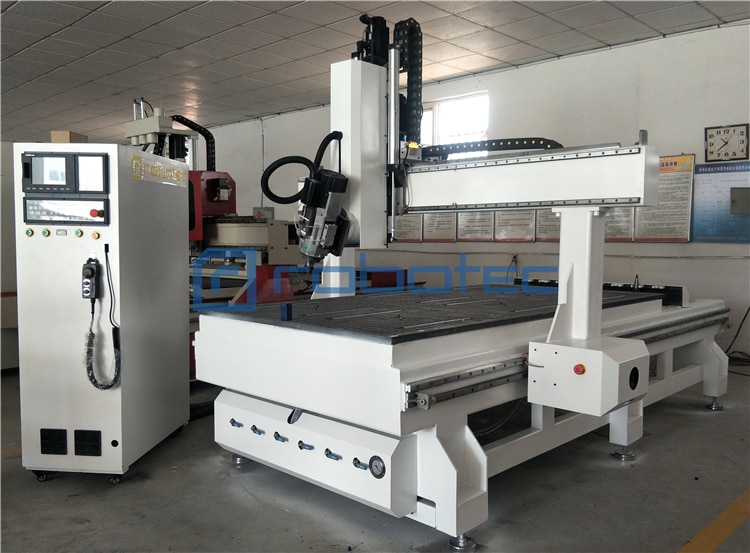

CNC router with ATC and swing 180 degree head

WOOD CNC ROUTER PARAMTER

Model

                         RTM-1325

Working area (X*Y*Z)

                  1300*2500*200mm

Table size

                  1750*3050*1740mm

Body structure

                  Thicken steel made

X, Y Structure

                   Rack and pinion

rails

                  Taiwan 25 size hiwin square rails

Z Structure

                  Taiwan TBI ball screw

X, Y Resolution

                         <0.01mm

Max Moving Speed

                   60000mm/min

Max Engraving Speed

                   30000mm/min

X,Y,Z traveling positioning accuracy

                   ±0.01mm

X,Y,Z repositioning accuracy

                   ±0.01mm

Spindle power

                  3.0kw water cooling spindle

Spindle Speed

                   0-24,000rpm

Voltage

              380v/3phase or as customer needed

Drive type

             Big stepper motors and drivers

Working  Dictate

                        G Code

Operating system

              DSP control system(Option Mach3 or Ncstudio)

Tool sensor

                       Yes

Auto oil lubricator

                    Yes,included

Wire protect

                    Yes,included

Running Environment

                   Temperature: 0℃~45℃

package

                   Export wooden box

After packed size

                   3300*2200*1900mm

G.W

                    1200kgs

>>Wood cnc router machine Standard Configuration:

1) DSP control system: Popular and easy operation, with USB port to transfer program;

2) Italian HSD Air-cooling Spindle: Long working life, easy maintenance;

3) Big Stepper Driving Moto: With highly control precision and high speed, reliable and stable;

4) Taiwan Hiwin Guide and Block: Guaranteed genuine rail with good quality, realizing smooth movement;

5) Taiwan TBI ball screw: linear motion with high precision and and in high speed

6) Helical rack and pinion: quiet running, greater accuracy, smoother cutting and allows greater acceleration and feeding rates, longer lifetime because of smaller wearing force.

7) Taiwan Delta Inverter: Guarantee the variety working speed and protect the spindle very well;

>>wood cnc router machne Applicable Material:Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.

>>wood cnc router machine Applicable Industry: Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.


  • Use: Woodworking
  • Type: Circular Saw
  • Model Number: 1325TM1
  • Style: Horizontal
  • Brand Name: Rabotec
  • Certification: CE
  • Origin: Mainland China
  • Item: wood cnc router machine
  • Working size: 1300x2500
  • Spindle: 3.0KW
  • Motor: Stepper
  • Controller: DSP A11
  • Driver: Leadshine
  • Rails: Hiwin square
  • Body: Heavy duty
  • Options: Vacuum table
  • Warranty: 2 years
