SINOTIMER 30AMP Weekly Programmable Digital TIME SWITCH Relay Control Timer 220V Din Rail Mount, FREE SHIPPING

4.7 (58 votes) | 233 orders
Price: US $26.79 / piece
Discount Price:
US $ 22.93 / piece
-14%
Ships From
Color
Quantity

30AMP WEEKLY Programmable Digital TIMER SWITCH Relay Control 220V Din Rail Mount, FREE SHIPPING


Why choose SinoTimer TM616?

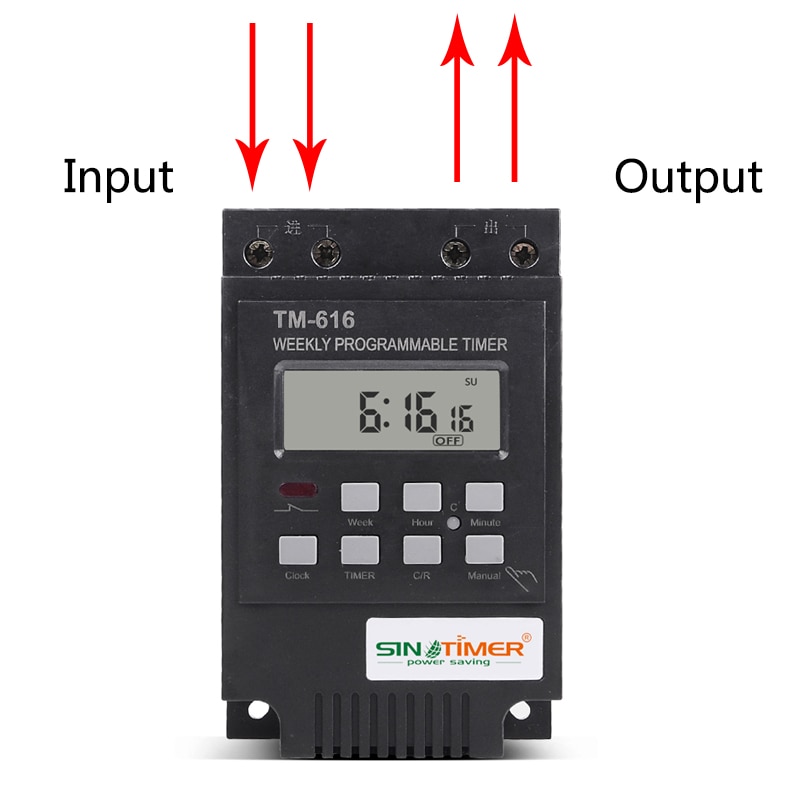

ONE:Simple wiring,no need to ask an Electrical Engineer,you can do it by yourself at home.

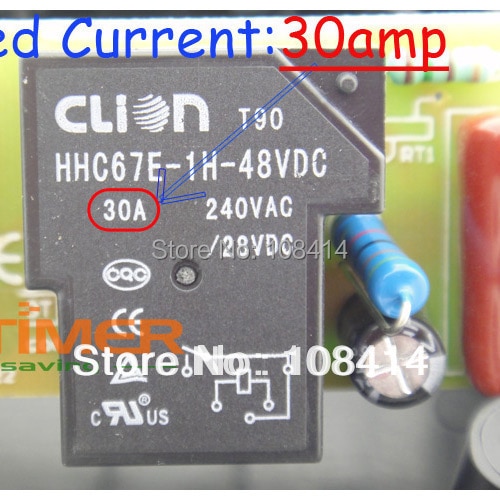

TWO: Excellent load capacity, upto 6500Watt,30AMP@250Vac.
THREE: Easy program, everyone can program it after he reads the manual JUST one time.
FOUR: Stable performance because of professinal manufacturing in power saver since 2002.


Characterisitcs:

* You can use the tier to SWITCH ON/OFF any elctrical equipments at a preset timer

* Ideal for household use in DB Boards

* 6500 Watt / 30 Amps

* 24 hours / 7 days a week programmable

* Built-in battery for backup the memory (save the programs you set)when power failure

* Auto time error correction +/- 30 sec, weekly
* Repeat programs with 17 on/off settings, and setting on/off manually


Technical Data:

Model

TM616-2

Temp.range: -20°C+50°C

Ui:220~240V, 50/60Hz

Power consumption 4.5 VA (MAX)

Display: LCD

Switching contact: 1 changeover switch

Programs:17 on/off each day or week

Hysteresis 2 sec/day (25°C)

Mini interval: 1min

Capacity: 30(16) 250V AC

Black-out: 60 days

Timer range: 1min~168hr

Recharge battery: 1.2V 40Ma

Average error: 1s/24h, 25°C

Weight: 0.3kg


BELOWS IS OUR LATEST PRODUCTS TM615H 30AMP LOAD,220VAC. PLS CLICK THE PICTURE:

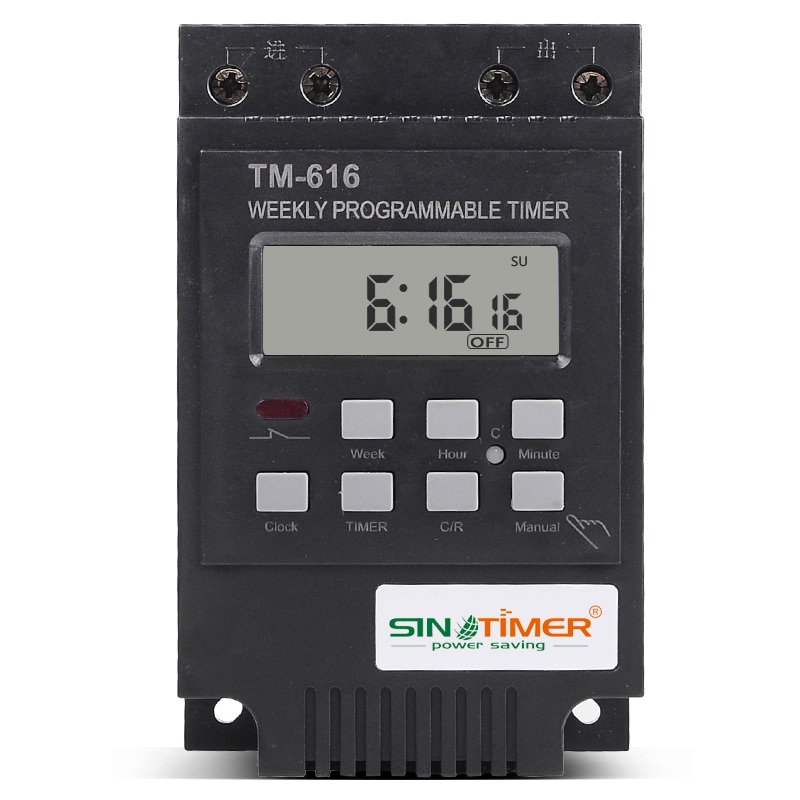

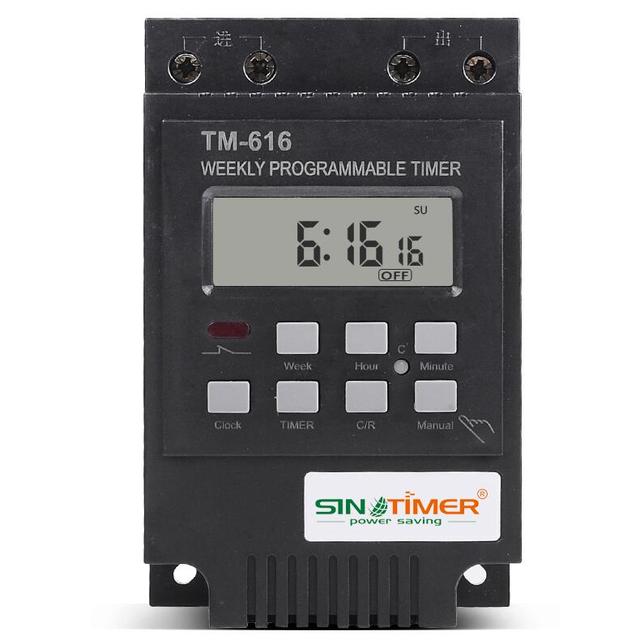

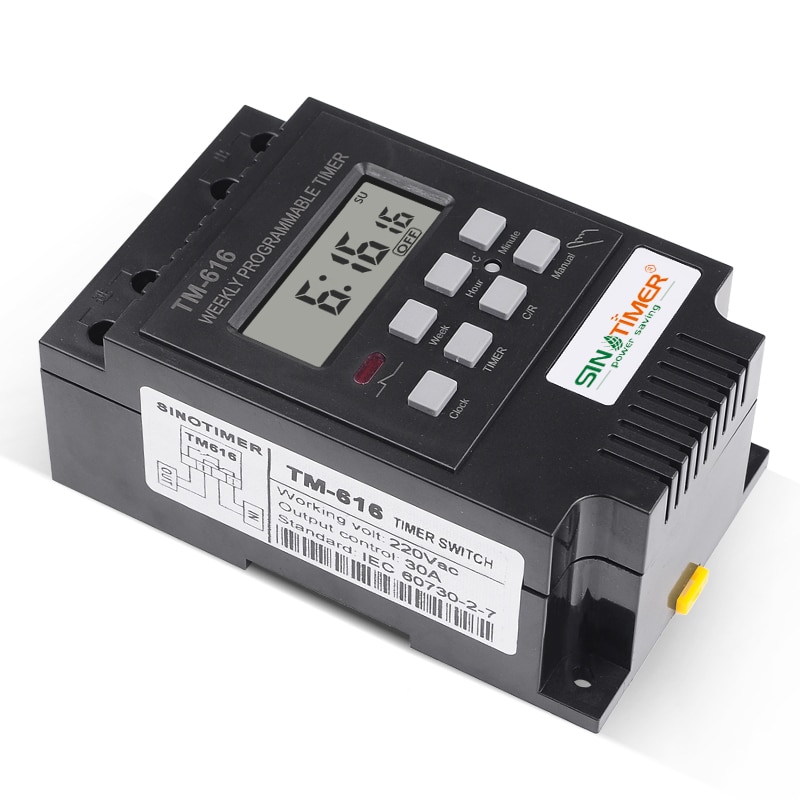

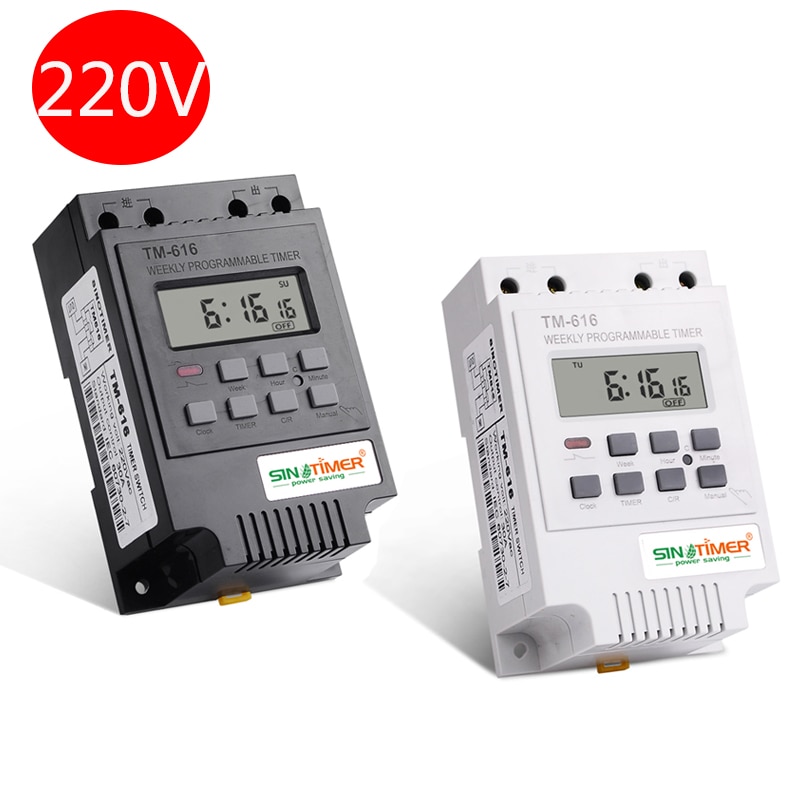

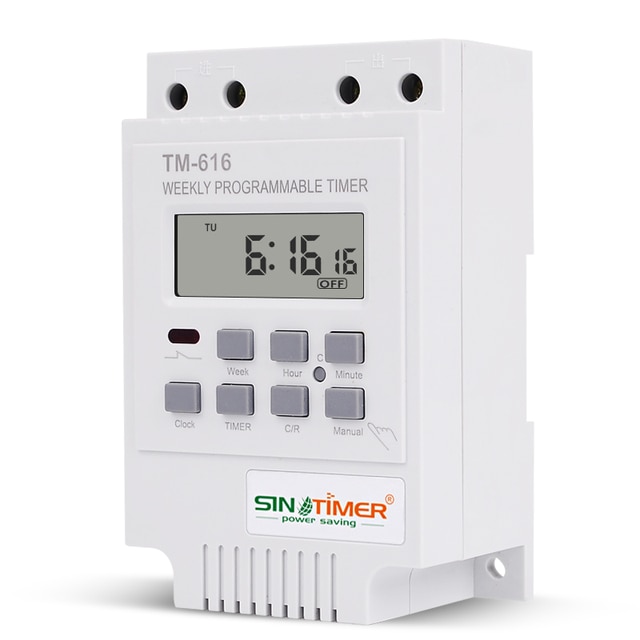

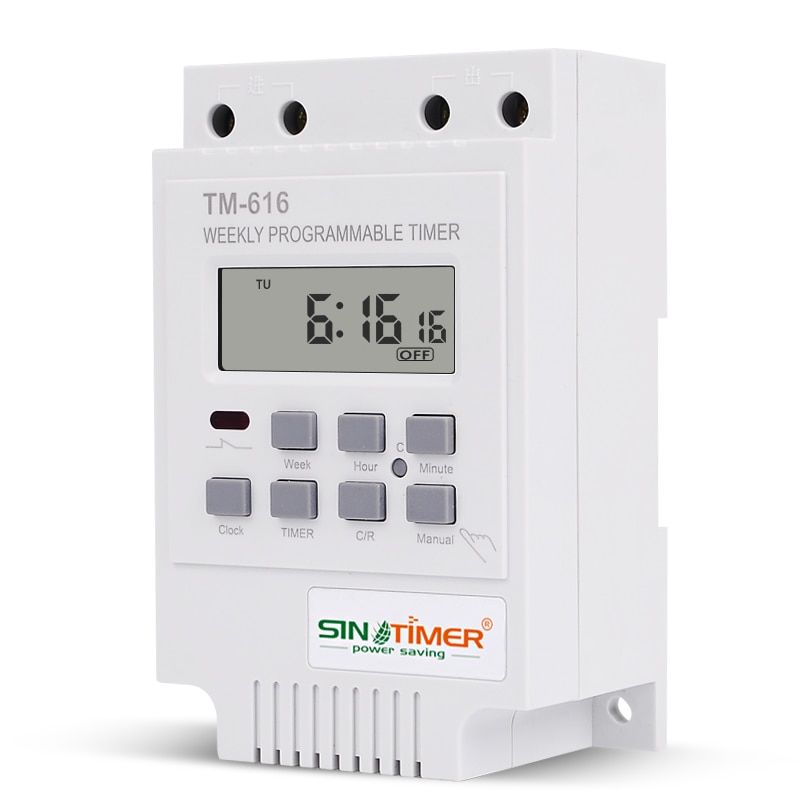

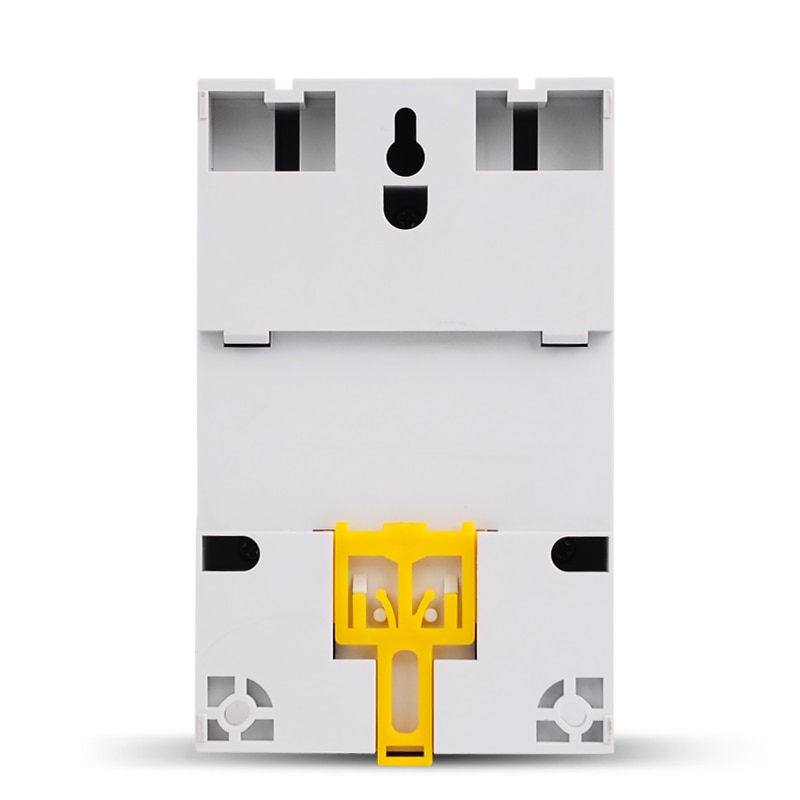

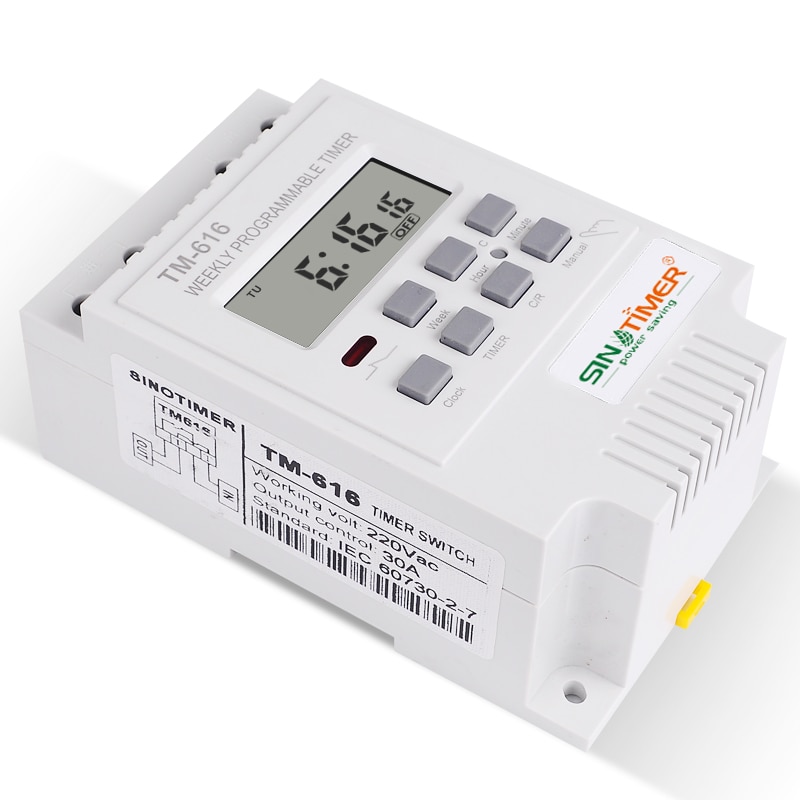

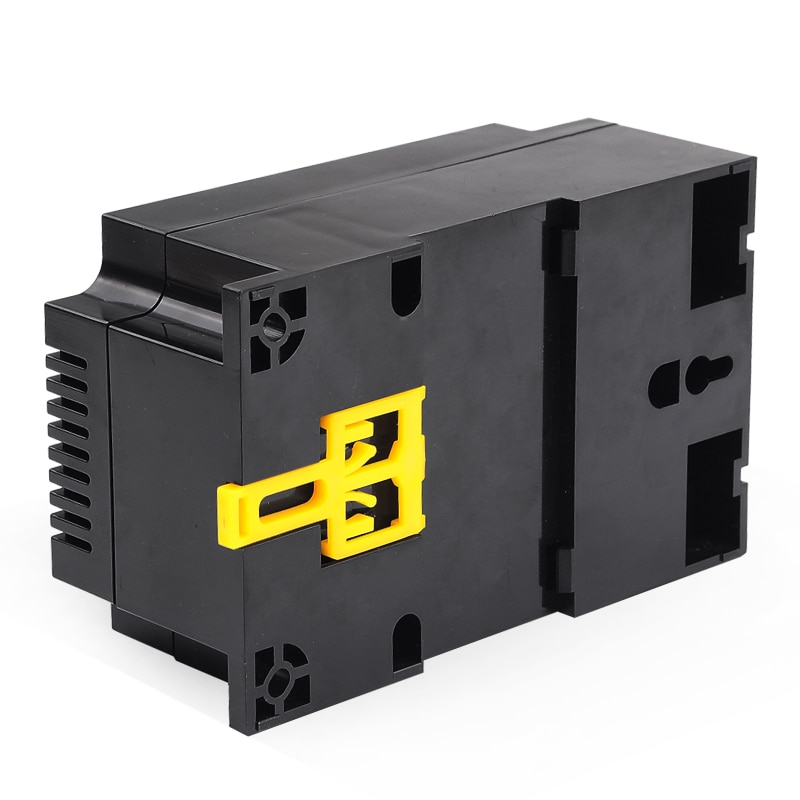

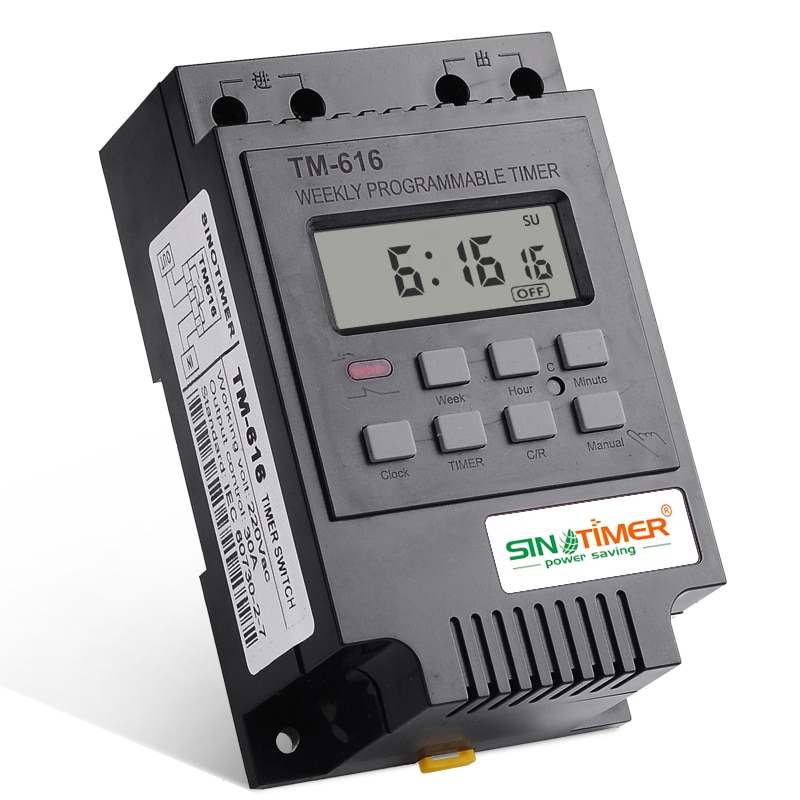

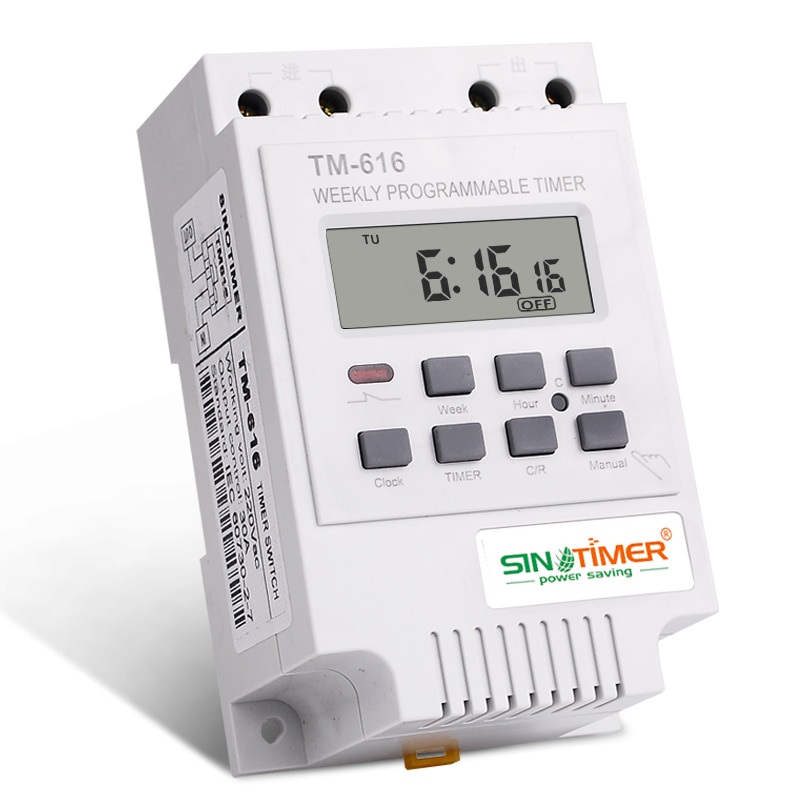

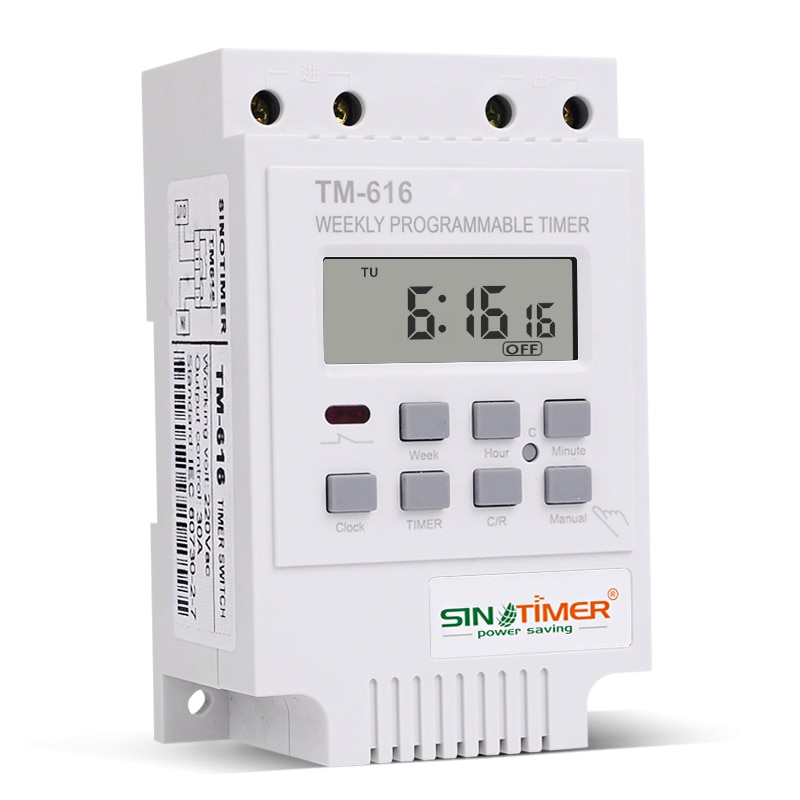

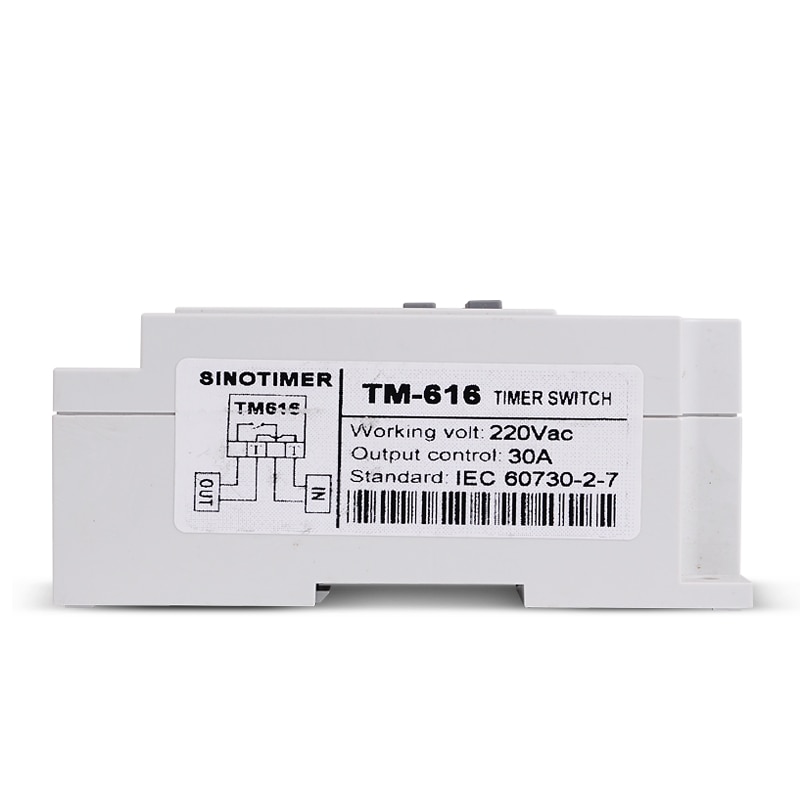

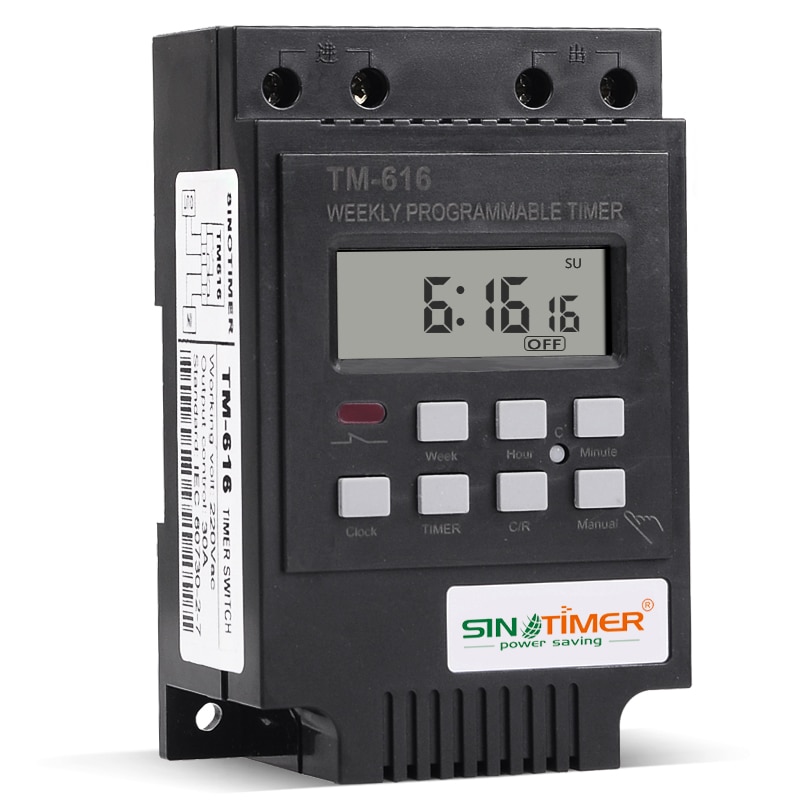

PRODUCT SHOW:

Pregramming steps:


Step

Programmable Timer


Key

Programming

1

Press Timer

Setting 1 ON time (display 1 on)

2

Press H+/M+

Setting hours and minutes

3

Press D+

Select same everyday, different everyday, MO-FR, MO-SA, SA-SU, MO WE FR, TU TH SA, MO-WE, TH-SA.(If same everyday, no need to press this key)

4

Press Timer

Setting 1 off time (display 1 off)

5

Press H+/M+

Setting hours and minutes turn off time

6

Press D+

If you want same set in every day, you need not press this key

7

Repeat step 2~6

Set 2~16 ON/OFF time

8

Press C/R

End

Pls pay attentions that this is for 220V AC POWER.

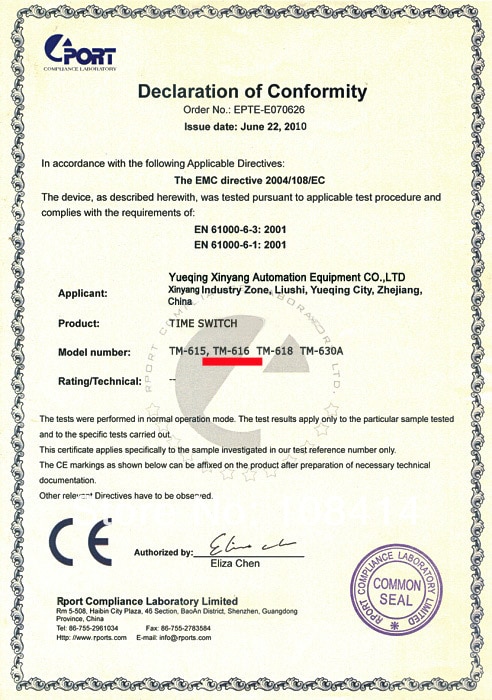

CE Certificates:

HOT SALES IN X&Y AUTO STORE:



PAYMENT:

1. We accept Alipay,Western Union or Bank Transfer T/T here

2. All major credit cards are accepted through secure payment processor ESCROW.

SHIPPING:

1. We Ship to Worldwide, except some counntries andAPO/FPO.

2. All the items will be dispatched timely after the payment verification. Items will arrive in 10-25 business days.

The arrival time depends on destination and other factors, it may takes up to 25 business days.

3. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

4. Please DO NOTchoose China Post Air Mail as the shipping way, if you cannot wait patiently in the shipping

time we declared.

5. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

6. We are not responsible for any custom duty or import tax. so buyer should be responsible for any tax and custom duty incurred. For example, Laser Pointer is unacceptable in some countries. Therefore, please double

check your local customs policy carefully before purchase. Or, we will NOT be responsible for any failure delivery related destination customs issue.

REFUND & REPLACEMENT POLICY:

1. All the products we are selling include factory warranty, don’t cover items that have been abused,burned

and damaged in any form.

2. Please contact us via Trade Manager orE-mailif you have NOT received item in 30 days, we will check it

with post office, and then resend or refund any missing item.

3. In the unlikely event that your product is faulty in anyway, you must contact us ASAP and then return it

within 7 Days of receipt. The postage and packaging fee will NOT be refunded.

4. We will not be responsible for the delivery or insurance charges incurred in returning item back to us. If

you return an item purchased from us, it must be returned in Original Condition and packaging with all

components, accessories and manual included. Please allow up to 5 Working Days for us to process your

returned item.

FEEDBACK & CONTACT US:

1. We will leave POSITIVE FEEDBACKafter receiving the payment. Please contact us if you are not satisfied

with the item after receive it.

2. If you have any questions, please feel free to email our service specialists24 Hours a Day, 7 Days a Week.
We will reply you within 1 business day. If you do not receive our reply within 24 hours, please kindly re-send

your email and we will reply you as soon as possible.


Serious Buyer Only! Please place bid only if you agree with all the terms. You agree to all of the above listed policies upon ordering on Hogaki!





  • Usage: Timer Switch
  • Theory: Digital
  • Model Number: TM616-2
  • Type: Mini
  • Brand Name: SINOTIMER
  • Certification: CE
  • Origin: Mainland China
  • Power Supply: 220~240VAC
  • Output: Voltage 220V
