Sino-galvo Marking Head for Marking Machine
0.0 ( votes)
Price:
US $
1265.44
/ piece

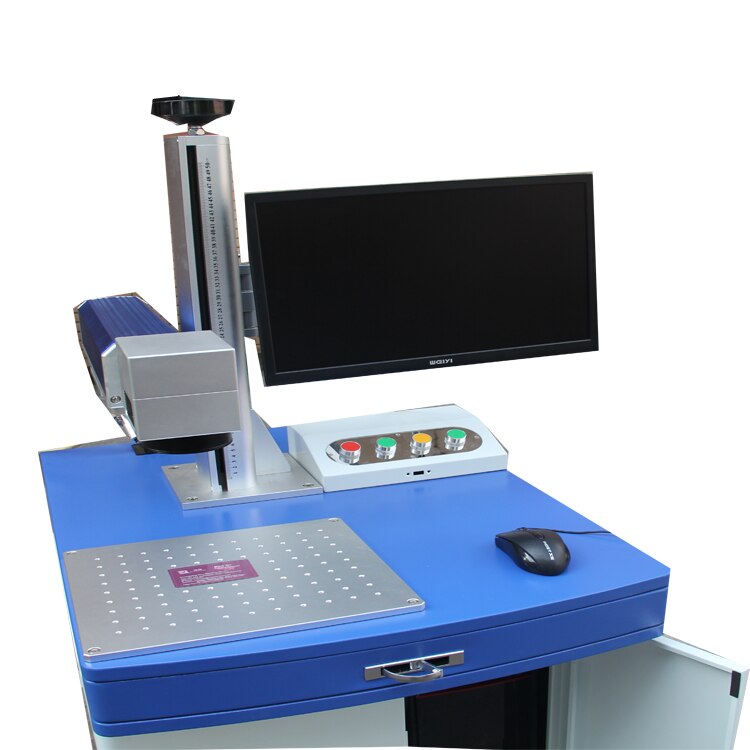

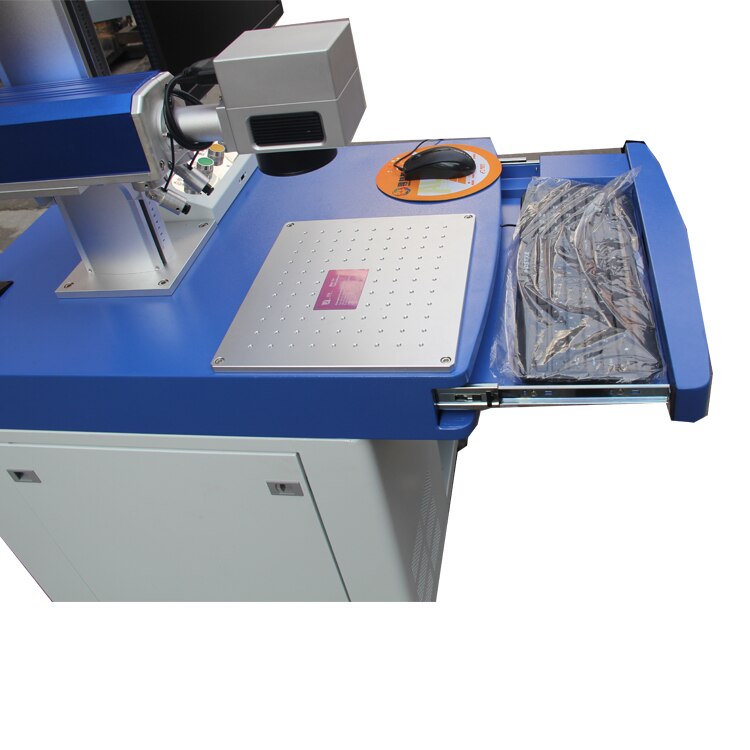

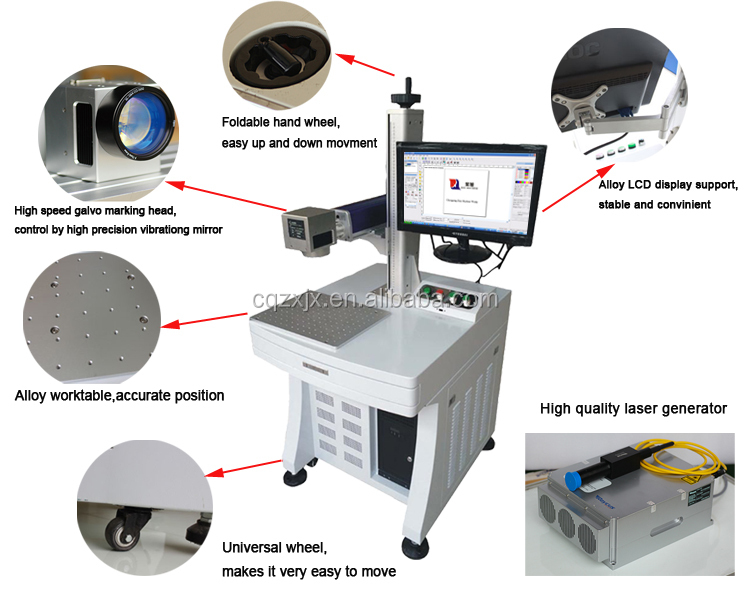

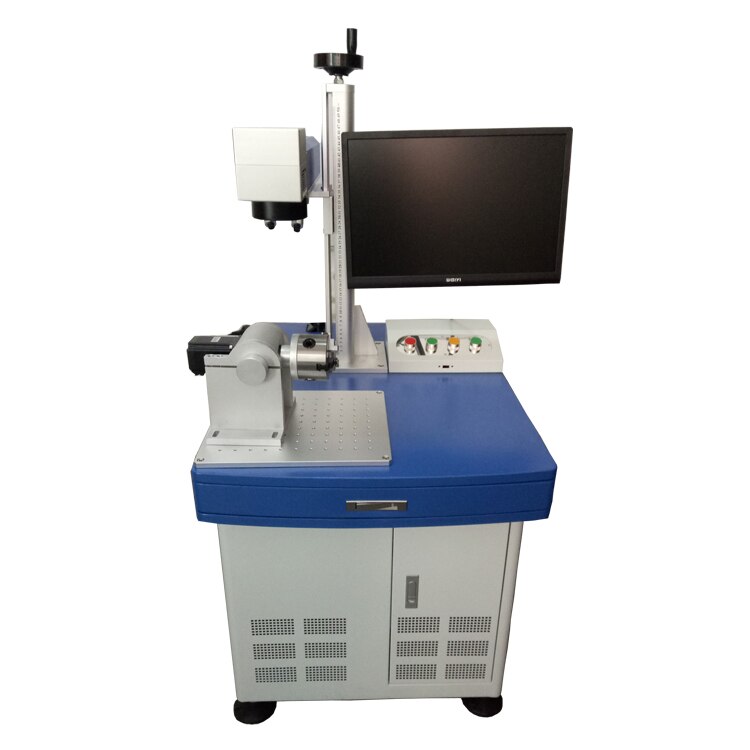

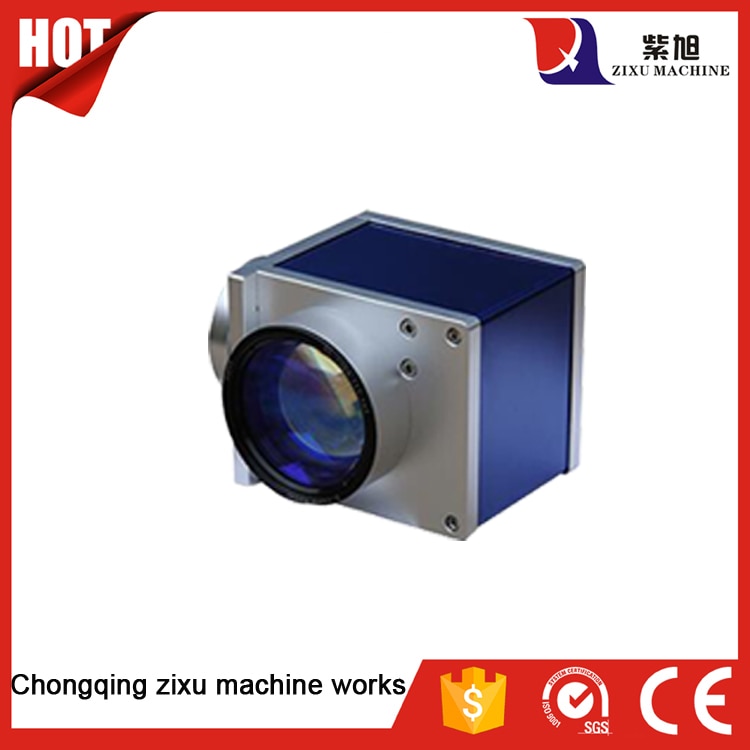

High-speed Marking Head Sino-galvo Scanning System
Product Description

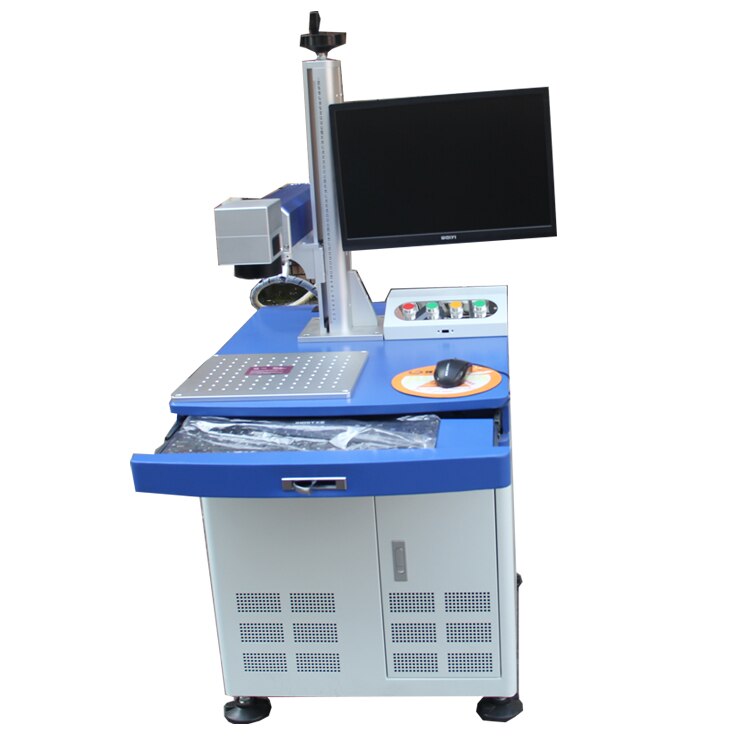

What is the advantage of fiber laser marking machine?
The laser scanner is also called Laser Galvanometer by X-Y optical scanning head, electronic drive amplifier
and optical mirror. The signal provided by the computer controller drive circuit drives the optical scanning head,
resulting in the deflection of X-Y plane control of the laser beam.
In the laser display system, optical scanning waveform is a vector scanning system, the scanning speed,
determines the stability of laser graphics. In recent years, people have developed high speed scanner,
scanning speed of 45000 points / sec, therefore can laser animation complex.
Scanning principle: scanning pattern is a two-dimensional pattern effect, so the scanning motor adopts X Y
two motor control, a time to determine the position of a point to the whole scanning pattern by scanning
the frequency control of different time point of the change in the position of the scanning frequency (speed) the
lower the flickering pattern is more obvious, can use principle to understand the film.
1. 100,000 hours of reliable , highest cost performance
2. Zero maintenance, no consumables
3. Compact design ,small size ,easy to move equipment ,
4. Advanced air-cooling system
5. Convenient and easy to use,best marking effect/fastest marking speed
Where can it applied to?

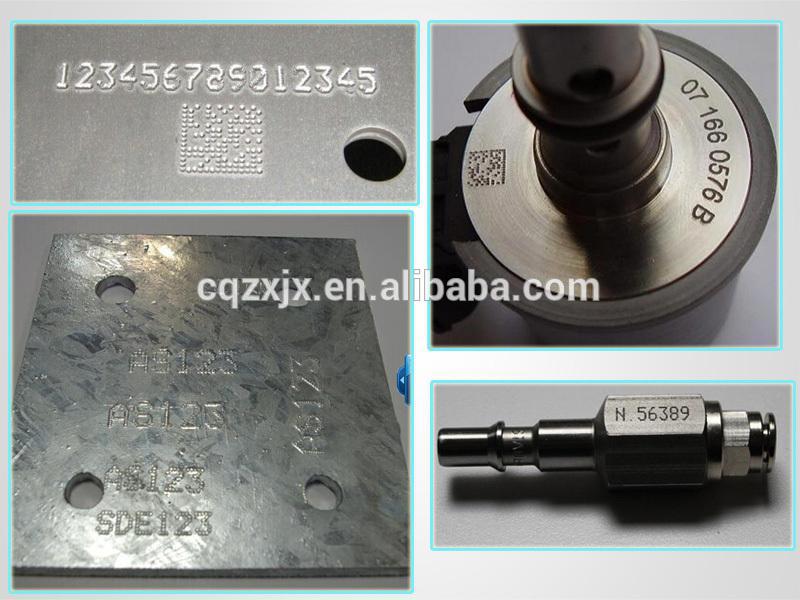

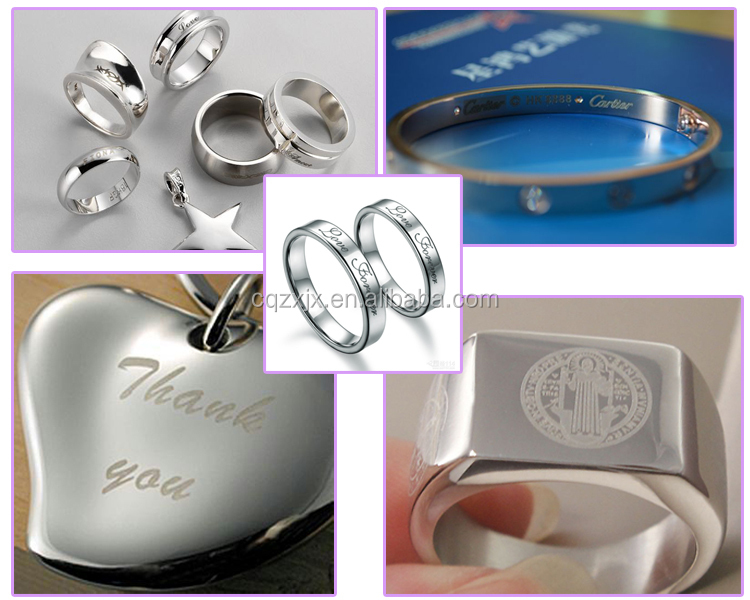

The machine mainly applied to the higher marking precision such as components of automobile and motorcycle, astronautic apparatuses, chips of integrate circuit electronics, packages of food, drink and cigarettes, keys of mobile phone, batteries, electric apparatuses, fittings and peripheral equipments of computer, ironware tools, stainless steel wares, electric products, communication products, medical devices, sanitation, cleaning and bathing wares, clocks and watches, jewelries, industrial bearings, electric wire and cable, garment .It can mark both words and graphs
How about the parameters of fiber laser marking machine?
| Laser power |
10W/20W
|
| Laser Wavelength |
1064nm |
| Light beam quality |
<2 |
| Repeating precision |
±0.002 |
| Marking range |
110x110mm(customize) |
| Marking depth |
0.01~1mm
|
| Marking speed |
7000mm/s |
| Minimum character |
0.15mm |
| Minimum line width |
0.01mm |
| Repeating frequency |
20KHz~30KHz |
| Marking content |
Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
| Graphic format supported |
bmp,png,ai,dxf,dst,plt |
| working voltage |
220V±10%/50Hz/4A |
| Size |
570mmx270mmx200mm |
| Gross Weight |
75kg |
| Control interface |
standard USB port
|
| Working environment |
Clean and dust free or dust less |
| Laser module life |
100000~200000 hours |

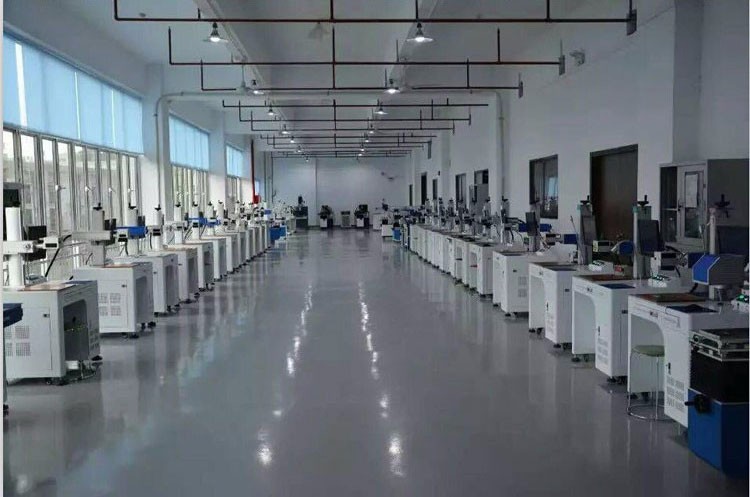

ZIXU exhibition
- Dimensions: 77X65X145CM
- Max. Output Power: 10/20/30/50W
- Focal Spot Diameter: 0.15MM
- Wavelength: 1057-1070MM
- Pulse Width: 0.01MM
- Single Pulse Energy: 10 ,20,30,50W
- Model Number: MKS-4615
- Usage: Marking logo
- Software: Sino-galvo
- Colour: Blue
- Drive type: fiber laser
- Product name: High-speed Marking Head Sino-galvo Scanning System
- printing material: plastic

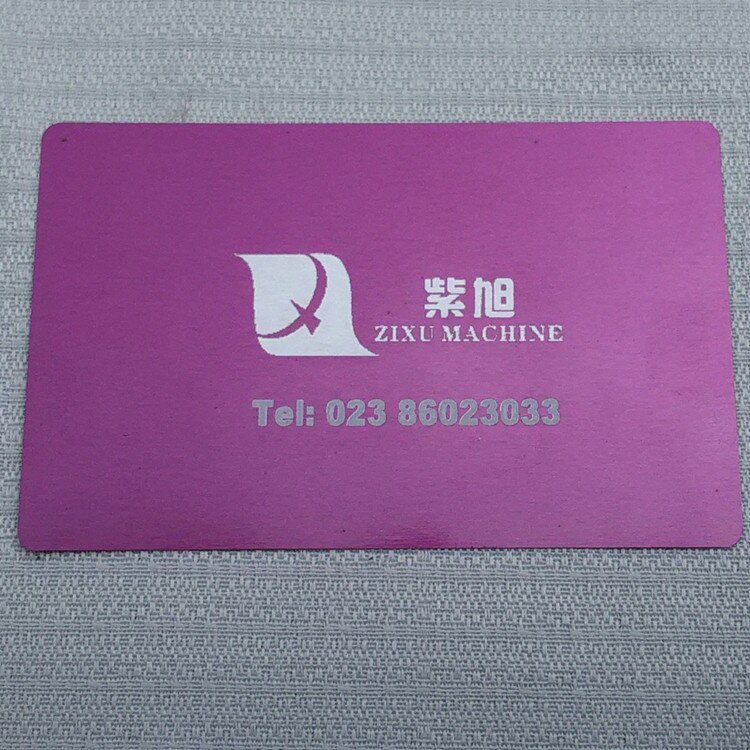

- Application: PVC ID Card
- Minimum character: 0.15mm
- Minnimum line width: 0.01mm
- power: 20w
- printing content: logo,number ,letter
