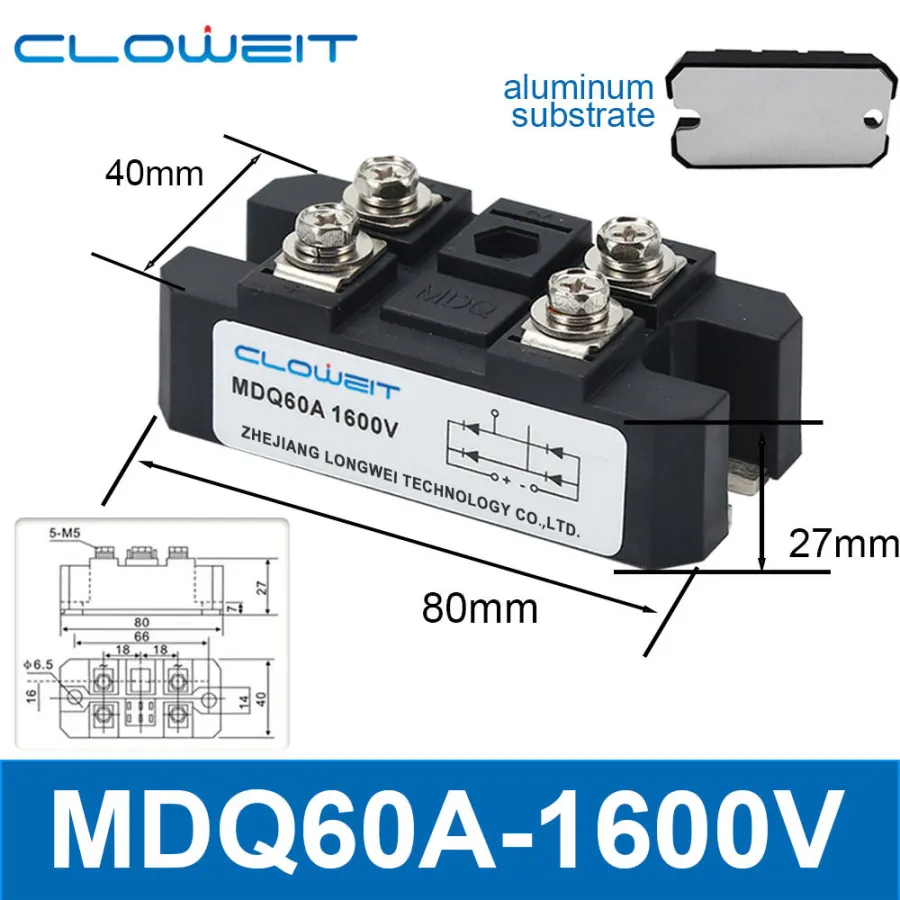

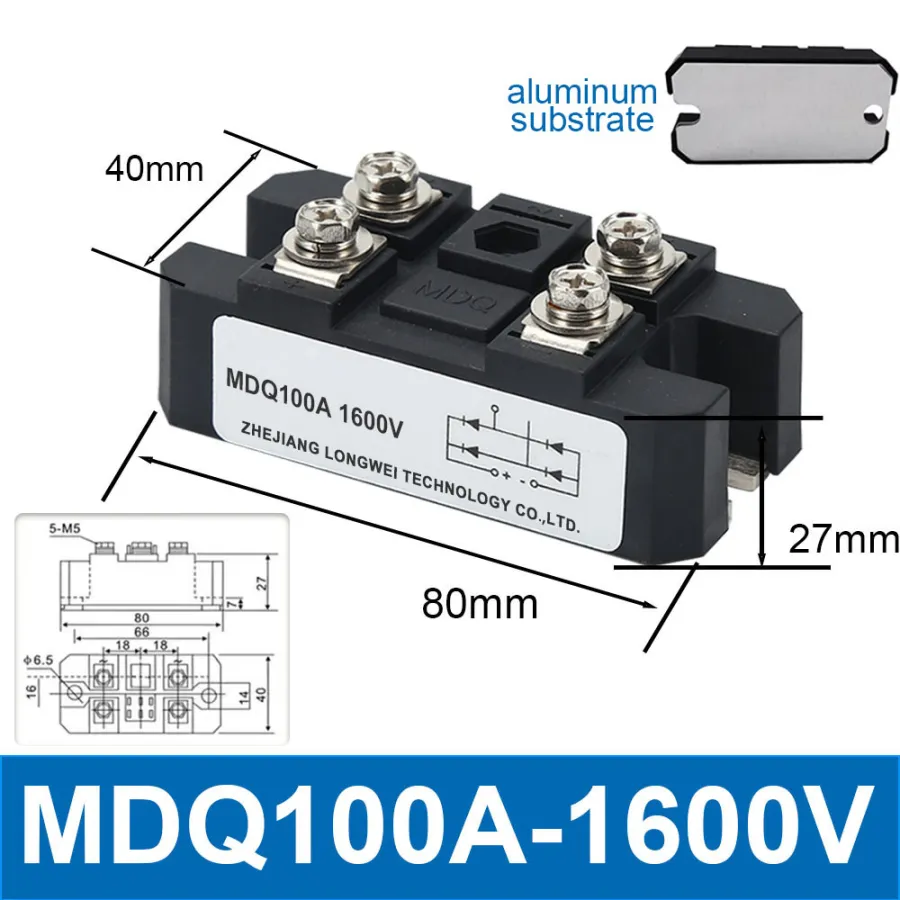

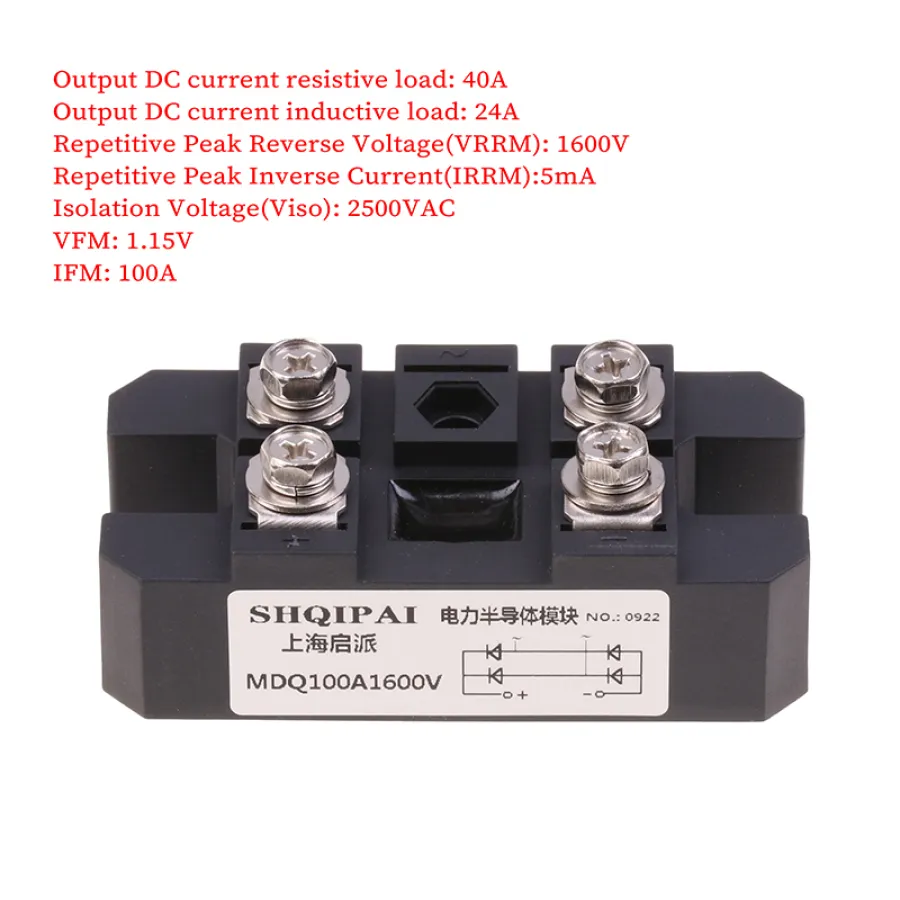

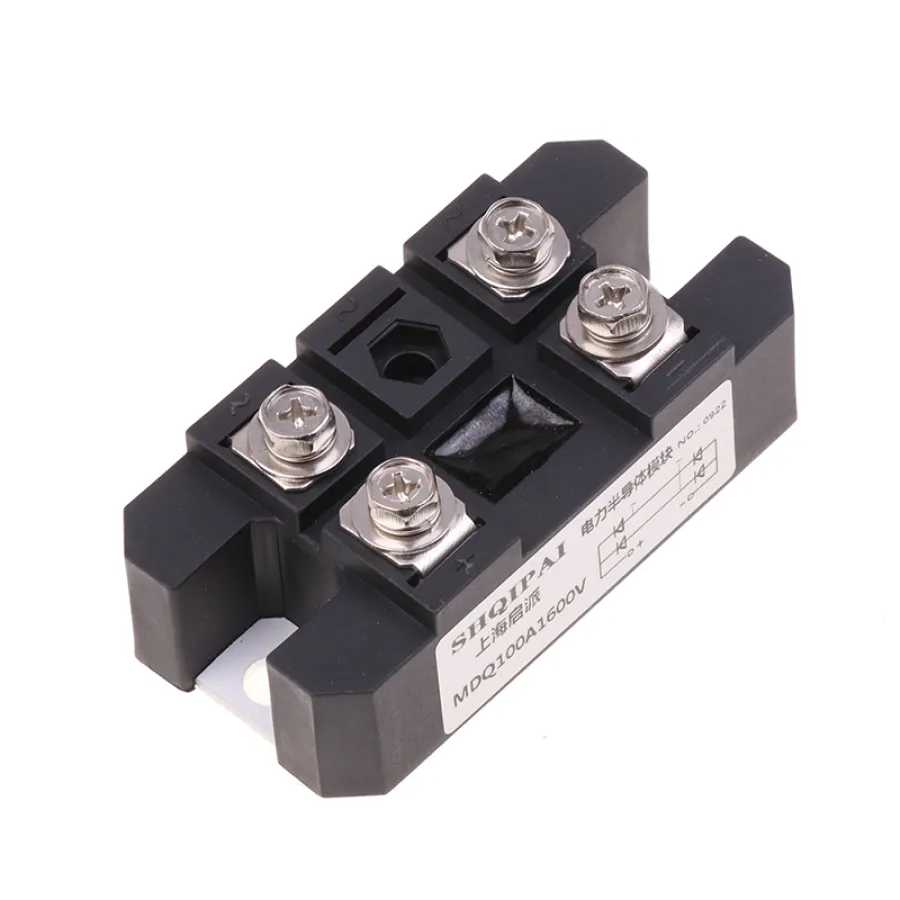

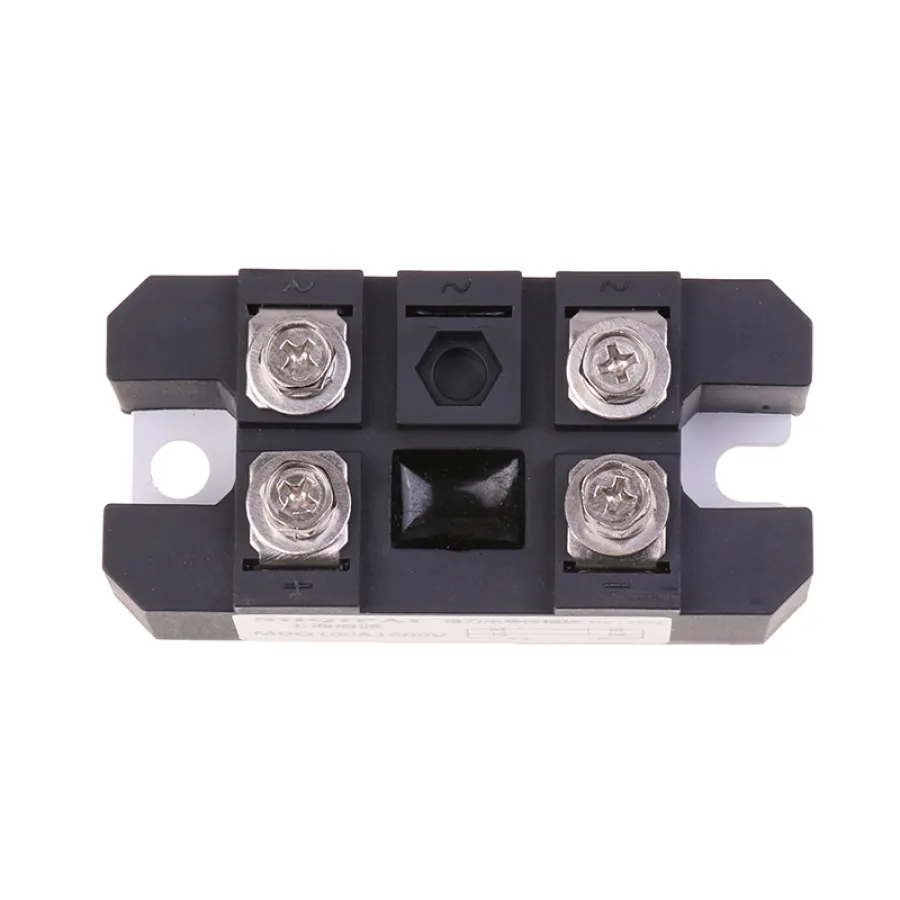

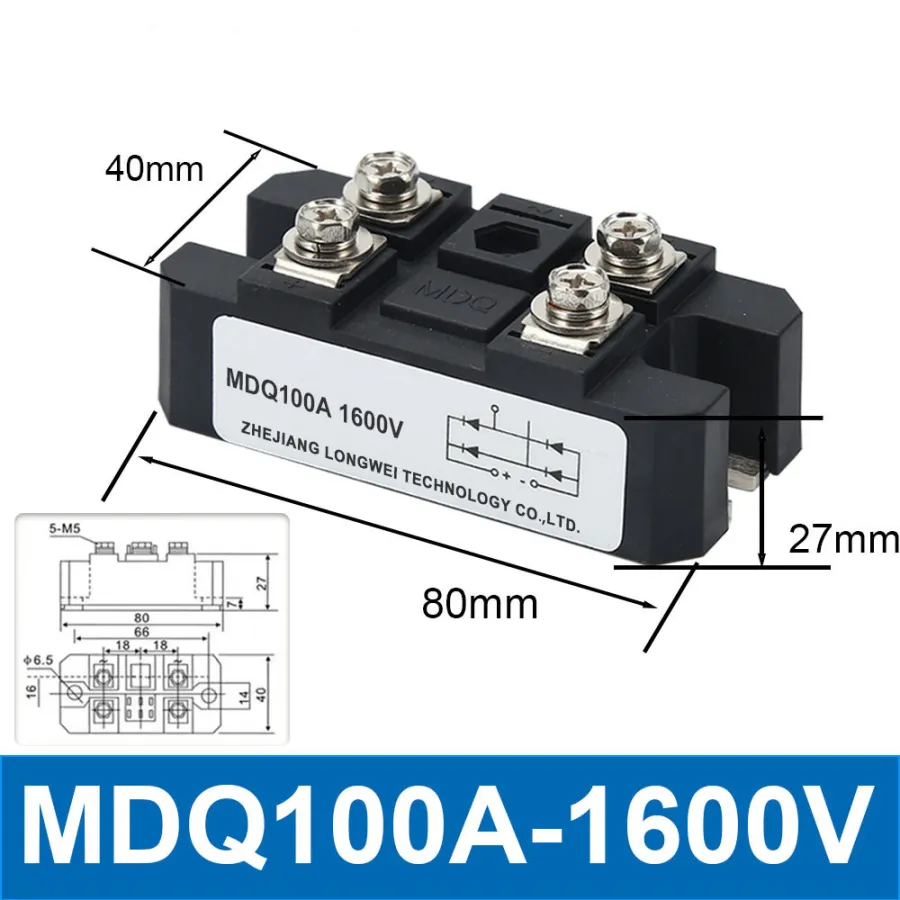

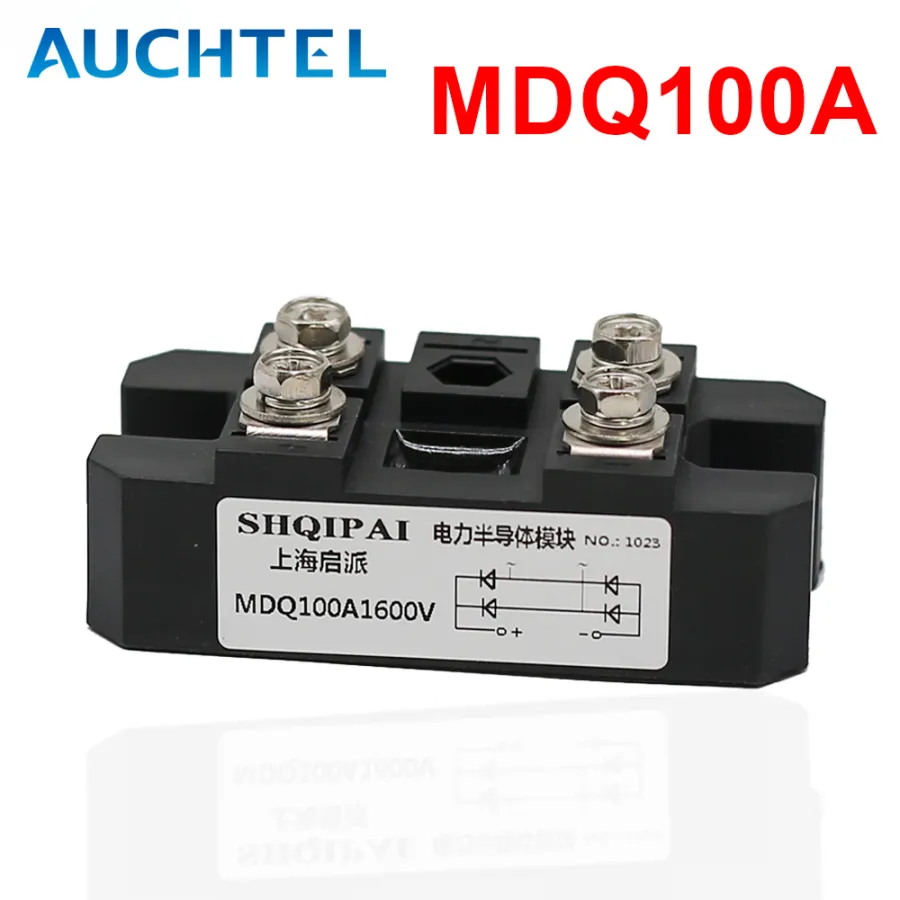

Single 1 Phase Diode Metal Case Bridge Rectifier MDQ 100A Amp 1600V Single Phase Rectifier Bridge Module
ID: 151808

Single 1 Phase Diode Metal Case Bridge Rectifier MDQ 100A Amp 1600V Single Phase Rectifier Bridge Module

5.0 (1 votes) | 5 orders
Price:
US $ 15.85 - 67.77
Color
Quantity

Buy Now
Add to Cart


Symbol

Parameter

Test Conditions

Junction
Temperature Tj (℃)

Parameter Value

Unit

Maximum

Typical

Maximum

ID

DC output curront

Single phase full wave rectification circuit. Tc-100 ℃

150



60

A

VRRM

Repetitive Peak Reverse Voltage

VRRMtp=10ms
VRSM=VRRM+200V

150

600


4000

V

IRRM

Repetitive peak reverse current

at VRRM

150



8

mA

IFSM

Forward non repetitive surge current

10ms base width, sine half wave
VR=0.6VRRM






I²t

Square time product of surge current






VFO

Threshold voltage


150



1.4

KA

rF

slope resistance



8.6

A^25* 10³

VFM

Peak Forward Voltage

IFM=75A

25



1.55

V

Rth(j-c)

Thermal impedance (junction to shell)

Single sided heat dissipation




0.200

℃/W

Rth(e-h)

Thermal impedance (shell to radiator)

Single sided heat dissipation




0.15

℃/W

Viso

insulation current

50HZ,R.M.S,t=1min Iisc:1mA(max)


2500



V

FM

Installation torque (M5)




4



N-M

Installation torque (M6)




6



N-M

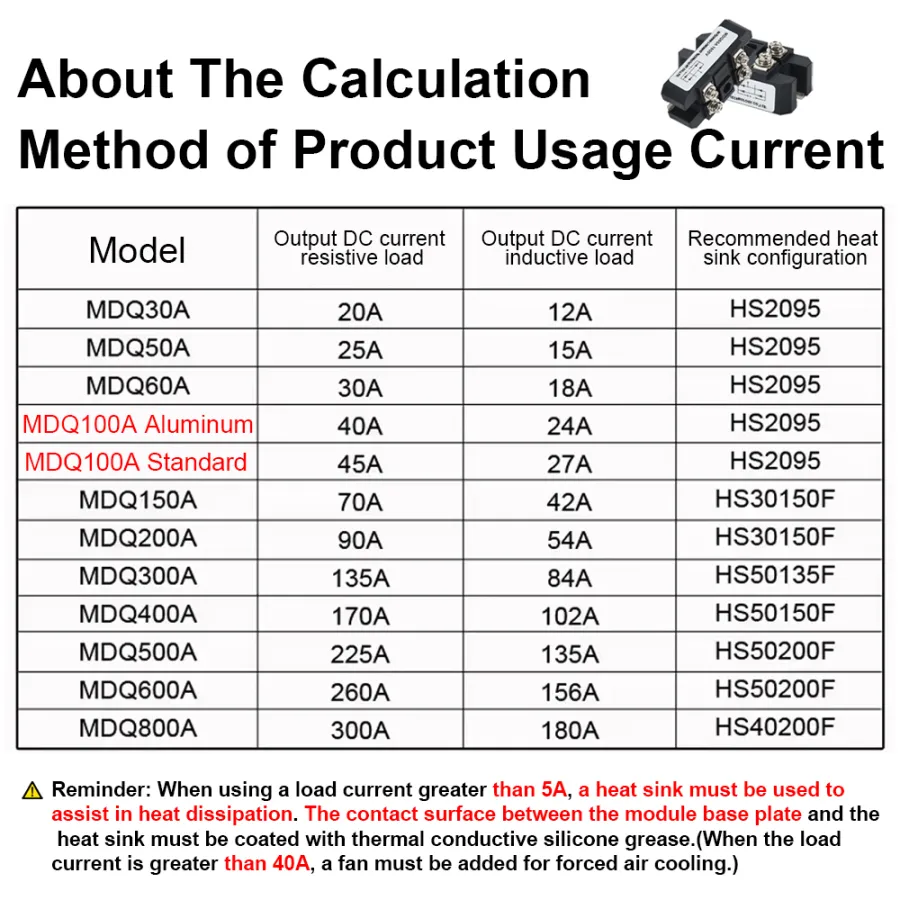

Type

Id

IF(AV)

T0

VDRM VRRM

IRRM

ITMVTM

Tjm

Viso

Housing

A

A

℃

V

mA

V

A

℃

V(AC)

MDQ30

14

15

100

600-2000

8

1.45

45

150

2500

102A 102A-1

MDQ60

20

30

100

600-2000

8

1.45

90

150

2500

102A 102A-1

MDQ100

28

50

100

600-2000

10

1.45

150

150

2500

102A 102A-1

MDQ150

40

75

100

600-2000

10

1.5

225

150

2500

103A 103A-1

MDQ200

55

100

100

600-2000

10

1.5

300

150

2500

103A 103A-1

MDQ300

85

150

100

600-2000

10

1.5

450

150

2500

104A

MDQ400

115

200

100

600-2000

10

1.5

600

150

2500

104A

MDQ500

140

250

100

600-2000

10

1.5

750

150

2500

105A

MDQ600

170

300

100

600-2000

10

1.5

900

150

2500

105A

MDQ800

220

400

100

600-2000

10

1.5

1200

150

2500

105A

MDQ1000

280

500

100

600-2000

10

1.5

1500

150

2500

105A,B Type



Packaging Details

  • Unit Type:
  • Package Weight: 0.160
  • Package Size: 3x4x10

  • Brand Name: NoEnName_Null
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Ballast: electronic
  • Model Number: MDQ
  • Power Factor Compensation: WithOut
  • Features: Diode rectifier module
  • Item Type: BALLASTS
  • Warranty: 1 year
  • Certification: None
  • Rated current: 100A
  • model: MDQ
  • module: Single-phase bridge
  • Choice: yes
  • semi_Choice: yes
