SEESII 9800PLUS 7inch 1920*1200 IP Camera Tester 4K 1080P IPC CCTV Monitor Video Audio POE Test Touch Screen Discovery 8GB
0.0 ( votes)
Price:
US $
600.04 -
790.04
/ piece
- Ships From
- Color
Sorry! This item is out of stock

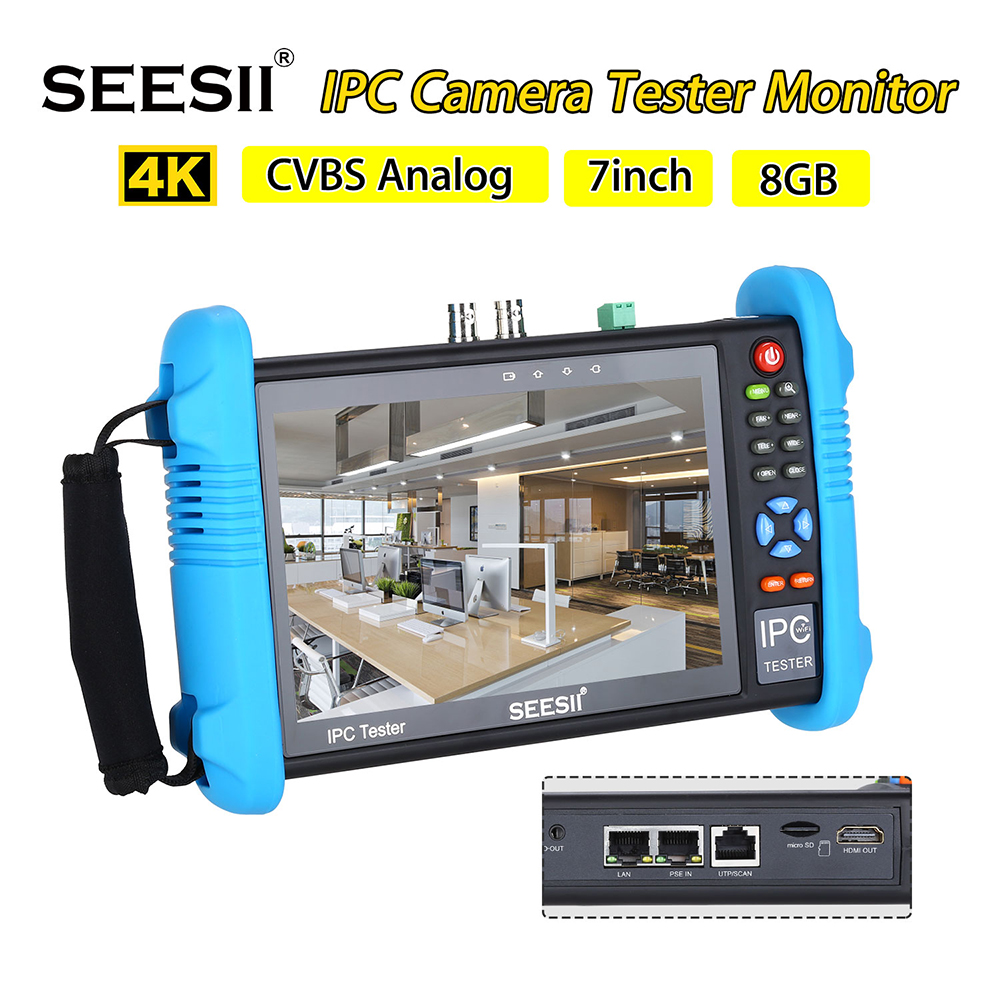

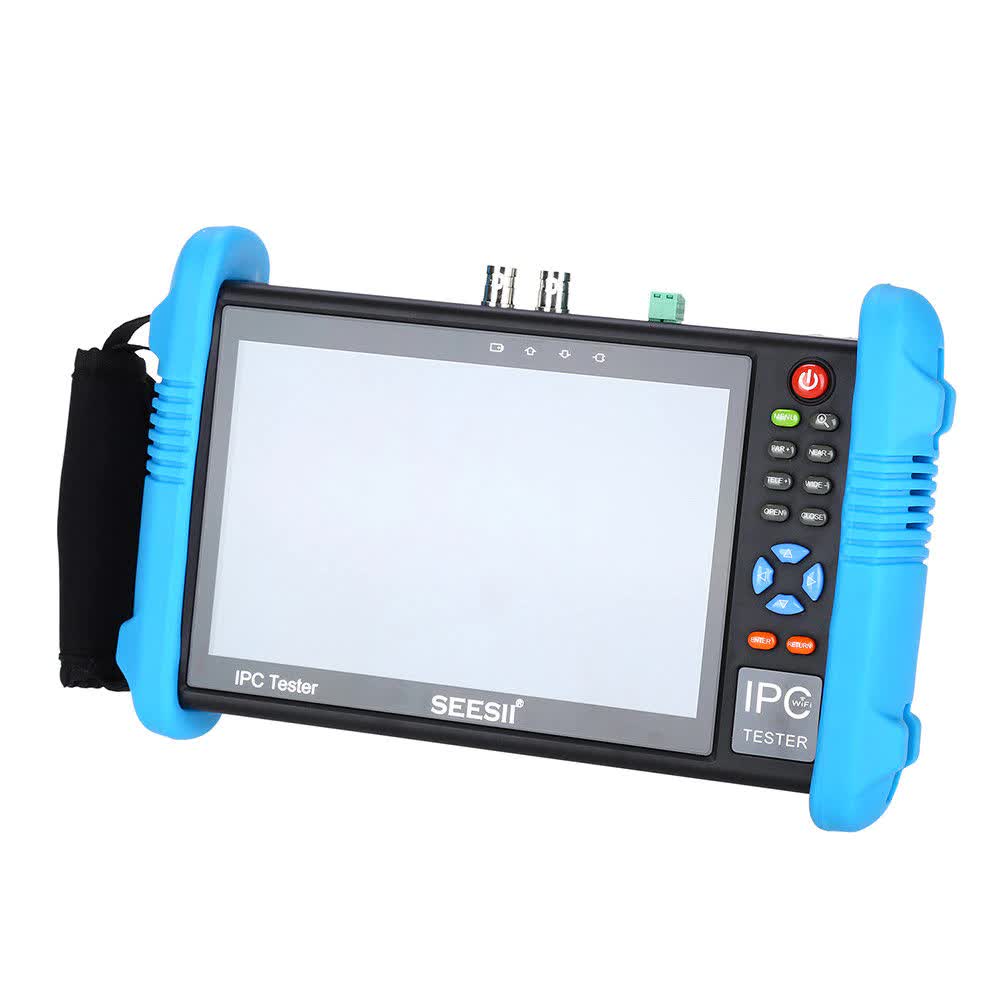

SEESII 9800PLUS 7" 4K 1080P IPC Camera CCTV Tester Monitor CVBS Video Audio PoE Test Touch Screen HDMI-compatible Output IP Discovery 8GB
Please kindly read the option description before you place order. The description base on 9800PLUS
IPC9800 Plus Function: IP+analog camera test+RJ45 cable TDR test+HDMI-compatible out
IPC9800ADHS PlusFunction:IP+analog+AHD+HD-TVI+CVI+SDI camera test+RJ45 cable TDR test+ HDMI-compatiblein/out

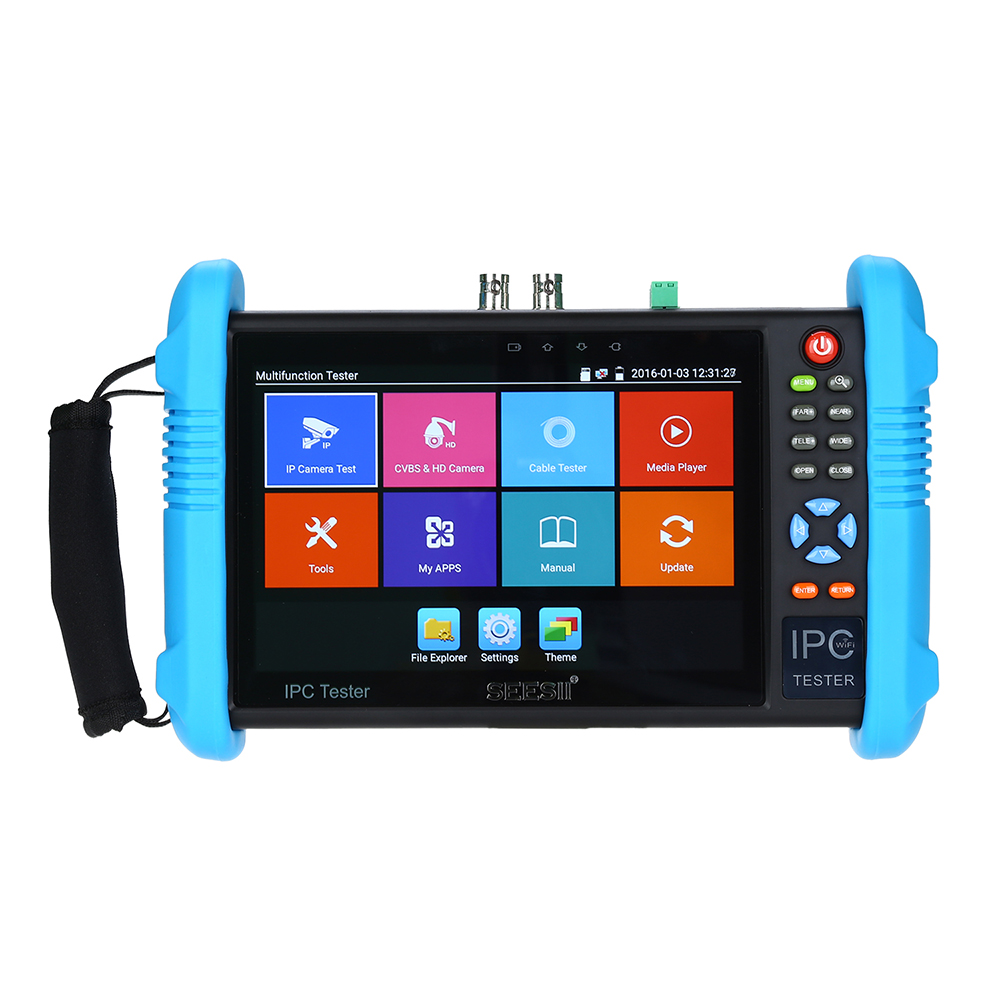

The 7 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1200 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions TDR cable test, Digital multi-meter, UTP cable test and cable scan etc.
CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.
Specifications:
Brand:SEESII
Model: 9800Plus

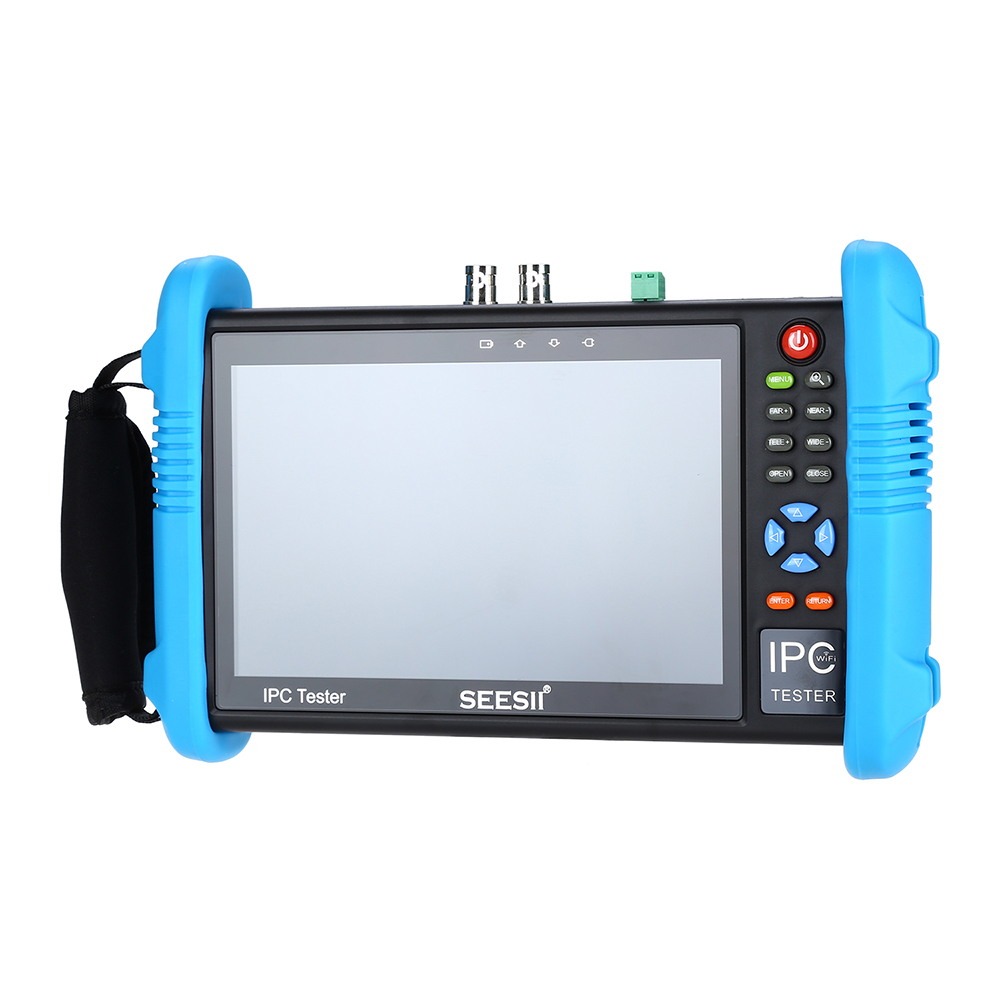

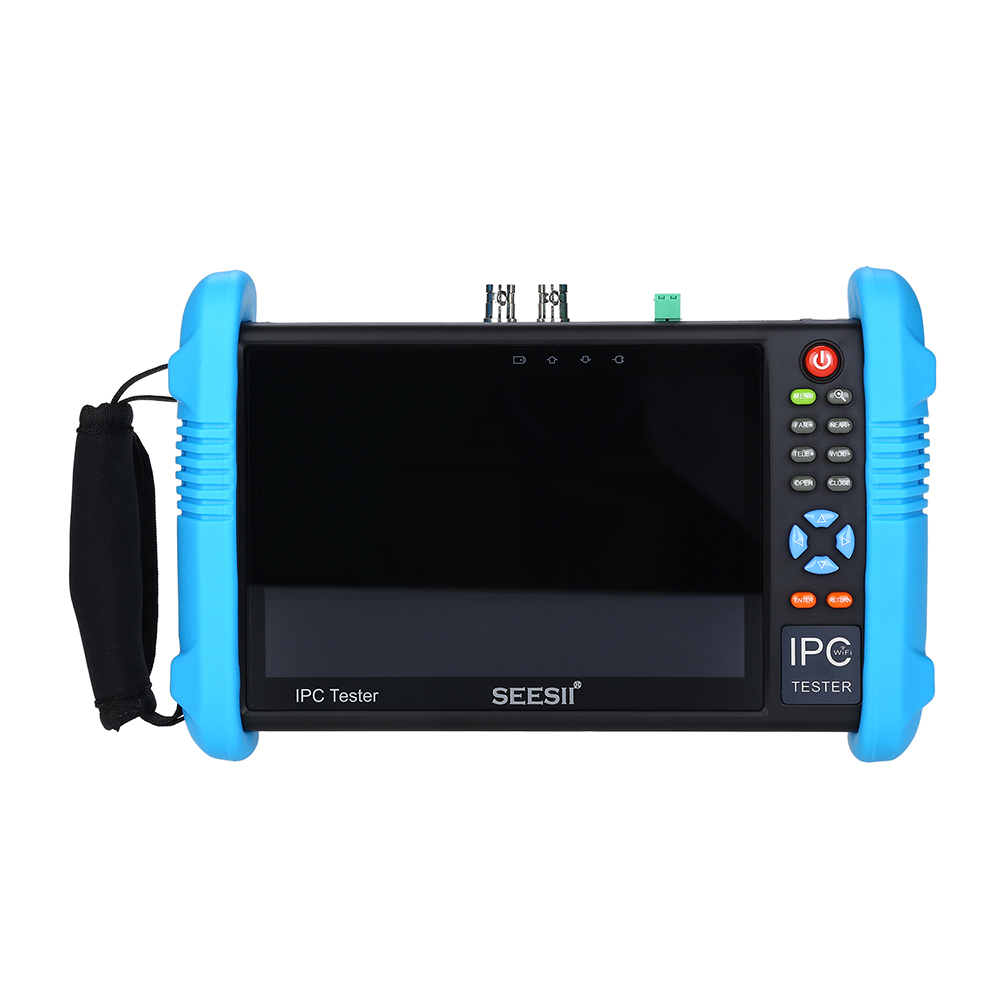

Display: New 7 inch IPS touch screen cctv tester , 1920*1200 resolution
Network Port: 10/100/1000M auto adjust, RJ45
WIFI: Built in WIFI,speeds150M, allows you to connect to a wireless network andview IP cameras
H.265 Mainstream Test : New hardware decoding,4K,H.265/H.264 camera image display by mainstream testing
IP Discovery: Auto-scan the whole network segment camera IP
Rapid ONVIF: Search camera quickly, auto log in and display image from the camera, activate Hikvision camera
Hik Test Tool: Activate Hikvision camera, display image from the camera, modify IP, user name and password parameters etc
DH Test Tool: Dahua camera test, modify IP, user name and password parameters etc
IP Camera Type : ONVIF,ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13,Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, RTSP Viewer

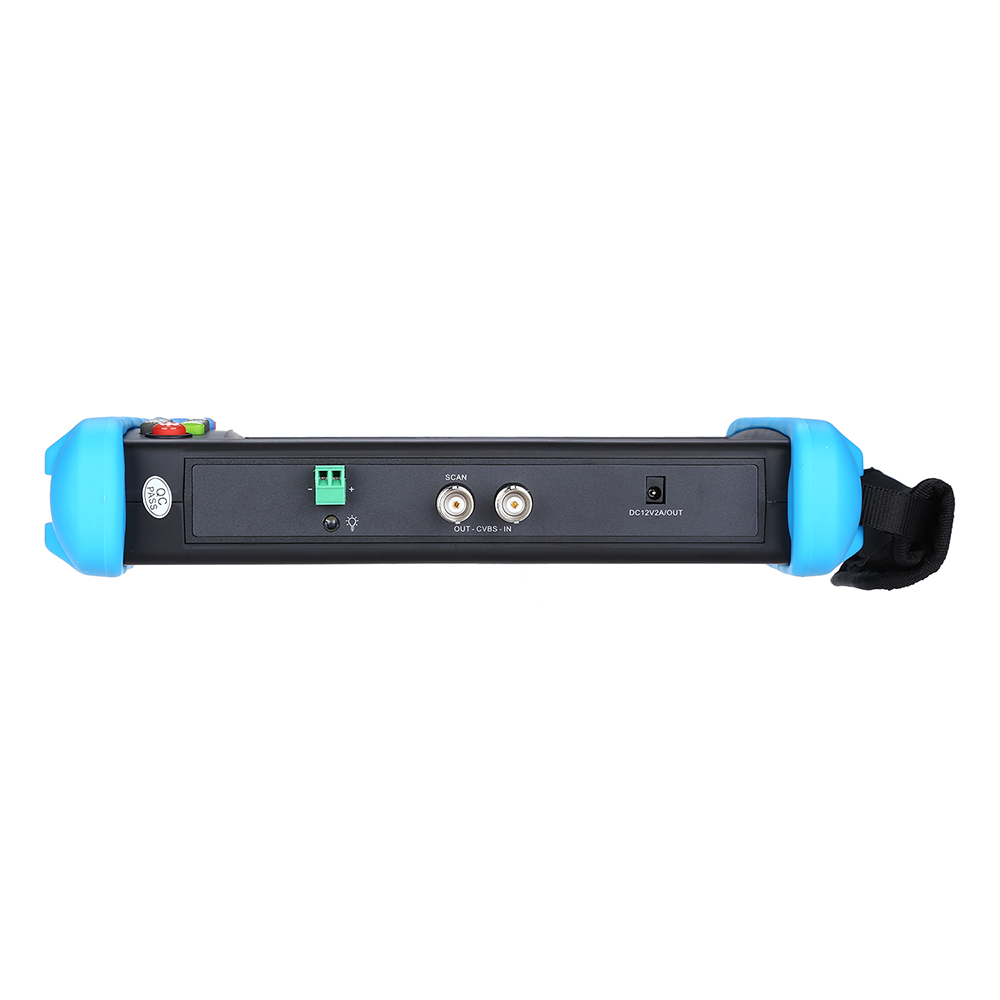

Analog Video Test: 1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapt)
Video Level Meter: PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement for cvbs camera.
Zoom Image: Supports Analog and IP camera image zooming & movementSnapshot, Video Record and Playback: Capture current images and record live video as JPG file. Media player will view photos and playback video
HDMl - compatible Output: 1 channel HDMl- compatible output, supports up to 1080p
RJ45 Cable TDR Test: RJ45 cable TDR test and cable quality test, to test cable pair status, length, attenuation reflectivity, impedance, skew and other parameter.
12V/2A Power Output: Output DC12V/2A power to camera
USB 5V Power Output: 5V 2A power output only ,NO data
PoE Power Output: 48V PoE power output, Max power 24W
Screen Management: Lite mode and normal model available. Under normal mode, you can change icons sequence and self-define the number of icons in each page
Theme: Self-define icons, desktop and application interface background, modify interface sliding effect
Drop-down Menu: PoE power switch ,IP setting, WLAN switch , HDMI-compatible IN functions etc screen lock, password lock screen or pattern lock
Audio Test: 1 channel audio signal input and 1 channel audio signal output to connect headphones
PTZ Control: Support RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc
Color Bar Generator: Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )

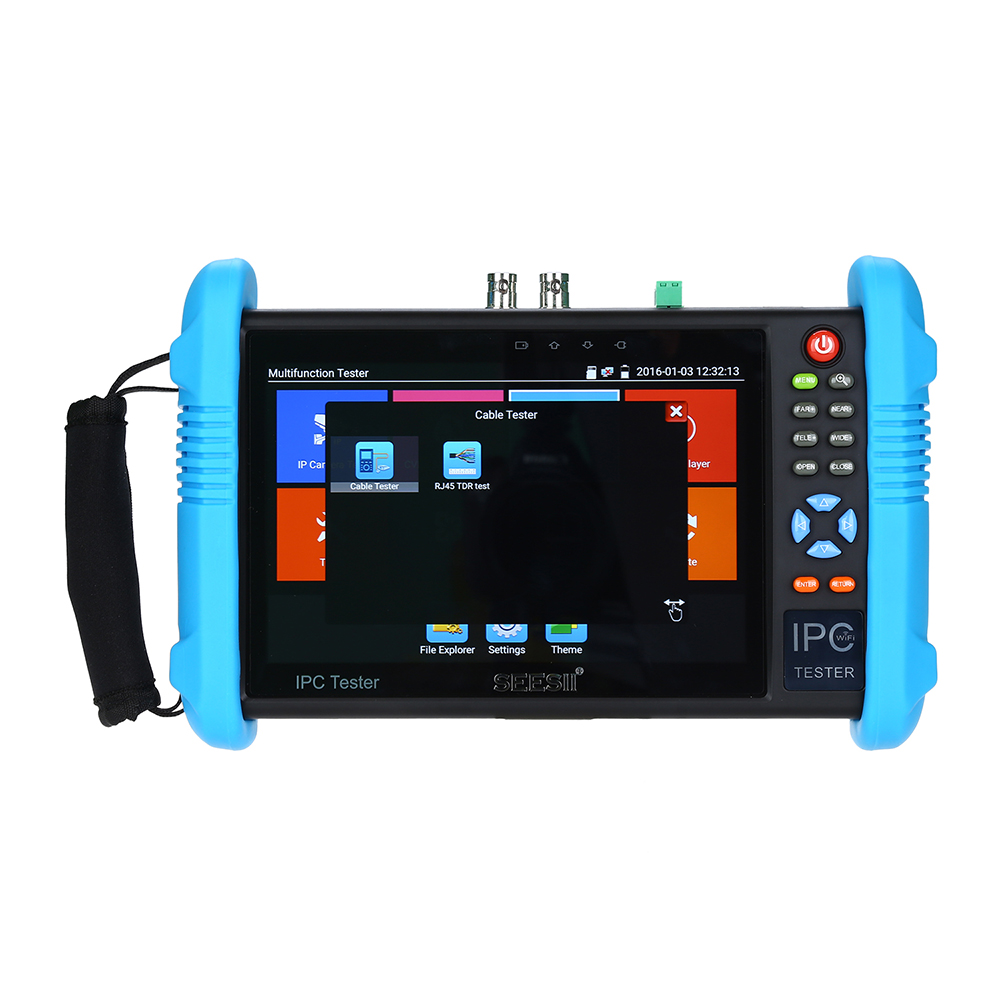

UTP Cable Tester: Test UTP cable connection status and display on the screen. Read the number on the screen
Data Monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal
Network Test: IP address scan, link scan, and Ping test. Quickly search the for IP camera's IP address on your network
PoE /PSE Voltage Test: Measures PoE switch voltage and displays pin configuration
Menu language:English French Italian Korean Japanese Russian Polish Spanish Traditional Chinese and Chinese
Power:
External Power Supply: DC 12V 2A
Battery: Built-in 7.4V Lithium polymer battery ,5400mAh
Rechargeable: After charging 5~6 hours, normal working time 10hours
Parameter:
Operation Setting: Capacitive touch screen, OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian or Polish, etc
Auto off: 1-30 (mins)
General:
Working Temperature: -10degree---+50degree
Working Humidity: 30%-90%
Dimension/Weight: 240mm x 154mm x 46mm / 830g

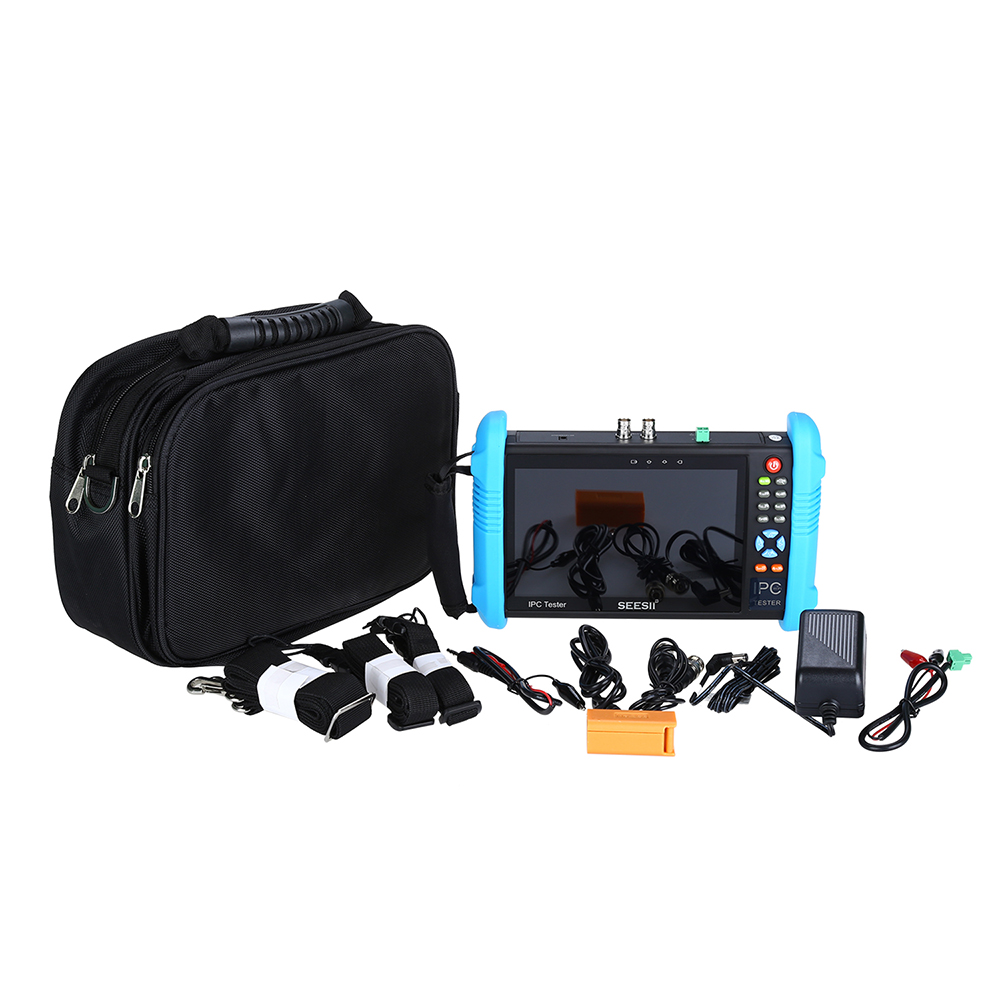

Packing list:
1x SEESII 9600Plus Tester
1x Adaptor DC12V 2A
1x Network Cable Tester
1x BNC Cable
1x RS485 Cable
1x Output Power Cable
1x Audio Cable
3x Band
1x Tool Bag
1x Manual
1x SEESII 9600Plus Tester
1x Adaptor DC12V 2A
1x Network Cable Tester
1x BNC Cable
1x RS485 Cable
1x Output Power Cable
1x Audio Cable
3x Band
1x Tool Bag
1x Manual
- Brand Name: Eyoyo
- Lens: 2.8mm
- Origin: Mainland China
- Sensor Size: 1/3 inch
- Maximum IR Distance(m): 10-20m
- Sensor Type: CMOS
- Model Number: 9800Plus
- Certification: CE
- Plug Type: EU plug
- WIFI: Built in WIFI,speeds150M, allows you to connect to
- Model: 9800Plus
- H.265 Mainstream Test: 4K,H.265/H.264 camera image display by mainstream
- Max. Resolution: 1280*800 resolution
- IP Camera Type: ONVIF,ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-
- Analog Video Test: 1 channel BNC Input & 1 channel BNC Output
- 12V/2A Power Output: Output DC12V/2A power to camera
- USB 5V Power Output: 5V 2A power output only ,NO data
- Display: 7 inch IPS touch screen cctv tester ,1280*800 reso
- PoE Power Output: 48V PoE power output, Max power 24W
