Sebury RFID Keyboard Metal Access Control Keypad Waterproof Cover Outdoor Door Opener Electronic Lock System 10pcs EM4100 Keyfob
5.0 (5 votes) | 25 orders
Price:
US $15.58 - 62.98
/ piece
Discount Price:
US $
12.46 -
53.18
/ piece
-20%
- Color
-
-
High quality / 1000 users capacity / 3 unlock methods / Without door bell button
Product Description:
1) High quality and high security;
2) Sensitively and response quickly;
3) Support1000 standard users capacity;
4) Support card, password, password plus card to open the door;
5) Opening time: 50mS, 1-98 seconds for normal mode, 99 seconds for switch mode;
6) Built-in high-current MOS tube can directly drive the electric lock, and can resist strong magnetic unlocking;
7) Safe mode can be set: 10 times invalid card or password will automatically lock the machine for 10 minutes;
8) Can connect with an exit button, convenient to open the door from inside;
9) Safety screw at the bottom can prevent malicious destroy;
10) Metal structure, anti-vandal, simple & safe design;
11) Doesn't need to connect to the computer, can works alone;
12) Application: Home / hotel / office / department / apartment, etc.
Product Specification:
Effective Cards:1000
Password: 1000
Working Frequency: 125KH
Reading Distance: 0-5cm
Card Type: EM or EM compatible
Working Voltage: DC12V±2V
Static current: ≤ 20mA
Operating current: ≤100mA
Drive electric lock current: ≤3A
Working Temperature: Working: -20℃~50℃;
Relative Humidity: Working: 0%-95%;
Dimension: 104X20X69mm(L/H/W)
Door bell button: without

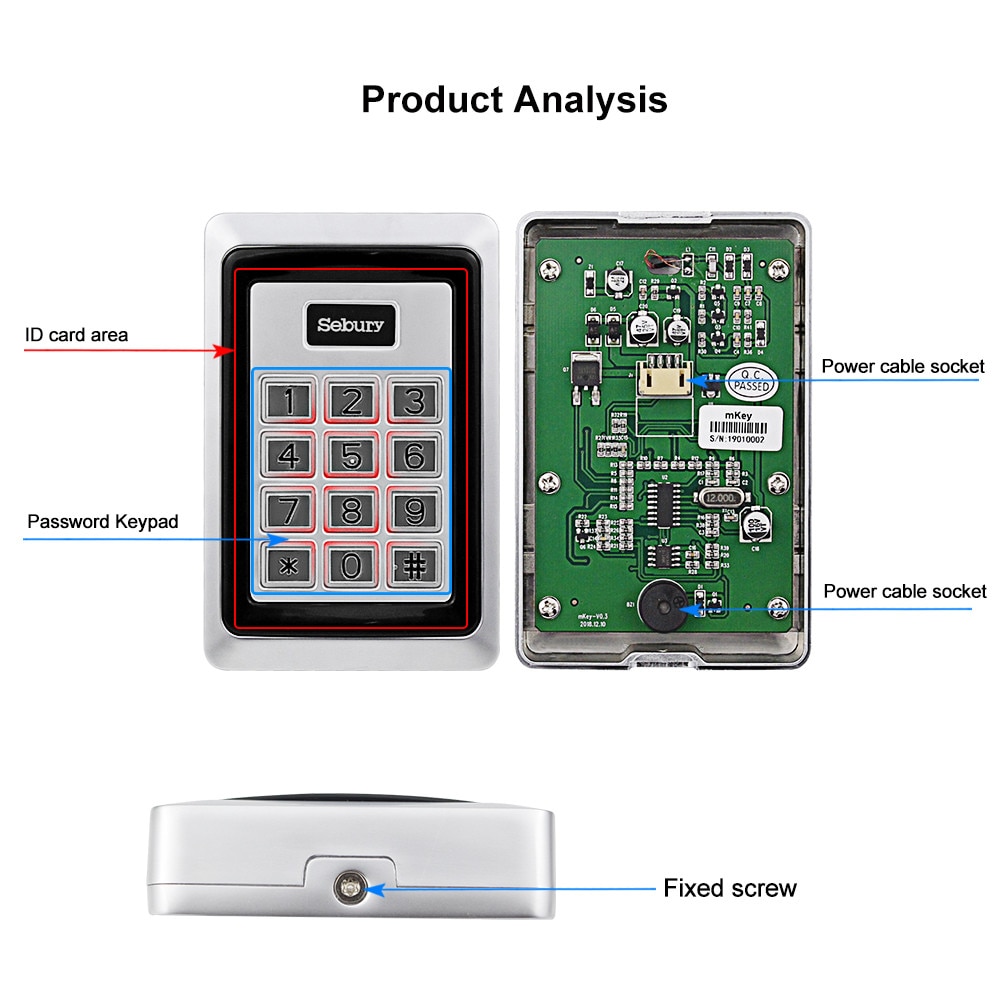

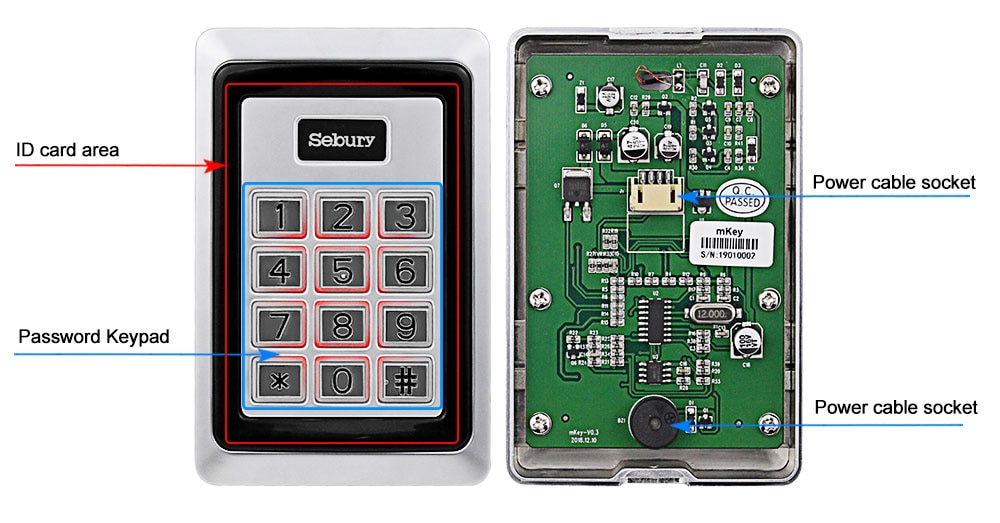

Product Details

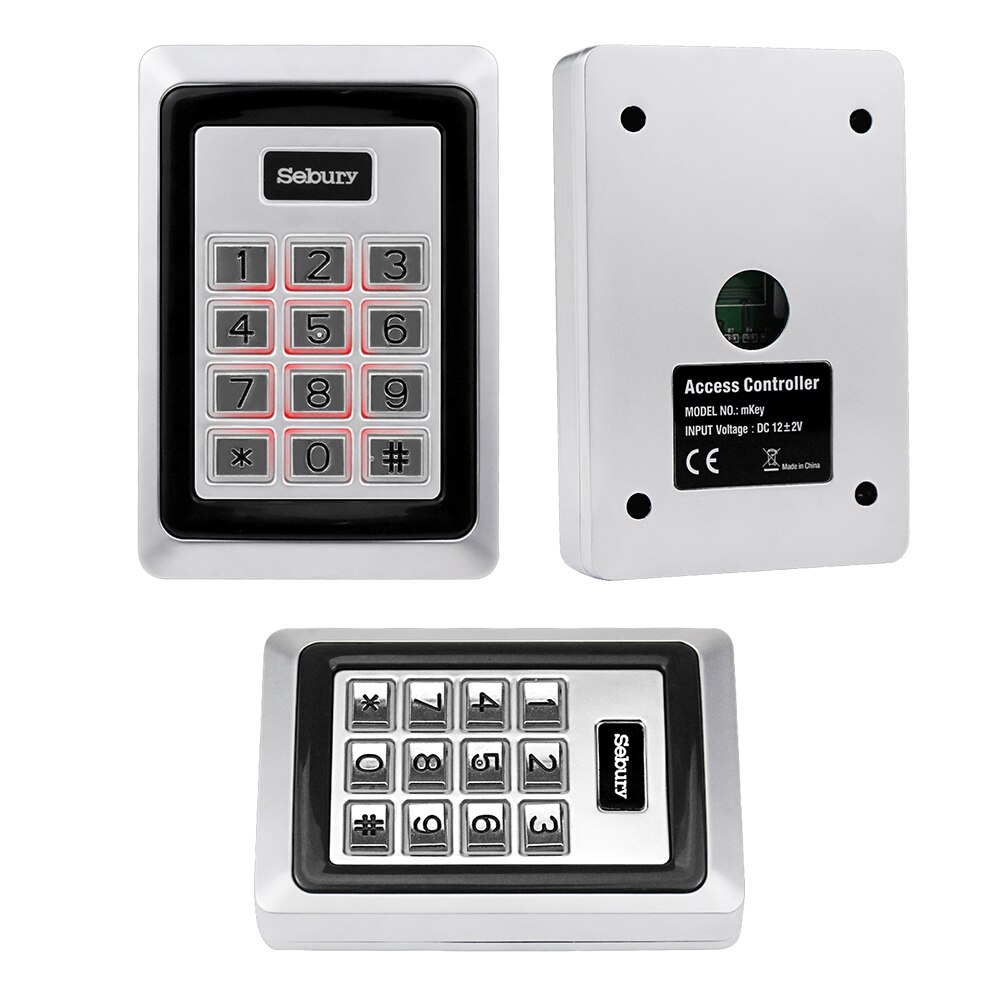

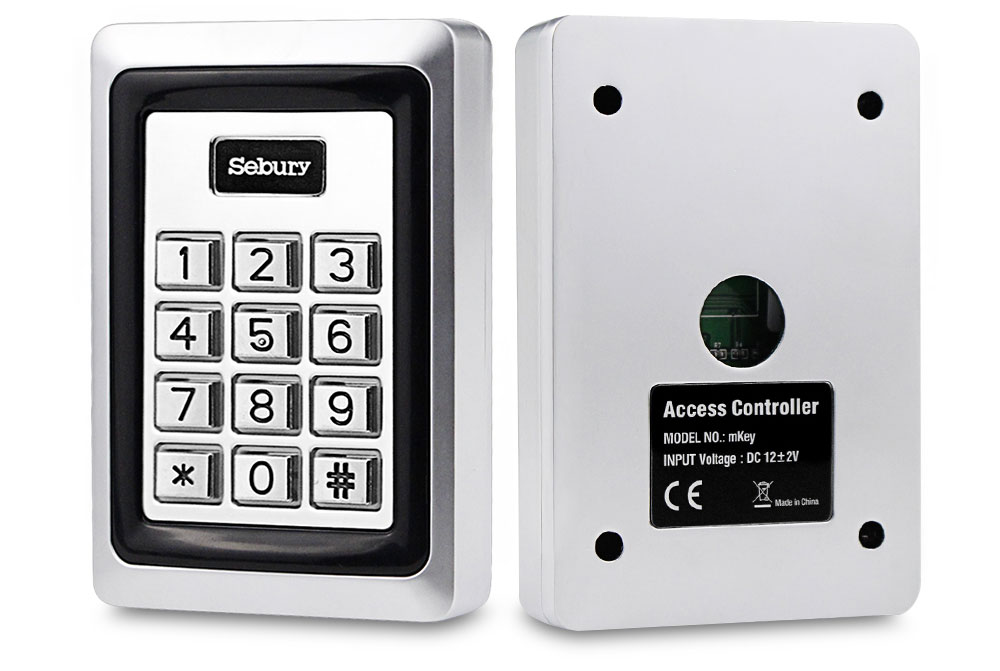

Sebury brand, very high quality. Metal structure, safe and durable
Eco-friendly zinc alloy, make the product more secure and durable, anti-vandal, anti-tamper, suitable for different environmental installation.

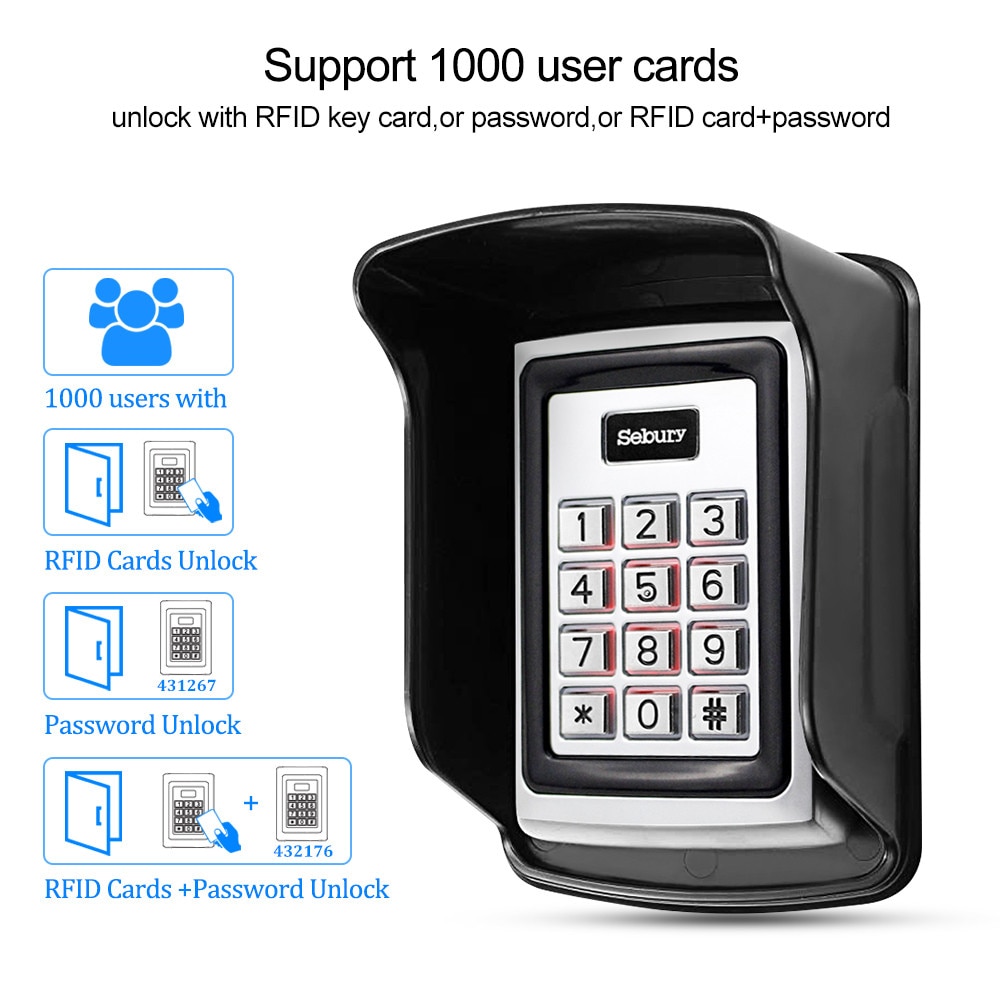

Support 1000 user cards capacity. and 6 digits password.

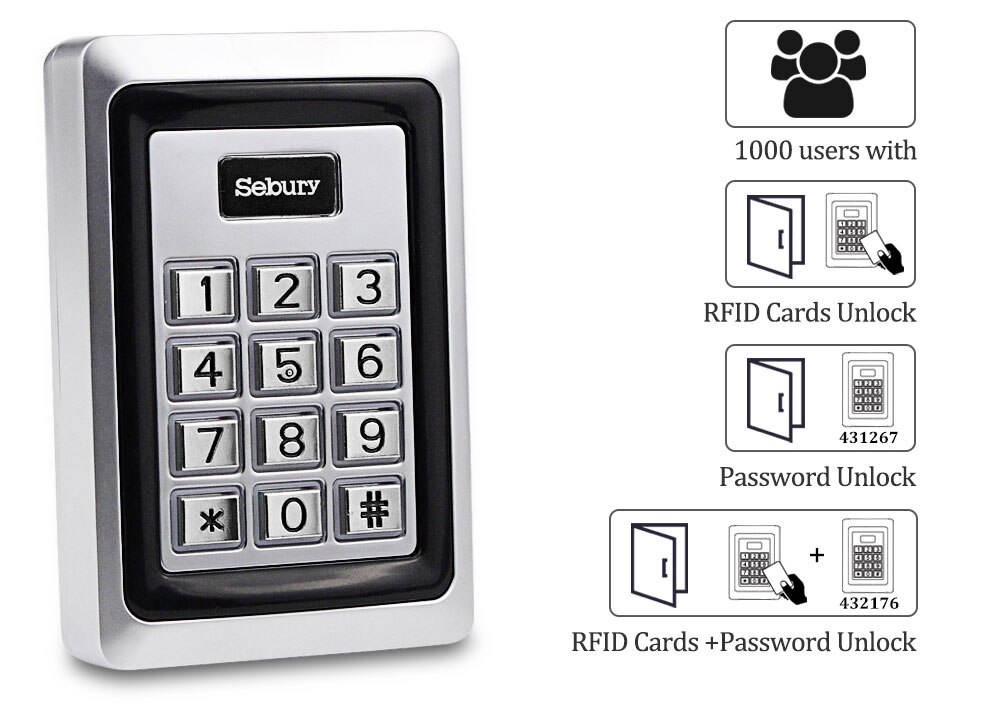

Has 3 different unlock methods.
unlock with rfid card, password, rfid card + password
Support backlight function
Digital backlight key is very convenient at night or in dark environment.
Without door bell button, don't worry about disturbing.

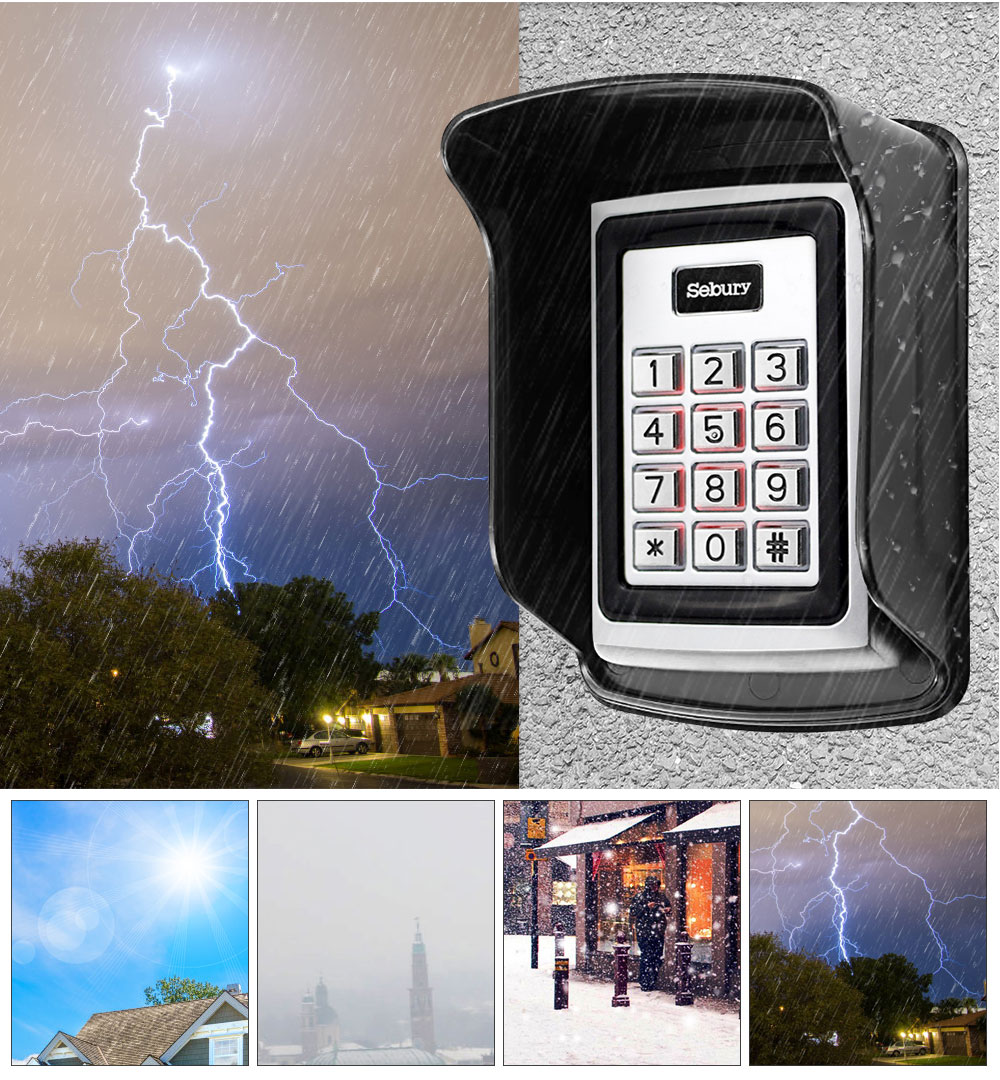

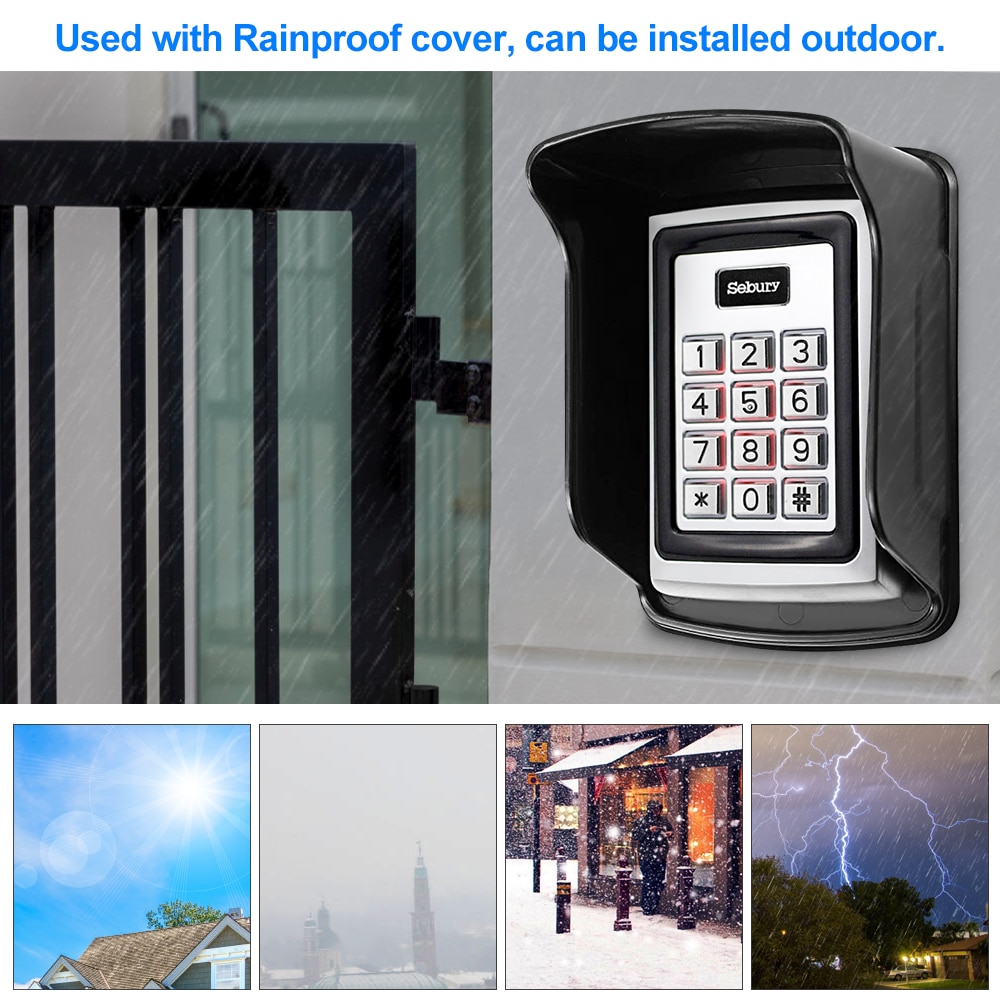

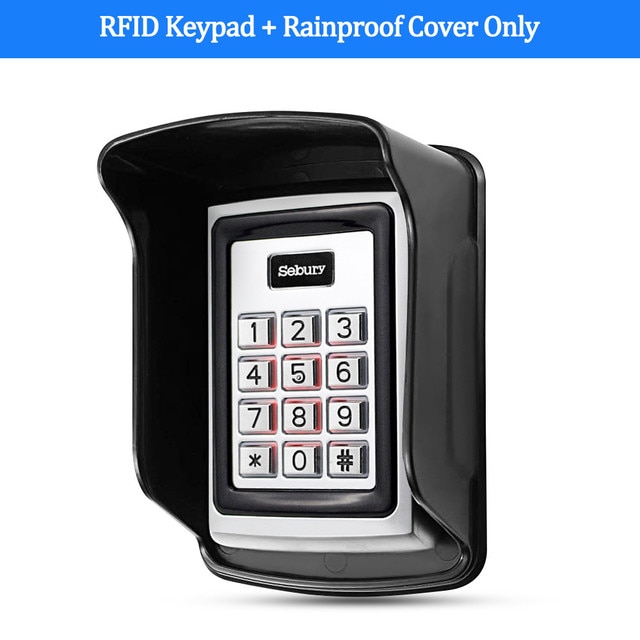

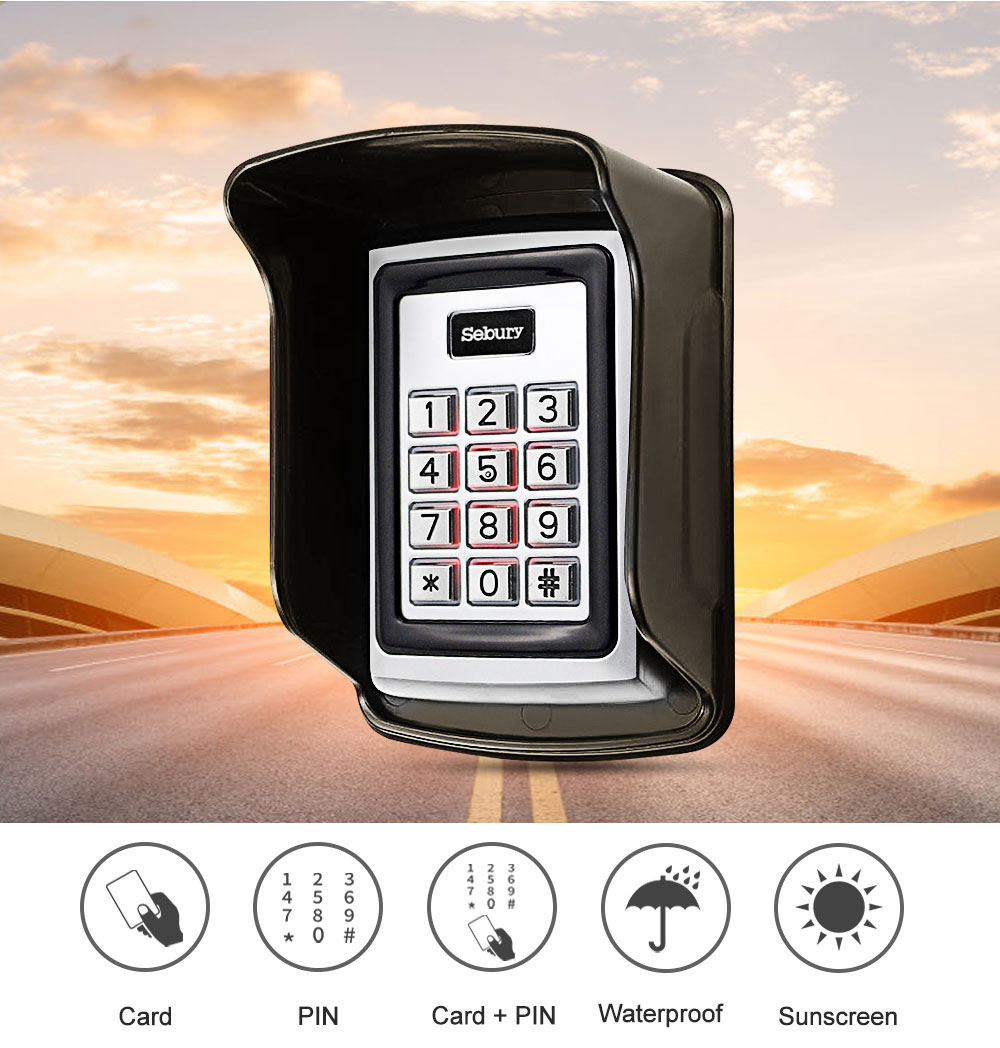

Used with Rainproof Cover, can be installed outdoor
Easy to install and operat
Based on advanced technology, fast recognition speed, high sensitivity.
Don't need to connect computer, all programming can be done on the keypad.

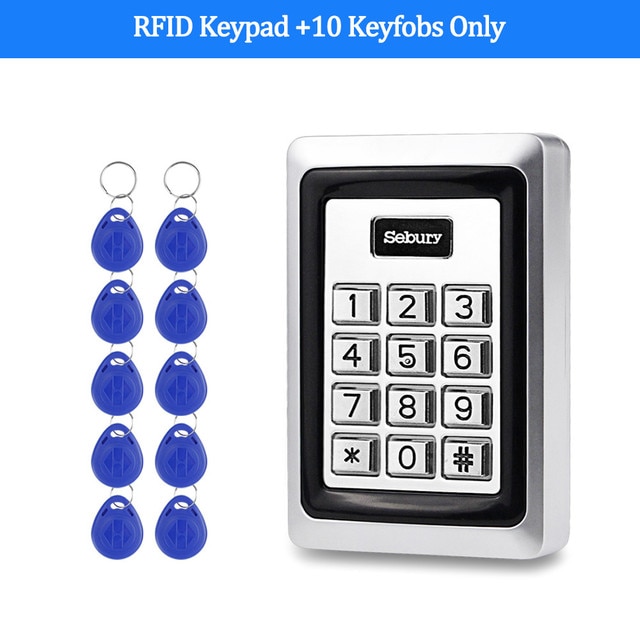

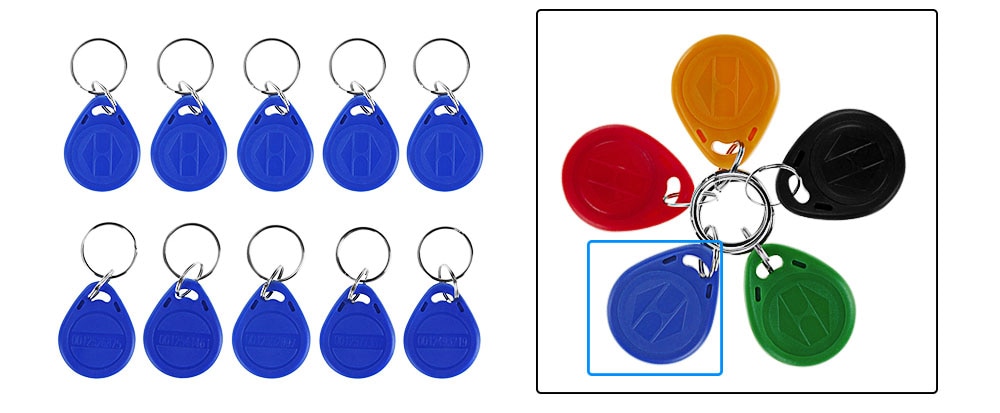

RFID Keyfobs (blue)
You can read these keys on the access controller keypad to open the door conveniently.
Only the key finished programed with our instruction then can be open the door.
Working Frequency: 125KHz
With ABS high quality.
Each one has unique ID number on it.
Reading Range: 1-10cm
Color: Red, Blue, Yellow, Green, Black (We will send 10pcs BLUE color by default, if you want other color, please leave us a message)
Quantity: 10pcs ( If you want more, please contact us )

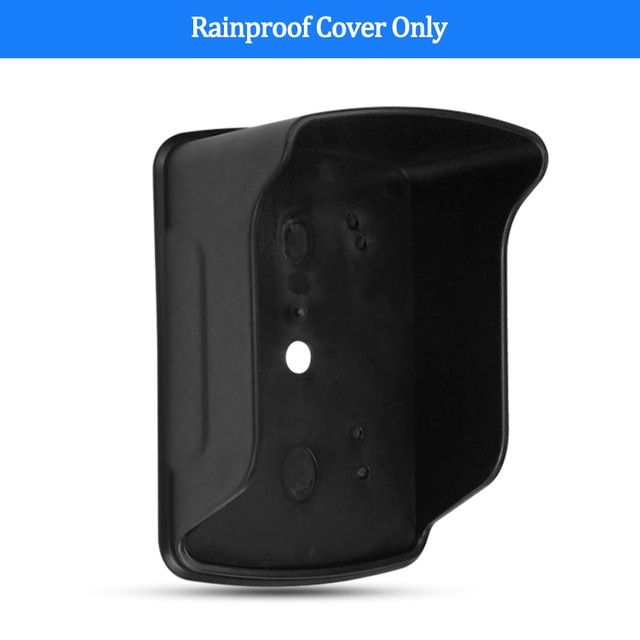

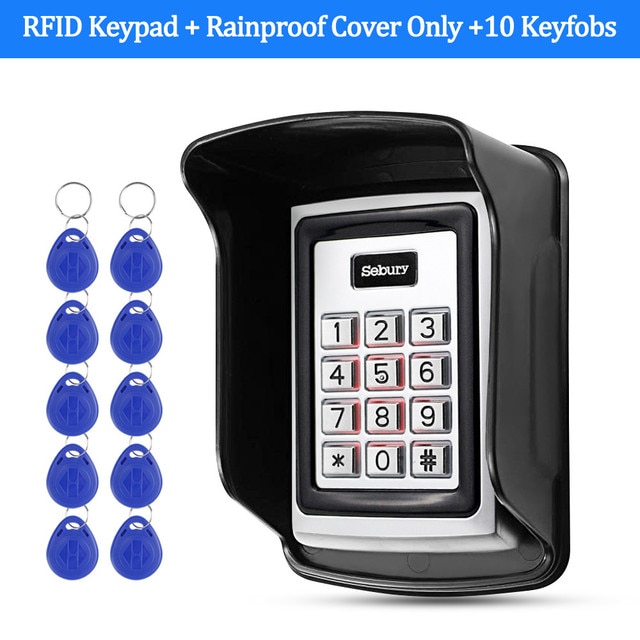

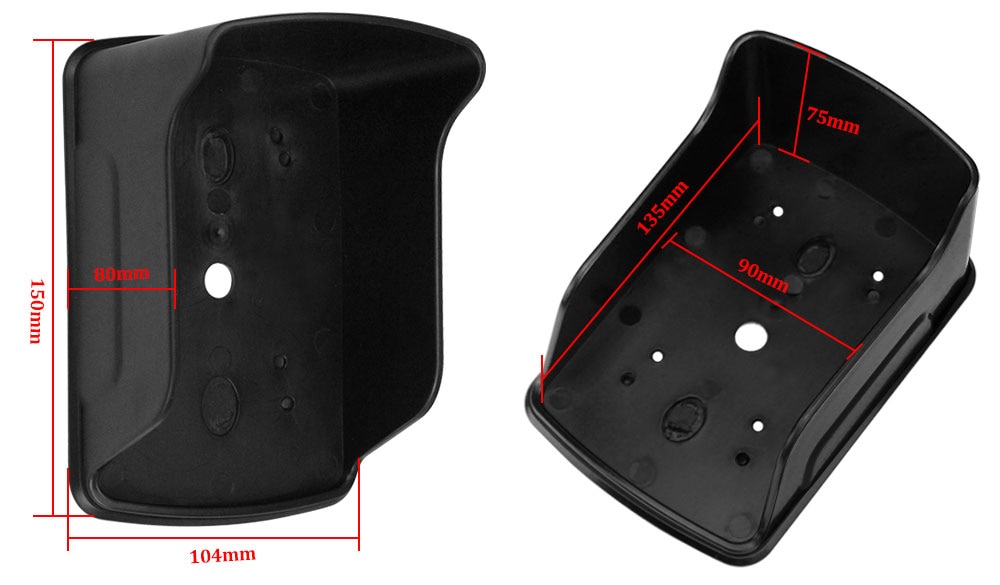

Rainproof Cover
This waterproof shell is suitable for fingerprint device, access controller, standalone rfid door access controller, which length is less than 13cm, width is less than 8cm.
Dimension:
Outside: 15cm*10.4cm*9cm (L*W*H)
Inside: 13.5cm*8.9cm*8.4cm (L*W*H)
( This model access control is still working when there is some water on the surface, but can't be used in rain directly. If you want to install the item outside, please buy this rainproof cover to protect it. )

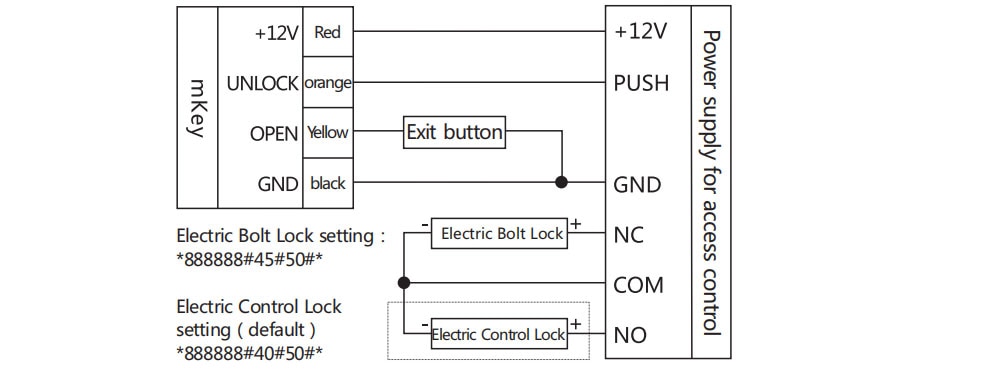

Wiring Diagram

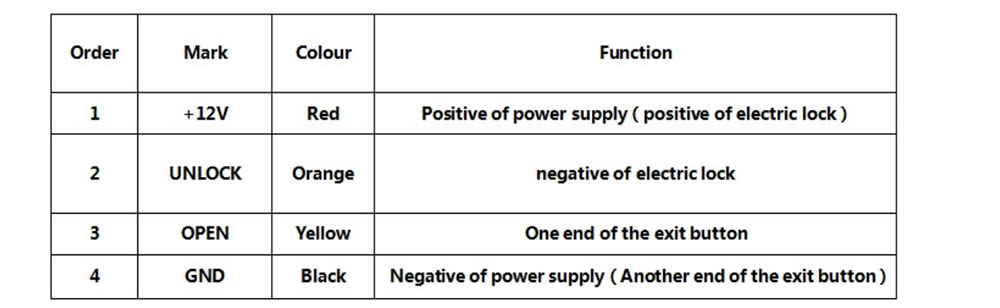

The correspondence between the color of wire and their function:

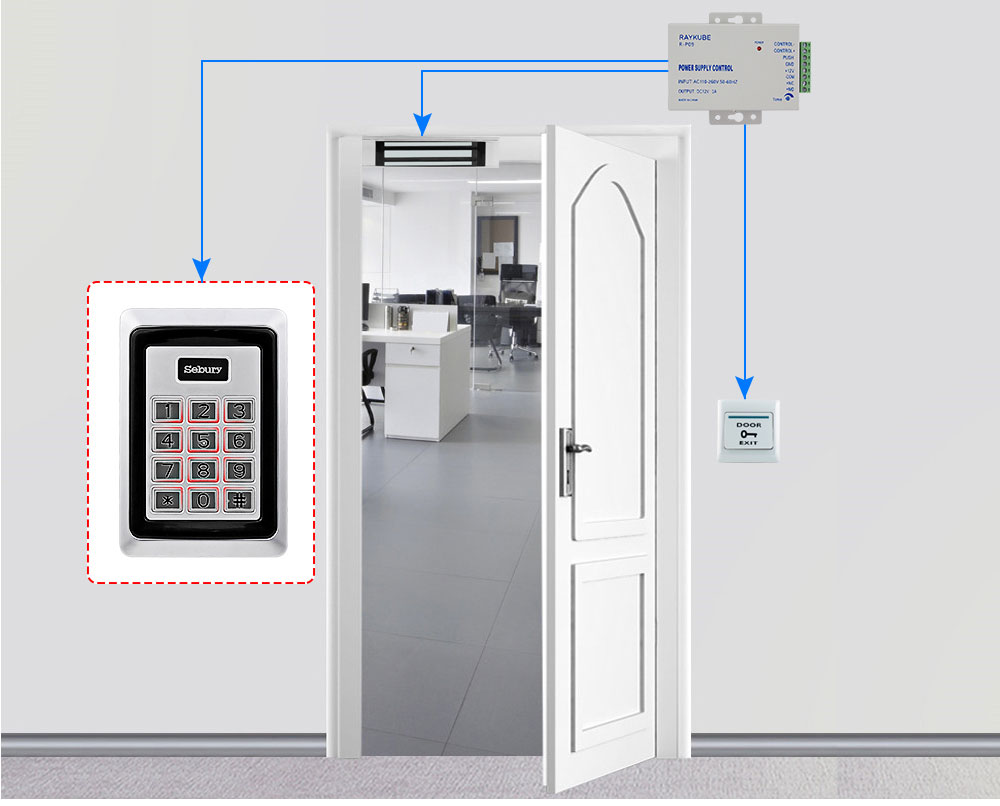

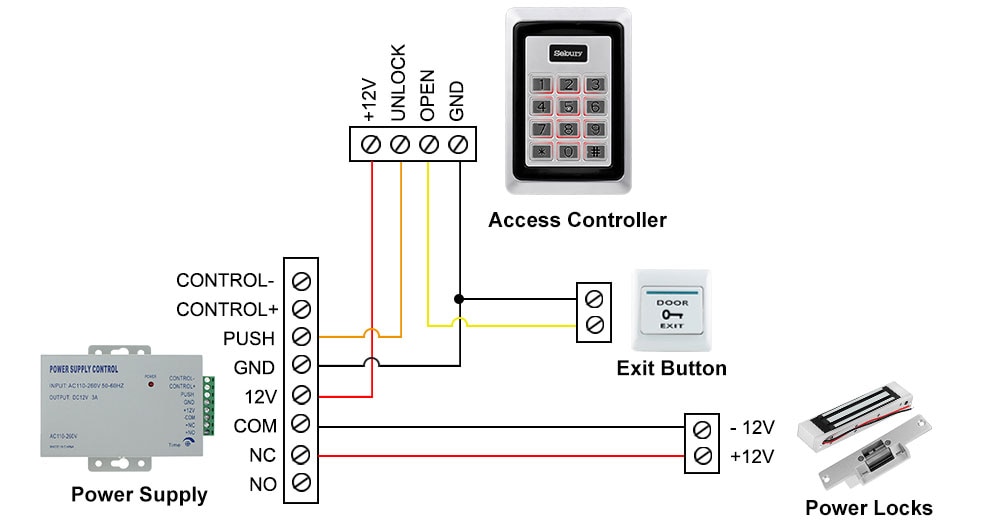

Wiring diagram with access control power supply (the package is not including power supply, electric locks, door exit button, need to buy extra)
- Model Number: mKey+10+FYG
- Brand Name: OBO HANDS
- Type: RFID metal access control keypad
- Support: RFID card, password, RFID card+password
- User card capacity: 1000
- Dimensions: 104X20X69mm(L/H/W)
- Working frequency: 125KHz
- Material: Zinc Alloy
- Card Reading Range: 0-10cm
- CE certification: Has
- Working Temperature: -20℃~50℃
- Backlight function: Support
- Door bell function: Not support
- Tamper alarm function: Support
