SANQ 100w 28khz Ultrasonic Cleaning Transducer Cleaner High Performance +Power Driver Board 220vac Ultrasonic Cleaner Parts
0.0 ( votes) | 1 orders
Price:
US $95.68
/ piece
Discount Price:
US $
79.31
/ piece
-17%
Board radiating surface.homogeneous sounding board. Ultrasonic cleaning transducer Cleaner

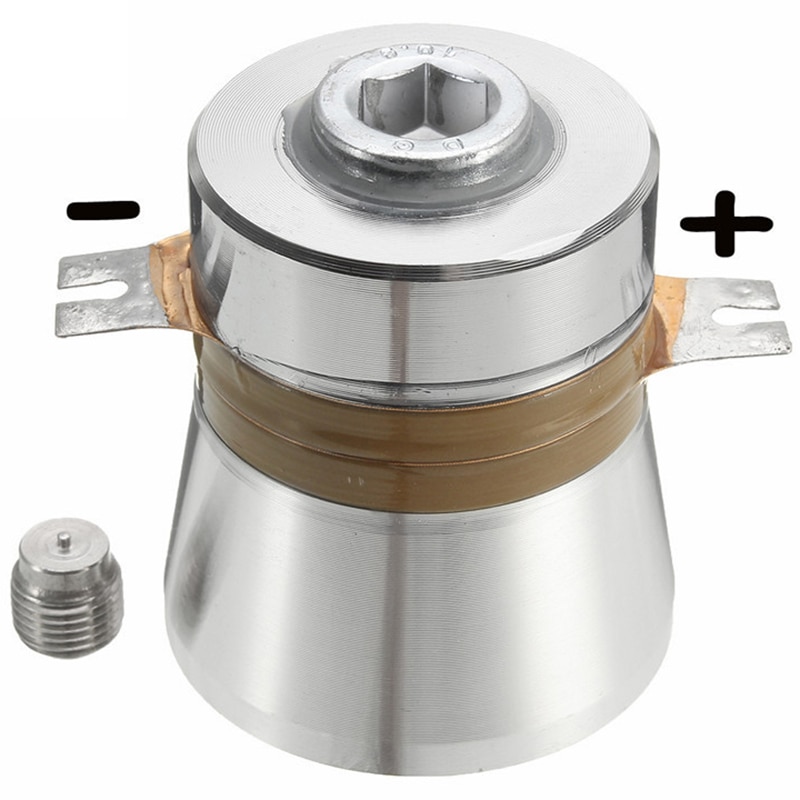

Circuit board and the first vibration (ceramic chip transducer) wiring instructions:1.Circuit board shall not be empty power;2.No cleaning fluid cleaning;3.Shock the first two lugs, the middle of the two pieces of ceramic sheet for the positive electrode, by the upper and lower metal column for the negative, may not be reversed
4.On the other hand, the larger one of the two silver layers is the positive one and the smaller one is the negative one.When welding the power cord, it must be soldered on the side with two silver layers , The other side of the vibration surface,can be affixed to the wash basin under (this is purchased ceramic transducer components described);
ceramic sheet is not resistant to high temperature silver, soldering the power cord when the temperature does not exceed 280 degrees,the most Good use of constant temperature iron, the iron temperature can be set to 250 degrees.5.Shock head on the larger side (with a screw hole) for the vibration surface can be stuck in the wash basin at the end of the wash basin to a reliable grounding.
6.Earthquake head or transducer ceramic tile application head adhesive firmly affixed to the bottom of the wash basin;7.Two shock head parallel connection to the circuit board terminal, a circuit board up to two with the first shock, but also with a shock supporting the use of.8.Circuit board wiring diagram is as follows:Positive and negative output pole respectively positive and negative polar link, can not pick the wrong question in time advice, to ensure safety
Description:
Transducer Power: 60 W
Frequency: 28KHZ
Driver Board Voltage: 220V AC
Driver Board Power: 100W
Color: green + silver
Material: metal + PCB

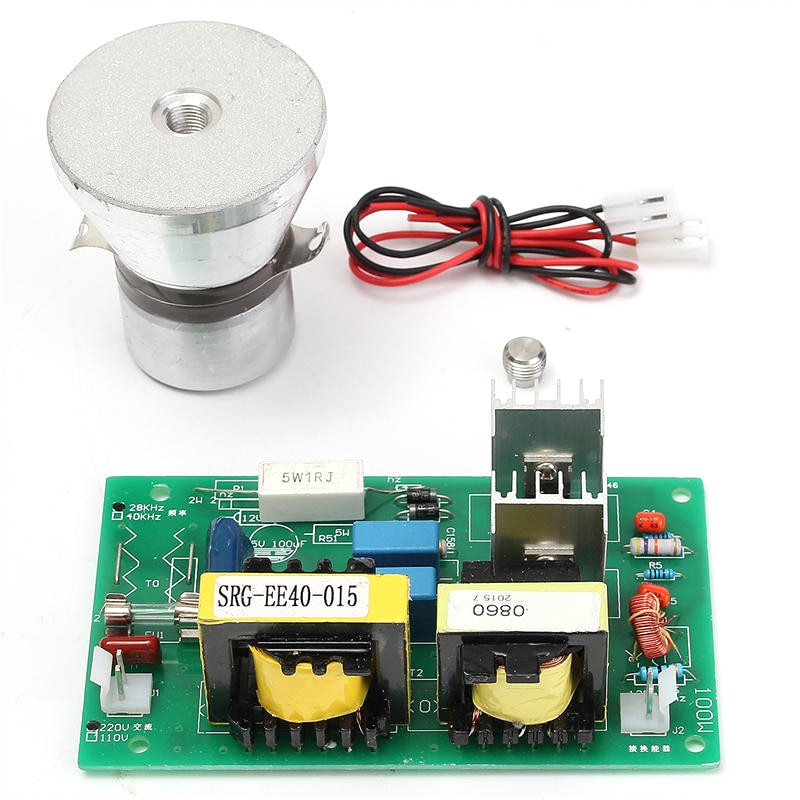

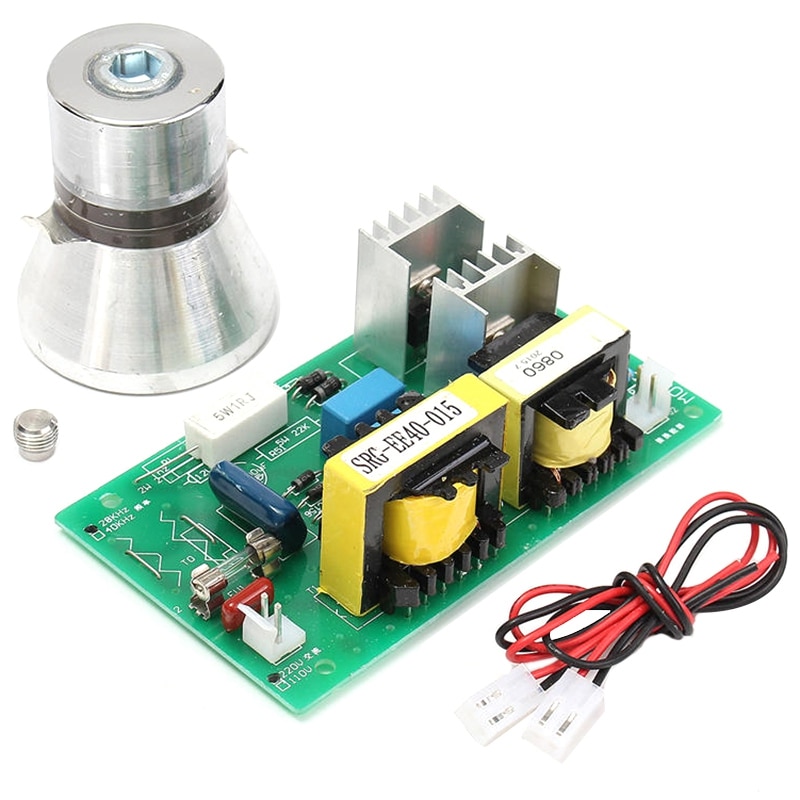

Package Include:1XDriver Board,1XTransducer,1XBag of Fitting
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Circuit board and the first vibration (ceramic chip transducer) wiring instructions:1.Circuit board shall not be empty power;2.No cleaning fluid cleaning;3.Shock the first two lugs, the middle of the two pieces of ceramic sheet for the positive electrode, by the upper and lower metal column for the negative, may not be reversed
4.On the other hand, the larger one of the two silver layers is the positive one and the smaller one is the negative one.When welding the power cord, it must be soldered on the side with two silver layers , The other side of the vibration surface,can be affixed to the wash basin under (this is purchased ceramic transducer components described);
ceramic sheet is not resistant to high temperature silver, soldering the power cord when the temperature does not exceed 280 degrees,the most Good use of constant temperature iron, the iron temperature can be set to 250 degrees.5.Shock head on the larger side (with a screw hole) for the vibration surface can be stuck in the wash basin at the end of the wash basin to a reliable grounding.
6.Earthquake head or transducer ceramic tile application head adhesive firmly affixed to the bottom of the wash basin;7.Two shock head parallel connection to the circuit board terminal, a circuit board up to two with the first shock, but also with a shock supporting the use of.8.Circuit board wiring diagram is as follows:Positive and negative output pole respectively positive and negative polar link, can not pick the wrong question in time advice, to ensure safety
Description:
Transducer Power: 60 W
Frequency: 28KHZ
Driver Board Voltage: 220V AC
Driver Board Power: 100W
Color: green + silver
Material: metal + PCB
Package Include:1XDriver Board,1XTransducer,1XBag of Fitting
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
- Model Number: Ultrasonic cleaning transducer Cleaner
- Certification: CB,CE
- Function: Ultrasonic cleaning transducer Cleaner
- Voltage (V): 24V
- Power (W): 100w
- Brand Name: FGHGF
- Origin: Mainland China
