Safe sliding table panel saw / panel saw / precision sliding table saw / woodworking machine/cnc panel saw/panel saw machine
SLIDING TABLE SAW FEATURES:
1.Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels,
organic glass plates and solid wood and others with wood structure and similar hardness.
2.Movable table guide track is plating chromium steel bars structure, exact and durable.
3.With oxidation treatment, movable table surface is beautiful and hardwearing.
4.Tilt angles of main and scoring saw blades are displayed directly by precision inclinome
5. Electric or manual lifting saw blade
6. Saw blade can be adjust with 45 degree

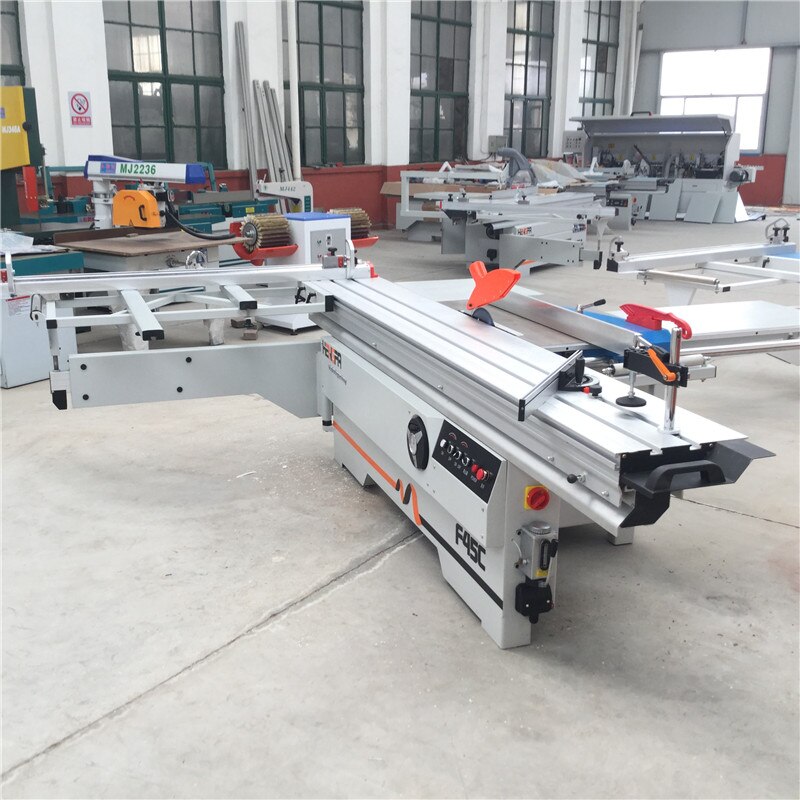

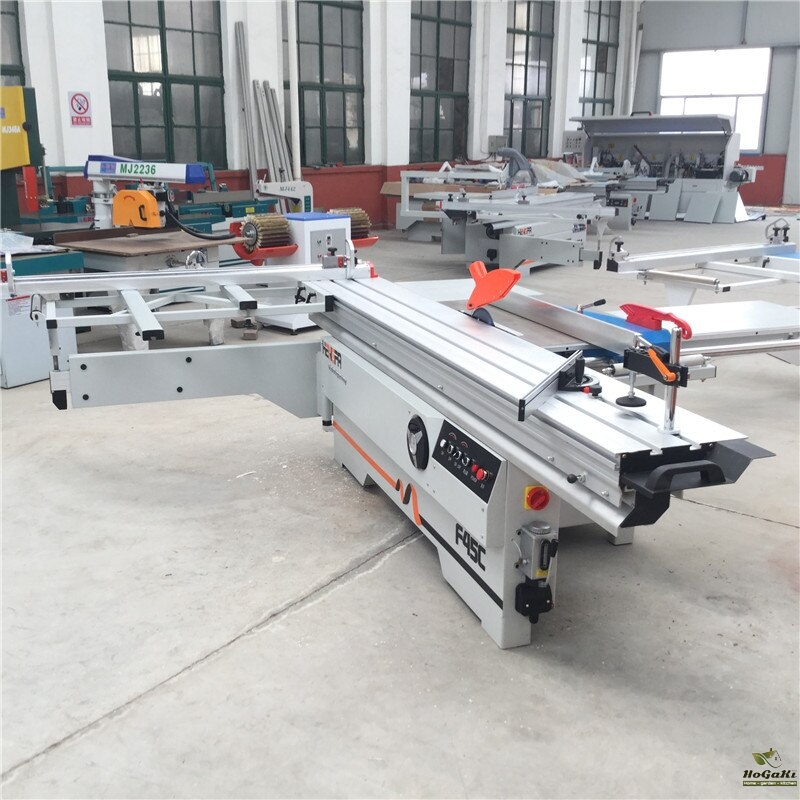

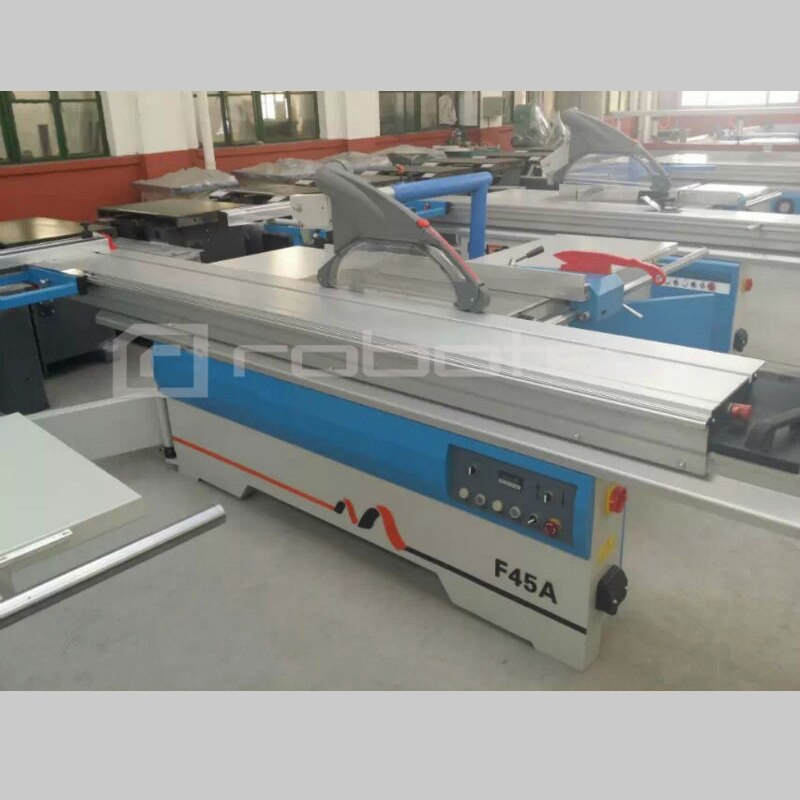

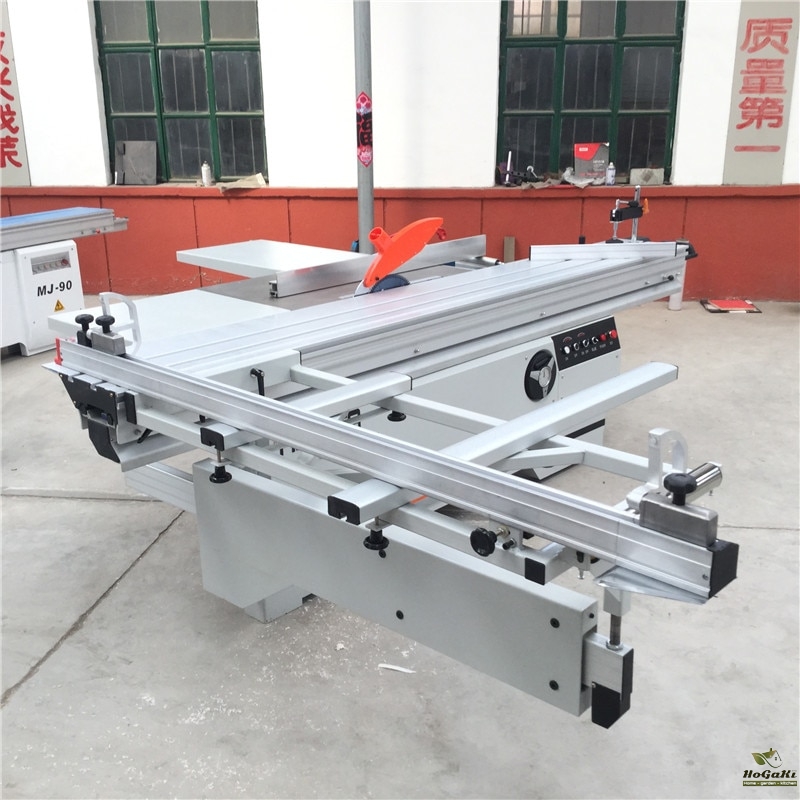

SLIDING TABLE SAW PICTURES:
SLIDING PANEL SAW PARAMETERS
|
Dimensions of sliding table |
3000*375mm |
|
Gross cut capacity |
3000mm |
|
Saw blade diameter |
300mm(option:250-400mm) |
|
Height of cut(diameter: 300mm) |
80mm |
|
Height of cut(diameter: 300mm) at 45 degree |
55mm |
|
Speed of main saw spindle |
4000-6000r/min |
|
Main spindle diameter |
30mm |
|
Tilting saw blade |
0 ~ 45 degree |
|
Main motor |
5,5kw |
|
Scoring saw blade diameter |
120mm |
|
Speed of scoring saw blade |
7000-8000r/min |
|
Scoring spindle diameter |
20mm |
|
Voltage |
220V, Single Phase/380V, 3 Phase |
|
Scoring motor |
0.75kw |
|
Width of cut between saw blade and rip |
1250mm |
|
Saw blade’s lifting and down |
Manual |
|
Angle tilting system |
Manual |
|
Net weight |
750kg |
|
Gross weight |
800kg |
|
Overall dimensions |
3050 x 3150 x 900mm |

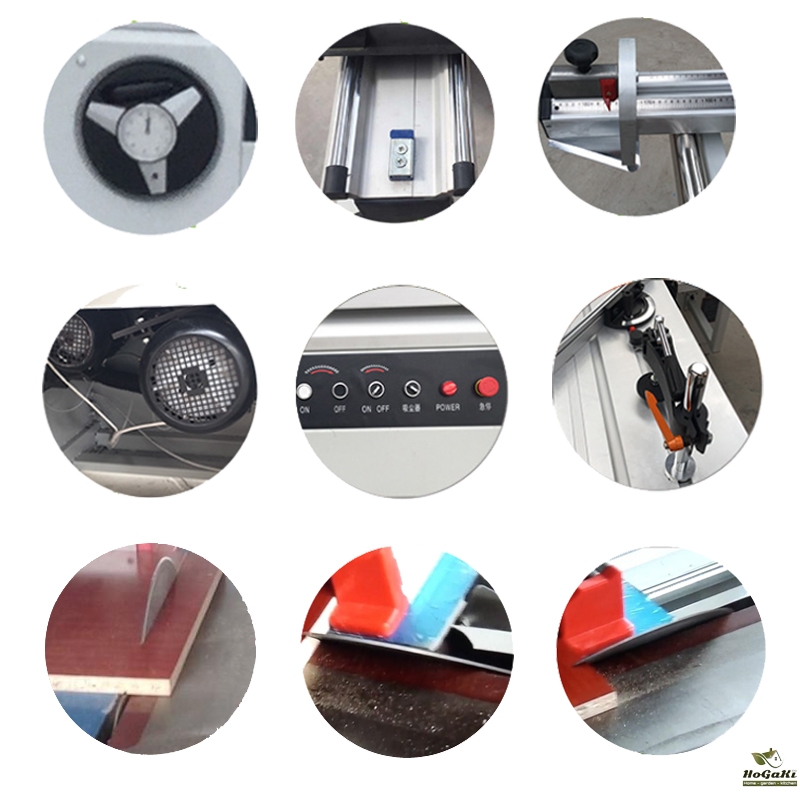

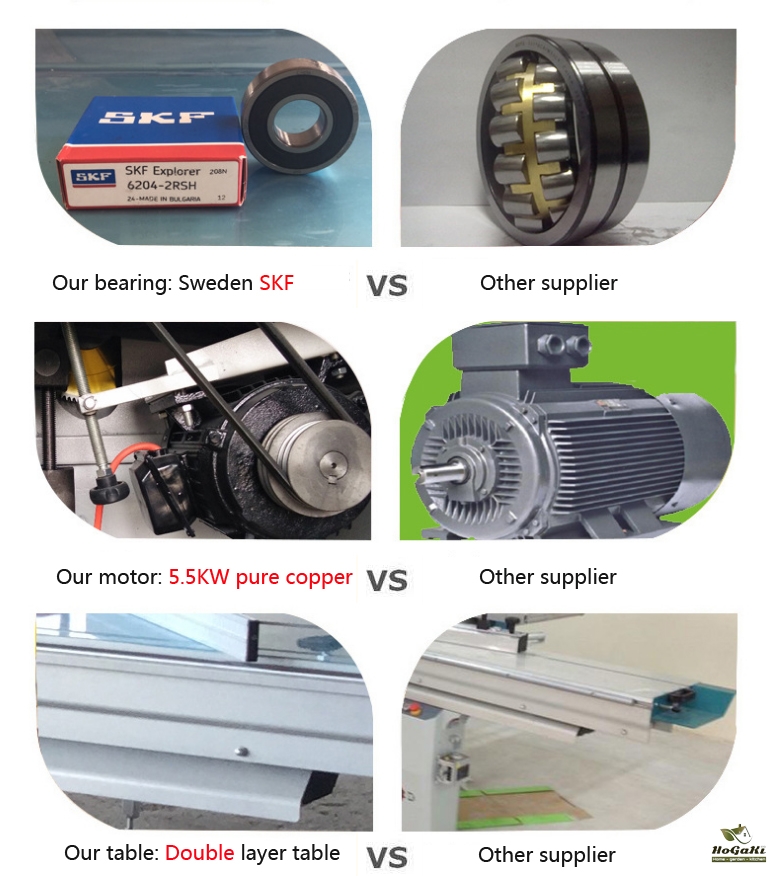

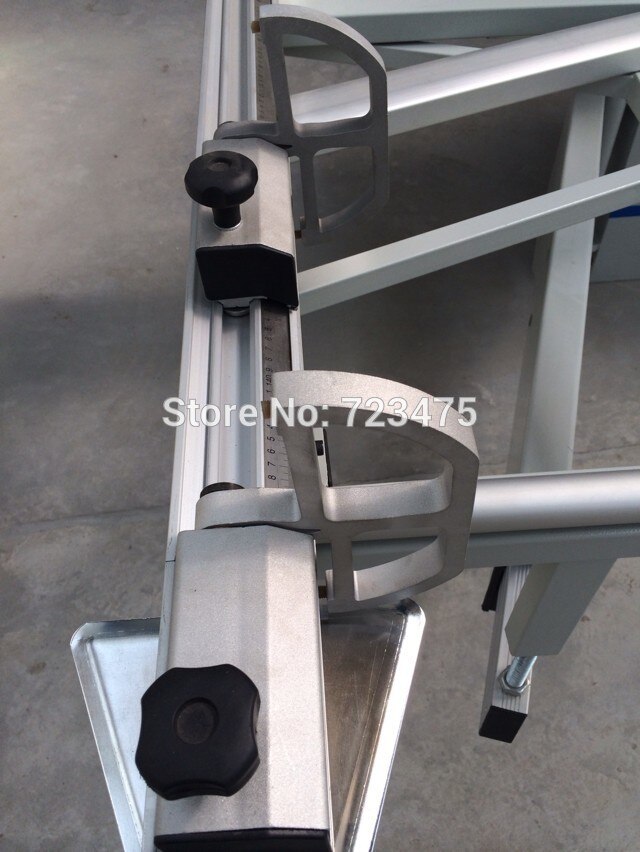

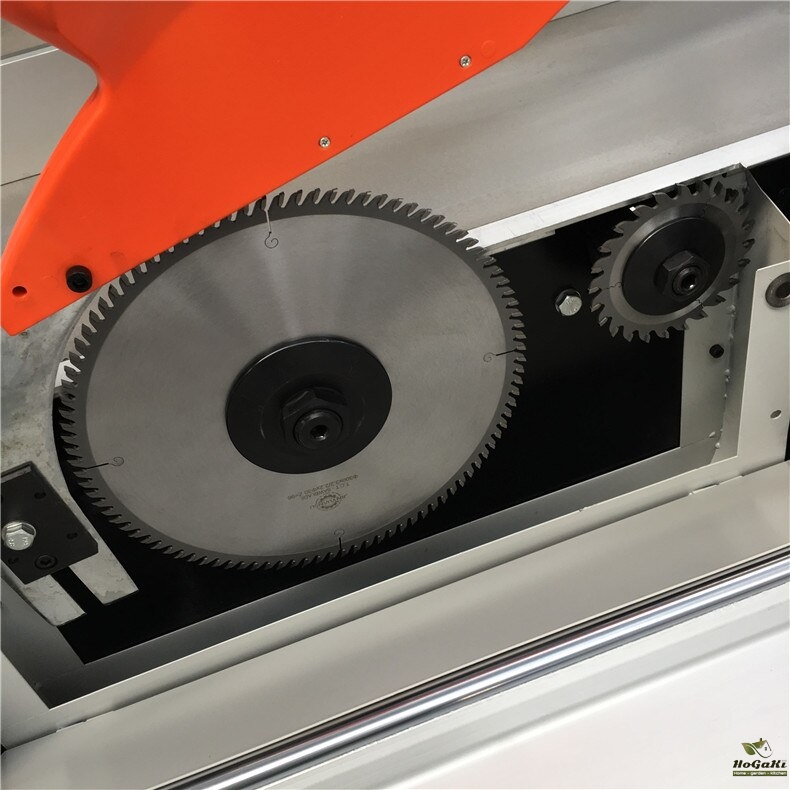

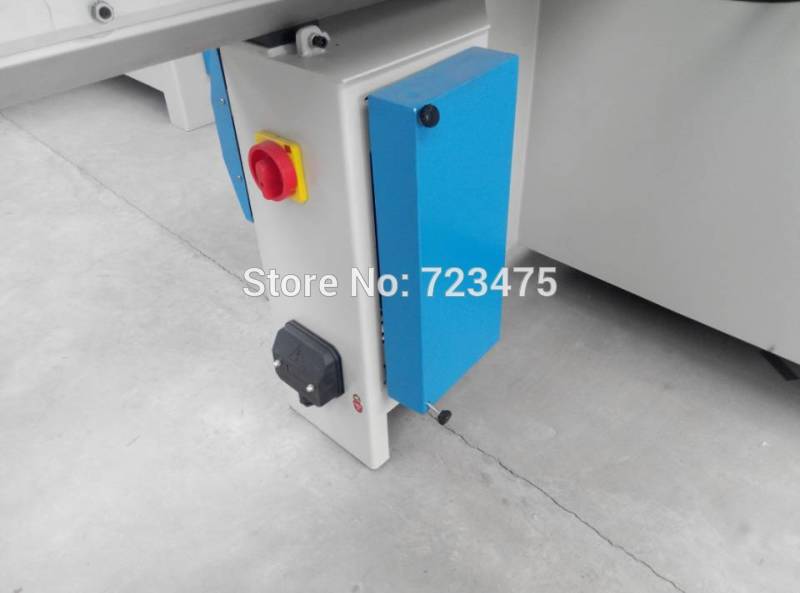

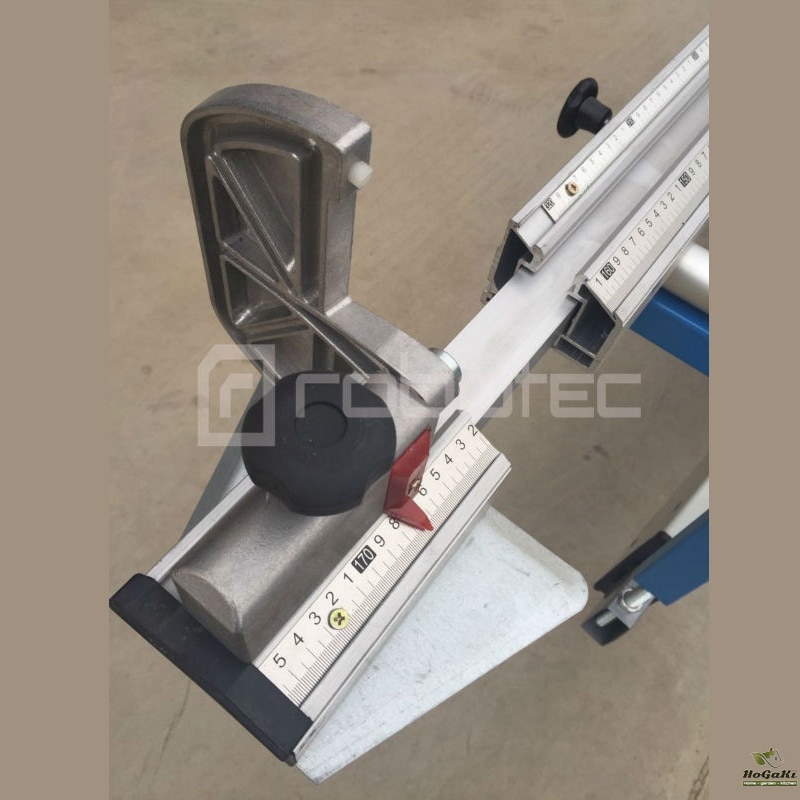

SLIDING PANEL SAW PARTS PICTURES:
OPTIONAL TERM:
1. 45º Sliding table sow or 90º Sliding table saw
2. Slide rail type: Altendrof structure, round rod structure or linear structure.
3. Saw blade lifting and tilting system (manual or electric)
4. Sliding table length from 1600mm to 3800mm (usually we have 1600, 2200, 2600, 2800, 3000, 3200, 3800mm).
5. All the sliding table saw have CE certification.
For offer the most suitable machine with favorable price, would you like to confirm below questions:
1) What is your reuqested max working area, X:___mm, Y:___mm?
2) What mainly job you do ? Only engrave, cut or both ?
3) What kind are your materials, metal or non-metal, what are they?
After your return comments, we will send you more information about the machine along price . Thanks
- Use: Woodworking
- Type: Table Panel Saw
- Model Number: MJ6128
- Style: Vertical
- Brand Name: Rabotec
- Condition: New
- Style: Horizontal
- Power(W): 5.5kw
- Type: Table Panel Saw, Tilting saw blade 0-45°degree panel saw
- Place of Origin: Shandong, China (Mainland)
- Usage: Woodworking
- Warranty: One year
- panel saw Usage: panel saw cutting
- Use: Woodworking
- Net weight: 800Kg
