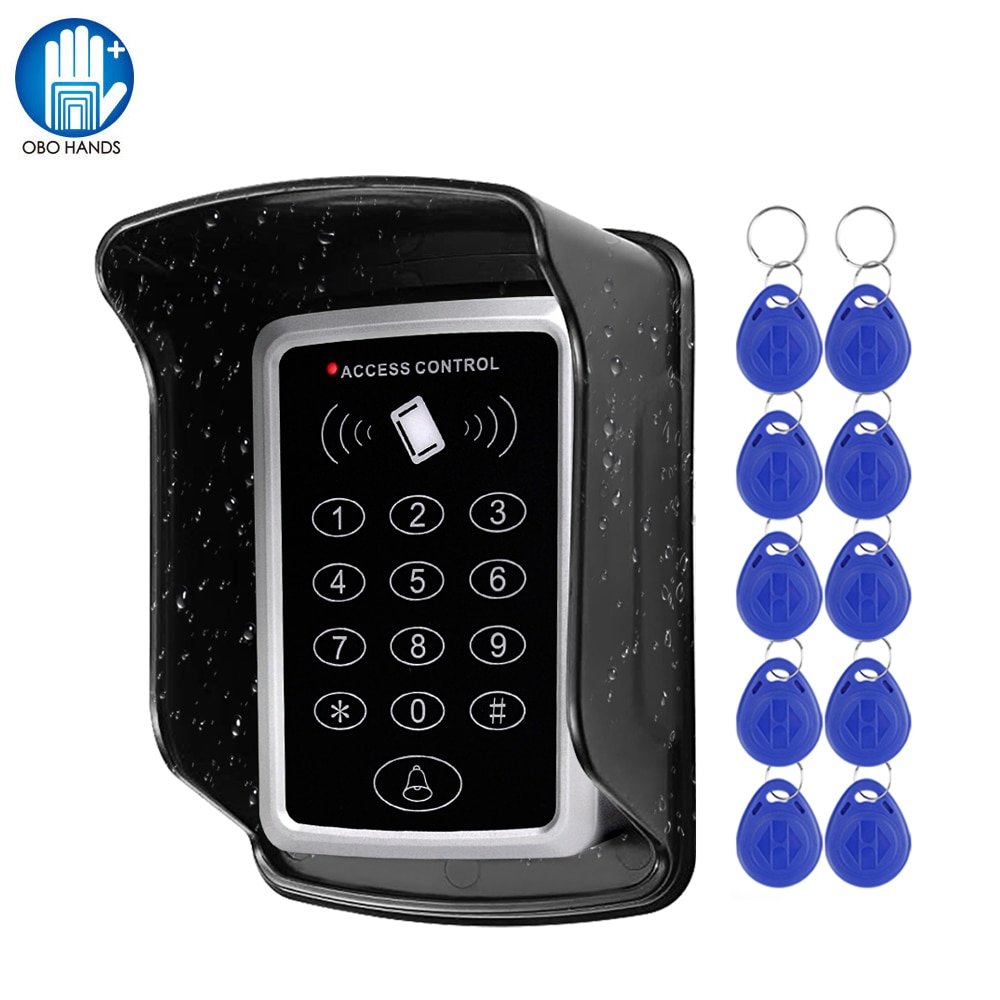

DIYSECUR Proximity RFID Reader 125KHz Keypad Access Controller Security System Kit With Doorbell Button + 10 Free Keyfobs
56.84 $
SALE
ID: 35218
Quantity

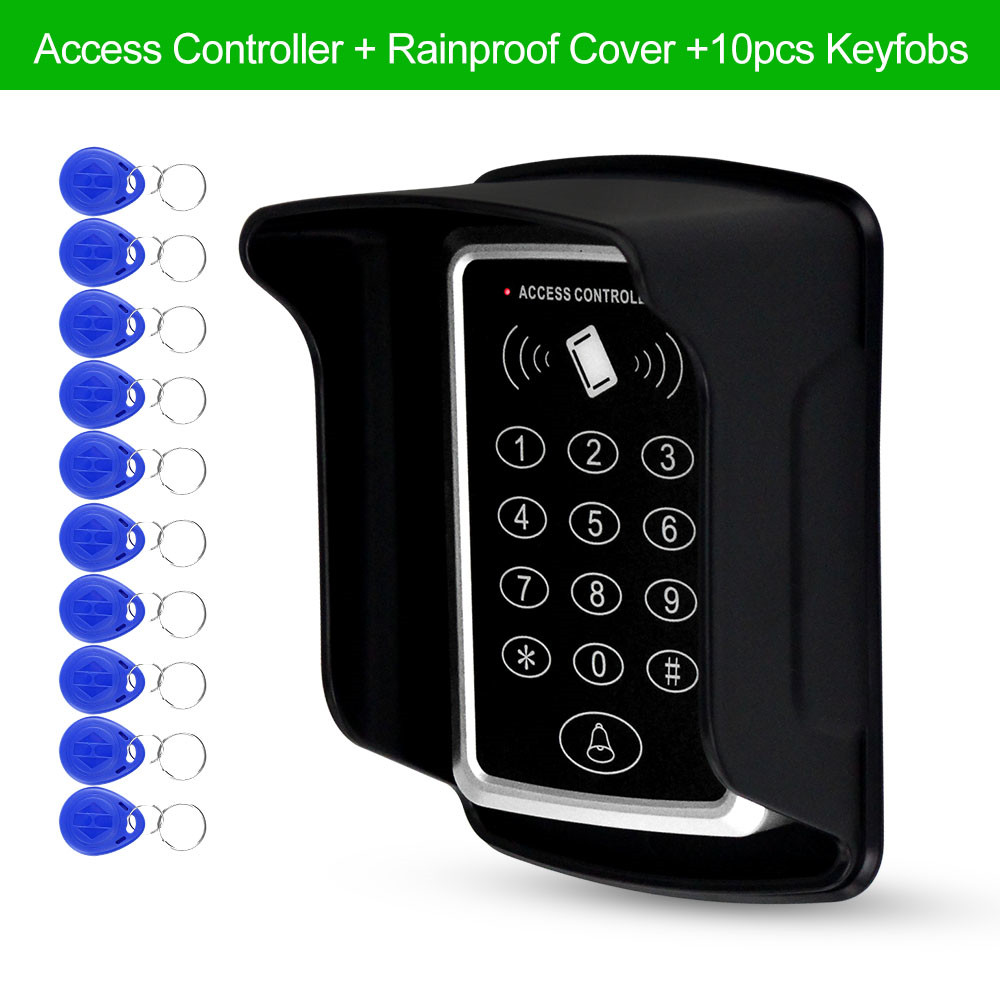

RFID Keypad Keyboard Access Control System Waterproof Cover Outdoor 10pcs EM4100/TK4100 Keyfobs Door Opener for Home Lock System
4.5 (2 votes) | 49 orders
Price:
US $14.66 - 35.74
/ piece
Discount Price:
US $
12.91 -
31.45
/ piece
-12%
- Color
-
-

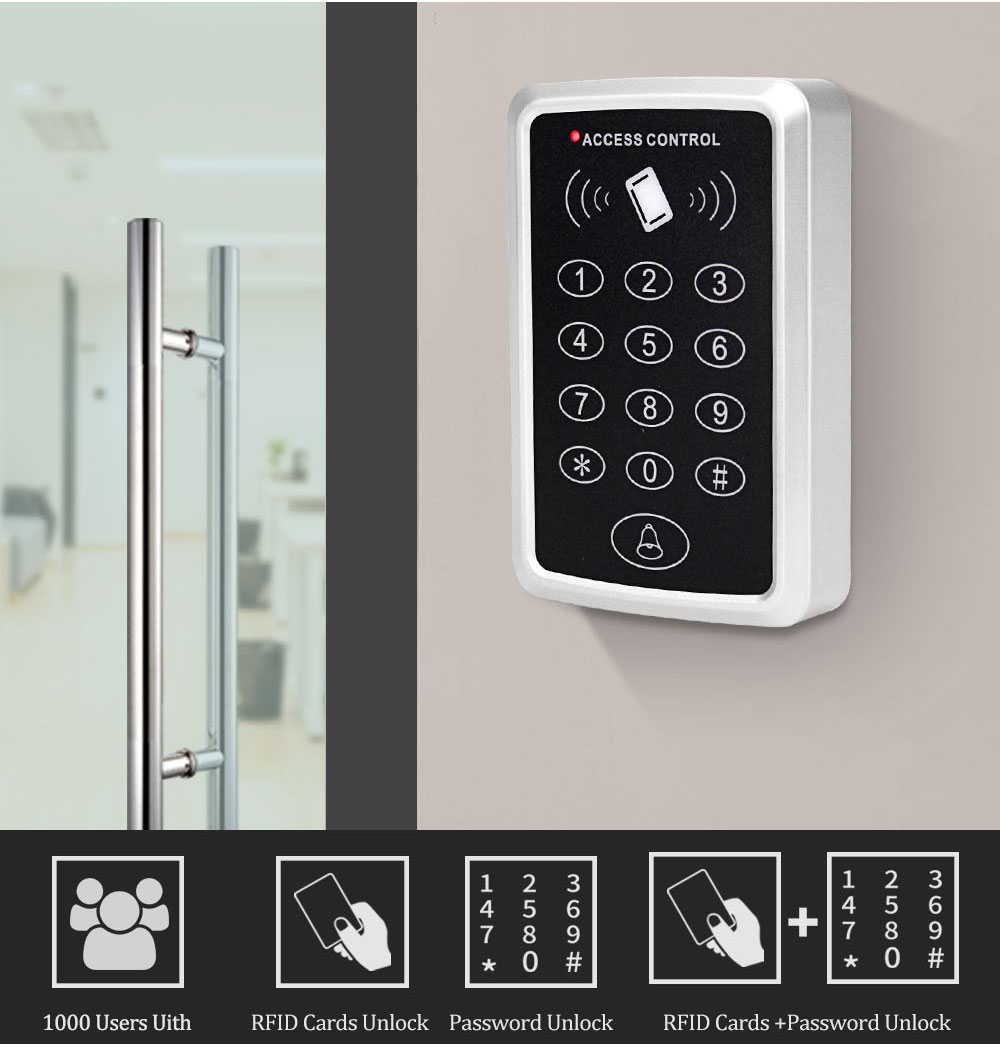

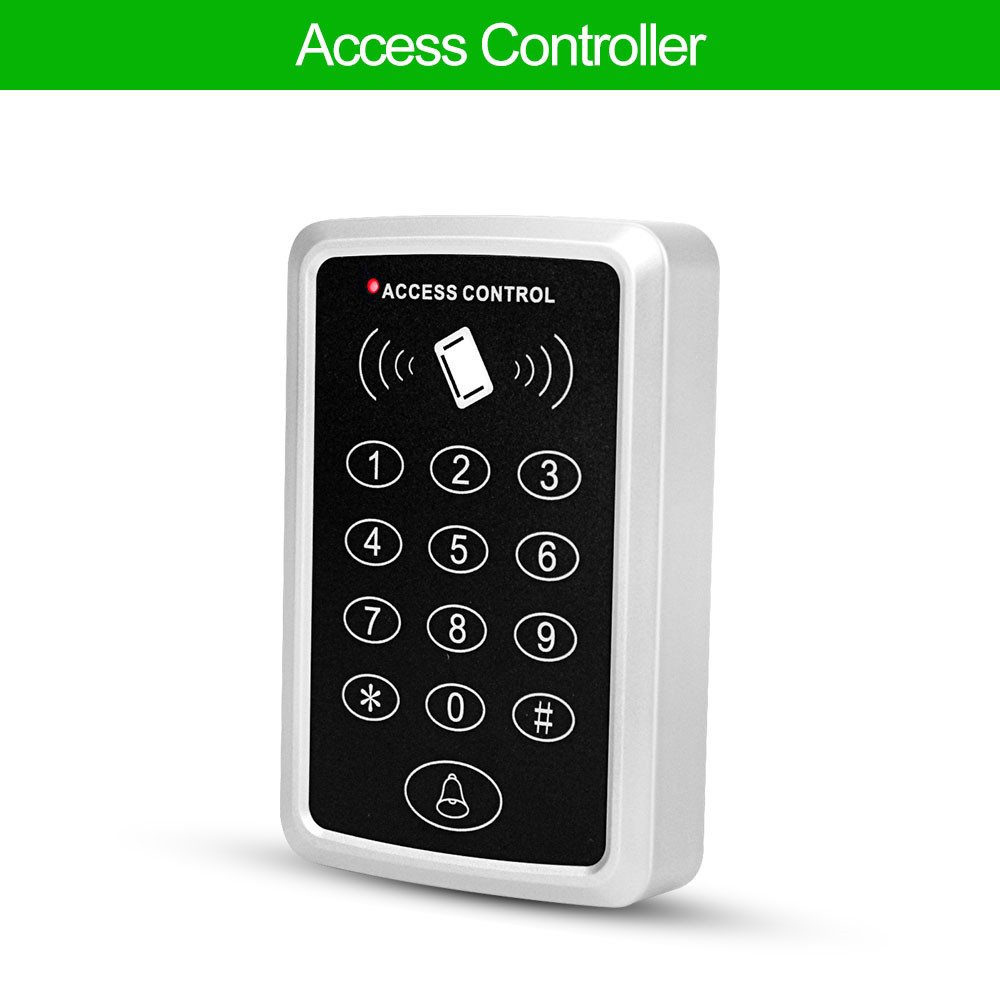

125KHz RFID Standalone Access Control
High quality / 1000 user capacity / 3 unlock method
Product Features
Classical standalone access control adopts high quality plastic material. Based on low power consumption and low cost. Suitable for household, office and department.
* High quality and high security
* Sensitively and response quickly
* Support 1000 standard users
* Support card, password, password plus card to open the door
* Has a door bell button
* Classical Appearance with useful function
* Doesn't need to connect on the computer, can works alone
* Application: Home/ hotel/ office/ department / apartment etc
Product Specifications
- User Capicity: 1000 user cards

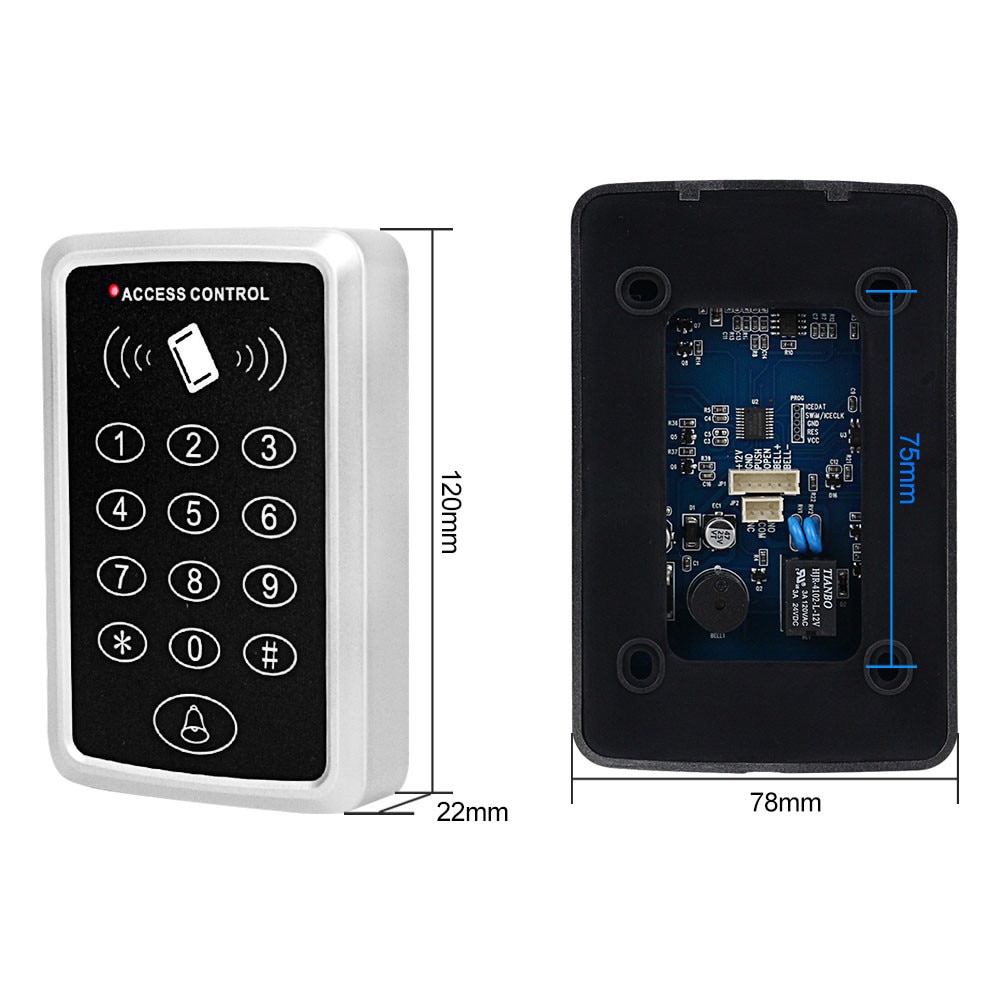

- Dimension: 120mmx78mm×22mm(L×W×H)
- Working Frequency: 125KHz
- Working Current: <100mA
- Working Voltage: DC12
- Working Temperature: -10 to +60
- Reading Distance: 0-10cm
- Relative Humidity: 20%-90%

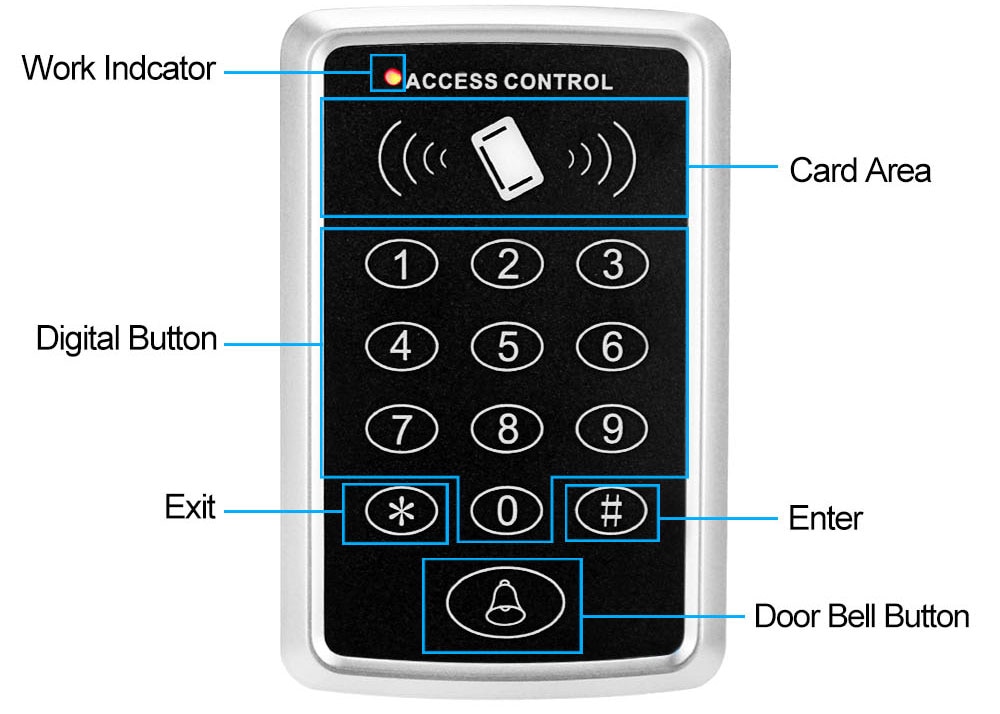

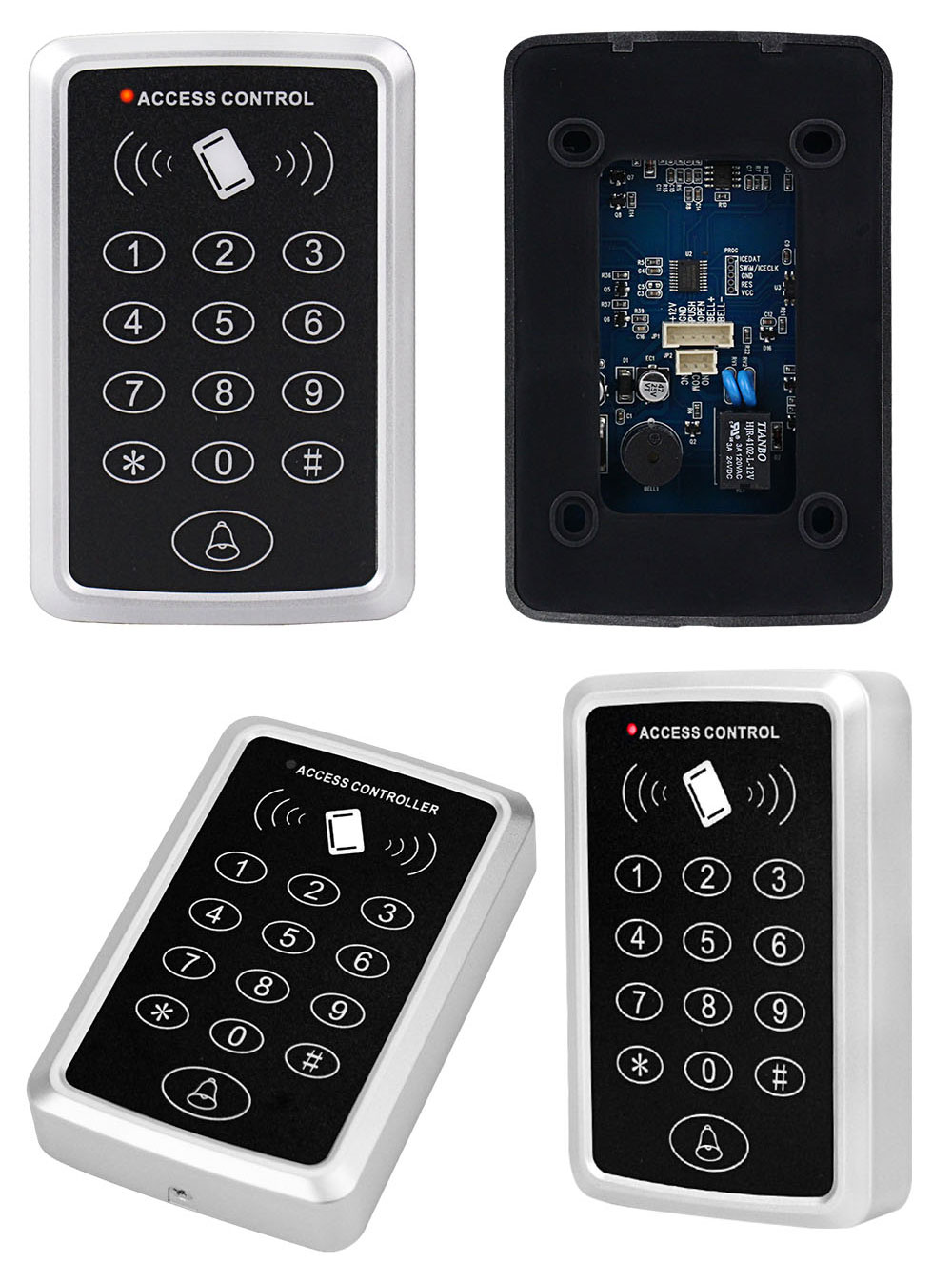

Product Details
1. Made of High quality material, safe and durable

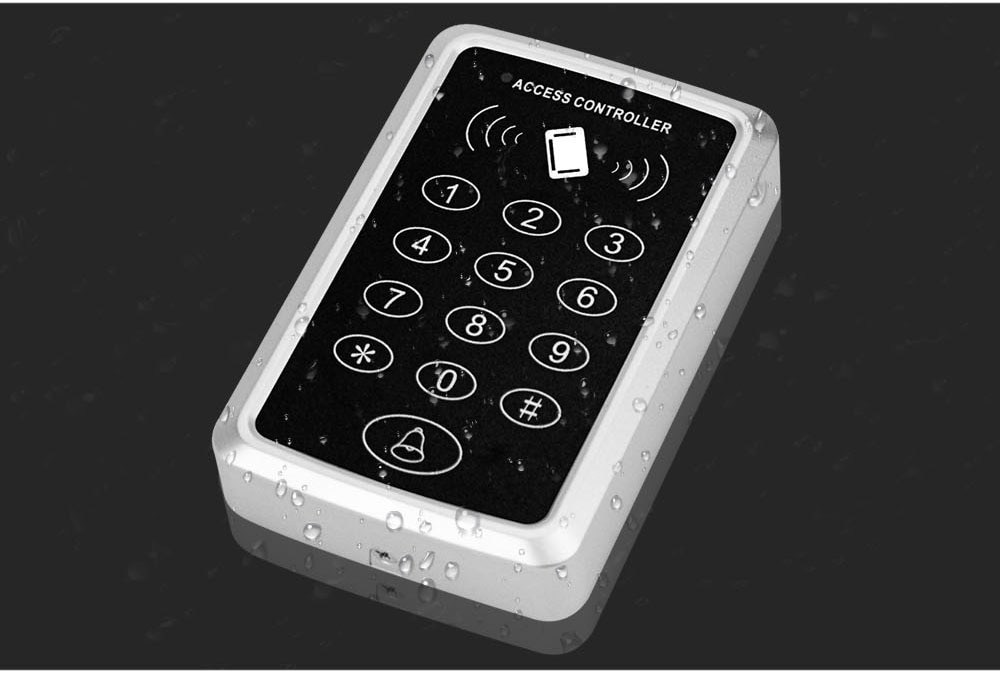

ABS fireproof material, make the product more secure and durable, anti-vandal, anti-tamper, suitable for different enviromental installation. (The surface is waterproof, but not IP65 waterproof, can't be used under the heavy rain)

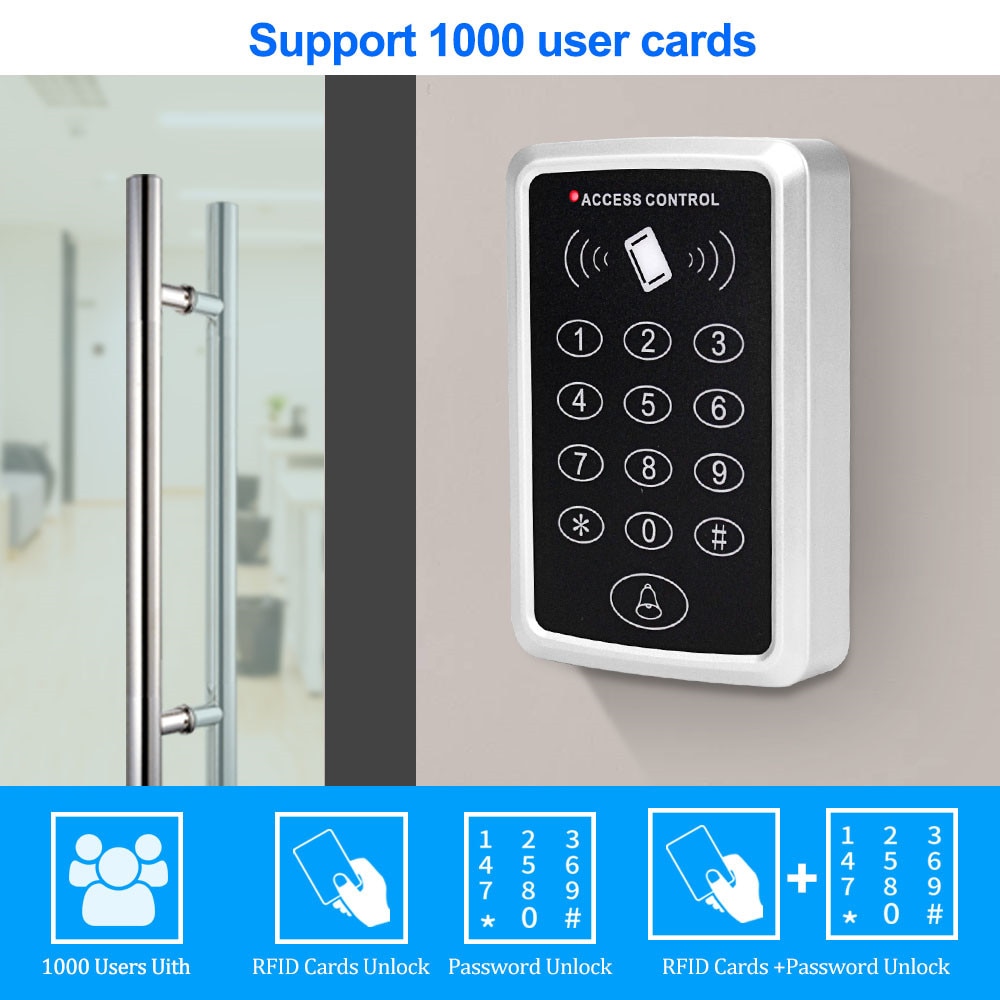

2. Support 1000 user cards. and 3-6 digits password. Has 3 different unlock method.
( unlock with rfid card, password, rfid card + password)

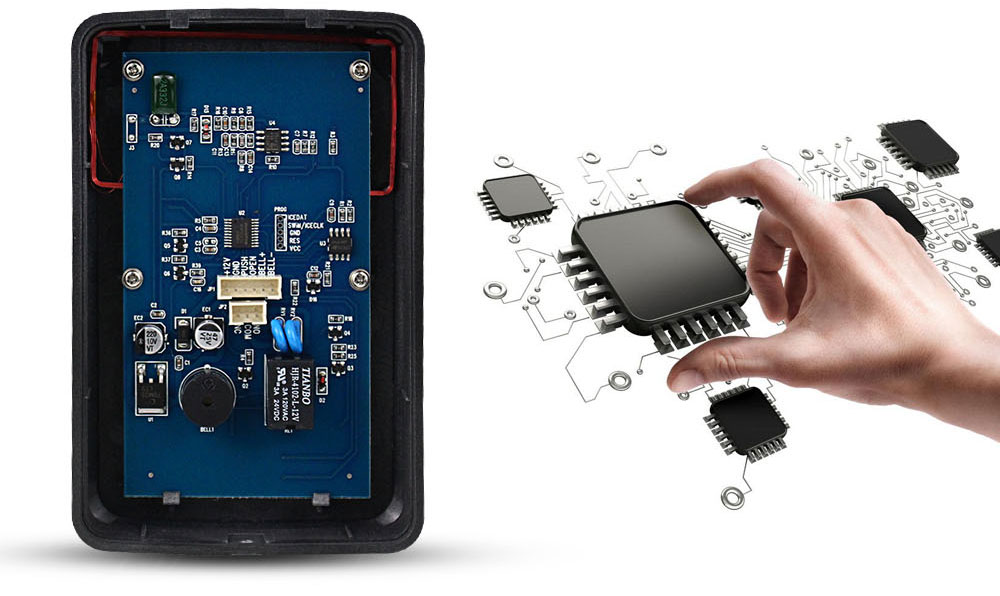

3. Easy install and operation
Based on advanced technology, fast recognition speed, high sensitivity. Suitable for most major access control solution.

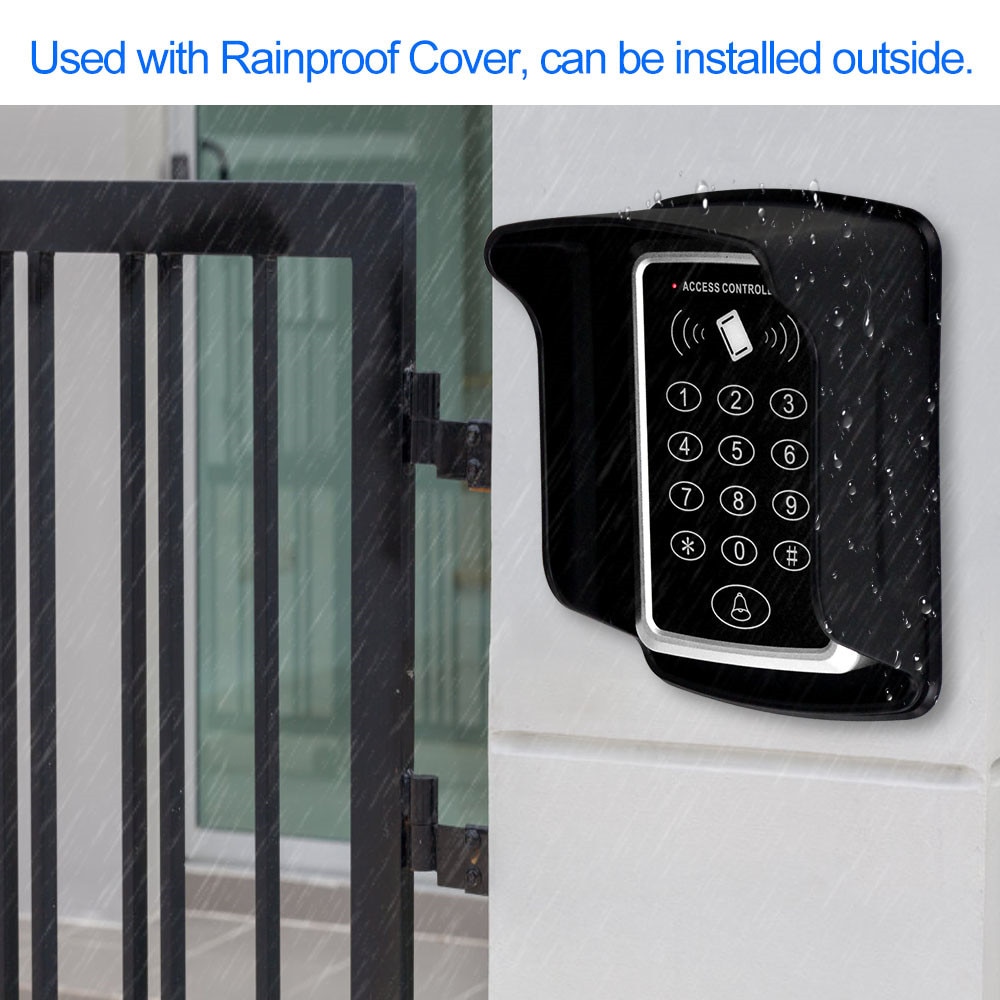

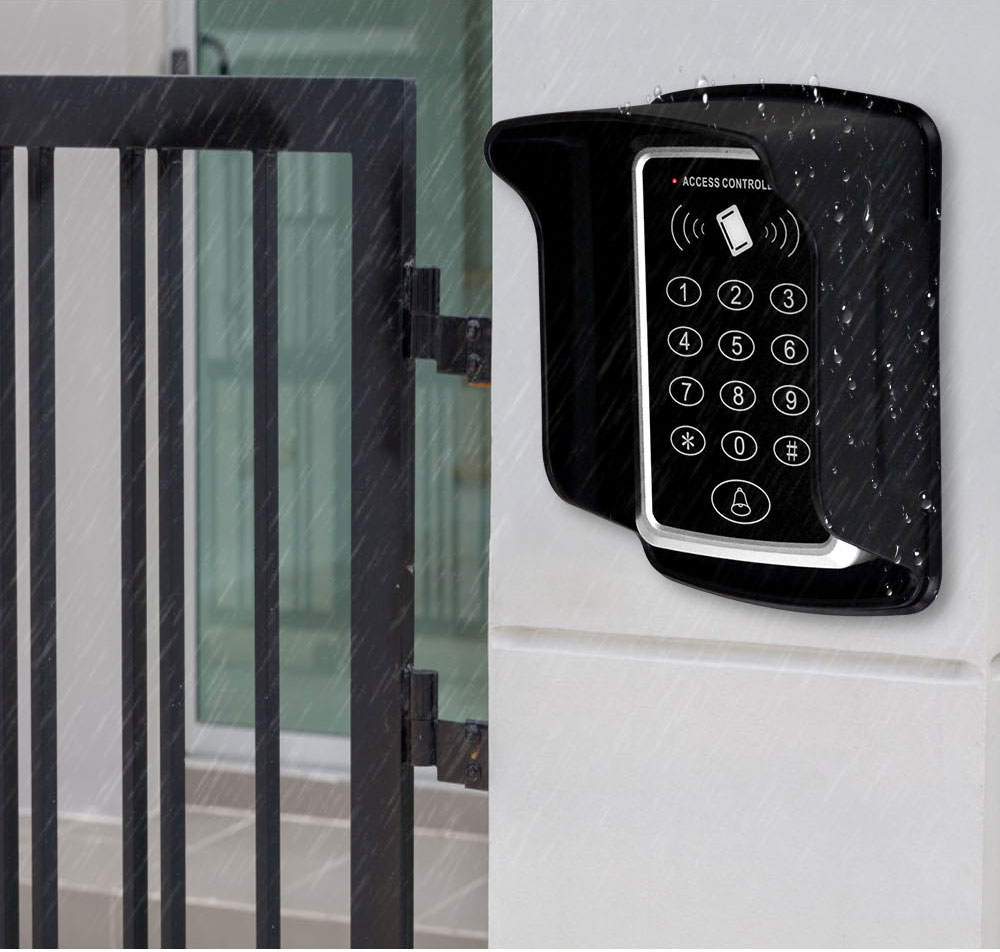

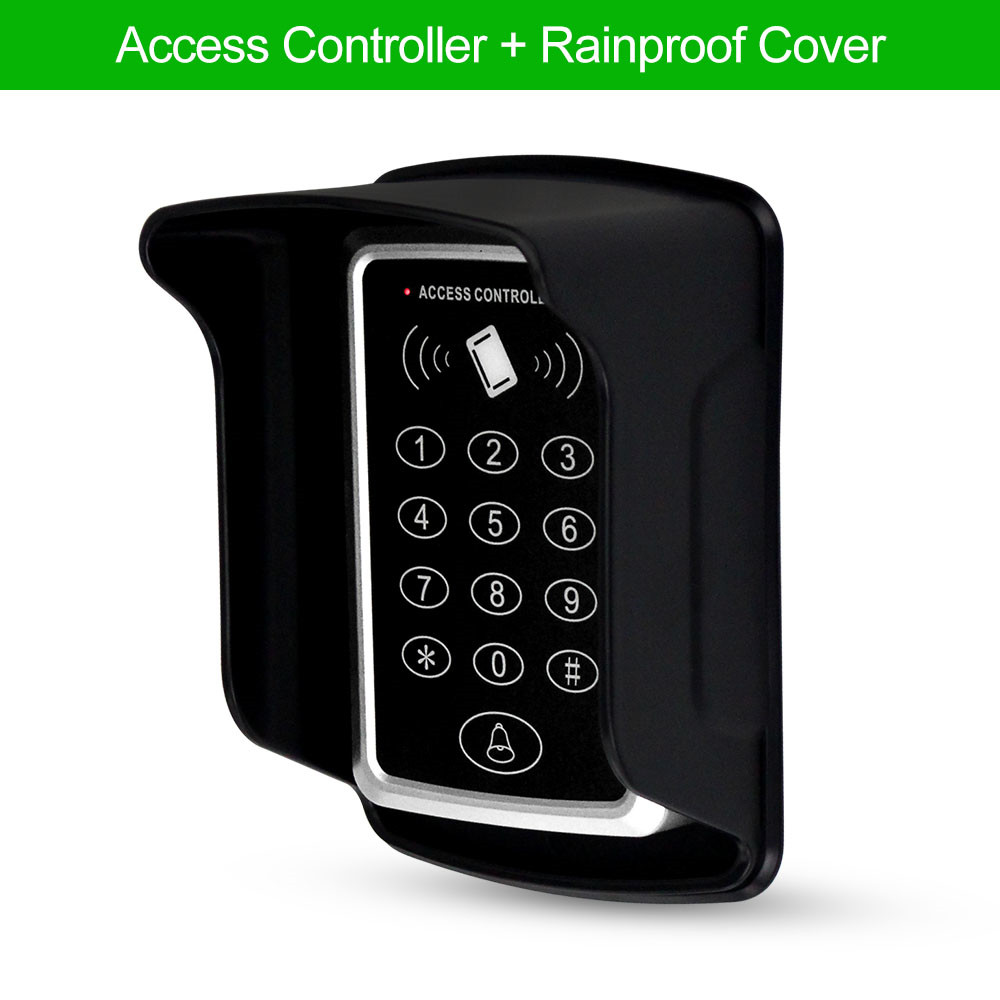

4. Used with Rainproof cover, can be installed outdoor.
Product Analysis

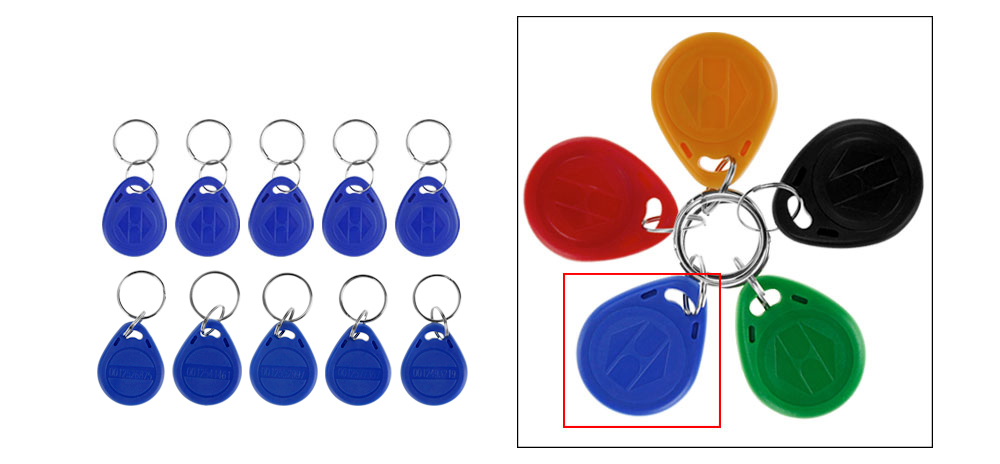

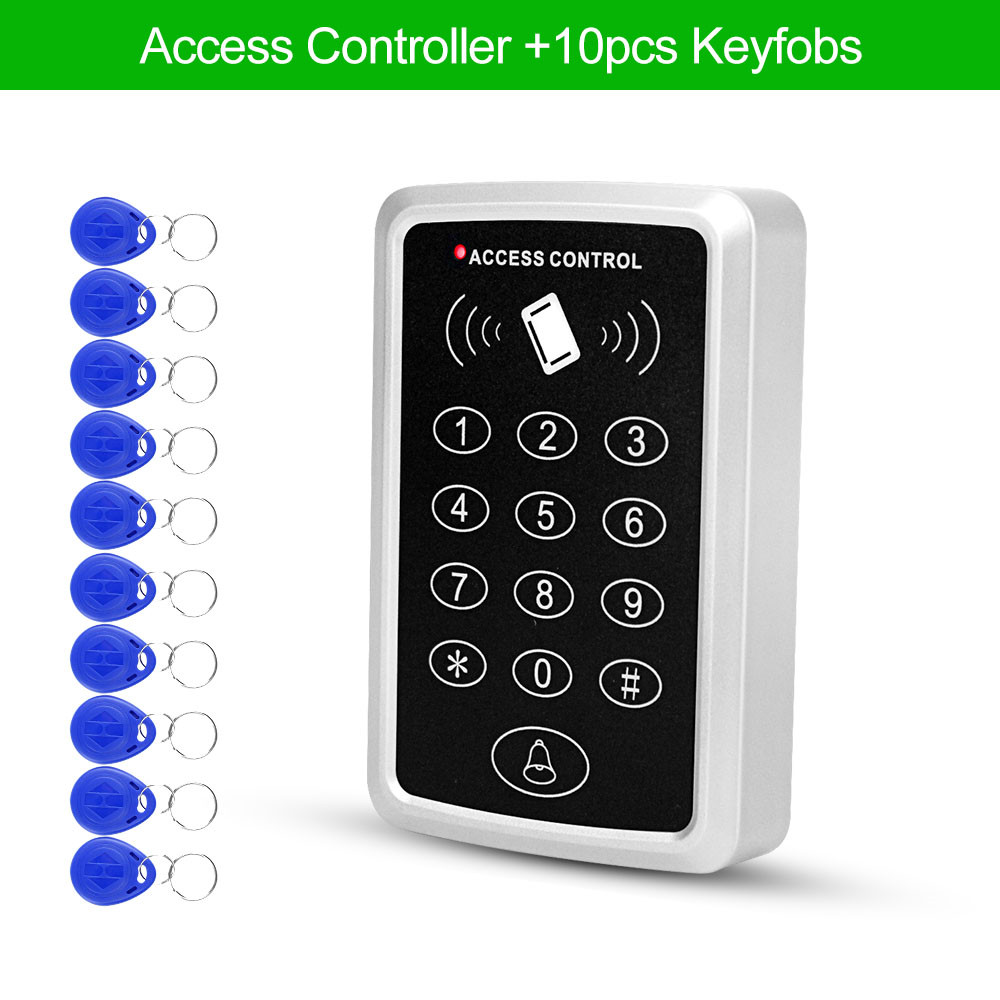

10pcs RFID Keyfobs (blue)
You can read these keys on the access controller keypad to open the door convenient. Only the key finished programed with our instruction then can be open the door.
Working Frequency: 125KHz
With ABS high quality
Each one has unique ID number on it
Reading Range: 1-10cm
Color: Red, Blue, Yellow, Green, Black (We will send 10pcs BLUE color usually, if you want other color, please leave us a message)
Quantity: 10pcs ( If you want more, please contact us )

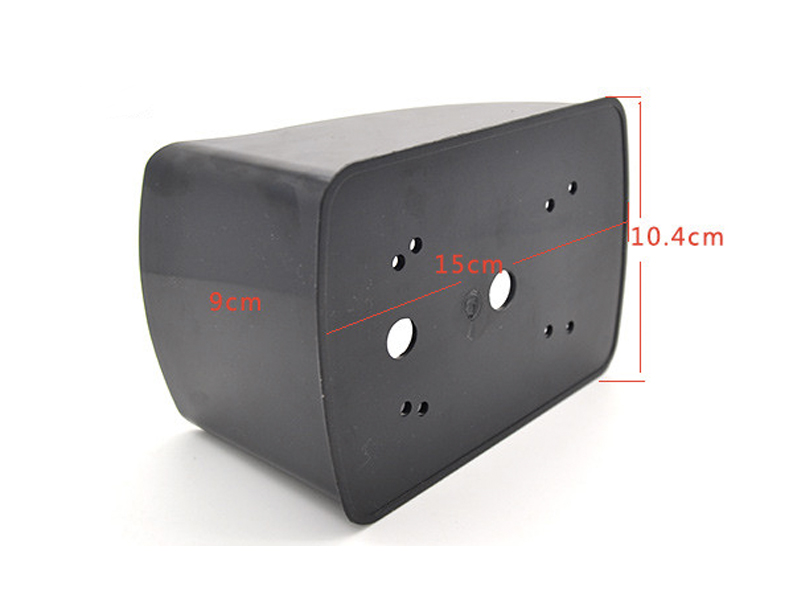

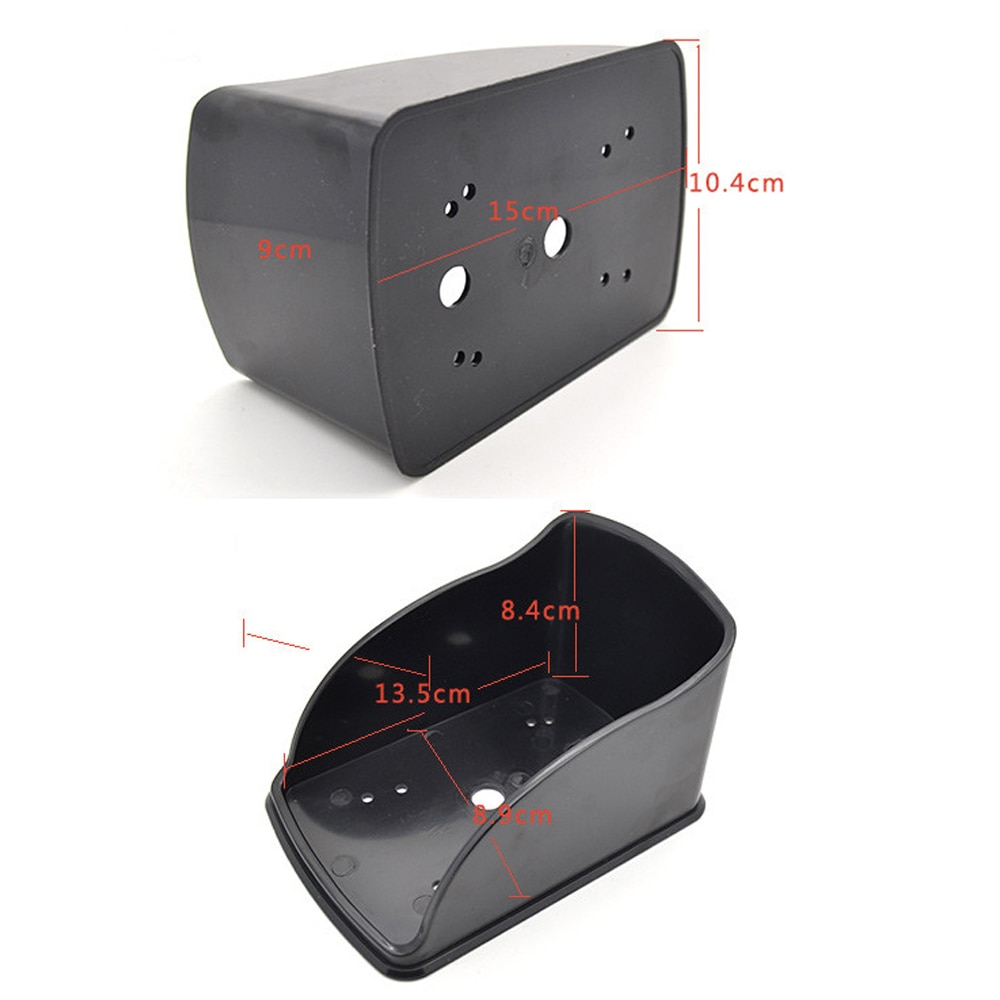

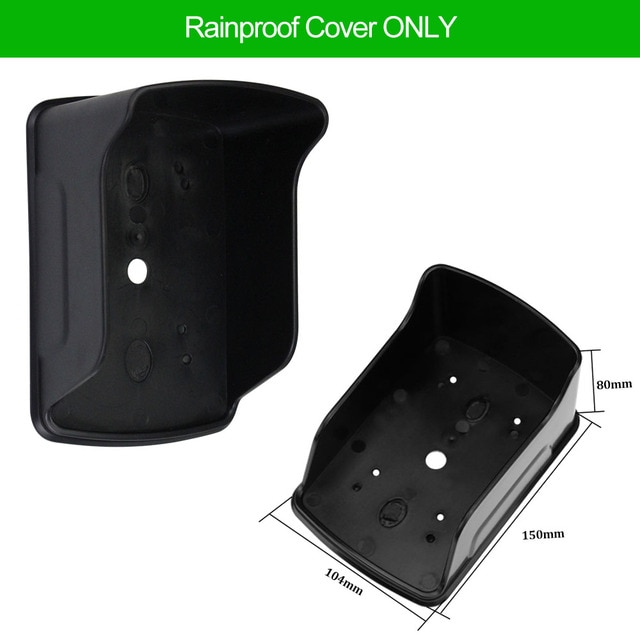

Rainproof Cover
This waterproof shell is suitable for fingerprint device, access controller, standalone rfid door access controller, which length is less than 13cm, width is less than 8cm.
Dimension:
Outside: 15cm*10.4cm*9cm (L*W*H)

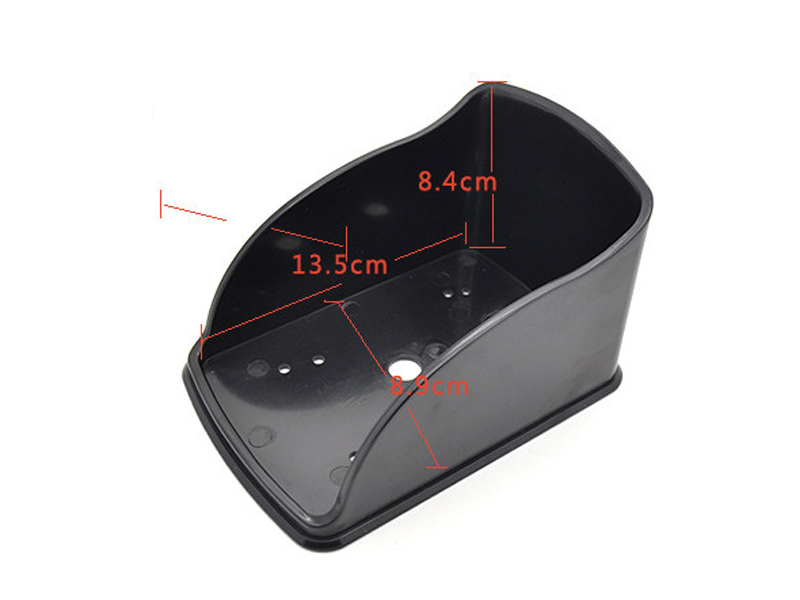

Inside: 13.5cm*8.9cm*8.4cm (L*W*H)
( The 7612 model access control is still working when there are some water on the surface, but can’t be use in rain directly. If you want to install item outside, please buy this rainproof cover to protect it. )

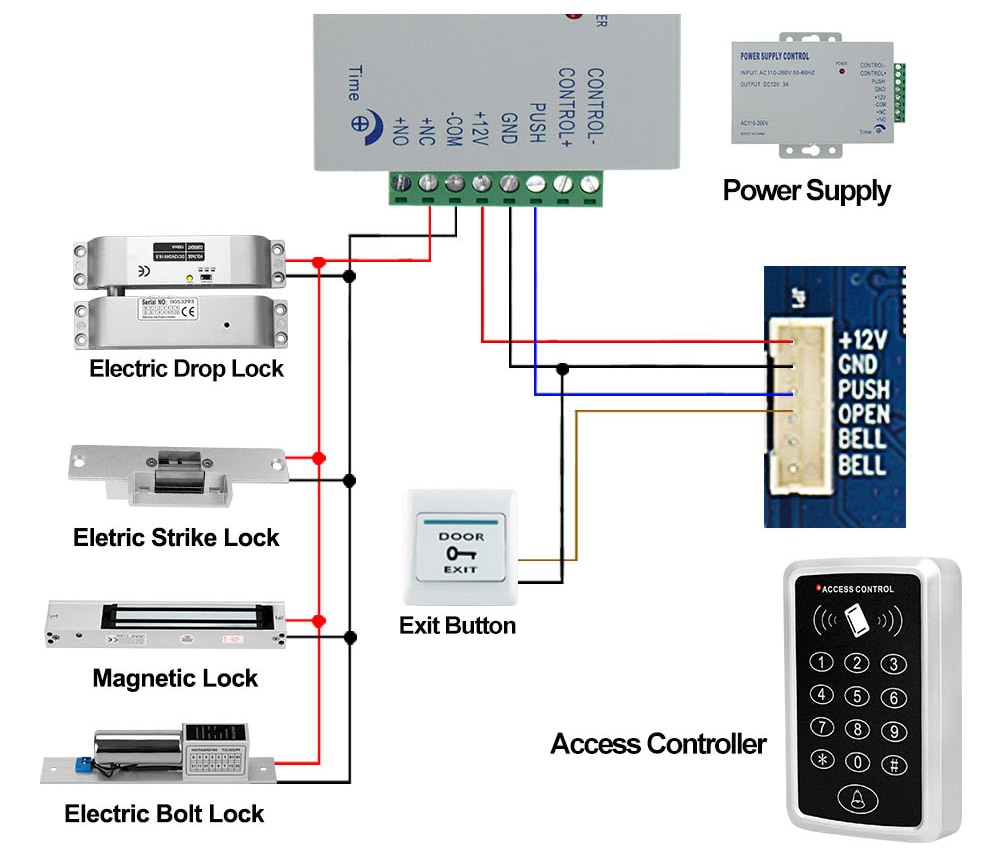

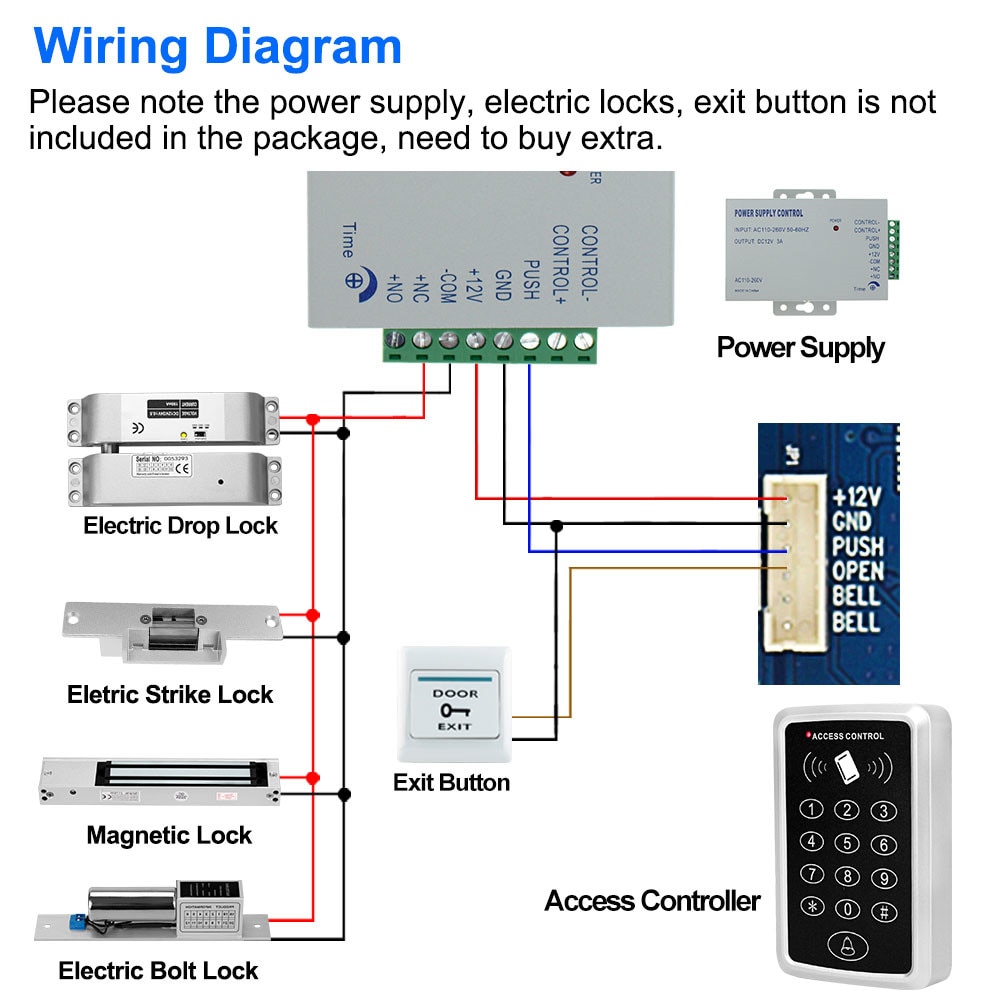

Wiring Diagram
This Access Control Keypad is don't need to connected to the computer. You just connect it to the DC12V power supply, electric lock, exit button. Then ok.
The power supply and electric lock, exit button, door bell is not included in the package, if you need it, please contact us. Thank you!
Installations Guide
- Model Number: T12+10+FYG
- Brand Name: OBO HANDS
- Type: RFID access control
- Support: RFID card, password, RFID card+password
- Working voltage: DC 12V+-12%/1.2A
- User card capacity: 1000
- Working frequency: 125KHz
- Card Read Range: 0-6cm
- Door bell function: support
