RFID Biometric WiFi Dynamic Facial Time Attendance Access Control System + DC12V NC/NO Door Lock + Infrared Switch with Software
2.0 (1 votes) | 3 orders
Price:
US $332.63 - 378.78
/ piece
Discount Price:
US $
237.37 -
269.67
/ piece
-29%
- Color
-
-
Attentions:A complete set of entrance guard system for wooden doors, iron doors and glass doors, which you can choose according to the type of your door. If you don't know how to choose, please contact us after taking a photo of the door, thank you.
WIFI & RFID Dynamic Facial Time Attendance & Access Controller
Product Features:
1) 4.3inch TFT LCD Color screen. Made of high quality material.
2) Working with DC12V, will supply a DC12V power plug.
3) Has high-resolution infrared night vision light and professional color duo camera, can carry out quick verification in any environment.
4) Dual light source ( 2 infrared light + white light). Can be recognize even at dark.
5) 0.1s identification speed, Very fast! Support face detection distance 0.5-2 Meters.
6) Working with both 125KHz and 13.56MHz frequency. Support both EM and Mi-fare cards.
7) Support facial, password, RFID card (Optional ), 200000 record capacity. User capacity: 2000pcs and 5000pcs optional (Default is 2000pcs).
8) Supports face, password, RFID card and various combination methods, in order to satisfy the demands of different users.(optional)
9) T9 input method editors, on the machine name, Department, frequency and other information, can be directly output attendance reports, very easy to operate.

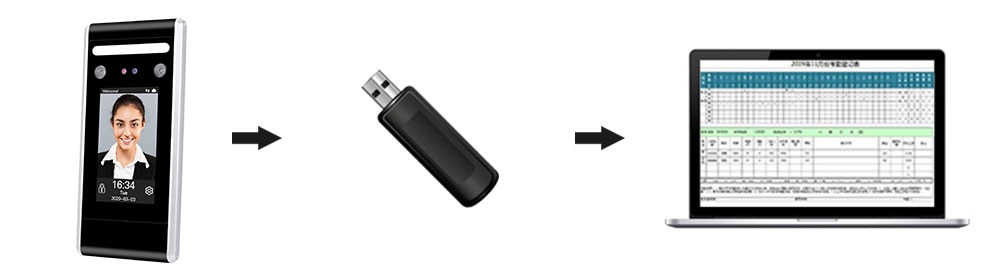

10) Support WIFI / TCP/ IP communication method. Support USB Flash drive upload download attendance data. (Optional)
11) Has Wiegand26/34 input/output, TTL input/output, relay output
12) Support English menu and humanized voice prompt.
13) Recognizes normally even makeup. Can't be recognize with photos or video.
14) Suitable for the entrances and exits of office, factory, hotel, school, etc.
Product Details:

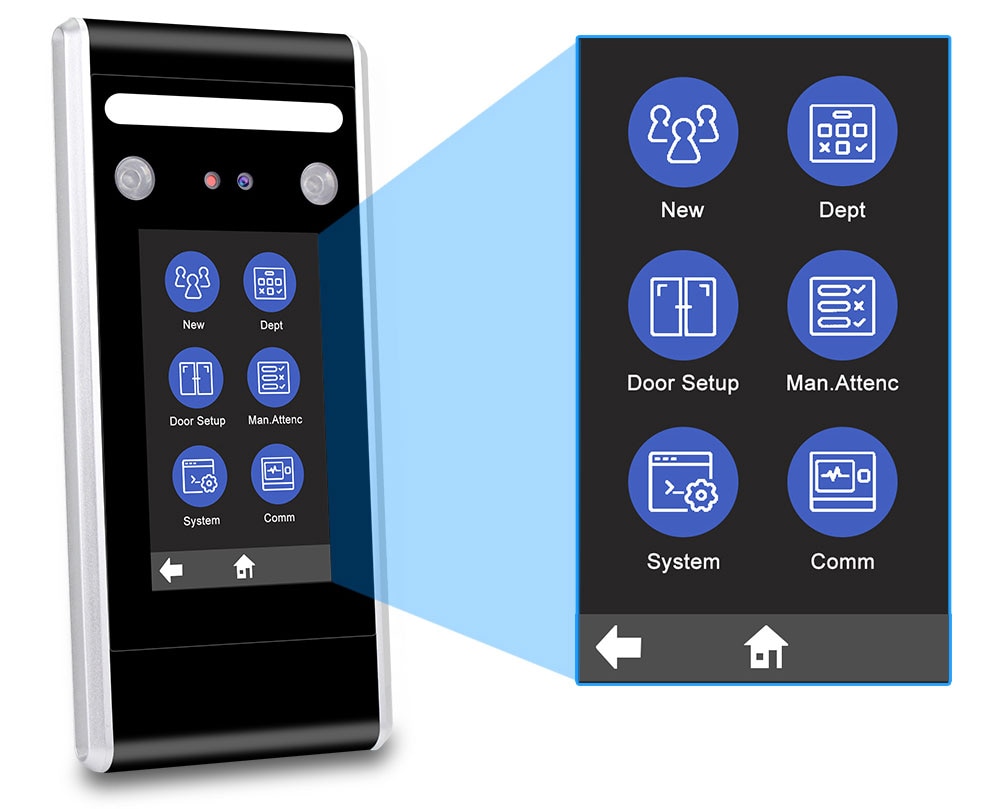

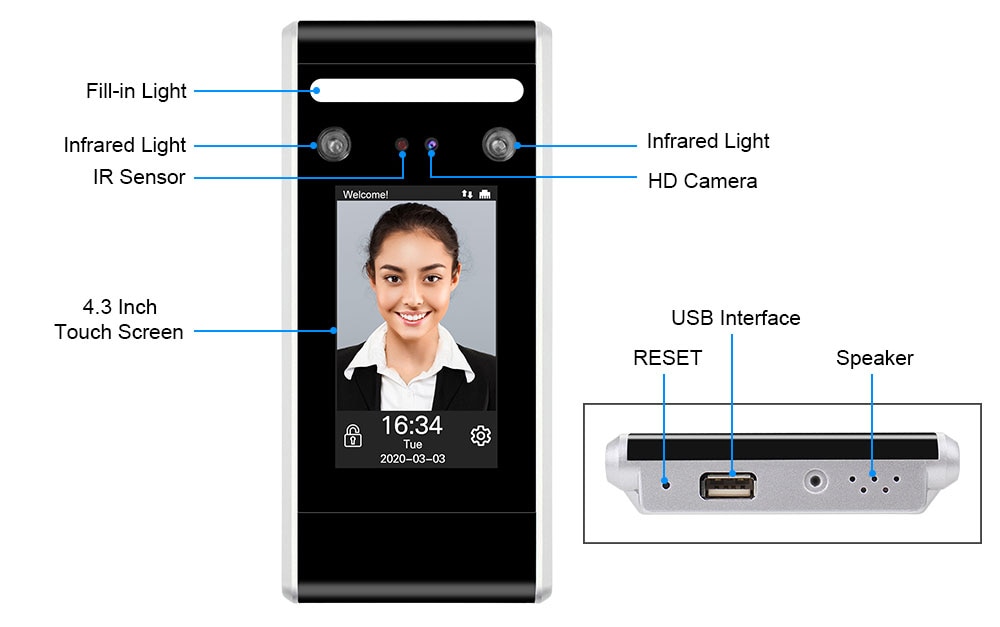

1, 4.3inch TFT LCD Touch Color Screen. English interface. Very easy to operate.

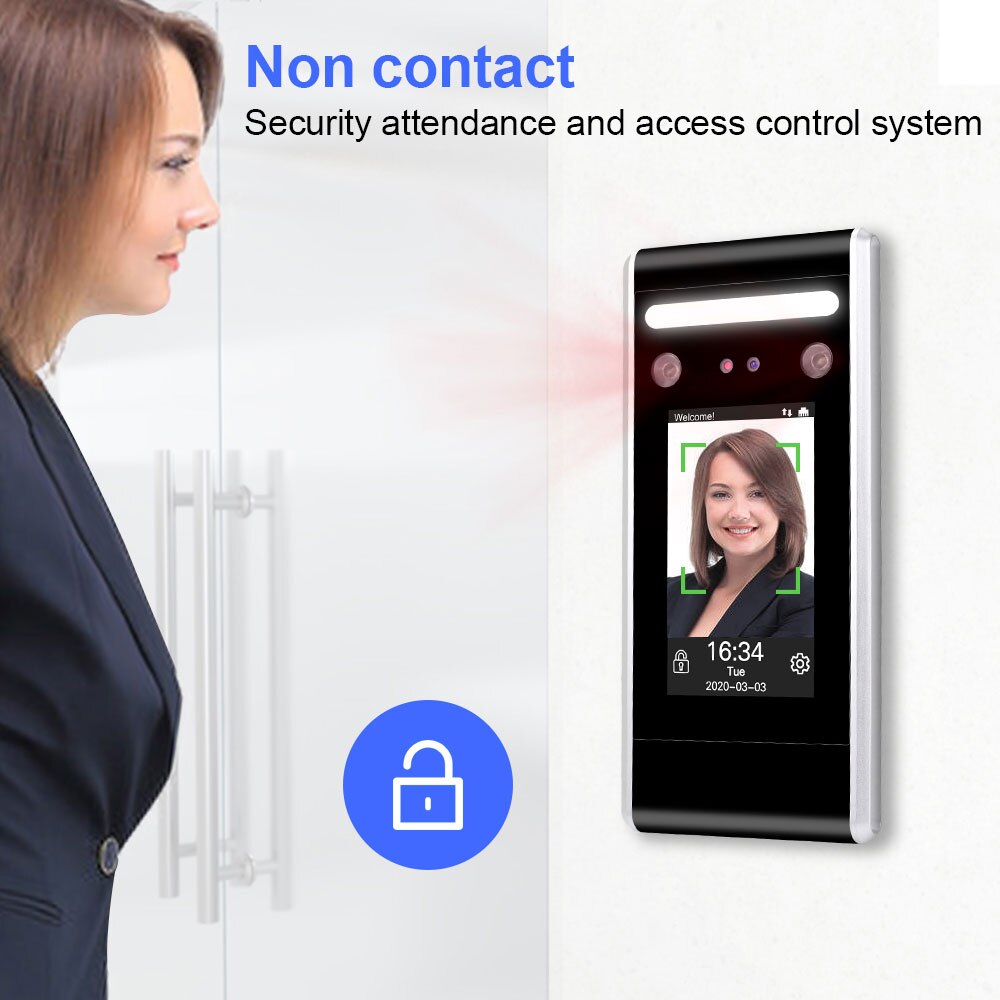

2, Dynamic Face Identification. Save a lot of time

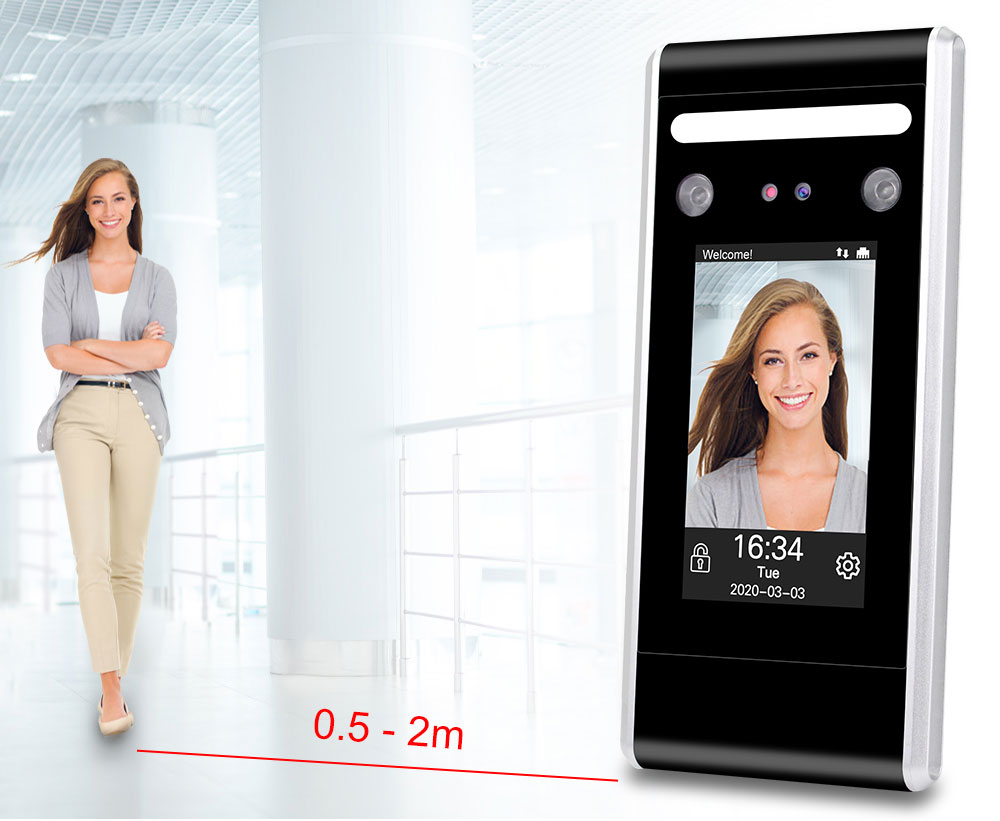

Wide angle detection of dynamic faces, fast face recognition in 0.1 seconds the recognition distance is up to 2 meters. Installation height can be 1.2-1.5 meters

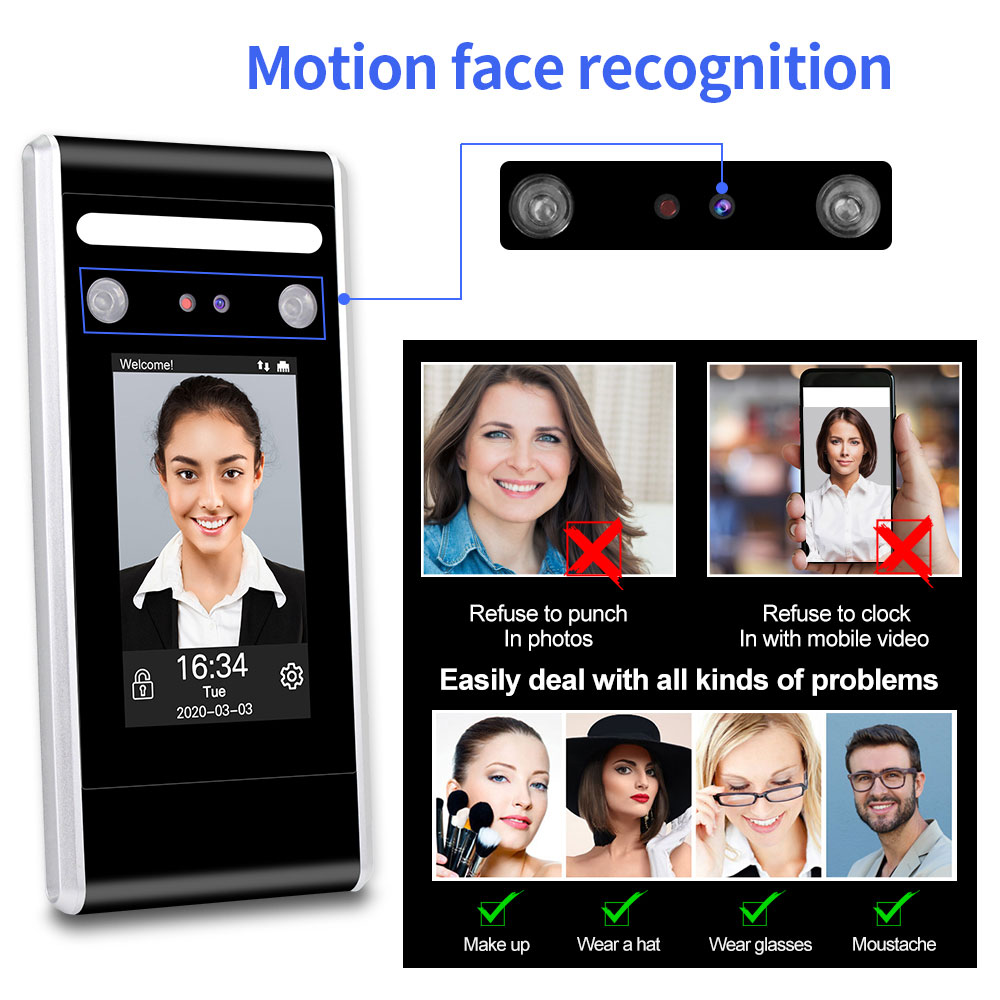

3, Intelligent face recognition, Easily deal with all kinds of problems
Item not only prevents employees from using photo or video attendance, but also intelligently recognizes changes in your appearance. Even if you have makeup, hats, and glasses, you can quickly identify them without queuing.

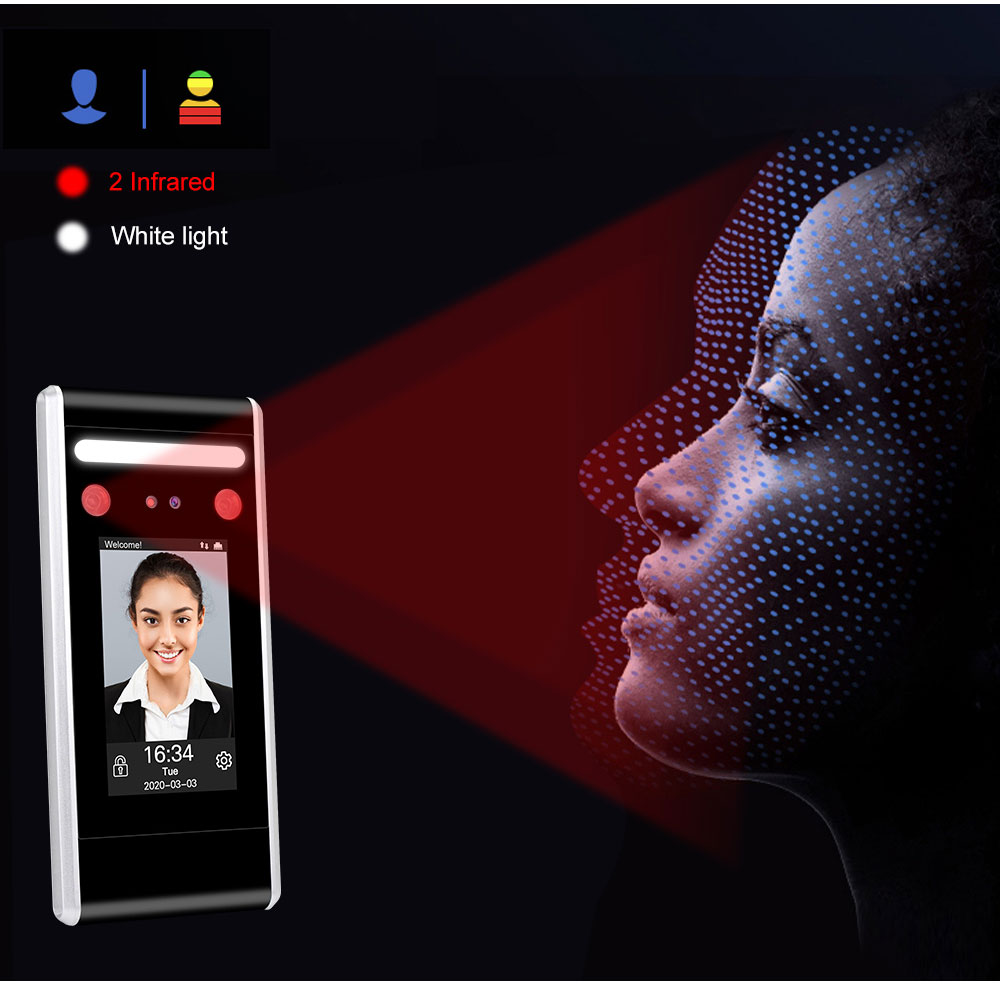

4, Built in HD Dual light source ( 2 infrared light + white light), can be recognize even at dark
With its high-resolution infrared night vision light and professional color duo camera, it can accurately identify and verify the second speed even in the extremely dark or extremely bright environment.

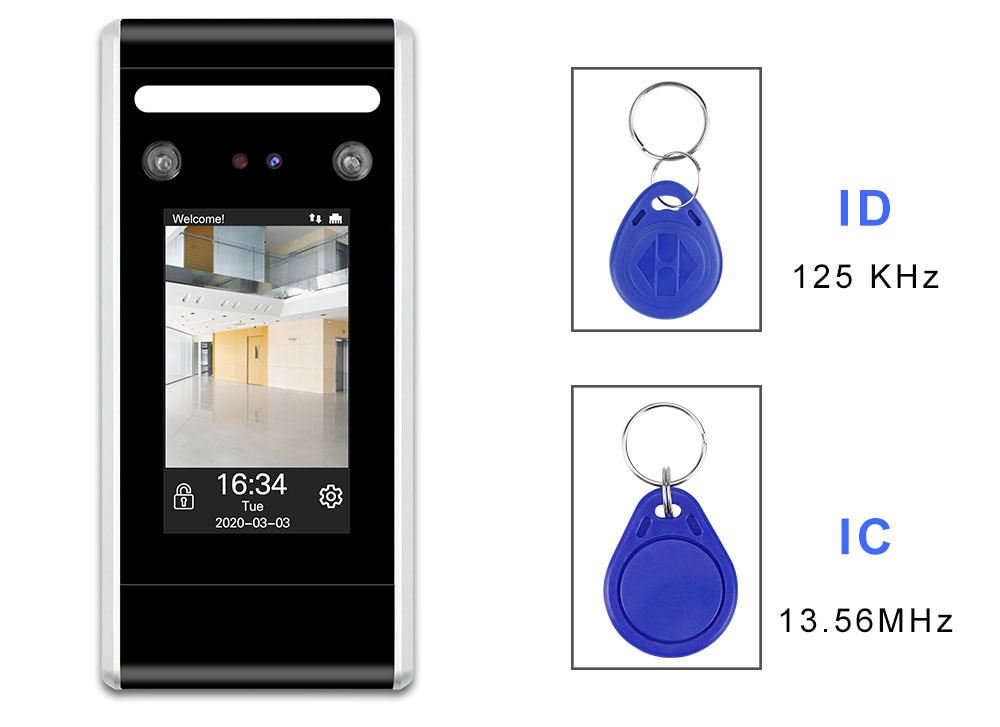

5, Support both 2 types RFID Card verification (Optional)
Support smart sensing technology, identify sensitive, you can open the door with RFID card convenient. Works with both 125KHz and 13.56MHz frequency, EM and Mi-fare cards. (not all machine support this function).

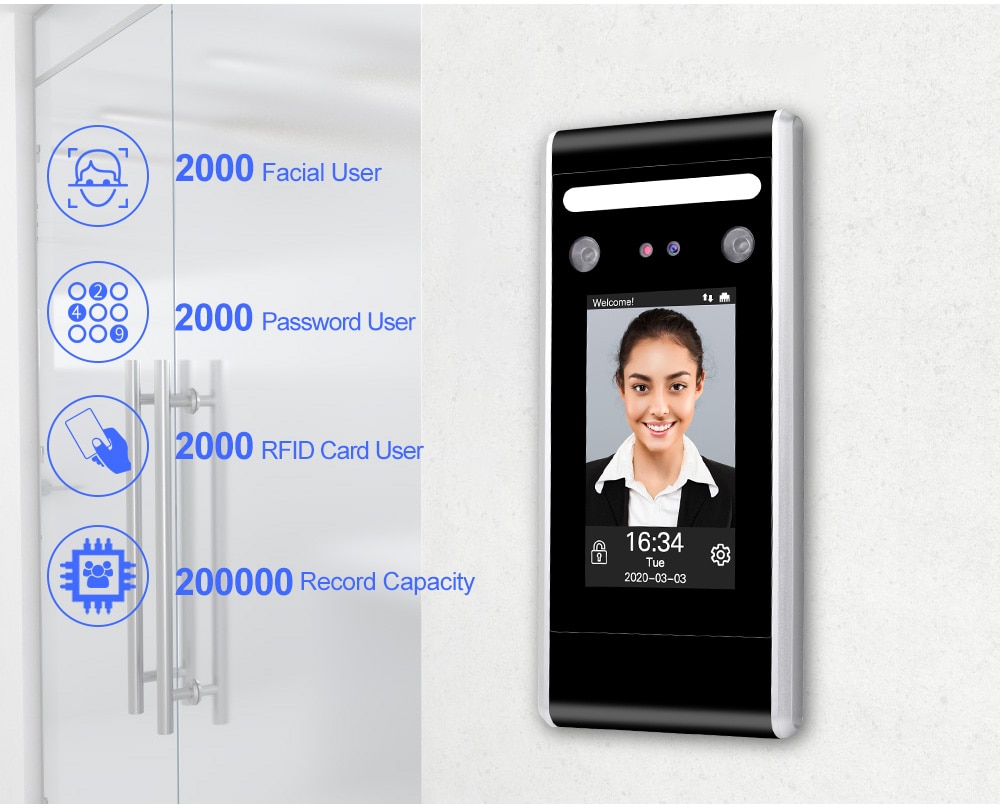

6, Large capacity. Don't worry about the loss of attendance records
Large-capacity high-speed memory, support 2000 face, 2000 password, 2000 RFID cards (optional), 200,000 record capacity. Suitable for enterprises of all sizes (If you need a large capacity, we also have 5000 user capacity version, which is support 5000 face, 5000 password.)
Support off-line or TCP / IP using, or support WIFI
1, This device support to check-in to attendance without networking. Doesn't need to wiring and connect the network. Support to use U-disk to download and upload the attendance report data. (Doesn't include U disk. If you need it, you should buy it in additional.)

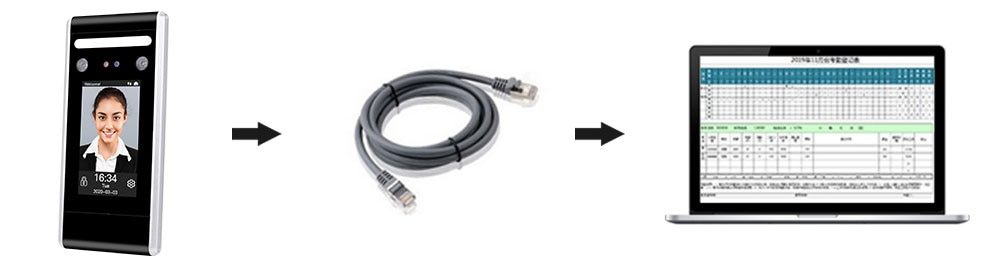

2, This device support to connect to computer through the TCP/IP communication network, download the attendance report data on the computer.

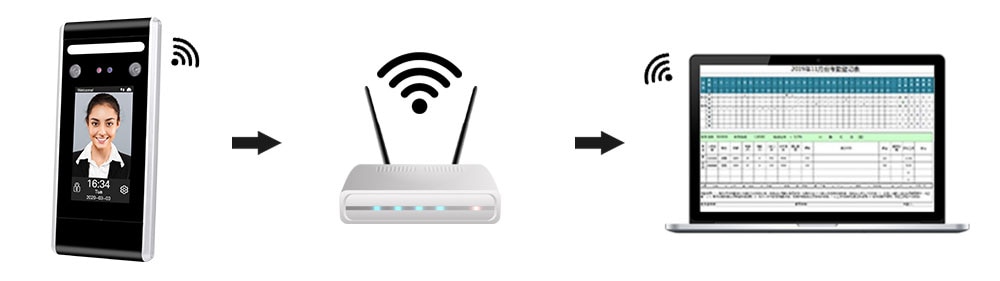

3, This device support to connect to computer through the Wifi communication network, download the attendance report data on the computer.
Product Analysis:

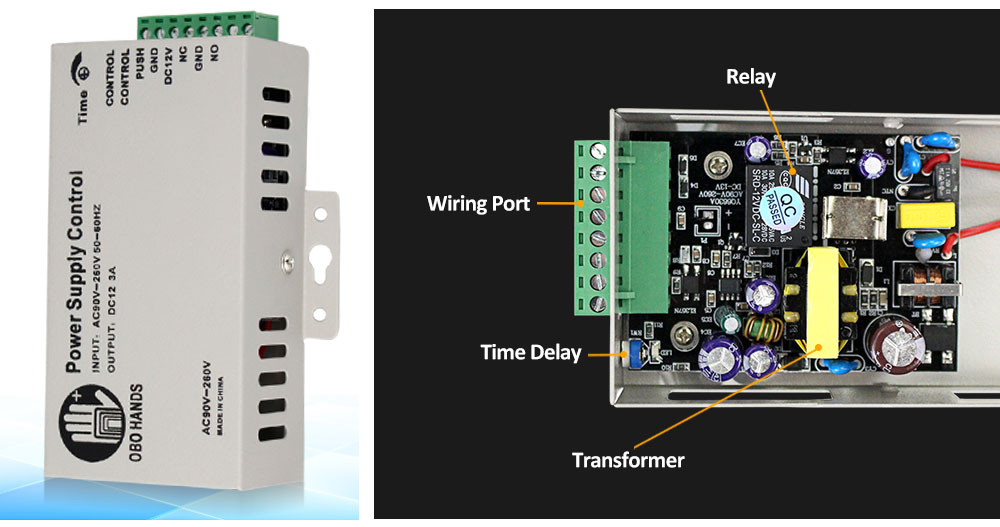

Access Control Power Supply
Product Features:
1. This DC12V / 3A power supply. Just only suitable to control one lock.
2. With Control, Push, GND, DC12V, NC, NO port, can be work with all kinds of electric locks.
3. With 0-30 seconds time delay adjustable.
4. Working input voltage of AC90-260V, more freedom.
5. Less Power consumption, and high power. Small switching transistor.
Product Specifications:
Input Voltage: AC90V-AC260V 50-60HZ
Output Voltage: DC12V
Momentary Current: 3A
Persistent Current: 3.5A
Operating Temperature:﹣20℃~﹢60℃
Operating Humidity: ≦90%
Time Delay: 0~30S
Remote control function: Yes

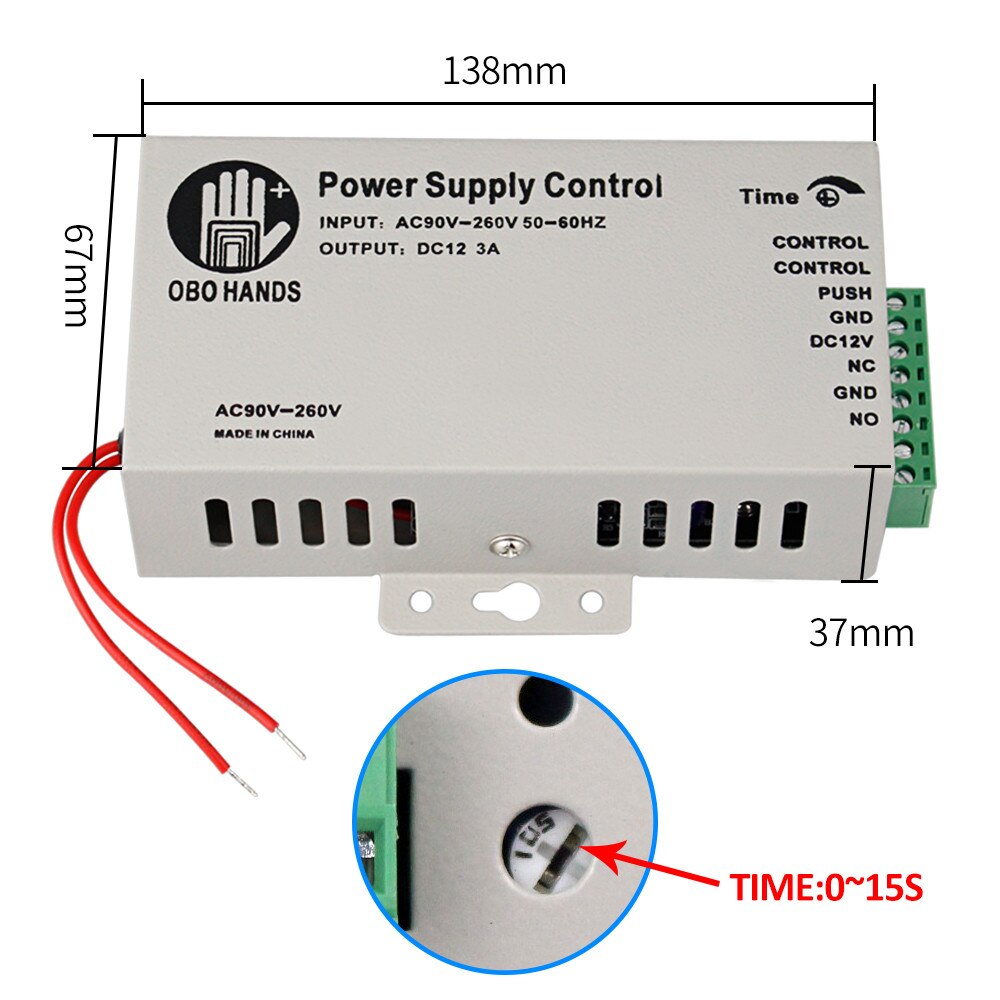

Dimension: 138X67X37mm( L/W/H )

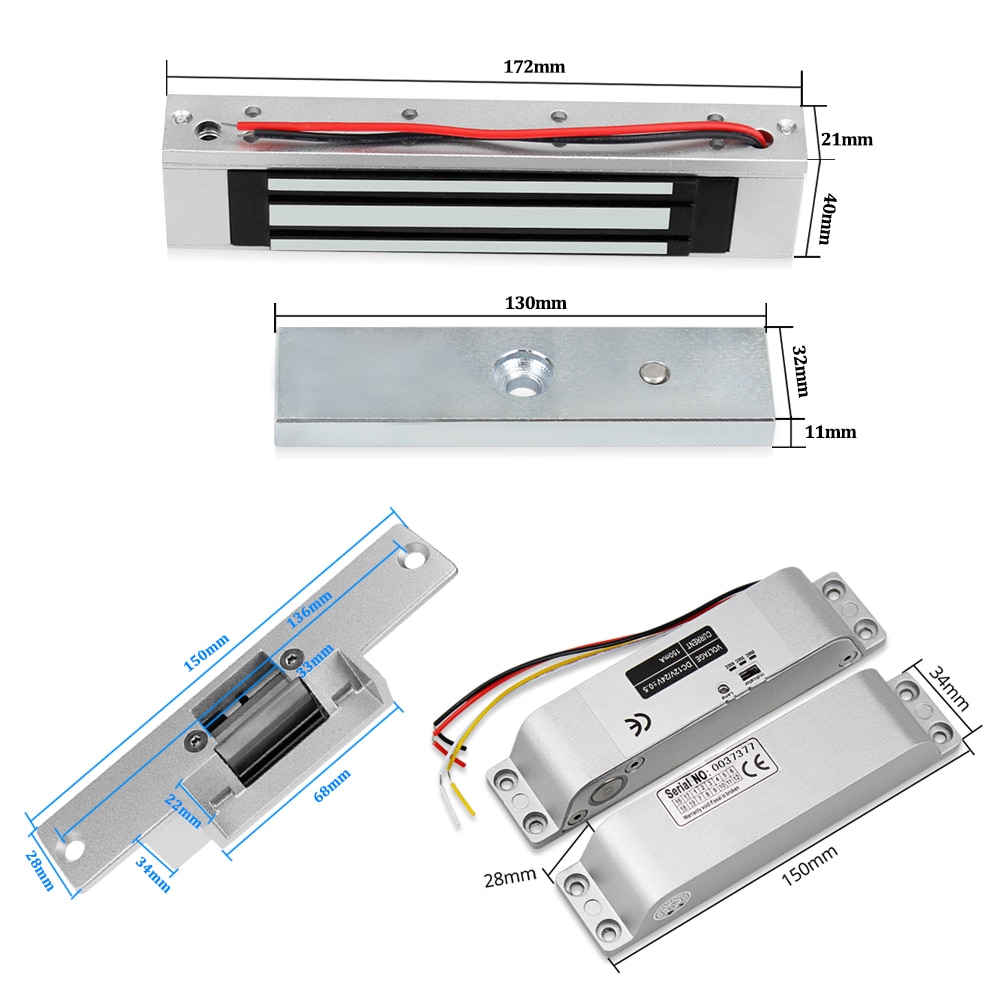

Electric Locks for You to Choose

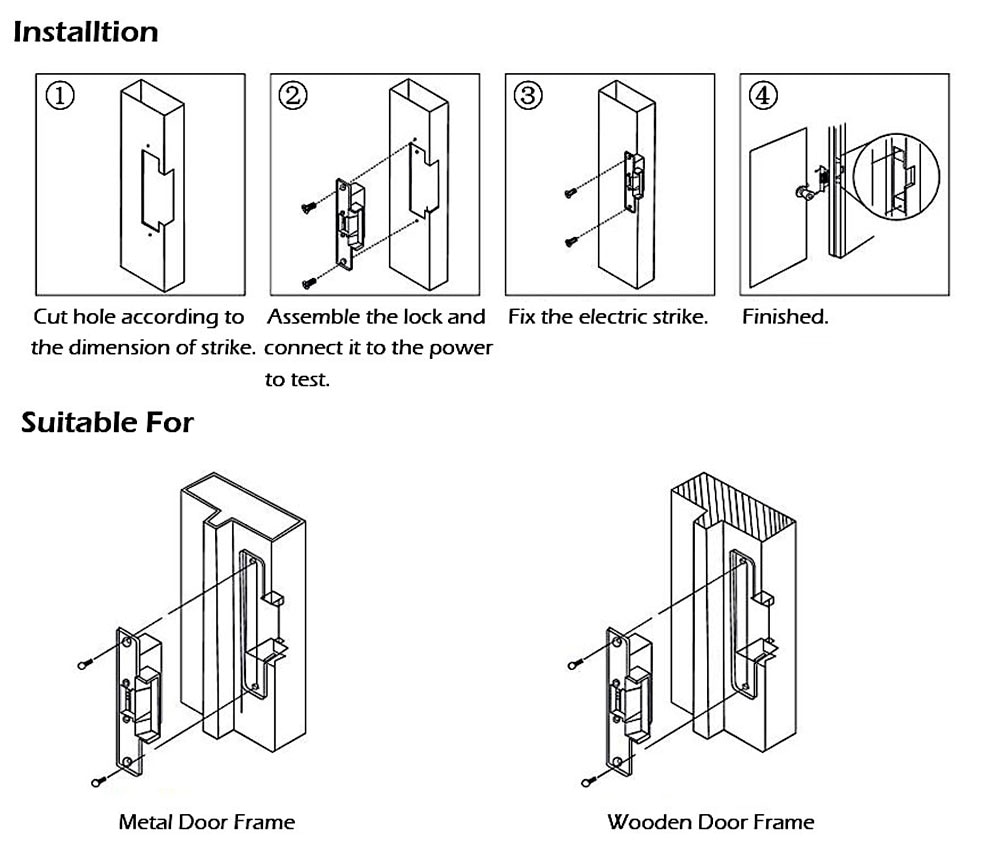

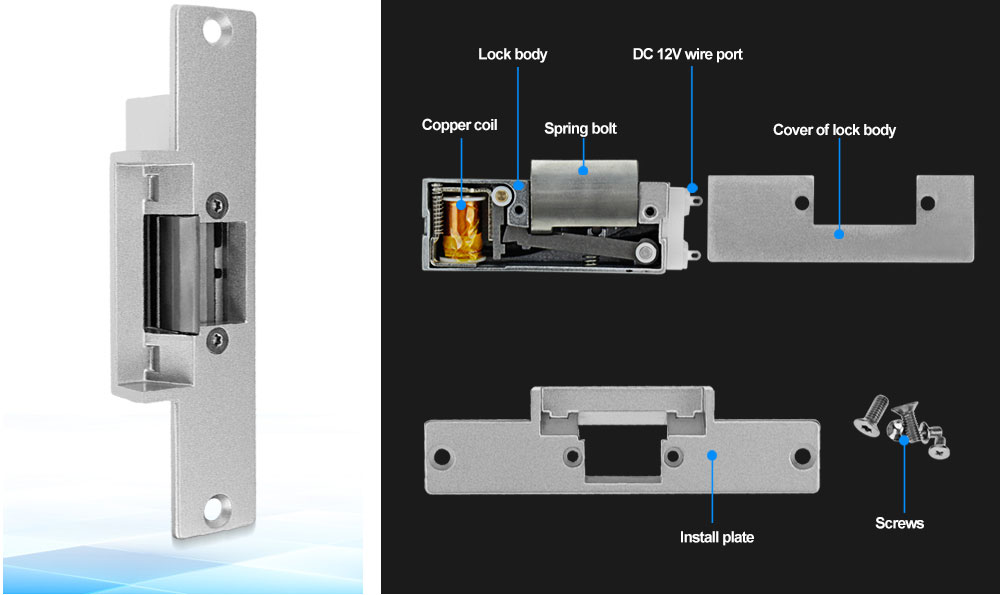

1, Electric Strike Lock: Suitable for wooden door, metal door
Material: Stainless Steel
Holding Force: 500kg
Working Voltage: DC12V
Working Current: 200mA
Operating Humidity: 0~90%
Face plate Housing: Painted Steel
Suitable: Wooden door
Opening Mode: 90 Degree Swinging Door
Size: 150*28mm
Suitable Temperature: -30~+55 Celsius Degree
Security Mode: NC mode (Fail Safe mode: Locked when power on, unlock when power off.)

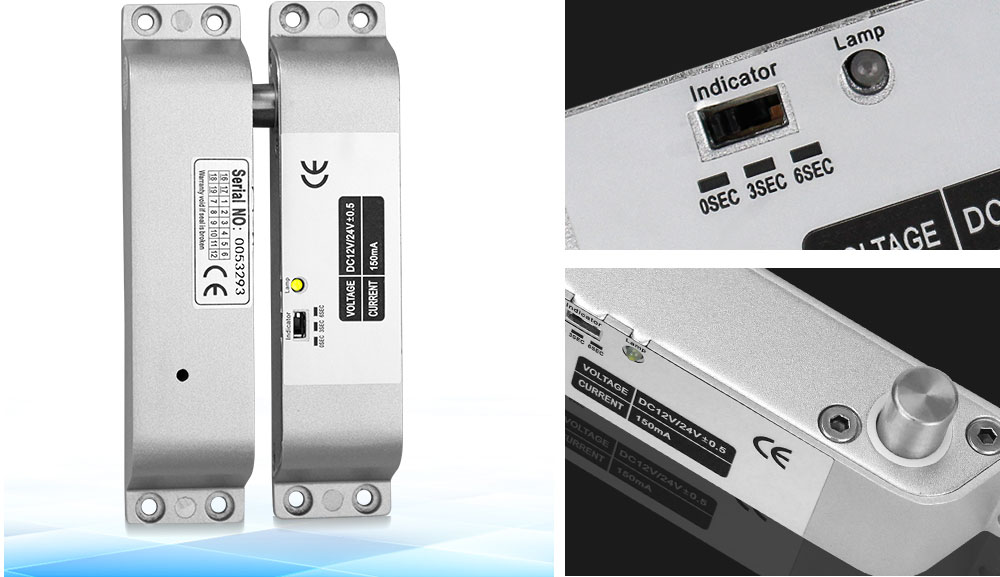

2, Electric Drop Bolt Lock: Suitable for wooden, metal door, security door. High sensitive and stable, very beautiful!
Material: Aluminum alloy
Working Voltage: DC12V
Current: Star-up: 1.2A; Working: 0.25A
Wires: Red-power supply (+), White-COM, Black-Power ground(-), Yellow-NC
Lock core: The diameter og 12.5MM stainless core, extending the length of 15MM
Size: 150*34*28mm
Working temperature: -30~ 55 Celsius Degree
Time delay: 0/3/6 second ( Factory setting: 0 )
Security Mode: NC mode (Fail Safe mode: Locked when power on, unlock when power off.)
NO mode (Fail Secure mode: Locked when power off, unlocked when power on.)
Please noted: when you connect this lock, you should connect the red line to "NC" of the power supply and the black line to "GND" of the power supply. Other lines doesn't need to be connected.
Infrared Door Exit Button:
Material: Hard Plastic
Working Voltage: DC12V / 3A—5A output
Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Dimension:86X86MM (L / W)
Feature: featured with infrared technology, touch free, contactless.
Build-in LED backlight, the backlight will be blue when standby, and become red when reaction. The reaction distance up to 15cm. Convenient to use.

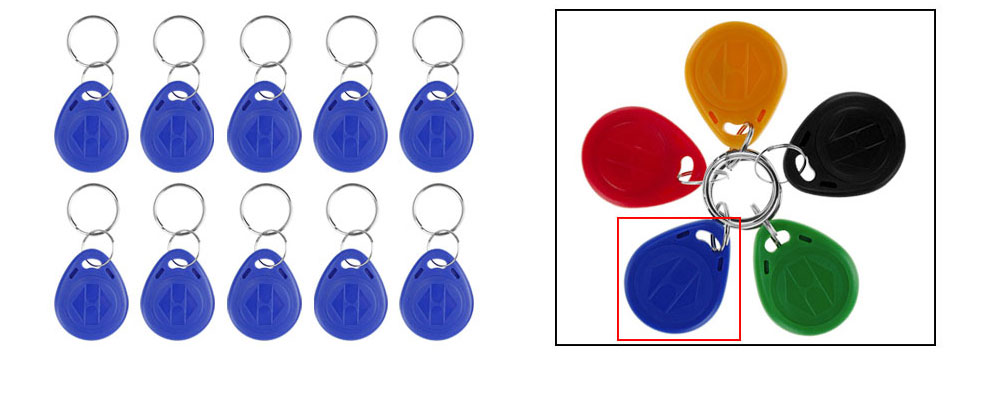

125KHz RFID Keyfobs
Material: ABS plastic
Operating Frequency: 125kHz
Compatible cards: EM or EM compatible cards
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Color: There are 5 color of the RFID keyfobs for optional, blue, red, yellow, green and black. We will send mix color by default. If you need other color, please leave message to us.
Quantity: 10 pieces

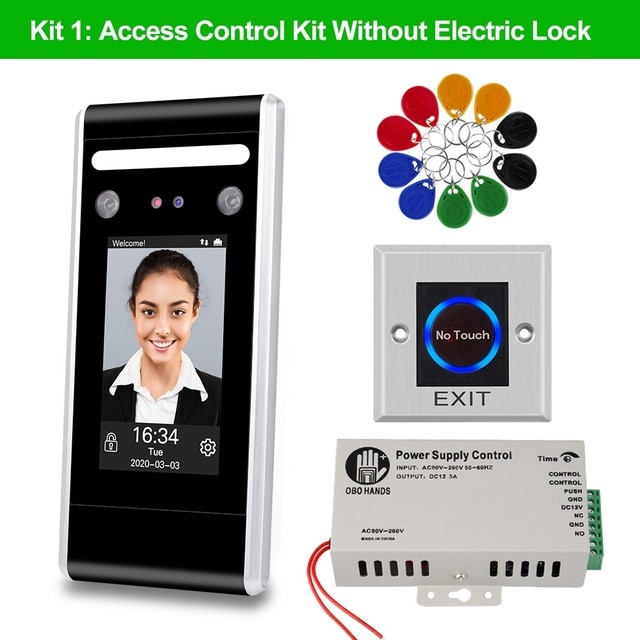

Kit 1: Without Electric Lock
If you already have you own electric lock, you can choose this kit.

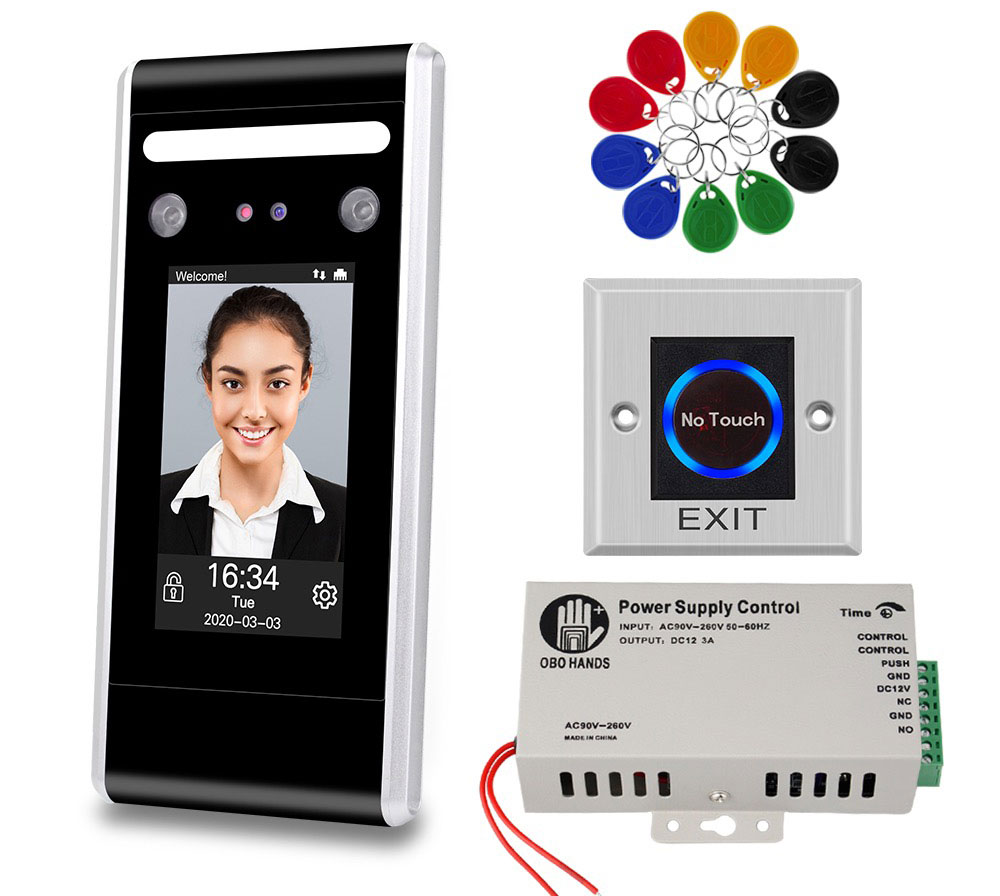

Package List:
1 x DT60 Access controller
1 x Power supply
1 x Infrared door exit button
10 x RFID keyfobs
1 x User manual

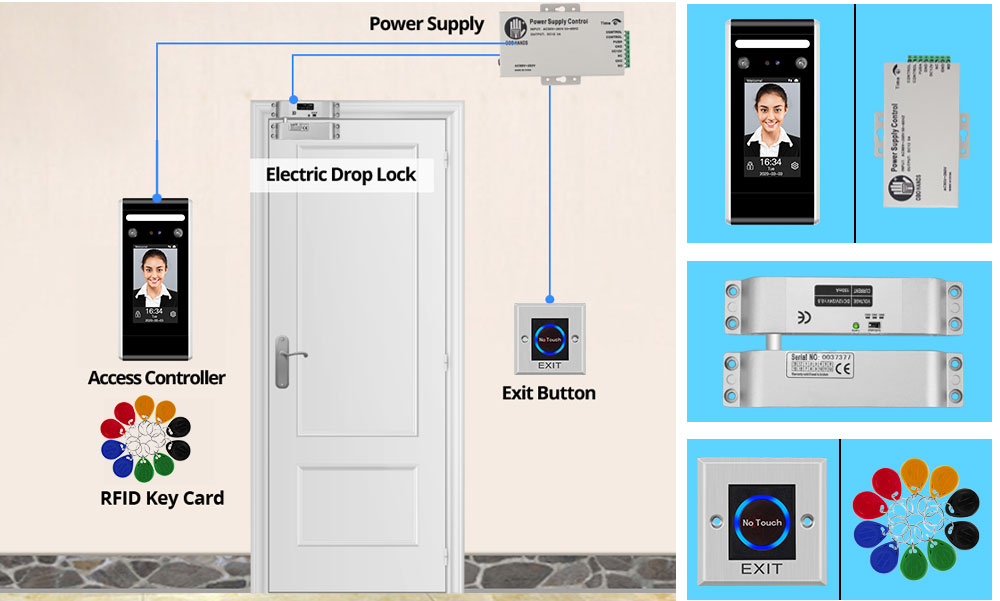

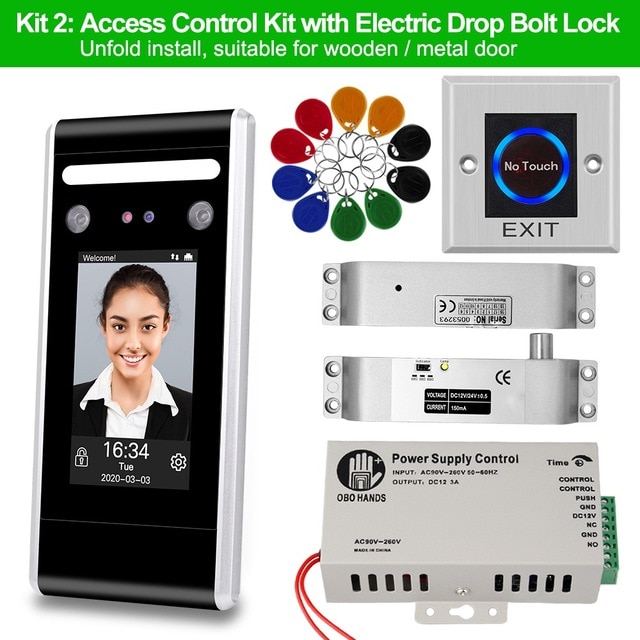

Kit2: Suitable for wooden, metal and Stainless steel door. Don't need bracket.
1 x DT60 Access controller
1 x Power supply
1 x Electric Drop Bolt Lock
1 x Infrared door exit button
10 x RFID keyfobs
1 x User manual

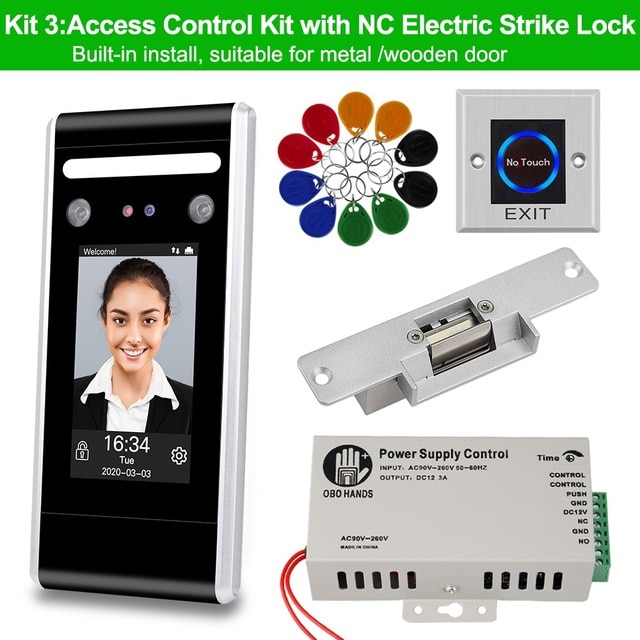

Kit 3: Suitable for wooden door, metal door. convenient and beautiful. Don't need bracket
1 x DT60 Access controller
1 x Power supply
1 x NC mode strike lock
1 x Infrared door exit button
10 x RFID keyfobs
1 x User manual
Security Mode: NC mode (Fail Safe mode: Locked when power on, unlocked when power off.)
Kit4: Suitable for wooden door, metal door. convenient and beautiful. Don't need bracket
1 x DT60 Access controller
1 x Power supply
1 x NO mode strike lock
1 x Infrared door exit button
10 x RFID keyfobs
1 x User manual
Security Mode: NO mode (Fail Secure mode: Locked when power off, unlocked when power on.)

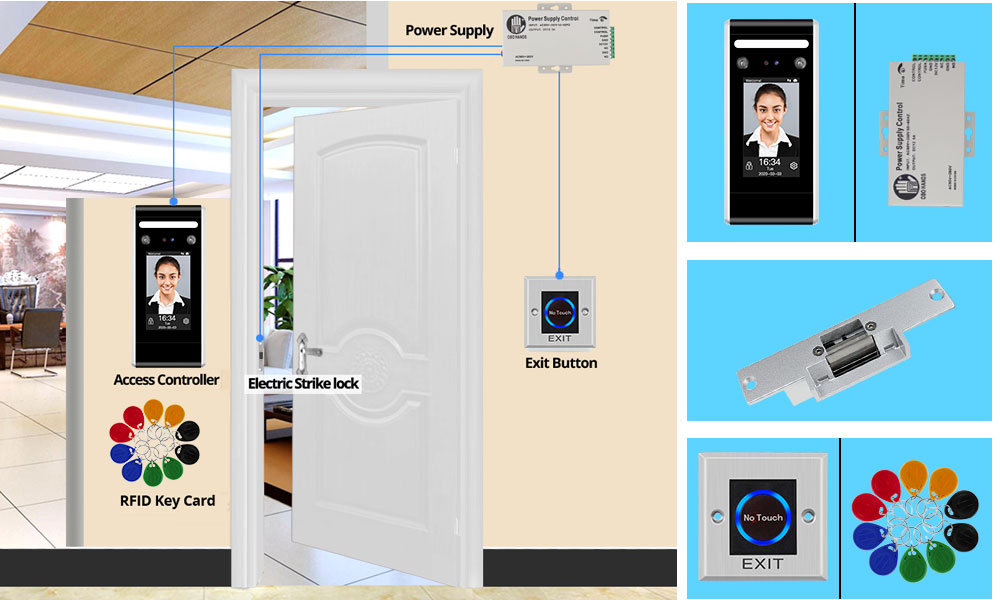

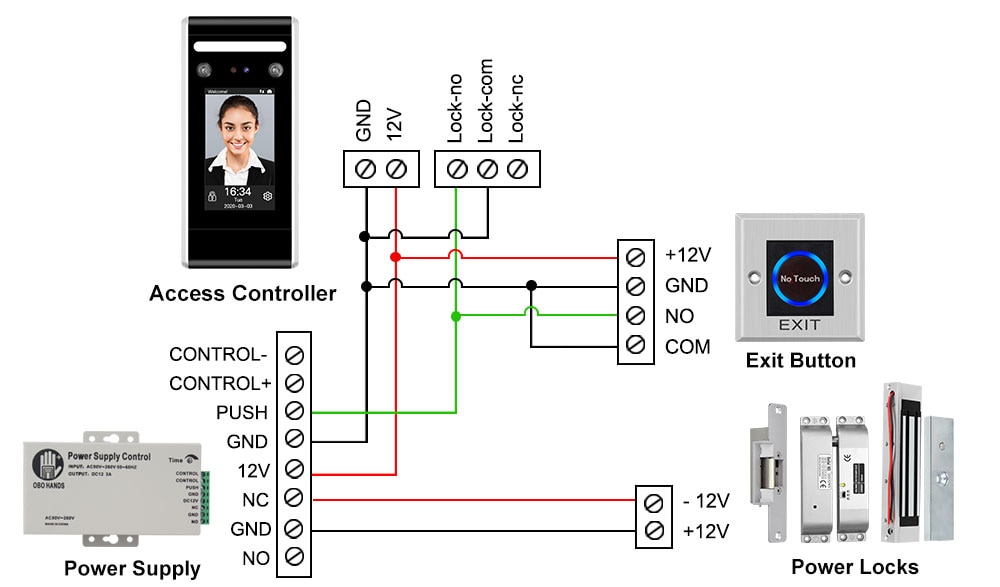

Wiring Diagram:
If the lock you used is NO mode, you should connect the lock to "NO" and "COM" of the power supply.
- Model Number: DT60
- Brand Name: OBO HANDS
- Origin: Mainland China
- Smart home platform: NONE
- Certification: CE
- Type: Dynamic Facial Access Control Attendance Machine
- Identification Method: Face, Password, ID/IC Card
- Communication Interface: TCP / IP, USB, WIFI
- Working Voltage: DC12V ± 10%
- Operating System: LINUX intelligent operating system
- Display Screen: 4.3 inches, 480 * 272 resolution
- Voice Prompt: support
- Display Language: English
- Storage Capacity: 8G eMMC

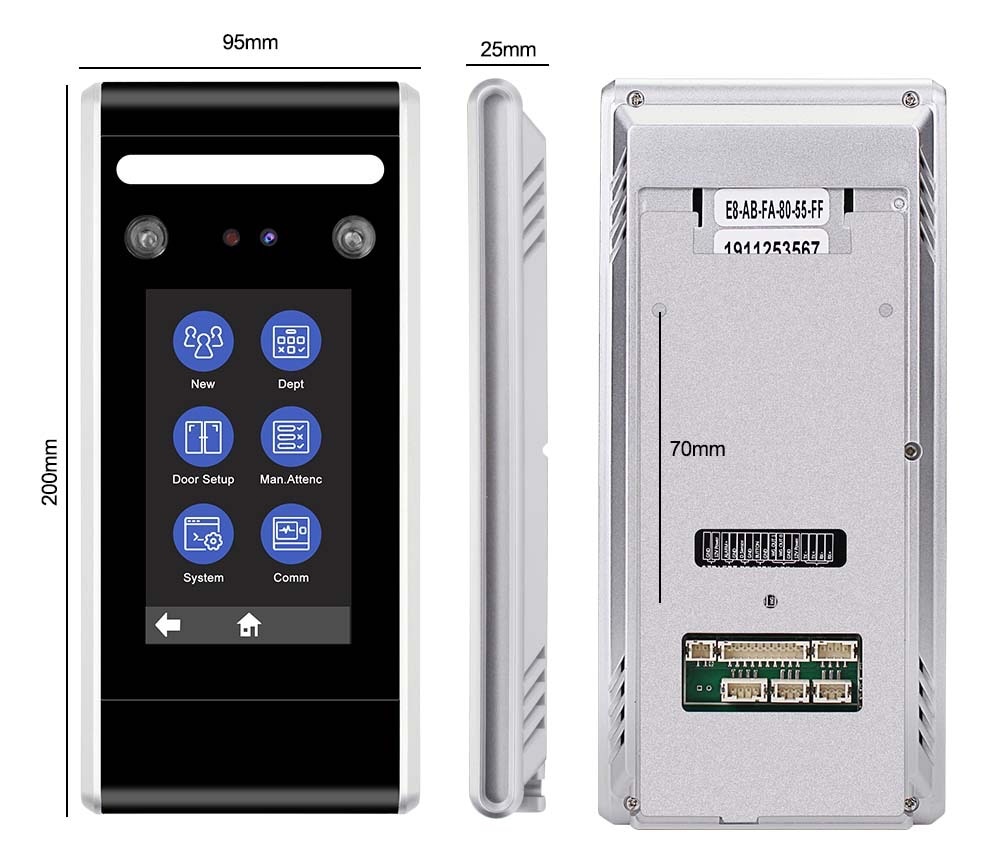

- Dimension: 200 * 95 * 25mm
