RF-300C Mini 300 Motor DC 5V 6V 9V 12V 7000RPM Micro 24mm Round Spindle Motor Low Current DIY Solar Power Fan Hobby Toy Model
4.7 (69 votes) | 800 orders
Price:
US $
9.95
Specification:

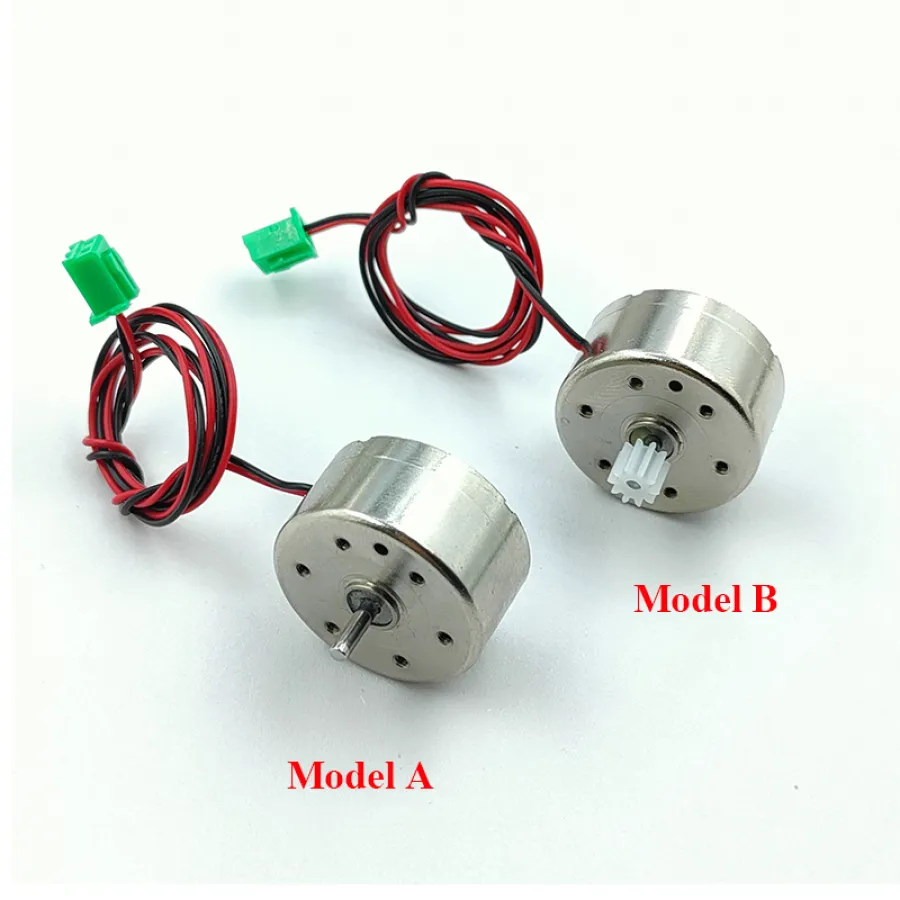

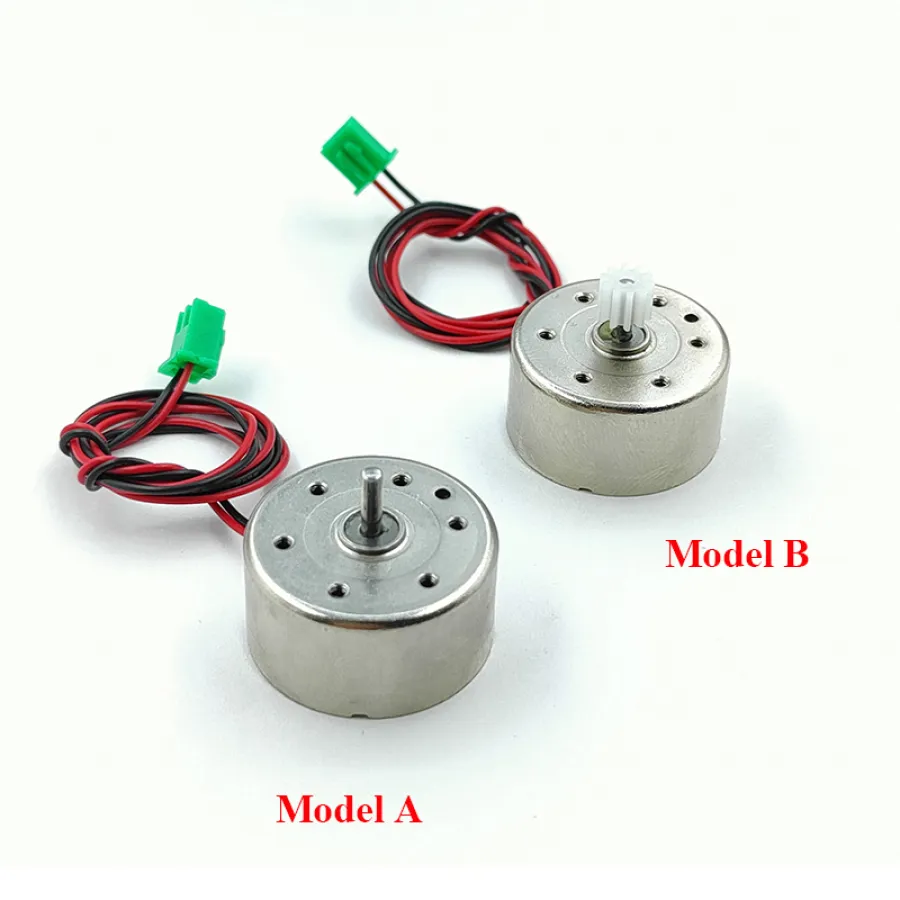

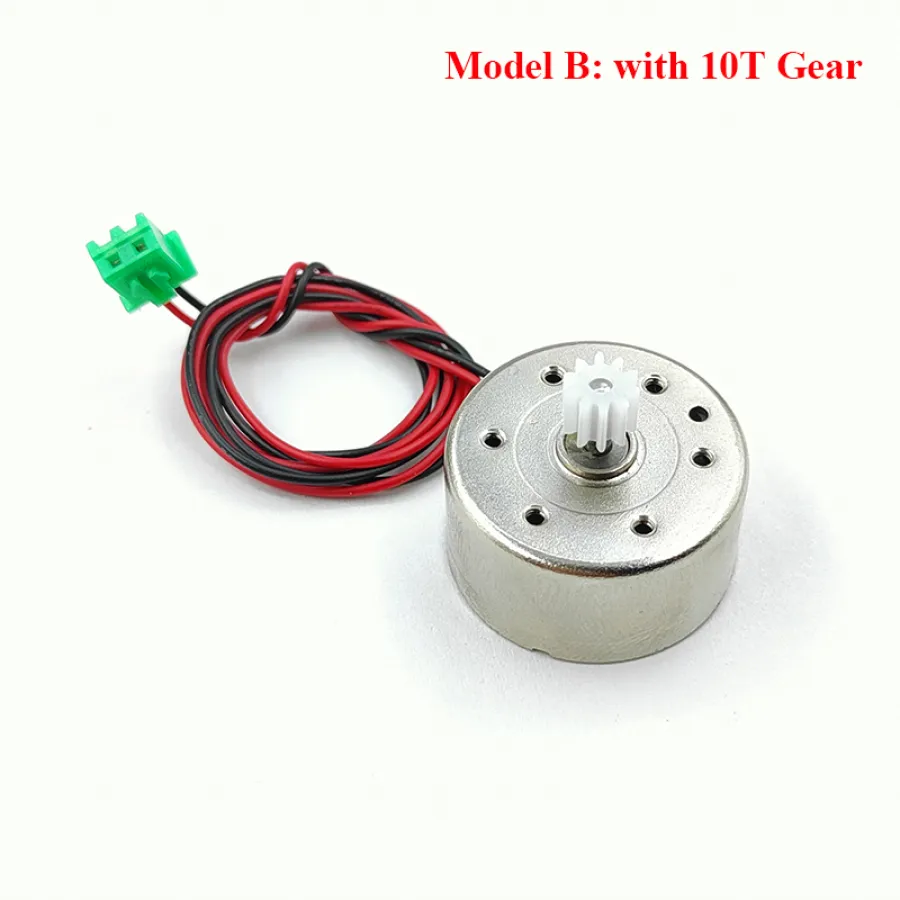

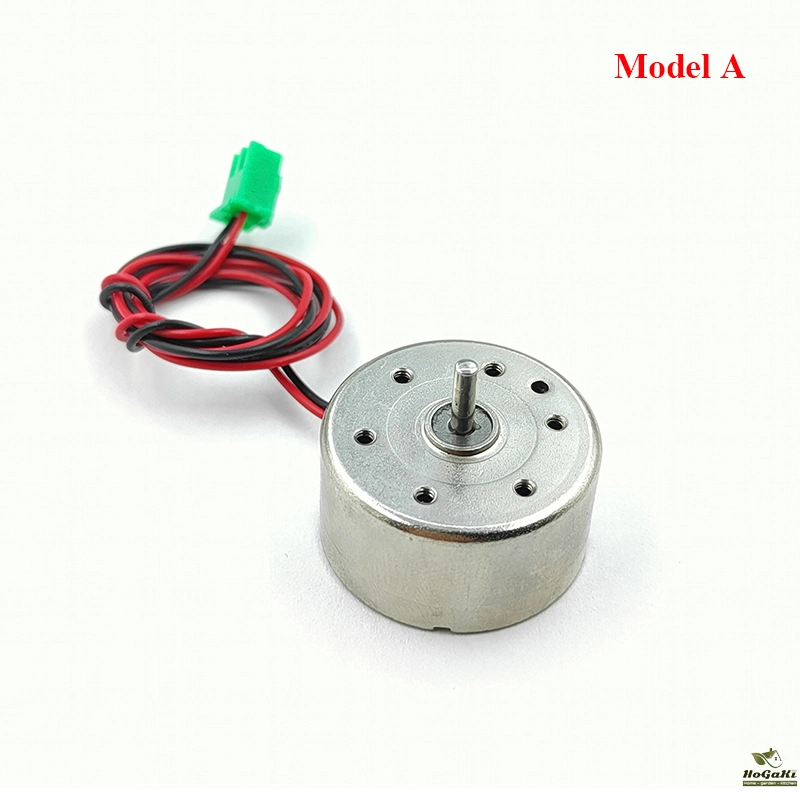

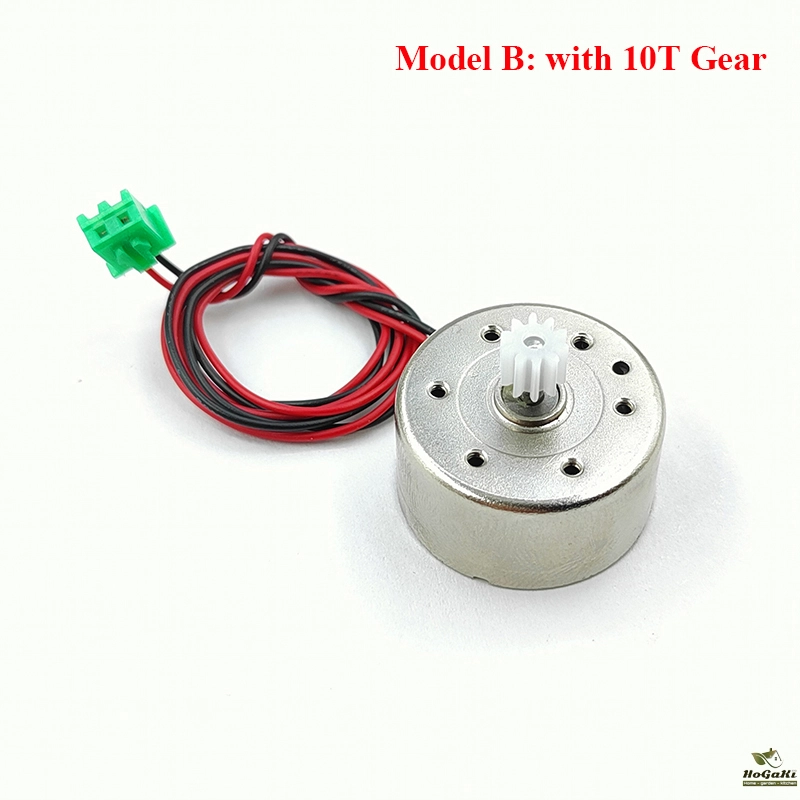

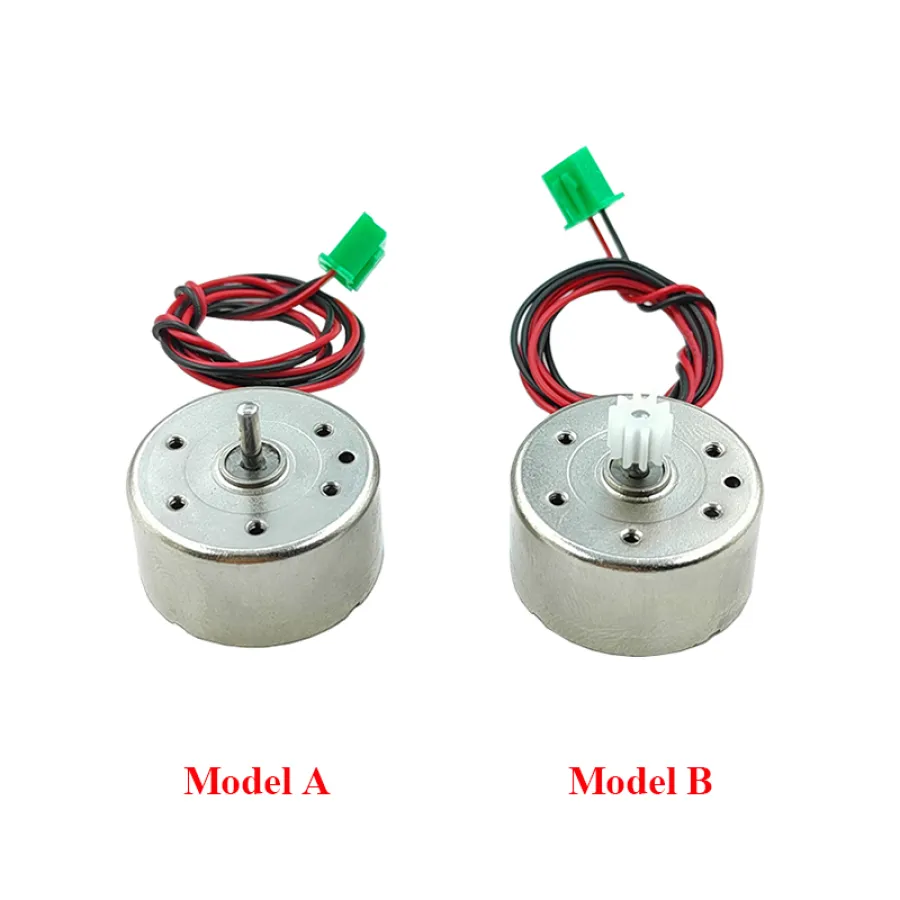

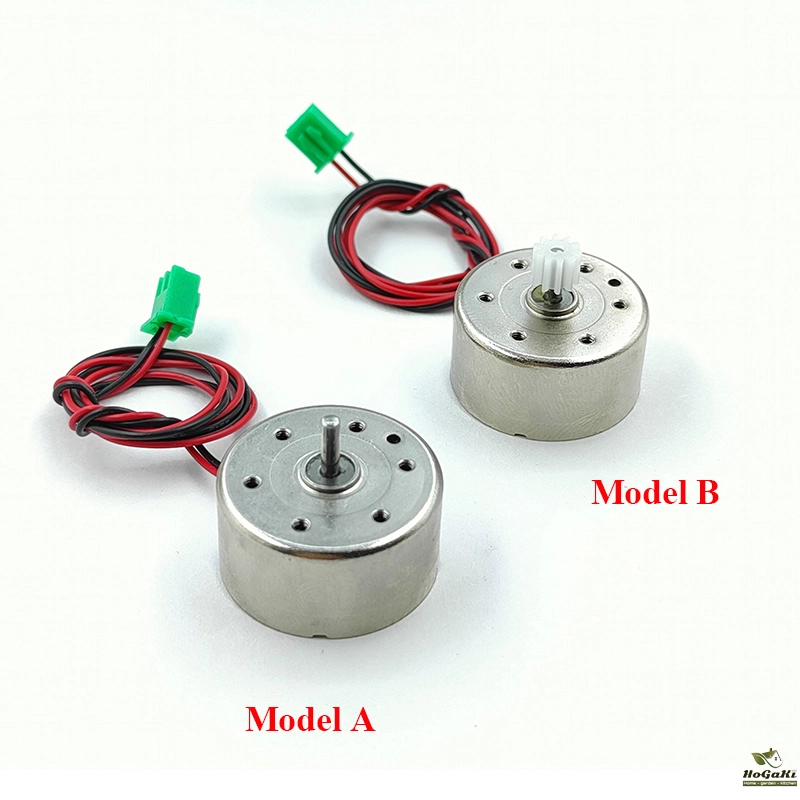

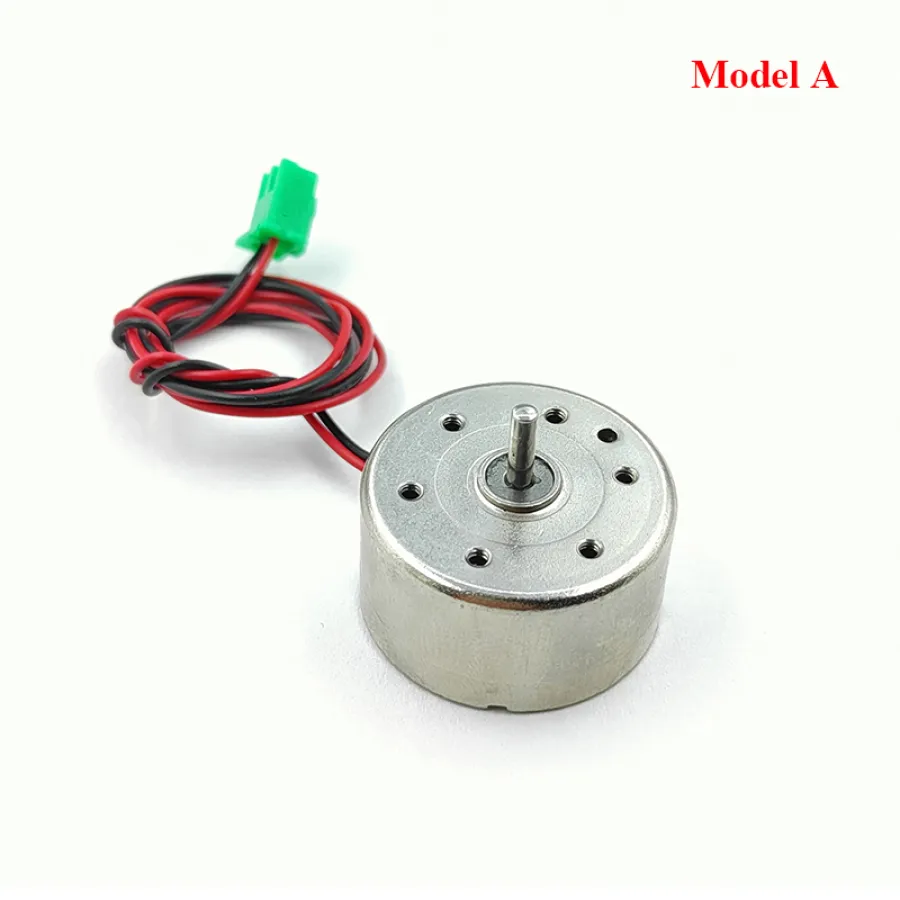

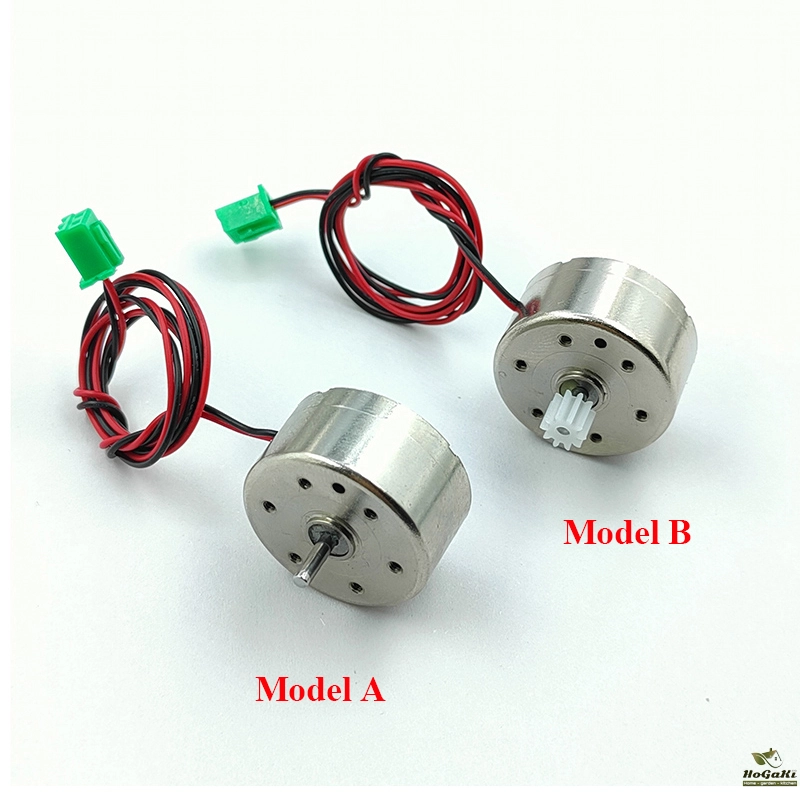

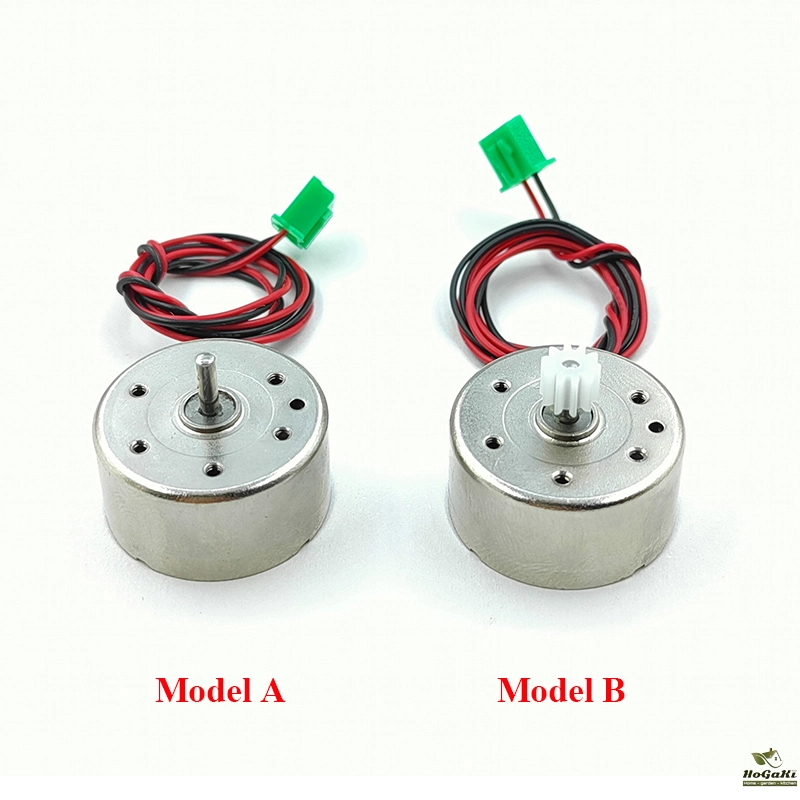

Note: There are two models of motor, model A motor is no gear, model B motor is with 10 teeth plastic gear, please buyers select the suitable model you need. Thanks.
1.Model: RF-300C-07800

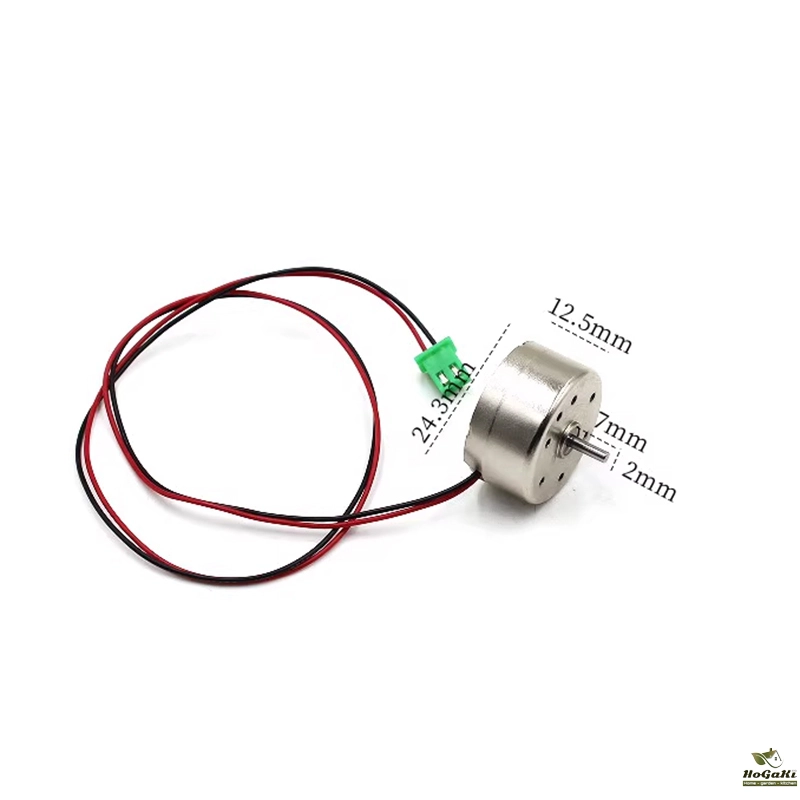

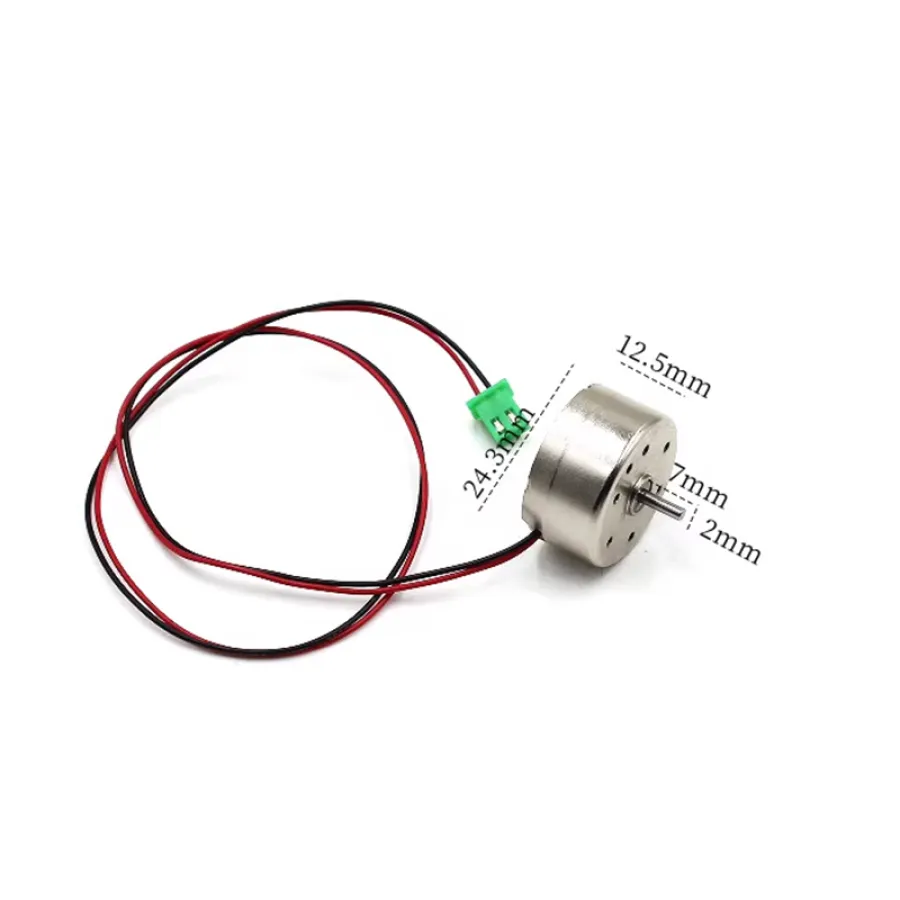

2.Motor size: 24.3mm*12.5mm
3.Output shaft diameter: 2.0mm
4.Output shaft length: 7mm
5.Weight: 22g
6.Rated voltage: DC 12V
7.Suitable voltage: DC 5.0V-18.0V
8.Test data:
Voltage:5.0V No-load speed:2950RPM No-load current:5mA
Voltage:6.0V No-load speed:3500RPM No-load current:6mA
Voltage:9.0V No-load speed:5450RPM No-load current:9mA

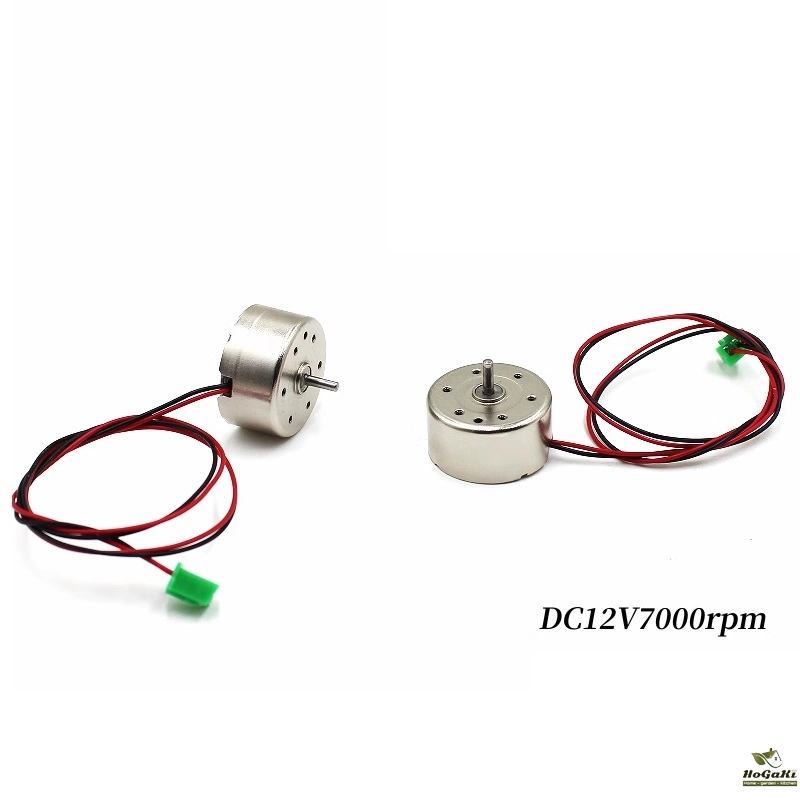

Voltage:12.0V No-load speed:7000RPM No-load current:12mA
Voltage:18.0V No-load speed:11000RPM No-load current:18mA
=========================
Package List:
Motor x 1PCS
Packaging Details
- Unit Type:
- Package Weight: 0.050
- Package Size: 15x5x15
- Motor size: 24.3mm*12.5mm
- Output shaft diameter: 2.0mm
- Rated voltage: DC 12V
- No-load speed: 7000RPM
- Suitable voltage: DC 5.0V-18.0V
- Speed range: 2950RPM-11000RPM
- Weight: 22g
- Brand Name: NoEnName_Null
- Model Number: RF-300C
- Hign-concerned Chemical: None
- Usage: Home Appliance
- Protect Feature: Explosion-proof
- Commutation: Brush
- Efficiency: IE 1
- Construction: Permanent Magnet
- Origin: Mainland China
- Certification: CE
- Type: Micro Motor
- Choice: yes
- semi_Choice: yes
