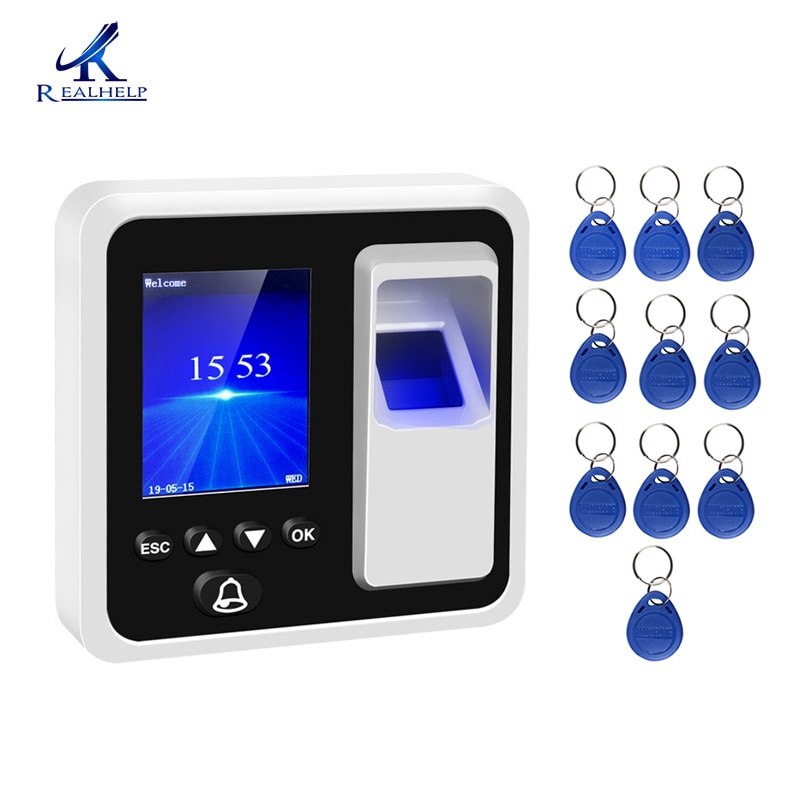

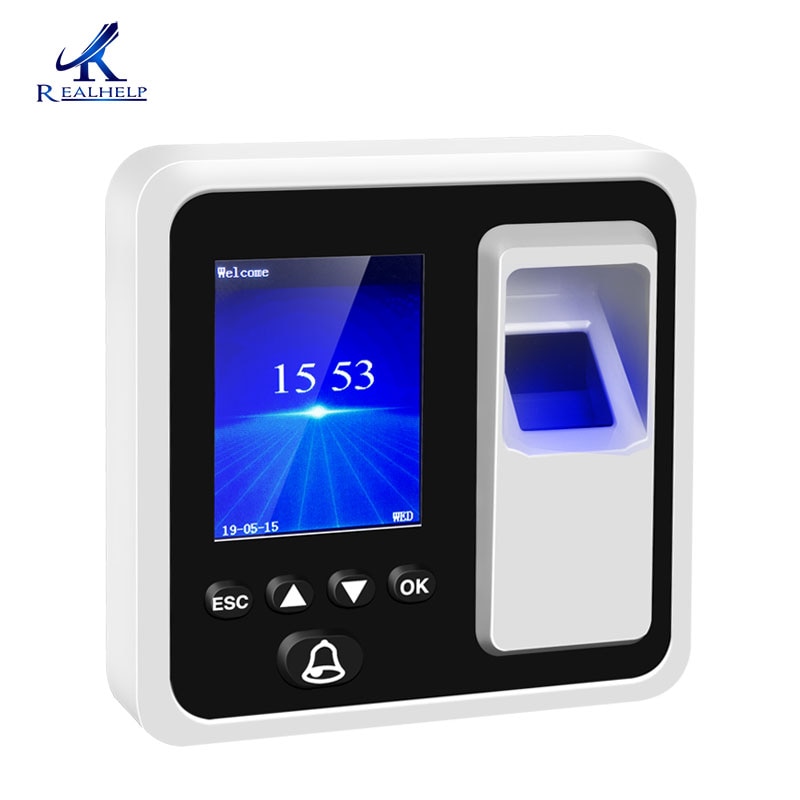

RFID Biometric Fingerprint Access Controller Standalone Finger Reader SD Card Download for Door Lock with 125KHz Keychains
60.64 54.42 $
SALE
ID: 91736
Quantity
Realhelp Time attendance system 3000Users IP Based Office Compact and RFID Reader Fingerprint biometric attendance system
1.0 (1 votes) | 6 orders
Price:
US $13.63 - 98.03
/ piece
Discount Price:
US $
10.22 -
71.53
/ piece
-25%
- Color
-
-
I.Main Features

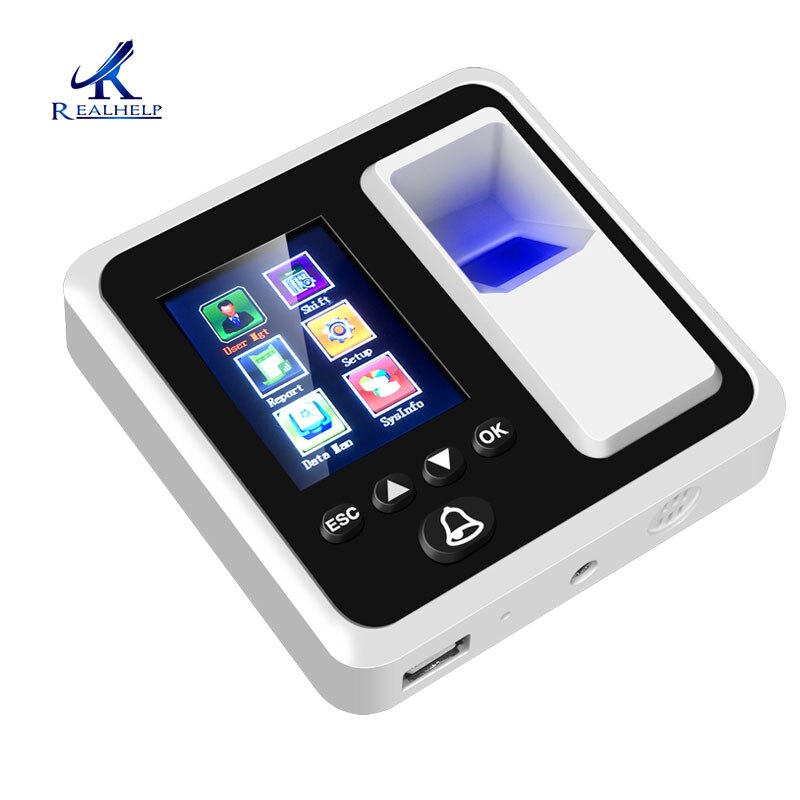

The KJY-S60 is an IP based fingerprint terminal works both in network and standalone modes. In network mode, it can connect with Free software for access control and time attendance management.
Wiegand output makes KJY-S60 flexible to connect with any 3rd party controllers as a slave reader. Additionally wiegand input allows two units of KJY-S60 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit.
II.Function

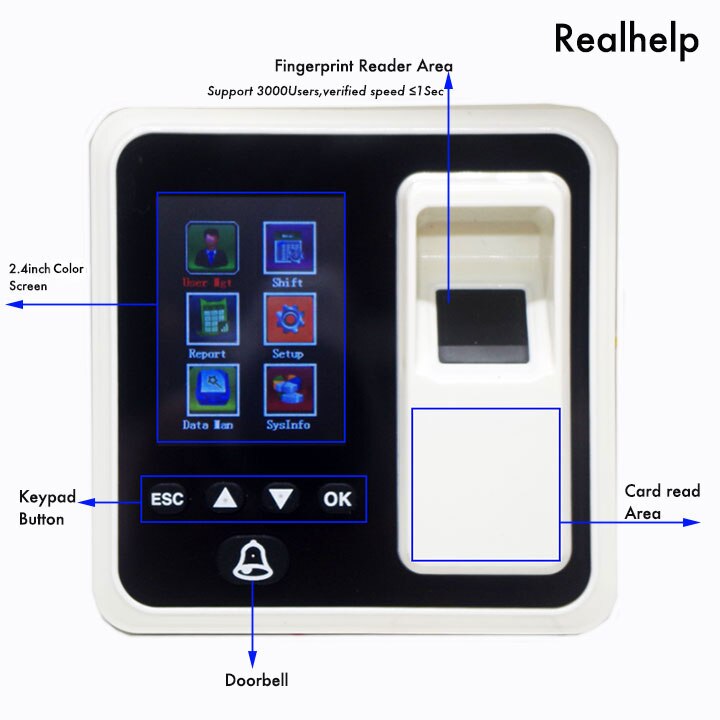

2.4-inch color display Touch Screen with graphical UI for easy operation
Prompt information acceptance or rejection signals for valid or invalid fingers
Compact and lightweight, small size for 86mm (L) x 86mm (H) socket installation
TCP/IP or WG communication for various networking environments
Supports USB flash drive for offline data management
Support Finger,Password,RFID Card to enhance security level
Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
Duress Alarm offers effective protection against duress by threats
Tamper proof switch and multiple alarm output
English menu display and Free software available on request
III.Specification
LCD | 2.4-inch TFT Color Screen |
Communication | TCP/IP,USB Host |
Fingerprint Capacity | 3000 |
Card Capacity | 3000 |
Records Capacity | 100,000 |
Access Control Interface | Electric lock, Door sensor, Exit button, Doorbell |
Wiegand Signal | Wiegand input & output |
Power Supply | DC 12V/3A |
Operating Temperature | 0 ~ 45°C (32°~113°F) |
Operating Humidity | 20 ~ 80% |
Dimension(W x L x H) | 105*105*26mm |
Weight | 0.2KG |

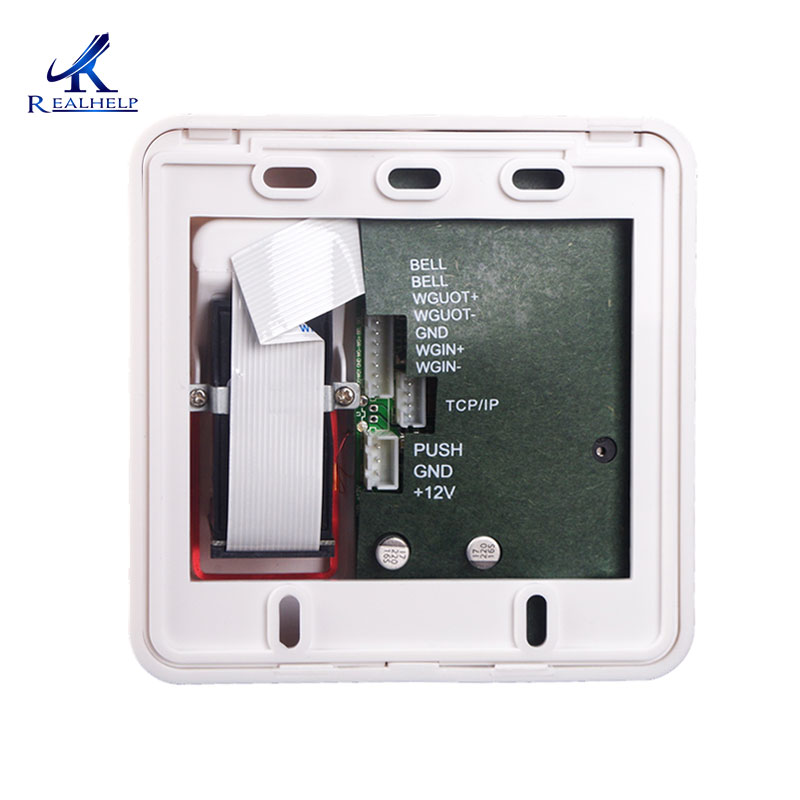

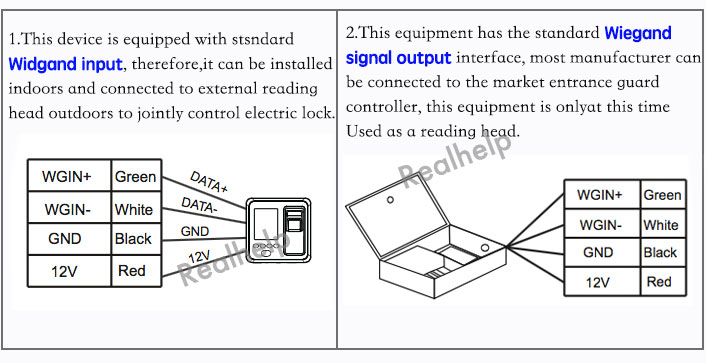

IV.Connect diagram

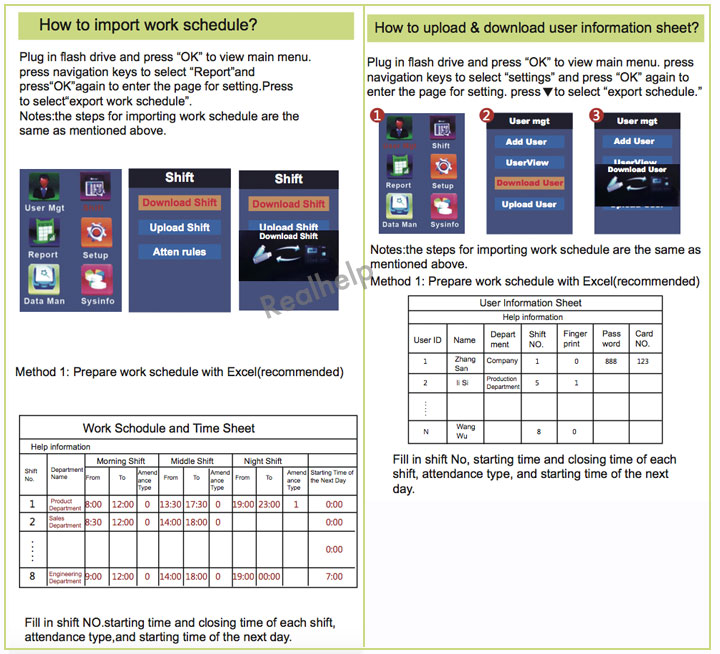

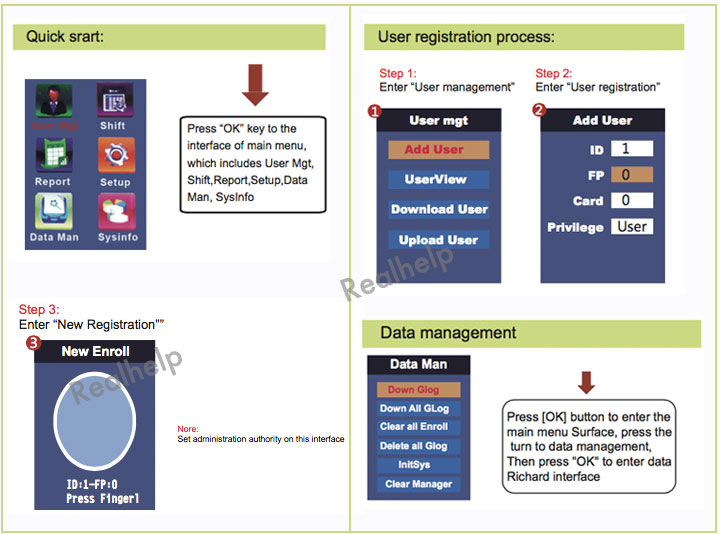

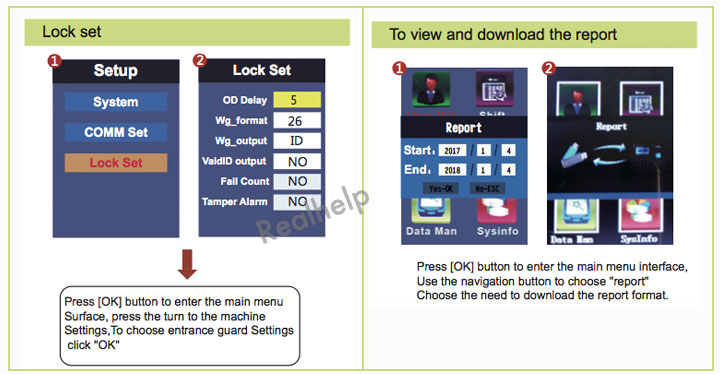

V.Machine Menu
1Pcs English User Manual
1Pcs Cables
1Pcs RJ45 connector
Screws and holders

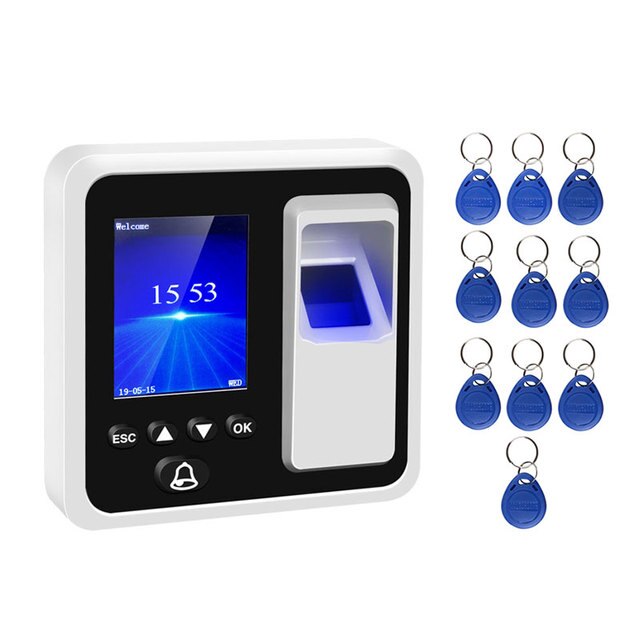

1Pcs fingerprint access controller

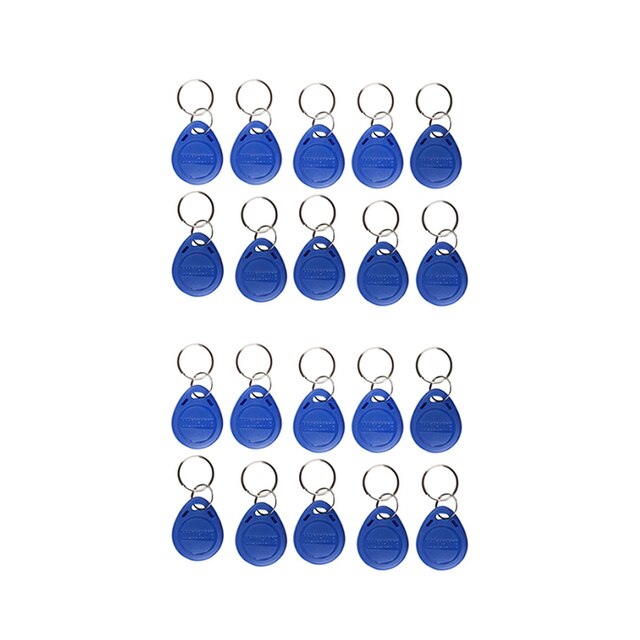

10pcs tags

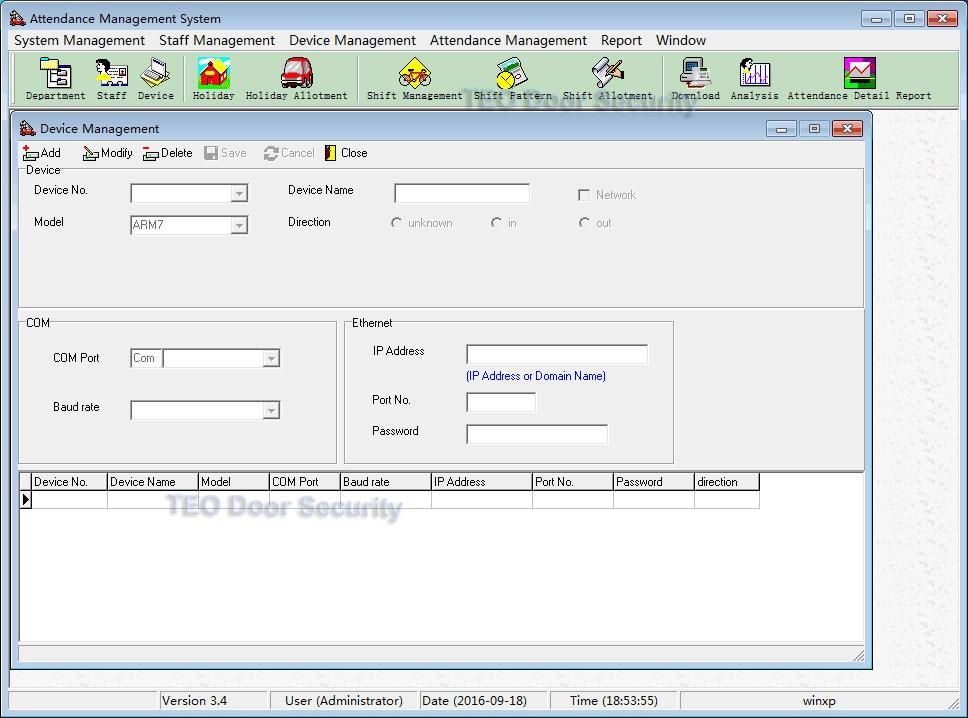

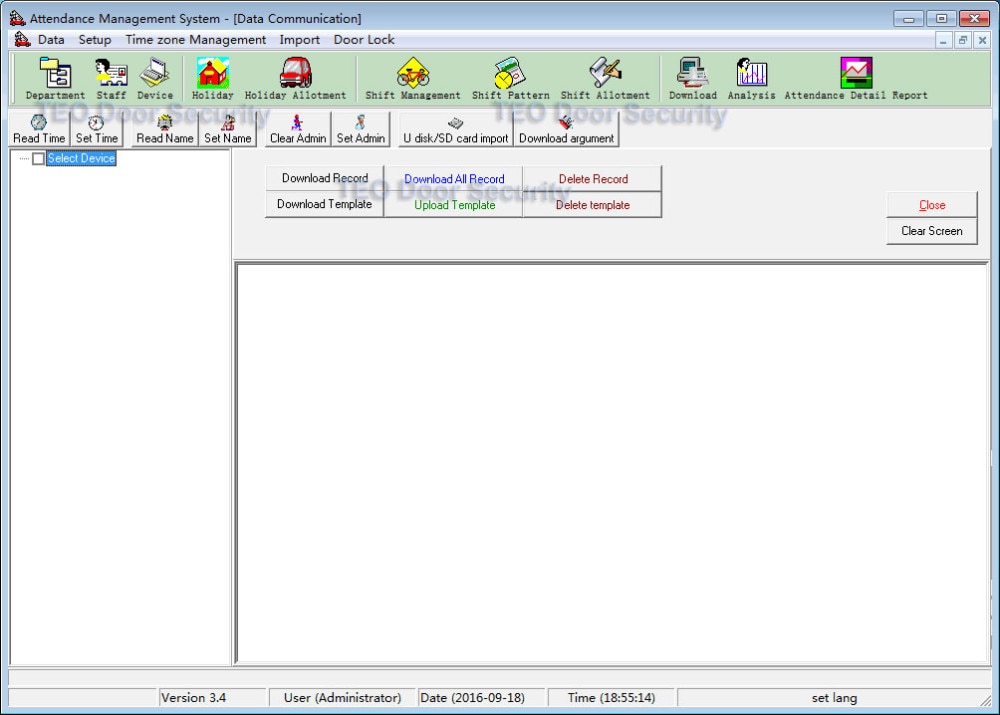

Software Screenshot
1. Warranty Service will be honored if the damage is not caused by human, We Company Provides 1 years warranty for relative products. (excluding items damaged and/or misused after receipt).Accessories come with a 3-month warranty.
2. Defective items MUST BE reported and return to us within the warranty period(and in the original
packaging,IF possible)You must tell us what the defect is and give us your Hogaki ID,WE DO NOT REPAIR
OR REPLACE ITEMS WITH AN EXPIRED WARRANTY!
3.Negative feedback or Low DSR does not resolve any underlying issues.If you have any problems with our items or services,please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
1.You have 7days to contact us and 10days to return it from the date it was received. IF this item in Your Possession more than 7days,It is considered used and WE WILL NO ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS!
2.All returned items MUST BE in the original packing and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your Hogaki ID.
3.We will refund YOUR FULL WINNING BIG AMOUNT, upon receipt of the item in its original condition and Packaging with allComponents and accessories included, After BOTH Buyer and seller cancel the transaction from Hogaki. Or, You may choose to have a replacement.
1. Before ordering please contact us to confirm your preferred shipment method. Items are only shipped after payment is confirmed
2. Delivery,We will ship every order with their tracking numberm and you can view the shipment status on the corresponding website.
DHL/UPS/Aramex/Fexed : 3-7 working days (We have the right to choose one of the shipping way to you)
e-EMS: 5-15 working days
China post:10-40 working days
Hogaki Standard shipping: 10-40working days
3.We are not responsible for any accidents,delays or other issues that are the responsibility of the shipping service.
4. Please make sure that you have no difficulty to clearing customs and make sure you are available in the address you filled on Hogaki.
5. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
null
- Model Number: KJY-S60
- Brand Name: Realhelp
- Certification: CE
- Smart home platform: Other
- Origin: Mainland China
- LCD: 2.4-inch TFT Color Screen
- Communication: TCP/IP,USB Host
- Fingerprint Capacity: 3000
- Card Capacity: 3000
- Records Capacity: 100,000
- Wiegand Signal: Wiegand input & output
- Power Supply: DC 12V/3A
- Dimension(W x L x H): 105*105*26mm
- Weight: 0.2KG
