Realhelp 12V 5A Door Access Control System Switch Power Supply High Quality Safety AC 90~260V Time Delay Set

0.0 ( votes)
Price: US $29.23 / piece
Discount Price:
US $ 26.89 / piece
-8%
Quantity

Overload Protection Door access control Power Supply

12V 5A High Quality Switch Power Supply AC 90~260V Time Delay Set

I.Features

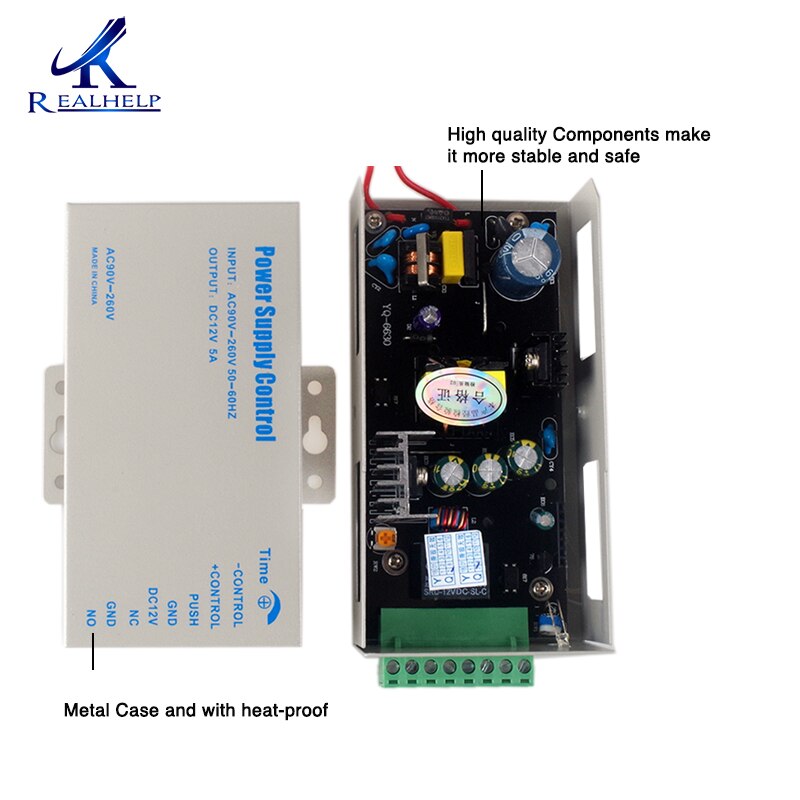

  •  High efficiency and good price

  •  Built-in EMI filter

  •  100% full load burn-in test

  •  Low output ripple and noise

  •  Protection: over load/over voltage/short circuit

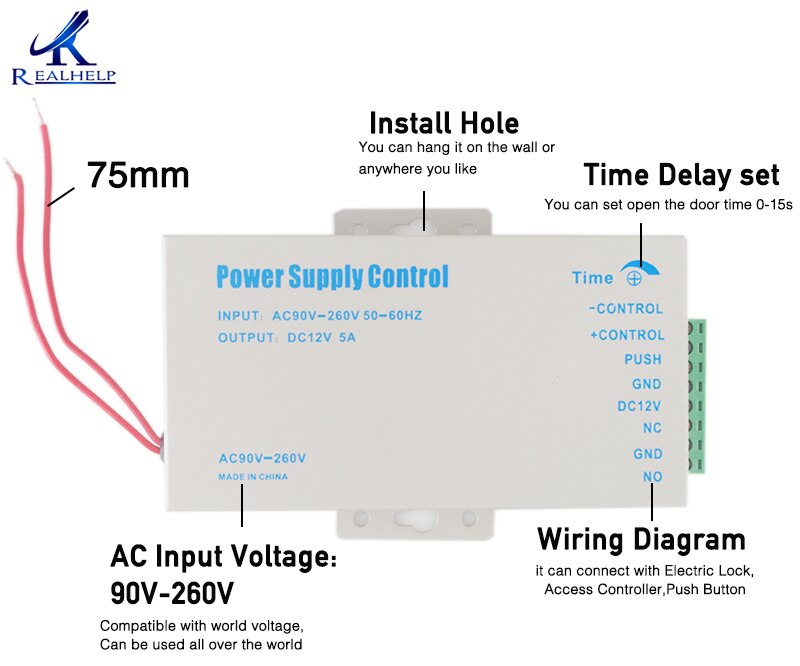

  •  Based delay control circuit, lock time can be in 0-15 seconds

  •  Set NC / NO outputs, can control various types of electric locks

  •  Can reduce the load of access controller, save wiring to reduce the hidden trouble


II.Specification

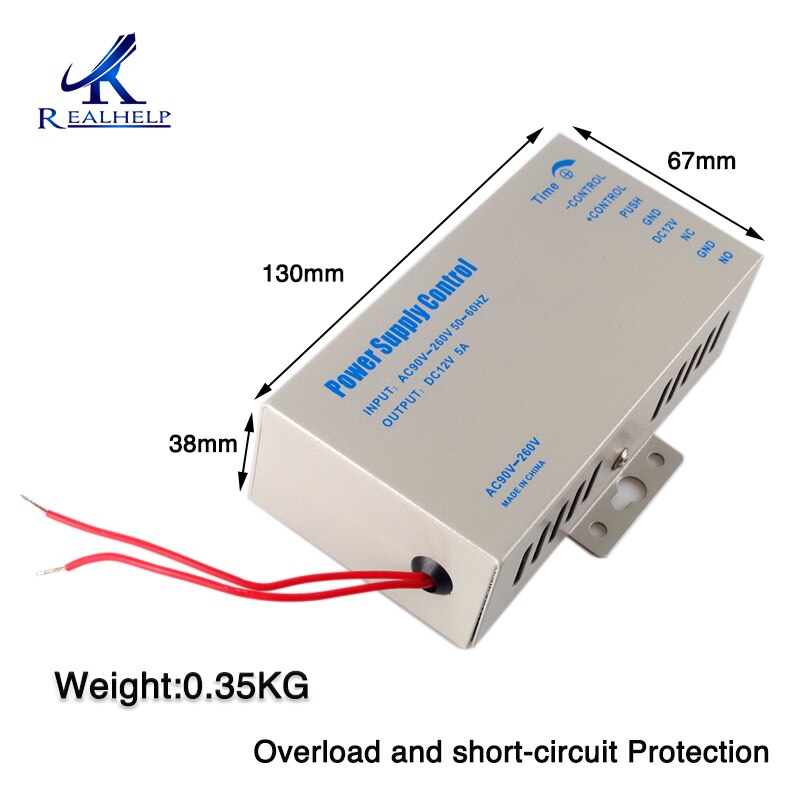

Dimensions

130LX67WX38H mm

Input Voltage

90VAC~260VAC;50HZ~60HZ

Output Voltage

DC12V;5A

Output Contact

Access control, Electric Lock, Release Button

Time Relay

0~15sec

Standard Design

Steel material, Painted

Protect Safely

Short Circuit protection

Suitable For

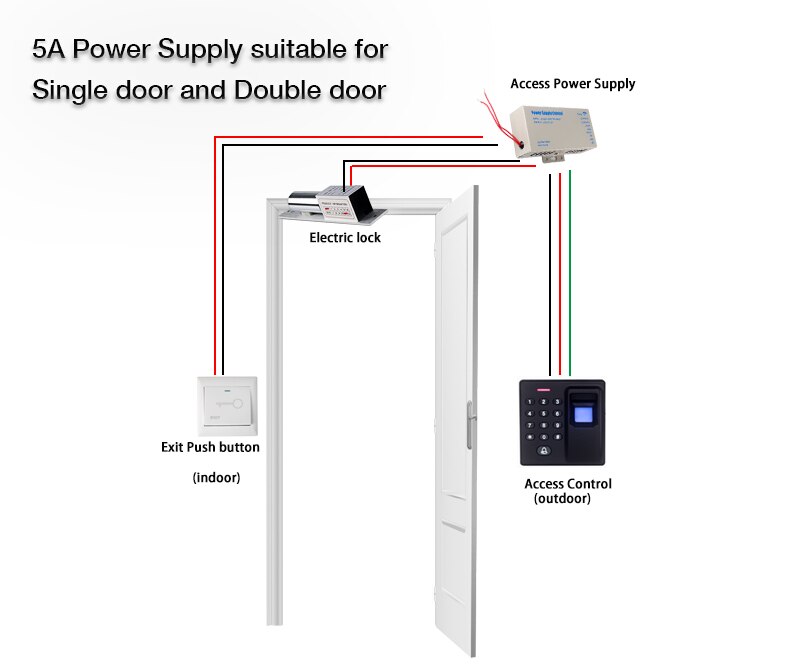

Access control, Electric lock

Weight

0.35KG

Working temperature

-20~ +65 degree centigrade



III.Trouble shooting


Description

Analysis

Solution

Without voltage output

NO Voltage AC input

plug into AC 220V

External devices short circuit

disconnect all external devices
measure the output voltage

Temperature over 85 degree the resumption of the insurance breaker

Measuring the output voltage in the power is turned off after 30minutes

Electric lock unlocked

Wiring errors

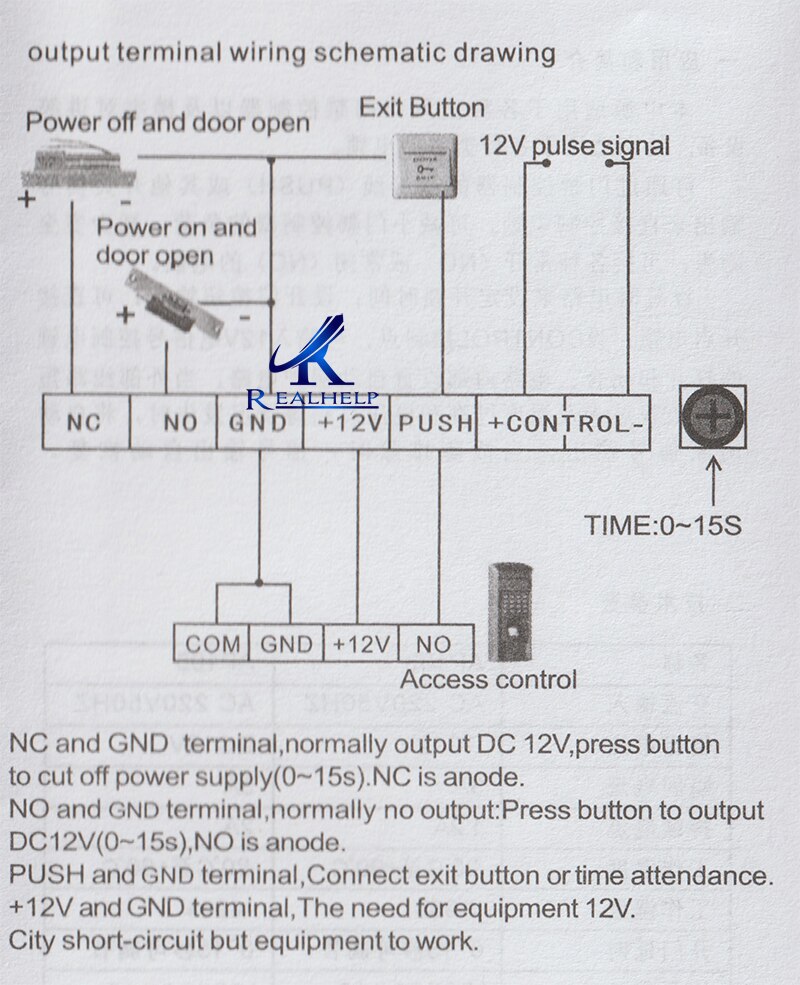

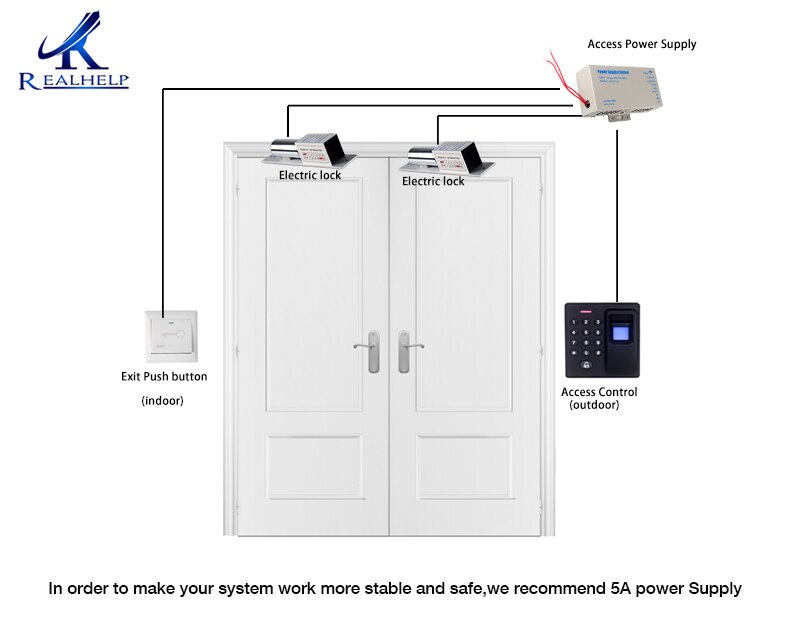

Connect it with correct  diagram as we instruction show

NC and NO lock position without the voltage output

According the above troubleshooting

Button lines are wrong or short circuit

Observe the state of the lock remove button wiring

Check the electric bolt lock locking plate

Lock and lock magnetic point corresponding

  • 1Pcs English User Manual

  • 1Pcs 5A Access Power Supply

1. Warranty Service will be honored if the damage is not caused by human, We Company Provides 1 years warranty for relative products. (excluding items damaged    and/or misused after receipt).Accessories come with a 3-month warranty.

2. Defective items MUST BE reported and return to us within the warranty period(and in the original
packaging,IF possible)You must tell us what the defect is and give us your Hogaki ID,WE DO NOT REPAIR
OR REPLACE ITEMS WITH AN EXPIRED WARRANTY!

3.Negative feedback or Low DSR does not resolve any underlying issues.If you have any problems with our items or services,please feel free to contact us first before you leave negative feedback.  We will do our best to solve any problems and provide you with the best customer services.




  • Model Number: AP105
  • Size: 130LX67WX38H mm
  • Item Type: Power Supply
  • Brand Name: Realhelp
  • Origin: Mainland China
  • Input Voltage: 90VAC~260VAC;50HZ~60HZ
  • Output Voltage: DC12V;5A
  • Output Contact: Access control, Electric Lock, Release Button
  • Time Relay: 0~15sec
  • Standard Design: Steel material, Painted
  • Protect Safely: Short Circuit protection
  • Suitable For: Access control, Electric lock
  • Weight: 0.35KG
  • Working temperature: -20~ +65 degree centigrade
