ID: 161961

PUXING PX-777 VHF 136-174MHZ PX777 Radio ham radio

5.0 (1 votes) | 5 orders
Price:
US $ 156.99
Quantity

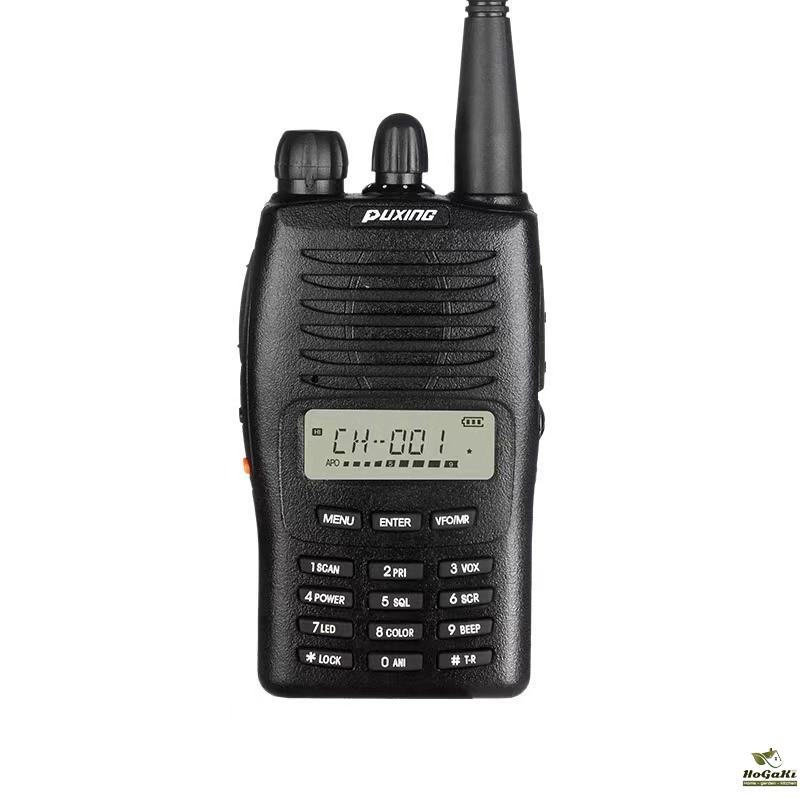

PUXING PX-777 VHF 136-174MHz PX777 Radio ham radio

Features:

1. Amateur two way radio

2. Frequency :VHF136-174MHZ

 3. 5w output power

4. 128 memory channels

5. Built-in 50 CTCSS and 104 DCS

6. Wide (25KHz) and Narrow(12.5KHz) channel, Spacing programmable in separate channels

7. Come with 1200mAh Li-ion battery/

8. Input Frequency directly by keypad

9. VOX built-in

10. Frequency Scan & CTCSS Scan

11. Three different scan type: TO/CO/SE

12. Three color LCD backlight display

13. Sound Alarm

14. Programmable by PC software

16. Priority Scan Function

17. Adjust power High/Low

18. Switching between Channel/VFO

19. Display Channel+ Frequency mode.

20. Adjust squelch level (0-9)

21. Busy channel lockout

22. Keypad lock

23. Reverse Frequency Function

24. Channel step 5k, 10k, 6.25k, 12.5k, 25k, Program alphanumeric channels name

25. Self-program

26. Voice Annunciation

Specifications:

Generail

Operating Voltage DC 7.2V

Operate Mode Simplex or Semi-duplex

Dimension 1005532mm (Not included Antenna)

Weight 220g (Including battery)

Antenna impedance 50Ω

Transmitter

Frequency Stability +/-2.5PPM

Output Power <=5W

Max Frequency Deviation <=5KHz

Audio Distortion <=3%

Modulation Character +3dB--3dB

Adjacent Channel Power >=65dB

Spurious Radiation <=7.5UV(-36db for CE)

Occupied Bandwidth <=16KHz

Receiver

RF Sensitivity <0.2UV(12DB SINAD)

Audio Distortion <=3%

Audio Response +2dB--10dB

Adjacent Channel Selectivity >=60dB

Intermodulation Rejection >=60dB

Blocking >=80dB

 Package CONTAIN:

1×PX-777 VHF Radio

1×VHF SMA-F Antenna

1×PB-72L 200mAh battery pack

1×Desktop Charger with AC Adapter(Europe plug,UK plug,US plug all available)

1×ENG User Manual

Picture:

Packaging Details

  • Unit Type:
  • Package Weight: 0.500
  • Package Size: 15x15x15

  • Brand Name: NoEnName_Null
  • Origin: Mainland China
