Proxmark3 Develop Suit Kits 3.0 Proxmark NFC PM3 Reader Writer For RFID NFC Card Copier Clone Sdk For Rfid Nfc Card Copier
0.0 (1 votes) | 11 orders
Price:
US $44.40 - 100.31
/ piece
Discount Price:
US $
33.90 -
73.21
/ piece
-24%
- Color
-
-
Features:
As the factory updates the product, the appearance will be a little different and does not affect the performance. The pictures are for reference only. Please note
note:

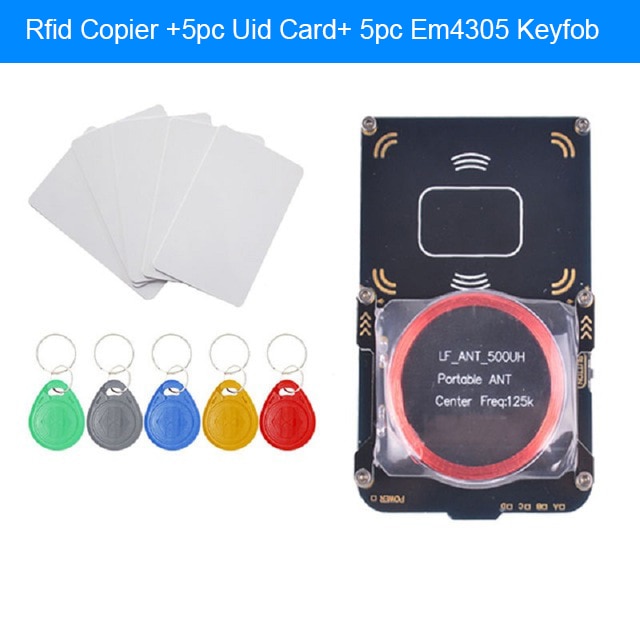

style5 is a package of 30 5577 cards, each package is the same as the picture in the option, please carefully read it and choose.
Website
http://www.proxmark.org/
Software download link:
https://drive.google.com/drive/folders/16IftH5iTXpXswC4C6R0pRCtBLrTpuuPO?usp=sharing
Compared with PM3 RD V2.0 improvement:
1. Built-in high-frequency antenna, antenna depth matching, eliminate blind spots, read the whole card data flowing without interruption.
2. increase Parse the secret key rate , the size of the card takes all.
3. sniffing data, complete stable, low error rate.
4. The low frequency antenna to improve the signal to noise ratio, the higher the recognition rate, detachable design to meet various needs.
5. No antenna interface, did not need have to plug because it is easy to damaged.
6. Cancel the lithium battery, simple and convenient. (Offline can use mobile power supply)
7. In addition to the original relay and other unrelated, low cost, lightweight and portable.
Compatible with all official firmware, according to need to brush any version.
According to your preference, you can use the official "Command Line" or "Proxmark Tool.exe" to operate
note：
It Supports The Copying Of Most Cards, But Not All Of Them, And It Does Not Support Live And Special Card Reading And Writing.

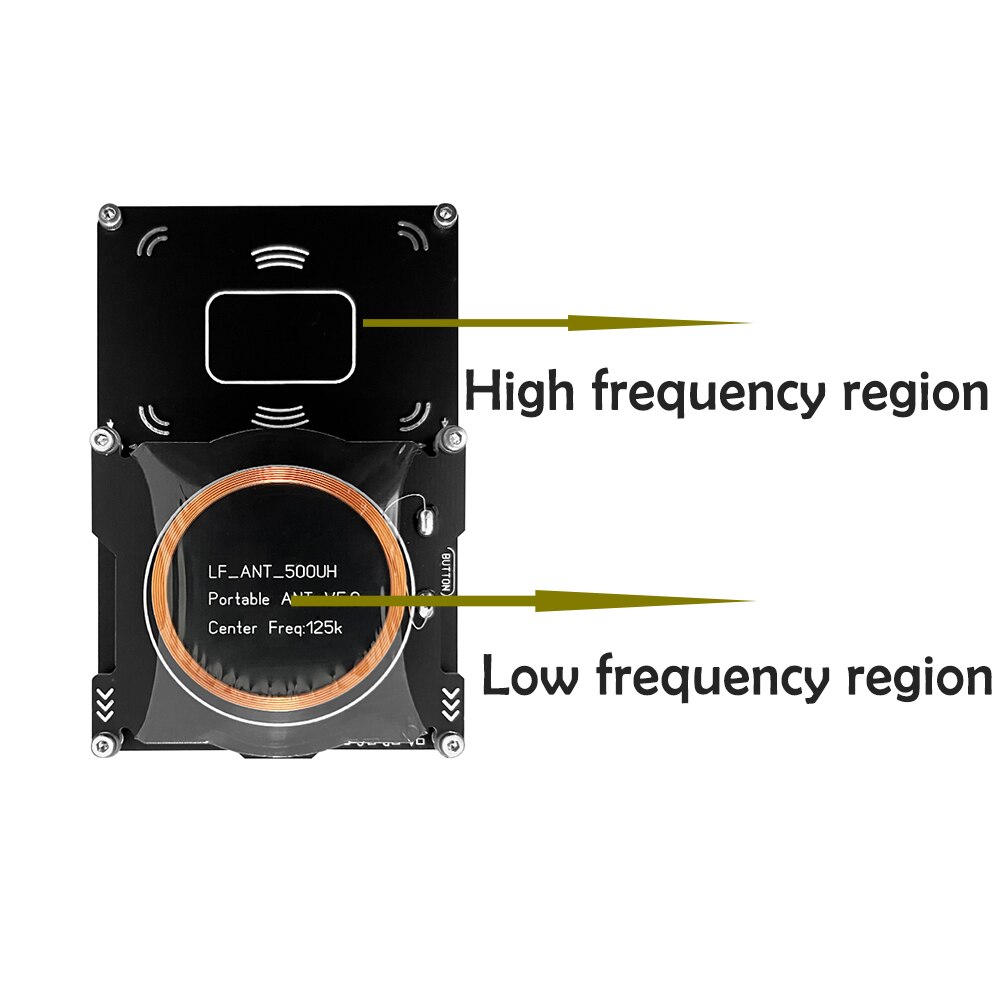

(Low frequency antenna installed on the right side)
# LF antenna: 29.84 V @ 125.00 kHz
# LF antenna: 32.31V @ 134.00 kHz
# HF antenna: 28.43V @ 13.56 MHz
(Low frequency antenna installed on the left)
# LF antenna: 43.86 V @ 125.00 kHz
# LF antenna: 24.48 V @ 134.00 kHz
# HF antenna: 25.13 V @ 13.56 MHz
Operating voltage: 3.5-5.5V
Current job: 50-130mA
Length and width dimensions: 54mm * 86.6mm
The thickness: 6.2mm (thinnest) 9.8mm (plus screw) 15.8 (plus low frequency antenna)
The main function of (common):
High frequency:
Operating card mode:
1. Conventional M1 S50 card reader and other 14443A Class B card.
2. Use the PRNG vulnerability parsing sector 0.
3. Use nested (mfoc) vulnerability resolve the whole card.
Analog card mode:
1. Analog Mi series S50 / Ultralight / DESFire card UID.
2. Analog M1 S50 whole sector data. (Pick a card reader)
3. Analog M1 S50 shell, to obtain data to calculate the secret key (pick a card reader)
Silent mode:
1. Silent sniffer data communication between the M1 S50 card and card reader, analytical secret key.
2. Silent sniffing 14443A Class B card reader with a complete communications data.
Reader device can be used for debugging and behavior analysis.
Low Frequency:
Operating card mode:
1. read ID, H-ID, T55XX, Indala and other low-frequency card.
2. By T55XX card write ID / H-ID / Indala, turned into three cards.
Analog card mode:
1. Enter ID / H-ID card, analog to the specified card type.
2. Analog modulation schemes specified data cards and ASK / FSK / PSK
Silent Mode:
1. silently sniff data between the card and the reader (less, not tested)

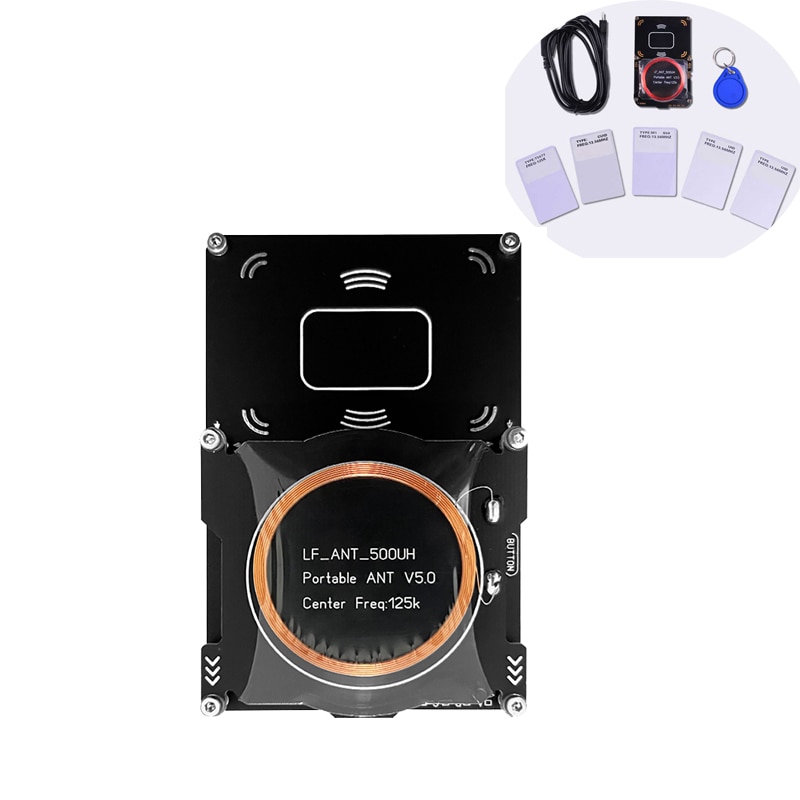

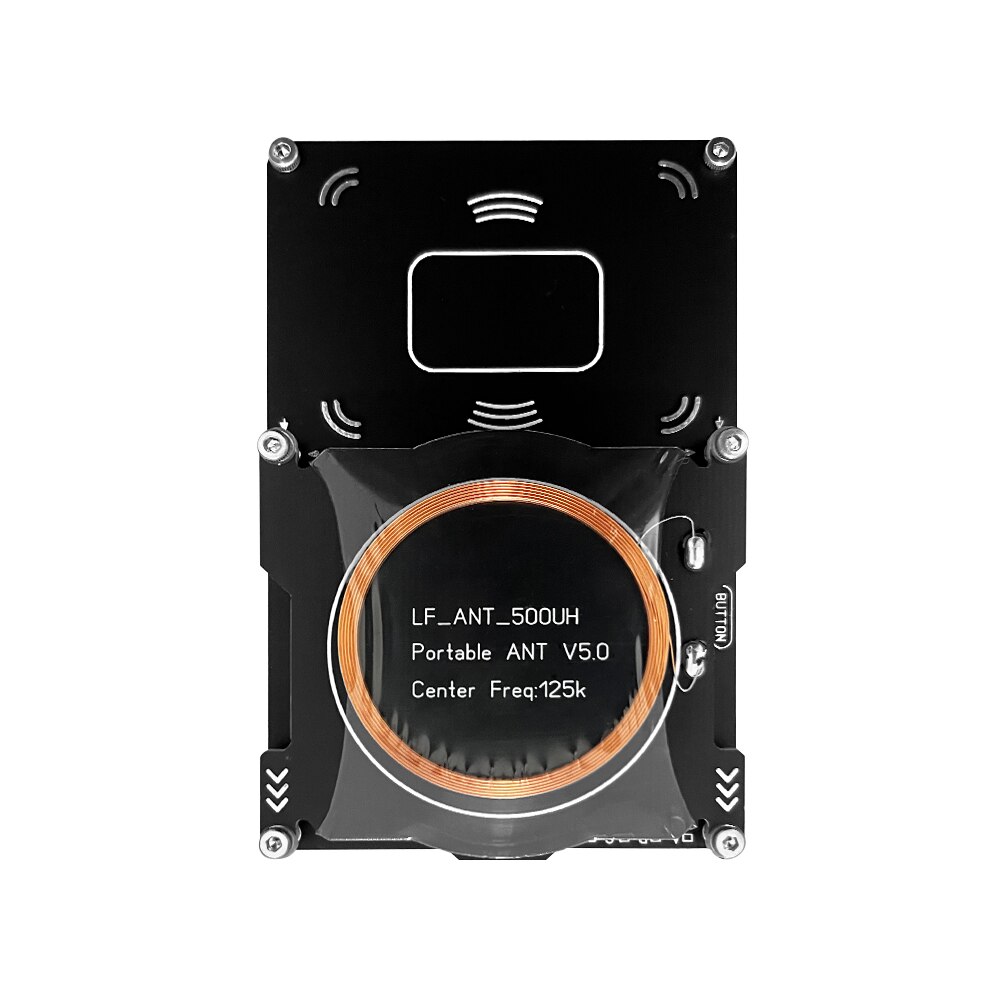

The Proxmark3 Easy is a new addition to the Proxmark family. This redesign offers increased portability through a one piece design featuring an integrated HF Antenna and an LF Antenna that is connected with screws. The entire package measures a mere 82 mm x 52 mm.

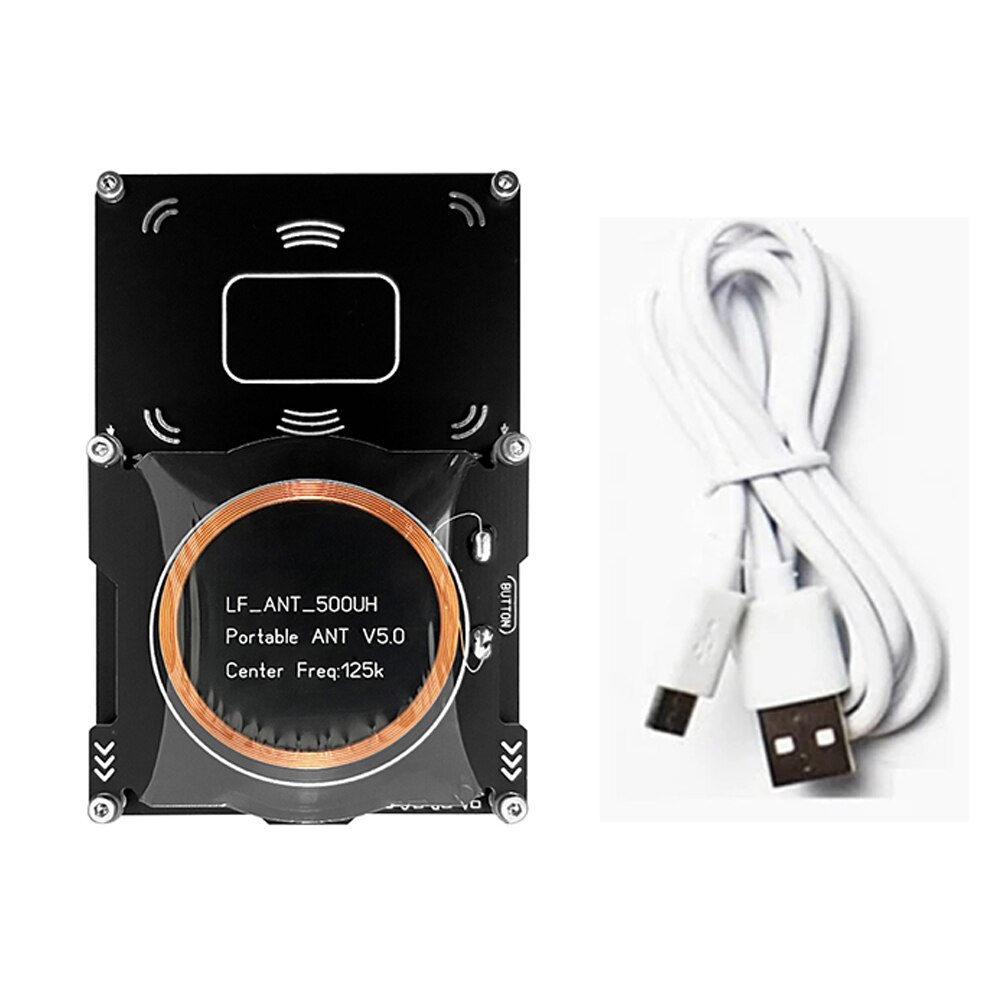

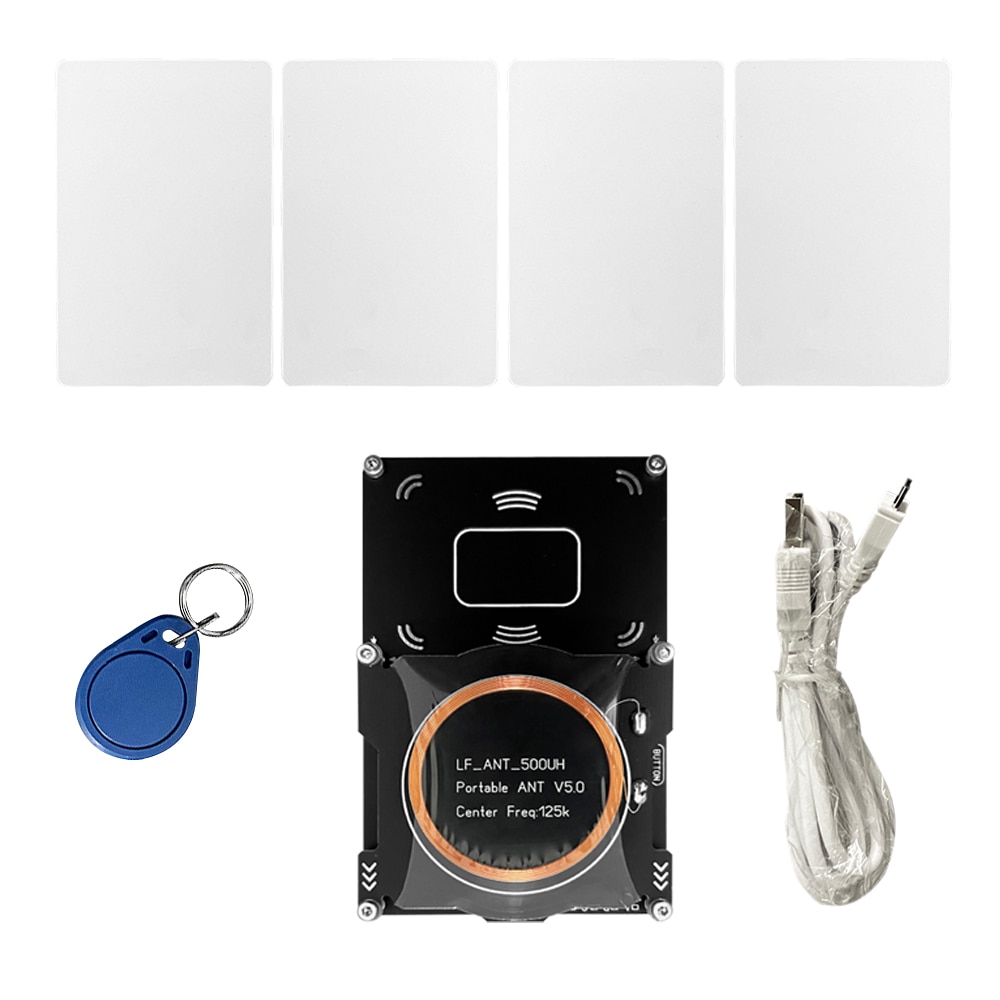

Inside the box you'll find an Proxmark3 Easy, Shell Assembly, 125 kHz LF Antenna, 13.56 MHz HF Antenna, Power Cable, and Tag Bundle. The specific tags included in the bundle can be found under the Specifications tab. The Proxmark client software and firmware are open source and available for download. The Proxmark3 Easy ships preprogrammed running V2.0. See the links tab for client software builds.
Firmware: v2.0.0
Made In: China
- Type: ID
- Interface: USB
- Model Number: none
- Origin: Mainland China
- Certification: NONE
- Access control accessories: Access control Tool
- RFID reader: card programm
- 125khz long rang rfid reader: access card reader
- nfc rfid: Rfid writer
- 125khz card reader: nfc reader writer
- rfid duplicator: placa de video
- nfc: doorphone duplicator
