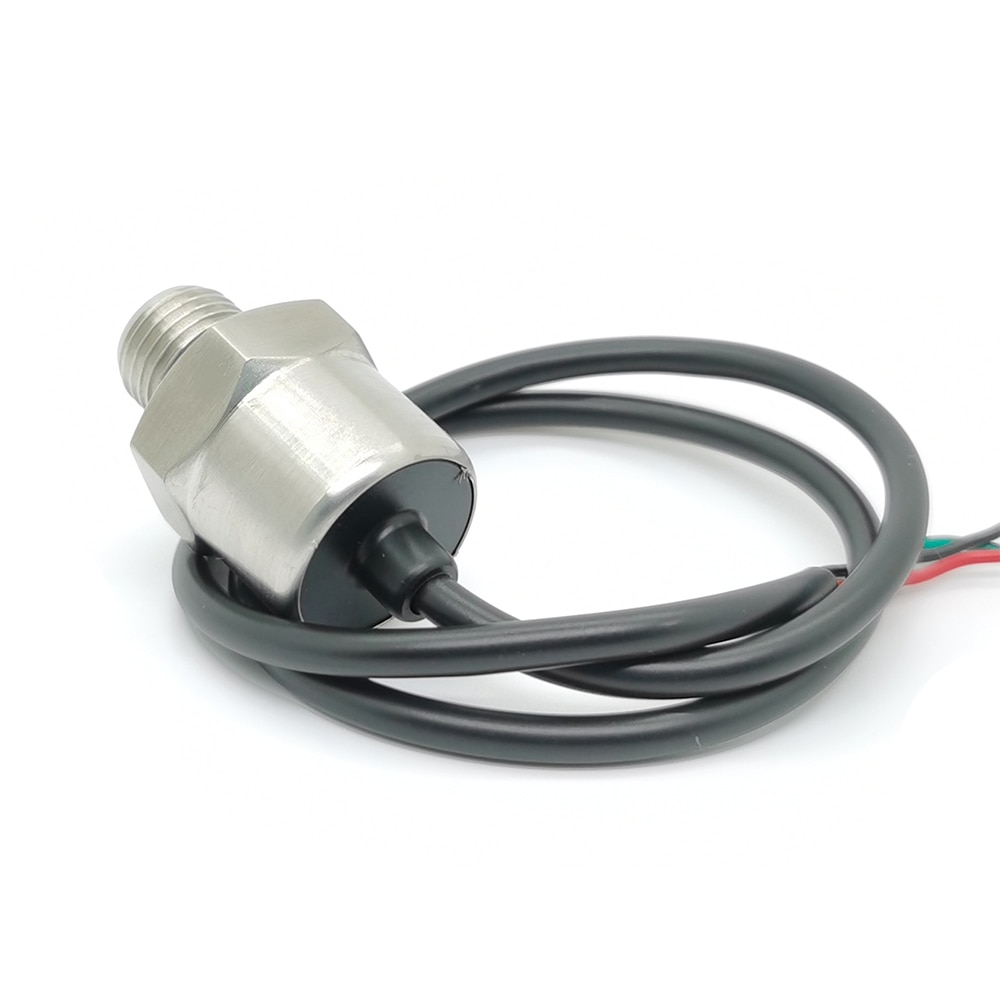

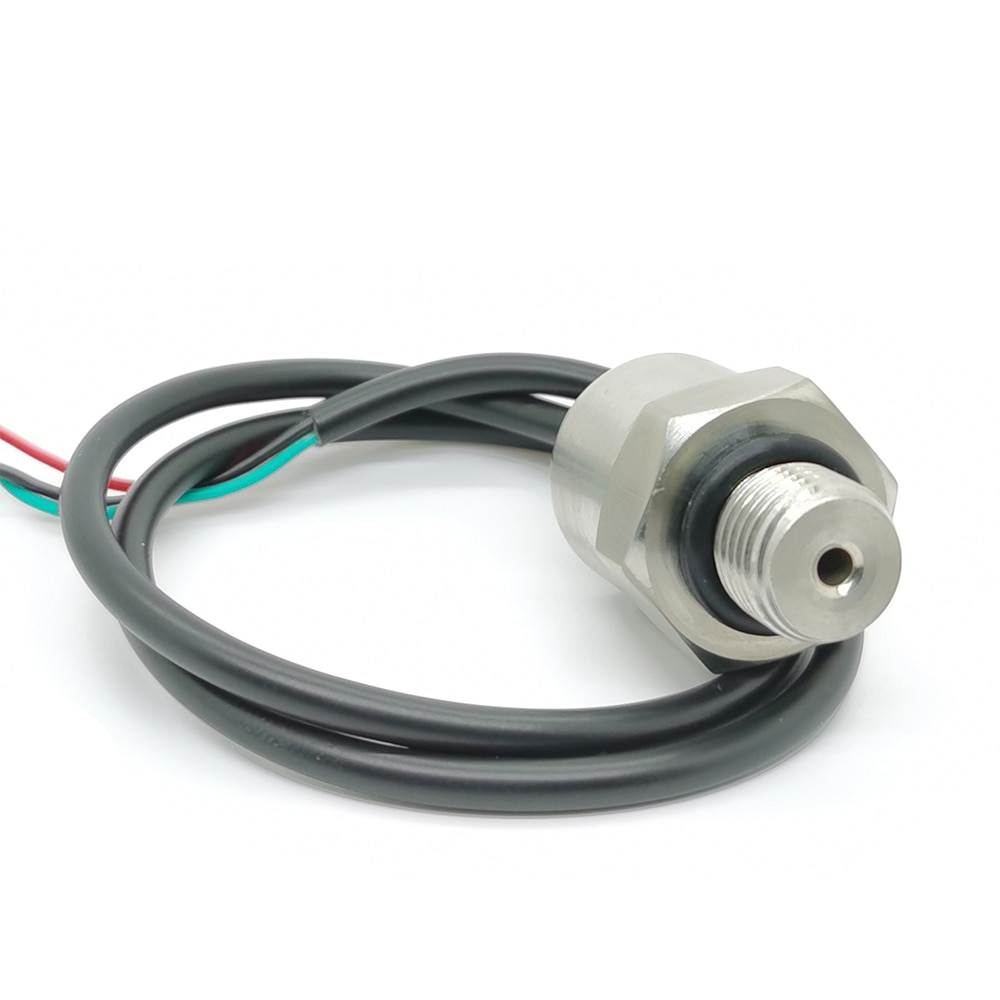

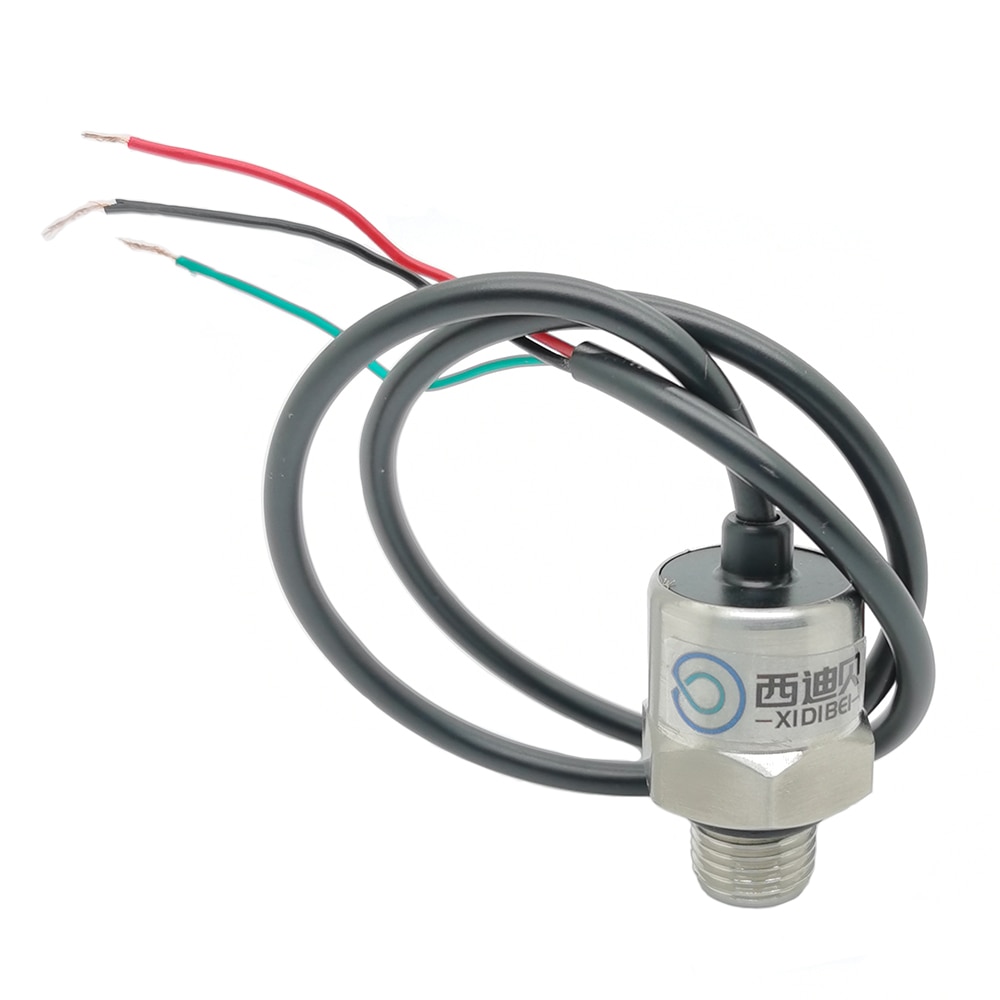

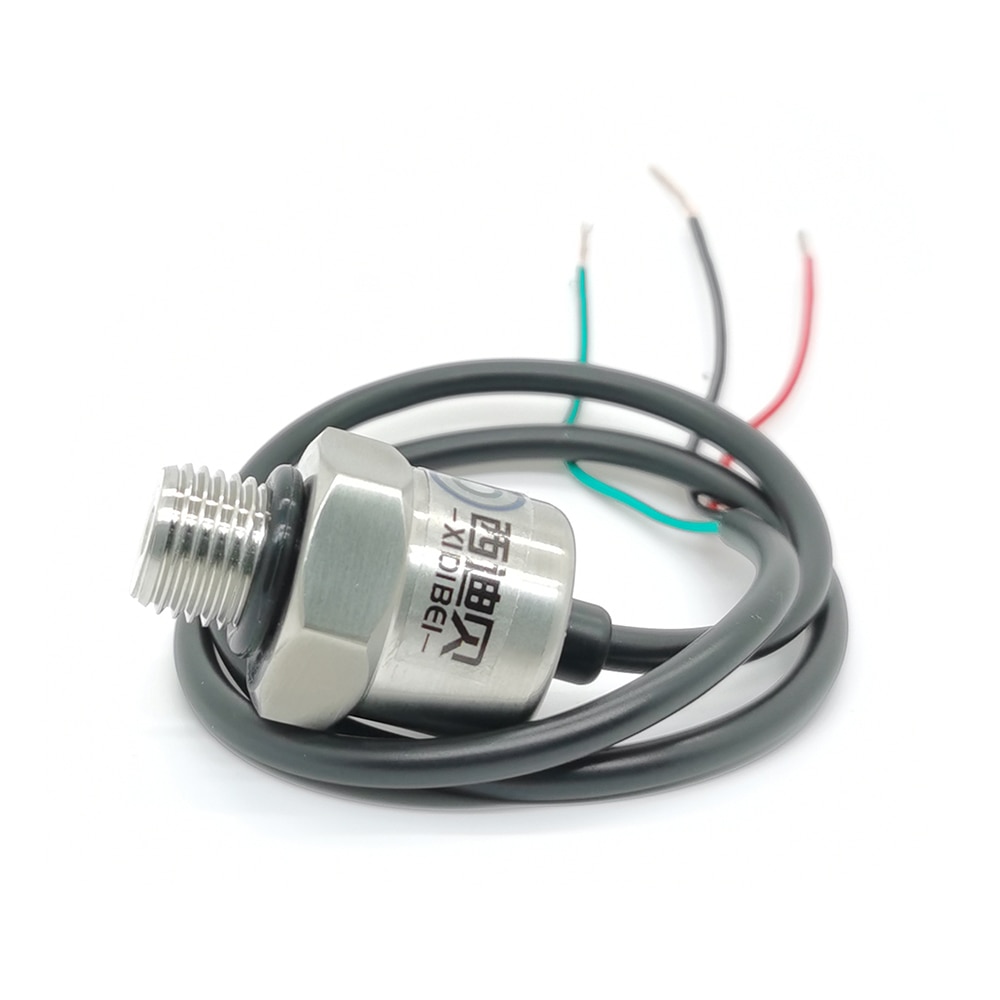

pressure sensor transmitter for water oil fuel gas air G1/4 5V ceramic sensor stainless steel 0.5Mpa 1.2Mpa transducer

4.8 (67 votes) | 828 orders
Price: US $27.26 / piece
Discount Price:
US $ 21.80 / piece
-20%
Ships From
Measuring Range
Quantity

Descriptions

XDB401 series of pressure transmitters adopts ceramic pressure sensor core, all stainless steel package, suitable for most media, with good long-term stability, it can be used in various environments and climates, so it is widely used in various fields.

Features

◆ CE conformity
◆ Low cost and high quality
◆ All stainless steel integrated structure
◆ Small size, convenient to install and operate
◆ 0.5-4.5V, 0-5V, 1-5V, various voltage output
◆ Complete surge voltage protection function
◆ For applications such as air, water, oil
◆ Provide OEM, flexible customization

Applications

◆ Intelligent IoT constant pressure water
supply
◆ Engineering machinery, industrial process
control and monitoring
◆ Energy and water treatment systems
◆ Steel, light industry, environmental protection
◆ Medical, agricultural machinery, testing
equipment
◆ Flow measurement equipment
◆ Hydraulic and pneumatic control systems
◆ Air-conditioning unit and refrigeration
equipment
◆ Water pump, air compressor pressure
monitoring

Parameters

Measuring range: 0-60Mpa gauge pressure
Accuracy: ±1.0%FS
Output signal: 0.5-4.5V, or other please tell us
Supply voltage: 5VDC or 12VDC
Operating temperature: -40~105℃
Compensation temperature: -20~80℃
Operating current: ≤3mA
Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
Long-term stability: ≤±0.2%FS/year
Response time: ≤3ms
Overload pressure: 150%FS
Burst pressure: 300%FS
Cycle life: 500,000 times
Sensor core: Al2O3-96% ceramic sensor
Pressure medium: Non-corrosive liquid or gas
Pressure connection: G1/4, Other pressure connection is on request
Electrical connection: Direct cable
Housing material: 304 Stainless Steel
Protection class: IP65
Explosion-proof class: ExiaⅡCT6
Weight: ≈0.080kg

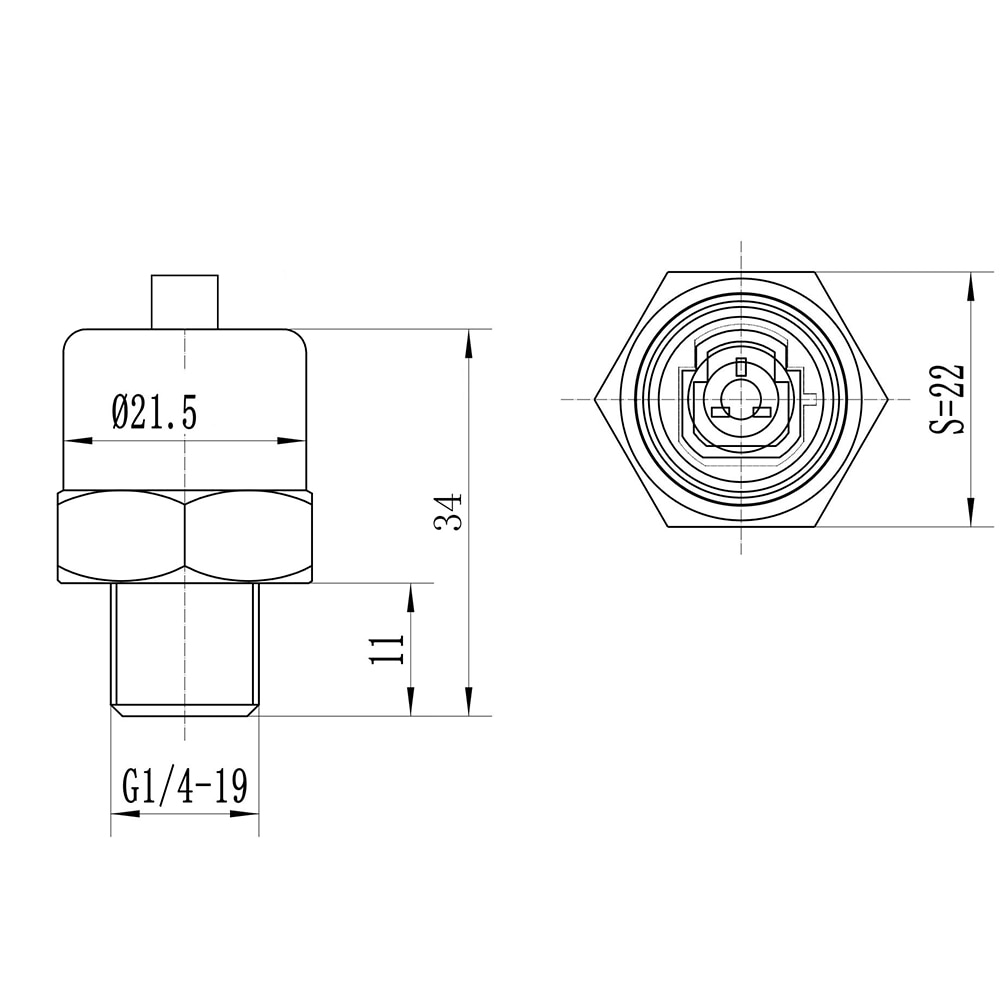

Dimension (unit:mm)

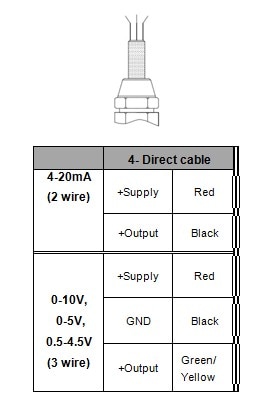

Electrical connection

Ordering information

Default cable length: 0.3m / 11.8inch cable.
If you have other special requirements, please contact us and note in the order.

Contact us

Mr Steven Zhao (Sales Manager)
Mob/Whatsapp: +86 18918696561
Skype/We Chat: xdbsensor
E-mail: steven@xdbsensor.com
Web: www.xdbsensor.com



  • Model Number: XDB401
  • Max Measuring Range: 100 - 199 Bar
  • Brand Name: XIDIBEI
  • Origin: Mainland China
  • Measuring range: 0-60Mpa gauge pressure
  • Supply voltage: 5VDC
  • Output signal: 0.5-4.5V or 0-5V or 1-5V or 0.4-2.4V(Low power consumption)
  • Accuracy: ≤±1.0%FS
  • Operating temperature: -40-105℃
  • Sensor core: ceramic sensor
  • Housing material: 304 Stainless Steel
  • Pressure connection: G1/4 or other
  • Electrical connection: Direct cable
  • Protection class: IP65
  • Explosion-proof class: Exia2CT6
  • Electromagnetism Compatibility: EN50051-1
