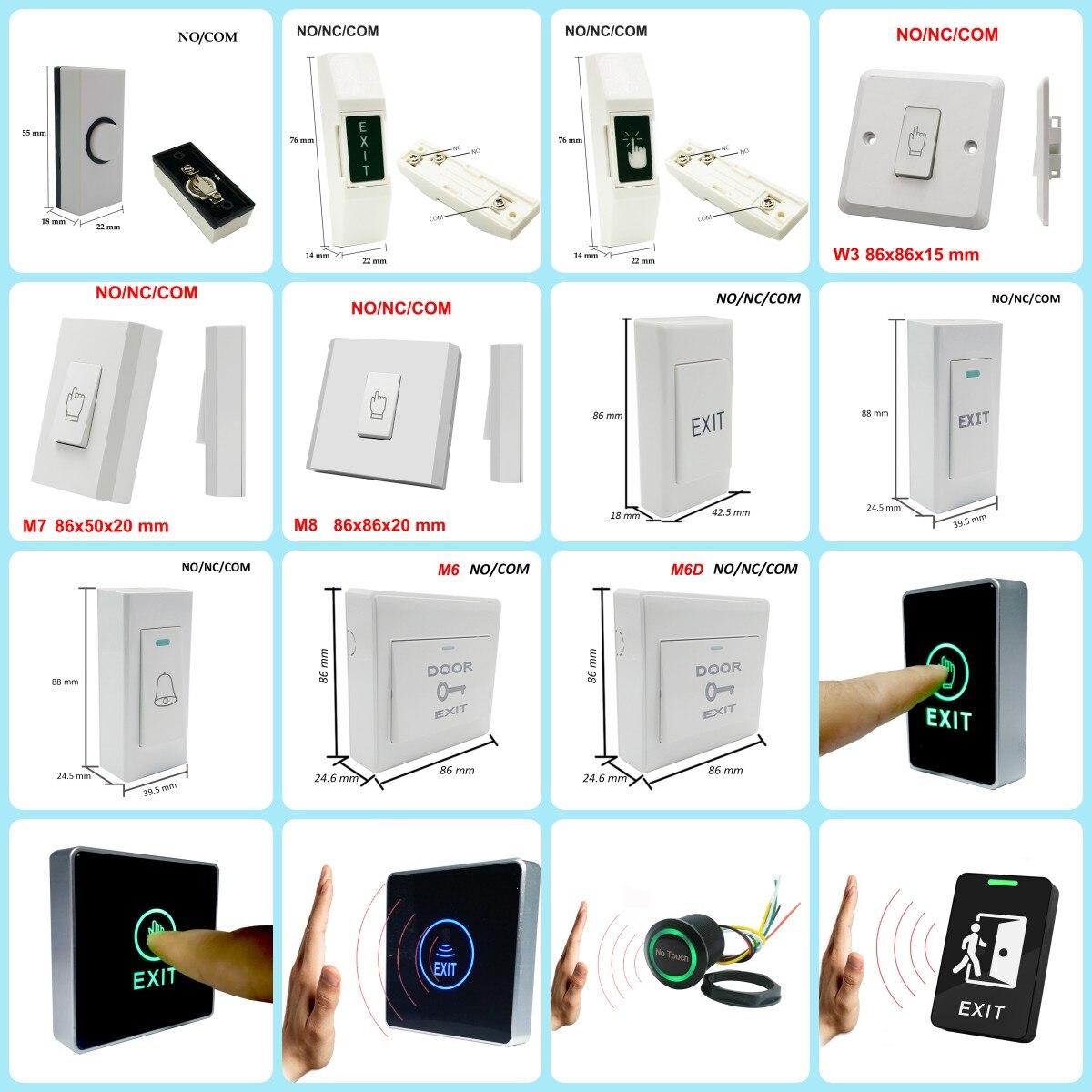

Exit button for Access control aluminum alloy With the Bottom Box Dimensions: 80Lx30Wx23H(mm) ,min:1pcs
14.53 $

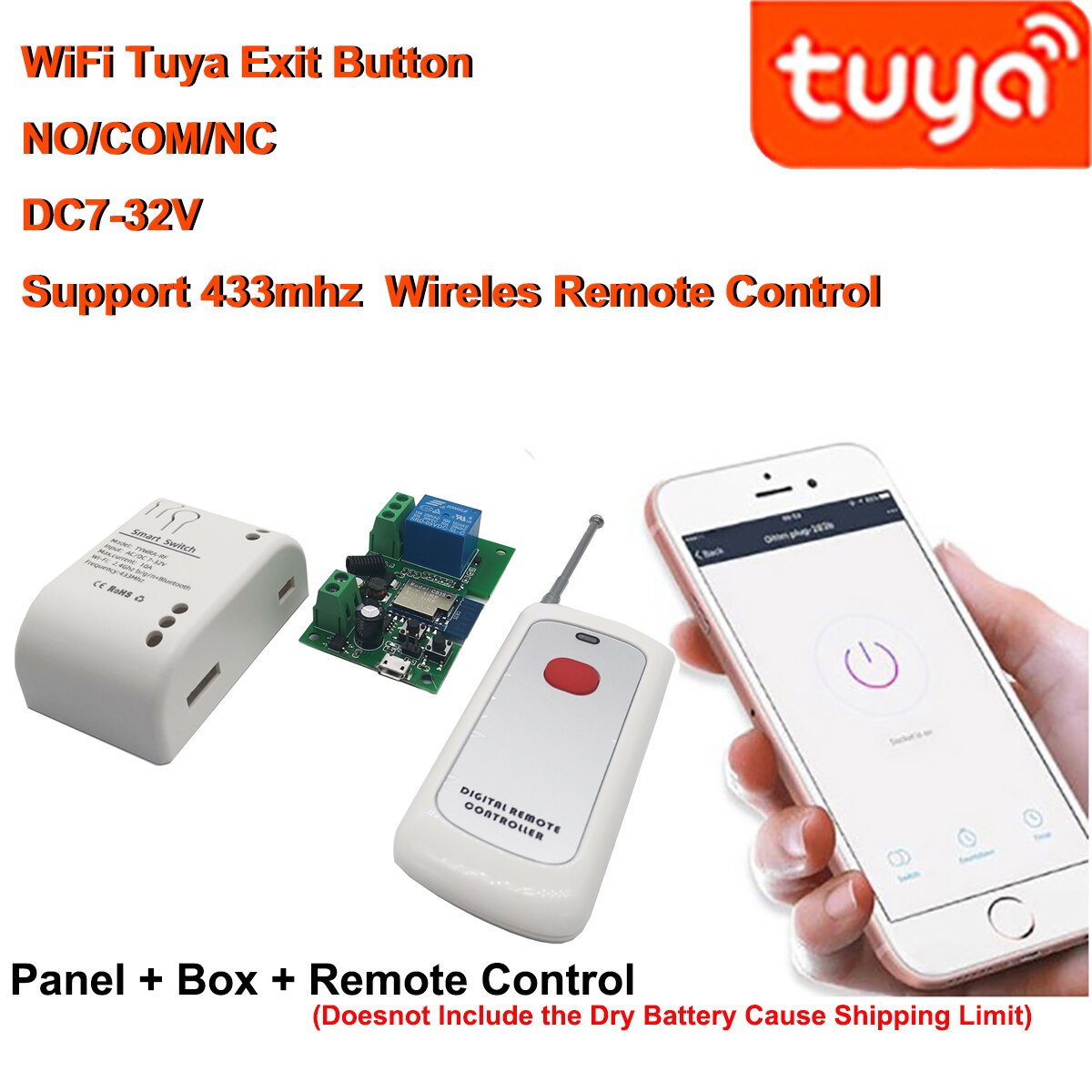

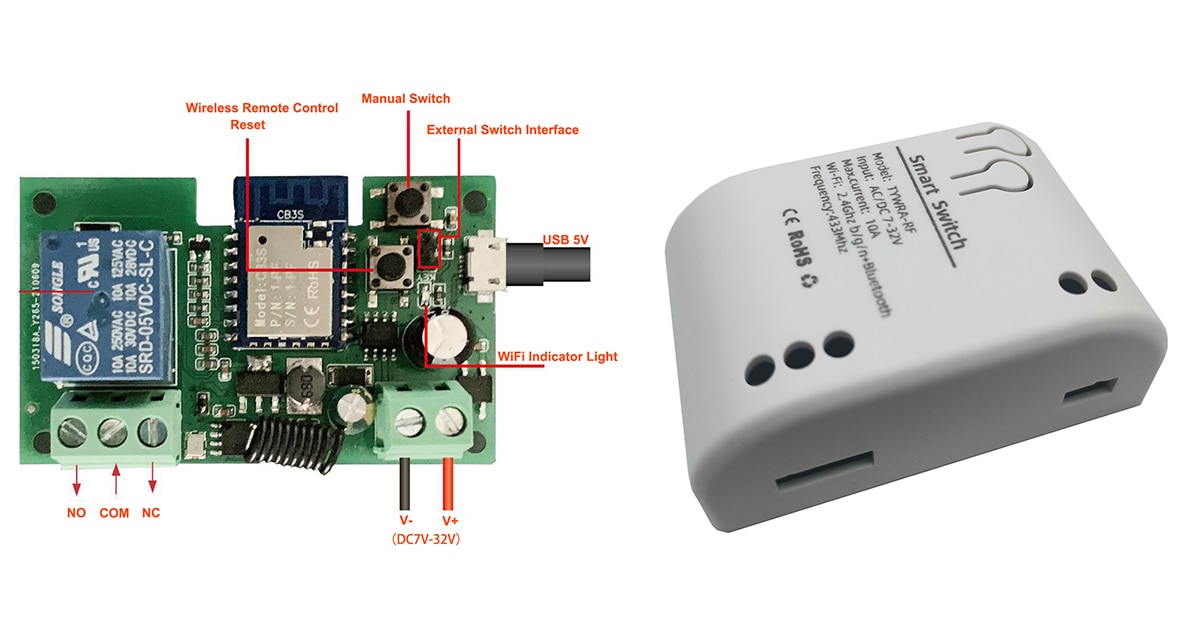

DIY WiFi Tuya APP Exit Button
Tuya App
WiFi 2.4G IEEE802.11b/g/n + Bluetooth(when has no network, can use bluetooth control)
Can work with 433mhz Wireless Remote Control
Working Voltage: DC 7V-32V
Max Current: 10A
Time Delay, Time Schedule Setting
Material: Plastic
Output Contact:NO/NC/COM
Working temperature(approx.): 0 to 50 ℃

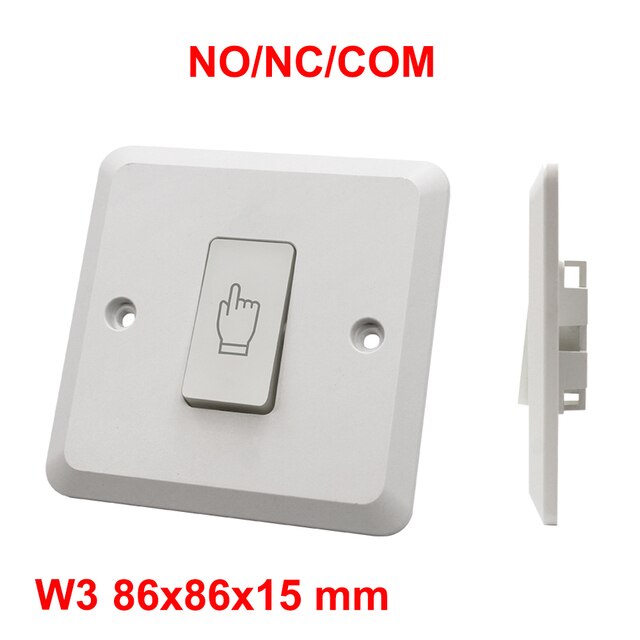

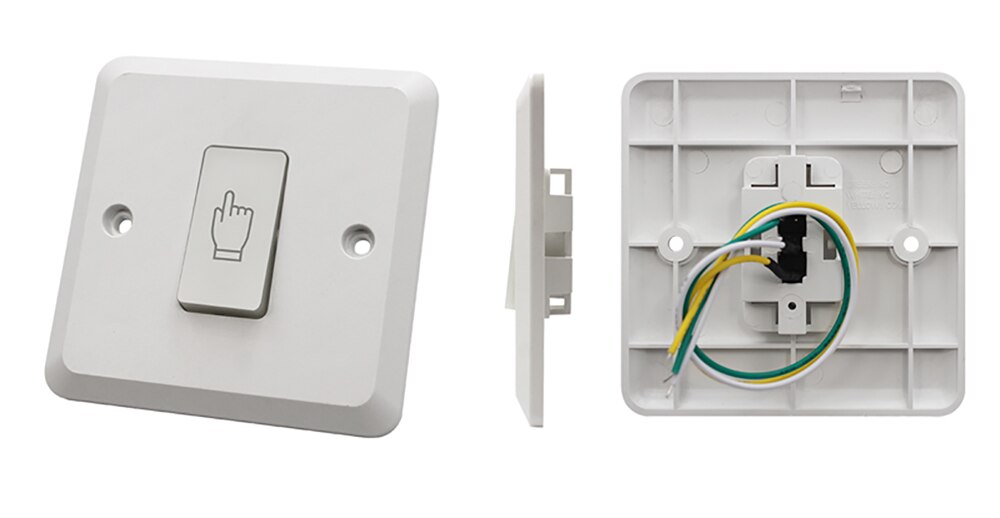

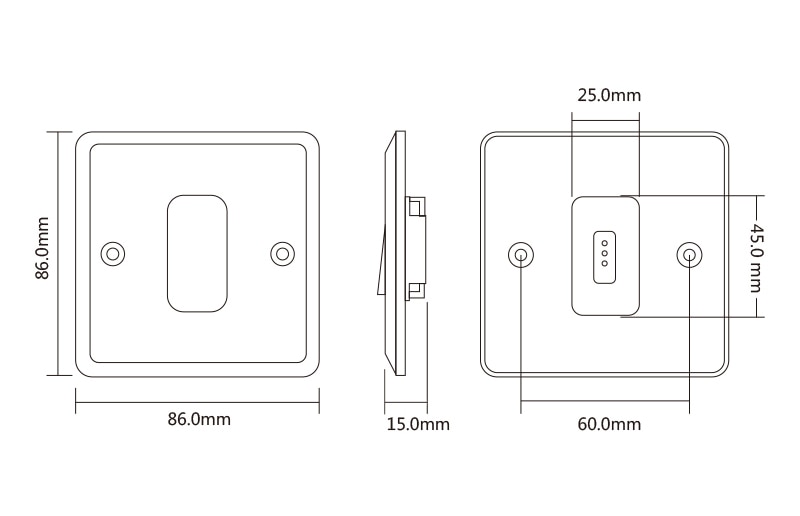

W3 Products Details
Dimensions: 86L*86W*15H(mm)
Current Rating: 3A/125-250VAC
Output Contact: NO/NC/COM
Installation Mode: Concealed Mount
Operating Temp: -10℃~+55℃
Suitable Humidity: 0-95%(relative humidity)
Weight: 0.065kg
Mechanical Life: 500,000 tests
Material: ABS

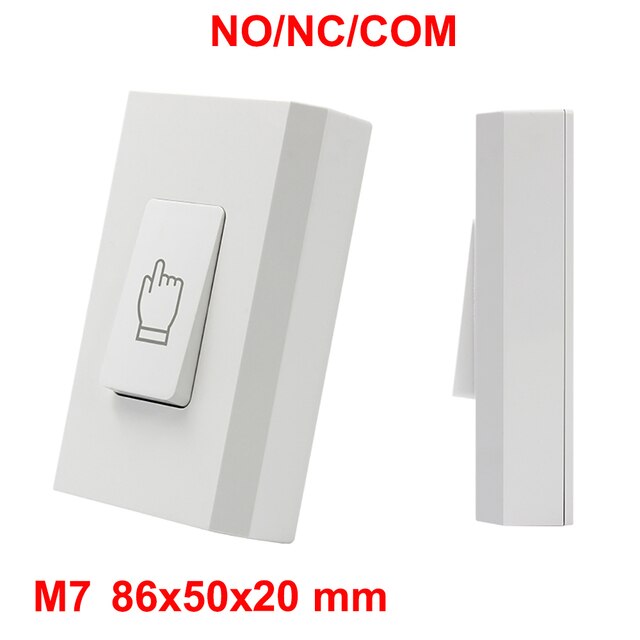

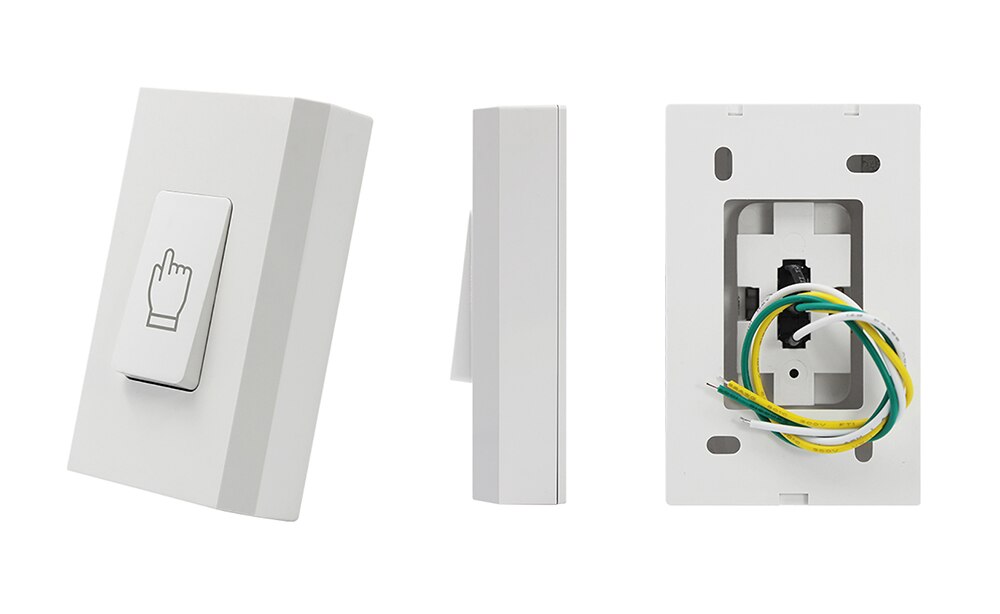

M7 Products Details
Dimensions: 86L*50W*25H(mm)
Current Rating: 3A/125-250VAC
Output Contact: NO/NC/COM
Installation Mode: Surface Mount
Operating Temp: -10℃~+55℃
Suitable Humidity: 0-95%(relative humidity)
Weight: 0.065kg
Mechanical Life: 500,000 tests
Material: ABS

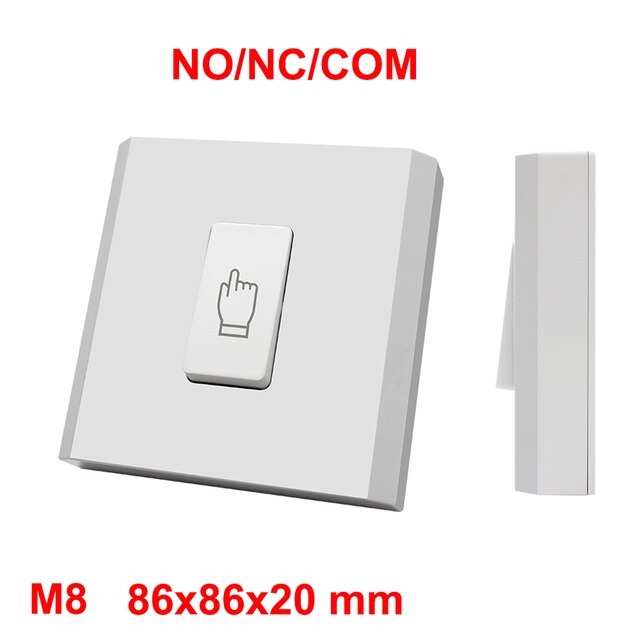

M8 Products Details
Dimensions: 86L*86W*25H(mm)
Current Rating: 3A/125-250VAC
Output Contact: NO/NC/COM
Installation Mode: Surface Mount
Operating Temp: -10℃~+55℃
Suitable Humidity: 0-95%(relative humidity)
Weight: 0.065kg
Mechanical Life: 500,000 tests
Material: ABS

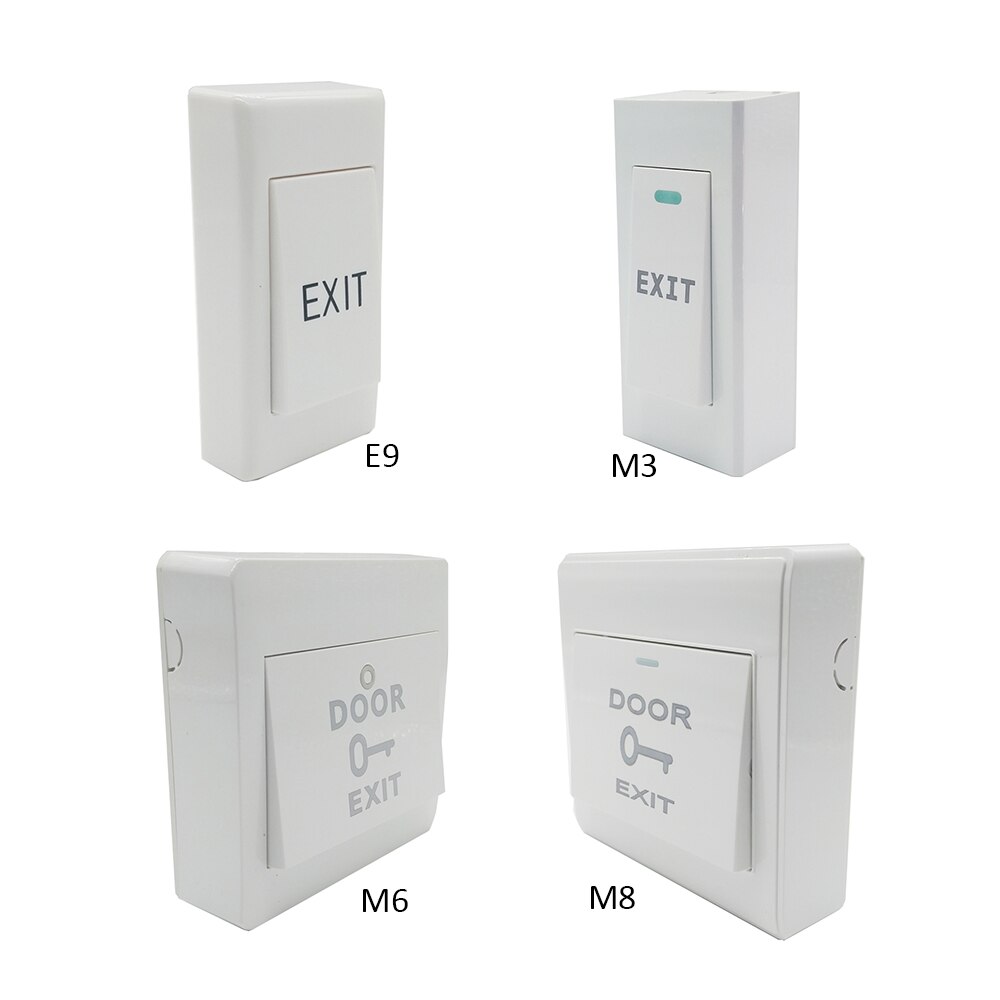

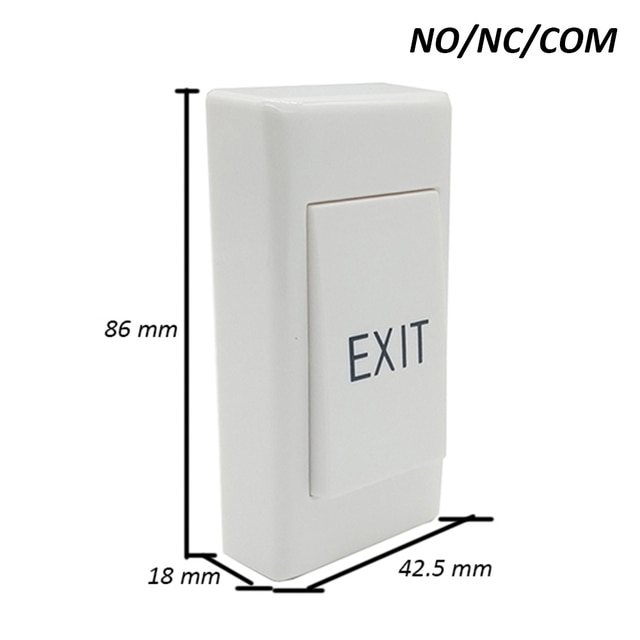

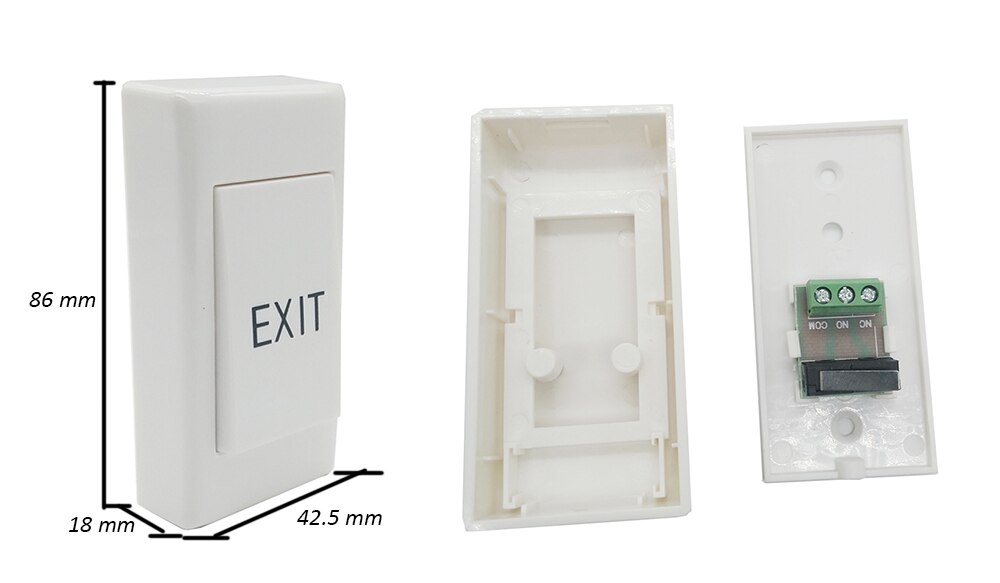

E9D Products Details
Material: Hard Plastic
Dimensions:86Lx42.5Wx18H(mm)
Input:DC12V-24
Output Contact:NO\NC\COM
Mechanical Life:500000 tests
Suitable for Door:All Kinds Doors
Operating temp:-20~+55 degree(14-131F)
Suitable Humidity:0-95% (relative humidity)
Color:White

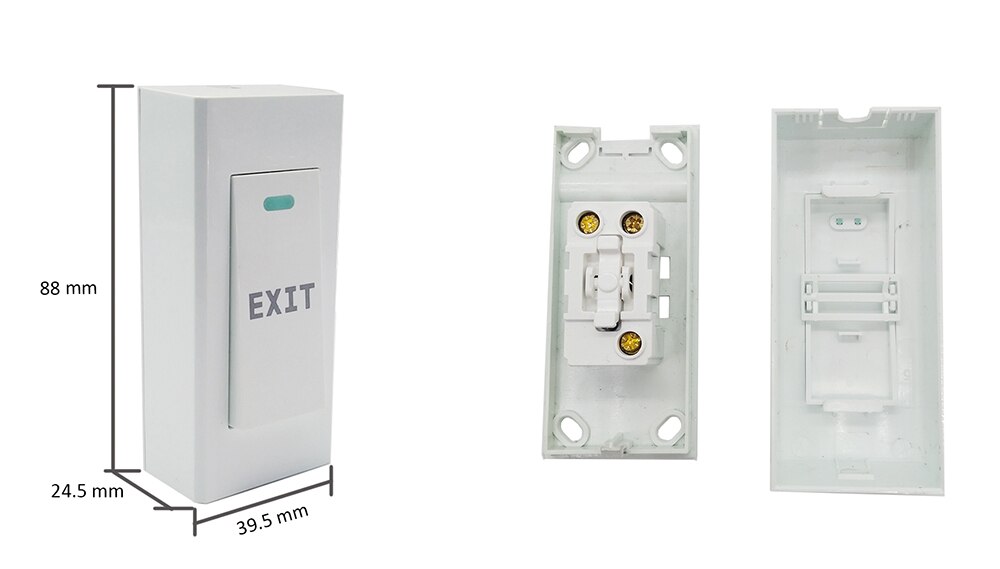

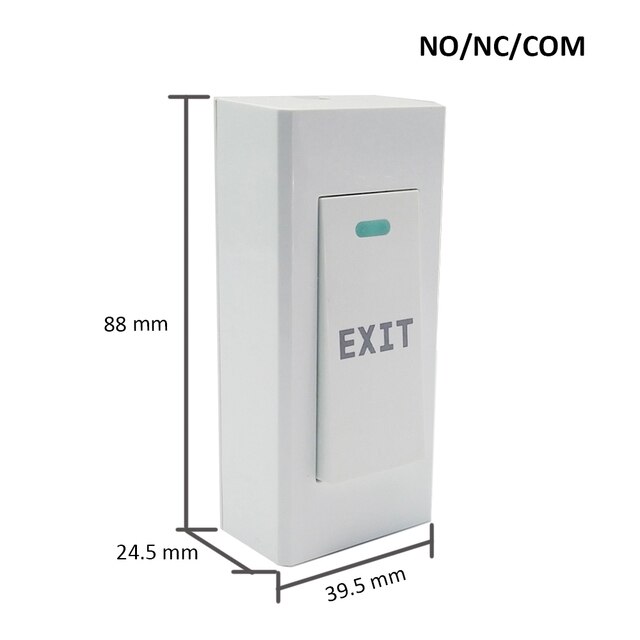

M3D Product Details
Material: Hard Plastic
Dimensions:88Lx39.5Wx24.5H(mm)
Input:DC12V-24V
Output Contact:NO\NC\COM
Mechanical Life:500000 tests
Suitable for Door:All Kinds Doors
Operating temp:-20~+55 degree(14-131F)
Suitable Humidity:0-95% (relative humidity)
Color:White

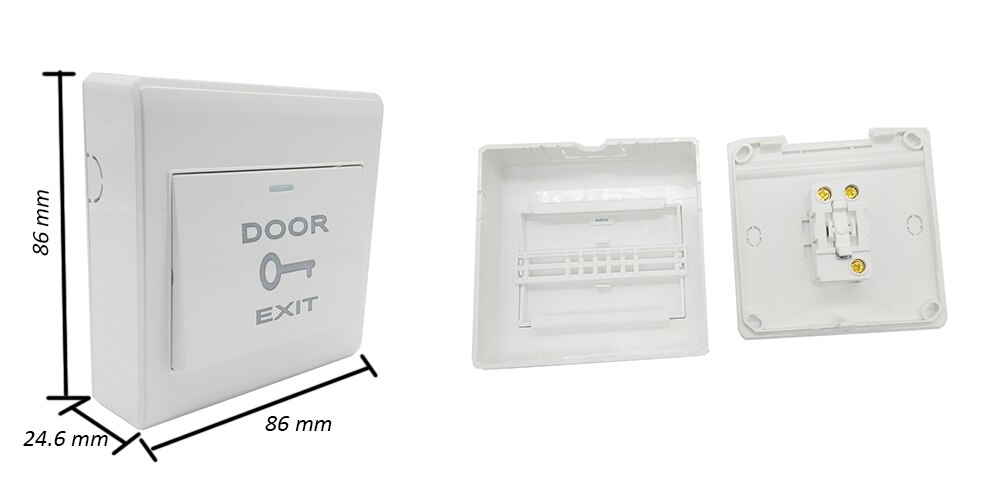

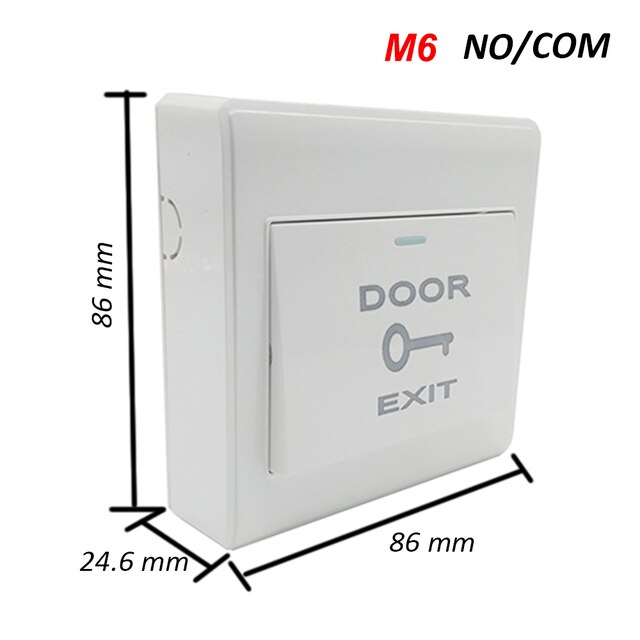

M6 Products Details
Material: Hard Plastic
Dimensions:86Lx86Wx24.6H(mm)
Input:DC12V-24V
Output Contact:NO\COM
Mechanical Life:500000 tests
Suitable for Door:All Kinds Doors
Operating temp:-20~+55 degree(14-131F)
Suitable Humidity:0-95% (relative humidity)
Color:White

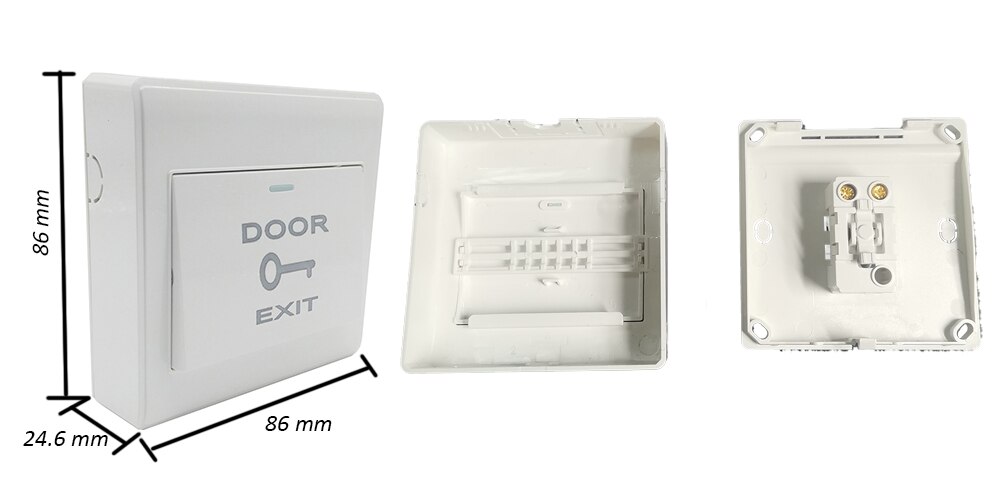

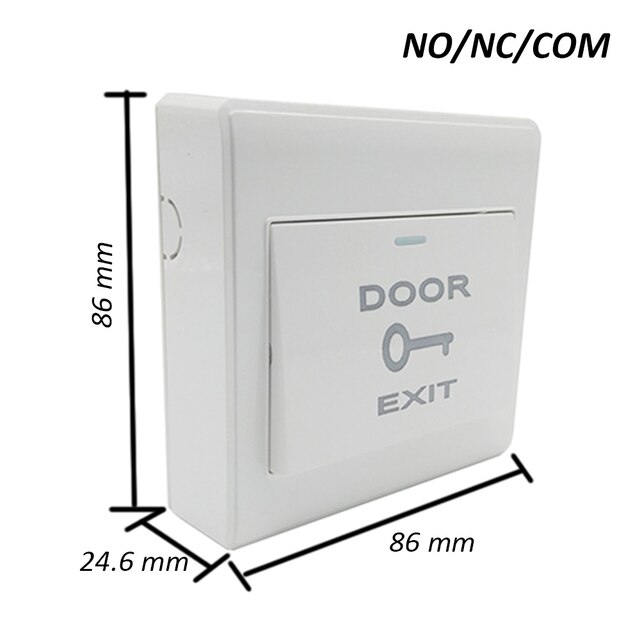

M6D Products Details
Material: Hard Plastic
Dimensions:86Lx86Wx24.6H(mm)
Input:DC12V-24V
Output Contact:NO\NC\COM
Mechanical Life:500000 tests
Suitable for Door:All Kinds Doors
Operating temp:-20~+55 degree(14-131F)
Suitable Humidity:0-95% (relative humidity)
Color:White

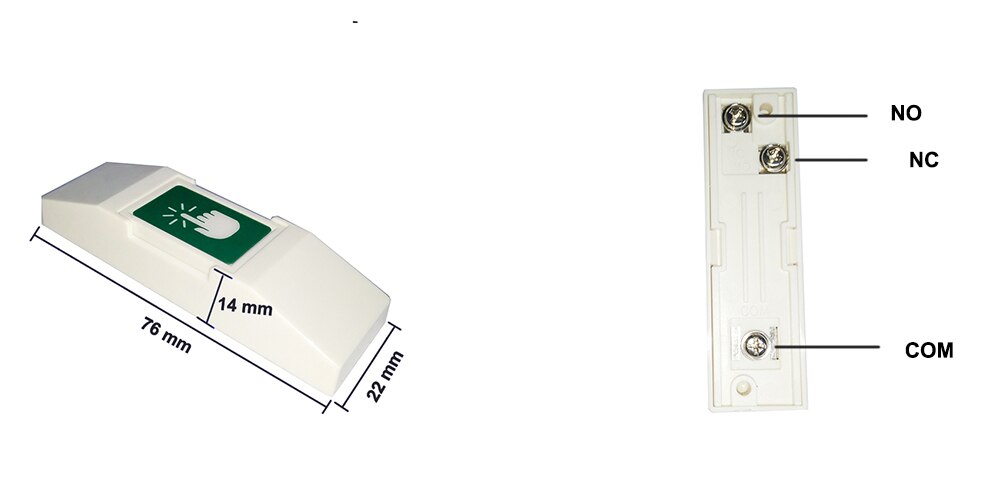

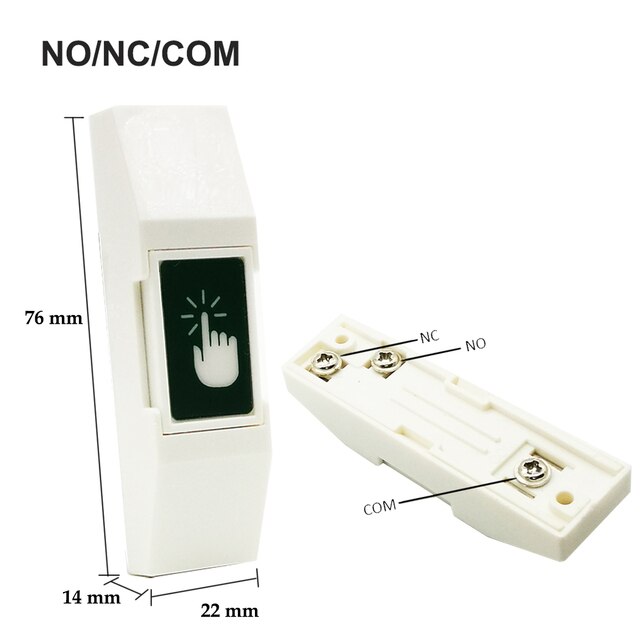

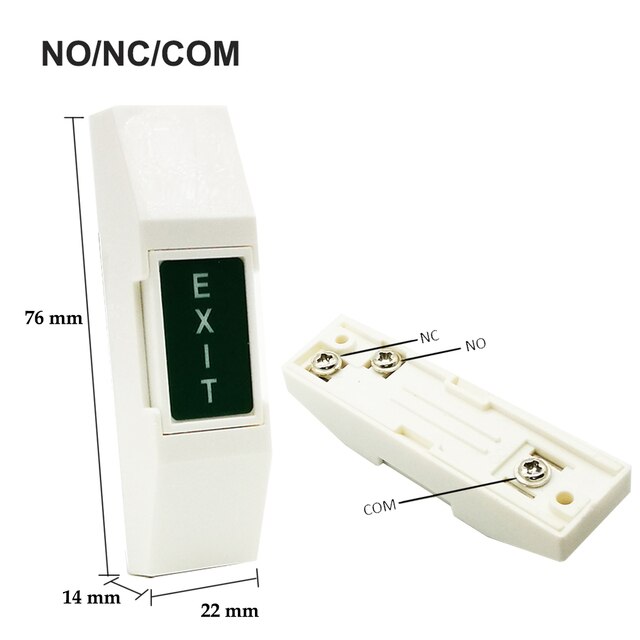

V3 Product Details
Material: Hard Plastic
Dimensions:76Lx22Wx14H(mm)
Input:DC12V-24V
Output Contact:NO/NC/COM
Mechanical Life:500000 tests
Suitable for Door:All Kinds Doors
Operating temp:-20~+55 degree(14-131F)
Suitable Humidity:0-95% (relative humidity)
Color:White

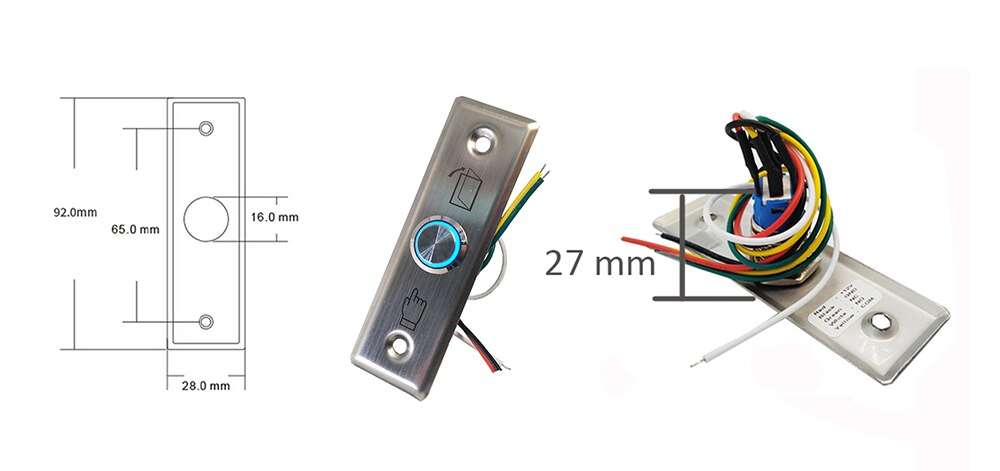

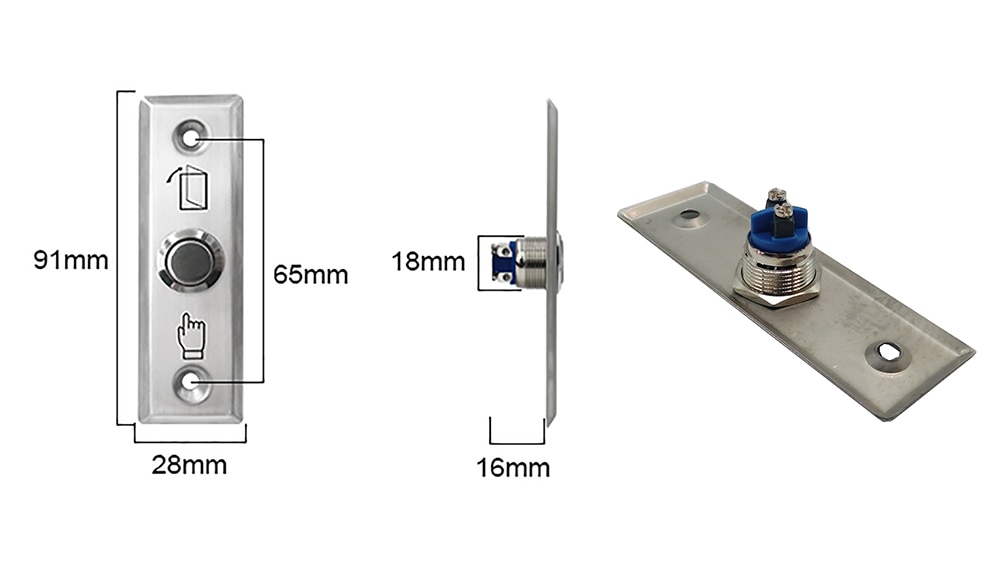

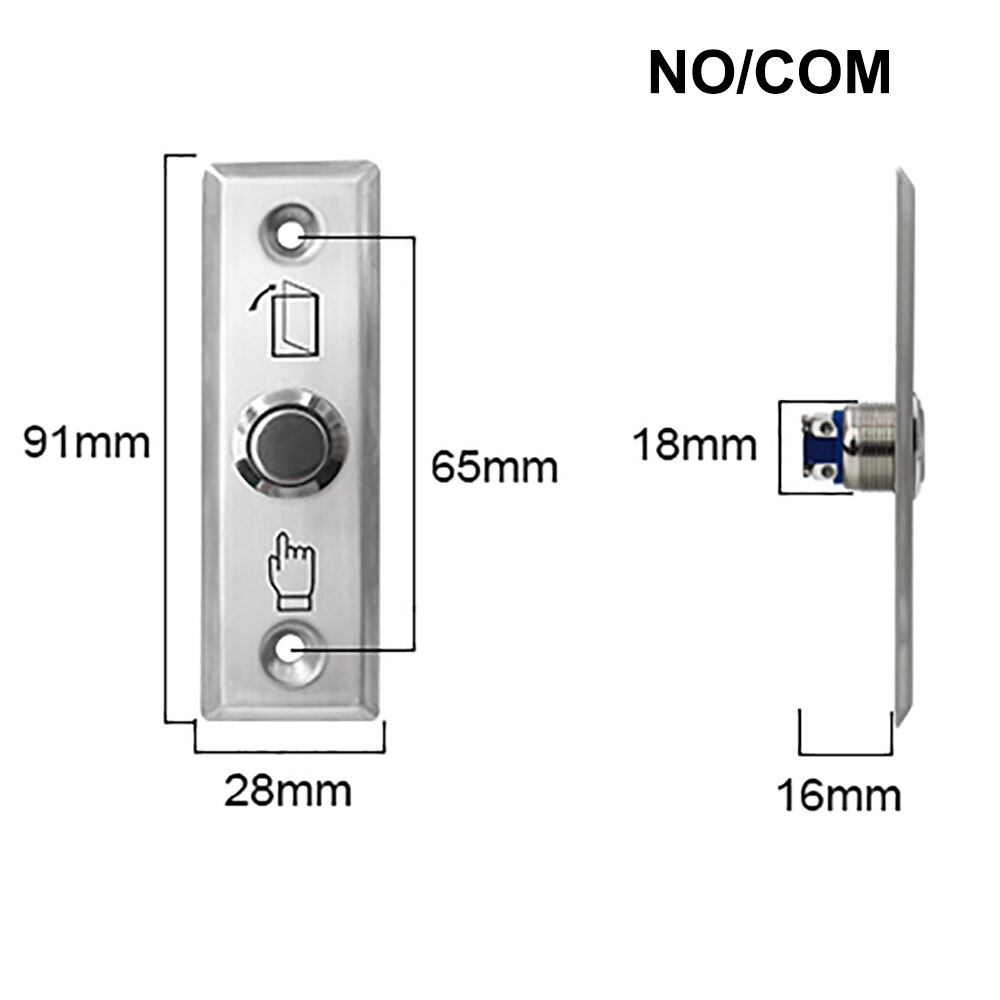

S28/S28L Metal One
Material: Metal
Dimensions:S28: 91Lx28Wx16H(mm)
S28L:91Lx28Wx27H(mm)
Input:DC12V-24V
Output Contact:S28: NO/COM
S28L: NO/NC/COM
Mechanical Life:500000 tests
Suitable for Door:All Kinds Doors
Operating temp:-20~+55 degree(14-131F)
Suitable Humidity:0-95% (relative humidity)

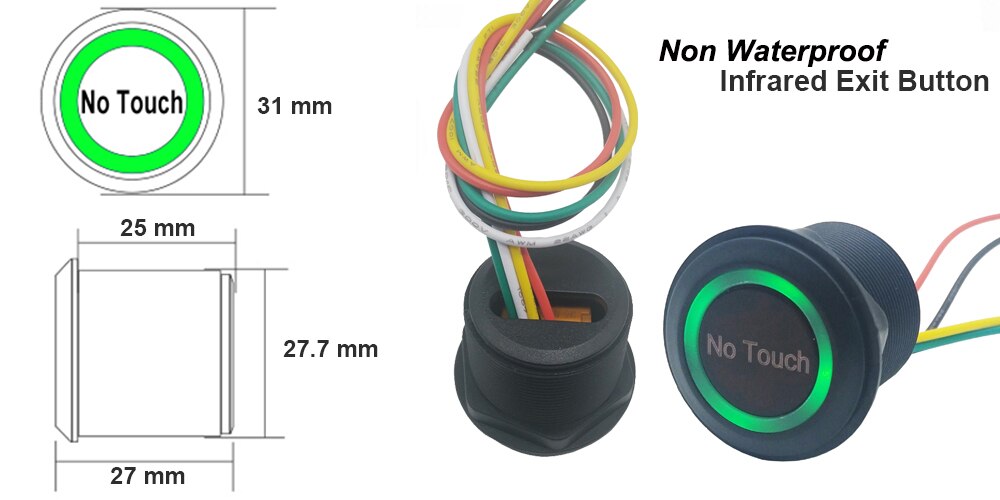

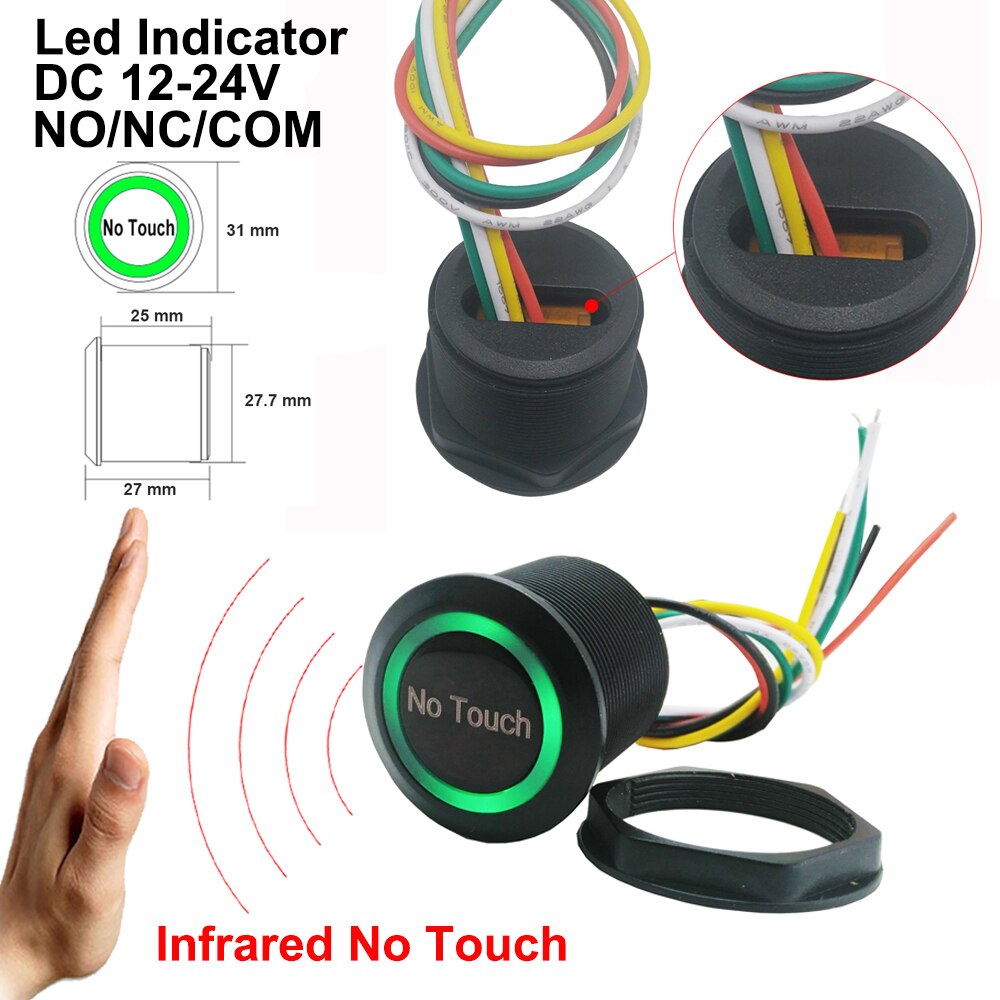

K6N No Touch Type
Sensor Head Material: Plastic
Input voltage: DC 12V-24V
Output Contact:NO/NC/COM
Working temperature(approx.): 0 to 50 ℃
Response range: Within 10cm
LED indication: Standby: Blue LED on, visitors approaching: Green LED on
K5 Size(approx.): 31 x 27 mm

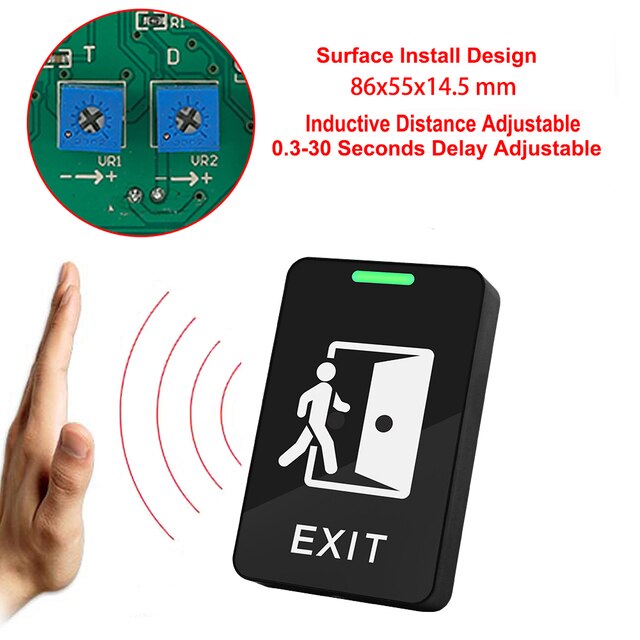

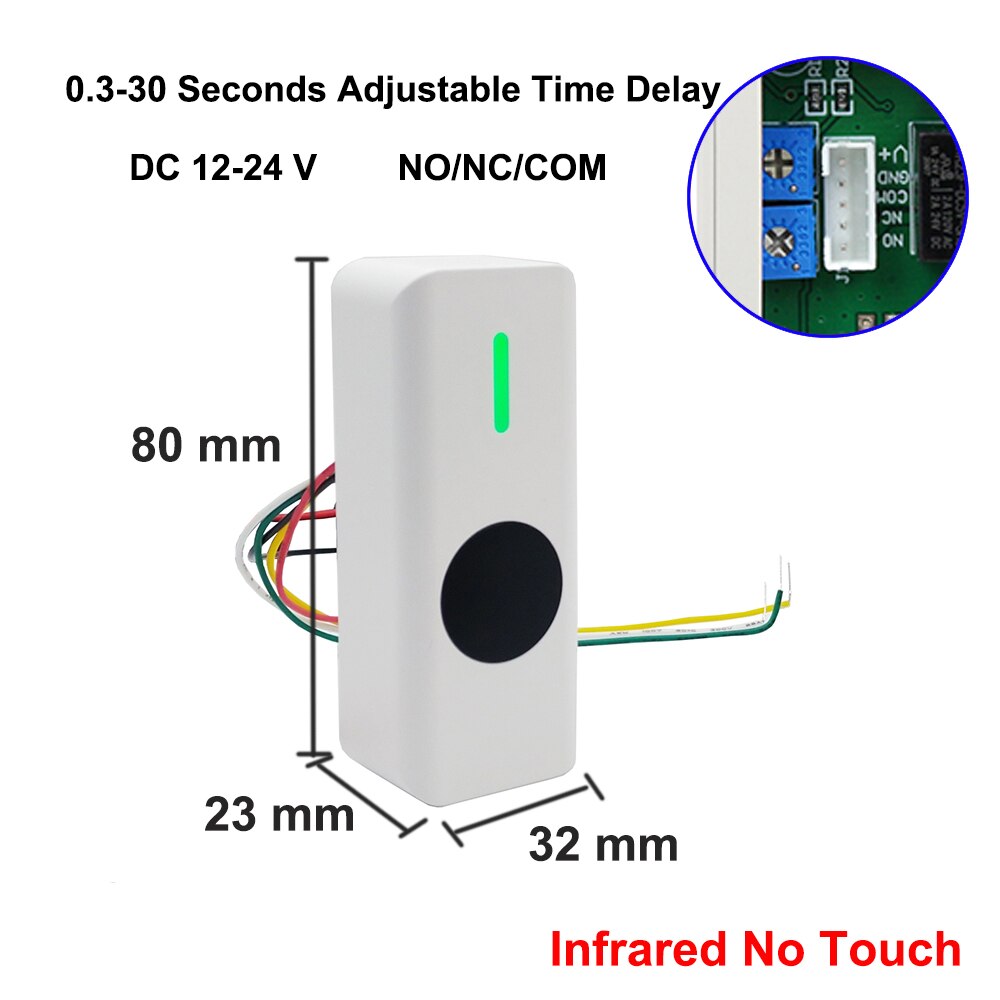

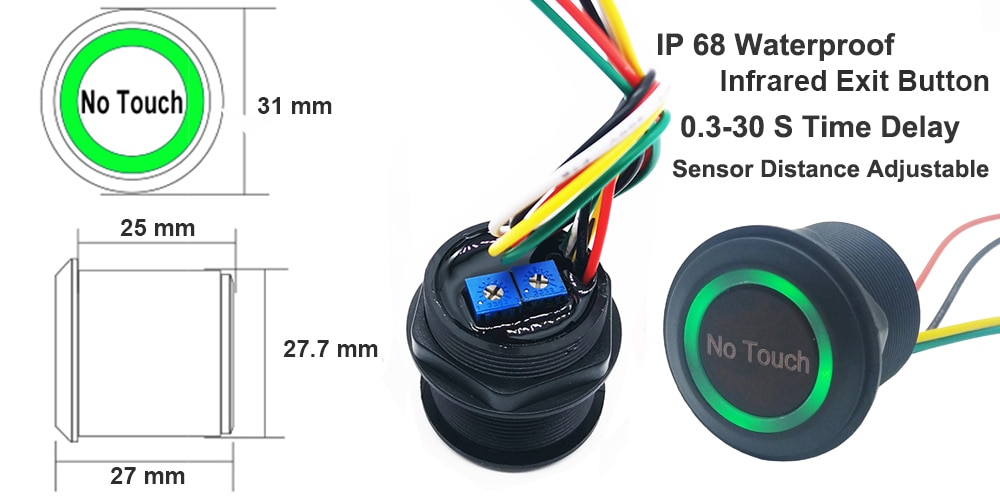

K6DT Time Delay No Touch Type
Waterproof IP68
Sensitive Distancer Adjustable
0.3-30 seconds time Delay adjustable;
Sensor Head Material: Plastic
Input voltage: DC 12V-24V
Output Contact:NO/NC/COM
Working temperature(approx.): 0 to 50 ℃
Response range: Within 10cm
LED indication: Standby: Blue LED on, visitors approaching: Green LED on
K5 Size(approx.): 31 x 27 mm

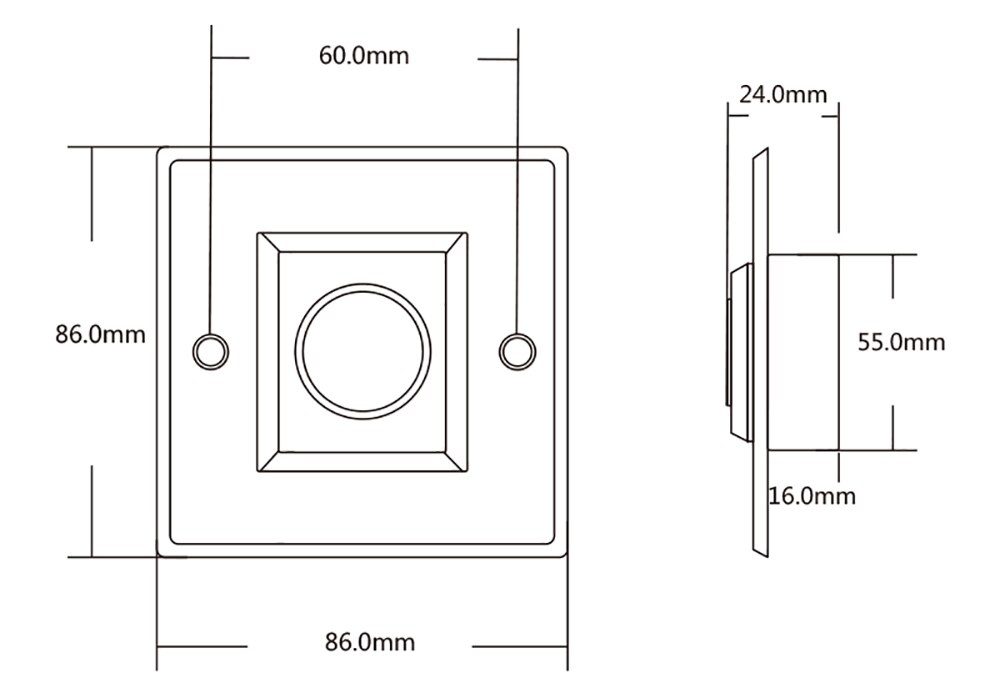

K2 No Touch Exit Button
Sensitive Distancer Adjustable
Material: Metal
Input voltage: DC 12V-24V
Output Contact:NO/NC/COM
Working temperature(approx.): 0 to 50 ℃
Response range: Within 10cm
LED indication: Standby: Blue LED on, visitors approaching: Green LED on
Size:86x86x24 mm

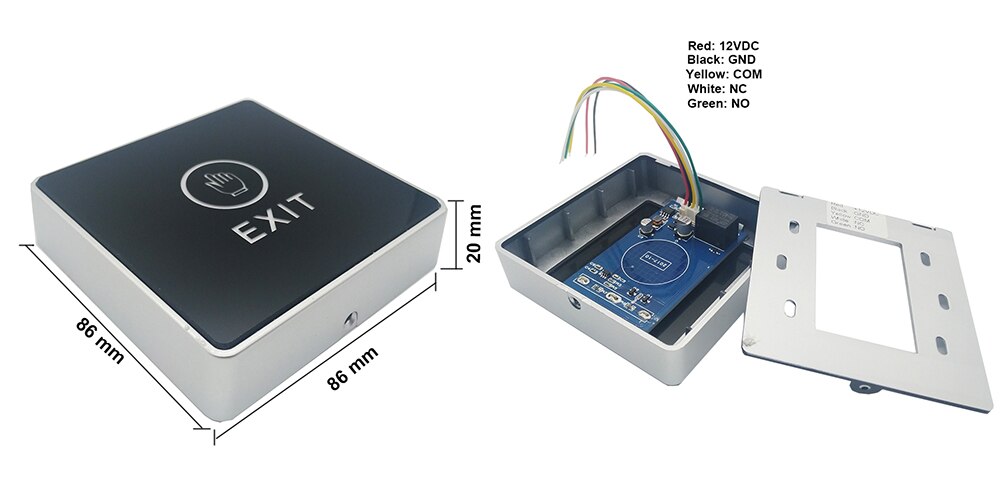

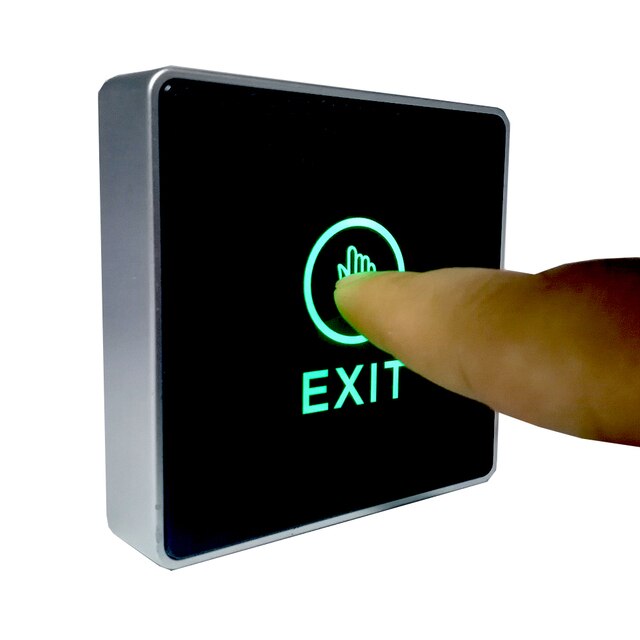

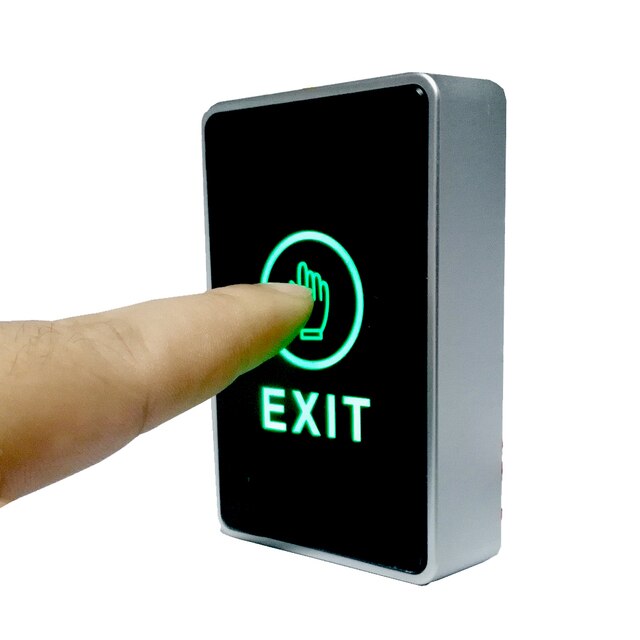

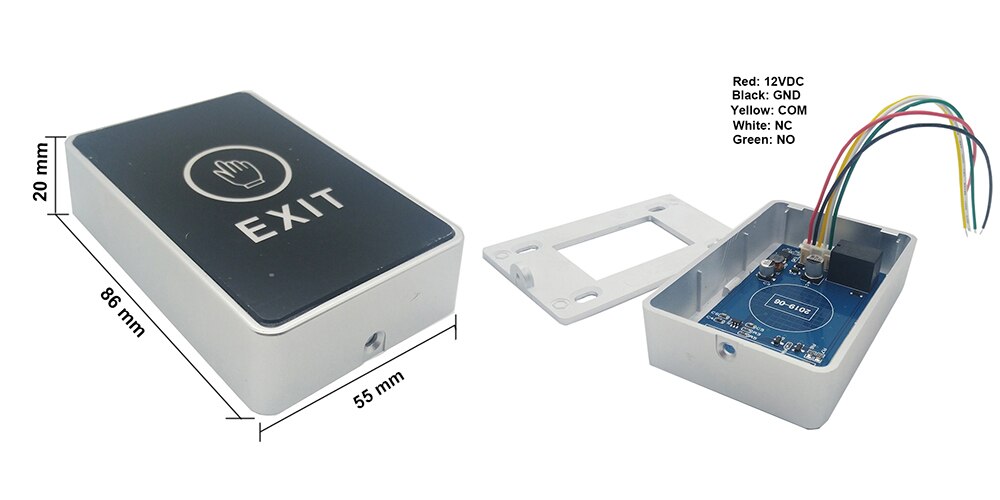

C1/C2 Touch
Item Type: Door Access Control Switch
Panel Material: Acrylic Board
Base Material: PC flame retardant material
Item Color: As Pictures Shown
Working Voltage: 3A @ DC36V
Contact Output: NO/ NC/ COM
Durable Test: 100 thousand aging test qualified

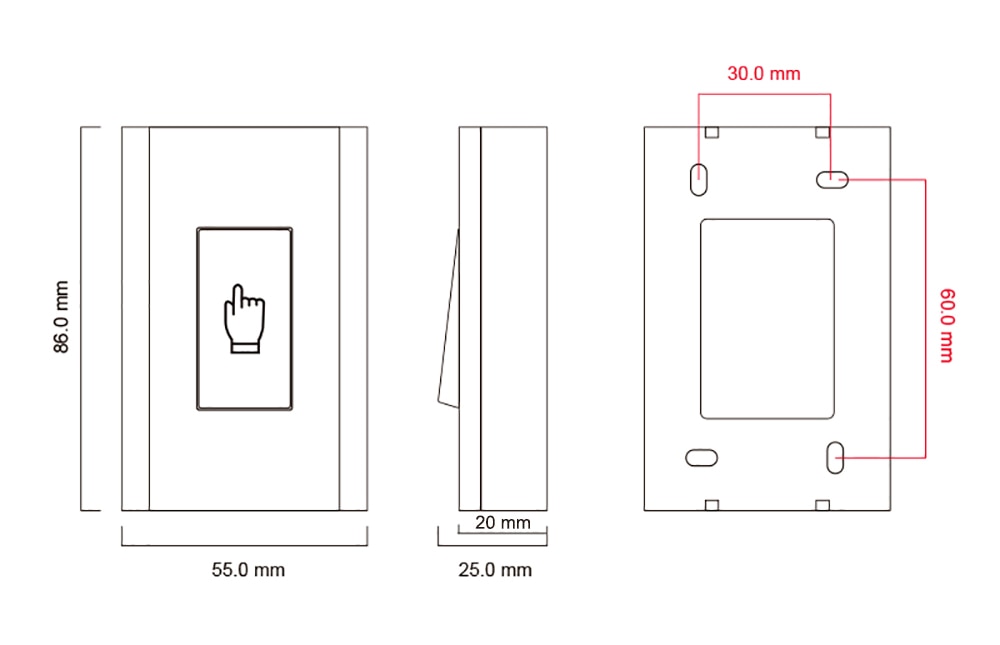

C1 Item Size(Approx.): 86 x 55x 20 mm
C2 Item Size(Approx.): 86 x 86x 20 mm
LED indication: Standby: Blue LED on, visitors approaching: Green LED on

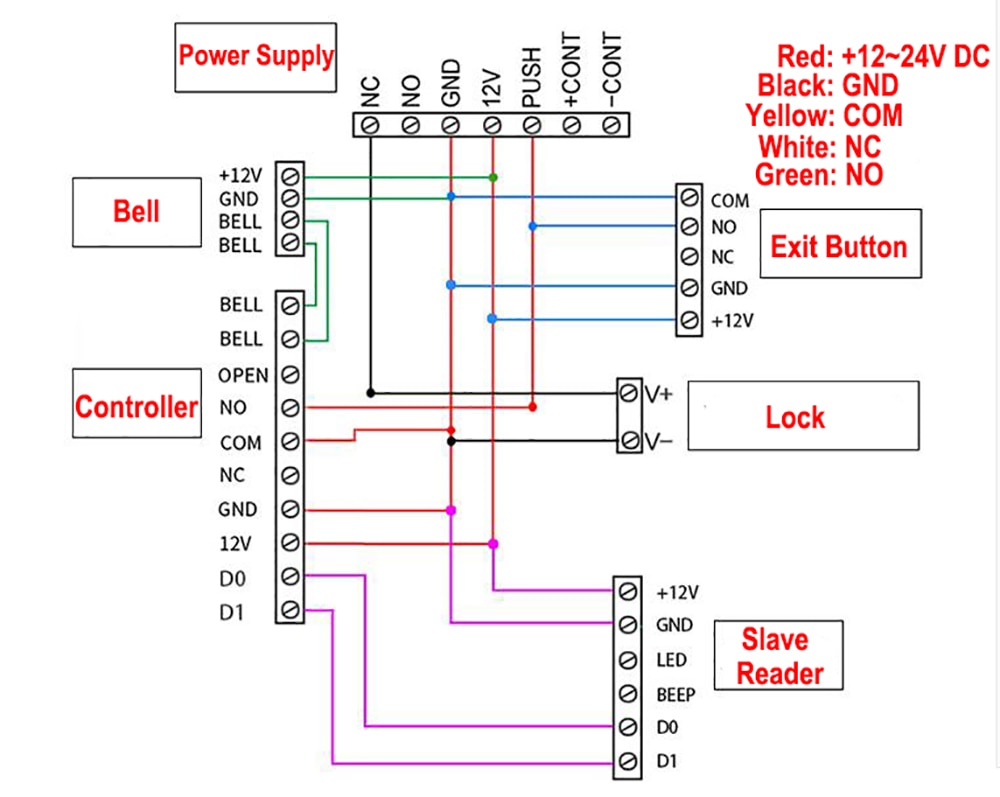

Diagram
This is for door access control system connection.
