POWMR MPPT 60A Solar Charger Controller 12V 24V 36V 48V Blacklight Regulator Max PV Input 160VDC Support 0 Layer Screen M60-PRO
Please Note: PowMr New arrival, MPPT 60A,0 layer screen!!!
It comes with a number of outstanding features, such as:
* MPPT 60A solar charge controller
* 100% MPPT technology
* 0 Layer, easy installation, easy setup
* Built-in DSP controller with high performance
* Automatic switch for 12V/24V/36V/48V battery bank
* 3-stage charging optimizes battery performance

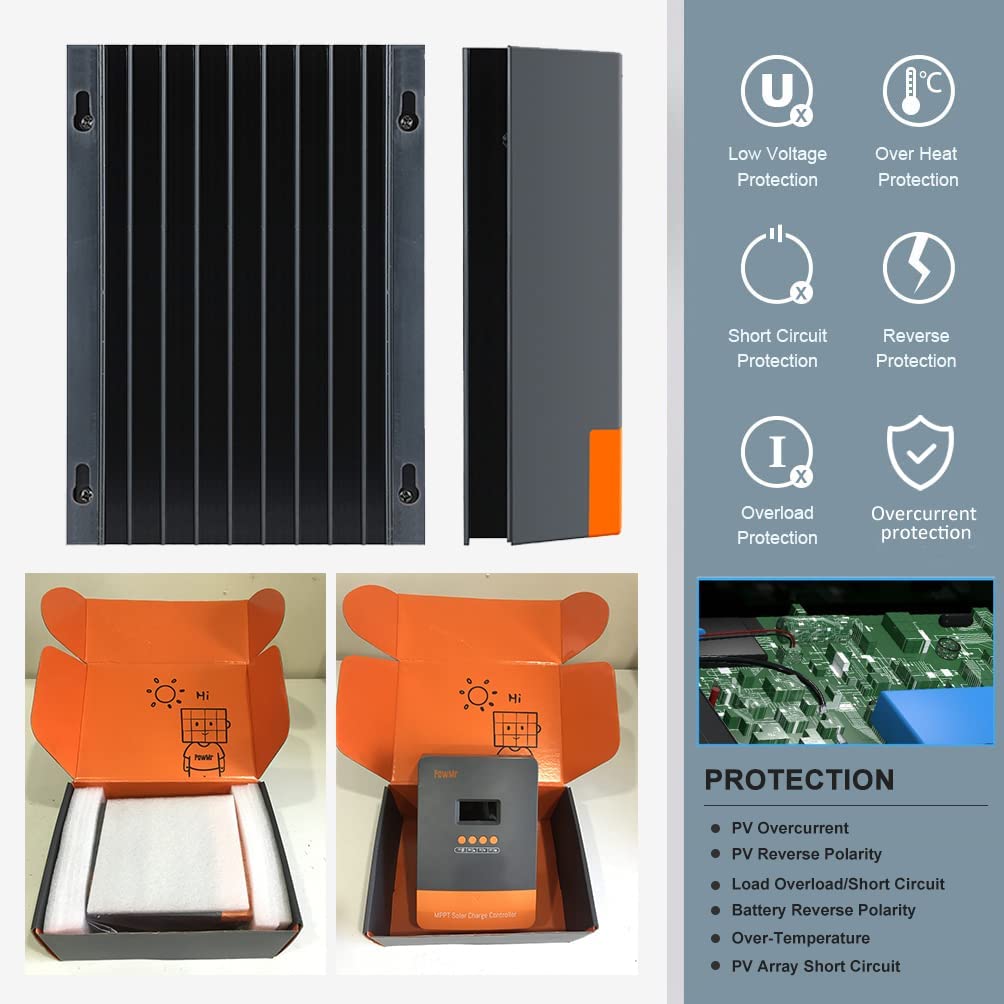

* Overcharge protection, Input PV polarity reverse protection, Output limited current protection,
* Over-temperature protection
* Troubleshooting promotion function.
* Suitable for battery types such as sealed lead acid, vented gel, and lithium battery, etc
* Easy to be mounted
Models | POW-M60-PRO |
Charging mode | MPPT Maximum power point tracking automatically |
Charging | 3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge |
System type | DC12V/24V/36V/48V Recognition automatically |
System voltage automatic recognition | 12V system (DC9V-DC15V) |
24V system (DC18V-DC29V) | |
36V system (DC30V-DC39V) | |
48V system (DC40V〜DC60V) | |
Soft start time | <1S |
Dynamic response and recovery time | >98.1 % (Voc is 1.5 or 2 times than battery, then it's the best efficiency) |
PV utilization | >99% |
Input specification | |
VOC from PV( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it's the best efficiency.) | 12V system (DC20V〜DC80V) |
24V system (DC37V-DC105V) | |
36V system (DC50V〜DC160V) | |
48V system (DC72V〜DC160V) | |
The maximum PV input voltage (Voc) | DC190V(The controller can't work at this voltage of long duration that will break controller. Please refer to the Input voltage from PV.) |
The maximum PV input power (The total power rated of PV can't be over this watt that will break the controller.) | 12V system (720W) |
24V system (1440W) | |
36V system (2100W) | |
48V system (2800W) | |
Output specification | |
Selectable battery type(default is Sealed) | Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user) |
Absorption Charging Voltage | Refer to Batteries charging reference |
Floating Charging Voltage | Refer to Batteries charging reference |
Overcharging protection voltage | 12V system (15V) |
24V system (30V) | |
36V system (45V) | |
48V system (60V) | |
Rated output current | 60A |
Temperature Coefficient | ±0.02%/ °C |
Automatic temperature compensation | 14.2V-(Max temperature-25 °C)*0.3 |
Output voltage ripple-peak | 100mv |
Output voltage accuracy | <±1% |
Input Anti-intrusion protection | yes |
Temperature Protection | 75°C |
Temperature increased protection | Output power will reduce when it's more than 70 °C |
Output power will be normal when it's less than 55 °C | |
Fan-on temperature | >40 °C |
Fan-off temperature | <35 °C |
Acoustic noise | <40dB |
Cooling way | Forced air cooling |
Components | Imported materials, Accord to EU standards, Industrial grade range. |
Environmental requirements | Meet 2002/95/EC; No cadmium, hydrides, and fluorides |
Security Level | Accord to CE, PSE, FCC, EMC, EN60950 |
Electromagnetic Compatibility | Accord to EN6W00, EN55022, EN55024 |
Enclosure | IP21 |
Net weight(Kg) | 1.3 |
Gross weight(Kg) | 1.6 |
- Brand Name: PowMr
- Origin: Mainland China
- Model Number: POW-M60-PRO
- Maximum Current: MPPT 60A
- is_customized: Yes
- Certification: CE
- Is Smart Device: YES
- Application: Charger Controller,Voltage Controller,Solar System Controller,Solar Working Station
- Product name:: MPPT 60A Solar Charge Controller
- Battery Voltage:: 12V/24V/36V/48V
- Ground Type:: Positive Ground
- Cooling way:: Forced air cooling
- Feature 2:: 0 Layer, easy to install, easy setup
- Type1:: PowMr mppt 60a
- Type:: mppt solar controller
- Warranty:: 2 years
- battery type(default is Sealed):: Vented/ Sealed / Gel / NiCd / Lithium
