POWGE 16 teeth 2GT G2M 2MGT Timing Synchronous Pulley Bore 5mm for Rubber GT2 Open belt width 6mm small backlash 16Teeth 16T
5.0 (14 votes) | 108 orders
Price:
US $
17.51 -
326.76
/ Pack
- Bore Diameter

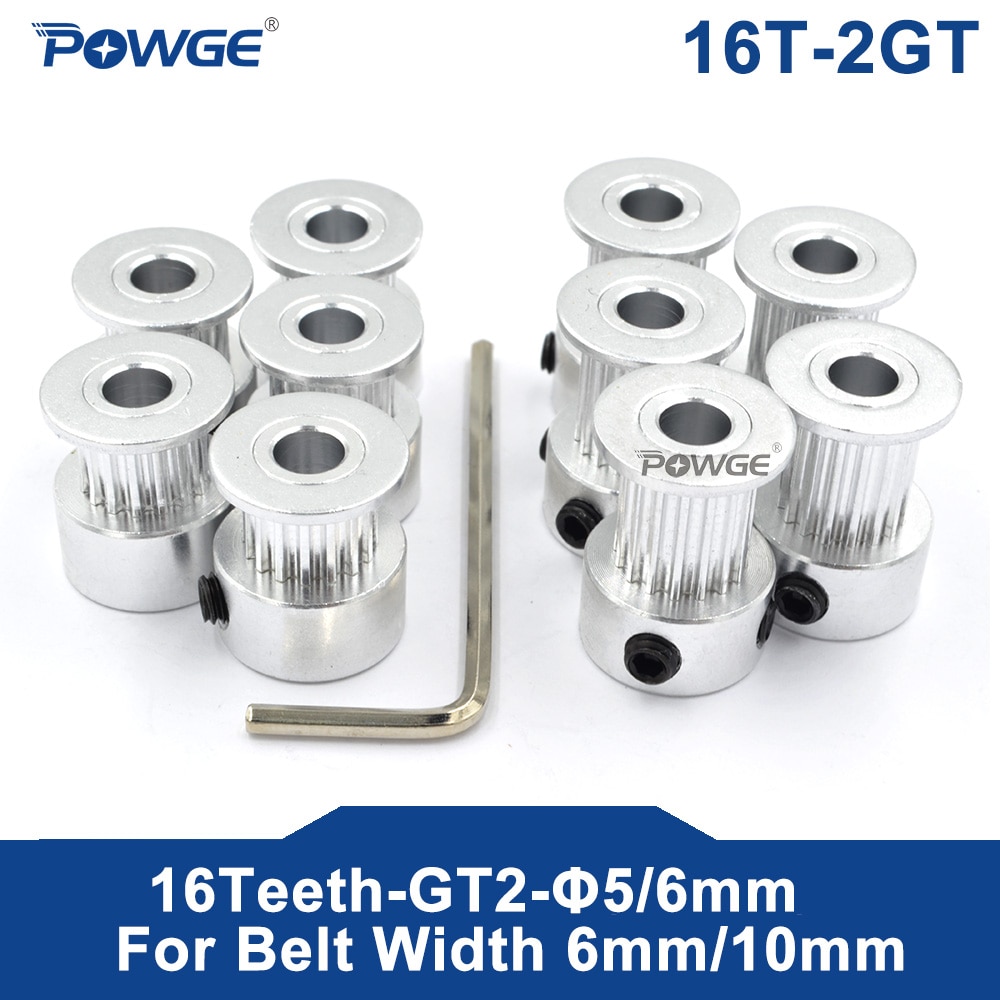

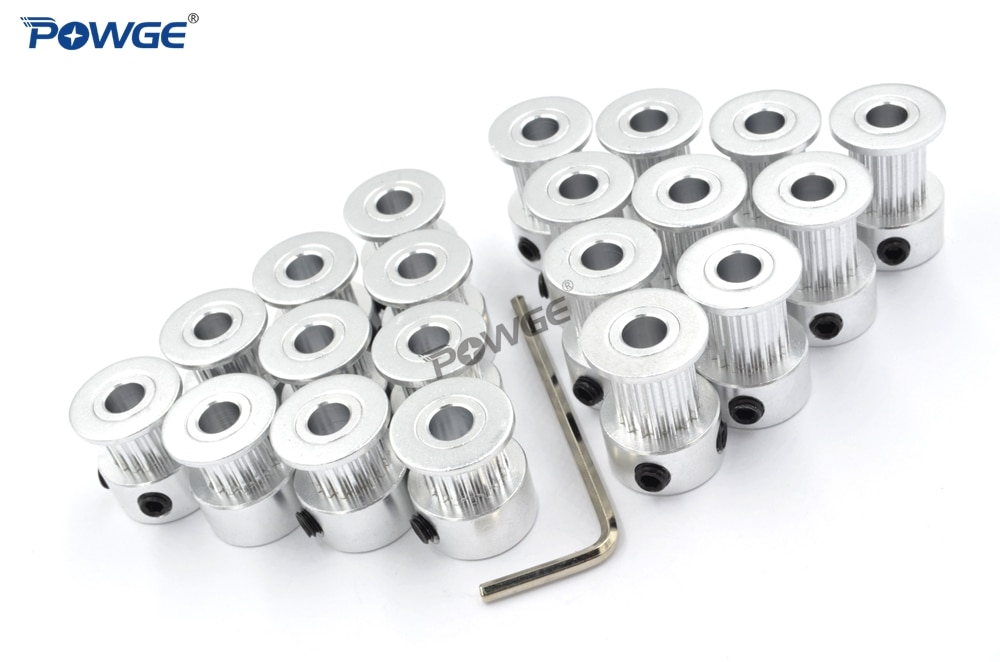

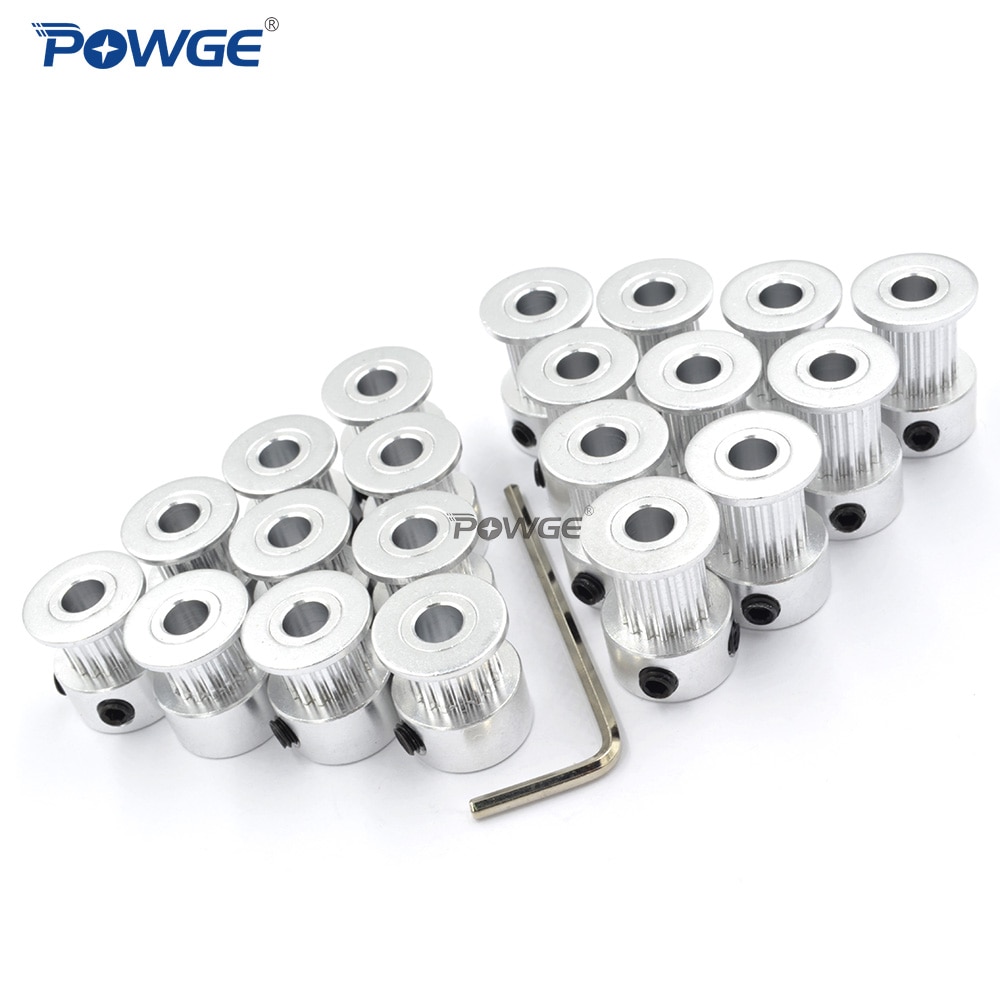

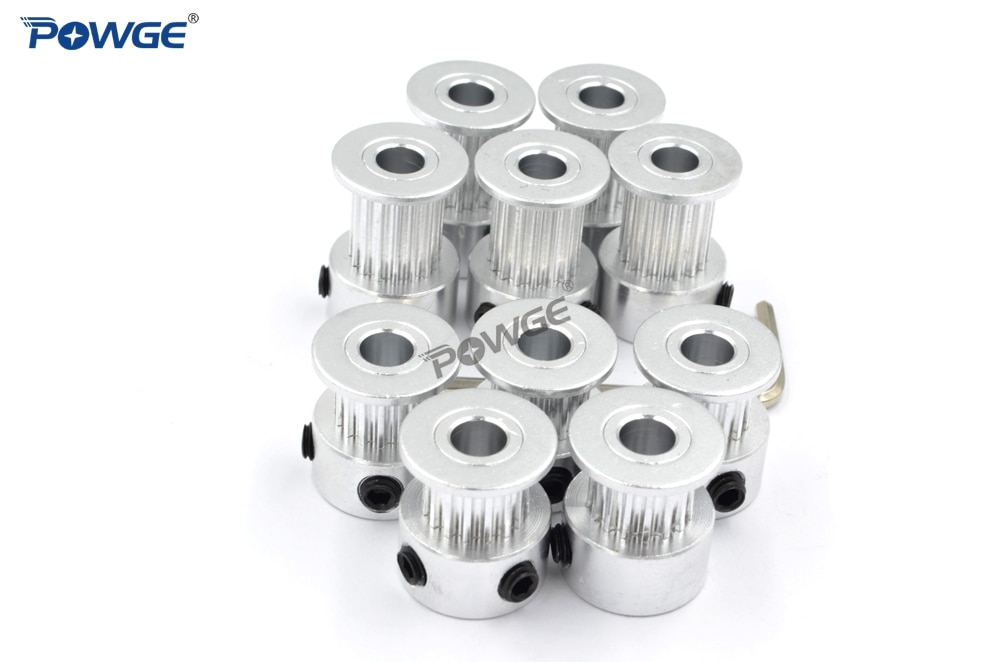

High Torgue Arc GRIP GT Aluminum Alloy 16 teeth 2GT Synchronous Timing pulley Bore 5mm pitch 2.0mm 16-2GT-6 BF 16-2GT-10 BF for Width 6mm/10mm GT2 open Timing belt Linear Motion Small backlash Positioning Accuracy 3D Printer 16Teeth 16T
(The 16Teeth 2GT Pulleys have bore diameter 5mm)
(please choose Color and Belt width and Quantity)
(If you need other inner bore.please click here----)
The list of 2GT Timing pulley BF for belt width 6mm/10mm | |||||
|
|
| |||
Note: Please select the number of teeth you need and click to buy . if you need 2GT timing belt in closed-loop ,please click here . | |||||
16 Teeth 2GT Timing pulley Features:
1.The PowerGrip GT2 system is an extension of the HTD system with greater load-carrying
capacity. HTD was developed for high torque drive applications, but is not acceptable for most precision indexing or registration applications.
2.As smaller diameter pulleys are used, the clearance required to operate properly is increased.
HTD drive clearance, using small diameter pulleys, is approximately four times greater than an equivalent GT2 timing belt drive.
3.circular arc tooth profile, tooth space is small, suitable for straight line driving.

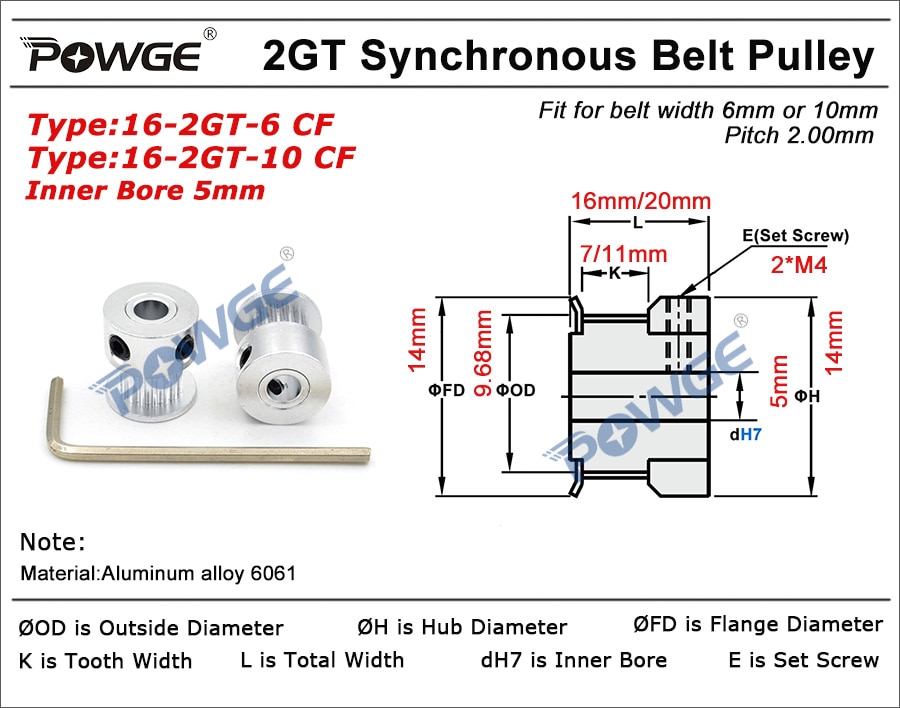

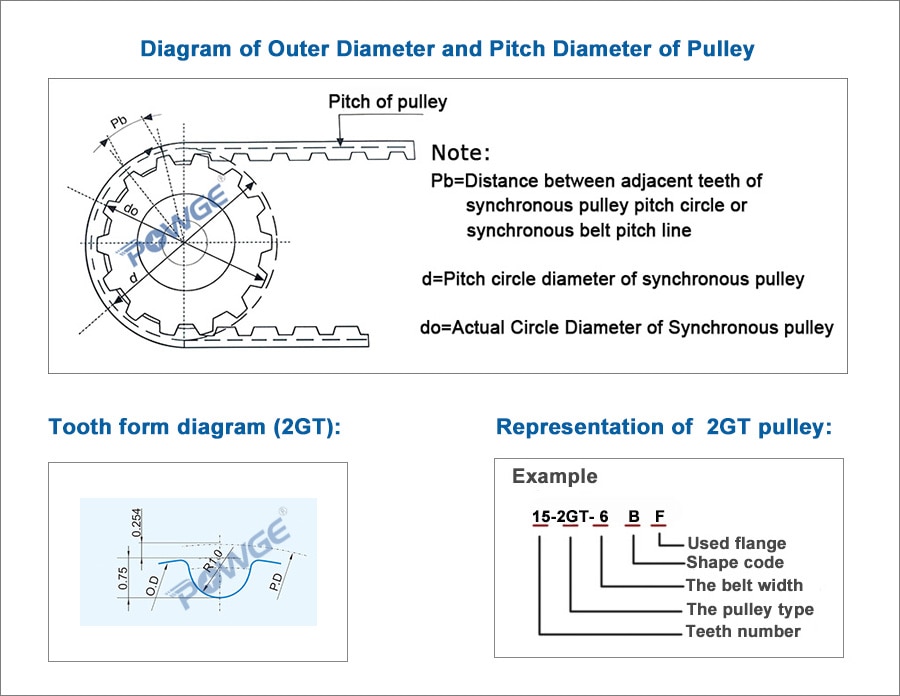

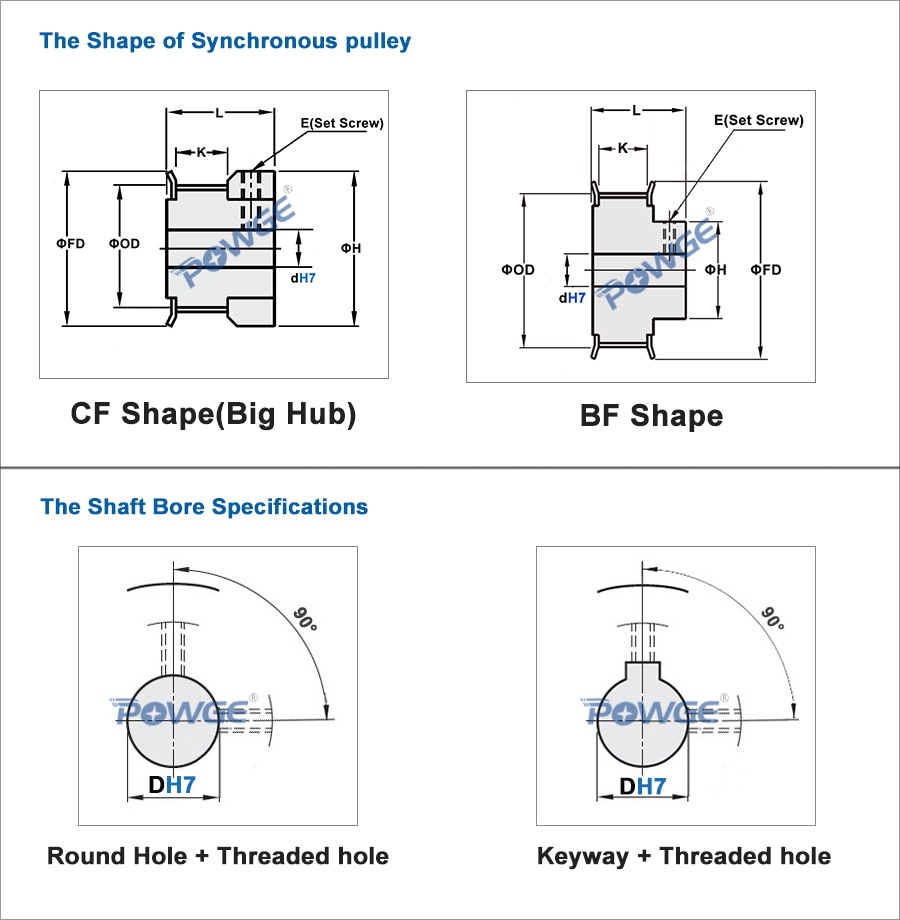

Type:16-2GT-6 BF / 16-2GT-10 BF
Pitch:2mm
Teeth Number :16 teeth
Teeth Number :16 teeth
Outside Diameter (OD):9.68mm
Bore:5mm
Flange:double
Material:Aluminium Alloy
Fixed mode: 2* M4
Fit for Belt Wide :6/10mm

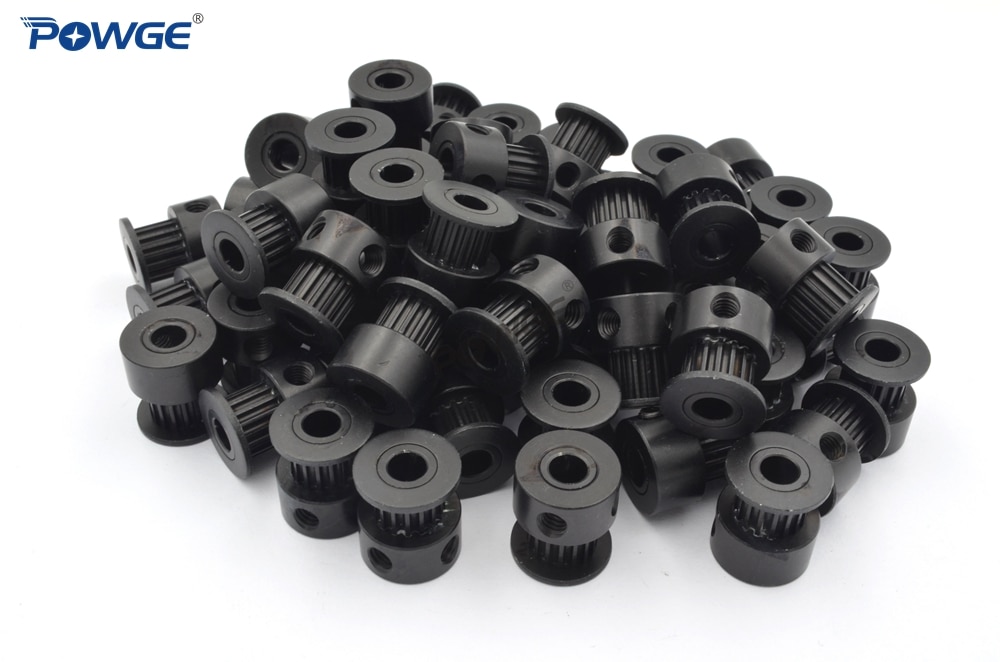

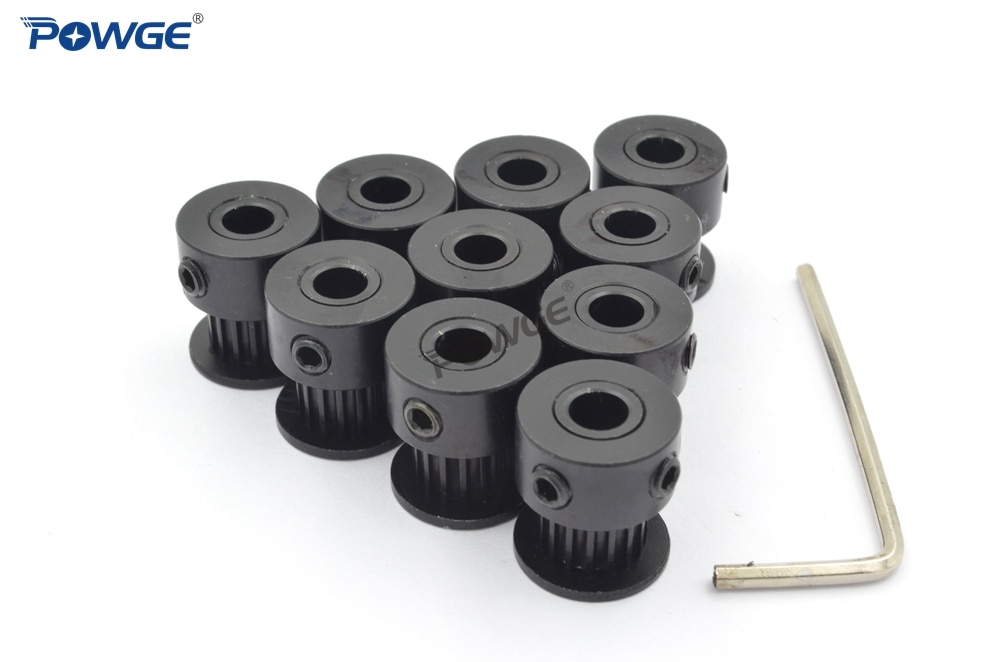

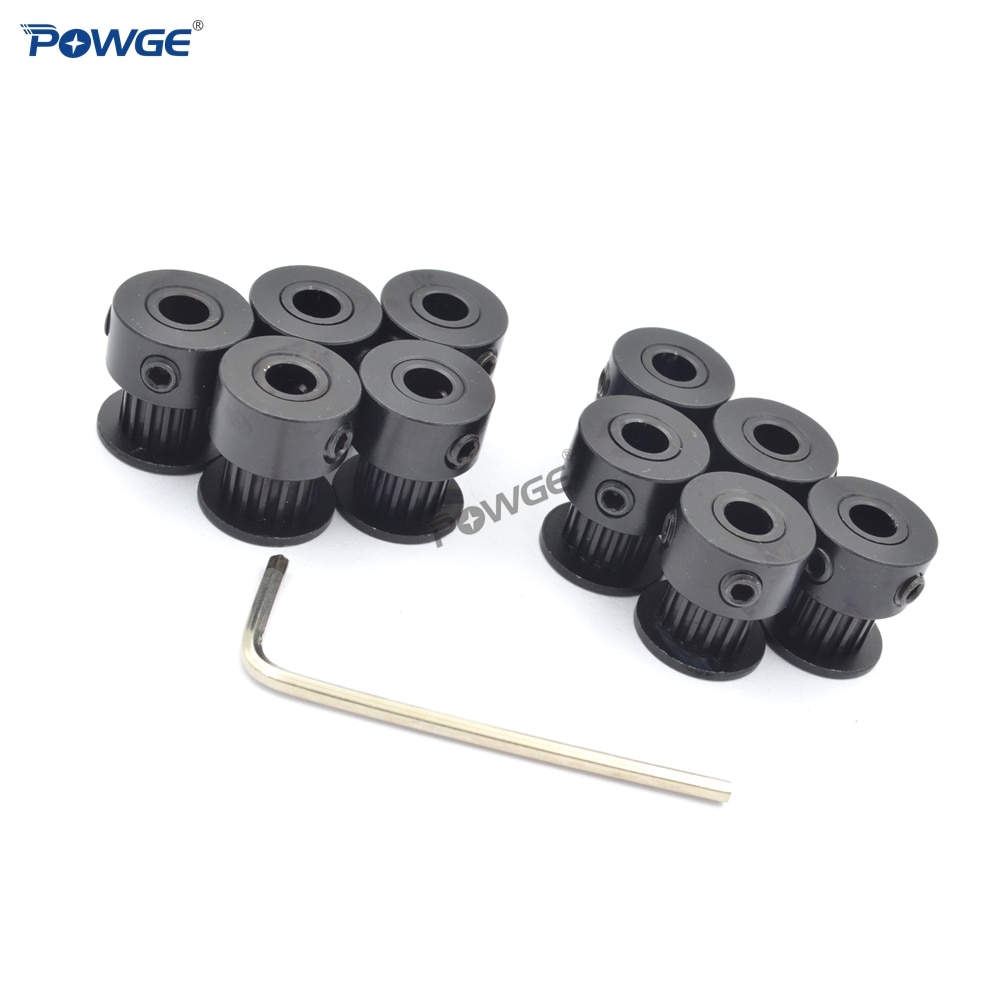

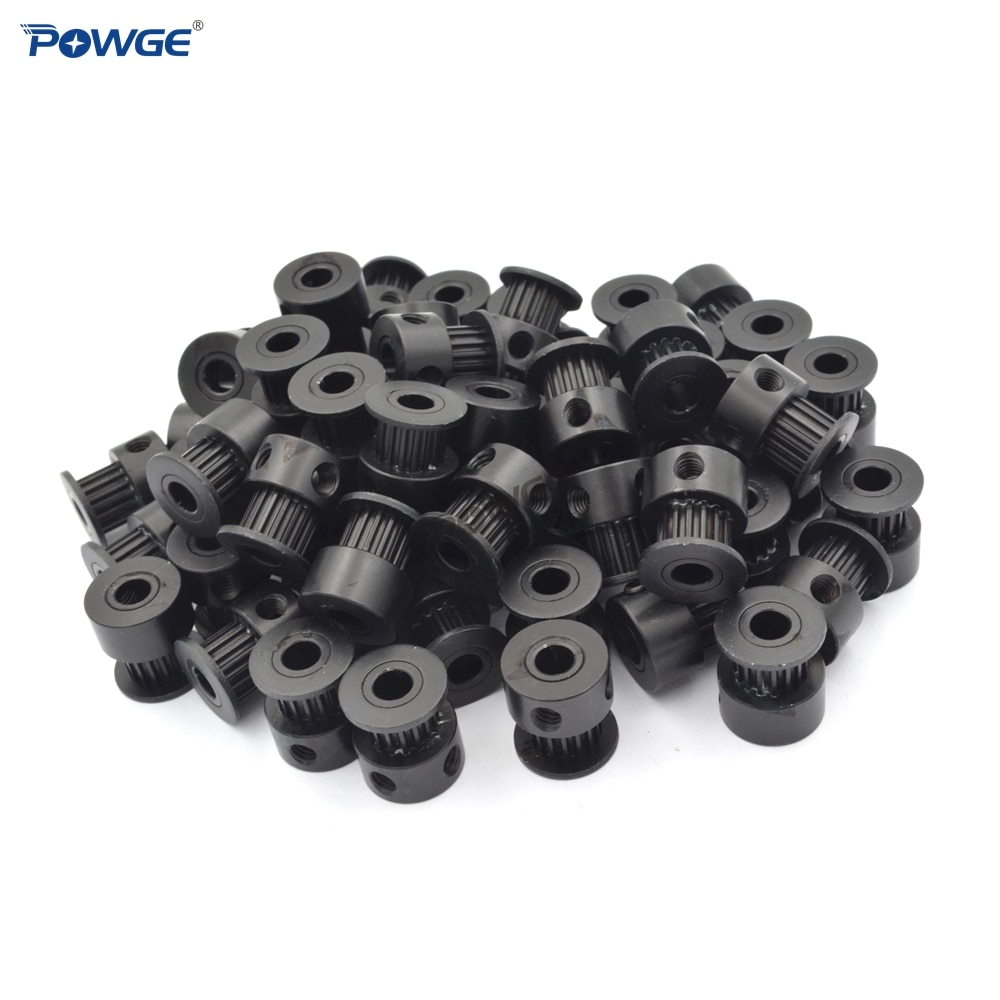

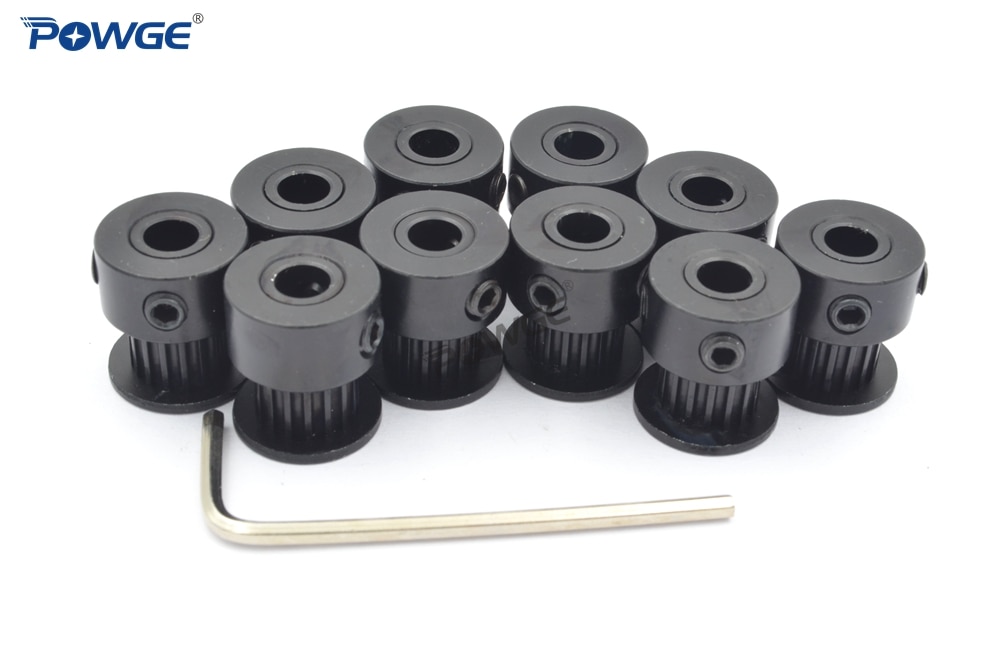

Color : Sliver or Black
If you need other size of pulley,please contact with us.
Our factory can customized all kinds of timing belt pulley.

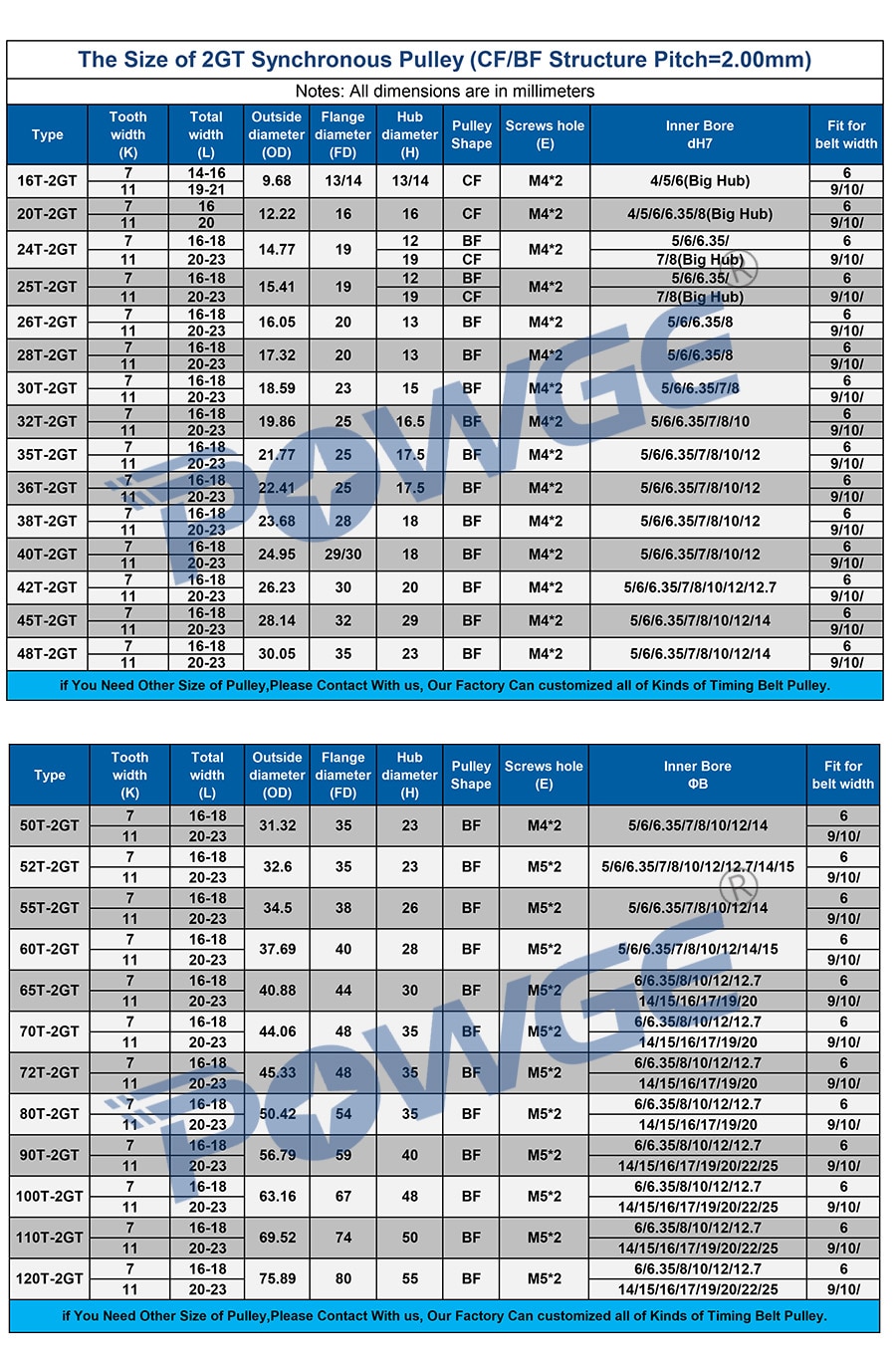

The list of 2GT Synchronous pulleys in stock
(How do you search for the pulley web link to buy?)
(if you need "20T-2GT" type ,you can search "20 Teeth 2GT pulley" on my store,then you can find it )
(How do you search for the pulley web link to buy?)
(if you need "20T-2GT" type ,you can search "20 Teeth 2GT pulley" on my store,then you can find it)

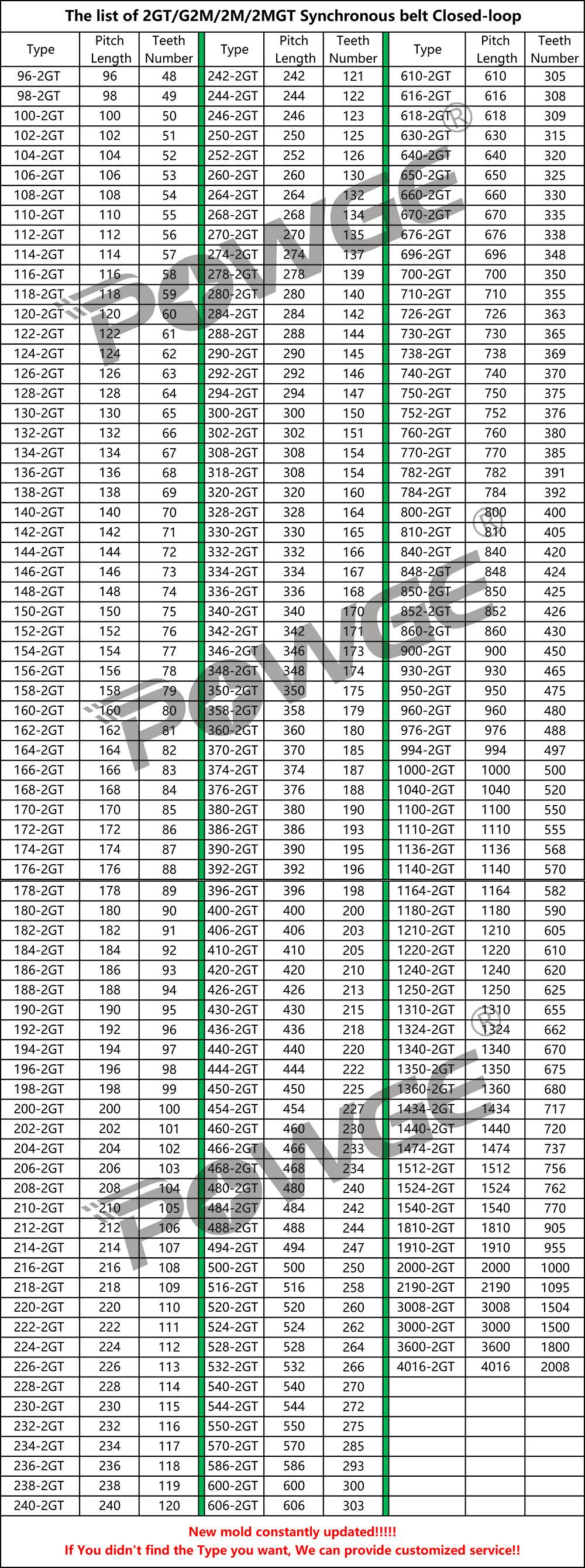

If you need 2GT synchronous belt loop belts ,Please select the model in the list.
If you can't find the perimeter you want, please contact me and we can provide customized service
If you need 2GT Open ended Belt,Please buy it.
Material is Rubber With fiberglass core color is Black click here-----
Material is polyurethane with Steel core color is Whiteclick here-----
Note:
if You Need Other Size of Pulley,Please Contacter With us,
Our Factory Can customized all of Kinds of Timing Belt Pulley.
Customizing all kinds of MXL Synchronous Pulley.-----
Customizing all kinds of XL Synchronous Pulley.-------
Customizing all kinds of T2.5 Synchronous Pulley.-----
Customizing all kinds of T5/AT5 Synchronous Pulley.----
Customizing all kinds of T10/AT10 Synchronous Pulley.------
Customizing all kinds of HTD 3M 5M 8M Synchronous Belt. -----
Customizing all kinds of 2GT Synchronous Pulley.-----
Customizing all kinds of 3GT Synchronous Pulley.-----
Customizing all kinds of 5GT Synchronous Pulley.-----
1. Please make sure your address in Hogaki is matched with your shipping address before you pay.
2. As for some French buyers who don't enjoy perfect postal service system, please call your local post office with the tracking number if you do not receive parcel in a long time.
3. Russian buyers, please leave us your full English name (mostly includes 3 words), which is very important.
1. All products are in standardized packaging, usually we pack them in cartons with plastic bags or bubble letter bags. The details are as follows:
2. We will carefully check your order and the package to make sure everything is in good condition before shipping it out.
3. The packages may be slightly damaged during long-time transportation, but it doesn't affect the effect of our products.
4. If you want products packed perfectly (such as for gifts etc.), please contact us first, we can send the parcel with special package to avoid damage, but you need pay some extra fee.
Please click here to pay freight or extra fee. Thanks!
We will send out the order in 2-5 working days, and it needs almost 7-40 days from China to you.
As you know, the delivery time is depend on the shipping company, the air line, the custom and the local post office, so we are not able to control it accurately.
If the parcel has not arrived in expected time, please feel free to contact us, we will track it and handle it with you.
Your satisfaction and positive feedback are quite helpful for us.Please leave positive feedback and 5 stars if you are satisfied with our items and services.
If you have any suggestions with our items or services,please feel free to contact us first before you leave negative feedback.We will do our best to solve any problems and provide you with the best customer services.
- is_customized: YES
- Number of Teeth: 16
- Model Number: 16teeth 2GT pulley bore 5mm for belt width 6mm/10mm
- Material: Alloy
- Type: Timing pulley
- Brand Name: POWGE
- Certification: NONE
- Origin: Mainland China
- Picth: 2mm
- Teeth Number: 16
- Outside Diameter (OD): 9.68mm
- Bore: 5mm
- Flange: Double flange
- screw hole: 2*M4
- Material: Pulley is Aluminium
- Fit for width of GT2 timing belt: 6mm/10mm
- Color: Sliver or Black
