Plastic Pet Water Bottle Shrink Tunnel Wrapping Packing Machine For Pet Bottle
0.0 ( votes)
Price:
US $
6000.00 -
6400.00
/ Set
- Voltage
- Plug Type
Shrink Film Sealing Cutting Machine
For mass production such as food, software, medicine, beverage, tobacco, daily chemicals, automobiles, cables, cosmetics, and electronics.
Application
Mainly used in the production of packaging for pharmaceutical, food, beverage, stationery, printed matter, cosmetics, gifts, electronic products, toys and other products.
Feature
This machine has high working efficiency, automatic film feeding and punching, automatic film sealing and cutting, only need to manually adjust the film guiding system and manually adjust the feeding conveying platform for products of different widths and heights. The automatic sealing and shrinking packaging machine is also suitable for multi-piece wrapping and tray packaging, and can also be used with the automatic packaging line, which is the first choice for sealing and shrinking packaging.

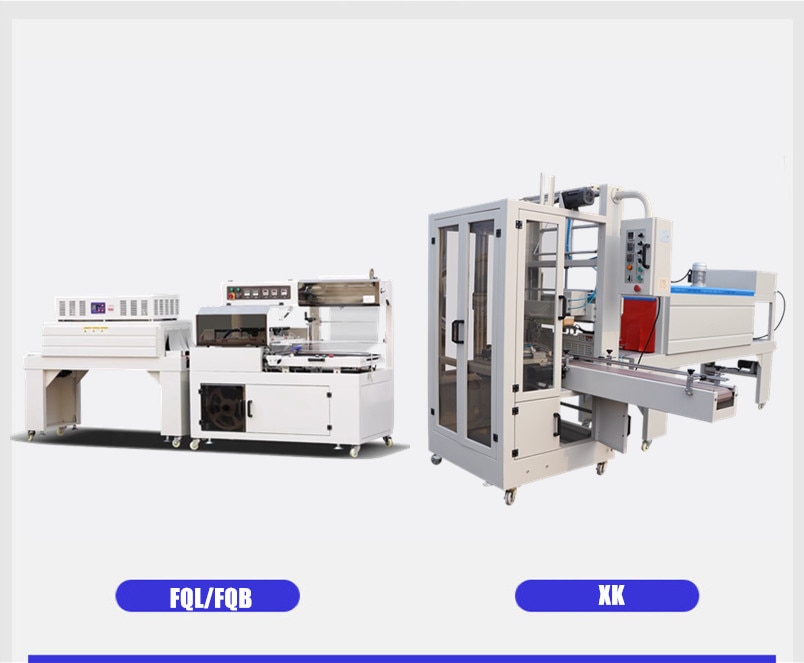

L Bar Sealer (Full Wrap）
Model | FQL-450 | FQL-550 | FQL-650 | FQL-750 | FQB-450 | FQB-550 | FQB-650 | FQB-750 | FQB-850 |
Type | L bar | L bar | L bar | L bar | Side seal | Side seal | Side seal | Side seal | Side seal |
L+H（MAX) | 500 mm | 600 mm | 700 mm | 800 mm | – | – | – | – | – |
W+H(MAX) | 400 mm | 500 mm | 600 mm | 700 mm | – | – | – | – | – |
Packing width(MAX) | 330 mm | 430 mm | 530 mm | 600 mm | 350 mm | 450 mm | 550 mm | 650 mm | 750 mm |
Packing length(MAX) | 400 mm | 500 mm | 600 mm | 700 mm | unlimited | unlimited | unlimited | unlimited | unlimited |
Packing height(MAX) | 150 mm | 150 mm | 150 mm | 150 mm | 150/190mm | 150/200mm | 150/250mm | 150/250mm | 150/250mm |
Speed | 15-35 20-60 | 15-35 20-60 | 10-35 | 10-35 20-60 | 15-30 40-60 | 15-30 40-60 | 15-30 | 15-30 40-60 | 15-30 |
pcs/min | |||||||||
Air pressure | 0.5MPA | 0.5MPA | 0.5MPA | 0.5MPA | 0.5MPA | 0.5MPA | 0.5MPA | 0.5MPA | 0.5MPA |
Voltage | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
50-60hz | 50-60hz | 50-60hz | 50-60hz | 50-60hz | 50-60hz | 50-60hz | 50-60hz | 50-60hz | |
1.4kw | 1.6kw | 1.8kw | 2.2kw | 1.5kw | 1.6kw | 1.7kw | 1.8kw | 2kw | |
Dimension | 1650*900*1450mm | 1750*900*1450mm | 1960*1120*1460mm | 2100*1130*1460mm | 1750*920*1460mm | 1850*1020*1460mm | 2060*1120*1460mm | 2120*1180*1470mm | 2200*1250*1470mm |
Weight | 310kg | 360kg | 380kg | 440kg | 330kg | 370kg | 390kg | 480kg | 520kg |

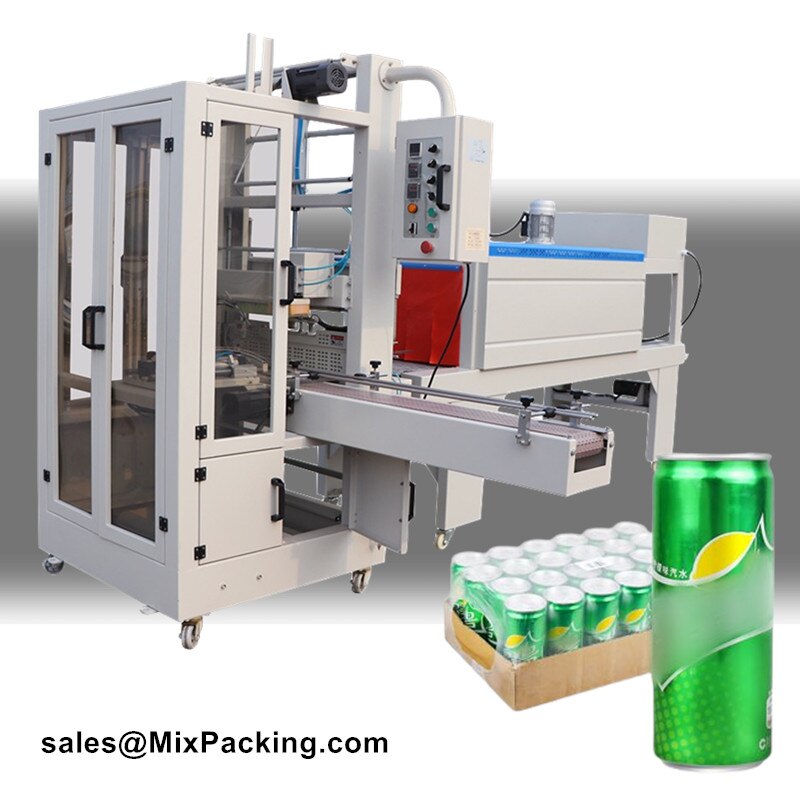

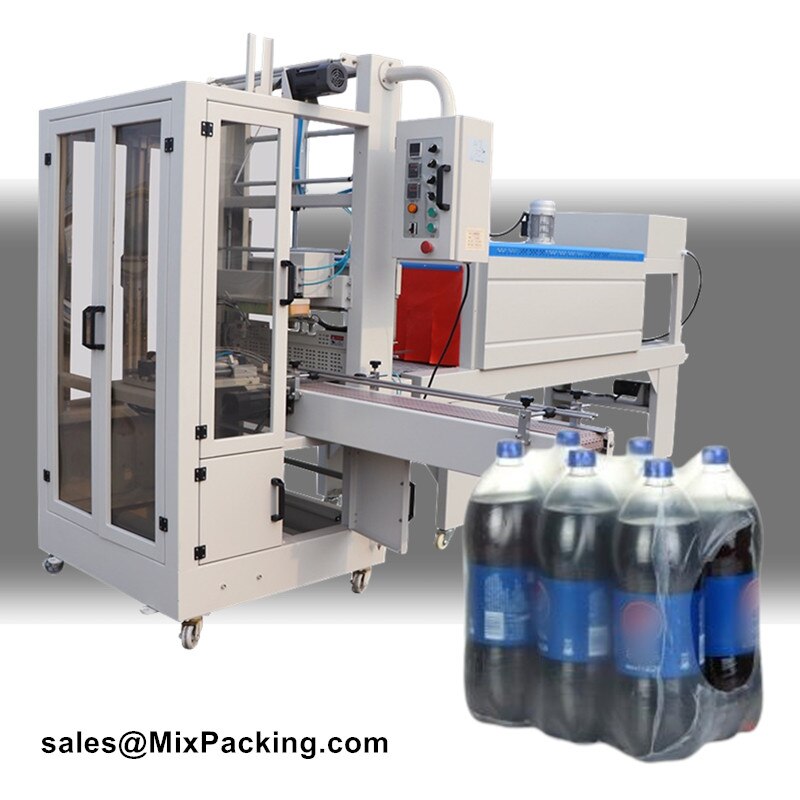

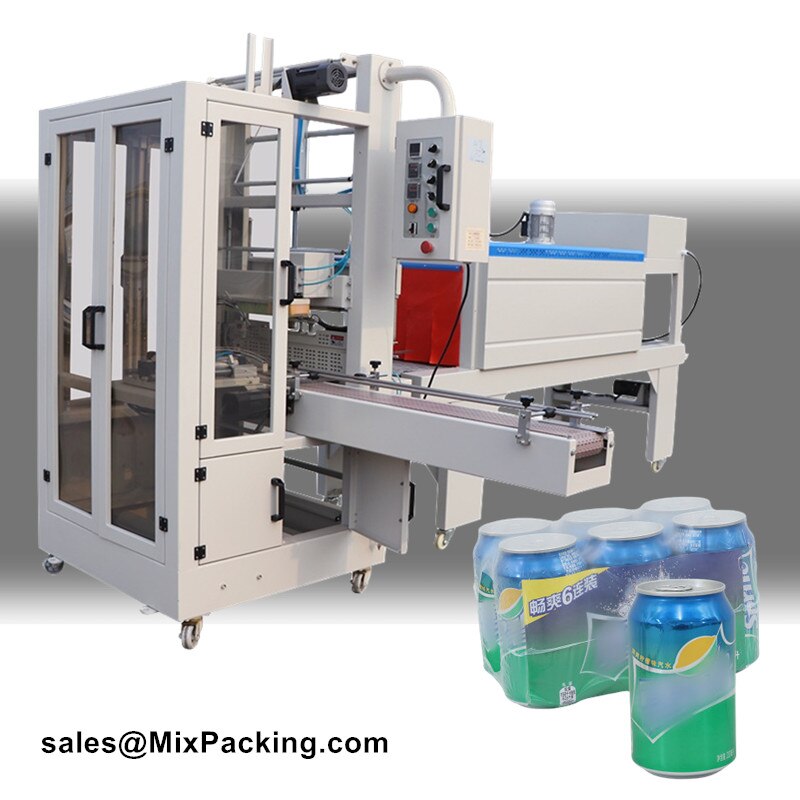

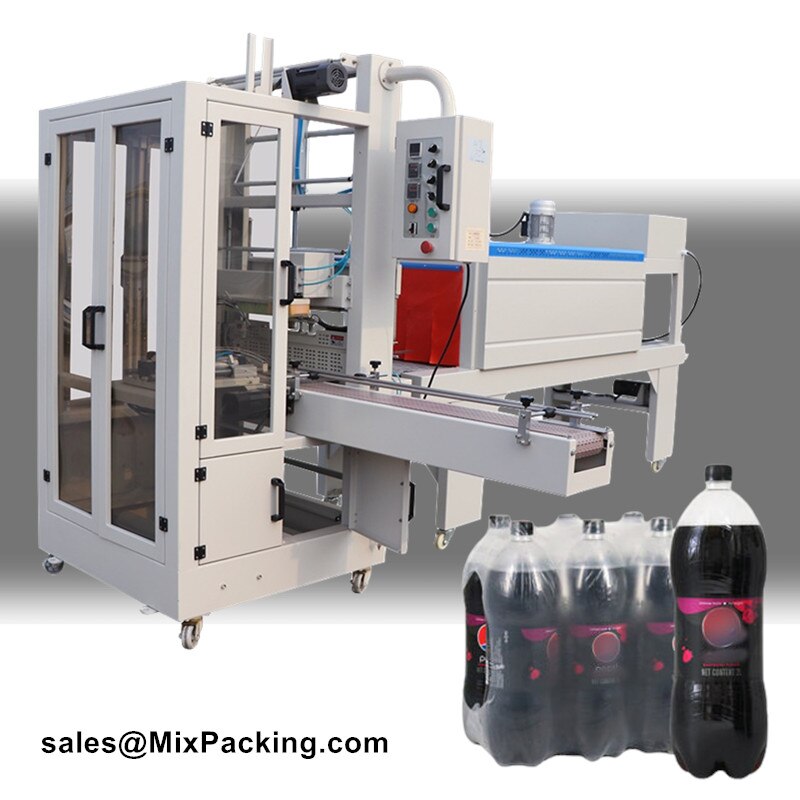

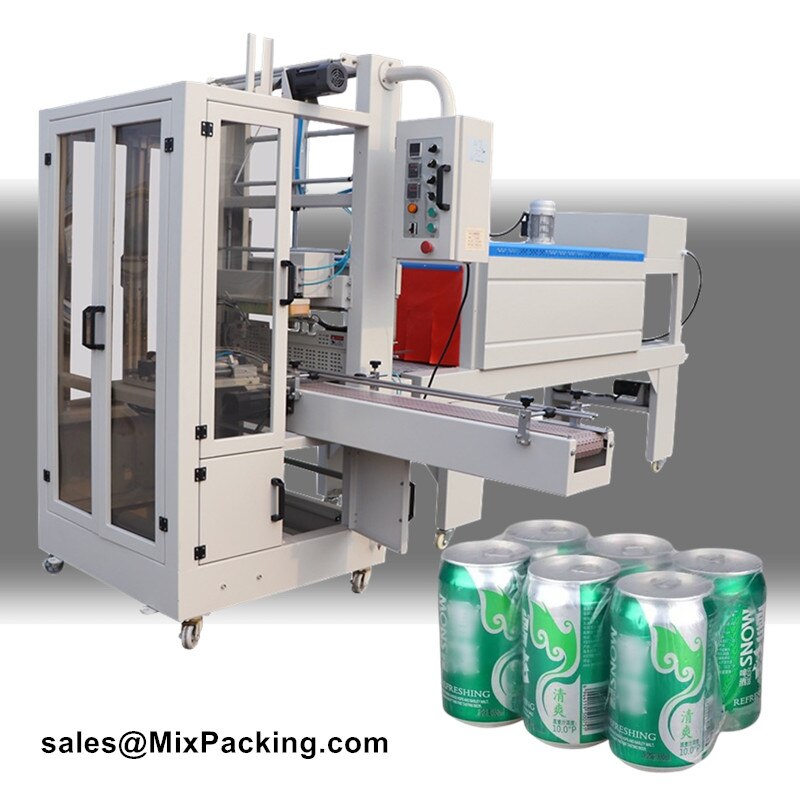

Sleeve Wrapper (Half Wrap)
Model | XK-5540 | XK-7040S | XK-6040 | XK-7040A |
Type | Semi-auto | Semi-auto | Automatic | Automatic |
Max film width | 560mm | 700mm | 560mm | 700mm |
Film thickness | 0.03-0.25mm | 0.03-0.25mm | 0.03-0.25mm | 0.03-0.25mm |
Film type | PE | PE | PE | PE |
Max packing size | 420(L)x270(W)x330(H)mm | 520(L)x370(W)x360(H)mm | 400(L)x330(H)mm | 700(L)x400(H)mm |
Speed | 0-6 pcs/min | 0-8 pcs/min | 0-6 pcs/min | 0-12 pcs/min |
Power | 1.8kw | 1.8kw | 2kw | 1.5kw |
Power Supply | AC 220V50/60Hz | AC 220V50/60Hz | AC 220V50/60Hz | AC 220V50/60Hz |
Diamention | 1020x840x1850mm | 1130x1050x2000mm | 2150x1200x2020mm | 1550x1000x1850mm |
Weight | 240kg | 330kg | 350kg | 400kg |

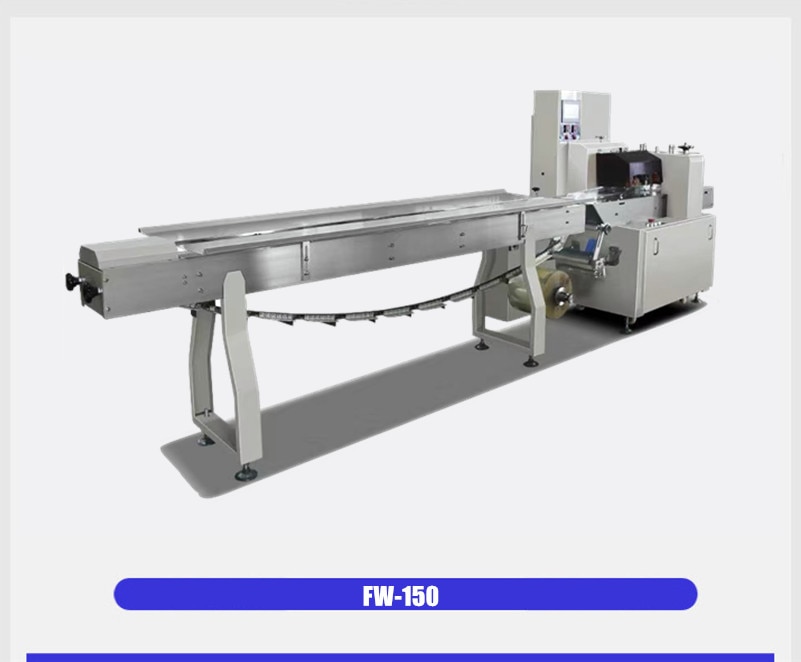

Horizontal Wrapping Machine/Flow Wrapper
biscuits, rice Krispies treats, snow cakes, breads, instant noodles, rice noodles, daily necessities, tissues, sanitary towels, industrial parts, paper boxes, tray, vegetable, disposable items …
Character
Dual servo motors & single frequency conversion control.
Auto stop when film material or products absence.
Temperature control module & independent PID control, accurate and flexible for different film materials.
Prevent from cutting material, increase operating efficiency & reduce equipment loss.
Touch screen interface, easy and quick setting & operating. Self failure diagnosis, clear failure display.
Positioned stop function, without sticking cutter & wasting film.
Option
Date coder
Gas flushing system
UV sterilization
Alcohol Spraying
Extruder system
Stacking system
Counter system
Push out system
Turntable system
Technical data
Model | Speed (bag/min) | Max film width (mm) | Product Size (mm) | Bag Size (mm) | Power | Dimension (mm) | Weight (kg) |
FW-140 | <500 | 140 | H: 6-12 | L:30-80/60-100 | 3.5kw | 3800x1350x1450 | 800 |
FW-150 | 50-900 | 150 | L: 10-100 W: 10-80 H: 4-40 | L: 30-150 | 3.7kw | 3850x1100x1600 | 800 |
FW-240 | 30-220 | 240 | – | L:75-190/150-350 W: 40-100 H: <25 | 2.8kw | 3900x840x1330 | 600 |
FW-280 | 30-220 | 280 | – | L:85-210/170-380 W: 40-125 H: <35 | 2.8kw | 3900x840x1330 | 600 |
FW-320 | 30-220 | 320 | – | L:110-250/200-420 W: 40-150 H: <55 | 2.8kw | 3900x840x1330 | 600 |
FW-450 | 20-200 | 450 | – | L: 115-480 W: 80-215 H: 80 | 4.5kw | 3900x840x1330 | 700 |
FW-600 | 20-200 | 600 | – | L: 115-230 W: 40-280 H: 80 | 4.5kw | 3900x840x1330 | 700 |
FW-600-PLUS | 20-200 | 600 | L: 40-240 W: 80-300 H: <150 | L: 70-800 | 4.5kw | 5000x1250x1700 | 700 |

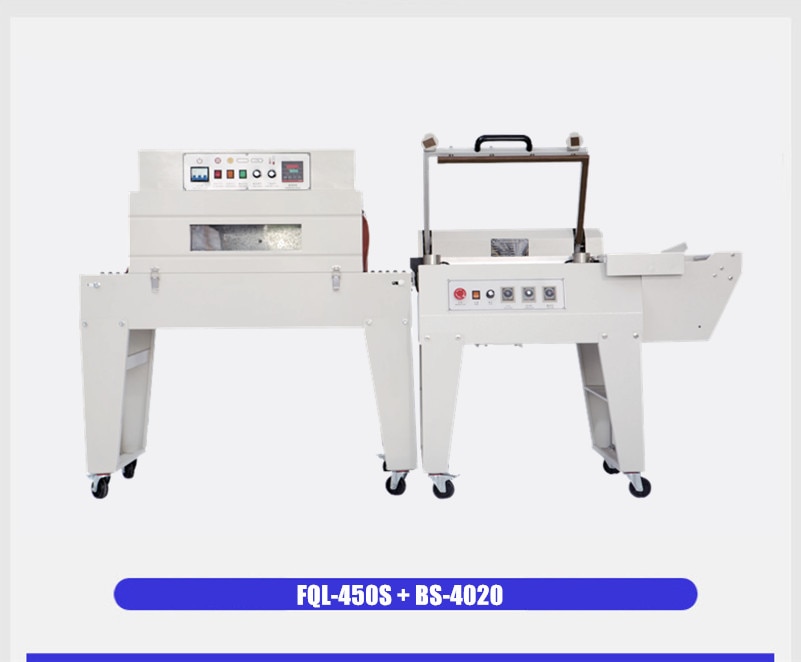

Semi-auto Sealer And Heating Tunnel
Heater Model | BS-4020S | Sealer Model | FQL-450S |
Tunnel size | 1100*570*720mm | Wrapping size | 400*300*120mm |
Conveyor speed | 0-15 m/min | Speed | 0-15 m/min |
Film | POF/PVC | Film | POF |
Temperature | 0-300 degree | Temperature | 0-300 degree |
Voltage | 220V/380V | Voltage | 220V/380V |
Power | 8KW | Power | 1.5KW |
Size | 1130*650*750mm | Size | 1160*800*950mm |
Weight | 80kg | Weight | 90kg |
Shrink Film Wrapper
Food, beverage, medicine, video/audio products, metal ware. Cosmetics, books, toy, plastic and electronic products.
Application
Mainly used in the production of packaging for pharmaceutical, food, beverage, stationery, printed matter, cosmetics, gifts, electronic products, toys and other products.
Feature
Infinitely variable transmission, stable and low noise
Quartz heating tube, adjustable temperature from 0-300℃
Conveyor driven by powerful DC motor, with heavy load capacity
Continuous working available
Fit for PVC, PP and POF material film
Technical parameter
- Power (W): 2000w
- Model Number: XK
- Brand Name: TODAYMACH
- Origin: Mainland China
- Certification: CE
- Website: www.todaymachine.com
- Manufacturer: Today Machine Co., Ltd
