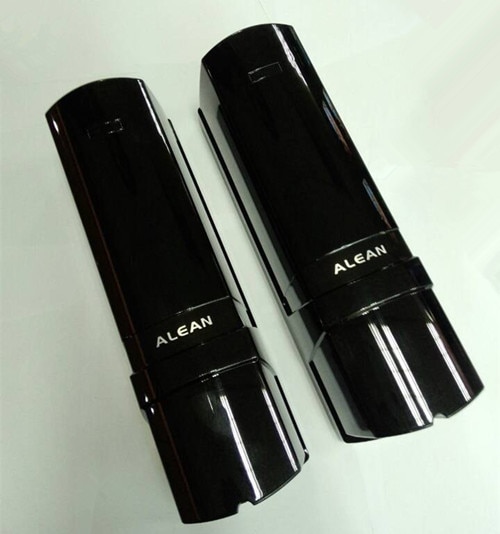

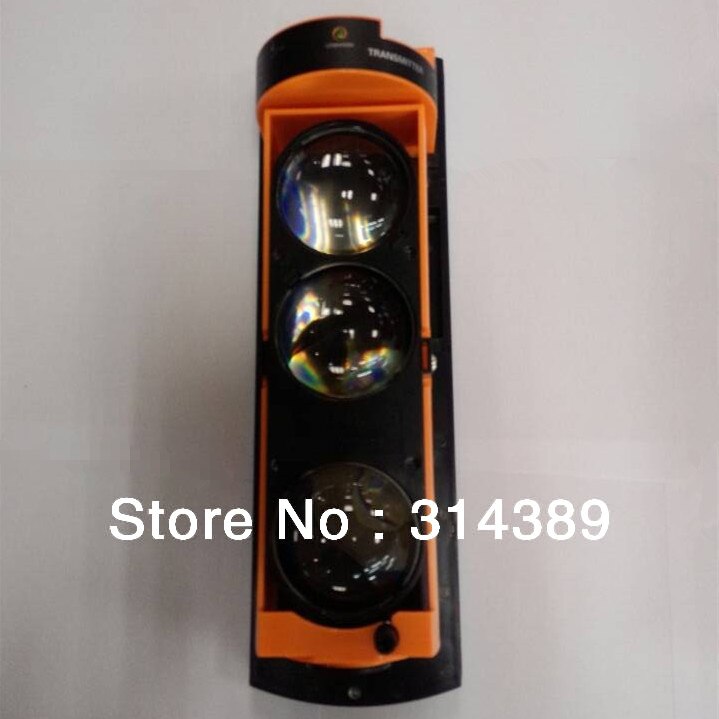

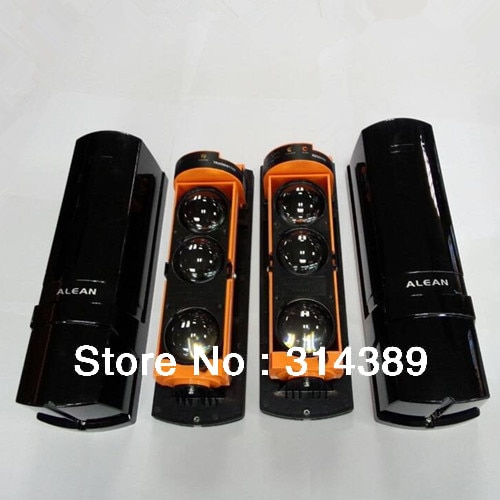

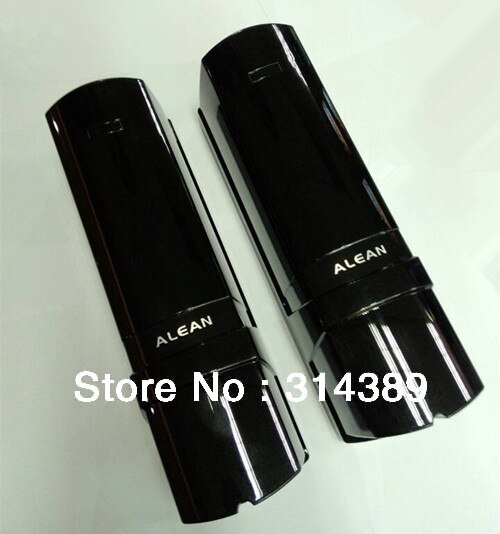

Photoelectric 3 Beams Detector Active Infrared Detector Outdoor 200m/Indoor 300m

0.0 ( votes)
Price:
US $ 230.68 / piece
Quantity

Model:ABE2-200

Features:
* Full time NC/NO relay output, compatible with other brand burglar alarm systems such as HONEYWELL, BOSCH, Paradox, GE and DSC, etc.
* Digital frequency conversion.

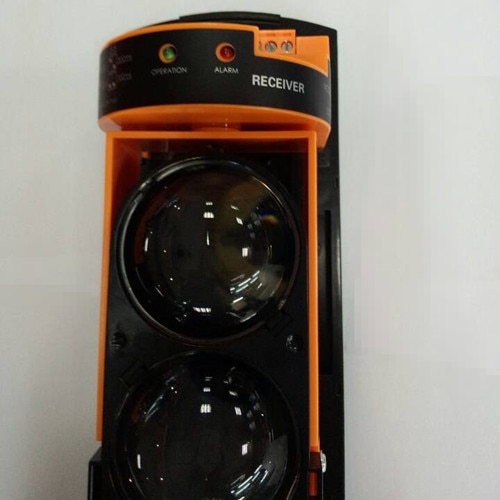

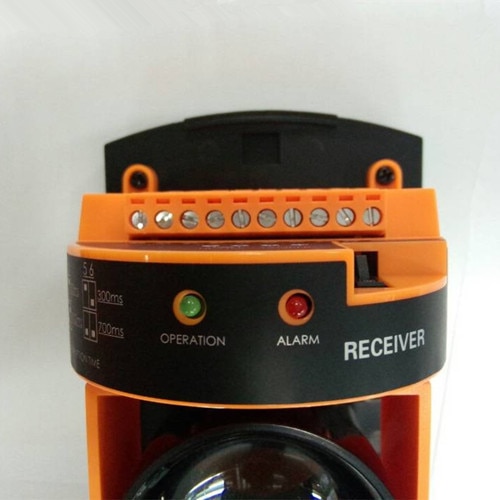

* Easy alignment with visual LED indicator.
* PC engineering plastic material
* Professional waterproof design with the rubber seal around
* Resistant to rain, fog, snow and frost.
* IP degree: IP65
* Adopt microprocessor control(CPU), real digital circuit.

* Built-in automatic adjustable strong light filtering system (up to 50,000 LUX), Good performance against direct sunlight, completely against fluorescent and car light

* AGC circuit, the detector will automatically increase sensitivity when faced harsh environment.

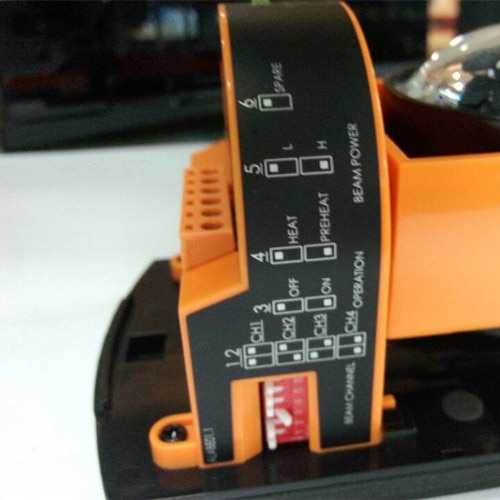

* Horizontal / vertical optical angle can be easy to adjust





Model ABE2-50 ABE2-100 ABE2-150 ABE2-200 ABE2-250
Detecting distance(outdoor) 50m 100m 150m 200m 250m
Detecting distance(indoor) 150m 180m 240m 300m 750m
Detection method Simulataneous interruption of 3 infrared beams
Response speed 50ms,100ms,300ms,700ms(adjustable)
Number of baems 3 beams
Frequency 4(optional)
Alarm cycle 2± 1s
Tamper NC.works when cover is removed
Current consumption(Max) 70mA
Power and Voltage DC12-24V,AC11-18V
Current consumption 100mA MAX
IP rating IP65
Operating temperature -25oC~ +55oC
Humidity 95% MAX
Alarm output Relay output 1C. contaxt output,DC/AC30V/0.5AMax
Correction angle Horizontally 180°,vertically 20°
Installation location Indoor/outdoor,wall/pole
Weight 1.9kg















ABE-1ABE-2ABE-3ABE-4ABE-5ABE-6ABE-7ABE-8

ABE-9ABE-10ABE-11ABE-12ABE-13










  • Model Number: ABE2-200
  • Detecting distance(outdoor): 200m
  • Detecting distance(indoor): 300m
  • Number of baems: 3
  • Power and Voltage: DC12-24V,AC11-18V
