7612 Standalone Access Control Metal Case RFID 125Khz Proximity EM Card Entry Lock Door Keyboard Single Door Keypad Reader
53.45 $
SALE
ID: 64768
Quantity
Perfect Digital Backlit Key Support 12V 24V Metal Keypad Access Control Manufacturer Fast Operating Speed SingleDoor RFID Access
0.0 ( votes) | 5 orders
Price:
US $126.39
/ piece
Discount Price:
US $
120.29
/ piece
-5%

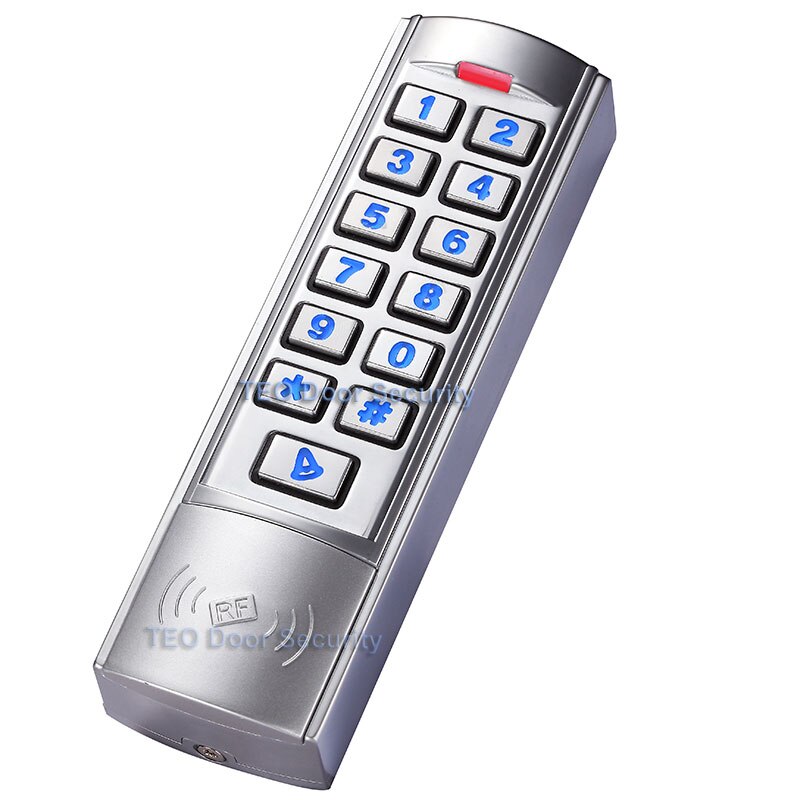

Perfect Digital Backlit Key Support 12V 24V Metal Keypad Access Control Manufacturer Fast Operating Speed SingleDoor RFID Access

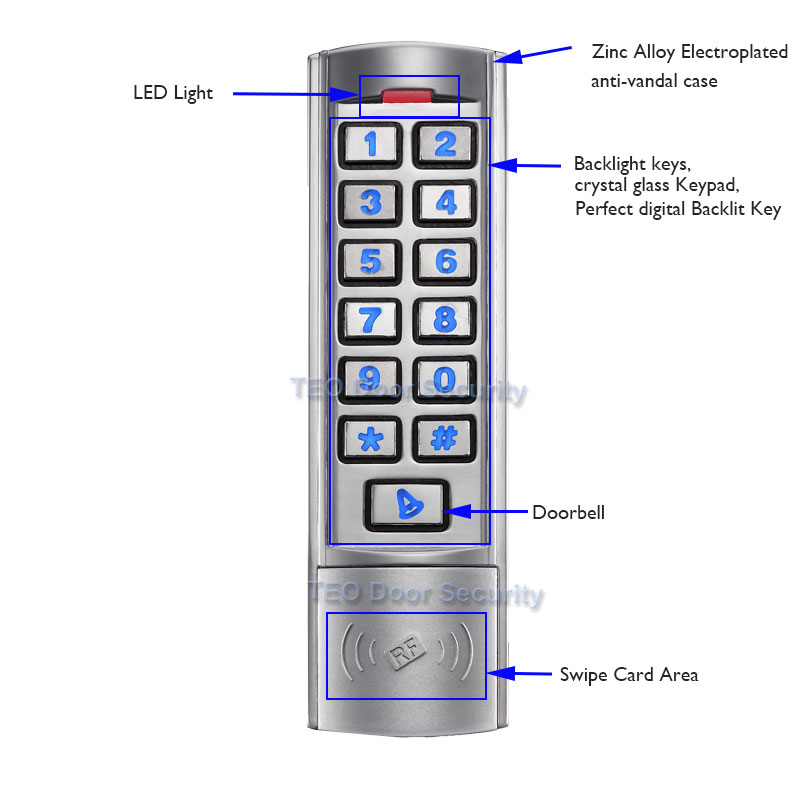

I.Main Features
The unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. |
It is suitable for mounting either indoor or outdoor in harsh environments. |
It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish. |
The electronics are fully potted so the unit is waterproof and conforms to IP68. |
This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. |
The inbuilt card reader supports 125KHZ EM cards,IF you need 13.56MHz Mifare cards.Please contact us! |
The unit has many extra features including lock output current short circuit protection, Wiegand output , and a backlit keypad. |
These features make the unit an ideal choice for door access not only for small shops and domestic households |
But also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons. |

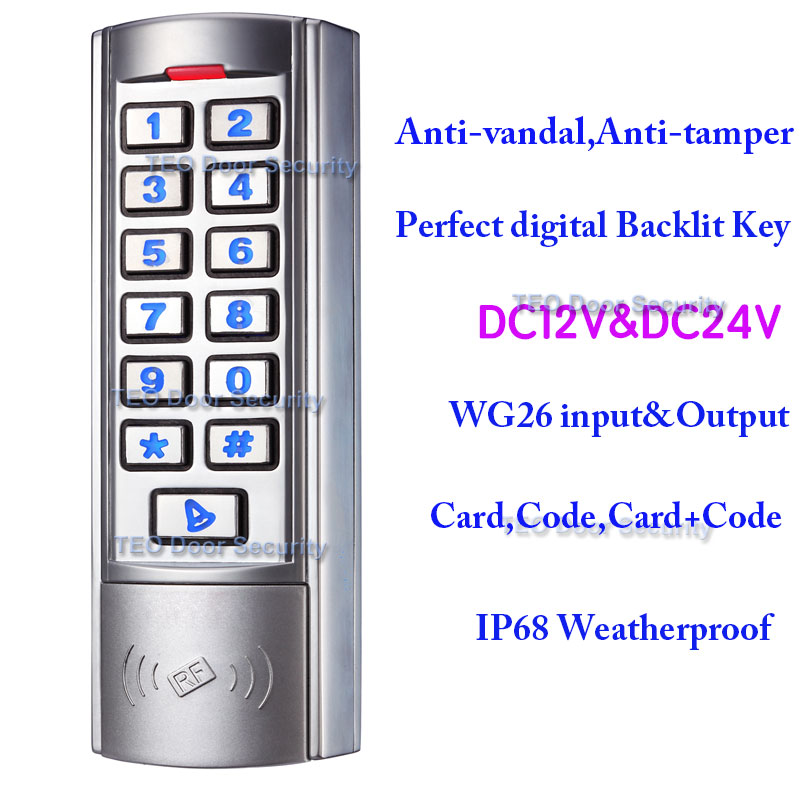

II.Features
Waterproof, conforms to IP68
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2000 uses, supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Backlight keys,crystal glass Keypad,Perfect digital Backlit Key
Wiegand 26 input for connection to external reader
Wiegand 26 output for connection to a controller
Adjustable Door Output time, Alarm time, Door Open time
Very low power consumption (30mA)
Fast operating speed, <20ms with 2000 users
Lock output current short circuit protection
Easy to install and program
Built in light dependent resistor (LDR) for anti tamper
Built in buzzer
Red, Yellow and Green LEDS display the working status
III.Specification
Operating Voltage | DC12V&DC24V |
User Capacity | 2000Users |
Card Reading Distance | 3-6 cm |
Active Current | <60mA |
Idle Current | 25±5 mA |
Lock Output Load | Max 3A |
Alarm Output Load | Max 20A |
Operating Temperature | -45 to 60degree |
Operating Humidity | 10%- 90% RH |
Waterproof | Conforms to IP68 |
Adjustable Door Relay time | 0 -99 seconds |
Adjustable Alarm Time | 0- 3 minutes |
Wiegand Interface | Wiegand 26 |
Wiring Connections | Electric Lock, Exit Button, External Alarm,External reader |

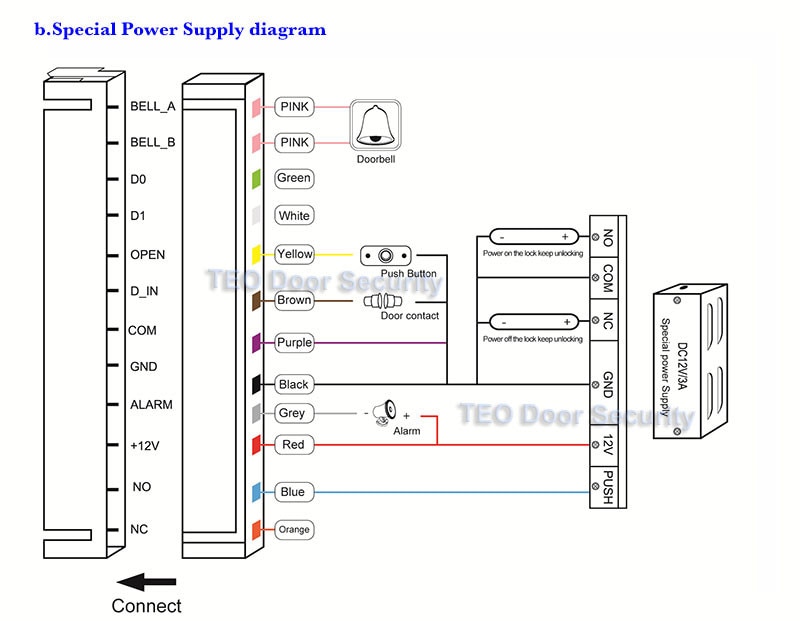

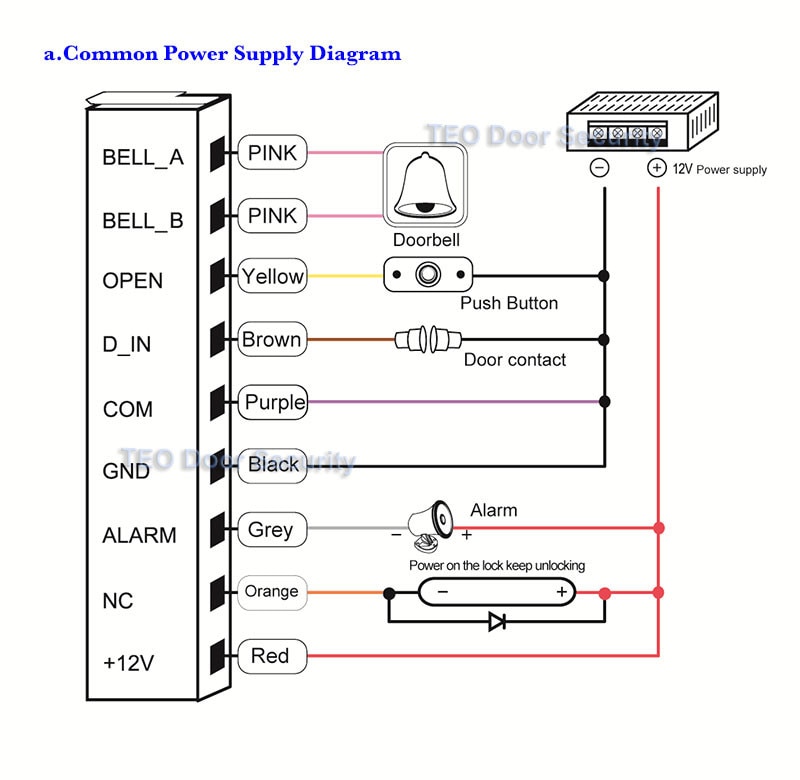

IV.Wiring
Colour | Function | Description |
Pink | BELL_A | Doorbell button one end |
Pale blue | BELL_B | Doorbell button to the other end |
Green | D0 | WG output D0 |
White | D1 | WG output D1 |
Grey | ALARM | Alarm negative(alarm positive connected 12 V+) |
Yellow | OPEN | Exit button one end(the other end connected GND) |
Brown | D_IN | Magnetic switch one end(the other end connected GND) |
Red | 12V+ | 12V + DC Regulated Power Input |
Black | GND | 12V - DC Regulated Power Input |
Blue | NO | Relay normally-on end(Connect positive electric lock "-") |
Purple | COM | Relay Public end, connect GND |
Orange | NC | Relay Closed end(connect negative electric lock "-") |
V. Anti Tamper Alarm
The unit uses a LDR (light dependent resistor) as an anti tamper alarm. If the keypad is removed from the cover then the tamper alarm will operate.
VI.Sound and Light Indication
Operation Status | Red Light | Green Light | Yellow Light | Buzzer |
Power on | - | Bright | - | Di |
Stand by | Bright | - | - | - |
Press keypad | - | - | - | Di |
Operation successful | - | Bright | - | Di |
Operation failed | - | - | - | DiDiDi |
Enter into programming mode | Bright | - | - | |
In the programming mode | - | - | Bright | Di |
Exit from the programming mode | Bright | - | - | Di |
Open the door | - | Bright | - | Di |
Alarm | Bright | - | - | Alarm |
VII.To Reset to Factory Default
a. Disconnect power from the unit
b. Press and hold # key whilst powering the unit back up
c. On hearing two “Di” release # key, system is now back factory settings
Please note only installer data is restored, user data will not be affected
1pcs 1P68 Weatherproof Access Controller
1pcs English User Manul
2pcs Screw
Other accessories
1.You have 7days to contact us and 10days to return it from the date it was received. IF this item in Your Possession more than 7days,
It is considered used and WE WILL NO ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS!
2.All returned items MUST BE in the original packing and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your Hogaki ID.
3.We will refund YOUR FULL WINNING BIG AMOUNT, upon receipt of the item in its original condition and Packaging with allComponents and accessories included, After BOTH Buyer and seller cancel the transaction from Hogaki.
Or, You may choose to have a replacement.
1. 12 months Manufacturer’s warranty for defective items(excluding items damaged and/or misused after
receipt).Accessories come with a 3-month warranty.
2. Defective items MUST BE reported and return to us within the warranty period(and in the original
packaging,IF possible)You must tell us what the defect is and give us your Hogaki ID,WE DO NOT REPAIR
OR REPLACE ITEMS WITH AN EXPIRED WARRANTY!
3.Negative feedback or Low DSR does not resolve any underlying issues.If you have any problems with our items or services,please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
1. Before ordering please contact us to confirm your preferred shipment method. Items are only shipped after payment is confirmed
2. Delivery,We will ship every order with their tracking numberm and you can view the shipment status on the corresponding website.
DHL/Fedex,Aramex: 3-7 days e-EMS/EMS: 5-15 days
HK post: 10-30 days China post/Hogaki Standard Shipping:10-40 days
3.We are not responsible for any accidents,delays or other issues that are the responsibility of the shipping service.
4. Please make sure that you have no difficulty to clearing customs and make sure you are available in the address you filled on Hogaki.
5. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
- Model Number: N1
- Brand Name: Realhelp
- Certification: CE,FCC,RoHS
- Origin: Mainland China
- Smart home platform: NONE
- Operating Voltage: DC12V&DC24V
- User Capacity: 2000Users
- Card Reading Distance: 3-6 cm
- Active Current: <60mA
- Lock Output Load: Max 3A
- Alarm Output Load: Max 20A
- Operating Temperature: -45 to 60degree
- Waterproof: Conforms to IP68
- Adjustable Door Relay time: 0 -99 seconds
- Wiegand Interface: Wiegand 26
