PEGATAH 8MP CCTV Security Camera Tester IV8W 5Inch CCTV Monitor AHD/CVI/TVI CVBS Analog CCTV Cameras Tester HDMI VGA Input
4.6 (56 votes) | 139 orders
Price:
US $
453.43
- Color
-
-
noteThis product does not support testing of IP cameras.

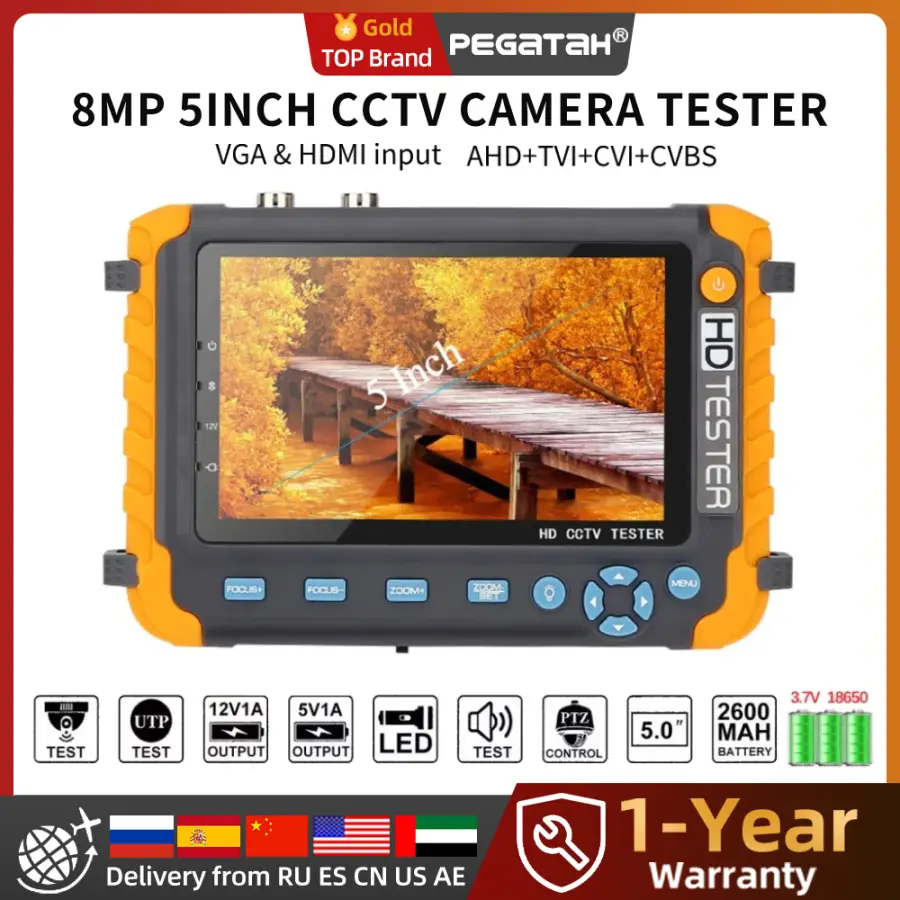

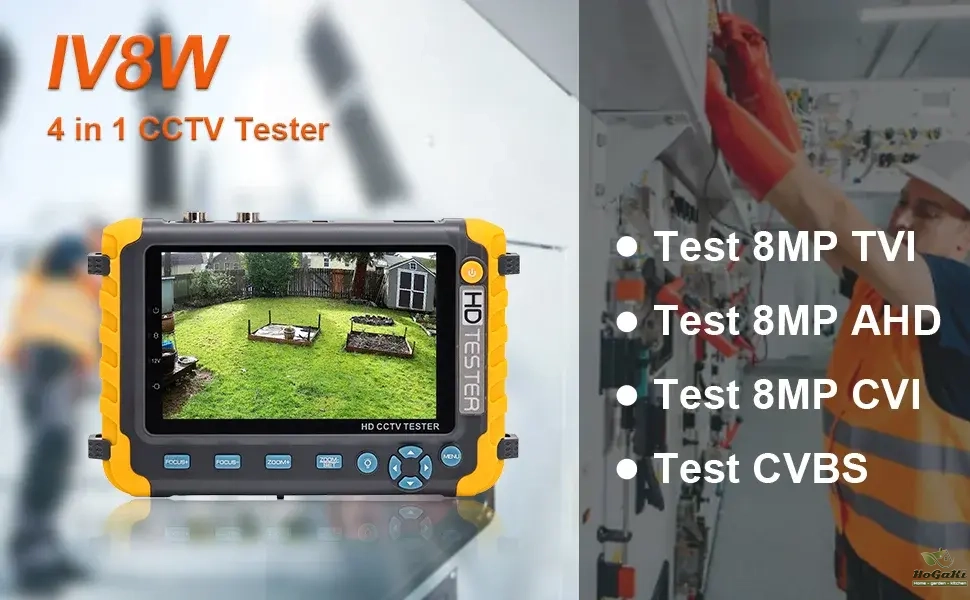

IV8W 5" HD CCTV Camera Tester | 8MP AHD/CVI/TVI/CVBS Diagnostic Tool
Professional Multi-Function Tester for Analog & HD Coaxial Systems
Key Features
✅ 5" HD Display - 800×480 resolution with wide viewing angle

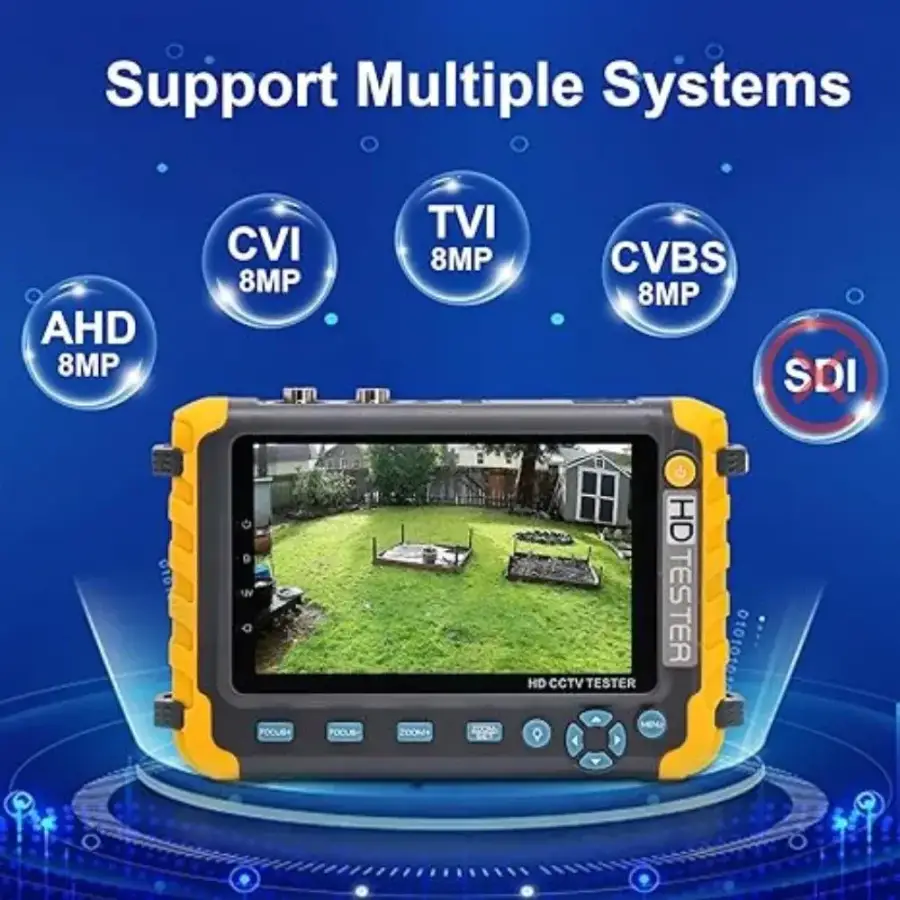

✅ Multi-Format Support - Tests AHD/CVI/TVI/CVBS cameras (up to 8MP)
✅ PTZ Control - Built-in Pelco-D/P protocols for lens adjustment

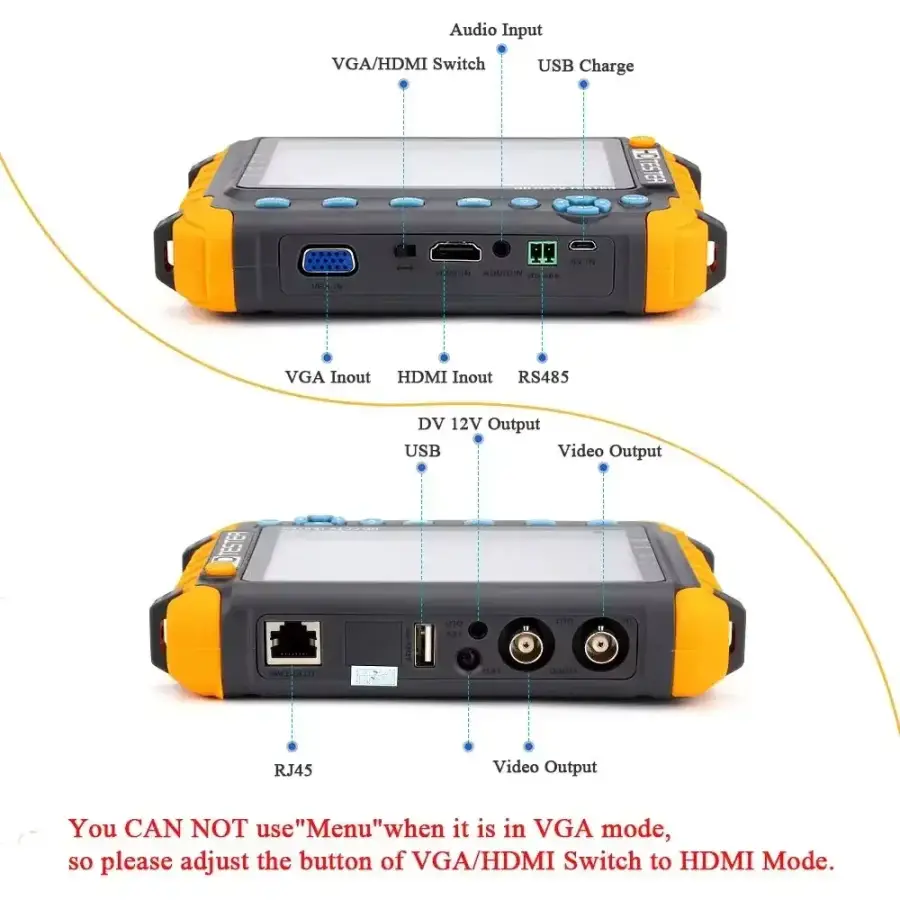

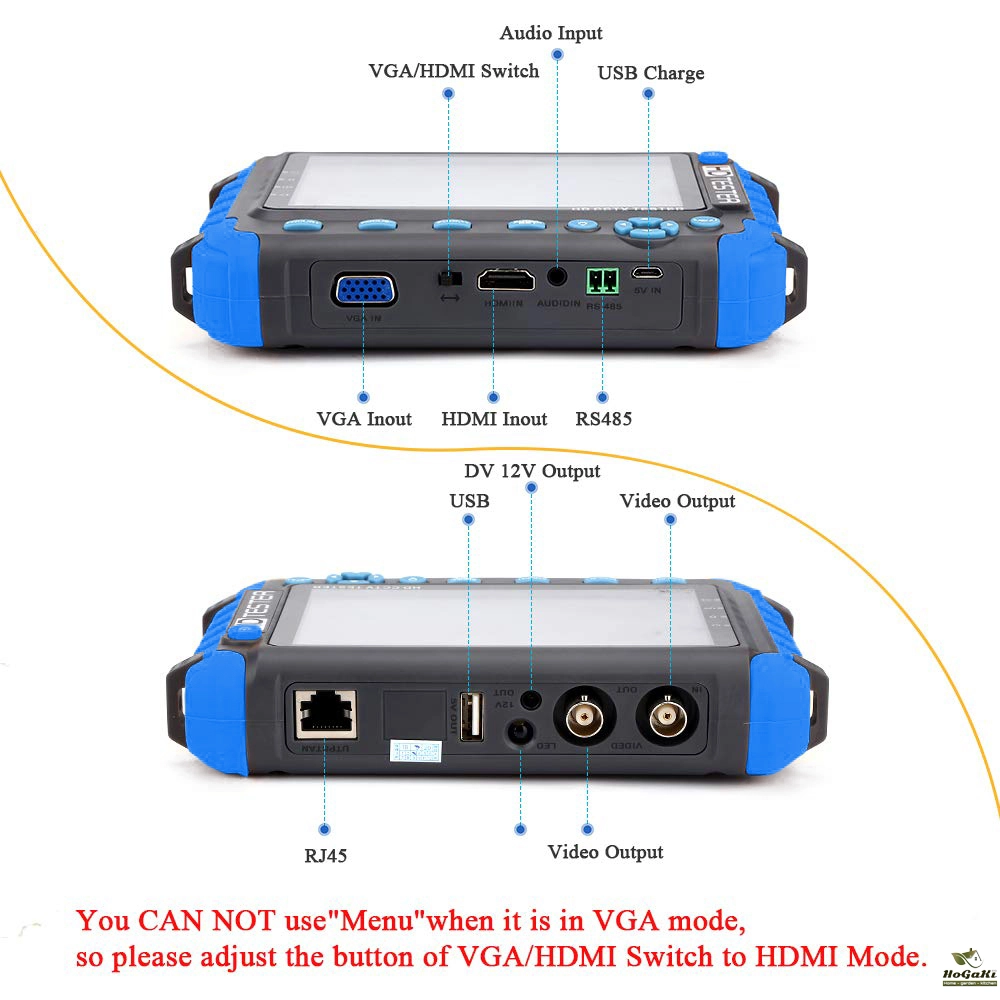

✅ Dual Input - HDMI/VGA (1920×1440 max resolution)
✅ Field Power Supply - DC12V/1A output for camera testing
⚙️ Technical Specifications
Testing Capabilities
• Supported Signals: AHD/TVI/CVI/CVBS
• PTZ Protocols: Pelco-D/P
• Input: HDMI 1.0 + VGA
Power Management
• Output: DC12V/1A (for cameras)

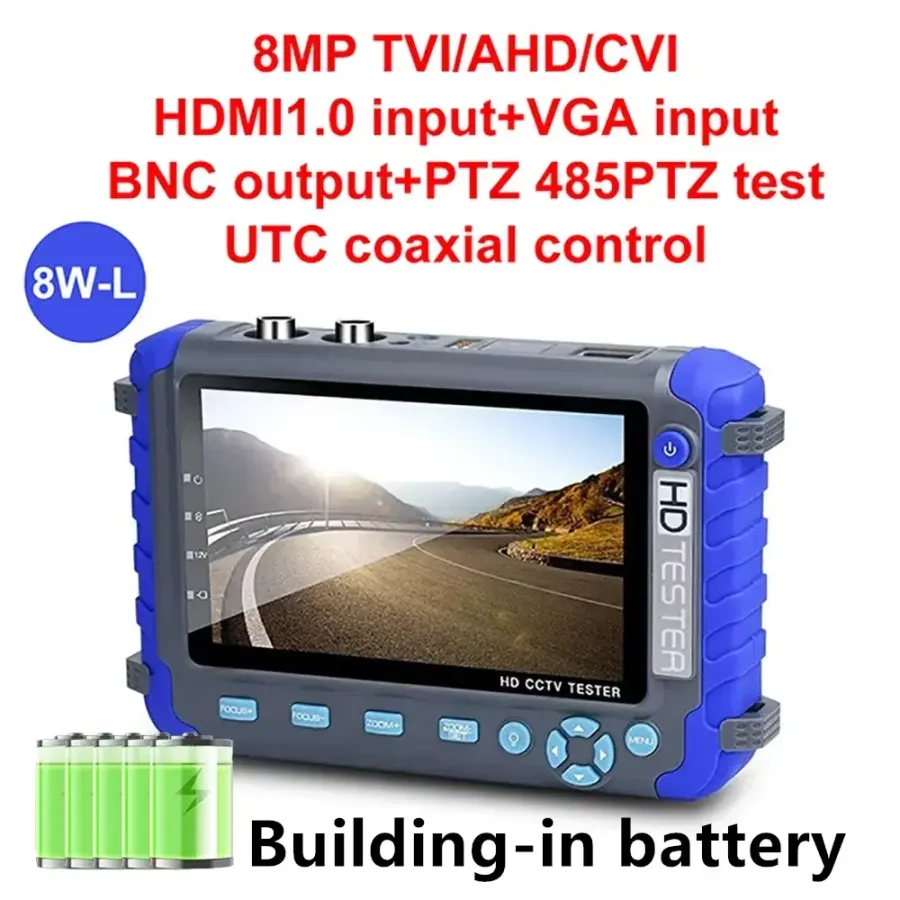

• Battery: Built-in Li-ion (requires full charge before use)
Display
• Size: 5" TFT
• Resolution: 800×480
• Signal: PAL/NTSC auto-switch
️ Professional Applications
◉ Camera Installation Verification
◉ PTZ Function Testing
◉ Cable Continuity Checking
◉ Field Troubleshooting
⚠️ Important Notes
• Not Compatible with IP cameras
• Do Not Use while charging
• Overload Protection - Automatic shutdown

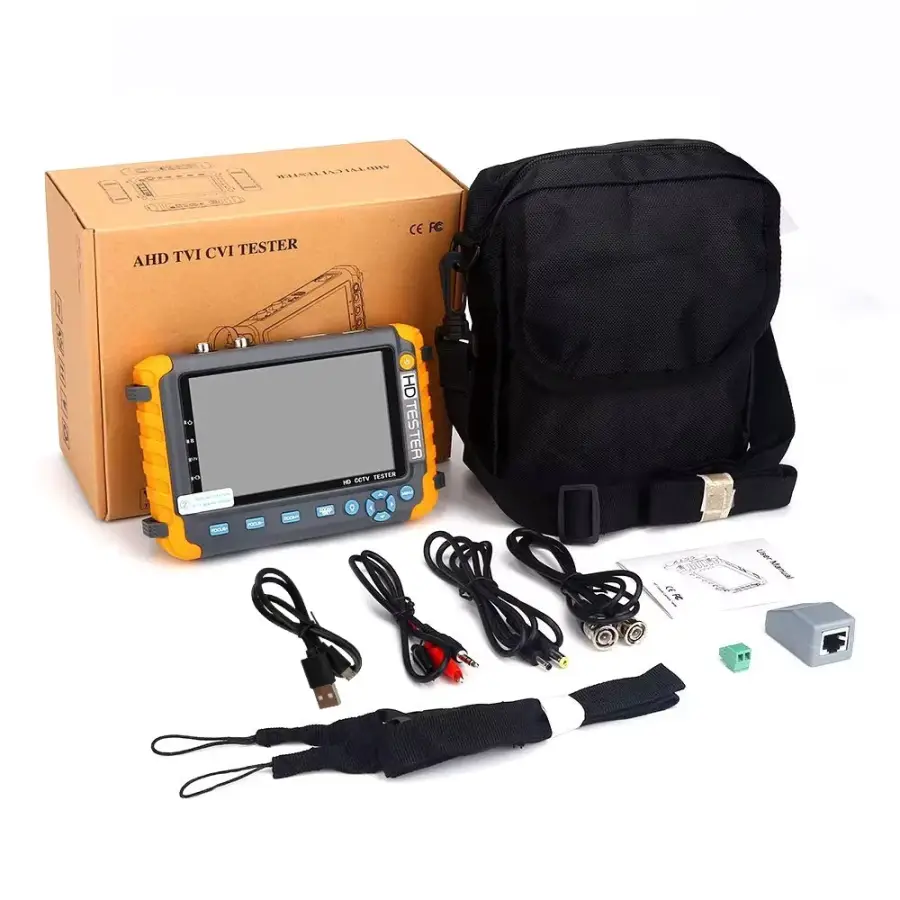

Package Includes
1× IV8W Tester Unit
1× Charging Cable
1× User Manual
(Test cables sold separately)
Why Technicians Choose This?
✔ All-in-One Tool - Replaces multiple test devices
✔ Instant Setup - No configuration required

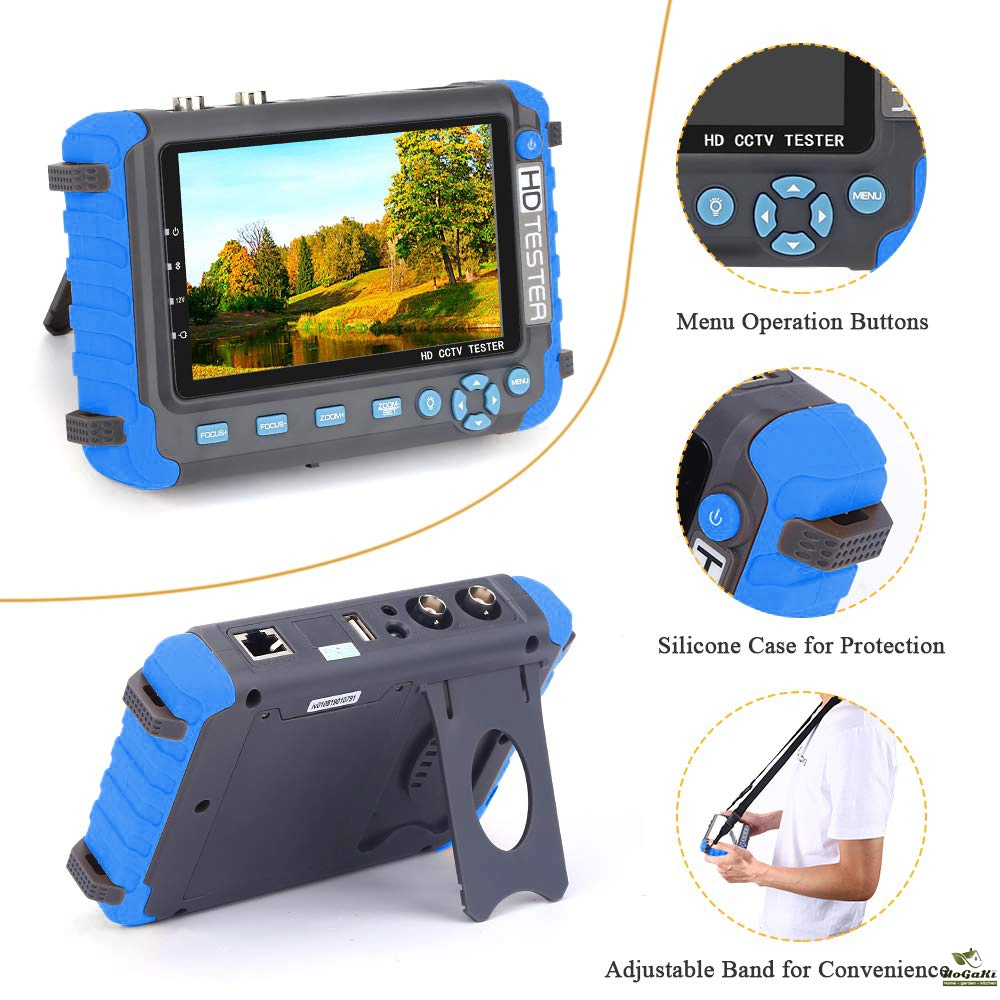

✔ Rugged Design - Field-ready construction
*(CE/FCC Certified | 1-Year Warranty)*
Parameter comparison table
LCD Screen
Vedio monitor tester support High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
PTZ controller
Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
Image generator
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.

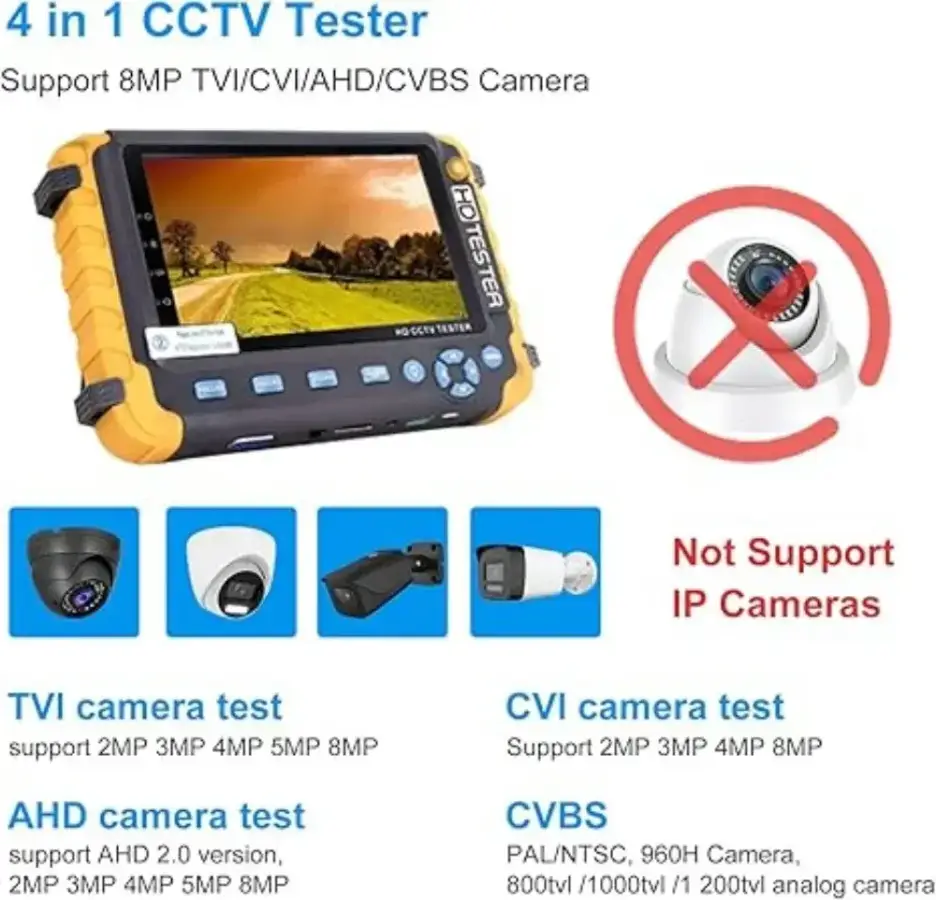

TVI input
1 channel TVI input(BNC interface), support 720P25/30/50/60,1080P3MP/4MPand 5MP 25/30,8MP

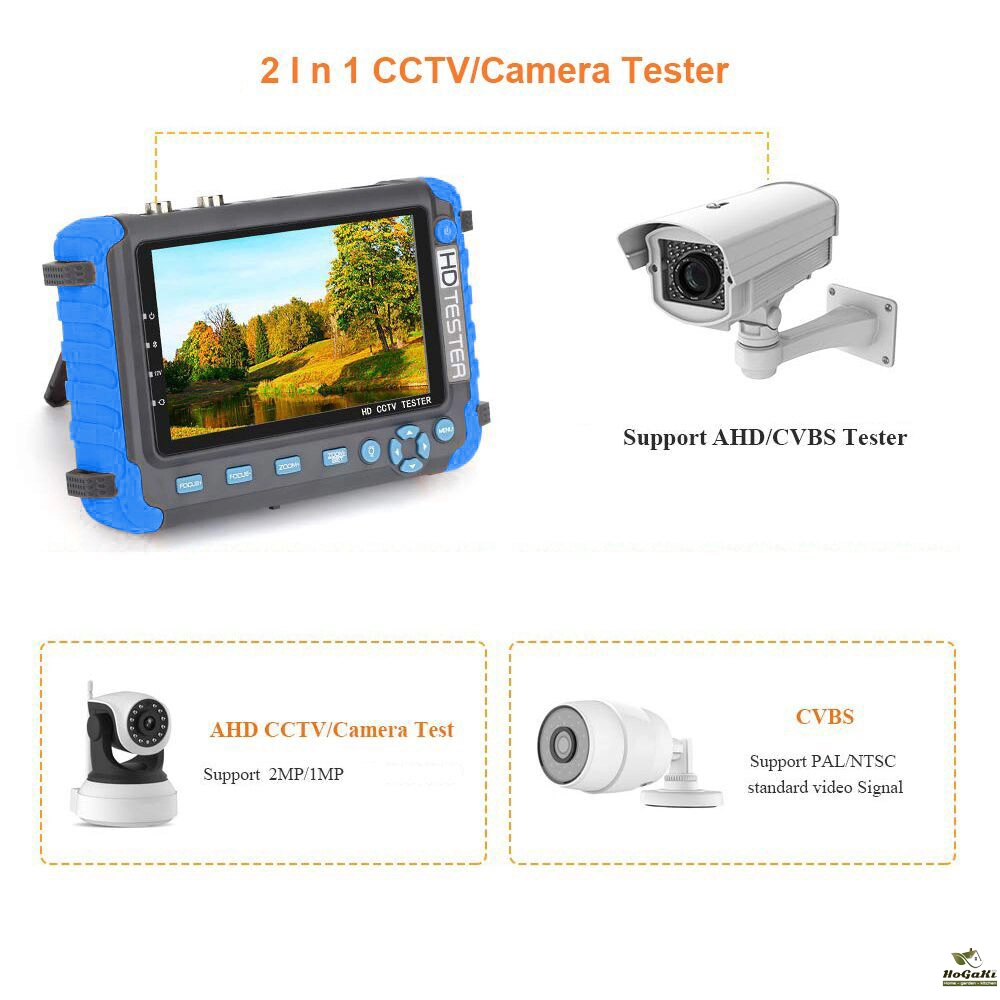

AHD camera test
support 1 channel AHD input (BNC interface), 720P25/30/50/60,1080P3MP/4MP and 5MP 25/30,8MP When AHD signal input, the tester will display the AHD camera image.
CVI camera test
1 channel CVI input(BNC interface), support 720P25/30/50/60,1080P25/30,3MP and 4MP12.5/20,5MP, 8MP CVI camera input
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
Packaging Details
- Unit Type:
- Package Weight: 0.830
- Package Size: 15x10x30
- Brand Name: PEGATAH
- Lens: Other
- Origin: Mainland China
- Hign-concerned Chemical: None
- Sensor Size: 1/4 inch
- Maximum IR Distance(m): Other
- Sensor Type: Sony CCD
- Model Number: IV8W-L
- Certification: CE
- Sensor Size: Other
- Plug Type: EU Plug
- Display screen: 5.0 inch 800*480 resolution TFT-LCD
- AHD camera test: Support 720P/1080P3MP/5MP/8MP
- CVI camera test: Support 720P/1080P3MP/4MP/5MP/8MP
- TVI camera test: Support 720P/1080P3MP/5MP/8MP
- IPC camera test: Not support
- HDMI/VGA input: 1920X1080 video input
- Video input: 1ch Analog signal input
- BNC output: support PAL / NTSC formats standard color bar output
- UTP Cable Tester: Support RJ45 cable test
- LED lamp: Support
- DC 12V/1A output for camera: Support
- Audio Input Test: 1 channel audio signal input
- Power Adapter: DC 5V 1.5A

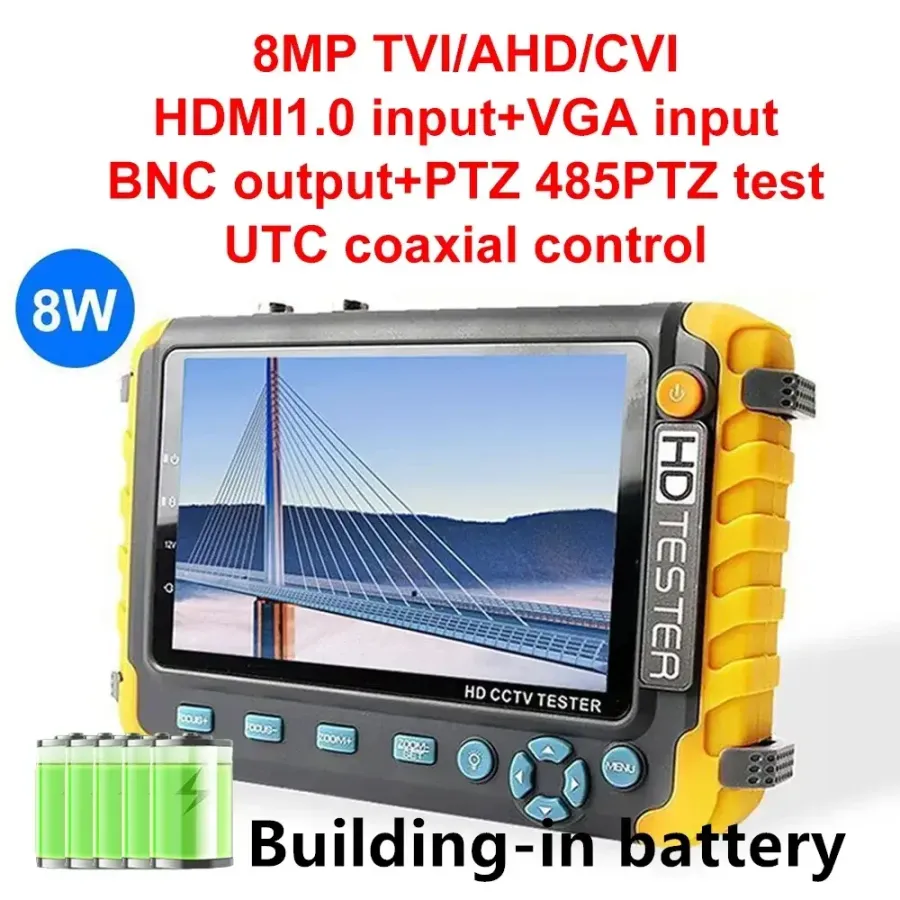

- Battery: Rechargeable 18650 Battery
- PTZ Controller: Support RS485
- PTZ Protocol: Compatible with protocols PELCO-D/P
- Baud Rate: 600,1200, 2400, 4800, 9600,14400bps
- IP camera input: Not Support
- Security Camera Monitor: Video Surveillance
- CCTV Display: CCTV Monitor
