P6100 Oscilloscope Probe 1X/10X Adjustable Attenuation 100MHz Bandwidth BNC Leads Switchable Input Voltage Osciloscope Probes

4.9 (26 votes) | 176 orders
Price: US $17.55 - 47.46 / Set
Discount Price:
US $ 14.04 - 37.96 / Set
-20%
Color
Ships From
Quantity



Features and specifications:

·Universal Oscilloscope Probes 10:1 and 1:1 Switchable Bandwidth 100MHz

·Usable with Scopes having Bandwidth up to 100 MHz

·Interchangeable Probe Tip.High Sensitivity, Excellent Performance and Reliable Function
·High Input Impedance (X10 Range)

·Used with Oscilloscopes from All Manufacturers , Equipped with The Standard BNC Connector

·Adjustable oscilloscope probe that is compatible with the BNC interface, digital oscilloscopes, virtual oscilloscopes, handheld oscilloscopes, etc.

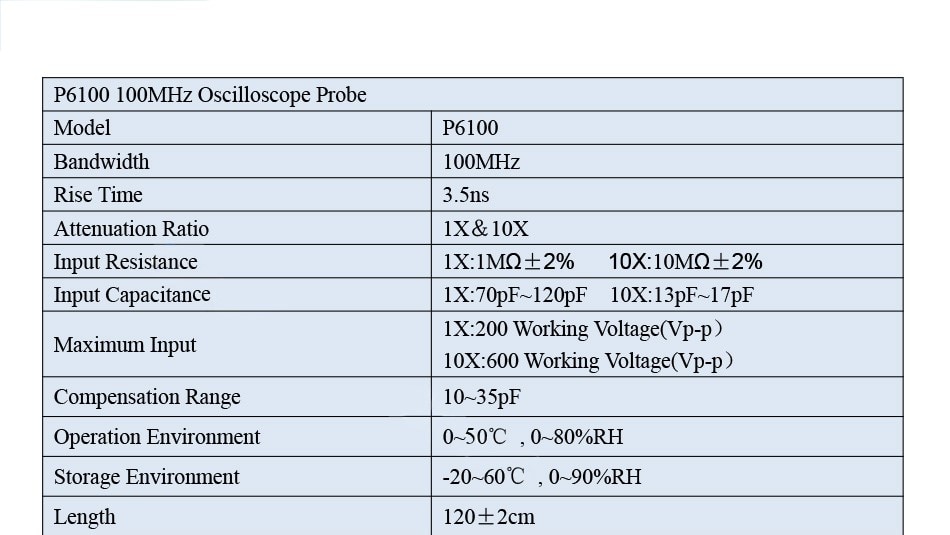

Parameters

Model: P6100

Bandwidth: DC-100MHz

Rise time: 3.5ns

Attenuation ratio: 1X/10X

Input resistance: 1MΩ/10MΩ±2%

Input capacitance: 1X:70pF-120pF, 10X:13pF-18pF

Maximum input: 1X-200 working voltage (Vp-p),
10X-600 working voltage (Vp-p)

Compensation range: 14 - 35pF

Operation environment: 0-50℃ ,0-80%RH

Storage environment: -20-60℃ ,0-90%RH

Size:110 ± 2cm Weight: About 130g/set

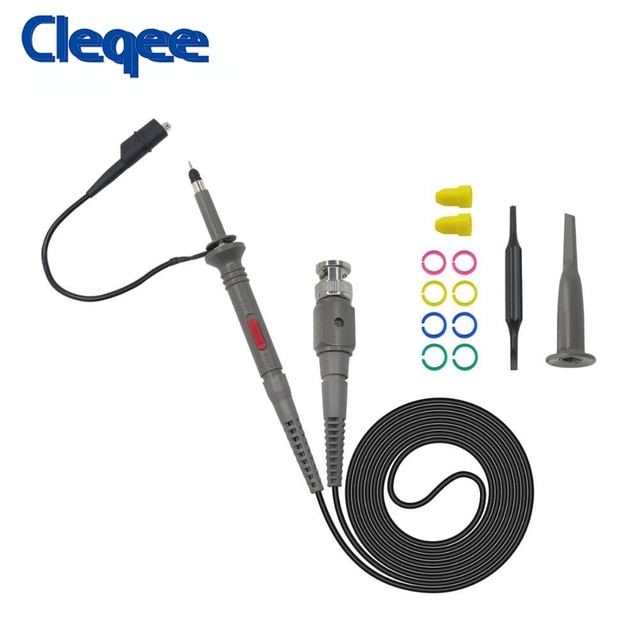

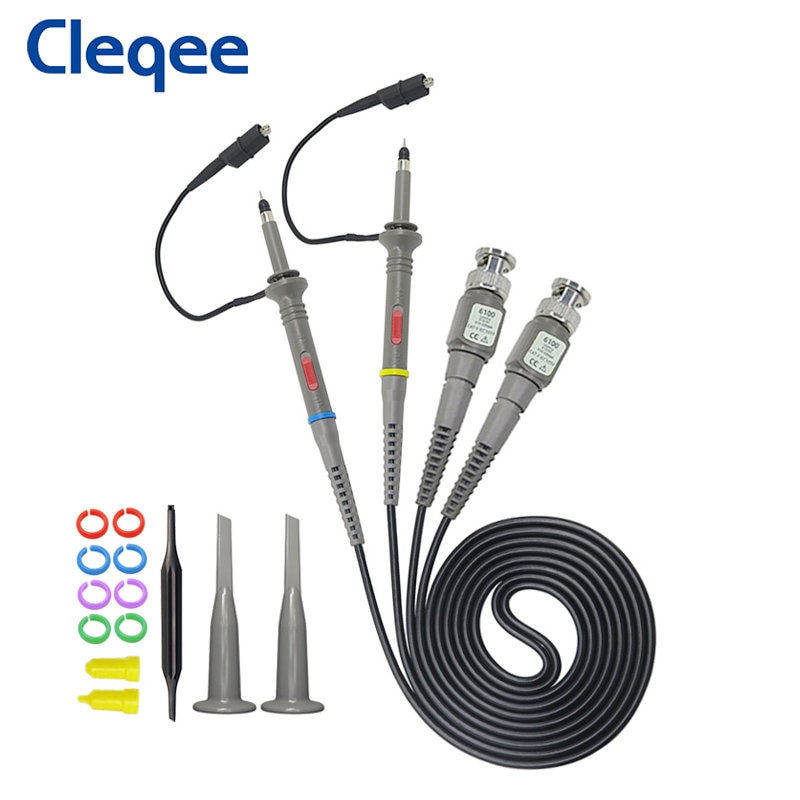

Package includes:

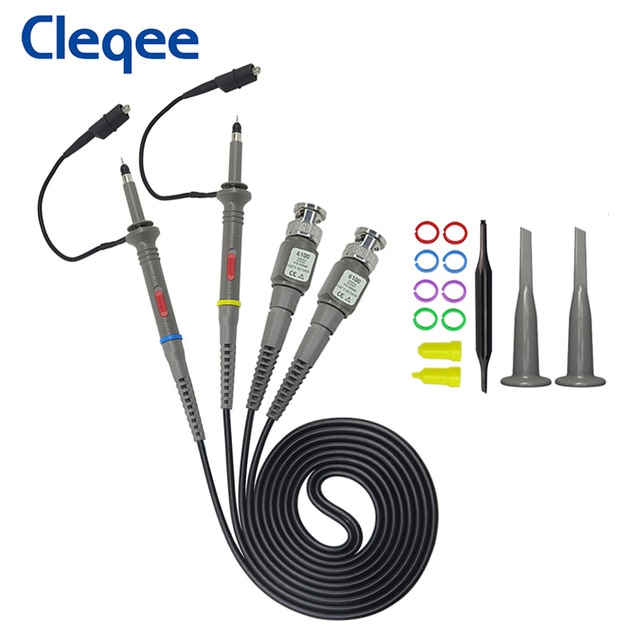

P6100-2pcs
• 2 x Probes
• 8 x Marker rings
• 2x Ground leads
• 2 x IC Test Protection Cap
• 1 x Adjustment tool
• 1 x User manual

P6100-1pcs
• 1 x Probe
• 8 x Marker rings
• 1x Ground leads
• 1 x IC Test Protection Cap
• 1 x Adjustment tool
• 1 x User manual

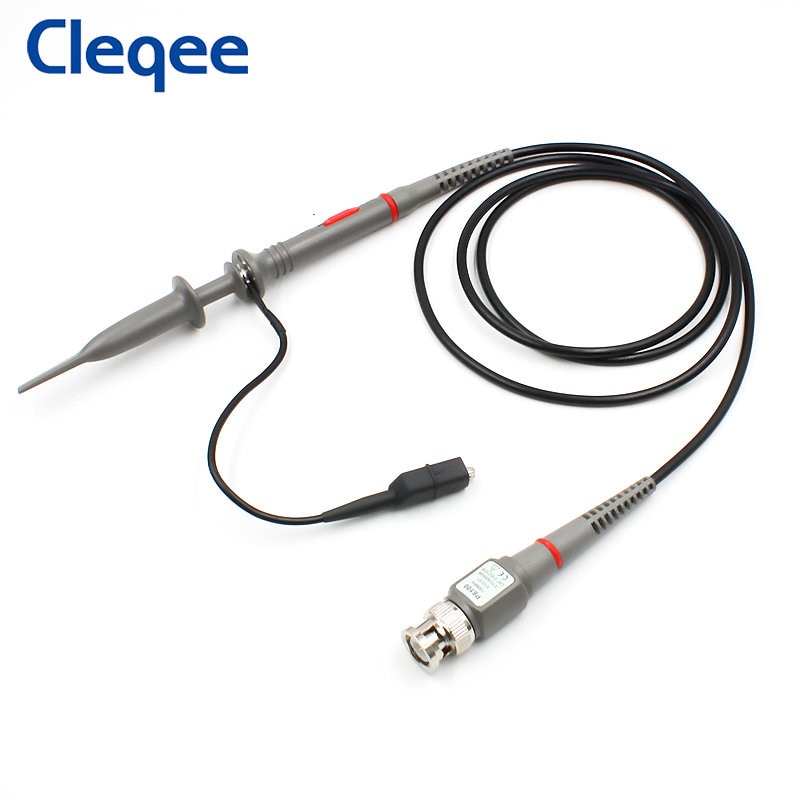

Oscilloscope probe

By Cleqee

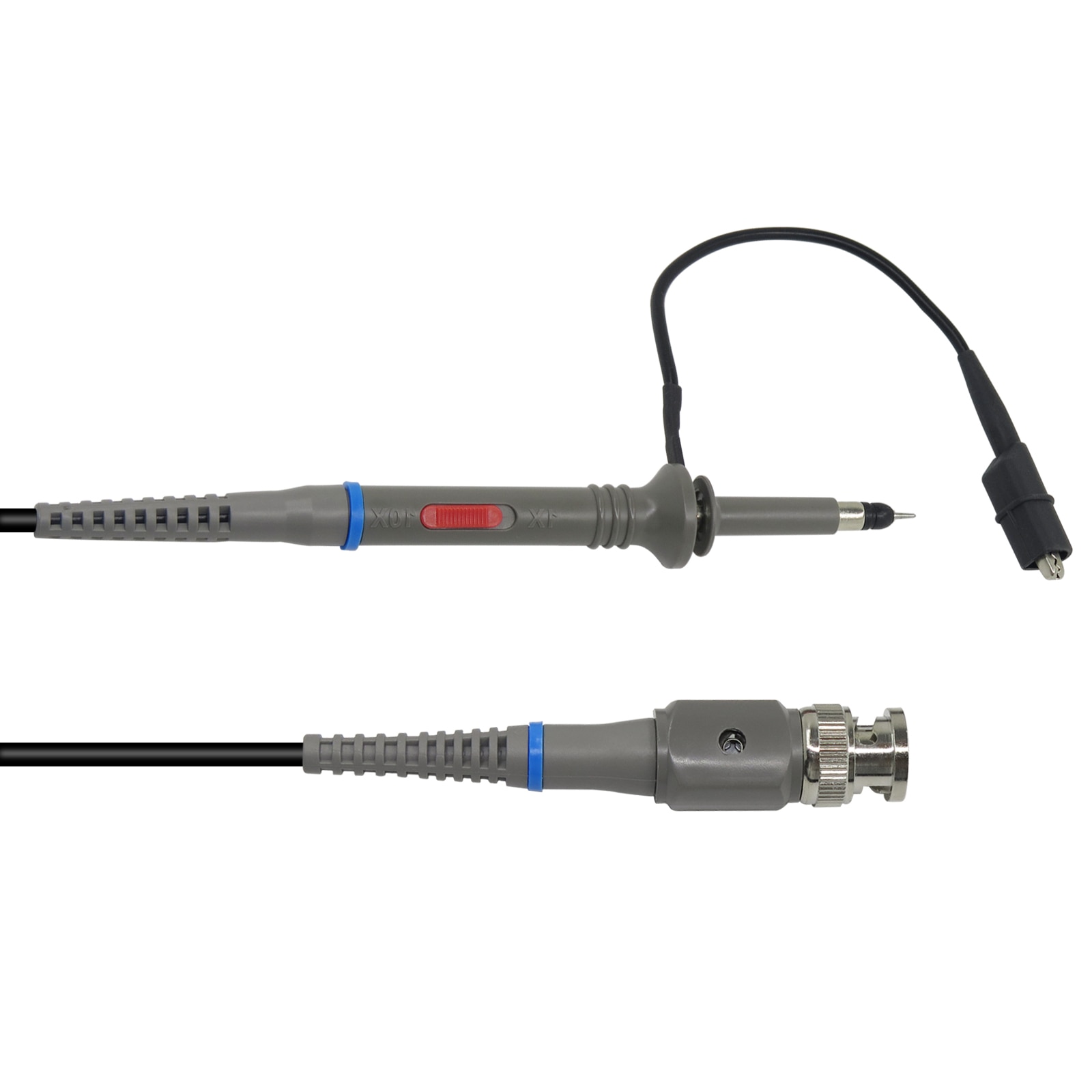

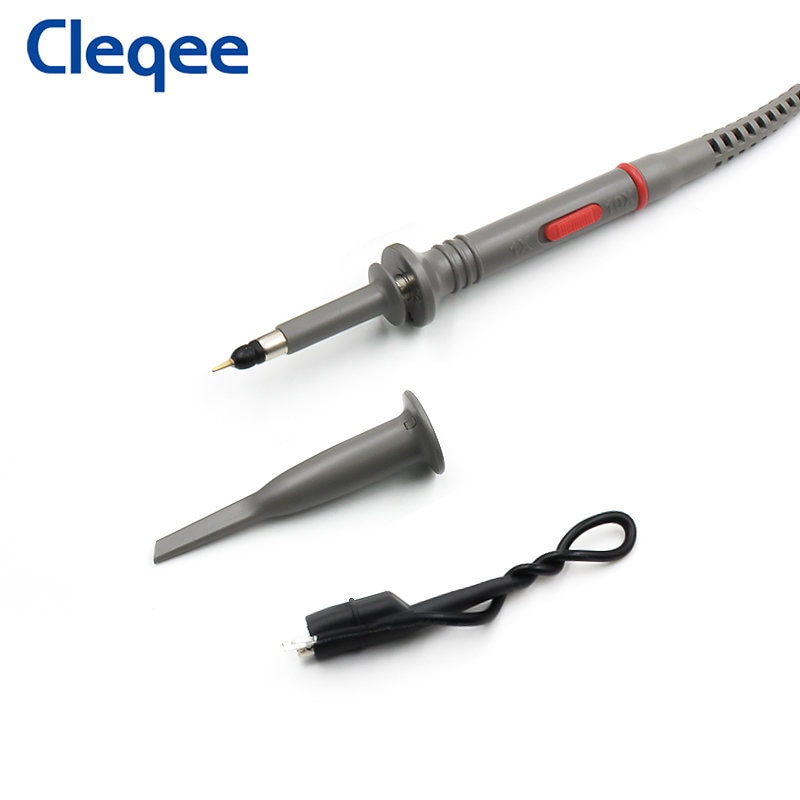

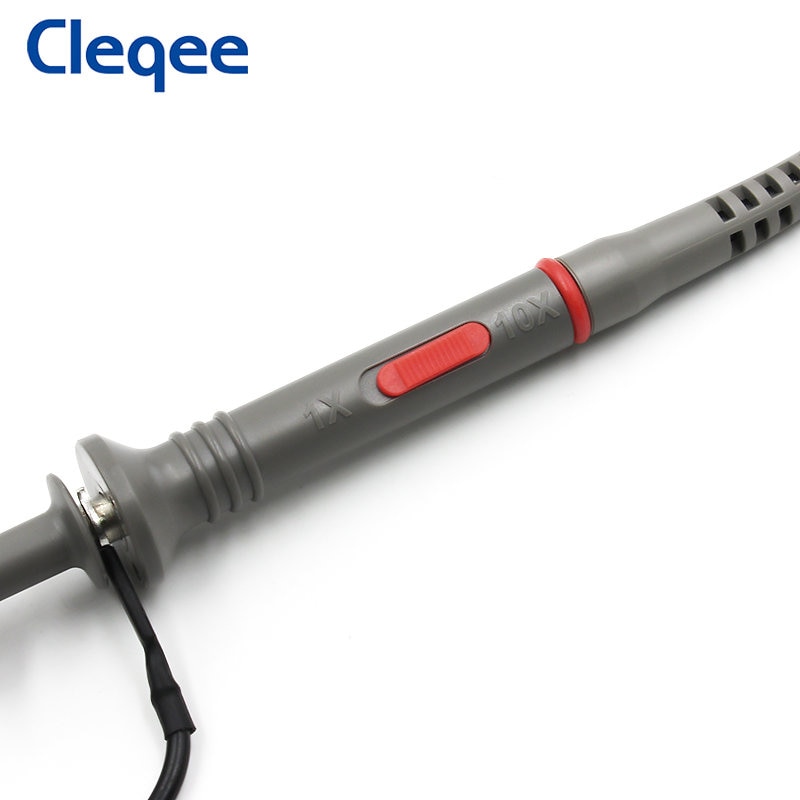

Oscilloscope Probe Body

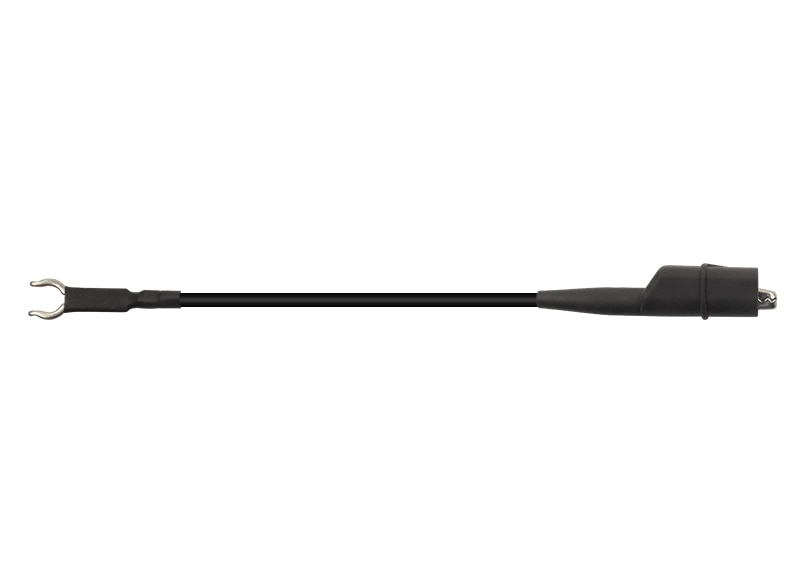

Grounding Lead

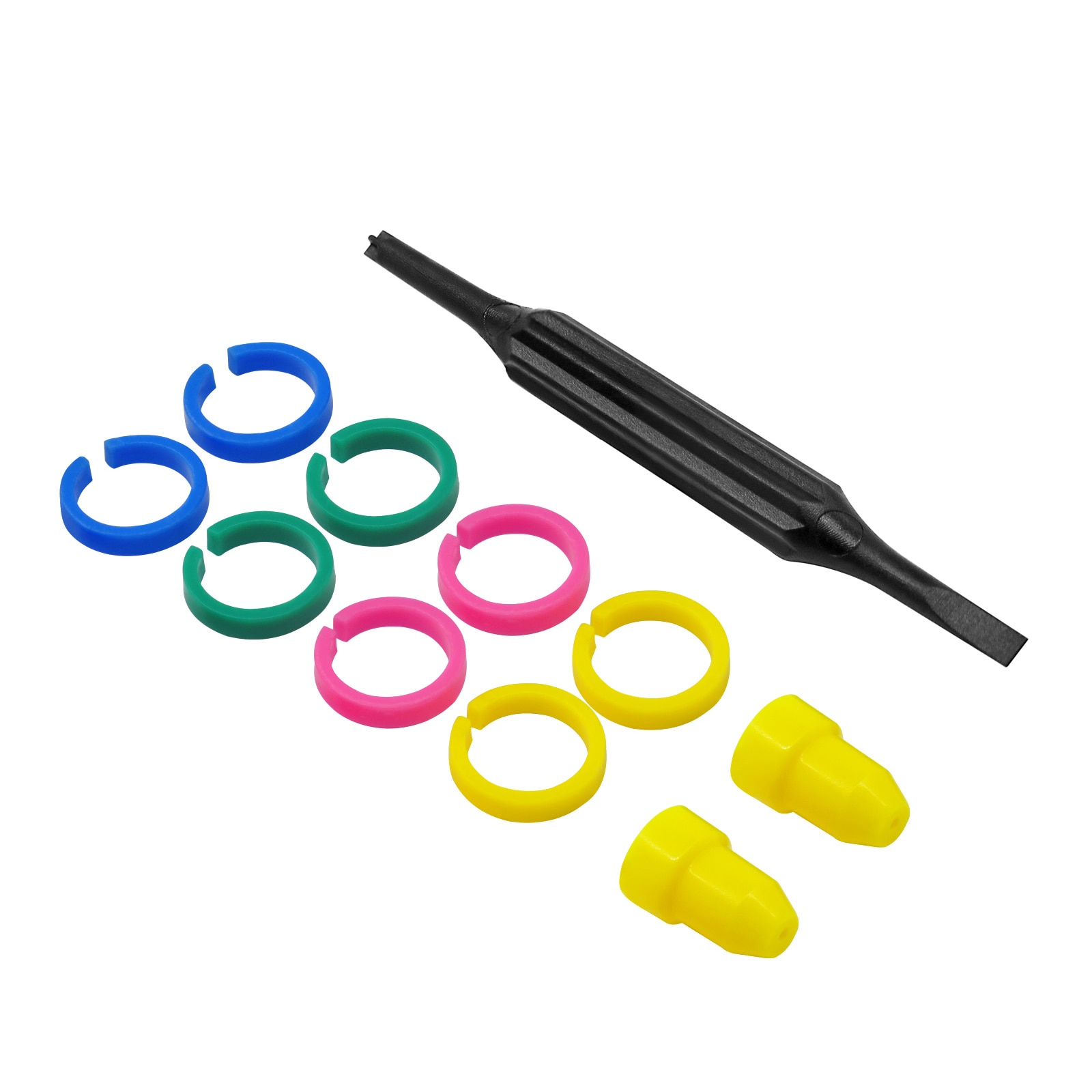

CH Color Circle & Adjusting Tool

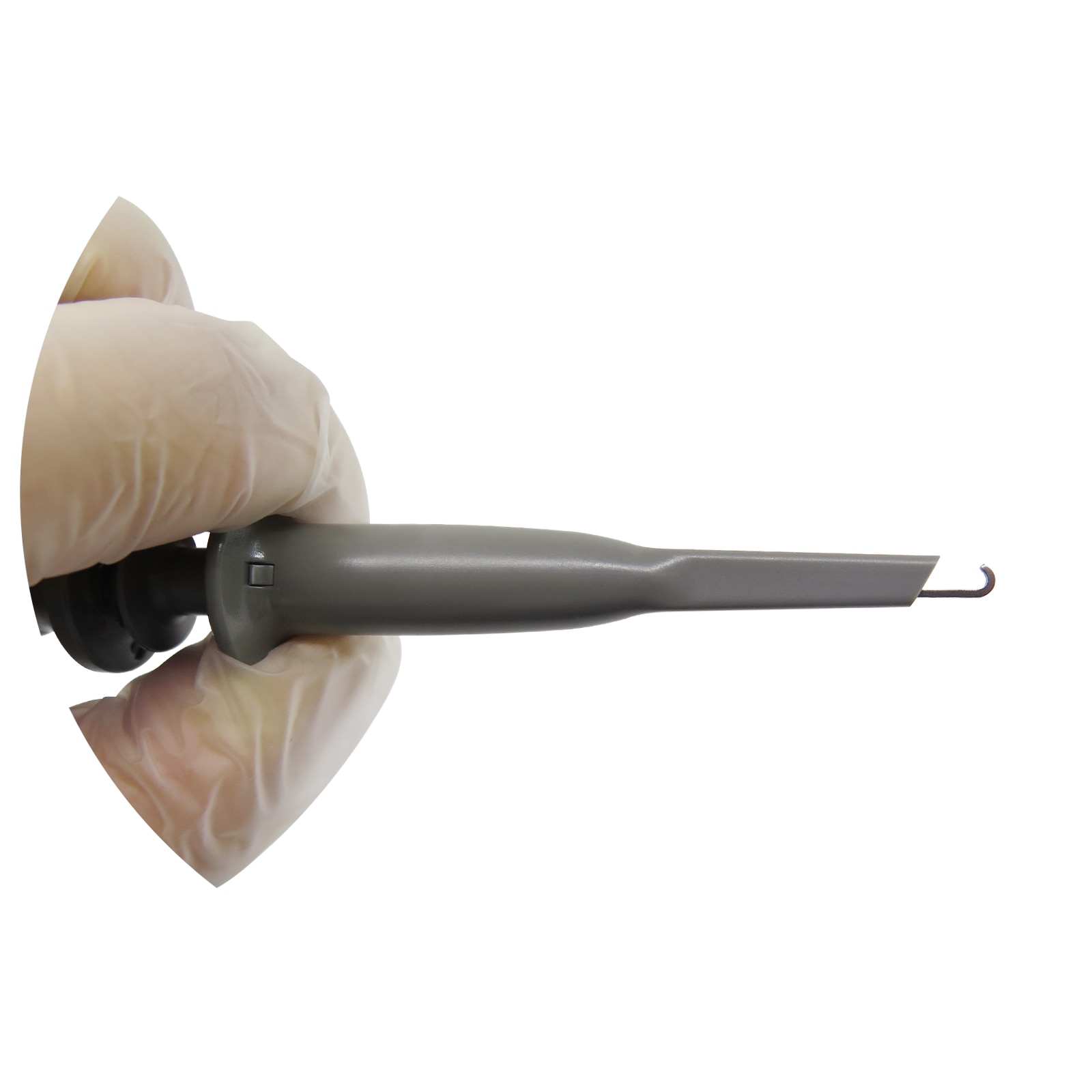

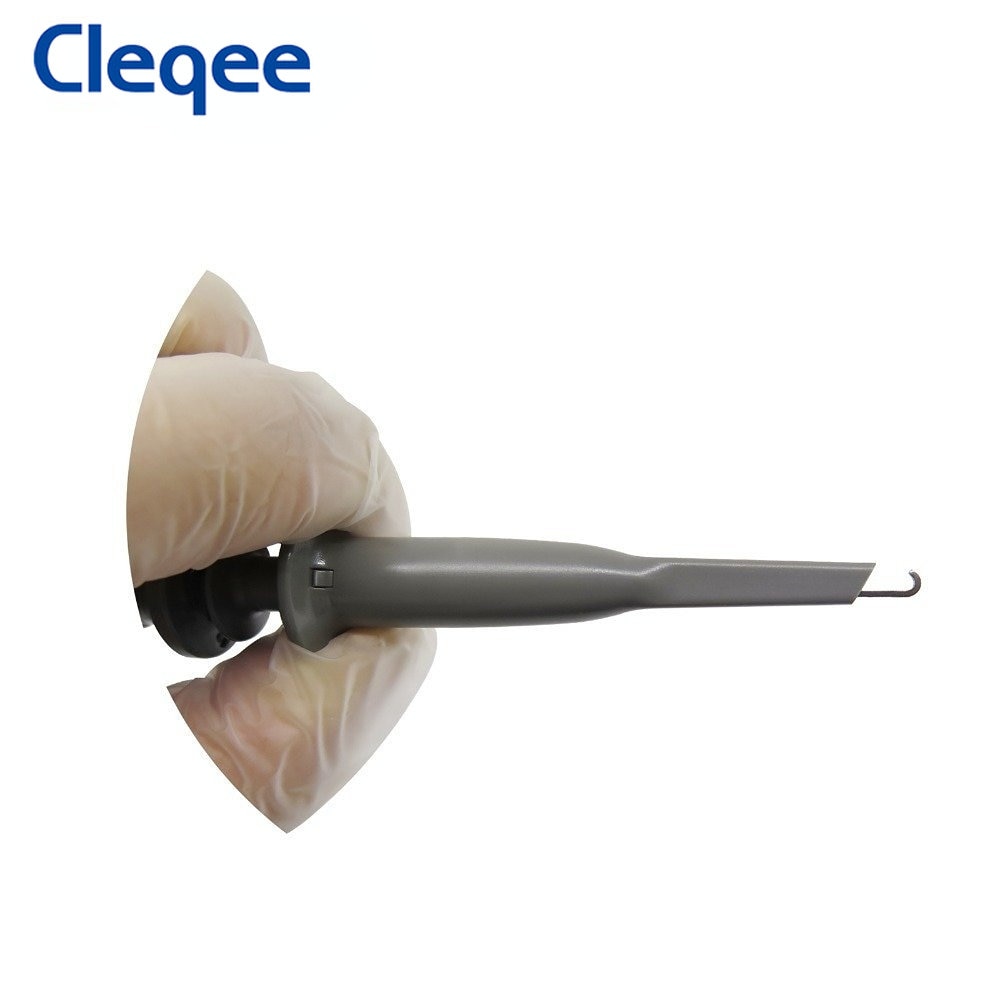

Test Hook

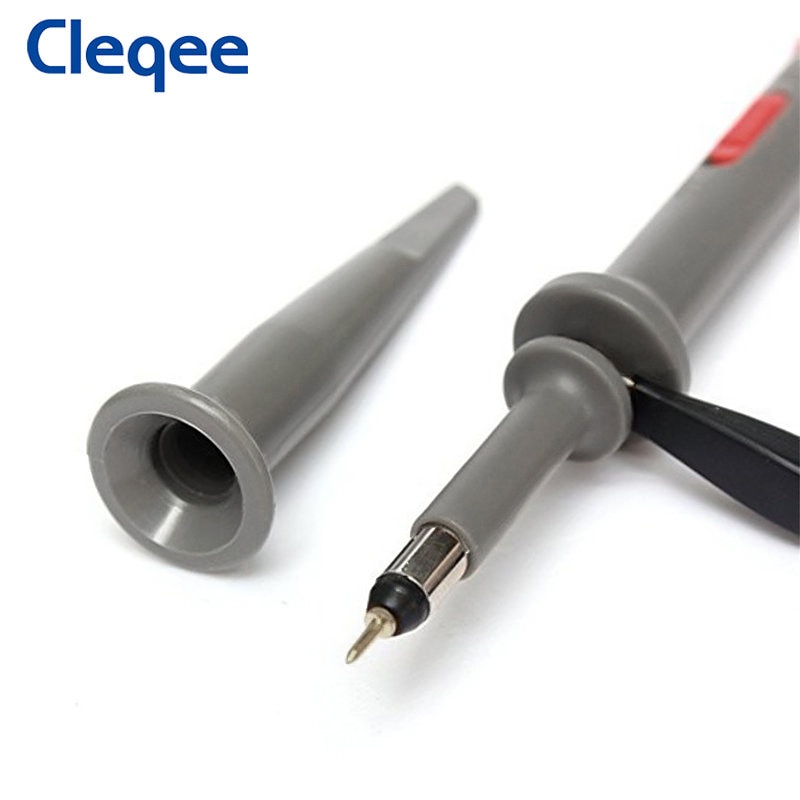

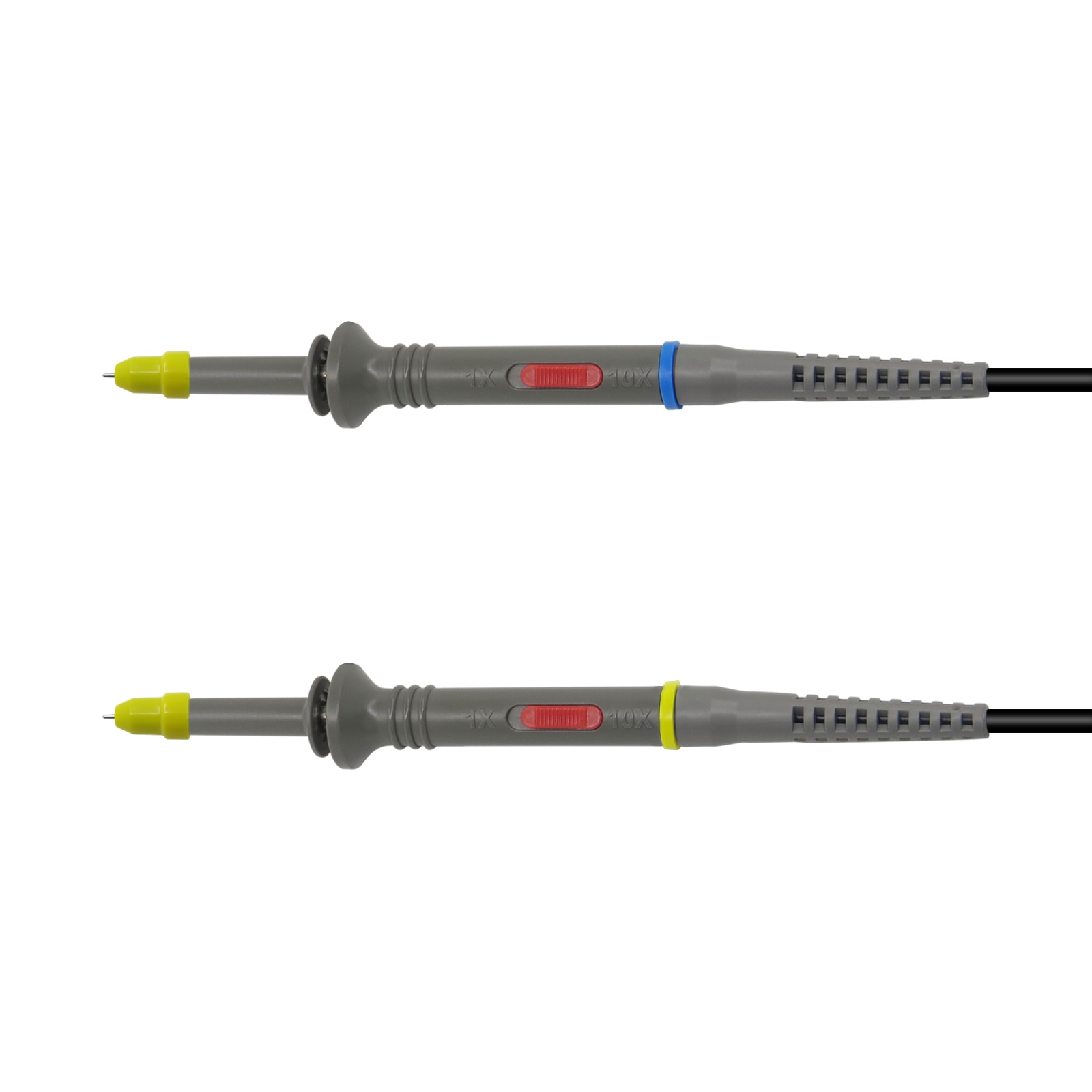

IC Test Protection Cap



High quality metal BNC plug

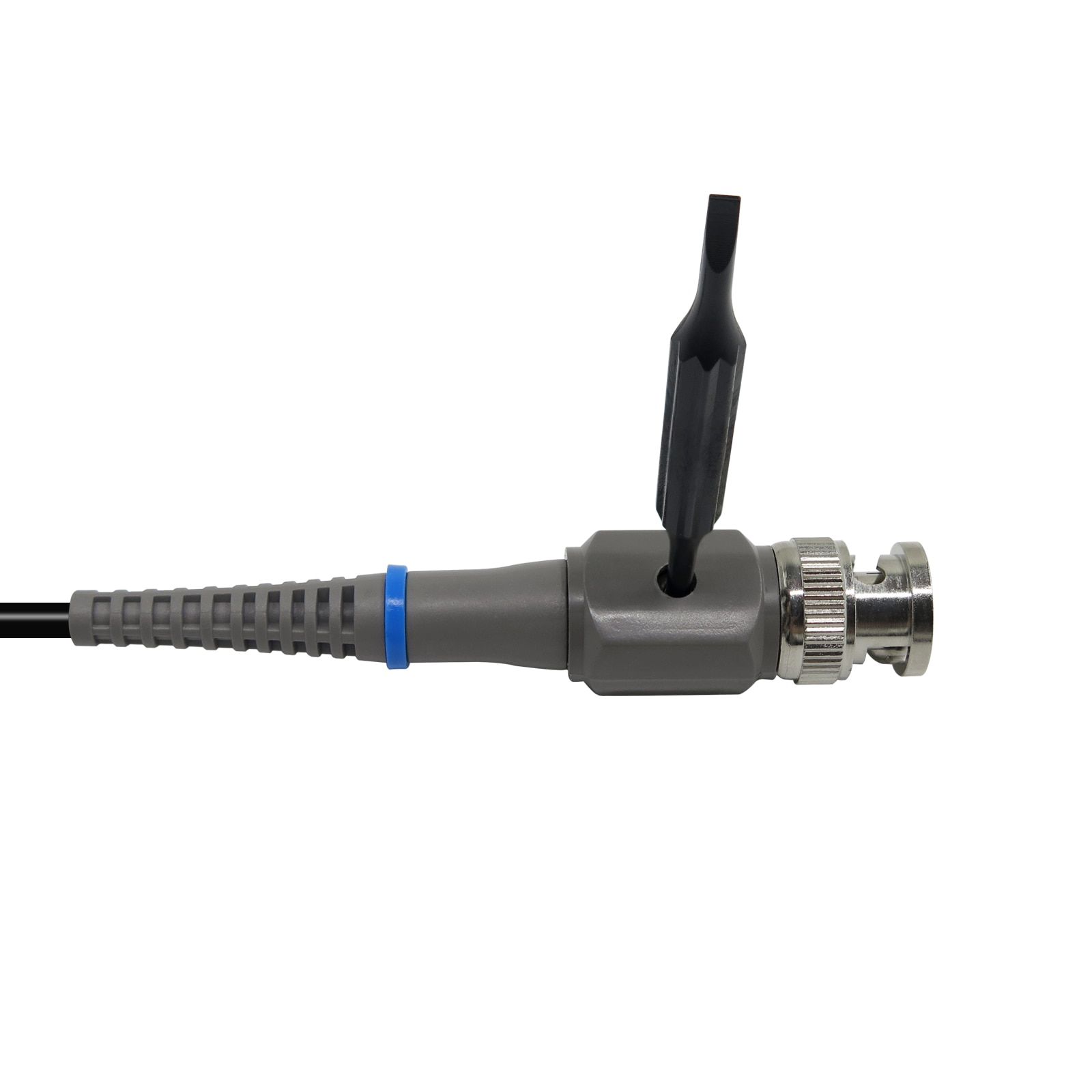

Adjustable capacitor for calibrating oscilloscope probes

Parameters




  • Oscilloscope Parts & Accessories Type: Oscilloscope Probe & Accessories
  • Brand Name: CLEQEE
  • Origin: Mainland China
  • Certification: CE
  • Rise time: 3.5ns
  • Attenuation Ratio: 1X&10X
  • Input Resistance: 1X:1MΩ±2% 10X:10MΩ±2%
  • Input Capacitance: 1X:70pF~120pF 10X:13p~17pF
  • Maximum Input: 10X:600 Working Voltage(Vp-p)
  • Compensation Range: 10~35pF
