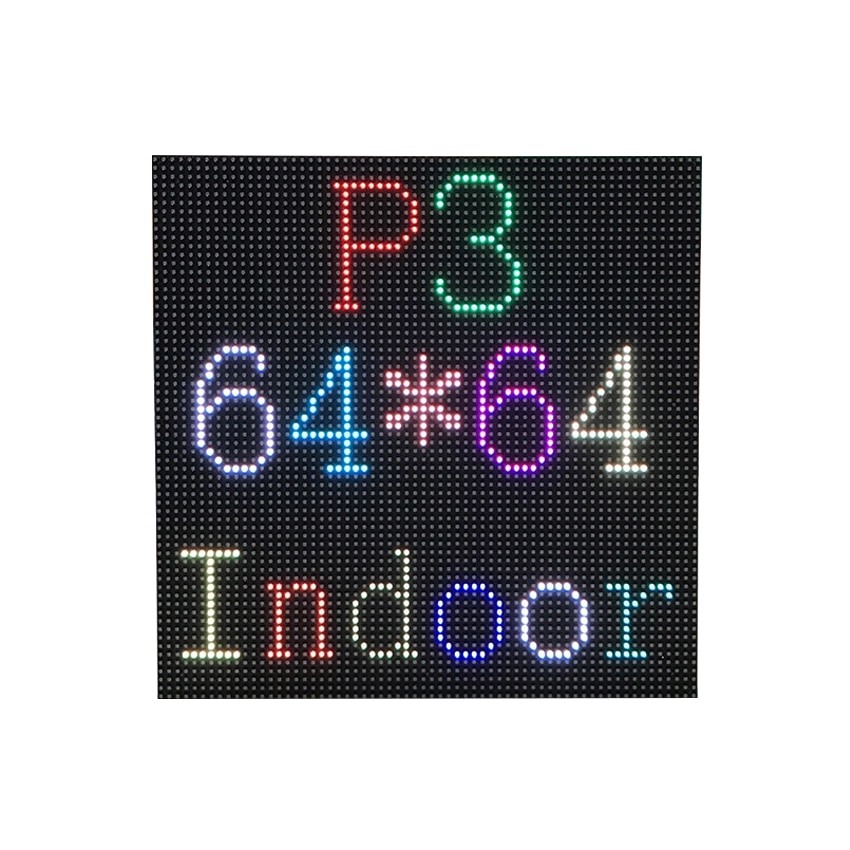

P3 LED module indoor LED display screen 192*192mm 64*64pixels 1/32 Scan Indoor SMD2121 3in1 RGB full color LED panel

0.0 ( votes)
Price:
US $ 47.50 / piece
Ships From
Quantity

Warm Prompt

In case of the module is damage or lose due to the logistics, we will send you new one.

P3 SMD2121 led full color indoor module 192*192mm 1/32S

Technical Parameters

Item: P3 Chip: Epstar Chip size: Red 9 mil, Green 12. Blue 12mil Light type: SMD Pixel Pitch: 3mm Module Size: 192mmx192mm Module Resolution: 64 X 64 (dots) Density of pixel: 111111 dots/m2 Pixel configuration: 1R1G1B Red wavelength: 625±2nm Green wavelength: 525±2nm Blue wavelength: 470±2nm Colors: 16777216 Best viewing distance: ≥2m viewing angle: 120°/90° Maximum power consumption: 17W Brightness: 1500cd/m2 Gray scale: 14bits per color Color temperature: 6500k Control method: Synchronization or Asynchronization Driving method: 1/32 scanning Frame frequency: 60Hz Refresh frequency: ≥600Hz Working Voltage: DC5V IP grade: IP54 MTBF: More than 8000hours Life Span: 80,000hours

Packing List

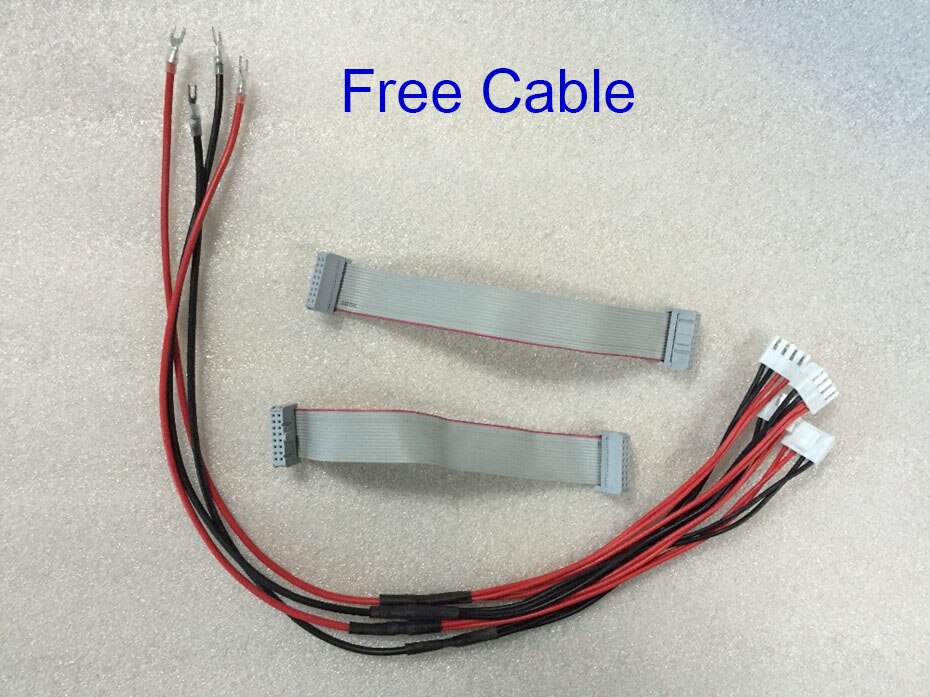

* 1 pcs full color led module ( led panel ) * 1 pcs date cable * 1 pcs power cable ( If you buy N pcs, we will supply N/2 pcs power cable, because 1 pcs power cable support 2 modules )

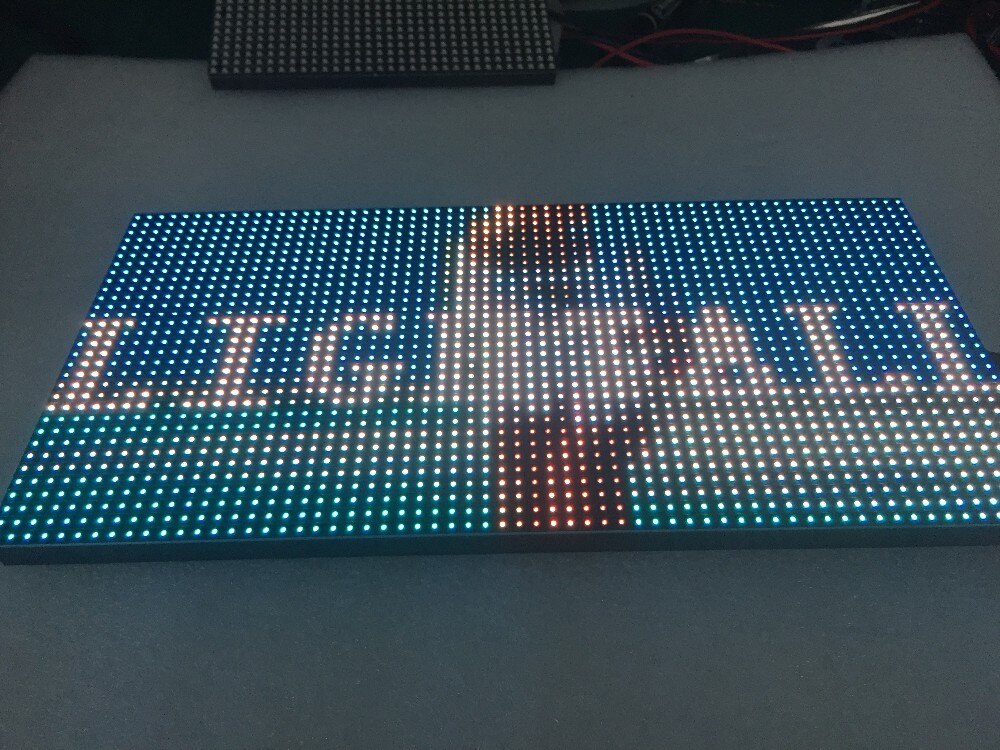

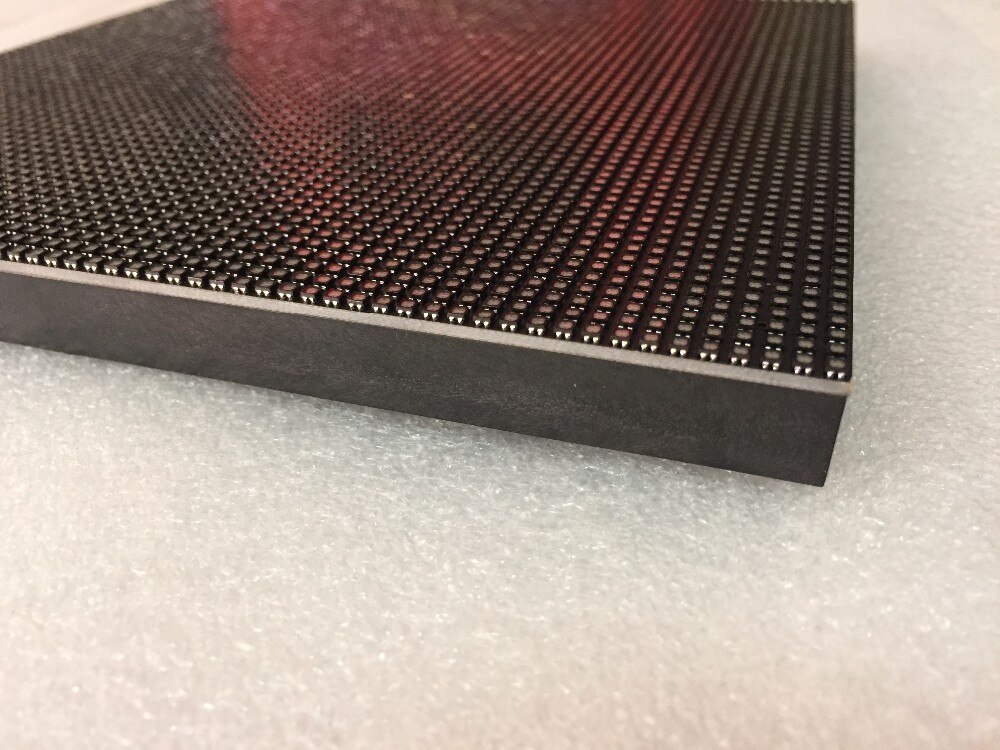

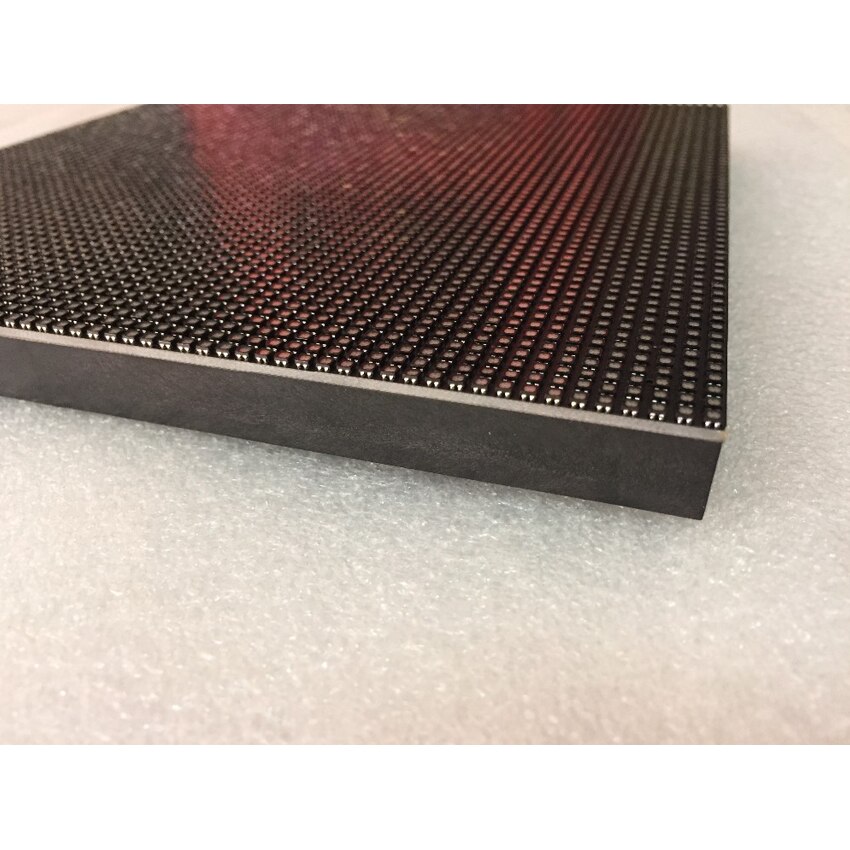

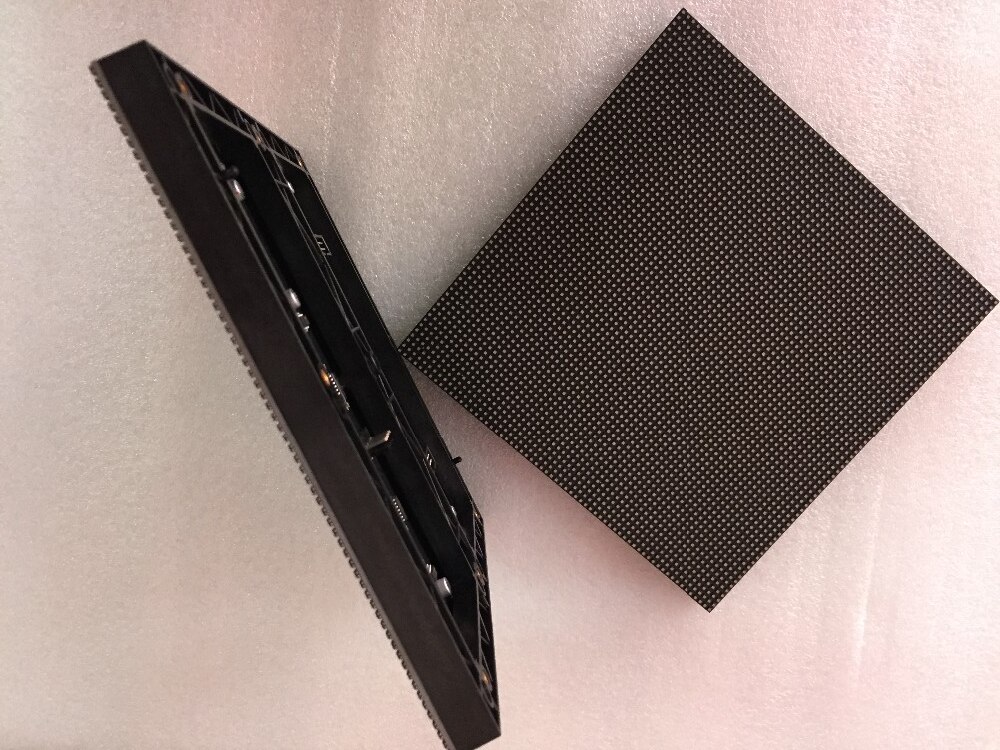

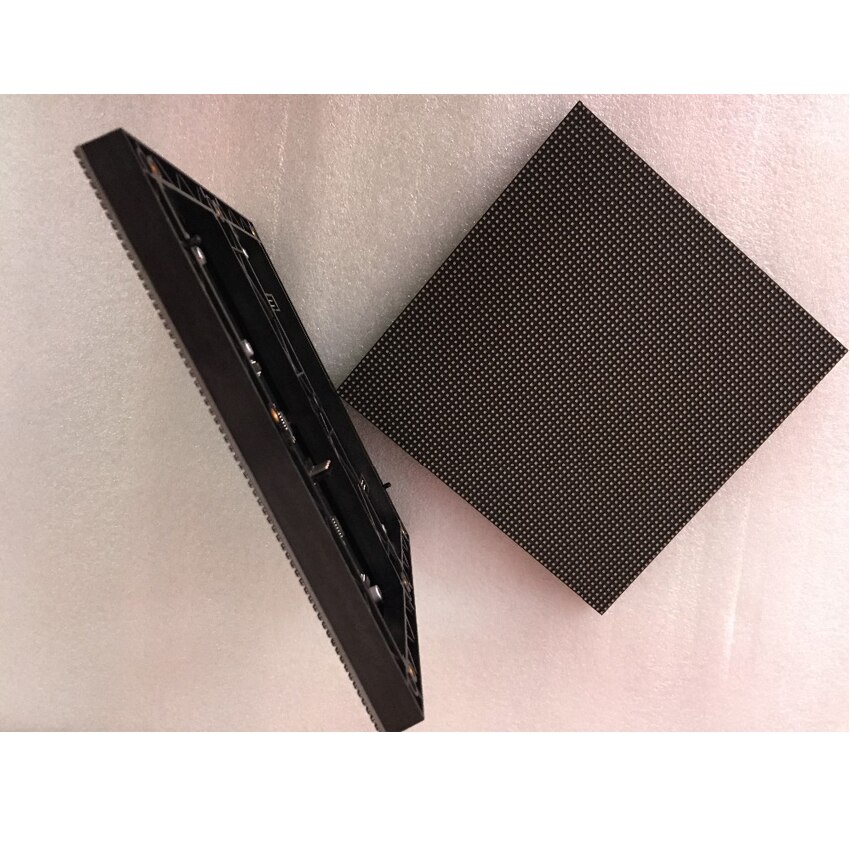

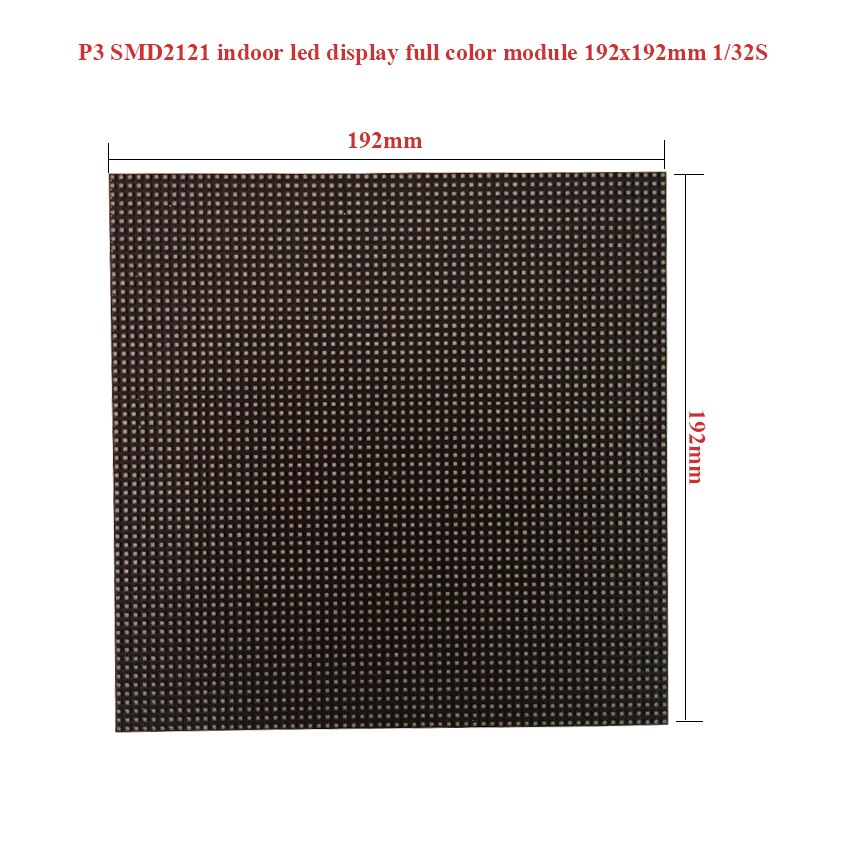

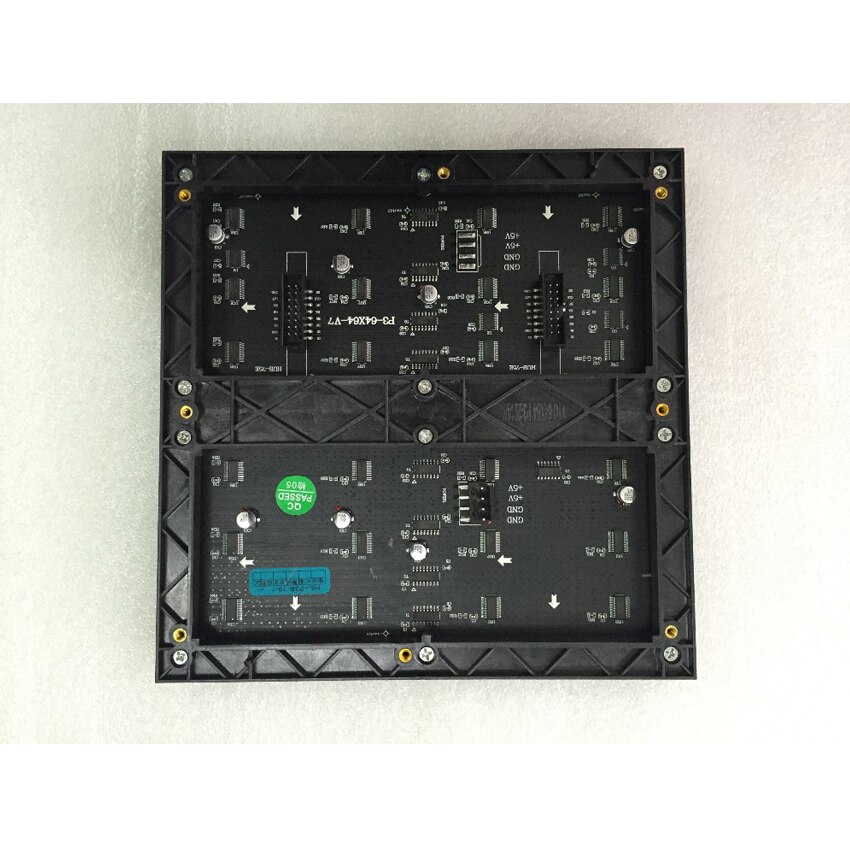

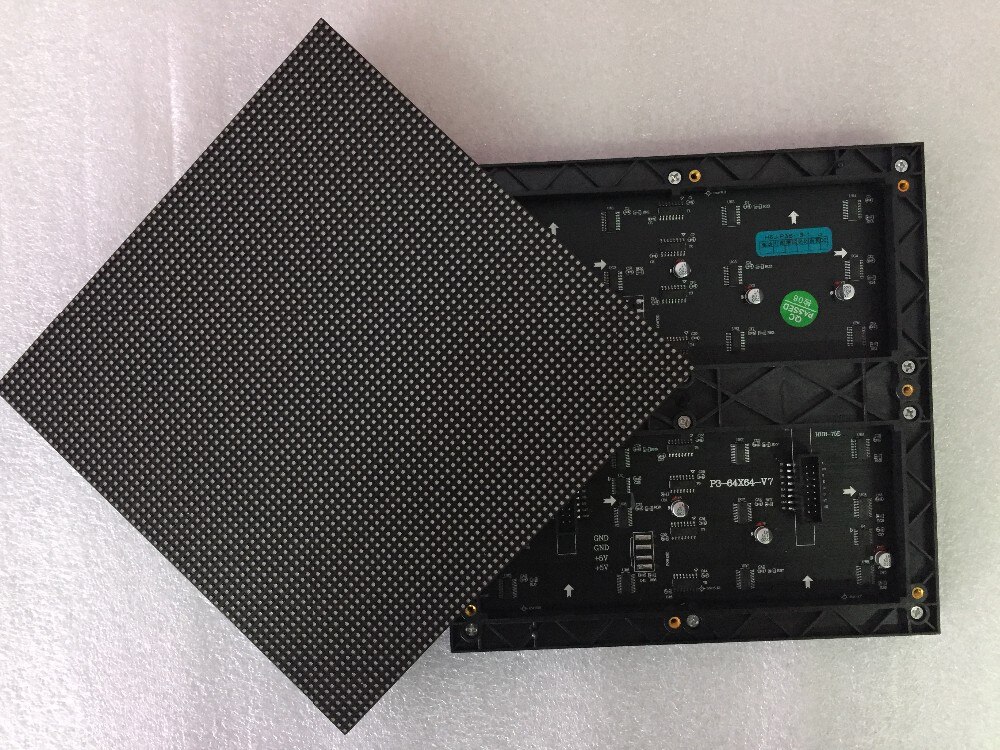

Module details

Size: 192*192mm Resolution: 64*64pixel

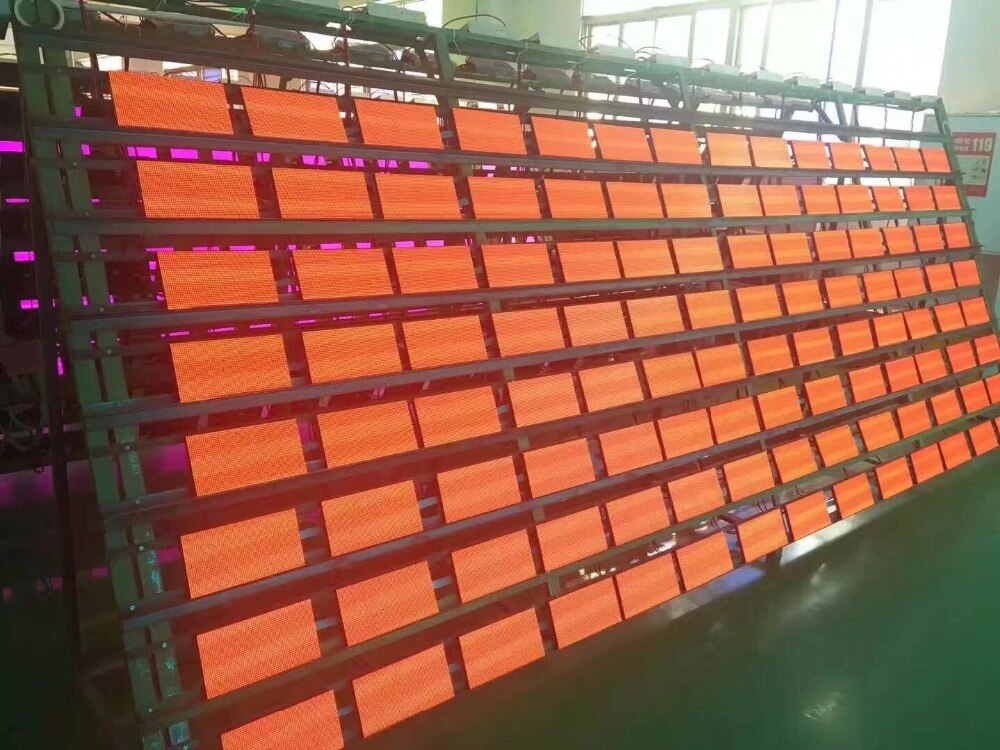

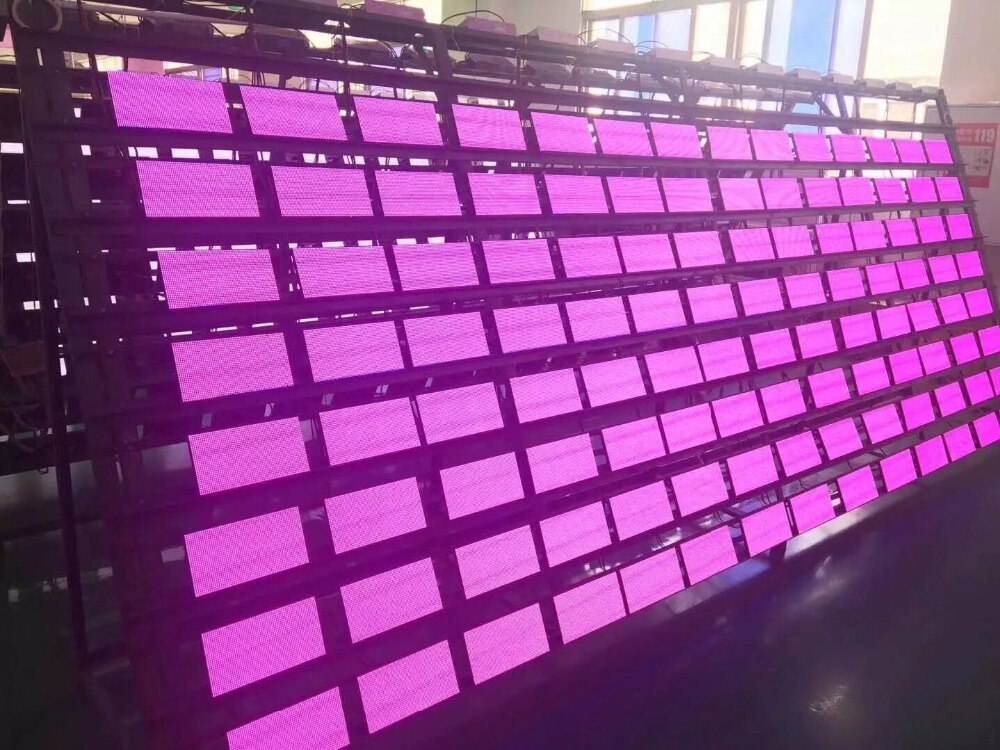

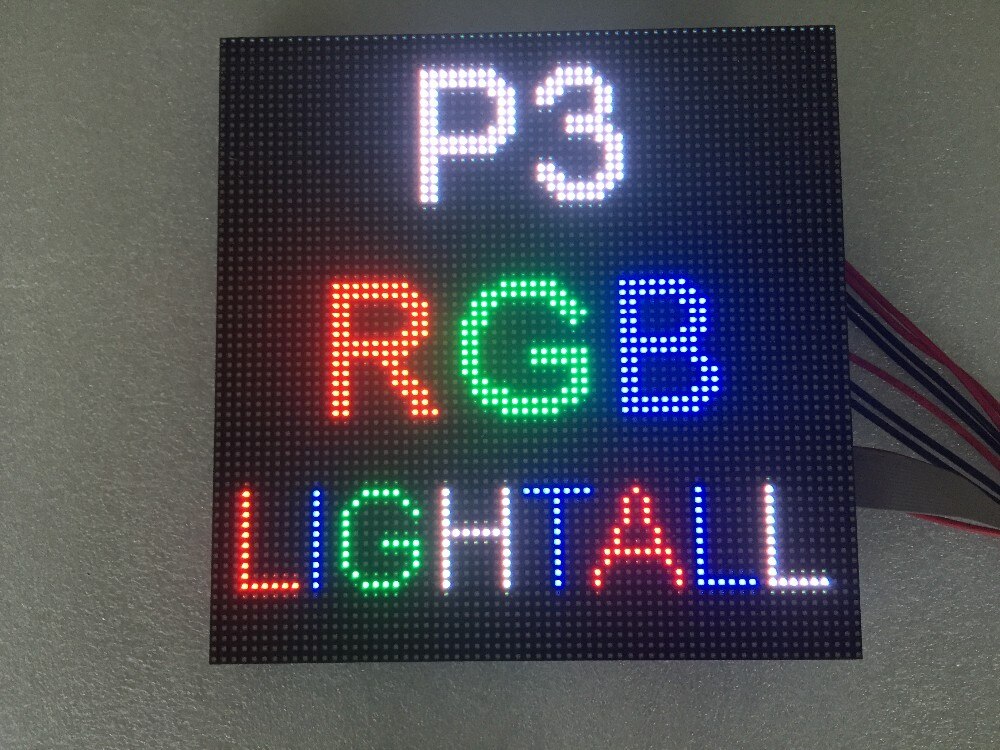

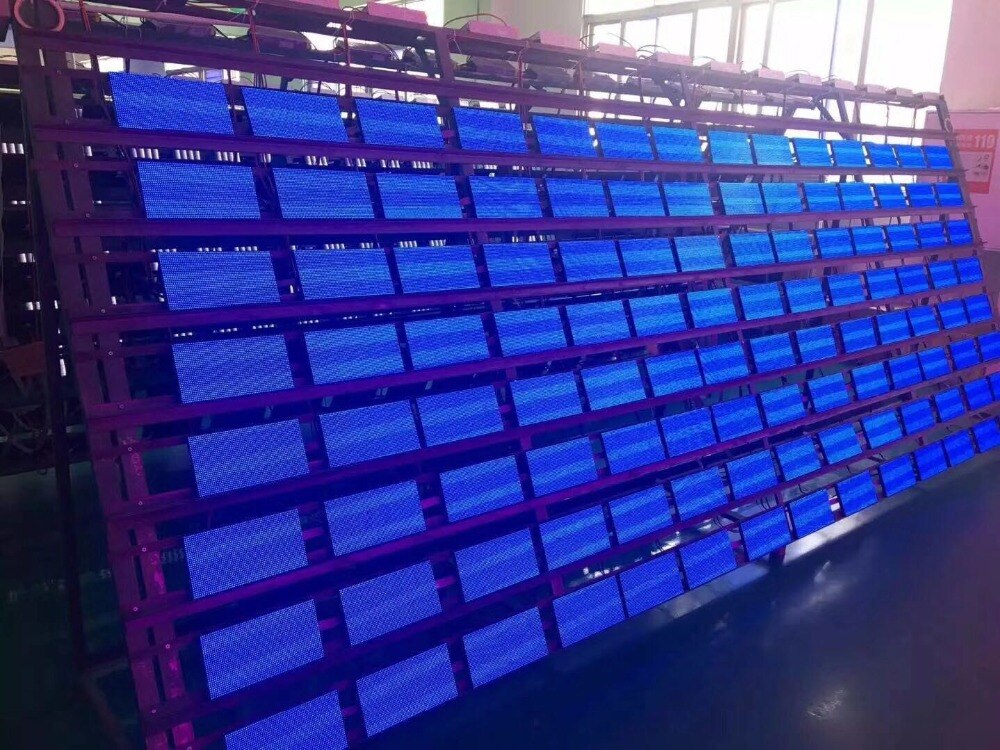

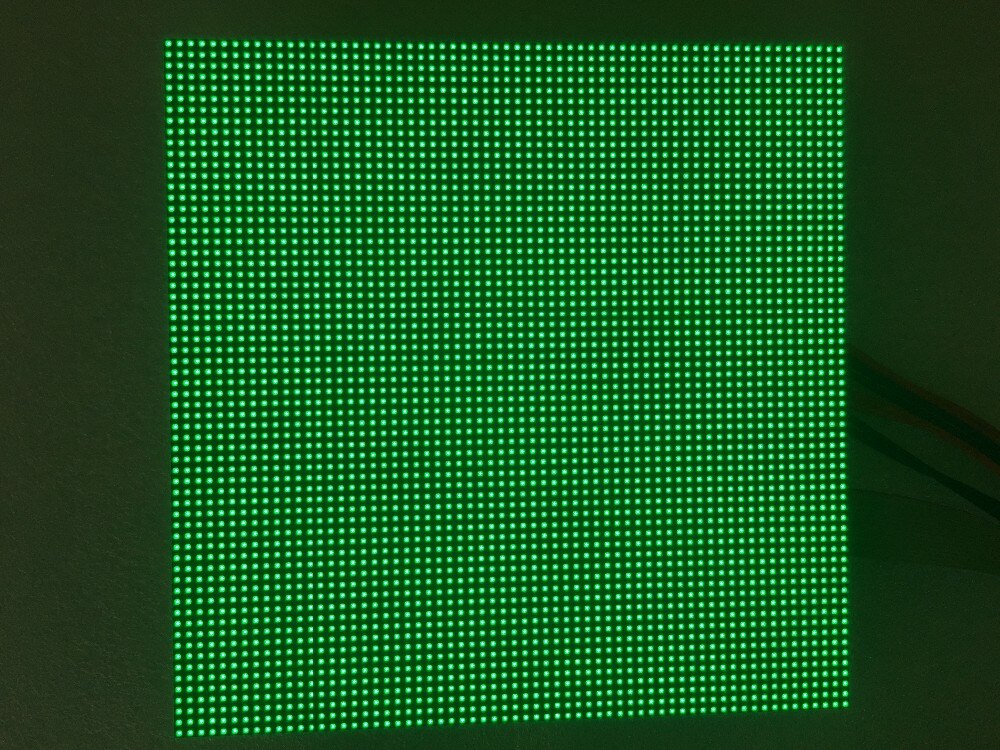

Module test

Test each module 72 hours before shipment

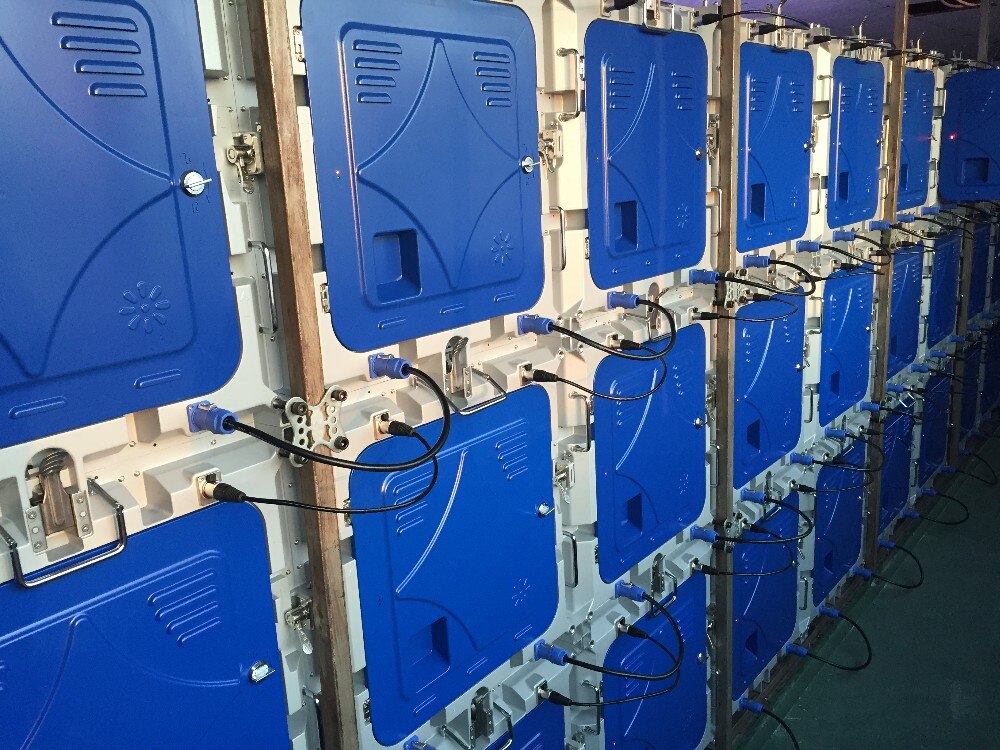

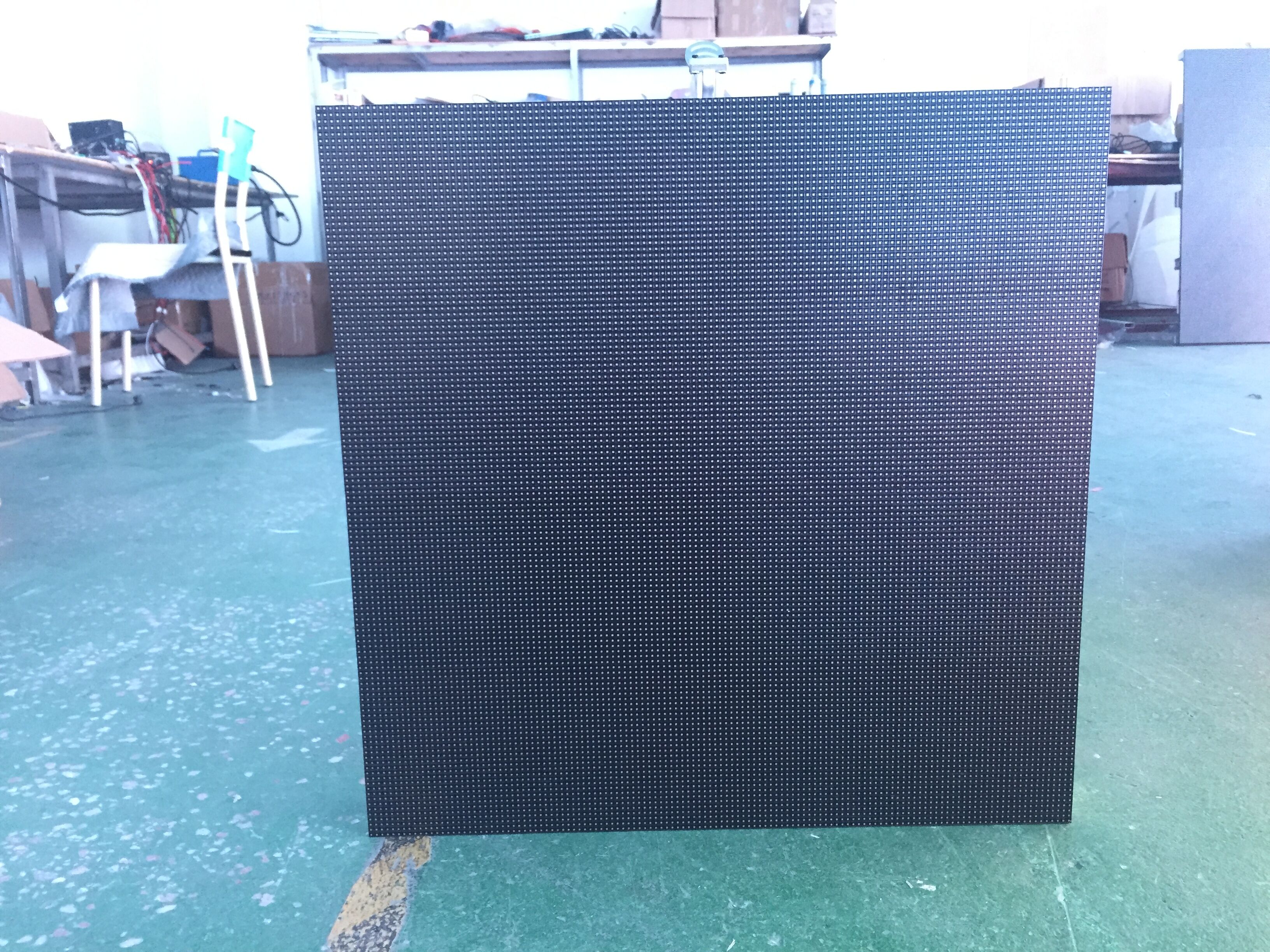

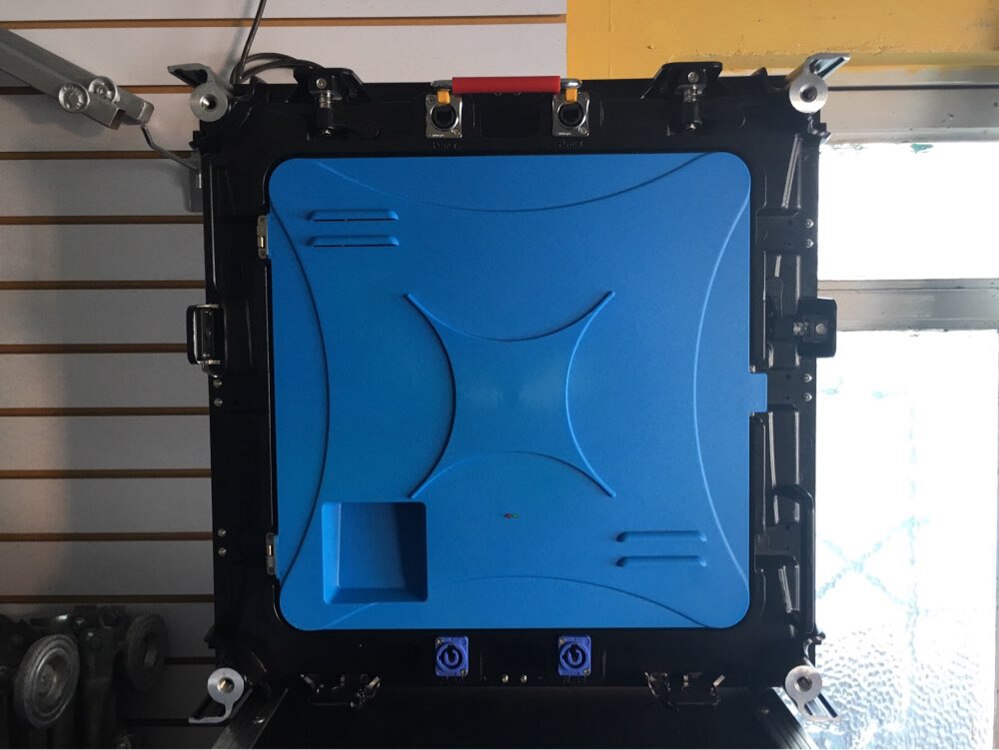

Die casting aluminum cabinet

Suitable for 576x576mm and 768x768mm die casting aluminum cabinet.

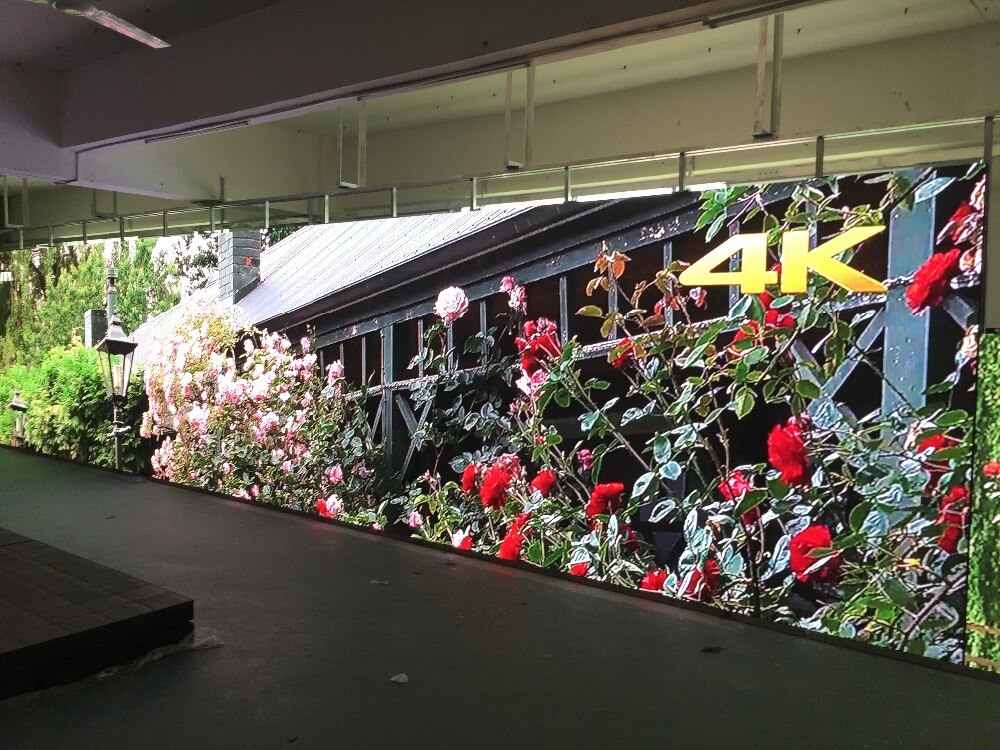

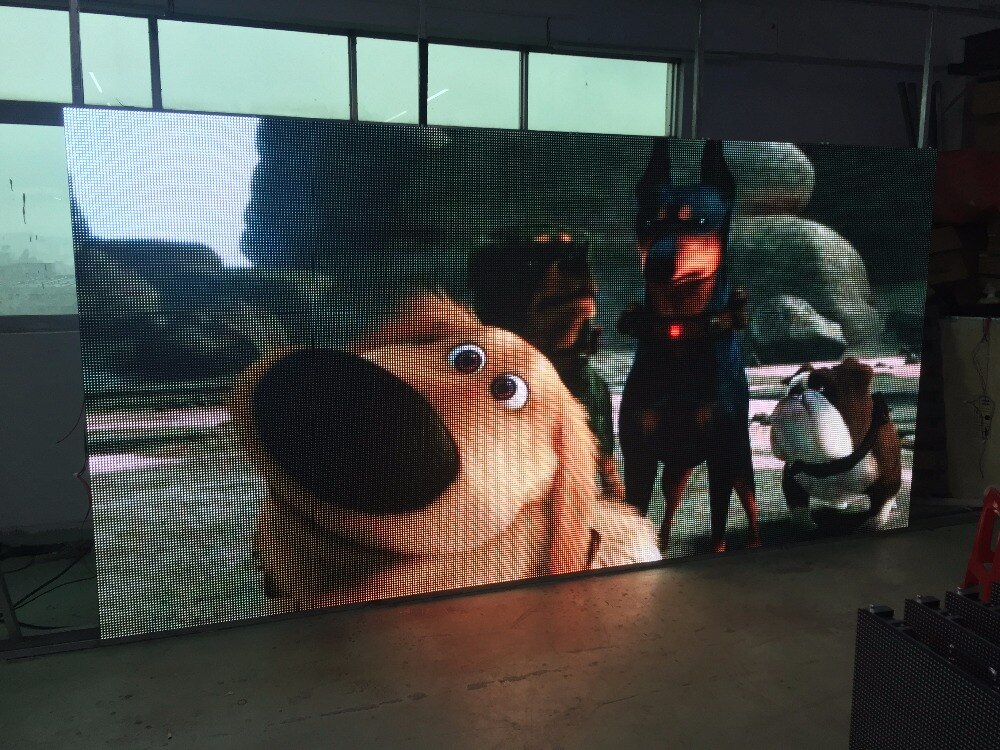

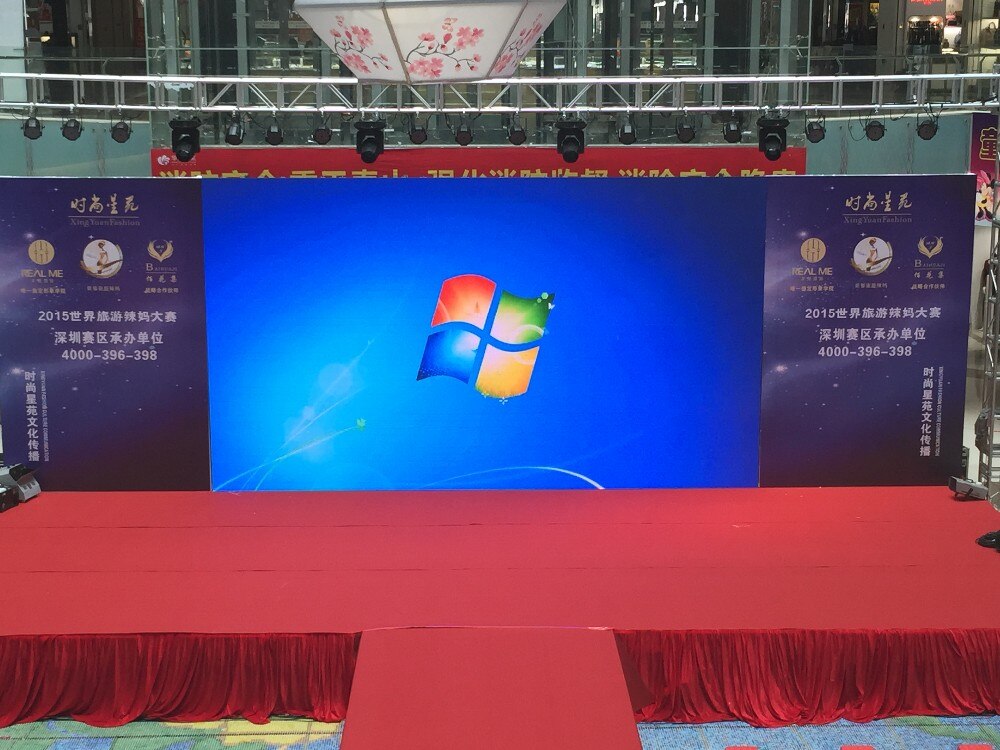

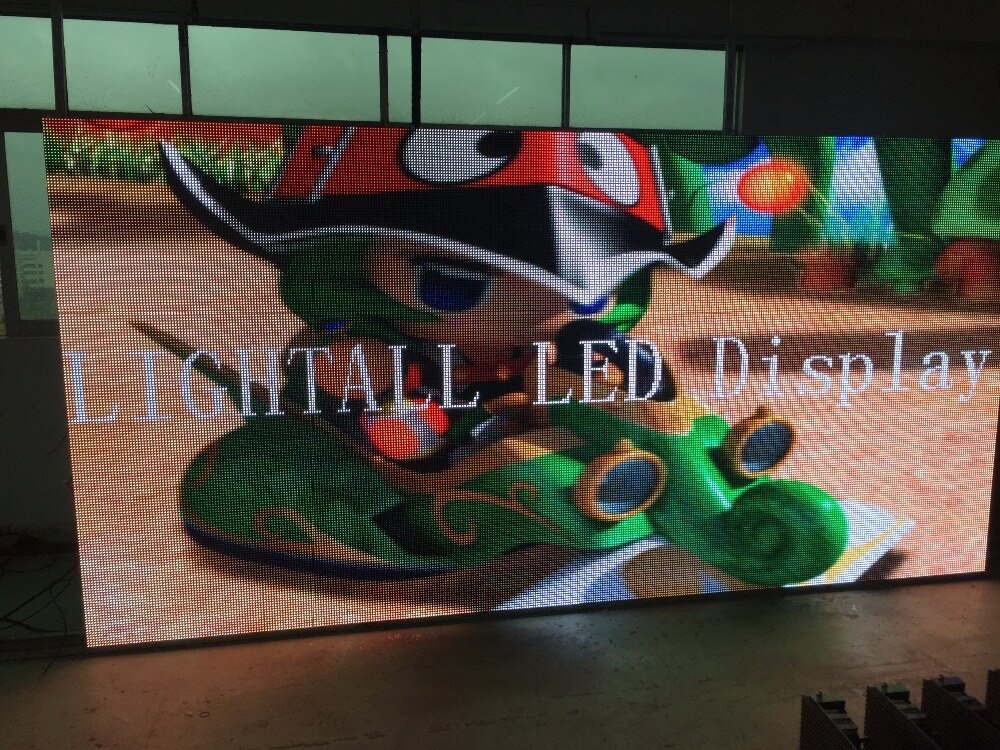

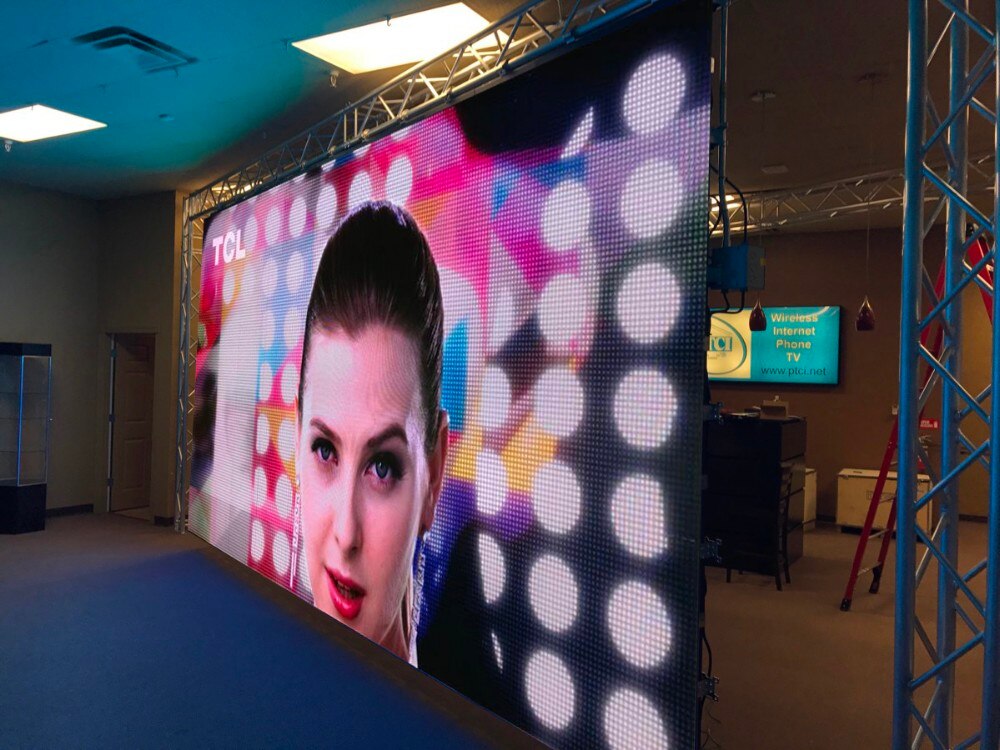

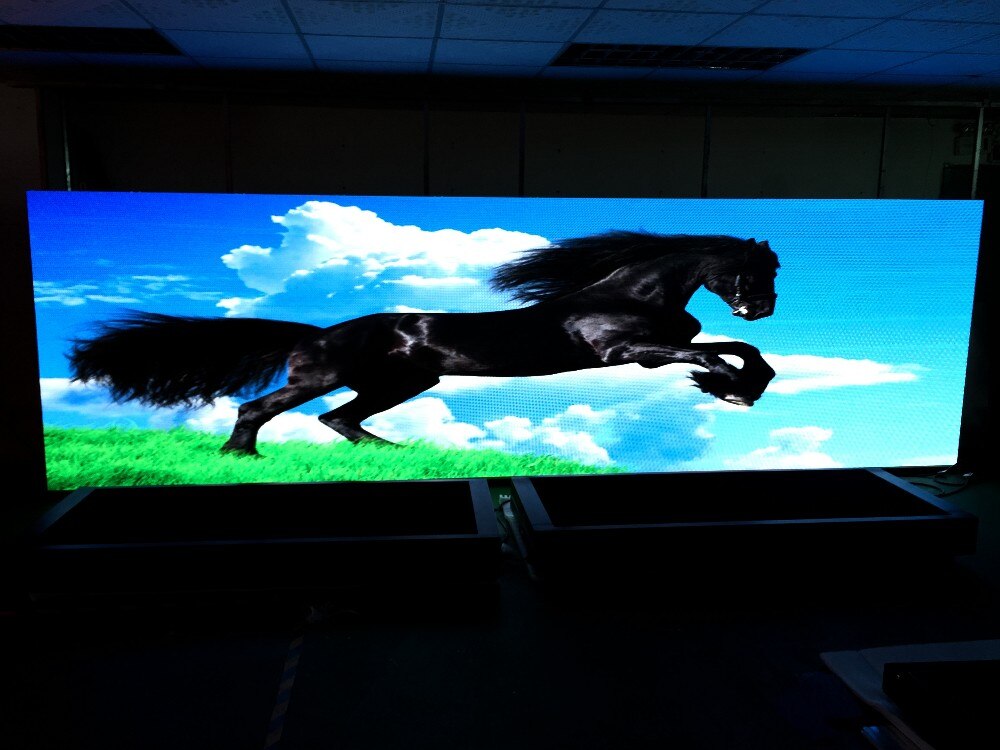

Seamless splicing Quick install led screen

Our factory

1. With professional technical and development team, we are a direct Factory specialized in led display control card, led display module, power for led display, led display, and other led display accessories etc. 2. With more than 10 years’ experience, modern production and test equipment,perfect enterprise management system,high quality research and management team, high quality led display controller, all above make us become popular supplier. 3. With our high quality and service our products have been exported to various countries and regions in Southeast Asia, Australia, Europe and America etc.

Package

Shipping

By express 1. We Ship to Worldwide. 2. Items are shipped from China via EMS, UPS, FedEx, DHL, TNT and airmail (with tracking number) etc. 3. Delivery time depends on the courier company ,the destinations, the local customs and other factors; We hope it arrive on time, but this international delivery shipping time will be highly depends on the courier company and local customs, hope you can understand if there are any shipping delay caused by above reasons. By Sea If you want to deliver the led display board by sea pls tell us, we will quote you the ocean freight.


  • Model Number: P3
  • Brand Name: SZLIGHTALL
  • Color: RGB Full color
  • Resolution: 64x64pixles
  • LED Type: SMD2121
  • input voltage: DC5V
  • Module Size: 192x192mm
  • Interface: HUB75
