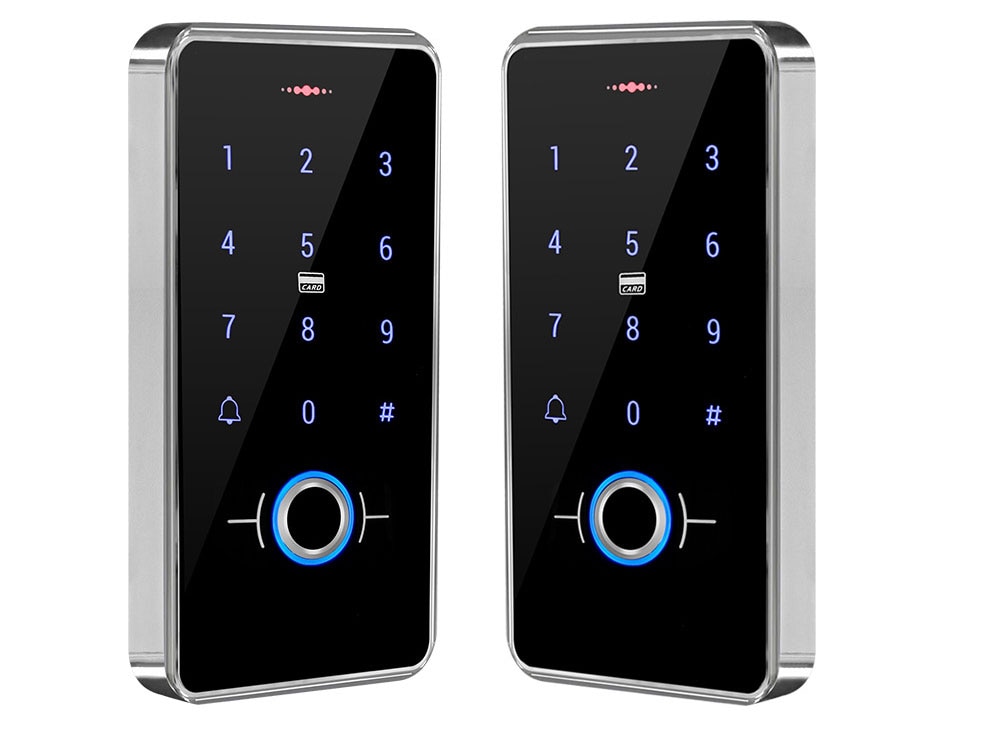

Outdoor IP68 Waterproof Fingerprint Access Control Keypad RFID Keyboard Touch Electronic Door Opener System Biometrics 13.56MHz

0.0 (1 votes) | 2 orders
Price: US $14.61 - 65.23 / piece
Discount Price:
US $ 11.68 - 55.08 / piece
-20%
Color
Quantity

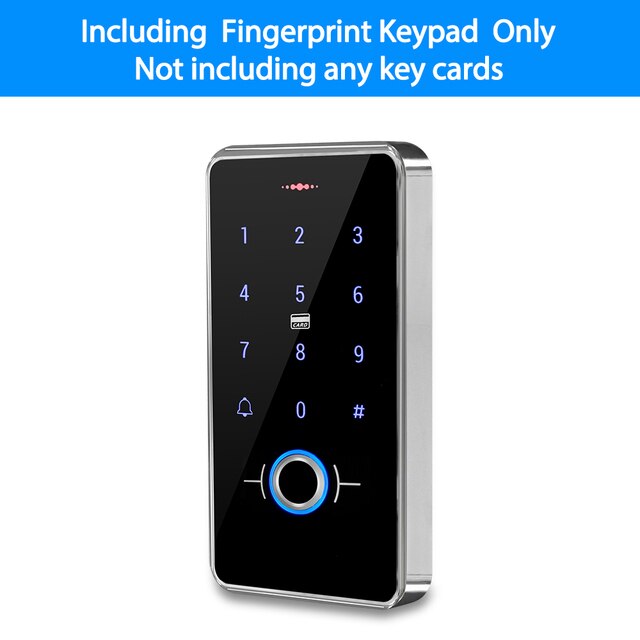

IP68 Waterproof Fingerprint RFID Access Controller

High quality / 120 user capacity / 3 unlock method



Product Specification:
  • User capacity: 120

  • Material: ABS high quality material

  • Panel: touch screen panel

  • Working frequency: 13.56MHz

  • Card reading type: support MF 1K compatible card

  • Card reading distance: 0-5CM

  • Identification method: Fingerprint, RFID card, password

  • Backlight: has blue backlight

  • Waterproof function: IP68 waterproof, can be installed outdoor

  • Doorbell button: support wired doorbell

  • Wiegand signal: WG26 input/output

  • Can set management card: yes

  • Working voltage: DC 12V

  • Working current: ≤ 30mA

  • Door opening time: 0-255 seconds

  • Working temperature: -20 ° C ~ 70 ° C

  • Working Humidity: 20% ~ 90%

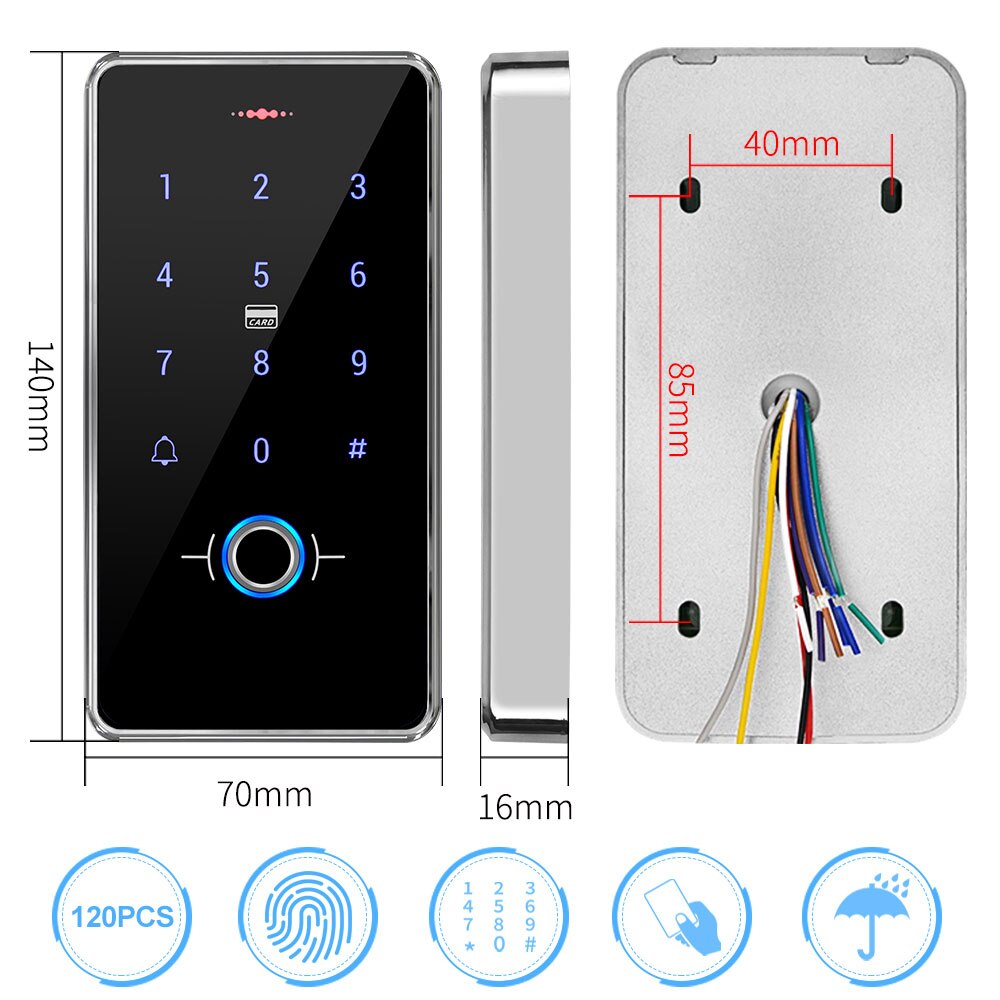

  • Product size: 140*70*16mm


Product Details:

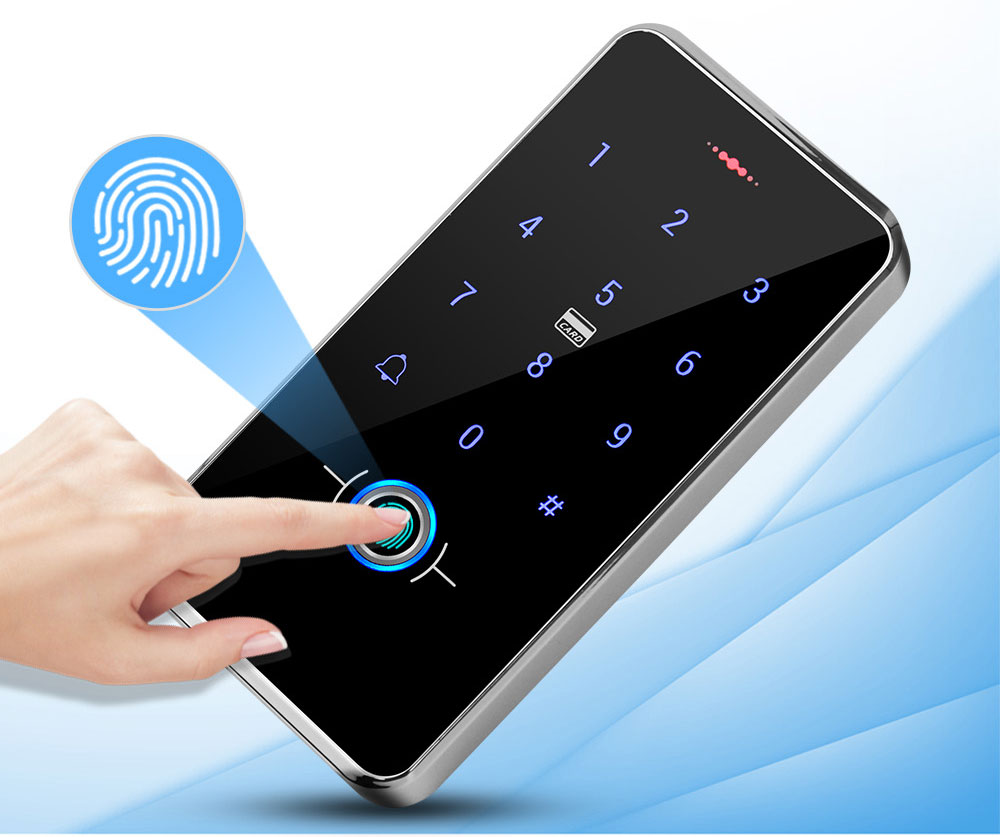

360 degree comprehensive fingerprint recognition, fast Identify Speed
For different angles of fingerprints, it can be quickly and accurately identified

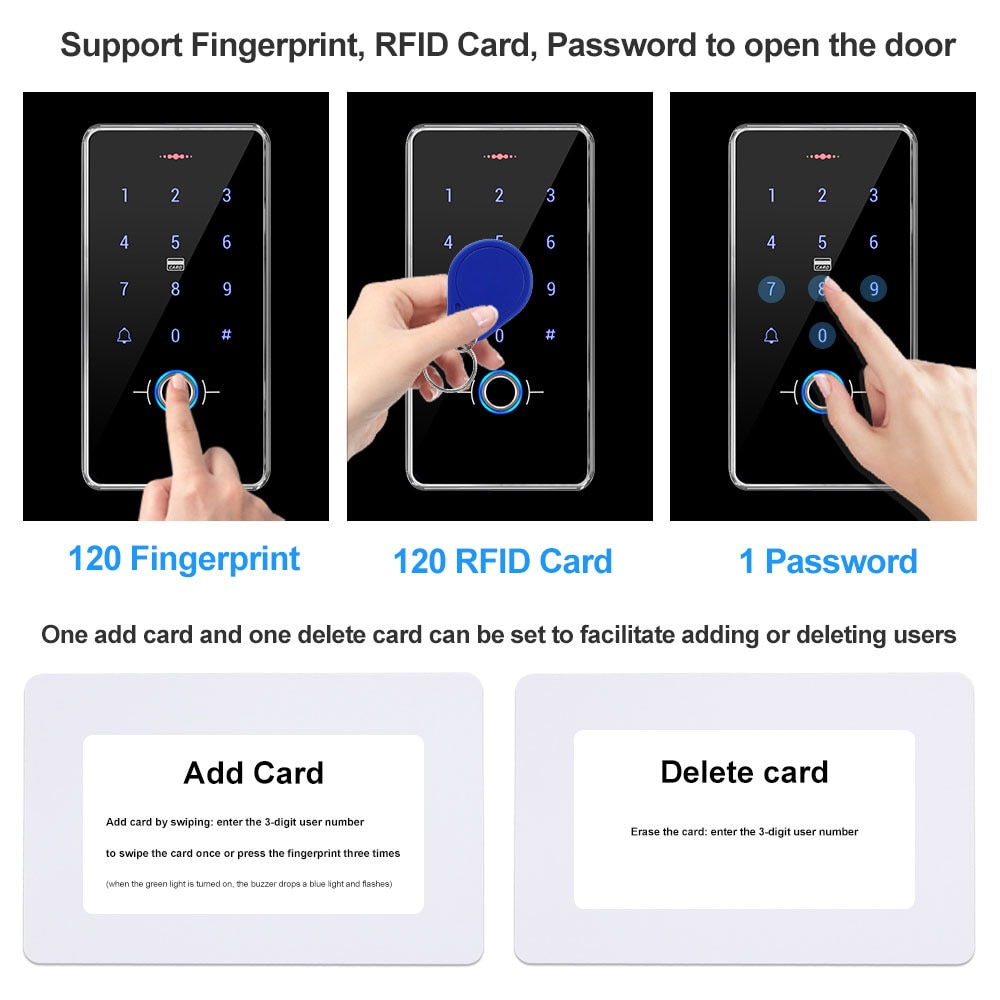

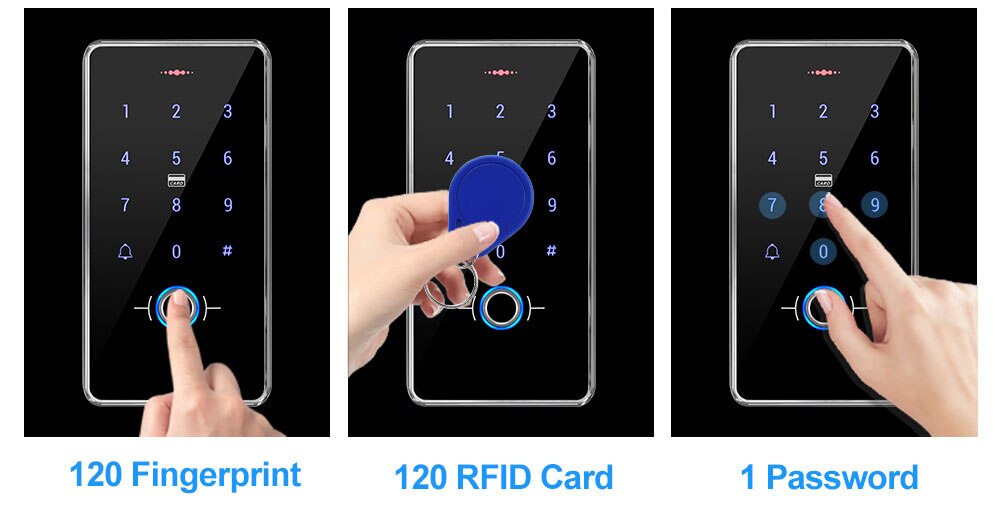

Support Fingerprint, RFID Card, Password to open the door

Support 120 fingerprints, 120 cards, 1 public password user capacity, more secure!

Can set Management card. Very easy to program!
Don't need to connect to computer.

ABS fire retardant material shell

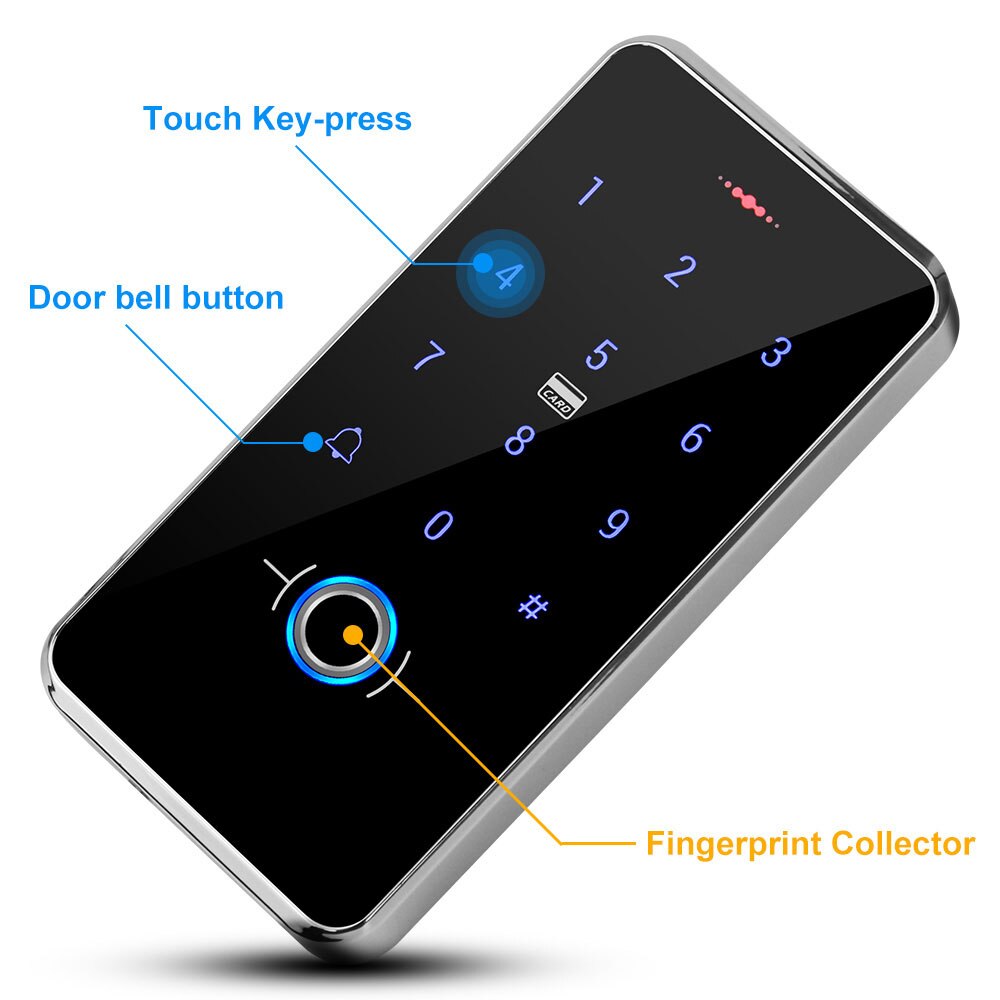

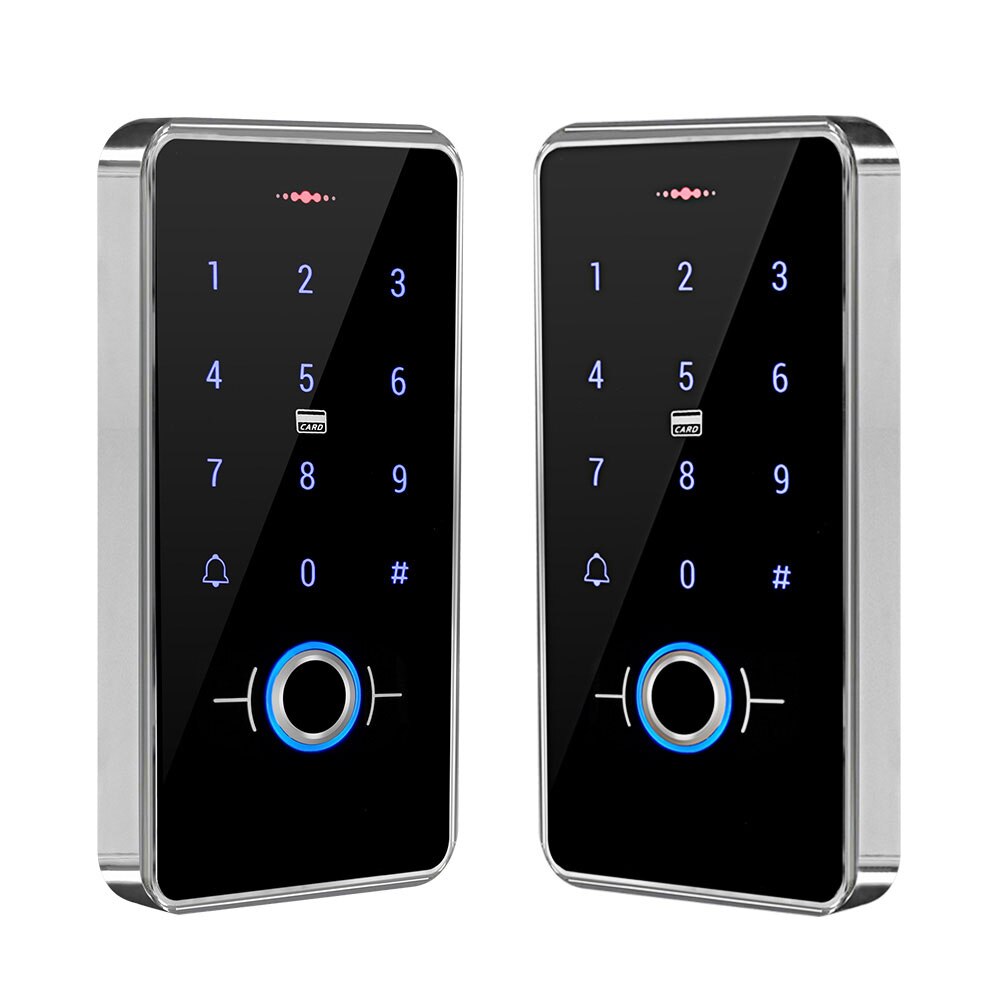

Touch keyboard, beautiful design. Has a door bell button, can install a wired door bell!

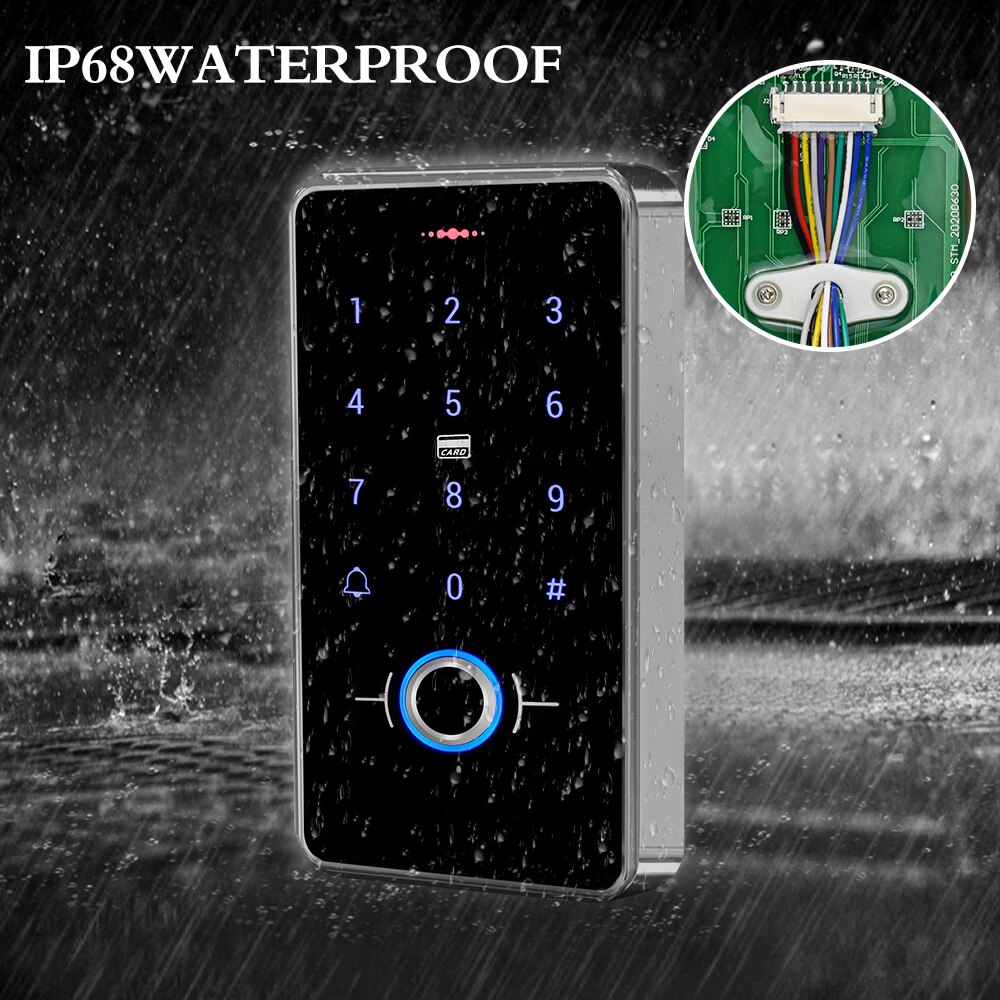

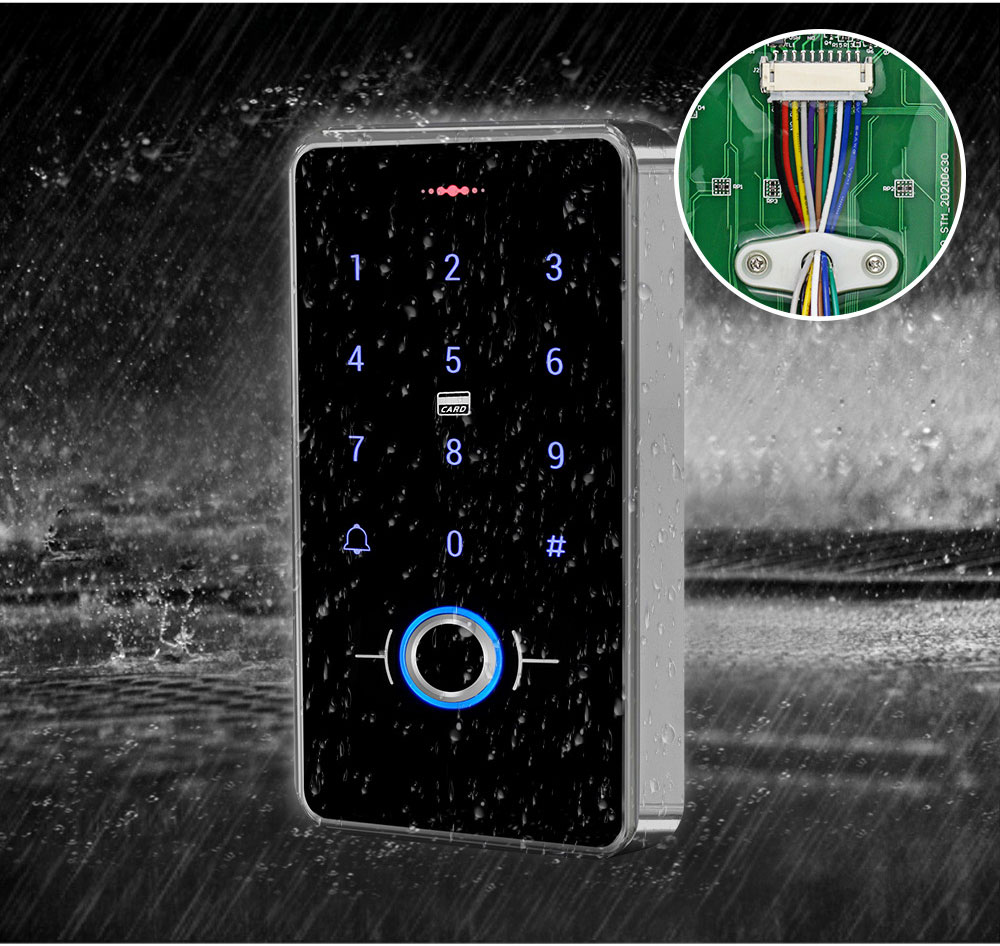

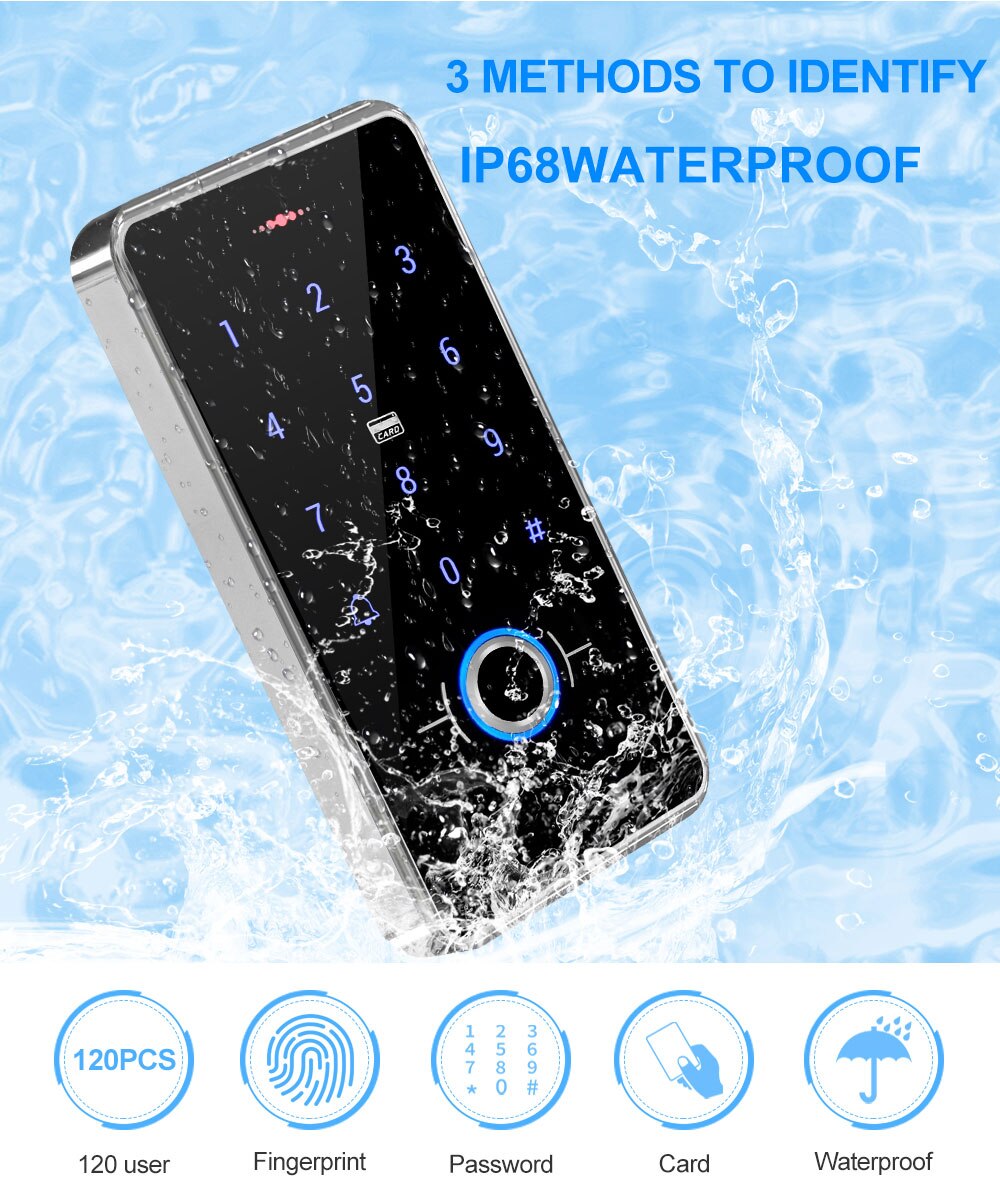

IP68 Waterproof. Can be installed outdoor

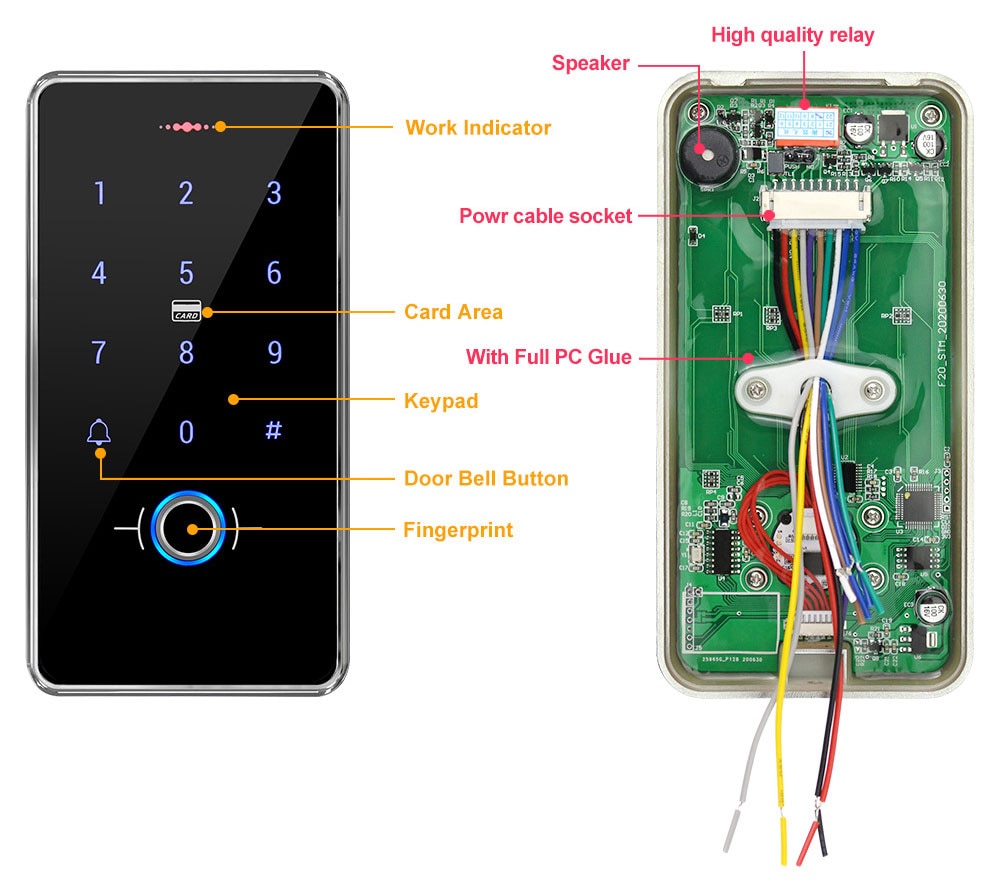

With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

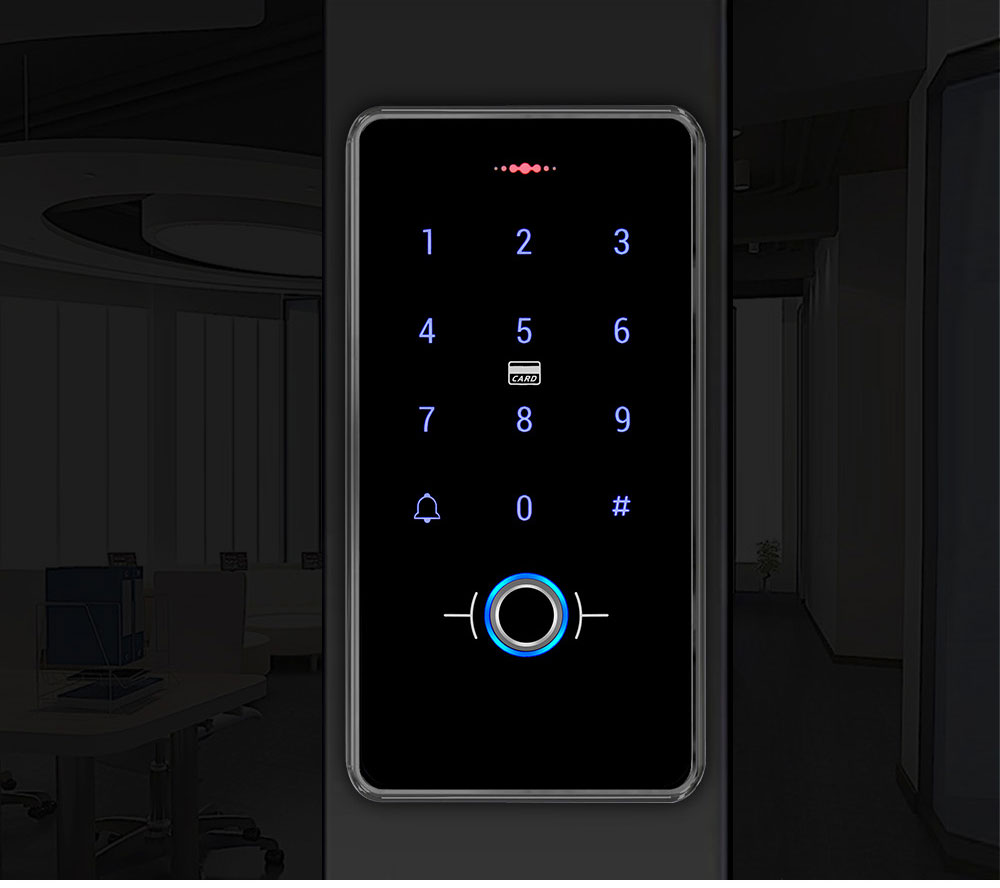

Blue Backlight keypad

The digits number can be seen clearly even at dark



Easy installation and operation

Based on advanced technology, fast recognition speed, high sensitivity.

Suitable for most major access control solution.



Product Analysis

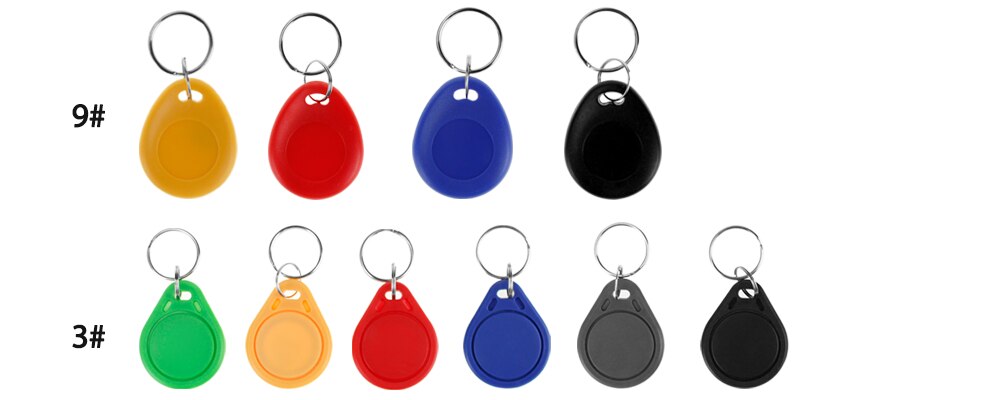

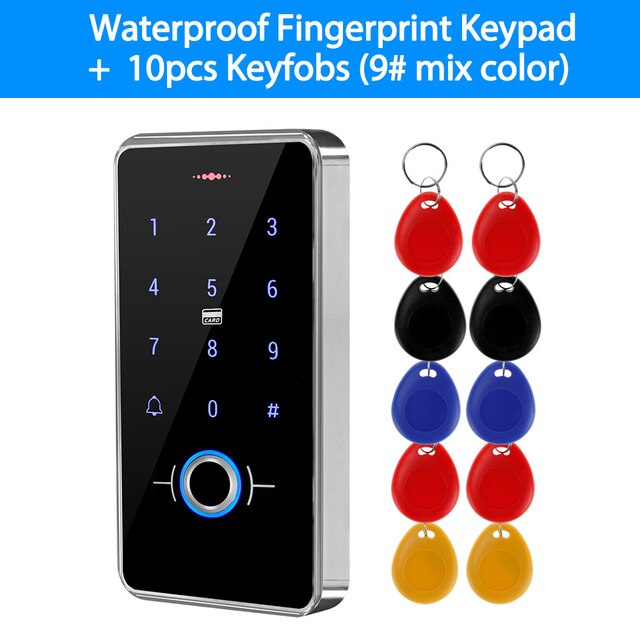

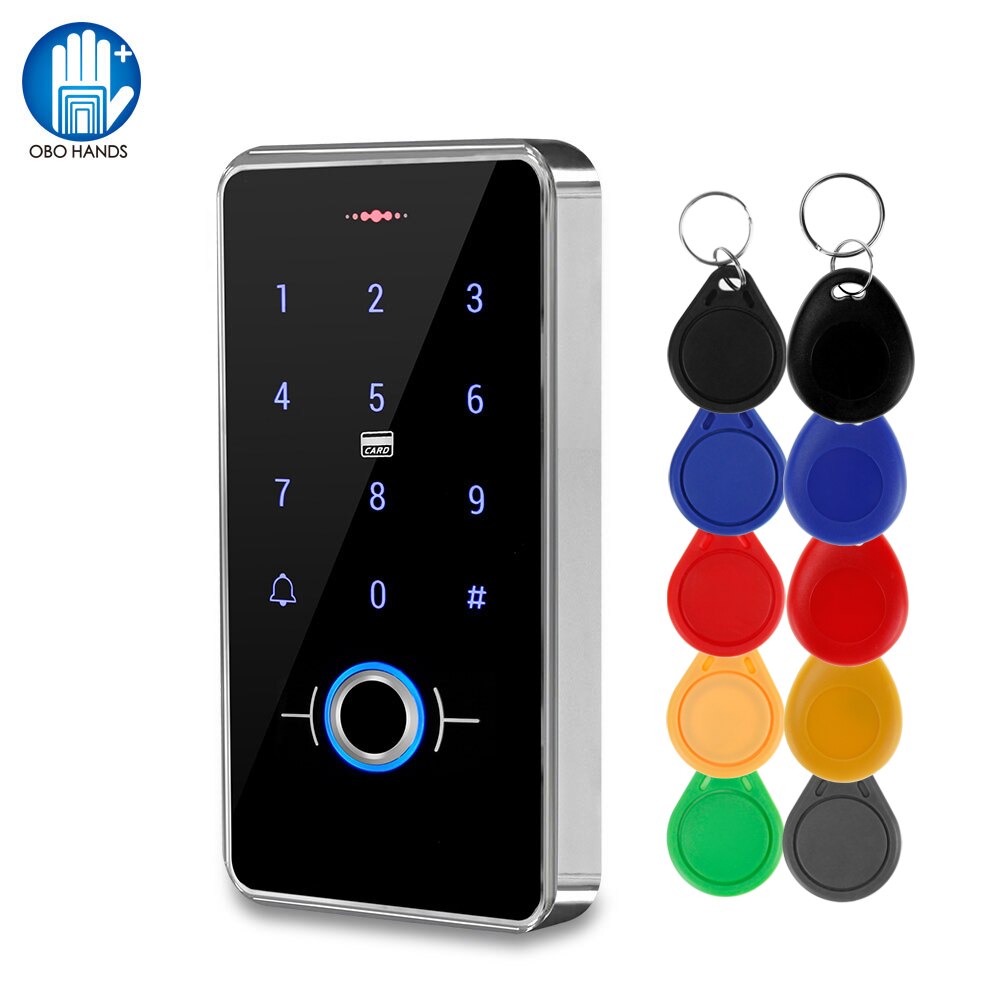

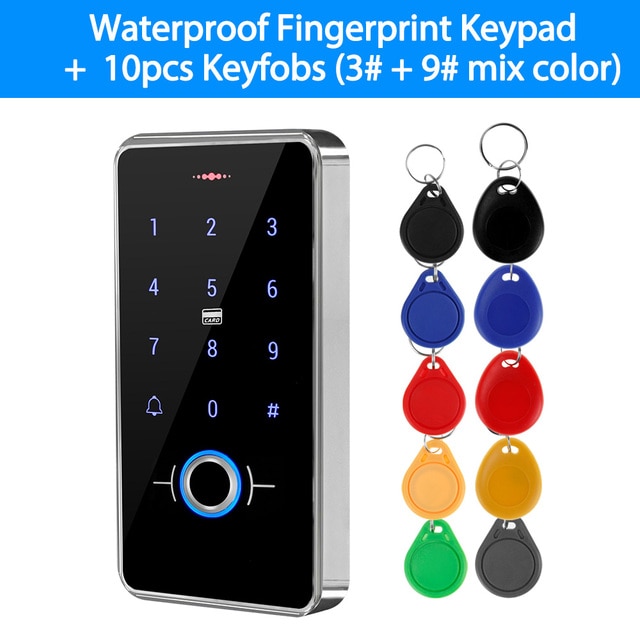

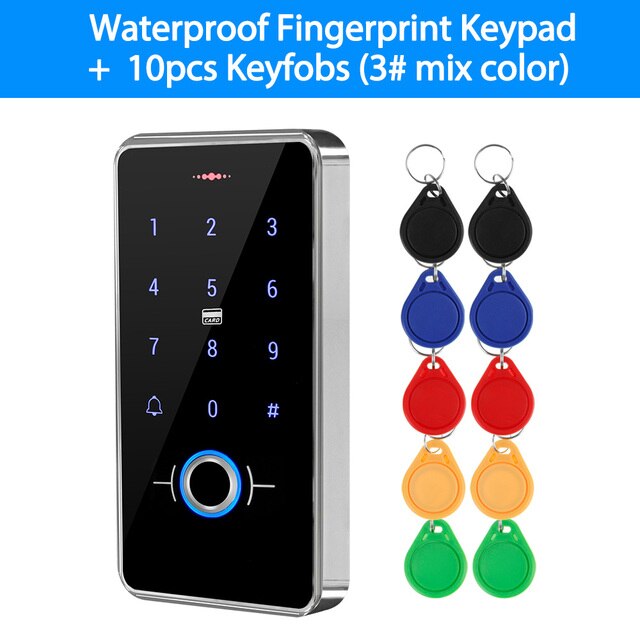

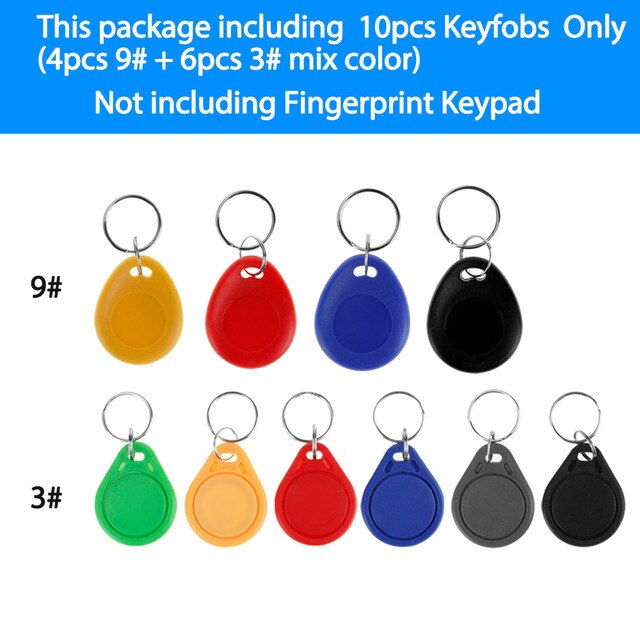

RFID Keyfobs

1. Material: ABS
2. Working Frequency: 13.56MHz

3. Chip: Mi-fare 1k
4. Support: read only, not support write.
5. Reading distance: 0-5cm
6. Each one has a metal keyring.

7. Color: As picture show, if you want other color, please lease a message to us.

8. Quantity: 10pcs. If you want more RFID key cards, please contact us. Thank you!

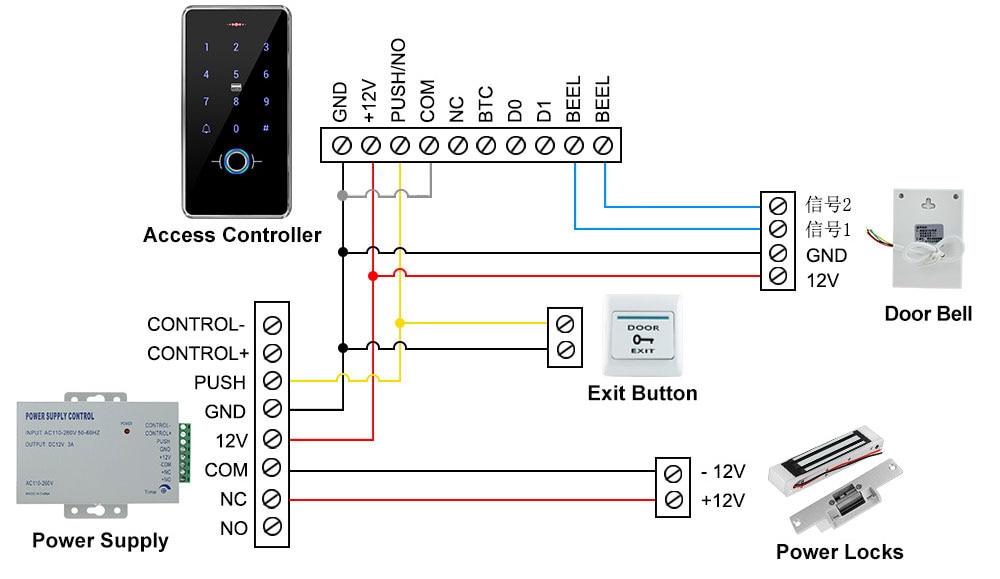

Wiring Diagram:

(Note: Both of the power supply, lock, exit button are  Not  included in the package, need to buy extra)







  • Model Number: F20+10IC mix
  • Brand Name: OBO HANDS
  • Certification: NONE
  • Origin: Mainland China
  • User capacity: 120 users
  • Working frequency: 13.56MHz
  • Working voltage: DC 12V
  • Working current: ≤ 30mA
  • Waterproof function: IP68 Waterproof
  • Card type: MF 1K
  • Material: High quality ABS
  • Can be installed outdoor: Yes
  • Door bell function: Support
  • WG interface: WG26 input/output
  • Type: RFID Keypad
  • Type1: RFID Keypad waterproof
  • Type2: Access Control Keypad
  • Type3: Fingerprint access control
  • Unlock method: Fingerprint, RFID Card, Password
