Outdoor IP66 Waterproof Embedded Fingerprint Access Control RFID reader controller scanner Electronic Door Opener System
4.6 (17 votes) | 48 orders
Price:
US $47.75 - 104.28
/ piece
Discount Price:
US $
45.54 -
99.23
/ piece
-5%
- Color
-
-
F99 (=EF1)is fingerprint RFID controller with 800 fingerprint capacity;
S99(=E1) is RFID controller, no fingerprint;
Choose it carefully!

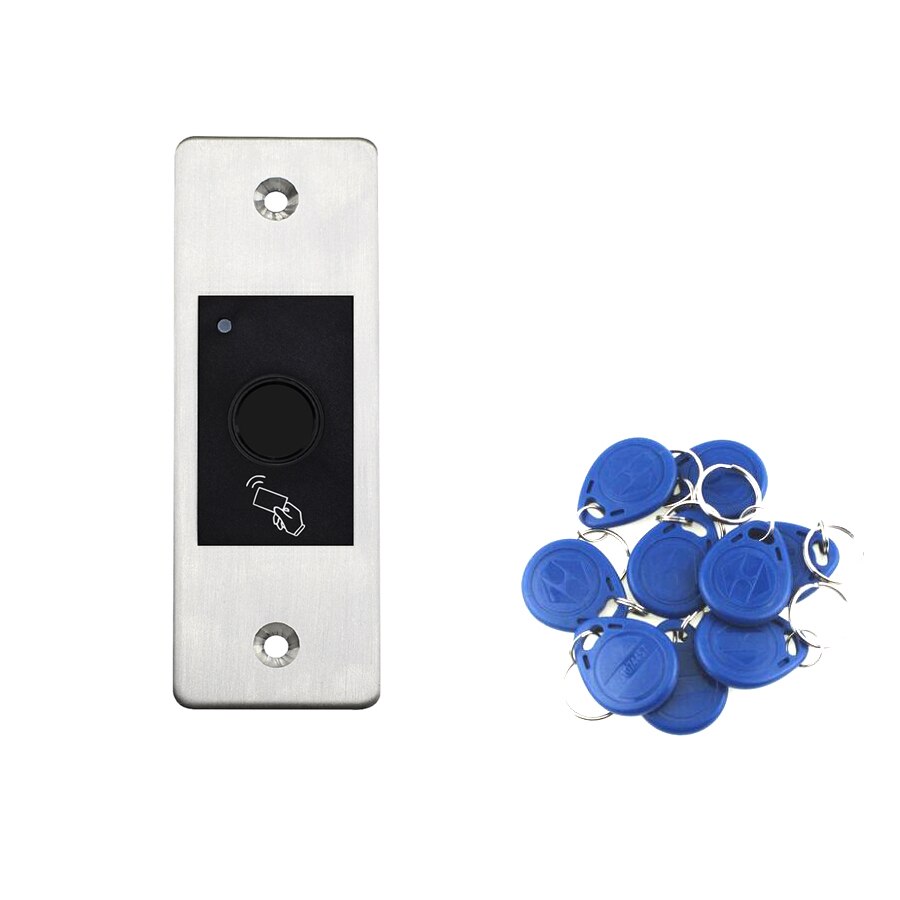

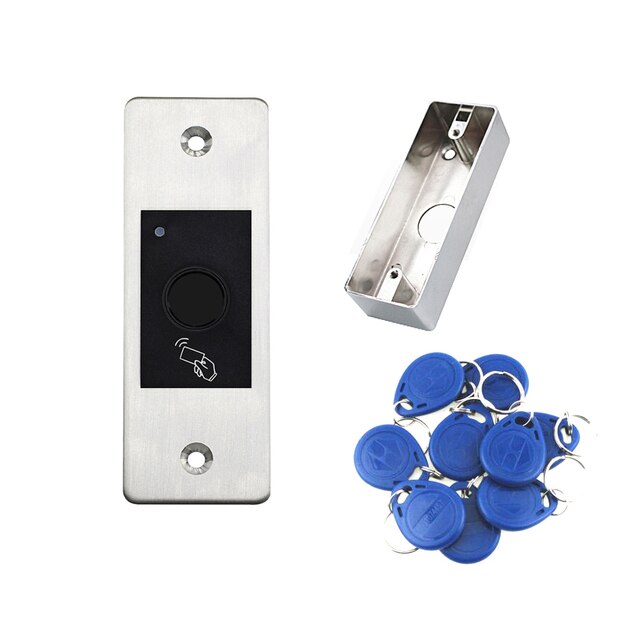

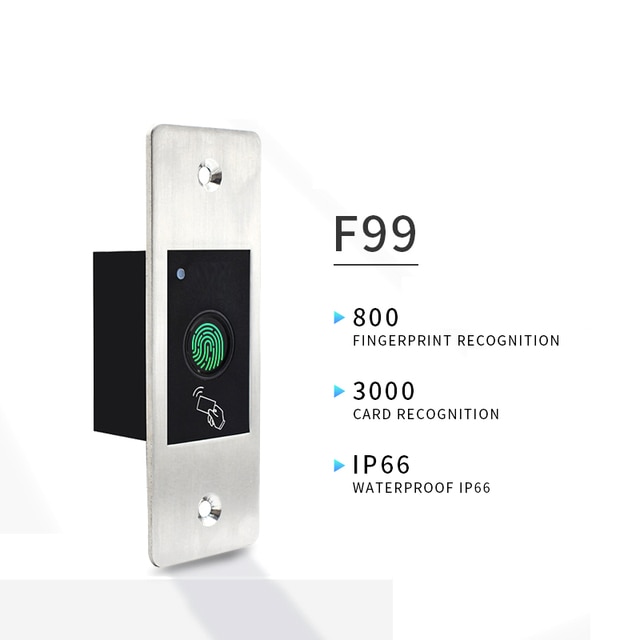

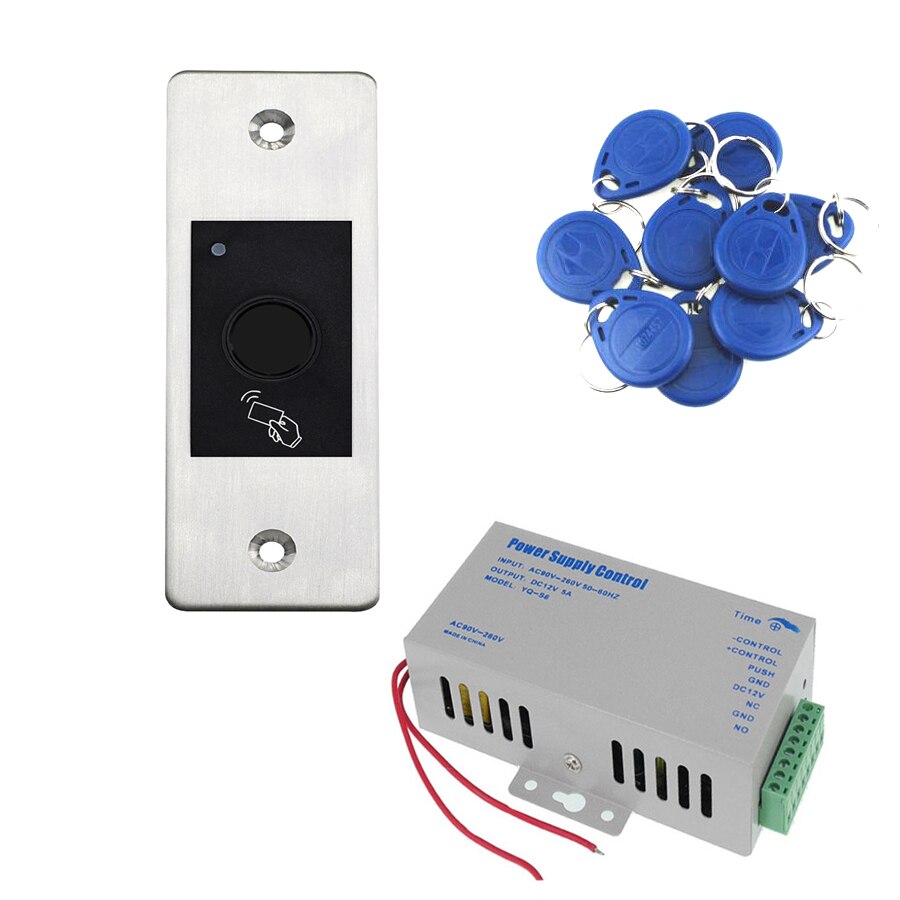

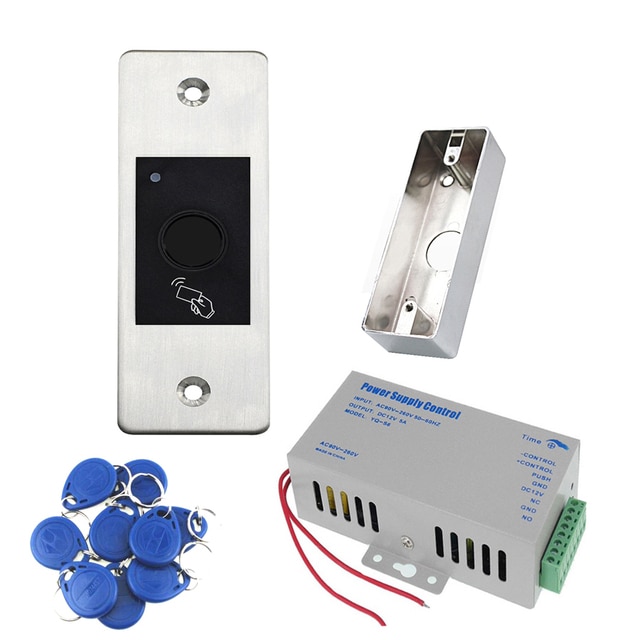

F99this is Mini Metal Case Standalone RFID/Fingerprint Access Control with Embedded Design.
Support Fingerprint and 125KHz EM Cards.

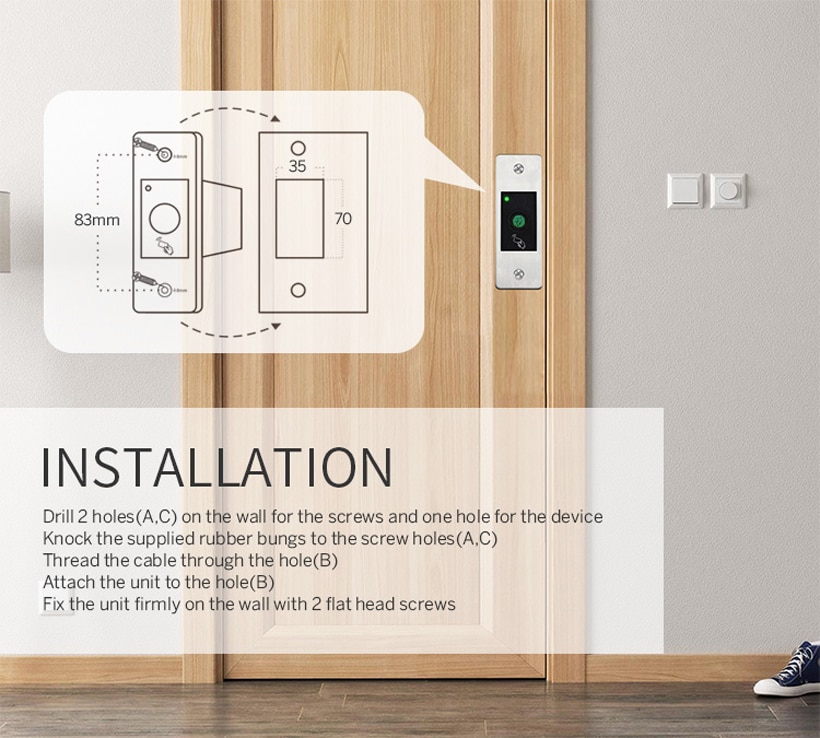

It is an ideal choice to install on door frame.
IP66 Waterproof is very sitable for outdoor use.
It support Master card and Master fingerprint for easy opeation.
Feature:
> Embedded Design with Mini size
> Metal case and IP66 Waterproof
> User capacity:800 Fingerprint and800 Cards
> One programmable relay operation
> Latch mode to hold door and gate open
> Tri-colour LED status display
Product Name | Mini Metal IP66 Waterproof Fingerprint Standalone Controller |
User Capacity | 800 Fingerprints and 800 Cards |
Operating Voltage | DC9~24V |
Idle Current | ≤25mA |
Active Current | ≤100 |
Proximity Card Reader | EM |
Radio Technology | 125KHz Proximity Card |
Read Range | 50px |

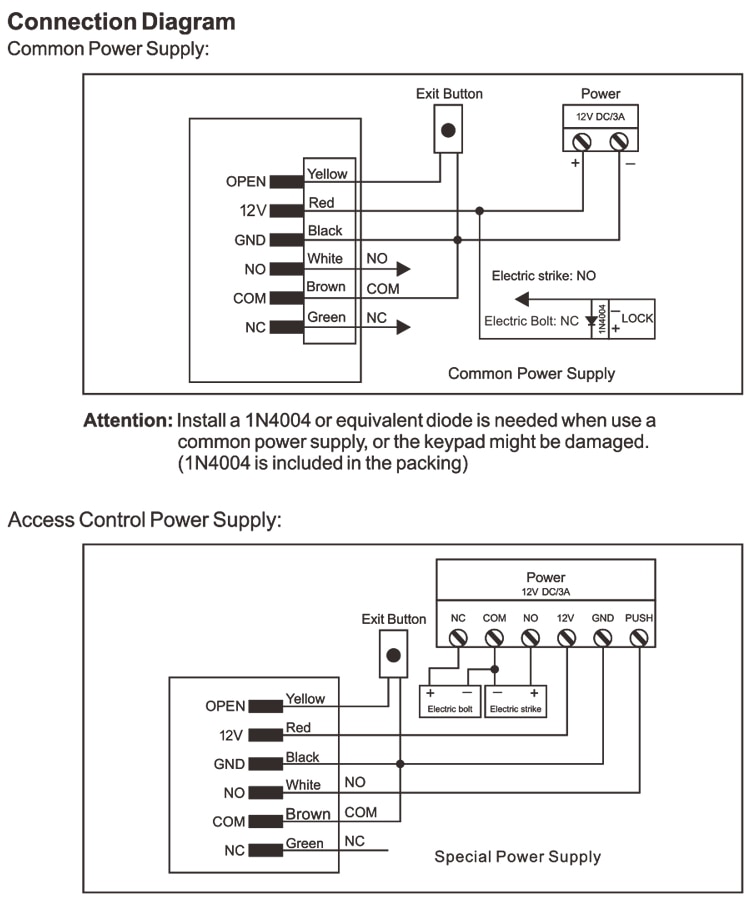

Wiring Connections | Relay Output, Exit Button |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | o-99 seconds (5 seconds default) |
Lock Output Load | 2 Amp Maximum |
Environment | Meets lP66 |
Operating Temperature | -25℃~60℃ (-13°F ~140°F) |
Operating Humidity | 20%RH-98%RH |

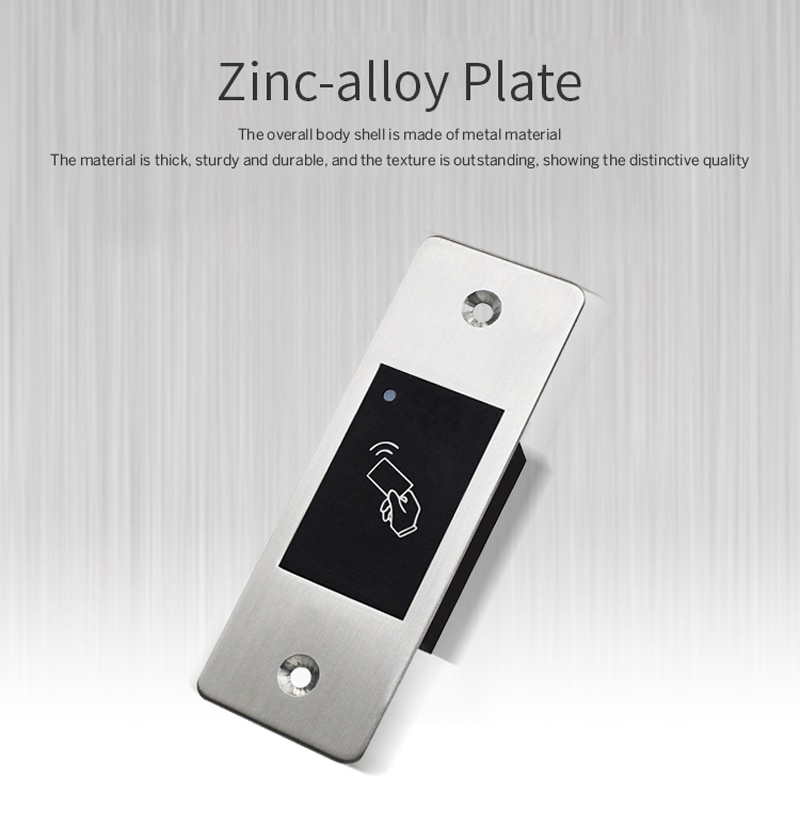

Physical | Zinc-alloy plate |
Colour | Silver |

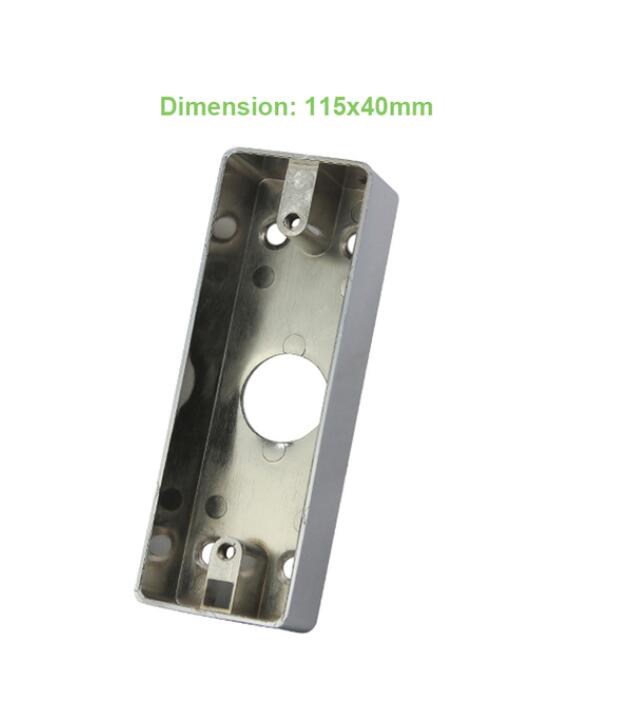

Dimensions | L115xW40xH30mm |

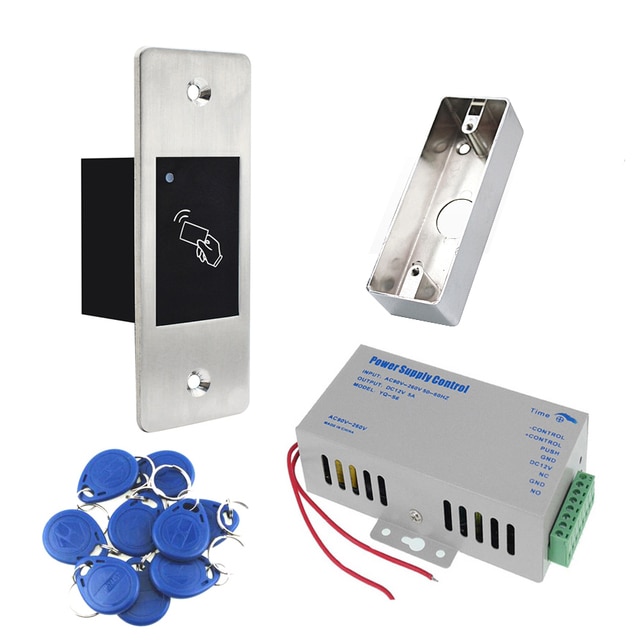

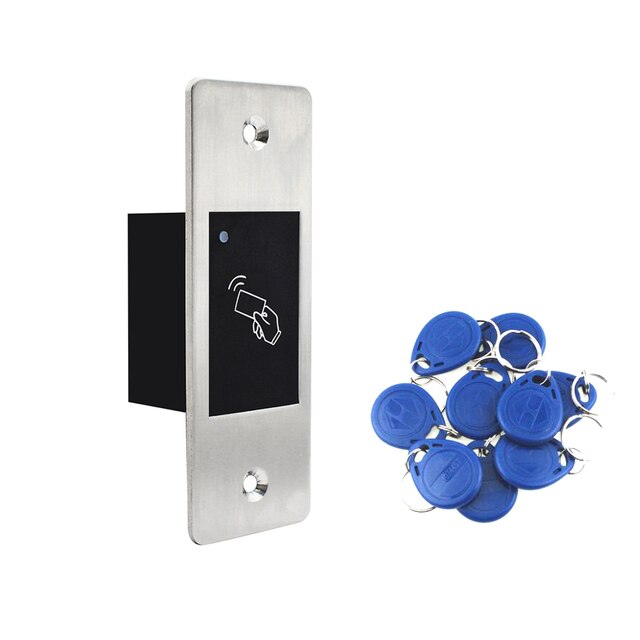

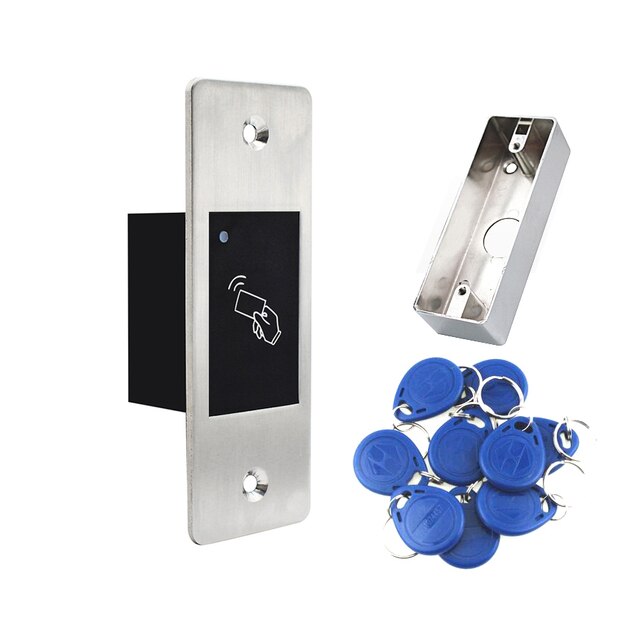

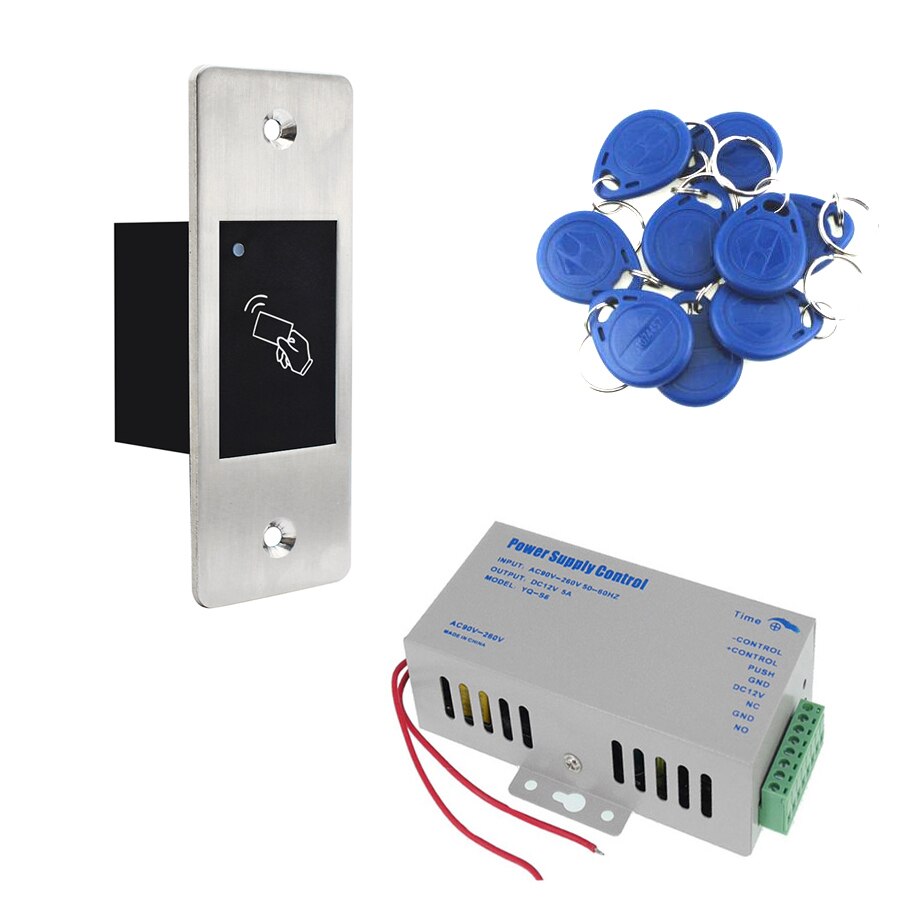

S99this is Mini Metal Case Standalone RFID Access Control with Embedded Design.
Support 125KHz EM Cards.
It is an ideal choice to install on door frame.
IP66 Waterproof is very sitable for outdoor use.
It support Master card for easy opeation.
Feature:
> Embedded Design with Mini size
> Metal case and IP66 Waterproof
> User capacity:support 3000 Cards
> One programmable relay operation
> Latch mode to hold door and gate open
> Tri-colour LED status display
User Capacity | 800 Cards |
Operating Voltage | DC9~24V |
Idle Current | ≤25mA |
Active Current | ≤100 |
Proximity Card Reader | EM |
Radio Technology | 125KHz Proximity Card |
Read Range | 50px |
Wiring Connections | Relay Output, Exit Button |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | o-99 seconds (5 seconds default) |
Lock Output Load | 2 Amp Maximum |
Environment | Meets lP66 |
Operating Temperature | -25℃~60℃ (-13°F ~140°F) |
Operating Humidity | 20%RH-98%RH |
Physical | Zinc-alloy plate |
Colour | Silver |
Dimensions | L115xW40xH30mm |
- Model Number: f99
- Brand Name: LPSECURITY
- Origin: Mainland China
- Certification: CE
- Smart home platform: NONE
