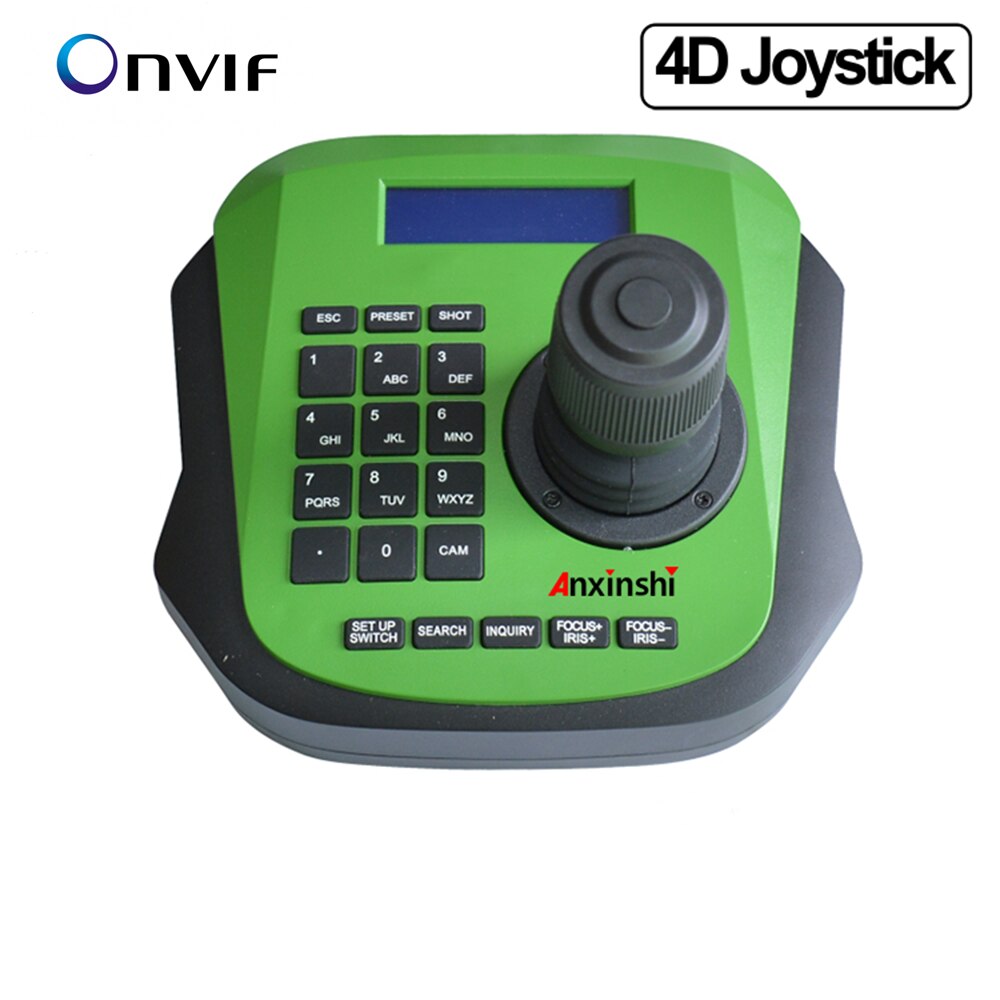

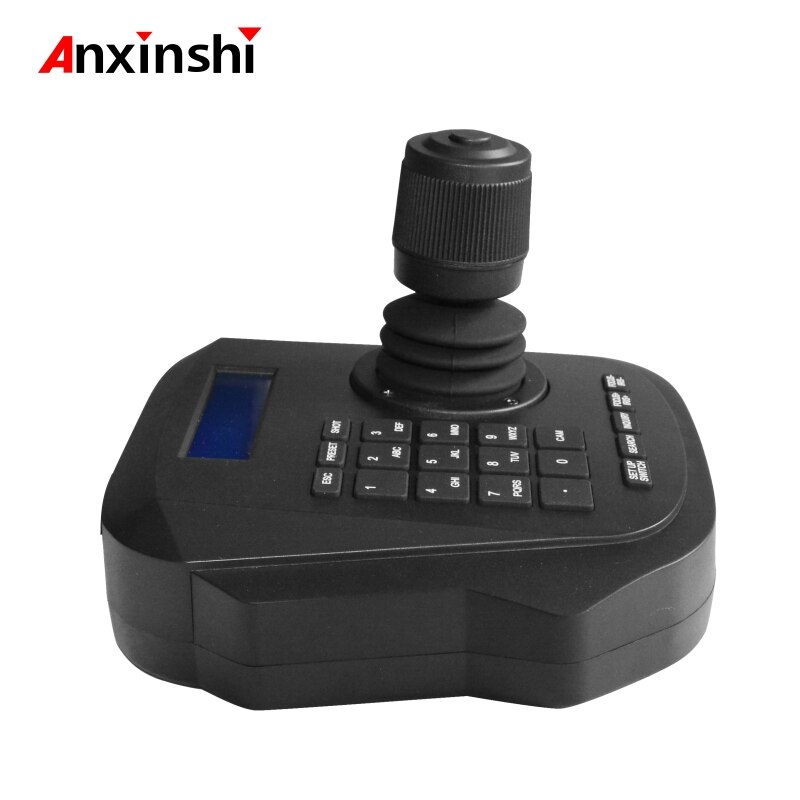

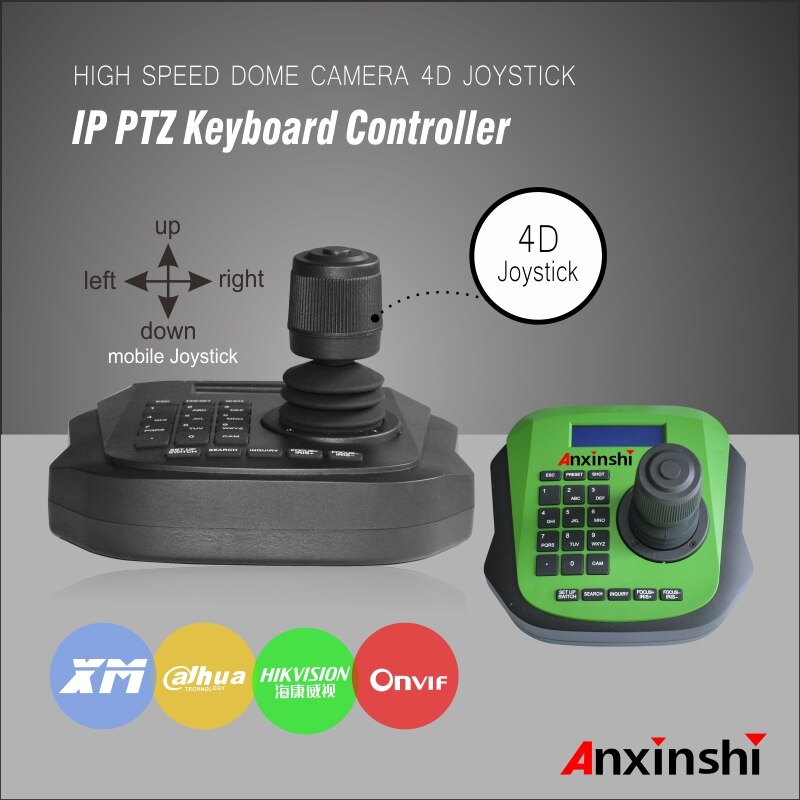

Onvif 4D CCTV IP PTZ controller Network PTZ joystick Web PTZ Keyboard for PTZ IP Camera Max Control LAN 110pcs IP Device.
0.0 (1 votes) | 4 orders
Price:
US $557.86
/ piece
Discount Price:
US $
277.29
/ piece
-50%
If the customer does not specify, a black controller joystick will be sent.

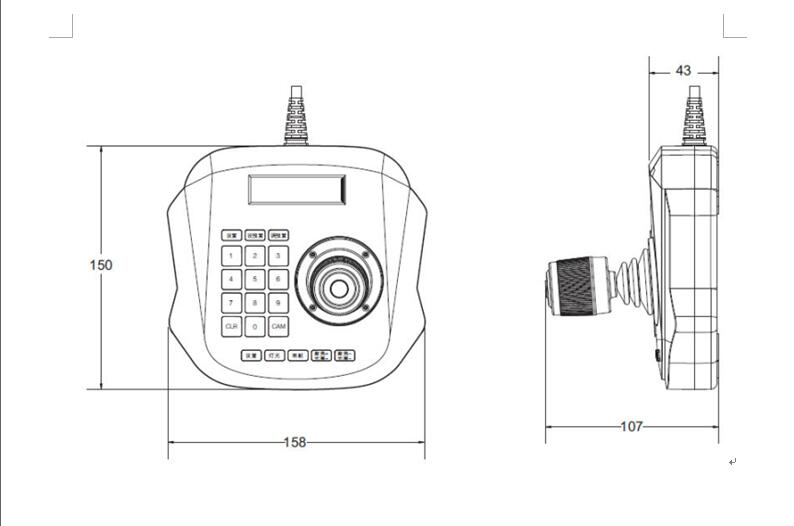

Product Dimension(mm):
Product Name
-INetwork Keyboard
Applications

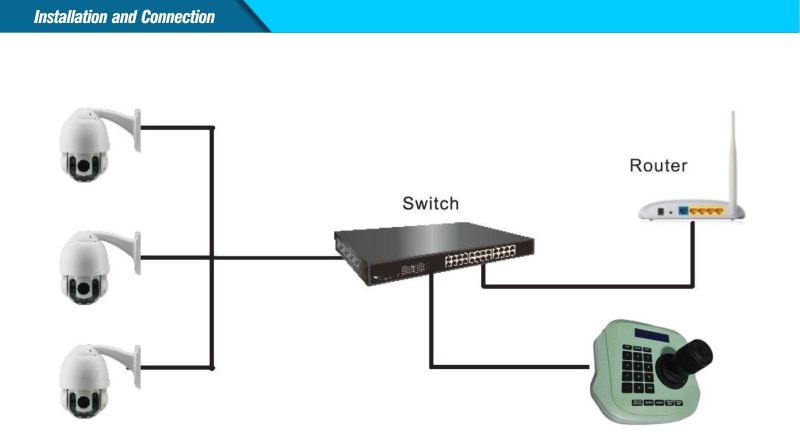

ASKB13-IKeyboard can be used to someplace where install network dome cameras,such as: schools, hospitals, hotels, residential areas, factories, workshops, etc., to achieve a unified LAN ONVIF control device.
Order Model: ASKB13
Product overview

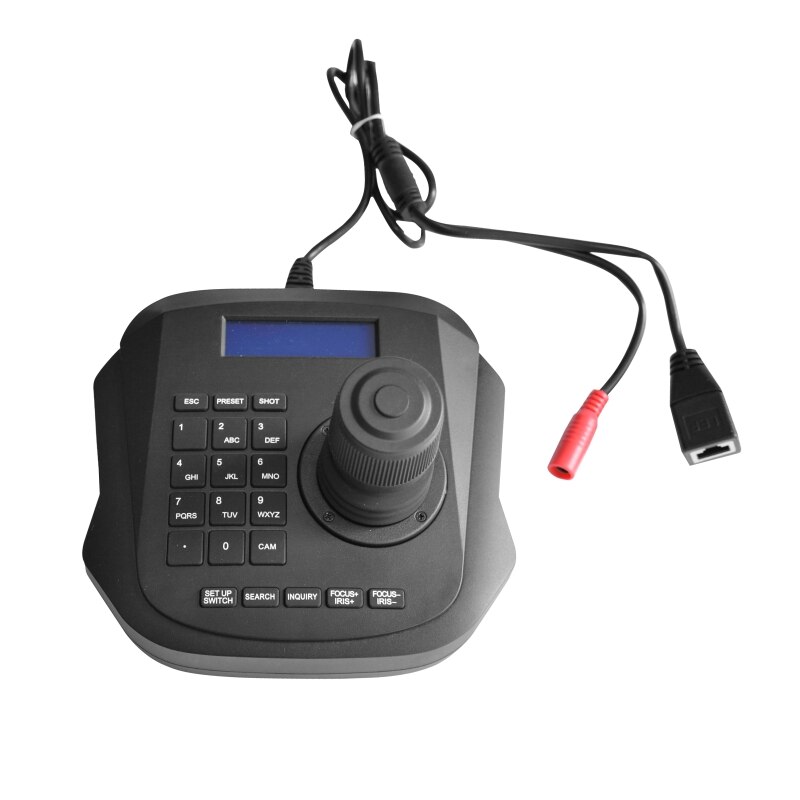

ASKB13-I was a true sense of the network PTZ keyboard controller, with strong handling, solve the current mouse click issueon controlling the PTZ not accurate and inconvenient effectively. The surface of the network keyboard adopt metal aluminum wire drawing with high-end atmosphere and the unique surface hardening can effectively prevent scratches.Using the industrial class blue screen LCD screen makes the display excellent and the characters much clearer and delicate. ASKB13 is network keyboard support standard ONVIF protocol, good compatibility, powerful scalability, built-in web server makes the configuration interface simple and clear, easy to operate, just a few steps to achieve the perfect control of the network dome cameras.
Feature Description
Support network protocol, enjoy separate IP address
Support Onvif protocol,achieve to control the front-end ptz cameras
Support adding ip devices when keyboard offline, also support auto searching ip devices
Max can control 110pc ip devices in the same network segment
Integratedwith many ip zoom module brands, such as HIKVISION,Dahua, TVT and so on
Support operating ip ptz many functions, such as focus, zoom, iris, preset, patrol and so on

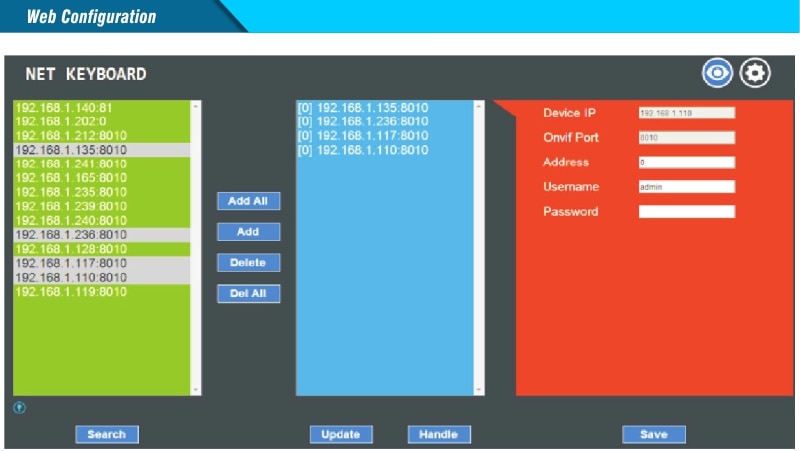

Support IE browser on adding configuration of front-end device parameters
Import photoelectric joystick
Button tone switch function
Technical specification
Model Number | ASKB13 |
Chipset | Great media GM8216 |
Protocol | Onvif 2.4 |
Browser | IE,Firefox,Chrome,Safari and so on |
Control address | Max 110 ip ptz camera |
Ethernet | 1x Ethernet interface,IEEE 802.11b/g/n |
Joystick | 4D( up,down, left, right, zoom, confirm) |

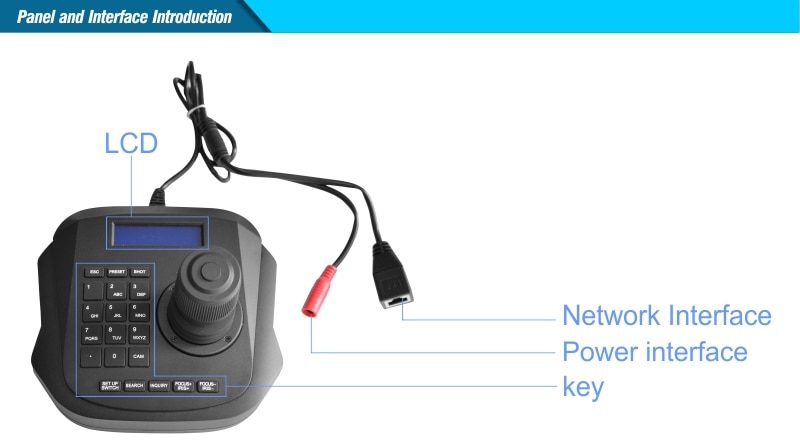

Interface | Lead mode |
Display method | LCD screen |
Beep tone | Button tone switch function |
Power supply | DC12V-2A/inside +outside - |
Power consumption | 0.6W Max |
Working temperature | 0℃~55℃ / 14°F~131°F |
Working humidity | 20%~80%frostless |
Storage Temperature | -10℃~60℃ / 14°F~140°F |
Storage humidity | 0~90% frostless |
Certification | CE, RoHS, FCC |
Warranty | One year |
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
Anxinshi Technology Co.,Ltdis a manufacturer specializing in security surveillance products . Our company set the development, production, sales and service as a whole, Products include professional intelligence, digital and network video monitoring equipment. We take our clients with professional security video surveillance products and to meet customer demand system solutions as our responsibility,and also to provide customers with system design, product supply and assembly manufacturing, sales and trade cooperation integration services.
- Model Number: ASKB13
- Brand Name: Anxinshi
- Origin: Mainland China
- Certification: CE,RoHS
- Color: Green/Black
