OBO Sebury Metal Access Control Keypad 125KHz Standalone RFID Board Access Controller EM Card Reader + 5pcs EM Keychains tags
5.0 (4 votes) | 4 orders
Price:
US $63.50
/ piece
Discount Price:
US $
56.98
/ piece
-10%
125KHz RFID Standalone Access Control Keypad
High quality / 1000 user capacity / 3 unlock method
Product Features
Sebury classical metal standalone access control adopts zinc alloy. Based on low power consumption and low cost. Suitable for household, office and department.
- Metal structure, anti-explosion
- Support 125KHz EM card
- Up to 1,000 users capacity. Each user owns one card and one 4-6 digits PIN
- Relay unlock and with 1A loading
- Additional functions: anti-tamper, door magnetic, appliance switch, and safe mode set
- CE certification
Product Specifications
- Input voltage: DC 12V±10%
- Idle current: ≤20mA
- User Capacity: 1 master code, 1,000 users
- Working Frequency: 125KHz
- Door Relay Time: 1-99s
- Card Read Range: 3-6cm
- Card Read Sensor Time: ≤0.1s
- Lock Output Load: 1A
- Alarm Output Load: 3A
- Antistatic interference: 15KV
- Operating Temperature: -40~60℃ (-40℉~140℉)
- Operating Humidity: 0~95% (non-condensing)

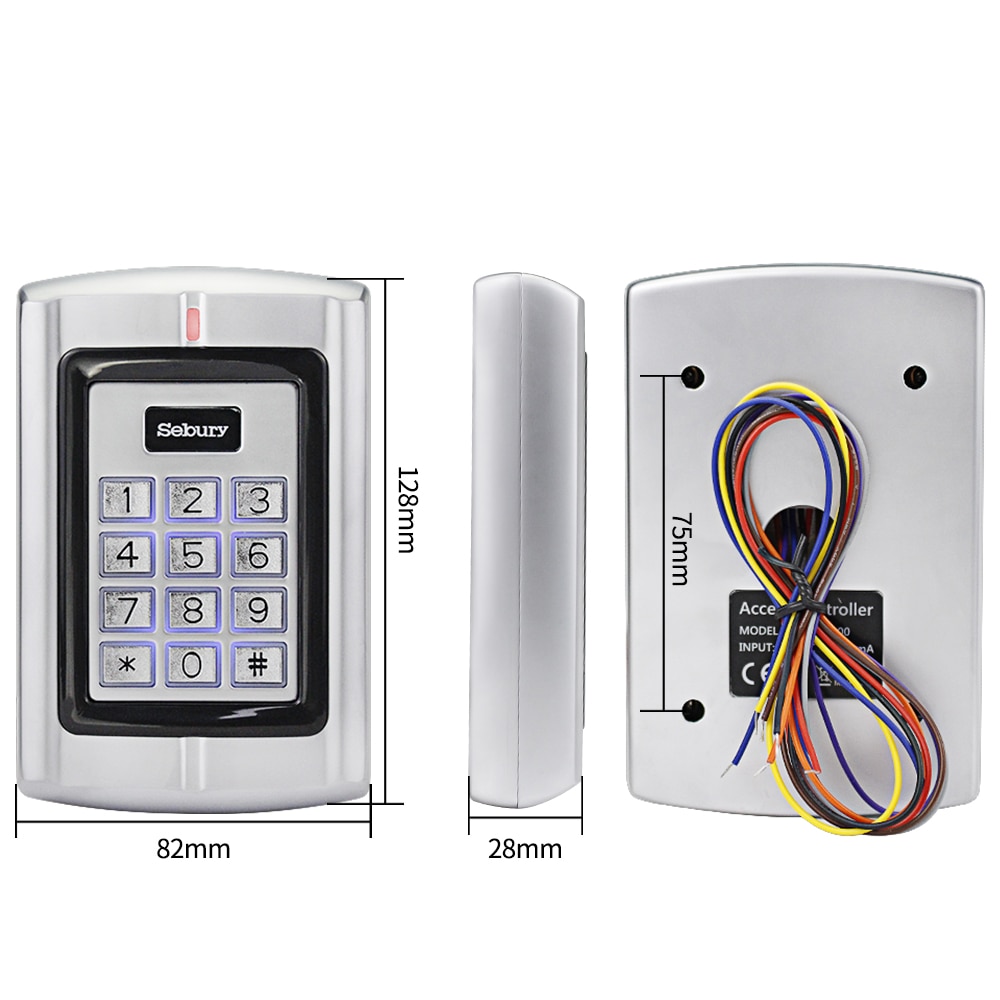

- Dimensions: 128mmx82mm×28mm(L×W×H)

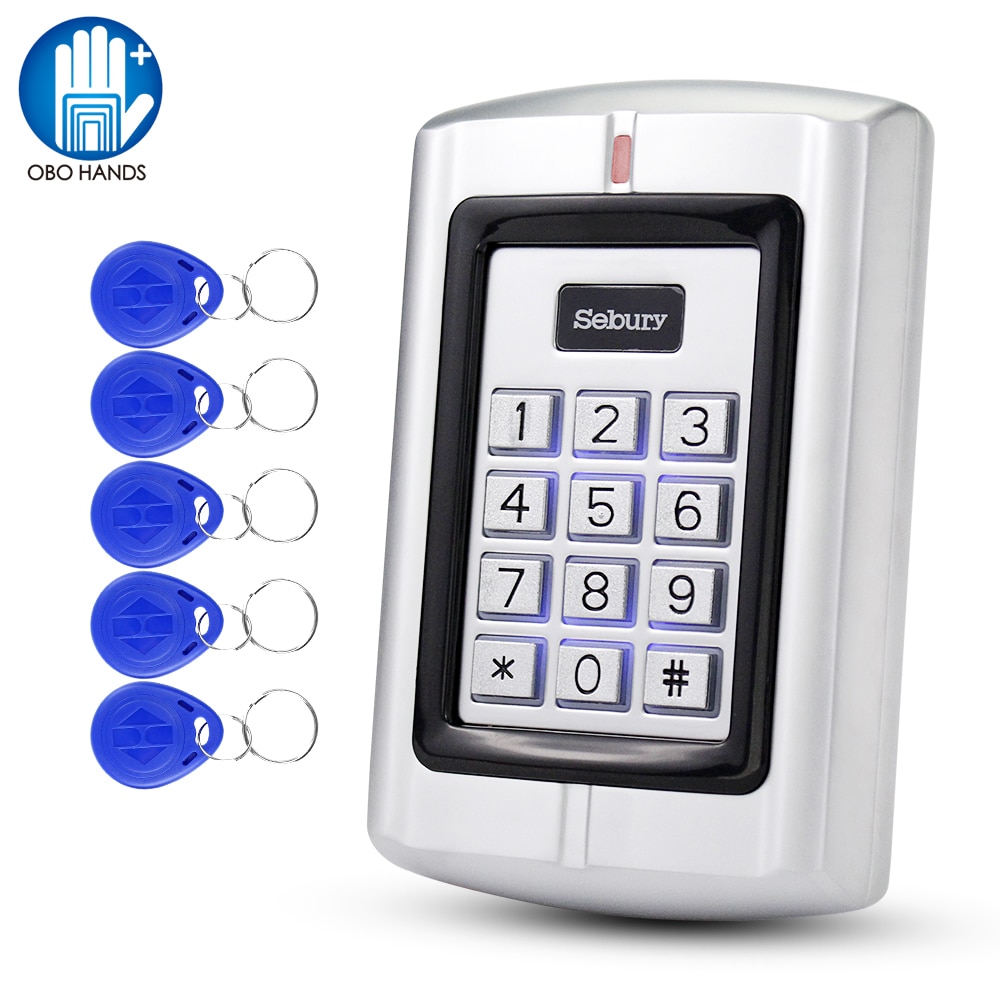

Packge including : 1 RFID Keypad + 5pcs RFID Keyfobs ONLY, not including power supply, lock, exit button.
Product Details

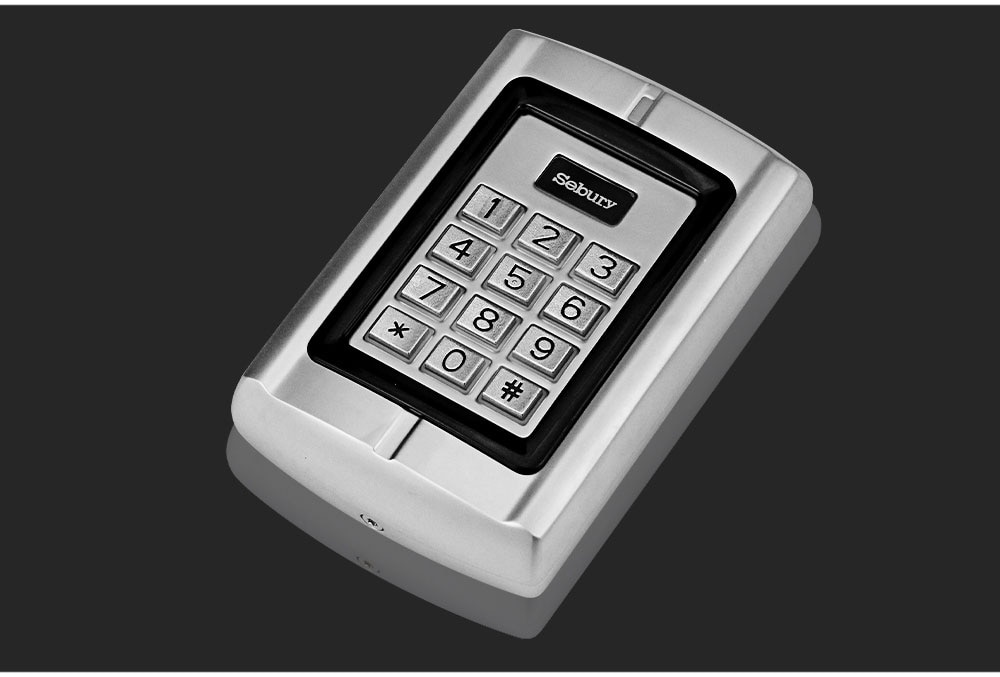

1. Metal structure, safe and durable
eco-friendly zinc alloy, make the product more secure and durable, anti-vandal, anti-tamper, suitable for different enviromental installation.

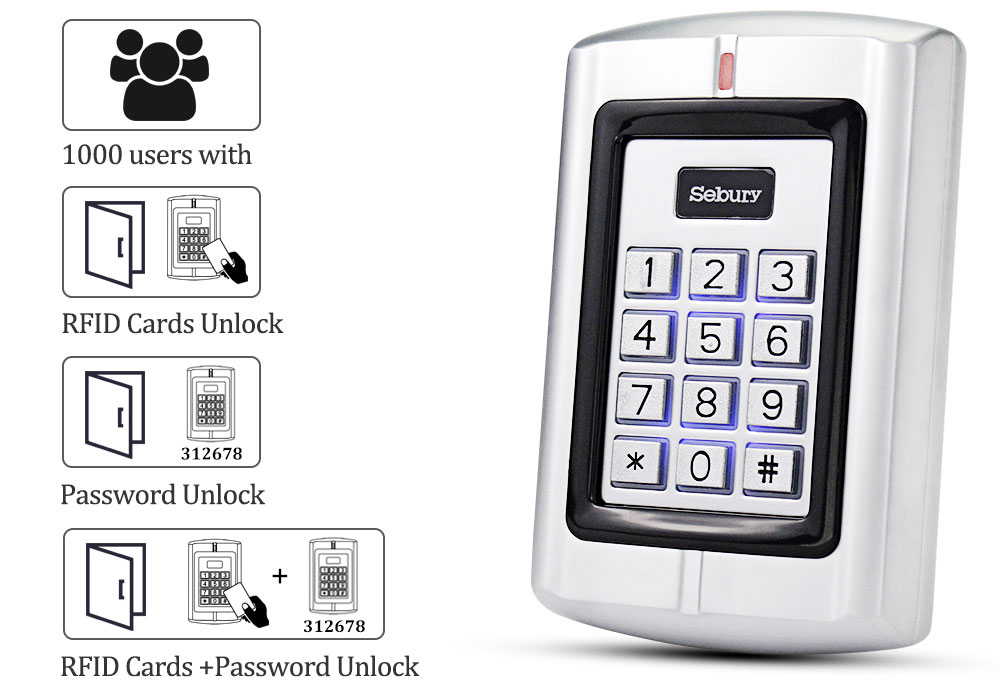

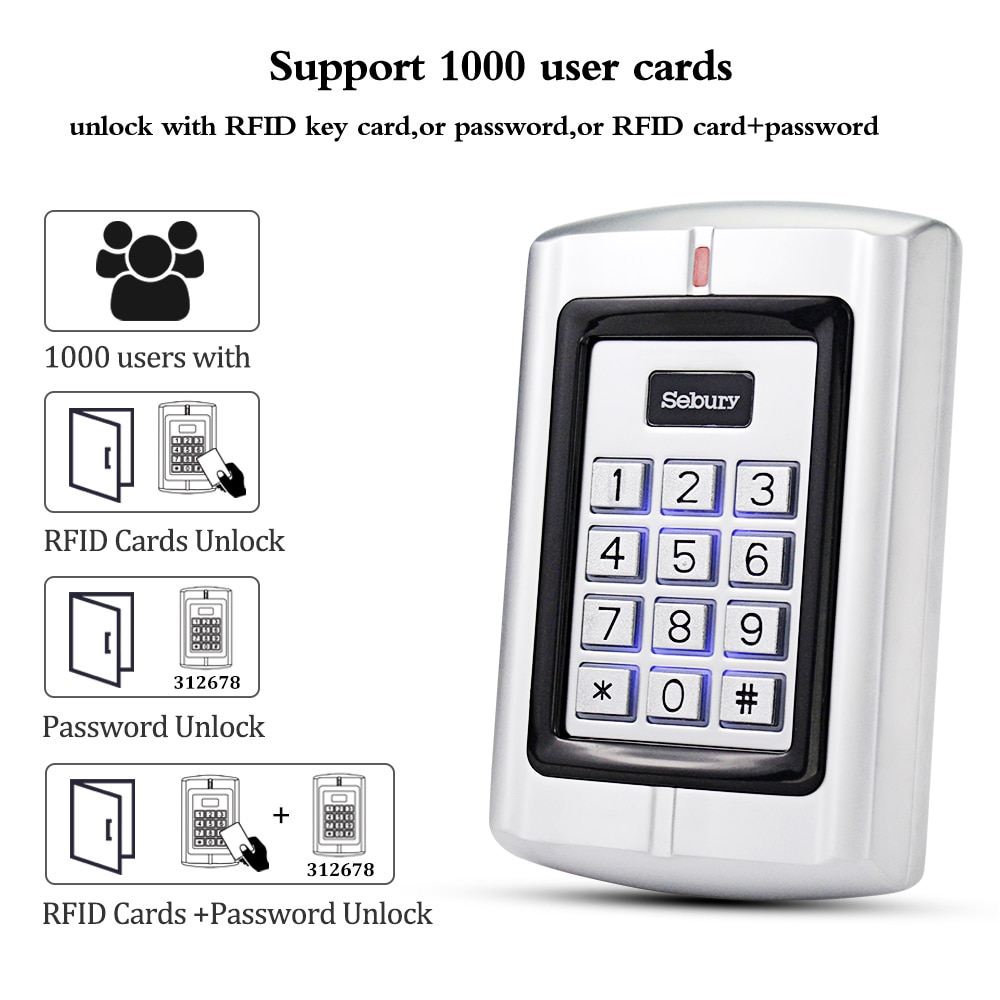

2. Support 1000 user cards. and 4-6 digits password. Has 3 different unlock method.
( unlock with rfid card, password, rfid card + password)

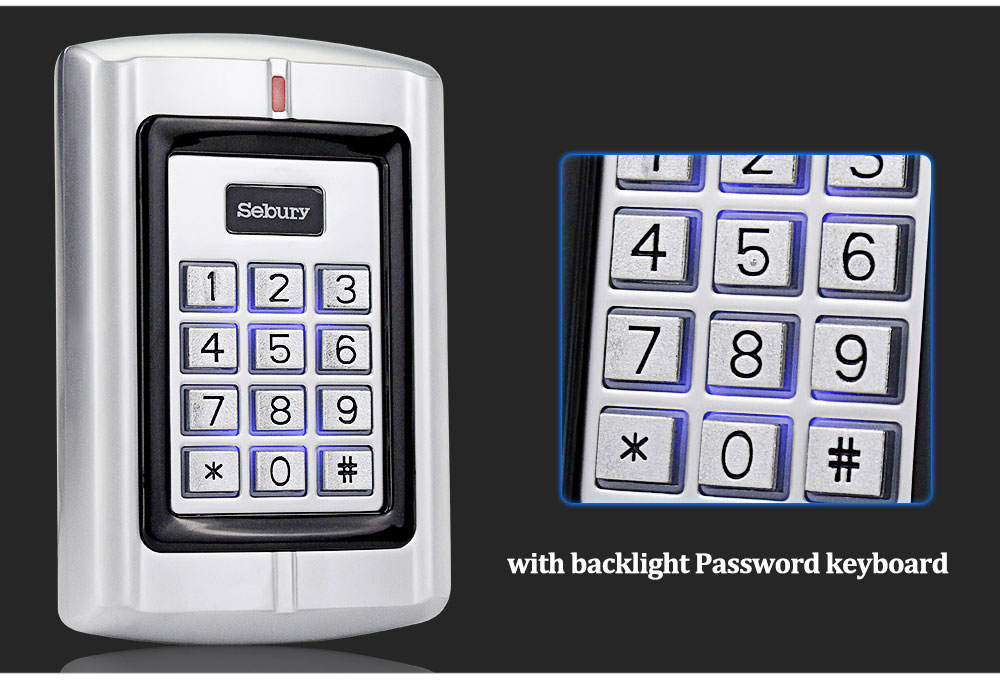

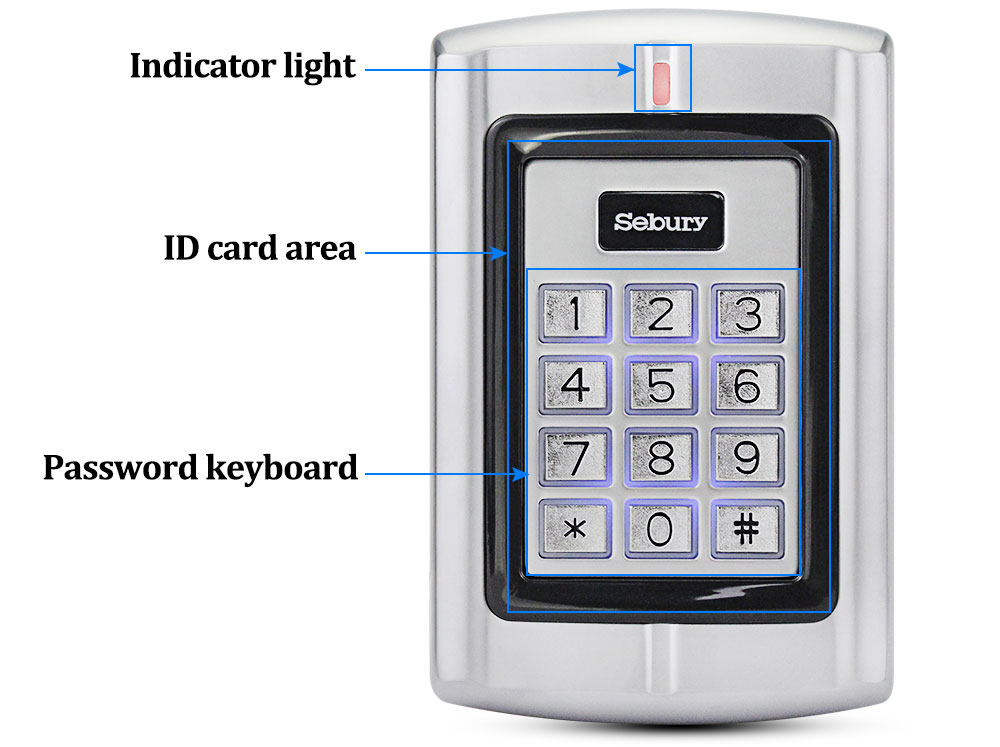

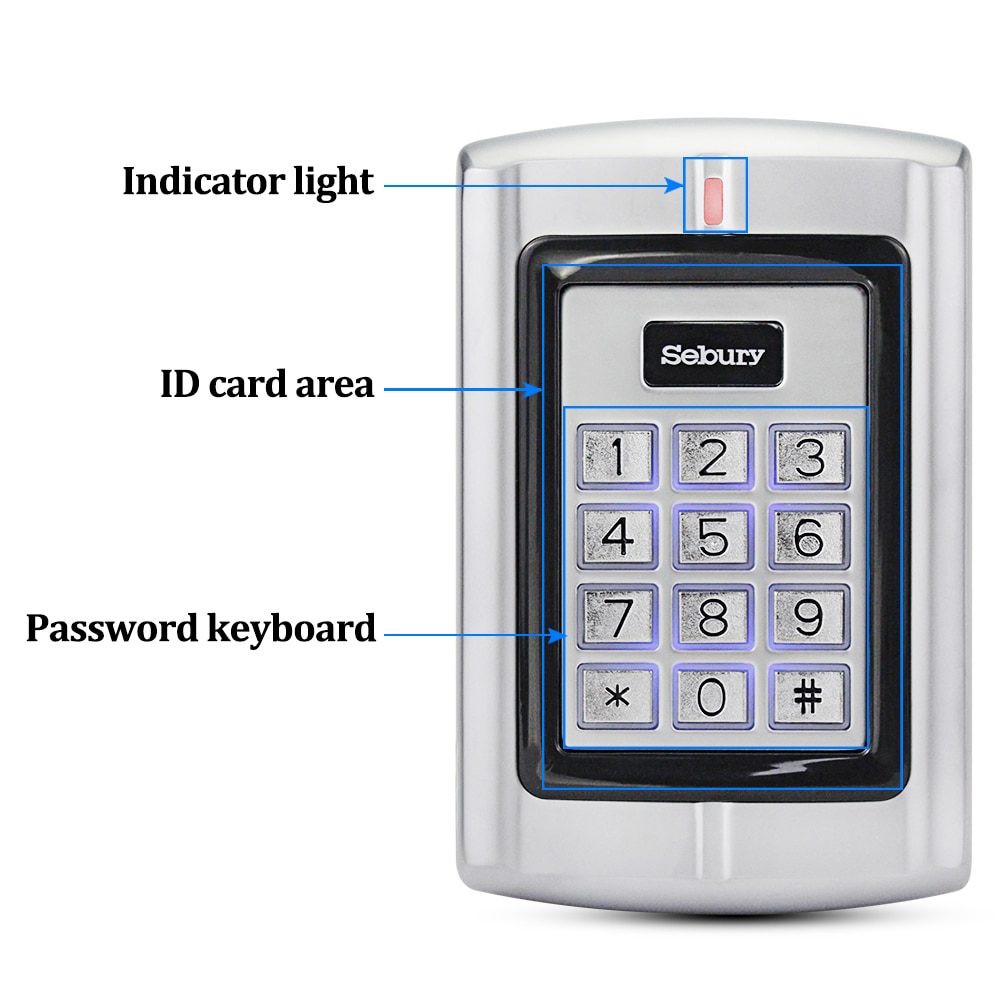

3. Metal keypad, digital backlit
All programming is done through the keypad. and the digital backlight key is convenient in night or dark enviroment. Up to 1000 user capacity

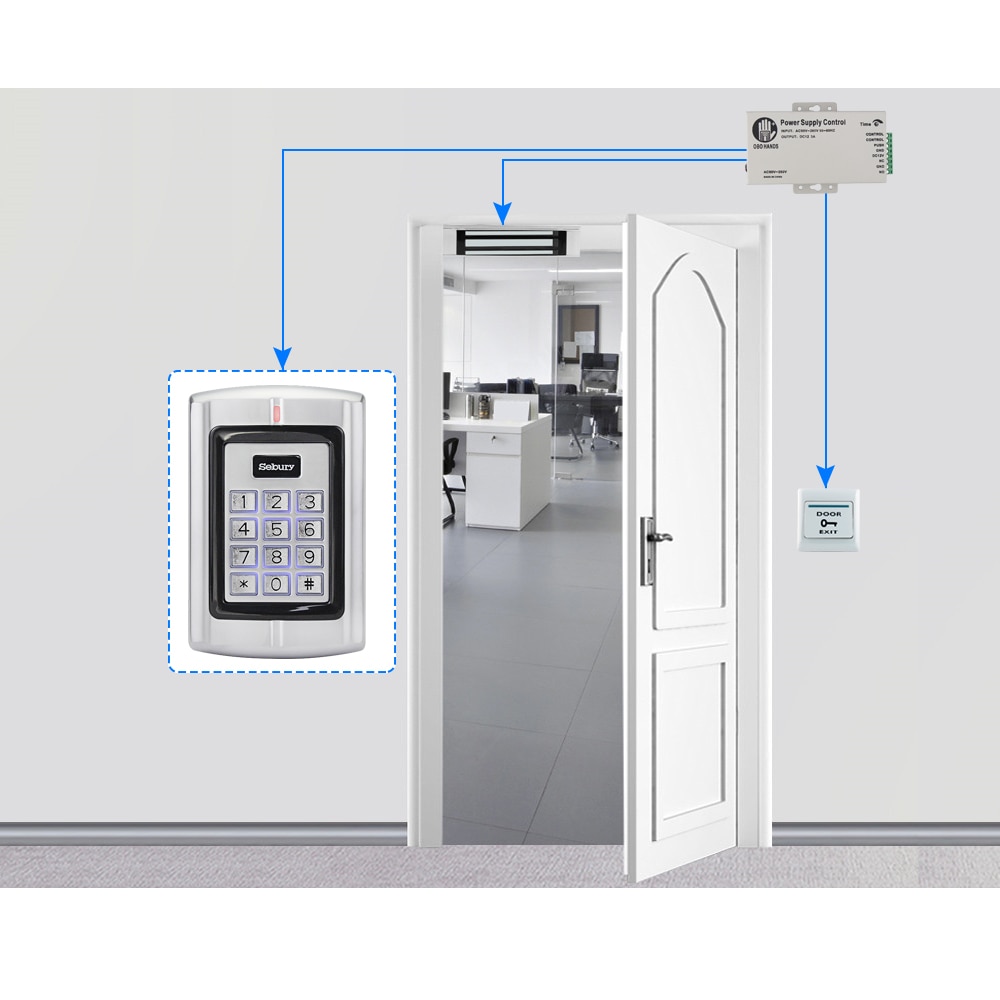

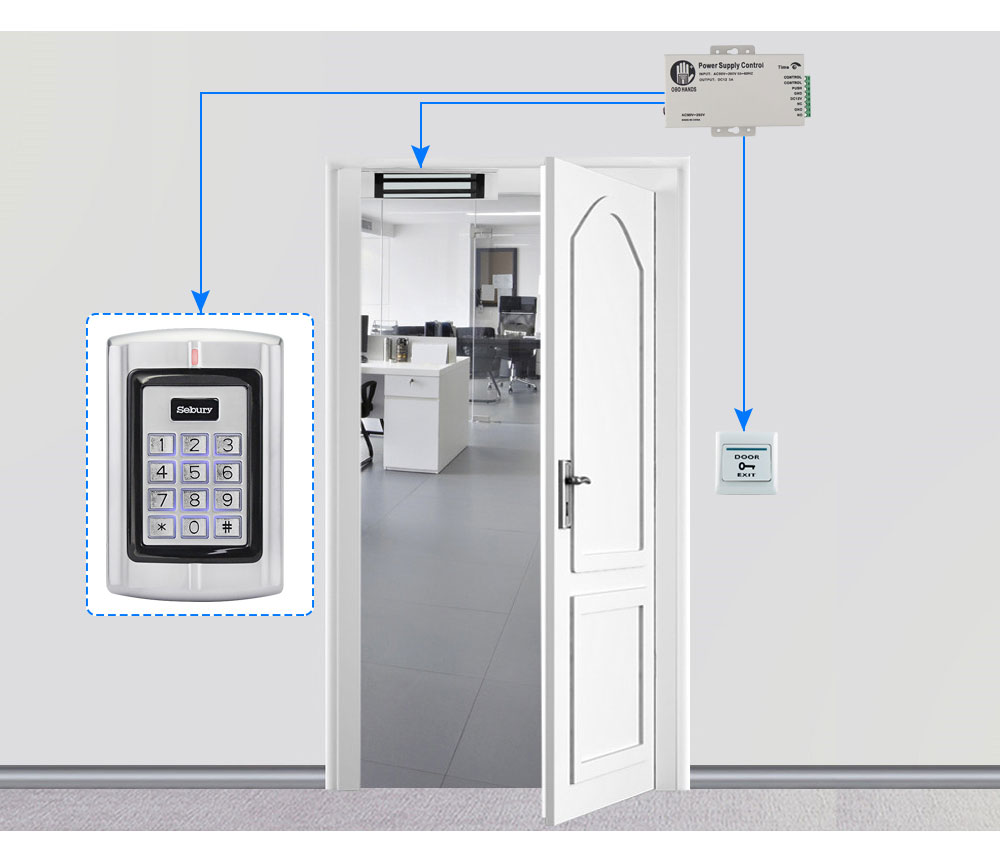

4. Easy install and operation

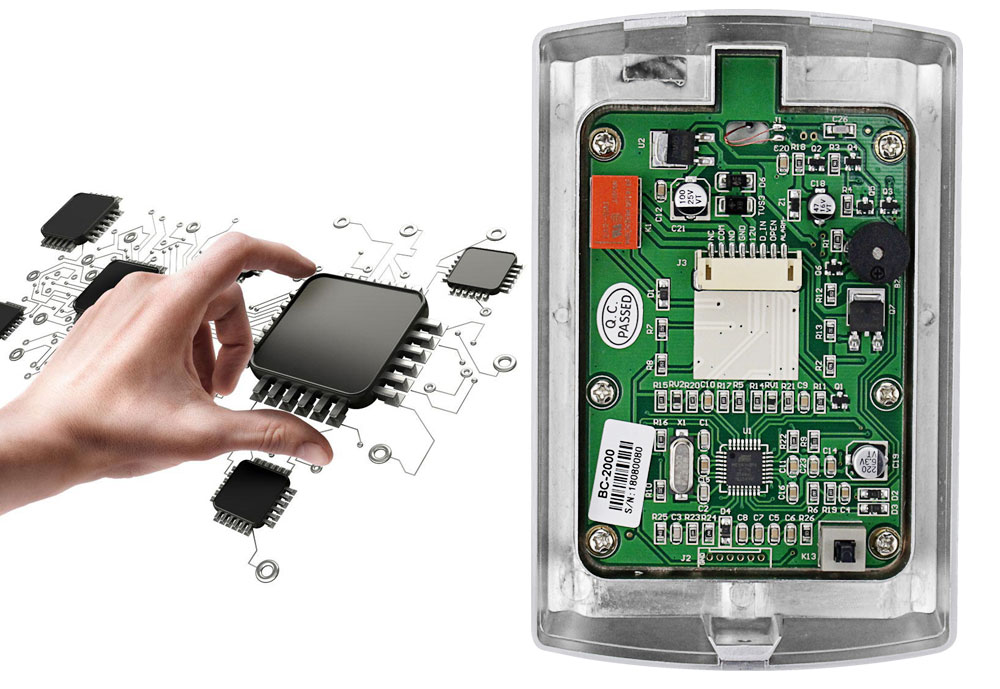

Based on advanced technology, fast recognition speed, high sensitivity. Suitable for most major access control solution.

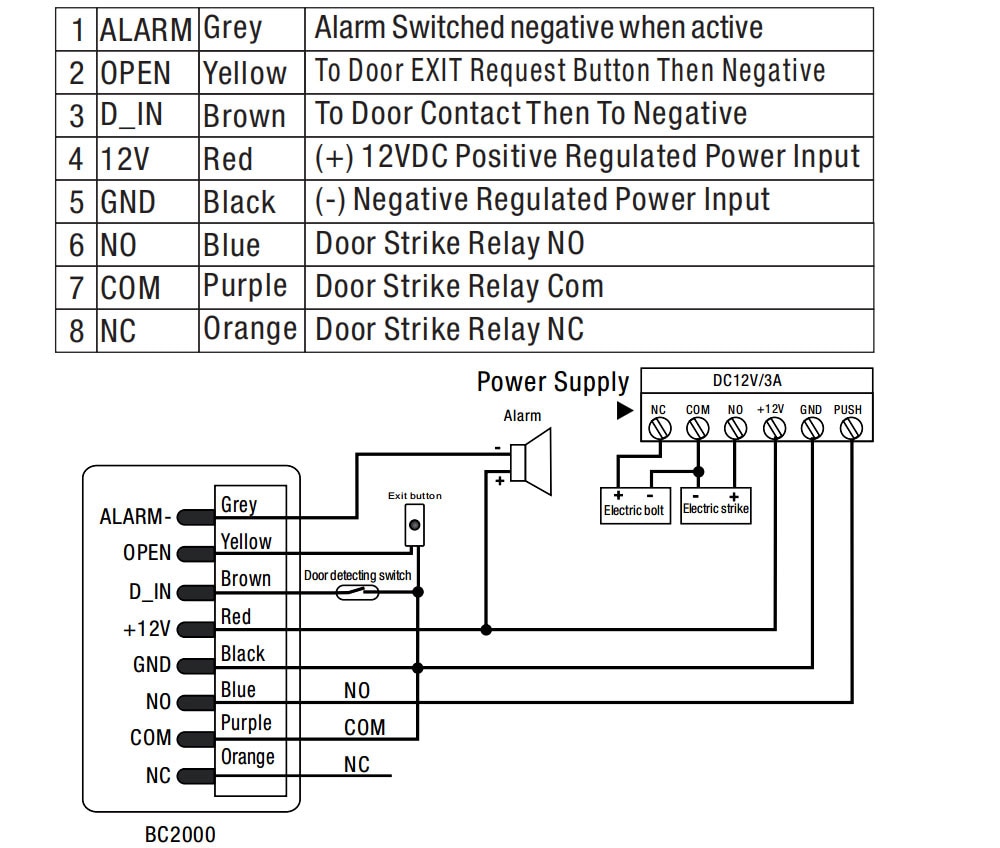

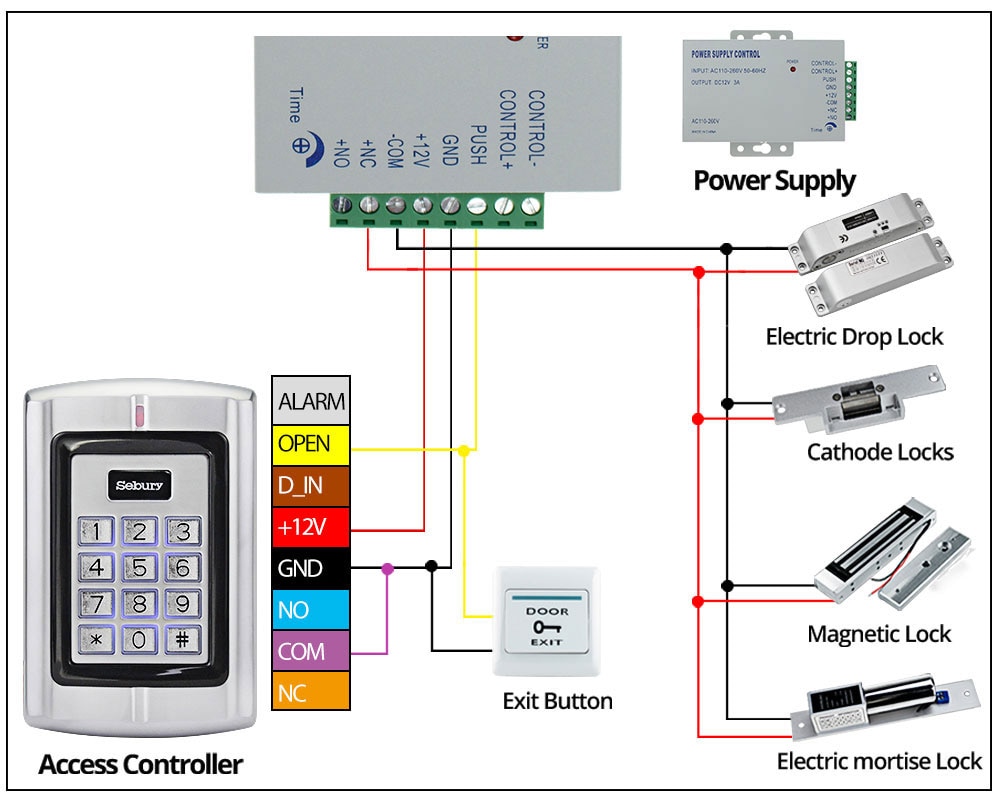

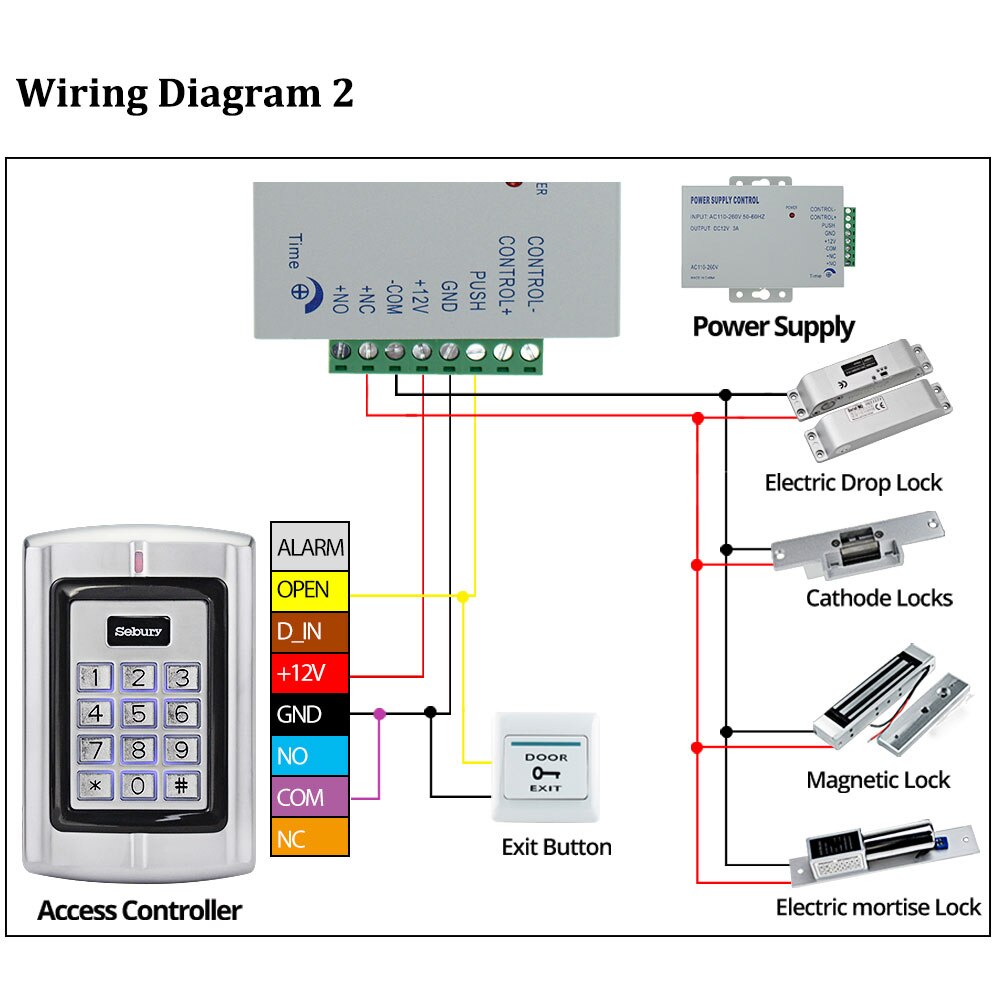

Wiring Diagram

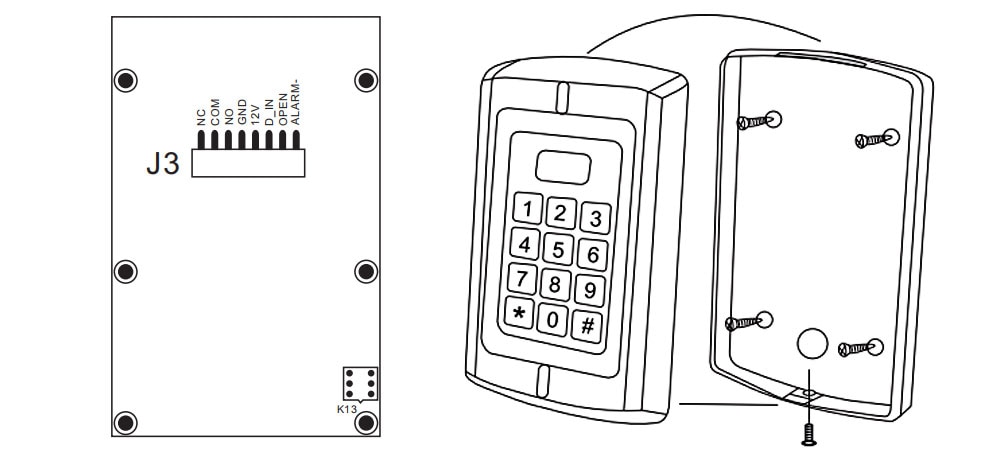

Terminal wire connector function:
Do not plug the power supply or transformer into the mains until all wiring has been completed and the front cover secured.
Please note this package is not including access control power supply, electric locks, exit button, need to buy extra. If you want them, please contact us. Thank you!
- Model Number: BC2000+5
- Brand Name: OBO HANDS
- Type: RFID Access Control Keypad
- User Capacity: 1000 users
- Working Voltage: DC12V
- Verification Method: RFID card, Password, RFID card+password
- Working Frequency : 125KHz
- Working Temperature: -40~60 degree
- Reading Distance: 0-10cm
- Material: High quality aluminium alloy
- Card Read Sensor Time: <=0.1s
- Lock Output Load: 1A
- Alarm Output Load: 3A
- Antistatic interference: 15KV
- Operating Humidity: 0~95% (non-condensing)
- Dimensions: 128mm * 82mm * 28mm (L*W*H)
- CE certification: Has
