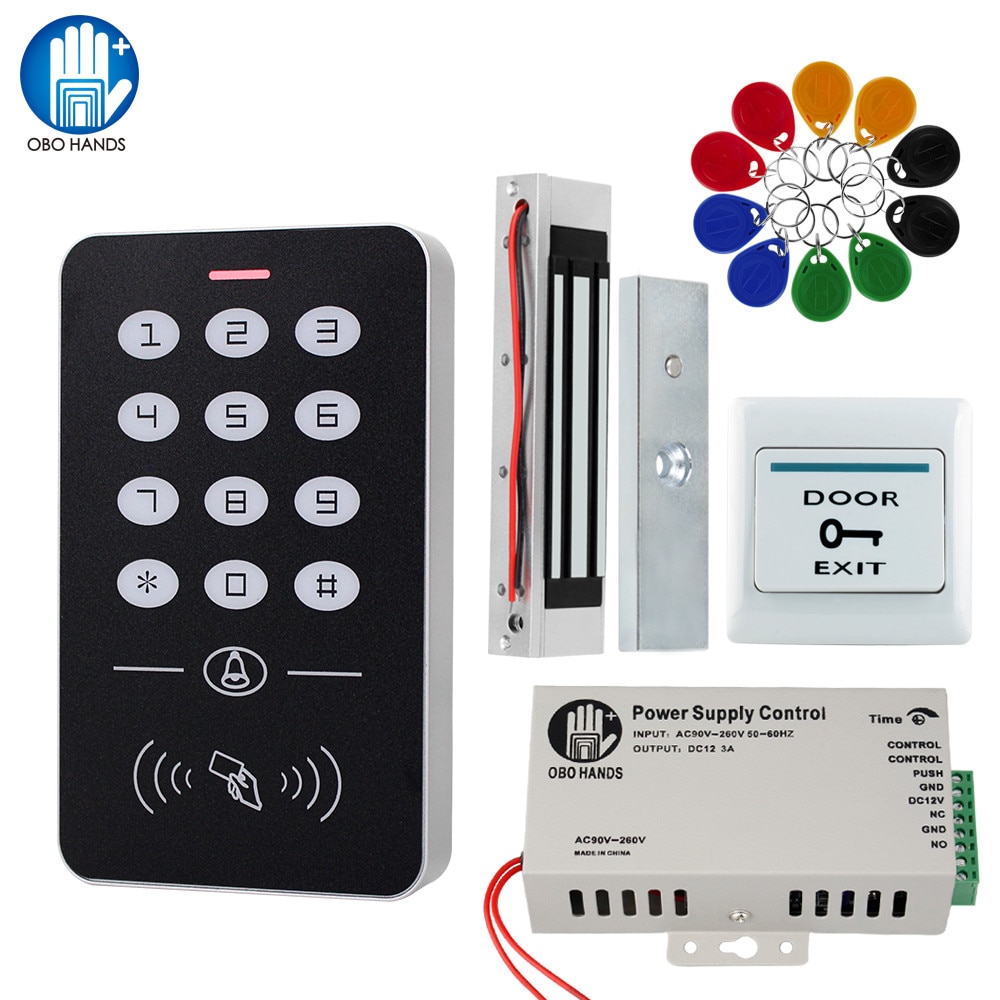

OBO Hands Door Access Control System Kit RFID Keypad + Power Supply + Electric 180KG Magnetic Lock Strike Door Locks for Home
4.7 (31 votes) | 217 orders
Price:
US $21.92 - 138.73
/ piece
Discount Price:
US $
17.53 -
110.98
/ piece
-20%
- Color
-
-
OBO Hands Door Access Control System Kit RFID Keypad + Power Supply + Electric 180KG Magnetic Lock Strike Door Locks for Home
A complete set of entrance guard system for wooden doors, iron doors and glass doors, which you can choose according to the type of your door. If you don't know how to choose, please contact us after taking a photo of the door, thank you.
Product Description

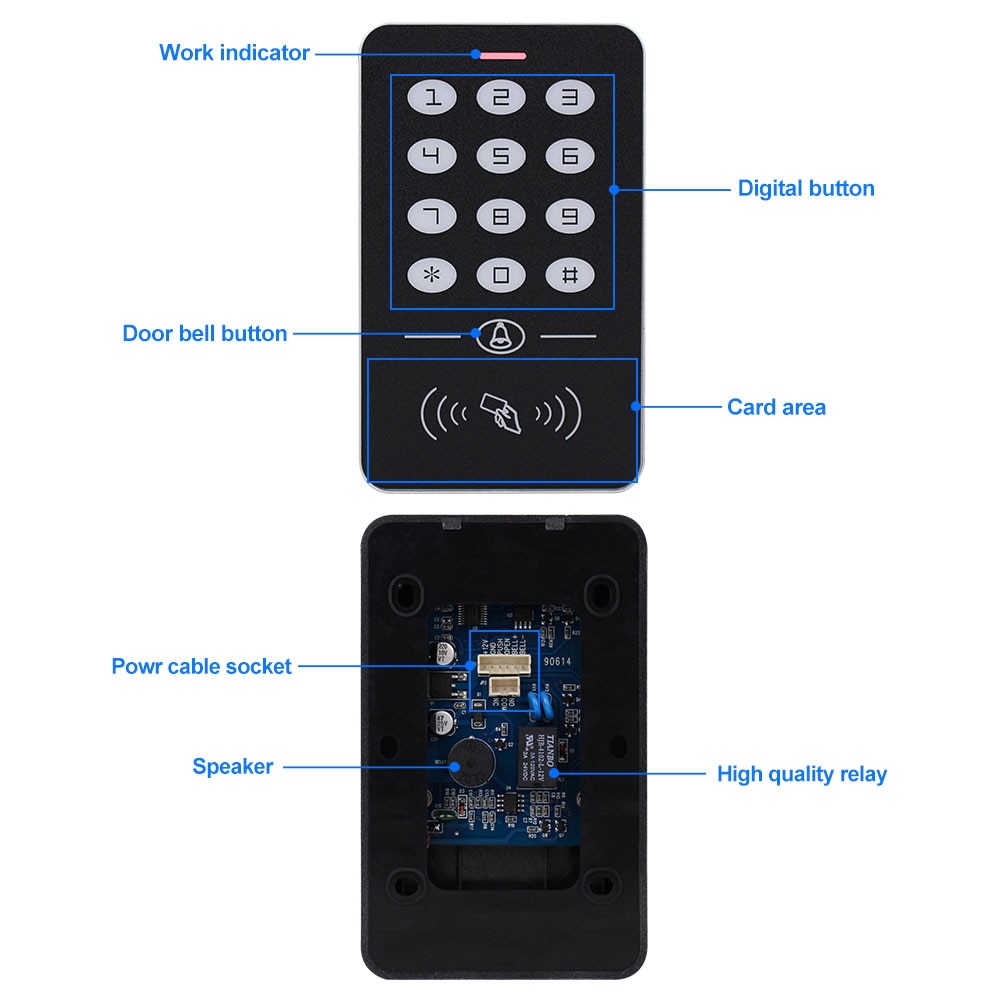

Access Controller:
User capacity: 1000
Card reading type: EM card
Card reading distance: 1-5CM
Identification method: card, password, card + password
Programming password: 123456
Unlocking time: 5 seconds
Open the door input: all the way to open the button input
Doorbell output: one way wired doorbell output
Can be connected to automatic door or gate
Working voltage: DC 12V ± 10%
Working power supply: <100mA
Working temperature: 0 ° C ~ 60 ° C
Size of A1: 113*70*20mm
Surface Waterproof and dustproof panel
The ABS flame-retardant casing is integrally formed. After the installation is completed, a layer of glass glue can be applied to the back cover to achieve a comprehensive waterproof effect. (not IP65 waterproof, can't be used under the rain directly)

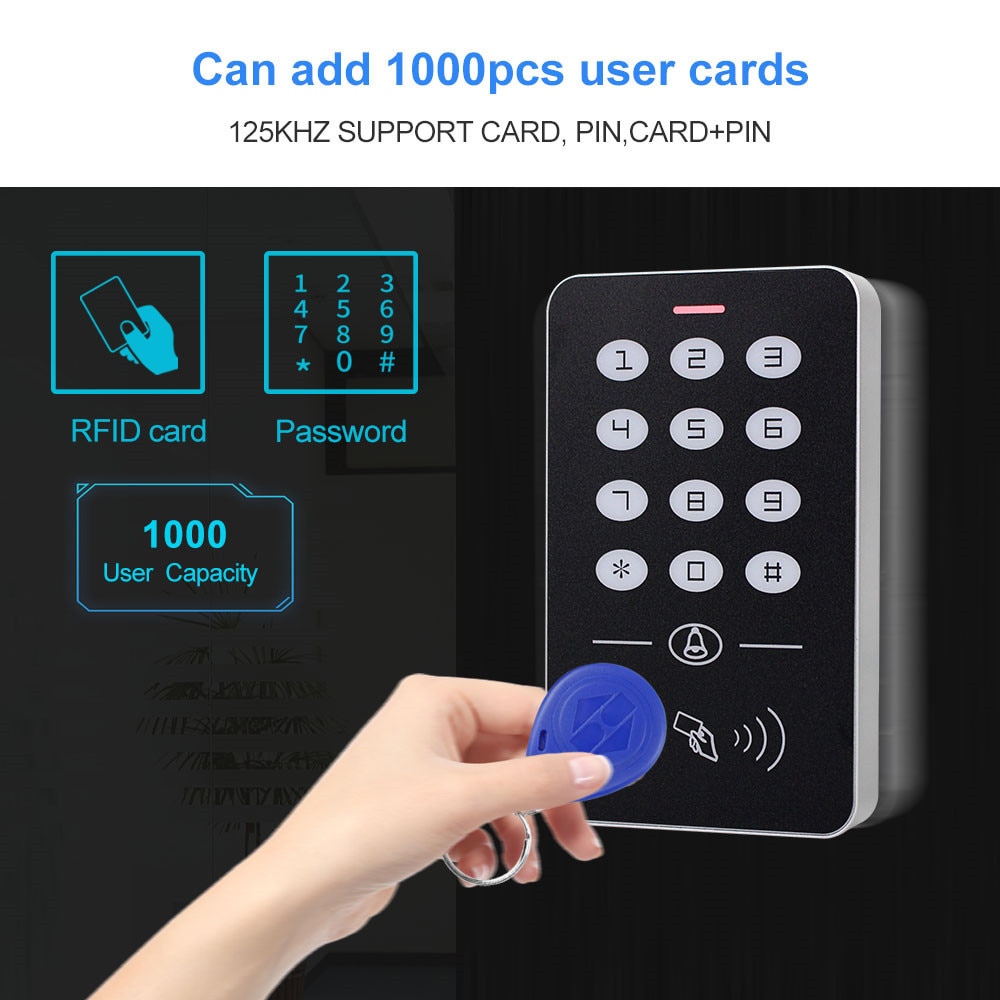

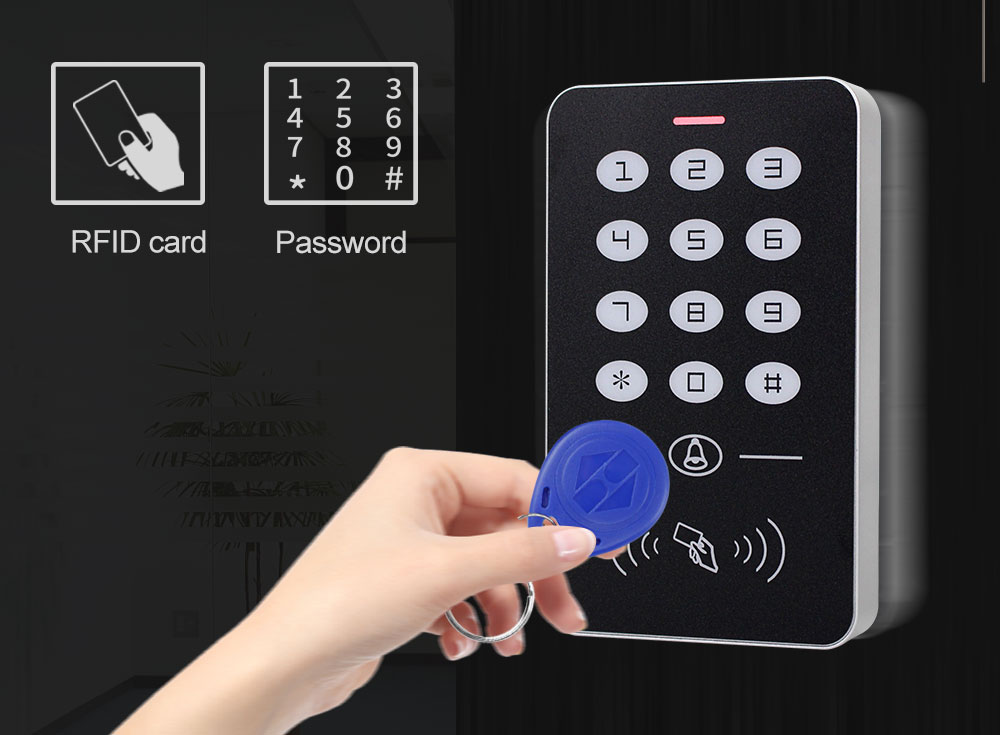

Support RFID Card, password, RFID Card+ password to open the door
Support 1000 card and password user capacity, can set card + password to open the door, the safety factor is higher

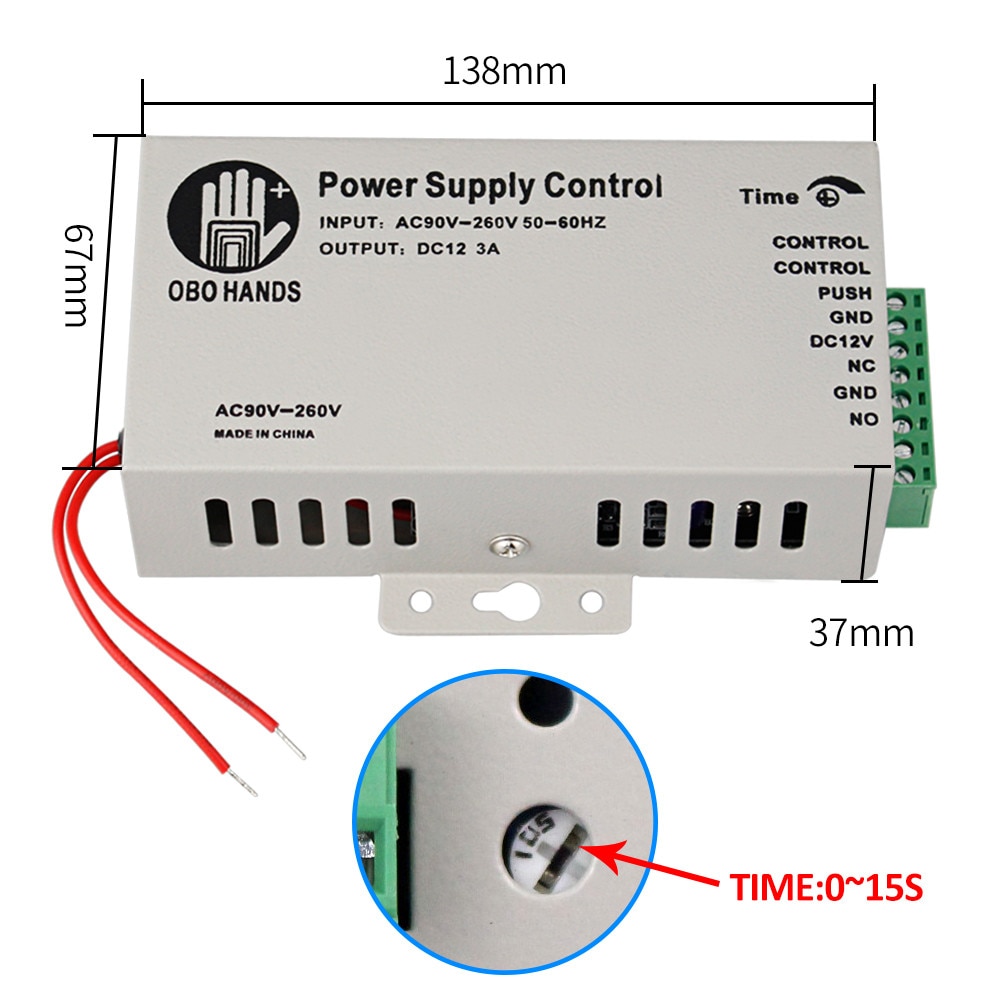

Power Supply:
Material: Steel
Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110-260VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Relative Humidity: 0%-90%
Dimension: 100*65*32mm
Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110-260VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Relative Humidity: 0%-90%
Dimension: 100*65*32mm
Door Exit Button:
Material:Hard Plastic
Maximum Power Rating:36V DC 3A—5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension:86X86MM ( L / W )

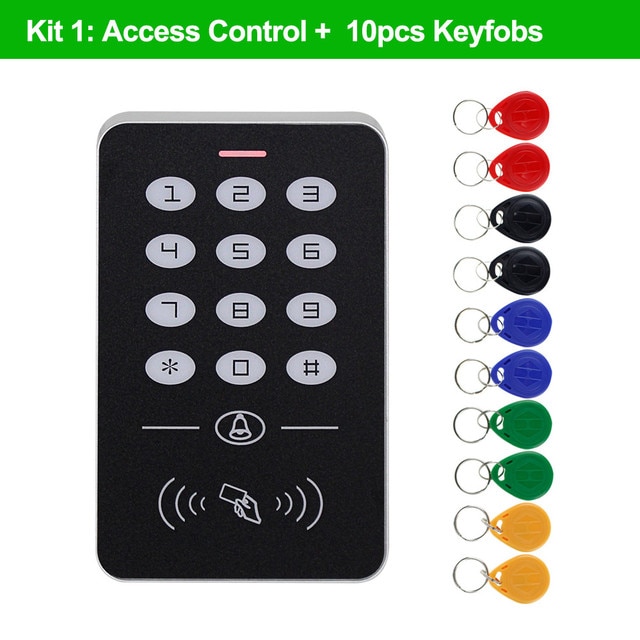

RFID Keyfobs:
125KHz rfid frequency key card
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Please Noted: There are 5 color of the RFID keyfobs for optional (blue, red, yellow, green, black). We will send mix color by default. If you need other color, please leave message to us.
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Please Noted: There are 5 color of the RFID keyfobs for optional (blue, red, yellow, green, black). We will send mix color by default. If you need other color, please leave message to us.
Package List

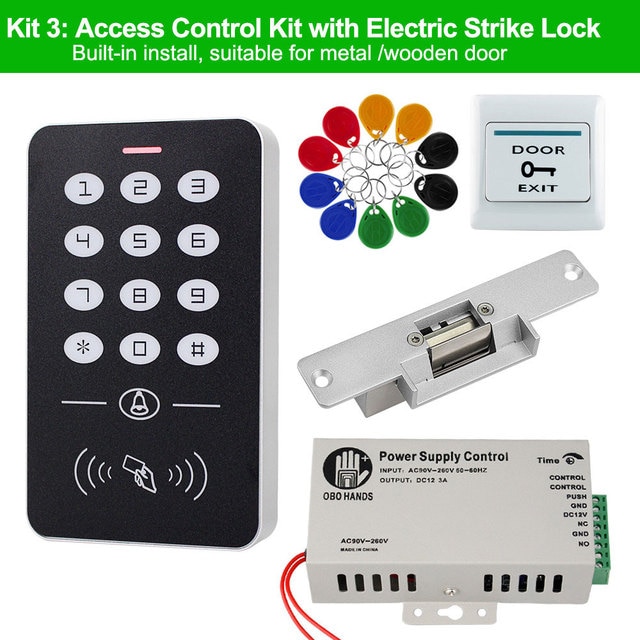

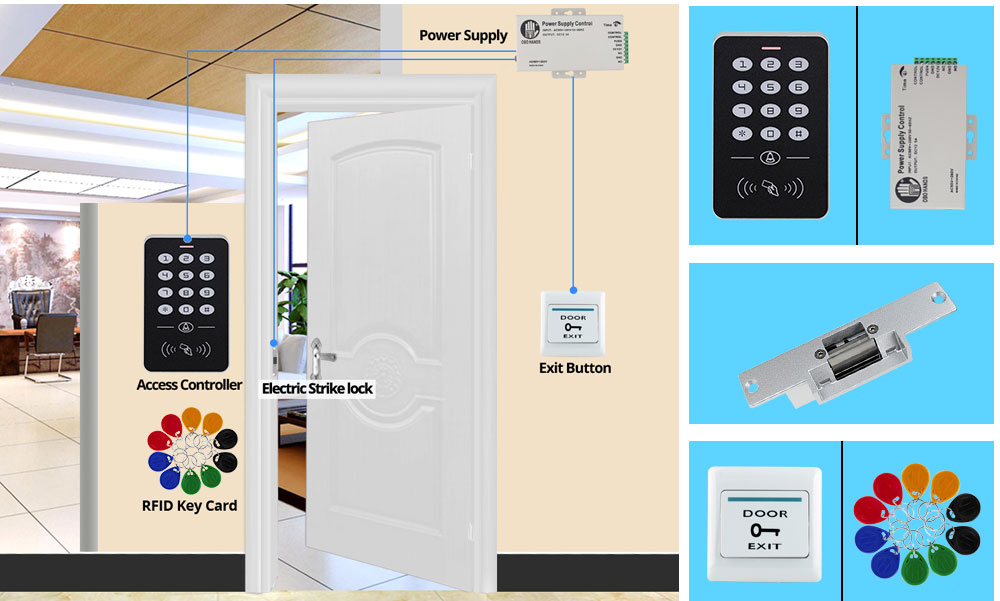

Kit3: Suitable for wooden door, metal door. convenient and beautiful. No need bracket
Package including: Access Control keypad + Power supply + NC type Electric Strike lock + Exit button + 10pcs Keyfobs
(We will send the NC type by default, if you want NO type, please leave us a message.)
Working Voltage: 12V ± 10%
Current: 200mA - 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on

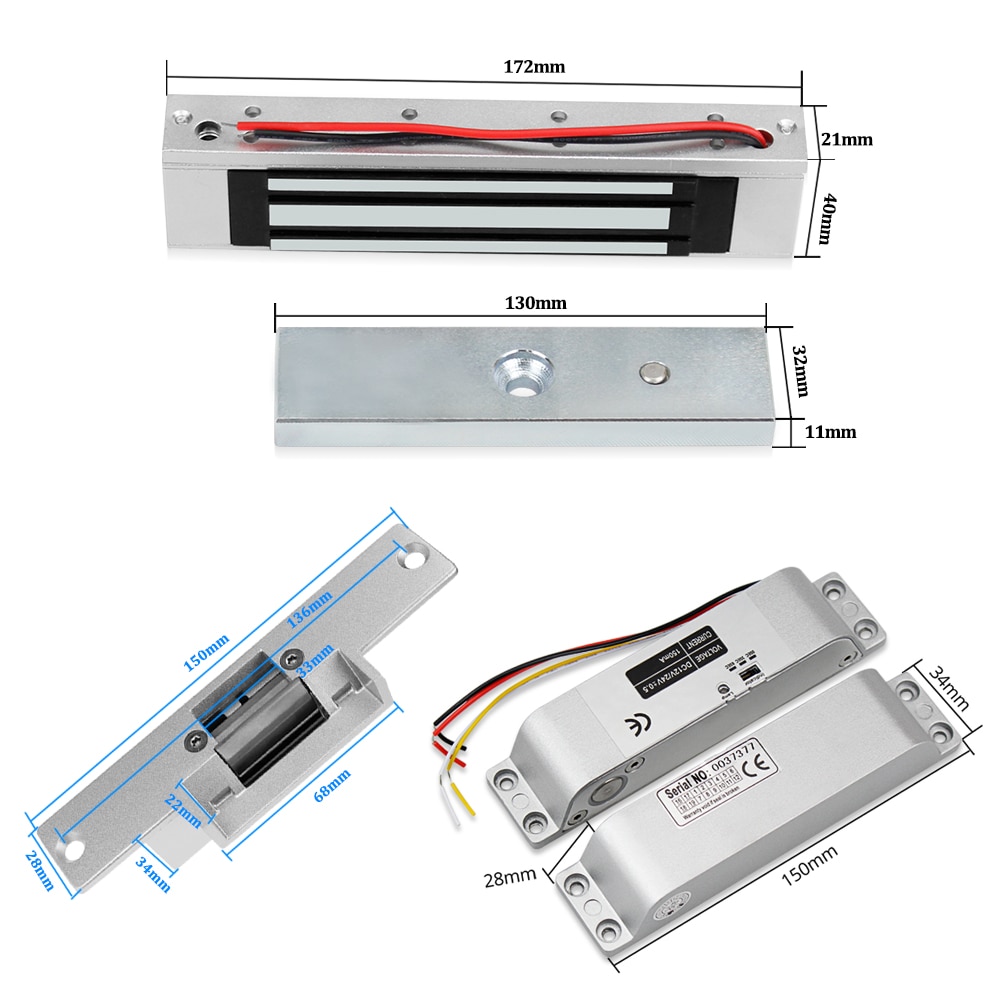

Size: 150 x 28 × 34mm（L / W / H）
Current: 200mA - 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm（L / W / H）

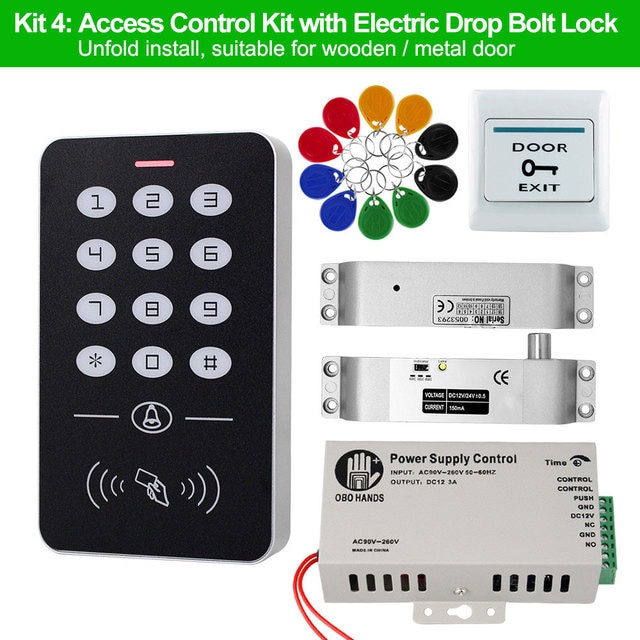

Kit4: Suitable for wooden, metal and Stainless steel door. No need bracket.
Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Keyfobs
Working voltage: 12V
Time delay: 0s,3s,6s adjustable
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )

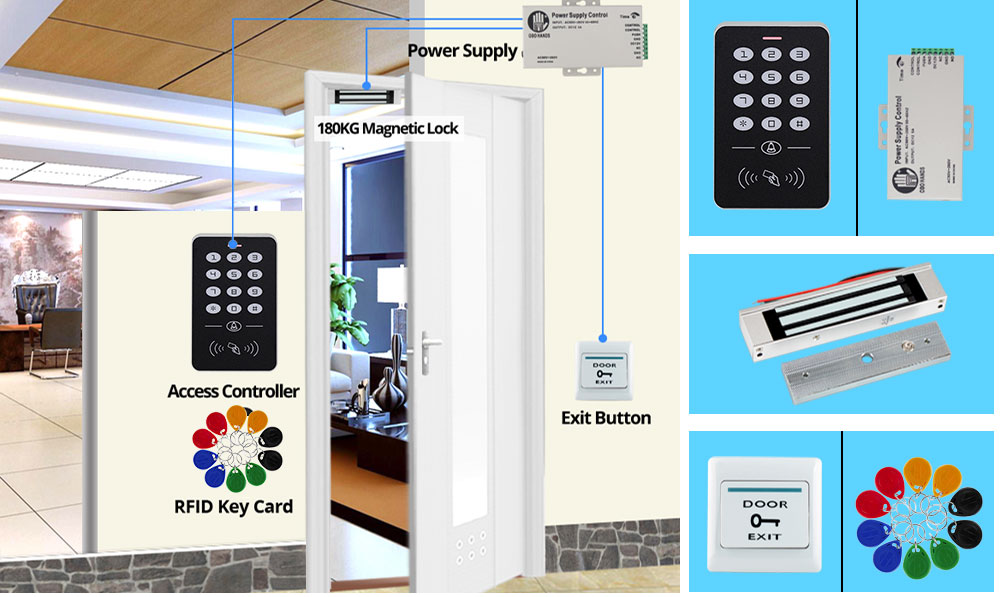

Kit5: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs
Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside

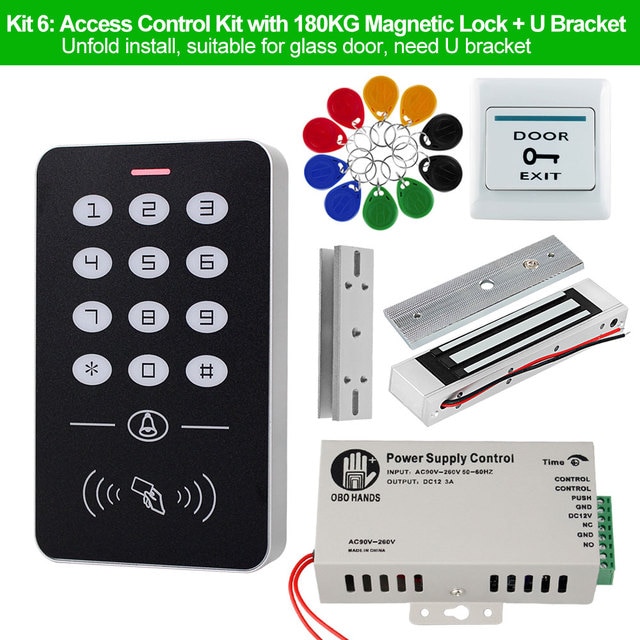

Kit6: Suitable for frameless glass door. Need U bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 10pcs Keyfobs
If your door is frameless glass door, then will need a U bracket
Size of U Bracket: 130* 33 * 26mm (L/W/H)

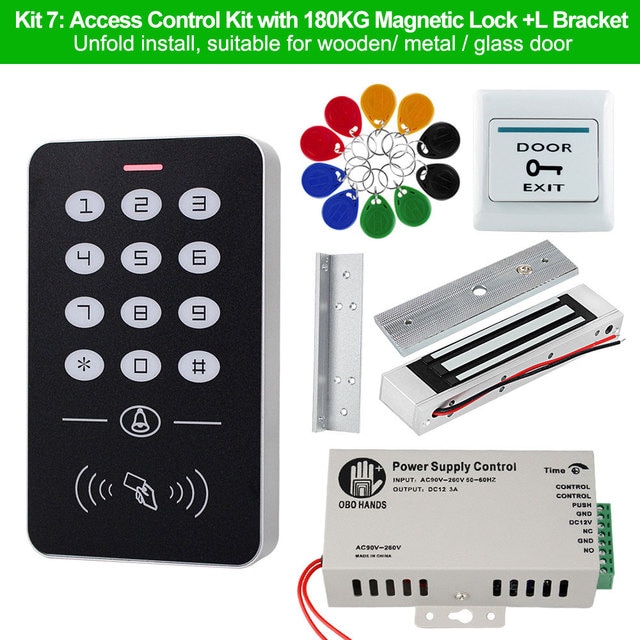

Kit7:Suitable for wooden, metal door. Need L bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 10pcs Keyfobs

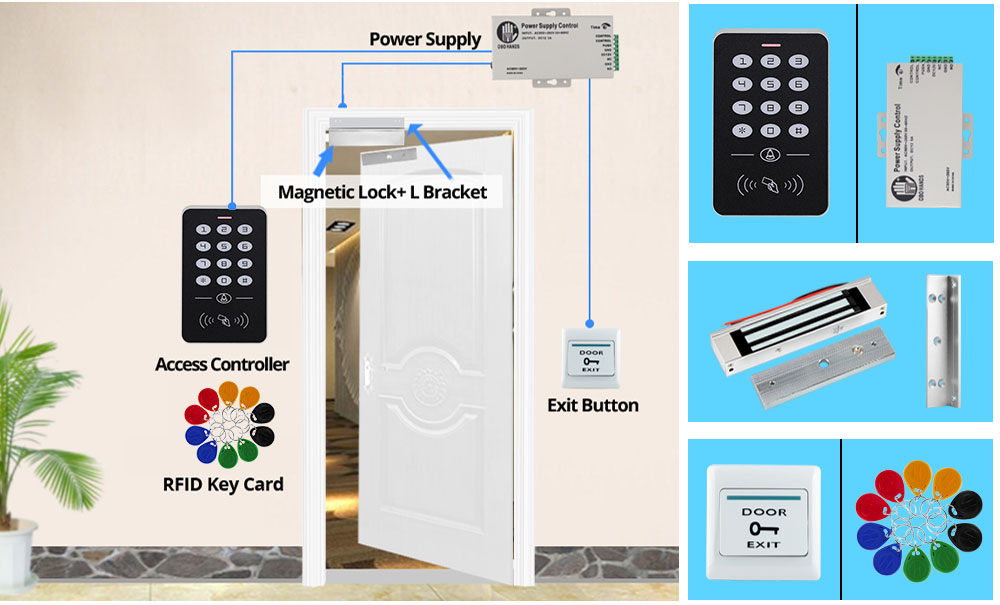

Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.
Size of L Bracket: 170* 34 * 25mm (L/W/H)

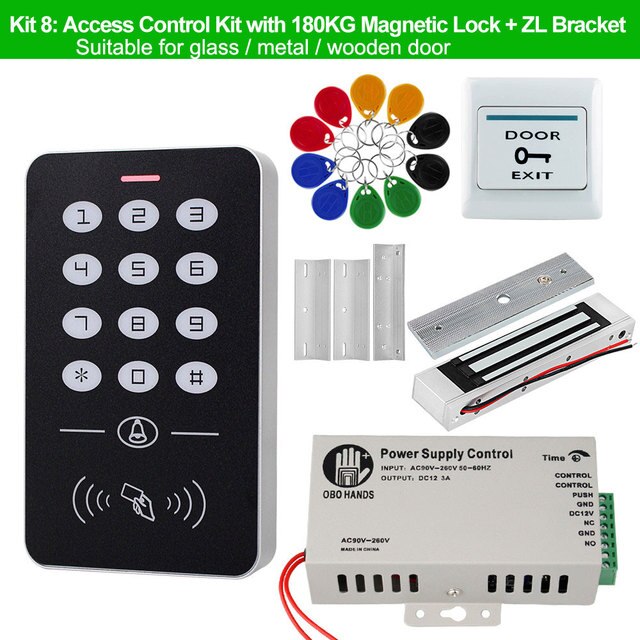

Kit8: Suitable for wooden, metal, glass door. Need ZL bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 10pcs Keyfobs

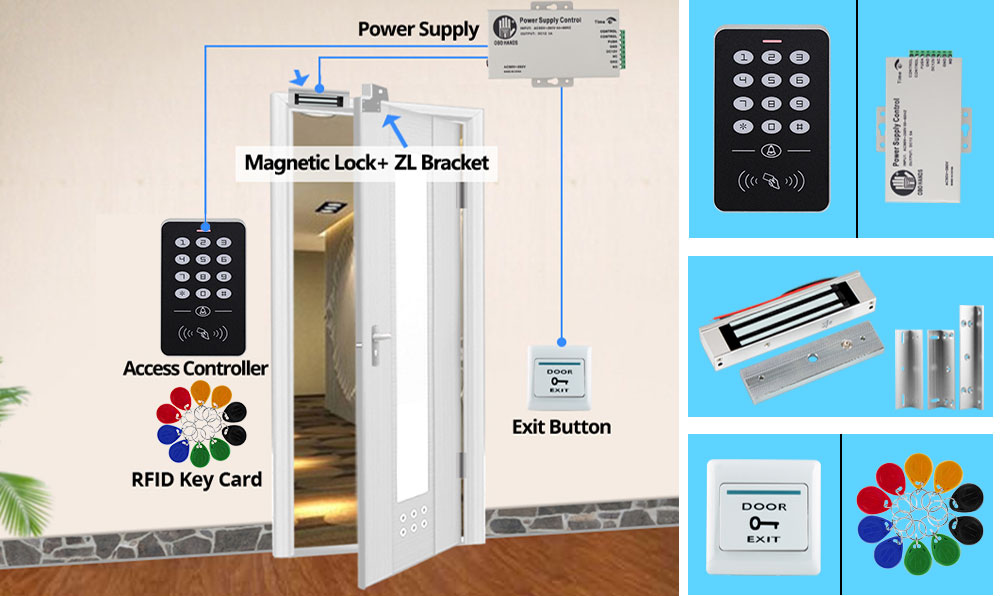

If your door is open from indoor, then need to add the ZL bracket.
Size of L Bracket: 170*34*25mm (L/W/H) ,
Size of Z Bracket: 138*45*45mm (L/W/H)
Kit9:Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + Embedded 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs
Size of the Lock: 192Lx33Wx20H(mm)
Size of Armature Plate: 139Lx32x11H(mm)
Holding Force: 180kg(350Lbs)
Input Voltage: 12VDC
Current: 12V/120mA
Size of Armature Plate: 139Lx32x11H(mm)
Holding Force: 180kg(350Lbs)
Input Voltage: 12VDC
Current: 12V/120mA
Wiring Diagram
- Direction: None
- Security Mode: Fail Safe
- Model Number: A1 kit
- Brand Name: OBO HANDS
- Certification: NONE
- Origin: Mainland China
- Type: Access Control Kit
- Working Voltage: DC12V
- Working temperature: 0 ° C ~ 60 ° C
- User Capacity: 1000 users
- Unlock Mode: Password, RFID Card, RFID card+password
- Working Frequency: 125KHz
- Lock1: 180KG Magnetic Lock
- Lock2: Electric strike lock
- Lock3: Electric drop bolt lock
- Bracket: L/U/ ZL Bracket
- RFID Keypad: A1
- Access control power supply: DC12V 3A
- Type1: Door Access control system
- Type2: RFID access control system
