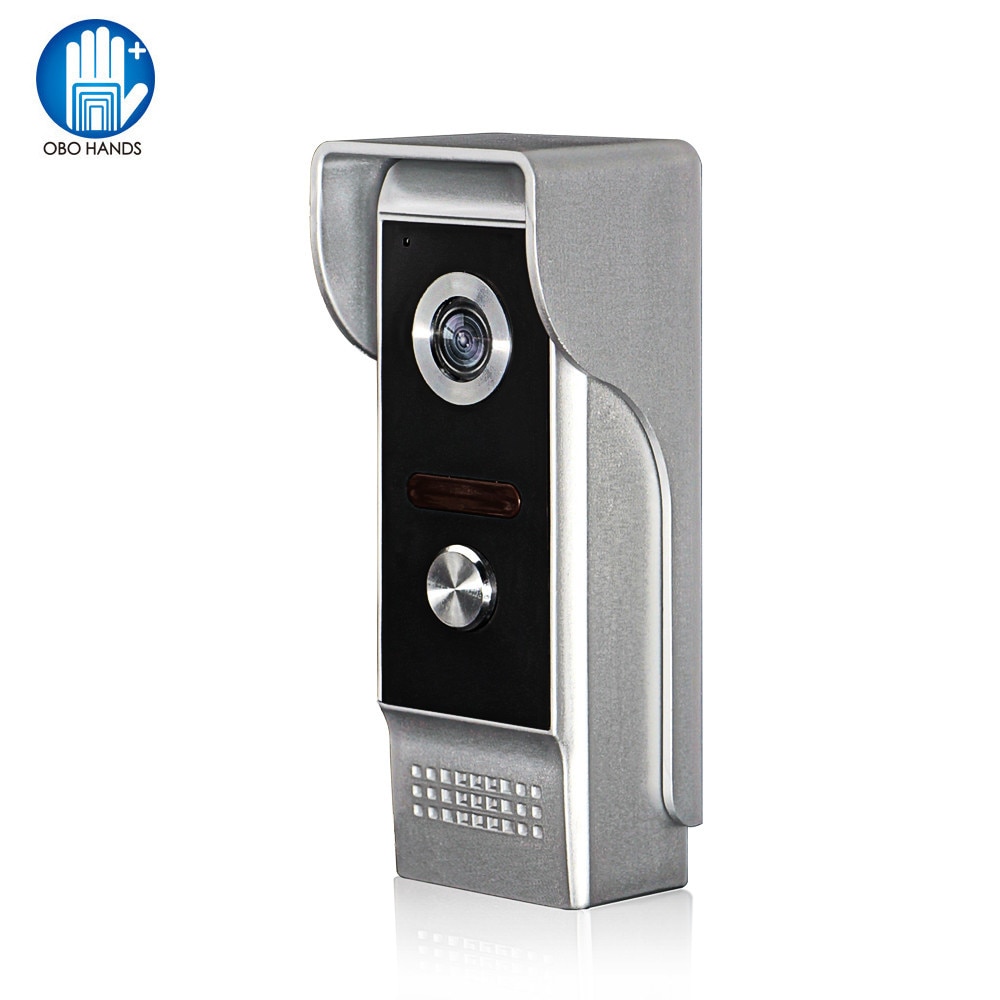

OBO 700TVL Waterproof Video Camera Door Bell Video Intercom System Outdoor Entrance Machine Video Doorphone IR Night Vision
4.7 (15 votes) | 112 orders
Price:
US $49.15
/ piece
Discount Price:
US $
41.78
/ piece
-15%
- Color
-
-

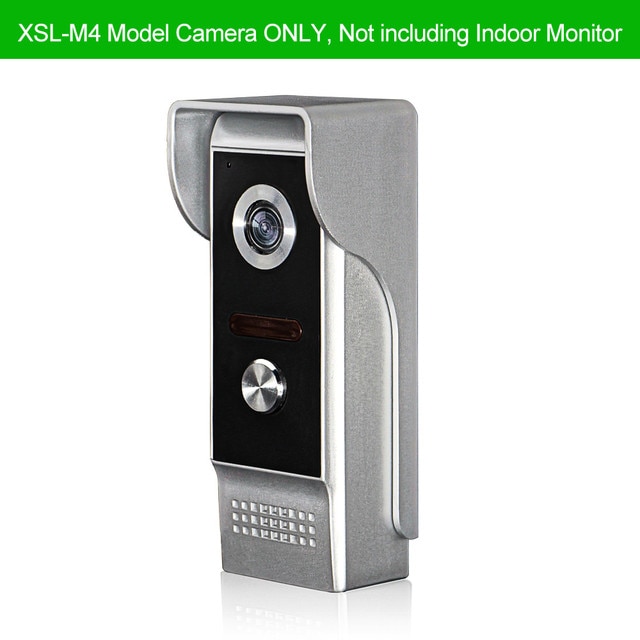

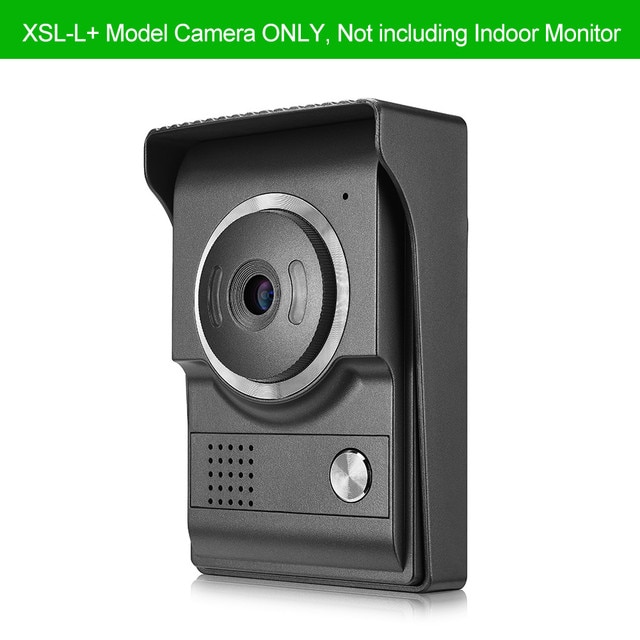

700TVL IR Night Vision Outdoor Camera Door Bell,
not including indoor monitor
This video door phone use international 4-wire structure design. The Max distance of audio & video transmission is 100meters. Provides a 90 degree wide viewing angle, equip with a rainproof cover, can be installed outdoor. Bulid in IR light, you can monitor the outdoor scene at any time. It is an ideal home security product which will make for a safer home environment!

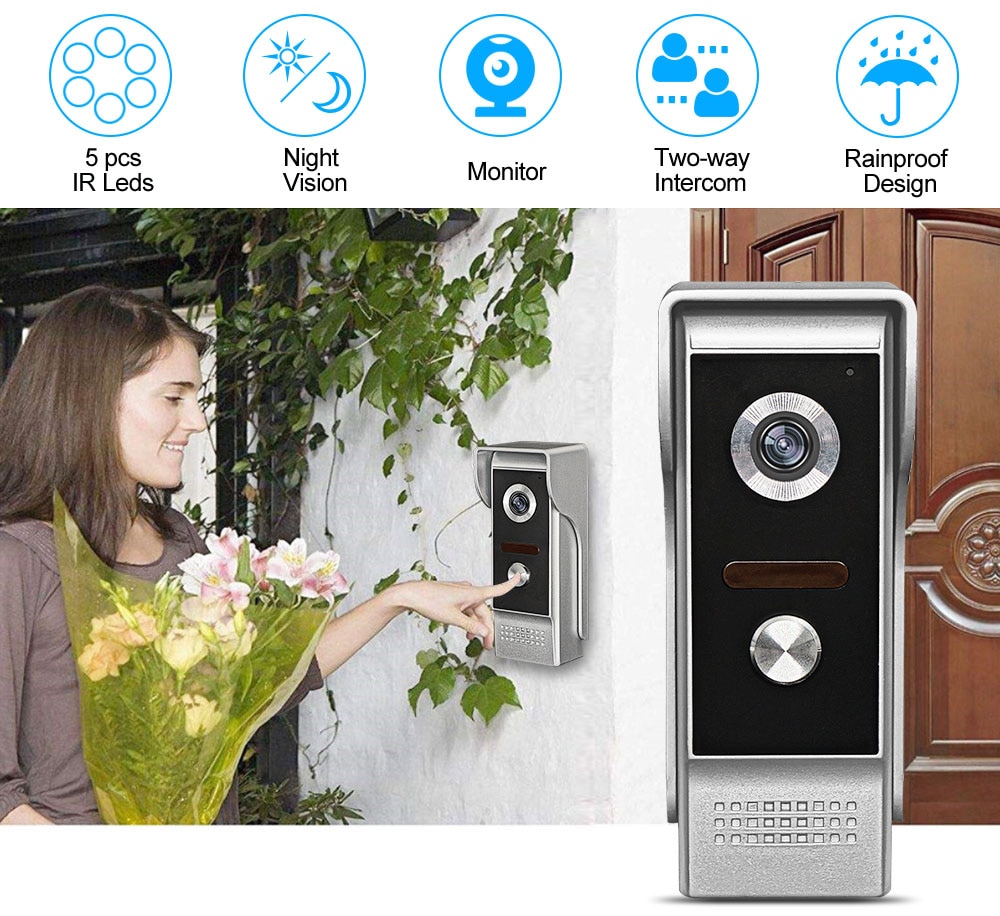

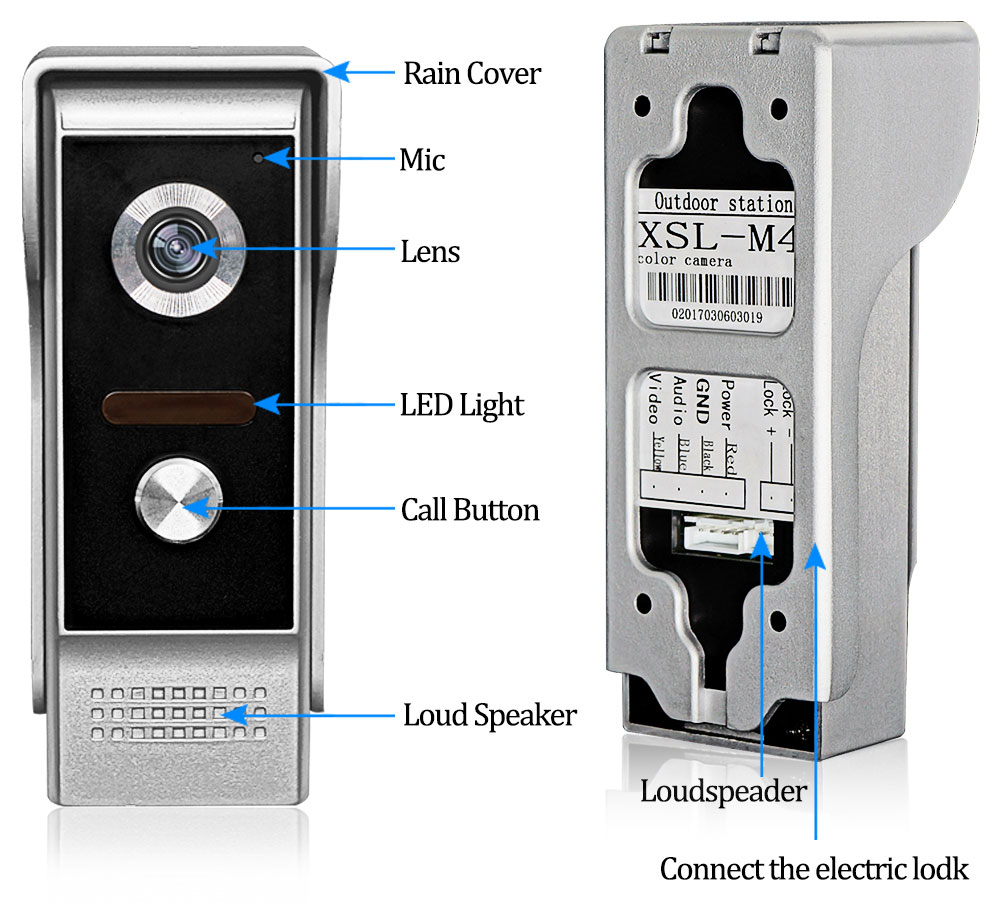

Product Features
700TVL camera
Built-in 5 IR Lights for nigjt vision
Dual-way intercom
IP54 and rainproof cover
Power from indoor monitor
Aluminum alloy panel
4-Wire Connection
1 Camera can work with max 6 indoor monitors
Product Details

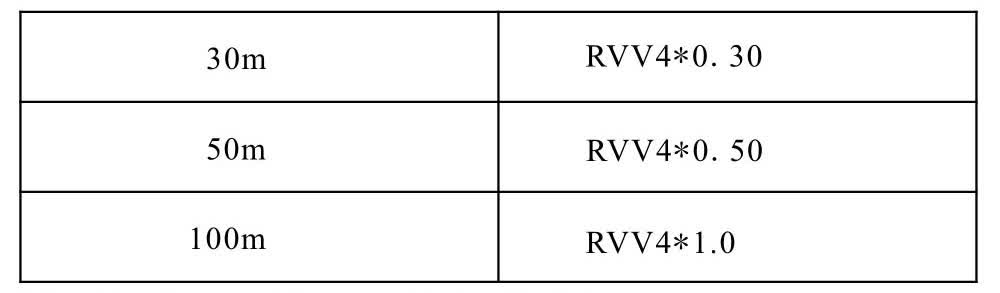

1. Using 4-core cable to connect camera to monitor, useing 5-core cable to connect monitor to next monitor. The Max distance support 100 meter. Different distance, use different diameter cable.
please check the following from to choose correspnding cable. (The cable need to buy by yourself, we will not provide it.)

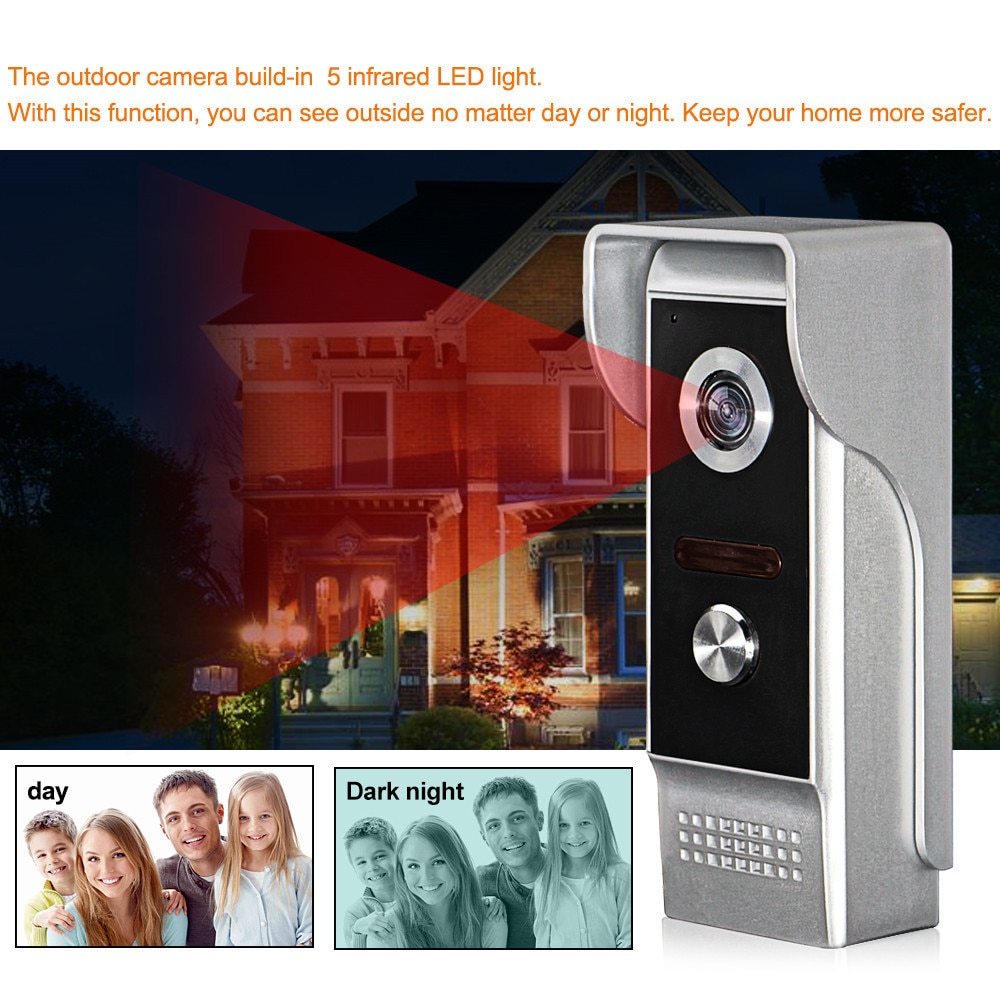

2. 700TVL IR Night Vision. The outdoor camera build-in 5 infrared LED light.
With this function, you can see outside no matter day or night. Keep your home more safer.

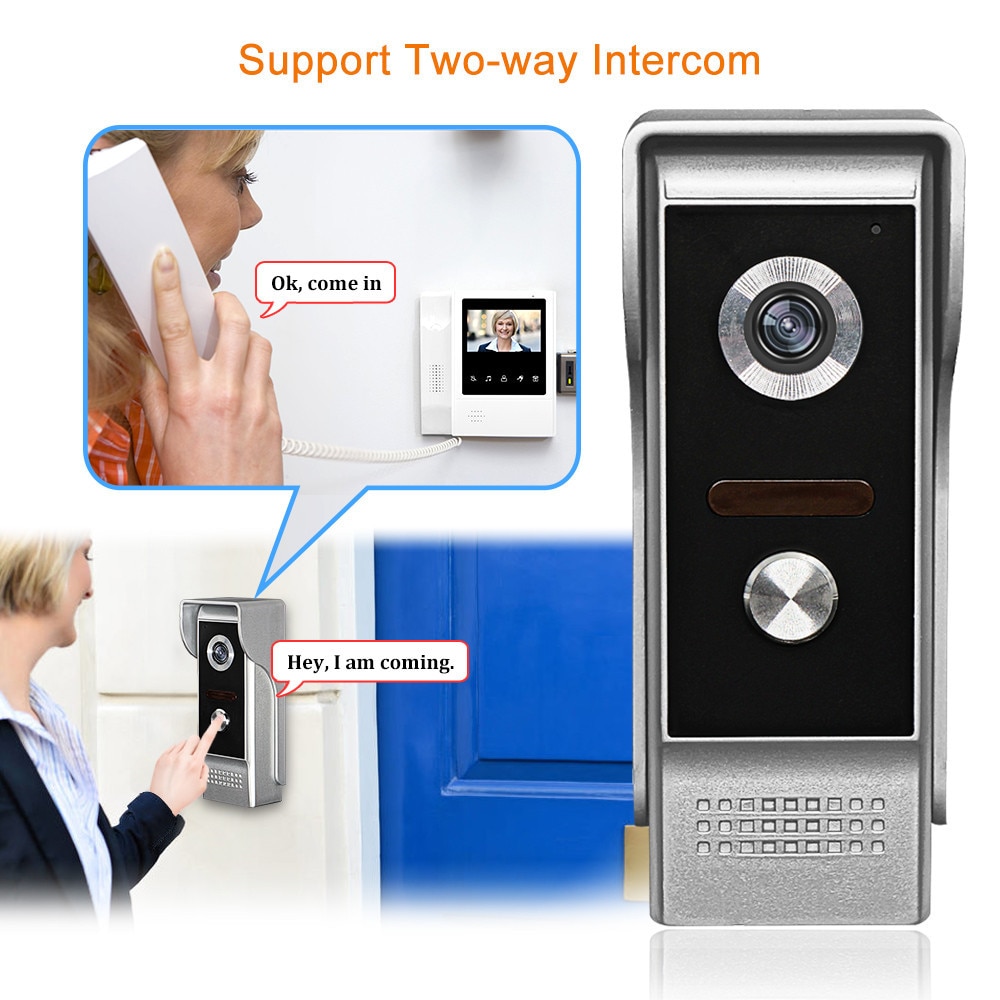

3. Support Two-way radio function
When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk to outside, press the answer button again to turn it off.

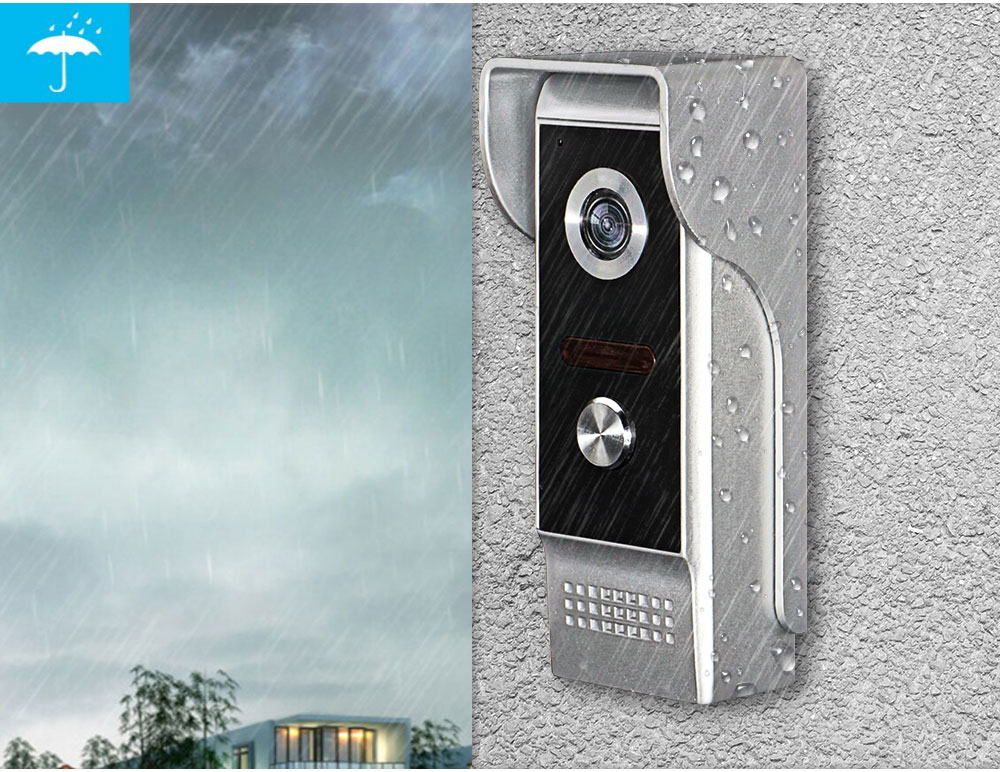

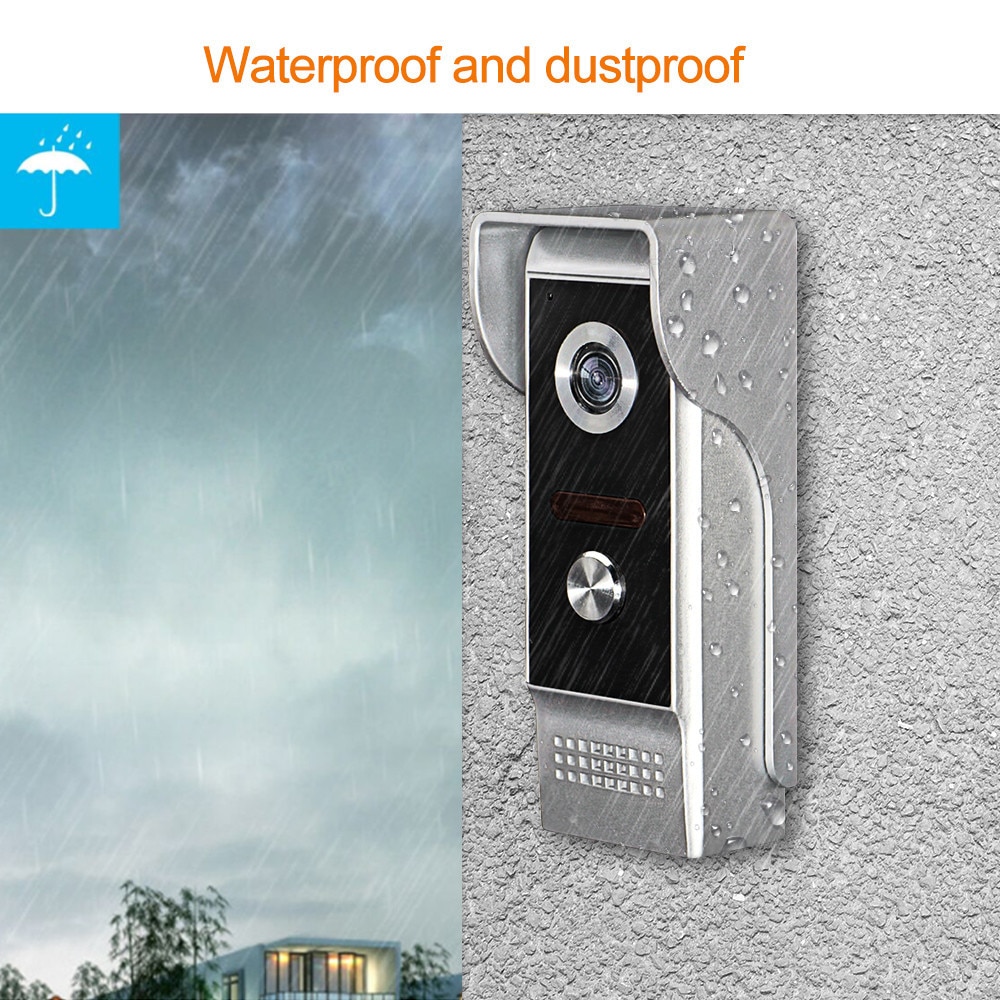

4.Waterproof and dustproof
The outdoor camera equip with a weatherproof cover, can be used outside even in very bad weather.
5. Can work with DC12V electric lock. Open the door with the unlock button of indoor monitor
Working with the electirc lock, make your home more securty. ( both of the indoor monitor and locks not including in the package, if you want them, please contact us)
Product Specification:
• Function: Color video door phone, Night vision, HD camera, Waterproof
• Camera Resolution: 700TVL
• Night Vision: Up to 2 meters
• Working Temperature: -35 °C ~ +55 °C
• View angle: 85 to 92°
• Waterproof: Come with a weaterproof cover
• Installation: Surface mounted
• Material: Aluminum alloy
• Wire System: 4 Wire system

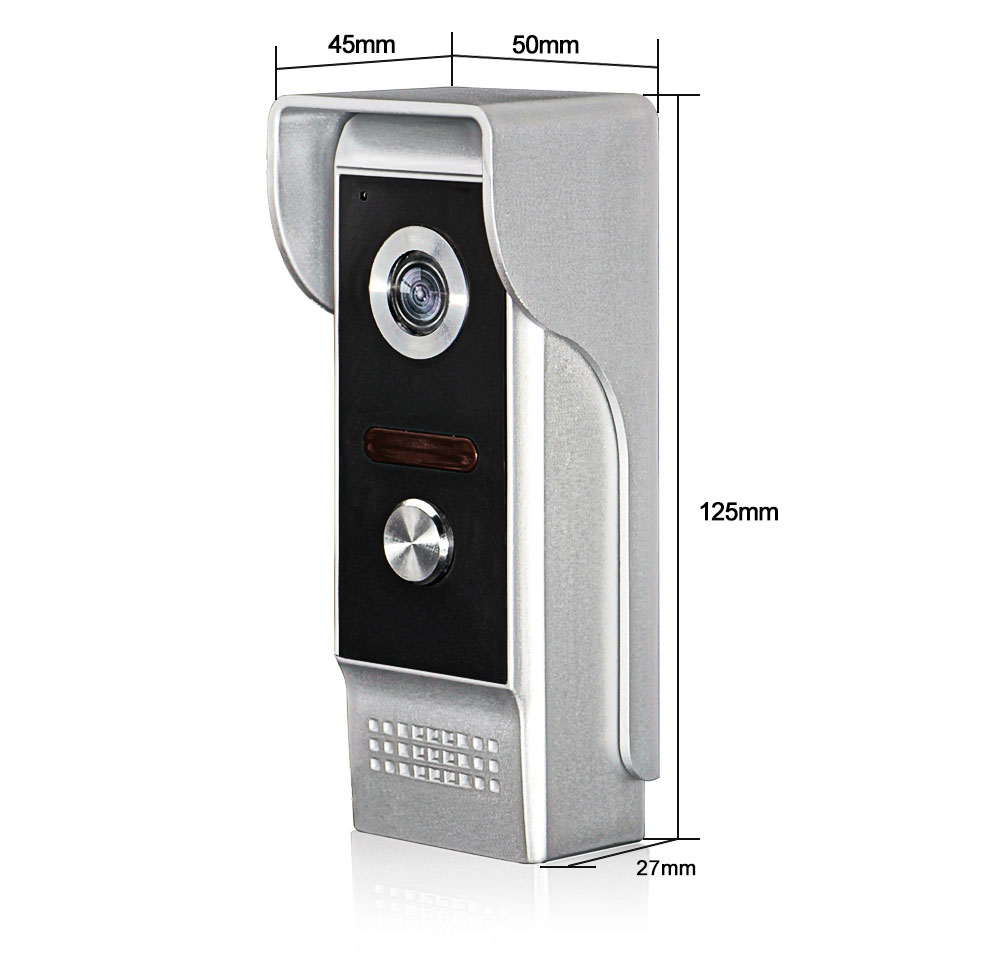

• Dimension: 50mm(L) x 27mm(W) x 125mm(H)

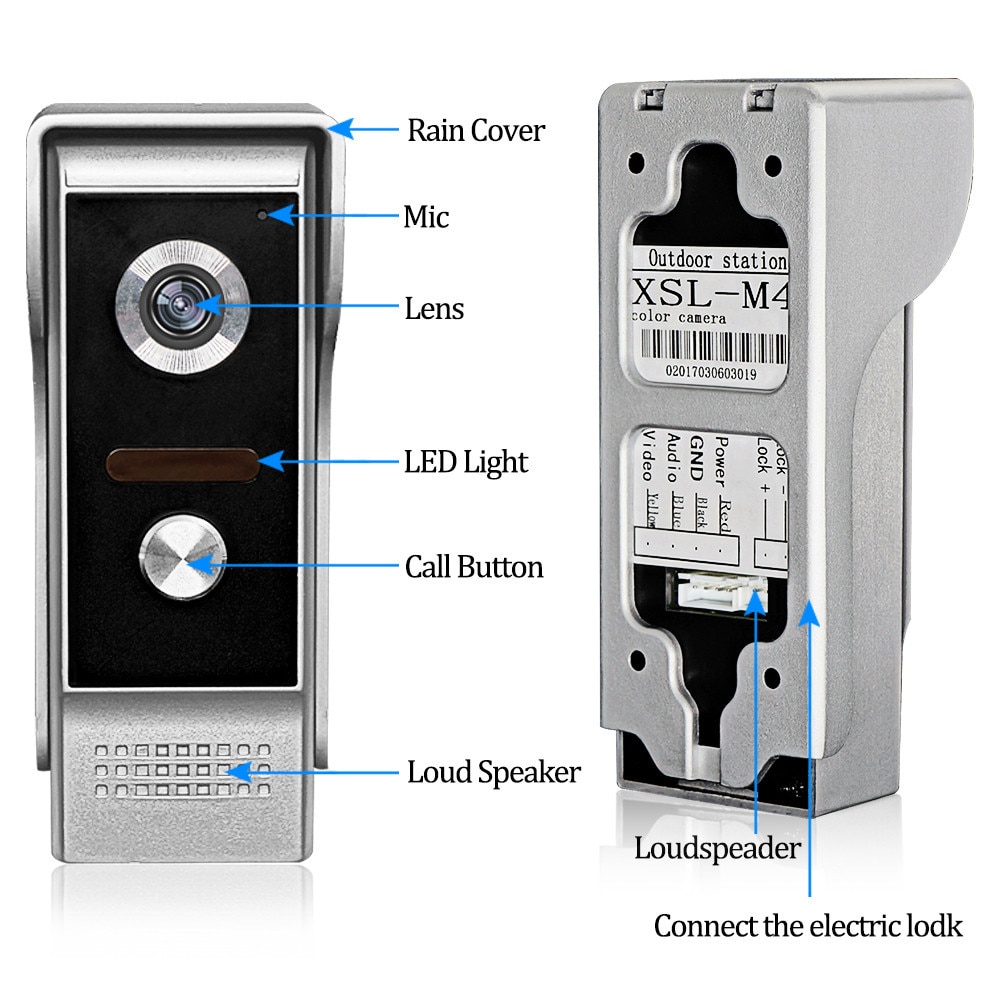

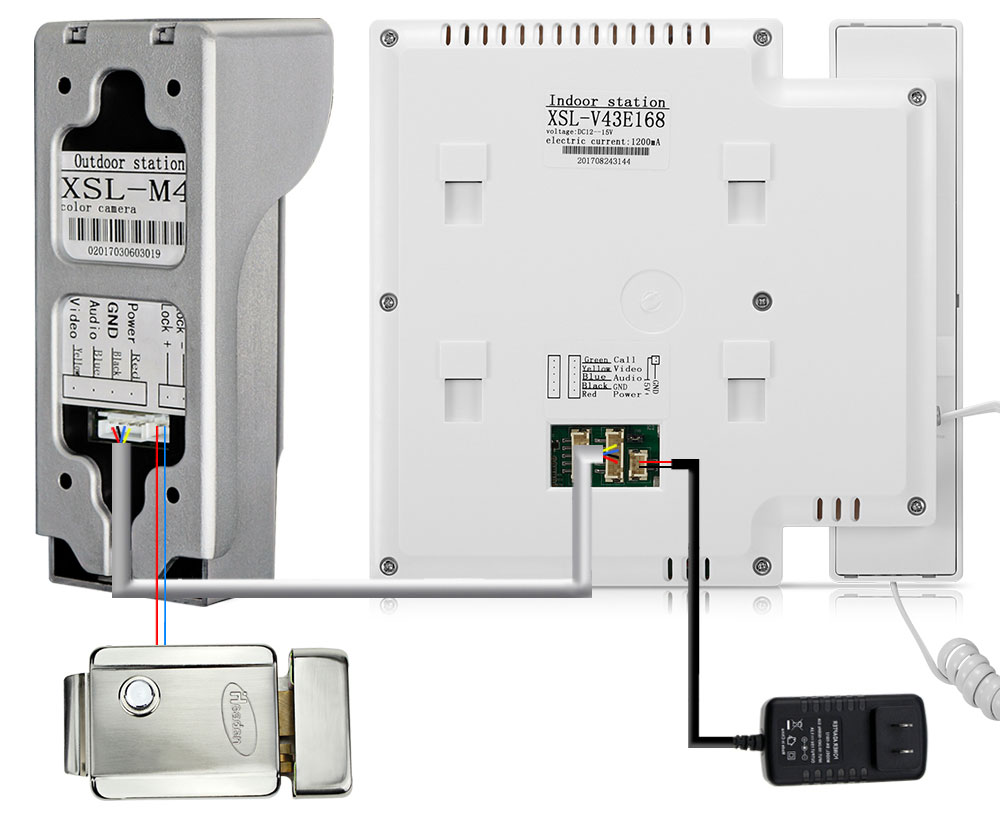

Wiring Instruction
It is a 4-wire system, use 4-core cable to connect the camera to monitor.
(Please note the locks, indoor unit at below photo is not included, if you need, please feel free to contact us）

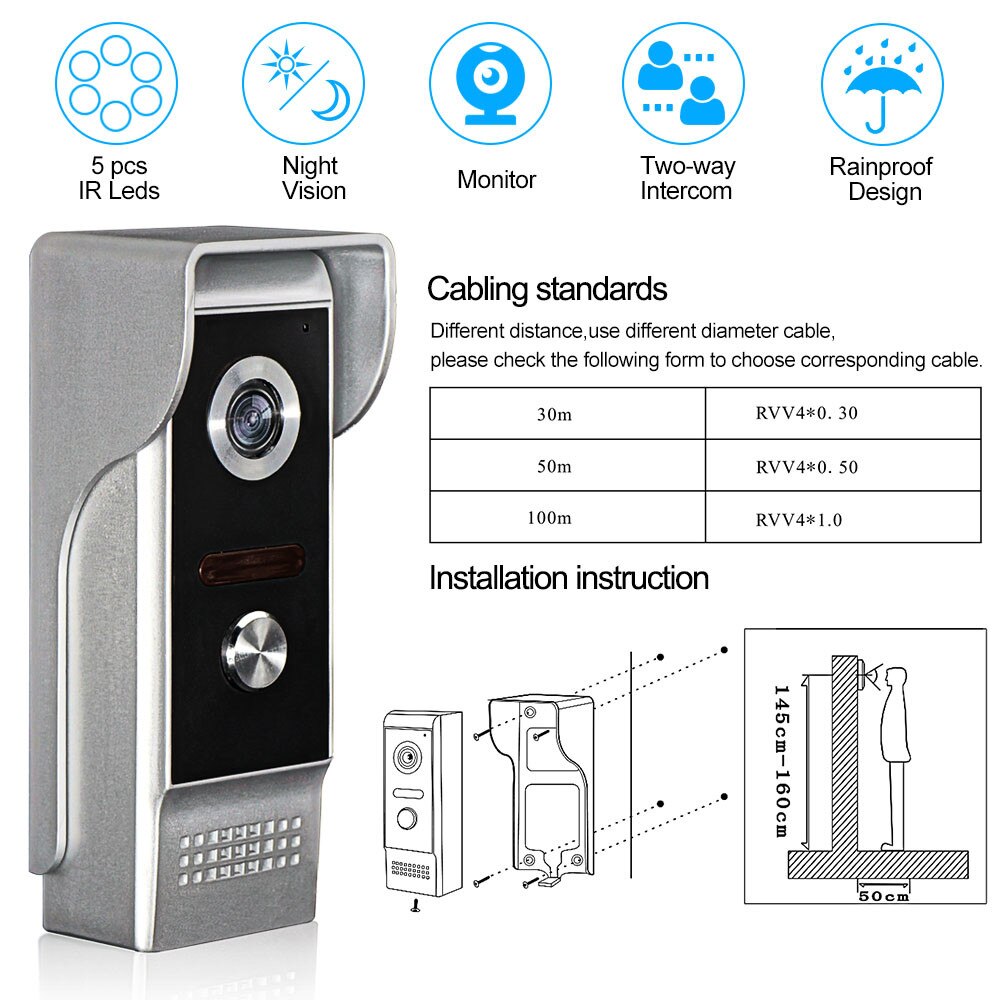

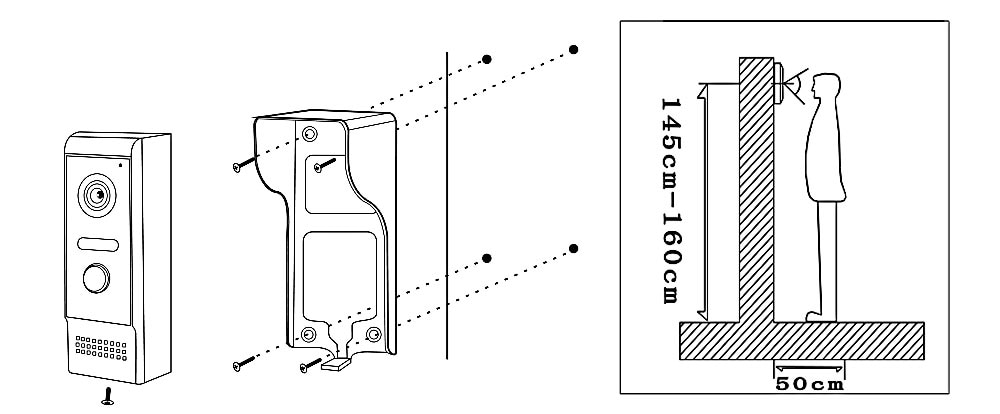

Installation instruction
Very Important
This cameras can only work with any of the monitor as the below picture. We can not guarantee if your own monitor will work with our camera. If you already have such monitor as the picture or want to add extra camera, please feel free to contact us before buying. Thank you!
- Size: 50mm(L) x 27mm(W) x 125mm(H)
- Doorbell: Yes
- Material: ABS/metal
- Power: DC15V/1.2A
- Sensor Size(Inch): 1/4
- Resolution: 700TVL
- Power: 220v
- Camera: CMOS

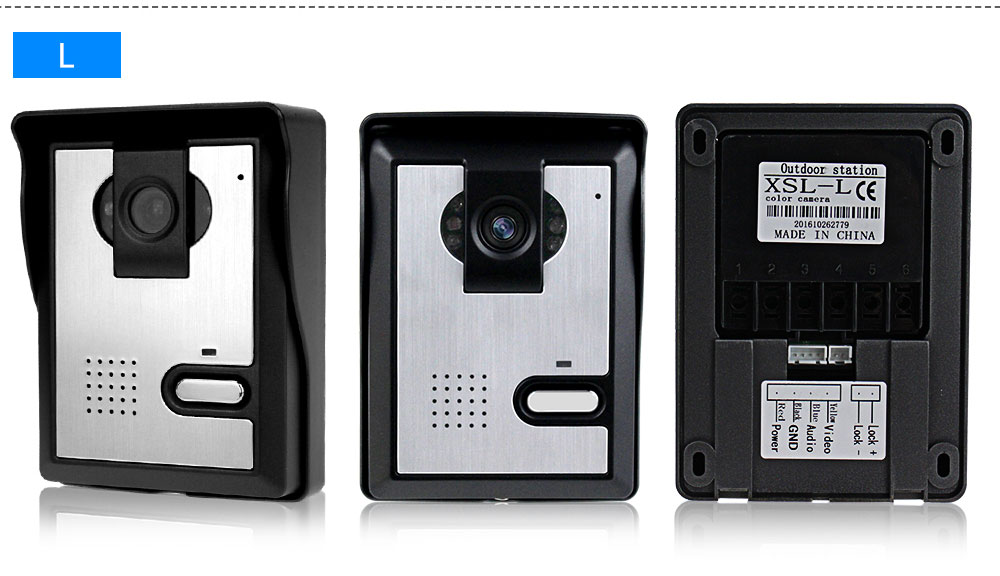

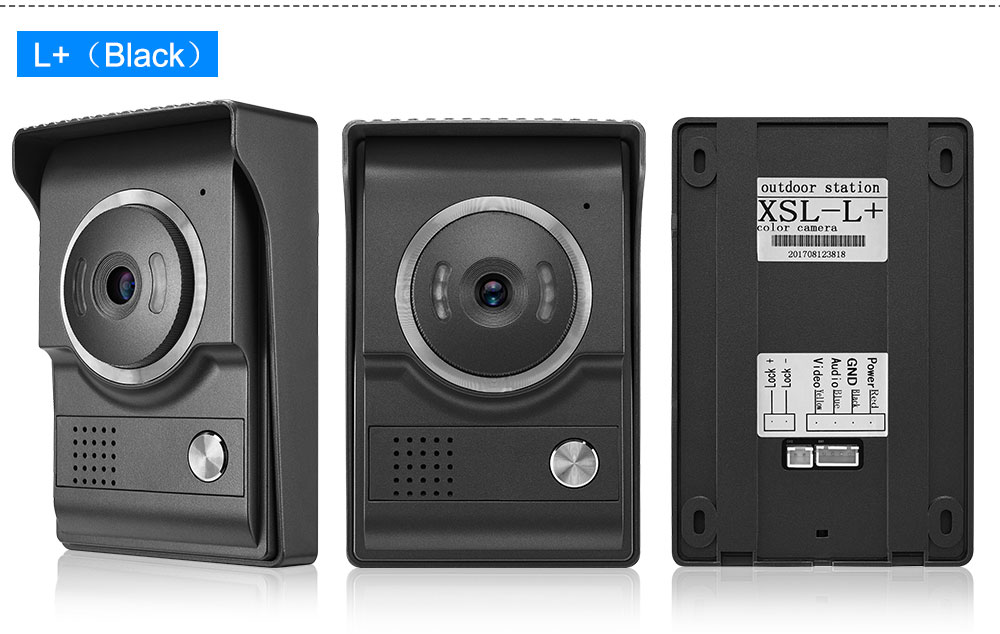

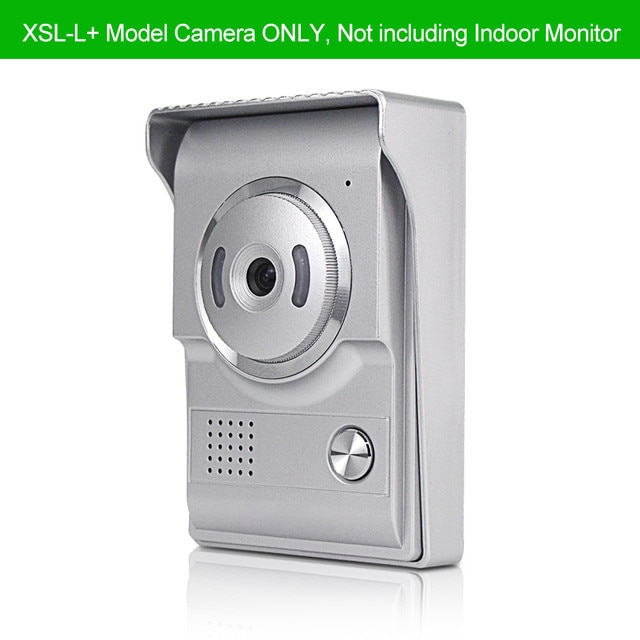

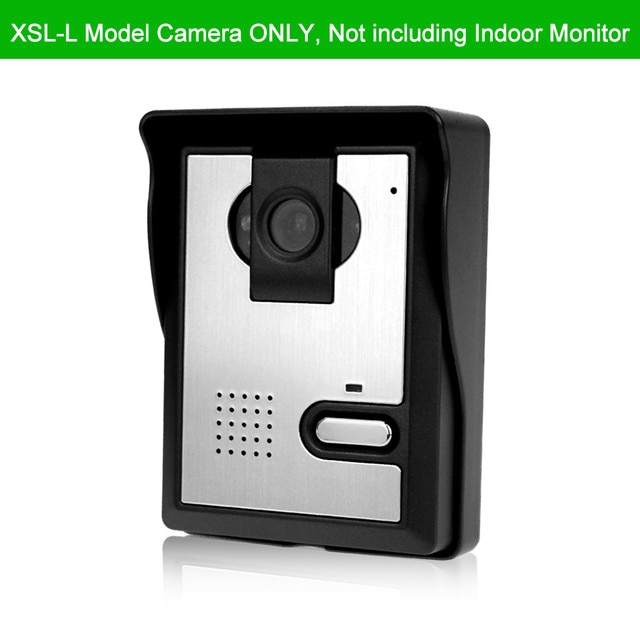

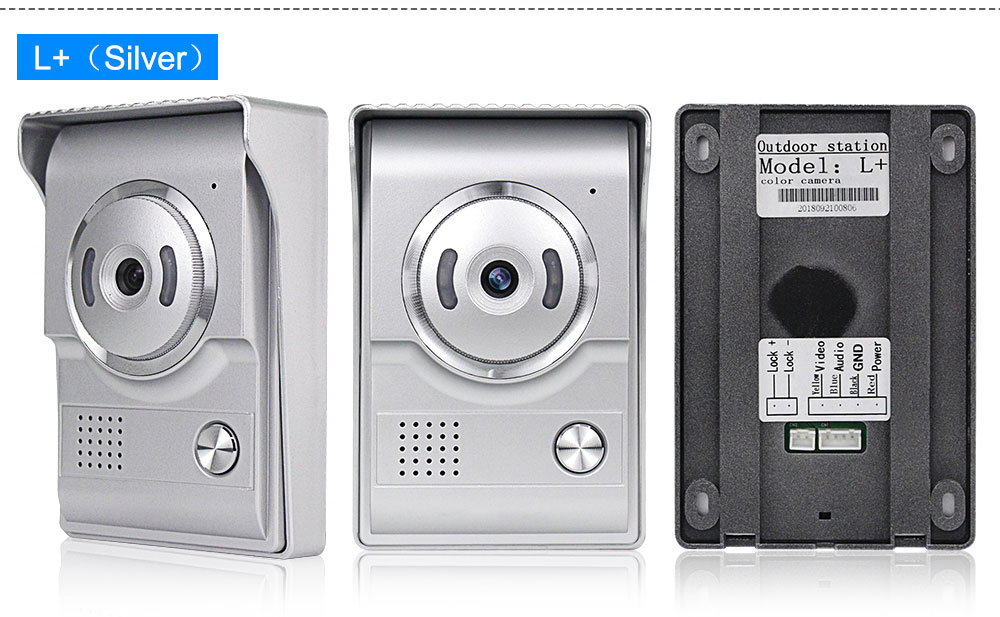

- Model Number: M4/L / L+
- IP Camera Interface: No
- Access Control: None
- Waterproof: Yes
- Samrt Home Interface: No
- Technology: DIGITAL
- Installation: Wall Mounting
- Connection Type: WIRED
- Zone Input: None
- Display Screen Type: color
- Type: Entrance Machine
- Viewing Angle (°): 90
- Kit Configuration: Camera Only
- Display Size: 7
- Answering Mode: Hands-free
- Camera Sensor type: CMOS
- Connection Method: WIRED
- Brand Name: OBO HANDS
- Origin: Mainland China
- Certification: CE
- Distance: support up to 100 meters
