Non-HF Pilot Arc HC4000 Plasma Cutter Dual Voltage 120V/240V Digital Control Plasma Cutting machine
0.0 ( votes)
Price:
US $
938.00
/ piece
- Ships From
Sorry! This item is out of stock
Note:
1. The price for this machine is not include customer's local tax - Tariff.
2. Please read this pages for the accessories and parameters before you place an order, Make sure it is what you want.
3. This machine is non-HF pilot arc air plasma cutting machine.
4. The power range must not less than 195V, Otherwise the pilot arc would not stable.
Description:

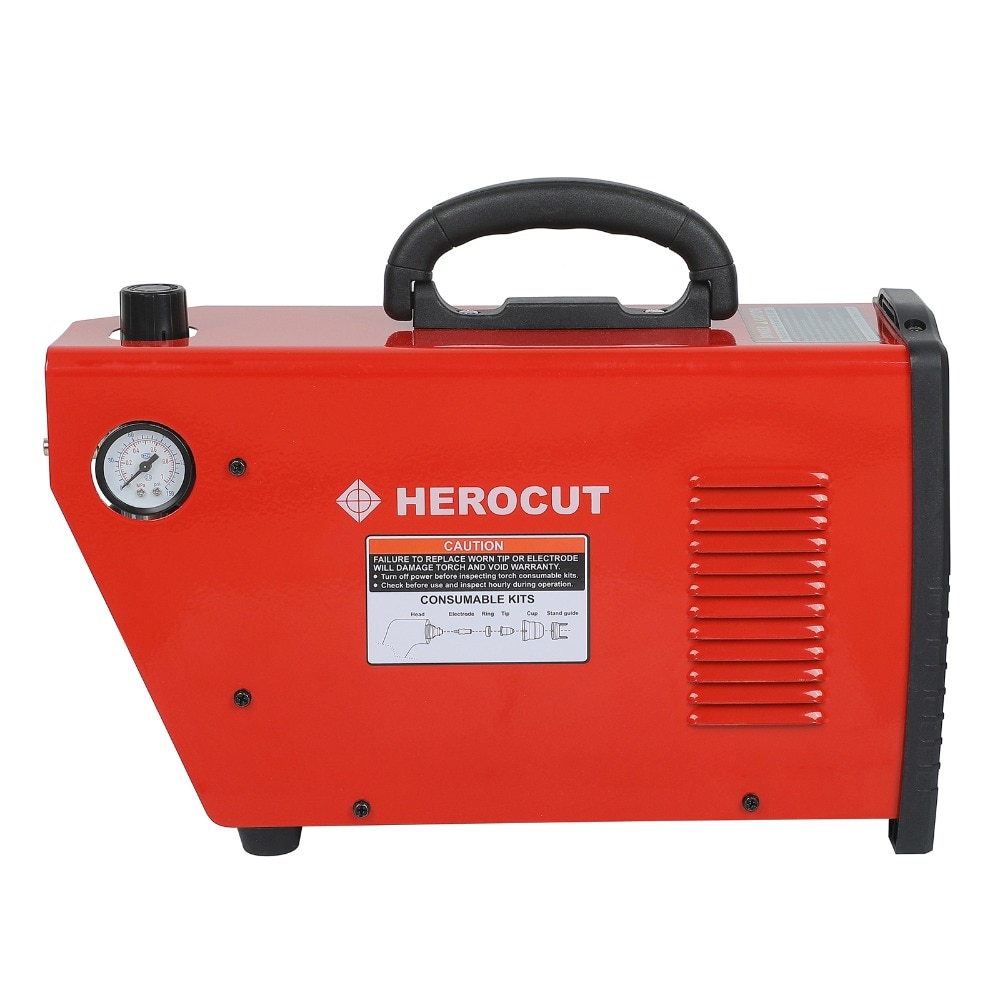

IGBT Inverter plasma cutting machine HC4000 is developed by HeroCut. Non-hf pilot arc, Small compact efficient IGBT base Digital controller. This machine is one of the most portable single phase inverter cutting machines on the market. With quality torch fixed safety plasma central plug, The fast connection quick to release torch and ground clamp. The machine is easy to operate in terms of settings, Post air was fixed 6 seconds,LED Display show cutting amps help user adjust the current to cut different metal. Cutting thickness for this machine is 12mm at 70 psi in good performance, Max cutting thickness can reach at 16mm'' if needed for a short run.
Non-HF Pilot Arc & Non-Touch.
Quality plasma torch fixed safety plug.
Digital Amps display
Dual voltage 120v / 240v;

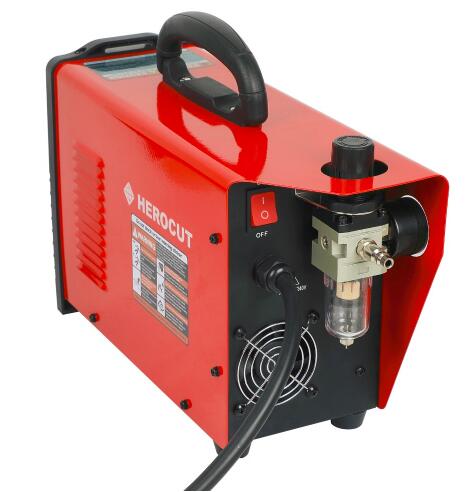

Air regulator fixed on machine.
Inverter 35Amps power supply, 60% Duty cycle at 35amps, 100% at 30amps
Machine come without power plug
The input voltage must more than 195V, Otherwise the pilot arc maybe not stable.

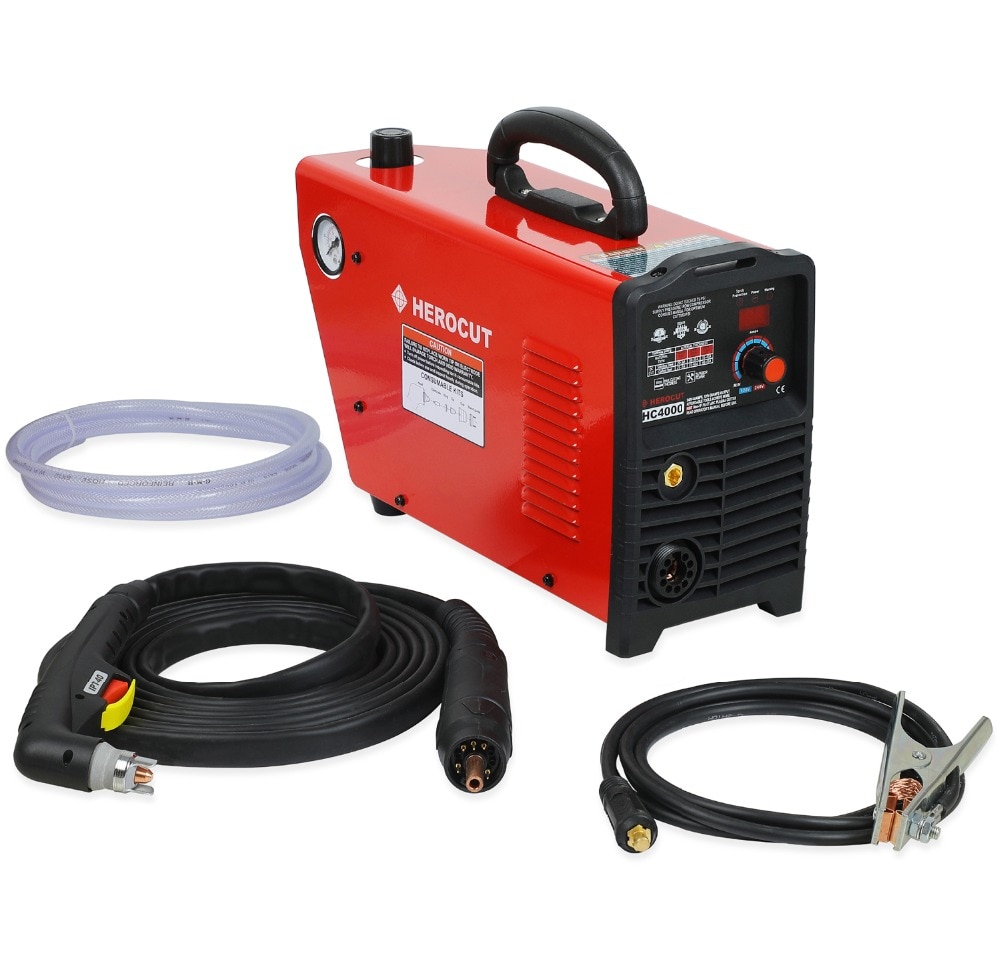

Accessories:
IPT40 Non HF Pilot Arc torch with 5 meters cable.
Earth clamp with 3 meters cable
3 meters air hose
2 tips
2 electrode
2 pcs hose clamp
Manual
Product information
Technical Details
Input power | 120V / 240V +/- 10% 50/60 Hz |
Package Dimensions | 445 * 295 * 330 mm |
Current | 35 Amps |
Cutting Thickness - clean cut | 12mm @70 PSI |
Max Cutting Thickness severance cut | 16mm @ 70PSI |
Cutting Speed ( 20mm metal ) | 120mm/min |
Machine size | 362*144*279 mm |
Duty cycle | 100% @ 30Amps, 60% @35Amps |
Additional Information
Cutting torch | PT40 non HF plilot arc |
Working | Non HF Pilot arc, Non Touch |
Shipping Weight | 8 kgs |
Cutting Speed | 200mm/min @12mm 70PSI |
- Brand Name: HeroCut
- Origin: Mainland China
- Model Number: HC4000
- Certification: CE
- Usage: Plasma cutting machine
- Input Voltage: 120V/240V
- Rated Current: 35Amps
- Dimensions: 372*155*279 mm
- Arc starting: Non HF Pilot arc
- Air Pressure Range: 30-70 PSI
- Clean Cutting Thickness: 12 mm @70PSI 220V
- Cutting Thickness Severance: 16 mm @70PSI 220V
- Duty cycle: 40% @ 104 F
- CNC port: Non
