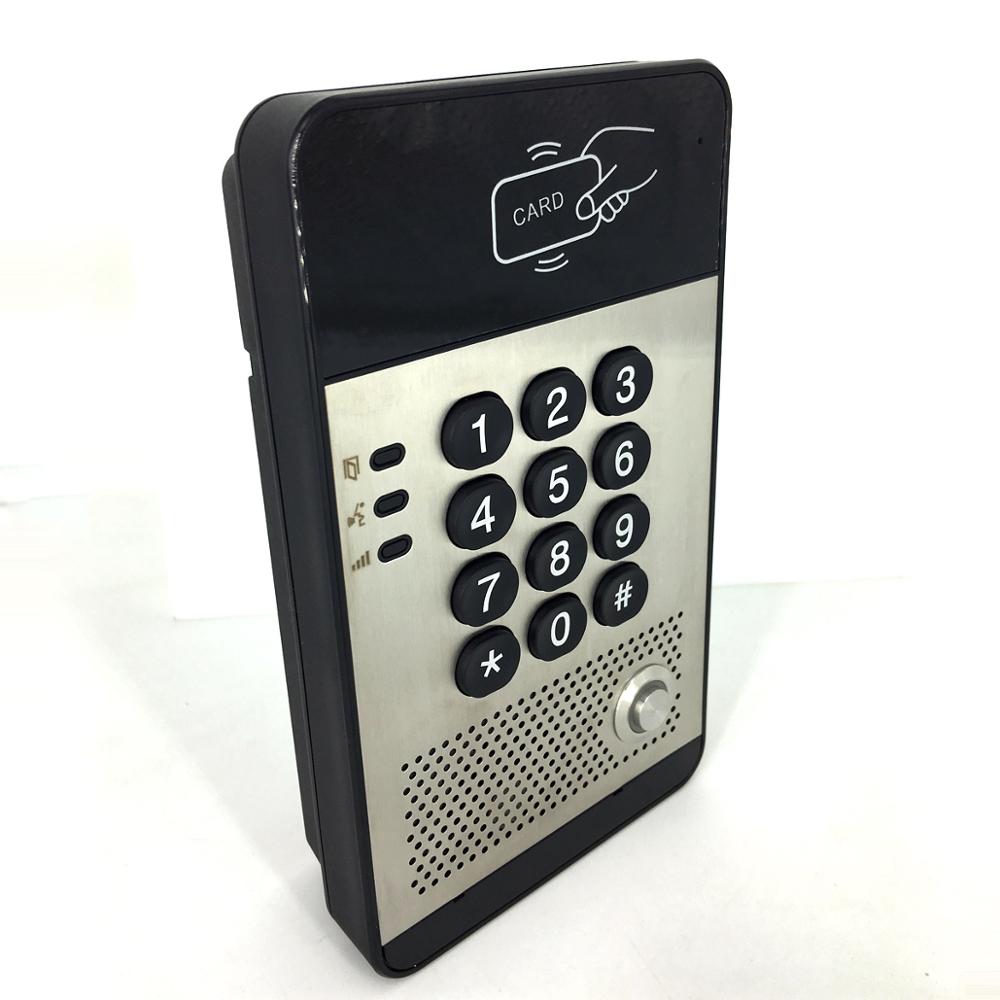

NiteRay unlock SIP intercom door phone IP door phone opener

0.0 ( votes) | 2 orders
Price: US $468.00 / piece
Discount Price:
US $ 323.76 / piece
-31%
Quantity

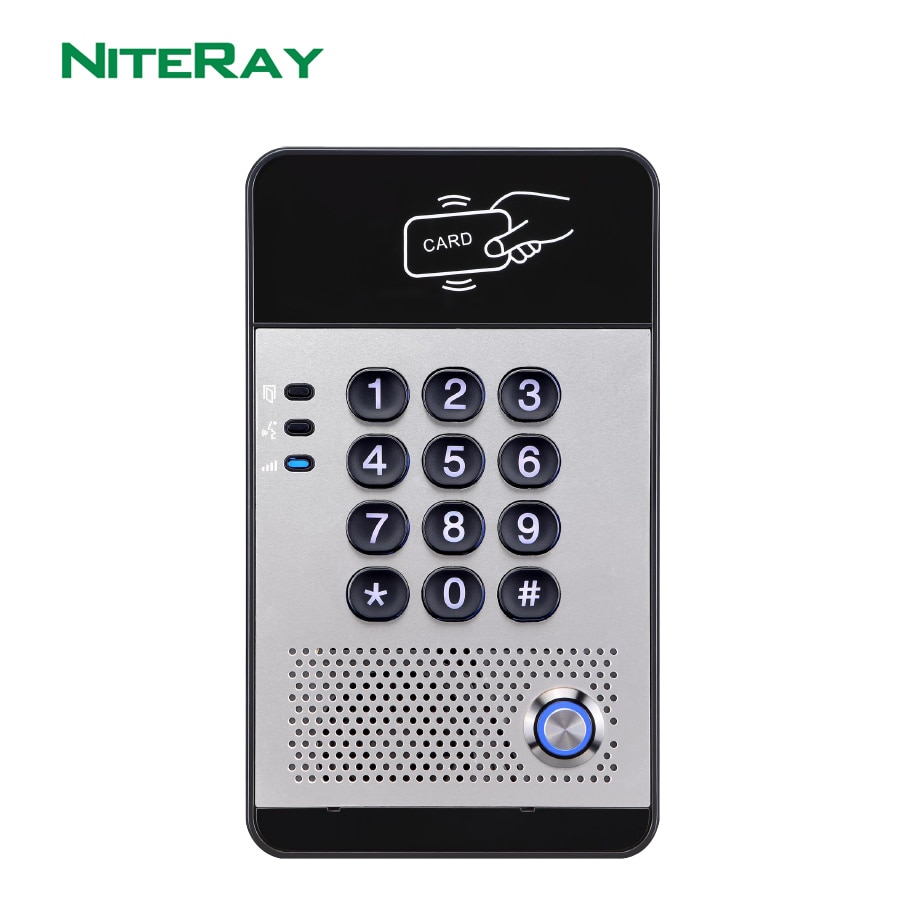

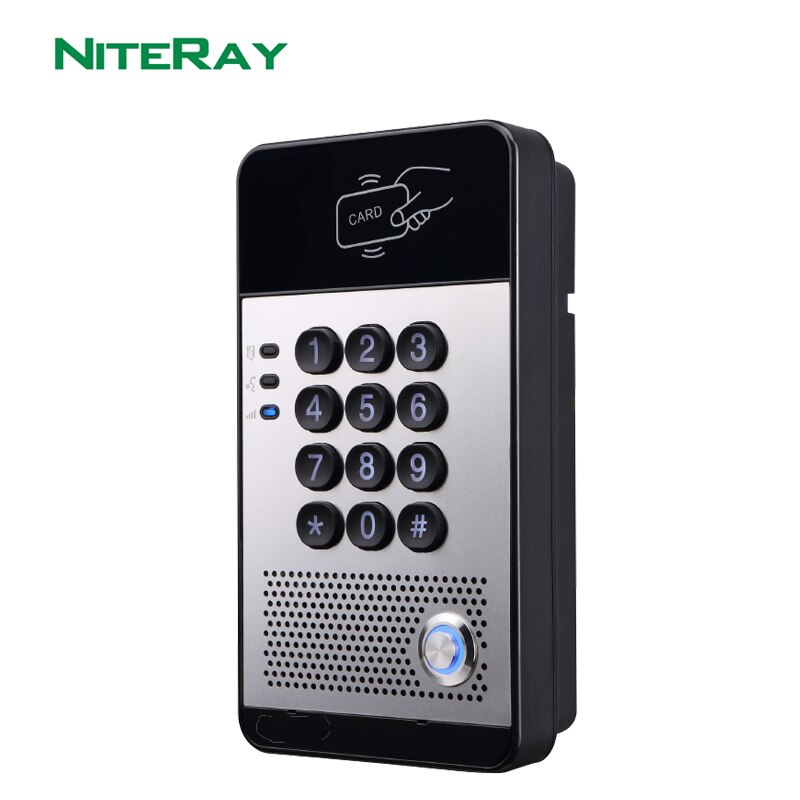

All-in-one IP Doorphone: Support Remote DTMF,Local Password and RFID Cards to Open the Door

The design of Q506 Sip Door phone are based on experience and knowledge of IP phone development. Q506 are using standard IP/RTP/RTSP protocol for voice transmission and enjoy the advantages of full range of compatibility.
Q506 have a variety of enterprise-level features and compatible with lots of major platforms, such as 3CX, Asterisk, Broadsoft, Elastix, etc.
The Q506 SIP door phone is designed for operation in indoor conditions. The robust mechanical construction offers protective coverage rating against dust and water (IP65).

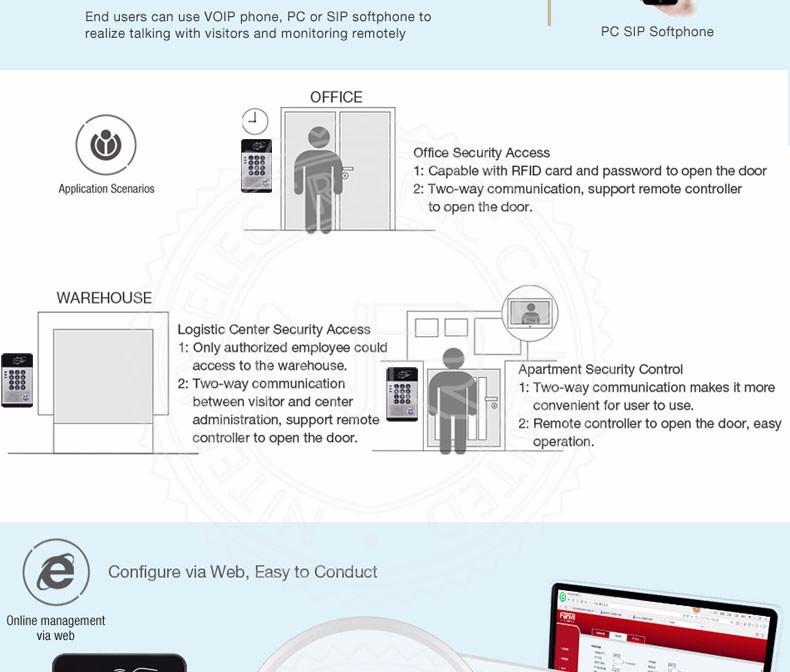

The Q506 is economical devices with triple function (All in 1)- Access control by call, code and RFID card.
Highlights

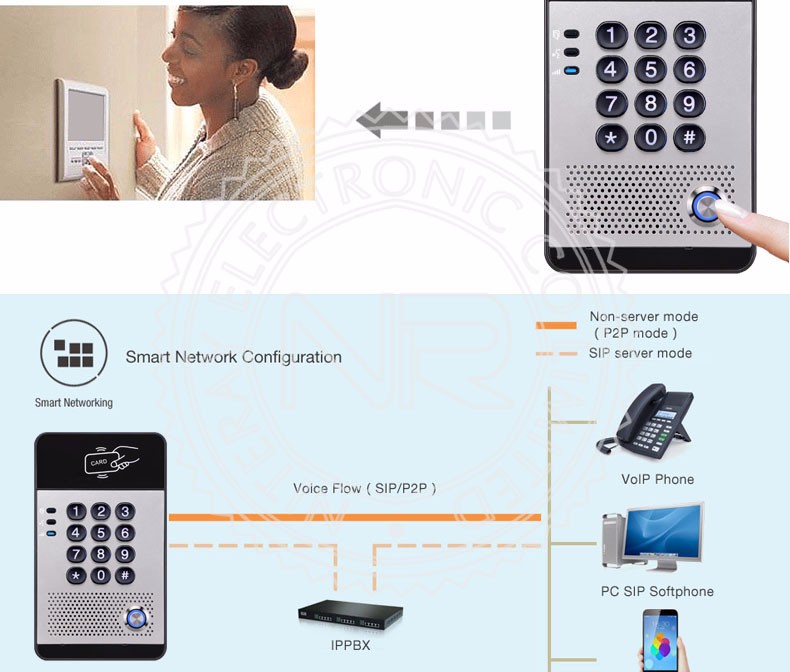

  1. Compatible with standard SIP(RFC3261) protocol and main IPPBX/IMS platform

  2. Access Control(by call,by code,IC/RFID)

  3. All-in-One(Access Control,Intercom and Broadcasting)

  4. Build-in 3W speaker and AEC,support high quality hand-free communication.

  5. Status indication icon

  6. System online maintenance and management

  7. IP65 waterproof design


Main Features

Call Features

Phone Features

Intercom

Call log (900 entries, in/out/missed)

Speed Dial

Open Door Log

Auto-Answering (per line)

Access Table (300 entries)

Voice Message (on server)

Support RFID Card issues (300 entries)

Local 3-way Conference

Programmable DSS/Soft keys

Hot Line

Network Time Synchronization


Action URL / Active URI

Specification

Generic

Protocols

2 SIP Lines

SIP2.0 over UDP/TCP/TLS

POE Enabled

RTP/RTCP/SRTP

Full-duplex speakerphone (HF)

STUN

Numeric keypad (Dial pad or Password input)

DHCP

Intelligent DSS Keys (Speed Dial)

PPPoE

Embedded installation

802.1x

Integrated RFID Card reader

L2TP (Basic Unencrypted)

Integrated indoor switchgear

OpenVPN

Integrated one Relay

SNTP

External Power Supply

FTP/TFTP

Access control-by call, code, RFID card

HTTP/HTTPS

Industrial Standard Certifications: IP54,CE/FCC

TR069



Call Features

RFCs:

Intercom

354/1321/1350/1769/1889/1890/2131/
2132/2616/2617/2661/2833/2976/3261/
3262/3263/3264/3265/3268/3311/
3489/3711/4346/4566/5630/5865

Speed Dial

Auto-Answering (per line)

Voice Message (on server)

Local 3-way Conference


Hot Line

Deployment & Maintenance


Auto-Provisioning via

Phone Features

FTP/TFTP/HTTP/HTTPS/DHCP/SIP PNP/TR069

Call log (900 entries, in/out/missed)

Web Management Portal

Open Door Log

Web-based Packet Dump

Access Table (300 entries)

Configuration Backup/Restore

Support RFID Card issues (300 entries)

Open Door Export

Programmable DSS/Soft keys

Access Table Export/Import

Network Time Synchronization

Firmware Upgrade

Action URL / Active URI

Syslog (include Door log)



Audio

Physical Specifications

Narrowband CODEC: G.711a/u, G.723.1,G.726-32K, G.729AB

1 DSS Key

Wideband CODEC: G.722

Numeric keypad

Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length

WAN: 10/100BASE-Tx, Auto-MDIX,RJ-45

RJ45 Ethernet Jacket x2: Network x1

Voice Activity Detection (VAD) / Comfort     Noise Generation (CNG) / Background
Noise Estimation (BNE)

(802.3AF POE Enabled), PC x1

(Bridged to Network)

Packet Loss Concealment (PLC)

PoE: 802.3af (Class 3 - 6.49~12.95W) 48V/380mA

Dynamic Adaptive Jitter Buffer up to 300ms

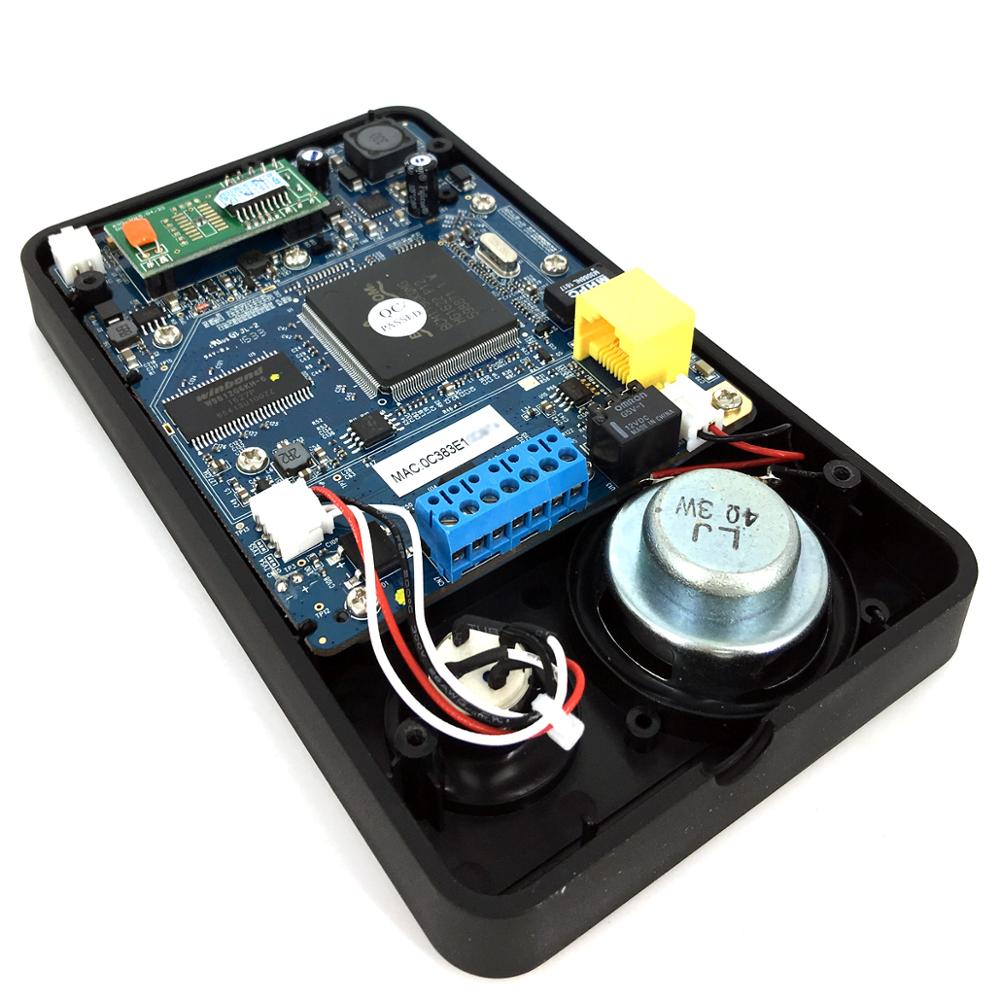

Main Chipset: Broadcom

DTMF: In-band, Out-of-Band – DTMF-Relay     (RFC2833) / SIP INFO

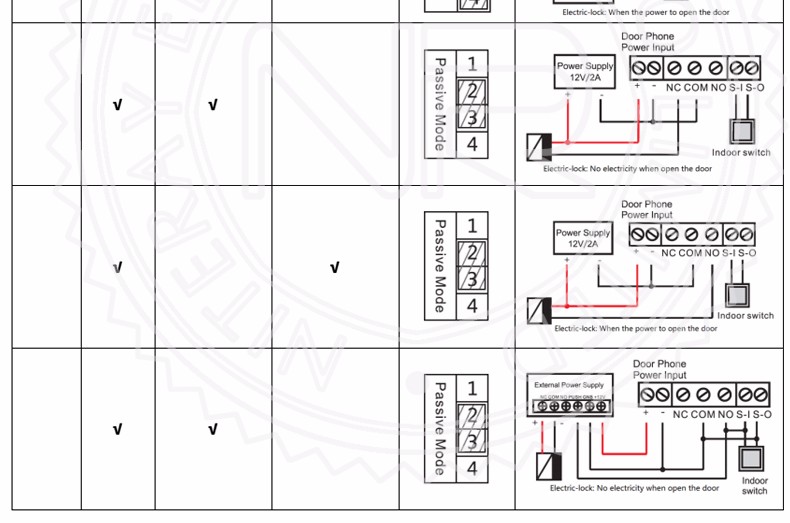

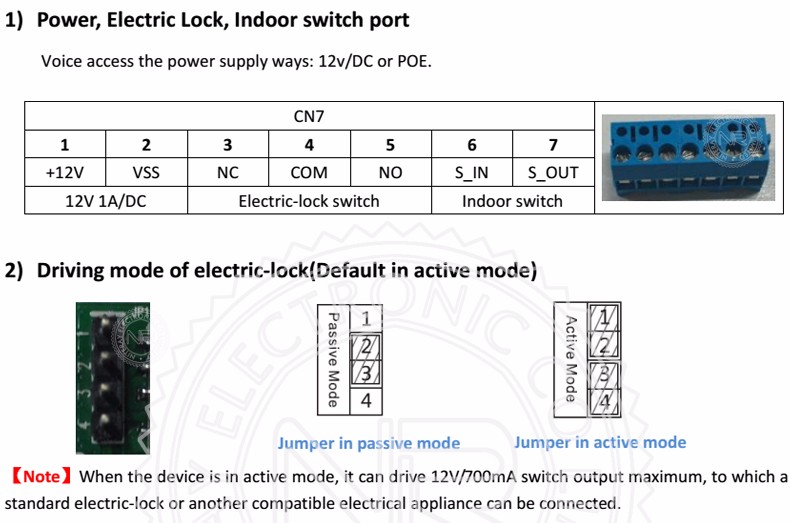

Passive Switch(short-circuit output): NC/NO Contacts, MAX 30V/1A AC/DC

Networking

Active Switched Output: 12V/700mA DC

Physical: RJ45 Ethernet Jacket x2: Network x1

Speaker: 4Ω/3W

(802.3AF POE Enabled), LAN x1

Cables: CAT5 or better

(Bridged to Network)

Power Supply:12V+-15%/1A DC or PoE

IP Configuration: Static / DHCP / PPPoE

RFID/IC Card: EM-4100 /4100 (125KHz)

Network Access Control: 802.1x

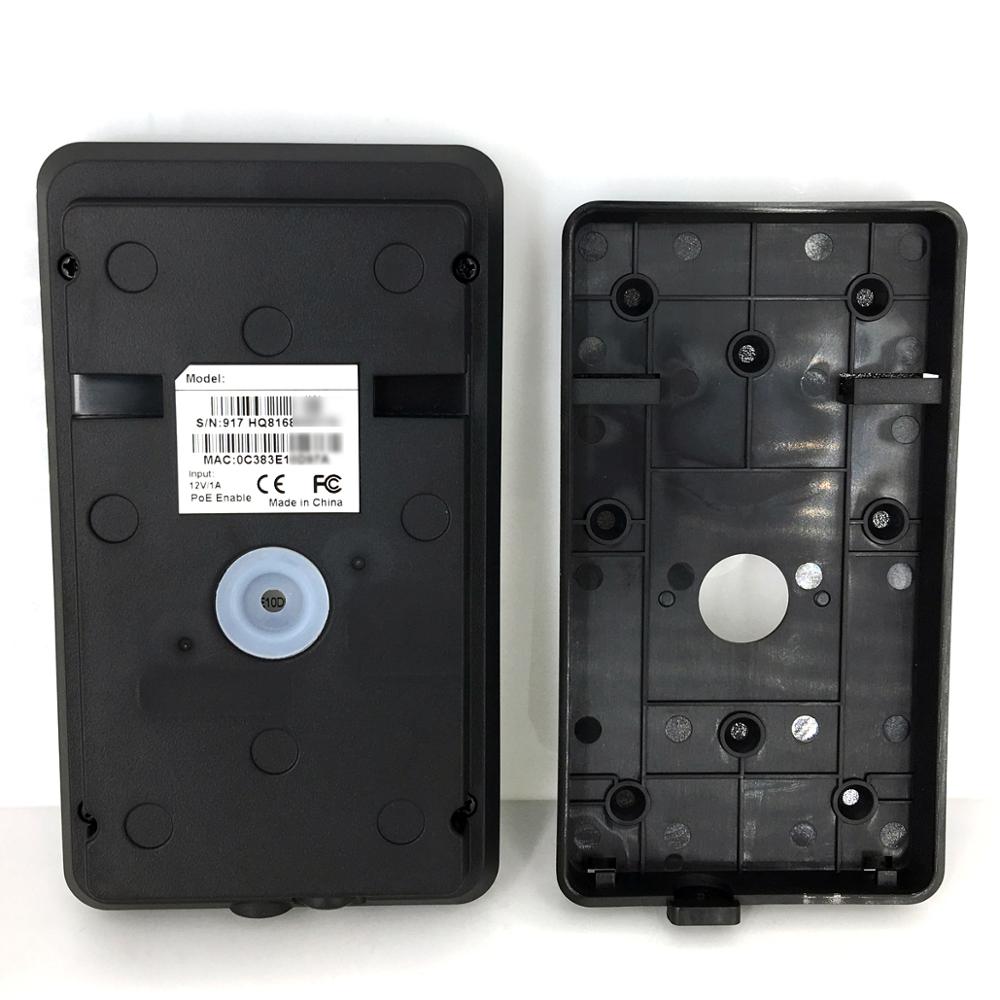

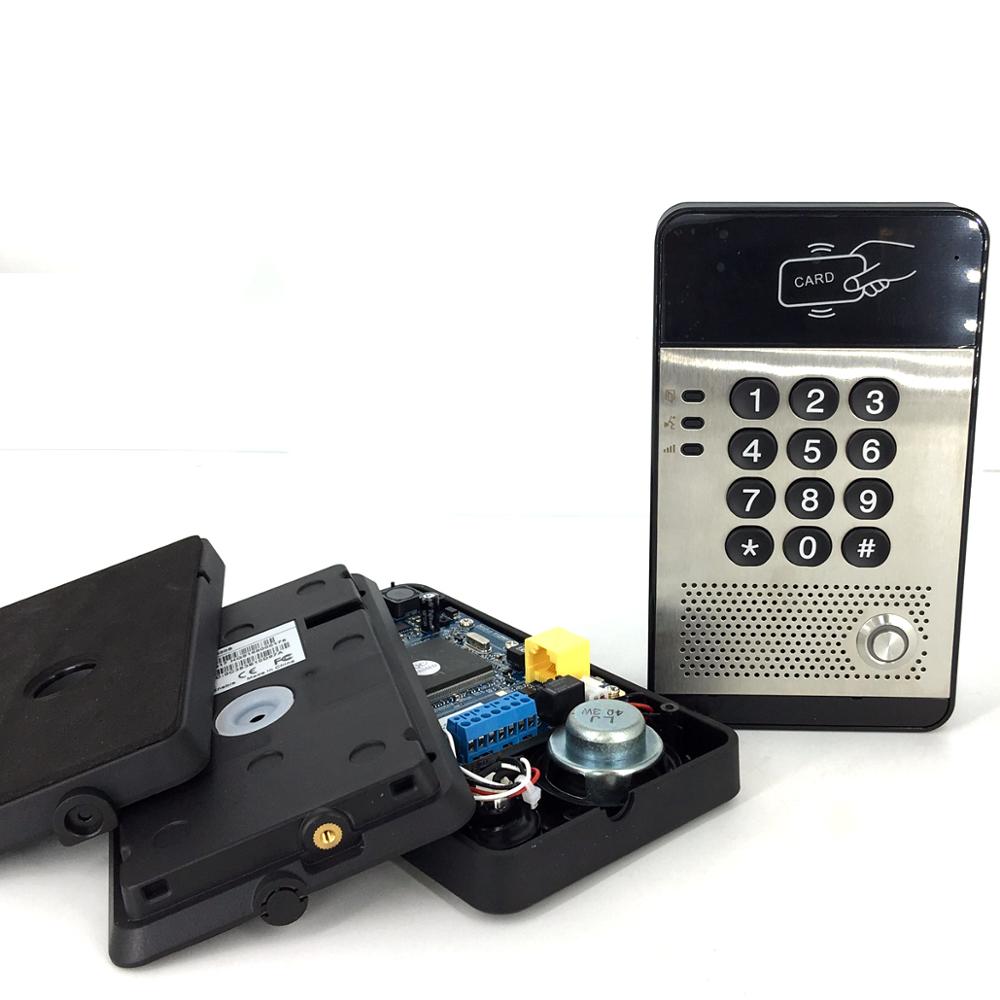

Shell Material: Metal panel, ABS sump

VPN: L2TP (Basic Unencrypted) / OpenVPN

Protection level: IP54

VLAN

Working Temperature: -10~60 degree

QoS

Storage Temperature: -40~70 degree


Working Humidity: 10~90%


Overall Dimension: 160 x 93 x 35mm     (W x H x L)


Package Dimensions: 178x104x55mm     (W x H x L)


Package Weight: 0.6 KG




  • Size: 160 x 93 x 35mm
  • Power: 12V/1A DC or PoE
  • Material: Metal panel, ABS sump
  • Model Number: Q506
  • Answering Mode: Hands-free
  • Installation: Wall Mounting
  • Item Type: Entrance Machine
  • Zone Number: None
  • Connection Type: WIRED
  • Access Control: Inductive Card and Password
  • Waterproof: Yes
  • Samrt Home Interface: No
  • Brand Name: NiteRay
  • Certification: CE,FCC
  • Origin: Mainland China
  • Item: Sip Door Phone
  • Protocol: SIP2.0
  • Access Control: by call,by code,IC/RFID
  • Numeric keypad: Input Password or Dial Extension Number
  • WAN: 10/100BASE-Tx, Auto-MDIX, RJ-45
  • PoE: 802.3af(Class 3 - 6.49~12.95W)
  • Passive Switch(short-circuit output): NC/NO Contacts, MAX 30V/1A AC/DC
  • RFID/IC Card: EM4100 (125KHz)--Standard
  • Protection level: IP65
  • Warranty: 1 Year
