New English Version NFC PM6 Smart Card Key 125KHZ RFID with Full Decode Function NFC Copier ID Reader Writer Duplicator
0.0 ( votes) | 3 orders
Price:
US $35.15
/ piece
Discount Price:
US $
33.38
/ piece
-5%
- Color
-
-
New English Version NFC PM6 Smart Card Key 125KHZ RFID with Full Decode Function NFC Copier ID Reader Writer Duplicator
The modified product can only decode cards with a frequency of 13.56MHZ
Specifications:
Material: ABS
Color: black
Type: NFC-PM6
Applicable card type:ID,NFC
Item size: 96 * 62 * 10mm
Item weight: 67g
Package size: 130 * 85 * 40mm
Package weight: 93g
Equipment introduction
Product Name: IDIC Access Control Duplicator
Model: NFC-PM6

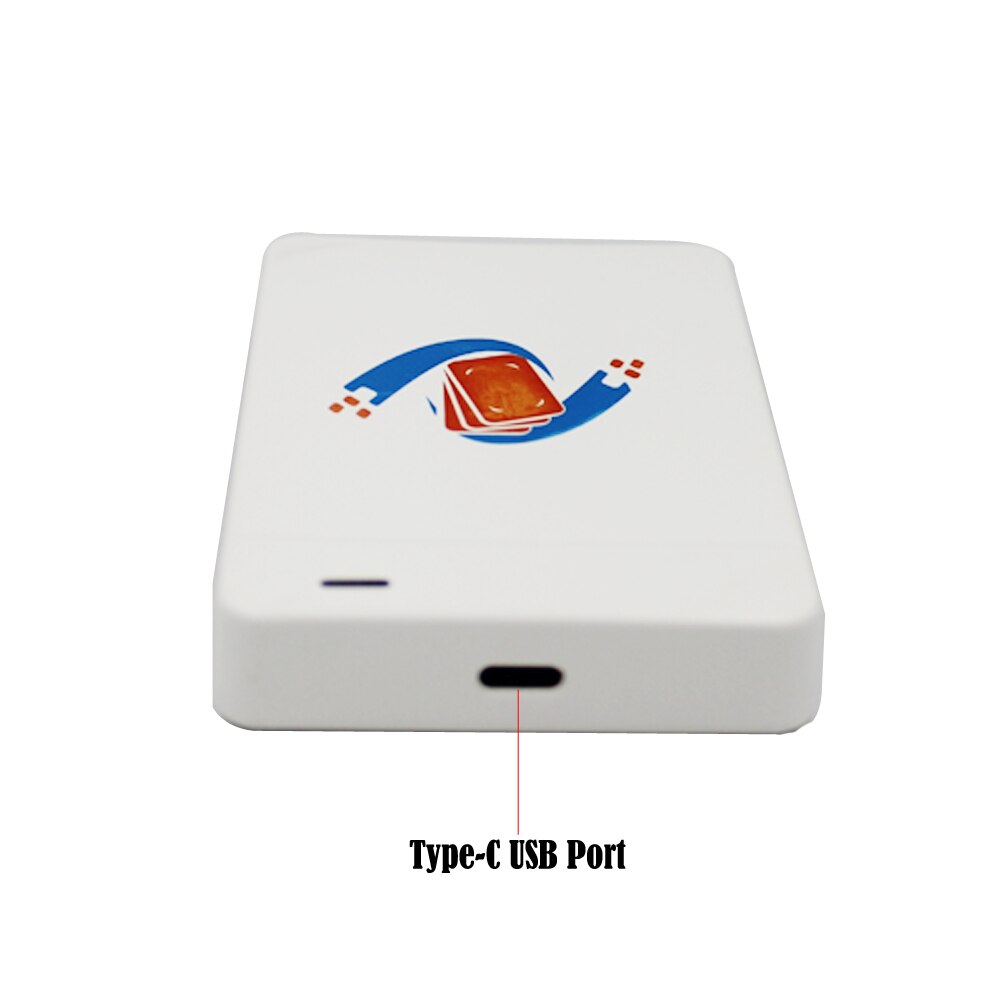

Power supply: use mini5pin interface data cable
Tips: buzzer, indicator light
Operation: U disk supporting software
How to distinguish low-frequency card (ID) or high-frequency card (IC): the machine is connected to the computer (the indicator light is on), and the card or deduction card is placed
Set the machine reading area "di" for high frequency card (IC); "didi" twice for low frequency (ID); "didi" three
Sound is a two-in-one card with low frequency card (ID) and high frequency card (IC).
High frequency IC card operation
After the card reader is connected to the computer (the indicator light is red), the computer ejects the USB flash drive, the USB flash drive has its own software, turn on the software switch
Go to the "High Frequency Card (IC)" interface, the software status displays the device model and the software prompts "The card reader is connected..."
The card reader is successfully connected to the computer. Place the card that needs to be cracked (usually called the original card) in the card reader area,
The card reader beeps once, the indicator light turns green, click the "Start Decoding" button, and the encrypted content is different.
The decoding time generally only takes a few seconds, and some take a few minutes or longer. Please do not move the machine or card during the decoding process.

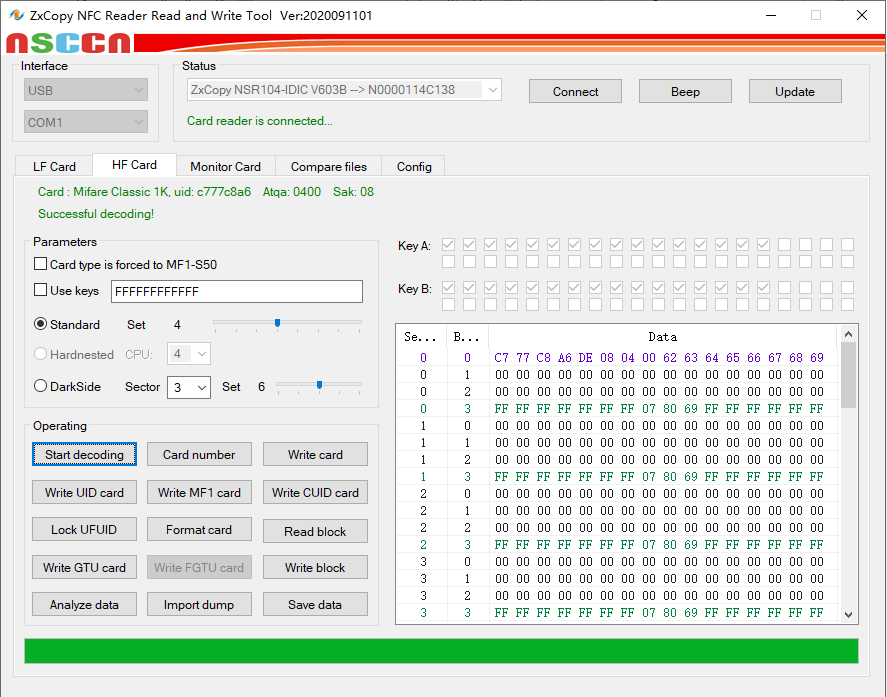

Waiting. After the cracking is successful, there will be a beep and the software will prompt "decoding successful", as shown in the figure:
Write card operation:
①After successful decoding, the data on the right side of the software will display the data of 16 sectors (in hexadecimal format). At this time, remove the original card,
Replace with an empty copy card, and select the corresponding card writing button to write the card according to different IC copy cards.
②After the decoding is successful, you can click "Save Data As" to save the decoded dump file, remove the original card and replace it with an empty card.
Click the "Import dump" button to import the previously saved dump file, and select the corresponding write file according to different IC copy cards.
Card button to write card.
The above two operations are both possible. After the operation is completed, the machine will beep once and the software prompts that the card writing is successful, and the copy is completed.
as the picture shows:
Regarding how to modify a single block of data:

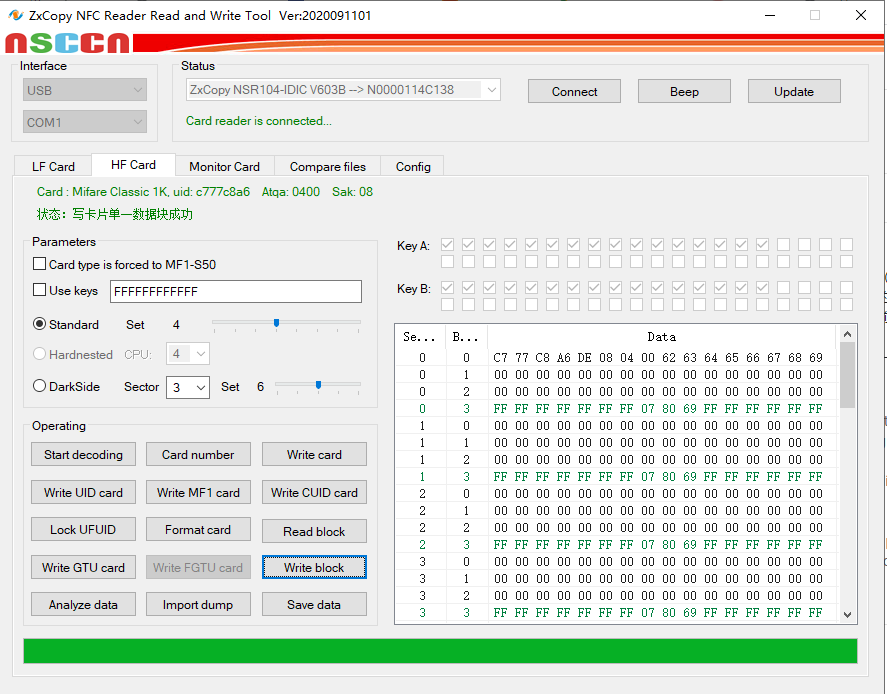

Click to select a block data that needs to be modified, and then double-click the data modification interface (as shown in the figure)
You can fill in the block data (00 in the box) according to your needs, click OK after filling in, and place the copied empty card in the machine
In the card reading area, click to select the previously modified block data, click the "write single block data" button to write the card, the machine "drops"
With a beep, the software prompts "write a single data block of the card successfully". Or click the "Save Data As" button to save the modified dump
file. as the picture shows:
About how to use the data comparison function:
First switch to the "Data Comparison" interface, click the two "Import" buttons above the block data to import and compare
After importing the dump file, click the "Compare" button in the middle, and the software will prompt the comparison result.

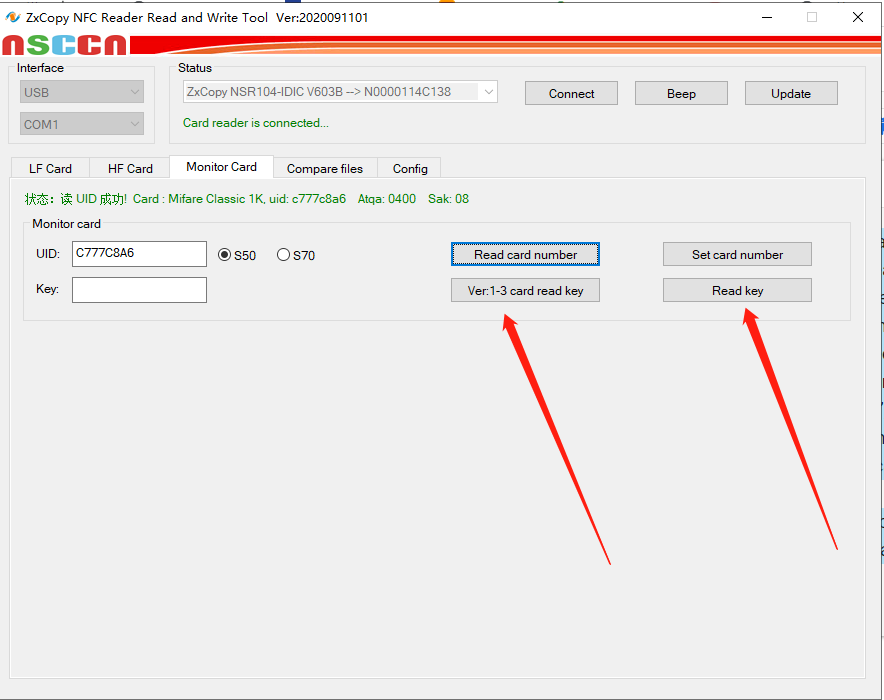

About how to use the detection and sniffing function:
First, you need to prepare a detection card (note: need to be purchased separately, please consult the seller)
Switch the software to the "detection and sniffing" interface, place the original card in the induction area of the machine and click the "read card number" button, the card is read
With a beep, the card number appears and the software prompts that the card is successfully read. Then put the detection card in the induction area of the machine, click "Set
Set the Detect Card Number button, the machine will beep once the setting is successful, and the software will prompt UID success.
After the setting is successful, take the original card and the 1-3 generation detection card (for specific card types, please consult the detection card seller) to the access control card reader.
Swipe the card at the same time (more than three consecutive effective swipes are required). After the card is swiped, place the detection card in the induction area of the machine, and click
“Read the key from the 1-3 generation detection card”, after the reading is successful, the software will prompt that the KEY is read successfully. If it is not the 1-3 generation detection card (specific card
The type can be consulted by the seller of the detection card), you can click "Read the key from the key detection card" (as shown)
After reading the key successfully, switch to the "High Frequency Card (IC)" interface, the software will automatically check the use key, and display the previous detection card reading
Then, place the original card in the induction area of the machine and click the "Start Decoding" button to wait for the successful decoding, that is, the password detection is successful.

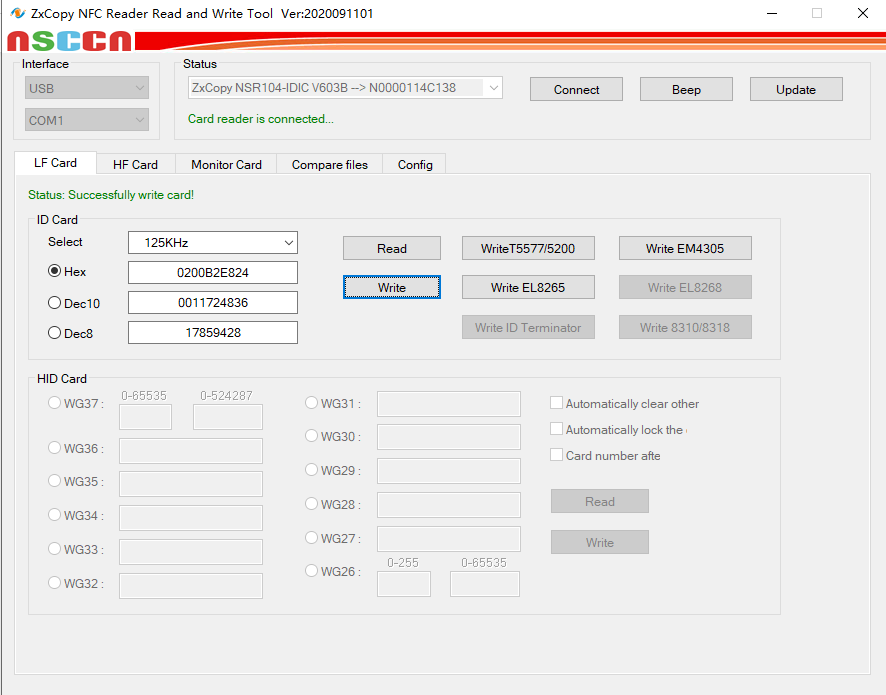

Low frequency ID card operation
After the card reader is connected to the computer (the indicator light is red), open the software and switch to the "low frequency card (ID)" interface, and the software status is at
The device model is displayed and the software prompts "The card reader is connected..." At this time, the card reader is successfully connected to the computer. Need to copy
The ID card (usually called the original card) is placed in the card reading area of the card reader, the card reader will beep twice, and the indicator light will turn green.
Click the "read card" button, the ID card is relatively simple, no need to decrypt, no need to wait, the buzzer will beep once when the reading is successful
Current card number, that is, the card is successfully read
After success, remove the original card, replace the ID and copy the empty card, click one key to write the card or select the corresponding copy card model to write the card
Press the button to write the card. After the card is written successfully, the software prompts that the card is written successfully. If the card number is known, you can also manually enter the hexadecimal,
The first ten or last eight digits of the card number are used to write the card, and the copy is completed when the card is successfully written.
- Type: IC
- Interface: USB

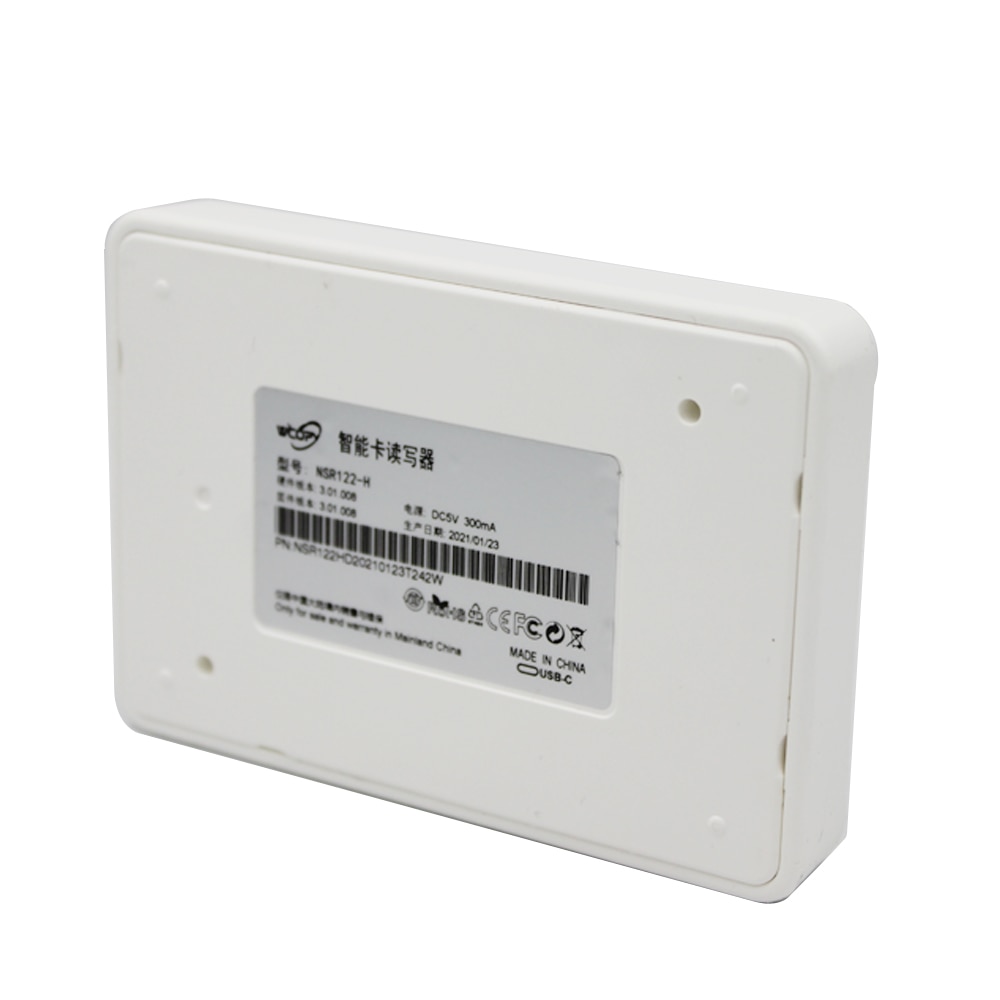

- Model Number: NSR122-H
- Brand Name: Asia-Teco
- Certification: NONE
- Origin: Mainland China
- Material: ABS
- Color: white
- Applicable card type: ID+IC,NFC
