New design yaxun 865D BGA SMD IRDA infrared rework station with temperaute sensor tester and power setting for mobile repair
3.7 (3 votes) | 3 orders
Price:
US $
319.20
/ piece

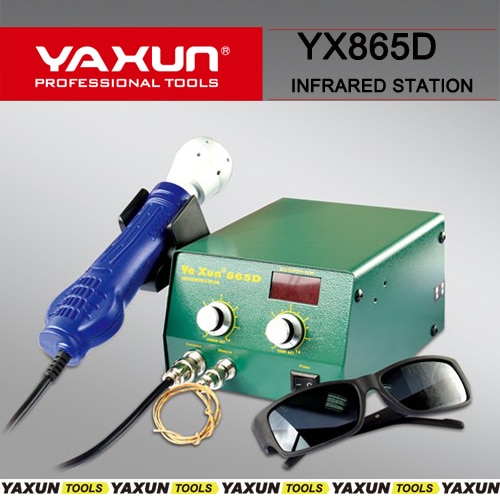

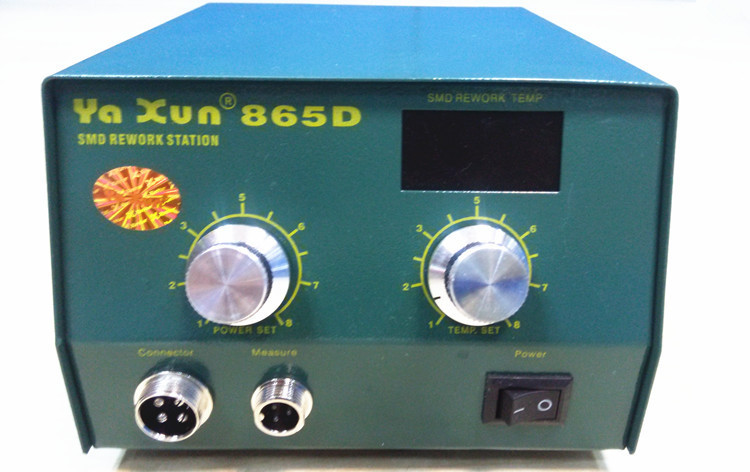

New design yaxun 865D BGA SMD IRDA infrared rework station with temperaute sensor tester and power setting for mobile repair

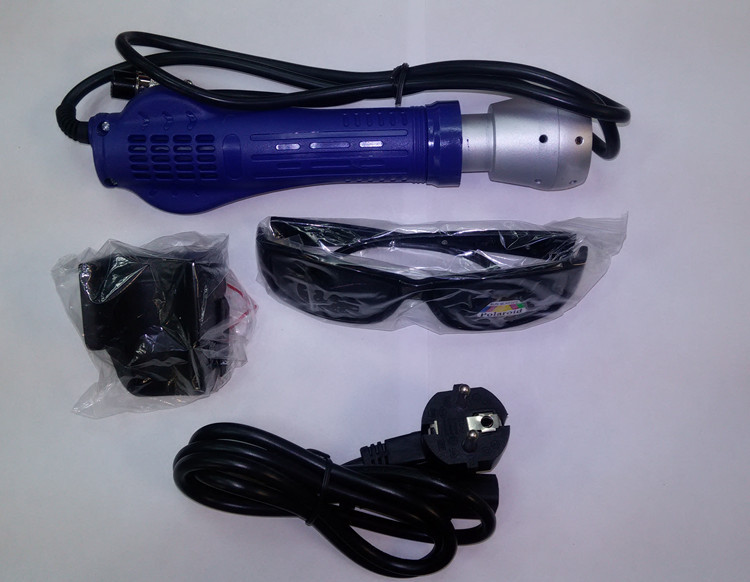

YAXUN 865D , fast heating ,with power setting and temperature sensor tester,with protection glasses
Circuit characteristics:
1, using independent research and development of infrared heating technology, with strong penetrating power, no heat flow, uniform heat, does not affect the characteristics of the surrounding tiny components, breaking the traditional hot air heating technology to avoid large-scale shortcomings thermal shock.
2. Suitable for de-soldering and rework of BGA SMD PLCC CSP LGA QFP and BGA balls.
3. Infrared uses the handle lamp body structure, the operation is more flexible, easy to control, suitable for flat components at any angle, especially BGA, SMD components desoldering
4. This machine is equipped with a thermocouple to ensure the safety of the disassembled equipment and safer use.
5. The light source is soft, not glaring, the heat source is concentrated and stable.
6. This machine can remove all 15mm-35mm flat components
Basic parameters:
Model: YX865D
Power supply voltage: 220V OR 110V Optional
Infrared lamp head power: 100W
Power consumption of the whole machine: 300W
Heating element: infrared light
Temperature range: 50-450 degrees Celsius
Thermocouple model: K indexing

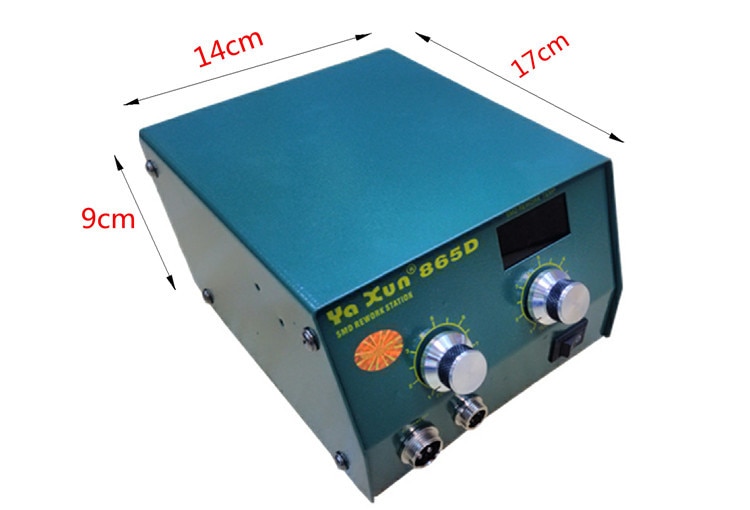

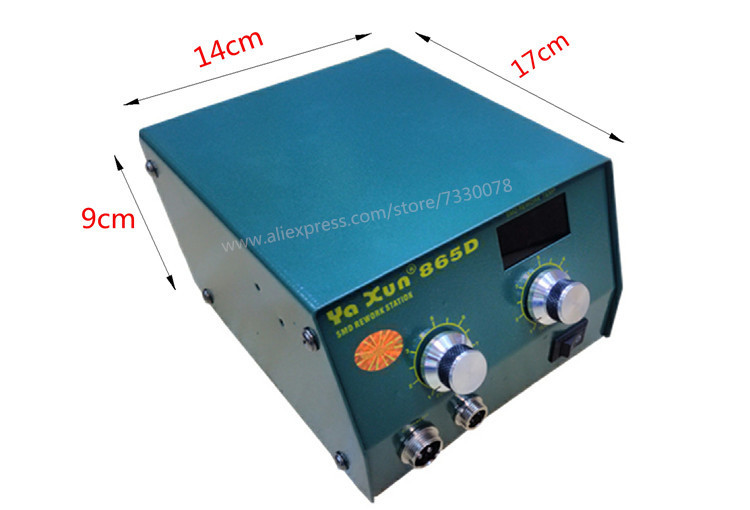

Size: 170*140*90mm
Gross weight: 3.2kg
- Model Number: YX865D
- Brand Name: YAXUN
- Temperature:: 50-450 degrees
- Infrared light power: 100W
