New Design Long Range Hotspot 4G Lte for High Speed Connection
0.0 ( votes)
Price:
US $
1201.02
/ piece
- Ships From
Sorry! This item is out of stock

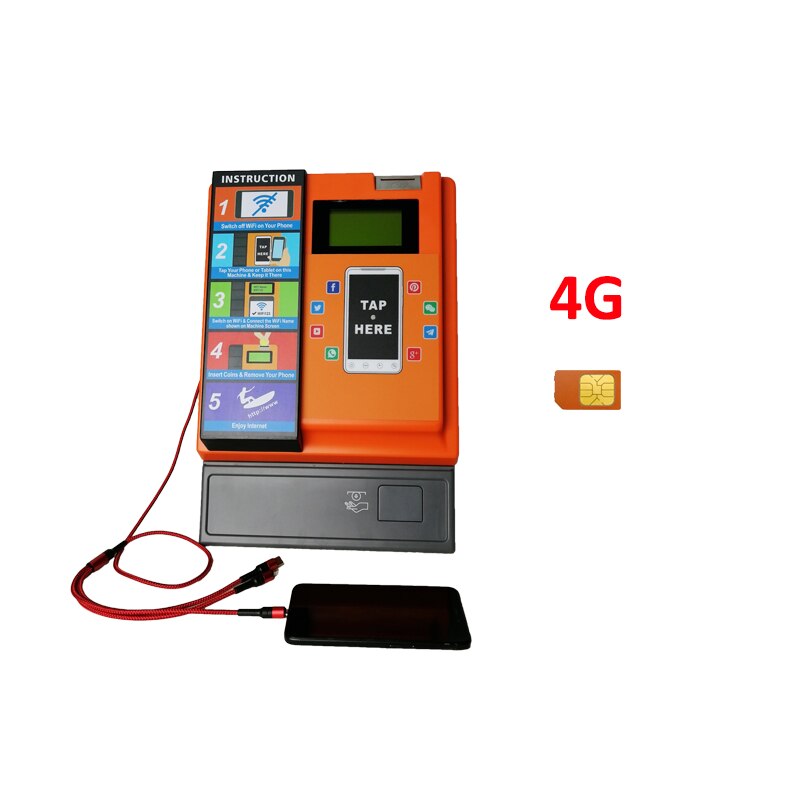

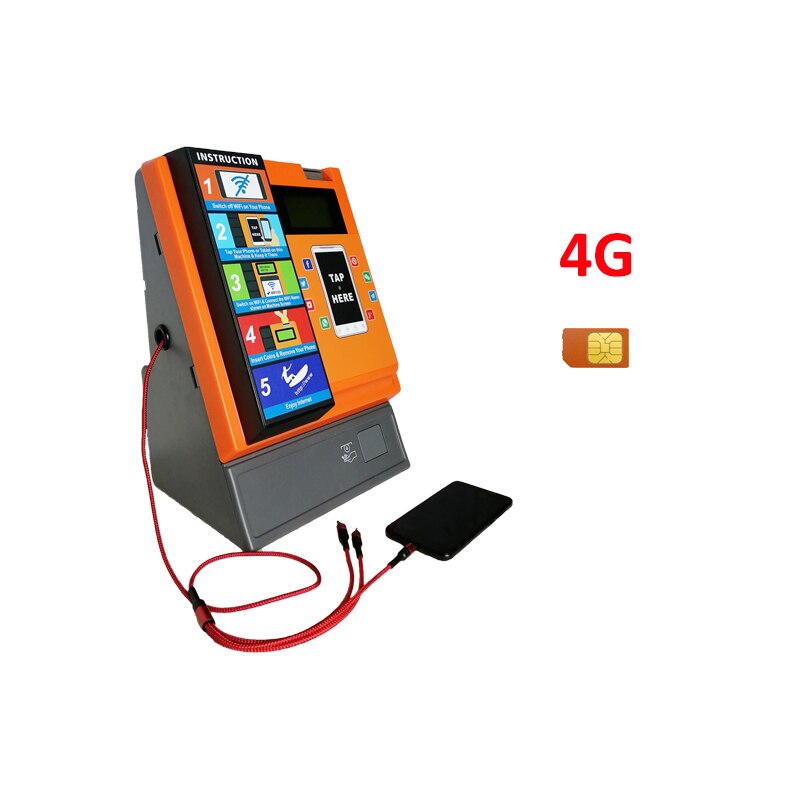

New Design Long Range Hotspot 4G Lte for High Speed Connection
OVERVIEW

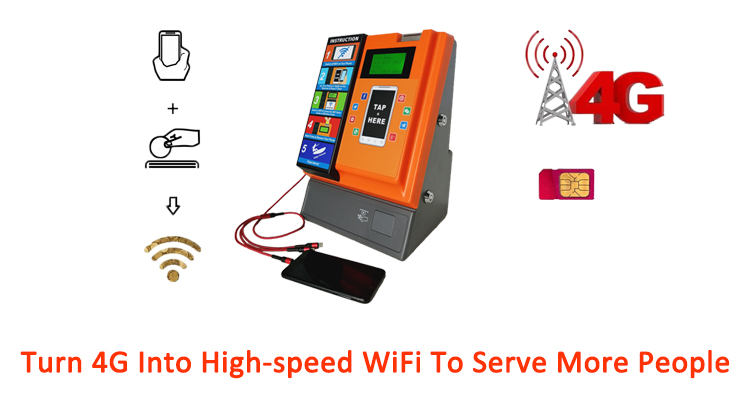

Brand New Coin WiFi Hotspot Vending Machine brings a brand-new vending business into public market. It provides visitors an immediate WiFi Internet hotspot service.
Everyone has a smartphone, but not everywhere have WiFi. WiFi Vending Machine can fill this huge gap between WiFi needs and WiFi Coverage.
The machine is plug-&-play and easy to install. And the best part is all investment can be returned in 3 months.
COMPARISON
FUNCTIONS

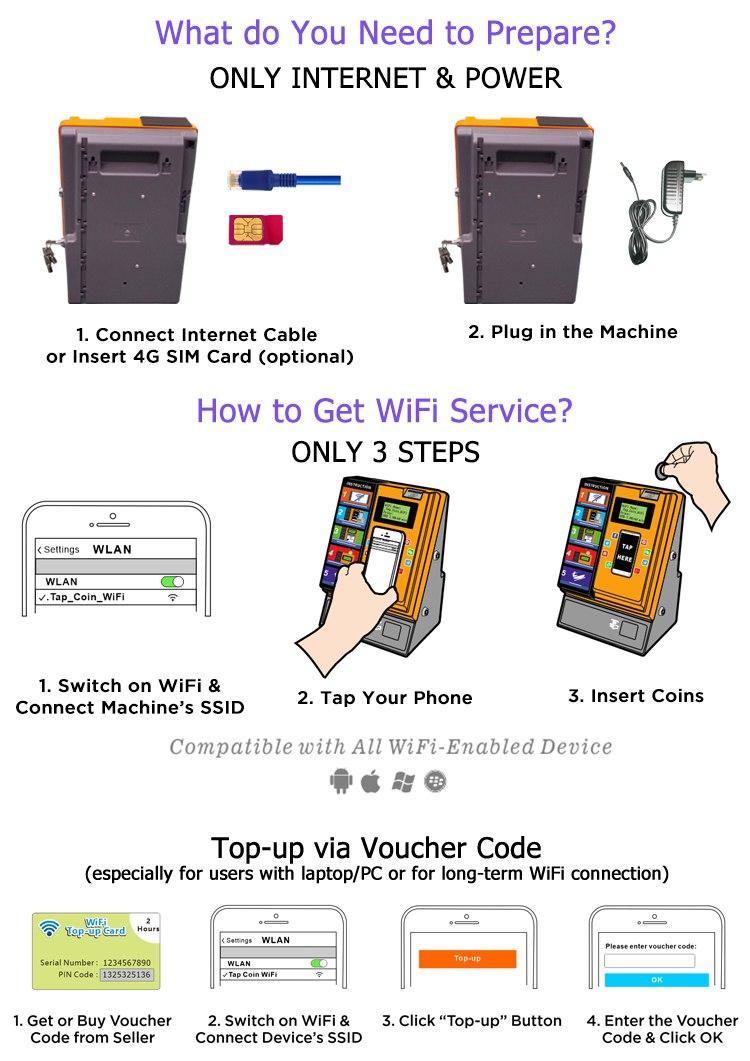

No inquiry, no username, and no password is required; just tap the phone, insert coins, and get WiFi.

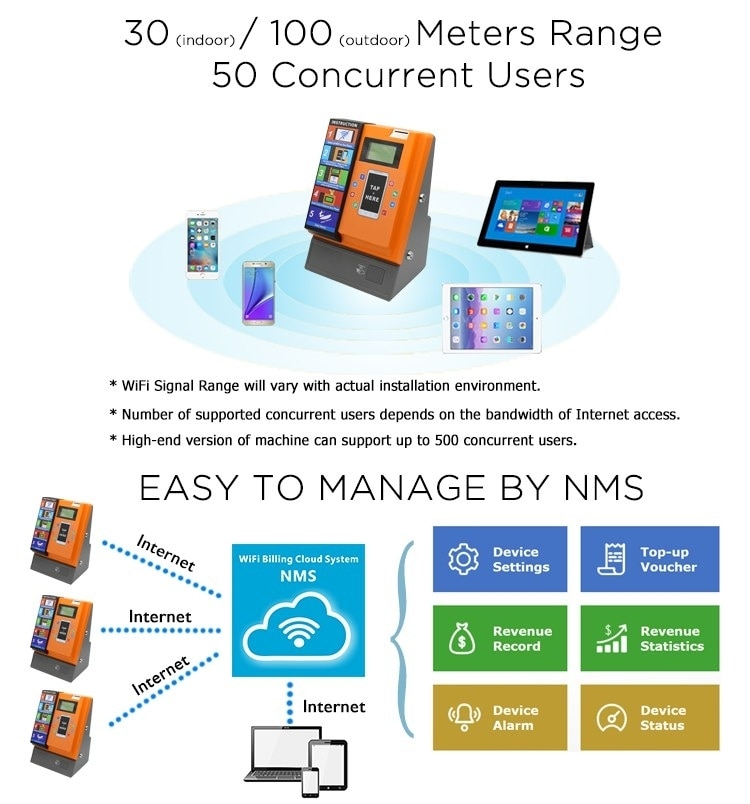

Provide WiFi signal coverage(100m for outdoor / 30m for indoor) and support50 concurrent users.
No need for supervision. Self-service working method to save labor cost.
Provide user-friendly pop-up instruction page to tell end users how to get WiFi service.
Excellent coin-learning ability to recognize your local coins and discriminate fake coins.
Offer cloud-based NMS(Network Management System) to monitor all online machines remotely.
Support account roaming between different machines to help end users enjoy your WiFi service in multiple sites (optional).
Professional coin passage design to prevent coin stolen or fraud.
FEATURES
BENEFITS
Venue owners can get extra revenue by providing WiFi hotspot service and attract more visitors which is good for his original business;
Venue owners can display advertisements for their products on the login page for better promotion, or show ads for other shops to get income;
Travelers can get quick and cheap Internet access without paying expensive charge for data roaming or new SIM card;
Visitors can check/send email, browse websites, and use high-speed VPN to connect enterprise network from any WiFi-enabled laptop, PDA, smart mobile phone, or handheld device.
No WiFi squatter because no username and password is required.

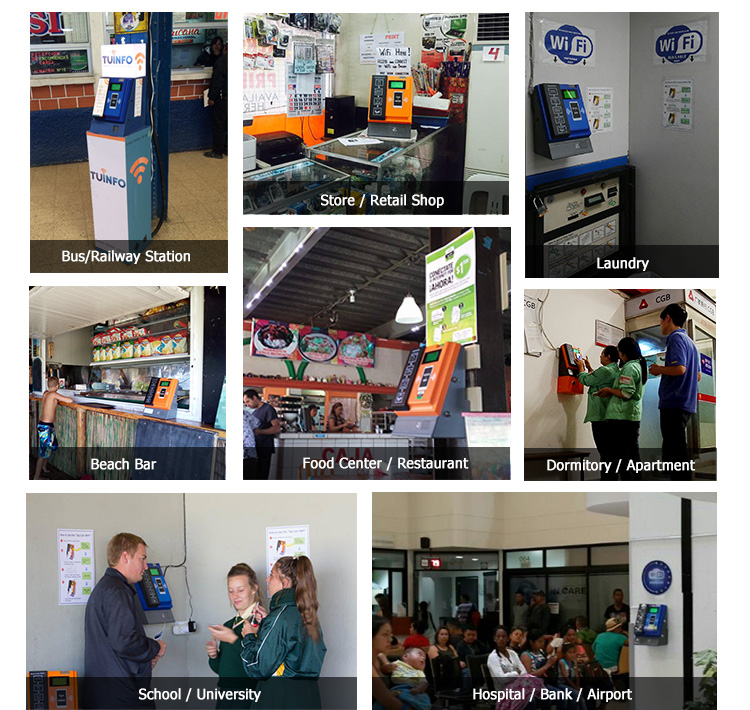

APPLICATIONS
Long-stay place: dormitories, apartments, hotels, hospitals;
Crowed public place: stations, food centers, restaurants, coffee shops, pubs, lounge bars, Karaoke bars, beauty salons, chain shops, lobby of banks/hotels;
Sports area and recreation centers: bowling, billiards;
Tourism place: international airports, beaches, parks, swimming pools, exhibition and convention sites.
CASE STUDY

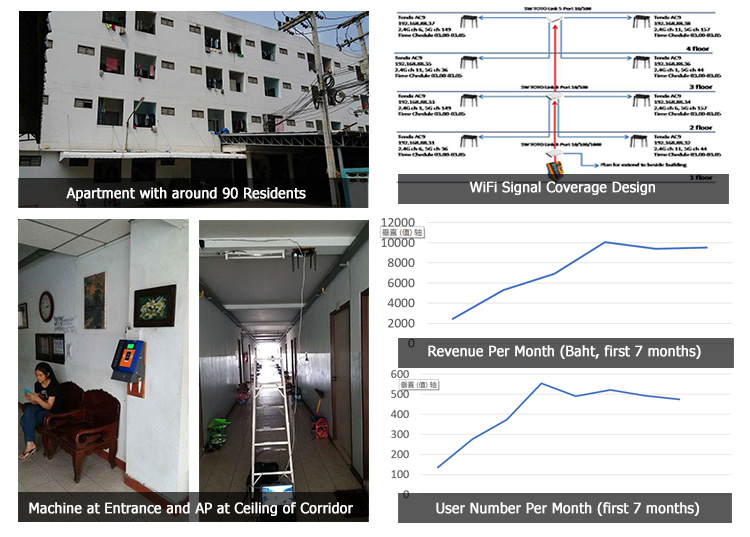

This is a real case of WiFi Vending Machine installed in Thailand. The owner needs to sell WiFi in an apartment with 3 floors and 90 residents. He adopts the following solution:
1x WiFi Vending Machine installed at the entrance on 1st floor
8x access points installed at the ceiling of corridor on 2nd to 4th floor
WiFi service price is set as: 10 Baht = 60 minutes, 15 Baht = 120 minutes, 20 Baht = 1440 minutes
The daily income of this solution can reach 300 Baht and the owner can get all his investment back in the very first 3 months.
90% of visitors has contacted us to get valuable information, like:
How to run a successful WiFi business?
How to make the WiFi signal cover a dormitory with limited budget?
How to run WiFi business with video service via Internet connection of low bandwidth?
TECHNICAL SPECIFICATIONS
Environmental Conditions | - Temperature: 5°C to 45°C (operation) / -10°C to 60°C (storage) - Humidity: 10% ~ 85% non-condensing |
Power Requirement | - External adaptor (input: 100~240 VAC, 50/60 Hz / output: 12VDC, 1A) - Power consumption: 6 watts |
WiFi Operation Range | Radius up to 100 meters (outdoor) / 30 meters (indoor) |
WiFi Frequency Range | BAND 2.412 to 2.484 GHz (and 5.150 to 5.875 GHz, optional) |
Supported 4G Frequency Bands (optional) | LTE FDD: DD800/900/1800/2100/2600MHz |
Supported Max. 4G Data Speed (optional) | LTE FDD: Cat4 Download: 150Mbps / Upload: 50Mbps @20M BW |
Supported Device for Tapping | Any WiFi-enabled mobile phone, tablet, laptop, PSP, PDA, etc. |
Networking | - IEEE 802.11 b/g/n Wireless LAN - Zero end-user configurations |
Authentication | Built-in user authentication and accounting |
Remote Management via NMS (optional) | - Setting of WiFi name, WiFi service price, data speed limit - Revenue records of WiFi Internet service - Supervision on running status of each hotspot router |
About Coins | - Coin Acceptance: 15 different types - Usable Coins: Diameter: 16mm ~ 31mm, Thickness: 1.2mm ~ 3.2mm - Coin Box Capacity: 1 liter (optional metallic coin box: 2.7 liters) |

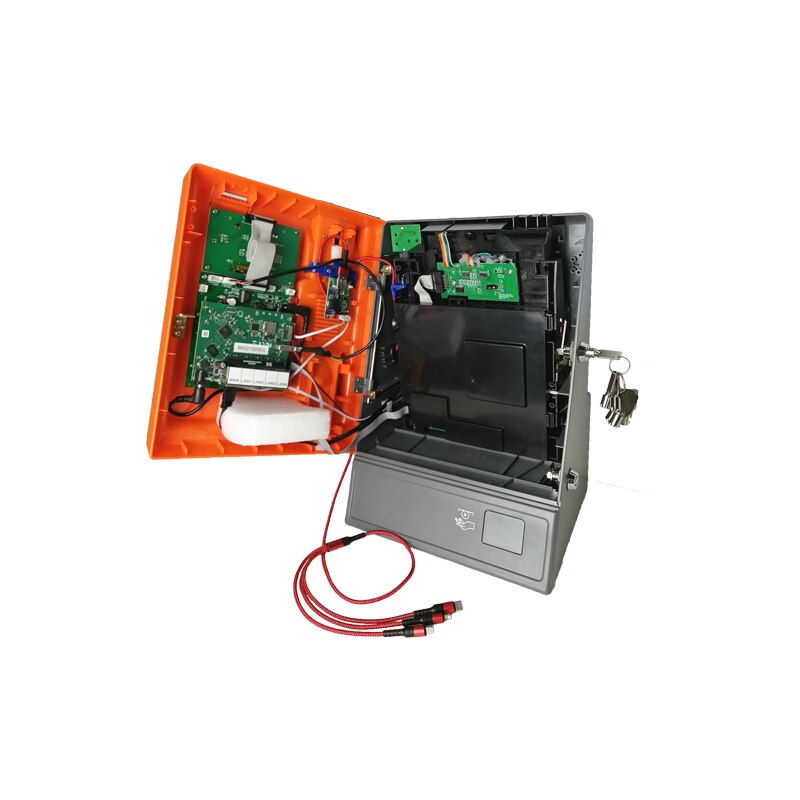

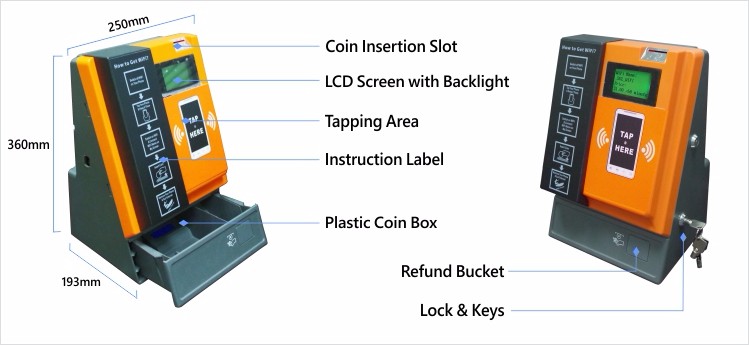

Structural | - Housing Material: ABS plastic - WAN Interface: 1x RJ45 port, or built-in 4G USB modem (optional) - Antennas: 1x WiFi (built-in), or 1x 4G (optional, built-in USB modem) - LCD: 4-line, 128X64 pixels, backlight supported, shock resistance ≥ 4,000N - Dimensions: 250mm (L) X 193mm (W) X 360mm (H) - Weight: 3.1 kg - Packing Dimensions: 320mm (L) X 240mm (W) x 430mm (H) - Packing Weight: 3.8 kg |
Frequently Bought Together
FAQ
Q: How does the WiFi Vending Machine get Internet?
A:You need to connect the WiFi Vending Machine to a DSL/Cable/Fiber Optic modem or a router via an Ethernet cable. For the 4G version, you can also insert a 4G/LTE SIM card inside the machine to make it have backup 4G connection.
Q: Can the WiFi Vending Machine recognize my country's coins?
A:Yes, it can most coins in the world after a simple "coin-learning" operation. That means you just need to insert some coins and do some menu operation.
Q: Can I extend the WiFi signal coverage range?

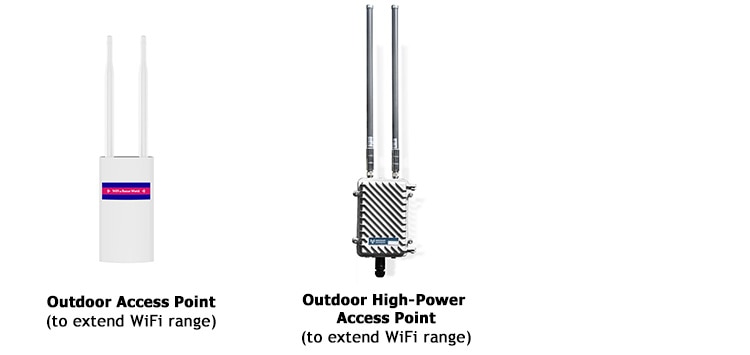

A:Yes, we recommend you to connect the machine with our Access Points (AP) to extend the coverage. We can provide professional suggestion if you can provide the plan diagram of the area.
Q: Can I add my company name and logo on the WiFi Vending Machine?
A:Yes, we can provide OEM service based on batch orders.
Q: Can the WiFi Vending Machine support more than 50 concurrent users?
A:Yes, we have high-end version which can support 200, 300 or 500 concurrent users with different price.
Q: Can I set the price for WiFi service? Is it based on time duration or bytes usage?
A:Yes, you can set the price in the cloud-based NMS (Network Management System). Either time-based or data-based is supported.
Q: How long can I get my investment back if I want to do this business?
A:Usually it will take 3~6 months. It depends on the setting of WiFi service price and the number of WiFi service users at the installation site.
Q: How can I make sure that I can run this business successfully?
A:To make this business successful, there are 3 major factors:
Ability to find and acquire the appropriate installation place (especially the place where many people stay for a long time) and to pay for acquisition reasonably.
Facility and low cost of broadband Internet access.
Coverage and quality of WiFi signal.
PACKAGING & SHIPPING
Our product will be packed in a carton after careful testing and inspection. Each package will include an AC/DC power adapter and door keys.
FAST DELIVERY
We have strong cooperation with DHL, UPS, FedEX, EMS and TNT.
You can also choose your own forwarder.
Sample order will be delivered within 3 work days.
Batch order up to 1000 units will be delivered within 30 work days.
OUR SERVICE
Any inquiry of our products will be replied within 1 work day.
OEM is available for batch orders:
Silkscreen printing on casing
Brand Label on casing
Package carton printing
Product feature
Warranty and after-sales service:
Have a 1-year warranty and during the warranty we will provide free-of-cost technical support
We will provide online support service via email, instant messenger, instruction document and video
ABOUT US
- Origin: Mainland China
- Display Type: OLED
- Model Number: WIFI-A202
- Keyboard: None
- Battery: No
- Display: Single Display
- Size: 32*24*43CM
- Time to Market: 2021 new product
- Product name: New Design Long Range Hotspot 4G Lte for High Speed Connection
- WiFi Standard: 2.4GHz / 2.4GHz&5GHz
- WiFi Signal Range: 100m (outdoor) / 30m (indoor)
- Coin Acceptance: 15 different types
- Concurrent Users: 50
- Internet Access: RJ45 WAN Port or 4G
- Coin Box Capacity: 1 litre / 2.7 liters
- Housing Material: ABS plastic
- Housing Color: Orange
- Warranty Period: 1 year
- Power (Watts): 6 watts
