Laser Engraving Mac Control DIY Mini CNC Machine 3 Axis Pcb Milling Machine Wood Router Engraver with Offline Controller machine
379.20 184.61 $
SALE
ID: 32904
Quantity
New 3018 Pro GRBL Diy mini cnc machine 3 Axis pcb Milling machine Wood Router laser engraving CNC3018 work offline
0.0 ( votes) | 3 orders
Price:
US $774.08 - 1384.08
/ piece
Discount Price:
US $
570.94 -
890.58
/ piece
-26%
CNC GRBL 3018 Pro/3018 Pro Max Engraving Machine 3 Axis pcb Milling machine Bluetooth Wood Router laser engraving can work Offline
Feature:
X, Y, Z Working Area: 300 x 180 x 40 mm
Mesa: 300 x 180 mm
Frame: 330 x 240 x 400 mm, features an upgraded version of the BAKELITE for better insulation, mechanical strength, anti static, intermediate electrical insulation, wear resistance and high temperature resistance.
Stepping Motor: 3 x 42 stepper motors: 1.3A, 0.25N.m (1 pcs is installed with holder)

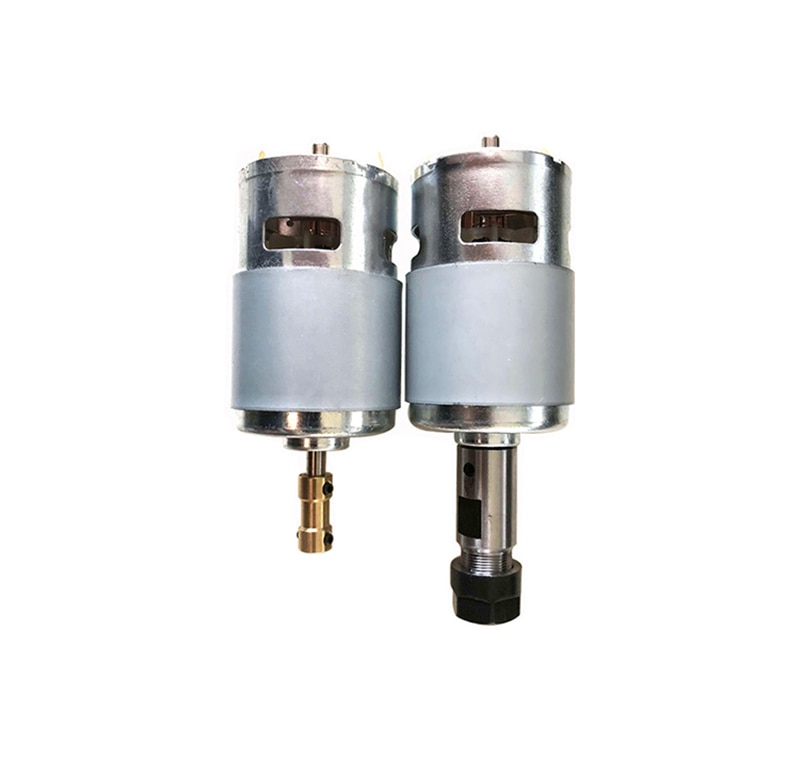

Spindle: 775 spindle motor (12-36V); 24V: 7000 r/min, 36V: 9000 r/min
Software: GRBL Control Systems
Supported system: Windows XP / Win 7 / Win 8 / Win 10 (both 32 bit and 64 bit)
Screw: professional T8 T-screw, lead 4 mm, double copper nut and poor
Power Supply: 24V 5.6A power adapter (110-240V input voltage)

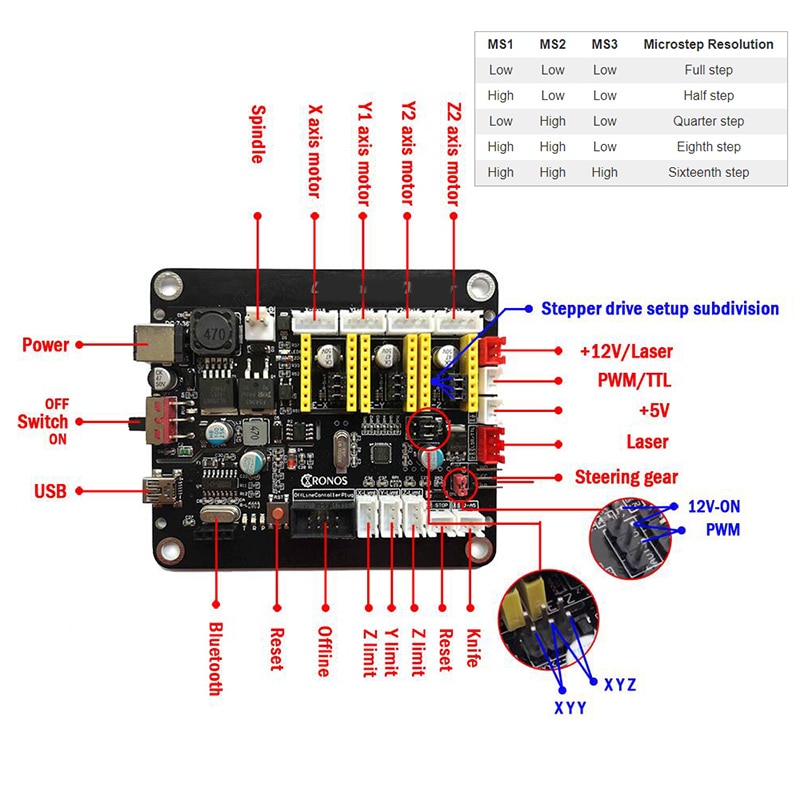

Controller Board: GRBL Offline XYYZ Axis Bluetooth Control Board, 3 pcs A4988 drives
Cutters: Diameter 3.175mm, Tip 0.1mm, Length 30mm

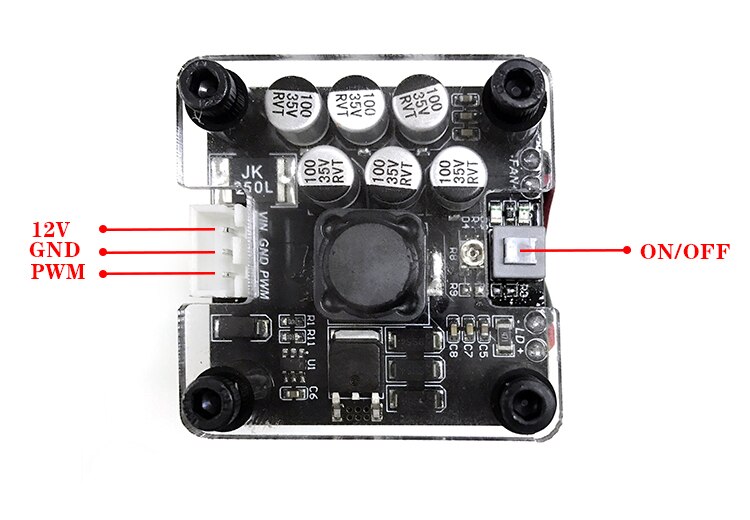

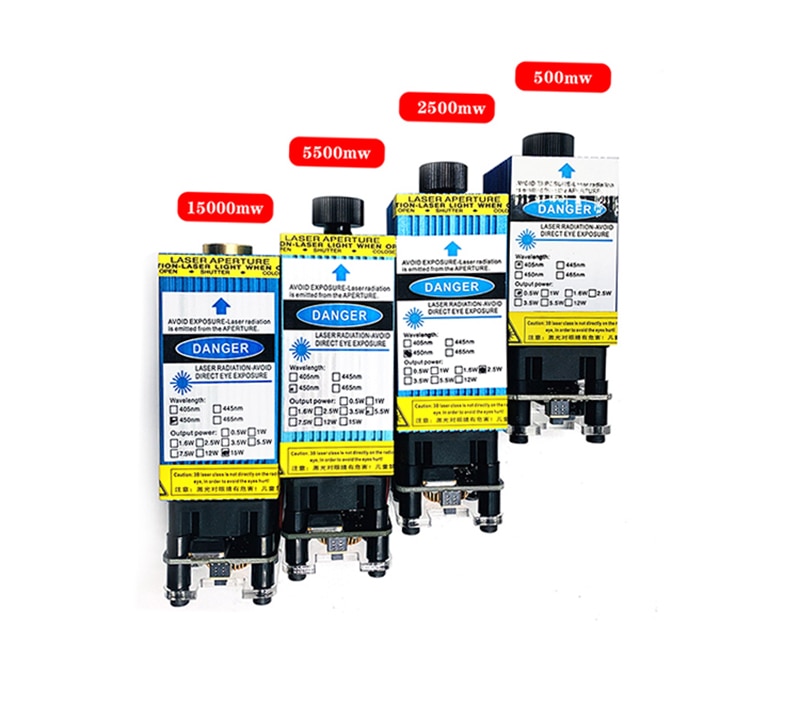

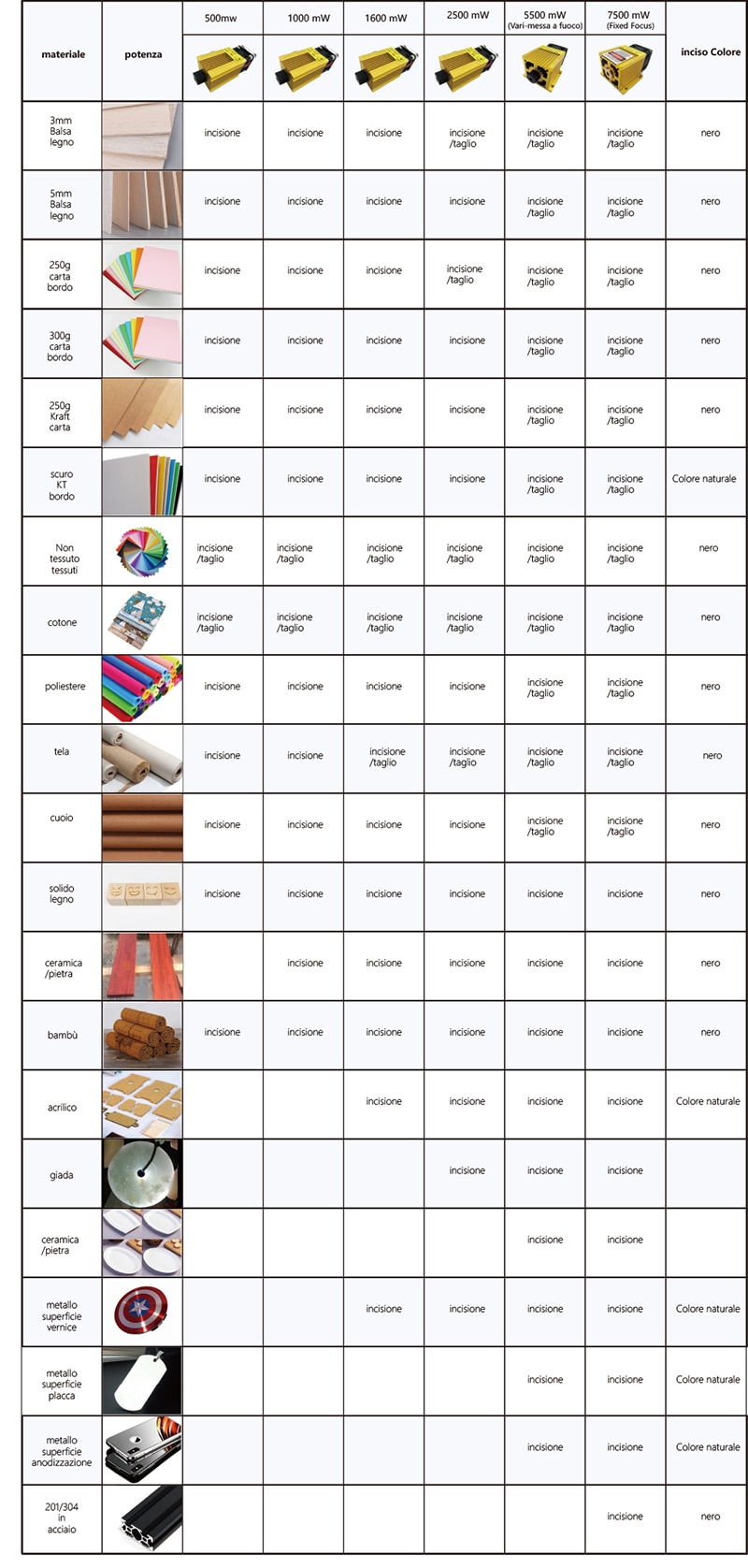

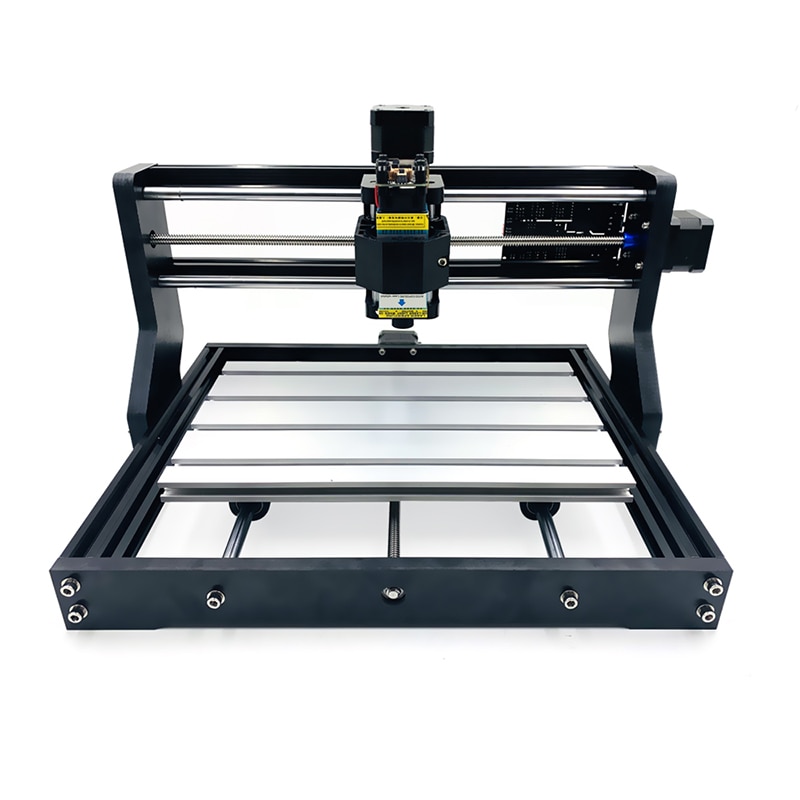

Laser Module (Options): Brand new and updated blue lasers,which is 33mm 3P connection,supports PWM,TTL.
500mw: 12V 405nm
2500mw/5500mw: 12V 450nm
15W: can carving on stainless steel (SUS304, etc) surface and anode colored aluminum alloy surface and cut 3 mm wooden materials
Offline Controller (Options): 1 Inch / New 1.8 Inch LCD Monitor Offline Controller
Application:
Wood, acrylic, plastic, Jade, PCB, PVCAdvertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, Industrial or Hobby Prototype Building, Building Model Making, etc. So, you can do engraving work at office or home,Ideal for milling, engraving, drilling & cutting.
Package Introduction (Optional):

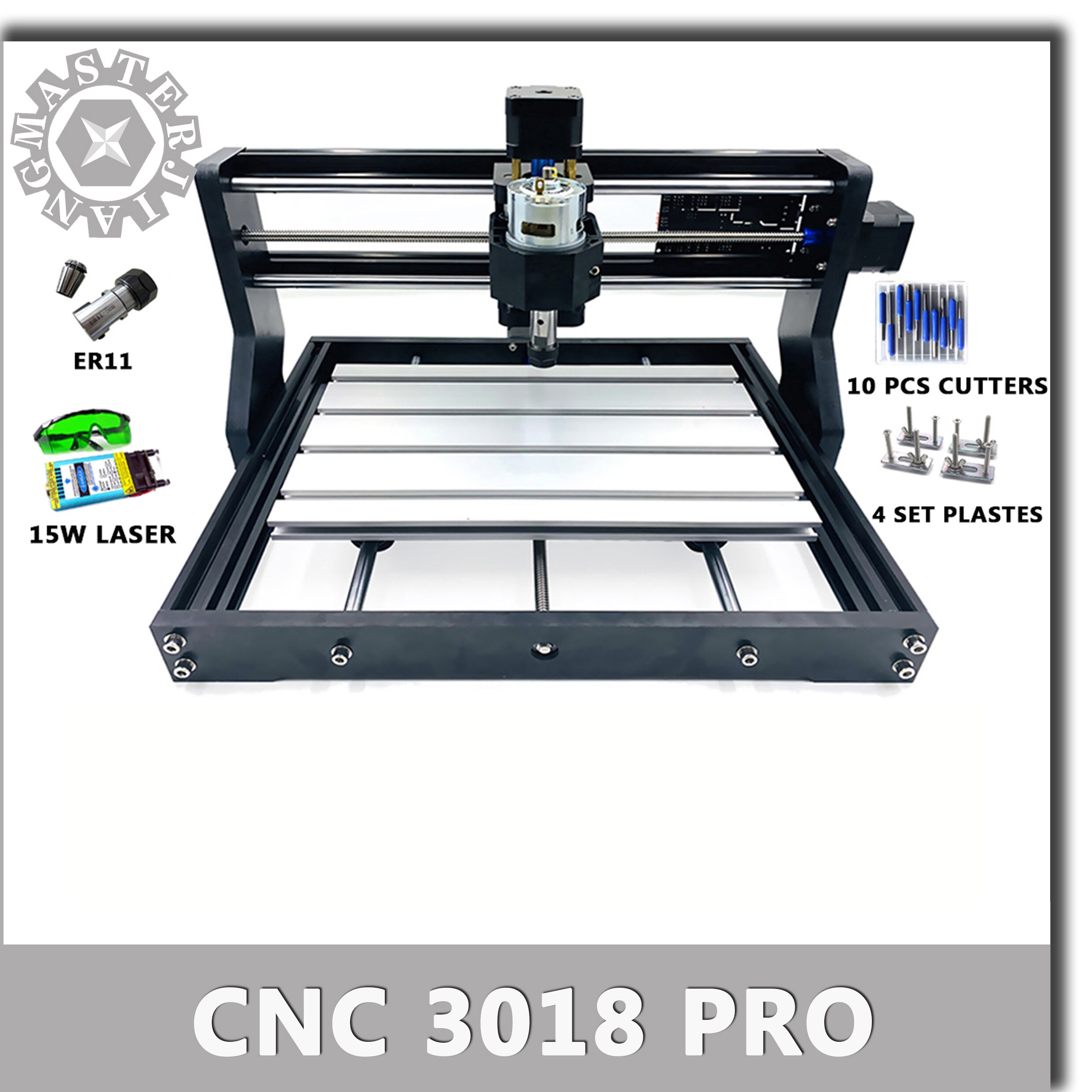

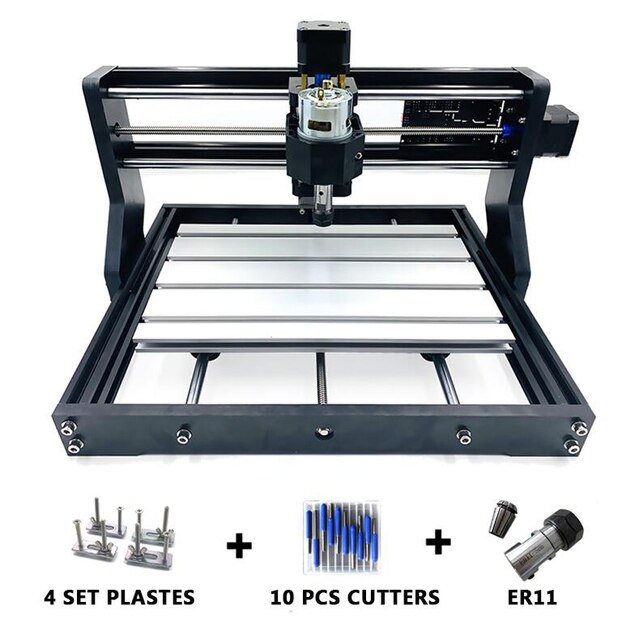

3018 Pro No Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
3018 Pro 1in Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 1 set 1 inch Offline Controller

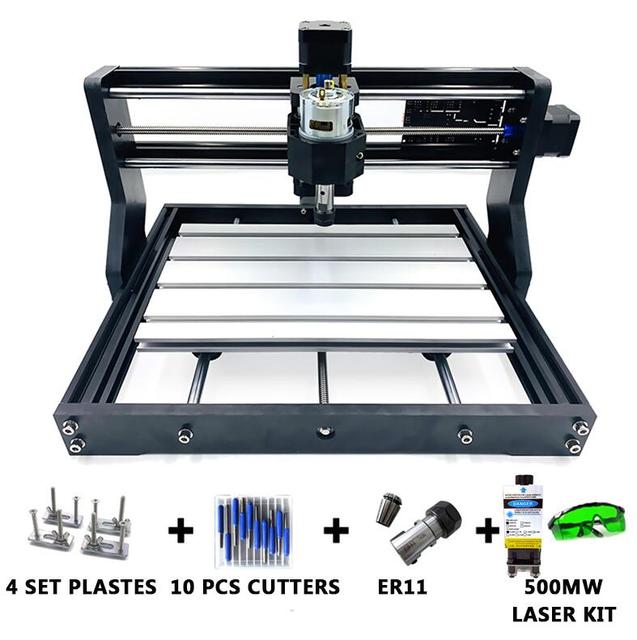

3018 Pro 0.5W No Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+500mw Laser Module + 1 pair of Protection Goggles
3018 Pro 0.5W 1in Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 500mw Laser Module + 1 pair of Protection Goggles + 1 set 1 inch Offline Controller
3018 Pro 2.5W No Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 2500mw Laser Module + 1 pair of Protection Goggles
3018 Pro 2.5W 1in Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 2500mw Laser Module + 1 pair of Protection Goggles + 1 set 1 inch Offline Controller

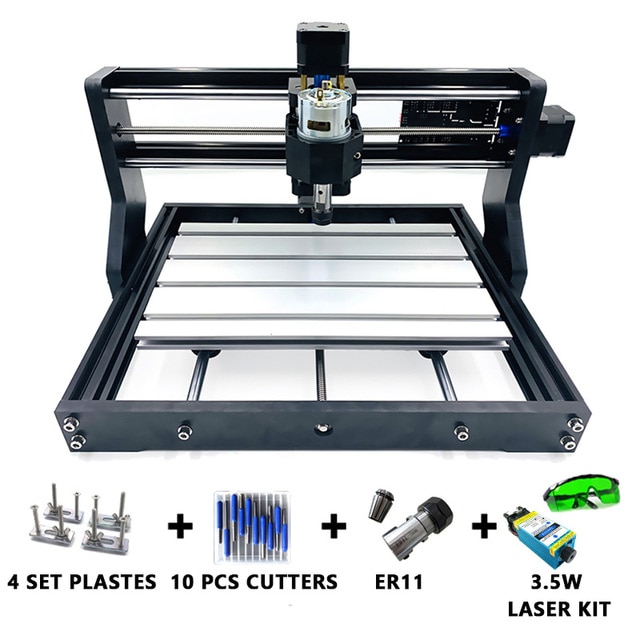

3018 Pro 3.5W No Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 3500mw Laser Module + 1 pair of Protection Goggles
3018 Pro 3.5W 1in Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 3500mw Laser Module + 1 pair of Protection Goggles + 1 set 1 inch Offline Controller

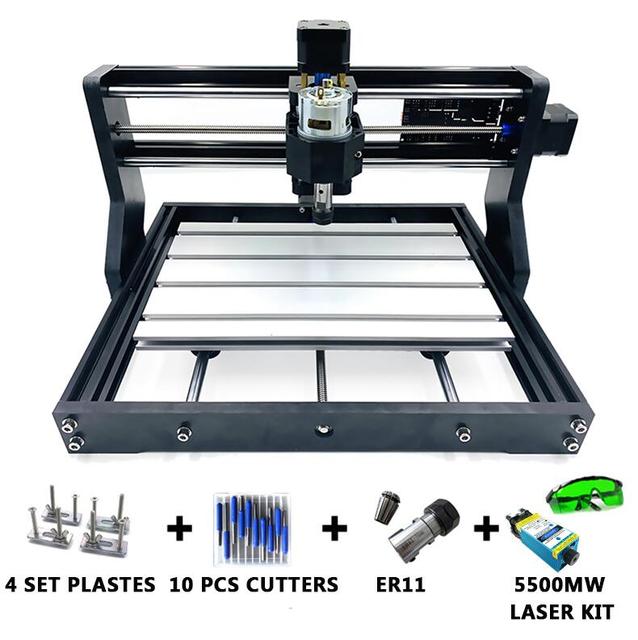

3018 Pro 5.5W No Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 5500mw Laser Module + 1 pair of Protection Goggles
3018 Pro 5.5W 1in Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 5500mw Laser Module + 1 pair of Protection Goggles + 1 set 1 inch Offline Controller

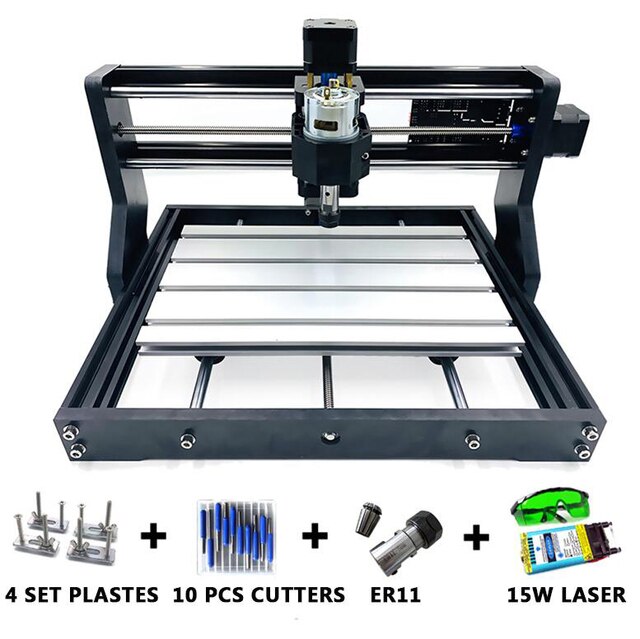

3018 Pro 15W No Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 15000mw Laser Module + 1 pair of Protection Goggles
3018 Pro 15W 1in Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 15000mw Laser Module + 1 pair of Protection Goggles + 1 set 1 inch Offline Controller
3018 Pro Max No Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 2 pcs Laser Protection Boards
3018 Pro Max 1.8inch Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 2 pcs Laser Protection Boards + 1 set new 1.8 inch Offline Controller
3018 Pro Max 15W No Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 2 pcs Laser Protection Boards + 15000mw Laser Module + 1 pair of Protection Goggles
3018 Pro Max 15W 1.8inch Offline: 1 set CNC 3018 pro Engraving Machine + 4 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod
+ 2 pcs Laser Protection Boards + 1 set new 1.8 inch Offline Controller + 15000mw Laser Module + 1 pair of Protection Goggles
Note:
1. Please click here: , if you'd like to purchase with Laser Module sets together!
2. Please click here: or , if you need one platform for fixed focus laser engraving.

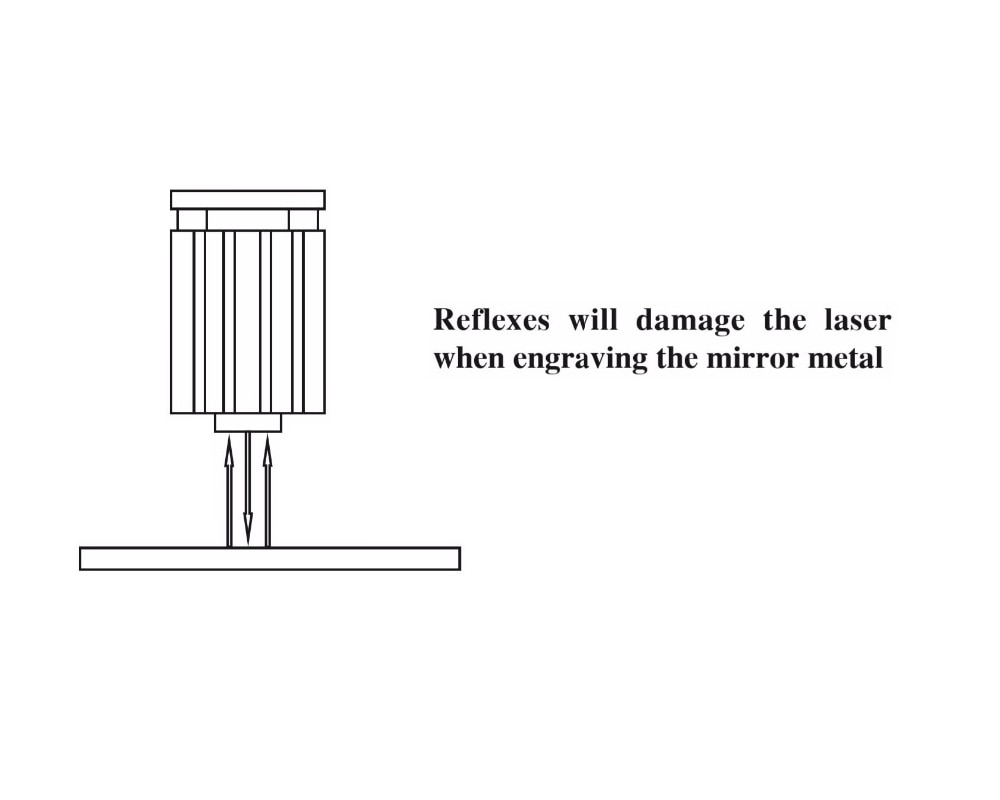

3. The laser cannot be used to carve or engrave mirror or reflective materials.
4. New Version is with paper Manual (old and new version will be sent in random), if you doesn't receive it, please kindly contact us or scan the QR Code on photo below for videos:
4. 2 kinds of offline controller will be sent in random!
If you need limit switches with machine together, please click the photo below for choosing Version 1!
We can send them with machine together and reduce the shipping cost of your order

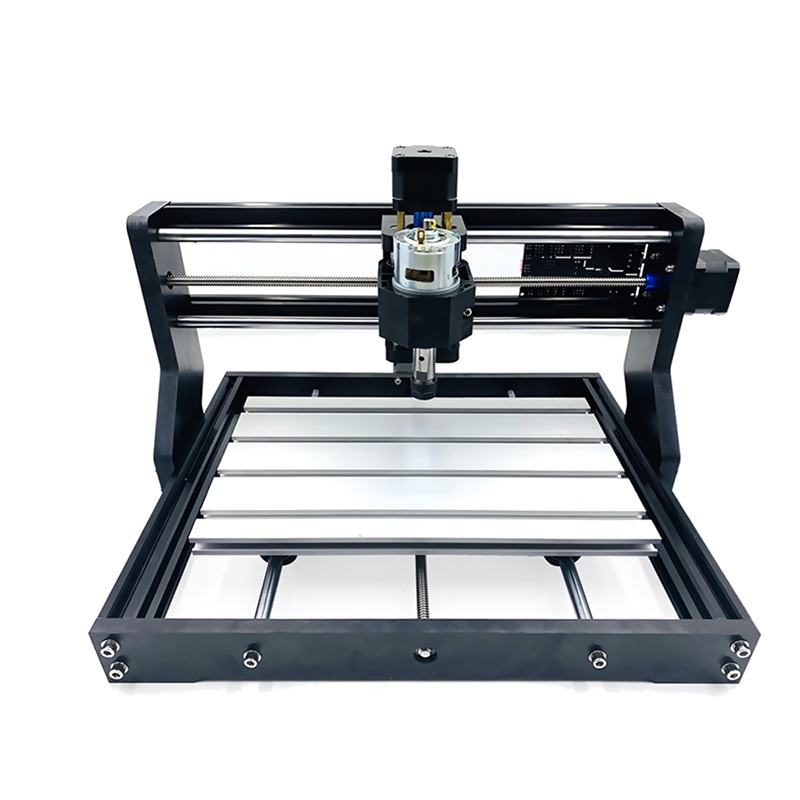

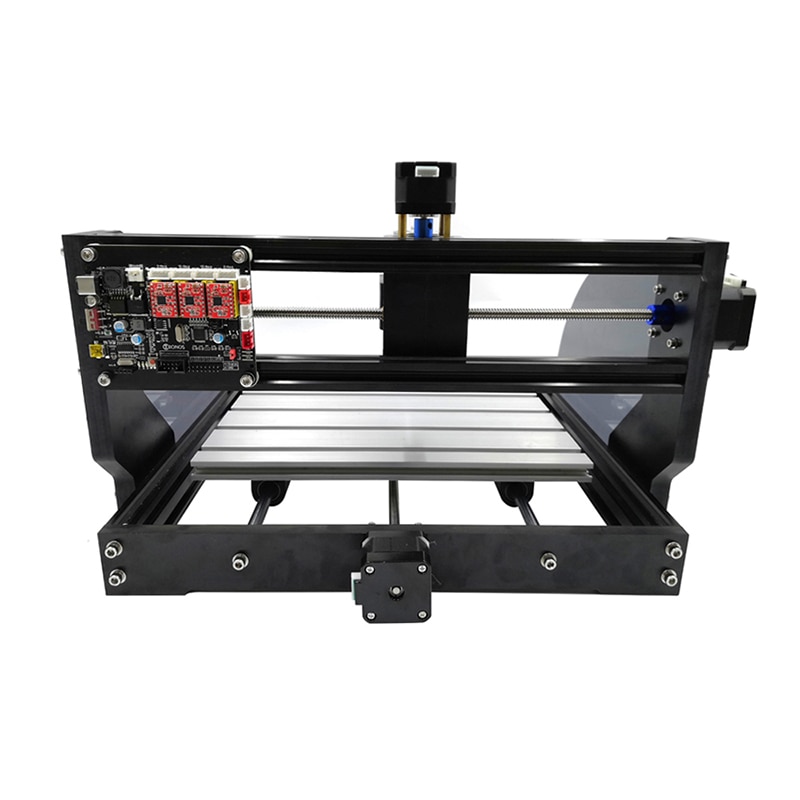

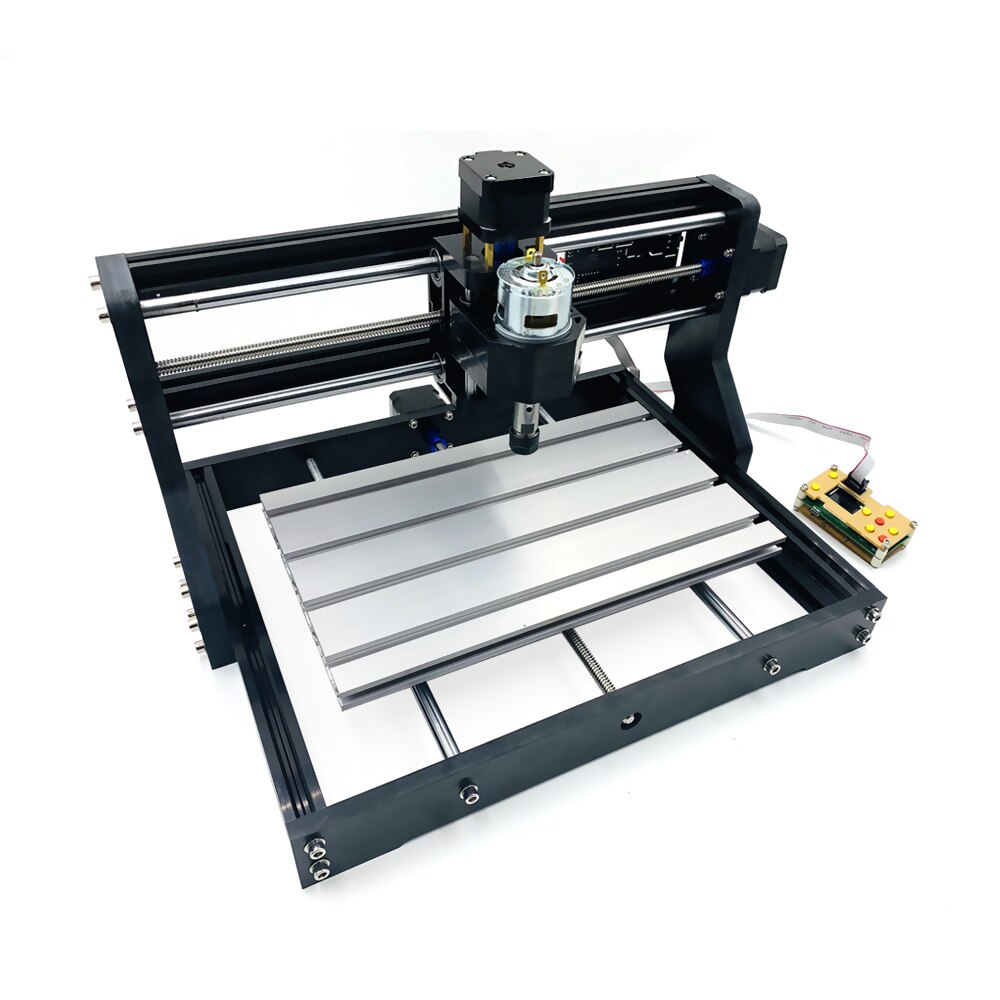

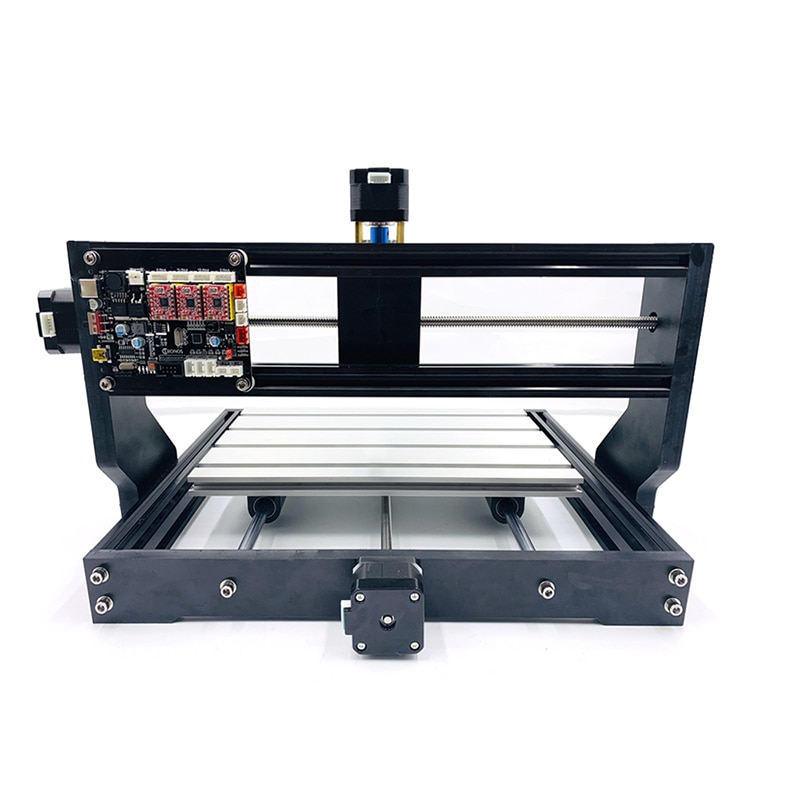

3018 Pro

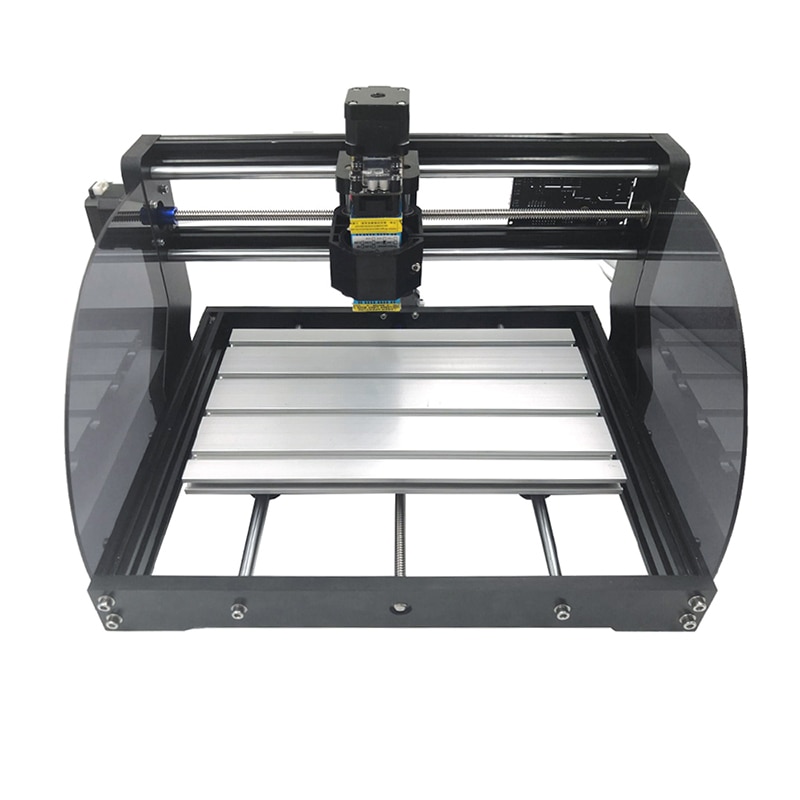

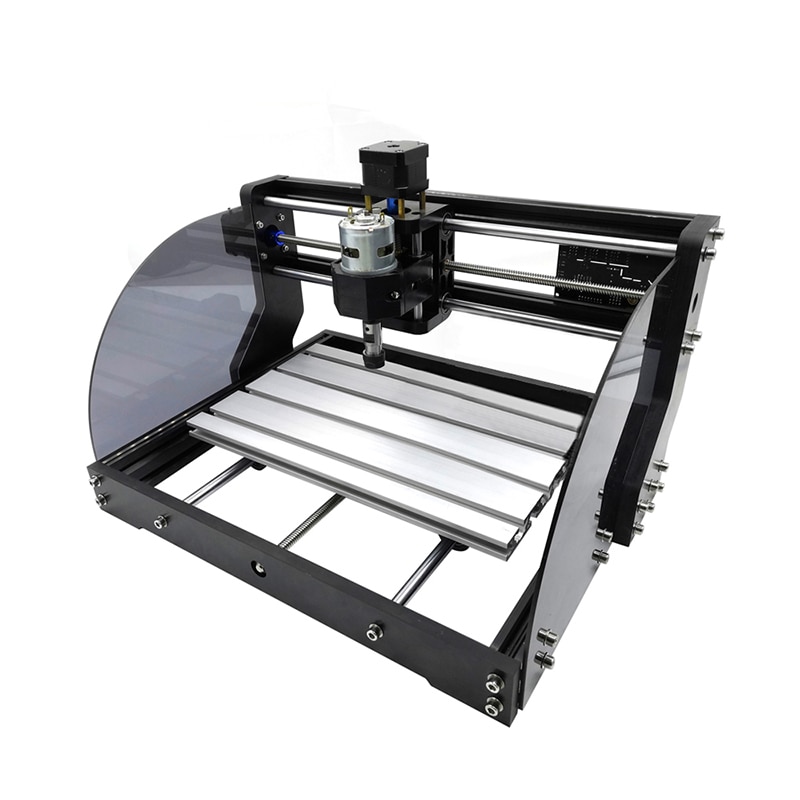

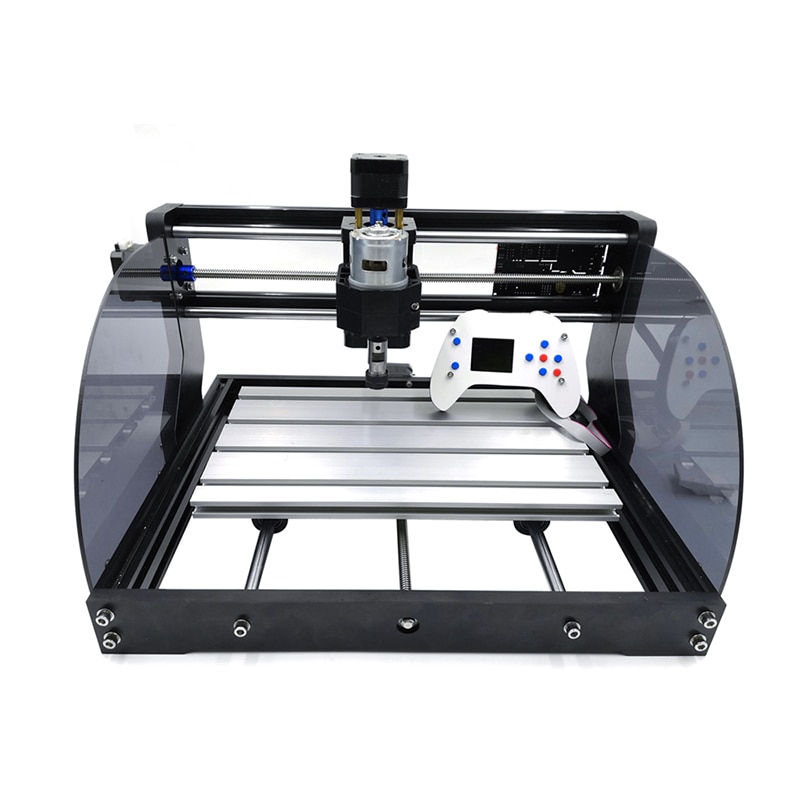

3018 Pro Max

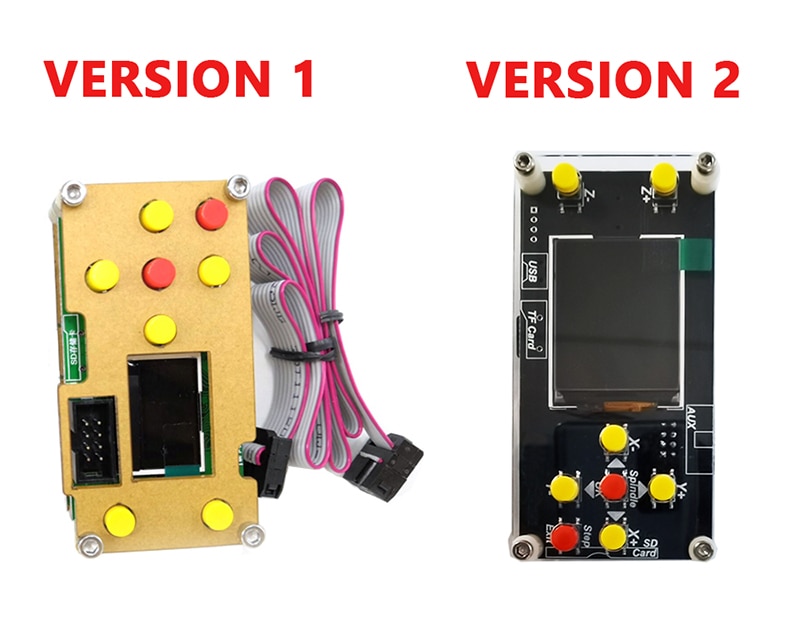

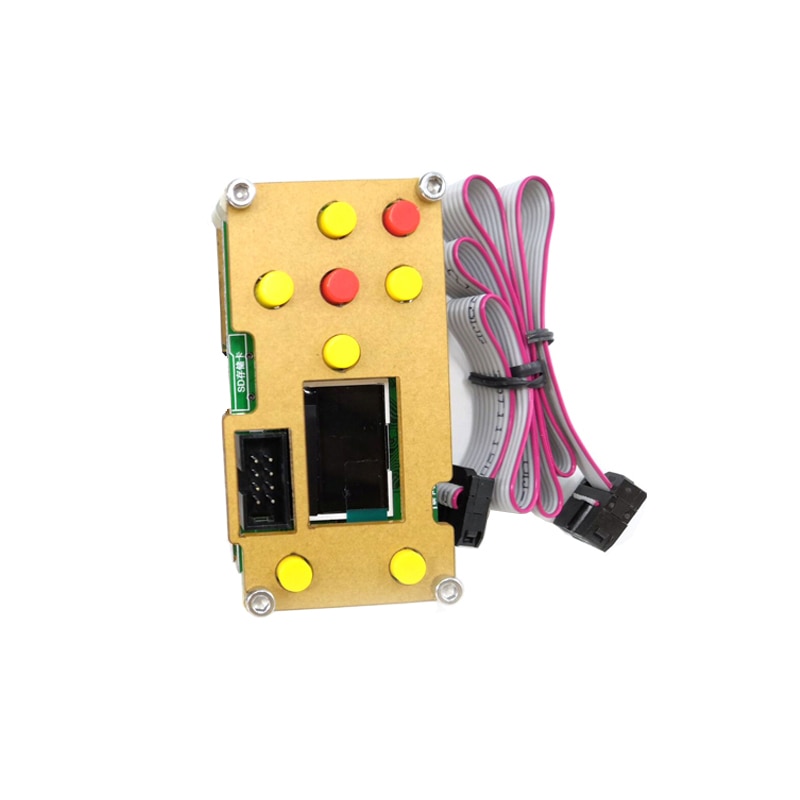

2 kinds of 1 Inch LCD Offline Controller will be sent in random!
Version 1
Version 2

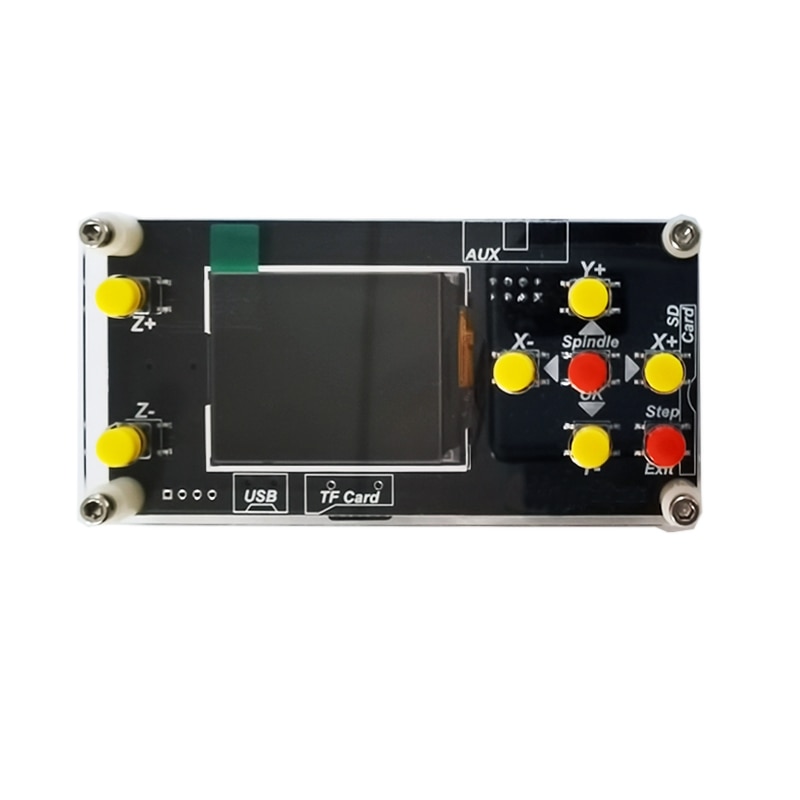

New 1.8 Inch LCD Offline Controller

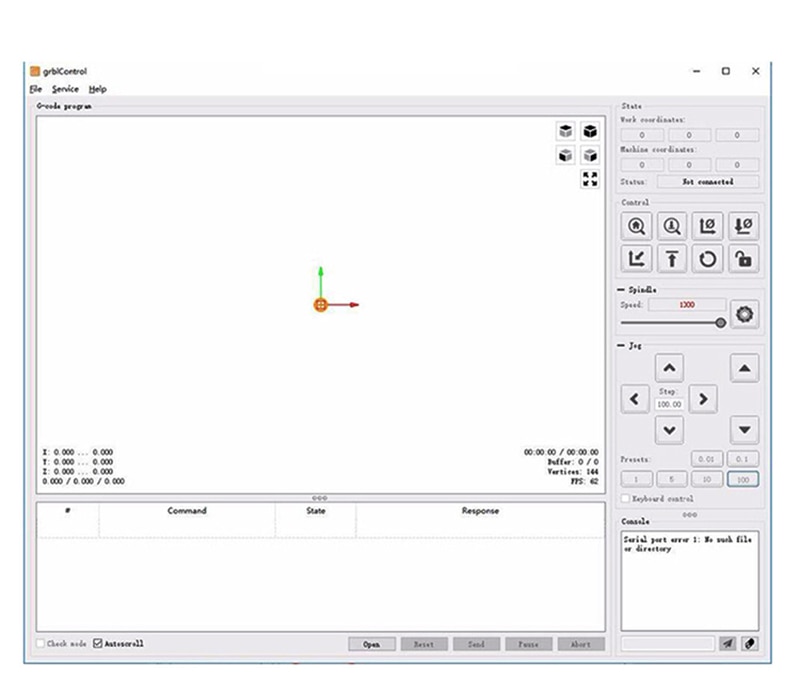

GRBL Software

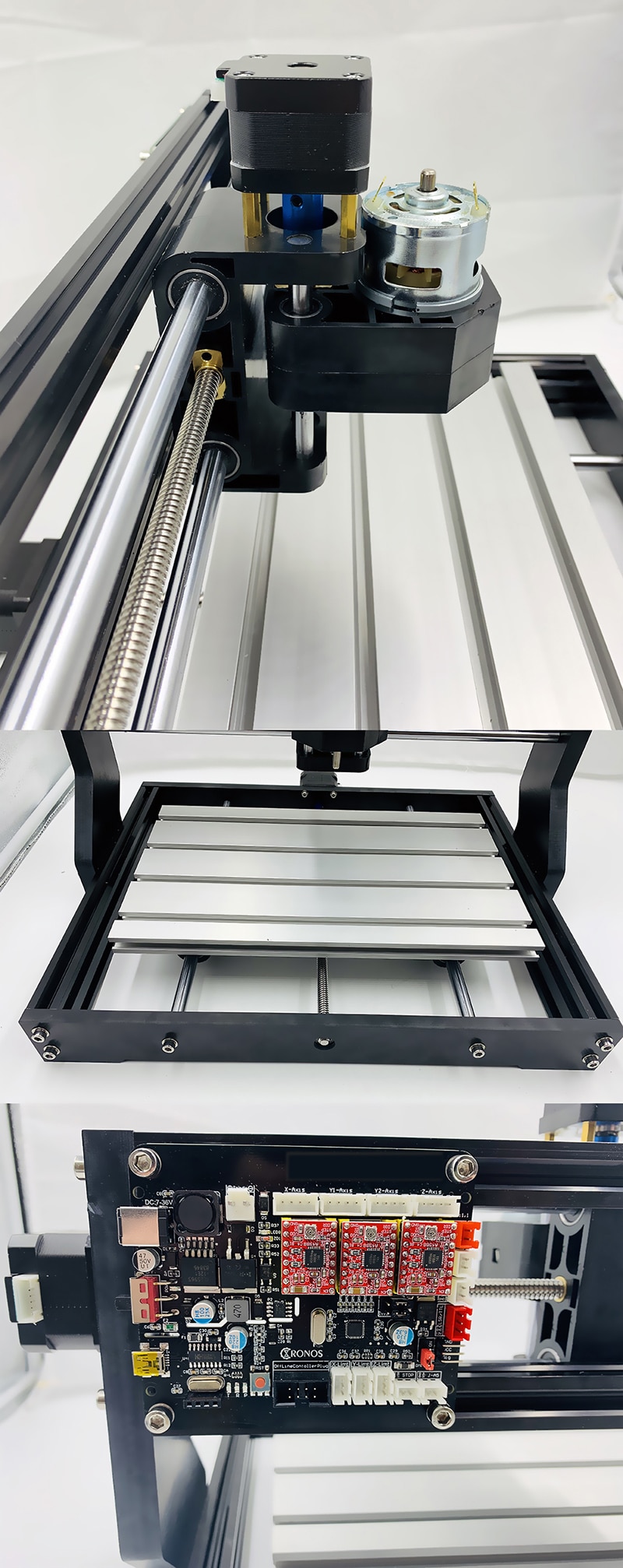

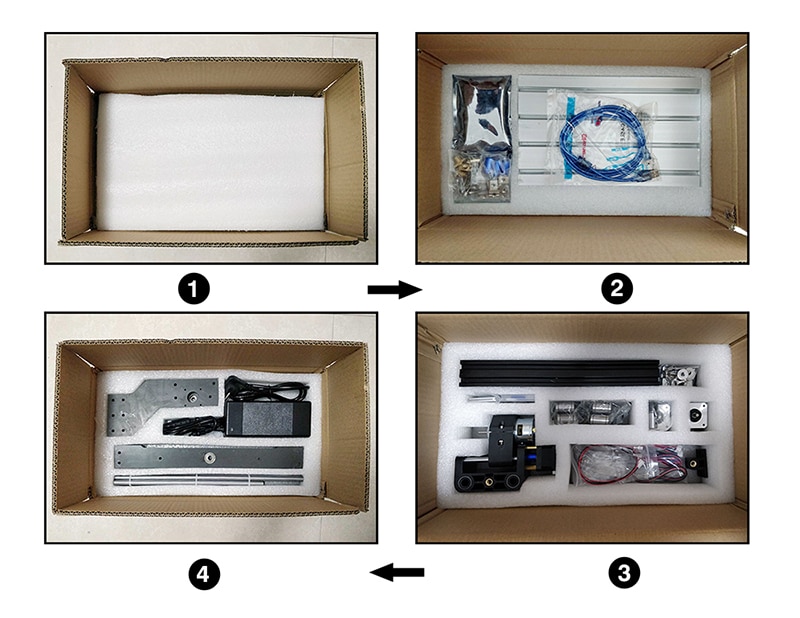

Actual Object
1. We accept Alipay, West Union, Paypal. All major credit cards through secure payment processor ESCROW.
2. Payment must be made within 2 days of order.
3. If you can't checkout immediately after auction close, please wait for a fewminutesand payments must be completed within 2 days.
1. Defective or wrong item. We will be offered replacement or refund afteroffer receive the pictures to prove it.
2. If you want to replacement, you need to pay sectional shipping fees of re-send.
3. If you want to partial refund, we will refund to you by paypal, thank you.
1. We'll ship out the item within 3 days after payment verified.
2. The address we will ship the item is derived from information. Buyer shouldmake sure that the shipping address is corrcect.
3. Please contact us if you didn't receive your goods, we will try our best to solvethe problems.
The countries we can send to, if you choose
Ships From Russian Federation: Russian Federation
Ships From Spain: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Poland, Portugal(no service for islands in specify zip codes), Romania, Slovakia, Slovenia, Spain(no service for islands in specify zip codes), Sweden
After receiving and checking your orders, we will send you Ali-message about shipping information confirmation, please pay highly attention to Ali-message and offer us reply there!
For the parcels to 27 countries of European Union:
If from Spain Warehouse: buyer only needs to pay VAT through Hogaki,no matter the value of products.
If from China Warehouse:
if products' price is not over 150EUR, only needs to pay VAT through Hogaki (if you have VAT No./EORI No., please kindly leave u Ali message about it);
if products' price is over 150EUR, buyer has to process the import clearance event and pay for total taxes fee(VAT+import customs taxes) in person and please offer us Email address and VAT/EORI No. if buyer has (French and Italian buyers must provide it).
For the parcels to Norway:
Total customs taxes = VAT + import customs taxes fee
If products' price is no more than 3000NOK, buyer will pay only VAT through Hogaki, if it's convenient, please kindly send us one snapshot of your order with VAT info via Ali-message, we'll add VOEC No. in order to avoid the second charge for taxes from your customs.
If products' price is more than 3000NOK, is still taxed by the customs at the time of import.
Our goal is 5 stars, if you have any problems about the items or services, please feel free to contact us, we will try our best to help you and makeyou satisfied, thank you!
- Is Smart Device: No
- Model Number: CNC 3018 Pro Engraving machine Kit
- Condition: New
- CNC or Not: CNC
- Brand Name: MASTER JIANG
- Origin: Mainland China
- Certification: CE
- Choosable laser: No laser/500mw/2500mw//5500mw/15W/Offline Controller
- Gift for each set: 4 pcs Plates, 10 pcs Cutters, ER11-5mm Extension Rod
