NEJE E40/A40640/N40630 Laser Head Module Kit Blue Light 80W/50W/30 Module for Laser Engraver Wood Cutting Smarter Tool Accessory

    HOW TO CHOOSE NEJE LASER MODULE

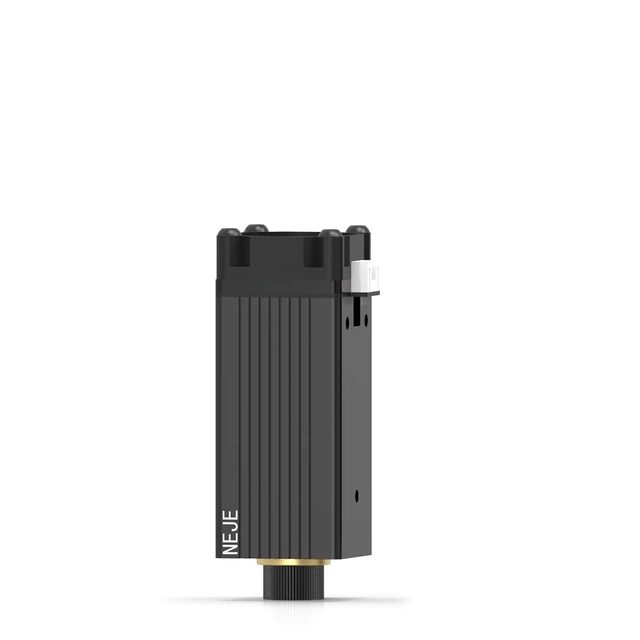

B30635 is a module specially designed for wood grayscale images and micro-engraving.

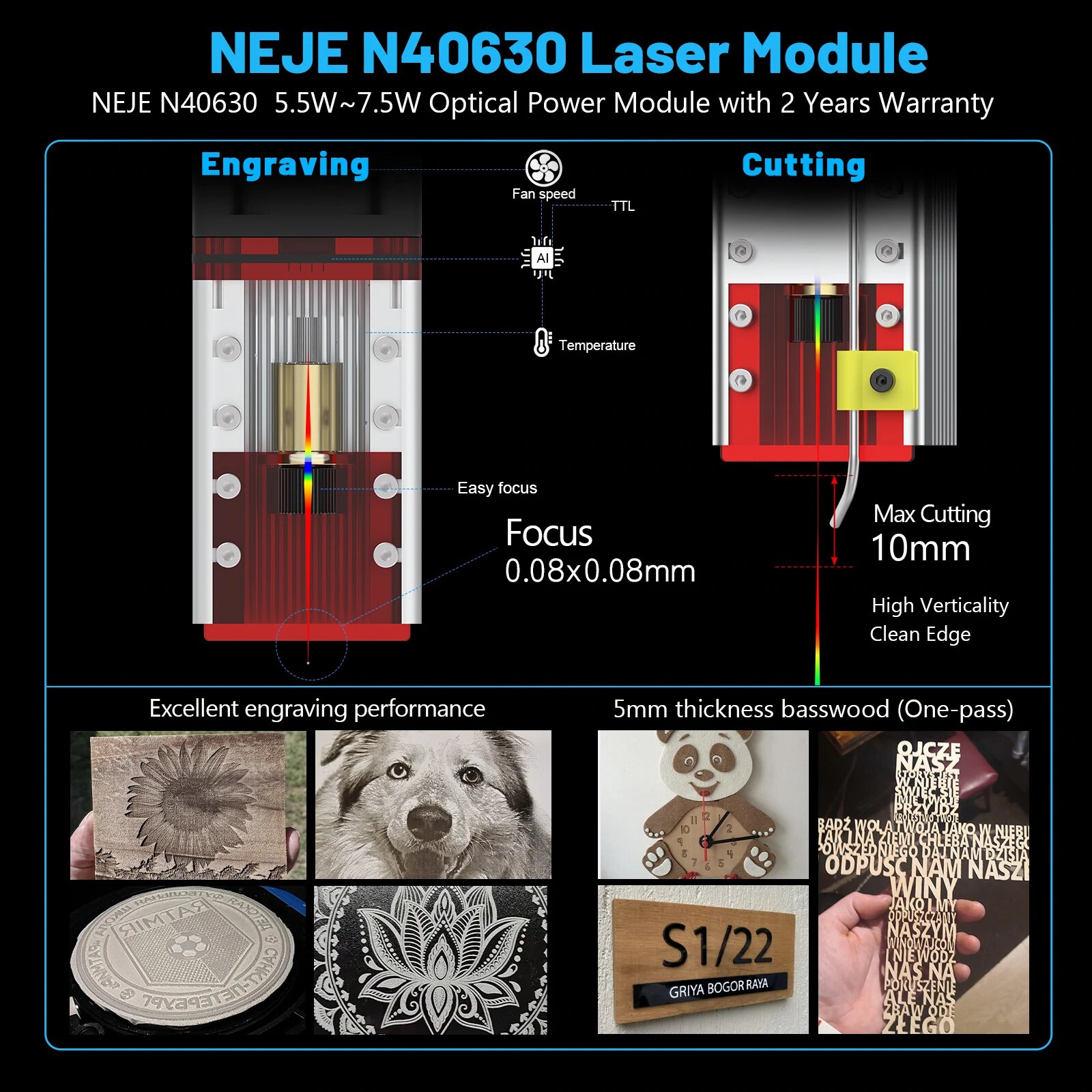

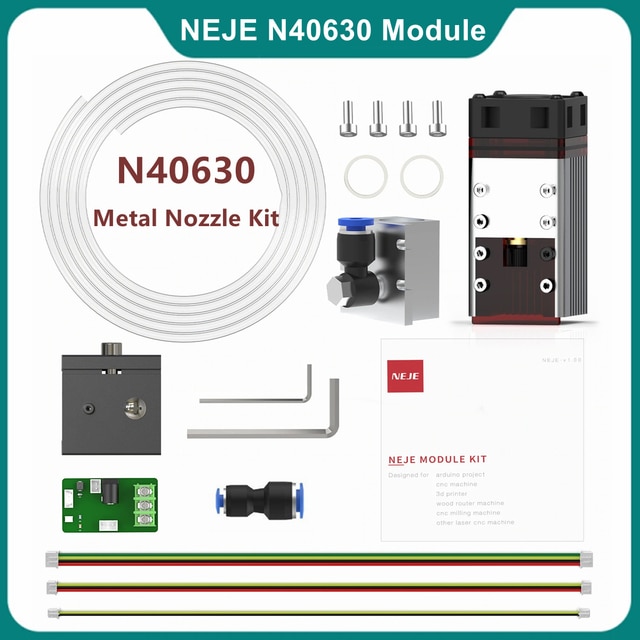

N30820 and N40630 have strong comprehensive capabilities, the optical power is 5.5 - 7.5W output, and the focus is square light spot, good at carving with wood , rubber stamping, glass, transparent acrylic and cutting Plywood, black acrylic, cloth, etc...These two modules are single-beam modules with comprehensive functions and high cost performance. They are the best choice for beginners. The difference between them is that N30820 can be used as air assist through a needle tube, not picky about the air pump. N40630 can install metal The air nozzle but air pump must be oil-free and water-free, so as to ensure that the lens is not damaged.

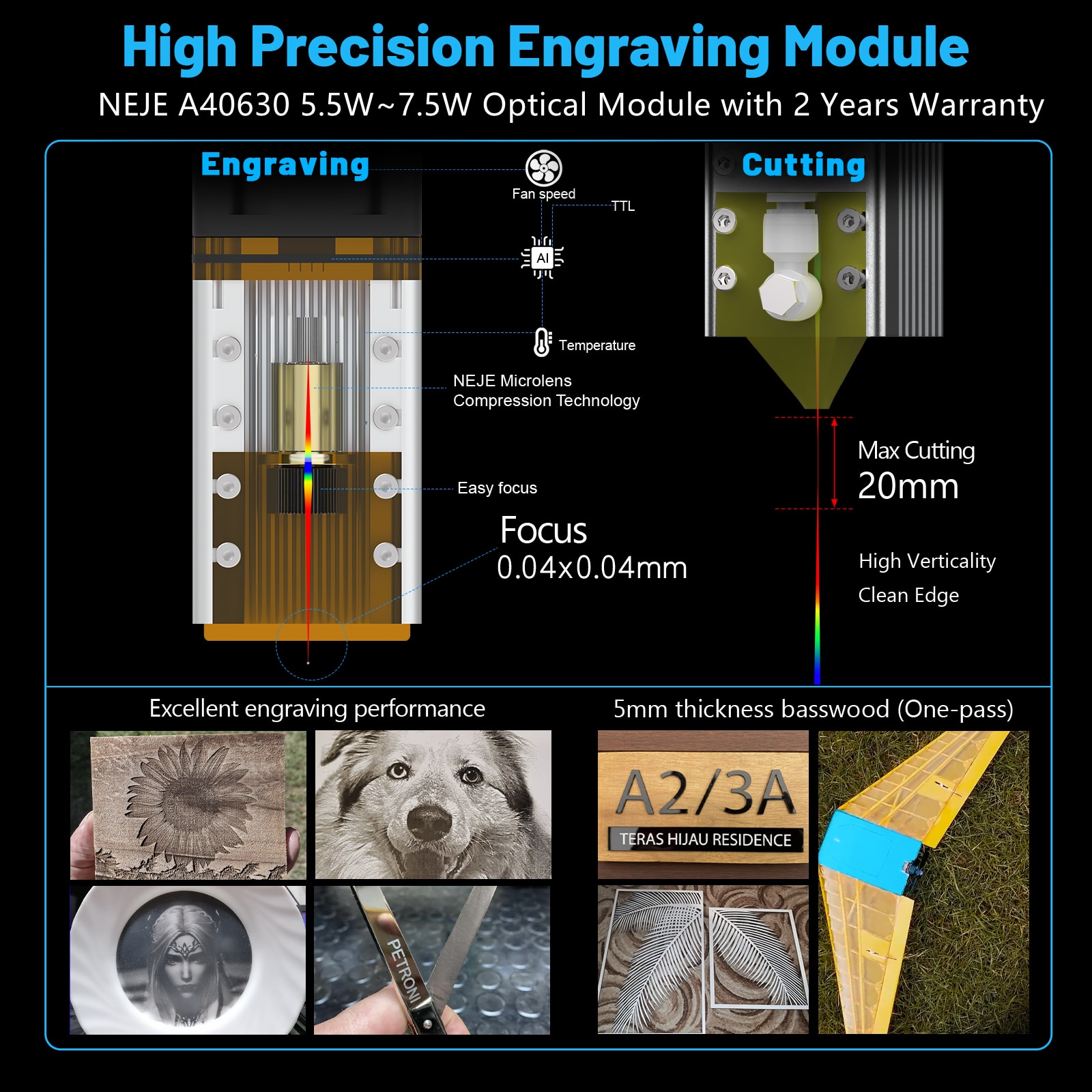

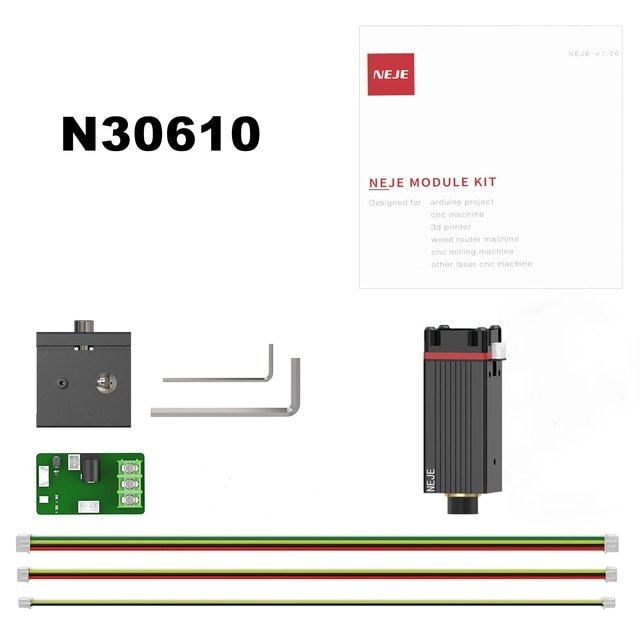

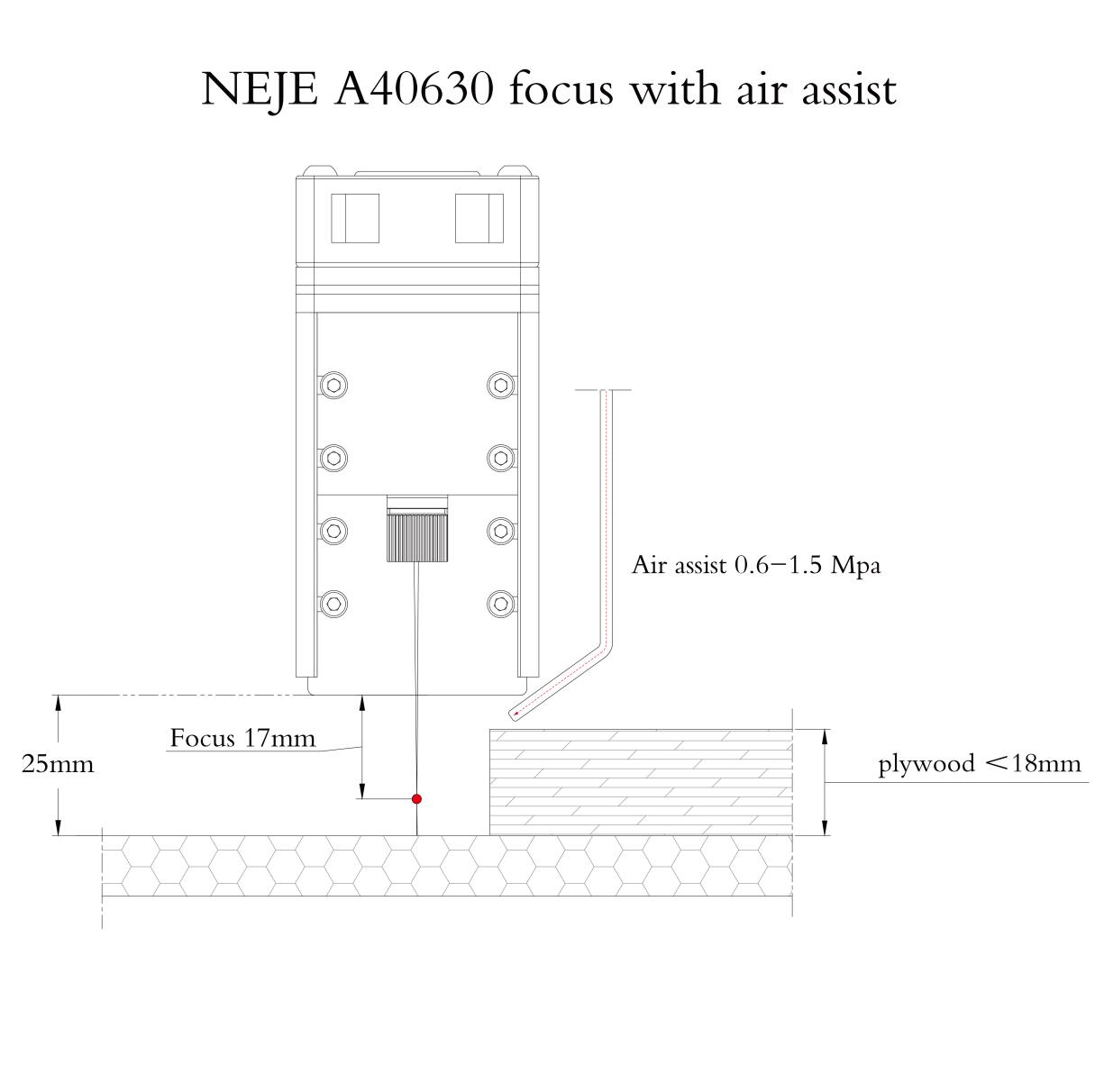

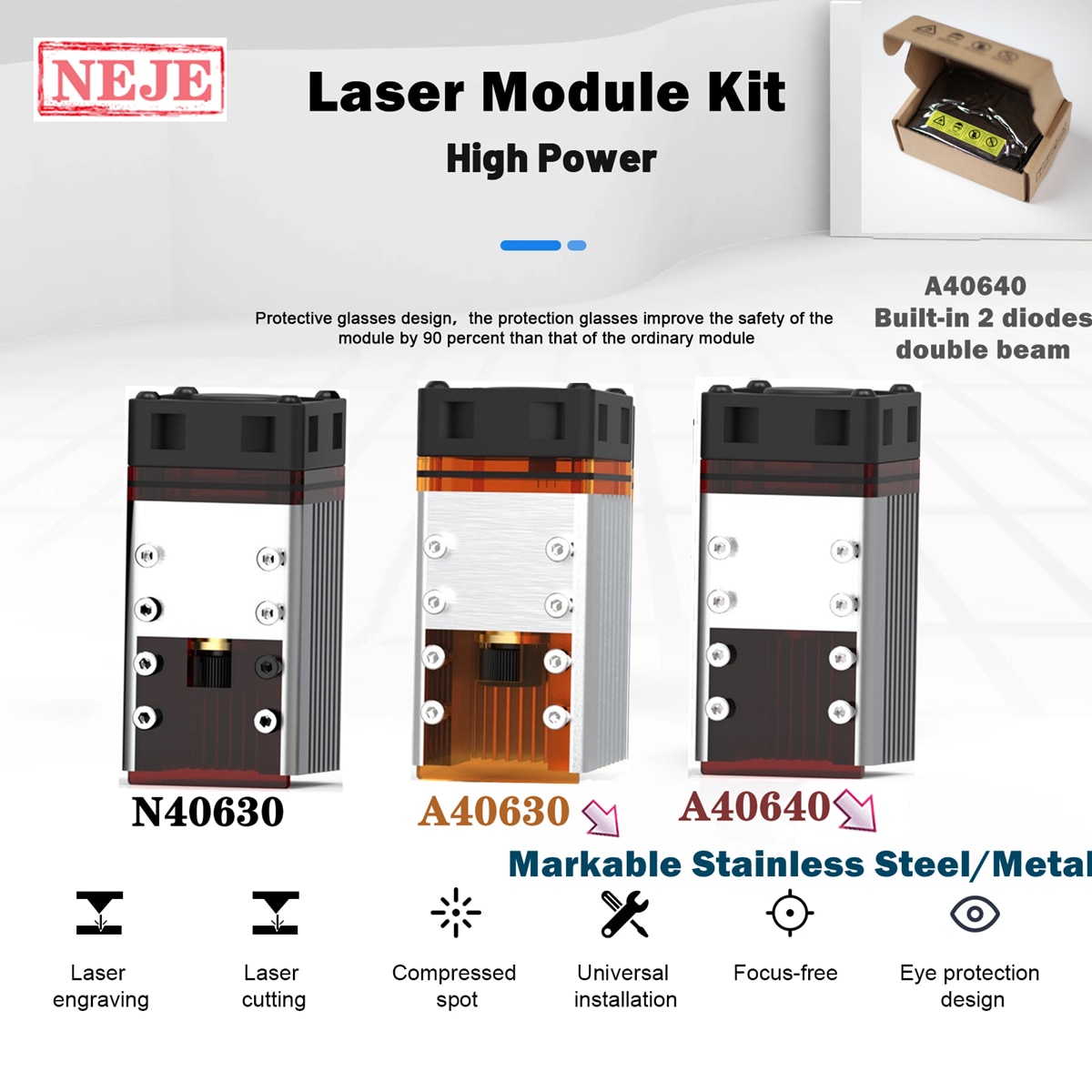

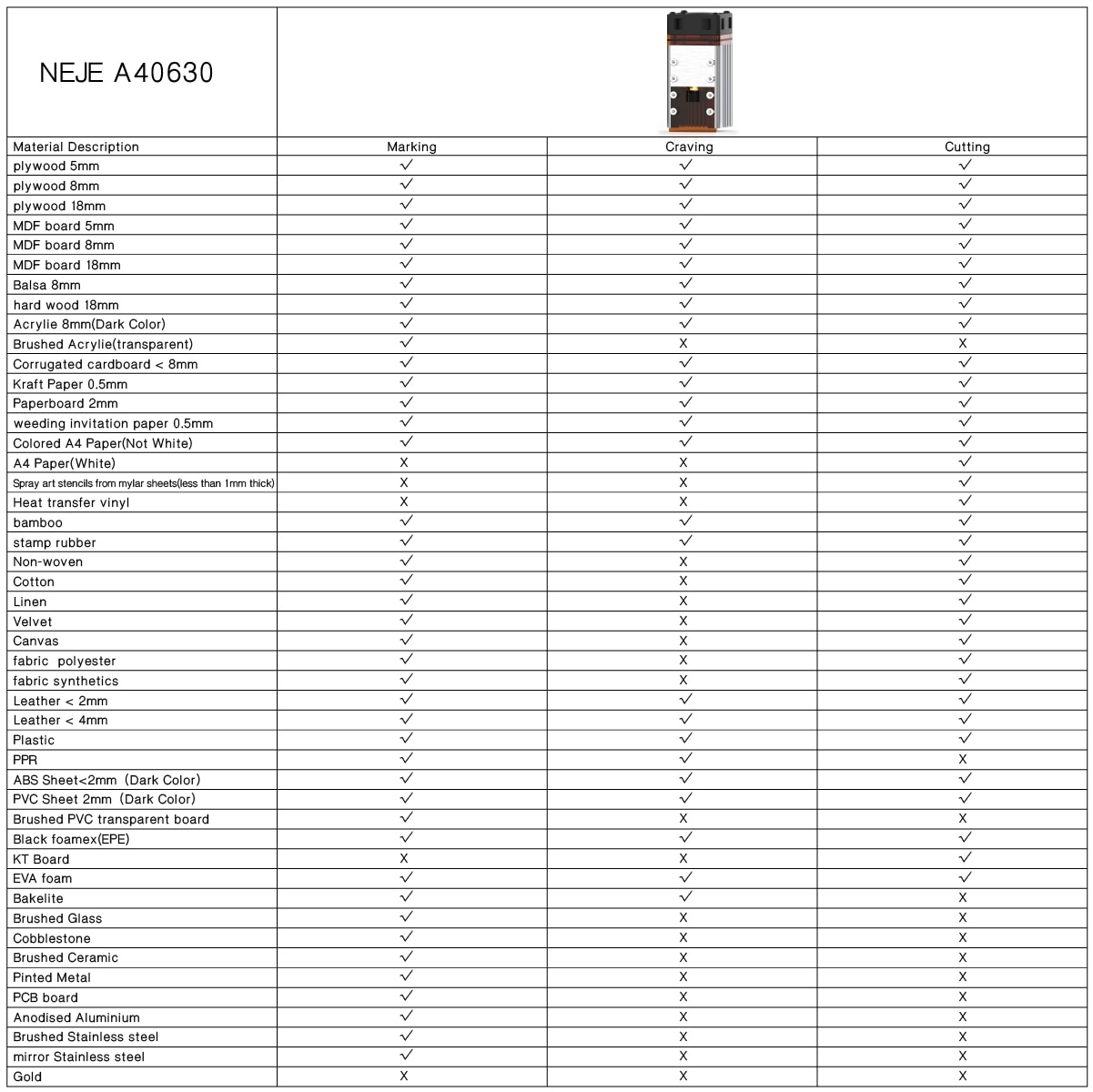

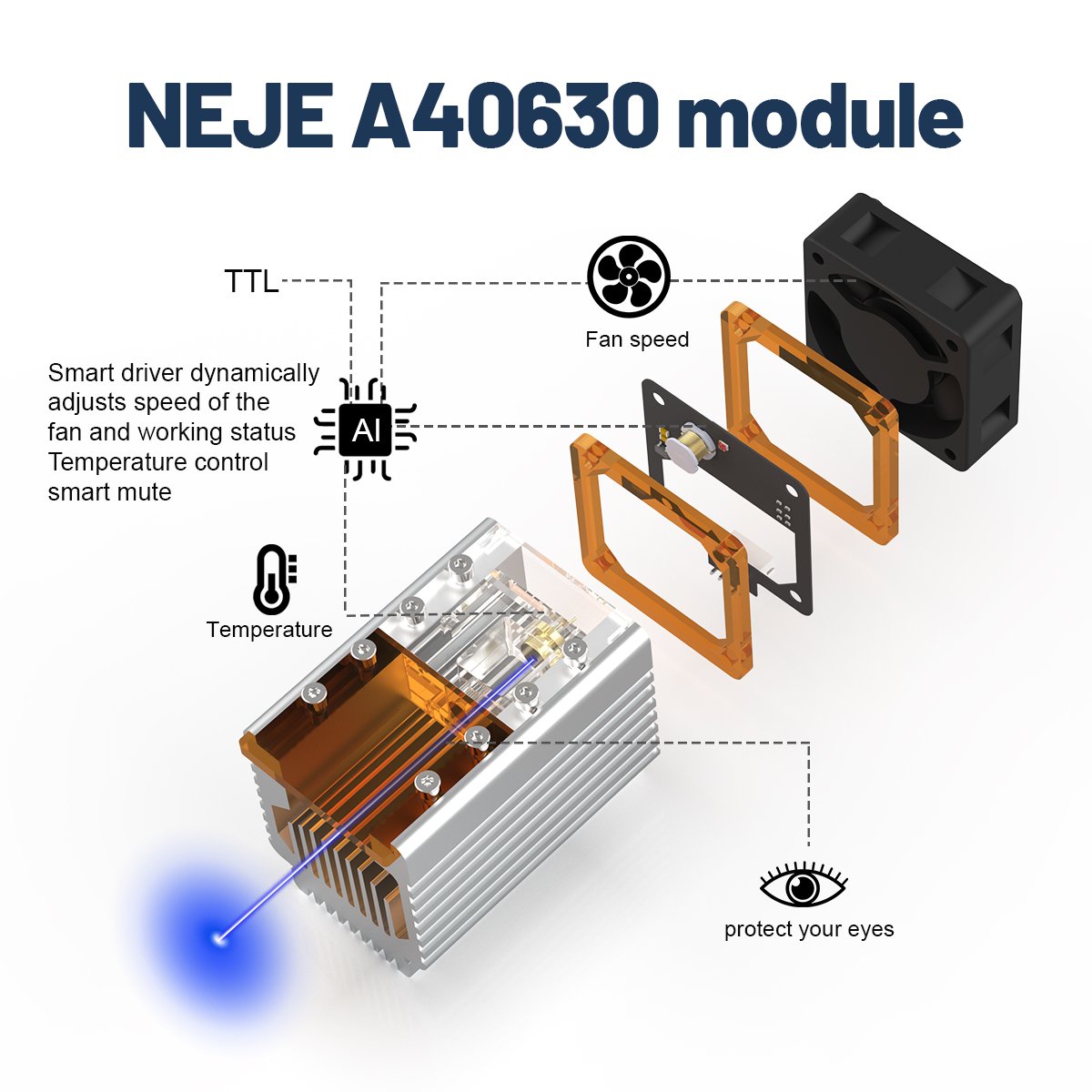

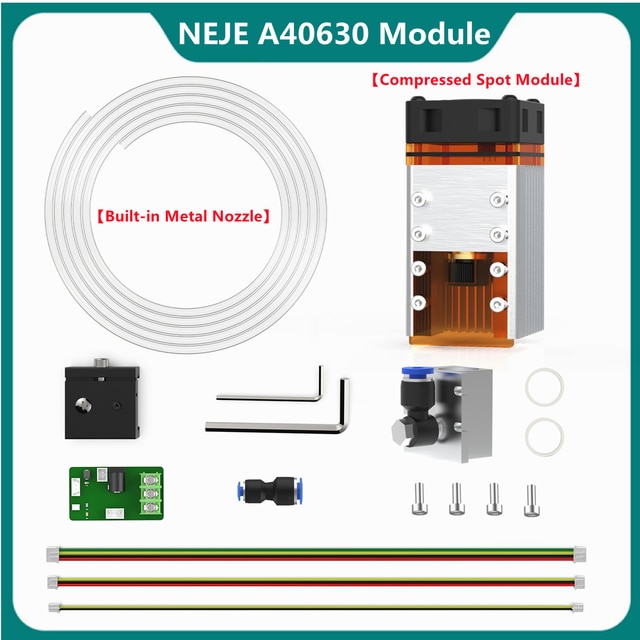

N30610, A40630, A30130 modules have very fine square light spots, and are better at high-resolution engraving and grayscale engraving of hard materials, They are all zoom modules. A40630 and A30130 also have strong cutting ability and are suitable for cutting Plywood, mdf board and black acrylic. N30610 can present 0.02mm detail, A40630 and A30130 are the same optical features, focal point 0.04x0.04mm, the difference in the different air-assisted extension forms and compatible air pumps.

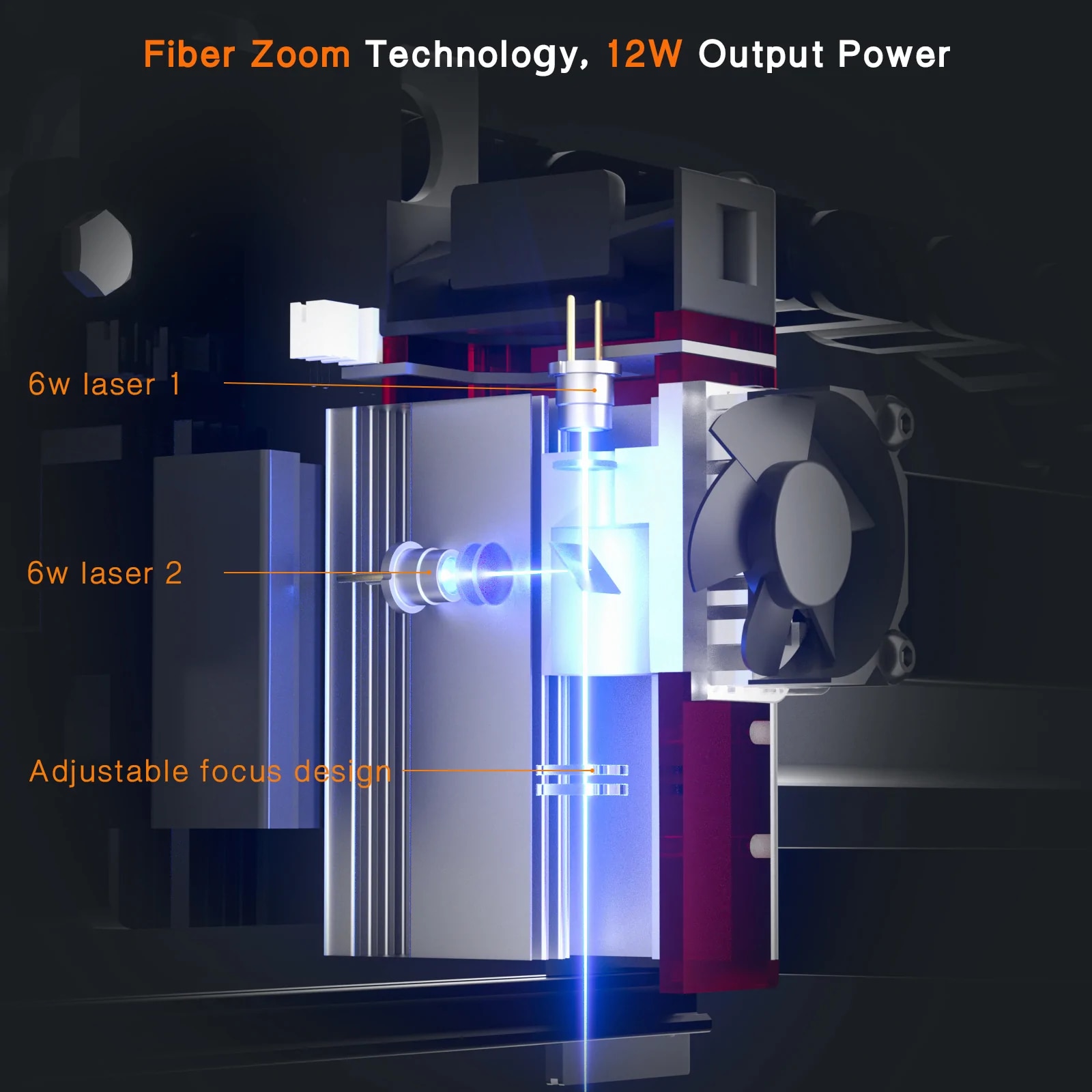

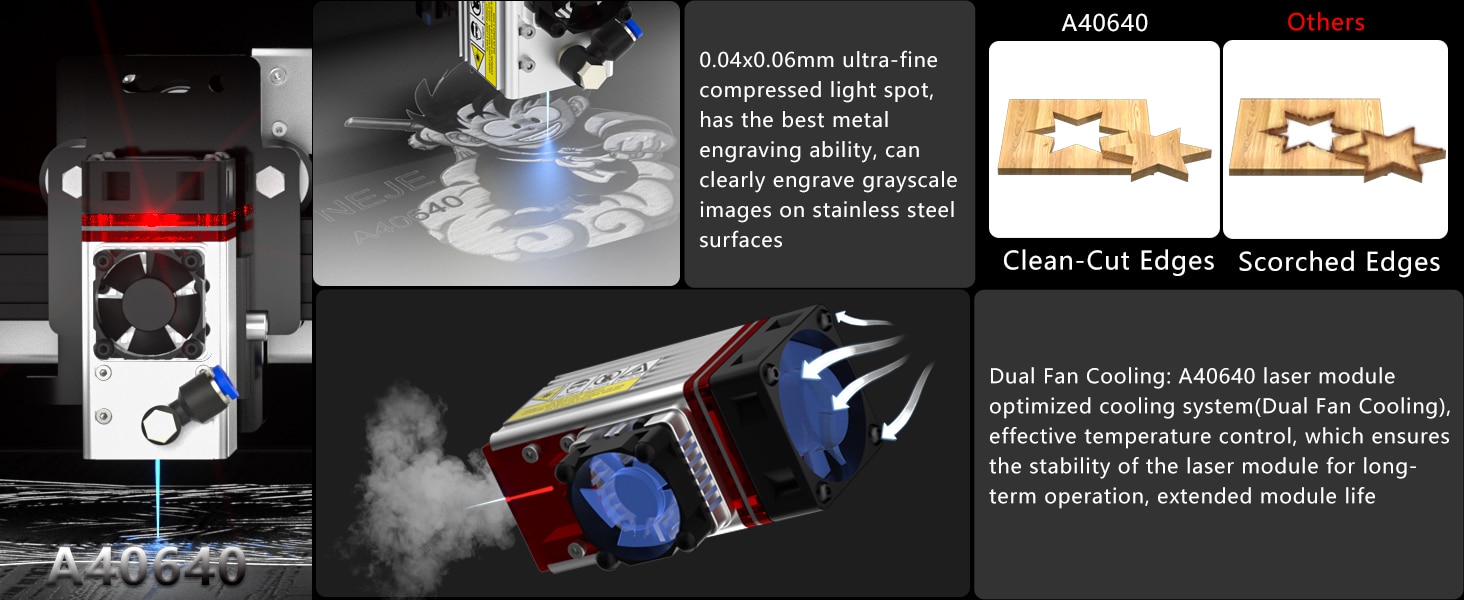

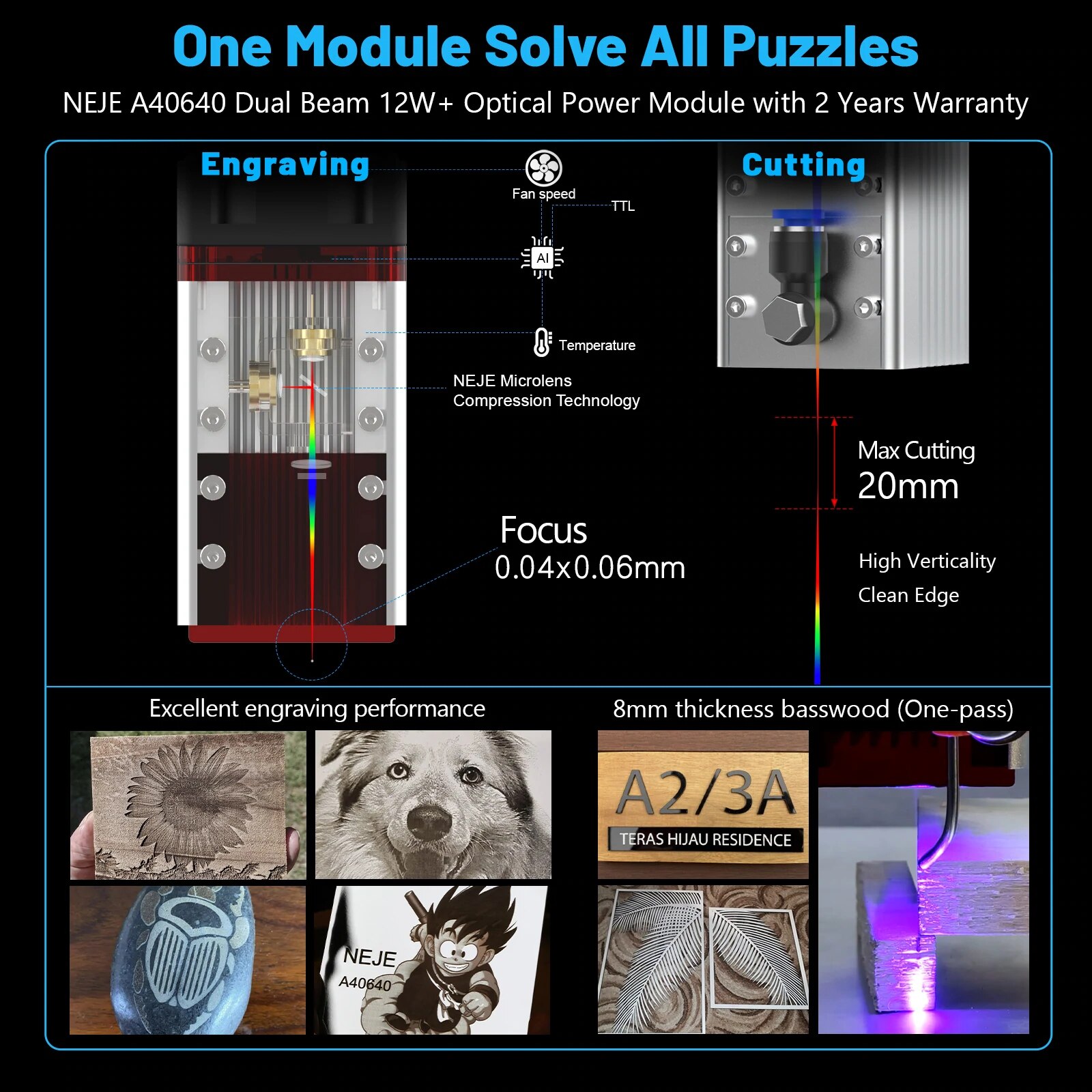

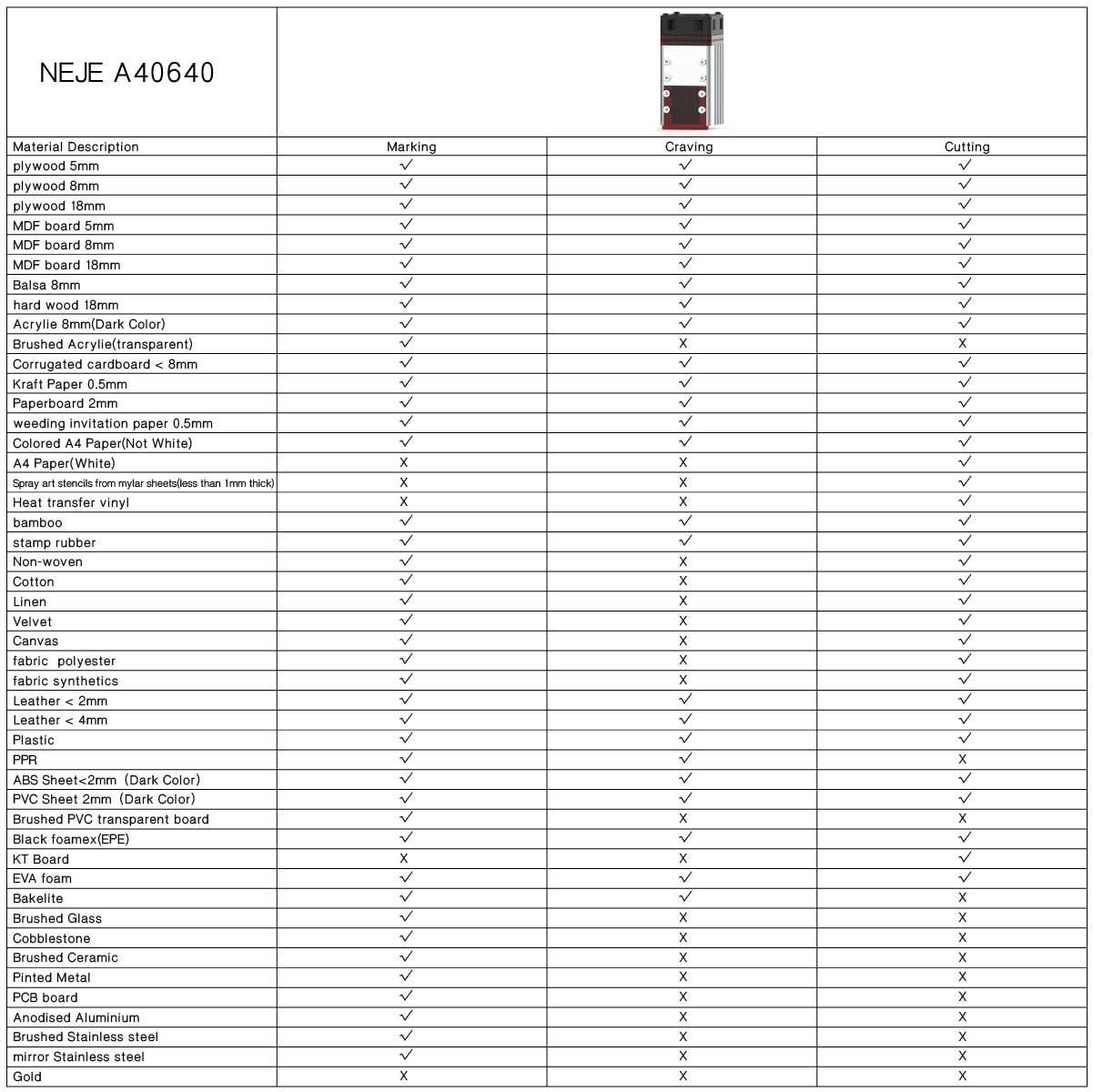

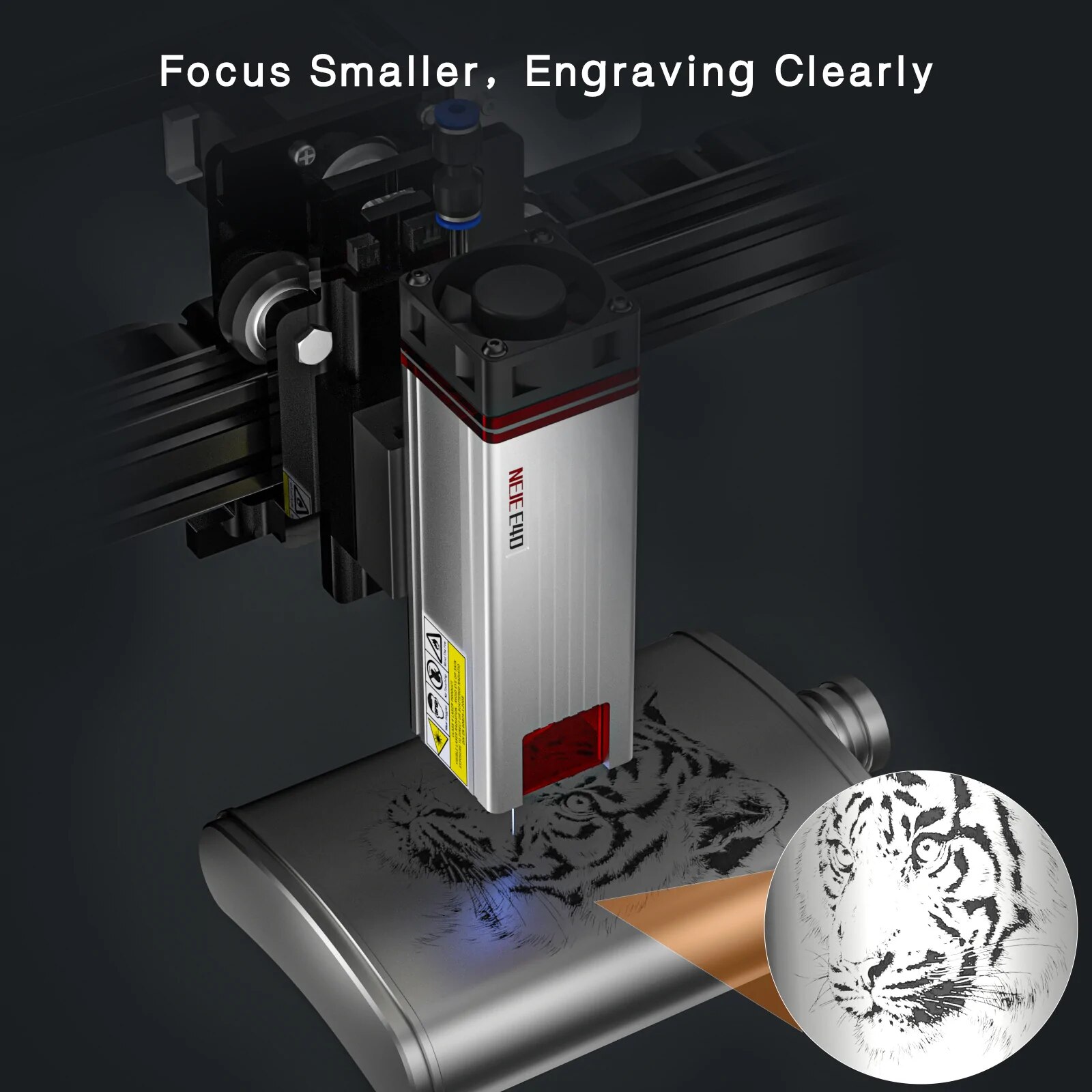

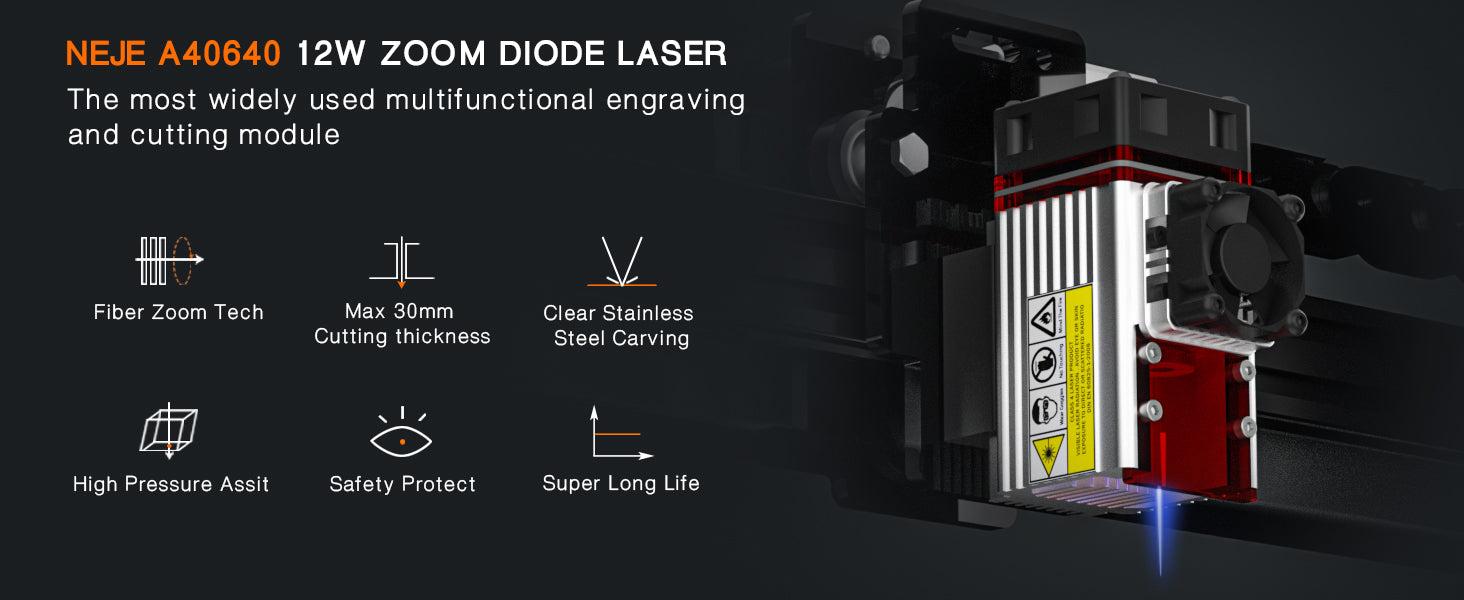

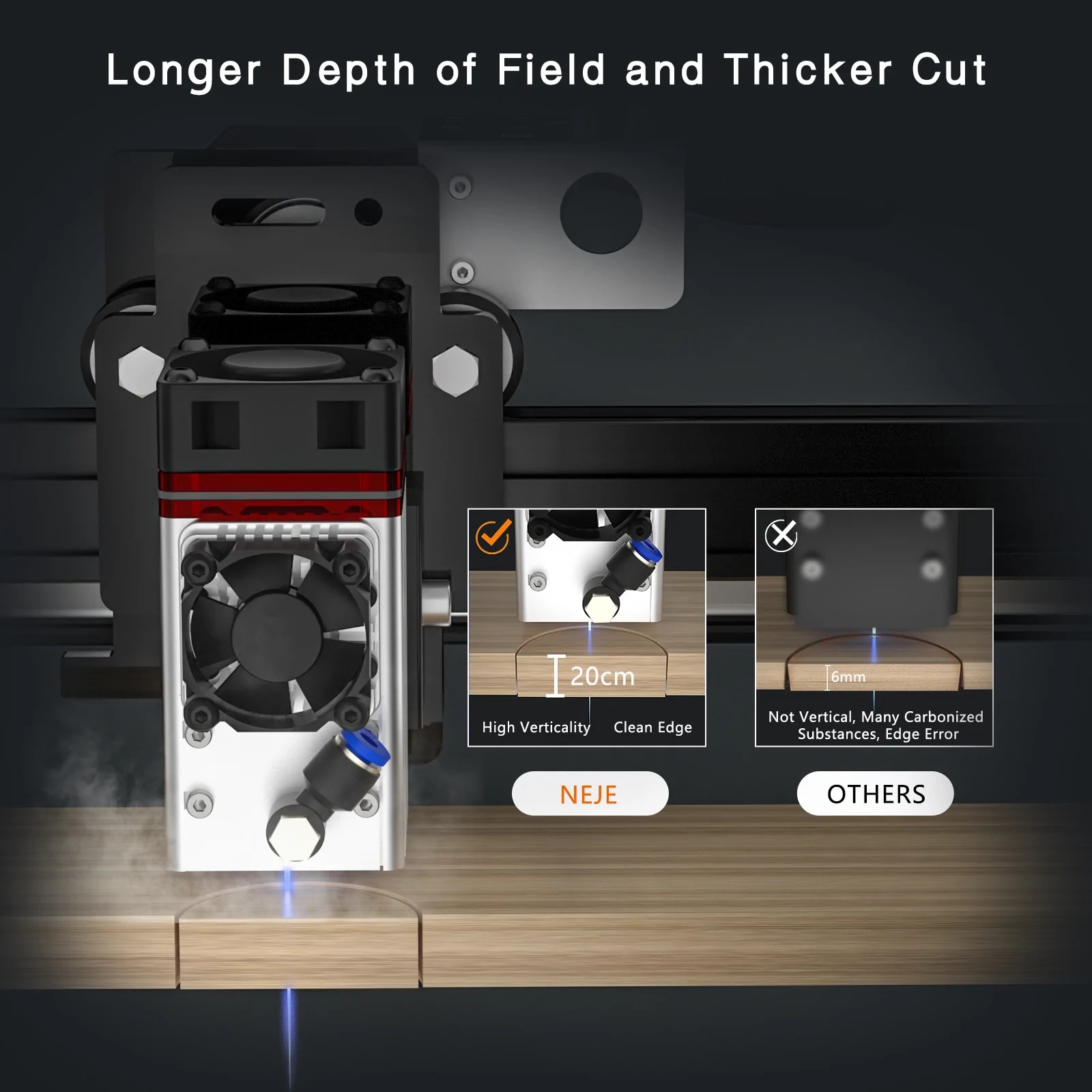

A40640(Artist's Choice) is a classic creative master 2 beam laser module, it is the world's first 2 beam laser diode engraving and cutting module with zoom design, with the best metal engraving ability, fast groove engraving ability, perfect cutting compatibility. Better application on a wider range of materials, The strongest power density (0.04x0.06mm with 12W+ pluse and 11W+ CW optical power,, Use 80% power (9W+) when cutting for a long time)of enables the A40640 to have the top engraving ability, There are very special and top artistic expressions on the carvings of stainless steel grayscale carvings, stone carvings, hardwood reliefs, canvas art, and other materials. The adjustable focal length design enables the A40640 module to have a uniform cutting thickness of 20mm and short-focus fast cutting capabilities. If you only consider 1 module to help you solve all the needs, it is the best choice.

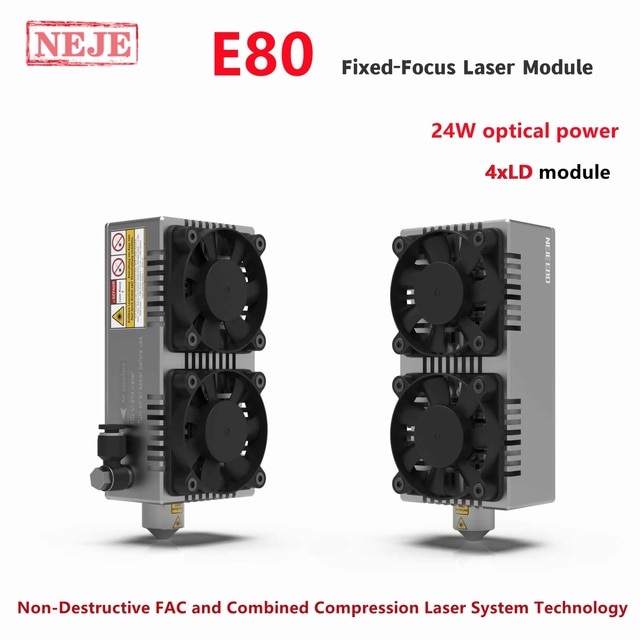

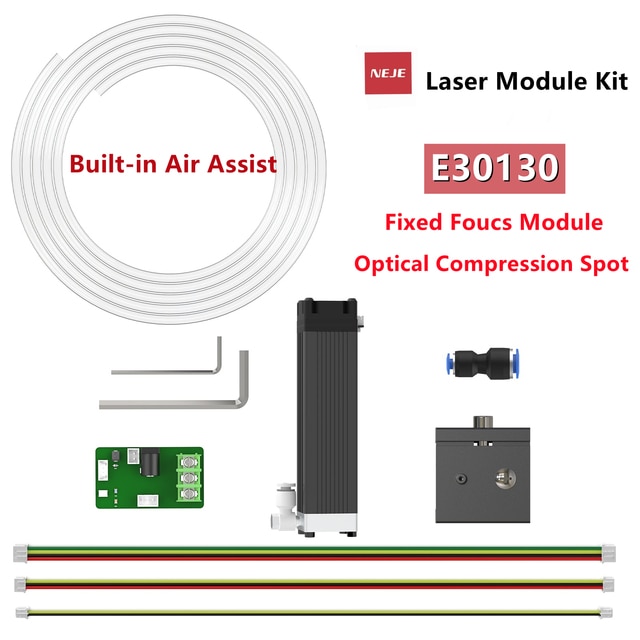

F30130, E30130, E40, E80 are the series of modules specially designed by NEJE for long-time cutting. These four modules are fixed focal length modules, which require clean air source support, F30130 is 10mm focal length, good at cutting plywood and metal engraving less than 4mm, E30130 is 20mm focal length, through internal NEJE optical processing, the spot shape is square, suitable for cutting materials with strong symmetry requirements such as model aircraft, E40 is 2 beam module, the spot shape is square, with 11W+ pulse and 10W+ continuous power output capability, is a cutting module with high cost performance and wide application. E80 is 4 beam module, 20W+ output, it is not recommended for engraving, the focus point is larger, heavy weight and the need to add air assist are the disadvantages of 4xLD. If you have requirements for cutting speed of 3-4mm materials, E80 is the right choice for you, Normally, 500mm/min can cut plywood cleanly, It should be noted that E80 is a 24V input module, which can only support the new NEJE-3-Max machine. The new motherboard of NEJE 3 Max (v1.1.0 and above) supports 24V input. NEJE does not plan to configure a separate machine set for the E80 module. You can Purchase an E80 kit to upgrade your NEJE 3 Max.. In addition to E80 modules, F30130, E30130, E40 can also remove the air nozzle and directly use it for engraving without air assistance.

E40 Laser Module RECOMMENDED REASON

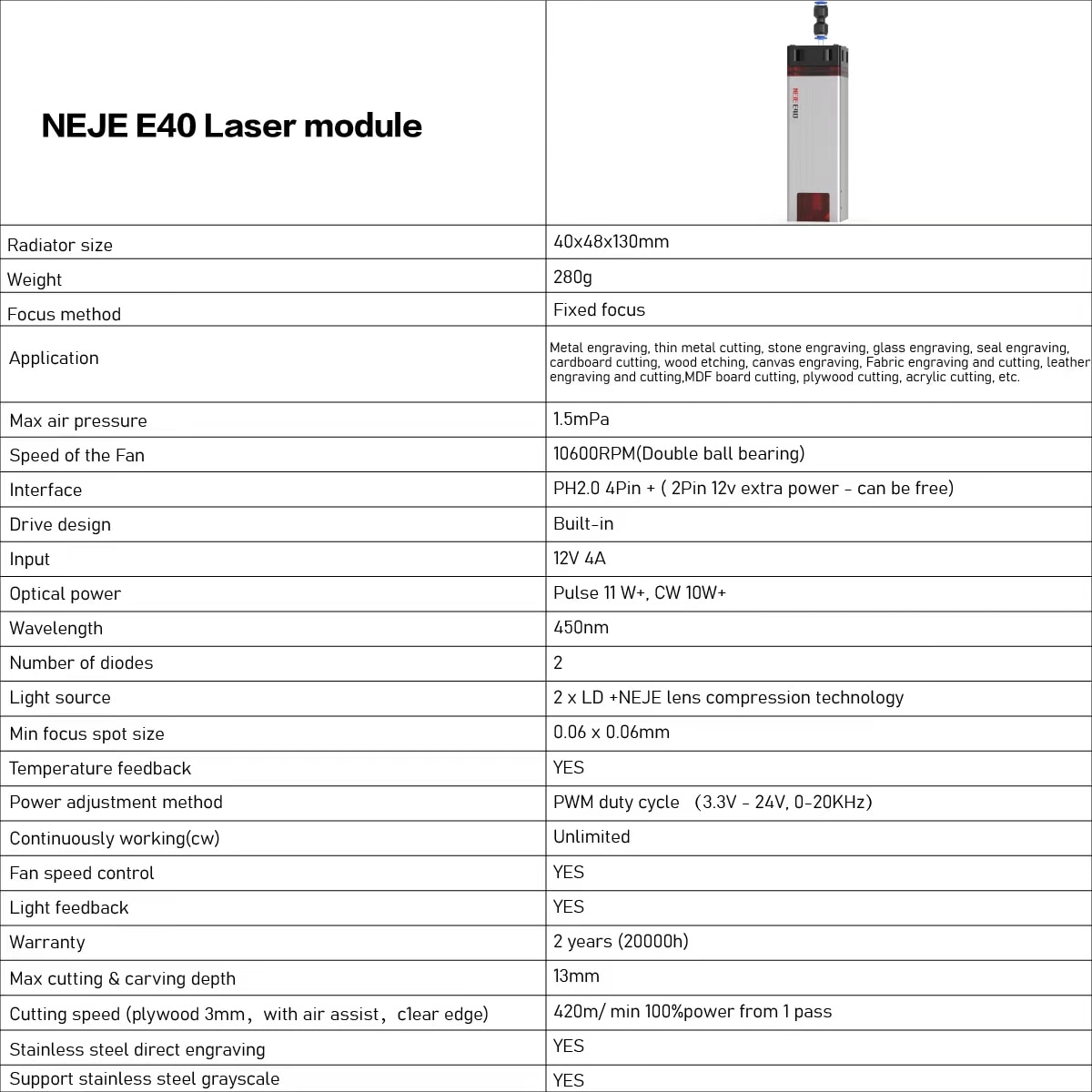

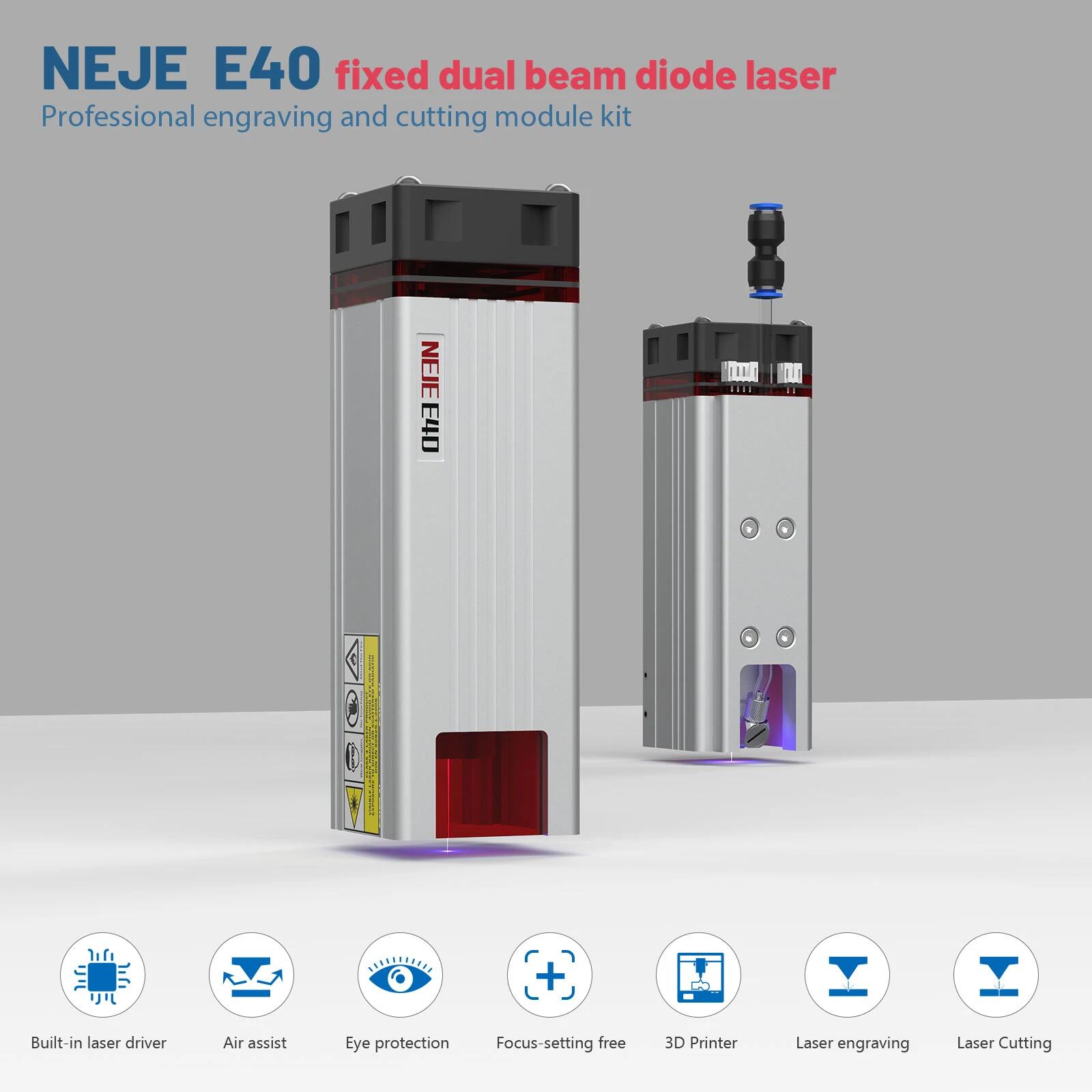

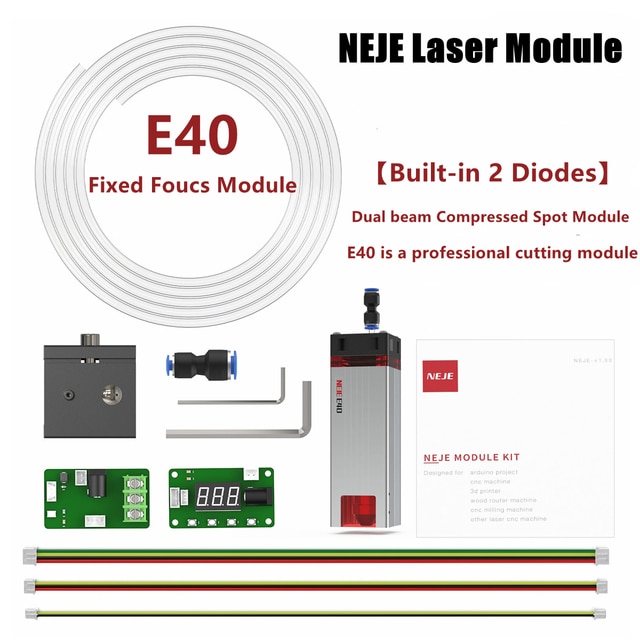

NEJE E40 is a professional cutting module specially designed for long-term safety cutting processing. It is currently the strongest power and optical performance module with 2 beams. Compared with NEJE A40640, E40 is more focused on cutting stability, heavy-duty design, and easier to use air asisst, more stable output power for cutting, E40 also has good cutting efficiency, 300mm/min can cut 4mm plywood cleanly, NEJE has optimized the optical characteristics in the XY axis direction, so that the XY axis cutting is balanced and more suitable for cutting; remove it Air nozzle, E40 can also be directly used for engraving without air assistance, and the engraving ability of E40 is also very close to A40640. If most of your work is for cutting, choose E40.  If most of your work is for carving, choose A40640.

E40‘S SPECIAL CAPABILITIES

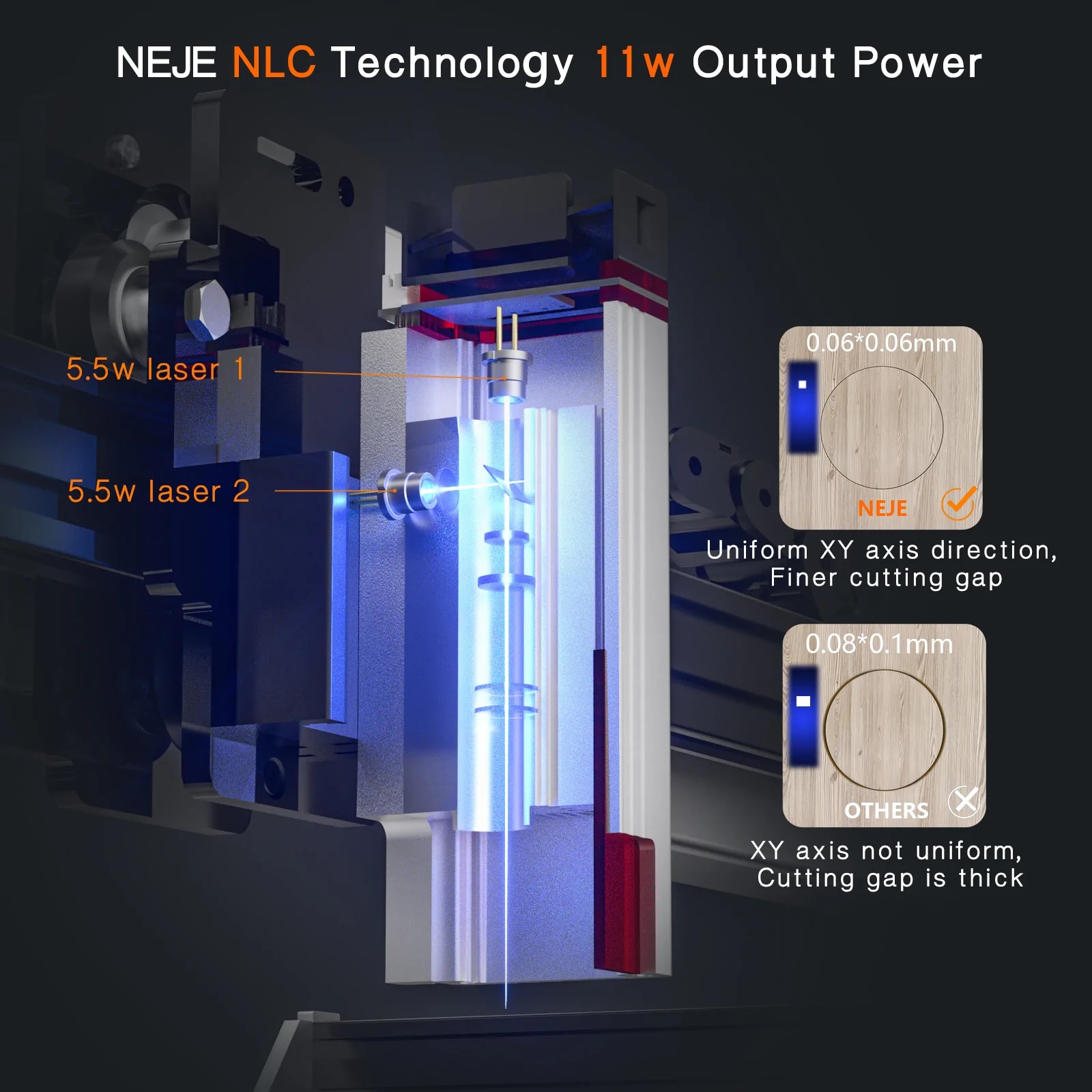

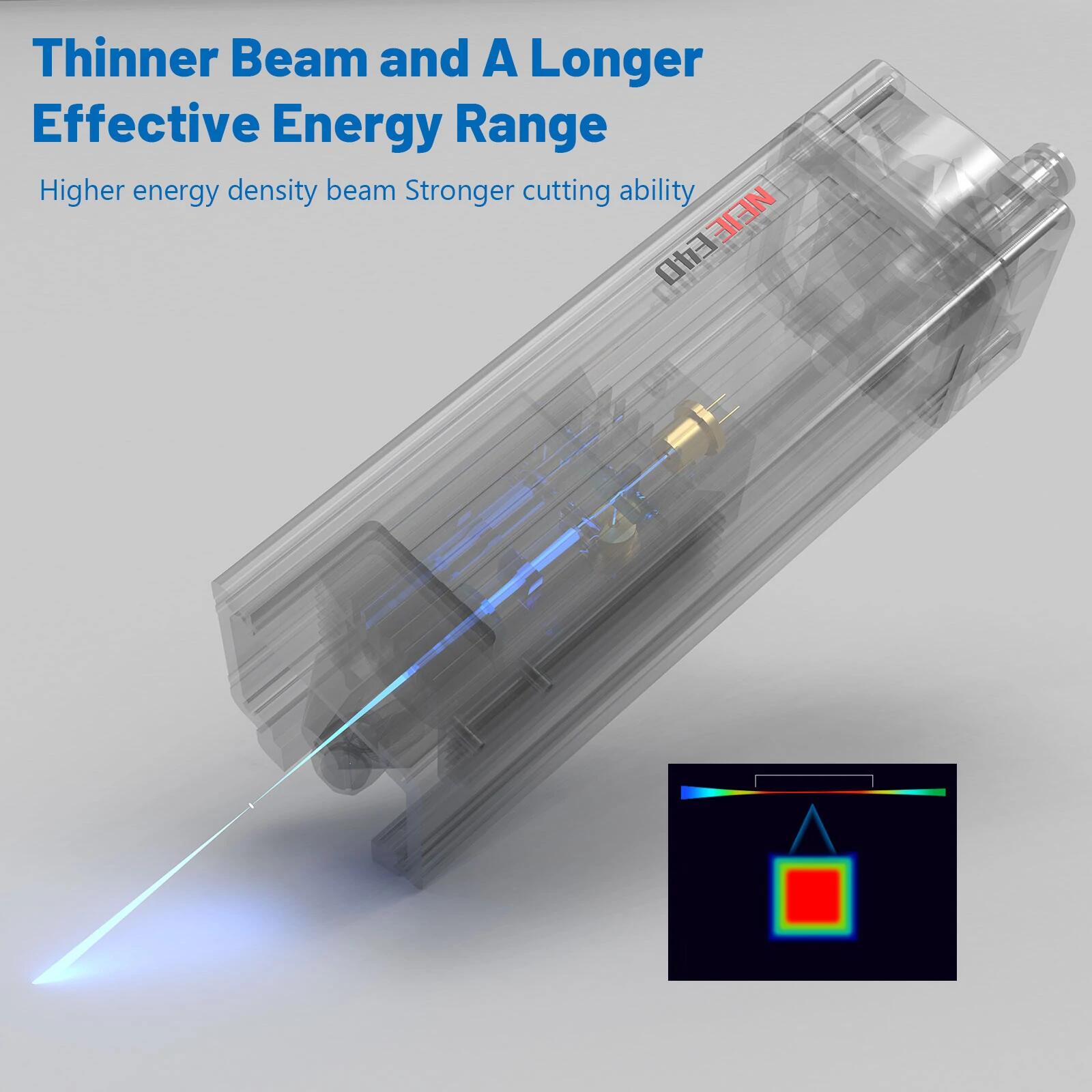

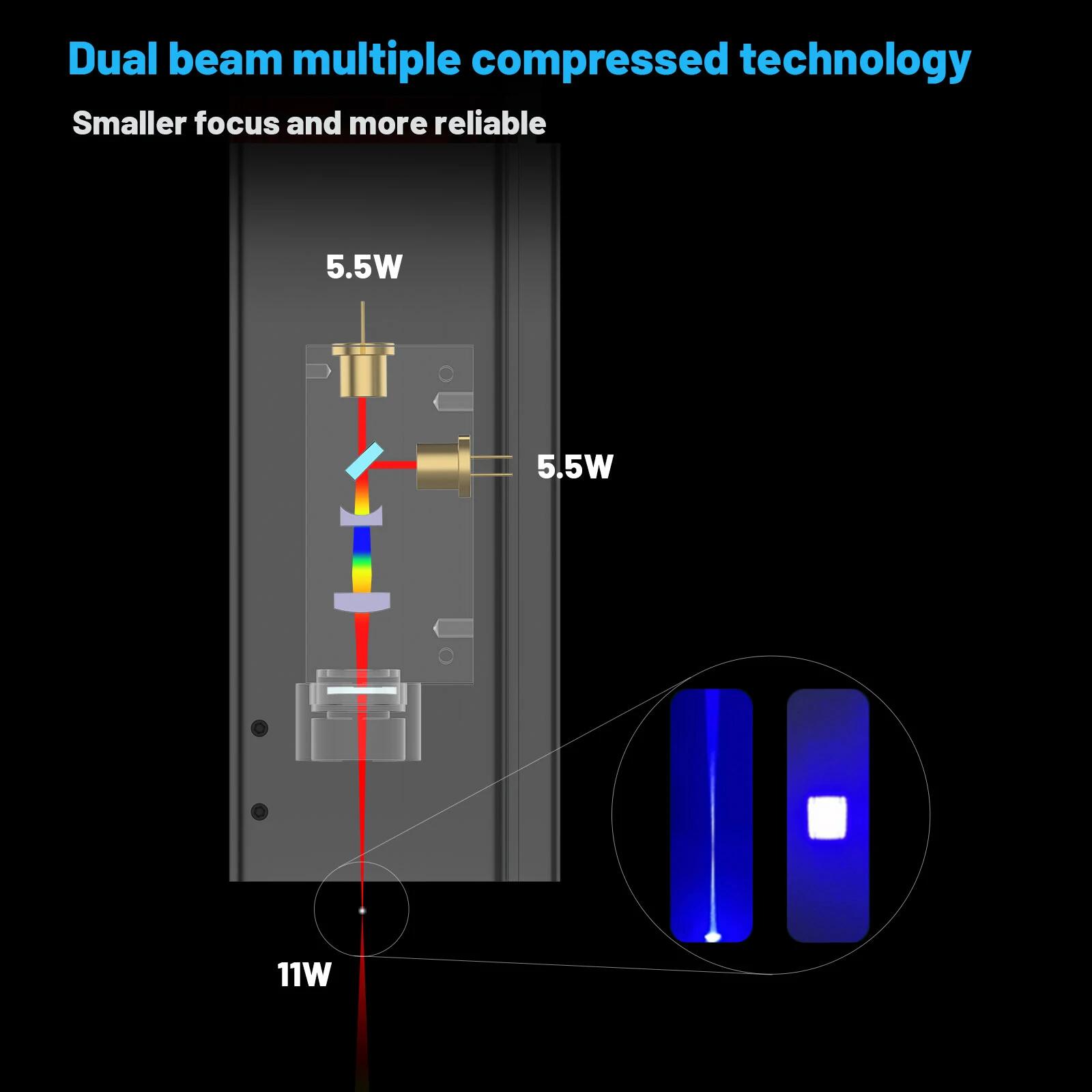

E40(High Precision multi-function module) is a high-power dual beam fixed focus high-precision module. E40 module has extremely small incisions when cutting MDF boards, leather, acrylic, fabric, cardboard and other high-density materials less than 4mm, and the minimum gap between incisions is less than 0.06mm, At the same time, it can carve stainless steel, stone, glass, ceramics and other high-resolution materials with high-precision rendering capability, and the imaging effect is meticulous and accurate. It is a perfect high-power image rendering module. The NEJE E40 module adopts NEJE's unique external lens optical compression technology, which makes the focus energy density amazing, The energy density is 2 times higher than that of the 20W optical power module, so it has faster speed and precision in the actual engraving process. The incision in XY direction tends to be uniform, Therefore, you will get a more even effect when drawing lines. E40 module adopts more stable and reliable optical solution, which makes the service life of the E40 continuous cutting mode 40% longer than that of the ordinary laser module, and the service life of the E40 normal working mode (8 hours per day) even reaches 7 years. The NEJE team's goal for E40 is to become the next classic, You can always believe that it will constantly brings you more amazing projects.

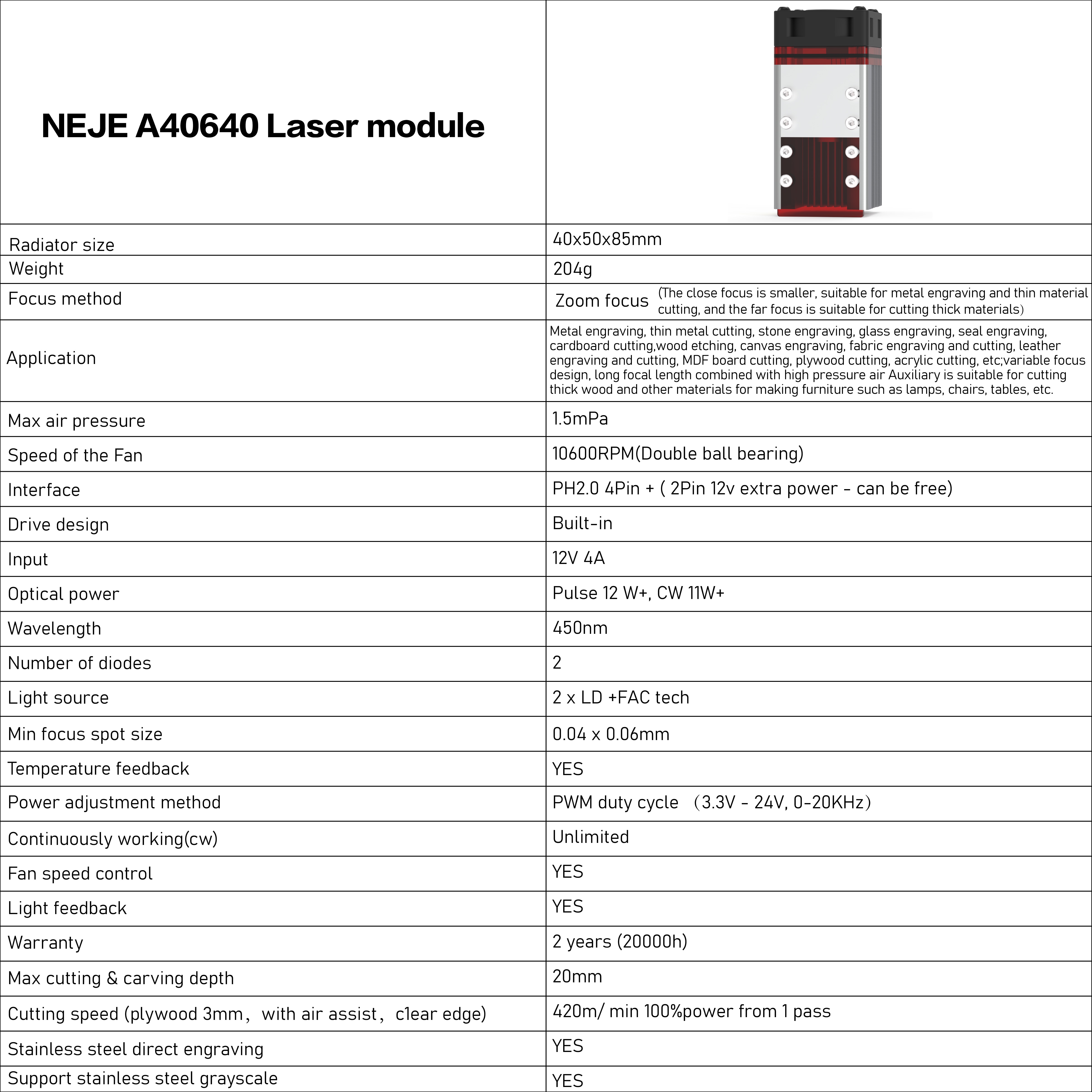

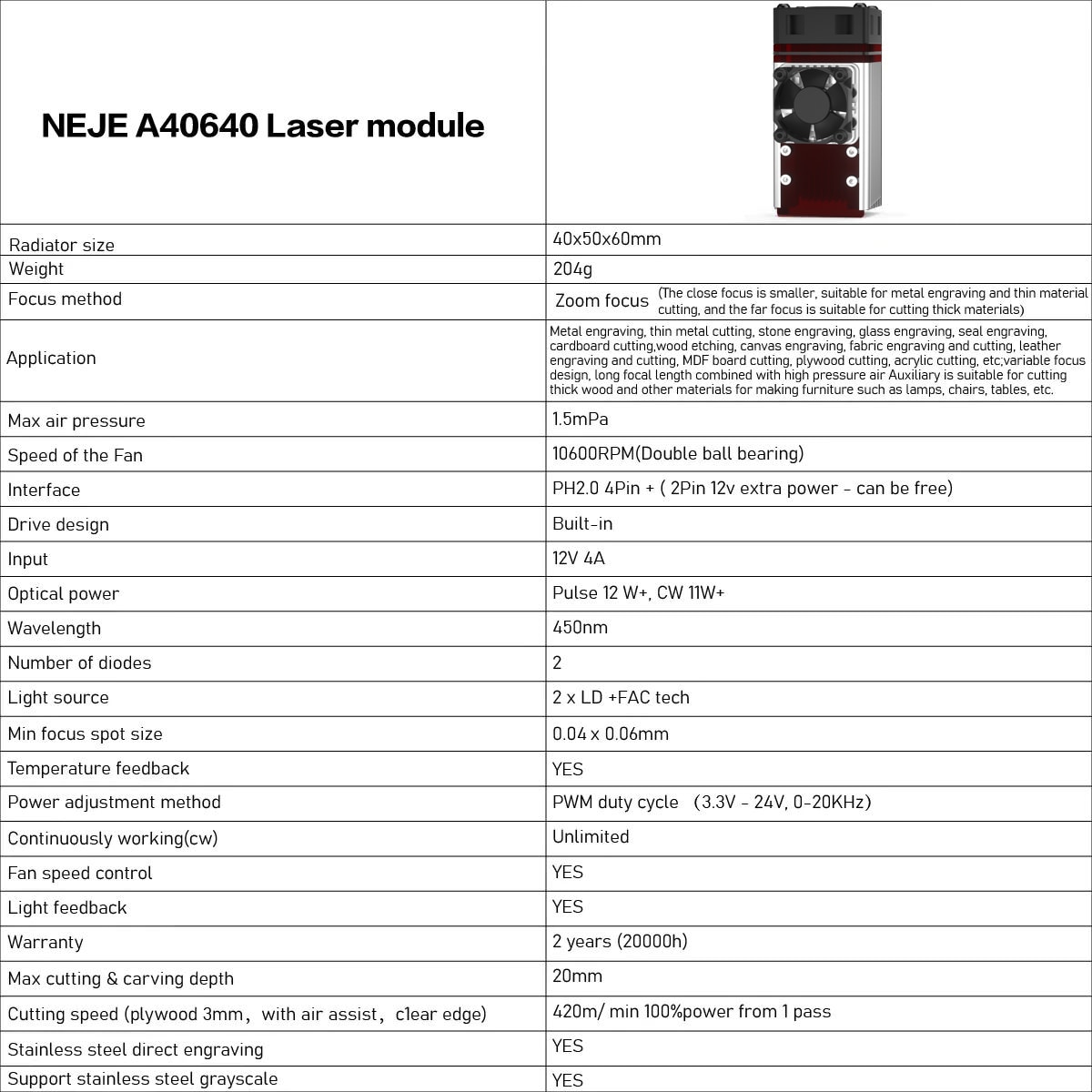

NEJE A40640 Laser Module SPECIFICATION

Module: NEJE A40640

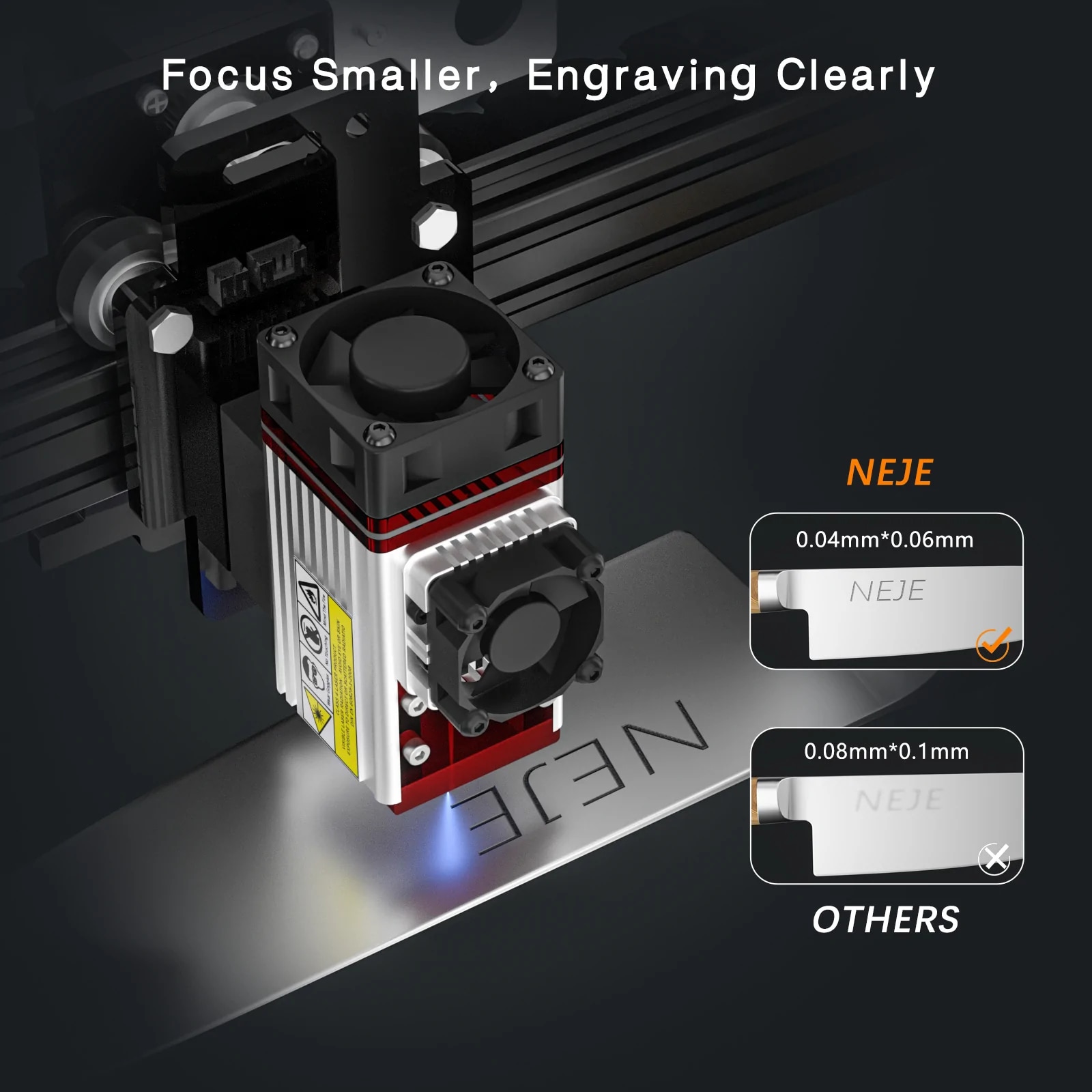

Focus: 0.04x0.06mm

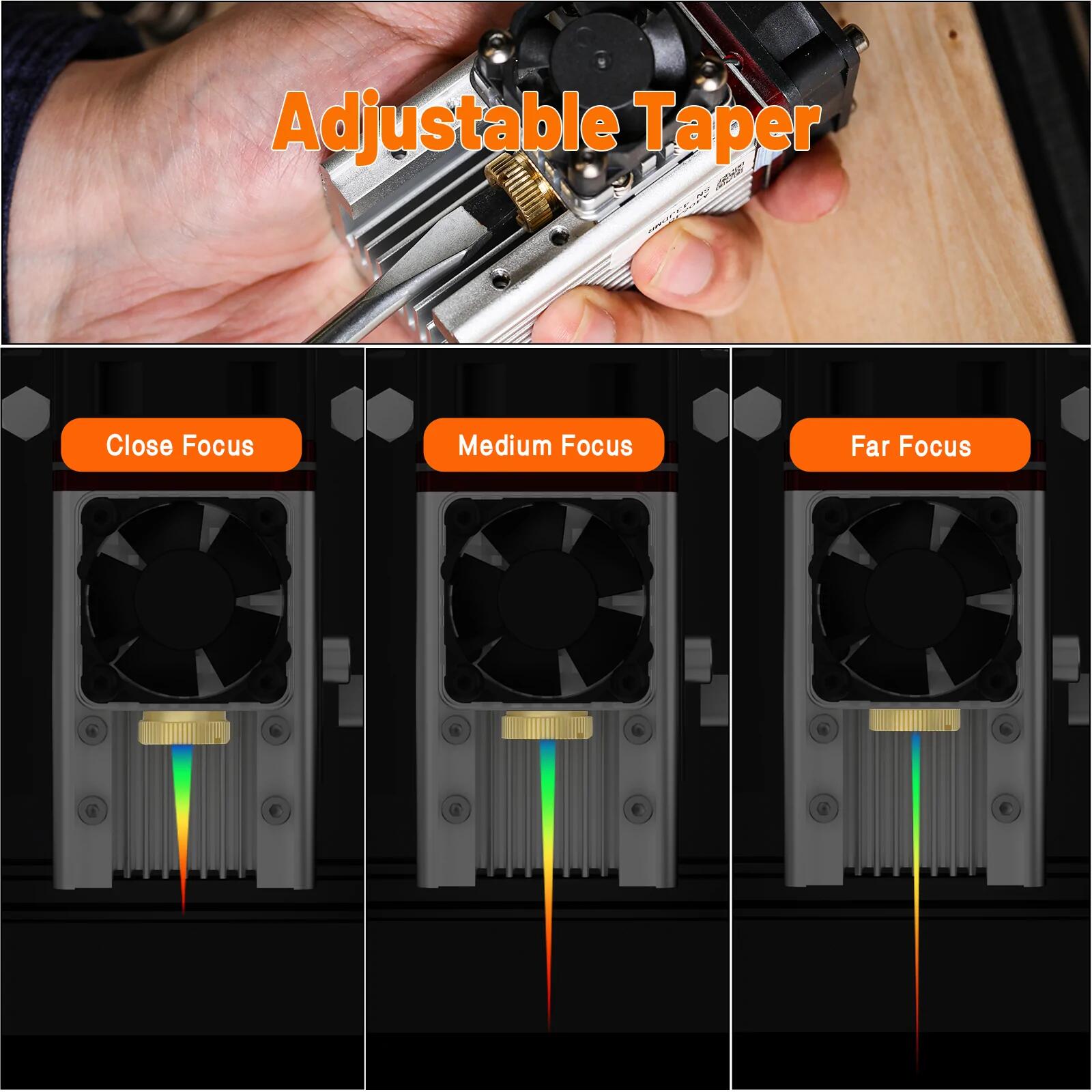

Focus method: adjustable ( Recommend 30-55mm )

Optical power: Pulse 12W+, CW 11W+, Use 80% power (9W+) when cutting for a long time.

Replaceable lens design: Yes, Added window protection lens to extend service life (high temperature resistance of 1000 degrees Celsius)

Stainless steel direct grayscale engraving: Yes

3D hardwood engraving: Yes

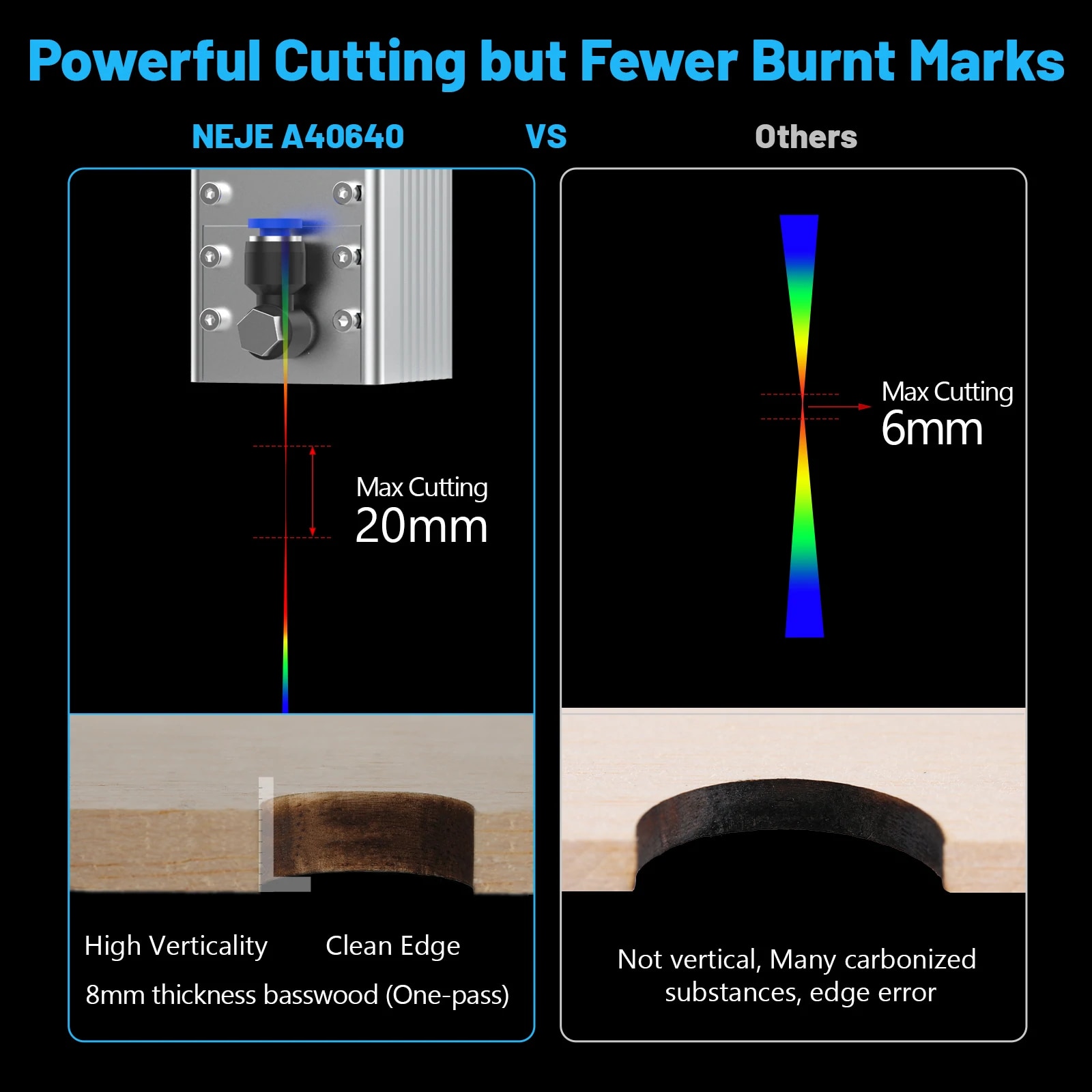

Maximum cutting thickness: 20mm

Wavelength: 450nm

Weight: 204g

Module Size: 40x50x85 mm

Input: DC 12V 4A

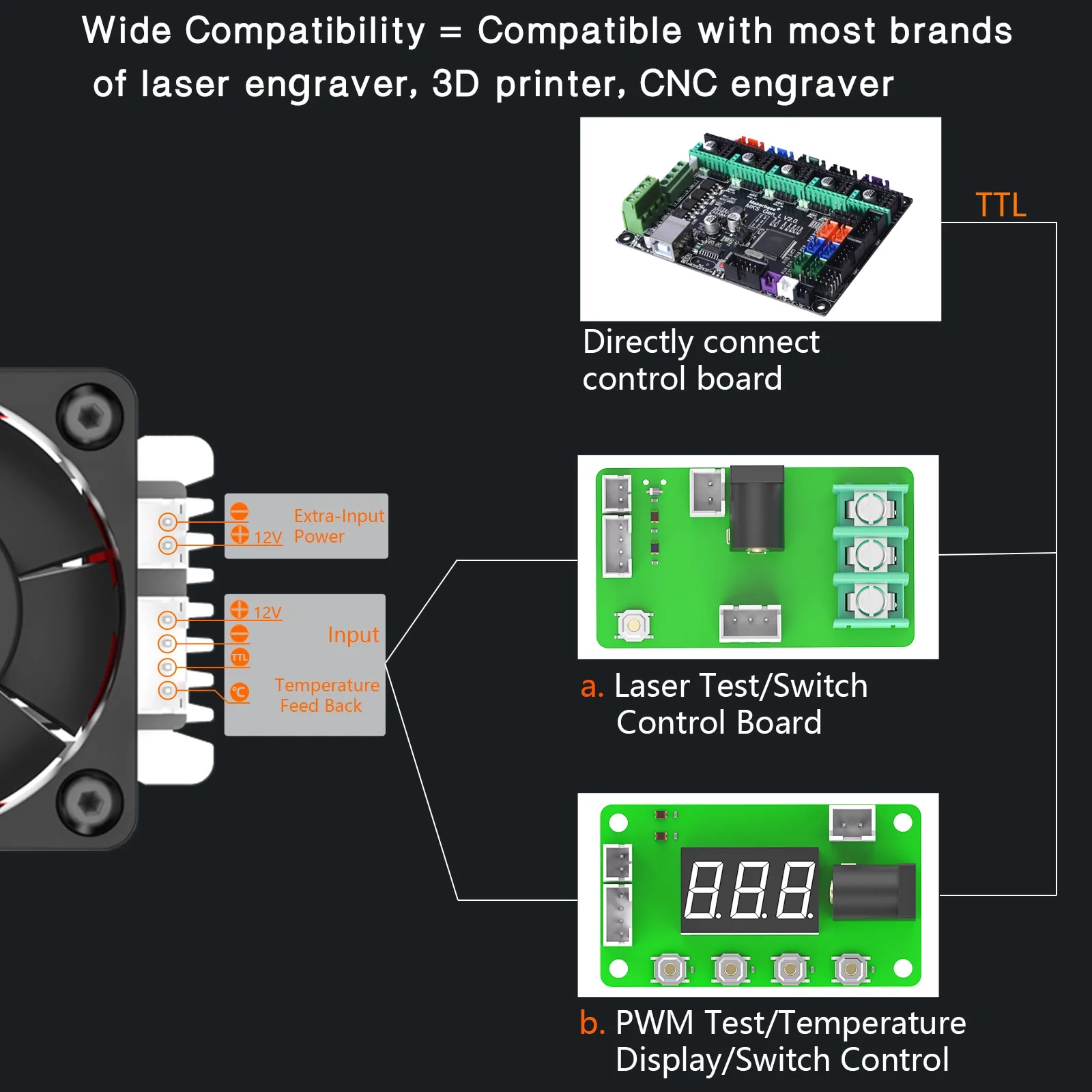

Interface: 4pin PH2.0

Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 3 Plus, NEJE 2s Max, NEJE 2s Plus, etc...

Power control: PWM Power Modulation

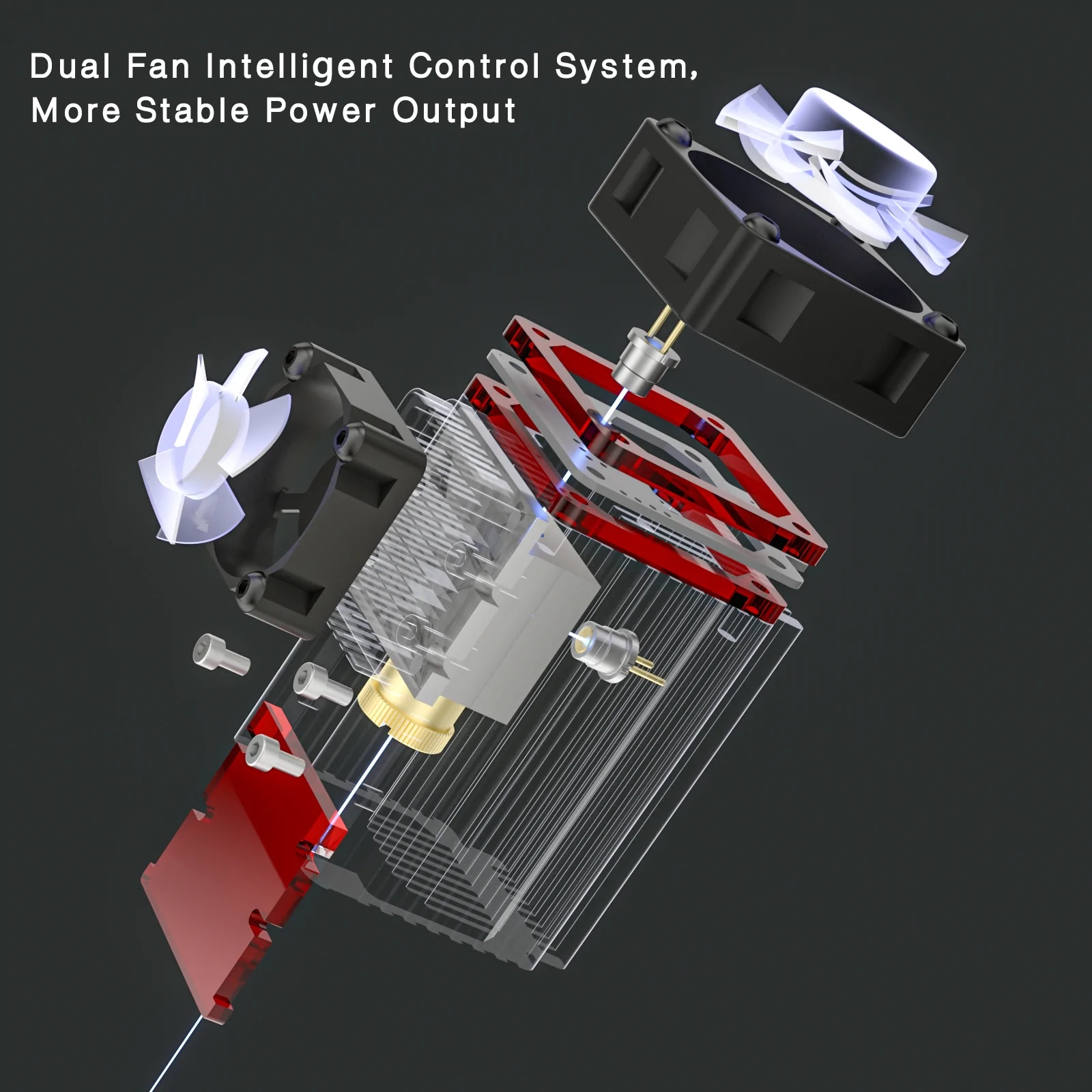

Fan: double ball high life fan

Drive: NEJE smart quiet drive, built-in static elimination technology.

Surge protection: Yes

Smart feedback: Yes

Temperature feedback: Yes

Temperature control: 45℃

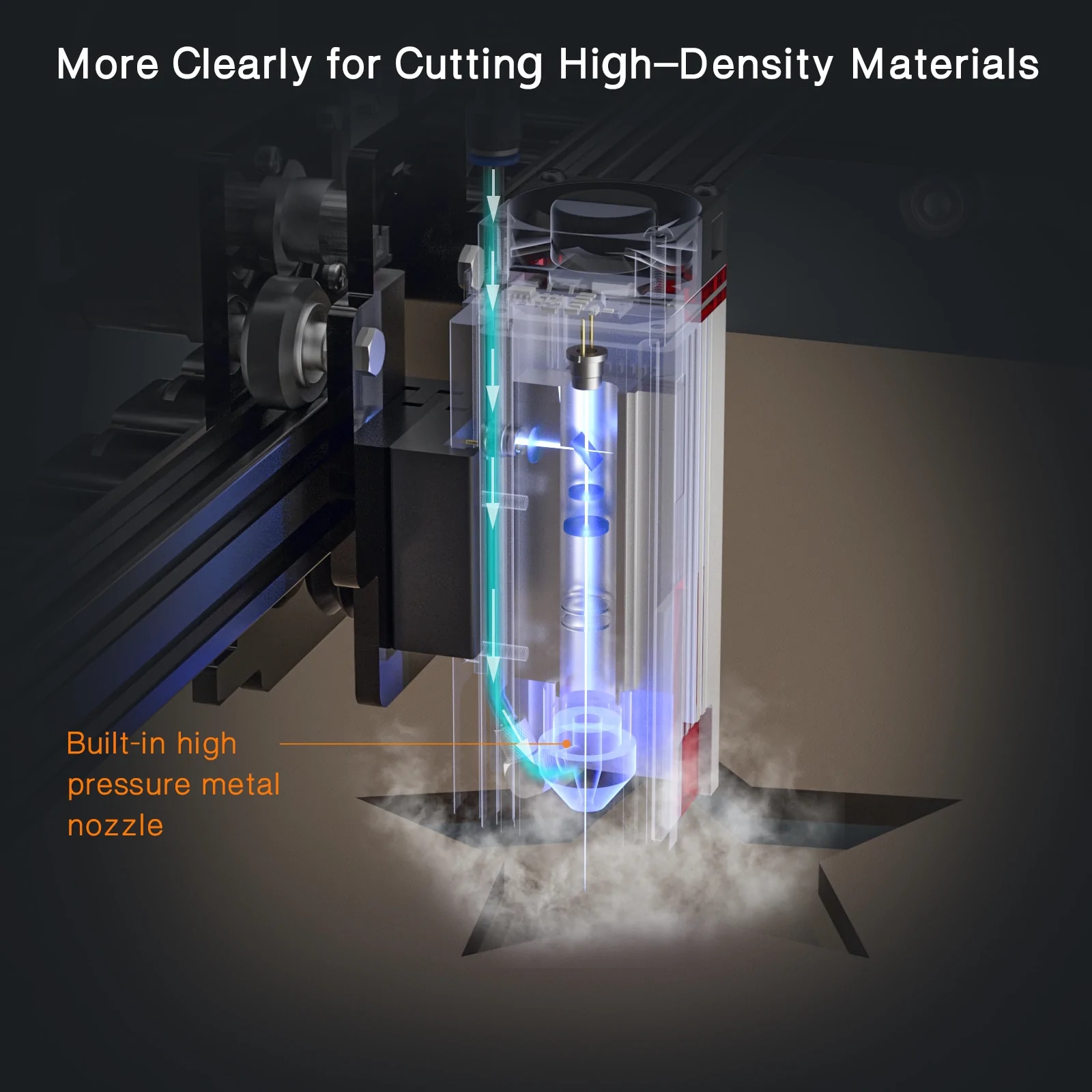

air pump: 0.5-1.5mpa clean air (Needle type air nozzle supports oily and water-containing air source, and sealed air nozzle can only use clean air pump)

Air interface: 4mm pvc trachea

Original registered brand: Yes

Warranty: 2 years

Warranty Statement: The conditions of NEJE's free after-sale policy must be met under the conditions of non-human disassembly and misoperation and use in the correct environment.

If the wrong voltage is input, or the lens is damaged due to lack of maintenance, it is not within the scope of free after-sale
