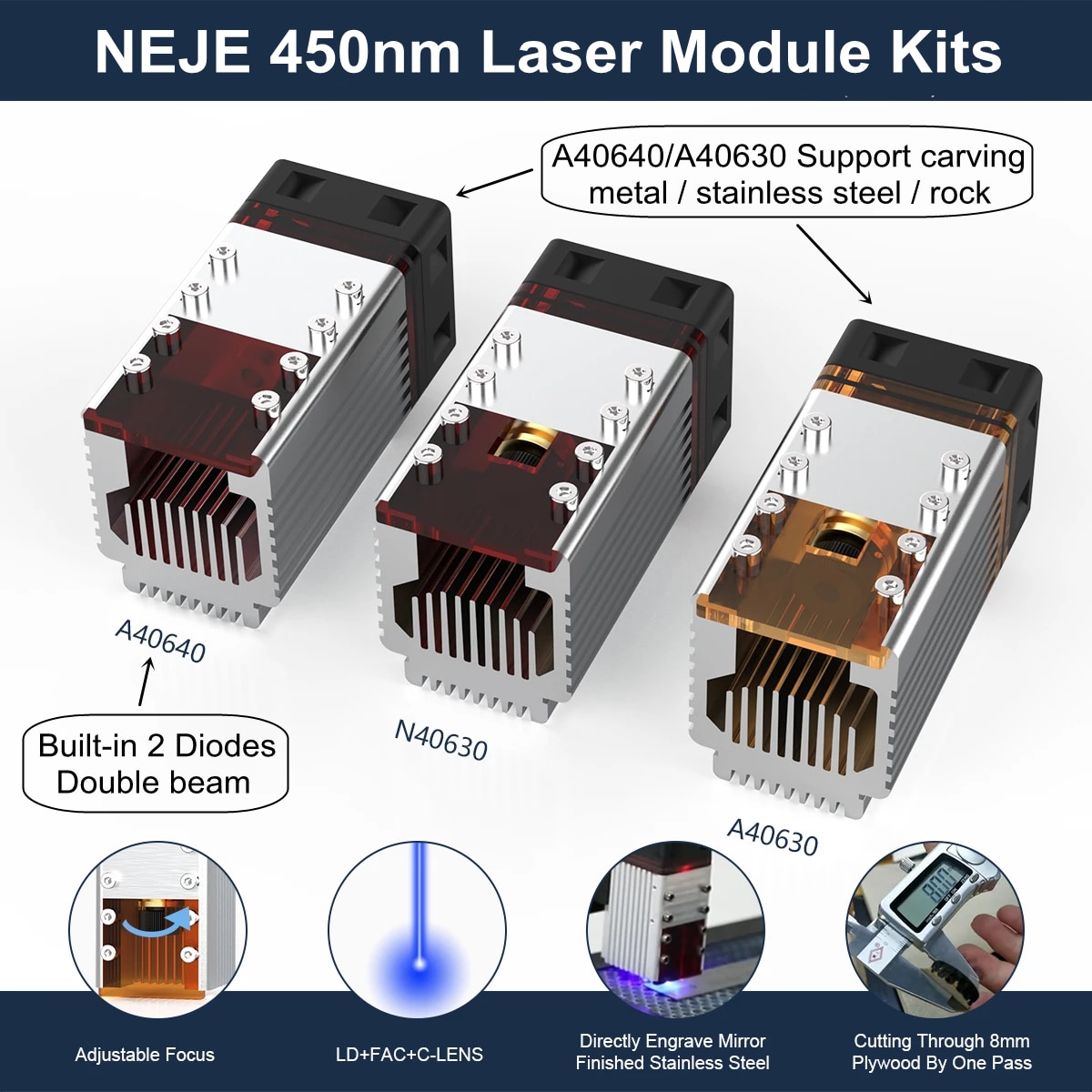

NEJE A40640/A40630/N40630/E40 80W Laser Module Kits 450nm Blue Light TTL Module for Laser Engraver Wood Cutting Smarter Tool

Tip：Laser Module Two-year free  warranty

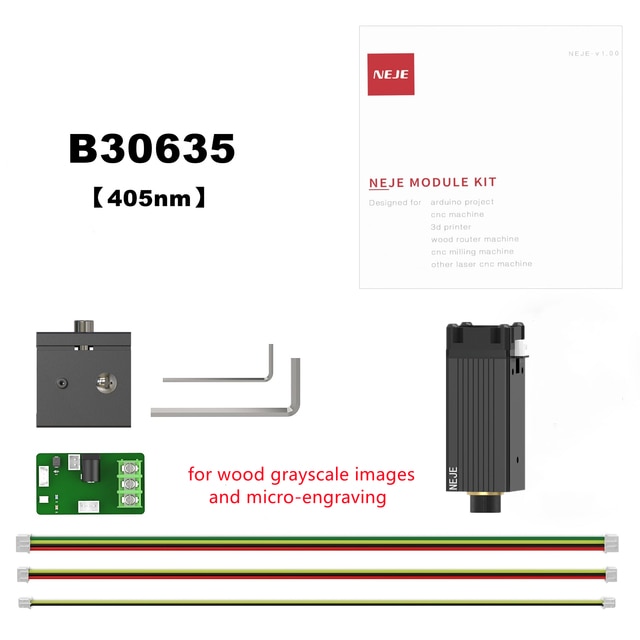

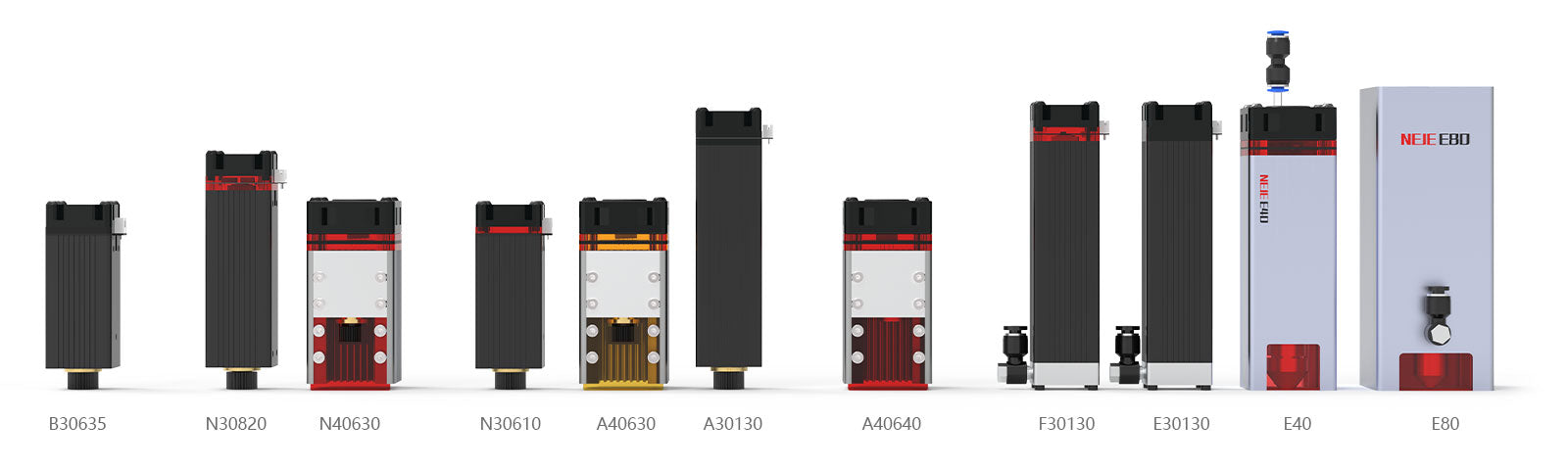

B30635is a module specially designed for wood grayscale images and micro-engraving.

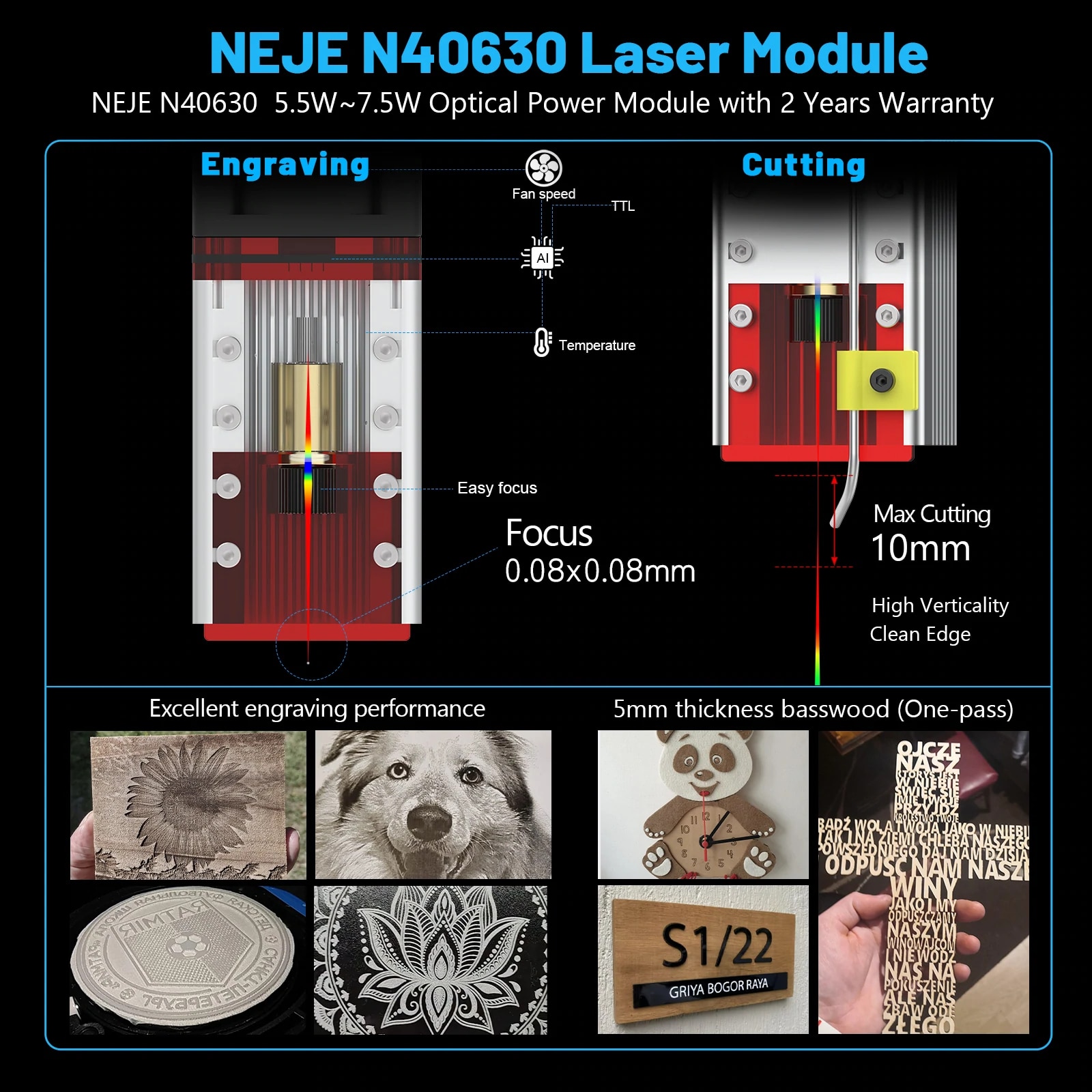

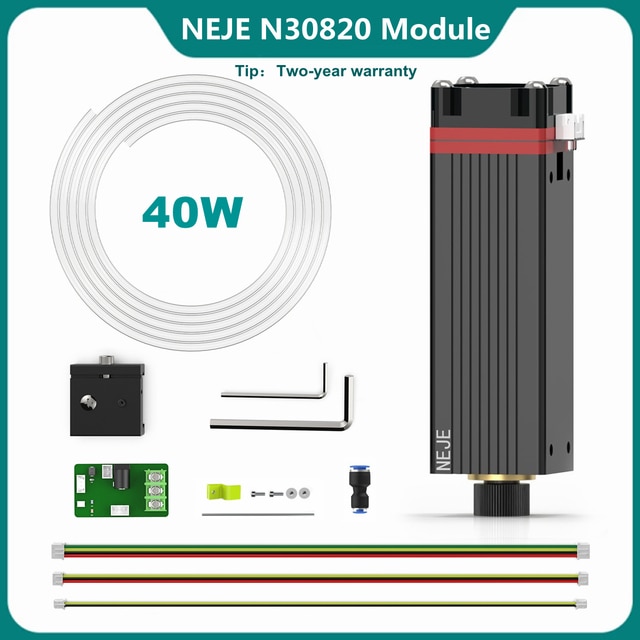

N30820andN40630have strong comprehensive capabilities, the optical power is 5.5 - 7.5W output, and the focus is square light spot, good at carving with wood , rubber stamping, glass, transparent acrylic and cutting Plywood, black acrylic, cloth, etc...These two modules are single-beam modules with comprehensive functions and high cost performance. They are the best choice for beginners. The difference between them is that N30820 can be used as air assist through a needle tube, not picky about the air pump. N40630 can install metal The air nozzle but air pump must be oil-free and water-free, so as to ensure that the lens is not damaged.

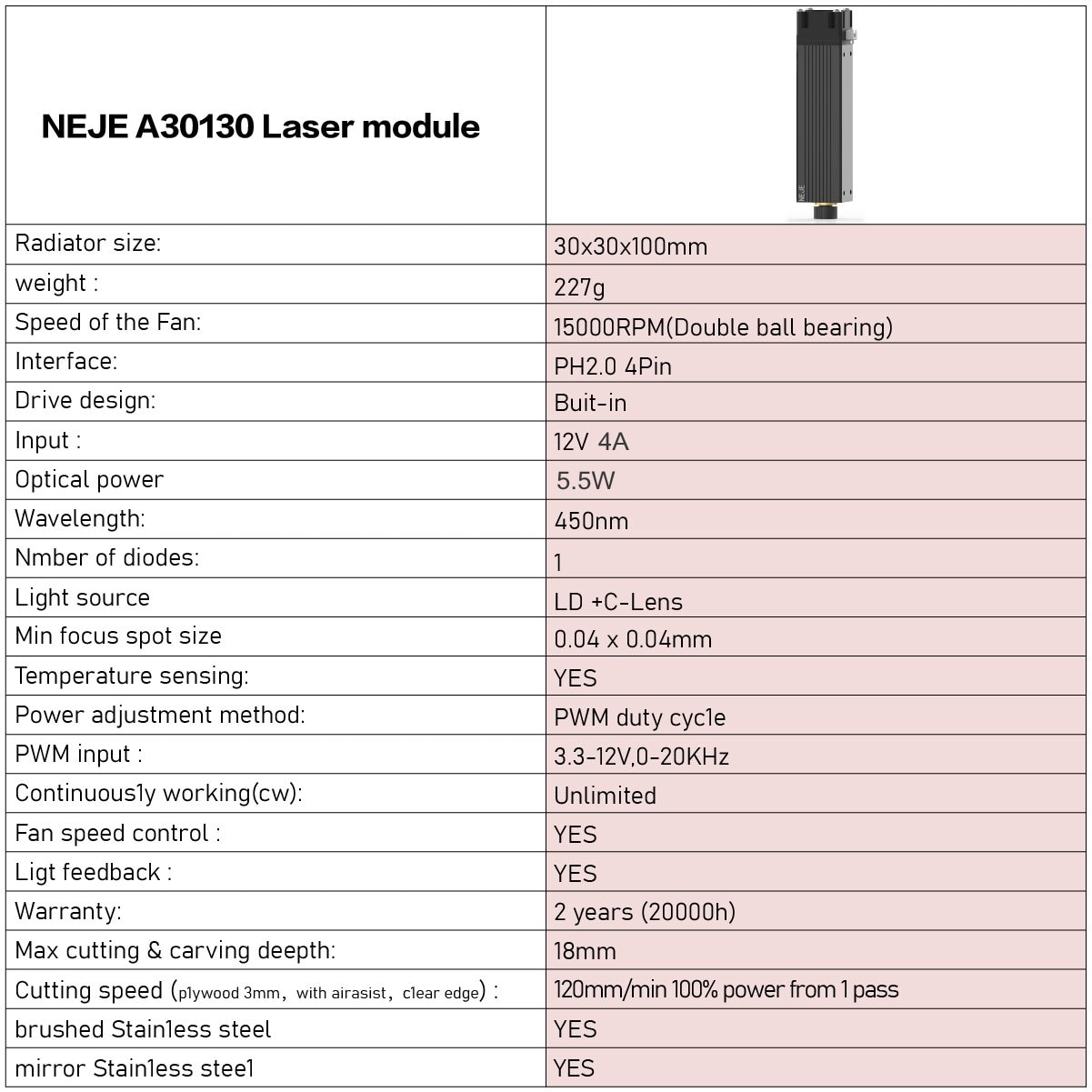

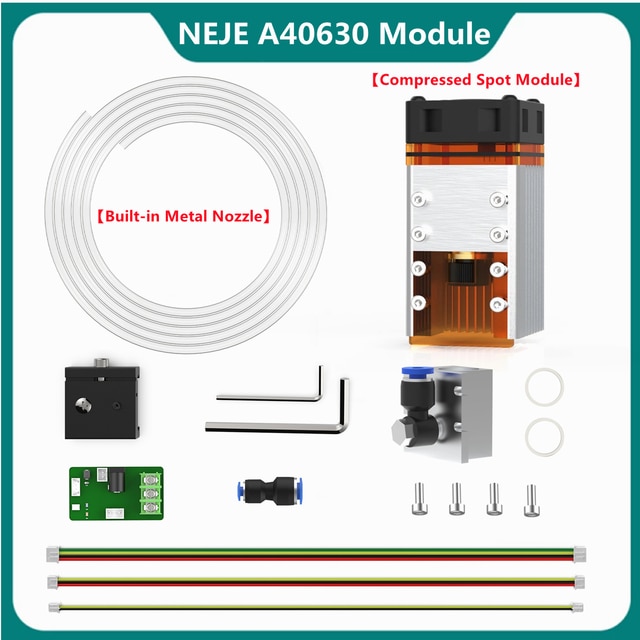

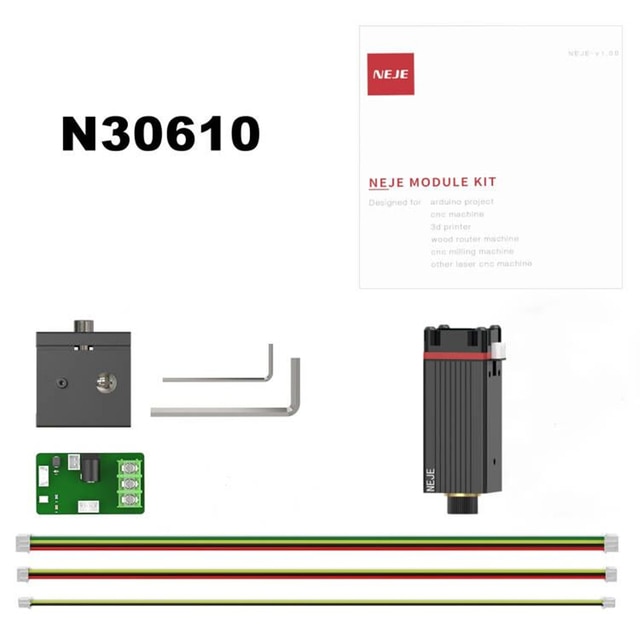

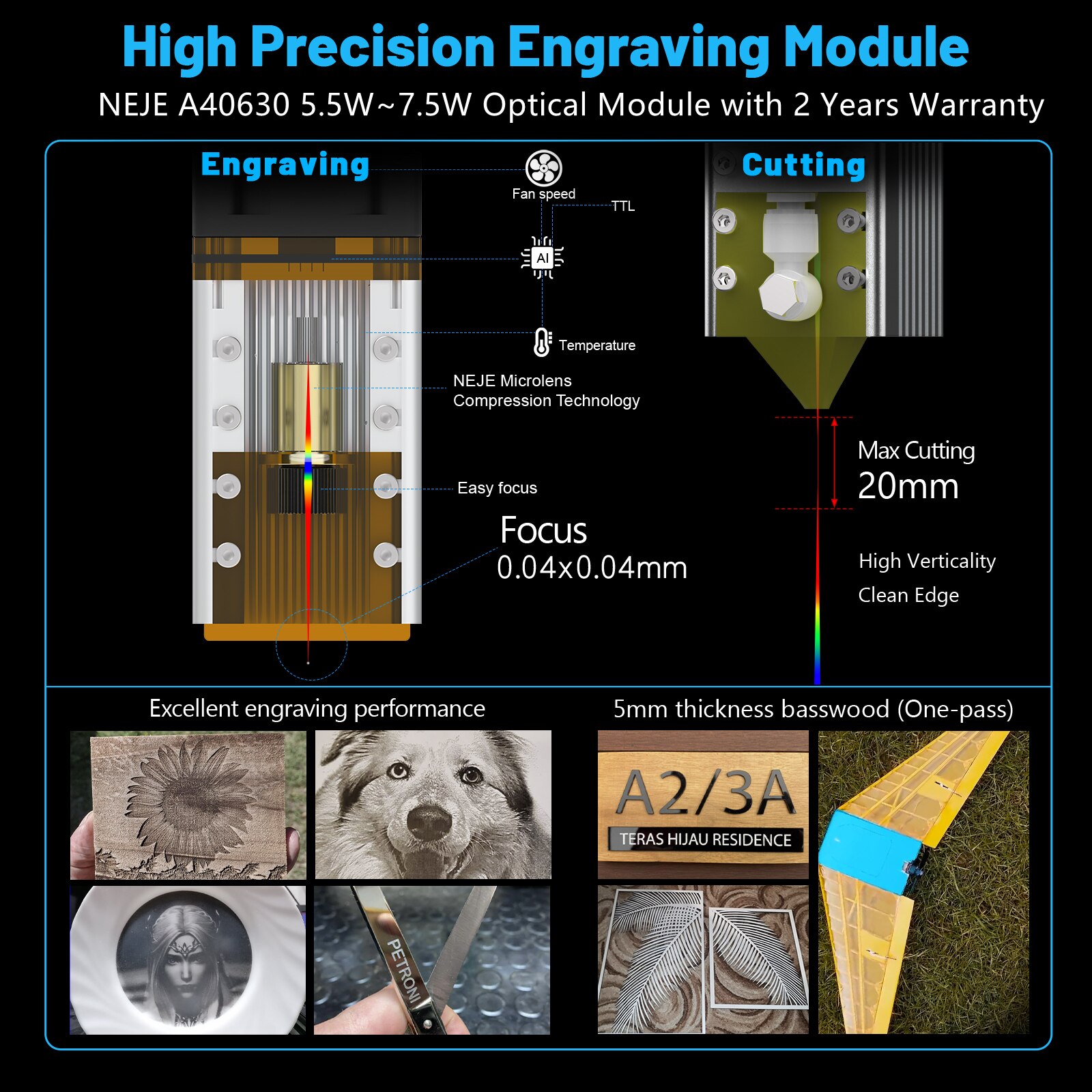

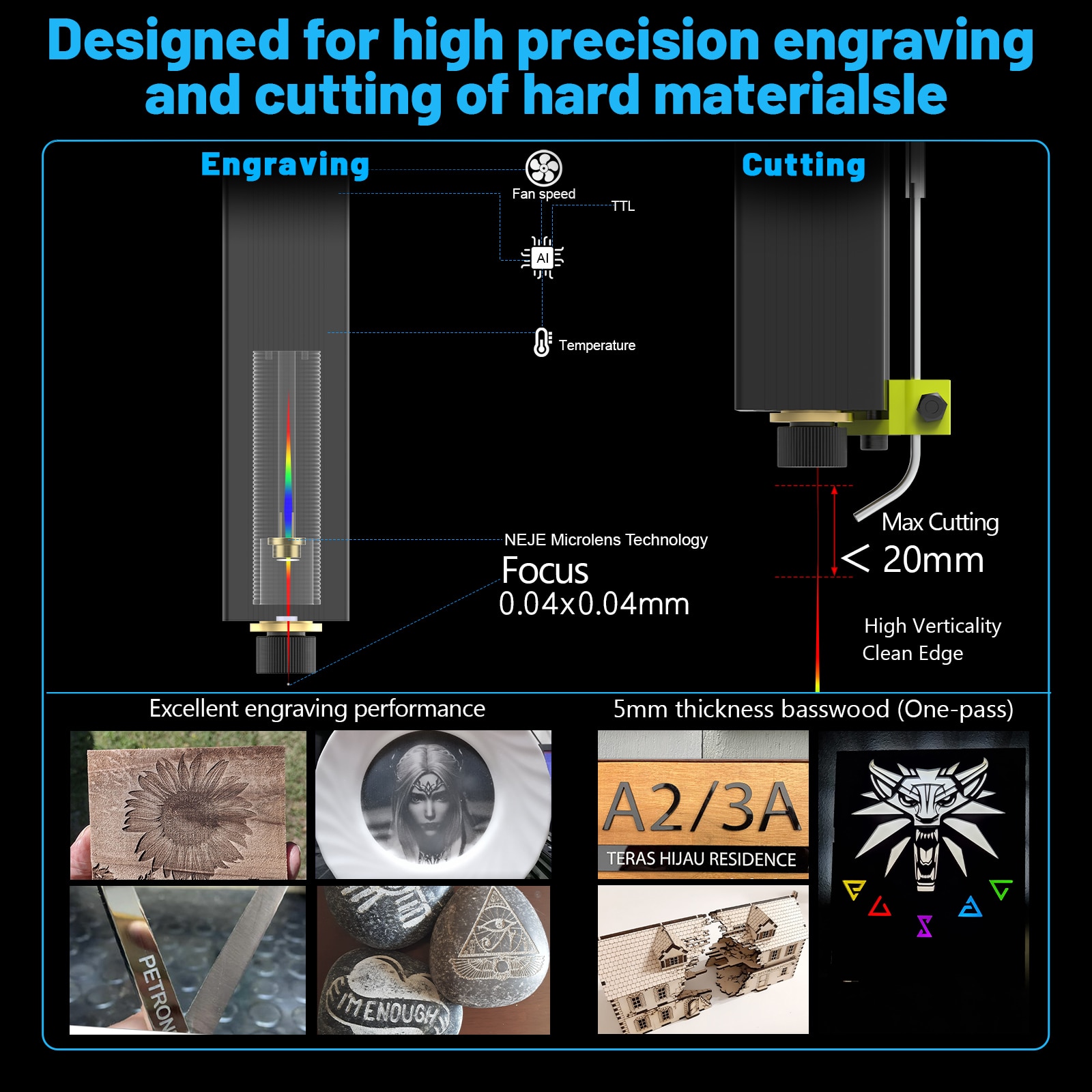

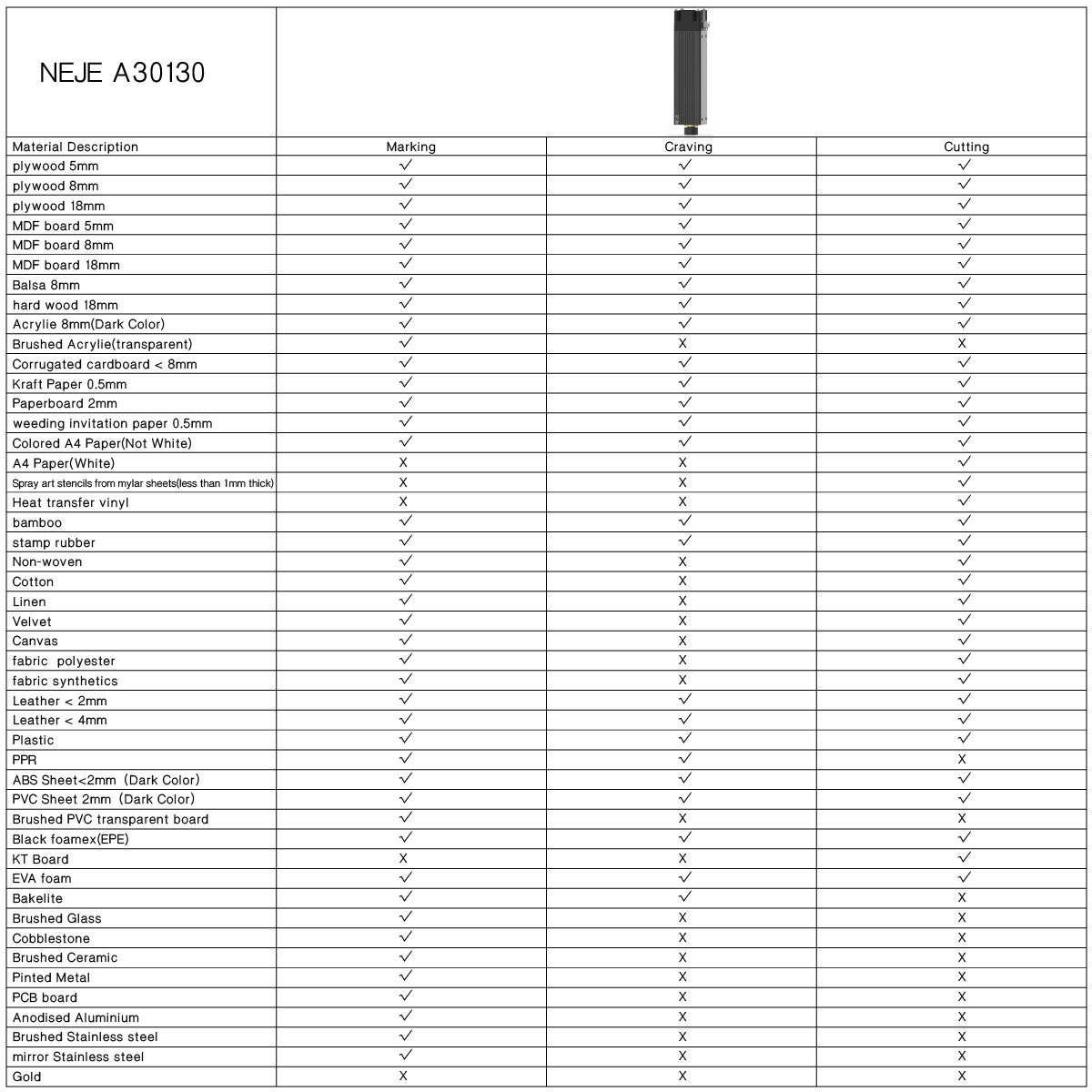

N30610, A40630, A30130modules have very fine square light spots, and are better at high-resolution engraving and grayscale engraving of hard materials, They are all zoom modules. A40630 and A30130 also have strong cutting ability and are suitable for cutting Plywood, mdf board and black acrylic. N30610 can present 0.02mm detail, A40630 and A30130 are the same optical features, focal point 0.04x0.04mm, the difference in the different air-assisted extension forms and compatible air pumps.

A40640(Artist's Choice) is a classic creative master 2 beam zoom laser module, it is the world's first 2 beam laser diode engraving and cutting module with zoom design, with the best metal engraving ability, fast groove engraving ability, perfect cutting compatibility. Better application on a wider range of materials, The strongest power density (0.04x0.06mm with 12W+ pulse and 11W continuous optical power, Use 80% power (9W+) when cutting for a long time)of enables the A40640 to have the top engraving ability, There are very special and top artistic expressions on the carvings of stainless steel grayscale carvings, stone carvings, Glass Carving, hardwood reliefs, canvas art, and other materials. The adjustable focal length design enables the A40640 module to have a uniform cutting thickness of 20mm and short-focus fast cutting capabilities. If you only consider 1 module to help you solve all the needs, it is the best choice.

F30130, E30130, E40(Recomend), E80are the series of fixed focus modules specially designed by NEJE for cutting and directly use it for engraving with ACO air pump. These four modules are fixed focal length modules, which require clean air source support, F30130 is 10mm focal length, good at cutting plywood and metal engraving less than 4mm, E30130 is 20mm focal length, through internal NEJE optical processing, the spot shape is square, suitable for cutting materials with strong symmetry requirements such as model aircraft, E40 is 2 beam fixed module with 11W pulse and 10W+ continuous power output capability, Same engraving capability as A40640, It is a carving and cutting module with high cost performance and wide application. E80 is 4 beam module, 20W+ output, it is not recommended for engraving, the focus point is larger, heavy weight and the need to add air assist are the disadvantages of 4xLD. If you have requirements for cutting speed of 3-4mm materials, E80 is the right choice for you, Normally, 500mm/min can cut plywood cleanly, It should be noted that E80 is a 24V input module, which can only support the new NEJE-3-Max mainboard (v1.1.0 and above) .

E40 Laser Module RECOMMENDED REASON

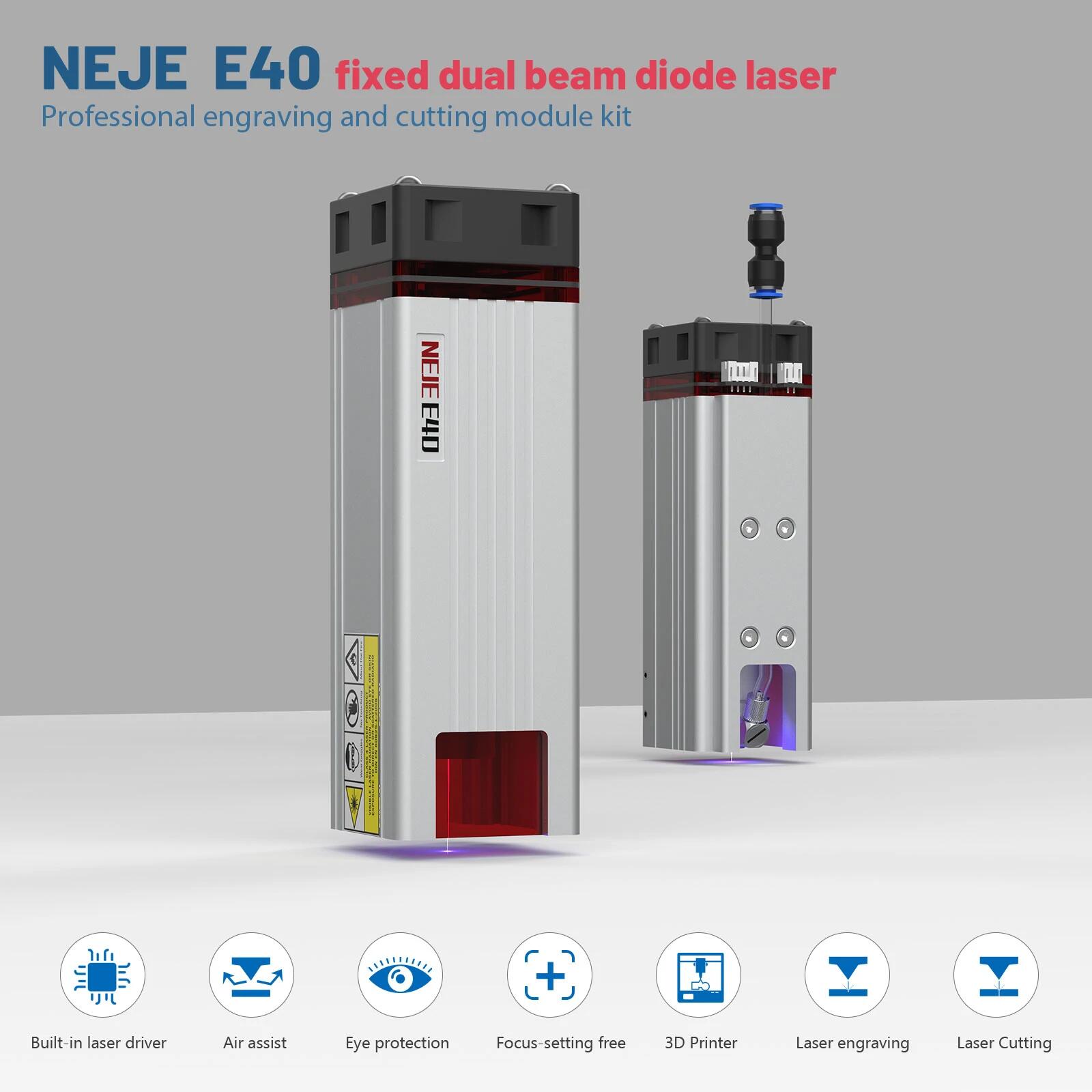

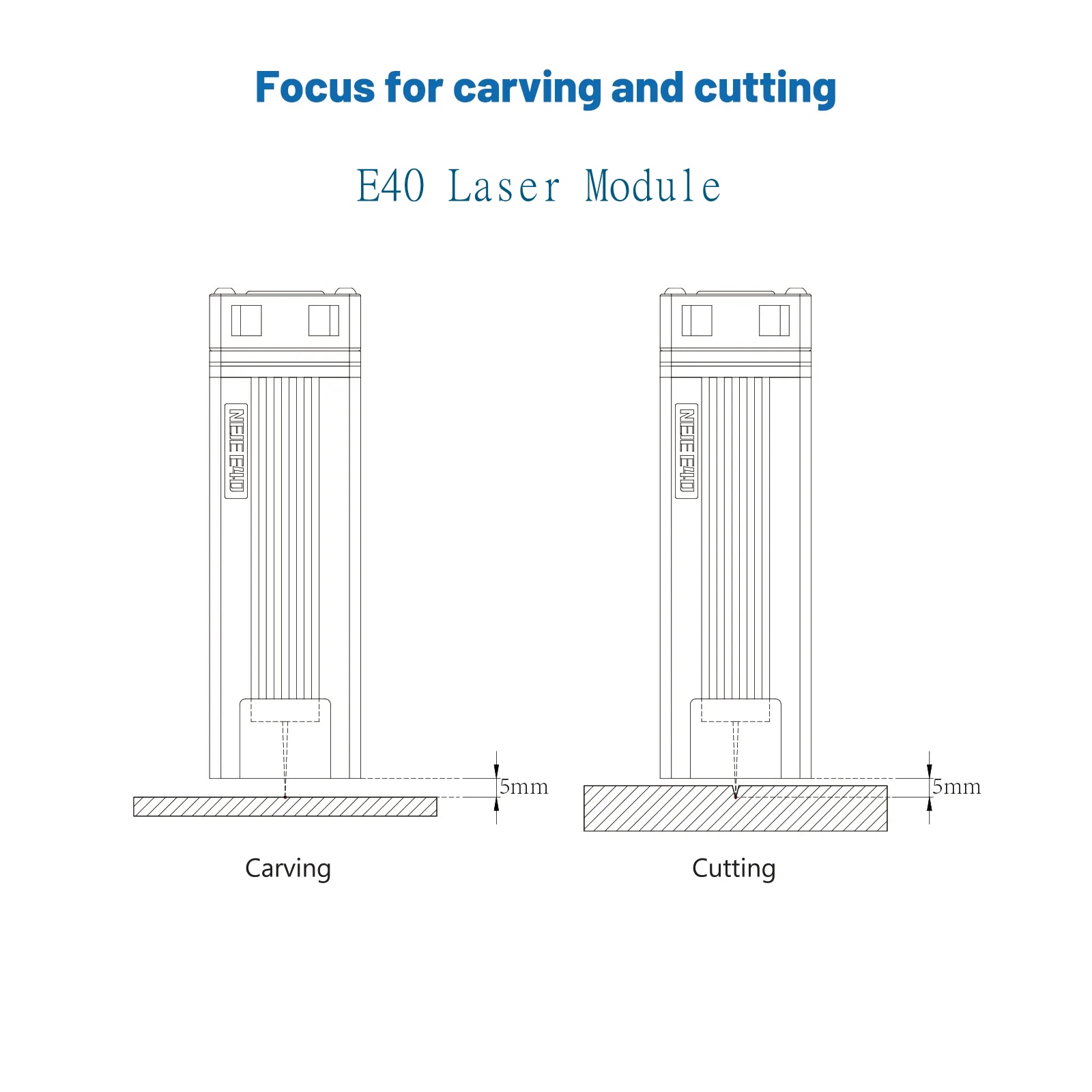

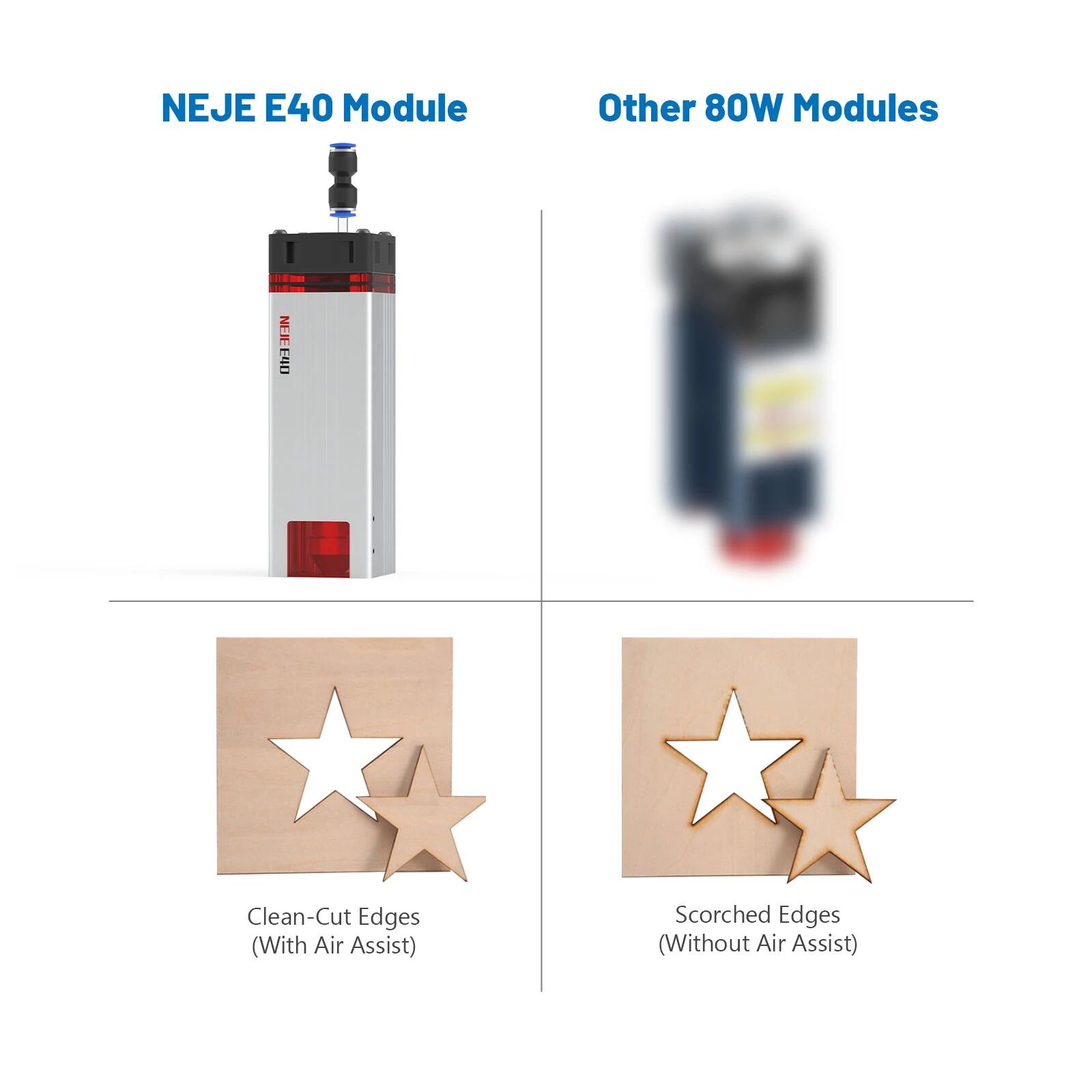

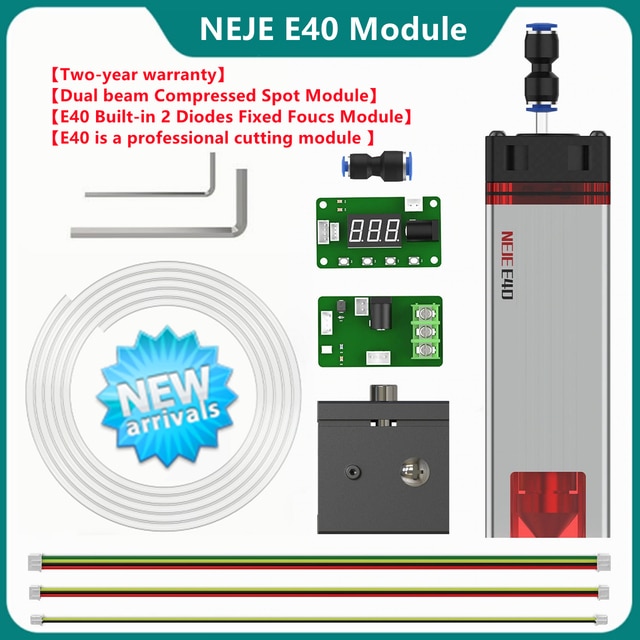

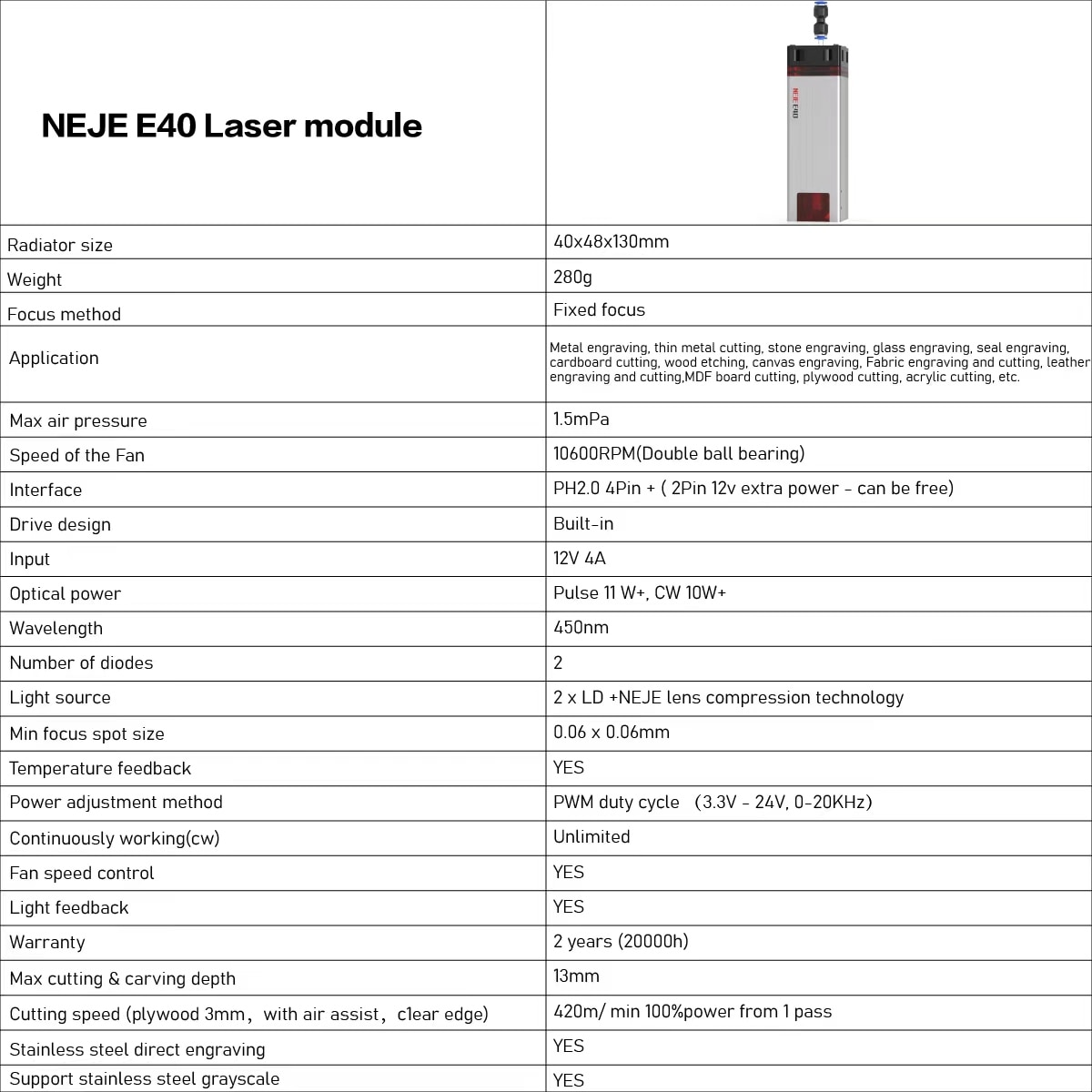

NEJE E40 is a professional cutting module specially designed for long-term safety cutting processing. It is currently the strongest power and optical performance module with 2 beams. Compared with NEJE A40640, E40 is more focused on cutting stability, heavy-duty design, and easier to use air asisst, more stable output power for cutting, E40 also has good cutting efficiency, 300mm/min can cut 4mm plywood cleanly, NEJE has optimized the optical characteristics in the XY axis direction, so that the XY axis cutting is balanced and more suitable for cutting; remove it Air nozzle, E40 can also be directly used for engraving without air assistance, and the engraving ability of E40 is also very close to A40640. If most of your work is for cutting, choose E40.  If most of your work is for carving, choose A40640.

E40‘S SPECIAL CAPABILITIES

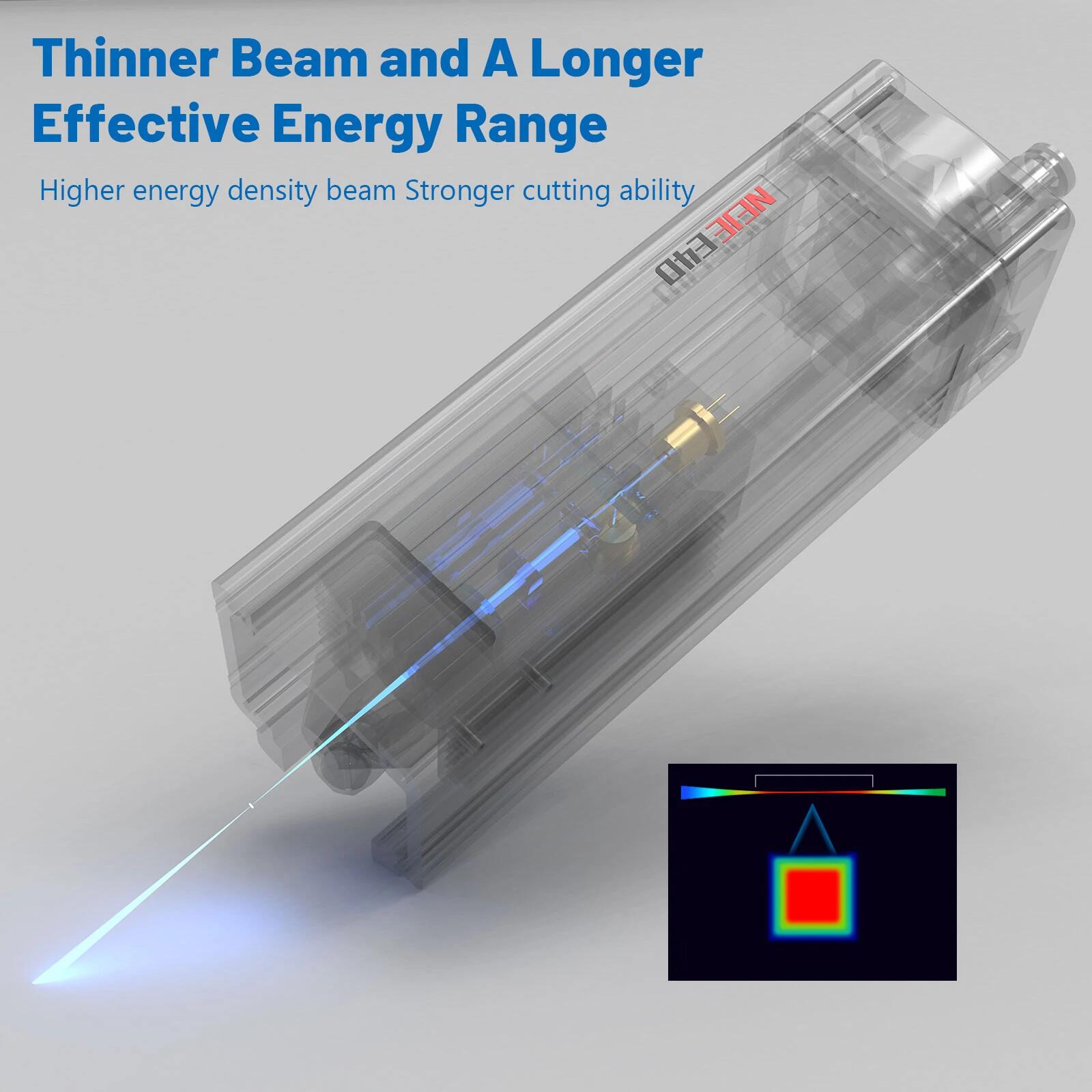

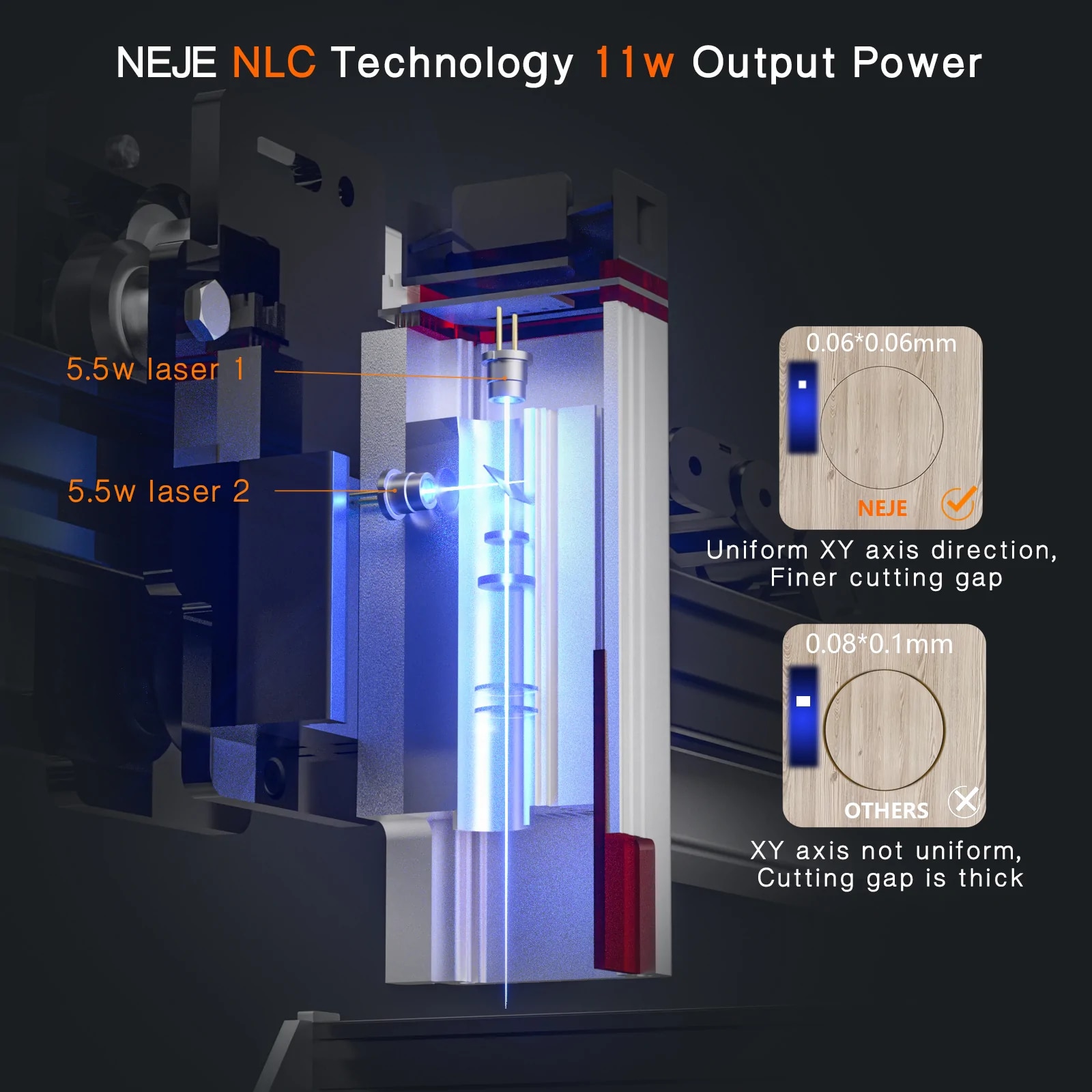

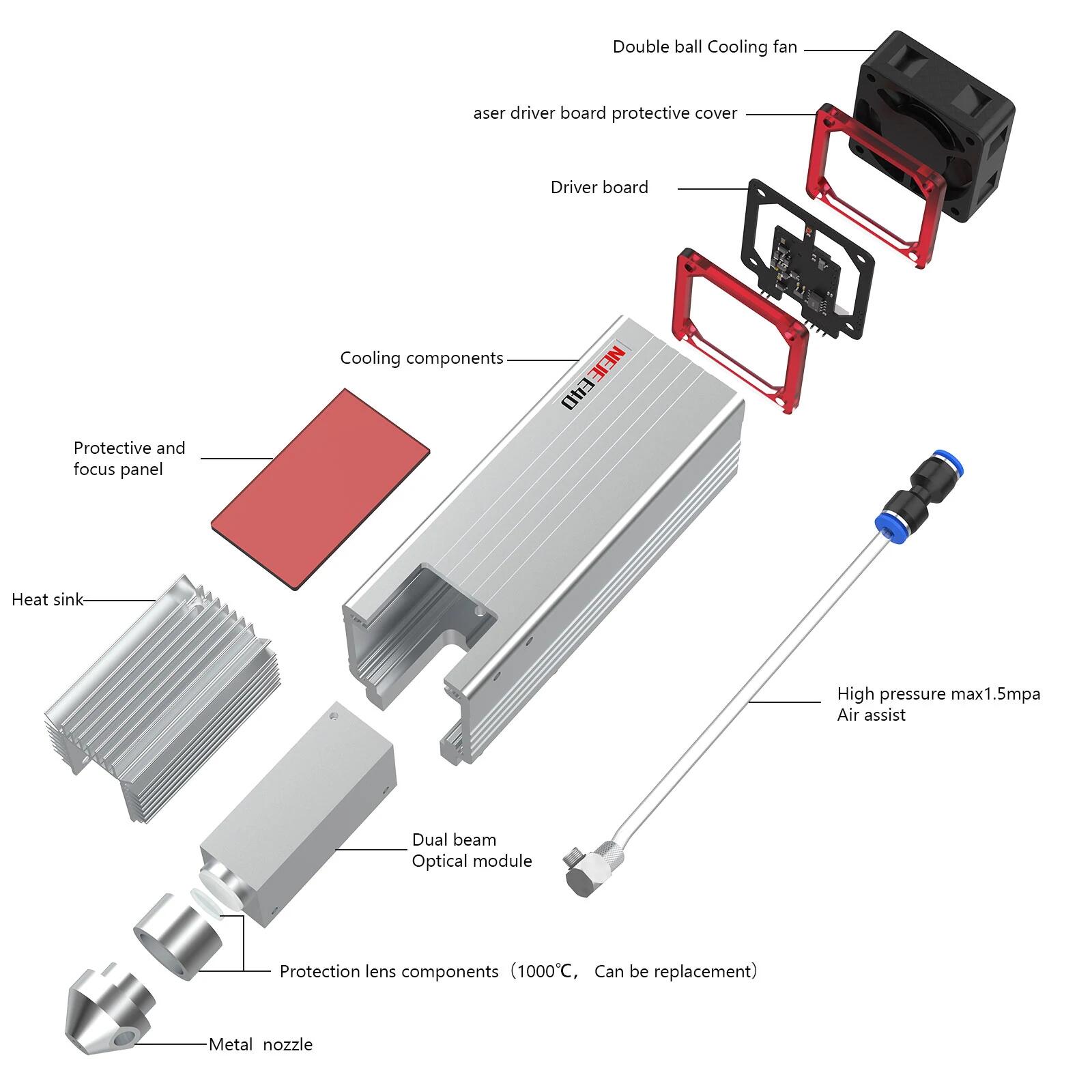

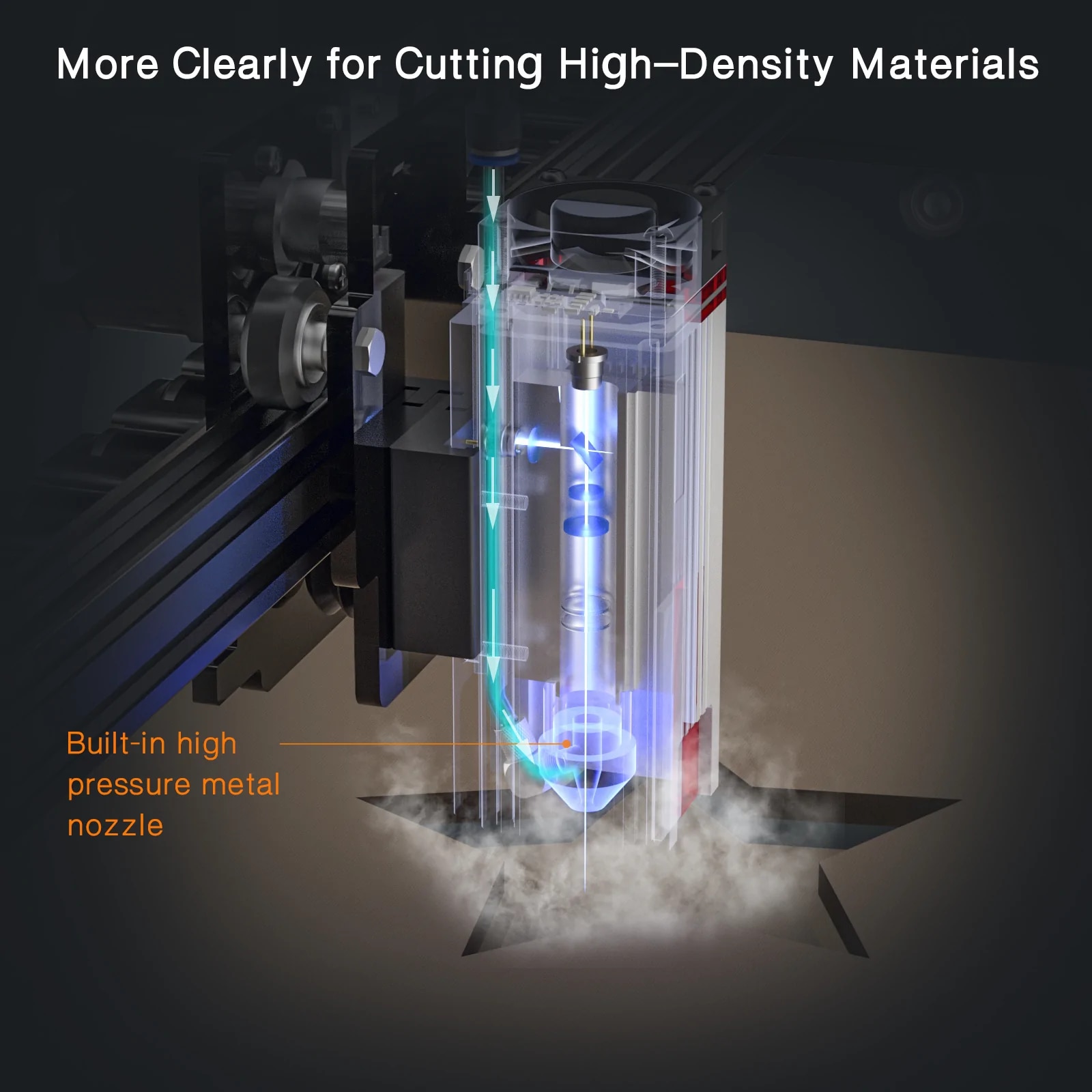

E40(High Precision multi-function module) is a high-power dual beam fixed focus high-precision module. E40 module has extremely small incisions when cutting MDF boards, leather, acrylic, fabric, cardboard and other high-density materials less than 4mm, and the minimum gap between incisions is less than 0.06mm, At the same time, it can carve stainless steel, stone, glass, ceramics and other high-resolution materials with high-precision rendering capability, and the imaging effect is meticulous and accurate. It is a perfect high-power image rendering module. The NEJE E40 module adopts NEJE's unique external lens optical compression technology, which makes the focus energy density amazing, The energy density is 2 times higher than that of the 20W optical power module, so it has faster speed and precision in the actual engraving process. The incision in XY direction tends to be uniform, Therefore, you will get a more even effect when drawing lines. E40 module adopts more stable and reliable optical solution, which makes the service life of the E40 continuous cutting mode 40% longer than that of the ordinary laser module, and the service life of the E40 normal working mode (8 hours per day) even reaches 7 years. The NEJE team's goal for E40 is to become the next classic, You can always believe that it will constantly brings you more amazing projects.

WHAT NEJE A40640 CAN BRING TO YOU?

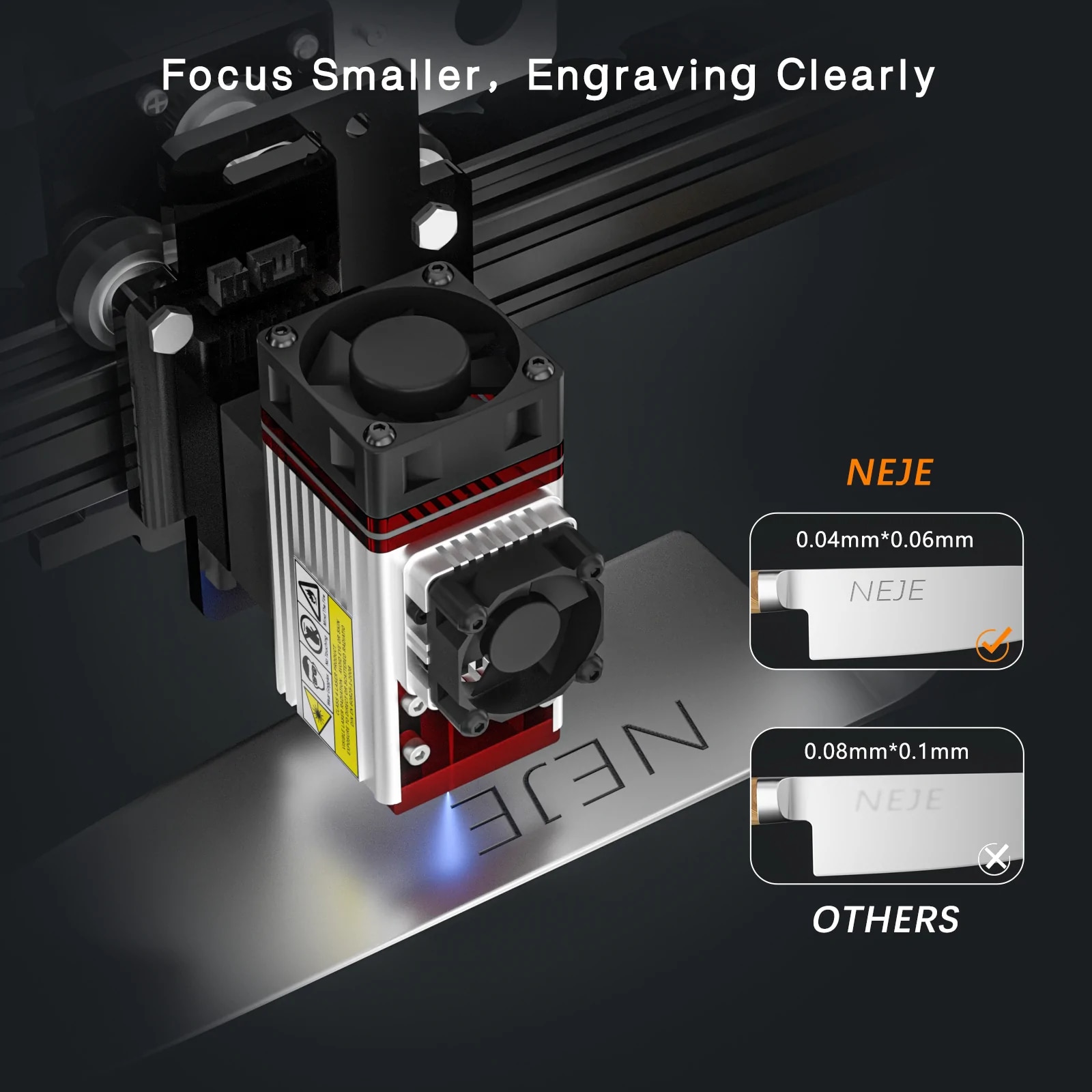

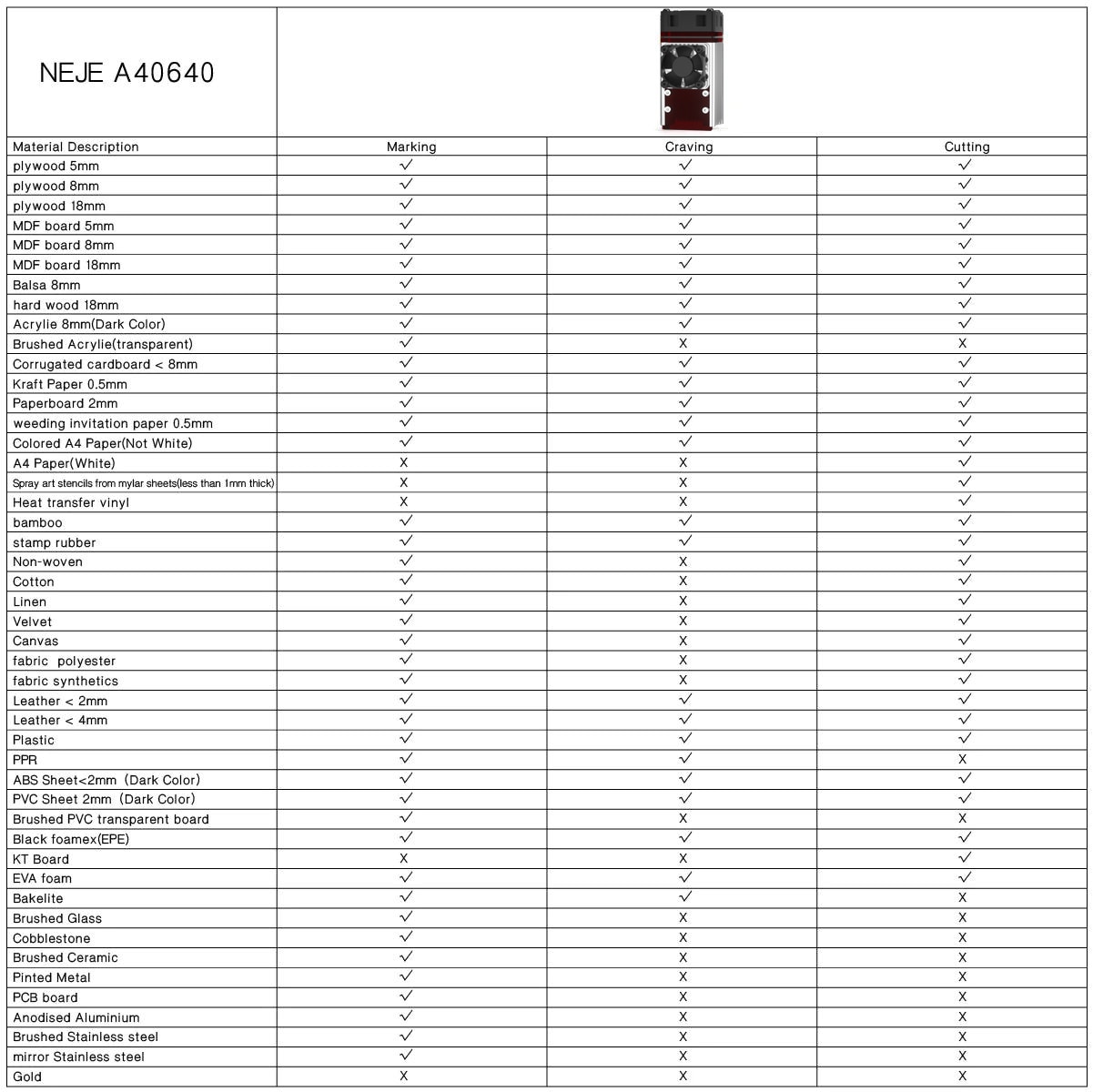

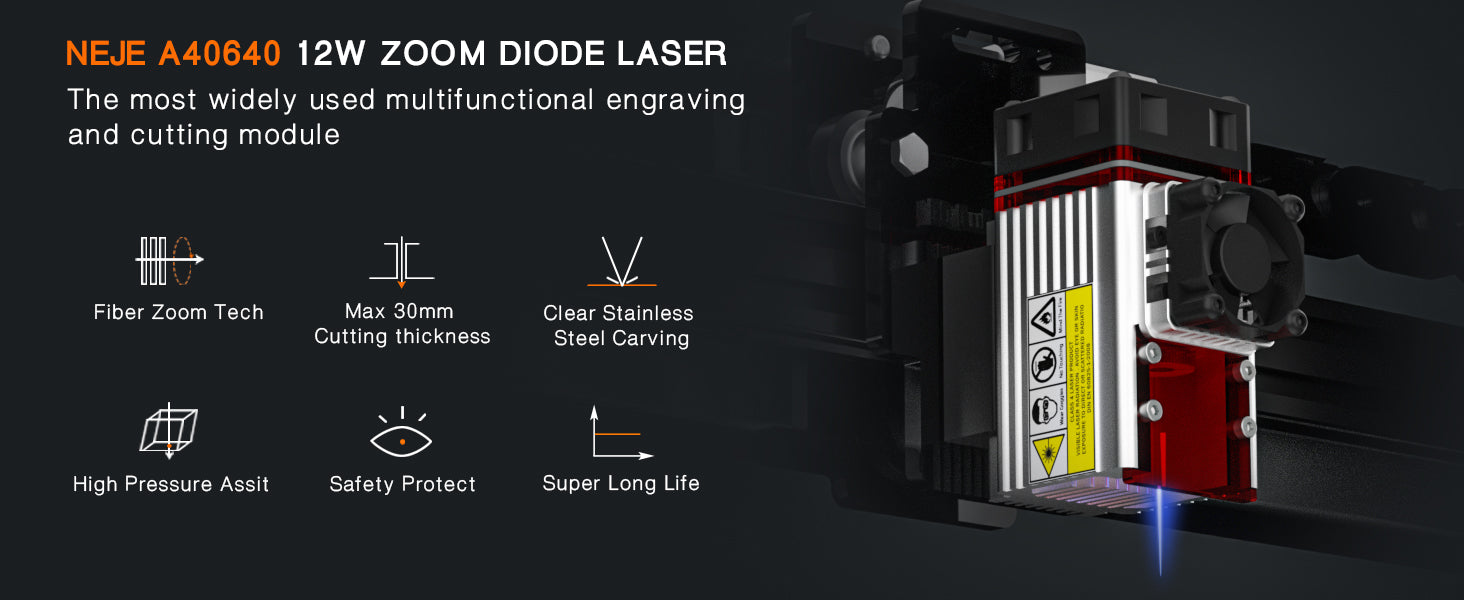

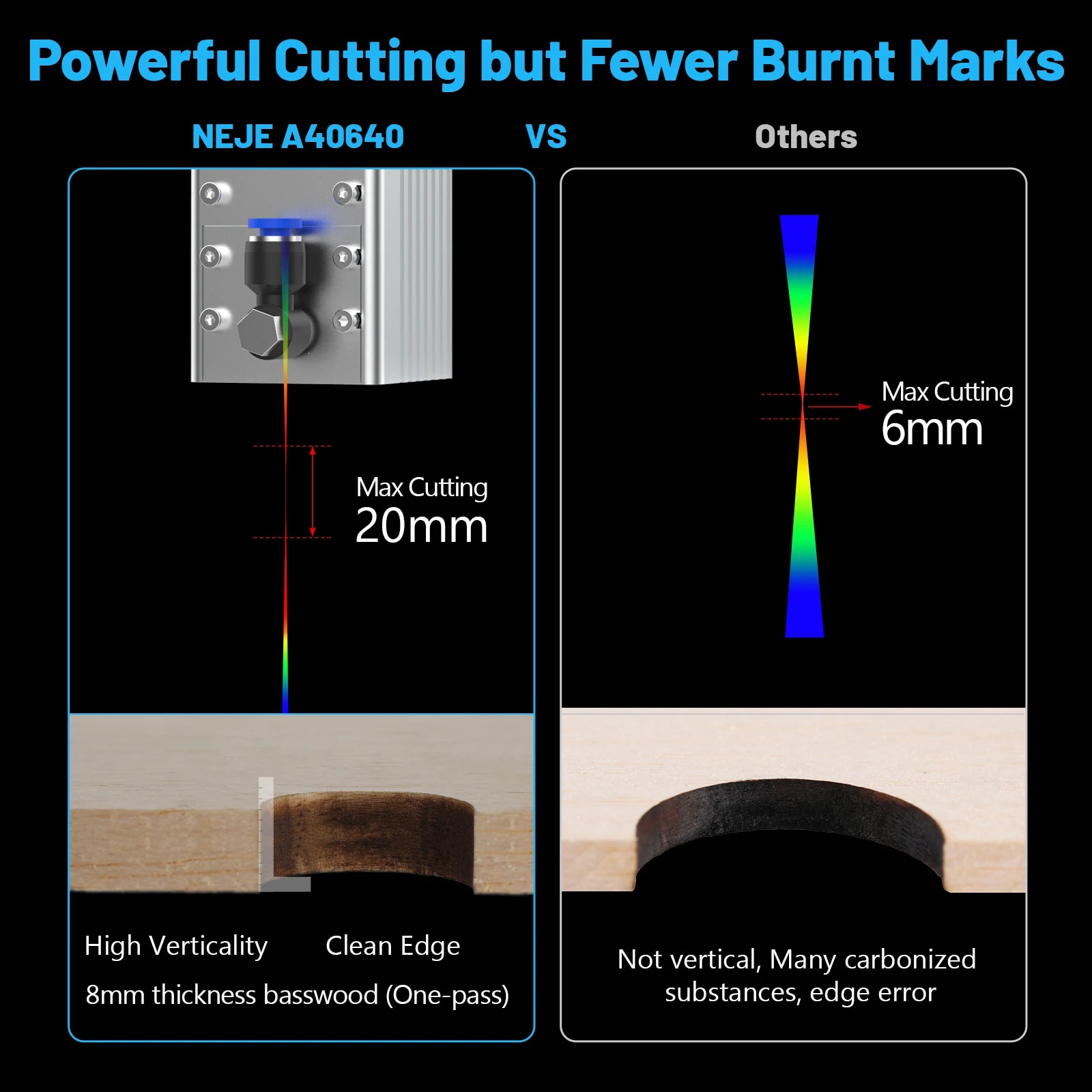

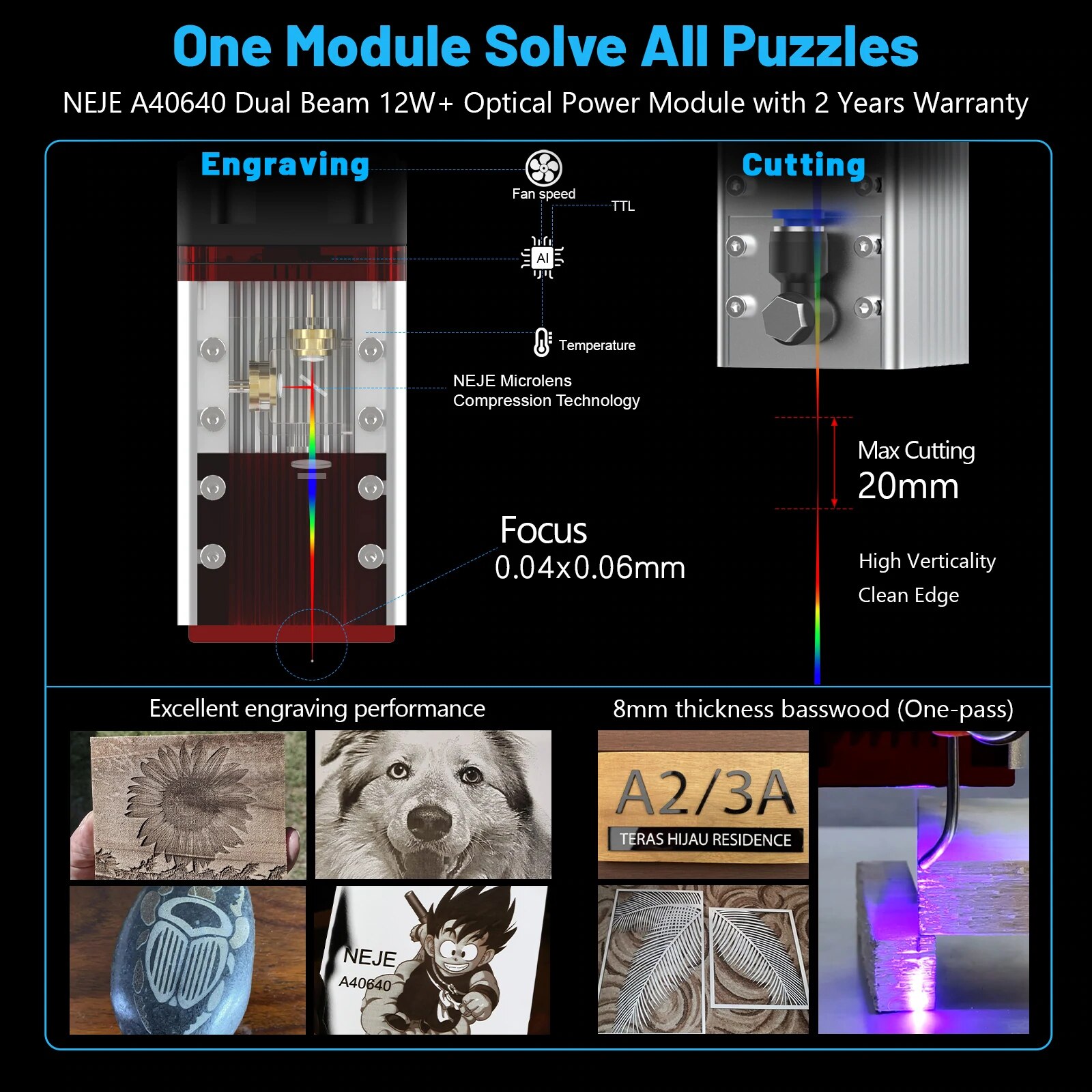

A40640 (The most widely used module) is a classic creative master dual beam zoom laser module, it is the world's first 2 beam laser diode engraving and cutting module with zoom design, with the best metal engraving ability, fast groove engraving ability, thick material cutting compatibility, Make it the most widely used module. Due to the built-in NEJE unique fiber compression technology, It has a very strong energy density (0.04x0.06mm with 12W+ pulse and 11W continuous optical power),  There are very special and top artistic expressions on the carvings of stainless steel grayscale carvings, stone carvings, Glass Carving, hardwood reliefs, canvas art, and other materials.  The A40640 is the only high-power module with variable focus section, The optimized A40640 II has higher cutting reliability, The short focus is suitable for carving hard materials such as metal stone and cutting materials with high density such as mdf, The long focus has better depth of field and smaller included angle for cutting thick wood and other materials. The excellent design makes the A40640 have a very strong vitality from the first creator of high-power diode laser to today, Due to the high power density, it has an equivalent application higher than 20W (optical power) laser in large area image engraving, If you only consider 1 module to help you solve all the needs, it is the best choice.

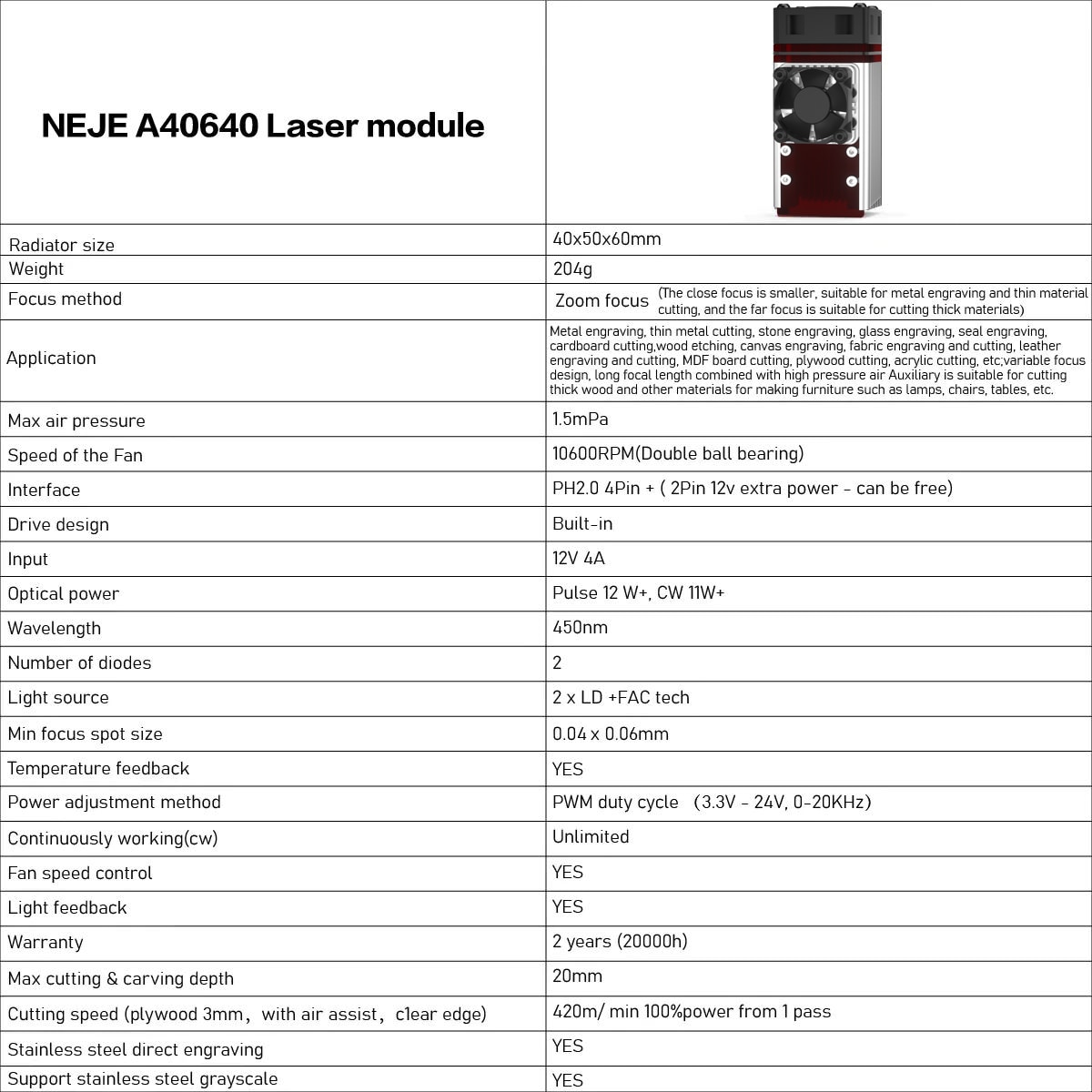

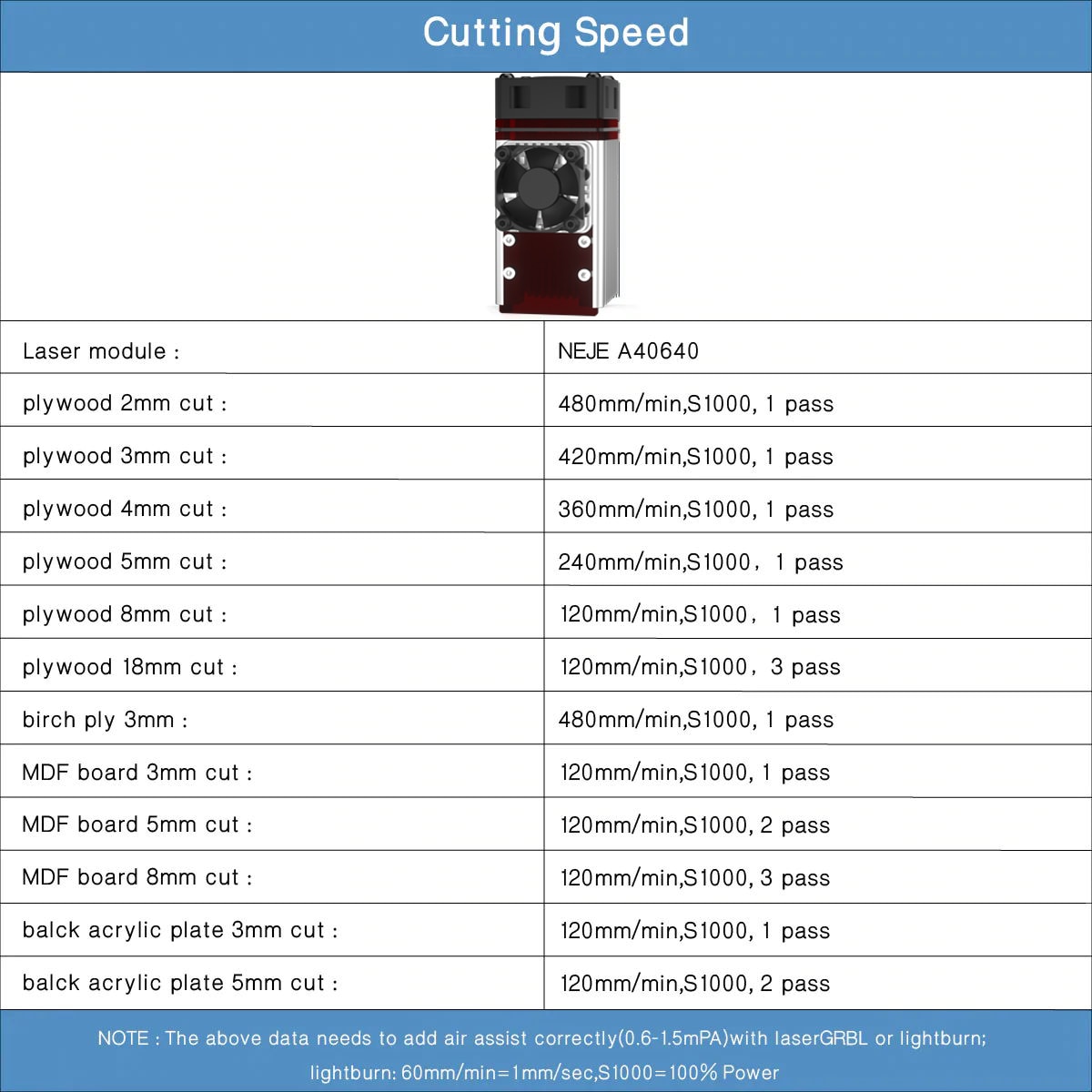

NEJE A40640 Laser Module SPECIFICATION

Module: NEJE A40640

Focus: 0.04x0.06mm

Focus method: adjustable ( Recommend 30-55mm )

Optical power: Pulse 12W+, CW 11W+, Use 80% power (9W+) when cutting for a long time.

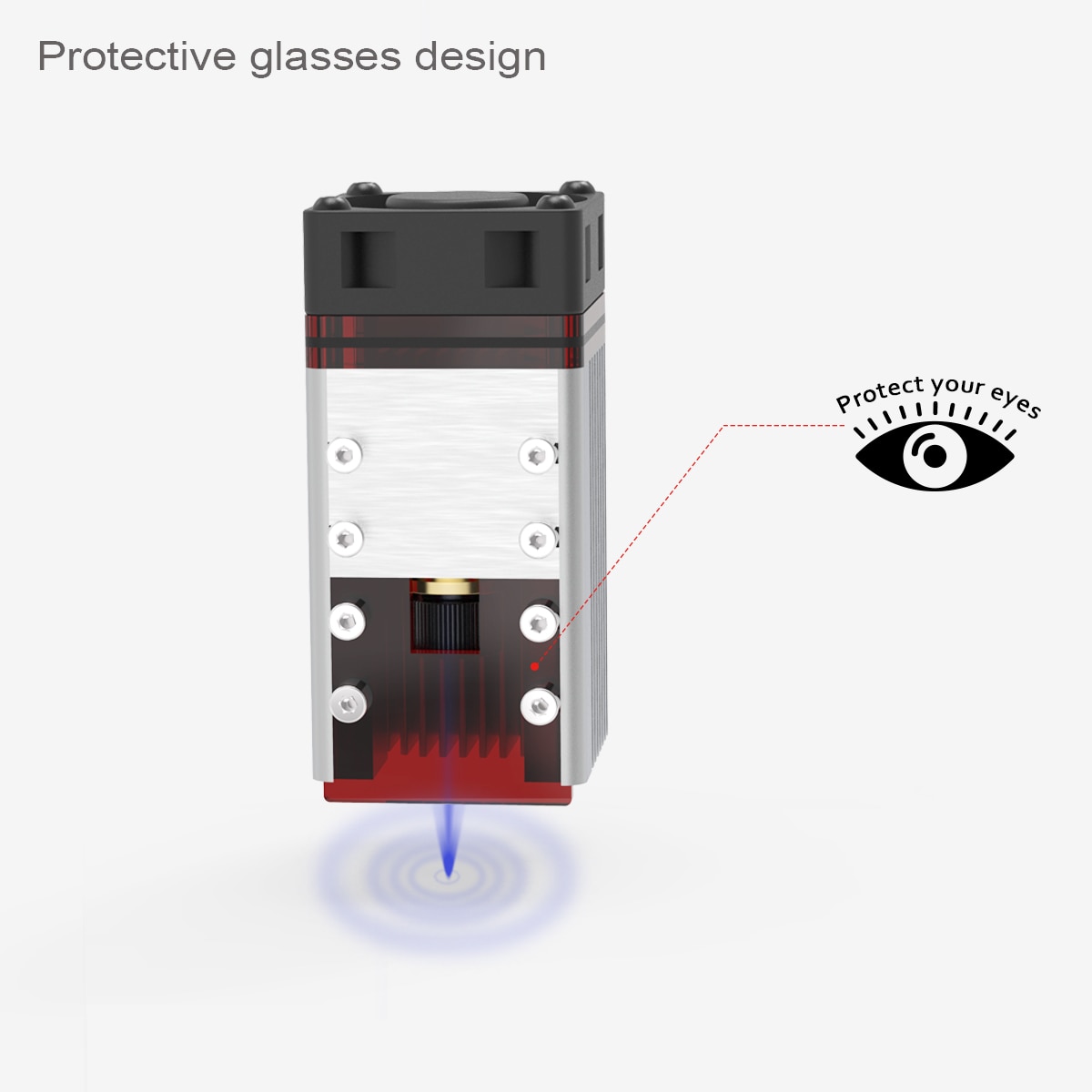

Replaceable lens design: Yes, Added window protection lens to extend service life (high temperature resistance of 1000 degrees Celsius)

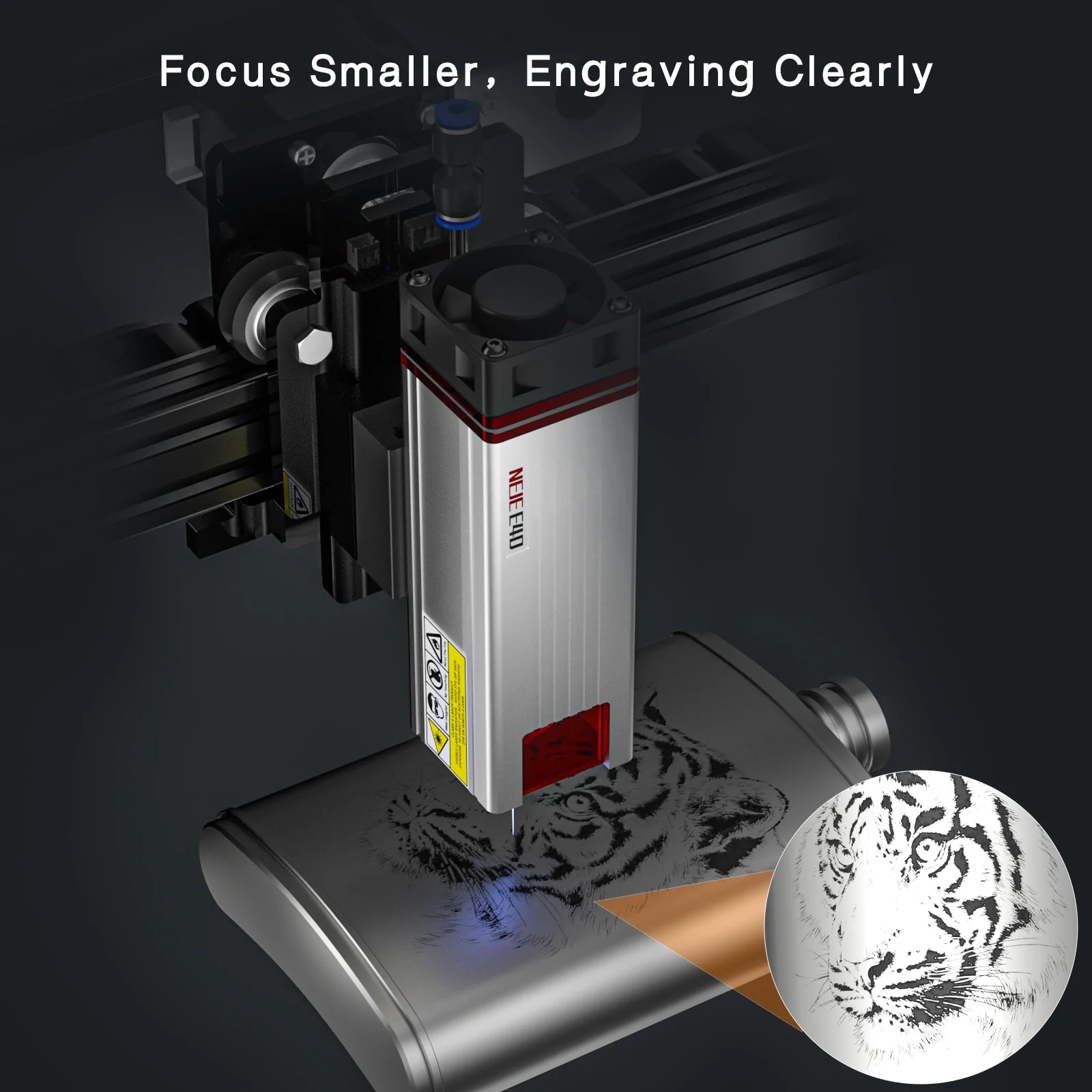

Stainless steel direct grayscale engraving: Yes

3D hardwood engraving: Yes

Maximum cutting thickness: 20mm

Wavelength: 450nm

Weight: 204g

Module Size: 40x50x85 mm

Input: DC 12V 4A

Interface: 4pin PH2.0

Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 3 Plus, NEJE 2s Max, NEJE 2s Plus, etc...

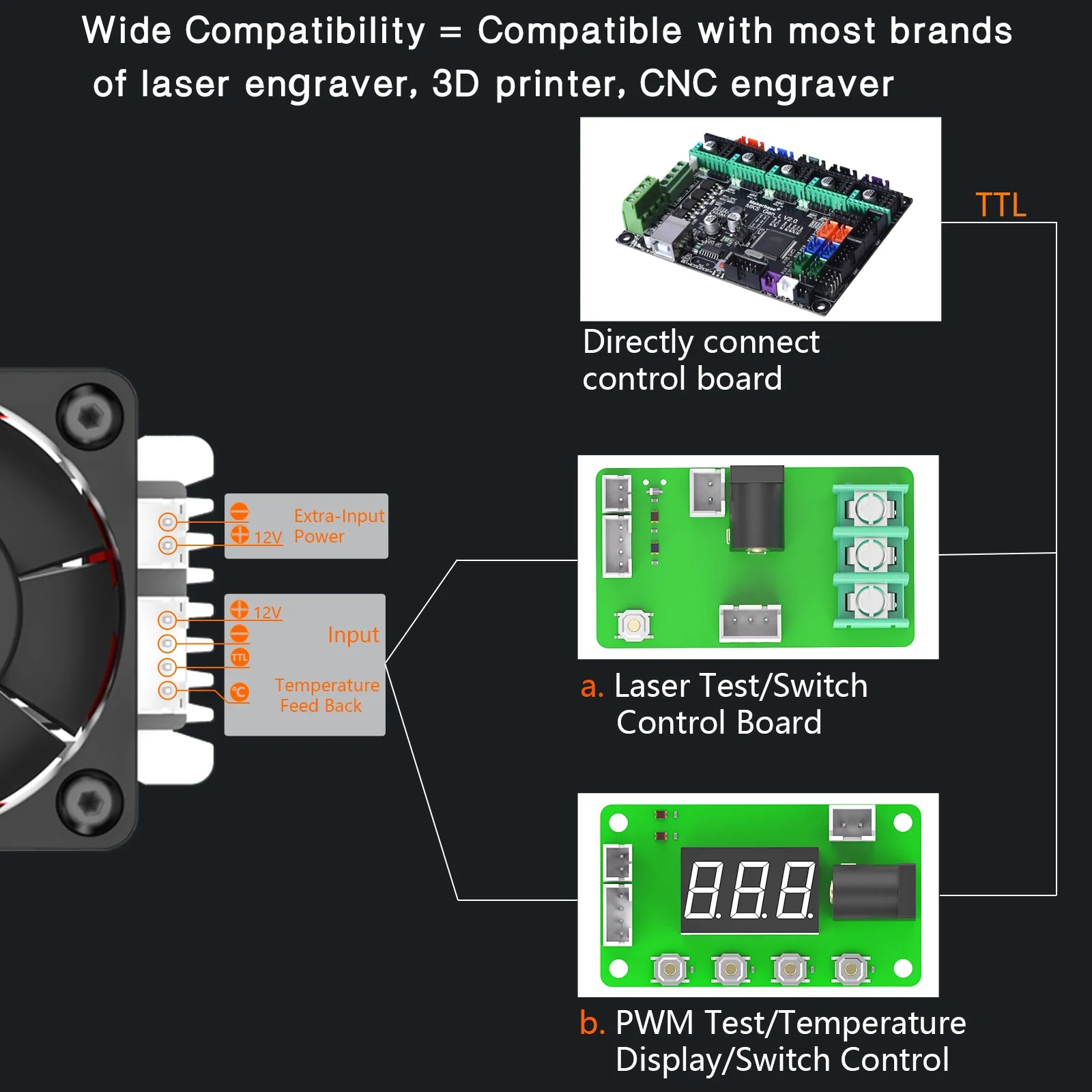

Power control: PWM Power Modulation

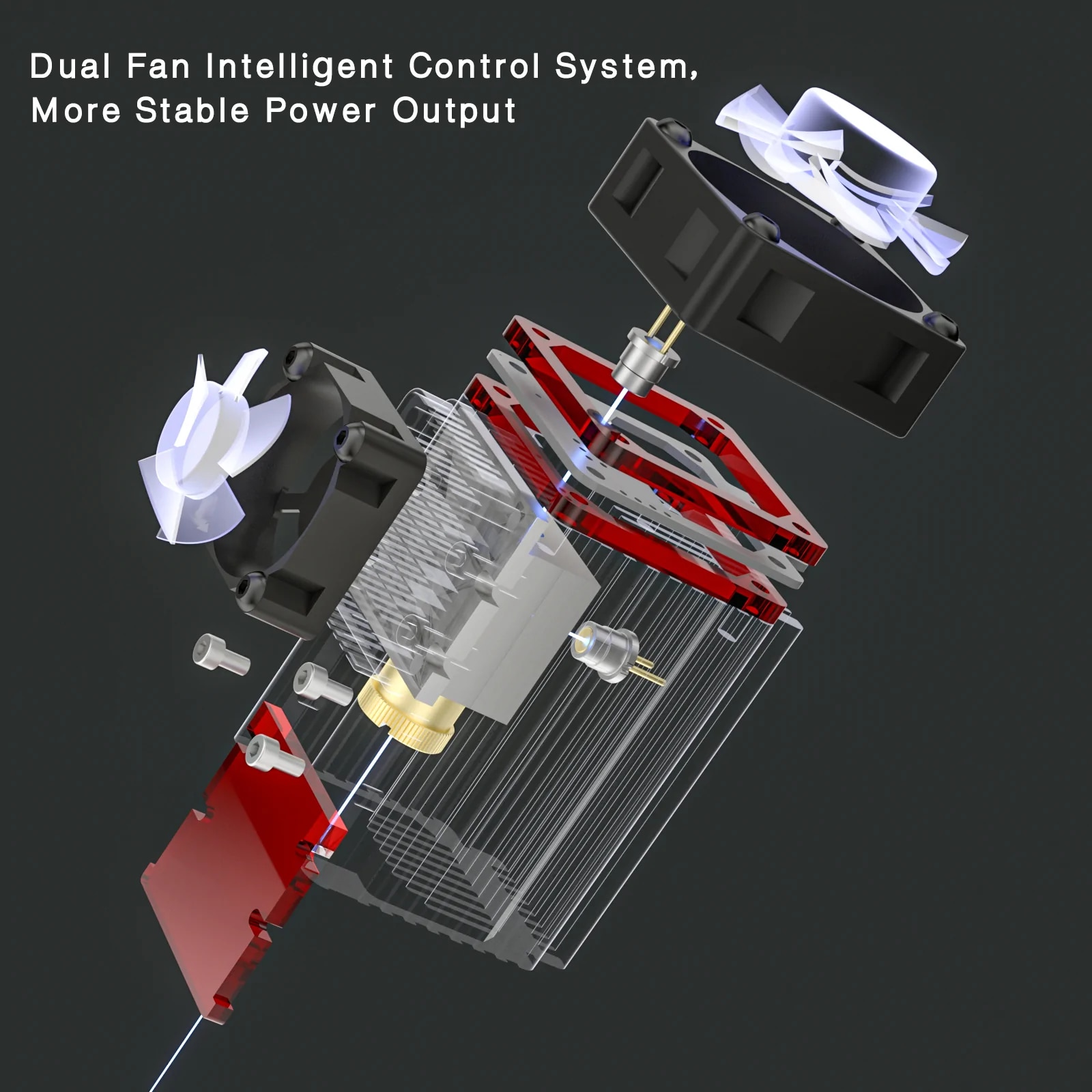

Fan: double ball high life fan

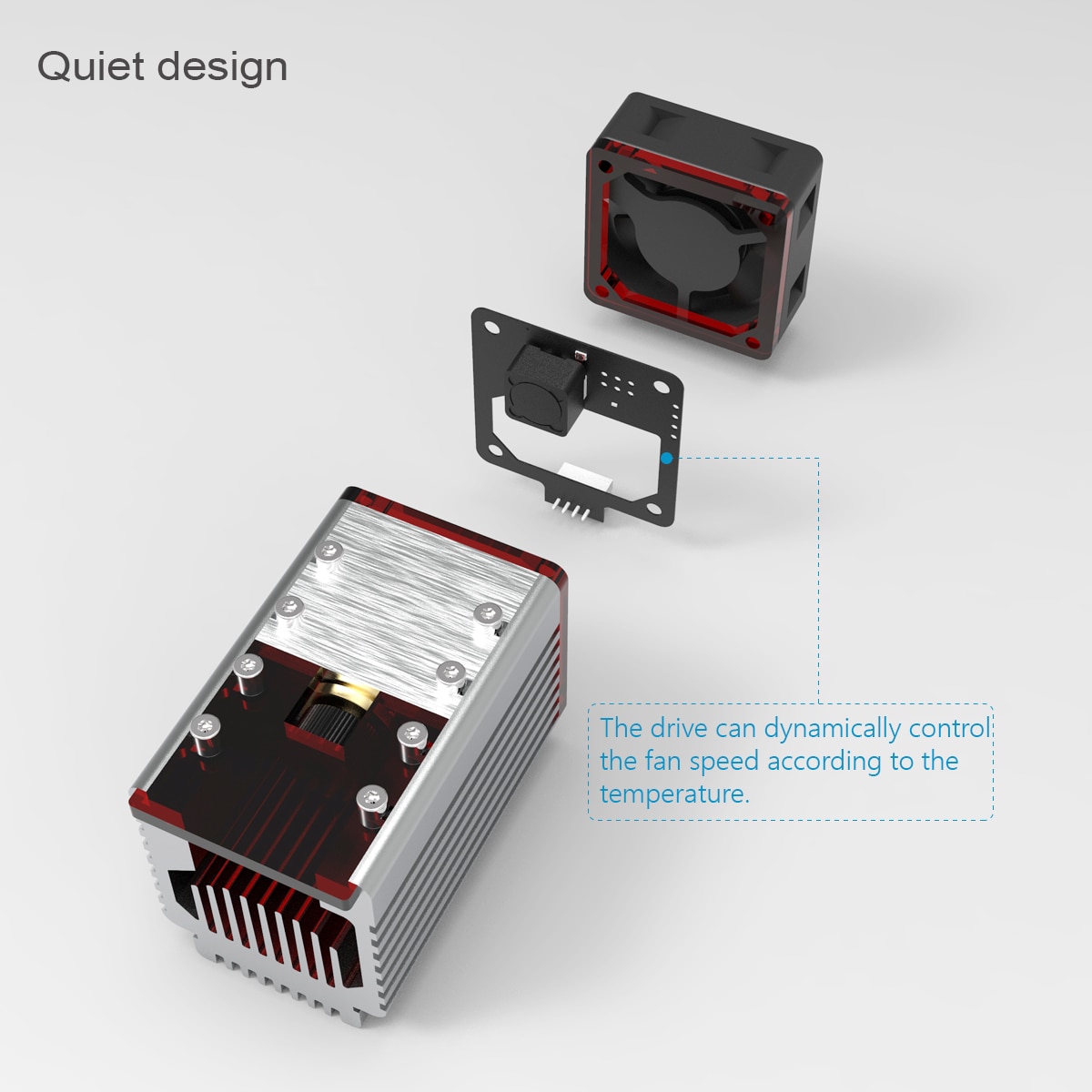

Drive: NEJE smart quiet drive, built-in static elimination technology.

Surge protection: Yes

Smart feedback: Yes

Temperature feedback: Yes

Temperature control: 45℃

air pump: 0.5-1.5mpa clean air (Needle type air nozzle supports oily and water-containing air source, and sealed air nozzle can only use clean air pump)

Air interface: 4mm pvc trachea

Original registered brand: Yes

Warranty: 2 years

Warranty Statement: The conditions of NEJE's free after-sale policy must be met under the conditions of non-human disassembly and misoperation and use in the correct environment.

If the wrong voltage is input, or the lens is damaged due to lack of maintenance, it is not within the scope of free after-sale

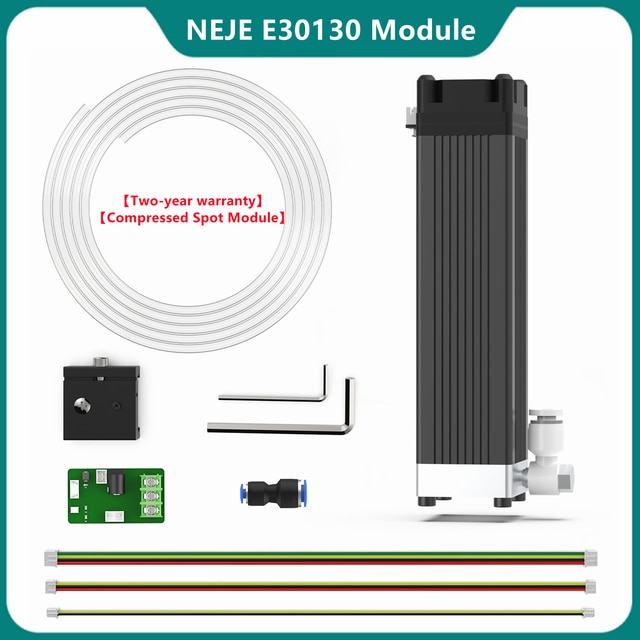

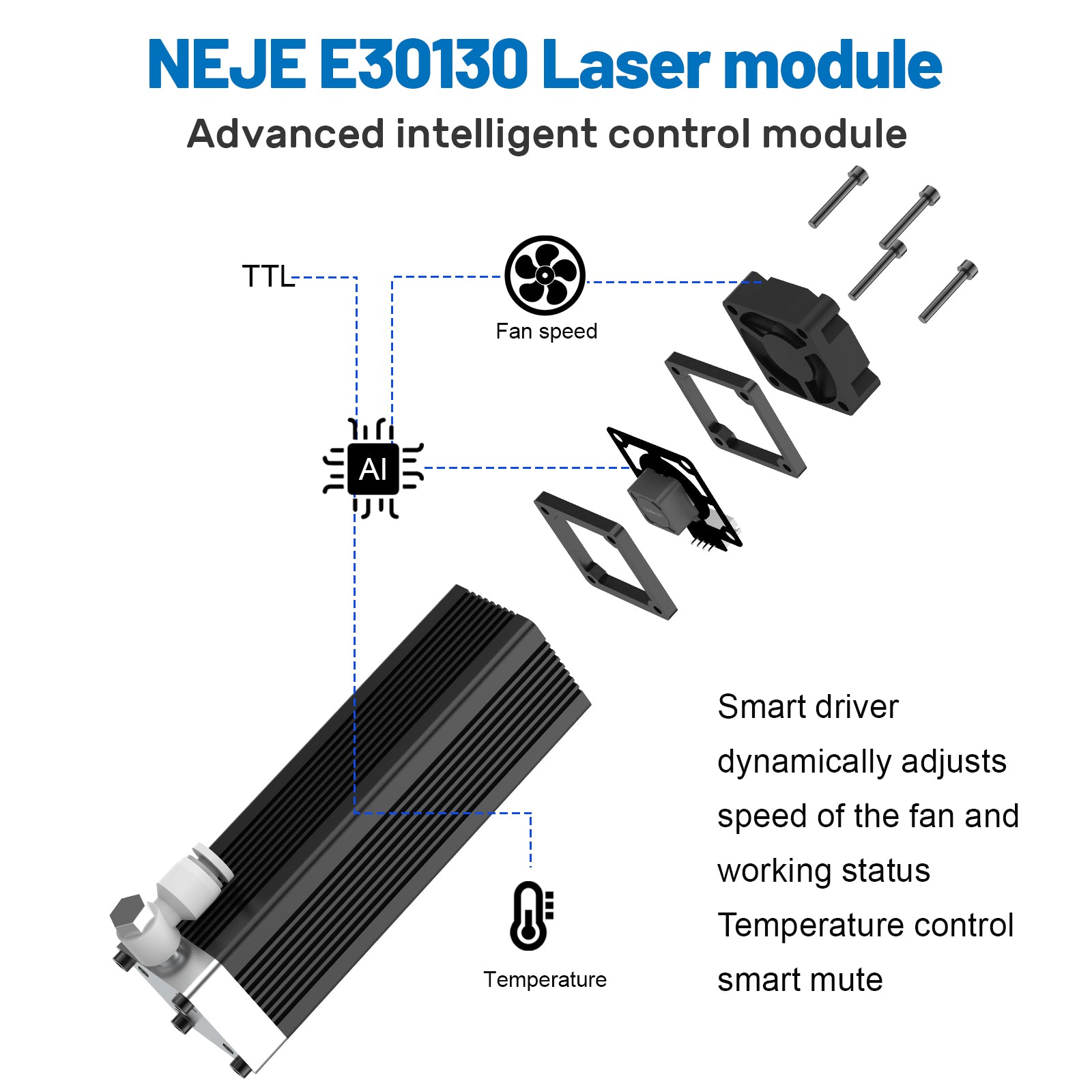

E30130 LASER MODULE DESCRIPTION

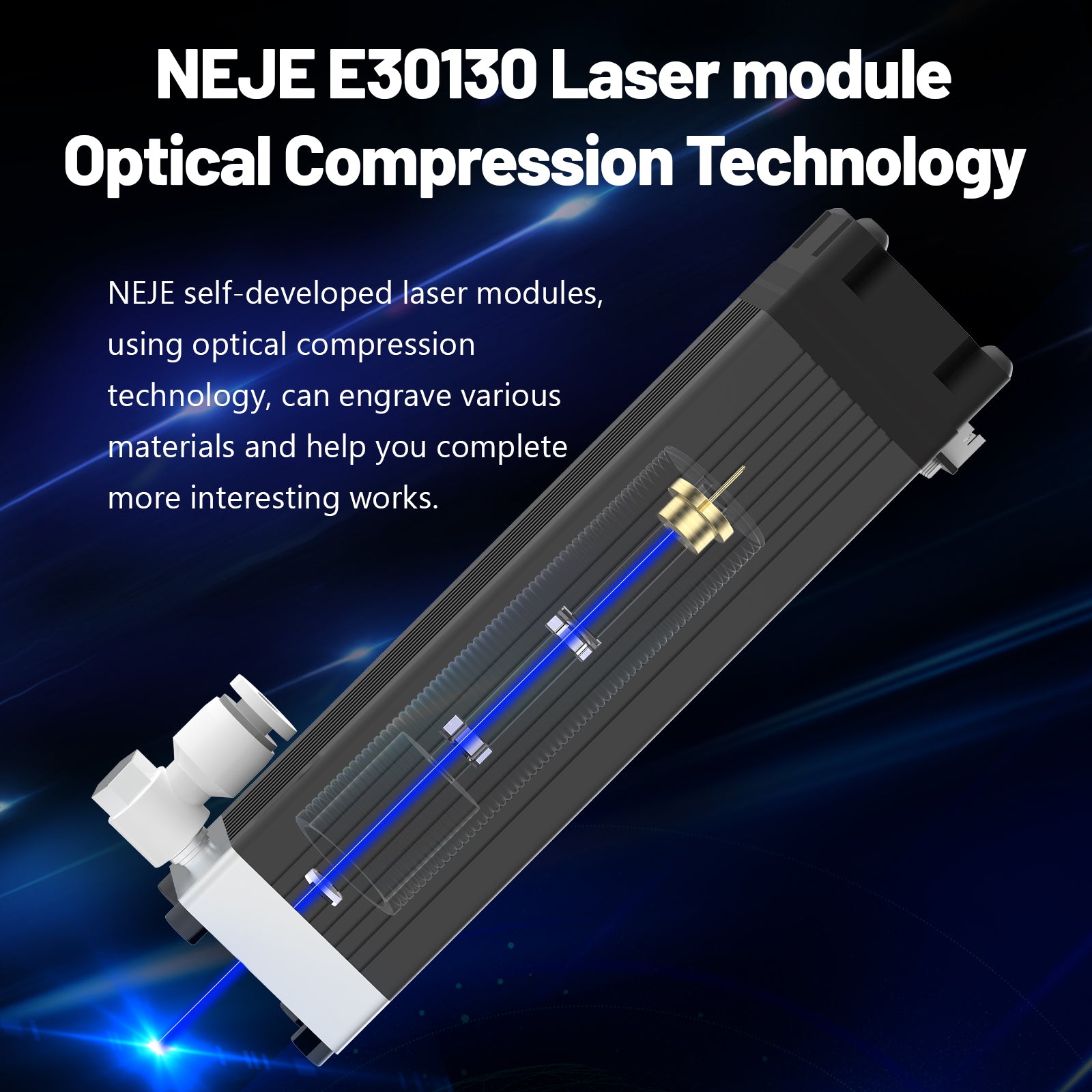

NEJE E30130 is a cutting module specially designed for high-precision and stable cutting. It adopts single beam optical compression technology to make X and Y have stable square characteristics in each focal length. 0.06x0.06mm focus and 20mm (lens to focus) fixed focal length, built-in high-pressure air auxiliary interface , can directly connect 4mm high-pressure pure air pump, 300mm/s directly and cleanly cut 3mm plywood, easy to focus, can adjust the focus through fixed thickness, it is a better choice for users who use the cutting function a lot, and for users with higher XY direction symmetry and cutting accuracy. Printing a 3D nozzle protection lens for engraving is also a good choice, E30130 can also directly engrave stainless steel, stone, hardwood and other materials. Of course, the cutting process that requires extremely high symmetry is the biggest feature of E30130.

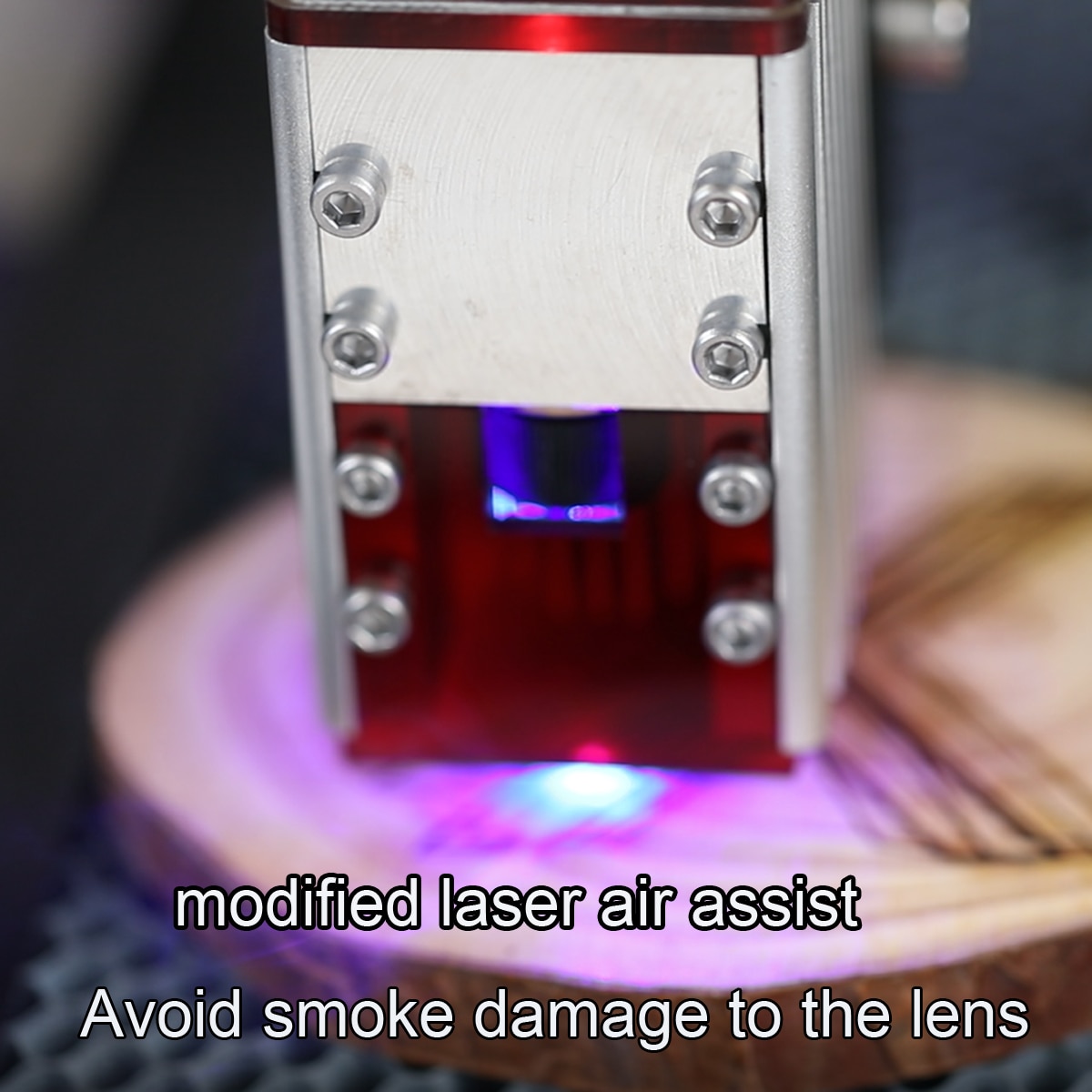

ABOUT AIR ASSIST

When do you need air assist?

Air-assisted engraving or cutting can only be used for engraving or cutting that produces more carbonized substances. Generally, the depth of engraving is less than 1mm, and the cutting of plywood less than 2mm does not require air assist. A small fan can be used to blow off the smoke generated by the engraving. Air assist is not recommended when engraving images, and adding air assist at this time will destroy image details.

What kind of air pump is suitable for cutting?

The main meaning of air assist is to blow off the carbonized material produced by cutting, and the general oxygener and electromagnetic inflator have almost no meaning. only the pressure of the oil pump and air compressor (0.4-1.5mPa) has the effect of blowing away the carbonized material. but it should be noted that the air of the oil pump contains oil and cannot be directly used for the air-assisted module of the closed cavity, otherwise the oil will contaminate the lens, resulting in power drop or damage to the lens. The air pressure of the air compressor can be used for a short time with the closed cavity, but When used for a long time, the water-containing gas will contaminate the lens, cause the power to drop, and even damage the lens.

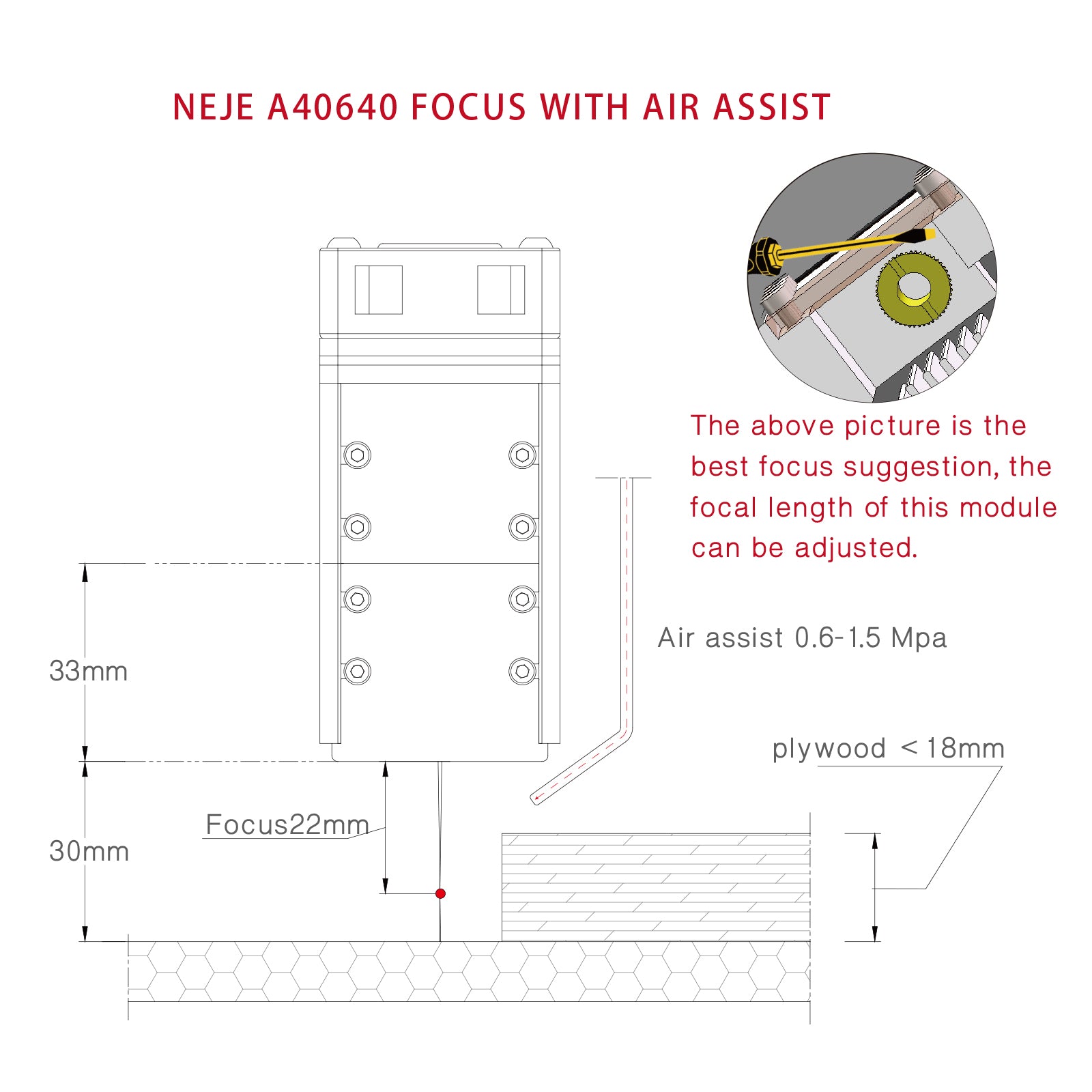

How to add air assist on the A40640 laser module?

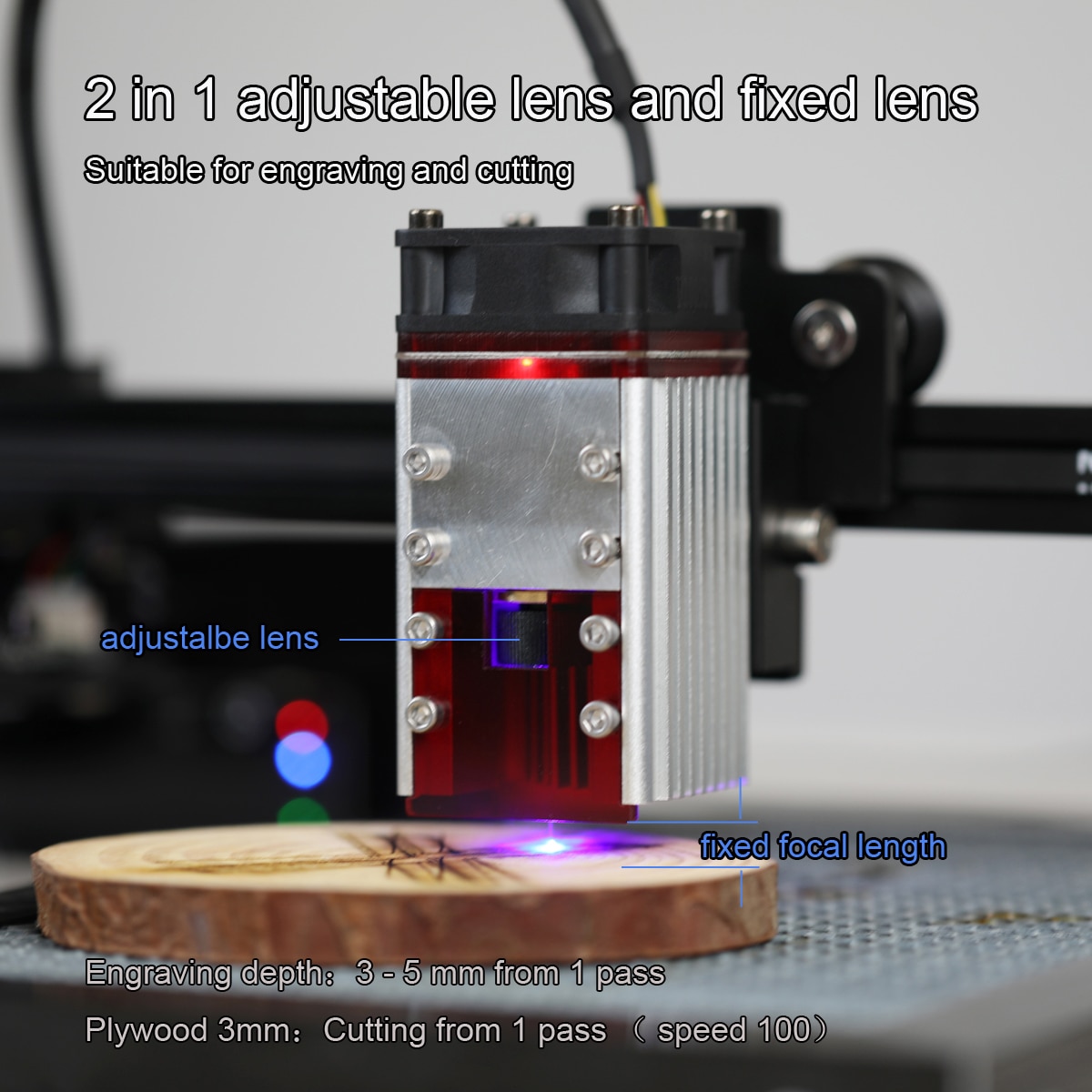

The NEJE A40640 module is an adjustable focus module. For the consistency of testing, the NEJE factory adjusts the module to 55mm focal length by default. This focal length is suitable for cutting thicker materials. This focal length is generally not commonly used. When you are suitable for the first use of the product, it is recommended to use a flat-head screw to adjust the focal length to about 30mm, which is 1-2mm away from the light baffle. This focal length has a very high focal power density and can directly engrave grayscale stainless steel images\ gray-black stone and other hard materials, NEJE A40640 can directly engrave 3D hardwood and other materials, and does not require air assistance, due to the high energy density design, A40640 can directly vaporize general wooden materials during the engraving and cutting process, so it is also unecessary to add air assist.

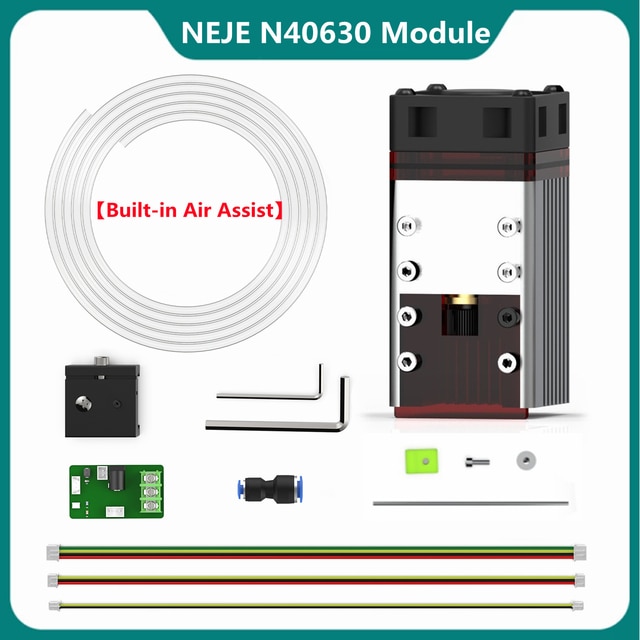

NEJE (N40630) Laser Module-1 Package List

1 x Air Assist

1 * N40630 Laser Engraving Module

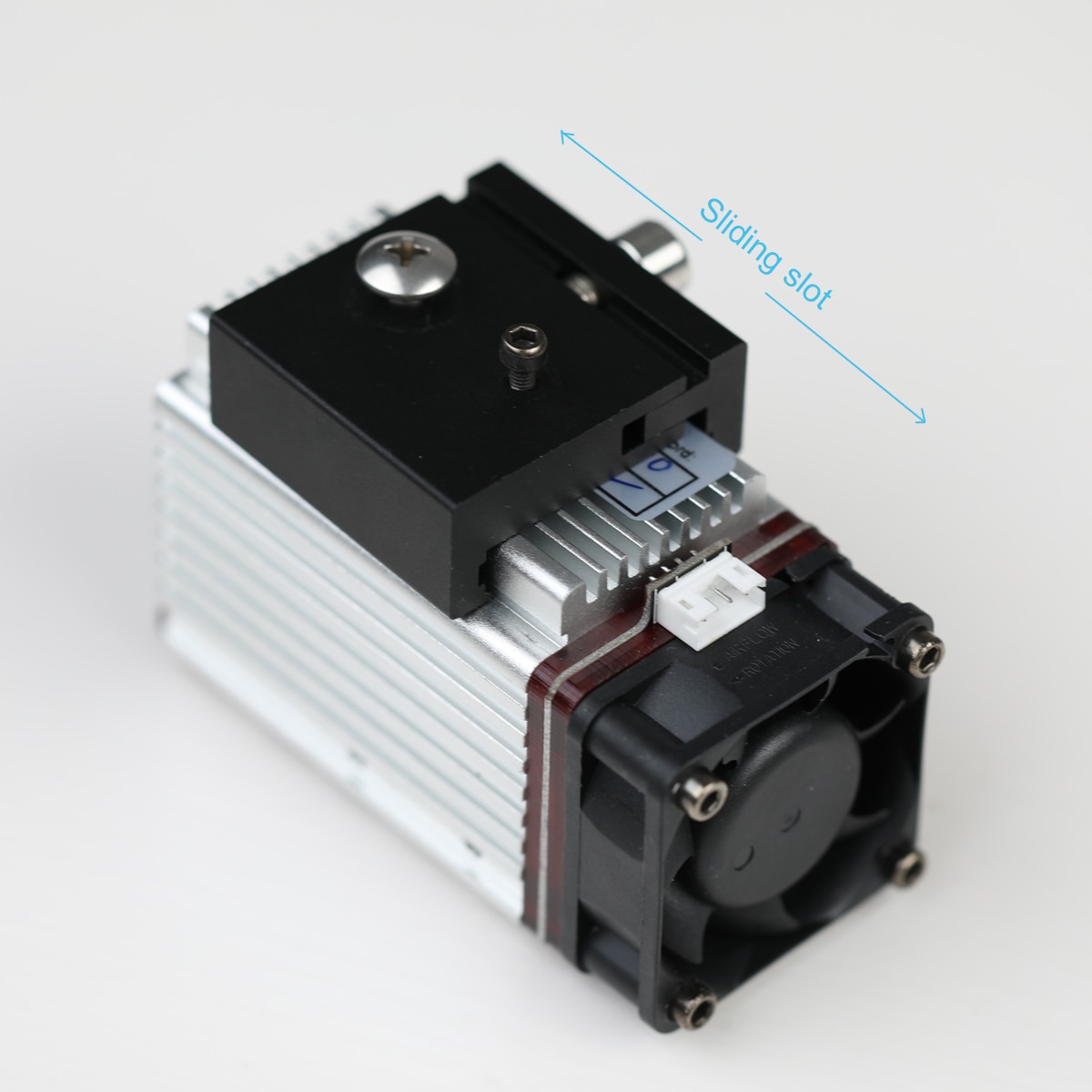

1 * Laser Module Sliding slot

1 * 4 Pin Cable(320mm Cable)

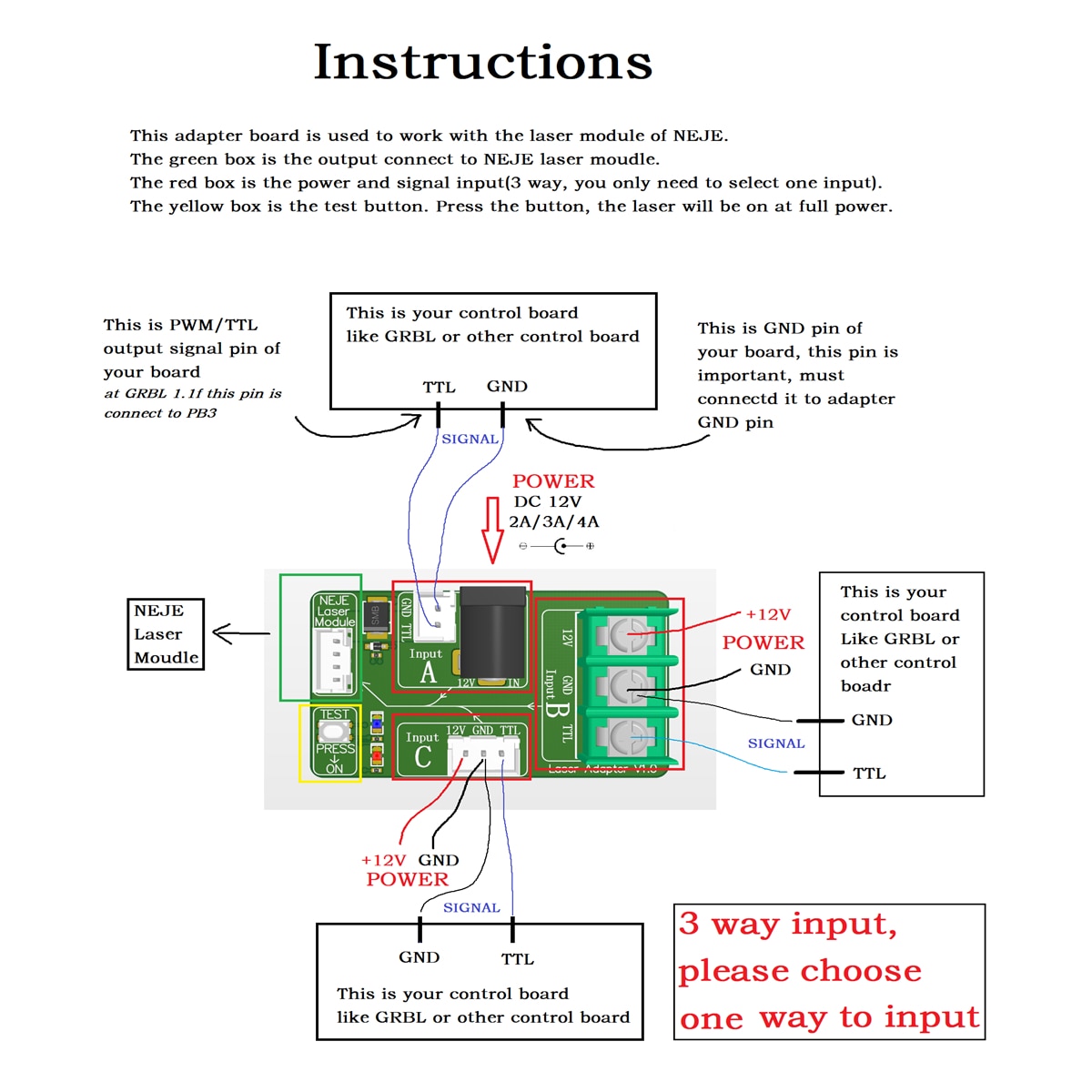

1 * NEJE Interface adapter board

1 * 2.5mm L-shaped wrench

1 * 5mm L-shaped wrench

1 * 3pin input calbe

1 * 2pin ttl cable

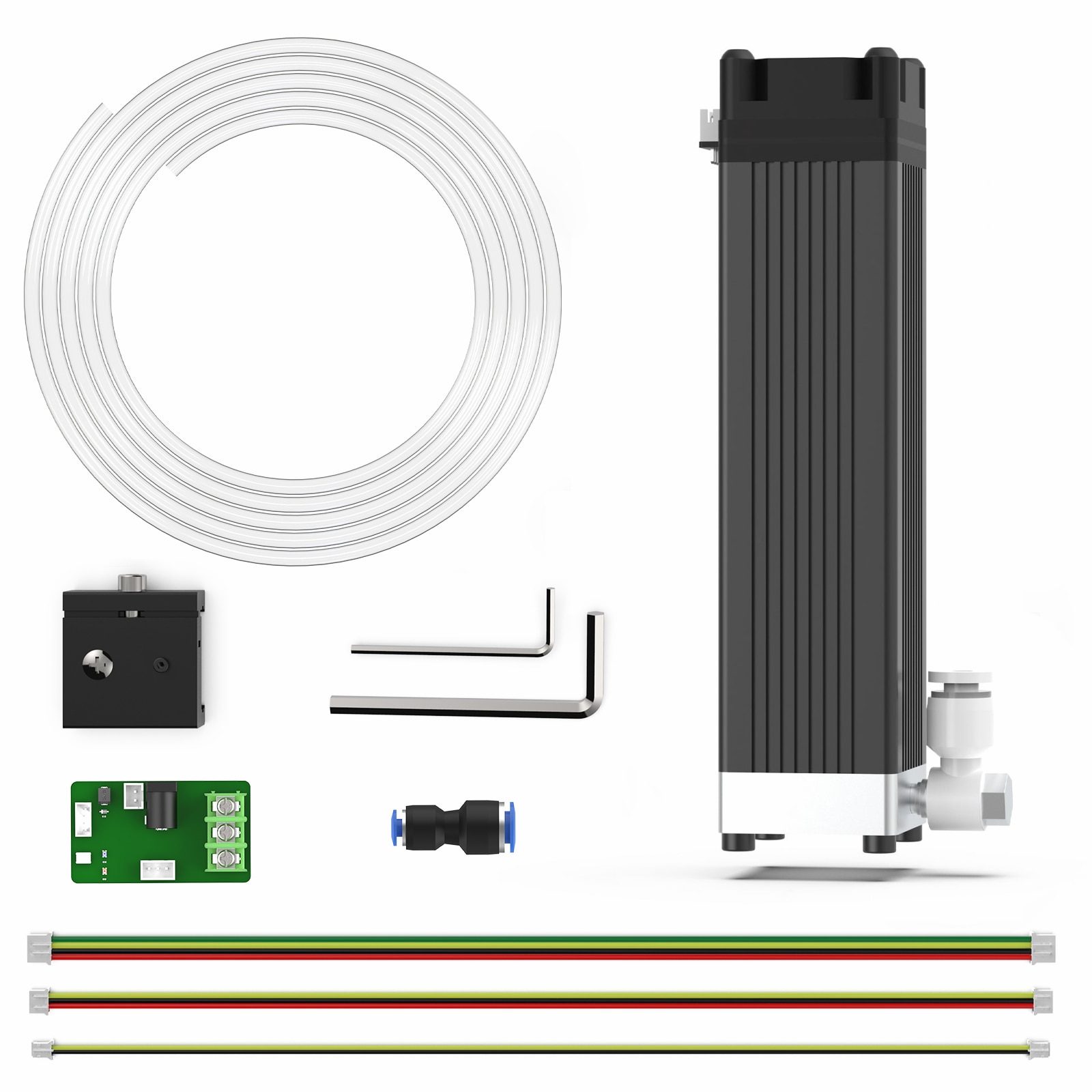

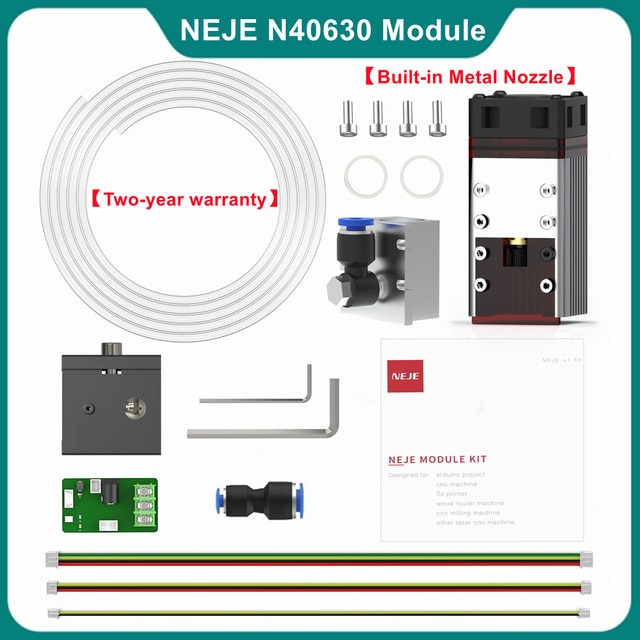

NEJE (N40630) Laser Module-2 Package List

1 * N40630 Laser Module( Built-in high pressure air nozzle )

1 * Laser Module Sliding fixture

1 * 4 Pin Cable(300mm Sports Cable)

1 * NEJE Interface adapter board

1 * 2.5mm L-shaped wrench

1 * 5mm L-shaped wrench

NEJE N40630 Laser Head Package List

1 * N40630 Laser Engraving Module

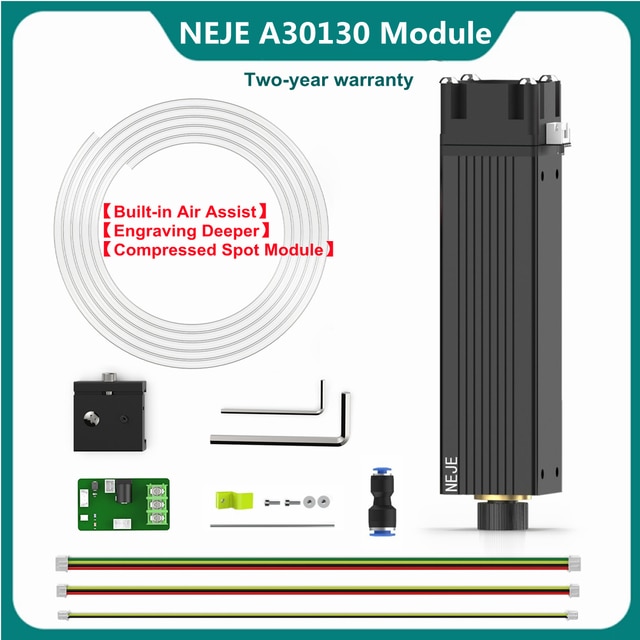

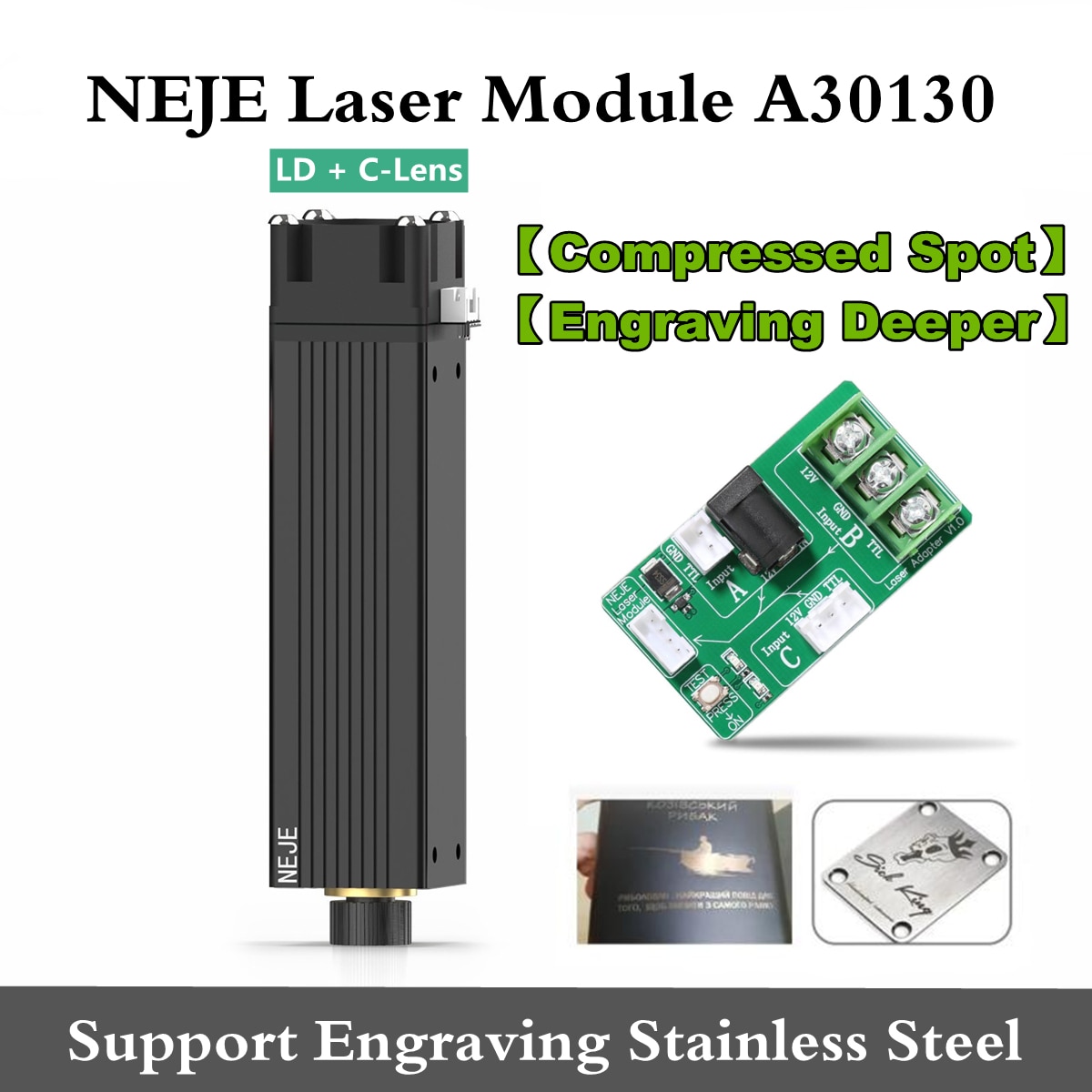

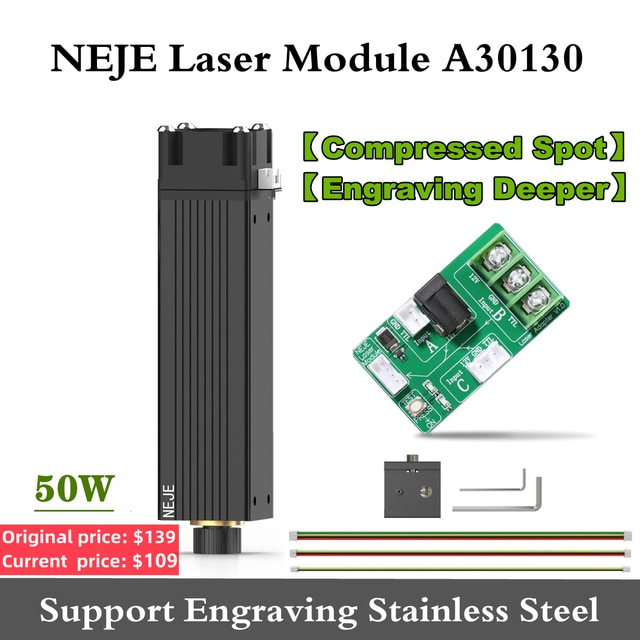

NEJE (A30130) Laser Module Kits Package List

1 x A30130 laser module

1 x sliding card slot

1 x L wrench

1 x L-shaped small wrench

1 x interface adapter board

1 x 4pin laser line

1 x 3pin 2.54 interface output cable

1 x 2pin TTL control line

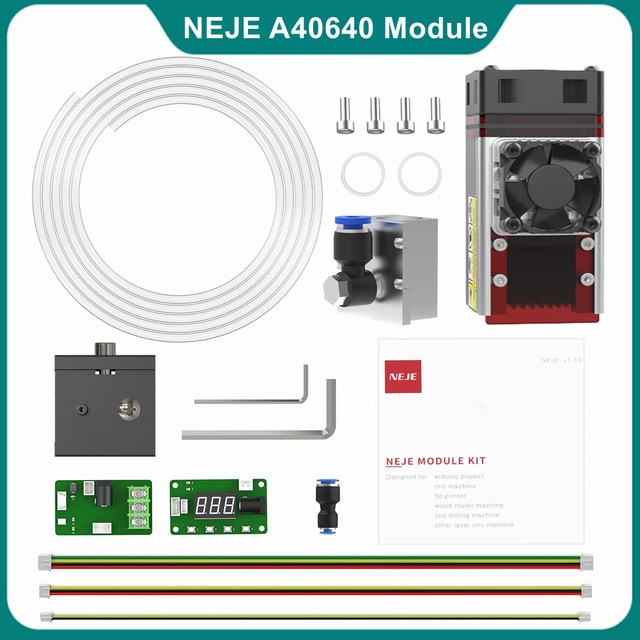

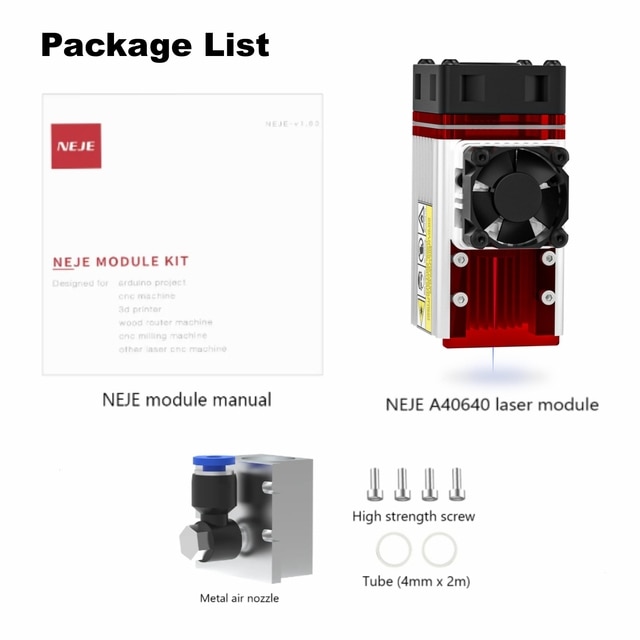

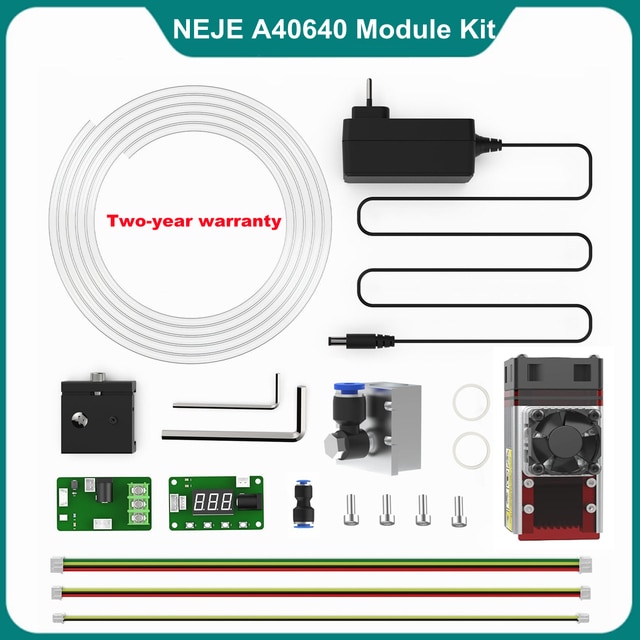

A40640 Laser Module Kits Package list:

• 1 x Air Assist

• 1 x A40640 Laser Engraving Module

• 1 x Laser Module Sliding fixture

• 1 x 4 Pin Cable(30cm)

• 1 x 2pin yellow and black signal line + 3pin input line

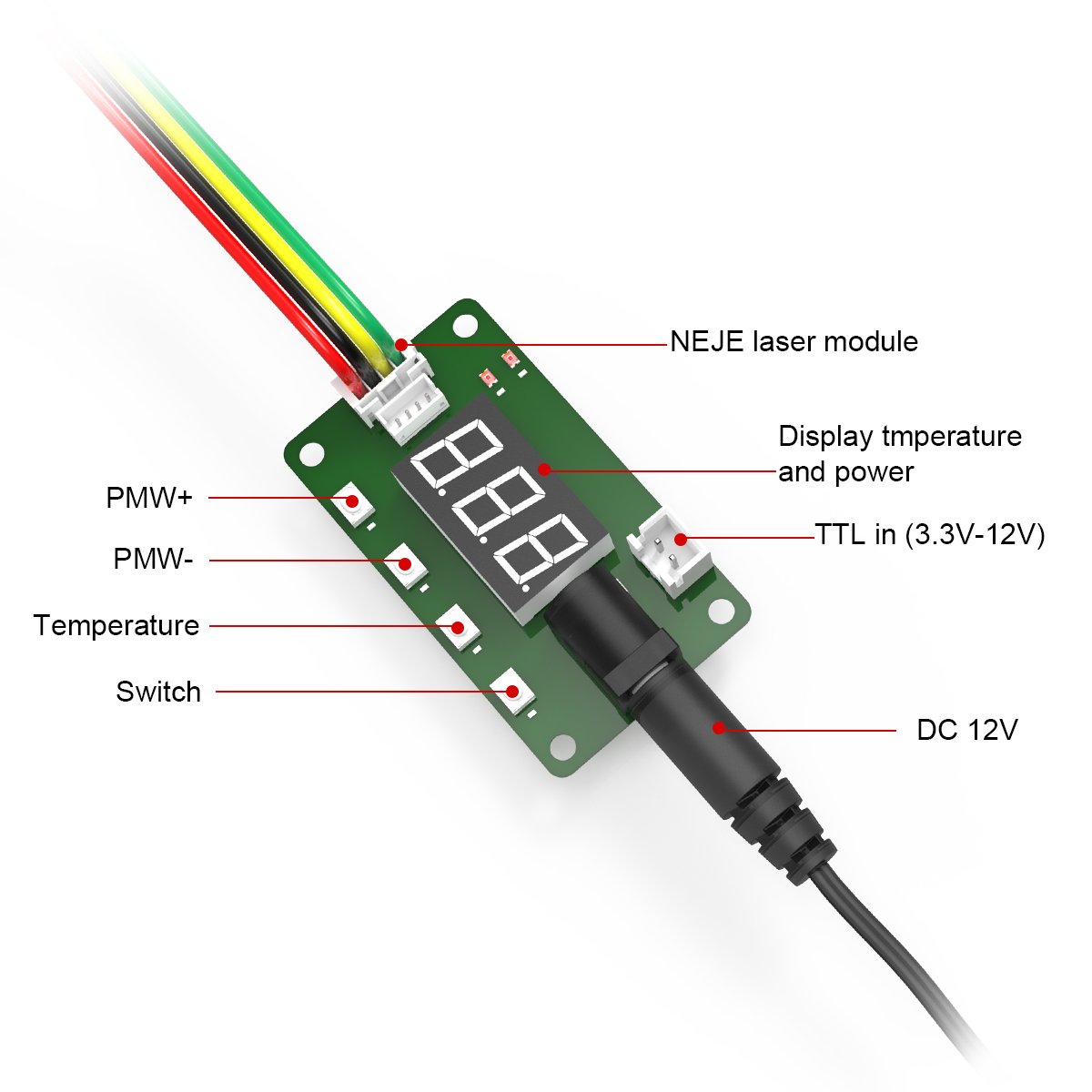

• 1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board

• 1 x Interface adapter board

• 1 x 2.5mm L-shaped wrench

• 1 x 5mm L-shaped wrench

• 1 x Charger（EU/US/UK/AU）

A40640 Laser Module-1 Package list:

• 1 x Air Assist

• 1 x A40640 Laser Engraving Module

• 1 x Laser Module Sliding fixture

• 1 x 4 Pin Cable(30cm)

• 1 x 2pin yellow and black signal line + 3pin input line

• 1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board

• 1 x Interface adapter board

• 1 x 2.5mm L-shaped wrench

• 1 x 5mm L-shaped wrench
